Tally Dascom 2600/2610/PRN-7

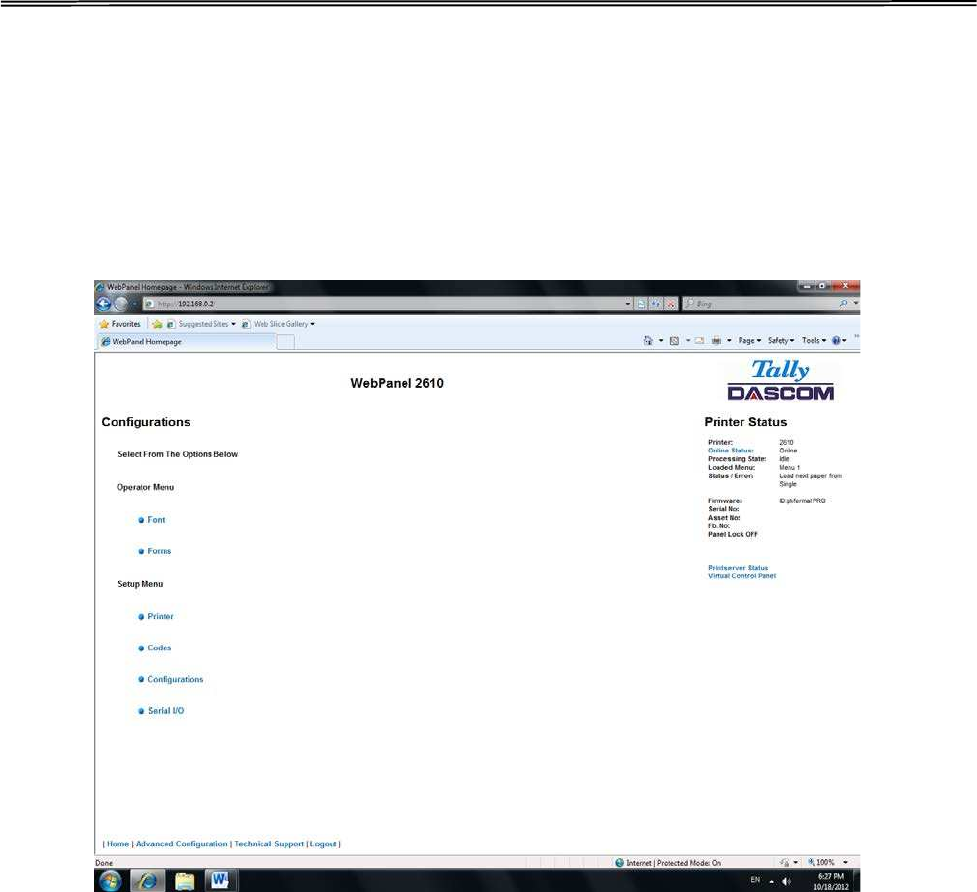

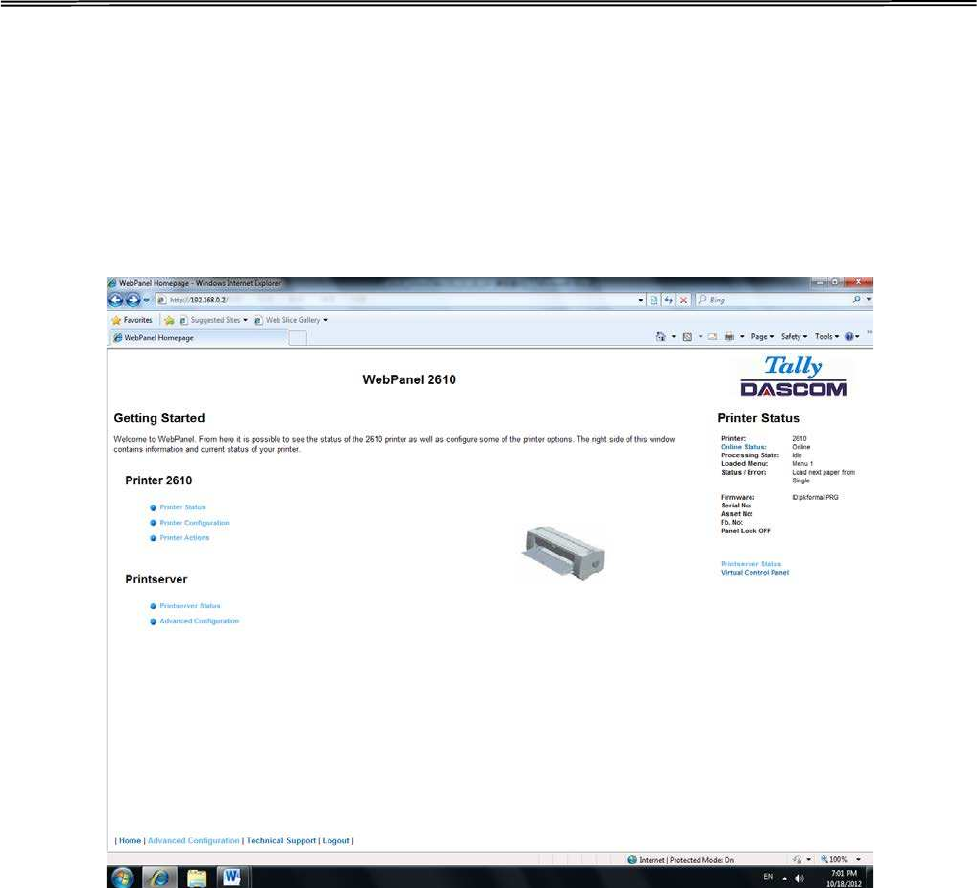

6.3.5 Printer Configuration

Selecting this option allows you to configure specific parameters in the printer. When

one of

these menu options is selected, a new page will load showing the options which can be

viewed or modified.

55

Tally Dascom 2600/2610/PRN-7

Example 1

Changing the dropdown menu option.

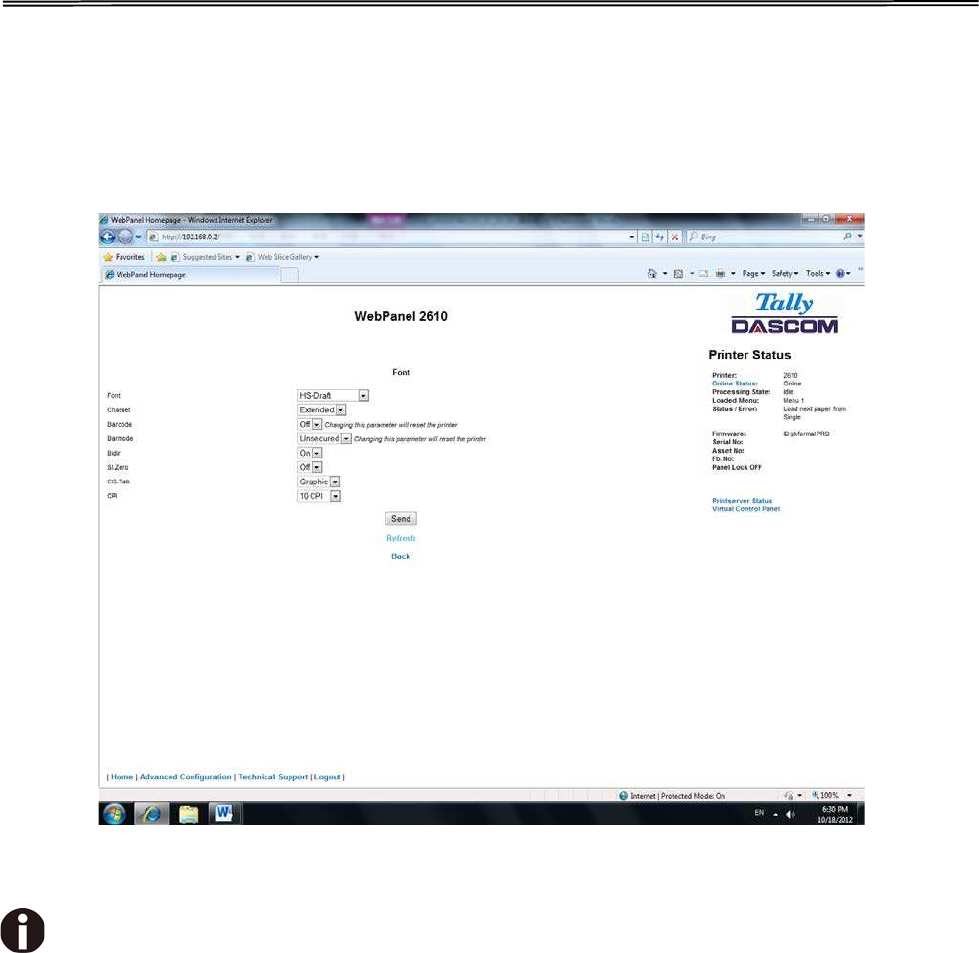

In this example, we are modifying the selected font to a different font. Select “Font”. A

new page appears.

Select the Font dropdown menu and choose the new font. Select “Send”.

1) Changes are not applied until “Send” is selected.

2) To reset the changed value to the prior value, select “Refresh” instead of “Send”.

3) To return to the prior page without applying the change, select “Back”.

56

Tally Dascom 2600/2610/PRN-7

Example 2

Changing an entered value menu option.

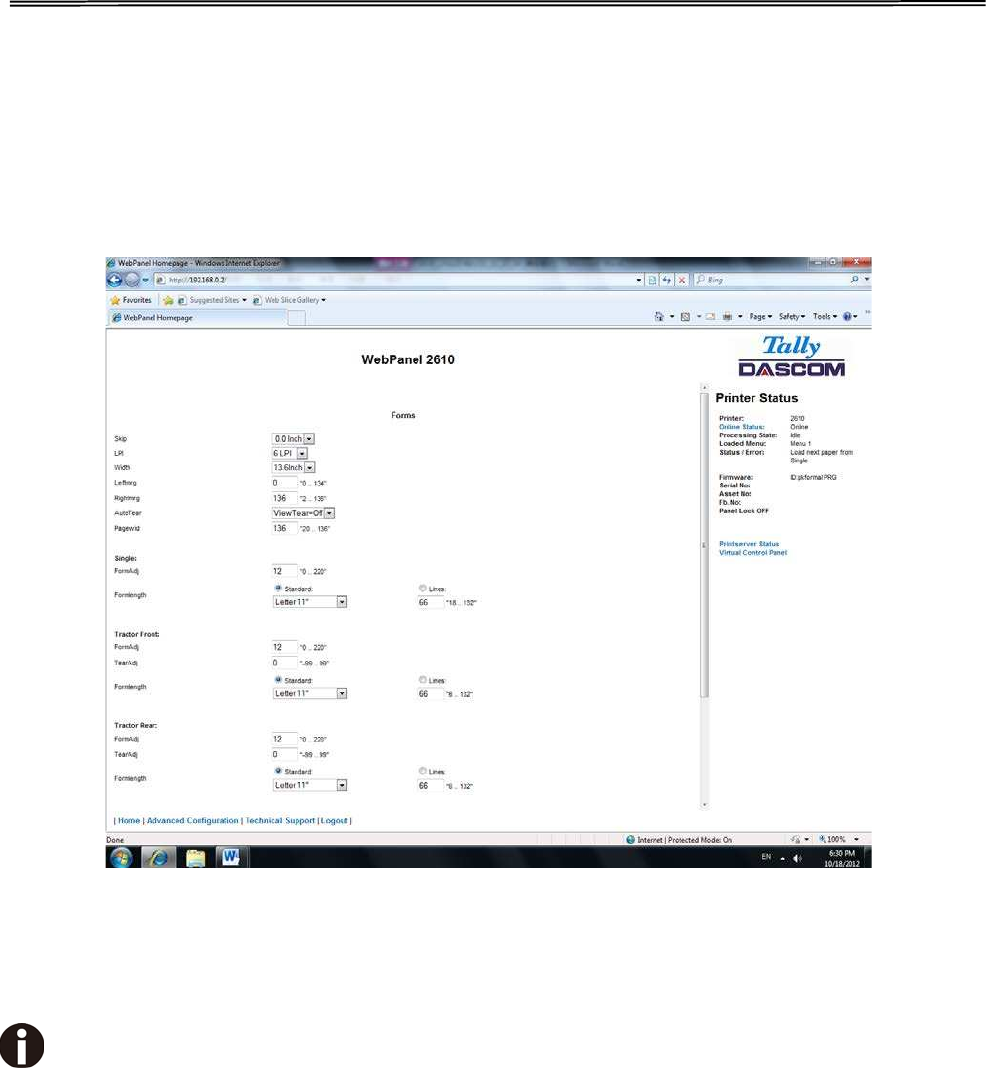

In this example, we are modifying the selected form length to a different form length.

Select

“Forms”. A new page appears:

Select the Form Length field by highlighting the contents of the box and enter the new

form length.

The acceptable parameters are listed to the right of the field. Select “Send”.

1) Changes are not applied until “Send” is selected.

2) If the entered value is out of range of the acceptable parameters, the previous value

will be re-instated.

3) To reset the changed value to the prior value, select “Refresh” instead of “Send”. To

return to the prior page without applying the change, select “Back”.

4) The default name is “conf.cfg”, but it can be renamed. Saving the file to disk. This will

allow it to be transferred to other printers using the “Send Configuration To Printer”

option on the actions web page.

57

Tally Dascom 2600/2610/PRN-7

6.3.6 Printer Actions

Selecting the Printer Actions link will produce a page with a list of actions that can be

performed on the printer.

58

Tally Dascom 2600/2610/PRN-7

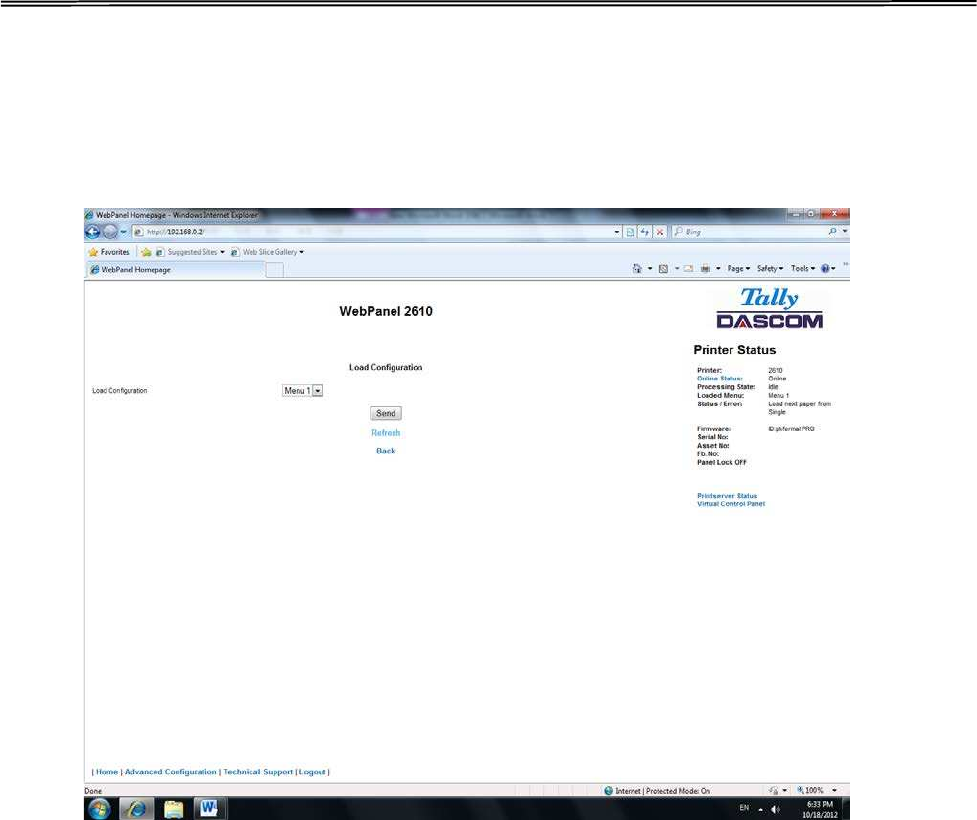

6.3.7 Load Configuration

Loads the settings stored in a menu into the printer as the current settings. When the

Load Configuration link is selected, the following page will be displayed:

Select a menu and confirm your selection by selecting the Send button.

59

Tally Dascom 2600/2610/PRN-7

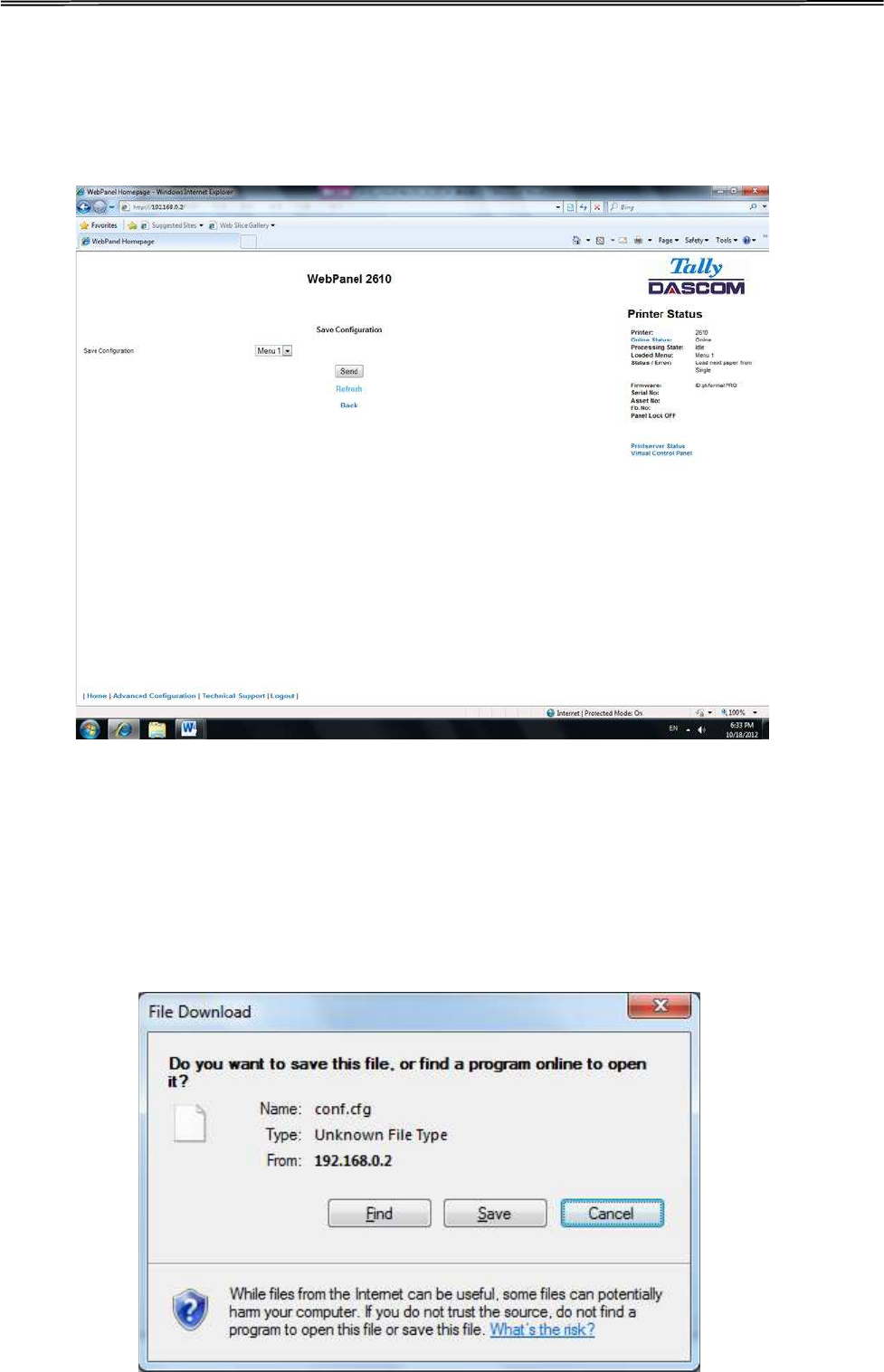

6.3.8 Save Configuration

You can save selected printer settings in up to 5 independent menus.

When the Save Configuration link is selected, the following page will be displayed:

Select a menu. Select send.

6.3.9 Retrieve Configuration From Printer

Selecting this option will save all the printer settings of all menus in a file. Uploading

this file to

other printers will clone the printer menu settings to the other printer.

When this option is selected, the following will appear (note that the actual image will

be browser specific):

60

Tally Dascom 2600/2610/PRN-7

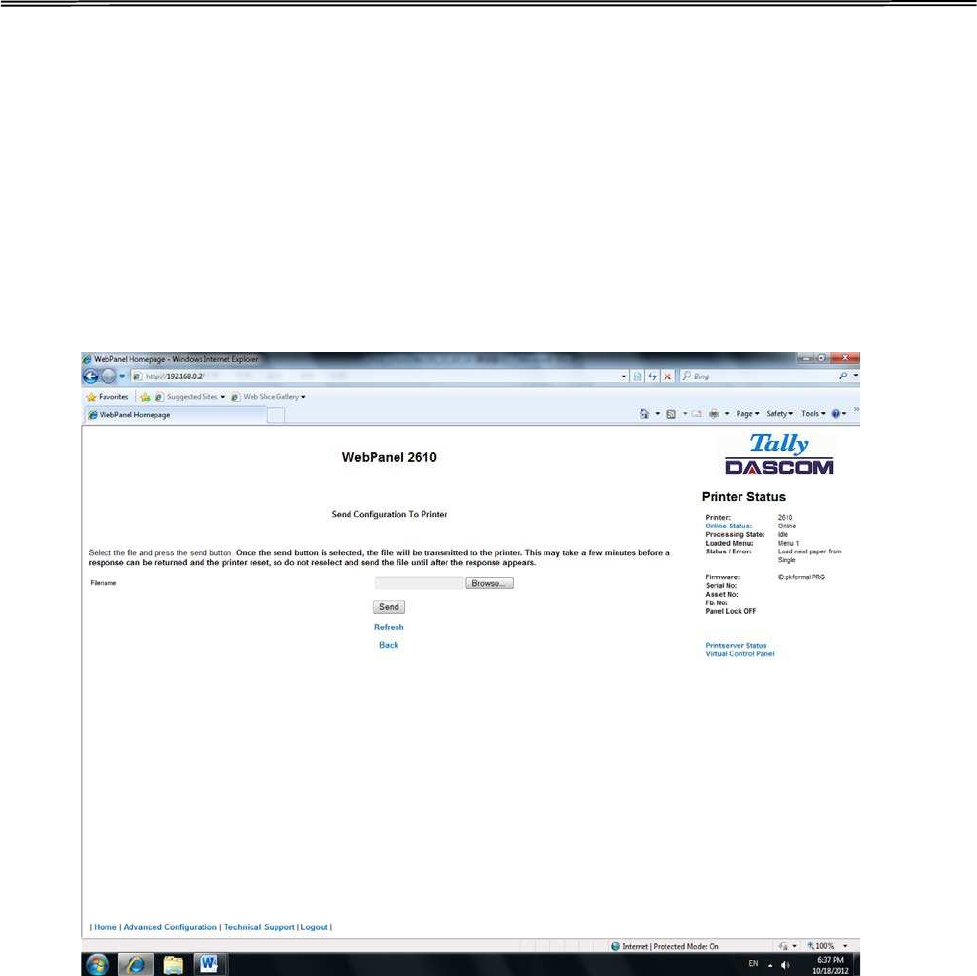

6.3.10 Send Configuration to Printer

Selecting this option will upload a Configuration File of another printer (see “Retrieve

Configuration From Printer”). The complete configuration of this source printer will be

transferred to your printer.

To upload the configuration file, first click “Send Configuration To Printer”. The

following page

will be displayed:

61

Tally Dascom 2600/2610/PRN-7

Use the “Browse” button to find the file to upload. Once the file is selected, click on the

“Send” button. It is important to note the warning on this page. There is some delay

while the file is transmitted so it is important not to resend or click on the “Send” button

until the process is complete.

If the process is successful, the printer will reboot and the following page will be

displayed:

Since the printer will reboot with successful completion of this action, the

user will have to reconnect to the printer through the browser.

62

Tally Dascom 2600/2610/PRN-7

6.3.11 Report

Selecting the report link will open up a separate browser window and a report of the

printer settings will appear. This functionality is the same as pressing the “Print”

option on the control panel of the printer.

6.3.12 Reset Printer

This link does a hard reset of the printer, similar to cycling power. There is no user

feedback as to success since the printer is rebooting. Since the printer will reboot with

successful completion of this action, the user will have to reconnect to the printer

through the browser.

6.3.13 Panel Lock On/Off

This link toggles the panel lock feature of the printer. This option affects the physical

control panel on the printer as well as the virtual panel in WebPanel. The state of the

option is displayed in the printer status page on the right of the display.

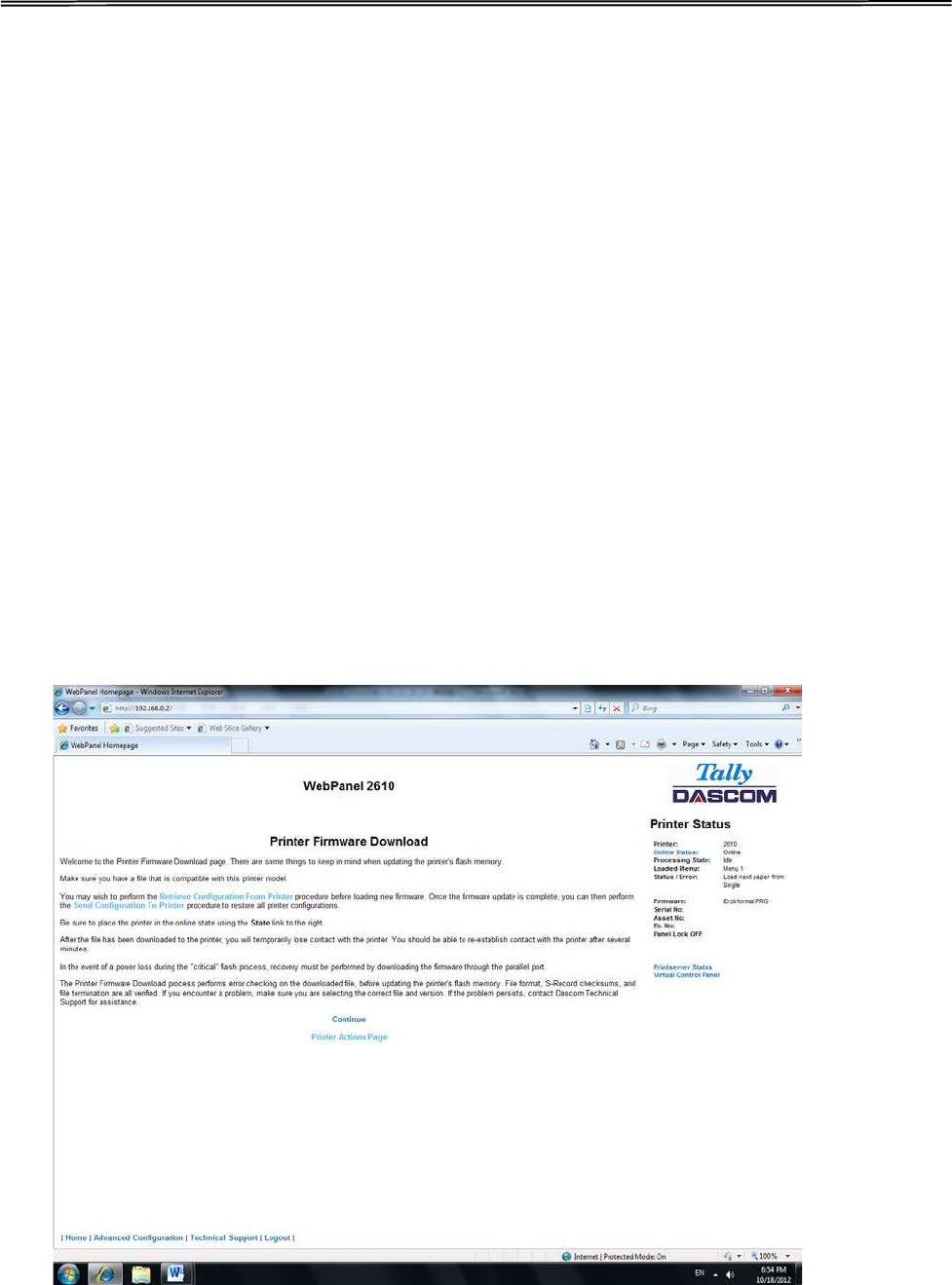

6.3.14 Download Firmware

Through this link it is possible to download firmware updates to the printer. When this

link is selected, the follow page will appear:

63

Tally Dascom 2600/2610/PRN-7

After following the directions on this page, select the “Continue“ link and the

following page

is displayed:

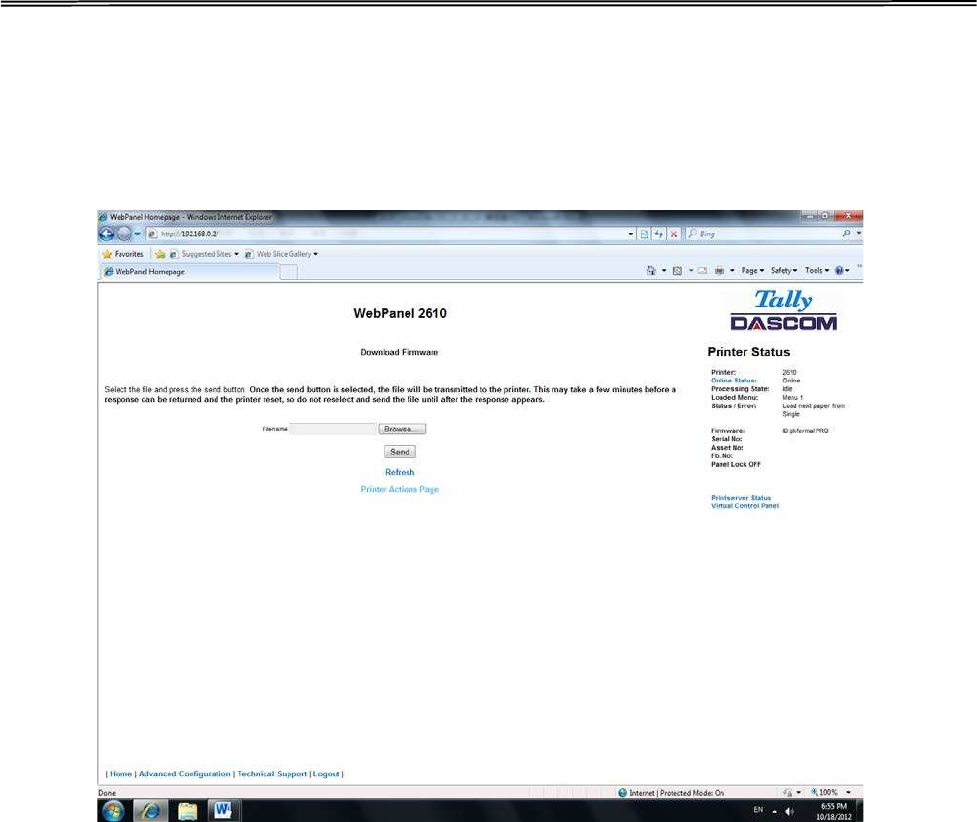

Using the “Browse” button, find the firmware file to download. Once the file is

selected, click

on the “Send” button. It is important to note the warning on this page. There will be

some

delay while the file is transmitted so it is important NOT to resend or click on the “Send”

button until the process is complete.

64

Tally Dascom 2600/2610/PRN-7

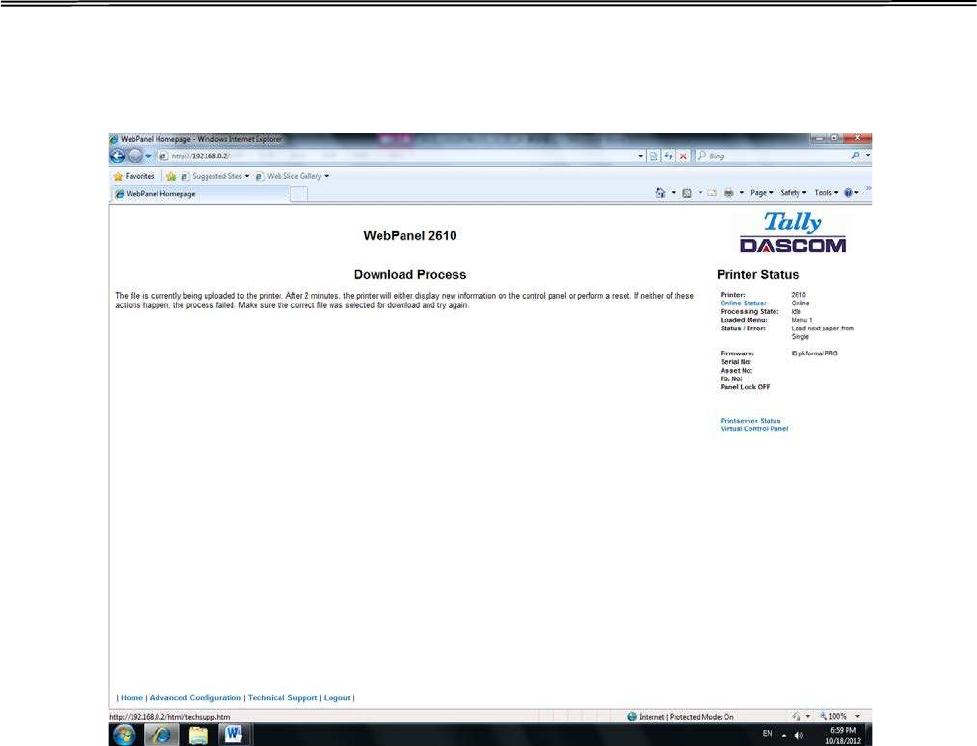

If the process is successful, the printer will reboot and the following page will be

displayed:

Since the printer will reboot with successful completion of this action, the user will

have to

reconnect to the printer through the browser.

65

Tally Dascom 2600/2610/PRN-7

6.3.15 TallyCom Status

Selecting this link will replace the information in the Printer Status area with

networking

information on the printer.

The Name, Contact and Location information is set up from the General link within the

Advanced Configuration page.

66

Tally Dascom 2600/2610/PRN-7

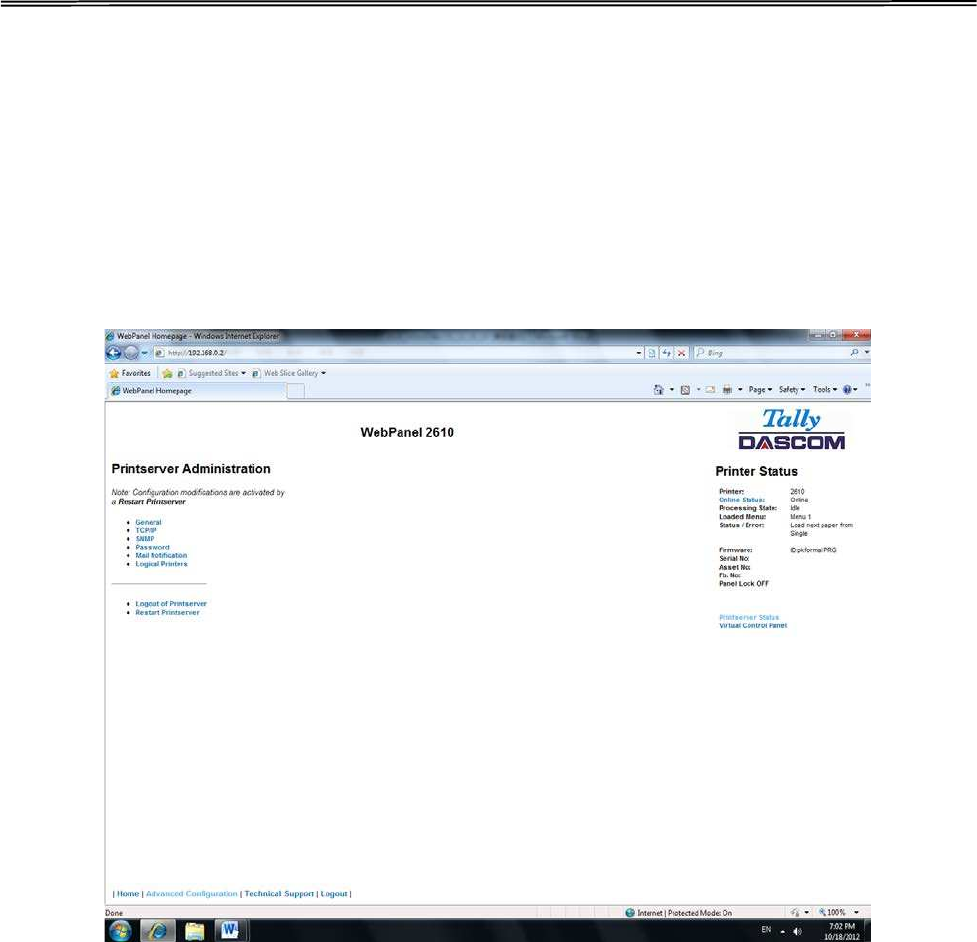

6.3.16 Advanced Configuration

The Advanced Configuration page allows the user to set up and modify network

connectivity information as well as setting up the password, email notification and

logical

printers. From this page it is also possible to Logout of TallyCom and restart TallyCom.

The

Administration page looks like this:

67

Tally Dascom 2600/2610/PRN-7

6.3.17 General

The General page sets up the timers and the labels for name, contact and location of

the printer.

The Print Server Name is by default and can be changed accordingly. This

name used for entering into Name Server (DNS/DHCP).

68

Tally Dascom 2600/2610/PRN-7

6.3.18 TCP/IP

The TCP/IP Page allows the user to modify the existing TCP/IP information for the

printer.

After changing the particular parameters, it is necessary to restart TallyCom from the

Advanced Configuration page. If the IP Address is changed and the Send button

selected

you will disconnect from the current session and will need to reconnect at the new IP

Address.

69

Tally Dascom 2600/2610/PRN-7

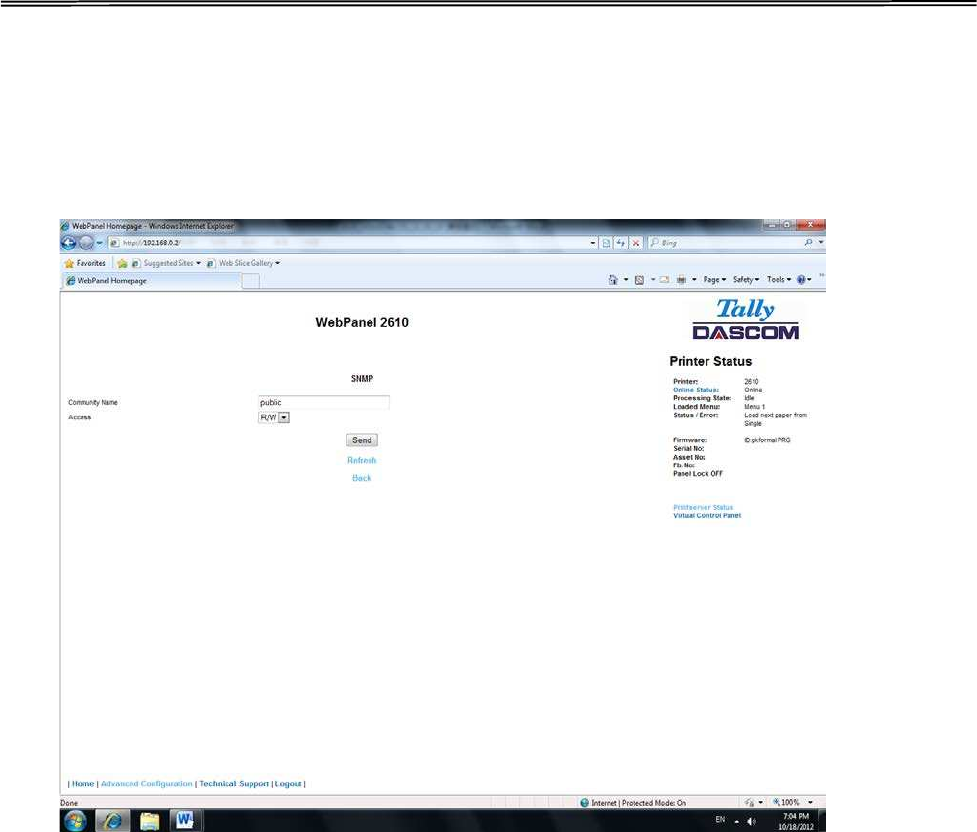

6.3.19 SNMP

The SNMP page allows the user to set the Community Name and the Access. The page

looks like this:

70

Tally Dascom 2600/2610/PRN-7

6.3.20 Password

The Password page allows the user to set a password which would limit access to

certain

configuration and action links in WebPanel. The maximum number of characters for

the password is 7. The default password is no password at all (“null“). However,

“adm” is also acceptable as the default password to be compatible with the external

TallyCom ċ pocket NICs (Options), which use this as the default password. If this or

no password at all (“null“) is set as the password, all of the web pages are accessible

by everyone. If any other password is set, the first time a user accesses a password

protected page, a window will open asking for verification with user and password

information. Once the password has been successfully recognized, all password

protected pages will be available. Once the password is recognized, a timer is set,

based on the Password Timer value set in the General web page. If there is inactivity in

the browser which lasts beyond the timer time, the password will have to be reentered

to access the protected pages.

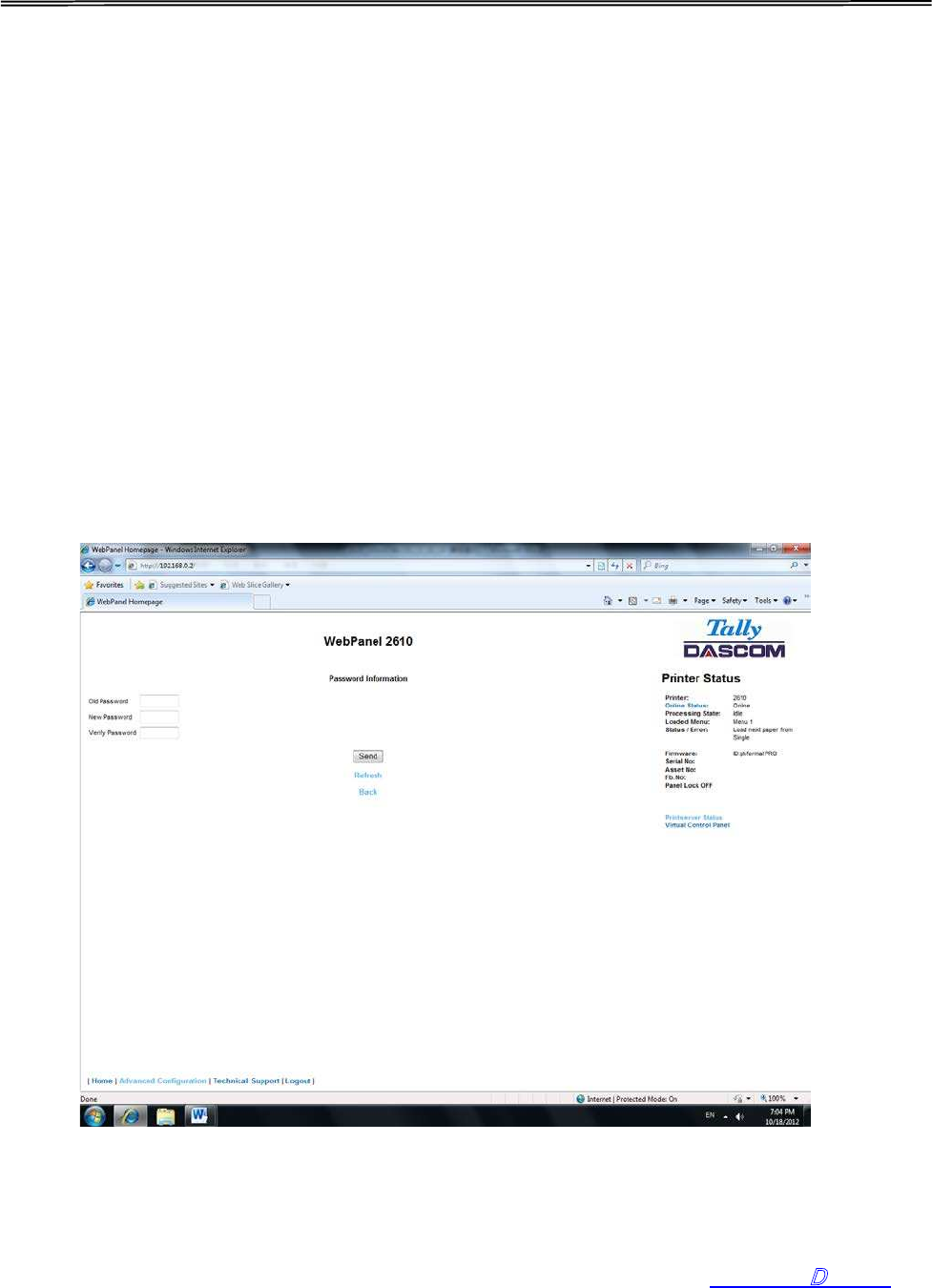

The password page looks like this:

6.3.21 User Name

The default user name is “adm” and cannot be changed.

6.3.22 Resetting Password

In order to reset password the printer needs to be defaulted. See

“Loading Default

”.

71

Tally Dascom 2600/2610/PRN-7

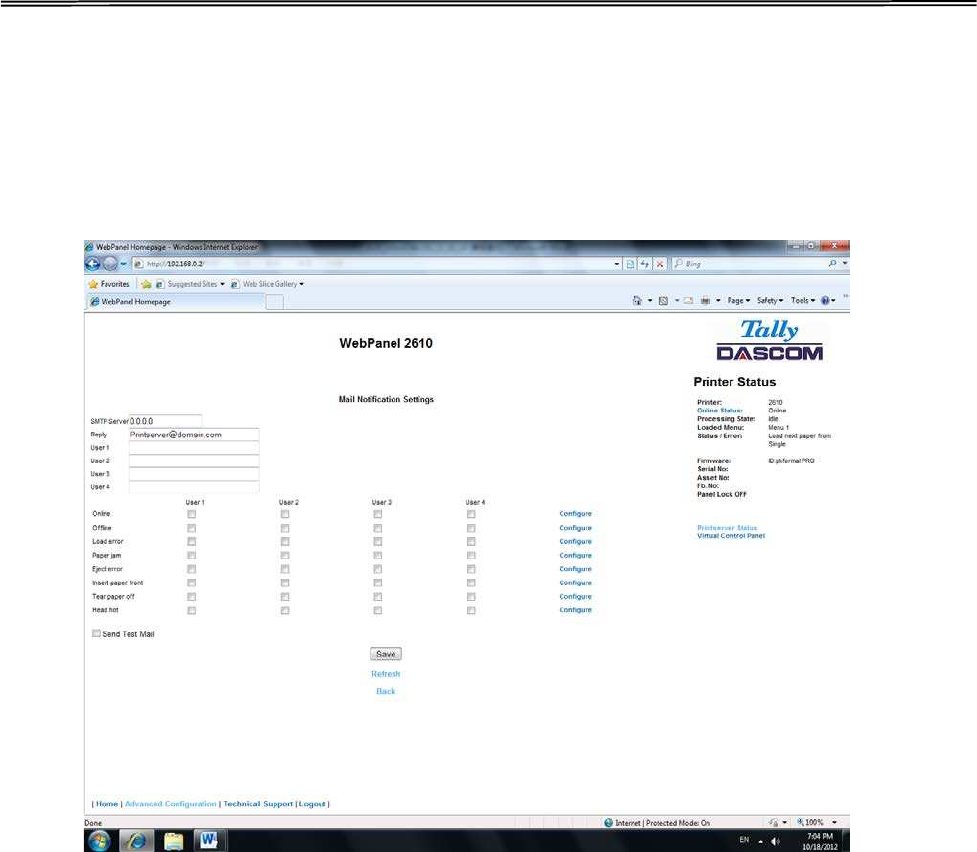

6.3.23 Email Notification

With the email notification link the user will be able to set up and receive email notices

for error and status conditions of the printer. Up to 4 email addresses can be set.

The page looks like this:

The user must set up the SMTP Mail Server as well as one or more users. The Reply

address can be left as is unless there is reason to have to mail to the Reply address.

To activate the mail notification:

Select which notifications are to be sent out.

Click on the check box(es) on the right of the desired notification(s) for the

particular

user(s).

Confirm your settings by clicking the Send button.

There is also a test mail option which sends a test email to “User 1” and is activated by

checking the box and clicking on the “Save” button.

72

Tally Dascom 2600/2610/PRN-7

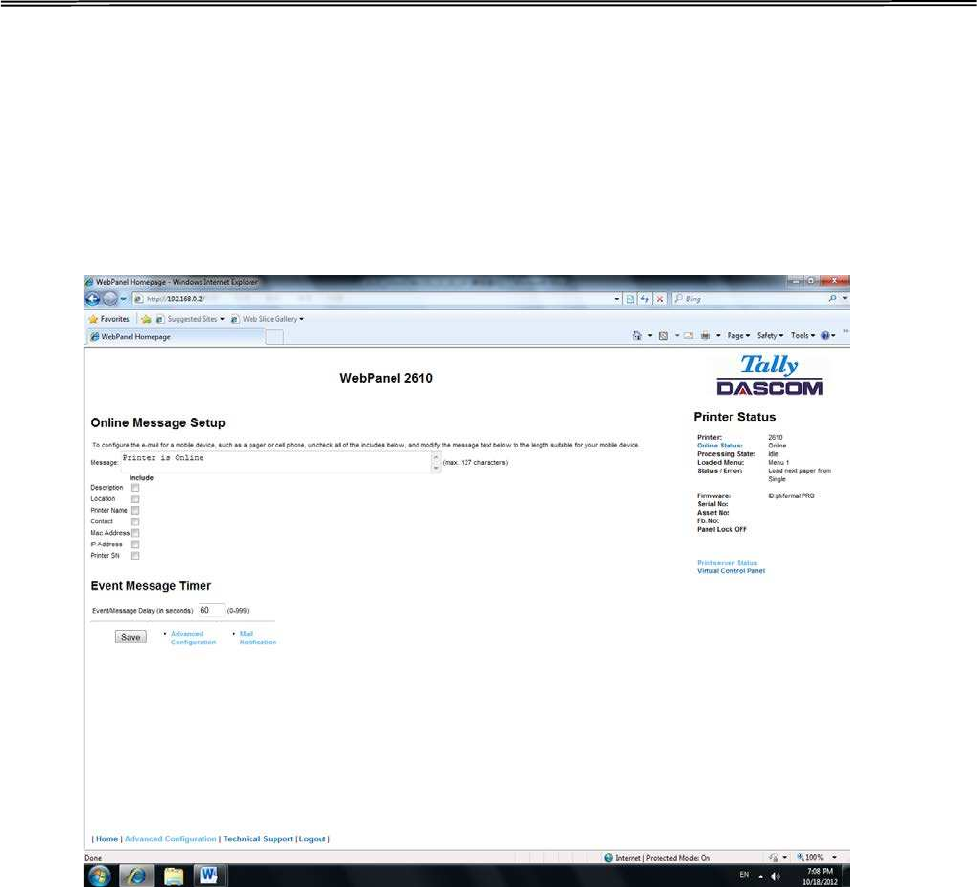

The “Configure” link at the end of each line of notification options allows the user

to set

up the message information for the email as well as selecting other pertinent

information to be added to the email. In addition, the timer can be set which

determines when the email notification is sent out.

The page looks like this:

In this example, the Online message is set to “Printer is Online”, and information on

Description, Location, and Printer Name will be added to the email. In this example, the

event timer is set for 10 seconds after the event occurs and will be sent only once,

unless the printer is rebooted or the state changes. If the timer is set to 0, no email

message will be sent, regardless of whether the user box has been selected. Selecting

the “Save” button will set these values.

73

Tally Dascom 2600/2610/PRN-7

6.3.24 Logical Printers

The logical printers page will add text or commands to the beginning and ending of

print jobs. This is done by pre and post strings, defined in each of the logical printers.

For entering binary data in these strings, the backslash character is used followed by 2

hexadecimal digits.

Examples of this are \1b for an escape character, \0a for linefeed and \\ for backslash.

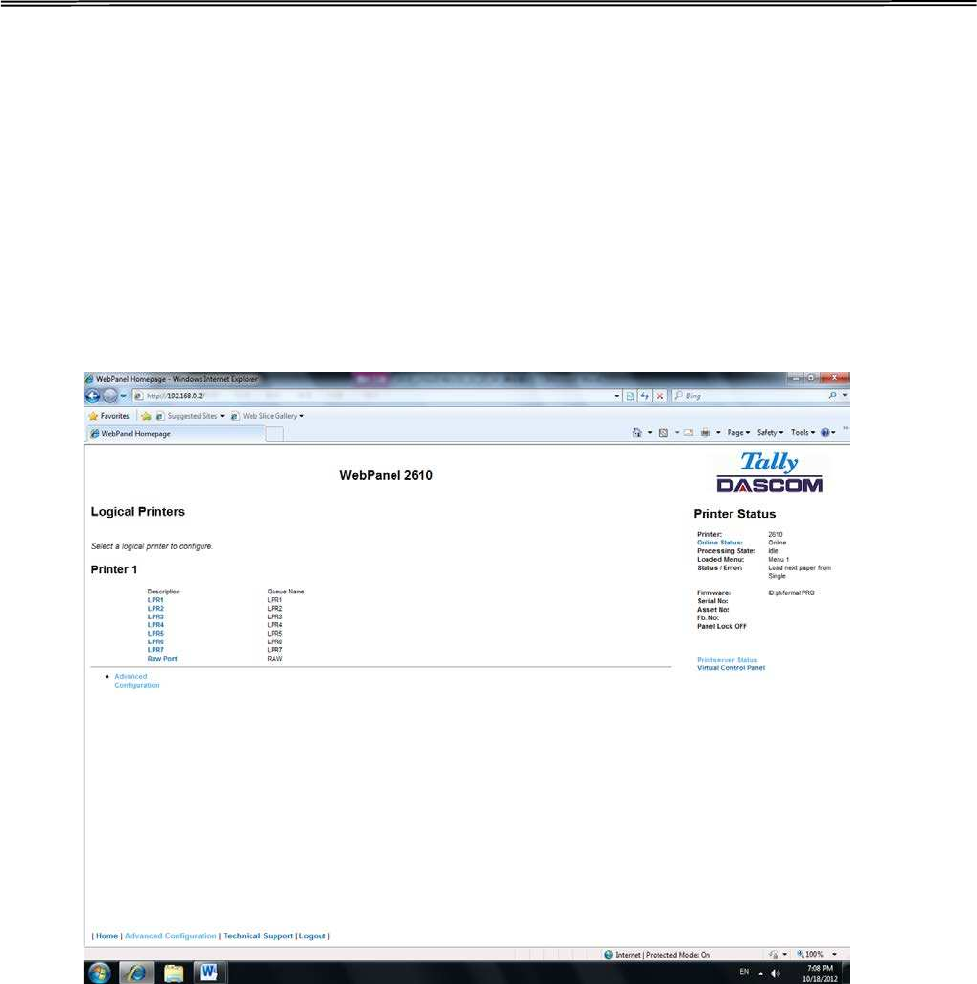

Selecting the Logical Printers link gives the following page which lists seven possible

logical printers plus Raw Port, which is port 9100:

74

Tally Dascom 2600/2610/PRN-7

When selecting one of the logical printers under the Description column, the following

page is

displayed:

In this example if the Enable checkbox is checked, the pre-string of “Beginning to print

job”

followed by a CR/LF will print at the beginning of every job sent to this LPR Queue. At

the end of the print job, the message “End of job” with a formfeed will print.

Unchecking the Enable checkbox will not send the pre or post strings. The LPD Queue

Name is the name of the print queue that comes from the host. The Description can be

changed by the user and does not have to match the LPD Queue Name.

6.3.25 String Replacement Example Plain Text

Original Text / New Text

String Replacement Example Commands /\1B[8419t/\1B[4196t/

Control codes are entered with a back slash “\”.

In this example the Formlength of A4 (8419”/720) represented by “1B[8419t” is being

replaced by the string “1B[4196t” (4196”/720) which results in A5.

Multiple strings are separated by a semicolon “;”.

75

Tally Dascom 2600/2610/PRN-7

6.3.25 Logout of TallyCom

The Logout link disconnects the browser session from the printer. Clicking on the

“Home”

link reestablishes the connection.

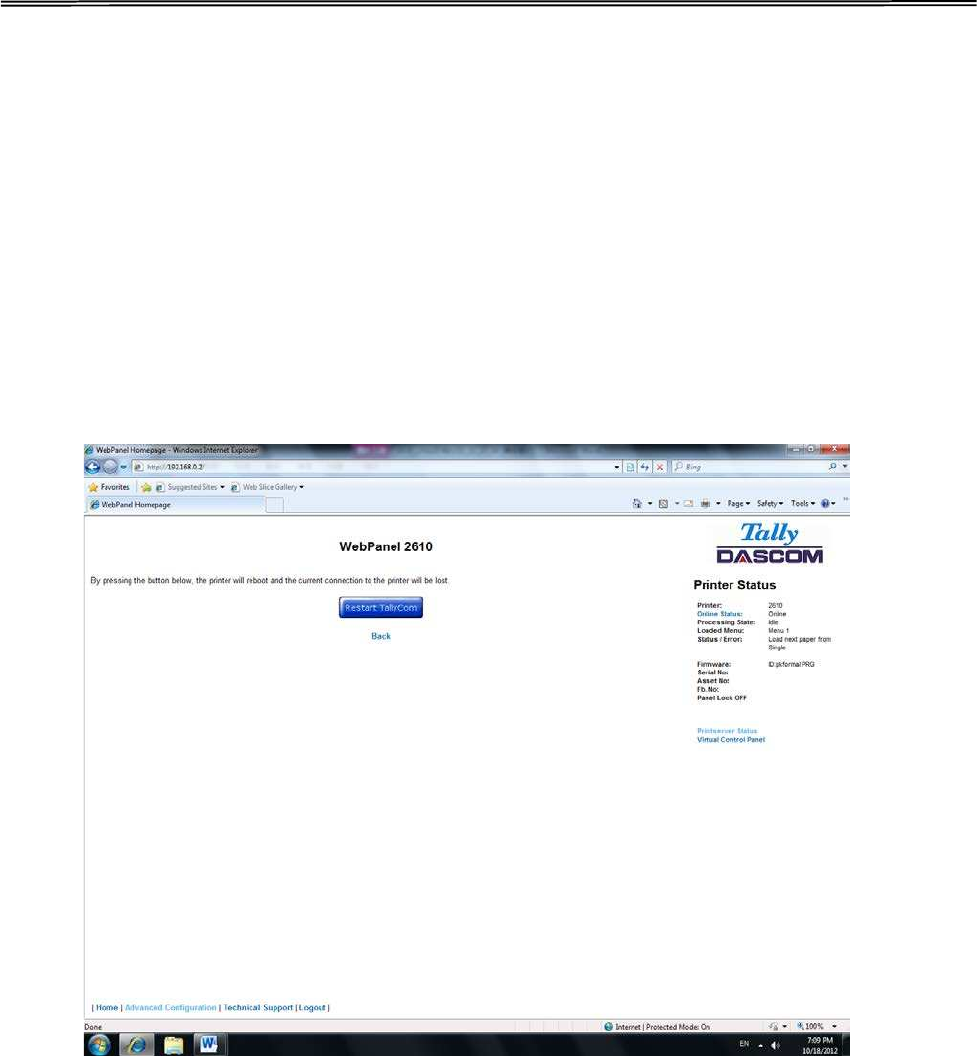

6.3.26 Restart TallyCom

Selecting this link will reboot the printer and disconnect the current printer connection.

It is

used to reset certain TCP/IP variables that were set in the General and TCP/IP pages.

Once TallyCom has restarted, those new setting will take effect. When this link is

selected, the follow page is displayed, giving the user the option to continue or not.

76

Tally Dascom 2600/2610/PRN-7

6.3.27 Virtual Control Panel

The Virtual Control Panel link is in the Printer Status area of the web page. This control

panel is a visual representation of the actual control panel on the printer. It allows the

user to remotely read and set panel information as if they were standing at the control

panel. The functionality of the virtual panel is identical to the physical LCD panel.

Before using the virtual panel, it is important to configure the browser to allow popup

windows from the printer, otherwise the panel will not display. Once the browser is

configured, the page will look similar to this:

The Virtual Control Panel will be the active window. This window will show the current

error state and display the contents of the printer’s LCD display. Selecting the buttons

on the display will behave the same as if selecting the buttons on the printer itself. The

LCD information on the virtual panel refreshes every 15 seconds. The physical panel,

virtual panel and Online Status in the Printer Status are all active, so there may be

some synchronization delay issues if a user presses a button on the physical printer or

the Online Status in the Printer Status area. The Panel Lock feature affects the virtual

panel in the same way as the physical panel. The only functional difference between

the physical and virtual panel is that in the virtual panel, the LF/FF option will always

do a FF.

To close the virtual panel, click on the X in the upper right of the window.

1) This feature needs the browser to allow pop ups.

2) The LED version unit does not support this function.

77

Tally Dascom 2600/2610/PRN-7

7 Addendum

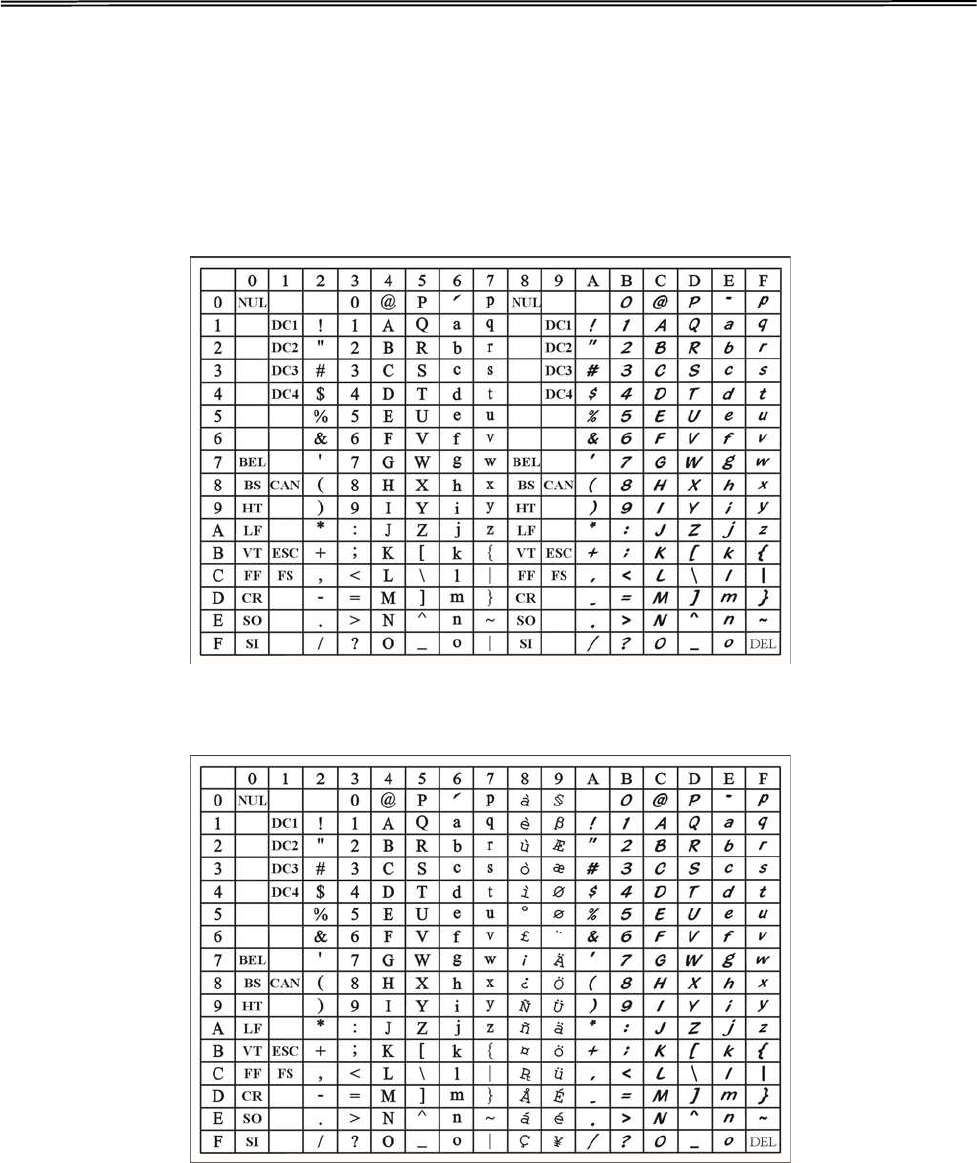

7.1 Character Set

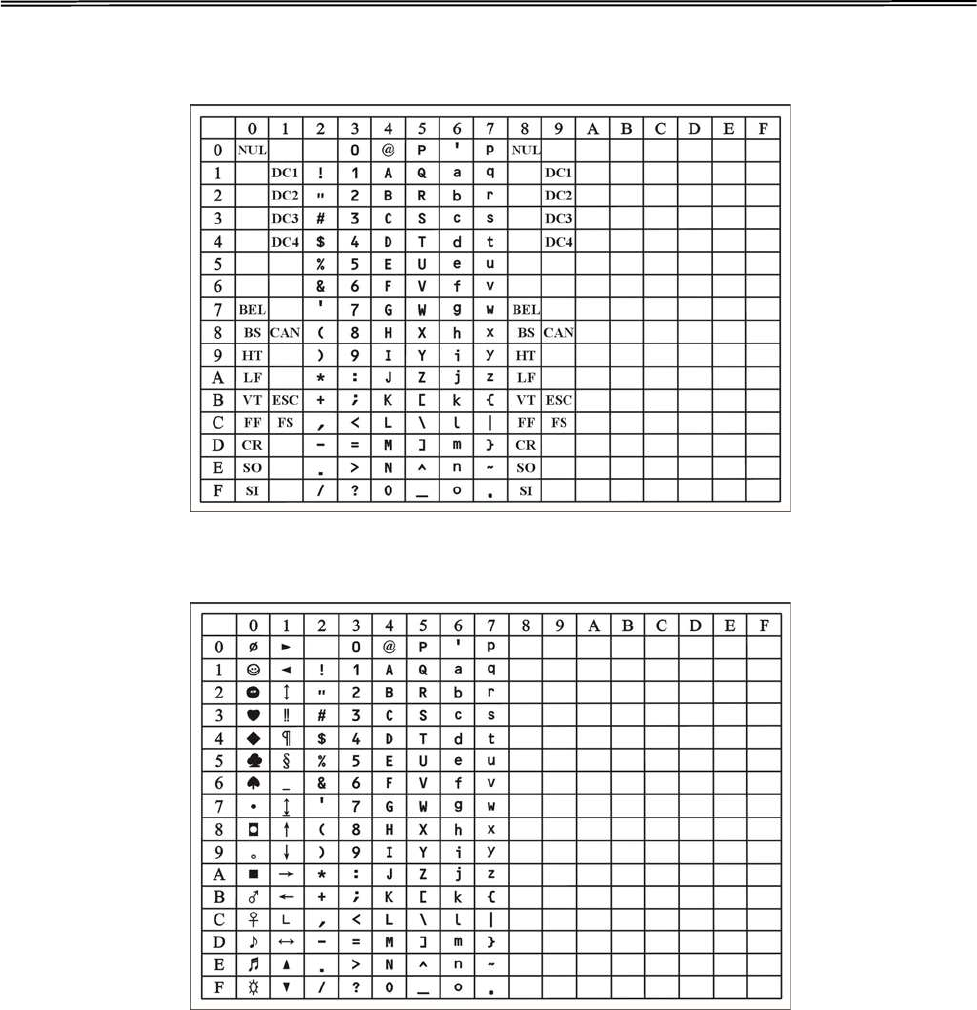

standard character set 1

standard character set 2

78

Tally Dascom 2600/2610/PRN-7

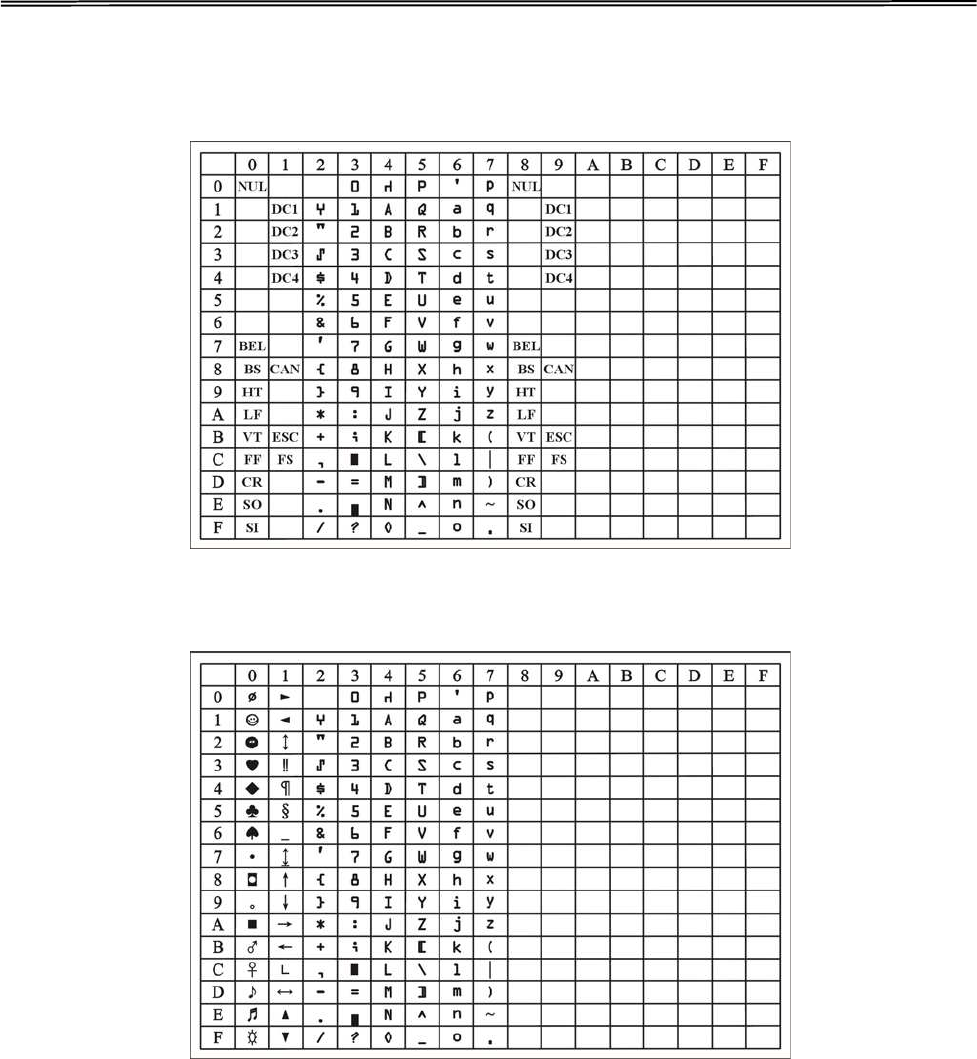

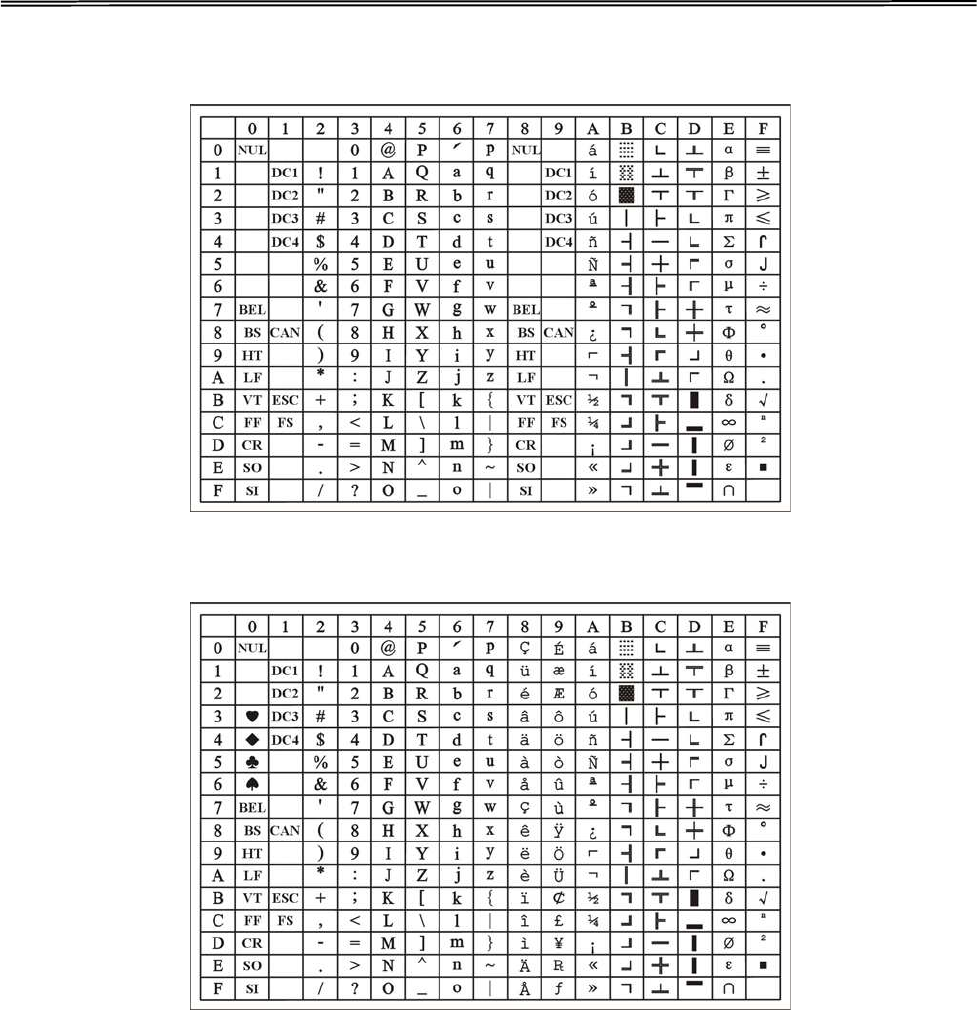

IBM character set 1

IBM character set 2

79

Tally Dascom 2600/2610/PRN-7

OCR-A character set 1

OCR-A character set 2

80

Tally Dascom 2600/2610/PRN-7

OCR-B character set 1

OCR-B character set 2

81

Tally Dascom 2600/2610/PRN-7

International Character Set Commands

Country

Basic Command

USA

˘ESC˚“R”CHRˀ˄0˅

FRANCE

˘

ESC

˚

“R”CHR

ˀ˄

1

˅

GERMANY

˘ESC˚“R”CHRˀ˄2˅

UK

˘

ESC

˚

“R”CHR

ˀ˄

3

˅

DENMARK 1

˘ESC˚“R”CHRˀ˄4˅

SWEDEN

˘ESC˚“R”CHRˀ˄5˅

ITALY

˘ESC˚“R”CHRˀ˄6˅

SPAIN 1

˘ESC˚“R”CHRˀ˄7˅

JAPAN

˘

ESC

˚

“R”CHR

ˀ˄

8

˅

NORWAY

˘ESC˚“R”CHRˀ˄9˅

DENMARK 2

˘

ESC

˚

“R”CHR

ˀ˄

10

˅

SPAIN 2

˘ESC˚“R”CHRˀ˄11˅

LATINAMERICA

˘

ESC

˚

“R”CHR

ˀ˄

12

˅

DENMARK/NORWAY

˘

ESC

˚

“R”CHR

ˀ˄

13

˅

CHINA

˘

ESC

˚

“R”CHR

ˀ˄

16

˅

International character sets˖

82

Tally Dascom 2600/2610/PRN-7

7.2 Control Codes Summary

The following table shows sequences marked by a ĸ if they are available in the various

emulations. The MTPL sequences can be used within all emulation modes. The

corresponding sequences are marked by a *.

If you want to learn more about control codes, we recommendto download

the Programmer’s Application Manual from our internet support pages.

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

<BEL>

Signal tone

Ĝ

<BS>

Control character BS (Backspace)

Ĝ

<CAN>

Deleting a data line

Ĝ

<CR>

Control character CR (Carriage return)

Ĝ

<CSI>

Start character for MTPL sequences, corr. ESC [

Ĝ

<DC1>

Selecting the printer

Ĝ

<DC2>

Condensed printing OFF (set by <Sl> or <ESC><Sl>)

Ĝ

<DC3>

Deselecting the printer

Ĝ

<DC4>

Double-wide printing OFF (set by <SO> or <ESC><SO>)

Ĝ

*

Ĝ

<DEL>

Delete line. Epson: Delete last character

Ĝ

<ESC>

Start character for programming sequence

Ĝ

Print mode selection

Ĝ

<ESC>#

Bit 8 = unchanged

Ĝ

Perform absolute horizontal step

Ĝ

Select ROM character generator

Ĝ

Select download generator

Ĝ

*

Graphics print with 180 dpi/HQ

Ĝ

*

Graphics print with 360 dpi/HQ

Ĝ

*

Graphics print with 60 dpi

Ĝ

*

Graphics print with 120 dpi

Ĝ

*

Graphics print with 80 dpi

Ĝ

*

Graphics print with 240 dpi

Ĝ

*

Graphics print with 72 dpi

Ĝ

*

Graphics print with 90 dpi

Ĝ

<ESC>&<s><x><y>..

Define download character

Ĝ

*

<ESC>(&

Character set ISO 8859-2

Ĝ

*

<ESC>(*

Character set ISO 8859-5

Ĝ

*

<ESC>(+

Character set ISO 8859-1 SAP

83

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

*

<ESC>(.

Character set ISO 8859-9

Ĝ

*

<ESC>(/

Character set ISO 8859-15

Ĝ

*

<ESC>(<

Character set Cro ASCII

Ĝ

<ESC>(c

Defining the page format

Ĝ

<ESC>(v

Relative vertical printing position

Ĝ

<ESC>(t

Assigning a character table

Ĝ

*

<ESC>(m

Character set BRASCII

Ĝ

*

<ESC>(n

Character set Abicomp

Ĝ

*

<ESC>(p

Windows character set 1250 (Latin2)

Ĝ

*

<ESC>(q

Windows character set 1251 (Cyrillic)

Ĝ

*

<ESC>(r

Windows character set 1252 (Latin1)

Ĝ

*

<ESC>(t

Windows character set 1254 (Turkish)

Ĝ

*

<ESC>(`

Character set Norwegian

Ĝ

Print data as characters

Ĝ

*

<ESC>(A

Character set UK-ASCII

Ĝ

*

<ESC>(B

Character set US-ASCII

Ĝ

Barcode Setup and print

Ĝ

<ESC>(C

Defining the page length

Ĝ

*

<ESC>(MI>F

Assign character set G0

Ĝ

<ESC>(G

Selecting graphics mode

Ĝ

*

<ESC>(H

Character set Swedish-Finnish

Ĝ

*

<ESC>(K

Character set German

Ĝ

*

<ESC>(L

Character set Portuguese

Ĝ

*

<ESC>(R

Character set French

Ĝ

<ESC>(U

Setting positioning units in n/3600 inch

Ĝ

<ESC>(V

Absolute vertical printing position

Ĝ

*

<ESC>(Y

Character set Italian

Ĝ

*

<ESC>(Z

Character set Spanish

Ĝ

*

<ESC>)MI>F

Assign character set G1

Ĝ

Set graphics print to 60 dpi

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 240 dpi

Ĝ

Set graphics print to 60 dpi

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 90 dpi

Ĝ

Set graphics print to 180 dpi

84

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

Set graphics print to 80 dpi

Ĝ

Set graphics print to 360 dpi

Ĝ

*

<ESC>*MI>F

Assign character set G2

Ĝ

Underlining ON/OFF

Ĝ

Select vertical tab channels

Ĝ

<ESC>.

Printing raster graphics

Ĝ

<ESC>:

Condensed printing 12 cpi ON

Ĝ

Copy ROM character set

Ĝ

<ESC><

Unidirectional printing for 1 line

Ĝ

<ESC>=

Set bit 8 = 0

Ĝ

<ESC>=<C1><C2>...

Load font/character set

Ĝ

<ESC>>

Set bit 8 = 1

Ĝ

Reload a graphics mode

Ĝ

<ESC>@

Initialize printer

Ĝ

*

<ESC>[

MTPL start character for programming

sequence

Ĝ

*

<ESC>[:y

Right justification and centering OFF

Ĝ

*

<ESC>[=z

Bold ON

Ĝ

*

<ESC>[>z

Bold OFF

Ĝ

*

<ESC>[?1~

MTPL command set

Ĝ

*

<ESC>[?10~

Barcode interpretation OFF

Ĝ

*

<ESC>[?11~

Start barcode interpretation

Ĝ

*

<ESC>[?4~

MTPL + IBM Proprinter-24 command set

Ĝ

*

<ESC>[?50h

Selecting character sets with 256 characters

Ĝ

*

<ESC>[?50l

Selecting character sets with 94 characters

Ĝ

*

<ESC>[?51h

Proportional fonts automatic NLQ and LQ

Ĝ

*

<ESC>[?51l

Proportional fonts in draft mode possible

( f )

Ĝ

*

<ESC>[?52h

Font selection (ESC[10...19m]) possible only

for NLQ and LQ

Ĝ

*

<ESC>[?52l

Font selection (ESC[10...19m]) Draft

Ĝ

*

<ESC>[?53h

Extended character set

Ĝ

*

<ESC>[?53l

Standard character set

Ĝ

*

<ESC>[?6~

MTPL + EPSON LQ-2550 command set

Ĝ

* * * *

<ESC>[?8~

MTPL + EPSON LQ-2170 command set

Ĝ

*

<ESC>[?7h

Line overrun = CR + LF

85

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

*

<ESC>[?7l

Line overrun = Truncating data outside of the printing area

Ĝ

*

<ESC>[?<n>~

Change emulation

Ĝ

<ESC>[@<n1> <n2>...

Set double height

Ĝ

<ESC>[\<n1> <n2>...

Change vertical base units

Ĝ

*

<ESC>[0;;n{

Select single sheet operation

Ĝ

*

<ESC>[0;0r

Clear top and bottom margin

Ĝ

*

<ESC>[0;0s

Clear left and right margin

Ĝ

*

<ESC>[0g

Clear horizontal tab at the current print head position

Ĝ

*

<ESC>[0m

Clear all selected fonts

Ĝ

*

<ESC>[0m

Reset color (reserved)

Ĝ

*

<ESC>[0 SP I

Measuring unit decipoint

Ĝ

*

<ESC>[0 SP K

Set horizontal pitch to 10 cpi

Ĝ

*

<ESC>[0 SP L

Set vertical spacing to 6 lpi

Ĝ

*

<ESC>[0 SP X

LQ print quality

Ĝ

*

<ESC>[0w

Set 5 cpi

Ĝ

*

<ESC>[0y

Selecting Draft printing quality

Ĝ

*

<ESC>[0z

Superscript ON

Ĝ

*

<ESC>[10m

Font 0 Default: Draft

Ĝ

*

<ESC>[10y

Right and center adjustment OFF

Ĝ

*

<ESC>[10z

Microscript ON

Ĝ

*

<ESC>[11e

Set PUM (absolute measuring unit) to OFF

Ĝ

*

<ESC>[11h

Set PUM (absolute measuring unit) to ON

Ĝ

*

<ESC>[11m

Font 1 Default: Courier NLQ

Ĝ

*

<ESC>[11w

Set 20 cpi

Ĝ

*

<ESC>[11y

Select print quality HS-Draft

Ĝ

*

<ESC>[12m

Font 2 Default: Courier LQ

Ĝ

*

<ESC>[12 SP K

Set horizontal pitch to 12 cpi

Ĝ

*

<ESC>[12w

Set horizontal pitch to 10 cpi

Ĝ

*

<ESC>[12y

Select print quality LQ

Ĝ

*

<ESC>[12z

Double height ON (top portion)

Ĝ

*

<ESC>[13m

Font 3 Default: Sans Serif NLQ

Ĝ

*

<ESC>[13y

Select print quality LQ

Ĝ

*

<ESC>[13z

Double height ON (lower portion)

Ĝ

*

<ESC>[14m

Font 4 Default: Sans Serif LQ

Ĝ

*

<ESC>[15m

Font 5 Default: Roman LQ

Ĝ

*

<ESC>[15 SP K

Set horizontal pitch to 15 cpi

86

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

*

<ESC>[16m

Font 6 Default: Script LQ

Ĝ

*

<ESC>[17m

Font 7 Default: Prestige LQ

Ĝ

*

<ESC>[18m

Font 8 Default: OCR-B LQ

Ĝ

*

<ESC>[19m

Font 9 Default: OCR-A LQ

Ĝ

*

<ESC>[1 g

Clear vertical tab at current position

Ĝ

*

<ESC> [ 1 SP k

Printout in Royal Mail customer barcode

Ĝ

*

<ESC>[1 SP L

Set vertical spacing to 4 lpi

Ĝ

*

<ESC>[1 SP p

Initiate US Postnet Barcode

Ĝ

*

<ESC>[1 SP X

Print quality NLQ

Ĝ

*

<ESC>[1w

Set 6 cpi

Ĝ

*

<ESC>[1y

Print quality NLQ

Ĝ

*

<ESC>[1z

Subscript ON

Ĝ

*

<ESC>[21{

ASF-1: Select feeder front

Ĝ

*

<ESC>[22{

ASF-2: Select feeder rear

Ĝ

*

<ESC>[21m

Double underlining

Ĝ

*

<ESC>[23m

Italics OFF

Ĝ

*

<ESC>[24m

Underline OFF

Ĝ

*

<ESC>[26m

Proportional font ON

Ĝ

*

<ESC>[2g

Clear all horizontal tabs in the current line

Ĝ

*

<ESC>[2J

Print page

Ĝ

*

<ESC>[2 SP l

Measuring unit decipoint

Ĝ

*

<ESC> [ 2 SP k

Printout in Kix barcode

Ĝ

*

<ESC>[2 SP L

Set vertical spacing to 3 lpi

Ĝ

*

<ESC>[2 SP X

Print quality Draft

Ĝ

*

<ESC>[2w

Set 7.5 cpi

Ĝ

*

<ESC>[2y

Proportional font ON

Ĝ

*

<ESC>[2z

Double height OFF

Ĝ

*

<ESC>[2z

Superscript, subscript and microscript OFF

Ĝ

*

<ESC>[30m

Black

Ĝ

*

<ESC>[<n>m

Color; n = 31…36

Ĝ

*

<ESC>[3g

Clear all horizontal tabs

Ĝ

*

<ESC>[3m

Italics ON

Ĝ

*

<ESC>[3 SP L

Set vertical spacing to 12 lpi

Ĝ

*

<ESC>[3w

Set 8.6 cpi

Ĝ

*

<ESC>[3z

Line density 6 lpi (= line spacing 1/6 inch)

Ĝ

*

<ESC>[4g

Clear all vertical tabs

87

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

*

<ESC>[4m

Underline ON

Ĝ

*

<ESC>[4 SP L

Set vertical spacing to 8 lpi

Ĝ

*

<ESC>[4w

Set 10 cpi

Ĝ

*

<ESC>[4y

Selecting NLQ printing quality at 10 cpi

Ĝ

*

<ESC>[4z

Line density 8 lpi (= line spacing 1/8 inch)

Ĝ

*

<ESC>[5{

Select fanfold paper mode tractor 1

Ĝ

*

<ESC>[6{

Select fanfold paper mode tractor 2

Ĝ

*

<ESC>[50m

Proportional font OFF

Ĝ

*

<ESC>[50{

Page at print position

Ĝ

*

<ESC>[51{

Page at tear off position (perforation)

Ĝ

*

<ESC>[52{

Page at view position

Ĝ

*

<ESC>[53m

Overlining ON

Ĝ

*

<ESC>[55m

Overlining OFF

Ĝ

*

<ESC>[5n

Request status report

Ĝ

*

<ESC>[5w

Set 12 cpi

Ĝ

*

<ESC>[5y

NLQ with 12 cpi

Ĝ

*

<ESC>[5z

Graphics normal

Ĝ

*

<ESC>[6~

Initialize the printer

Ĝ

*

<ESC>[6 SP K

Set horizontal pitch to 6 cpi

Ĝ

*

<ESC>[6w

Set 15 cpi

Ĝ

*

<ESC>[6z

Graphics inverted

Ĝ

*

<ESC>[7w

Set 17.1 cpi

Ĝ

*

<ESC>[7y

Proportional font OFF

Ĝ

*

<ESC>[7z

Bit 8 = unchanged

Ĝ

*

<ESC>[8w

Reset double stroke

Ĝ

*

<ESC>[8y

Right justification ON

Ĝ

*

<ESC>[8z

Set bit 8 = 0

Ĝ

*

<ESC>[9 SP L

Set vertical spacing to 2 lpi

Ĝ

*

<ESC>[9w

Set double stroke

Ĝ

*

<ESC>[9y

Centering ON

Ĝ

*

<ESC>[9z

Set bit 8 = 1

Ĝ

Set graphics print to 60 dpi

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 180 dpi

Ĝ

Set graphics print to 360 dpi

88

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 240 dpi

Ĝ

Set graphics print to 60 dpi

Ĝ

Set graphics print to 120 dpi

Ĝ

<ESC>[j

Position paper back 1/180"

Ĝ

*

<ESC>[<n1> <n2>f

Set absolute horizontal and vertical position

Ĝ

*

<ESC>[<n>+w

Interface holding time n = 1 - 30 s

Ĝ

*

<ESC>[<n>+x

Head position horizontal in n/720", also paper load pos.

Ĝ

*

<ESC>[<n>SP q

Load menu

Ĝ

*

<ESC>[<n1>...<n5>+v

Paper handling options

Ĝ

*

<ESC>[<n1>...<n16>SP

Print transparent characters

Ĝ

*

<ESC>[<n1> <n2>f

Set absolute horizontal and vertical position

Ĝ

*

<ESC>[<n1> <n2>SP 0

Change character size

Ĝ

*

<ESC>[<n1> <n2>SP D

Select font

Ĝ

*

<ESC>[<n1> <n2>SP G

Set character/line spacing

Ĝ

*

<ESC>[<n1> <n2>r

Set top and bottom margin

Ĝ

*

<ESC>[<n1> <n2>s

Set left and right margin

Ĝ

*

<ESC>[<n> a

Set relative horizontal position

Ĝ

*

<ESC>[<n> d

Set absolute vertical position

Ĝ

*

<ESC>[<n> e

Set relative vertical position

Ĝ

*

<ESC>[<n> j

Relative horizontal position back (to the left)

Ĝ

*

<ESC>[<n> k

Relative vertical position back (to the top)

Ĝ

*

<ESC>[<n> p

Set HMI

Ĝ

*

<ESC>[<n> q

Set horizontal step

Ĝ

*

<ESC>[<n> SP \

Set additional spaces

Ĝ

*

<ESC>[<n> SP C

Select character size

Ĝ

*

<ESC>[<n> SP f

Set reduced spacing

Ĝ

*

<ESC>[<n> SP g

Set character spacing

Ĝ

*

<ESC>[<n> SP h

Line spacing

Ĝ

*

<ESC>[<n> SP s

Transmits the “n” character as an ASCII character (n= 0–255)

Ĝ

*

<ESC>[<n> SP U

Beginning of line (default value)

Ĝ

*

<ESC>[<n> SP V

End of line (default value)

Ĝ

*

<ESC>[<n> t

Set form length in lines

Ĝ

*

<ESC>[<n> u

Set horizontal tab

89

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

*

<ESC>[<n> v

Set vertical tab

Ĝ

Perform relative horizontal step

Ĝ

Transparent mode for the characters following

Ĝ

<ESC>^

Transparent mode for the character following

Ĝ

Overline ON/OFF

Ĝ

<ESC>0

Set line feed to 1/8 inch

Ĝ

<ESC>1

Set line feed to 7/72 inch

Ĝ

<ESC>2

Set line feed to 1/6 inch

Ĝ

<ESC>2

Set line feed to n/72 inch

Ĝ

Set line feed to n/180 inch

Ĝ

Set line feed to n/216 inch

Ĝ

<ESC>4

Italics ON

Ĝ

<ESC>4

Set beginning of form

Ĝ

<ESC>5

Italics OFF

Ĝ

Autom. line feed ON/OFF

Ĝ

<ESC>6

Print ASCII codes dec. 129 to dec. 159

Ĝ

<ESC>6

PC character set 2 (expanded)

Ĝ

<ESC>7

Suppress ASCII codes 129 to 159

Ĝ

<ESC>7

PC character set 1 (standard)

Ĝ

Select orientation

Ĝ

Line spacing n/60 inch

Ĝ

Prepare line spacing n/72 inch

Ĝ

Clear all tabs

Ĝ

Set vertical tabs in channels

Ĝ

Clear all vertical tabs

Ĝ

<ESC>B<n1>...<n16><0

>

Set vertical tabs

Ĝ

<ESC>B<n1>...<n64><0

>

Set vertical tabs

Ĝ

<ESC>c

Reset to initialization status

Ĝ

<ESC>c

Setting the horizontal motion index (HMI)

Ĝ

Set form length in inches

Ĝ

Set form length in lines

Ĝ

Perform relative horizontal step

Ĝ

Clear all horizontal tabs

Ĝ

<ESC>D<n1>...<n32><0

>

Set horizontal tabs

Ĝ

Condensed printing OFF

Ĝ

Double-wide printing OFF (set with <SO> or <ESC><SO>)

90

Tally Dascom 2600/2610/PRN-7

MTPL IBM

XL24

IBM

AGM

Epson

LQ-2550

Epson

LQ-2170

Code

Function

Ĝ

Double-wide printing ON

Ĝ

Set character spacing

Ĝ

Select character set

Ĝ

<ESC>T

Superscript or subscript OFF

Ĝ

Unidirectional print ON/OFF

Ĝ

<ESC>Un

Unidirectional print ON/OFF

Ĝ

Continuous double width ON/OFF

Ĝ

Double height print ON/OFF

Ĝ

Set print quality (PQ)

Ĝ

sets Draft or HS-Draft

Ĝ

sets LQ or NLQ

Ĝ

<ESC>X

Font selection according to pitch and points

Ĝ

Set left and right margin

Ĝ

Set graphics print to 120 dpi

Ĝ

Set graphics print to 240 dpi

Ĝ

*

<ESC>+F

Assign character set G3

Ĝ

*

<ESC>|

Character generator LS3R

Ĝ

*

<ESC>}

Character generator LS2R

Ĝ

*

<ESC>~

Character generator LS1R

Ĝ

<FF>

Form feed

Ĝ

<HT>

Horizontal tab jump

Ĝ

<HTS>

Set tab stop at actual horizontal position

Ĝ

<IND>

Line feed without CR

Ĝ

<LF>

Line feed

Ĝ

<NEL>

Line feed with CR

Ĝ

<PLD>

Half step line feed

Ĝ

<PLU>

Half step line feed back

Ĝ

<RI>

Line feed without CR back

Ĝ

<SI>

Condensed printing of 17.1 cpi ON

Ĝ

<SI>

Switching the character generator (SS 3)

Ĝ

<SO>

Double-wide printing ON

Ĝ

<SO>

Switching the character generator (SS 2)

Ĝ

<VT>

Vertical tab jump

Ĝ

<VTS>

Set tab stop at current vertical position

91

Tally Dascom 2600/2610/PRN-7

7.2.1 PJL commands

These PJL commands can be used with internal Ethernet interface as well as with

external

TallyCom III Pocket interface.

This functionality may be activated via the parameter Jobcntl in the Advanced Menu.

Sequence

Brief description

"ESC"%-12345X@PJL Universal Exit Language (UEL)

@PJL ECHO ECHO command

@PJL EOJ

@PJL EOJ NAME=

EOJ (End of Job) commands

@PJL INFO STATUS INFO (Information Request) command

@PJL INFO CONFIG INFO of the printer configuration

@PJL INFO VARIABLES INFO of variables which can be s

et by

@PJL INFO MEMORY INFO about the memory of the printer

@PJL USTATUS DEVICE = ON

@PJL USTATUS DEVICE = OFF

@PJL USTATUS DEVICE =

VERBOSE

@PJL USTATUS JOB = ON

@PJL USTATUS JOB = OFF

@PJL USTATUS PAGE = ON

USTATUS (unsolicited status)

commands

@PJL JOB NAME =

@PJL JOB FILE =

@PJL JOB START =

@PJL JOB END =

@PJL JOB COPY =

JOB (Start of Job) commands

@PJL ENTER LANGUAGE Exit PJL and start normal parser

@PJL INFO USTATUS List each type of unsolicited status

@PJL USTATUS TIMED Enables timed unsolicited status

7.2.2 Barcode

Even the standard version of your printer has the possibility of using up to 23

different MTPL barcode types.

Barcode mode can be accessed within every emulation. The user can

decide whether barcode is activated permanently or activated

depending on the situation by means of an escape sequence.

The printer prints small barcode in 240 dpi and wider barcodes in 120

dpi.

92

Tally Dascom 2600/2610/PRN-7

7.2.3 List of available MTPL barcodes

Type

Barcode

Type

Barcode

A*

2/5 Matrix (default)

N

UPC A (with HRI)

B*

2/5 Industrial

O

UPC A (without HRI)

C*

2/5 Interleaved

P

UPC E (with HRI)

D*

Code 11

Q

UPC E (without HRI)

E*

BCD Matrix

R*

Delta Distance (IBM)

F*

Code 39

S

Code 128

G*

Codabar

T

EAN 128

H

EAN 8 (with HRI)

1)

US-Postnet

I

EAN 8 (without HRI)

1)

KIX Barcode

K

EAN 13 (with HRI)

1)

Royal Mail Customer

Barcode

L

EAN 13 (without HRI)

1)

USPS Intelligent Mail

Barcode

M*

MSI/modified PLESSEY

*These barcodes may be printed out horizontal and vertical, the unmarked

only horizontal.

1) See description on following pages.

The barcode types K, L, N, O may be expanded by using Add-On Barcodes:

Add-On 2 and Add-On 5.

The information to be printed is transmitted in a “bracket” (DC4) A control

sequence (Header) defines the parameters of the used barcode once (e.g.

type, ratio, etc.). If no header is defined, the informaton in the “bracket” will

be printed in Code 2/5 Matrix.

Please note that within the Barcode environment the barcode commands

have priority in case of conflicts with the emulation.

Additional information is provided in the Barcode Programmer’s

Application Manual on this CD-ROM.

7.2.4 US Postnet barcode

Postnet is a special US-American type of barcode. Is printed in character size.

Numeric

values from 0 to 9 are printable.

After activating this barcode type, numeric characters from 0 (hex. 30) to 9 (hex. 39)

are interpreted as barcode figures. All other characters terminate the Barcode

mode.

Exception: the TAB function (hex. 09) is allowed within Barcode mode. The Postnet

sequence is accessible in every emulation.

The character (e.g. CR = carriage return, hex. 0D), which terminates the

barcode is not printed or carried out. US Postnet barcode does not

require a barcode bracket.

Example:

ASCII

ESC

[

1

SP

P

1

2

3

4

5

CR

93

Tally Dascom 2600/2610/PRN-7

HEX

1B

5B

31

20

70

31

32

33

34

35

0D

The numbers 1 to 5 are printed as Postnet stripes.

7.2.5 Royal Mail Customer barcode

The Royal Mail Customer barcode is a special Mail type barcode. It is printed in

character size. Numeric values from 0 to 9 and alpha- numeric values from A to Z are

printable. After activating this barcode type, numeric characters from 0 (hex.30) to 9

(hex. 39) and alphanumeric values from A (hex. 41) to Z (hex. 5A) are interpreted as

barcode figures. Lower cases from a (hex. 61) to z (hex. 7a) are automatically converted

to capital characters. Control characters from hex. 0 (dec. 0) to hex.1F (dec. 31)

terminates this barcode mode. All other characters are ignored. Exception: the TAB

function (hex. 09) is allowed within Barcode mode. The Royal Mail Customer sequence

is accessible in MTPL emulation. The printer prints barcode in LQ.

The character (e.g. CR = carriage return, hex. 0D), which terminates the

barcode is not printed or carried out.

Royal mail customer barcode does not required barcode bracket.

Example:

ASCII

ESC

[

1

SP

k

S

O

3

6

X

Y

1

A

CR

HEX

1B

5B

31

20

6B

53

4F

33

36

58

59

31

41

0D

The characters “SO36XY1A” are printed as Royal Mail Customer stripes.

7.2.6 KIX barcode

The KIX barcode prints numeric values from 0 to 9 and alpha-numeric values from

A to Z as barcode characters.

After activating this barcode type, numeric characters from 0 (hex. 30) to 9 (hex. 39) and

alphanumeric values from A(hex. 41) to Z (hex. 5A) are interpreted as barcode figures.

Lower cases from a (hex. 61) to z (hex. 7a) are automatically converted to capital

characters. Control characters from hex. 0 (dec. 0) to hex.1F (dec. 31) terminates this

barcode mode. All other characters are ignored. Exception: the TAB function (hex. 09) is

allowed within Barcode mode. The KIX sequence is accessible in MTPL emulation. The

printer prints barcode in LQ.

The character (e.g. CR = carriage return, hex. 0D), which terminates the

barcode is not printed or carried out. KIX barcode does not require a barcode

bracket.

Example:

ASCII

ESC

[

2

k

S

O

3

6

X

Y

1

A

CR

HEX

1B

5B

31

6B

53

4F

33

36

58

59

31

41

0D

The characters “SO36XY1A” are printed as KIX stripes.

7.2.7 USPS Intelligent Mail barcode

The USPS Intelligent Mail barcode is a 4-state barcode which works in MTPL, IBM and

Epson emulation. 4-state barcode data must be converted into only 0, 1, 2 or 3. Each

number represents one of the four possible bars. Tabs (Hex 09) and spaces can separate

either the bars or the barcodes horizontal, but every other character below Hex 20 will

terminate barcode mode.

You can enter the barcode mode with the sequence ESC [ ? 11 ~, the sequence ESC [ 10

~ exits the barcode mode.

94

Tally Dascom 2600/2610/PRN-7

Example:

ASCII

ESC

[

9

SP

K

<data>

HEX

1B

5B

39

02

6B

<data>

7.2.8 LC printing

Certain professional applications may require unusually Large character sizes.

Therefore your printer has the possibility of scaling standard size characters up to factor

99 by means of control sequences (LCP*).

The Header sequence defines the parameters (e.g. height) once. This definition

remains until the printer is switched off. The printable LCP* information is transmitted

in an LCP “bracket” (SI).

The following character sets (with national characters) are available.

ID

23

24

40

5B

5C

5D

5E

60

7B

7C

7D

7E

US ASCII

01

#

$

@

[

\

]

?

`

{

|

}

¯

GERMAN

02

#

$

§

Ä

*

Ü

?

`

ä

*

ü

ß

The character sets are selected via the following LCP sequence ESC ”P“ ”L“ ”S“ n

ESC ”\“. The value of n may range between 01 and 02 (as ASCII characters) – see ID

column in the above table.

To select e.g. the German character set, you must use the following data set:

ASCII

ESC

P

L

S

0

1

ESC

\

HEX

1B

50

4C

53

30

31

1B

5C

DEC

27

80

76

83

48

49*

27

92

The printout of LCP characters can be selected in all of the emulations.

Prerequisite: Printer must be in Barcode mode.

Note that this printer supports some scalable fonts in the LQ-2170 emulation

if a compatible driver is used.

95

Tally Dascom 2600/2610/PRN-7

7.2.9 List of additional control Codes

You can use both the ESC sequences and the control codes

Sequences

Control codes

Function

<ESC>[?10~

<ESC>[?11~

<ESC> PSC 0 <ESC> \

<ESC> PSC 1 <ESC> \

<ESC> PLS <n> <ESC> \

<ESC>[<n><SP>s

<ESC>[20<SP>s

<ESC>[16<SP>s

<ESC>[25<SP>s

<ESC>[15<SP>s

<ESC>[26<SP>s

<ESC>[1 SP p

<ESC>[1 SP k

<ESC>[2 SP k

<ESC>[9 SP k

—

<DC4>

<DLE>

<EM>

<SI>

<SUB>

—

Barcode Off

Barcode On

Unsecured mode

Secured mode

LCP character set

Sends a character as ASCII

character;

n > 0–255 decimal

Barcode bracket

Start code LCP Header

Termination code

Header LCP bracket

Start code

Barcode-Header

US-Postnet Barcode

Royal Mail Customer

Bar- code

Kix-Barcode

USPS Intelligent Mail

Header

Function

<DLE> [!] nn EM LCP header

[ ] = optional

nn = factor

<SUB> [F] a [nn][;xyz][;p] EM Barcode header

[ ] = optional

a = Barcode type

p = 0: Barcode horizontal

p = 9: Barcode vertical

Additional information is provided in the Barcode Programmer’s

Application Manual on this CD-ROM.

96

Tally Dascom 2600/2610/PRN-7

7.3 Interfaces Specifications

Your matrix printer offers connectivity via a parallel interface, USB and Ethernet

interface. Serial I/O RS232C interface is an option. This appendix informs you about the

parallel Interface, USB, Ethernet interface and optional serial interface RS232C, and

describes the communication between your computer and the printer.

These interfaces are linked to form a called shared interface. Your printer can be

configured to use only one interface or three alternately. When only one interface is

used, it is monitored by the printer. If the printer is configured to use three interfaces

simultaneously it monitors all interfaces for incoming data. As soon as the printer

recognizes a signal, it switches to the respective interface and sends the BUSY signal to

the other interface. After finishing the data transmission, the printer remains switched to

the interface for a certain period of time (30 seconds). When this time has elapsed, the

controller again enables all interfaces and the sequence described restarts. If incoming

data is on the other interface and the current print position is not “Top of Form”, a form

feed is carried out.

97

Tally Dascom 2600/2610/PRN-7

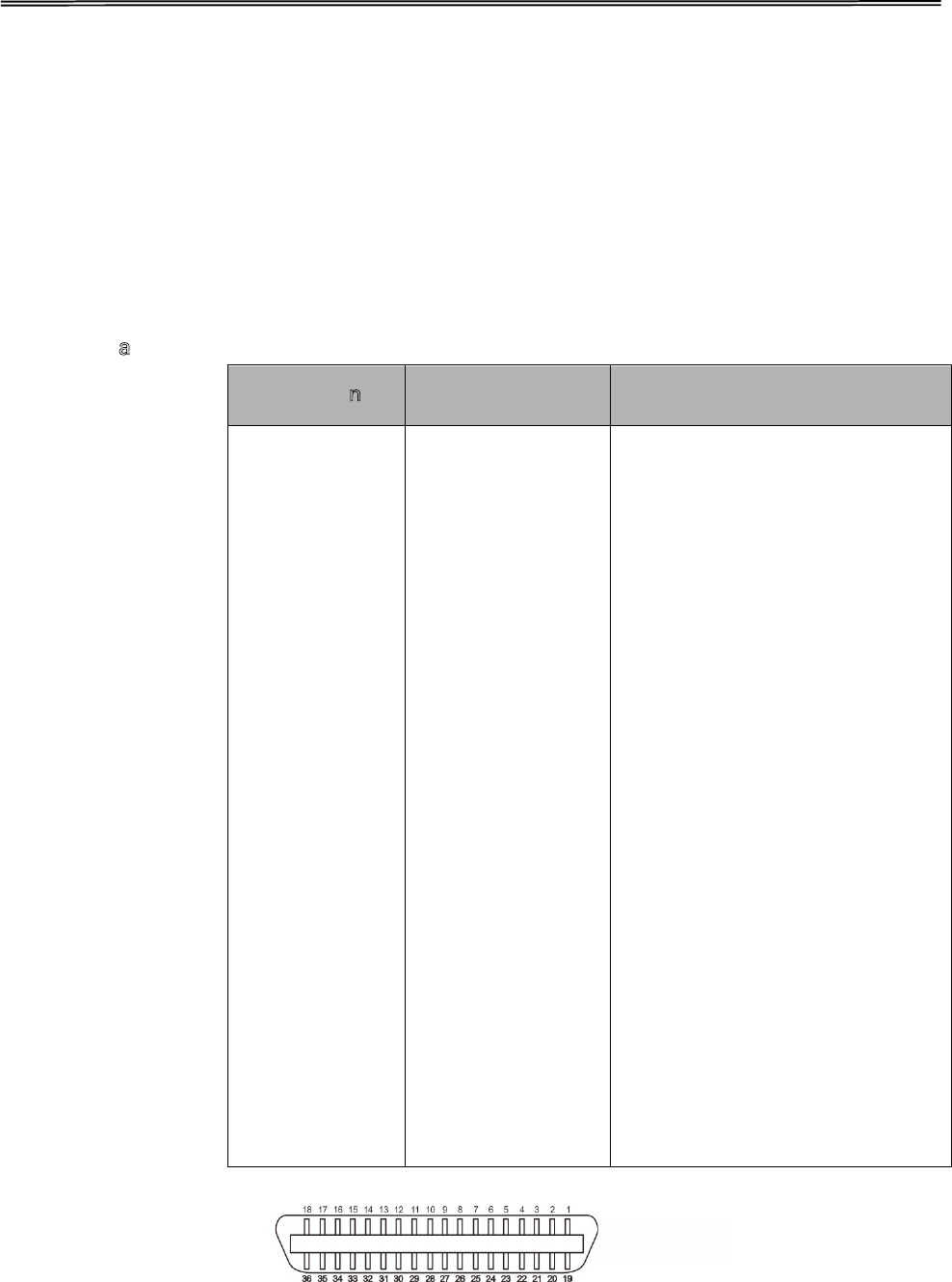

7.3.1 Parallel I/O IEEE 1284

The bidirectional parallel interface offers the “nibble” mode of IEEE1284 interface. This

enables installation in accordance with Windows “Plug & Play”.

The standard parallel interface is able to transfer data at a speed of max. 30, 000 bytes

per second. When the receiving buffer is full, the data input is blocked until the data

buffer is empty.

Connector assignment

Co

nnector no.

Direction

Printer–PC

Signal

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19–30

31

32

33

34–35

36

䊹

䊻

˩

₏

䊹

˩

₏

䊹

STROBE (active low)

DATA 1

DATA 2

DATA 3

DATA 4

DATA 5

DATA 6

DATA 7

DATA 8

ACK (active low)

BUSY

PAPER EMPTY (PE)

SELECT

AUTO FEED (active low)

not used

SIGNAL GROUND

CHASSIS GROUND

5 V (Imax = 500 mA)

SIGNAL GROUND INIT

(active low) ERROR

(active low) SIGNAL

GROUND not used

SELECT IN

Transmission length: max. 2,0 m

98

Tally Dascom 2600/2610/PRN-7

7.3.2 Ethernet I/O 10/100 Mulitprotocol

The Ethernet interface enables the printer to connect to local area networks. Its

attributes are:

Hardware

LAN/Ethernet: RJ45, Ethernet 100BaseTX with 100

Mbps

(IEEE802.3u), 10Base-T with 10 Mbps

(IEEE802.3)

Speed: 100 Mbps / Full Duplex

Supported operating

Systems

Windows XP, Windows Server 2003, Windows 2000,

Windows NT, Windows 7, Windows Vista, Windows

Server 2008, Windows Server 2013, Windows 8

Linux

Unix

Sun

Solaris

Supported Protocols

SNMP

SMTP

TCP/IP

FTP

Ipr / Ipd Port 9100

Designation of IP

Address

DHCP

BOOTP

Static (manually via the printer’s control panel)

Configuration

HTTP

TCP/IP

Status

SNMP

TCP/IP

SMTP

PING

Management

Web Panel

HP Web Jet Admin

E-Mail notification with SMTP

Pre-string, Post-String, String Replacement

Setup

Setup via the printer’s control

panel

Web Panel

(HTTP/HTML)

Ethernet TCP/IP

When using your printer in a local network with Ethernet connections and the TCP/IP

protocol, you have to assign address information.

Address information for the Ethernet Port can only be made available by your

network administrator, who has the necessary rights to install Printers on the

network and/or make any changes.

99

Tally Dascom 2600/2610/PRN-7

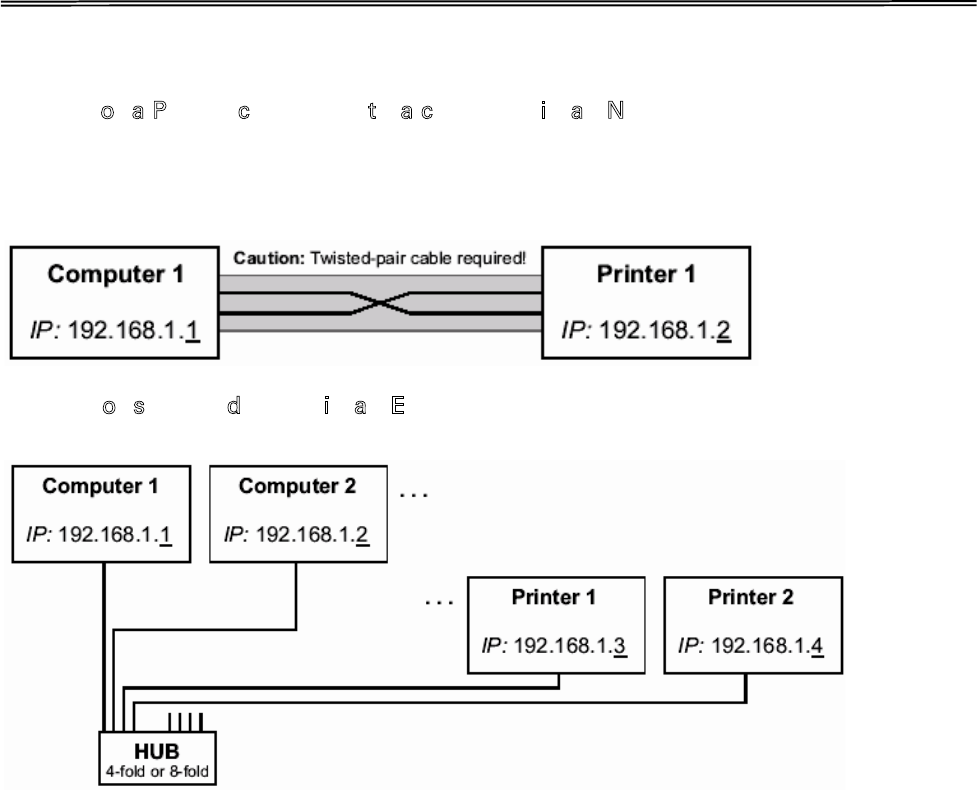

Example of a Printer connected to a computer in an Network

䕺 The assumed address space corresponds to the TCP/IP address, class C, 192.168.1.xxx.

䕺 The subnet mask to be used is 255.255.255.0.

䕺 The address of the router, or gateway, is 0.0.0.0, if not available.

Example of several devices in an Ethernet

7.3.3 USB 2.0 I/O – Full Speed

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports

the Full Speed mode at 12 Mbps. It uses the “B” type USB connector.

100

Tally Dascom 2600/2610/PRN-7

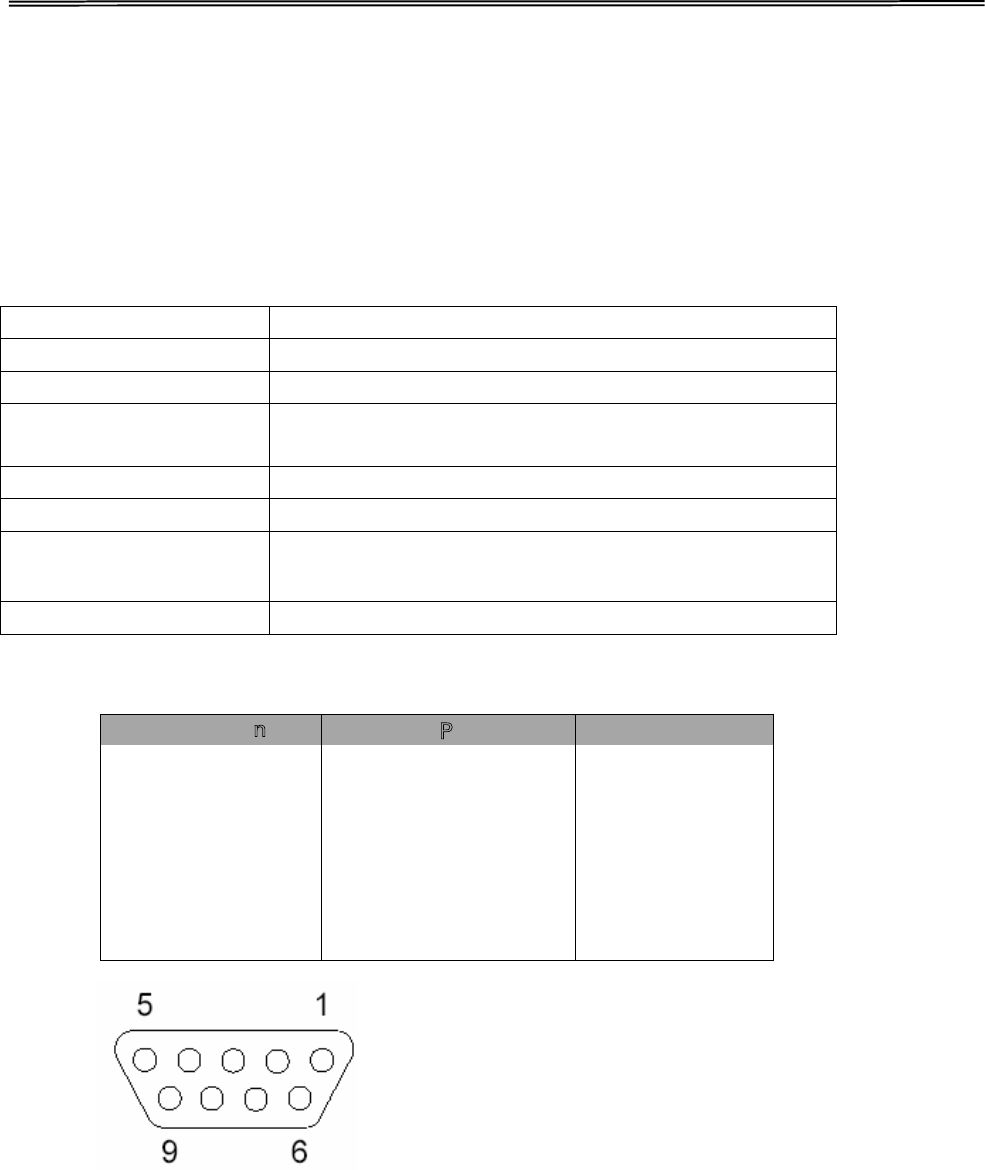

7.3.4 Optional Serial Interface RS232C

Your printer’s serial interface supports the RS232C specification. The signals are

received and transmitted by a 9 pin connector.

Basically 3 lines are enough for exchanging information between computer and printer

(one receive line, one send line, one line for common grounding).

Type

RS232C interface

Synchronization

Asynchronous

Transmission rate

600 Baud to 19200 Baud

Signal status

OFF (log.1) -3 V to -15 V

ON (log. 0) +3 V to +15 V

Connection cable

up to 15 m length

Interface connections

ITT Cannon connector, series DB-9 S

Transmission protocol

XON/XOFF, ENQ/STX, READY/ BUSY,

Robust XON/XOFF, ETX/ ACK, ACK/NAK

Capacity of data buffer

512Byte min. 256KByte max

Connector assignment

Connector no.

Direction Printer–PC

Signal

3

ė

TxD

4

ė

DTR

2

ĕ

RxD

6

ĕ

DSR

7

ė

RTS

8

ĕ

CTS

5



Signal Ground SG

Shield



Frame Ground FG

101

Tally Dascom 2600/2610/PRN-7

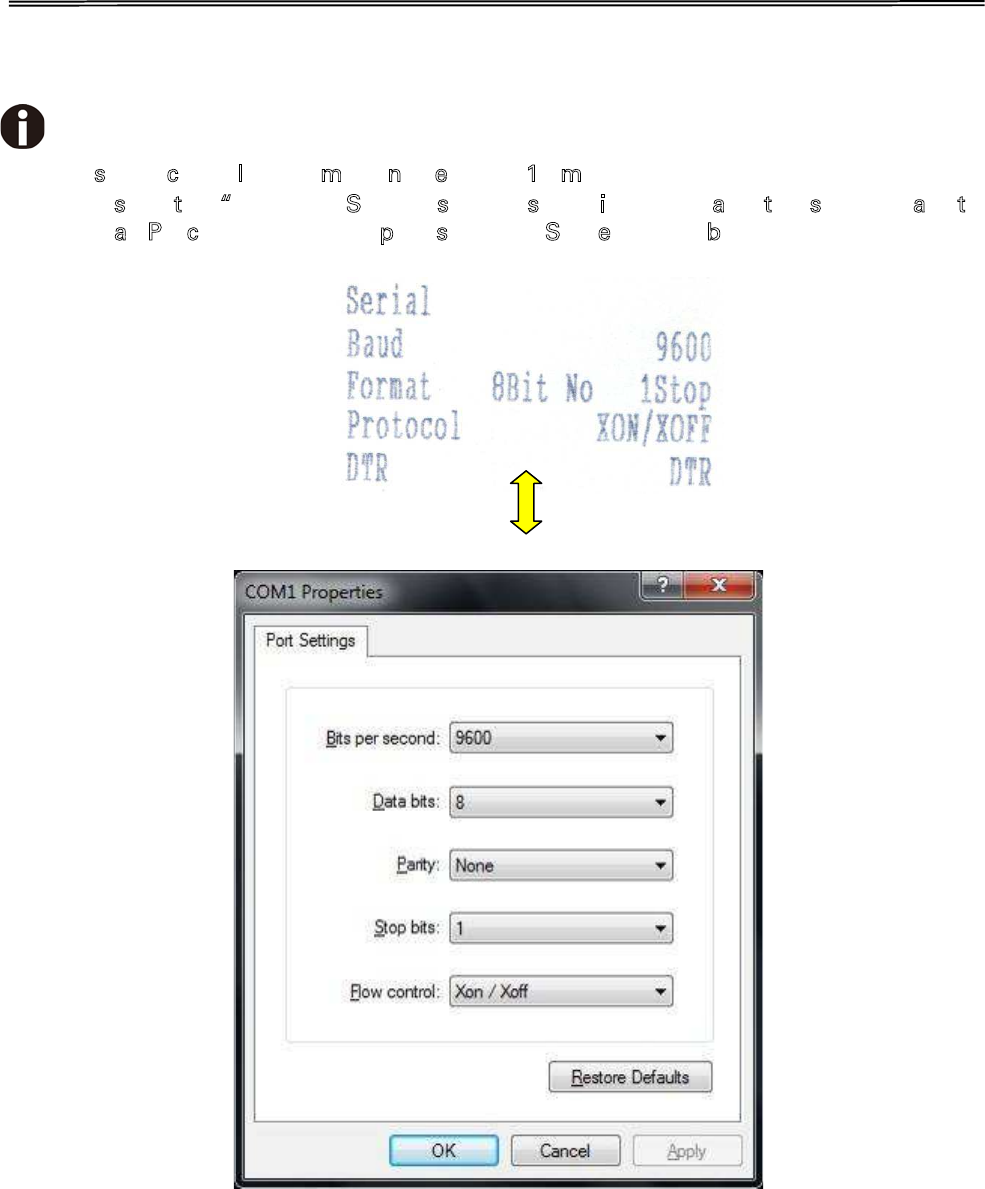

1) The serial cable length must not exceed 15 meters.

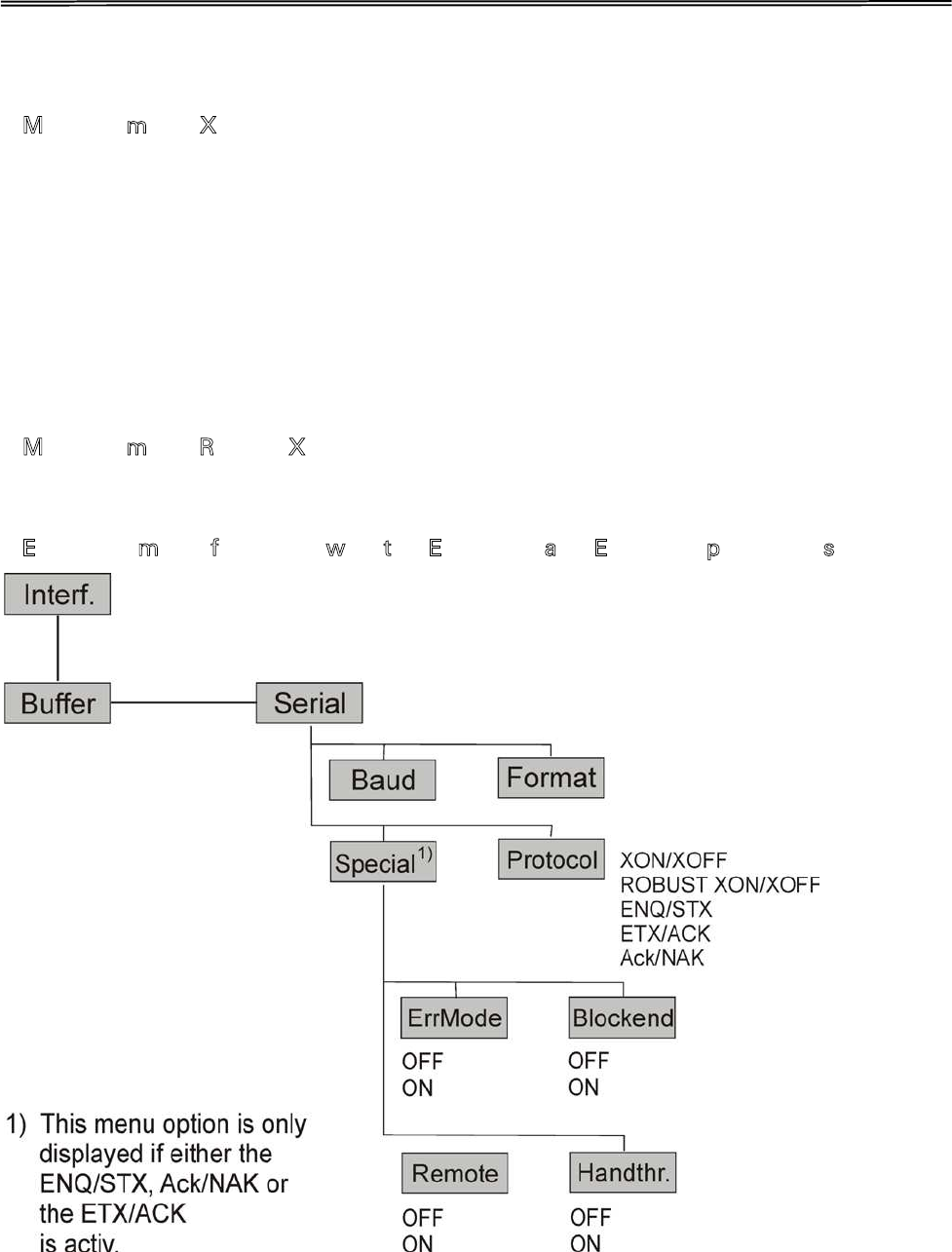

2) Make sure the “Interface Setup” selects serial interface and the settings are the

same as PC communication port settings. See example below:

102

Tally Dascom 2600/2610/PRN-7

Interface cable (serial interface)

The cables used must be shielded. The cable shield must be connected to the connector

shield on both ends.

PC/AT˄9 Pin˅ Printer˄9 Pin˅

RxD

2

3

TxD

3

2

RxD

CTS

8

4

DTR/RDY

SG

5

SG

DSR

6

DTR

4

PC/AT˄25 Pin˅ Printer˄9 Pin˅

FG

1

FG

TxD

2

RxD

3

TxD

CTS

5

4

DTR/RDY

SG

7

5

SG

DSR

6

DTR

20

It depends on the menu setting whether DTR or RDY (Ready) is active at Pin

4.

䕺 Input signals

Signal

Function

CTS

DSR

RxD

Clear to Send

Data Set Ready

Receive Data

䕺 Output signals

Signal

Function

DTR

RTS

READY

TxD

Data Terminal Ready

Request to Send

Ready to receive

data Transmit Data

103

Tally Dascom 2600/2610/PRN-7

Protocols

䕺 Memory mode XON/XOFF

The received characters are stored in a FIFO buffer (first in/first out).

The characters are processed in this buffer.

The buffer capacity can be adjusted from 0 to 128 Kb.

If the buffer is full, the interface signals NOT READY (signal acknowledgement: Level 1,

-12 V) and XOFF (hex. 13, dec. 19). This results in stopping the data transmission. When

the FIFO buffer is empty again, the interface signals READY (level 0, +12 V) and XON

(hex.11, dec. 17). Data transmission can be continued.

In addition, the READY signal is influenced by the status of the printer (On/Off Line). If the

printer assumes an undefined state, the interface also signals NOT READY and XOFF.

䕺 Memory mode Robust XON/XOFF

Robust XON/XOFF is similar to XON/XOFF. However, the state of the printer (XON or

XOFF) is also periodically transmitted via the TxD line in the case of Robust XON/XOFF.

䕺 Extended menu functions with the ENQ/STX and ETX/ACK protocols selected

protocol

104

Tally Dascom 2600/2610/PRN-7

䕺 ENQ/STX protocol

In addition to this XON/XOFF message, the possibility exists of requesting a status byte

from the printer using the ENQ code (hex. 05, dec. 5). The STX code (hex 02, dec. 2) is

used to clear any error messages (parity error, buffer overflow).

Status byte

Bit 0-1

BUSY

Bit 1-1

Off Line

Bit 2-0

Paper end

Bit 3-1

Always 1

Bit 4-1

Cover open

Bit 5-1

Buffer overflow

Bit 6-1

Parity or frame error

Bit 7-0

Always 0

STX (hex02):

ENQ (hex05):

XON/XOF:

HandThr.= ON:

HandThr.=

OFF:

Clears any previous parity or framing error as well as any buffer

overflow error.

The current printer status is sent to the host.

This protocol is automatically used for data flow control and printer

status handling.

The STX and ENQ characters are not filtered out of the data stream

and control the interface in addition.

The STX and ENQ are filtered out of the data stream and handled

immediately by the interface.

䕺 ETX/ACK protocol

ETX (hex03):

XON/XOFF:

ACK (hex06):

HandThr.=ON:

HandThr.

=OFF:

Acknowledgement informing the host that further data may be

transmitted.

This protocol is used in addition to data flow control and printer status

handling.

Block end character.

An ETX is not acknowledged by ACK before all previously arrived data

have been printed.

When the printer receives an ETX, it returns an ACK to the host. Any

previously sent data or blocks may still be present in the printer buffer.

䕺 ACK/NAK protocol

The ACK/NAK Protocol is a so called block Protocol.

Normally the Blocks are starting with the Block Start Character (STX, dec 02, hex 02) and

end with a Block End Character (ETX, dec 03, hex 03).

As soon as a Block is received by the printer it acknowledges it with the Acknowledge

Character (ACK, dec 06, hex 06).

If there is an Error in the transmission a Not-Acknowledge-Character (NAK, dec 21, hex

15) is being sent back. As a block end character other codes are possible.

One can check the printer condition/status; During the transmission of graphic data or

download character per se problems can come up within the block mode as in this data

block end characters can be transmitted as normal graphic or other data.

105

Tally Dascom 2600/2610/PRN-7

8 Options and accessories

The following options can be ordered for your printer.

8.1 Options

Tractor Unit 2600

Tractor Unit 2610

Name

Part no.

Second Tractor for push and pull position

(rear, top and front installable). 99993

Serial Interface 2600/2610

Name

Part no.

Serial Interface RS232C, 9pin female 99994

Name

Part no.

Second Tractor for push and pull position

(rear, top and front installable). 99992

106

Tally Dascom 2600/2610/PRN-7

8.2 Consumables

Ribbons

Name

Part no.

Ribbon cassette monochrome black for

narrow model 99061

Ribbon cass

ette monochrome black for

wide

d l

99071

Refill Kits

Name

Part no.

Refill Kit monochrome black fabric for

narrow

d l d d

99002

Refill Kit monochrome black fabric for wide

model, on demand 99072

8.3 Accessories

Programming manuals

The following programming manuals are available. You can download the manuals

from

our internet page.

Name

Part no.

Programmer’s application manual MTPL

(in English)

379 298

Programmer’s application manual Barcode

(in English)

379 300

Programmer’s application manual Epson

(in English)

379 302

107

Tally Dascom 2600/2610/PRN-7

9 General Specifications

9.1 Printer Specifications

Print System Mono-chrome serial impact dot matrix

Print Technology Uni-/bi-directional logic seeking for text and graphics

Print Head

Number of pins: 24 pins (2 x 12; staggered)

Firing frequency: Normal mode: 2 kHz

Pin diameter: 0.25 mm

Distance between pins: horizontal 1/20 inch, vertical 1/90 inch

Life: 500 million strokes/pin @ Draft mode

Print Speed

Pitch HS Draft Draft NLQ LQ in CPS

(characters per second)

10 CPI 500 333 222 111

12 CPI 500 400 267 133

15 CPI *) 500 500 333 167

15 CPI 500 500 167 167

17.1 CPI 286 285 190 190

20 CPI 333 333 222 222

17.1 CPI **) 571 --- --- ---

20 CPI **) 680 --- --- ---

Character Pitch 5 / 6 / 7.5 / 8.6 / 10 / 12 / 15 / 17.1 / 20 CPI (characters per inch)

Print attributes in all

character pitches

Double width / italics / right justification / shadowed / auto centered / double height

/ bold / proportionally spaced / underlined / overlined / superscript / subscript;

Scalable with special LQ-2170 fonts

Character Size Height: 3.32 mm (inclusive descenders)

Width: max. 2.43 mm

Font Matrix

Pitch HS Draft Draft NLQ LQ

(Matrix/DPI)

10 CPI 24x8/80H 24x12/120H 24x18/180H 24x36/360H

12 CPI 24x8/96H 24x10/120H 24x15/180H 24x30/360H

15 CPI *) 16x8/120H 16x8/120H 16x12/180H 16x24/360H

15 CPI 24x8/120H 24x8/120H 24x18+6/360H 24x18+6/360H

17.1 CPI 24x12+2/240H 24x12+2/240H 24x18+3/360H 24x18+3/360H

20 CPI 24x10+2/240H 24x12+2/240H 24x15+3/360H 24x15+3/360H

17.1 CPI **) 24x06+1/240H --- --- ---

20 CPI **) 24x05+1/240H --- --- ---

Paper Feed

Feed speed: 5 ips (tractor and friction)

Feed first line (6lpi): 43 ms

View / Tear position: 5 ips

Reverse motion: up to max form length of 14 inches

*) Only with ESC/P (sub-/superscript, 15 CPI) and MTPL Micro-script

**) Reduced matrix, selectable by menu, named Ultra-Draft

108

Tally Dascom 2600/2610/PRN-7

Tab Speed 50 ips

Graphic Densities

Horizontal: 60 / 72 / 80 / 90 / 120 / 180 / 240 / 360 DPI (dot per inch)

Vertical: 90 / 180 / 360 DPI

Print width

Narrow version Wide version

10 CPI: 80 CPL 136 CPL (characters per line)

12 CPI: 96 CPL 163 CPL

15 CPI: 120 CPL 204 CPL

17.1 CPI: 137 CPL 233 CPL

20 CPI: 160 CPL 272 CPL

Fonts,

resident

Print qualities:

Ultra-Draft, HS-Draft and Draft in Data Print Quality

NLQ same as LQ with reduced matrix, LQ

Roman, Roman PS, Sans Serif, Sans

Serif PS, Courier, Courier (IBM®),Courier PS (IBM®), OCR A, OCR B, Prestige,

Script, Orator, Gothic, Souvenir

DLL Character Sets in EPSON® and IBM® format

Barcodes,

resident

Selectable via programming:

Code 2/5 Industrial

Code 2/5 Interleaved

Code 39

Code EAN-8 with HRI (human readable index)

Code EAN-8 without HRI

Code EAN-13 with HRI

Code EAN-13 without HRI

Code UPC-A with HRI

Code UPC-A without HRI

Code UPC-E with HRI

Code UPC-E without HRI

Code 128 EAN (also called EAN-128)

Code 128

U.S. Postnet (fix format, non-scalable)

KIX Barcode

Royal Mail Customer Barcode

USPS Intelligent Mail Barcode

Emulation MTPL, EPSON® ESC P/2 (LQ2170), EPSON® ESC P (LQ 2550), IBM® PP XL 24e

Code Pages and

National Character

Sets

See the list at the end of the Printer Specifications where Fonts, Code pages

and

available pitch sizes are given by corresponding relationships.

Line Spacing 2 LPI / 3 LPI / 4 LPI / 6 LPI / 8 LPI / 12 LPI / 1/72" / 1/180" / 1/360 inches

109

Tally Dascom 2600/2610/PRN-7

Paper Handling

Feeding method: Friction (Single) and Tractor (FF-front / FF-rear / FF-pull)

Path selection: By selection lever located at the right device side

Paper path: Cut sheets: Front in, front or top out

Fanfold paper: Front or rear in, top out

For details enter the Paper Specifications – 9.3 below

Ribbon Type

Ribbon Cartridge, monochrome;

Wide version: 470 x 93 x 39mm max, (WxDxH), fabric: 13mm height

Narrow version: 330 x 93 x 39mm max, (WxDxH), fabric: 13mm height

Ribbon Life Wide version: 12 million characters (rolling Draft 10 CPI)

Narrow version: 6 million characters (rolling Draft 10 CPI)

Windows Drivers

Windows Server 2000 / 2003 / 2008 / 2012

Windows 7 and Windows 8 (for 32 and 64bit versions)

Î covers Windows XP, Windows 2000 and Windows Vista.

Interfaces

Ethernet 10/100MHz

Parallel (Bi-directional IEEE-1284 nibble mode)

USB 2.0 (Full Speed 12 MHz, B type connector)

For details enter the Interface Specifications – 7.3 above

Input Data Buffer Up to 256KB

Operation Panel LED version: 4 keys and 5 indicator LEDs

LCD version: 6 keys and LCD with 2 lines x 16 characters

Self test

Menu setting print out

Rolling ASCĊ80 or 136

Hex-Dump

Noise Level Sound pressure level = d 55 dB(A) in LQ

Environmental

Conditions

Temperature Operating: +10 to +35°C.

Storage: - 5 to +45°C

Transport: - 40 to +70°C

Humidity Operating: 16 to 73% RH (No condensation)

Storage: 5 to 95% RH (No condensation)

Transport: 5 to 95% RH (No condensation)

Dimensions Wide version: 600 mm (W) x 267 mm (D) x 202 mm (H)

Narrow version: 458 mm (W) x 267 mm (D) x 202 mm (H)

Weight Wide version: 10.62 kg

Narrow version: 8.1 kg

110

Tally Dascom 2600/2610/PRN-7

Power Supply

Unit type: Autosensing wide range power supply

Power cord: Detachable

Voltage rating: AC 100 to 240V / 47Hz to 63Hz

Nominal power: 30W

ESD: Comply with IEC801-2;

Contact discharge: 4kV

Air discharge: 8kV

Fuse T6.3AH/250V

MTTR < 15 minutes

Continuous

operation

Throughput: 422 p/h in Draft mode according IEC 10561:1999 (ECMA

132)

MTBF: 20.000 hours

Certifications CE, UL, FCC, ICES, Energy Star,

111

Tally Dascom 2600/2610/PRN-7

9.2 Non-Scalable Fonts, Code Pages and National Character Sets

ID for ESC R/ESC (

High Speed Draft

Draft

Roman

Sans Serif

Courier (incl. Courier

IBM)

OCR-B

OCR-A

Prestige

Script

Orator

Gothic

Souvenir

ISO USA

42

X

ISO UK

41

X

ISO France

52

X

ISO Germany

4B

X

ISO Italy

59

X

ISO Sweden

48

X

ISO Norway

60

X

ISO Spain

5A

X

ISO Portugal

4C

X

Epson USA

00

X

Epson France

01

X

Epson Germany

02

X

Epson UK

03

X

Epson Denmark I

04

X

Epson Sweden

05

X

Epson Italy

06

X

Epson Spain I

07

X

Epson Japan

08

X

Epson Norway

09

X

Epson Denmark II

0A

X

Epson Spain II

0B

X

Epson Latin America

0C

X

Epson Korea

0D

X

Epson Legal

40

X

CRO-ASCII

3C

X

-

X

-

Arabic Farsi

96

-

*1

-

Arabic Urdu

97

-

*1

-

Greek DEC

46

X

-

X

-

ELOT 928 (Greek)

6C

X

-

X

-

CP437 Latin US

80

X

CP737 Greek

93

X

-

X

-

CP775 Baltic

A6

X

-

X

-

CP850 Latin 1

82

X

CP851 Greek

88

X

-

X

-

CP852 Latin 2

87

X

-

X

-

CP857 Turkish

8D

X

-

X

-

CP858 (IBM with €)

9E

X

CP860 Portugal

84

X

CP861 Icelandic

94

X

-

CP863 French Canada

85

X

CP864 Arabic

8C

-

*1

-

CP864 Arab. Extended

95

-

*1

-

112

Tally Dascom 2600/2610/PRN-7

ID for ESC R/ESC (

High Speed Draft

Draft

Roman

Sans Serif

Courier (incl. Courier

IBM)

OCR-B

OCR-A

Prestige

Script

Orator

Gothic

Souvenir

CP865 Nordic

86

X

CP866 Cyrillic

8E

X

-

X

-

CP866 Bulgaria

9D

X

-

X

-

CP866 Ukraine

8F

X

-

X

-

CP866 Kazakhstan

90

X

-

X

-

Siemens Turkish

9B

X

-

X

-

DEC Turkish

9C

X

-

X

-

CP1250 Win Latin 2

70

X

-

X

-

CP1251 Win Cyrillic

71

X

-

X

-

CP1252 Win Latin 1

72

X

-

CP1253 Win Greek

73

X

-

X

-

CP1254 Win Turkish

74

X

-

X

-

CP1256 Arabic

76

-

*1

-

CP1257 Baltic

77

X

-

X

-

8859-1 Latin 1

25

X

8859-1 Latin 1 (SAP)

2B

X

-

8859-2 Latin 2

26

X

-

X

-

8859-5 Cyrillic

2A

X

-

X

-

8859-6 Arabic

24

-

*1

-

8859-7 Greek

2D

X

-

X

-

8859-9 Turkish

2E

X

-

X

-

8859-15 Latin 9 (Euro)

2F

X

-

BRASCII

6D

X

-

Abicomp

6E

X

-

Roman 8

4D

X

-

Coax/Twinax(Hebrew)

4F

X

*2

-

*3

*4

-

New-437 (Hebrew)

81

X

*2

-

*3

*4

-

New-DIG 850 (Hebr.)

83

X

*2

-

*3

*4

-

Old-Code 860 (Hebr.)

98

X

*2

-

*3

*4

-

Flarro 863 (Hebrew)

99

X

*2

-

*3

*4

-

Table 865 (Hebrew)

9A

X

*2

-

*3

*4

-

Mazovia (Poland)

92

X

-

X

-

Kamenicky (Czech)

91

X

-

X

-

*1: only in 10 and 12 cpi, *2 : same as Sans Serif, *3 : same as Roman, *4 : only in 10 cpi

113

Tally Dascom 2600/2610/PRN-7

9.3 Paper Specifications

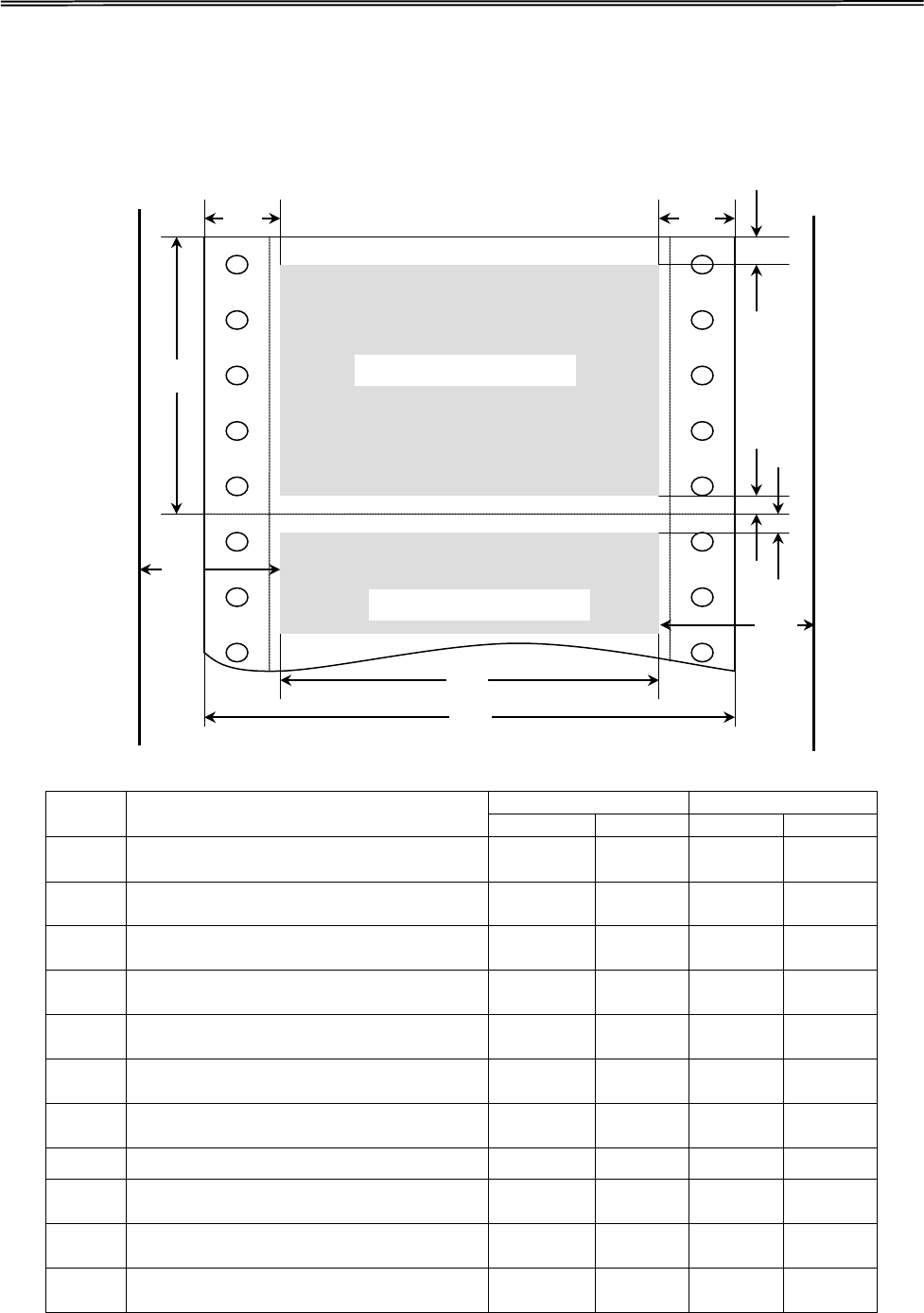

9.3.1 Standard Tractor (Front, Rear and Pull position) – narrow and wide versions

Usable figures of print area (dimensions in mm (inches))

Pos Titel

Narrow model.

Wide.model

min

max

min

max

A

paper width,

76.2

(3”)

278

(11”)

76.2

(3”)

420

(16.5”)

B

printable line length

203.2

(8”)

345.44

(13.6”)

C

Max left tractor position to first

printable character

38

(1.4”)

38

(1.4”)

D

Max right tractor position to first

printable character

38

(1.4”)

38

(1.4”)

E

top margin 1)

0

(0/72”)

77.6

(220/72”)

0

(0/72”)

77.6

(220/72”)

E

1

top margin, default setting 1)

4.23

(12/72”)

4.23

(12/72”)

F

form length 1)

76,2

(3”)

559

(22”)

76.2

(3”)

559

(22”)

G

bottom margin

0

H

left margin, default setting “0” 1)

0

198.1

(78/10”)

0

340.4

(134/10”)

I

right margin, default setting “80” 1)

or “136/10”

2

203.2

(80/10”)

2

345.44

(136/10”)

reverse paper feed for front and rear

tractor path

356

(14”)

356

(14”)

1) Figure variable setting via interface or panel

G

E

1

E

A

B

C

D

F

H

I

printable area

114

Tally Dascom 2600/2610/PRN-7

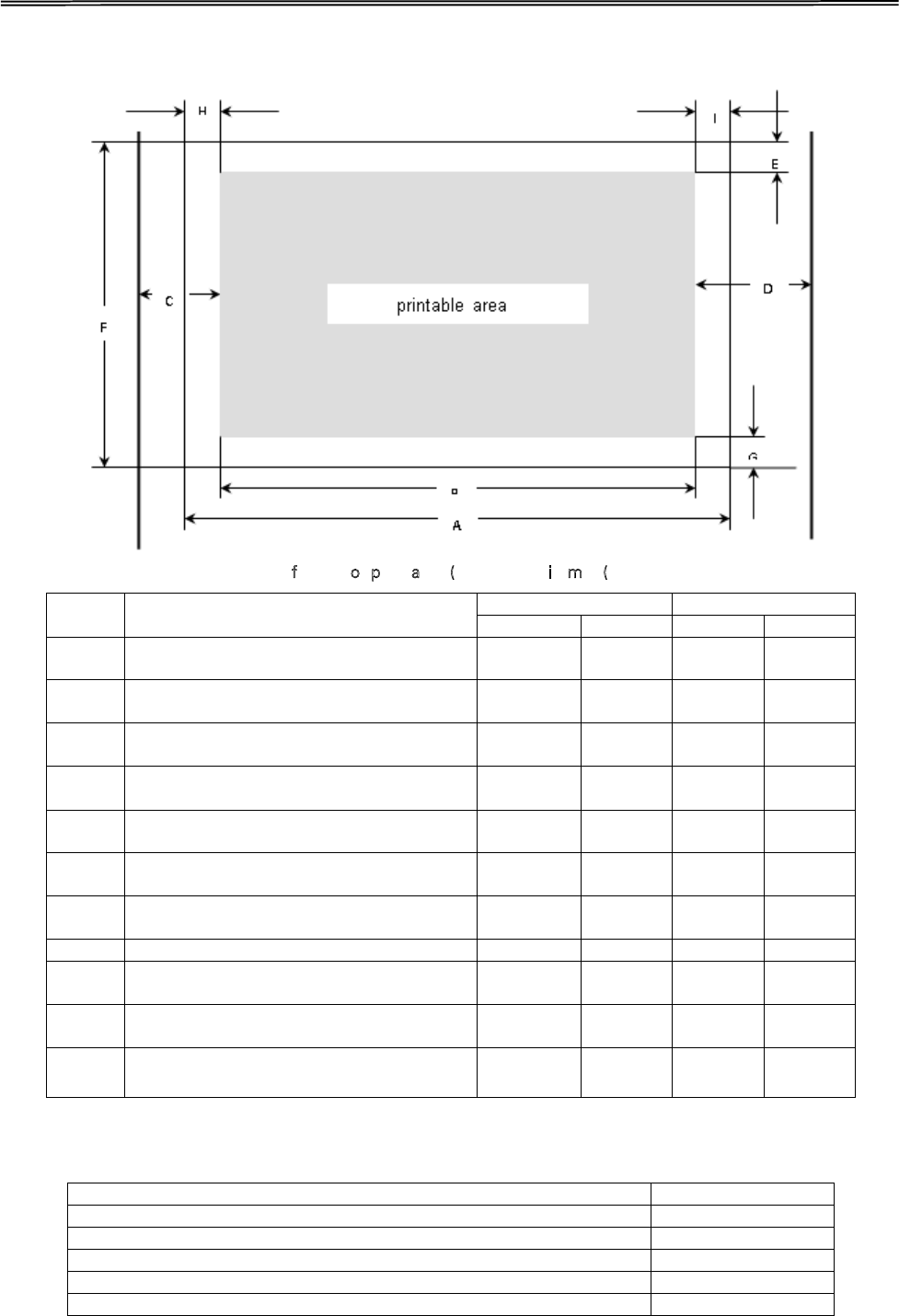

9.3.2 Front Feed / Manual Insertion – Narrow and wide versions

Usable figures of print area (dimensions in mm (inches))

Pos Title

Narrow model

Wide model

min

max

min

max

A

paper width,

76

(3”)

278

(11”)

76

(3”)

420

(16.5”)

B

printable line length

203.2

(8”)

345.44

(13.6”)

C

Max left paper guide position to first

printable character

38

(1.4”)

38

(1.4”)

D

Max right paper guide position to first

printable character

38

(1.4”)

38

(1.4”)

E

top margin 1)

0

(0/72”)

77.6

(220/72”)

0

(0/72”)0

77.6

(220/72”)

E

top margin, default setting 1)

4.23

(12/72”)

4.23

(12/72”)

F

form length

148

(5.8”)

420

(16.5”)

148

(5.8”)

420

(16,5”)

G

bottom margin

0

H

left margin, default setting “0” 1)

0

198.1

(78/10”)

0

340.4

(134/10”)

I

right margin, default setting “80” 1)

or “136/10”

2

203.2

(80/10”)

2

345.44

(136/10”)

reverse paper feed

(front ejection)

420

(16.5”)

420

(16,5”)

9.3.3 Paper Weights

Narrow and wide

Single Part Forms

60 – 120g/m²

Number of copies

1 + 5

Multi Part Forms – original sheet

45 – 65g/m²

Multi Part Forms – copy sheets

45 – 56g/m²

Maximum thickness

0.50mm

1) Figure variable setting via interface or panel

115

Tally Dascom 2600/2610/PRN-7

10 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon

cartridge are all that is required. Cleaning is recommended approximately every 6

months or 300 hours of operation, whichever is sooner. Lubrication of the printer is not

usually necessary. If the print head carriage does not move smoothly back and forth,

clean the printer in the manner described in this chapter. If the problem continues,

contact your dealer.

Switch printer off and unplug the power cord from the mains before doing

any maintenance work.

10.1 Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other

contaminants. However, paper produces small particles that accumulate inside the

printer. This section explains how to clean and vacuum the printer and how to clean the

paper bail rollers. It is easier to clean the printer when the cover is open.

10.1.1 Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have

accumulated in the printer, clean the printer.

To clean and vacuum the printer:

1) Remove any paper from the printer. Make sure that the power is off, and then

disconnect the printer power cord.

2) Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut

sheet edge.

3) Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild

detergent may be used. Do not use solvents, kerosene, or abrasive cleaning

materials that may damage the printer.

4) Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum

brush, gently vacuum the platen, the print head carriage and shaft, and surrounding

areas. You can easily slide the print head to the left or right when the power is off. Be

careful not to press too hard on the flat head cable that extends from the print head

carriage.

5) Re-install the ribbon cartridge.

10.1.2 Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear

on the paper. Use a mild detergent as appropriate. Do not use alcohol to clean the

platen or the rollers. Alcohol may cause the rubber to harden.

To clean the rollers and the platen:

1) Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2) Place the cloth against the platen and manually rotate the hand wheel.

3) Repeat this procedure for each roller.

4) To dry the platen, place a dry cloth against the platen and the rollers and manually

rotate the paper feed knob.

116

Tally Dascom 2600/2610/PRN-7

10.2 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter

provides information on some of the common problems you may encounter and how

you may solve them. If you encounter problems that you cannot resolve, contact your

dealer or service partner for assistance.

10.2.1 Print Quality Problems and Solutions

Problem

Solution

Printing is too light or too

dark.

t.BLFTVSFUIBUUIFSJCCPODBSUSJEHFJTQSPQFSMZ

installed and that the ribbon feeds smoothly.

t3FQMBDFUIFSJCCPOJGOFDFTTBSZ 

t.BLFTVSFUIBt the print gap lever is set for the

thickness of your paper.

Smears and stains appear

on the page.

t.BLFTVSFUIBUUIFQSJOUHBQMFWFSJTTFUGPSUIF

thickness of your paper.

t$IFDLGPSSJCCPOXFBS3FQMBDFUIFSJCCPOJG

necessary.

t$IFDLXIFUIFSthe tip of the print head is dirty.

Clean the head with a soft cloth if necessary.

t5IFQSJOUIFBENBZOFFEUPCFSFQMBDFE

Printing is erratic or the

wrong characters are

printed. Many “?” or

unexpected characters are

printed.

t.BLFTVSFUIBUUIFJOterface cable is securely

connected to both the printer and computer.

t.BLFTVSFUIBUUIFQSJOUFSESJWFSTFMFDUFEJOZPVS

software is the same as the emulation selected on

the printer.

t$IFDLUIFMFOHUIPGUIFJOUFSGBDFDBCMF.BYJNVN

Parallel & USB: 2 meters, Serial: 15 meters)

t5SZBOPUIFSJOUFSGBDFDBCMF

The page is blank.

t.BLFTVSFUIBUUIFSJCCPODBSUSJEHFJTQSPQFSMZ

installed.

t.BLFTVSFUIFHBQMFWFSJTTFUDPSSFDUMZ

The top margin is wrong.

t$IFDLUIFBQQMJDBUJPOUPQNBSHJOTFUUJOH

t"EKVTUUIF5PQ.BSHJOTFUUJOHJO1BHF4FUVQNFOV

if necessary.

Lines are double spaced

instead of single spaced.

t Change the Auto LF setting in the System Setup

menu to No.

The printer overprints on

the same line.

t Change the Auto CR setting in the System Setup

menu to No.

The next print line starts

where the previous line

ended instead of at the left

margin.

t Change the Auto CR setting in the System Setup

menu to Yes.

117

Tally Dascom 2600/2610/PRN-7

10.2.2 Paper Handling Problems and Solutions

Problem

Solution

Paper cannot be loaded or

fed.

t.BLFTVSFUIBUUIFQBQFSTFMFDUMFWFSMPDBUFEPO

the top right of the printer is set correctly.

Paper jams while loading.

t5VSOPGGUIFQSJOUFSBOESFNPWFUIFKBNNFE

paper. Remove any obstructions from the paper

path.

t.BLFTure that the Print Gap lever is set for the

thickness of your paper.

t.BLFTVSFUIBUUIFQBQFSJTOPUGPMEFEDSFBTFEPS

torn.

t.BLFTVSFUIBUUIFMFGUBOESJHIUUSBDUPSTBSFTFUTP

that the continuous forms are stretched tightly.

Paper jams while printing.

t5VSOPGGUIFQSJOUFSBOESFNPWFUIFKBNNFE

paper. Remove any obstructions from the paper

path.

t.BLFTVSFUIBUUIF1SJOU(BQMFWFSJTTFUGPSUIF

thickness of your paper.

t'PSDPOUJOVPVTGPSNTNBLFTVSFUIBUUIF

incoming and outgoing paper stacks are correctly

placed. Paper should feed straight.

Paper slips off the forms

tractors or the perforated

holes of the paper tear

during printing.

t Make sure that the forms tractors are positioned

correctly for the width of your paper and that the

perforated holes of the paper fit directly over the

tractor pins.

10.2.3 Operating Problems and Solutions

Problem

Solution

The power does not turn

on.

t$IFDLXIFUIFSUIFNBJOTWPMUBHFJTDPSSFDU

t.BLFTVSFUIBUUIFQPXFSDPSEJTTFDVSFMZ

connected to both the printer and the mains power

outlet.

t.BLFTVSFUIBUUIFQPXFSPVUMFUJTGVODUJPOBM*G

not , use other outlet.

t5VSOUIFQPXFSPGG8BJUBNJOVUFBOEUIFOUVSO

the printer on again. If the printer still has no power,

contact your dealer.

The printer is on but it will

not print.

t.BLFTVSFUIBUUIF0OMJOFJOEJDBUPSJTMJU

t*GZPVVTFUIFJOUFSGBDFDBCMFNBLFTVSFJUJT

securely connected to both the printer and the

computer.

t.BLFTVSFQBQFSJTMPBEFE

t3VOUIFQSJOUFS4UBUVT1Bge. If printing executes

normally, the problem is caused by: the interface,

the computer, incorrect printer settings, or incorrect

software settings.

t.BLFTVSFUIBUUIFQSJOUFSESJWFSTFMFDUFEJOZPVS

software is the same as the emulation selected on

118

Tally Dascom 2600/2610/PRN-7

the printer.

Paper select lever error

t If paper is loaded and the paper select lever is

moved to the incorrect position, the printer turns

offline, and the buzzer sounds continuously. Switch

the paper select lever back to its correct position.

119

Tally Dascom 2600/2610/PRN-7

FCC STATEMENT

MODIFICATION: Any changes or modifications not expressly approved by the grantee of

this device could void the user’s authority to operate the device.

NOTE: This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

xReorient or relocate the receiving antenna.

xIncrease the separation between the equipment and receiver.

xConnect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

xConsult the dealer or an experienced radio/TV technician for help.

Tally Dascom 2600/2610/PRN-7

DASCOM REPRESENTATIVES

GERMANY

DASCOM Europe GmbH

Heuweg 3

D-89079 Ulm

De

utsc

h

l

and

Tel.: +49 (0) 731 2075 0

Fax: +49 (0) 731 2075 100

www.dascom.com

SINGAPORE (ASIA PACIFIC)

DASCOM AP Pte Ltd

21 Bukit Batok Crescent

#29-81,WCEGA Tower

Singapore

658065

Phone: +65 6760 8833

Fax: +65 6760 1066

www.dascom.com

FRANCE

DASCOM Europe GmbH

117

Avenue

Victor Hugo

92100

Boulogne-Billancourt

France

Phone: +33 (1) 73 02 51 98

www.dascom.com

UNITED

KINGDOM

DASCOM GB Ltd

Hart House,Priestley Road

,

Basingstoke, Hampshire

RG24 9PU, England

Phone: +44 (0) 1256 481481

Fax: +44 (0) 1256 481400

www.dascom.com

AMERICAS

Dascom Americas Corporation

34 Lakeview Court

Verona, VA 24482

USA

Phone:+1

(877)

434 1377

Fax: +1 (540) 242 7221

www.dascom.com

CHINA

JIANGMEN DASCOM COMPUTER

PERIPHERALS CO., LTD

No.399, jinxing Road,

Jianghai District Jiangmen,

P.R. China

www.dascom.com

“All

rights

reserved. Translations, reprinting

or

copying

by any means of this

manual

complete or in part

or in any different form requires

our

explicit

approval.

We

reserve

the

right

to make changes to this

manual

w

i

th

ou

t notice. All care has been taken to ensure accuracy of

information contained

in this

manual. However,

we cannot accept

responsibility for

any errors or damages

resulting

from errors or

inaccuracies

of

information

herein.”

©

2013 DAS C O M

Part No: 21.511.532.5671R

Jiangmen Dascom Computer Peripherals TDPRN70 Dot Matrix Printer User Manual Part2

Jiangmen Dascom Computer Peripherals Co.,Ltd. Dot Matrix Printer Part2

Contents

User manual Part2

Navigation menu

Namespaces

Views

Navigation
