GARAGE DOOR OPENER — EVIC
HomeLinktreplaces up to three hand-held transmitters
that operate devices such as garage door openers, motor-
ized gates, lighting or home security systems. The
HomeLinktunit is powered by your vehicles 12 Volt
battery.
The HomeLinktbuttons that are located in the overhead
console designate the three different HomeLinktchan-
nels.
NOTE: HomeLinktis disabled when the Vehicle Secu-
rity Alarm is active.
Before You Begin Programming HomeLinkT
Be sure that your vehicle is parked outside of the garage
before you begin programming.

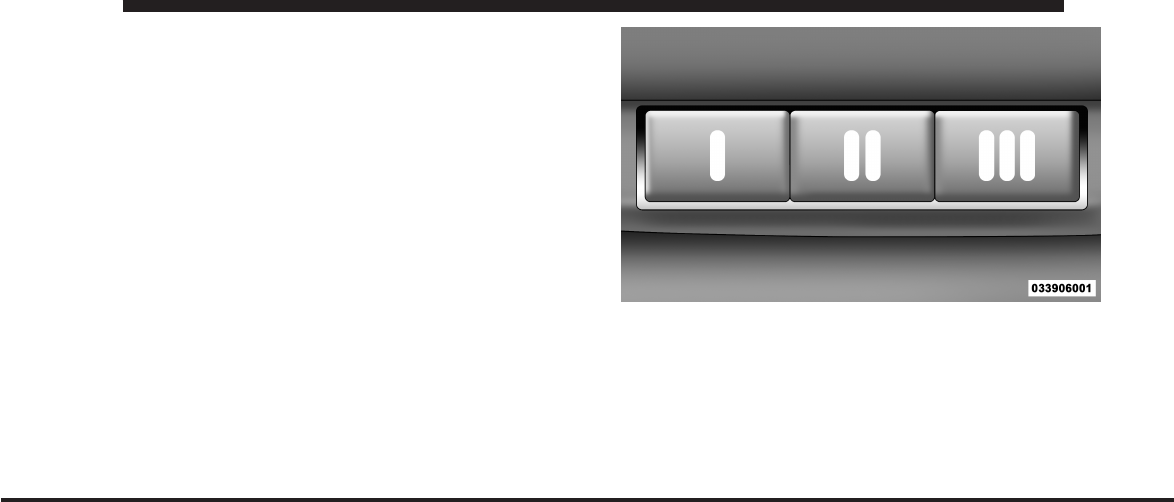

HomeLinktButtons
1
art=033906001.tif NO TRANS
JOBNAME: CHRY OM (Contenta pu PAGE: 2 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 23A213ED
/chry_pdm/chrysler/owners/ctx/sim03.40.00
For more efficient programming and accurate transmis-
sion of the radio-frequency signal it is recommended that
a new battery be placed in the hand-held transmitter of
the device that is being programmed to the HomeLinkt
system.
Erase all channels before you begin programming. To
erase the channels place the ignition in the ON/RUN
position and press and hold the two outside HomeLinkt
buttons (I and III) for up 20 seconds. The Electronic
Vehicle Information Center (EVIC) will display “CLEAR-
ING CHANNELS”. Release the buttons when the EVIC
displays “CHANNELS CLEARED”.
NOTE:
•
Erasing all channels should only be performed when
programming HomeLinktfor the first time. Do not
erase channels when programming additional buttons.
•
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
Programming A Rolling Code
For programming garage door openers that were manu-
factured after 1995. These garage door openers can be
identified by the “LEARN” or “TRAIN” button located
where the hanging antenna is attached to the garage door
opener. It is NOT the button that is normally used to
open and close the door. The name and color of the
button may vary by manufacturer.
2
JOBNAME: CHRY OM (Contenta pu PAGE: 3 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 1C395F54
/chry_pdm/chrysler/owners/ctx/sim03.40.00
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to
8 cm) away from the HomeLinktbutton you wish to
program.
3. Simultaneously press and hold both the Homelinkt
button you want to program and the hand-held transmit-
ter button.
4. Continue to hold buttons until the EVIC display
changes from “CHANNEL # TRAINING” to “CHAN-
NEL # TRAINED”, then release both buttons.
NOTE:
•
It may take up to 30 seconds or longer in some cased
for the channel to train.
•
If the EVIC displays “DID NOT TRAIN” repeat from
Step 2.
5. At the garage door opener motor (in the garage),
locate the “LEARN” or “TRAINING” button. This can
usually be found where the hanging antenna wire is
attached to the garage door opener/device motor. Firmly
press and release the “LEARN” or “TRAINING” button.

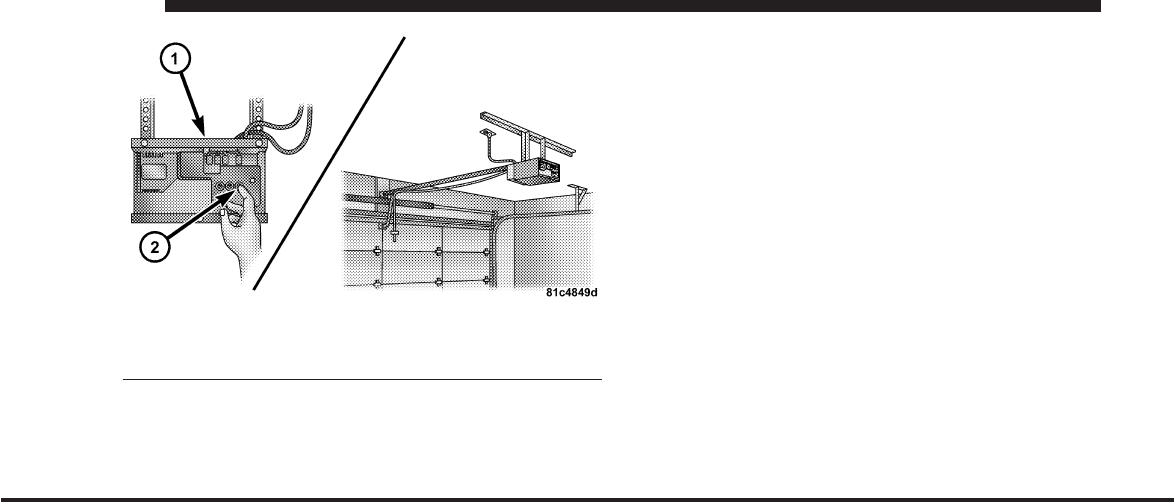

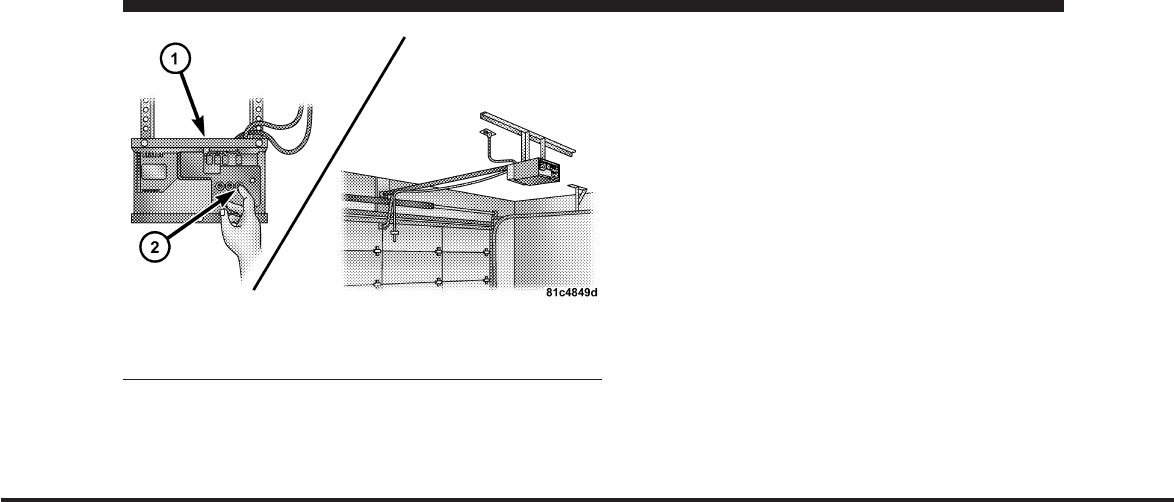

Training The Garage Door Opener
1 — Door Opener
2 — Training Button
3
art=034000356.tif NO TRANS
JOBNAME: CHRY OM (Contenta pu PAGE: 4 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 2125D1AA
/chry_pdm/chrysler/owners/ctx/sim03.40.00
On some garage door openers/devices there may be a
light that blinks when the garage door opener/device is
in the LEARN/TRAIN mode.
NOTE: You have 30 seconds in which to initiate the next
step after the LEARN button has been pressed.
6. Return to the vehicle and press the programmed
HomeLinktbutton twice (holding the button for two
seconds each time). The EVIC will display “CHANNEL #
TRANSMIT”. If the garage door opener/device activates,
programming is complete.
NOTE: If the garage door opener/device does not
activate, press the button a third time (for two seconds) to
complete the training.
To program the remaining two HomeLinktbuttons,
repeat each step for each remaining button. DO NOT
erase the channels.
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the EVIC displays “CHANNEL # TRAINING” Do not
release the button.
3. Without releasing the button proceed with “Program-
ming A Rolling Code” Step 2 and follow all remaining
steps.
Programming A Non-Rolling Code
For programming Garage Door Openers manufactured
before 1995.
1. Turn the ignition switch to the ON/RUN position.
4
JOBNAME: CHRY OM (Contenta pu PAGE: 5 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 1A86A505
/chry_pdm/chrysler/owners/ctx/sim03.40.00
2. Place the hand-held transmitter 1 to 3 inches (3 to
8 cm) away from the HomeLinktbutton you wish to
program.
3. Simultaneously press and hold both the Homelinkt
button you want to program and the hand-held transmit-
ter button.
4. Continue to hold buttons until the EVIC display
changes from “CHANNEL # TRAINING” to “CHAN-
NEL # TRAINED”, then release both buttons.
NOTE:
•
It may take up to 30 seconds or longer in some cased
for the channel to train.
•
If the EVIC displays “DID NOT TRAIN” repeat from
Step 2.
5. Press and hold the programmed HomeLinktbutton.
The EVIC will display “CHANNEL # TRANSMIT”. If the
garage door opener/device activates, programming is
complete.
To program the remaining two HomeLinktbuttons,
repeat each step for each remaining button. DO NOT
erase the channels.
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the EVIC displays “CHANNEL # TRAINING” Do not
release the button.
3. Without releasing the button proceed with “Program-
ming A Non-Rolling Code” Step 2 and follow all remain-
ing steps.
5
JOBNAME: CHRY OM (Contenta pu PAGE: 6 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 27782D88
/chry_pdm/chrysler/owners/ctx/sim03.40.00
Canadian/Gate Operator Programming
For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.
Canadian radio frequency laws require transmitter sig-
nals to time-out (or quit) after several seconds of trans-
mission – which may not be long enough for HomeLinkt
to pick up the signal during programming. Similar to this
Canadian law, some U.S. gate operators are designed to
time-out in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to
8 cm) away from the HomeLinktbutton you wish to
program.
3. Simultaneously press and hold both the Homelinkt
button while you press and release (“cycle”), your hand-
held transmitter every two seconds.
4. Continue to hold buttons until the EVIC display
changes from “CHANNEL # TRAINING” to “CHAN-
NEL # TRAINED”, then release both buttons.
NOTE:
•
It may take up to 30 seconds or longer in some cased
for the channel to train.
•
If the EVIC displays “DID NOT TRAIN” repeat from
Step 2.
5. Press and hold the programmed HomeLinktbutton.
The EVIC will display “CHANNEL # TRANSMIT”. If the
device is plugged in and activates, programming is
complete.
If you unplugged the garage door opener/device for
programming, plug it back in at this time.
6
JOBNAME: CHRY OM (Contenta pu PAGE: 7 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 279ADD84
/chry_pdm/chrysler/owners/ctx/sim03.40.00
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the EVIC displays “CHANNEL # TRAINING” Do not
release the button.
3. Without releasing the button proceed with
“Canadian/Gate Operator Programming” Step 2 and
follow all remaining steps.
Using HomeLinkT
To operate, press and release the programmed
HomeLinktbutton. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To erase the channels press and hold the two outside
HomeLinktbuttons (I and III) for up 20 seconds. The
Electronic Vehicle Information Center (EVIC) will display
“CLEARING CHANNELS”. Release the buttons when
the EVIC displays “CHANNELS CLEARED”.
The HomeLinktUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLinkt, here
are some of the most common solutions:
•
Replace the battery in the original hand-held transmit-
ter.
•
Press the LEARN button on the Garage Door Opener
to complete the training for a Rolling Code.
7
JOBNAME: CHRY OM (Contenta pu PAGE: 8 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 1C5C7460
/chry_pdm/chrysler/owners/ctx/sim03.40.00
•
Did you unplug the device for programming and
remember to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
WARNING!
•
Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This in-
cludes most garage door opener models manufac-
tured after 1982. Do not use a garage door opener
without these safety features. Call toll-free 1–800–
355–3515 or, on the Internet at
www.HomeLink.com for safety information or as-
sistance.
•
Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.
8
JOBNAME: CHRY OM (Contenta pu PAGE: 9 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 246DACD9
/chry_pdm/chrysler/owners/ctx/sim03.40.00
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
•
The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the
device.
•
The term IC before the certification/registration num-
ber only signifies that Industry Canada technical
specifications were met.

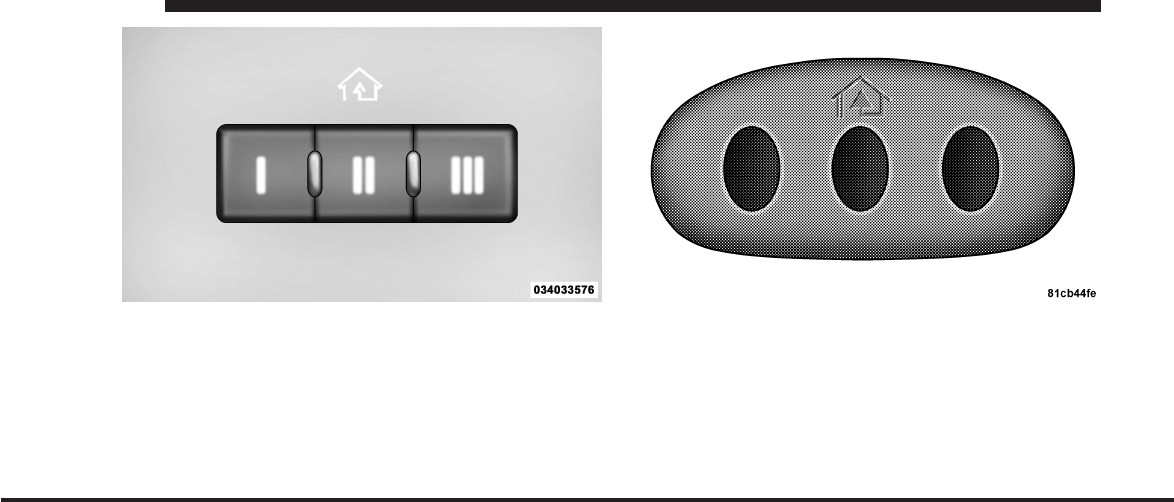

GARAGE DOOR OPENER — LED
HomeLinktreplaces up to three hand-held transmitters
that operate devices such as garage door openers, motor-
ized gates, lighting or home security systems. The
HomeLinktunit is powered by your vehicles 12 Volt
battery.
The HomeLinktbuttons, located on either the overhead
console, headliner or sunvisor, designate the three differ-
ent HomeLinktchannels. The HomeLinktindicator is
located above the center button.
9
JOBNAME: CHRY OM (Contenta pu PAGE: 10 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 118EAD14
/chry_pdm/chrysler/owners/ctx/sim03.40.00
NOTE: HomeLinktis disabled when the Vehicle Secu-
rity Alarm is active.
Before You Begin Programming HomeLinkT
Be sure that your vehicle is parked outside of the garage
before you begin programming.
HomeLinktButtons/Overhead Consoles HomeLinktButtons/Sunvisor/Headliner
10
art=034033576.tif NO TRANS art=034000355.tif NO TRANS
JOBNAME: CHRY OM (Contenta pu PAGE: 11 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 1EFEE841
/chry_pdm/chrysler/owners/ctx/sim03.40.00
For more efficient programming and accurate transmis-
sion of the radio-frequency signal it is recommended that
a new battery be placed in the hand-held transmitter of
the device that is being programmed to the HomeLinkt
system.
Erase all channels before you begin programming. To
erase the channels place the ignition in the ON/RUN
position and press and hold the two outside HomeLinkt
buttons (I and III) for up 20 seconds or until the red
indicator flashes.
NOTE:
•
Erasing all channels should only be performed when
programming HomeLinktfor the first time. Do not
erase channels when programming additional buttons.
•
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
Programming A Rolling Code
For programming garage door openers that were manu-
factured after 1995. These garage door openers can be
identified by the “LEARN” or “TRAIN” button located
where the hanging antenna is attached to the garage door
opener. It is NOT the button that is normally used to
open and close the door. The name and color of the
button may vary by manufacturer.
11
JOBNAME: CHRY OM (Contenta pu PAGE: 12 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 24986E04
/chry_pdm/chrysler/owners/ctx/sim03.40.00
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
away from the HomeLinktbutton you wish to program
while keeping the HomeLinktindicator light in view.
3. Simultaneously press and hold both the Homelinkt
button you want to program and the hand-held transmit-
ter button.
4. Continue to hold both buttons and observe the indi-
cator light. The Homelinktindicator will flash slowly
and then rapidly after Homelinkthas received the fre-
quency signal from the hand-held transmitter. Release
both buttons after the indicator light changes from slow
to rapid.
5. At the garage door opener motor (in the garage),
locate the “LEARN” or “TRAINING” button. This can
usually be found where the hanging antenna wire is
attached to the garage door opener/device motor. Firmly
press and release the “LEARN” or “TRAINING” button.
On some garage door openers/devices there may be a
light that blinks when the garage door opener/device is
in the LEARN/TRAIN mode.
Training The Garage Door Opener
1 — Door Opener
2 — Training Button
12
art=034000356.tif NO TRANS
JOBNAME: CHRY OM (Contenta pu PAGE: 13 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 2310549F
/chry_pdm/chrysler/owners/ctx/sim03.40.00
NOTE: You have 30 seconds in which to initiate the next
step after the LEARN button has been pressed.
6. Return to the vehicle and press the programmed
HomeLinktbutton twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.
NOTE: If the garage door opener/device does not
activate, press the button a third time (for two seconds) to
complete the training.
To program the remaining two HomeLinktbuttons,
repeat each step for each remaining button. DO NOT
erase the channels.
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button proceed with “Program-
ming A Rolling Code” Step 2 and follow all remaining
steps.
Programming A Non-Rolling Code
For programming Garage Door Openers manufactured
before 1995.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
away from the HomeLinktbutton you wish to program
while keeping the HomeLinktindicator light in view.
3. Simultaneously press and hold both the Homelinkt
button you want to program and the hand-held transmit-
ter button.
13
JOBNAME: CHRY OM (Contenta pu PAGE: 14 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 27953FD0
/chry_pdm/chrysler/owners/ctx/sim03.40.00
4. Continue to hold both buttons and observe the indi-
cator light. The Homelinktindicator will flash slowly
and then rapidly after Homelinkthas received the fre-
quency signal from the hand-held transmitter. Release
both buttons after the indicator light changes from slow
to rapid.
5. Press and hold the programmed HomeLinktbutton
and observe the indicator light.
•
If the indicator light stays on constantly, program-
ming is complete and the garage door/device
should activate when the HomeLinktbutton is
pressed.
•
To program the two remaining HomeLinktbuttons,
repeat each step for each remaining button. DO
NOT erase the channels.
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button proceed with “Program-
ming A Non-Rolling Code” Step 2 and follow all remain-
ing steps.
Canadian/Gate Operator Programming
For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.
Canadian radio frequency laws require transmitter sig-
nals to time-out (or quit) after several seconds of trans-
mission – which may not be long enough for HomeLinkt
14
JOBNAME: CHRY OM (Contenta pu PAGE: 15 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 2239A4BC
/chry_pdm/chrysler/owners/ctx/sim03.40.00
to pick up the signal during programming. Similar to this
Canadian law, some U.S. gate operators are designed to
time-out in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
away from the HomeLinktbutton you wish to program
while keeping the HomeLinktindicator light in view.
3. Continue to press and hold the HomeLinktbutton,
while you press and release (“cycle”), your hand-held
transmitter every two seconds until HomeLinkthas
successfully accepted the frequency signal. The indicator
light will flash slowly and then rapidly when fully
trained.
4. Watch for the HomeLinktindicator to change flash
rates. When it changes, it is programmed. It may take up
to 30 seconds or longer in rare cases. The garage door
may open and close while you are programming.
5. Press and hold the programmed HomeLinktbutton
and observe the indicator light.
•
If the indicator light stays on constantly, program-
ming is complete and the garage door/device
should activate when the HomeLinktbutton is
pressed.
•
To program the two remaining HomeLinktbuttons,
repeat each step for each remaining button. DO
NOT erase the channels.
If you unplugged the garage door opener/device for
programming, plug it back in at this time.
15
JOBNAME: CHRY OM (Contenta pu PAGE: 16 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 28DC2BF8
/chry_pdm/chrysler/owners/ctx/sim03.40.00
Reprogramming A Single HomeLinktButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinktbutton until
the indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button proceed with
“Canadian/Gate Operator Programming” Step 2 and
follow all remaining steps.
Using HomeLinkT
To operate, press and release the programmed
HomeLinktbutton. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for
20 seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
The HomeLinktUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLinkt, here
are some of the most common solutions:
•
Replace the battery in the original hand-held transmit-
ter.
•
Press the LEARN button on the Garage Door Opener
to complete the training for a Rolling Code.
16
JOBNAME: CHRY OM (Contenta pu PAGE: 17 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 199A08F0
/chry_pdm/chrysler/owners/ctx/sim03.40.00
•
Did you unplug the device for programming and
remember to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
WARNING!
•
Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This in-
cludes most garage door opener models manufac-
tured after 1982. Do not use a garage door opener
without these safety features. Call toll-free 1–800–
355–3515 or, on the Internet at
www.HomeLink.com for safety information or as-
sistance.
•
Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.
17
JOBNAME: CHRY OM (Contenta pu PAGE: 18 SESS: 1 OUTPUT: Tue Jan 3 09:31:46 2012 SUM: 1E9E26C3
/chry_pdm/chrysler/owners/ctx/sim03.40.00
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
•
The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the
device.
•
The term IC before the certification/registration num-
ber only signifies that Industry Canada technical
specifications were met.
18
