Jonter Digital L2 Bluetooth Speaker User Manual In the box

Shenzhen Jonter Digital Co., Ltd Bluetooth Speaker In the box

user manual

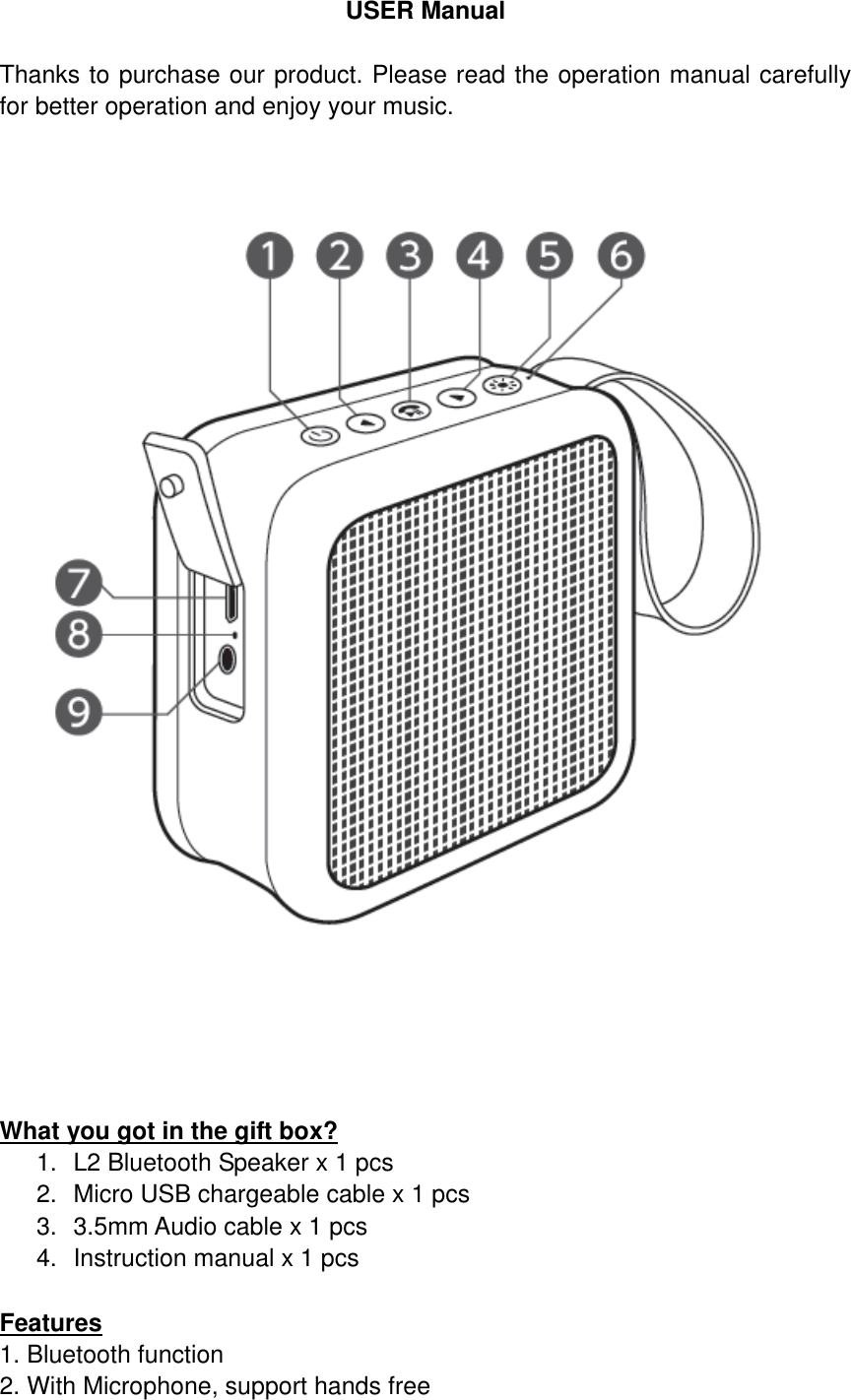

USER Manual  Thanks to purchase our product. Please read the operation manual carefully for better operation and enjoy your music.        What you got in the gift box? 1. L2 Bluetooth Speaker x 1 pcs 2.  Micro USB chargeable cable x 1 pcs 3.  3.5mm Audio cable x 1 pcs 4.  Instruction manual x 1 pcs  Features 1. Bluetooth function                                                                                                  2. With Microphone, support hands free

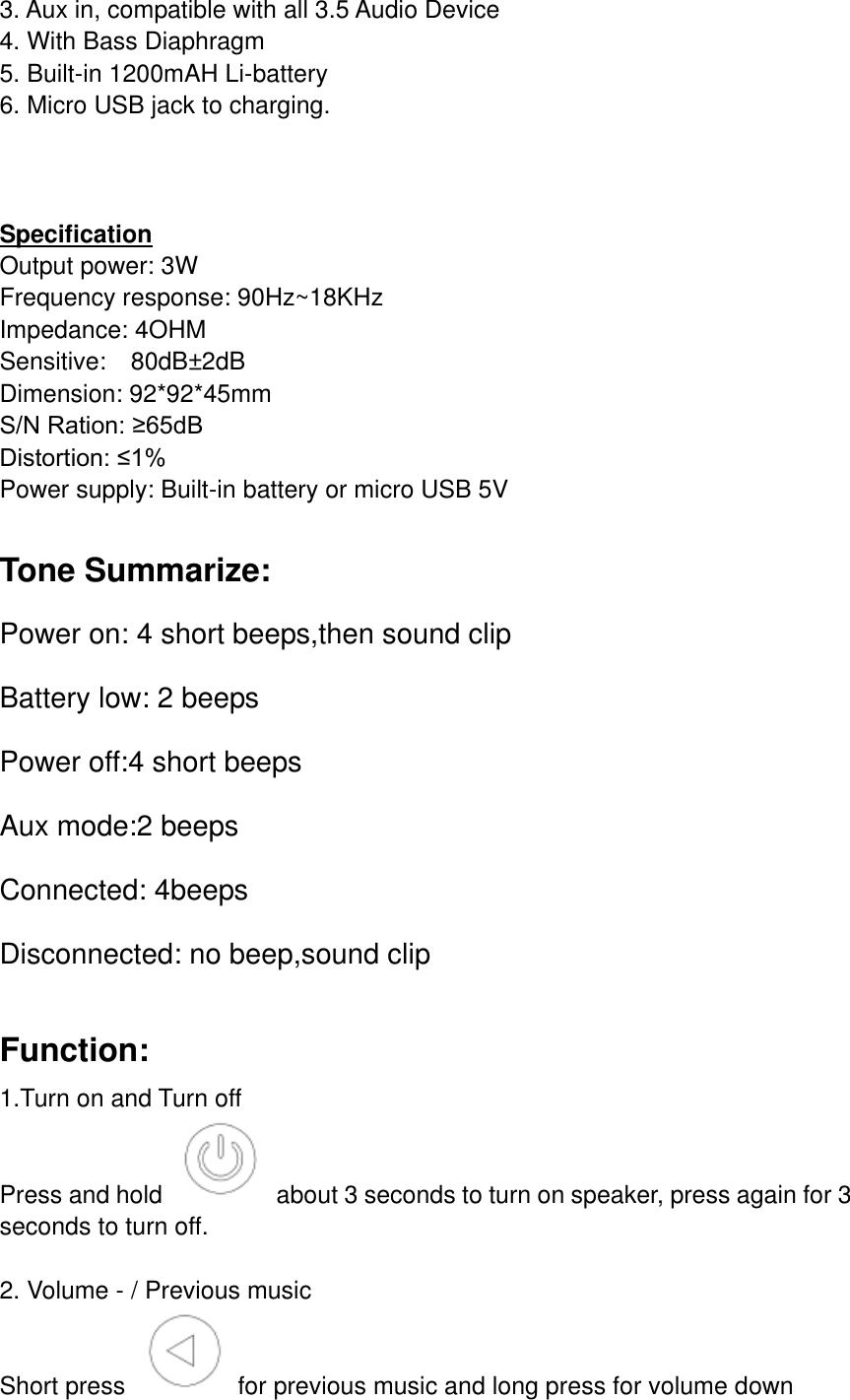

3. Aux in, compatible with all 3.5 Audio Device     4. With Bass Diaphragm 5. Built-in 1200mAH Li-battery 6. Micro USB jack to charging.    Specification Output power: 3W Frequency response: 90Hz~18KHz Impedance: 4OHM Sensitive:    80dB±2dB   Dimension: 92*92*45mm                                          S/N Ration: ≥65dB                                              Distortion: ≤1% Power supply: Built-in battery or micro USB 5V  Tone Summarize: Power on: 4 short beeps,then sound clip Battery low: 2 beeps Power off:4 short beeps Aux mode:2 beeps Connected: 4beeps Disconnected: no beep,sound clip  Function: 1.Turn on and Turn off Press and hold    about 3 seconds to turn on speaker, press again for 3 seconds to turn off.  2. Volume - / Previous music Short press    for previous music and long press for volume down

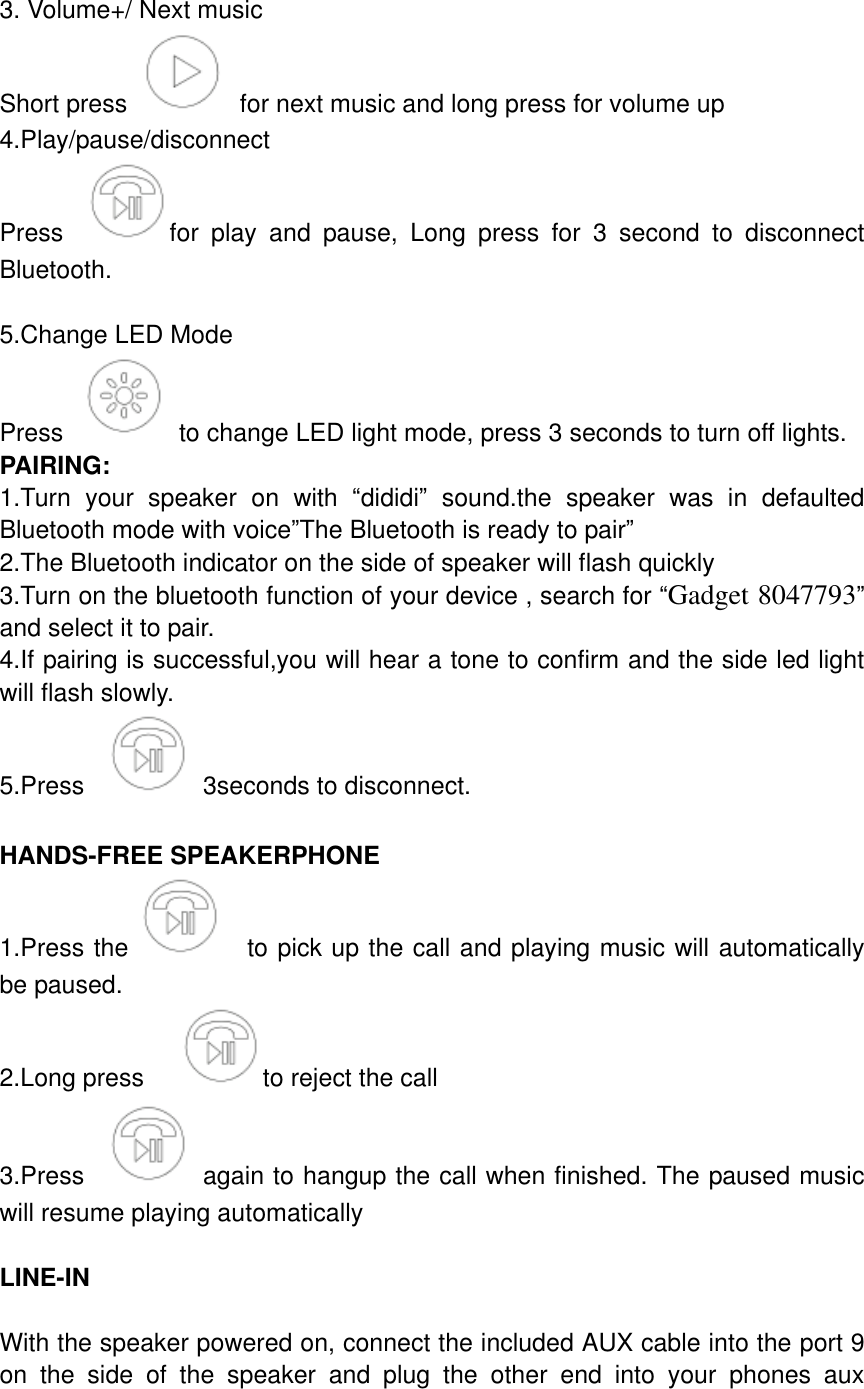

 3. Volume+/ Next music Short press    for next music and long press for volume up 4.Play/pause/disconnect   Press  for  play  and  pause,  Long  press  for  3  second  to  disconnect Bluetooth.  5.Change LED Mode Press    to change LED light mode, press 3 seconds to turn off lights. PAIRING: 1.Turn  your  speaker  on  with  “dididi”  sound.the  speaker  was  in  defaulted Bluetooth mode with voice”The Bluetooth is ready to pair” 2.The Bluetooth indicator on the side of speaker will flash quickly 3.Turn on the bluetooth function of your device , search for “Gadget 8047793” and select it to pair. 4.If pairing is successful,you will hear a tone to confirm and the side led light will flash slowly. 5.Press    3seconds to disconnect.  HANDS-FREE SPEAKERPHONE 1.Press the   to pick up the call and playing music will automatically be paused. 2.Long press    to reject the call 3.Press    again to hangup the call when finished. The paused music will resume playing automatically  LINE-IN  With the speaker powered on, connect the included AUX cable into the port 9 on  the  side  of  the  speaker  and  plug  the  other  end  into  your  phones  aux

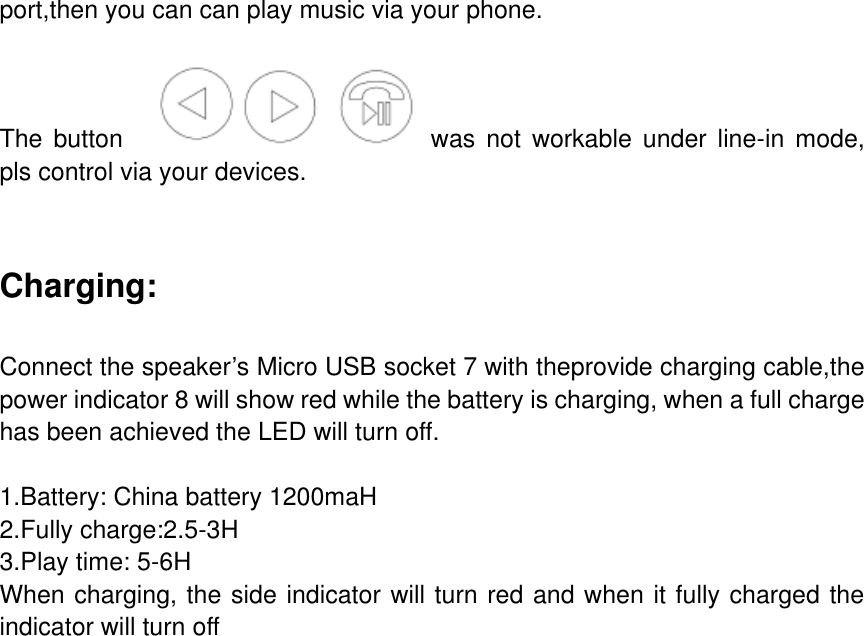

port,then you can can play music via your phone.    The  button      was  not  workable  under  line-in  mode, pls control via your devices.   Charging:  Connect the speaker’s Micro USB socket 7 with theprovide charging cable,the power indicator 8 will show red while the battery is charging, when a full charge has been achieved the LED will turn off.  1.Battery: China battery 1200maH 2.Fully charge:2.5-3H 3.Play time: 5-6H When charging, the side indicator will turn red and when it fully charged the indicator will turn off

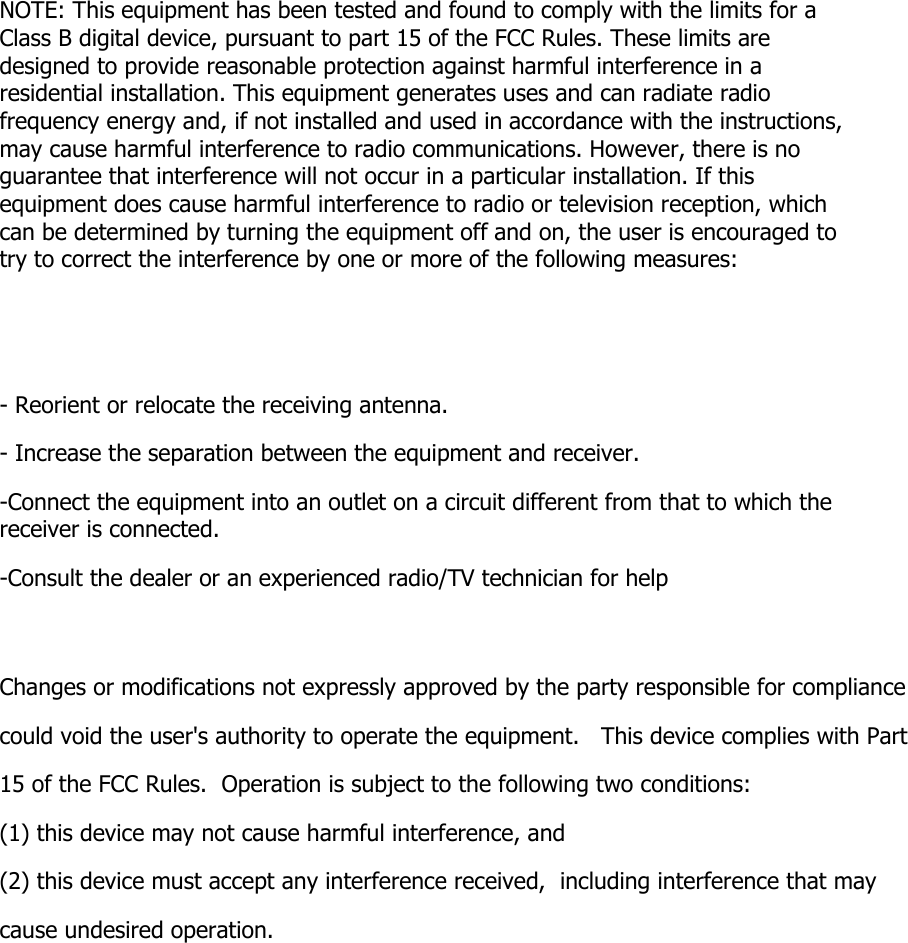

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help  Changes or modifications not expressly approved by the party responsible for compliance  could void the user's authority to operate the equipment.   This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions:  (1) this device may not cause harmful interference, and  (2) this device must accept any interference received,  including interference that may cause undesired operation.

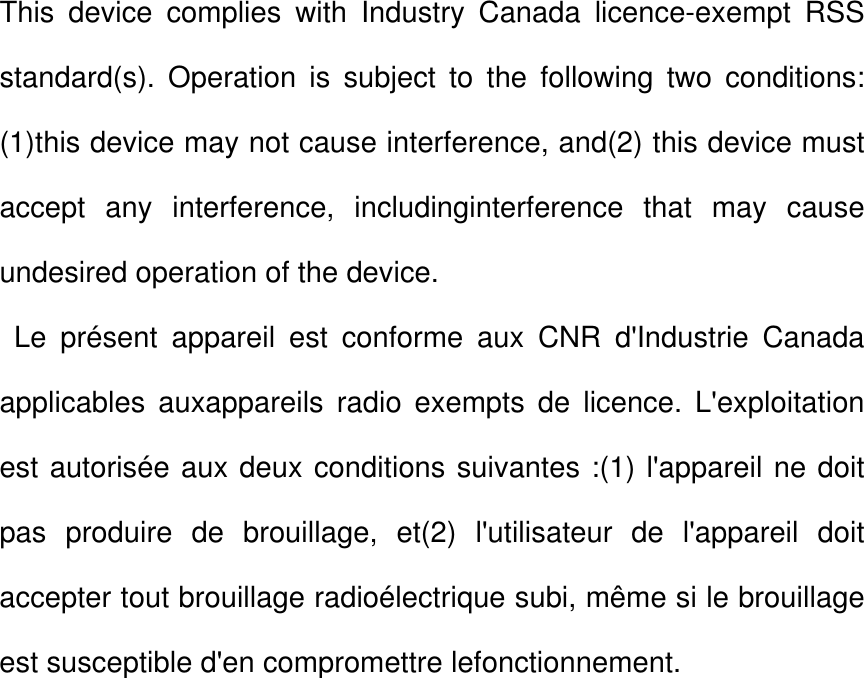

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and(2) this device must accept any interference, includinginterference that may cause undesired operation of the device.          Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.
