Regulatory Information
Trapeze Networks, Inc.
5753 W. Las Positas Blvd.
Pleasanton, CA 94588
Tel: +1 925-474-2200
Fax: +1 925-251-0642
Toll-Free: 877-FLY-TRPZ (877-359-8779) Part Number: 730-9502-0018, Revision A
For the most current version of all documentation
see www.trapezenetworks.com
Trapeze Regulatory Information
The Trapeze Networks Mobility Exchange™ (MX™) switch and Mobility Point™ (MP™) access point
must be installed and used in accordance with the documentation provided with these products. In addition
to this document, see the following manuals for important safety information:
●Trapeze Mobility Exchange Installation and Basic Configuration Guide
●Trapeze Mobility Point Installation Guide
Note. Trapeze Regulatory Information is updated frequently. See www.trapezenetworks.com
for the most current version.
Hardware Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety and Advisory Notice Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Radio Channels and Maximum Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Regulatory Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Declarations of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Translations of Warnings and Warning Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warning! Installation must be performed by qualified service personnel only. Read and follow
all warning notices and instructions marked on the product or included in the documentation.
Before installing the product, read the rest of this document.
Hardware Safety Symbols
Trapeze Regulatory Information
2

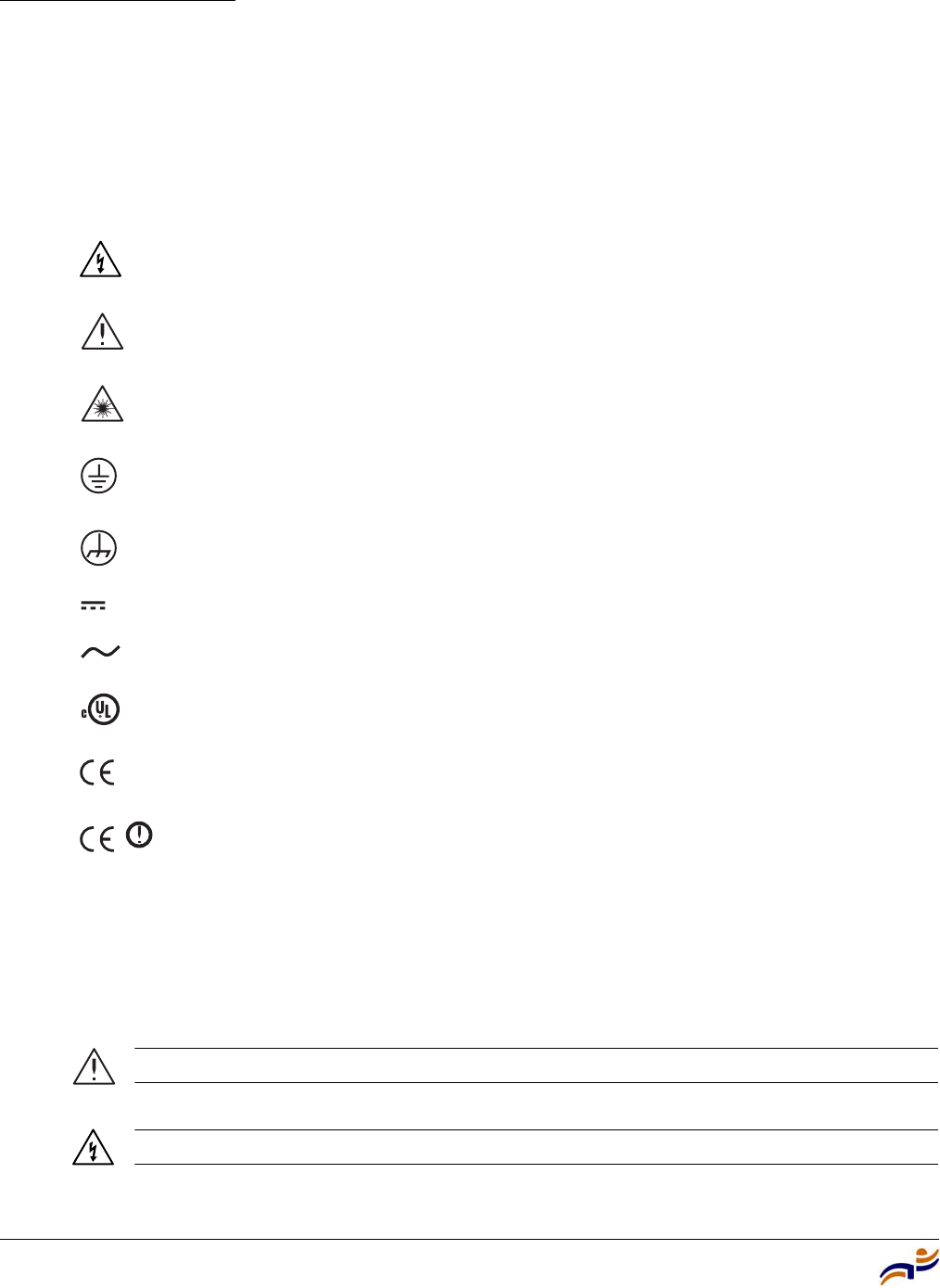

Hardware Safety Symbols
Trapeze Networks Mobility System™ products are labeled with one or more of the following safety
symbols:
Safety and Advisory Notice Conventions
The following safety and advisory notices can appear in Trapeze Networks product documentation:
Warning! High voltage.
Attention! Refer to the manual.
Warning! Class 1 Laser.
Protective ground (earth) terminal.
Frame or chassis terminal.
Direct current (DC).
Alternating current (AC).
Complies with Underwriters Laboratories regulations in United States and Canada.
Complies with European Union (CE) regulations.
Contains a radio transmitter that complies with the Radio and Telecommunications
Technical Equipment (R&TTE) Directive 1995/5/EC to an unharmonized frequency
spectrum.
Warning! This situation or condition can cause injury.
Warning! High voltage. This situation or condition can cause injury due to electric shock.
Trapeze Regulatory Information
3
Radio Channels and Maximum Transmit Power
Radio Channels and Maximum Transmit Power
The Mobility Point (MP) access point is designed to meet the Institute for Electrical and Electronics
Engineers (IEEE) 802.11 standard for wireless LANs. Table 1 lists the regulatory power limits for each
country, frequency, and channel range.
Table 1 also indicates whether each country allows use of an MP or external antenna outdoors. For the
countries that allow outdoor use, you can install the MP in a Trapeze Networks outdoor MP enclosure with
or without an external antenna. Alternatively, you can install an MP indoors and install the external
antenna outdoors. (Trapeze external antennas are supported only with model MP-262, for the 802.11b/g
radio.)
Once you designate a country of operation for the MP access points in your network, by selecting a country
code with the RingMaster™ tool suite, Web View application, or the command-line interface (CLI) on the
MX switch, the software limits your selection of radio frequency band, operating channels, and transmit
power to those permissible in that country, for the combination of radio type, channel, and antenna type
you want to use. (In some cases, the maximum power setting allowed by the hardware is lower than the
regulatory limit. See “Trapeze Hardware Power Limits” on page 8.)
Regulatory Power Limits
The maximum transmit power listed in Table 1 on page 4 is the Effective Isotropic Radiated Power (EIRP)
and is calculated as follows:
Transmit Power – Cable Attenuation + Antenna
Warning! Radiation. This situation or condition can cause injury due to improper handling of
fiber-optic equipment.
Caution! This situation or condition can lead to data loss or damage to the product or other
property.
Note. This information is of special interest.
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
4
Table 1. Permissible Radio Frequencies, Channels, and Maximum Transmit Power
Country Frequency Range (MHz) Channels Maximum Transmit
Power (EIRP)
Outdoor
Use
Allowed
Australia 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 50 mW (17 dBm) N
5725 to 5825 149, 153, 157, 161 250 mW (24 dBm) Y
2400 to 2483.5 1 to 11 1000 mW (30 dBm) Y
Austria 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Belgium 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Brazil 2400 to 2483.5 1 to 11 100 mW (20 dBm) Y
Canada 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) Y
5725 to 5825 149, 153, 157, 161 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 11 1000 mW (30 dBm) Y
China 5725 to 5825 149, 153, 157, 161 500 mW (27 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Czech Republic 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 50 mW (17 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Denmark 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Finland 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Trapeze Regulatory Information
5
Radio Channels and Maximum Transmit Power
France 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Germany 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Great Britain 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Greece 2400 to 2483.5 1 to 13 100 mW (20 dBm) N
Hong Kong 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Hungary 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) N
Iceland 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
India 2400 to 2483.5 1 to 11 1000 mW (30 dBm) Y
Ireland 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Israel 2418 to 2457 4 to 8 25 mW (14 dBm) N
Table 1. Permissible Radio Frequencies, Channels, and Maximum Transmit Power
(continued)
Country Frequency Range (MHz) Channels Maximum Transmit
Power (EIRP)
Outdoor
Use
Allowed
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
6
Italy 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Japan 5150 to 5250 34, 38, 42, 46 50 mW (17 dBm) Y
2400 to 2483.5 1 to 13 50 mW (17 dBm) Y
Liechtenstein 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Luxembourg 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Malaysia 2400 to 2483.5 1 to 11 25 mW (14 dBm) Y
Mexico 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5725 to 5825 149, 153, 157, 161 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 11 100 mW (20 dBm) N (1 to 8)
Y (9 to 11)
Netherlands 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
New Zealand 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 250 mW (24 dBm) N
5725 to 5825 149, 153, 157, 161 250 mW (24 dBm) Y
2400 to 2483.5 1 to 11 1000 mW (30 dBm) Y
Table 1. Permissible Radio Frequencies, Channels, and Maximum Transmit Power
(continued)
Country Frequency Range (MHz) Channels Maximum Transmit
Power (EIRP)
Outdoor
Use
Allowed
Trapeze Regulatory Information
7
Radio Channels and Maximum Transmit Power
Norway 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Poland 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Portugal 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Saudi Arabia 2400 to 2483.5 1 to 11 100 mW (20 dBm) N
Singapore 5150 to 5250 36, 40, 44, 48 100 mW (20 dBm) N
5725 to 5825 149, 153, 157, 161 25 mW (14 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) N
Slovakia 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Slovenia 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
South Africa 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 25 mW (14 dBm) Y
South Korea 5725 to 5825 149, 153, 157, 161 10 mW (10 dBm) N
2400 to 2483.5 1 to 11 100 mW (20 dBm) N
Spain 2400 to 2483.5 1 to 13 100 mW (20 dBm) N
Table 1. Permissible Radio Frequencies, Channels, and Maximum Transmit Power
(continued)
Country Frequency Range (MHz) Channels Maximum Transmit
Power (EIRP)
Outdoor
Use
Allowed
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
8
Trapeze Hardware Power Limits
The maximum transmit power you can configure on any Trapeze Networks radio is the maximum allowed
for the country in which you plan to operate the radio or one of the following values, if lower:
●Radio-specific maximums:
●802.11a—11 dBm for channel numbers less than or equal to 64, or 10 dBm for channel numbers
greater than 64
●802.11b—16 dBm for all valid channel numbers
●802.11g—14 dBm for all valid channel numbers
●Maximum for the specific combination of country, MP model, radio type, channel, and antenna type—
see Table 2 and Table 3.
Sweden 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
5470 to 5725 100, 104, 108, 112, …140 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Switzerland 5150 to 5250 36, 40, 44, 48 200 mW (23 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) N
2400 to 2483.5 1 to 13 100 mW (20 dBm) Y
Taiwan 5250 to 5350 56, 60, 64 50 mW (17 dBm) N
5725 to 5825 149, 153, 157, 161 250 mW (24 dBm) N
2400 to 2483.5 1 to 11 100 mW (20 dBm) Y
Thailand 2400 to 2483.5 1 to 13 25 mW (14 dBm) N
United Arab
Emirates 2400 to 2483.5 1 to 13 100 mW (20 dBm) N
United States 5150 to 5250 36, 40, 44, 48 50 mW (17 dBm) N
5250 to 5350 52, 56, 60, 64 200 mW (23 dBm) Y
5725 to 5825 149, 153, 157, 161 1000 mW (30 dBm) Y
2400 to 2483.5 1 to 11 1000 mW (30 dBm) Y
Table 1. Permissible Radio Frequencies, Channels, and Maximum Transmit Power
(continued)
Country Frequency Range (MHz) Channels Maximum Transmit
Power (EIRP)
Outdoor
Use
Allowed
Trapeze Regulatory Information
9
Radio Channels and Maximum Transmit Power
Table 2. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11a
Country Channels Maximum Trapeze
Power Setting
Austria 36, 40, 44, 48 19
Belgium 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Canada 36, 40, 44, 48 11
52, 56, 60, 64 14
149 11
153, 157, 161 13
China 149, 153, 157, 161 14
Czech Republic 36, 40, 44, 48 19
52, 56, 60, 64 19
Denmark 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Finland 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
France 36, 40, 44, 48 19
52, 56, 60, 64 19
Germany 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Great Britain 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Hong Kong 36, 40, 44, 48, 52, 56, 60,
64 19
100, 104, 108, 112, …140 17
Hungary 36, 40, 44, 48 19
52, 56, 60, 64 19
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
10
Iceland 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Ireland 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Italy 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Japan 34, 38, 42 16
46 14
Liechtenstein 36, 40, 44, 48 19
52, 56, 60, 64 19
Luxembourg 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Netherlands 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Norway 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Poland 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Portugal 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Slovakia 36, 40, 44, 48 19
52, 56, 60, 64 19
Slovenia 36, 40, 44, 48 19
52, 56, 60, 64 19
Table 2. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11a (continued)
Country Channels Maximum Trapeze
Power Setting
Trapeze Regulatory Information
11
Radio Channels and Maximum Transmit Power
South Africa 36, 40, 44, 48 19
52, 56, 60, 64 19
South Korea 149, 153, 157, 161 10
Sweden 36, 40, 44, 48 19
52, 56, 60, 64 19
100, 104, 108, 112, …140 17
Switzerland 36, 40, 44, 48 19
52, 56, 60, 64 19
United States 36, 40, 44, 48 11
52, 56, 60, 64 14
149 11
153, 157, 161 13
Table 3. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11b/g
Country Channels
Maximum Trapeze Power Setting
Internal
Antenna External Antenna
bg
60
°
120
°
180
°
bgbgbg
Austria 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Belgium 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Canada 1 17 15 10 9 13 12 11 12
2 to 10 17 15 15 14 15 14 15 14
11 16 14 9 10 9 12 10 10
China 1 to 13 1616 ——————
Table 2. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11a (continued)
Country Channels Maximum Trapeze
Power Setting
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
12
Czech Republic1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Denmark 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Finland 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
France 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Germany 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Great Britain 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Greece 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Hong Kong 1 to 13 1614 ——————
Hungary 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Iceland 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Table 3. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11b/g (continued)
Country Channels
Maximum Trapeze Power Setting
Internal
Antenna External Antenna
bg
60
°
120
°
180
°
bgbgbg
Trapeze Regulatory Information
13
Radio Channels and Maximum Transmit Power
Ireland 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Israel 4 to 8 1414 ——————
Italy 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Japan 1 1714 171416141614
2 to 12 16 14 17 14 16 14 17 14
13 16 14 17 14 17 14 17 14
Liechtenstein 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Luxembourg 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Malaysia 1 to 11 1414 ——————
Netherlands 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Norway 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Poland 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 16 14 9 13 12 15 13 16
Table 3. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11b/g (continued)
Country Channels
Maximum Trapeze Power Setting
Internal
Antenna External Antenna
bg
60
°
120
°
180
°
bgbgbg
Radio Channels and Maximum Transmit Power
Trapeze Regulatory Information
14
Portugal 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Saudi Arabia 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Slovakia 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Slovenia 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
South Africa 1 to 13 1414 ——————
South Korea 1 to 11 1818 ——————
Spain 1 16 14 10 12 13 14 14 15
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Sweden 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Switzerland 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
United Arab
Emirates 1 1614 101213141415
2 to 12 16 14 10 12 13 14 13 15
13 1614 9 1312151316
Table 3. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11b/g (continued)
Country Channels
Maximum Trapeze Power Setting
Internal
Antenna External Antenna
bg
60
°
120
°
180
°
bgbgbg
Trapeze Regulatory Information
15
Regulatory Compliance Information
Regulatory Compliance Information
Trapeze Networks products cause no electromagnetic interference to other devices if installed and operated
properly and without modification.
Modification Prohibition
The manufacturer, Trapeze Networks, is not responsible for any interference caused by unauthorized
modification of the devices included with this product, or the substitution or attachment of connecting
cables or equipment other than supplied by Trapeze Networks.
The correction of interference caused by such unauthorized modification, substitution, or attachment is
your responsibility.
Trapeze Networks and its authorized resellers or distributors are not liable for any damage or violation of
government regulations that might arise from failure to comply with these guidelines.
Wiring Notice
United States 1 17 15 10 9 13 12 11 12
2 to 10 17 15 15 14 15 14 15 14
11 16 14 9 10 9 12 10 10
Caution! The Part 15 radio device in the access point operates on a noninterference basis
with other devices operating at the same frequency. Any modification to this device not
expressly approved by Trapeze Networks can void your authority to operate the device.
Note. Other than the power cord, the wiring interconnecting these units is designed to be
used intra-building only.
Table 3. Trapeze Hardware Power Limits—MP Model MP-2xx, 802.11b/g (continued)
Country Channels
Maximum Trapeze Power Setting
Internal
Antenna External Antenna
bg
60
°
120
°
180
°
bgbgbg
Regulatory Compliance Information
Trapeze Regulatory Information
16
Federal Communications Commission Notice (United States)
This device uses, generates, and radiates radio frequency energy. The radio frequency energy produced by
this device is well below the maximum exposure allowed by the Federal Communications Commission
(FCC).
Operation is subject to the following conditions:
●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits of a Class B or Class A (as marked)
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential environment.
This accepted equipment is designed and tested to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed in accordance with the instruction
manual, may cause harmful interference.
There is no guarantee that interference will not occur. If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to correct the interference by one of the following measures:
●Reorient or relocate the device to reorient or relocate the receiving antenna.
●Increase separation between the equipment and receiver.
Canadian Department of Communications Industry Canada Notice
(Canada)
This digital apparatus meets the requirements of Canadian Interference-Causing Equipment Regulation
RSS-210.
Cet appareil respecte les exigences du Reglement sur le material broilleur du Canada.
This device complies with the limits of Industry Canada (IC). Operation is subject to the following
conditions:
●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired
operation.
The device is certified to the requirements of IC RSS-139-1. The use of this device in a system operating
either partially or completely outdoors may require the user to obtain a license for the system. For more
information, contact your local Industry Canada office.
Trapeze Regulatory Information
17
Regulatory Compliance Information
Radio Frequency Compliance Information (European Union)
The MP access point has been tested and found to comply with European Telecommunications Standard
(ETS) 300 328 for 2.4-GHz equipment and ETS 301 893 for 5-GHz equipment. These standards cover
wideband data transmission systems referred to in European Conference of Postal and
Telecommunications Administrations (CEPT) recommendation T/R 10.01.
Voluntary Control Council for Interference by Information Technology
Equipment Notice (Japan)

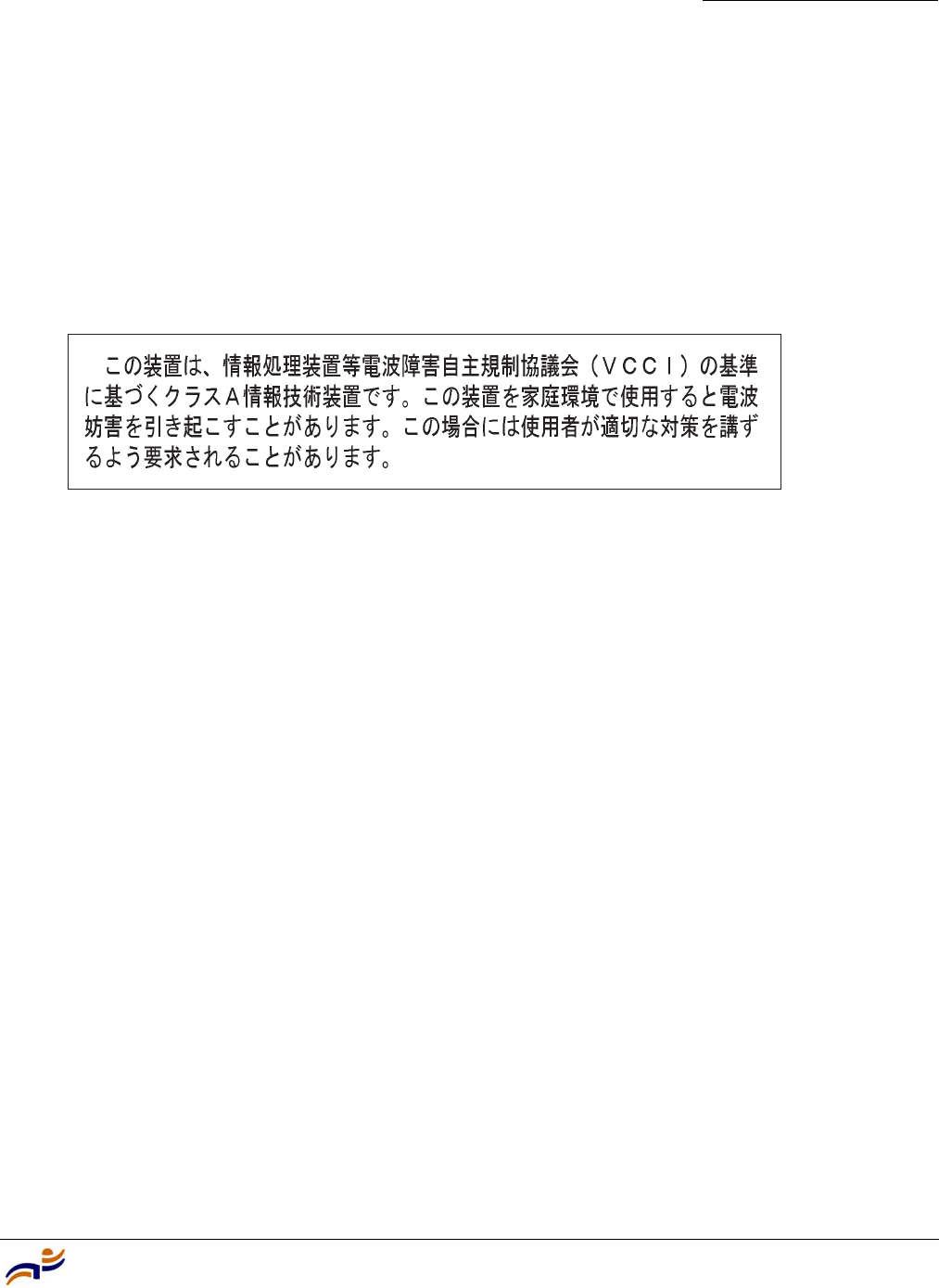

Translation: This is a Class A product based on the standard of the Voluntary Control Council for
Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic
environment, radio disturbance may arise. When such trouble occurs, the user may be required to take
corrective actions.
Regulatory Compliance Information
Trapeze Regulatory Information
18

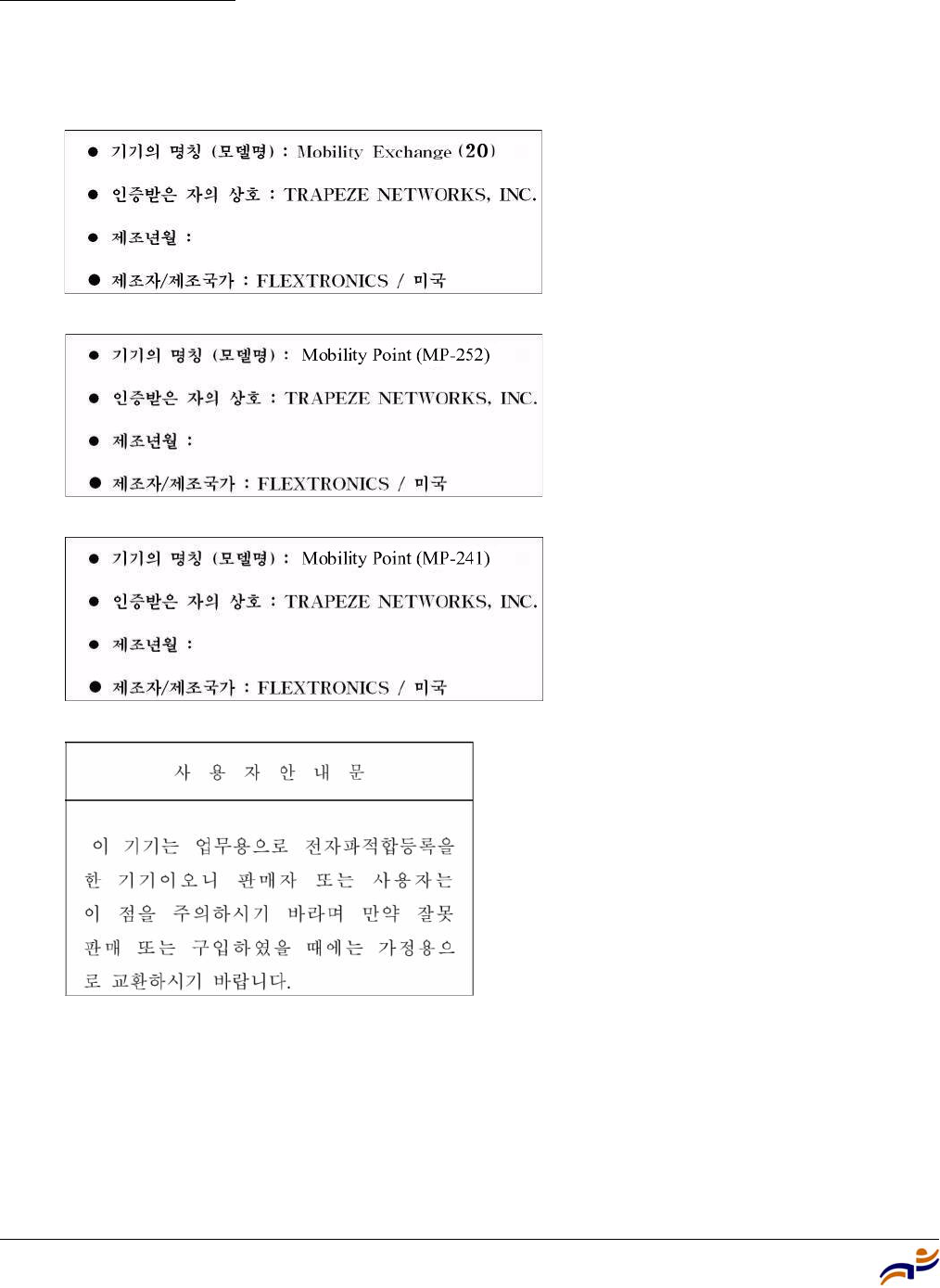

Regulatory Compliance Notice (Korea)
Trapeze Regulatory Information
19
Declarations of Conformity
Lithium Battery Caution
The MX switch contains a lithium battery. If you need to replace the battery, make sure you dispose of the
battery properly according to local regulations and replace the battery only with another comparable
lithium battery.
Declarations of Conformity
The following sections contain declarations of conformity.
European Union Notice
All products labeled with the CE marking comply with the Electromagnetic Compliance (EMC)
Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission
of the European Community.
Compliance with these directives implies conformity to the following European Norms (ENs). The
equivalent international standards are listed in parentheses.
●EN 55022 (CISPR 22)—Electromagnetic Interference
●EN 55024 (IEC 61000-4-2, -3, -4, -5, -6, -8, -11)—Electromagnetic Immunity
●EN 61000-3-2 (IEC 610000-3-2)—Power Line Harmonics
Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Attentie! Gevaar voor explosie als accu wordt vervangen door onjuist type. Verwijder
gebruikte accu's in overeenstemming met de instructies.
Vorsicht! Wenn die Batterie durch einen falschen Typ ersetzt wird, besteht das Risiko einer
Explosion. Entsorgen Sie die gebrauchten Batterien entsprechend den Anweisungen.
Attention ! Risque d'explosion si la batterie est remplacée par une batterie non conforme.
Jetez les batteries usagées selon les instructions.
¡Precaución! Peligro de explosión si la bateria es reemplazada con otra de tipo incorrecto.
Deseche las baterias usadas siguiendo las instrucciones.
Advarsel! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske
med batteri af samme fabrikat og type.
Declarations of Conformity
Trapeze Regulatory Information
20
●EN 61000-3-3 (IEC 610000-3-3)—Power Line Flicker
●EN 60 950 (IEC 60950)—Product Safety
Products labeled with the CE alert marking contain a radio transmitter that complies with the
Radio Equipment and Telecommunications Terminal Equipment (R&TTE) Directive 1999/
5/EC to an unharmonized frequency spectrum, issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the following European Norms (ENs). Where
applicable, the equivalent international standards are listed in parentheses.
●EN 60 950 (IEC 60950)—Product Safety
●EN 300 328—Technical Requirements for Radio Equipment
●ETS 300 826 and ETS 301 489-17—General EMC requirements for radio equipment
●ETS 301 893—Broadband Radio Access Networks (BRAN)
●HiperLAN/2
●Harmonized EN covering essential requirements of Article 3.2 of the R&TTE Directive—
Point-to-multipoint digital fixed radio systems and antennas
To determine the type of transmitter, check the identification label on your product.
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declarations
Table 4 lists European declarations of conformity with Radio Equipment and Telecommunications
Terminal Equipment (R&TTE) Directive 1999/5/EC.
Table 4. European Declarations of Conformity with R&TTE Directive 1999/5/EC
Language Declaration Statement
English This equipment complies with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Deutsch Dieses Gerät entspricht den grundlegenden Anforderungen und den
weiteren entsprecheneden Vorgaben der Richtlinie 1999/5/EU.
Dansk Dette udstyr er i overensstemmelse med de væsentlige krav og andre
relevante bestemmelser i Directiv 1999/5/EF.
¢EllhnaV AutoV o exoplismoV summorjwnetai me tiV ousiwdeiV apaithseiV kai
tiV loipeV diataxeiV thV OdhgiaV 1999/5/EK.
Español Este equipo cumple con los requisitos esenciales asi como con otras
disposiciones de la Directive 1999/5/EC.
Trapeze Regulatory Information
21
Declarations of Conformity
Français Cet appareil est conforme aux exigencies essentialles et aux autres
dispositions pertinantes de la Directive 1999/5/EC.
Íslenska Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum
tilskipunar 1999/5/ESB.
Italiano Questo apparato é conforme ai requisiti essenziali ed agli altri principi
sanciti dalla Direttiva 1999/5/EC.
Nederlands Deze apparatuur voldoet aan de belangrijkste eisen en andere
voorzieningen van richtlijn 1999/5/EC.
Norsk Dette utstyret er i samsvar med de grunnleggende krav og andre
relevante bestemmelser i EU-directiv 1999/5/EC.
Português Este equipamento satisfaz os requisitos essenciais e outras provisões da
Directiva 1999/5/EC.
Suomalainen Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on
siinä asetettujen muidenkin ehtojen mukainen.
Svenska Denna utrustning är i överensstämmelse med de väsentliga kraven och
andra relevanta bestämmelser i Direktiv 1999/5/EC.
Table 4. European Declarations of Conformity with R&TTE Directive 1999/5/EC
(continued)
Language Declaration Statement
Translations of Warnings and Warning Conventions
Trapeze Regulatory Information
22
Translations of Warnings and Warning Conventions
The following warning(s) and warning conventions apply to this document.
Qualified Service Personnel Warning
Warning Conventions
Warning! Installation must be performed by qualified service personnel only. Read and follow
all warning notices and instructions marked on the product or included in the documentation.
Before installing the product, read the rest of this document.
Waarschuwing! De installatie mag alleen worden uitgevoerd door bevoegd
onderhoudspersoneel. Het is essentieel dat u kennis neemt van alle waarschuwingen en
instructies aangebracht op het product zelf en/of opgenomen in de documentatie. Voordat u het
product installeert, dient u dit document in zijn geheel te hebben gelezen.
Warnung! Die Installation darf nur von einem qualifizierten Kundendienstmitarbeiter
vorgenommen werden. Lesen Sie alle Warnhinweise und Anweisungen auf dem Produkt oder in
der Dokumentation und befolgen Sie sie. Bevor Sie das Produkt installieren, sollten Sie dieses
Dokument vollständig lesen.
Avertissement ! L’installation doit être effectuée uniquement par des techniciens qualifiés.
Lisez et suivez toutes les notices d’avertissement et les instructions figurant sur le produit ou
comprises dans la documentation. Lisez le reste de ce document avant d’installer ce produit.
Aviso Sólo puede realizar la instalación personal cualificado de asistencia técnica. Lea y siga
todas las notas de advertencia e instrucciones indicadas en el producto o incluidas en la
documentación. Antes de instalar el producto, lea el resto de este documento.
Warning! This situation or condition can cause injury.
Waarschuwing! Deze situatie of omstandigheid kan letsel veroorzaken.
Warnung! Diese Situation oder dieser Zustand kann zu Verletzungen führen.
Avertissement ! Cette situation ou cette condition peuvent provoquer des blessures.
Aviso Esta situación o condición puede causar lesiones.
Trapeze Regulatory Information
23
Translations of Warnings and Warning Conventions
Warning! High voltage. This situation or condition can cause injury due to electric shock.
Waarschuwing! Hoog voltage. Deze situatie of omstandigheid kan letsel veroorzaken door
elektrische schokken.
Warnung! Hochspannung. Diese Situation oder dieser Zustand kann einen Elektroschock
verursachen.
Avertissement ! Haute tension. Cette situation ou cette condition peuvent provoquer des
blessures dues à des décharges électriques.
Aviso Alta tensión. Esta situación o condición puede causar lesiones por descarga eléctrica.
Warning! Radiation. This situation or condition can cause injury due to improper handling of
fiber-optic equipment.
Waarschuwing! Straling. Deze situatie of omstandigheid kan letsel veroorzaken door
onjuist gebruik van glasvezelapparatuur.
Warnung! Strahlung. Diese Situation oder dieser Zustand kann durch falschen Umgang mit
glasfaserbasierten Geräten zu Verletzungen führen.
Avertissement ! Radiation. Cette situation ou cette condition peuvent provoquer des
blessures dues à une manipulation inappropriée d’appareils équipés de fibres optiques.
Aviso Radiación. Esta situación o condición puede causar lesiones debido a un manejo
inadecuado del equipamiento de fibra óptica.
© 2004 Trapeze Networks, Inc. All rights reserved. Trapeze Networks, the Trapeze Networks
logo, the Trapeze Networks flyer icon, Mobility System, Mobility Exchange, MX, Mobility
Domain, Mobility Profile, Mobility Point, MP, Mobility System Software, MSS, RingMaster,
SentrySweep, Trapeze Access Point Access Protocol, and TAPA are trademarks of Trapeze
Networks, Inc. All other products and services are trademarks, registered trademarks, service
marks, or registered service marks of their respective owners.
All statements, specifications, recommendations, and technical information are current or
planned as of the publication of this document. They are reliable as of the time of this writing
and are presented without warranty of any kind, expressed or implied. In an effort to
continuously improve the product and add features, Trapeze Networks reserves the right to
change any specifications contained in this document without prior notice of any kind.
24
Translations of Warnings and Warning Conventions
