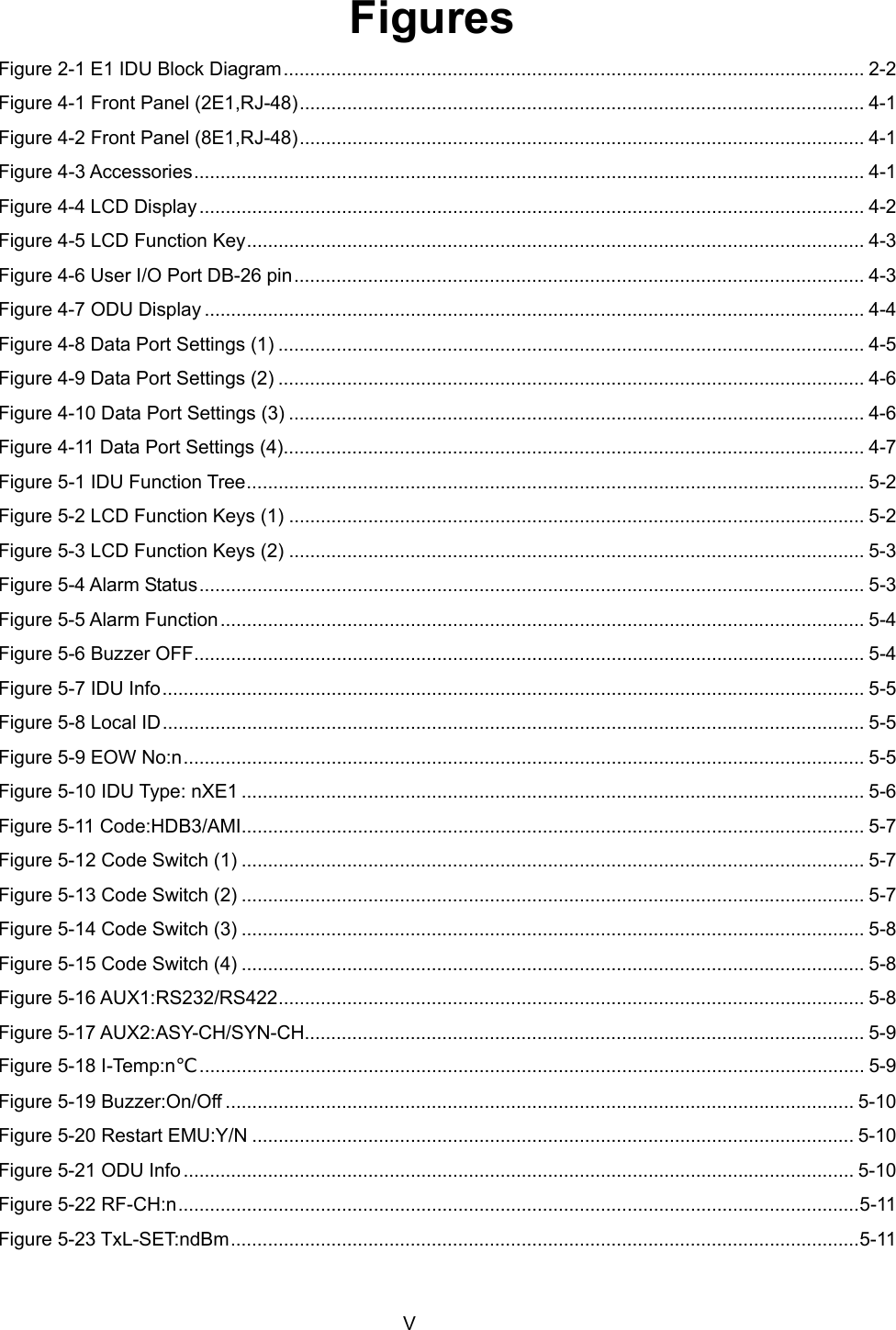

V Figures Figure 2-1 E1 IDU Block Diagram.............................................................................................................. 2-2 Figure 4-1 Front Panel (2E1,RJ-48)........................................................................................................... 4-1 Figure 4-2 Front Panel (8E1,RJ-48)........................................................................................................... 4-1 Figure 4-3 Accessories............................................................................................................................... 4-1 Figure 4-4 LCD Display .............................................................................................................................. 4-2 Figure 4-5 LCD Function Key..................................................................................................................... 4-3 Figure 4-6 User I/O Port DB-26 pin............................................................................................................ 4-3 Figure 4-7 ODU Display ............................................................................................................................. 4-4 Figure 4-8 Data Port Settings (1) ............................................................................................................... 4-5 Figure 4-9 Data Port Settings (2) ............................................................................................................... 4-6 Figure 4-10 Data Port Settings (3) ............................................................................................................. 4-6 Figure 4-11 Data Port Settings (4).............................................................................................................. 4-7 Figure 5-1 IDU Function Tree..................................................................................................................... 5-2 Figure 5-2 LCD Function Keys (1) ............................................................................................................. 5-2 Figure 5-3 LCD Function Keys (2) ............................................................................................................. 5-3 Figure 5-4 Alarm Status.............................................................................................................................. 5-3 Figure 5-5 Alarm Function .......................................................................................................................... 5-4 Figure 5-6 Buzzer OFF............................................................................................................................... 5-4 Figure 5-7 IDU Info..................................................................................................................................... 5-5 Figure 5-8 Local ID..................................................................................................................................... 5-5 Figure 5-9 EOW No:n................................................................................................................................. 5-5 Figure 5-10 IDU Type: nXE1 ...................................................................................................................... 5-6 Figure 5-11 Code:HDB3/AMI...................................................................................................................... 5-7 Figure 5-12 Code Switch (1) ...................................................................................................................... 5-7 Figure 5-13 Code Switch (2) ...................................................................................................................... 5-7 Figure 5-14 Code Switch (3) ...................................................................................................................... 5-8 Figure 5-15 Code Switch (4) ...................................................................................................................... 5-8 Figure 5-16 AUX1:RS232/RS422............................................................................................................... 5-8 Figure 5-17 AUX2:ASY-CH/SYN-CH.......................................................................................................... 5-9 Figure 5-18 I-Temp:n℃.............................................................................................................................. 5-9 Figure 5-19 Buzzer:On/Off ....................................................................................................................... 5-10 Figure 5-20 Restart EMU:Y/N .................................................................................................................. 5-10 Figure 5-21 ODU Info ............................................................................................................................... 5-10 Figure 5-22 RF-CH:n.................................................................................................................................5-11 Figure 5-23 TxL-SET:ndBm.......................................................................................................................5-11
VI Figure 5-24 SSPA:On/Off ..........................................................................................................................5-11 Figure 5-25 O-Temp:n℃........................................................................................................................... 5-12 Figure 5-26 ATPC:Off ............................................................................................................................... 5-12 Figure 5-27 RSLtrig: n dBm ..................................................................................................................... 5-12 Figure 5-28 Test Item ............................................................................................................................... 5-13 Figure 5-29 Enter Password .................................................................................................................... 5-13 Figure 5-30 Tn-L-LP:En/Dis (1)................................................................................................................ 5-14 Figure 5-31 Tn-L-LP:En/Dis (2)................................................................................................................ 5-14 Figure 5-32 Tn-L-LP:En/Dis (3)................................................................................................................ 5-14 Figure 5-33 Tn-L-LP:En/Dis (4)................................................................................................................ 5-15 Figure 5-34 Tn-R-LP:En/Dis (1) ............................................................................................................... 5-15 Figure 5-35 Tn-R-LP:En/Dis (2) ............................................................................................................... 5-16 Figure 5-36 Tn-PRBS:En/Dis ................................................................................................................... 5-16 Figure 5-37 Ber-Clear............................................................................................................................... 5-17 Figure 5-38 Count-Add:n.......................................................................................................................... 5-18 Figure 5-39 P-Acc-T:nS............................................................................................................................ 5-18 Figure 5-40 IF-Loop:En/Dis (1) ................................................................................................................ 5-18 Figure 5-41 IF-Loop:En/Dis (2) ................................................................................................................ 5-19 Figure 5-42 RF-Loop:En/Dis .................................................................................................................... 5-19 Figure 5-43 Close-Test............................................................................................................................. 5-19 Figure 5-44 Remote Info .......................................................................................................................... 5-20 Figure 5-45 Remote ID:n.......................................................................................................................... 5-20 Figure 5-46 Far-End:OK/Alarm/Loss/Test ................................................................................................ 5-21 Figure 5-47 R-Status:Test/Normal............................................................................................................ 5-21 Figure 5-48 R-AUX2:ASY-CH/SYN-CH.................................................................................................... 5-21 Figure 5-49 Config Info............................................................................................................................. 5-22 Figure 5-50 MODEM:ON/OFF ................................................................................................................. 5-22 Figure 5-51 SYS-Conf:1+1/1+0................................................................................................................ 5-22 Figure 5-52 Tx:Active/Standby ................................................................................................................. 5-23 Figure 5-53 Rx:Active/Standby................................................................................................................. 5-23 Figure 5-54 Power:-36 ~ -72V.................................................................................................................. 5-23 Figure 5-55 Date:Year/Month/Day............................................................................................................ 5-24 Figure 5-56 Time: Hour/Min/Sec .............................................................................................................. 5-24 Figure 7-1 Software Installation (1) ............................................................................................................ 7-1 Figure 7-2 Software Installation (2) ............................................................................................................ 7-1 Figure 7-3 Software Installation (3) ............................................................................................................ 7-2 Figure 7-4 Software Installation (4) ............................................................................................................ 7-2
VII Figure 7-5 Software Installation (5) ............................................................................................................ 7-3 Figure 7-6 Software Installation (6) ............................................................................................................ 7-3 Figure 8-1 Open Arbeit ............................................................................................................................... 8-4 Figure 8-2 Login Arbeit ............................................................................................................................... 8-4 Figure 8-3: Arbeit’s User name and Password........................................................................................... 8-5 Figure 8-4: Initialize .................................................................................................................................... 8-6 Figure 8-5: IDU Setting............................................................................................................................... 8-6 Figure 8-6 Link Setting ............................................................................................................................... 8-7 Figure 8-7 Link ........................................................................................................................................... 8-7 Figure 8-8: ODU Setting............................................................................................................................. 8-8 Figure 8-9: Alarm Setting............................................................................................................................ 8-9 Figure 8-10: Cross Connecting (1)........................................................................................................... 8-10 Figure 8-11: Cross Connecting (2) ............................................................................................................8-11 Figure 8-12: User I/O Setting ................................................................................................................... 8-12 Figure 8-13: Superuser ............................................................................................................................ 8-13 Figure 8-14: Station Setup (1) .................................................................................................................. 8-13 Figure 8-15: Station Setup (2) .................................................................................................................. 8-14 Figure 8-16: Station Setup (3) .................................................................................................................. 8-15 Figure 8-17: Station Setup (4) .................................................................................................................. 8-15 Figure 8-18: Temperature Alarm Threshold ............................................................................................. 8-16 Figure 8-19: Terminal/Center Station ....................................................................................................... 8-17 Figure 8-20: System Setting..................................................................................................................... 8-18 Figure 8-21: Background Setting (1) ........................................................................................................ 8-18 Figure 8-22: Background Setting (2) ........................................................................................................ 8-19 Figure 8-23: Background Setting (3) ........................................................................................................ 8-19 Figure 8-24: Background Setting Complete............................................................................................. 8-20 Figure 8-25: COM port Setting ................................................................................................................. 8-20 Figure 8-26: Record Saving Time ............................................................................................................ 8-21 Figure 8-27: User Setting ......................................................................................................................... 8-22 Figure 8-28: User List............................................................................................................................... 8-22 Figure 8-29: Change Superuser Login Setting (1) ................................................................................... 8-23 Figure 8-30: Change Superuser Login Setting (2) ................................................................................... 8-23 Figure 8-31: System Test (1) .................................................................................................................... 8-24 Figure 8-32: System Test (2) .................................................................................................................... 8-25 Figure 8-33: Local Loopback.................................................................................................................... 8-25 Figure 8-34: Local Loopback Setting ....................................................................................................... 8-26 Figure 8-35: IF Loopback ......................................................................................................................... 8-26
VIII Figure 8-36: IF Loopback Setting............................................................................................................. 8-27 Figure 8-37: RF Loopback........................................................................................................................ 8-27 Figure 8-38: RF Loopback Setting ........................................................................................................... 8-28 Figure 8-39: Remote Loopback................................................................................................................ 8-28 Figure 8-40: Remote Loopback Setting ................................................................................................... 8-29 Figure 8-41: PRBS Test............................................................................................................................ 8-29 Figure 8-42: PRBS Test Setting ............................................................................................................... 8-30 Figure 8-43: Alarm Record (1).................................................................................................................. 8-31 Figure 8-44: Alarm Record (2).................................................................................................................. 8-31 Figure 8-45: Sort by Date......................................................................................................................... 8-32 Figure 8-46: Sort by Station...................................................................................................................... 8-32 Figure 8-47: Select All Alarm Records ..................................................................................................... 8-33 Figure 8-48 Event Record (1)................................................................................................................... 8-33 Figure 8-49 Event Record (2)................................................................................................................... 8-34 Figure 8-50: Login Record........................................................................................................................ 8-34 Figure 8-51: Deleting Login Record ......................................................................................................... 8-35 Figure 8-52: Report Export (1) ................................................................................................................. 8-35 Figure 8-53: Report Export (2) ................................................................................................................. 8-36 Figure 8-54: Help...................................................................................................................................... 8-37 Figure 8-55: Function Explanations ......................................................................................................... 8-37 Figure 8-56 About Arbeit........................................................................................................................... 8-38 Figure 8-57: Network Monitor (1) ............................................................................................................. 8-38 Figure 8-58: Network Monitor (2) ............................................................................................................. 8-39 Figure 8-59: Network Monitor Links ......................................................................................................... 8-40 Figure 8-60: Equipment Status................................................................................................................. 8-41 Figure 8-61: ODU Status .......................................................................................................................... 8-42 Figure 8-62: Link Status ........................................................................................................................... 8-42 Figure 8-63 User I/O Status...................................................................................................................... 8-43 Figure 8-64 Cross Connect Status ........................................................................................................... 8-43 Figure 8-65 Interval Status ....................................................................................................................... 8-44 Figure 8-66 Interval Info ........................................................................................................................... 8-44 Figure 8-67 Other Information.................................................................................................................. 8-45 Figure 8-68: Real-time Alarm (1).............................................................................................................. 8-46 Figure 8-69: Real-time Alarm (2).............................................................................................................. 8-46 Figure 8-70: No Real-time Alarm.............................................................................................................. 8-46 Figure 8-71 DialUp (1).............................................................................................................................. 8-47 Figure 8-72 DialUp (2).............................................................................................................................. 8-47
IX Figure 8-73 DialUp (3).............................................................................................................................. 8-48 Figure 9-1 Side A IF & RF Status ............................................................................................................. 9-12 Figure 9-2 Side B IF & RF Status............................................................................................................. 9-12 Figure 9-3 Side A IF & RF Status ............................................................................................................. 9-13 Figure 9-4 Side B IF & RF Status............................................................................................................. 9-13 Figure 9-5 Part accessories ..................................................................................................................... 9-17 Figure 9-6 ODU Installation Diagram ....................................................................................................... 9-18 Figure 9-7 IDU & ODU Connection Diagram ........................................................................................... 9-19 Figure 9-8 RSL and Link Budget .............................................................................................................. 9-21
X Tables Table 9-1 Transmitter& Receiver................................................................................................................ 9-1 Table 9-2 Digital Line Interface................................................................................................................... 9-1 Table 9-3 IDU Structure .............................................................................................................................. 9-2 Table 9-4 Temperature and Environment ................................................................................................... 9-2 Table 9-5 Network Management System ................................................................................................... 9-2 Table 9-6 IF Cable ...................................................................................................................................... 9-2 Table 9-7 Power ......................................................................................................................................... 9-3 Table 9-8 Service Channel ......................................................................................................................... 9-3 Table 9-9 LCD Alarm Items ........................................................................................................................ 9-5 Table 9-10 LCD Function............................................................................................................................ 9-6 Table 9-11 2.4GHz Spread Spectrum List (2E1, Side A)............................................................................9-8 Table 9-12 2.4GHz Spread Spectrum List (2E1, Side B) ........................................................................... 9-8 Table 9-13 2.4GHz Spread Spectrum List (4E1, Side A)............................................................................9-8 Table 9-14 2.4GHz Spread Spectrum List (4E1, Side B) ........................................................................... 9-8 Table 9-15 2.4GHz Spread Spectrum List (8E1, Side A)............................................................................9-9 Table 9-16 2.4GHz Spread Spectrum List (8E1, Side B) ........................................................................... 9-9 Table 9-17 5.8GHz Spread Spectrum List (2E1, Side A)............................................................................9-9 Table 9-18 5.8GHz Spread Spectrum List (2E1, Side B) ......................................................................... 9-10 Table 9-19 5.8GHz Spread Spectrum List (4E1, Side A).......................................................................... 9-10 Table 9-20 5.8GHz Spread Spectrum List (4E1, Side B) ......................................................................... 9-10 Table 9-21 5.8GHz Spread Spectrum List (8E1, Side A)...........................................................................9-11 Table 9-22 5.8GHz Spread Spectrum List (8E1, Side B) ..........................................................................9-11 Table 9-23 5.8GHz Spread Spectrum List (16E1, Side A) ........................................................................9-11 Table 9-24 5.8GHz Spread Spectrum List (16E1, Side B) ........................................................................9-11 Table 9-25 DB9 female pins of NMS1 ...................................................................................................... 9-14 Table 9-26 DB9 male pins of NMS2 ......................................................................................................... 9-14 Table 9-27 DB9 female pins of AUX1 (V.28) ............................................................................................ 9-14 Table 9-28 DB9 female pins of AUX1 (V.11)............................................................................................. 9-14 Table 9-29 DB26 pins of USER I/O .......................................................................................................... 9-15 Table 9-30 DB25 pins of AUX2................................................................................................................. 9-15

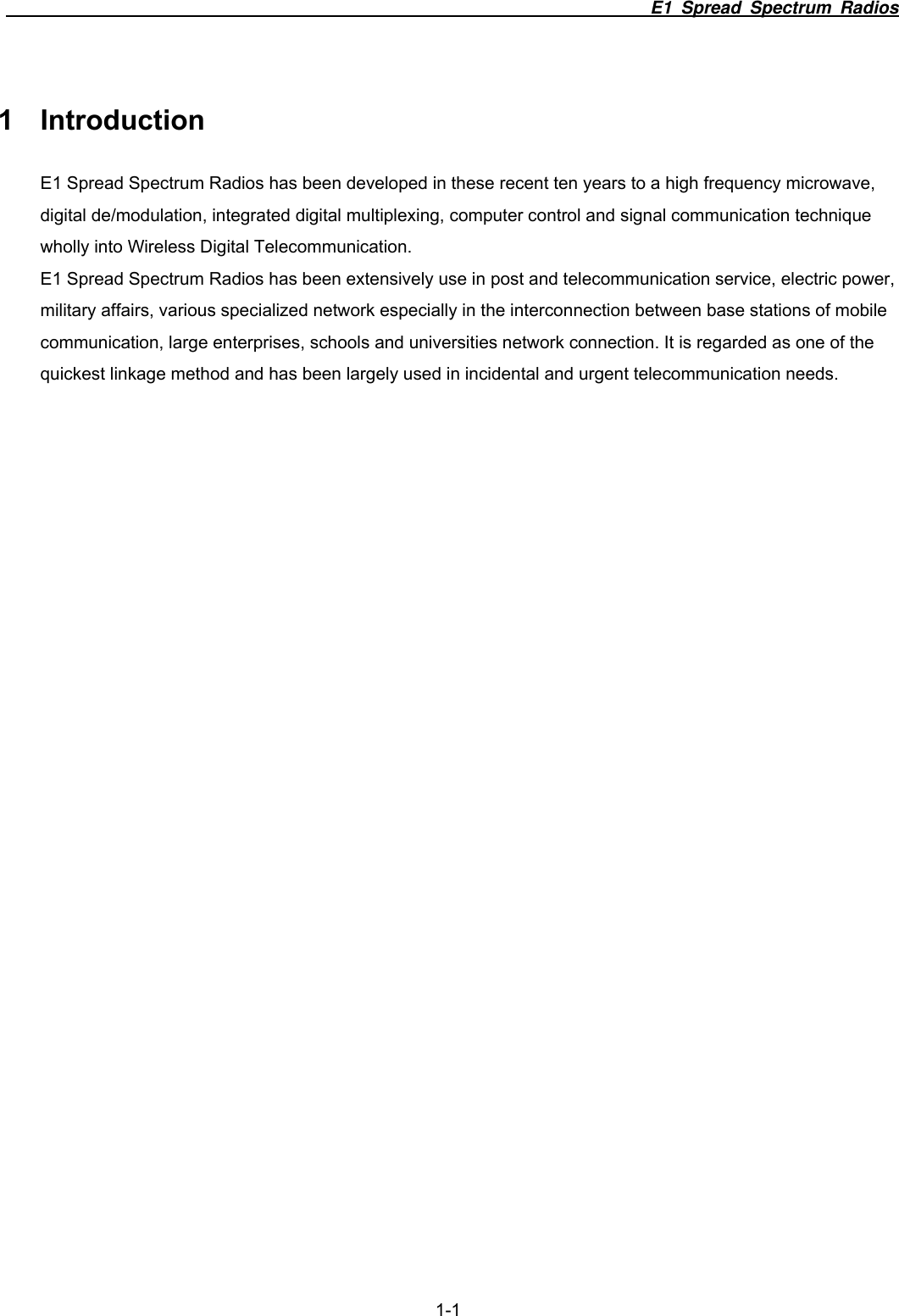

E1 Spread Spectrum Radios 1-1 1 Introduction E1 Spread Spectrum Radios has been developed in these recent ten years to a high frequency microwave, digital de/modulation, integrated digital multiplexing, computer control and signal communication technique wholly into Wireless Digital Telecommunication. E1 Spread Spectrum Radios has been extensively use in post and telecommunication service, electric power, military affairs, various specialized network especially in the interconnection between base stations of mobile communication, large enterprises, schools and universities network connection. It is regarded as one of the quickest linkage method and has been largely used in incidental and urgent telecommunication needs.

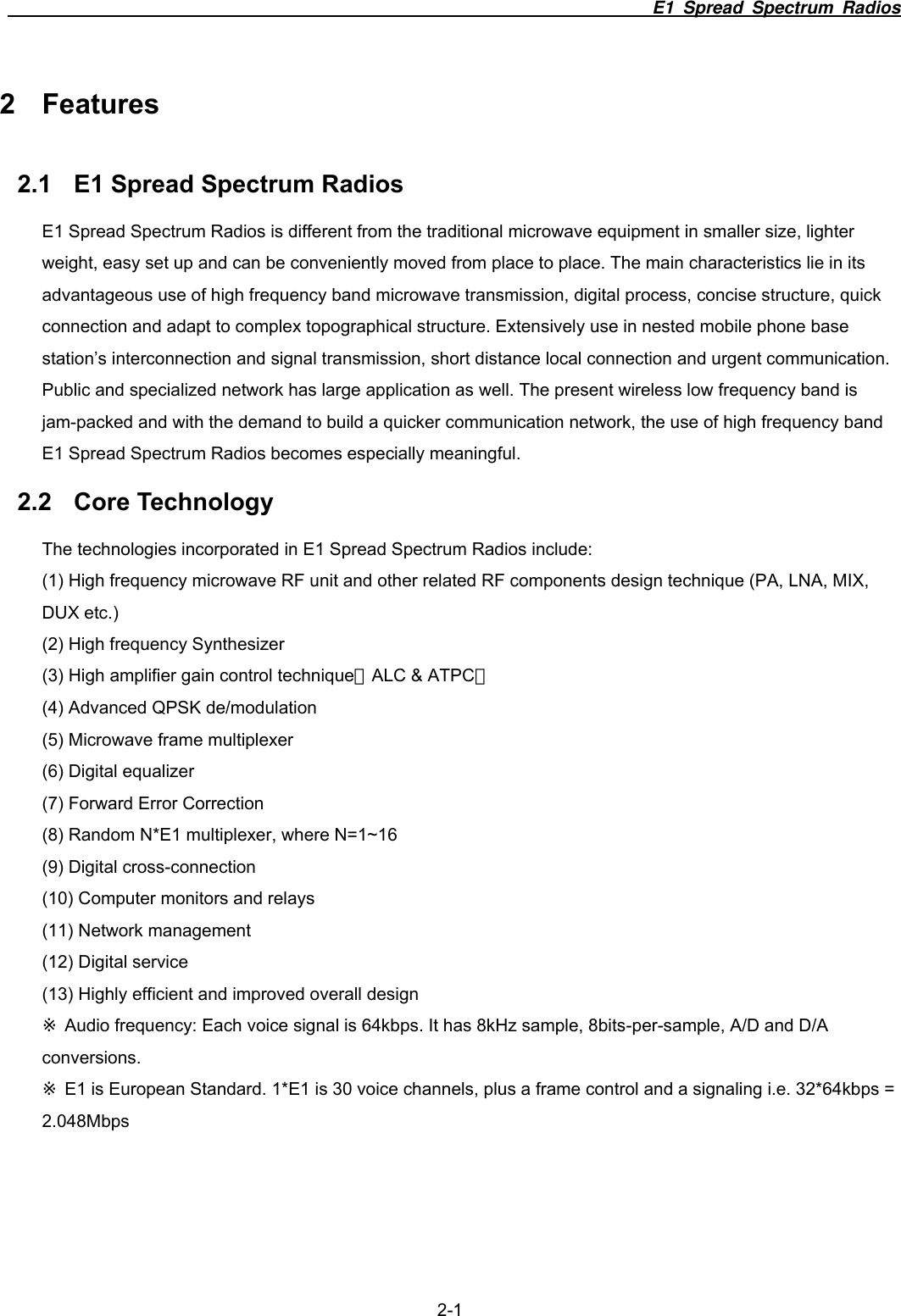

E1 Spread Spectrum Radios 2-1 2 Features 2.1 E1 Spread Spectrum Radios E1 Spread Spectrum Radios is different from the traditional microwave equipment in smaller size, lighter weight, easy set up and can be conveniently moved from place to place. The main characteristics lie in its advantageous use of high frequency band microwave transmission, digital process, concise structure, quick connection and adapt to complex topographical structure. Extensively use in nested mobile phone base station’s interconnection and signal transmission, short distance local connection and urgent communication. Public and specialized network has large application as well. The present wireless low frequency band is jam-packed and with the demand to build a quicker communication network, the use of high frequency band E1 Spread Spectrum Radios becomes especially meaningful. 2.2 Core Technology The technologies incorporated in E1 Spread Spectrum Radios include: (1) High frequency microwave RF unit and other related RF components design technique (PA, LNA, MIX, DUX etc.) (2) High frequency Synthesizer (3) High amplifier gain control technique（ALC & ATPC） (4) Advanced QPSK de/modulation (5) Microwave frame multiplexer (6) Digital equalizer (7) Forward Error Correction (8) Random N*E1 multiplexer, where N=1~16 (9) Digital cross-connection (10) Computer monitors and relays (11) Network management (12) Digital service (13) Highly efficient and improved overall design Audio frequency: Each voice signal is 64kbps. It has 8kHz sample, 8bits※-per-sample, A/D and D/A conversions. E1 is European Standard. 1*E1 ※is 30 voice channels, plus a frame control and a signaling i.e. 32*64kbps = 2.048Mbps

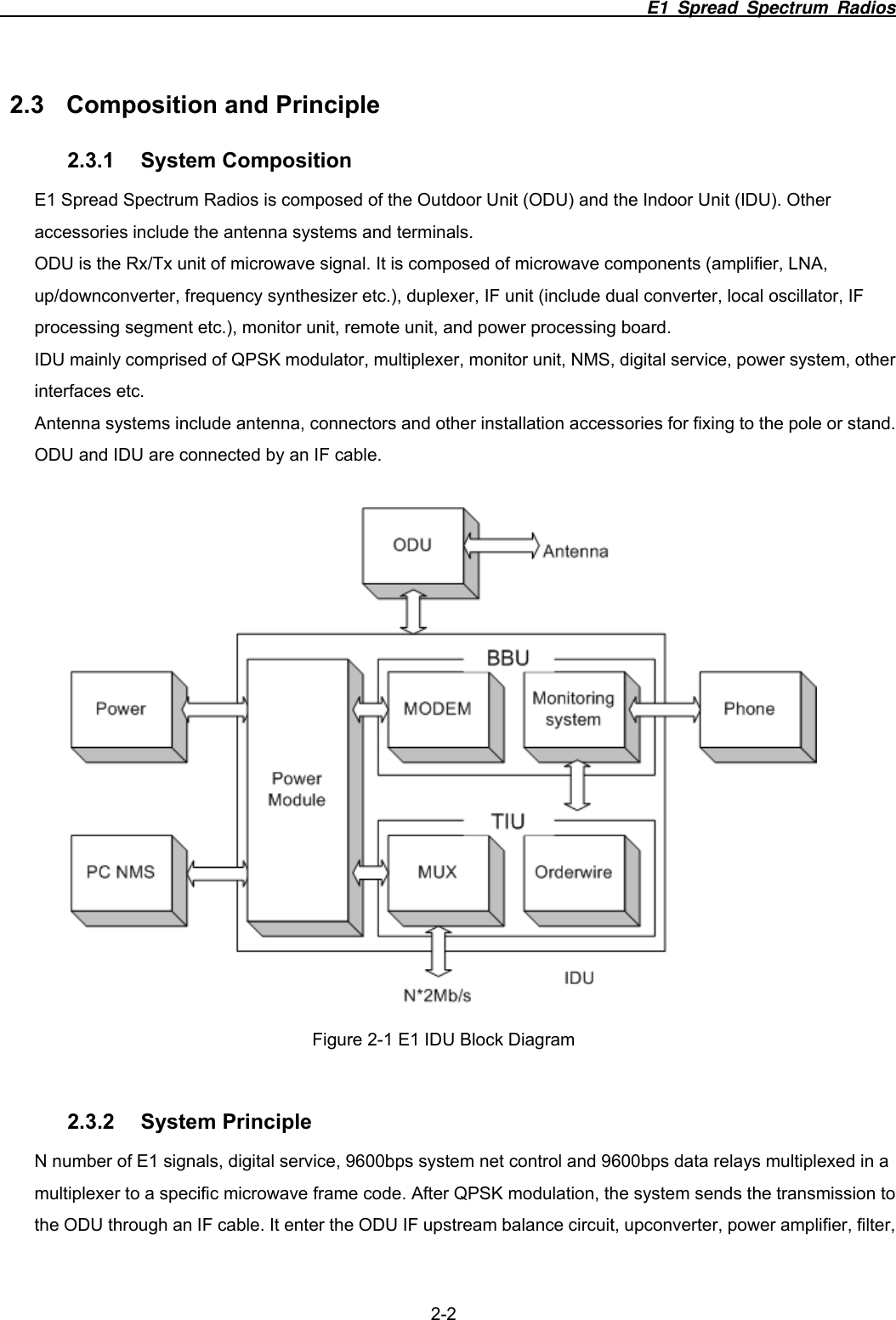

E1 Spread Spectrum Radios 2-2 2.3 Composition and Principle 2.3.1 System Composition E1 Spread Spectrum Radios is composed of the Outdoor Unit (ODU) and the Indoor Unit (IDU). Other accessories include the antenna systems and terminals. ODU is the Rx/Tx unit of microwave signal. It is composed of microwave components (amplifier, LNA, up/downconverter, frequency synthesizer etc.), duplexer, IF unit (include dual converter, local oscillator, IF processing segment etc.), monitor unit, remote unit, and power processing board. IDU mainly comprised of QPSK modulator, multiplexer, monitor unit, NMS, digital service, power system, other interfaces etc. Antenna systems include antenna, connectors and other installation accessories for fixing to the pole or stand. ODU and IDU are connected by an IF cable. Figure 2-1 E1 IDU Block Diagram 2.3.2 System Principle N number of E1 signals, digital service, 9600bps system net control and 9600bps data relays multiplexed in a multiplexer to a specific microwave frame code. After QPSK modulation, the system sends the transmission to the ODU through an IF cable. It enter the ODU IF upstream balance circuit, upconverter, power amplifier, filter,

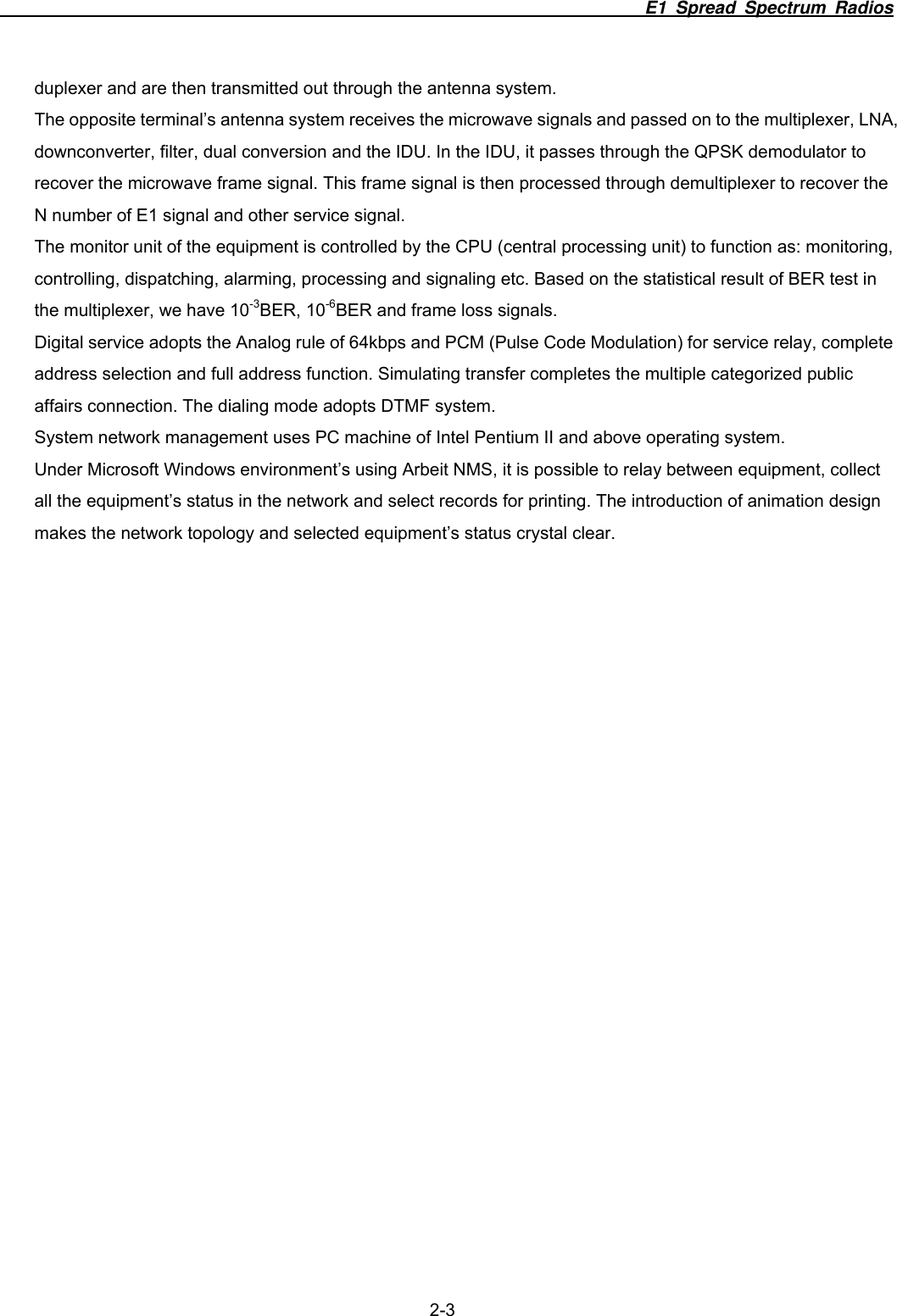

E1 Spread Spectrum Radios 2-3 duplexer and are then transmitted out through the antenna system. The opposite terminal’s antenna system receives the microwave signals and passed on to the multiplexer, LNA, downconverter, filter, dual conversion and the IDU. In the IDU, it passes through the QPSK demodulator to recover the microwave frame signal. This frame signal is then processed through demultiplexer to recover the N number of E1 signal and other service signal. The monitor unit of the equipment is controlled by the CPU (central processing unit) to function as: monitoring, controlling, dispatching, alarming, processing and signaling etc. Based on the statistical result of BER test in the multiplexer, we have 10-3BER, 10-6BER and frame loss signals. Digital service adopts the Analog rule of 64kbps and PCM (Pulse Code Modulation) for service relay, complete address selection and full address function. Simulating transfer completes the multiple categorized public affairs connection. The dialing mode adopts DTMF system. System network management uses PC machine of Intel Pentium II and above operating system. Under Microsoft Windows environment’s using Arbeit NMS, it is possible to relay between equipment, collect all the equipment’s status in the network and select records for printing. The introduction of animation design makes the network topology and selected equipment’s status crystal clear.

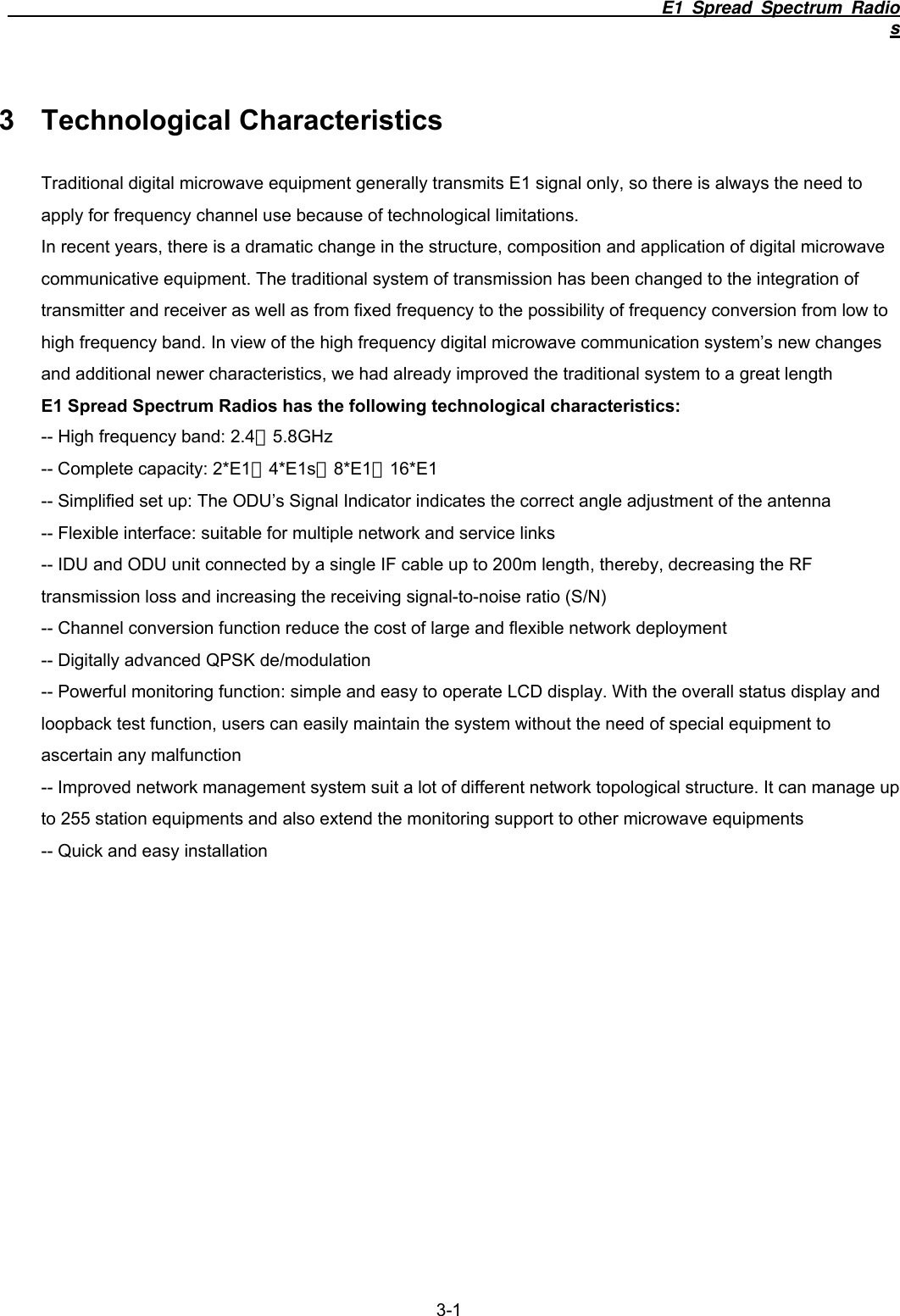

E1 Spread Spectrum Radios 3-1 3 Technological Characteristics Traditional digital microwave equipment generally transmits E1 signal only, so there is always the need to apply for frequency channel use because of technological limitations. In recent years, there is a dramatic change in the structure, composition and application of digital microwave communicative equipment. The traditional system of transmission has been changed to the integration of transmitter and receiver as well as from fixed frequency to the possibility of frequency conversion from low to high frequency band. In view of the high frequency digital microwave communication system’s new changes and additional newer characteristics, we had already improved the traditional system to a great length E1 Spread Spectrum Radios has the following technological characteristics: -- High frequency band: 2.4、5.8GHz -- Complete capacity: 2*E1、4*E1s、8*E1、16*E1 -- Simplified set up: The ODU’s Signal Indicator indicates the correct angle adjustment of the antenna -- Flexible interface: suitable for multiple network and service links -- IDU and ODU unit connected by a single IF cable up to 200m length, thereby, decreasing the RF transmission loss and increasing the receiving signal-to-noise ratio (S/N) -- Channel conversion function reduce the cost of large and flexible network deployment -- Digitally advanced QPSK de/modulation -- Powerful monitoring function: simple and easy to operate LCD display. With the overall status display and loopback test function, users can easily maintain the system without the need of special equipment to ascertain any malfunction -- Improved network management system suit a lot of different network topological structure. It can manage up to 255 station equipments and also extend the monitoring support to other microwave equipments -- Quick and easy installation

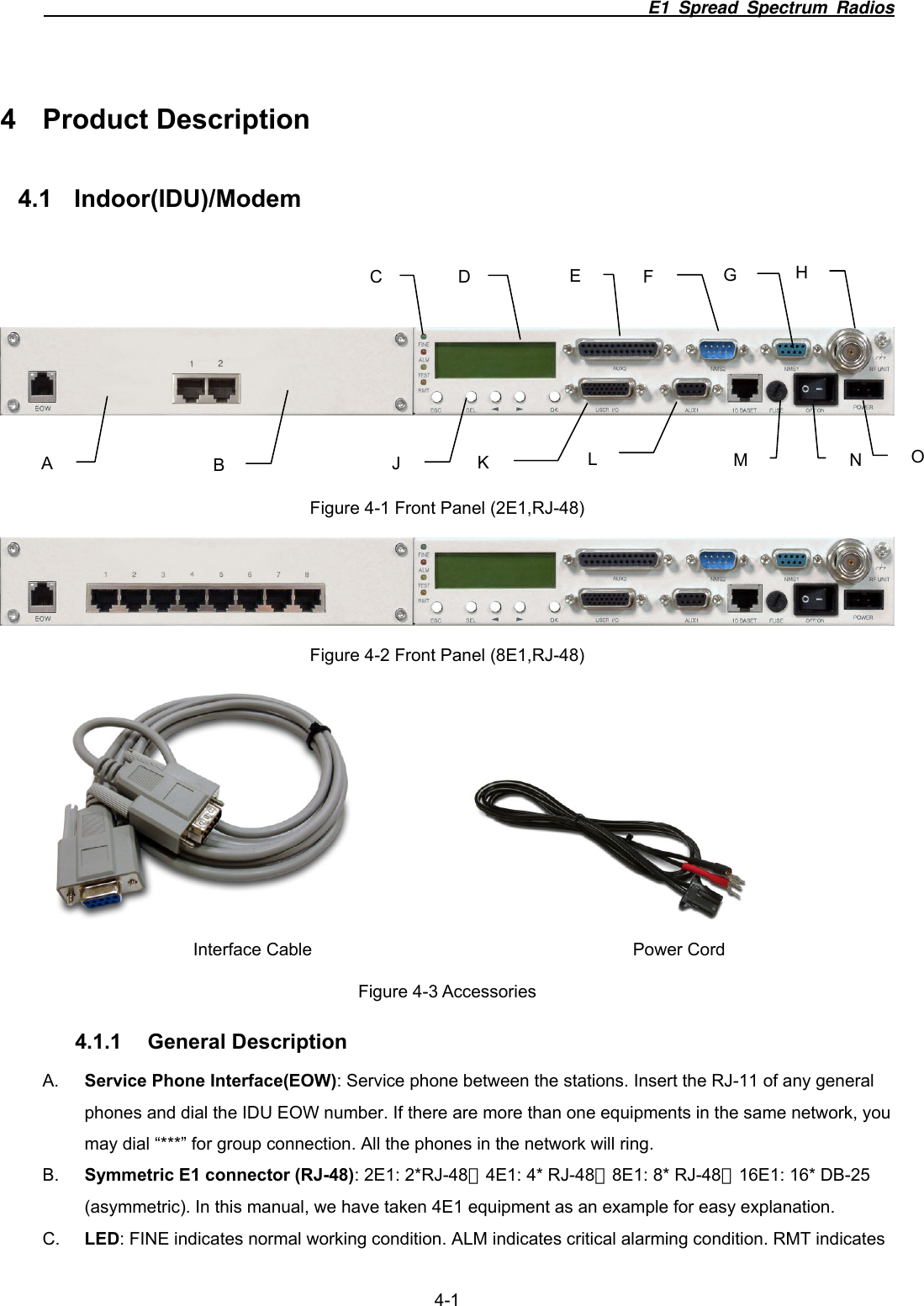

E1 Spread Spectrum Radios 4-1 4 Product Description 4.1 Indoor(IDU)/Modem Figure 4-1 Front Panel (2E1,RJ-48) Figure 4-2 Front Panel (8E1,RJ-48) Interface Cable Power Cord Figure 4-3 Accessories 4.1.1 General Description A. Service Phone Interface(EOW): Service phone between the stations. Insert the RJ-11 of any general phones and dial the IDU EOW number. If there are more than one equipments in the same network, you may dial “***” for group connection. All the phones in the network will ring. B. Symmetric E1 connector (RJ-48): 2E1: 2*RJ-48、4E1: 4* RJ-48、8E1: 8* RJ-48、16E1: 16* DB-25 (asymmetric). In this manual, we have taken 4E1 equipment as an example for easy explanation. C. LED: FINE indicates normal working condition. ALM indicates critical alarming condition. RMT indicates A B CEJFG HKLM NOD

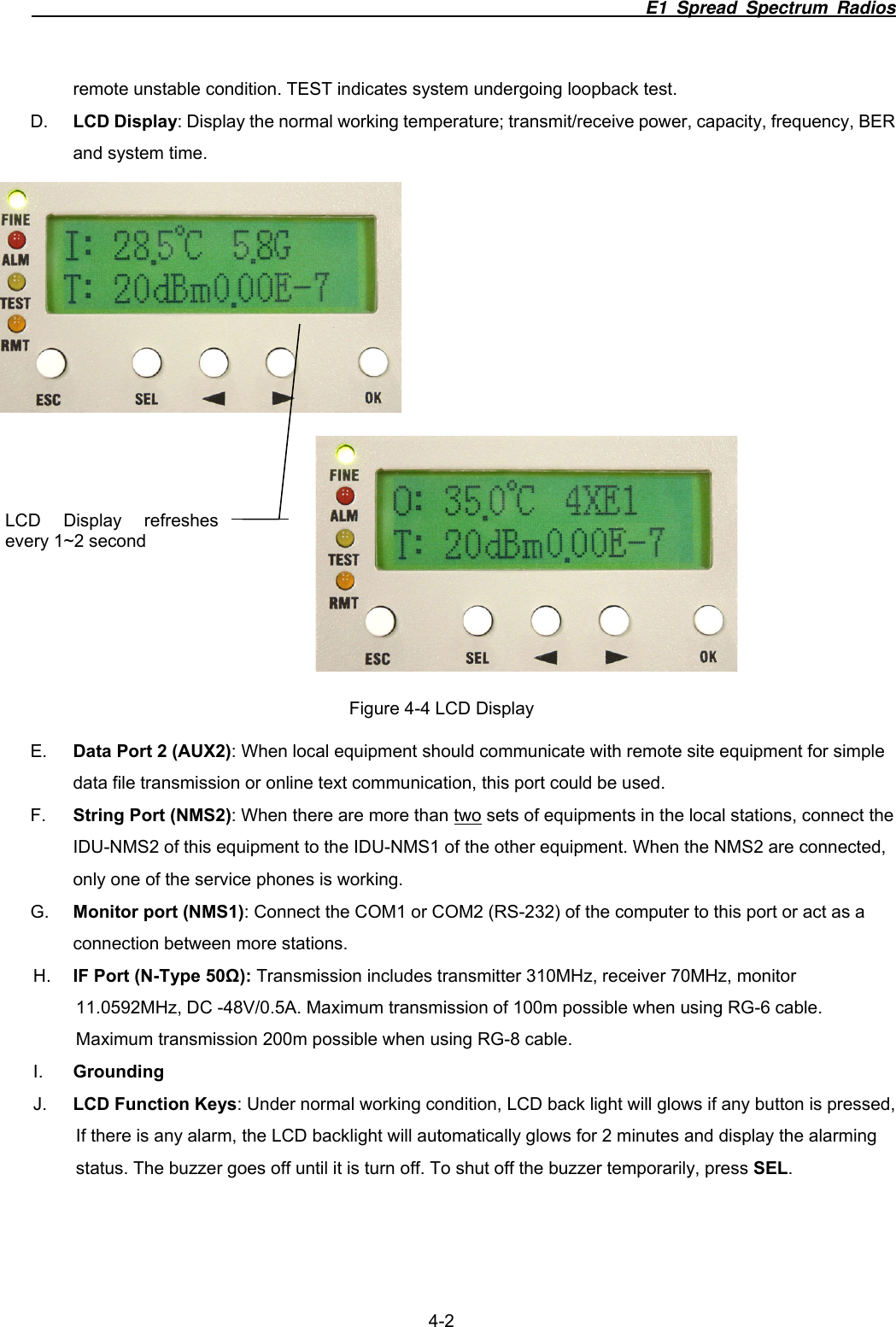

E1 Spread Spectrum Radios 4-2 remote unstable condition. TEST indicates system undergoing loopback test. D. LCD Display: Display the normal working temperature; transmit/receive power, capacity, frequency, BER and system time. Figure 4-4 LCD Display E. Data Port 2 (AUX2): When local equipment should communicate with remote site equipment for simple data file transmission or online text communication, this port could be used. F. String Port (NMS2): When there are more than two sets of equipments in the local stations, connect the IDU-NMS2 of this equipment to the IDU-NMS1 of the other equipment. When the NMS2 are connected, only one of the service phones is working. G. Monitor port (NMS1): Connect the COM1 or COM2 (RS-232) of the computer to this port or act as a connection between more stations. H. IF Port (N-Type 50Ω): Transmission includes transmitter 310MHz, receiver 70MHz, monitor 11.0592MHz, DC -48V/0.5A. Maximum transmission of 100m possible when using RG-6 cable. Maximum transmission 200m possible when using RG-8 cable. I. Grounding J. LCD Function Keys: Under normal working condition, LCD back light will glows if any button is pressed, If there is any alarm, the LCD backlight will automatically glows for 2 minutes and display the alarming status. The buzzer goes off until it is turn off. To shut off the buzzer temporarily, press SEL. LCD Display refreshes every 1~2 second

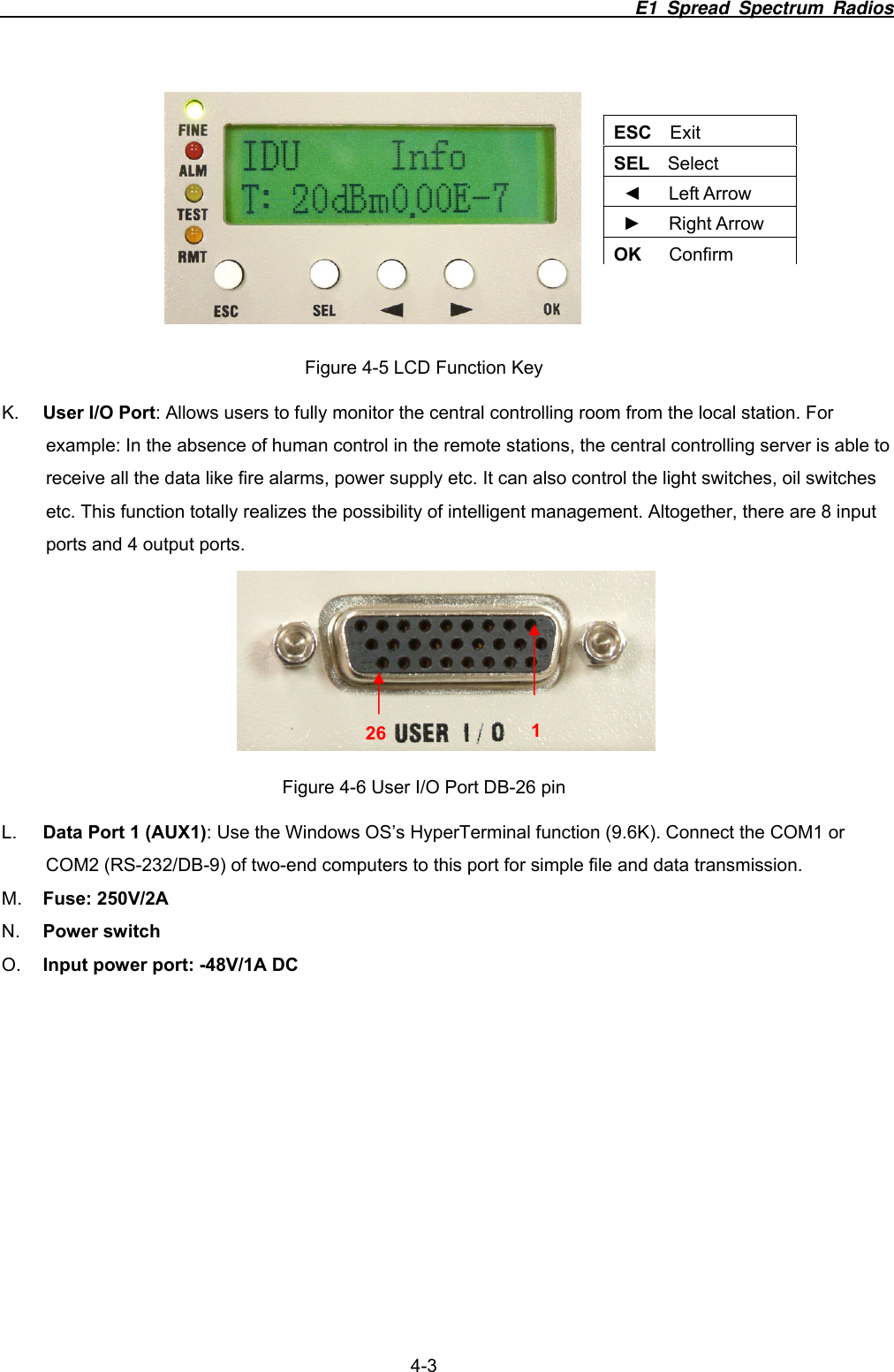

E1 Spread Spectrum Radios 4-3 Figure 4-5 LCD Function Key K. User I/O Port: Allows users to fully monitor the central controlling room from the local station. For example: In the absence of human control in the remote stations, the central controlling server is able to receive all the data like fire alarms, power supply etc. It can also control the light switches, oil switches etc. This function totally realizes the possibility of intelligent management. Altogether, there are 8 input ports and 4 output ports. Figure 4-6 User I/O Port DB-26 pin L. Data Port 1 (AUX1): Use the Windows OS’s HyperTerminal function (9.6K). Connect the COM1 or COM2 (RS-232/DB-9) of two-end computers to this port for simple file and data transmission. M. Fuse: 250V/2A N. Power switch O. Input power port: -48V/1A DC ESC Exit SEL Select ◄ Left Arrow ► Right Arrow OK Confirm 126

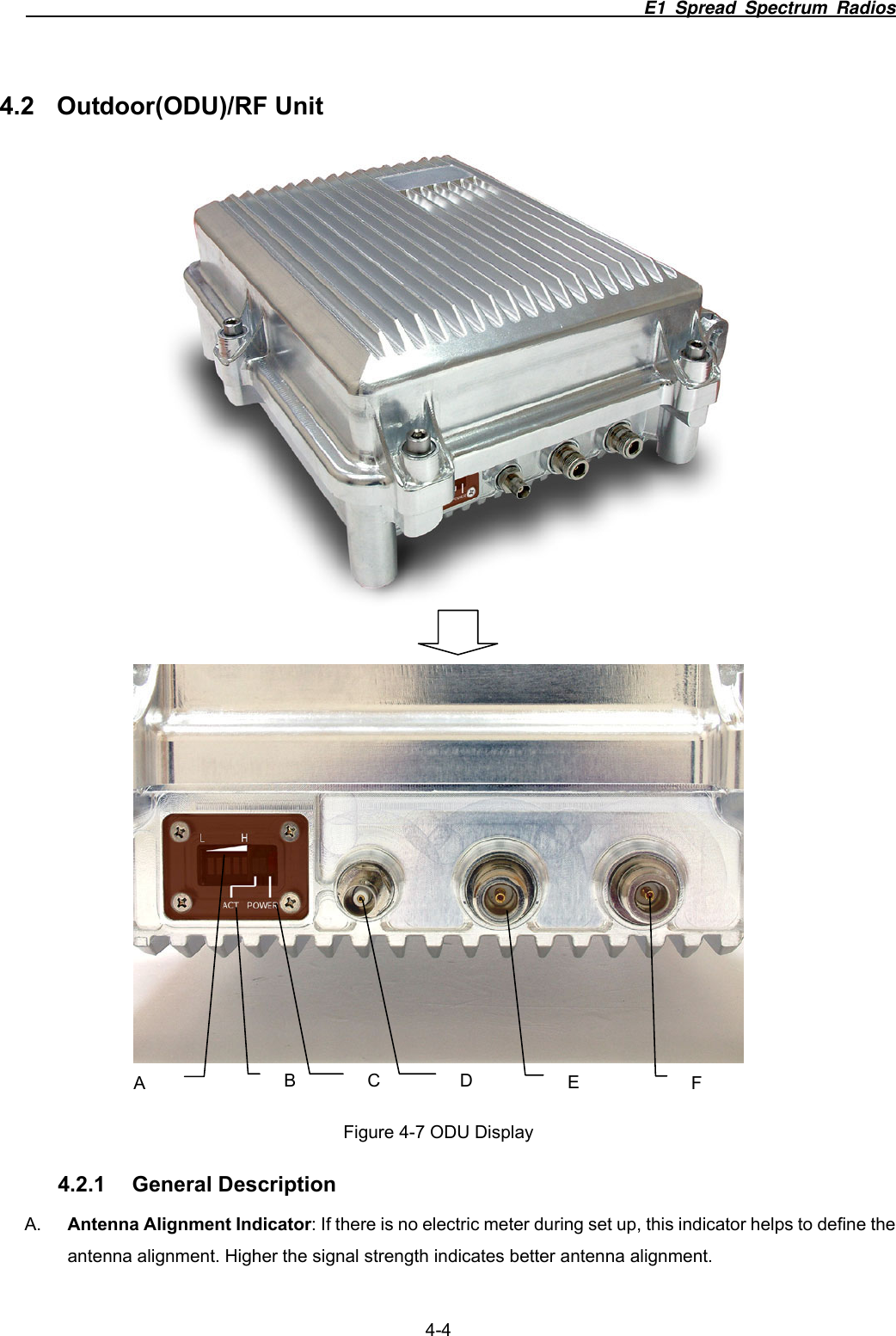

E1 Spread Spectrum Radios 4-4 4.2 Outdoor(ODU)/RF Unit Figure 4-7 ODU Display 4.2.1 General Description A. Antenna Alignment Indicator: If there is no electric meter during set up, this indicator helps to define the antenna alignment. Higher the signal strength indicates better antenna alignment. E D C F B A

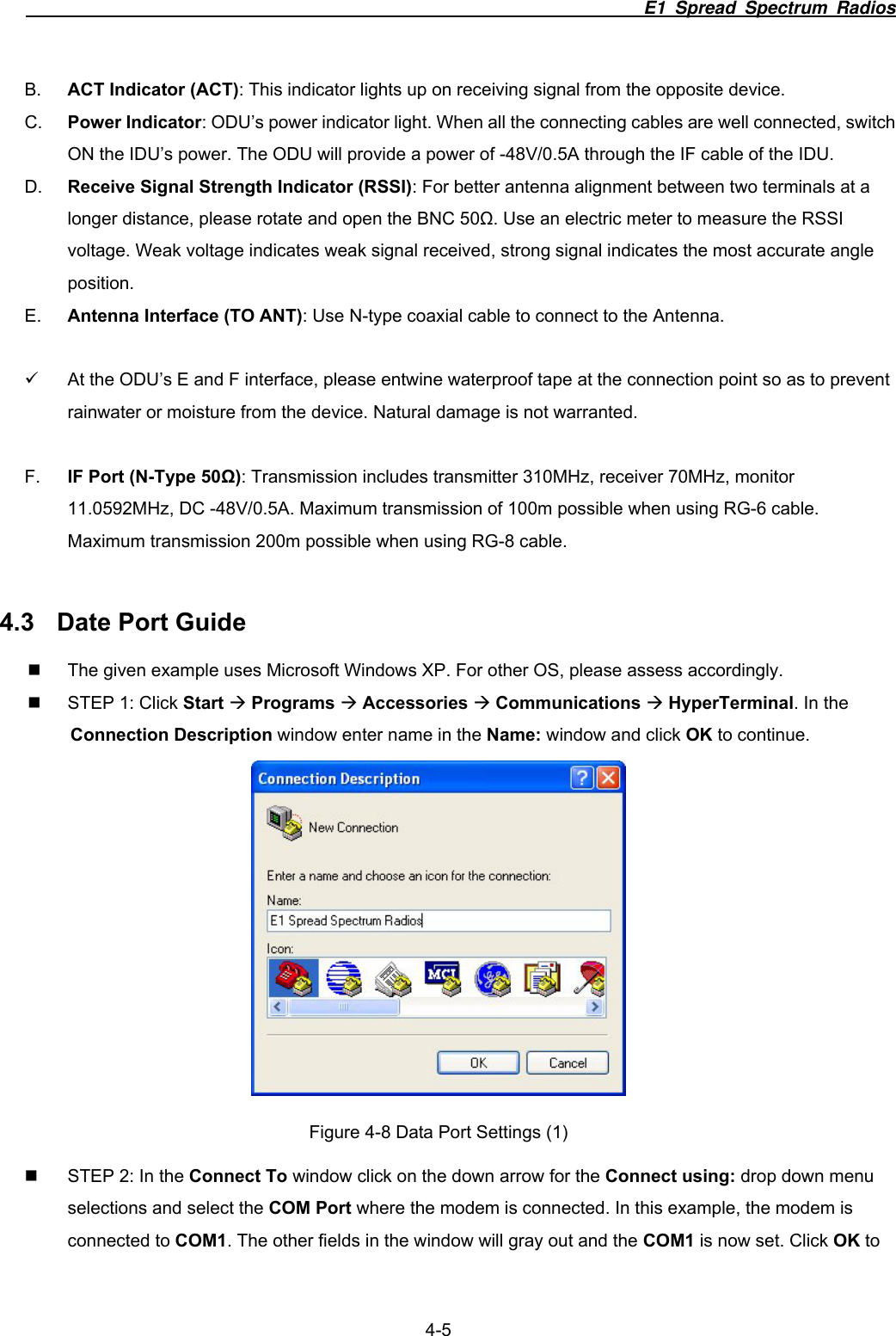

E1 Spread Spectrum Radios 4-5 B. ACT Indicator (ACT): This indicator lights up on receiving signal from the opposite device. C. Power Indicator: ODU’s power indicator light. When all the connecting cables are well connected, switch ON the IDU’s power. The ODU will provide a power of -48V/0.5A through the IF cable of the IDU. D. Receive Signal Strength Indicator (RSSI): For better antenna alignment between two terminals at a longer distance, please rotate and open the BNC 50Ω. Use an electric meter to measure the RSSI voltage. Weak voltage indicates weak signal received, strong signal indicates the most accurate angle position. E. Antenna Interface (TO ANT): Use N-type coaxial cable to connect to the Antenna. 9 At the ODU’s E and F interface, please entwine waterproof tape at the connection point so as to prevent rainwater or moisture from the device. Natural damage is not warranted. F. IF Port (N-Type 50Ω): Transmission includes transmitter 310MHz, receiver 70MHz, monitor 11.0592MHz, DC -48V/0.5A. Maximum transmission of 100m possible when using RG-6 cable. Maximum transmission 200m possible when using RG-8 cable. 4.3 Date Port Guide  The given example uses Microsoft Windows XP. For other OS, please assess accordingly.  STEP 1: Click Start Æ Programs Æ Accessories Æ Communications Æ HyperTerminal. In the Connection Description window enter name in the Name: window and click OK to continue. Figure 4-8 Data Port Settings (1)  STEP 2: In the Connect To window click on the down arrow for the Connect using: drop down menu selections and select the COM Port where the modem is connected. In this example, the modem is connected to COM1. The other fields in the window will gray out and the COM1 is now set. Click OK to

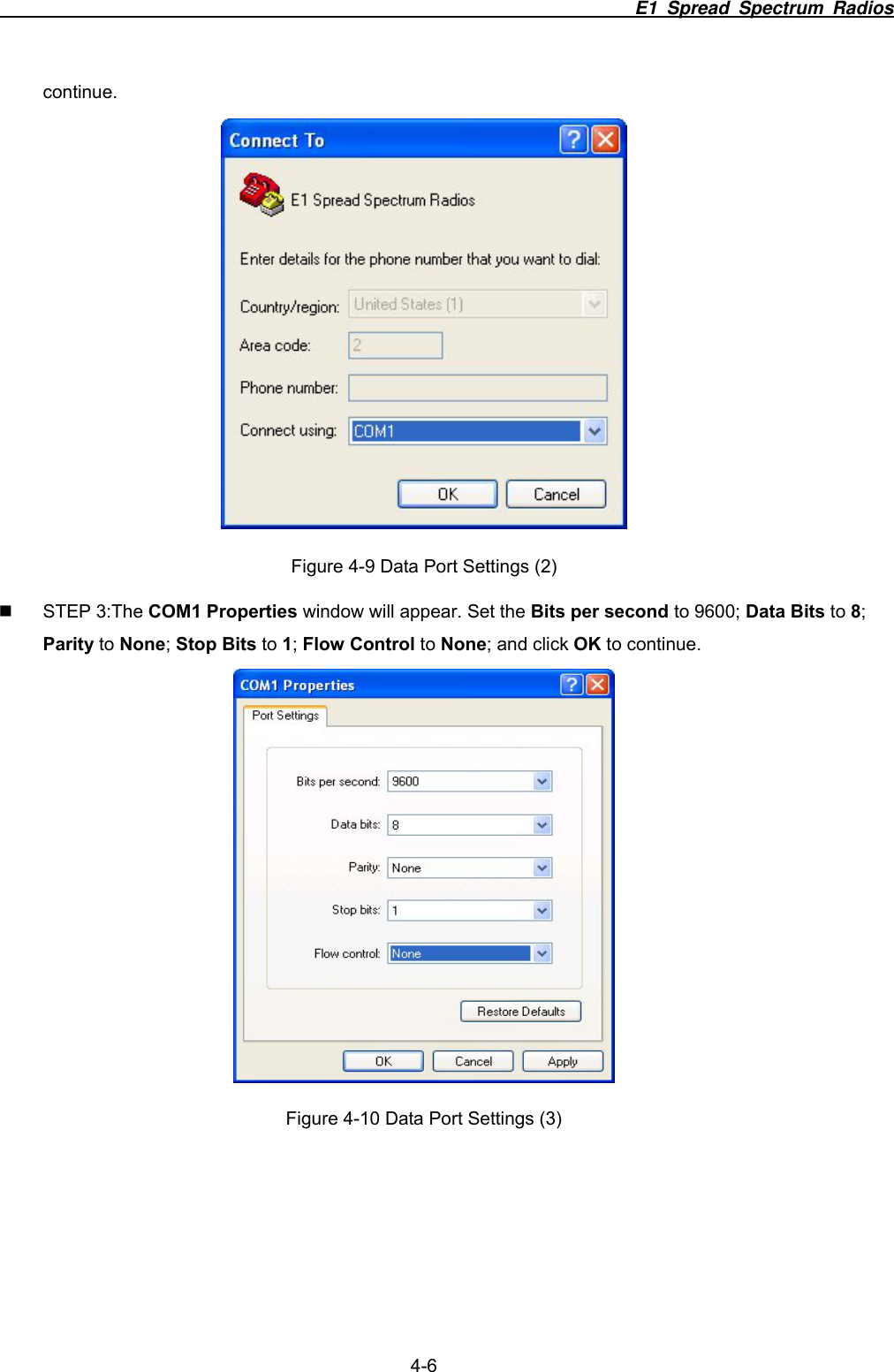

E1 Spread Spectrum Radios 4-6 continue. Figure 4-9 Data Port Settings (2)  STEP 3:The COM1 Properties window will appear. Set the Bits per second to 9600; Data Bits to 8; Parity to None; Stop Bits to 1; Flow Control to None; and click OK to continue. Figure 4-10 Data Port Settings (3)

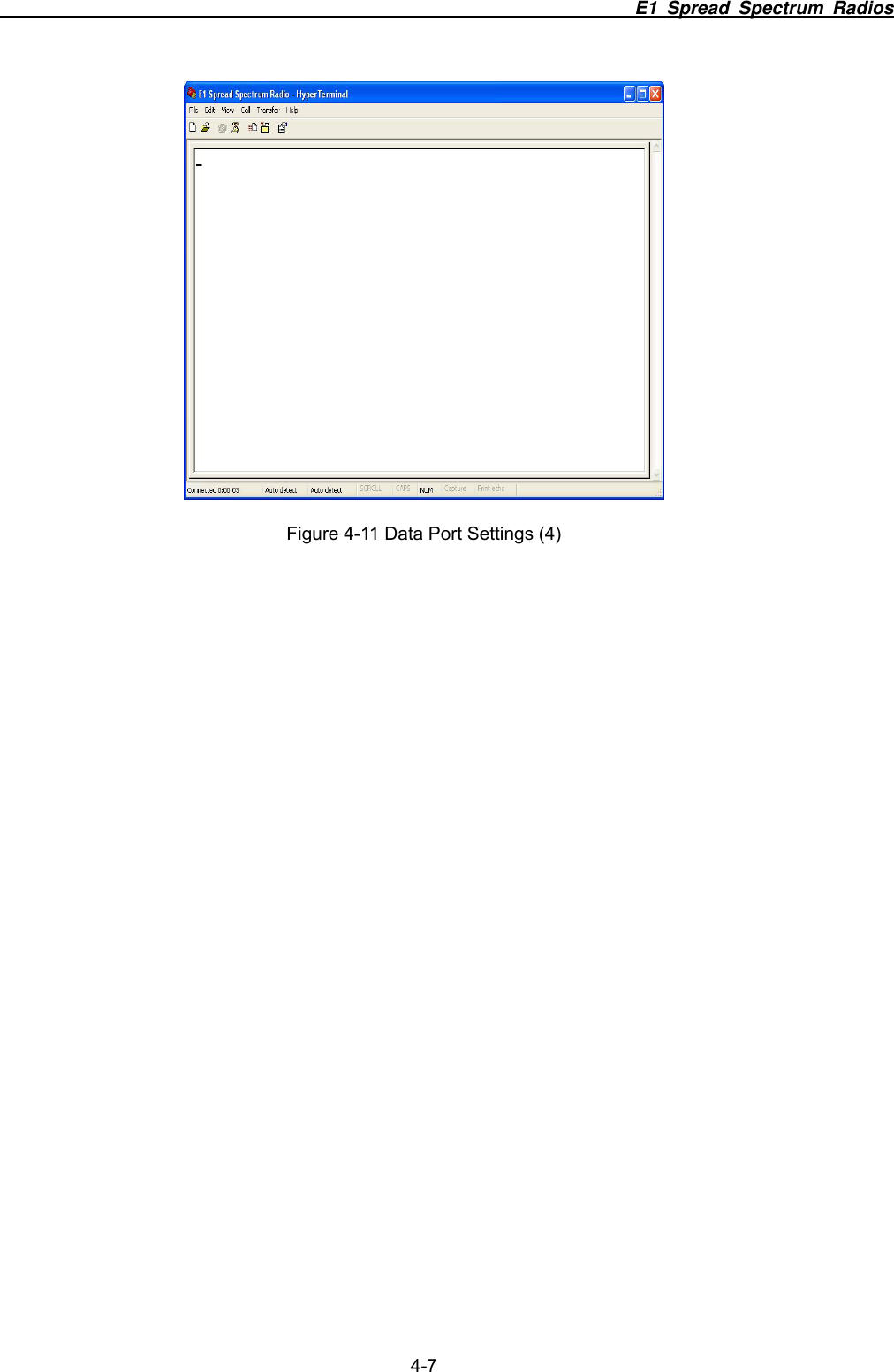

E1 Spread Spectrum Radios 4-7 Figure 4-11 Data Port Settings (4)

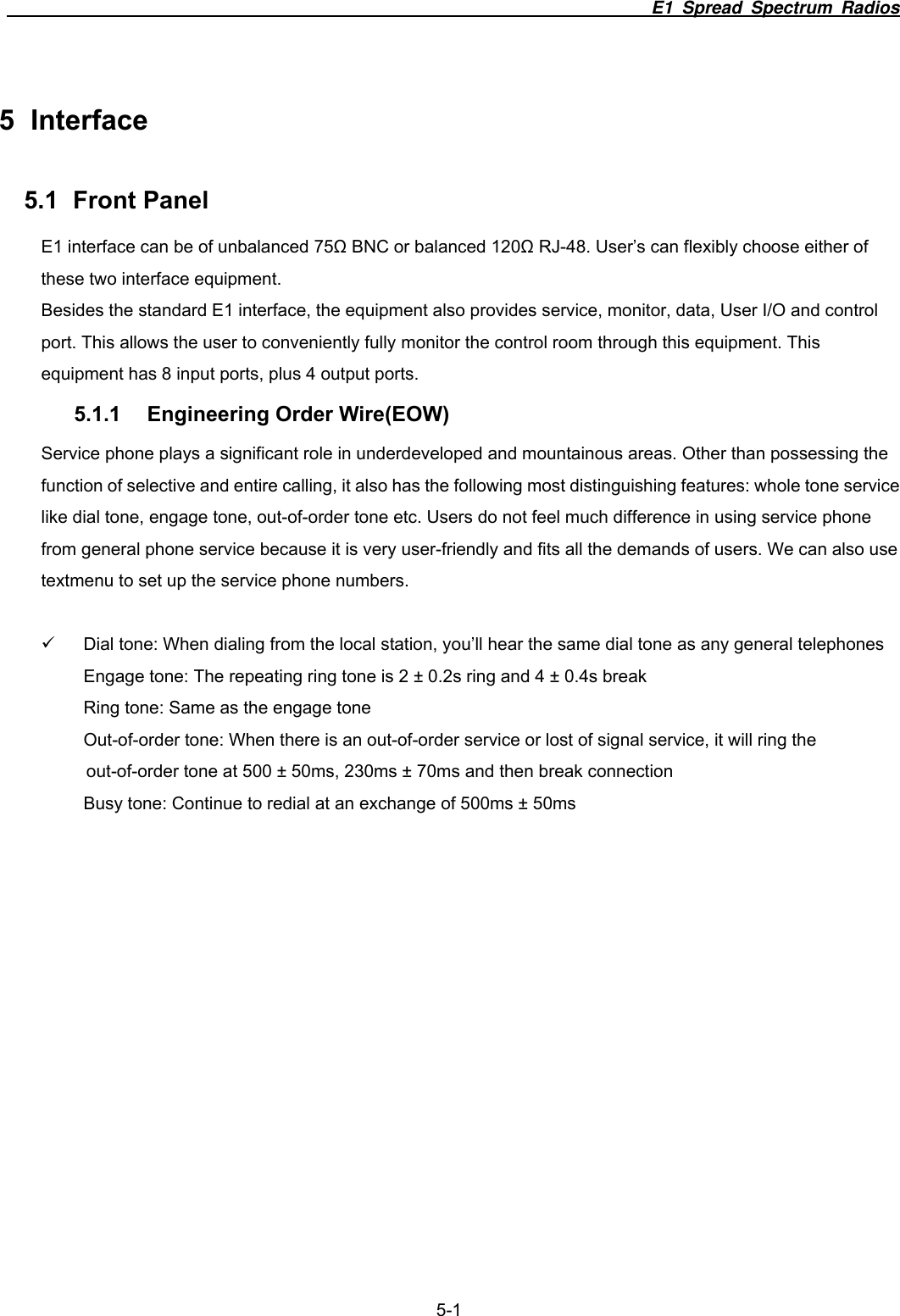

E1 Spread Spectrum Radios 5-1 5 Interface 5.1 Front Panel E1 interface can be of unbalanced 75Ω BNC or balanced 120Ω RJ-48. User’s can flexibly choose either of these two interface equipment. Besides the standard E1 interface, the equipment also provides service, monitor, data, User I/O and control port. This allows the user to conveniently fully monitor the control room through this equipment. This equipment has 8 input ports, plus 4 output ports. 5.1.1 Engineering Order Wire(EOW) Service phone plays a significant role in underdeveloped and mountainous areas. Other than possessing the function of selective and entire calling, it also has the following most distinguishing features: whole tone service like dial tone, engage tone, out-of-order tone etc. Users do not feel much difference in using service phone from general phone service because it is very user-friendly and fits all the demands of users. We can also use textmenu to set up the service phone numbers. 9 Dial tone: When dialing from the local station, you’ll hear the same dial tone as any general telephones Engage tone: The repeating ring tone is 2 ± 0.2s ring and 4 ± 0.4s break Ring tone: Same as the engage tone Out-of-order tone: When there is an out-of-order service or lost of signal service, it will ring the out-of-order tone at 500 ± 50ms, 230ms ± 70ms and then break connection Busy tone: Continue to redial at an exchange of 500ms ± 50ms

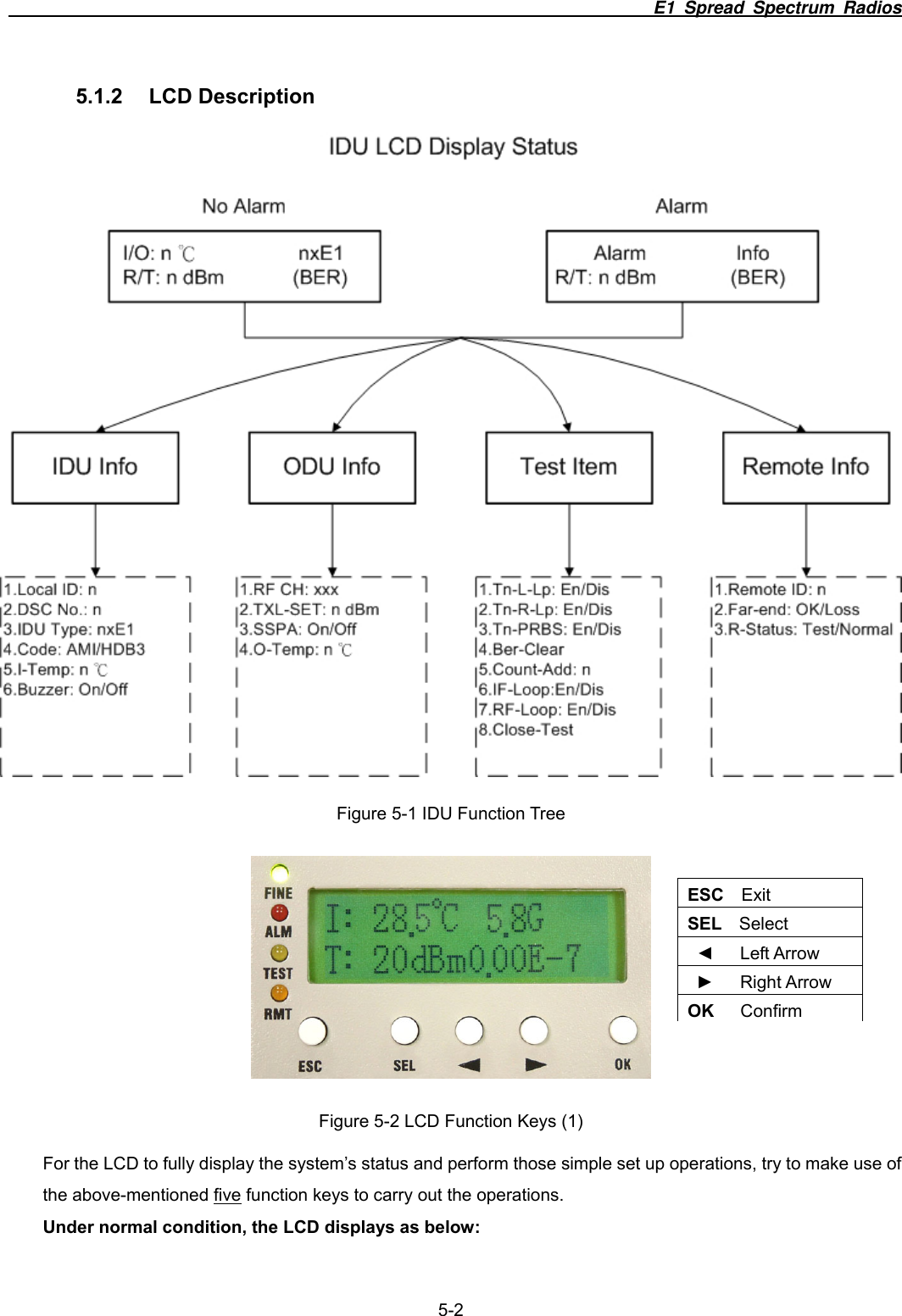

E1 Spread Spectrum Radios 5-2 5.1.2 LCD Description Figure 5-1 IDU Function Tree Figure 5-2 LCD Function Keys (1) For the LCD to fully display the system’s status and perform those simple set up operations, try to make use of the above-mentioned five function keys to carry out the operations. Under normal condition, the LCD displays as below: ESC Exit SEL Select ◄ Left Arrow ► Right Arrow OK Confirm

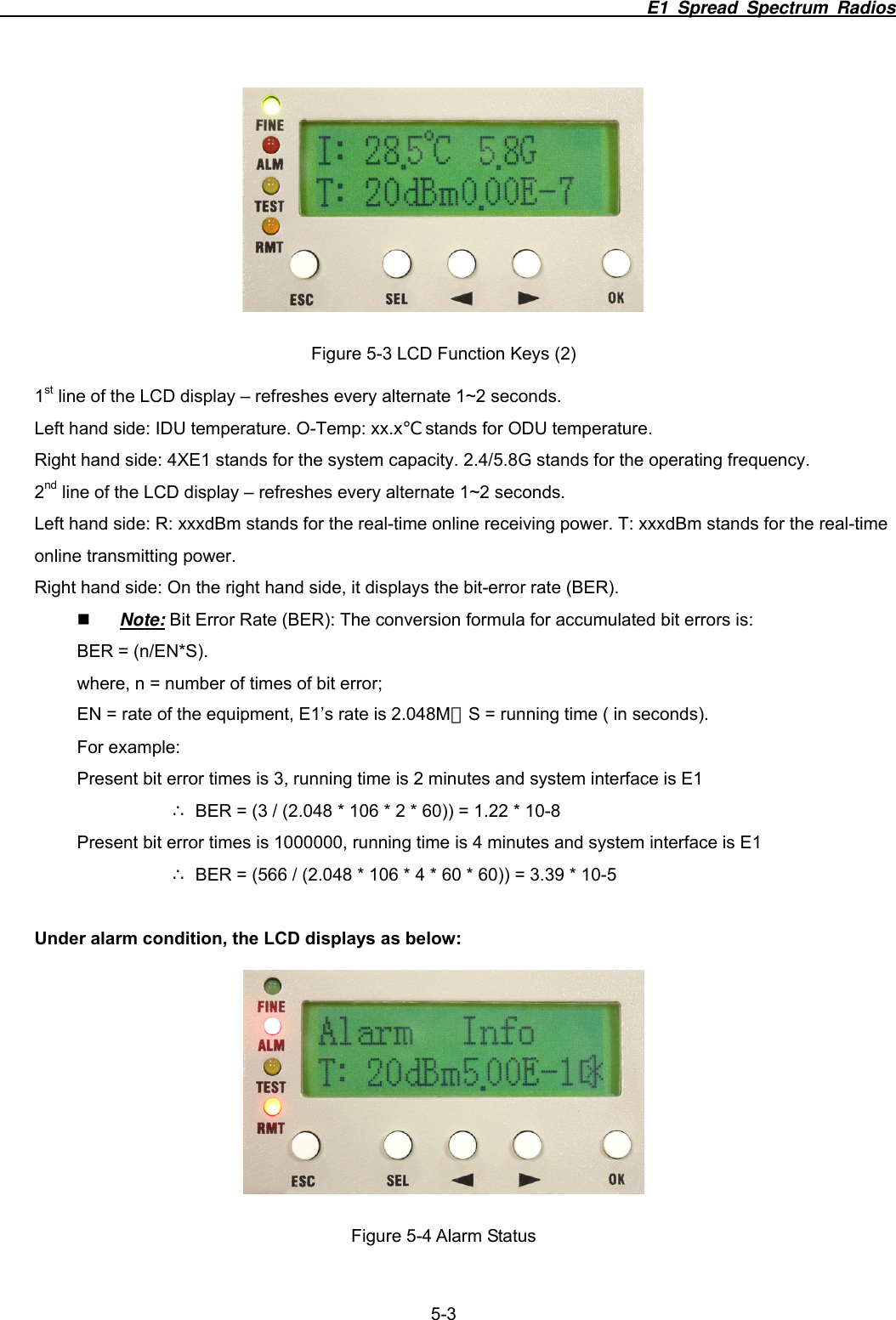

E1 Spread Spectrum Radios 5-3 Figure 5-3 LCD Function Keys (2) 1st line of the LCD display – refreshes every alternate 1~2 seconds. Left hand side: IDU temperature. O-Temp: xx.x℃ stands for ODU temperature. Right hand side: 4XE1 stands for the system capacity. 2.4/5.8G stands for the operating frequency. 2nd line of the LCD display – refreshes every alternate 1~2 seconds. Left hand side: R: xxxdBm stands for the real-time online receiving power. T: xxxdBm stands for the real-time online transmitting power. Right hand side: On the right hand side, it displays the bit-error rate (BER).  Note: Bit Error Rate (BER): The conversion formula for accumulated bit errors is: BER = (n/EN*S). where, n = number of times of bit error; EN = rate of the equipment, E1’s rate is 2.048M；S = running time ( in seconds). For example: Present bit error times is 3, running time is 2 minutes and system interface is E1 BER = (3 / (2.048 * 106 * 2 * 60)) = 1.22∴ * 10-8 Present bit error times is 1000000, running time is 4 minutes and system interface is E1 BER = (566 / (2.048 * 106 * 4 * 60 * 60)) = 3.39 * 10∴-5 Under alarm condition, the LCD displays as below: Figure 5-4 Alarm Status

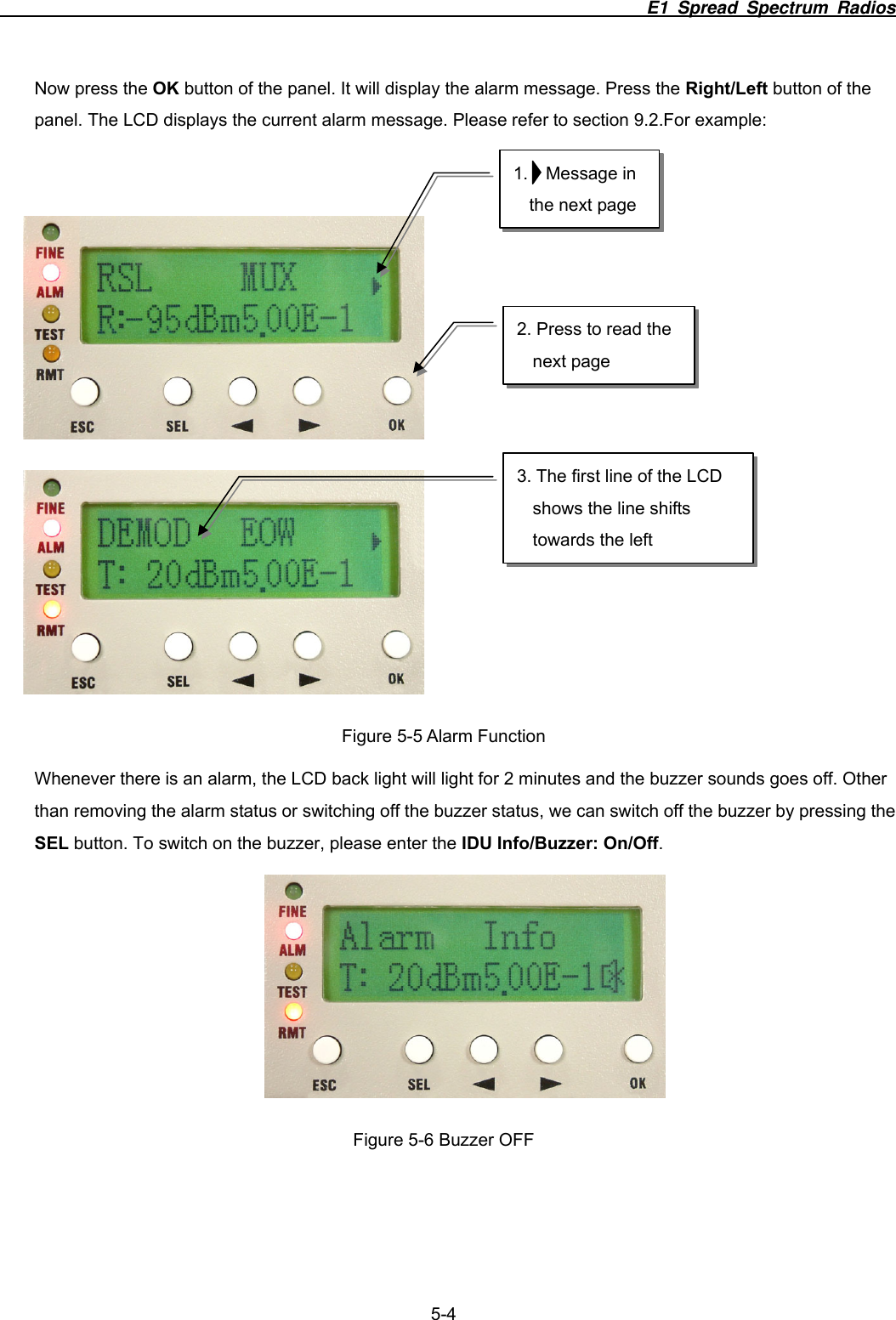

E1 Spread Spectrum Radios 5-4 Now press the OK button of the panel. It will display the alarm message. Press the Right/Left button of the panel. The LCD displays the current alarm message. Please refer to section 9.2.For example: Figure 5-5 Alarm Function Whenever there is an alarm, the LCD back light will light for 2 minutes and the buzzer sounds goes off. Other than removing the alarm status or switching off the buzzer status, we can switch off the buzzer by pressing the SEL button. To switch on the buzzer, please enter the IDU Info/Buzzer: On/Off. Figure 5-6 Buzzer OFF 1. Message in the next page 2. Press to read the next page 3. The first line of the LCD shows the line shifts towards the left

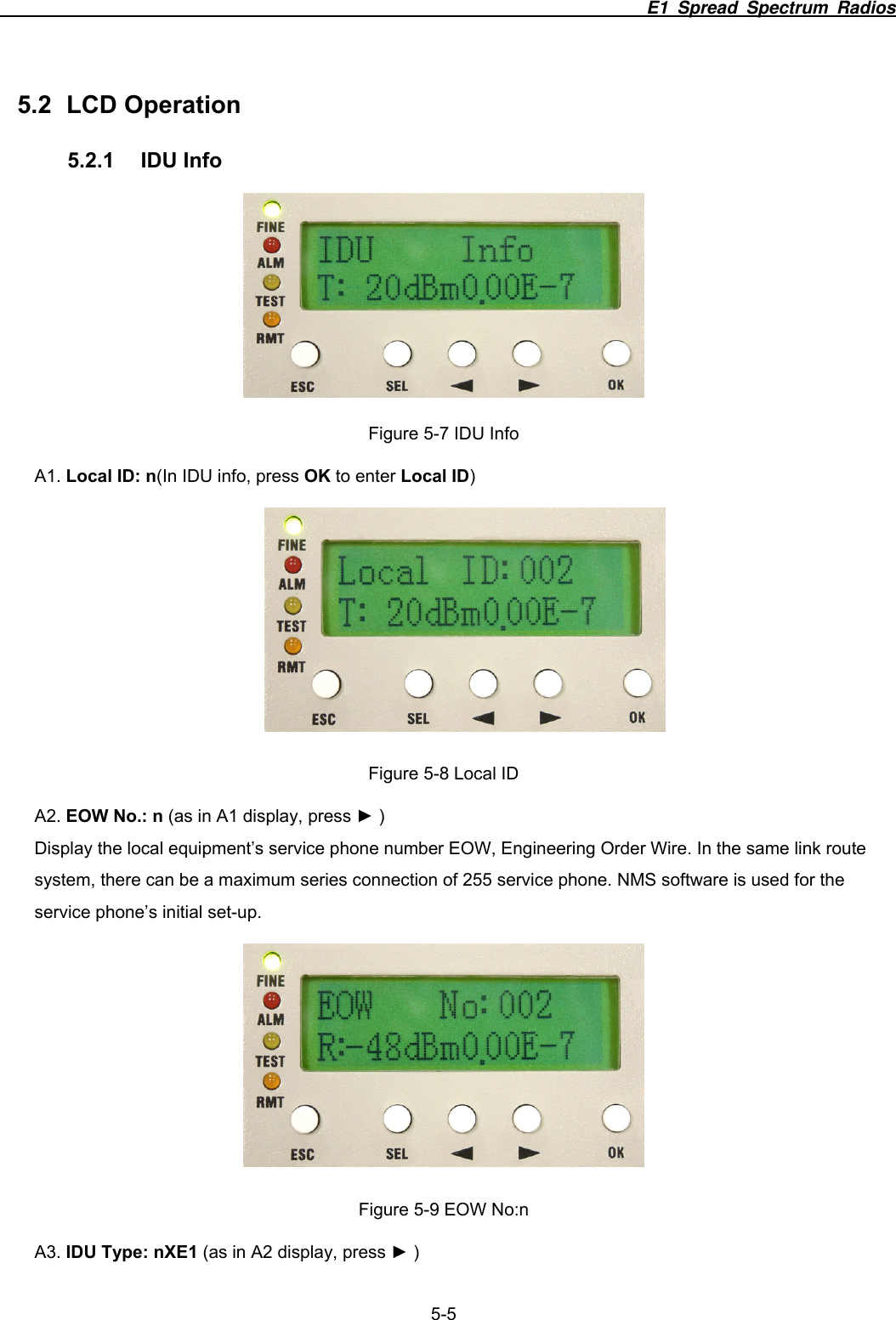

E1 Spread Spectrum Radios 5-5 5.2 LCD Operation 5.2.1 IDU Info Figure 5-7 IDU Info A1. Local ID: n(In IDU info, press OK to enter Local ID) Figure 5-8 Local ID A2. EOW No.: n (as in A1 display, press ► ) Display the local equipment’s service phone number EOW, Engineering Order Wire. In the same link route system, there can be a maximum series connection of 255 service phone. NMS software is used for the service phone’s initial set-up. Figure 5-9 EOW No:n A3. IDU Type: nXE1 (as in A2 display, press ► )

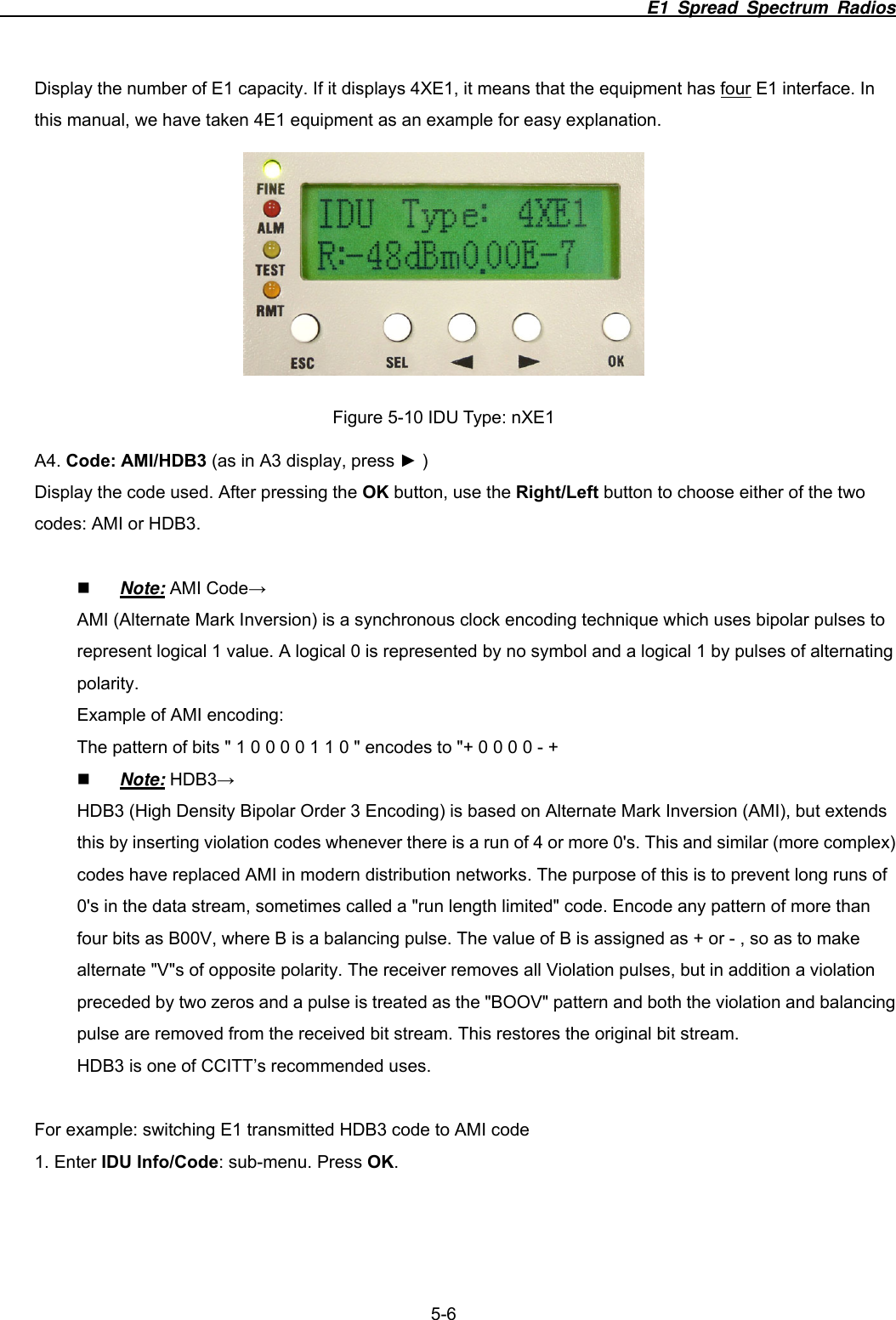

E1 Spread Spectrum Radios 5-6 Display the number of E1 capacity. If it displays 4XE1, it means that the equipment has four E1 interface. In this manual, we have taken 4E1 equipment as an example for easy explanation. Figure 5-10 IDU Type: nXE1 A4. Code: AMI/HDB3 (as in A3 display, press ► ) Display the code used. After pressing the OK button, use the Right/Left button to choose either of the two codes: AMI or HDB3.  Note: AMI Code→ AMI (Alternate Mark Inversion) is a synchronous clock encoding technique which uses bipolar pulses to represent logical 1 value. A logical 0 is represented by no symbol and a logical 1 by pulses of alternating polarity. Example of AMI encoding: The pattern of bits " 1 0 0 0 0 1 1 0 " encodes to "+ 0 0 0 0 - +  Note: HDB3→ HDB3 (High Density Bipolar Order 3 Encoding) is based on Alternate Mark Inversion (AMI), but extends this by inserting violation codes whenever there is a run of 4 or more 0's. This and similar (more complex) codes have replaced AMI in modern distribution networks. The purpose of this is to prevent long runs of 0's in the data stream, sometimes called a "run length limited" code. Encode any pattern of more than four bits as B00V, where B is a balancing pulse. The value of B is assigned as + or - , so as to make alternate "V"s of opposite polarity. The receiver removes all Violation pulses, but in addition a violation preceded by two zeros and a pulse is treated as the "BOOV" pattern and both the violation and balancing pulse are removed from the received bit stream. This restores the original bit stream. HDB3 is one of CCITT’s recommended uses. For example: switching E1 transmitted HDB3 code to AMI code 1. Enter IDU Info/Code: sub-menu. Press OK.

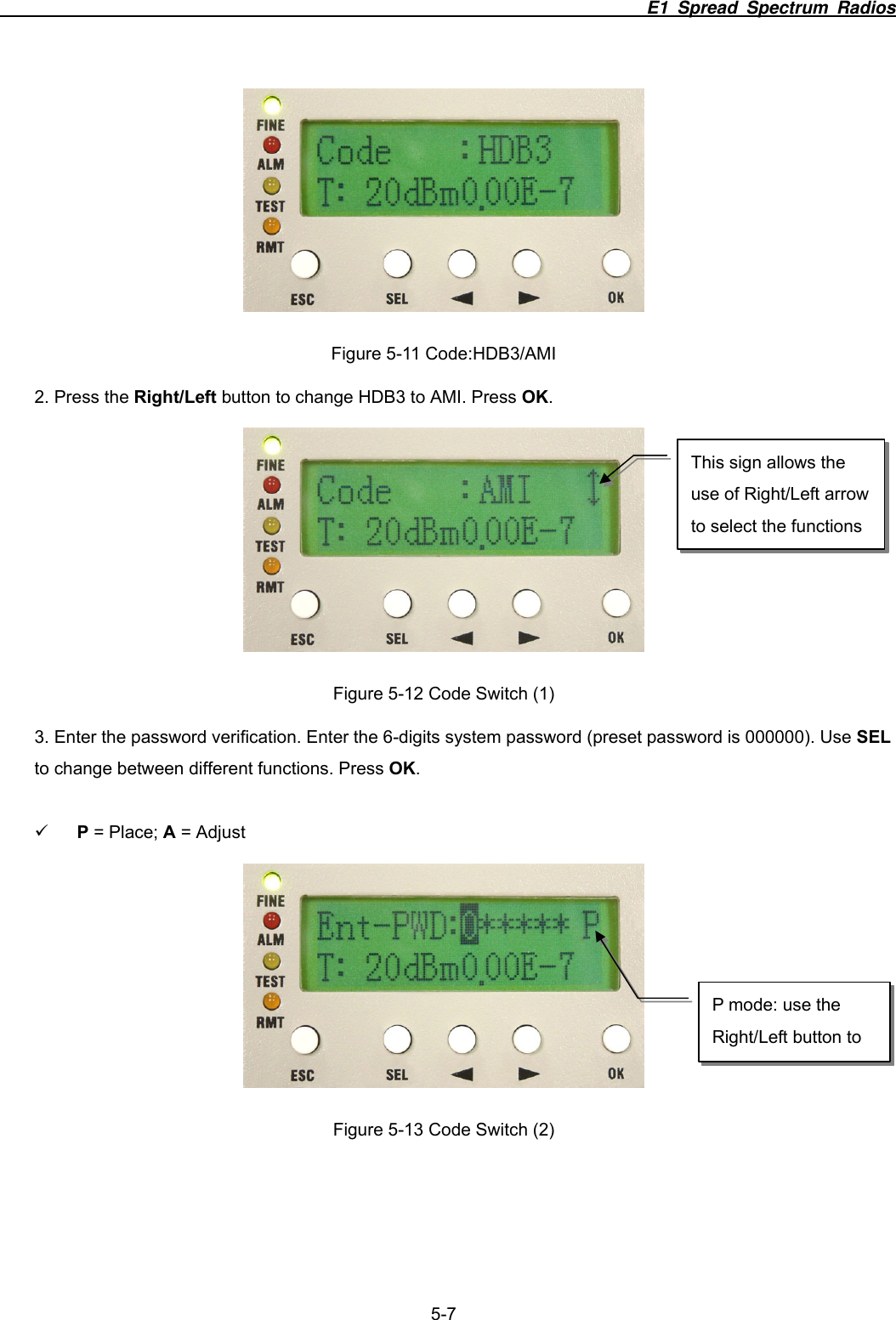

E1 Spread Spectrum Radios 5-7 Figure 5-11 Code:HDB3/AMI 2. Press the Right/Left button to change HDB3 to AMI. Press OK. Figure 5-12 Code Switch (1) 3. Enter the password verification. Enter the 6-digits system password (preset password is 000000). Use SEL to change between different functions. Press OK. 9 P = Place; A = Adjust Figure 5-13 Code Switch (2) This sign allows the use of Right/Left arrow to select the functions P mode: use the Right/Left button to

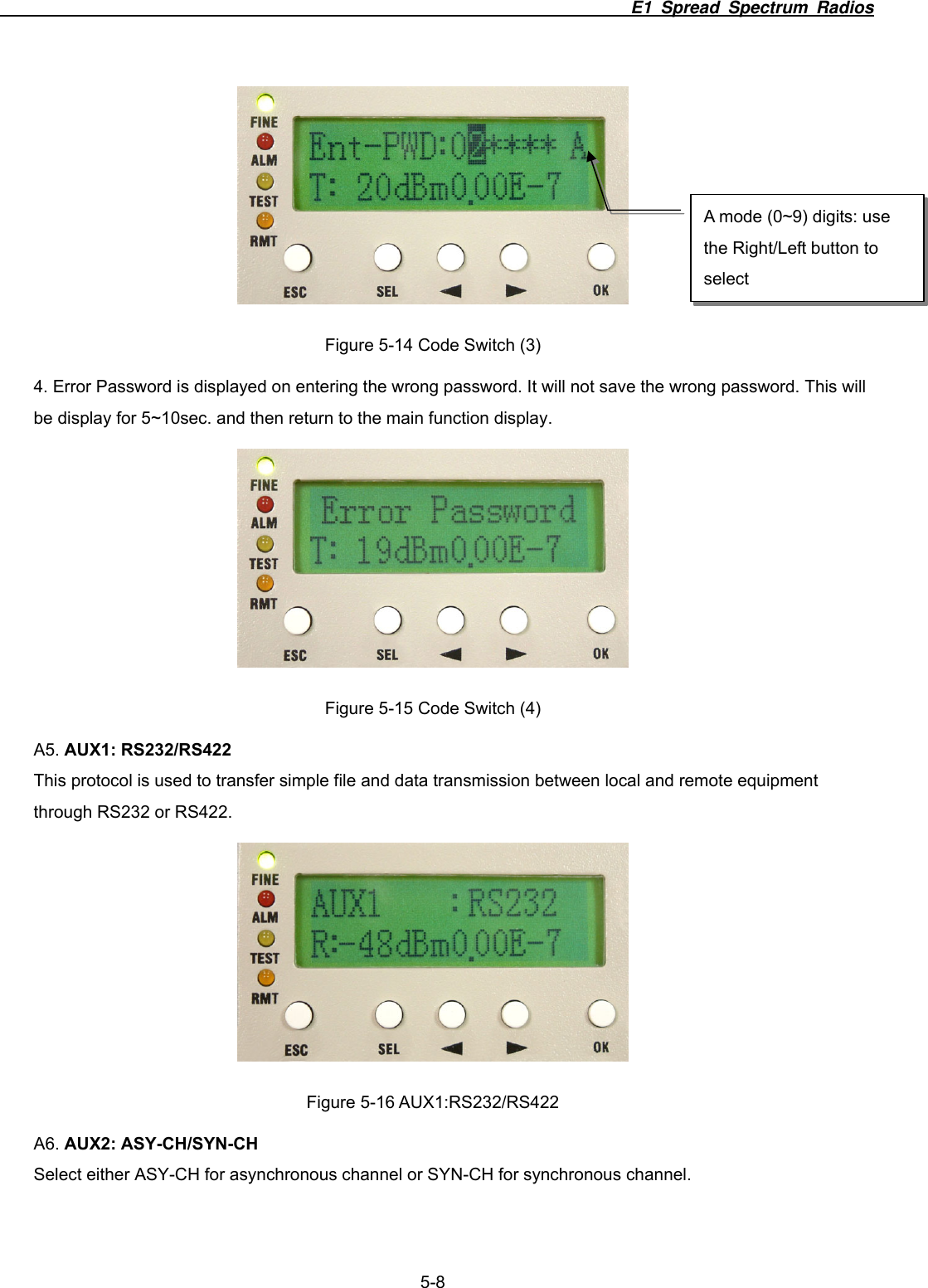

E1 Spread Spectrum Radios 5-8 Figure 5-14 Code Switch (3) 4. Error Password is displayed on entering the wrong password. It will not save the wrong password. This will be display for 5~10sec. and then return to the main function display. Figure 5-15 Code Switch (4) A5. AUX1: RS232/RS422 This protocol is used to transfer simple file and data transmission between local and remote equipment through RS232 or RS422. Figure 5-16 AUX1:RS232/RS422 A6. AUX2: ASY-CH/SYN-CH Select either ASY-CH for asynchronous channel or SYN-CH for synchronous channel. A mode (0~9) digits: use the Right/Left button to select

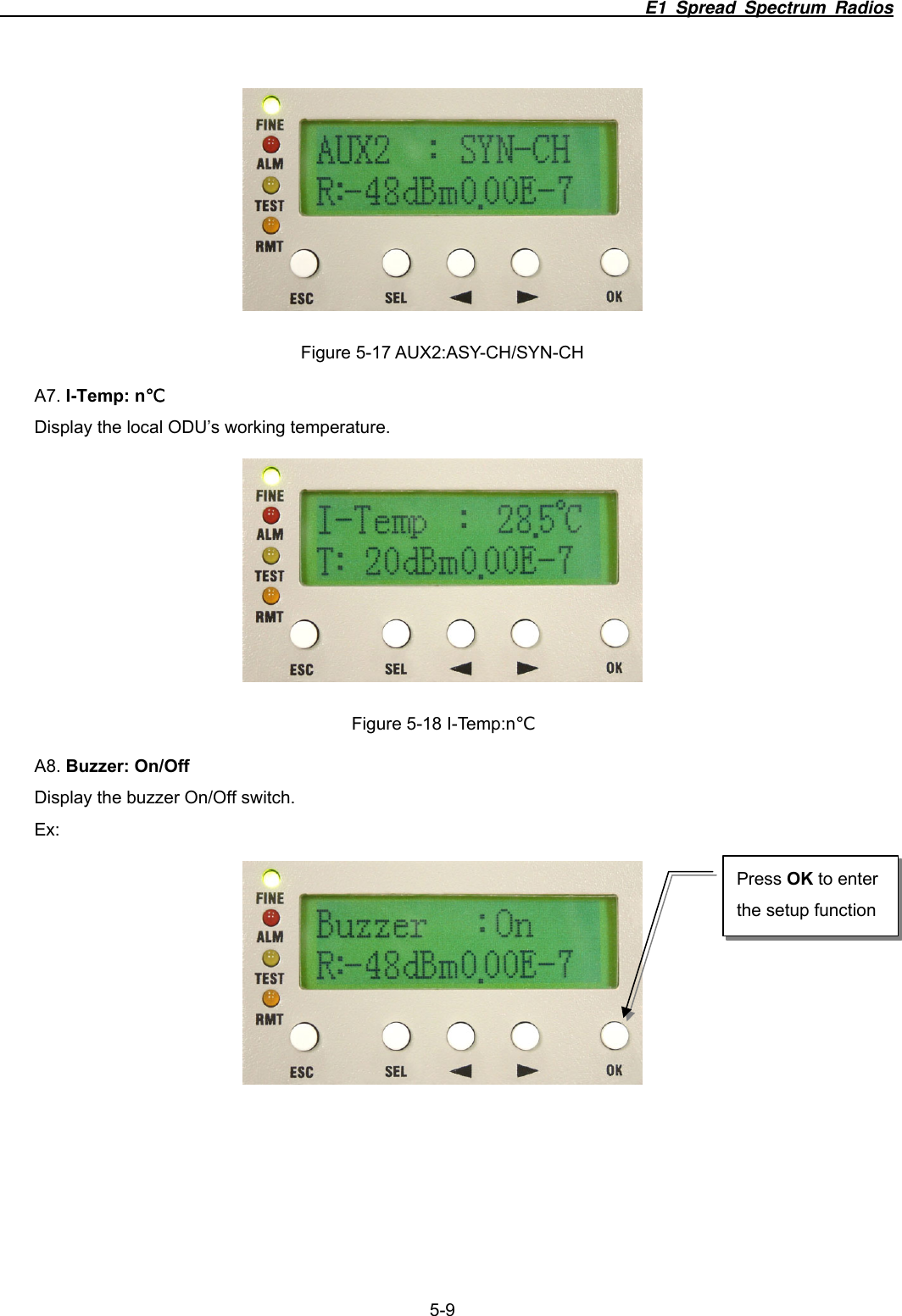

E1 Spread Spectrum Radios 5-9 Figure 5-17 AUX2:ASY-CH/SYN-CH A7. I-Temp: n℃ Display the local ODU’s working temperature. Figure 5-18 I-Temp:n℃ A8. Buzzer: On/Off Display the buzzer On/Off switch. Ex: Press OK to enter the setup function

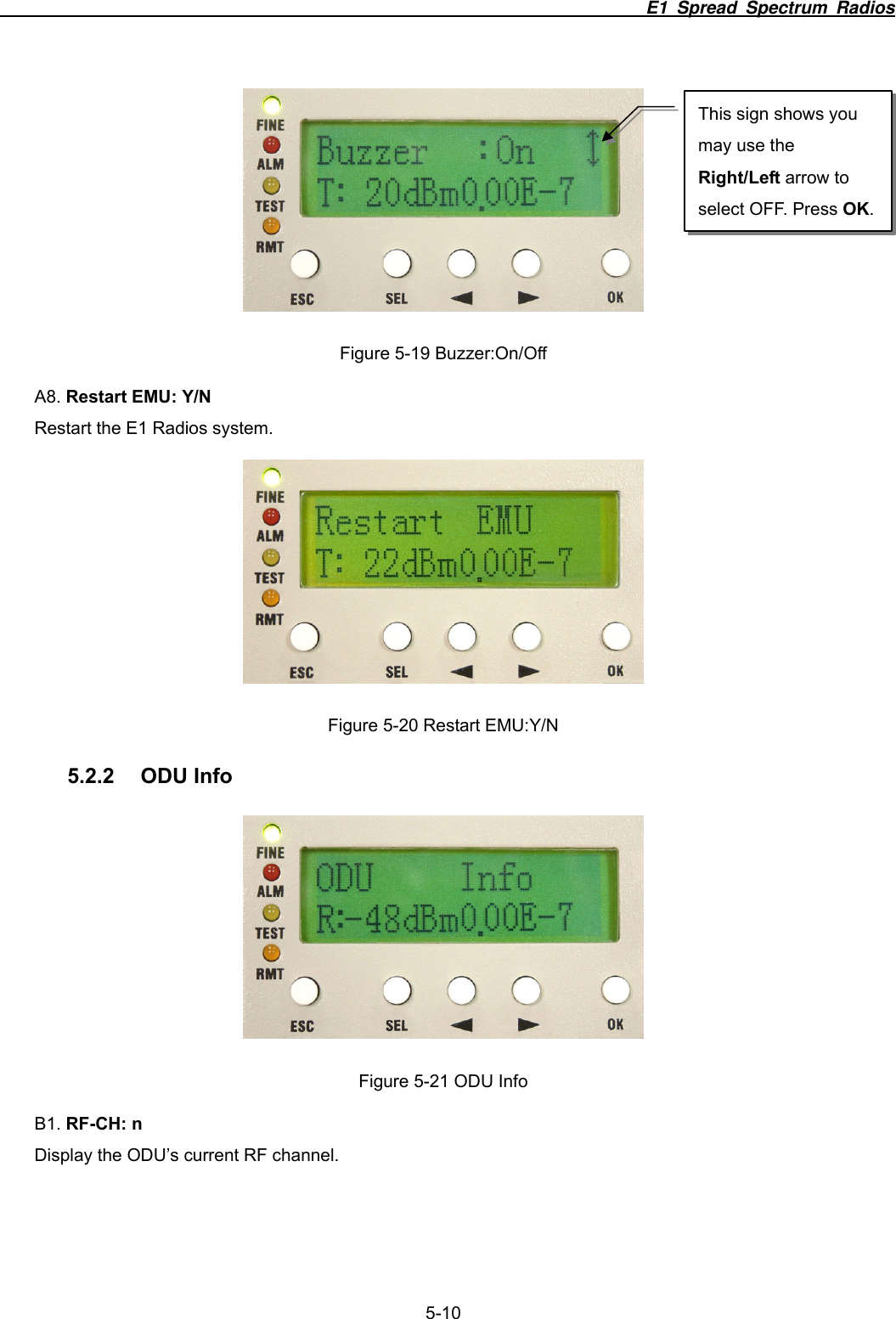

E1 Spread Spectrum Radios 5-10 Figure 5-19 Buzzer:On/Off A8. Restart EMU: Y/N Restart the E1 Radios system. Figure 5-20 Restart EMU:Y/N 5.2.2 ODU Info Figure 5-21 ODU Info B1. RF-CH: n Display the ODU’s current RF channel. This sign shows you may use the Right/Left arrow to select OFF. Press OK.

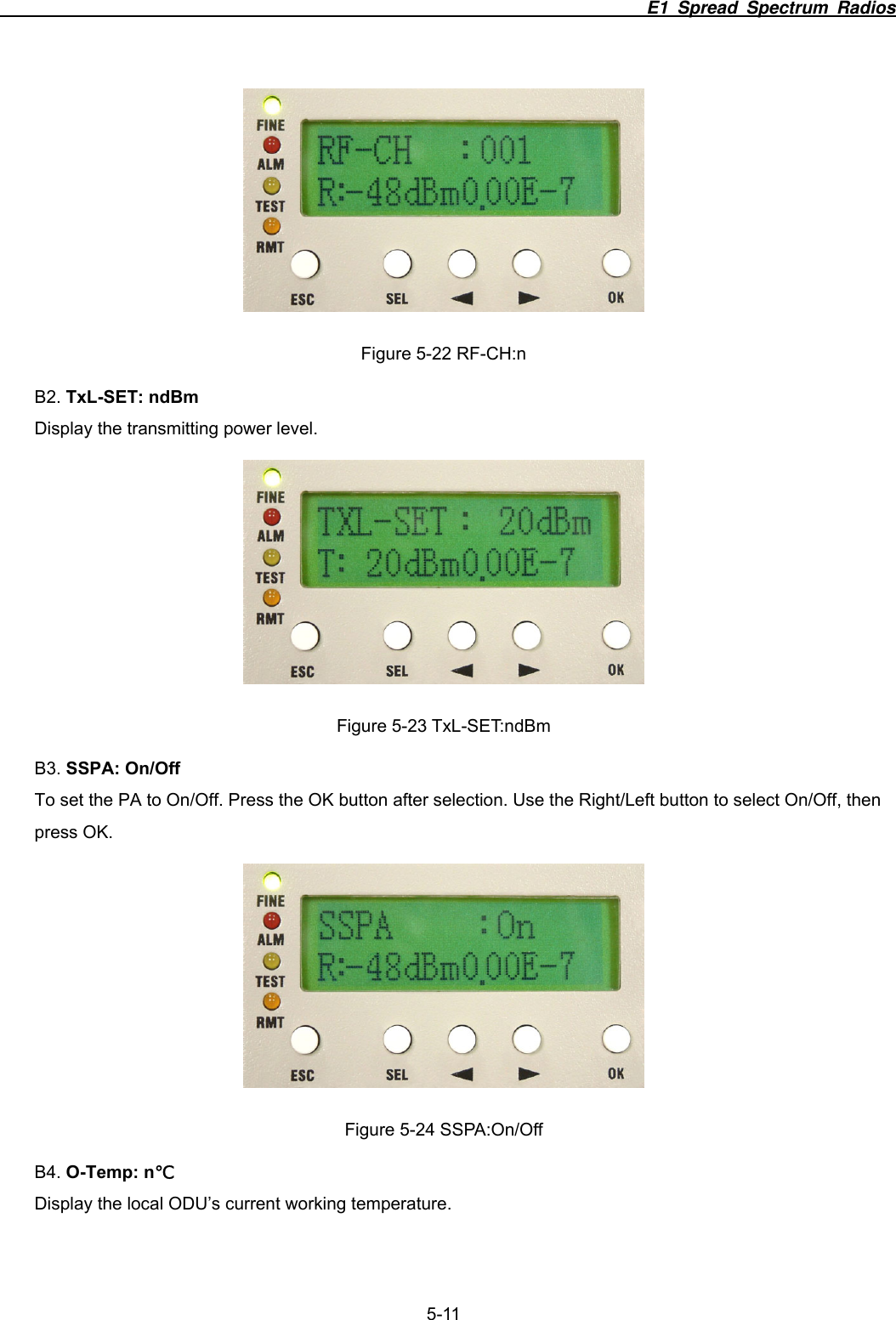

E1 Spread Spectrum Radios 5-11 Figure 5-22 RF-CH:n B2. TxL-SET: ndBm Display the transmitting power level. Figure 5-23 TxL-SET:ndBm B3. SSPA: On/Off To set the PA to On/Off. Press the OK button after selection. Use the Right/Left button to select On/Off, then press OK. Figure 5-24 SSPA:On/Off B4. O-Temp: n℃ Display the local ODU’s current working temperature.

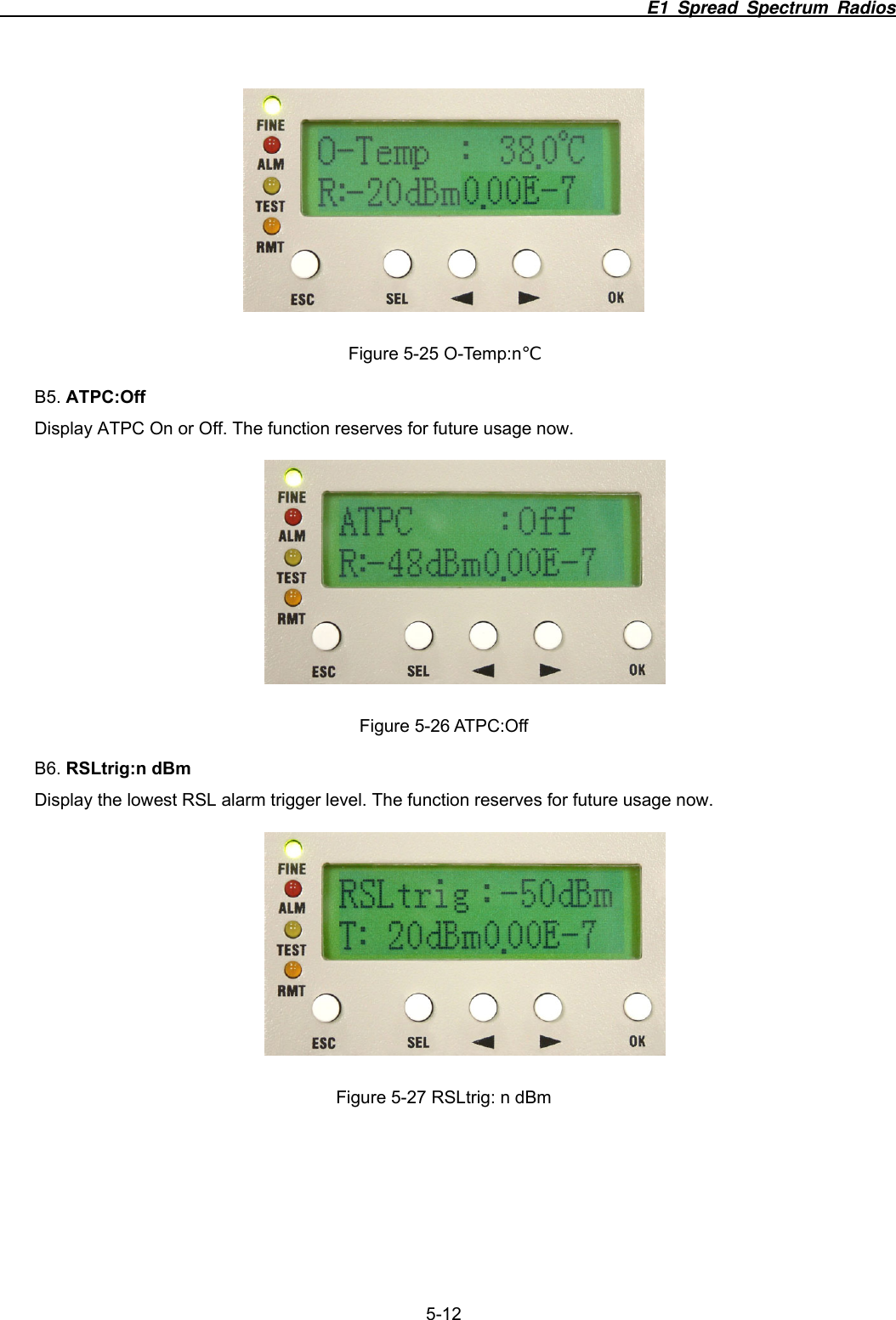

E1 Spread Spectrum Radios 5-12 Figure 5-25 O-Temp:n℃ B5. ATPC:Off Display ATPC On or Off. The function reserves for future usage now. Figure 5-26 ATPC:Off B6. RSLtrig:n dBm Display the lowest RSL alarm trigger level. The function reserves for future usage now. Figure 5-27 RSLtrig: n dBm

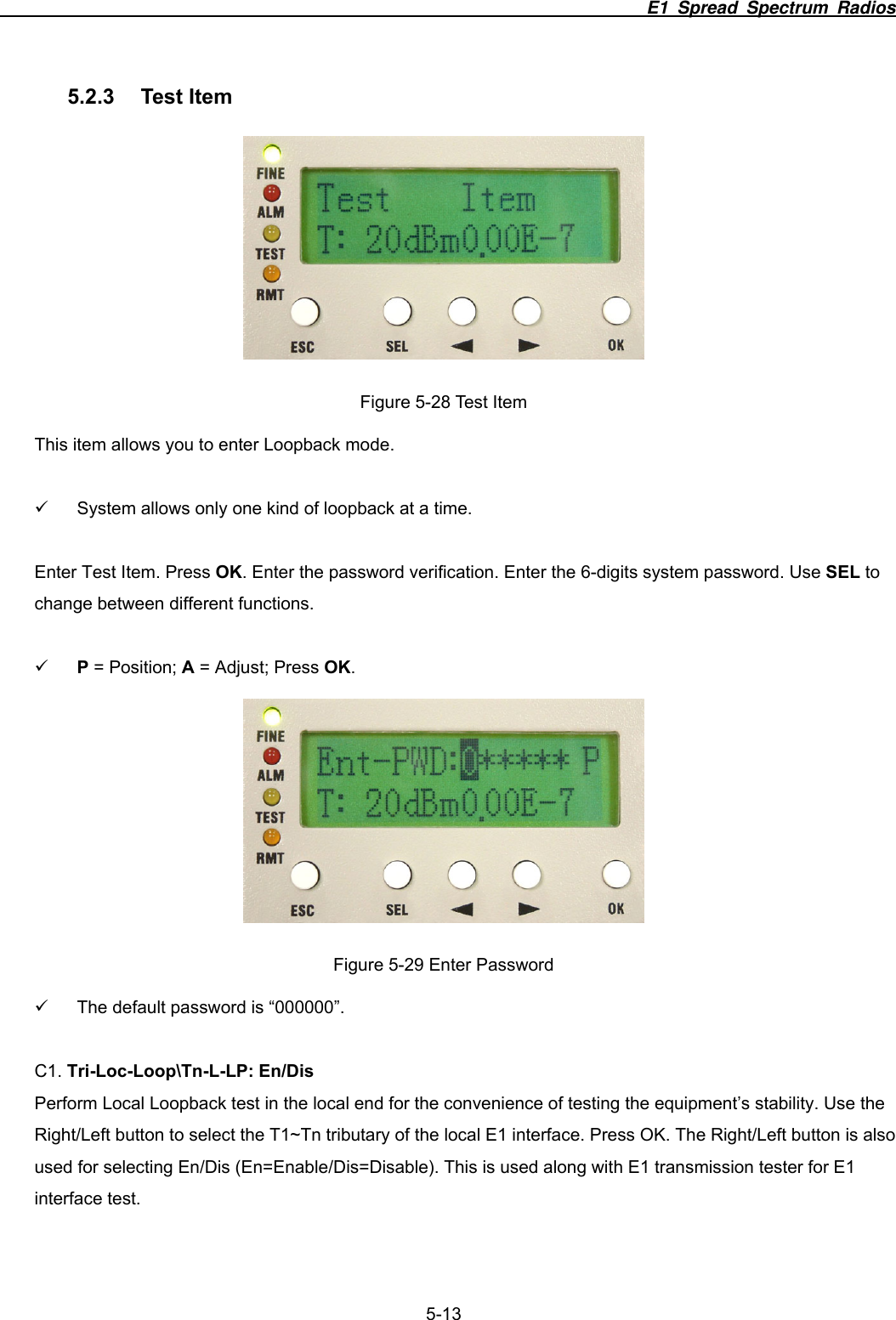

E1 Spread Spectrum Radios 5-13 5.2.3 Test Item Figure 5-28 Test Item This item allows you to enter Loopback mode. 9 System allows only one kind of loopback at a time. Enter Test Item. Press OK. Enter the password verification. Enter the 6-digits system password. Use SEL to change between different functions. 9 P = Position; A = Adjust; Press OK. Figure 5-29 Enter Password 9 The default password is “000000”. C1. Tri-Loc-Loop\Tn-L-LP: En/Dis Perform Local Loopback test in the local end for the convenience of testing the equipment’s stability. Use the Right/Left button to select the T1~Tn tributary of the local E1 interface. Press OK. The Right/Left button is also used for selecting En/Dis (En=Enable/Dis=Disable). This is used along with E1 transmission tester for E1 interface test.

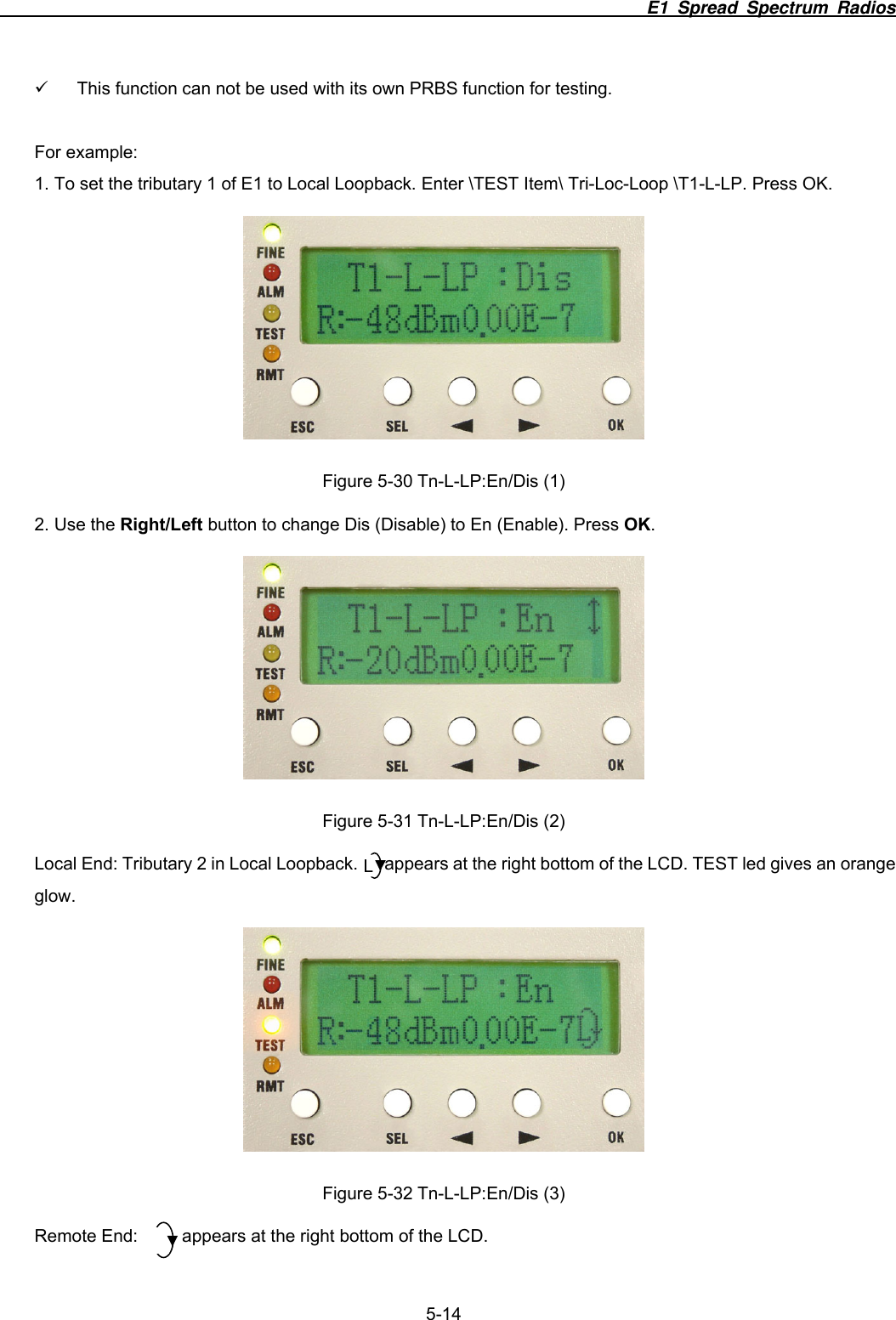

E1 Spread Spectrum Radios 5-14 9 This function can not be used with its own PRBS function for testing. For example: 1. To set the tributary 1 of E1 to Local Loopback. Enter \TEST Item\ Tri-Loc-Loop \T1-L-LP. Press OK. Figure 5-30 Tn-L-LP:En/Dis (1) 2. Use the Right/Left button to change Dis (Disable) to En (Enable). Press OK. Figure 5-31 Tn-L-LP:En/Dis (2) Local End: Tributary 2 in Local Loopback. appears at the right bottom of the LCD. TEST led gives an orange glow. Figure 5-32 Tn-L-LP:En/Dis (3) Remote End: appears at the right bottom of the LCD. L

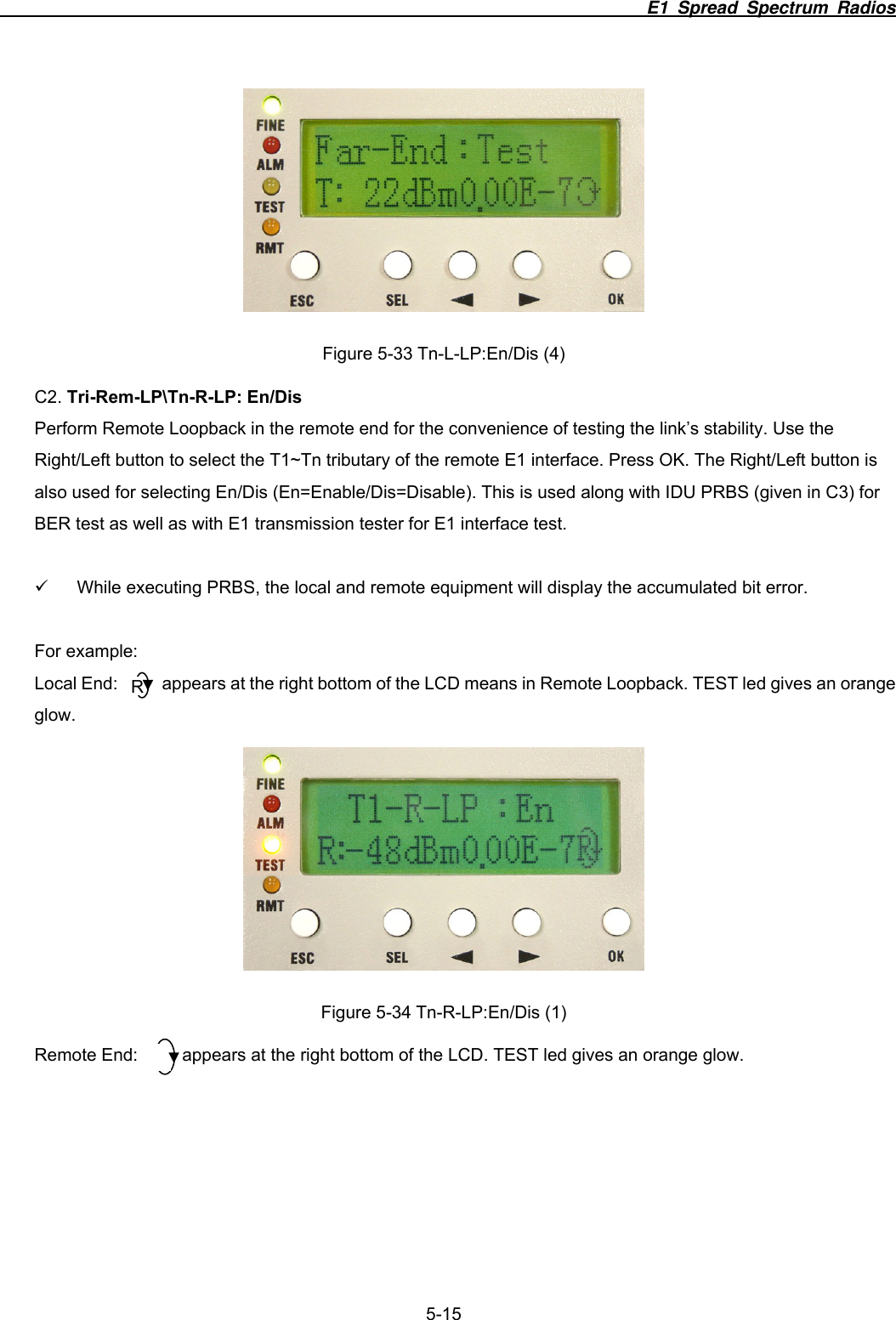

E1 Spread Spectrum Radios 5-15 Figure 5-33 Tn-L-LP:En/Dis (4) C2. Tri-Rem-LP\Tn-R-LP: En/Dis Perform Remote Loopback in the remote end for the convenience of testing the link’s stability. Use the Right/Left button to select the T1~Tn tributary of the remote E1 interface. Press OK. The Right/Left button is also used for selecting En/Dis (En=Enable/Dis=Disable). This is used along with IDU PRBS (given in C3) for BER test as well as with E1 transmission tester for E1 interface test. 9 While executing PRBS, the local and remote equipment will display the accumulated bit error. For example: Local End: appears at the right bottom of the LCD means in Remote Loopback. TEST led gives an orange glow. Figure 5-34 Tn-R-LP:En/Dis (1) Remote End: appears at the right bottom of the LCD. TEST led gives an orange glow. R

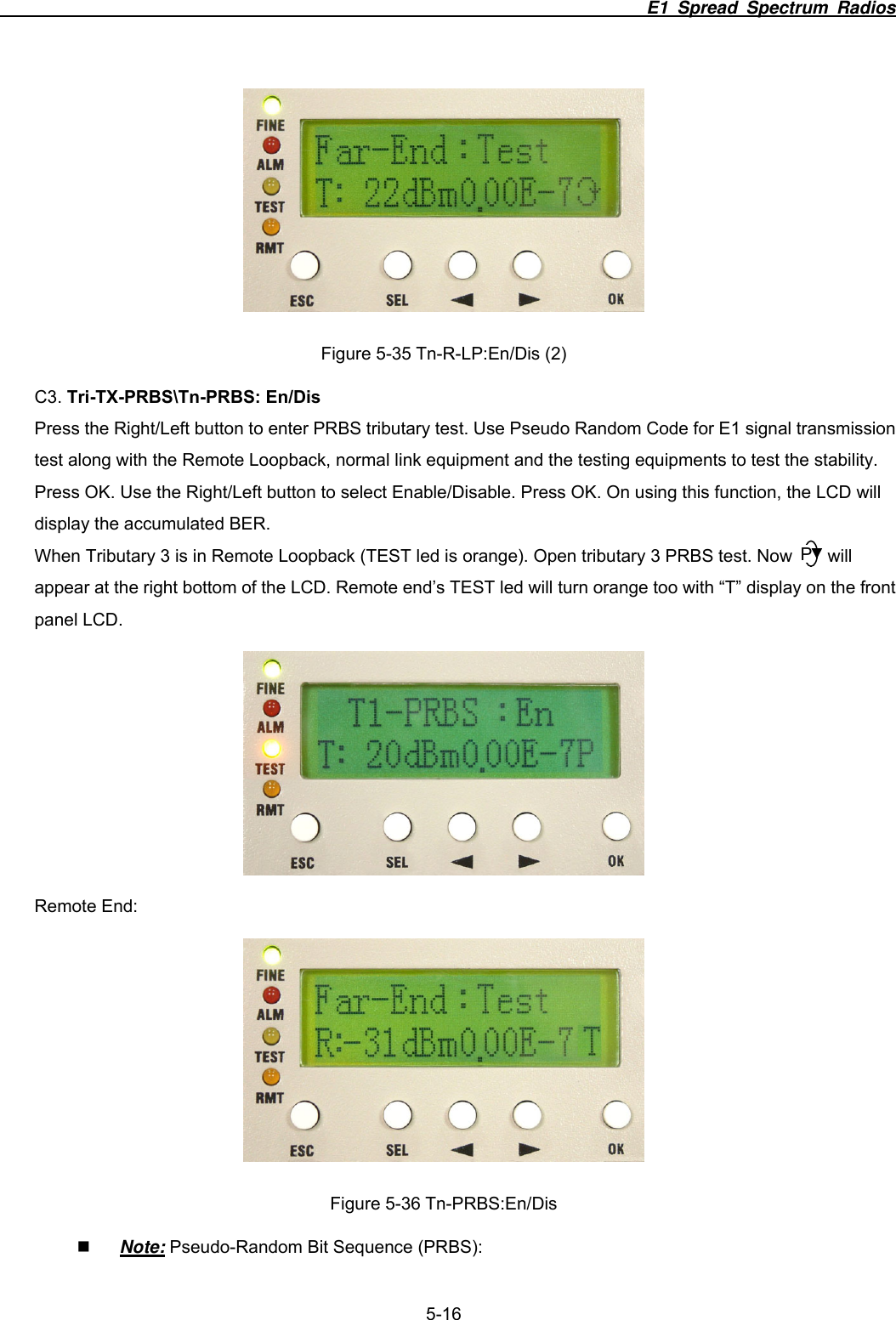

E1 Spread Spectrum Radios 5-16 Figure 5-35 Tn-R-LP:En/Dis (2) C3. Tri-TX-PRBS\Tn-PRBS: En/Dis Press the Right/Left button to enter PRBS tributary test. Use Pseudo Random Code for E1 signal transmission test along with the Remote Loopback, normal link equipment and the testing equipments to test the stability. Press OK. Use the Right/Left button to select Enable/Disable. Press OK. On using this function, the LCD will display the accumulated BER. When Tributary 3 is in Remote Loopback (TEST led is orange). Open tributary 3 PRBS test. Now will appear at the right bottom of the LCD. Remote end’s TEST led will turn orange too with “T” display on the front panel LCD. Remote End: Figure 5-36 Tn-PRBS:En/Dis  Note: Pseudo-Random Bit Sequence (PRBS): P
