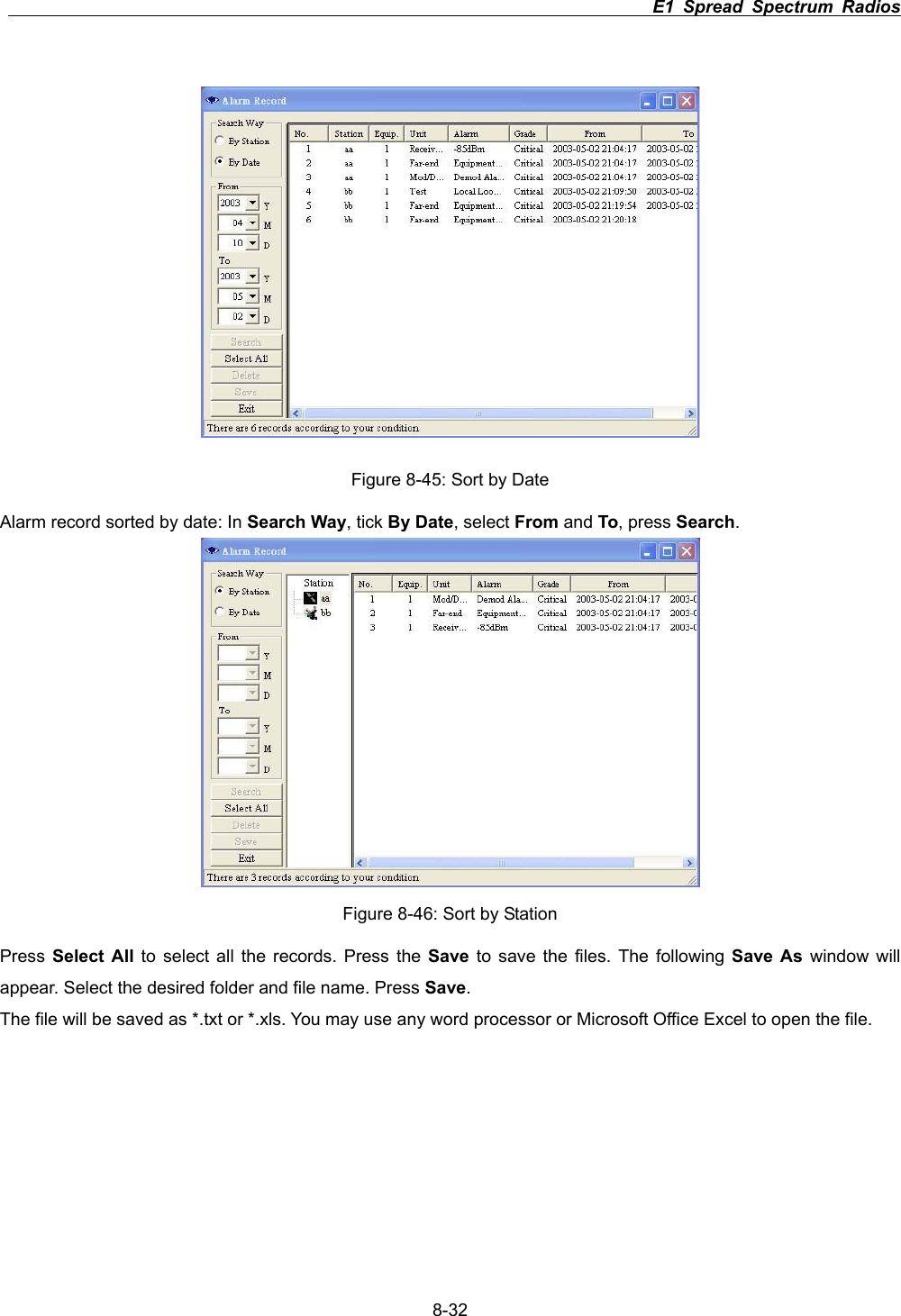

E1 Spread Spectrum Radios 8-32Figure 8-45: Sort by Date Alarm record sorted by date: In Search Way, tick By Date,select From and To, press Search.Figure 8-46: Sort by Station Press Select All to select all the records. Press the Save to save the files. The following Save As window will appear. Select the desired folder and file name. Press Save.The file will be saved as *.txt or *.xls. You may use any word processor or Microsoft Office Excel to open the file.

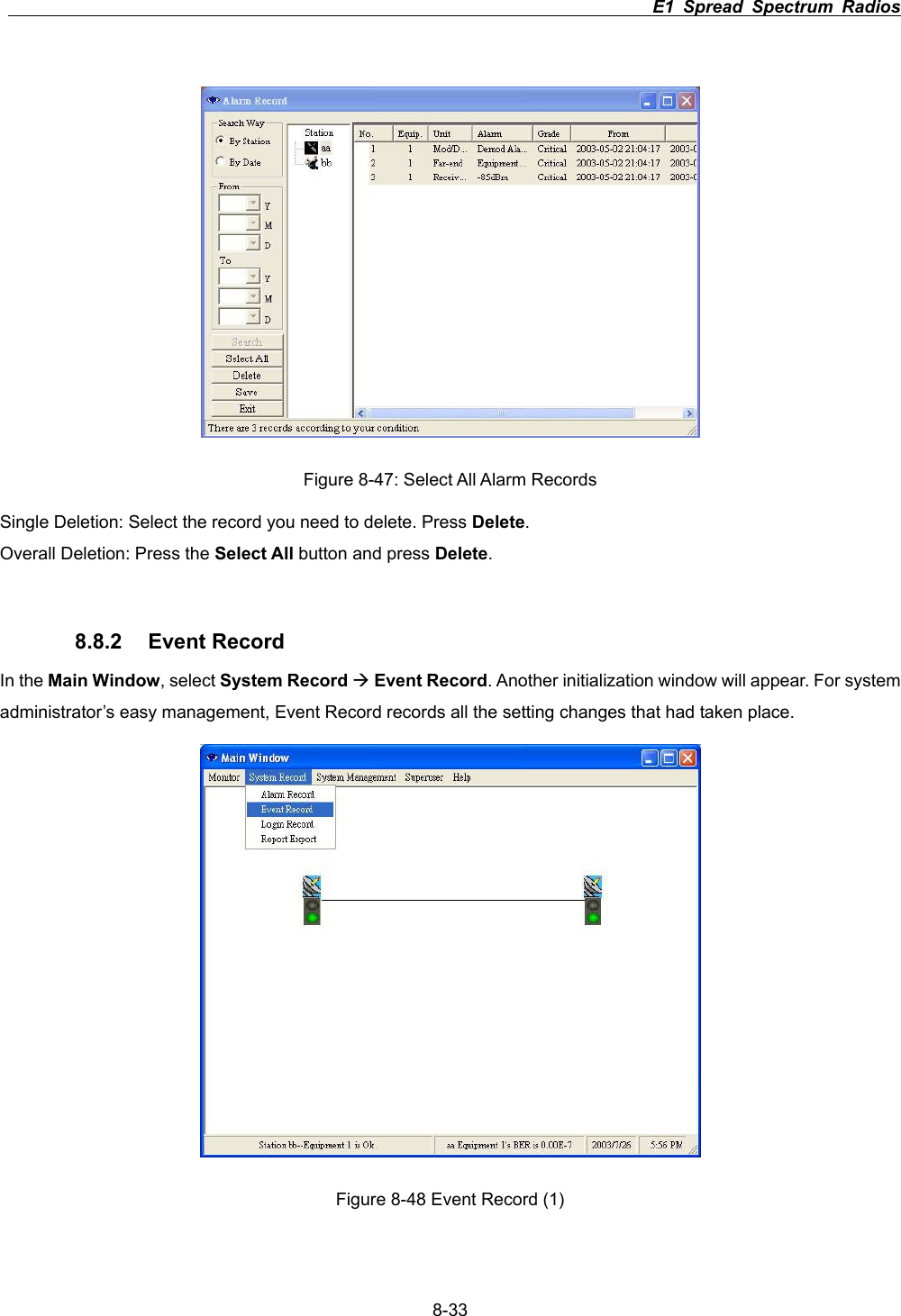

E1 Spread Spectrum Radios 8-33Figure 8-47: Select All Alarm Records Single Deletion: Select the record you need to delete. Press Delete.Overall Deletion: Press the Select All button and press Delete.8.8.2 Event Record In the Main Window, select System Record ÆEvent Record. Another initialization window will appear. For system administrator’s easy management, Event Record records all the setting changes that had taken place. Figure 8-48 Event Record (1)

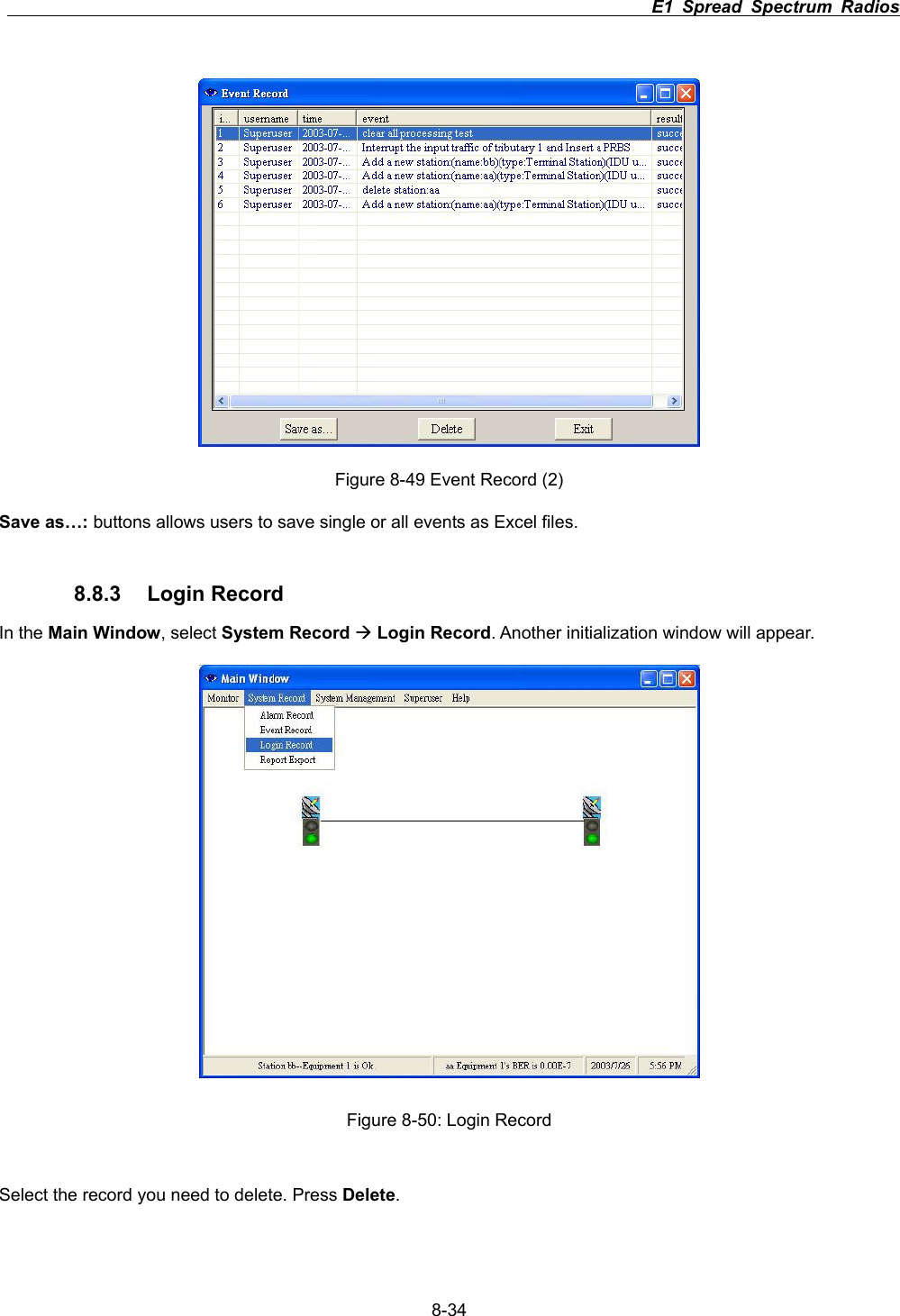

E1 Spread Spectrum Radios 8-34Figure 8-49 Event Record (2) Save as…: buttons allows users to save single or all events as Excel files. 8.8.3 Login Record In the Main Window, select System Record ÆLogin Record. Another initialization window will appear. Figure 8-50: Login Record Select the record you need to delete. Press Delete.

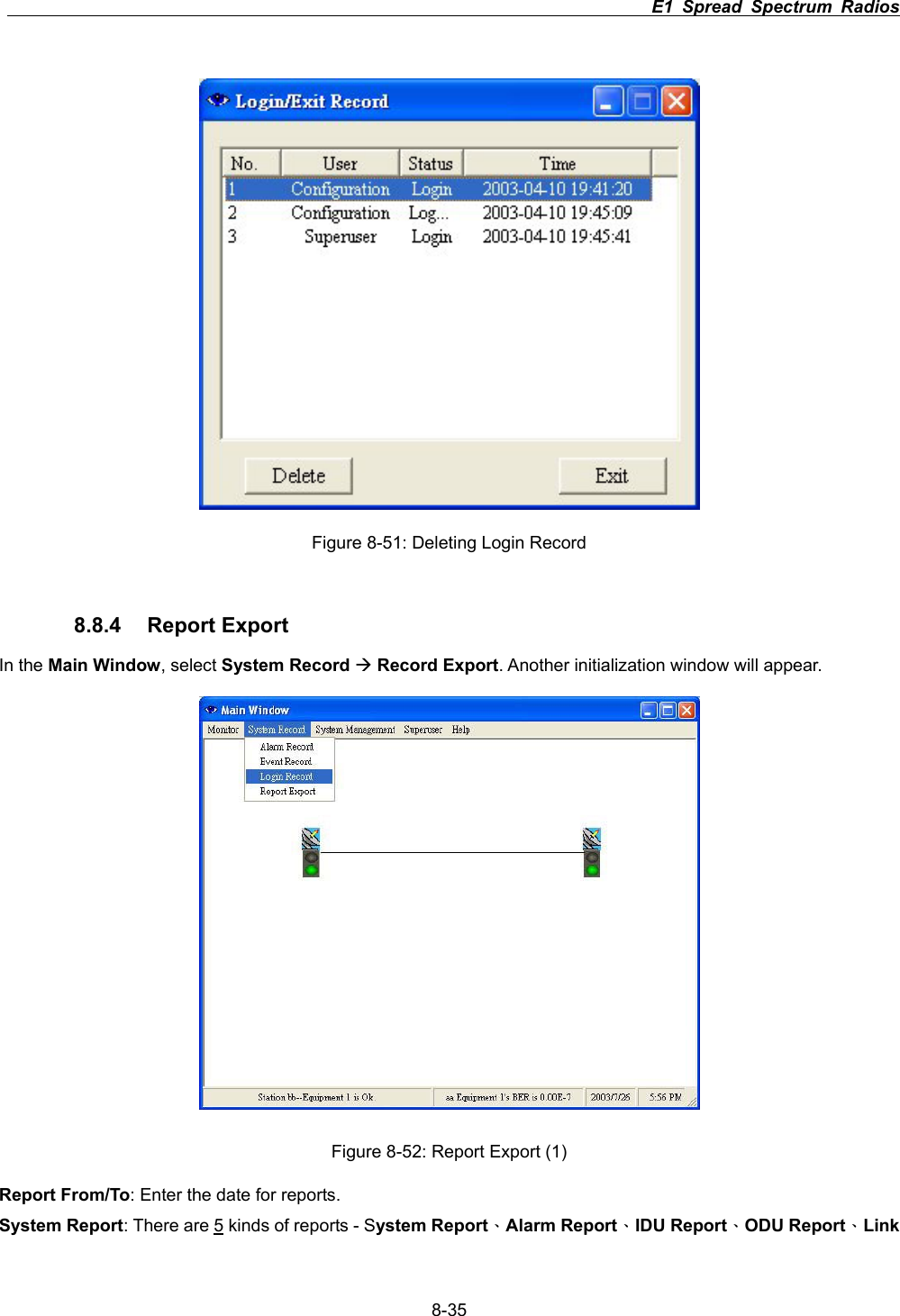

E1 Spread Spectrum Radios 8-35Figure 8-51: Deleting Login Record 8.8.4 Report Export In the Main Window, select System Record ÆRecord Export. Another initialization window will appear. Figure 8-52: Report Export (1) Report From/To: Enter the date for reports. System Report: There are 5 kinds of reports - System ReportΕAlarm ReportΕIDU ReportΕODU ReportΕLink

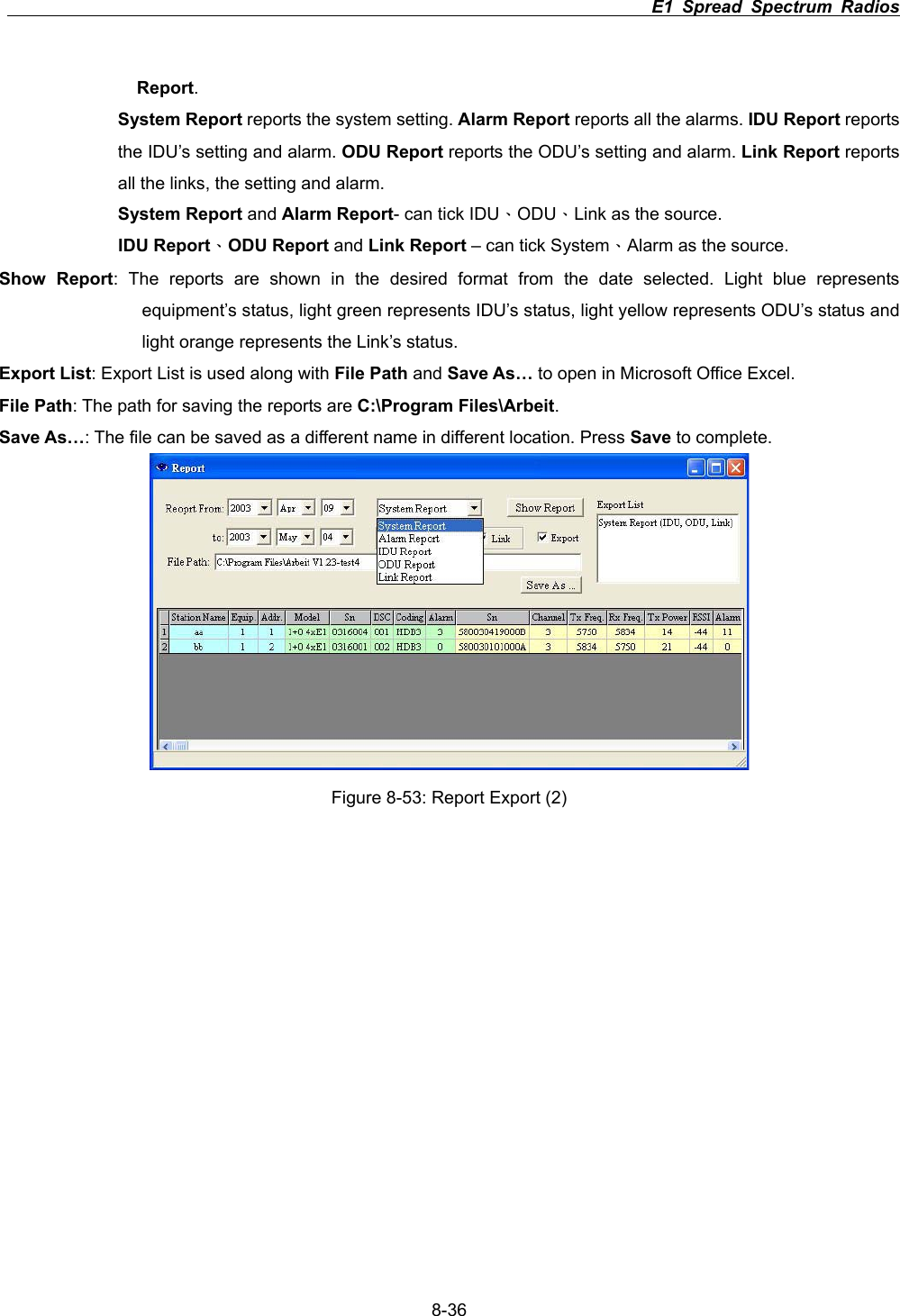

E1 Spread Spectrum Radios 8-36Report.System Report reports the system setting. Alarm Report reports all the alarms. IDU Report reports the IDU’s setting and alarm. ODU Report reports the ODU’s setting and alarm. Link Report reports all the links, the setting and alarm. System Report and Alarm Report- can tick IDUΕODUΕLink as the source. IDU ReportΕODU Report and Link Report – can tick SystemΕAlarm as the source. Show Report: The reports are shown in the desired format from the date selected. Light blue represents equipment’s status, light green represents IDU’s status, light yellow represents ODU’s status and light orange represents the Link’s status. Export List: Export List is used along with File Path and Save As… to open in Microsoft Office Excel. File Path: The path for saving the reports are C:\Program Files\Arbeit.Save As…: The file can be saved as a different name in different location. Press Save to complete. Figure 8-53: Report Export (2)

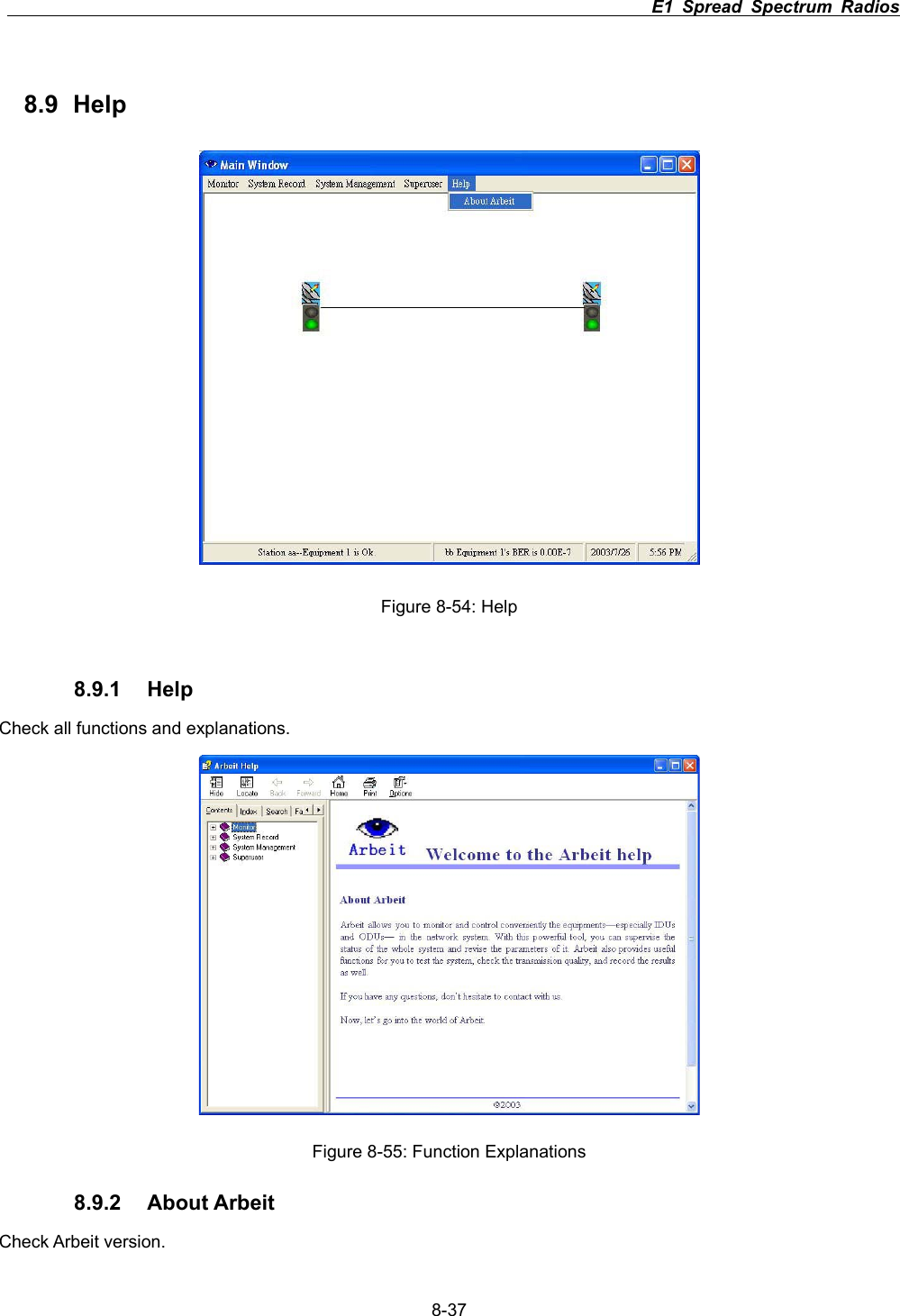

E1 Spread Spectrum Radios 8-378.9 Help Figure 8-54: Help 8.9.1 Help Check all functions and explanations. Figure 8-55: Function Explanations 8.9.2 About Arbeit Check Arbeit version.

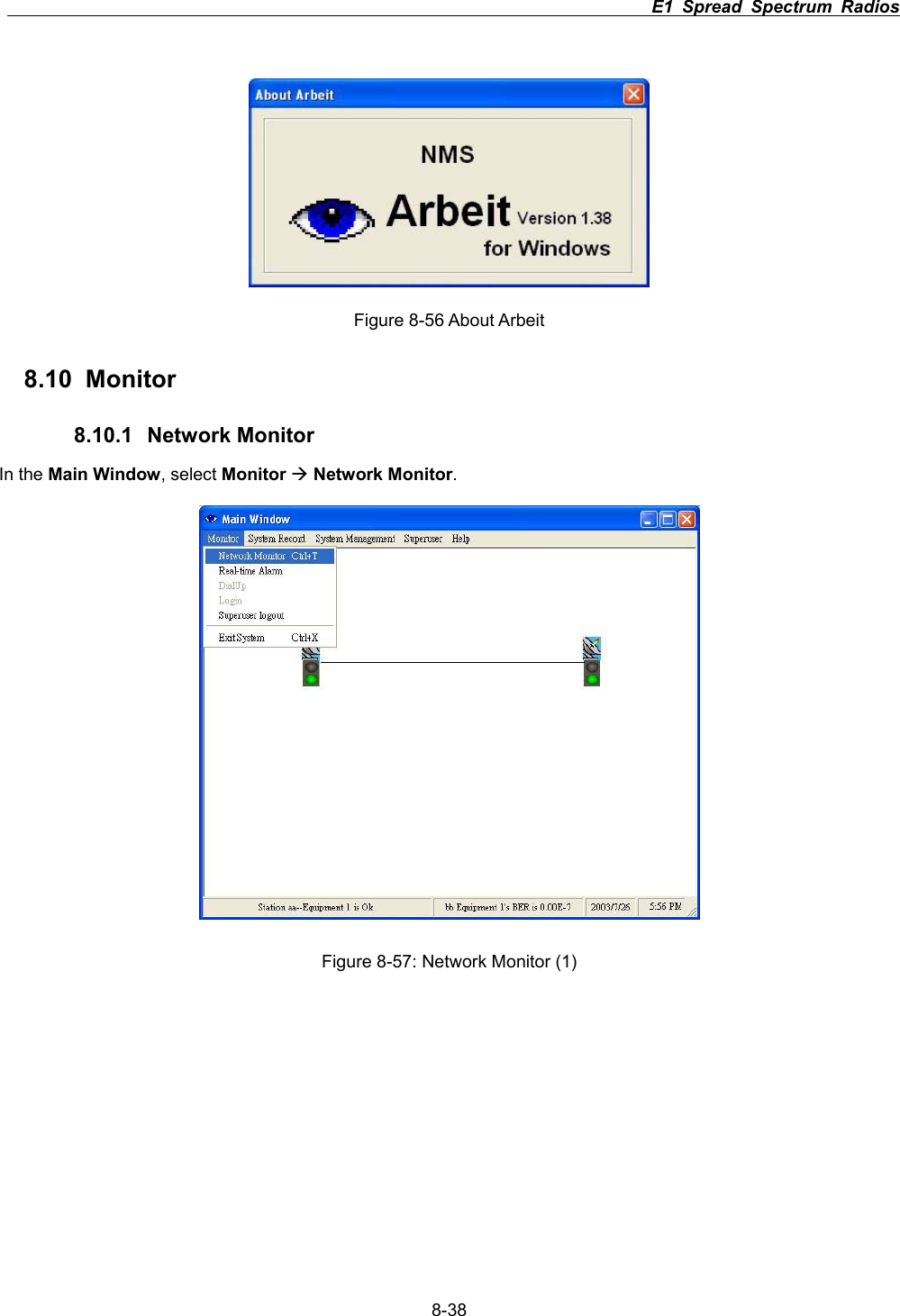

E1 Spread Spectrum Radios 8-38Figure 8-56 About Arbeit 8.10 Monitor 8.10.1 Network Monitor In the Main Window, select Monitor ÆNetwork Monitor.Figure 8-57: Network Monitor (1)

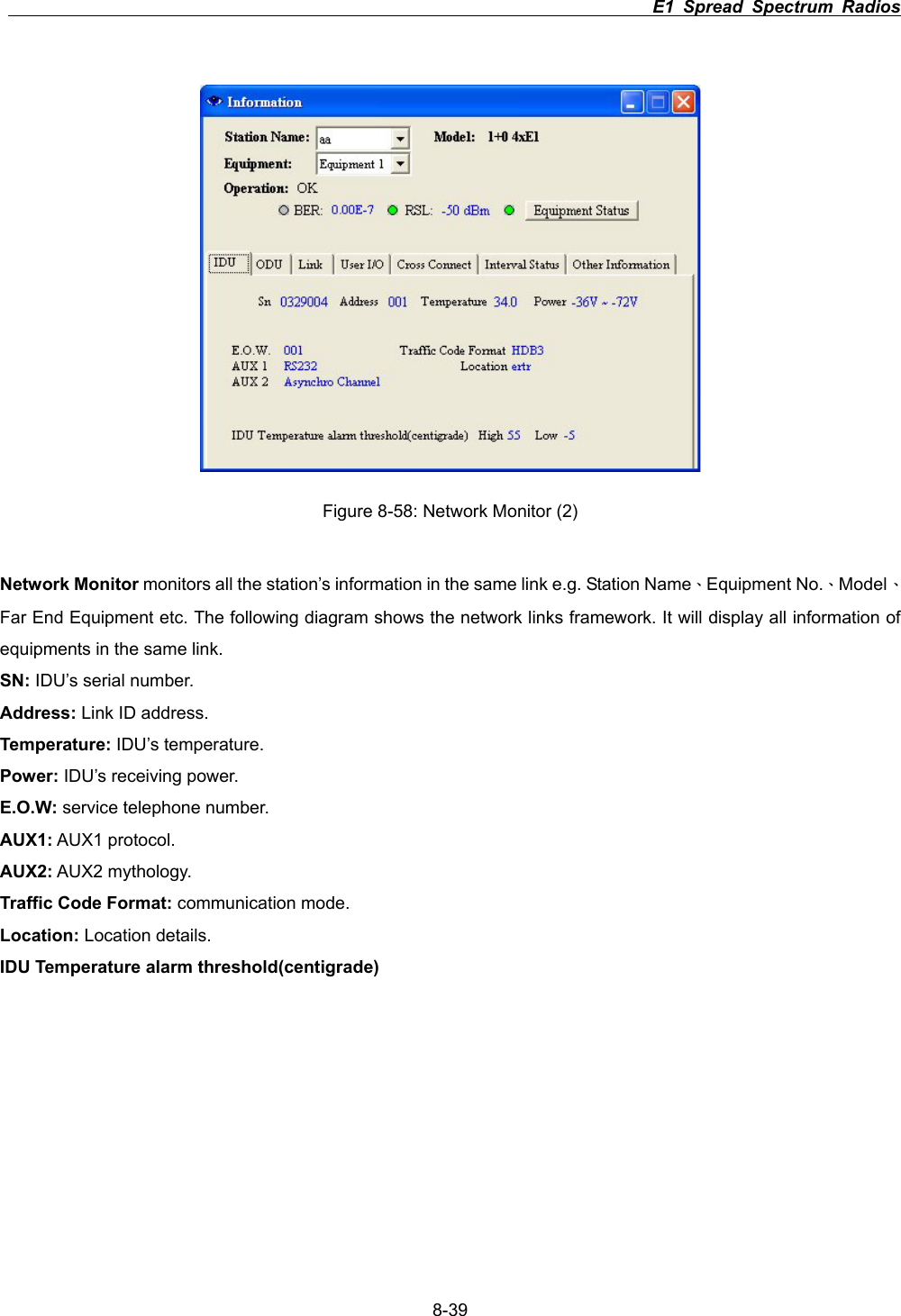

E1 Spread Spectrum Radios 8-39Figure 8-58: Network Monitor (2) Network Monitor monitors all the station’s information in the same link e.g. Station NameΕEquipment No.ΕModelΕFar End Equipment etc. The following diagram shows the network links framework. It will display all information of equipments in the same link. SN: IDU’s serial number. Address: Link ID address. Temperature: IDU’s temperature. Power: IDU’s receiving power. E.O.W: service telephone number. AUX1: AUX1 protocol. AUX2: AUX2 mythology. Traffic Code Format: communication mode. Location: Location details. IDU Temperature alarm threshold(centigrade)
E1 Spread Spectrum Radios 8-40Figure 8-59: Network Monitor Links In the above Network Monitor window, click on Equipment Status. The following dialog box appears:

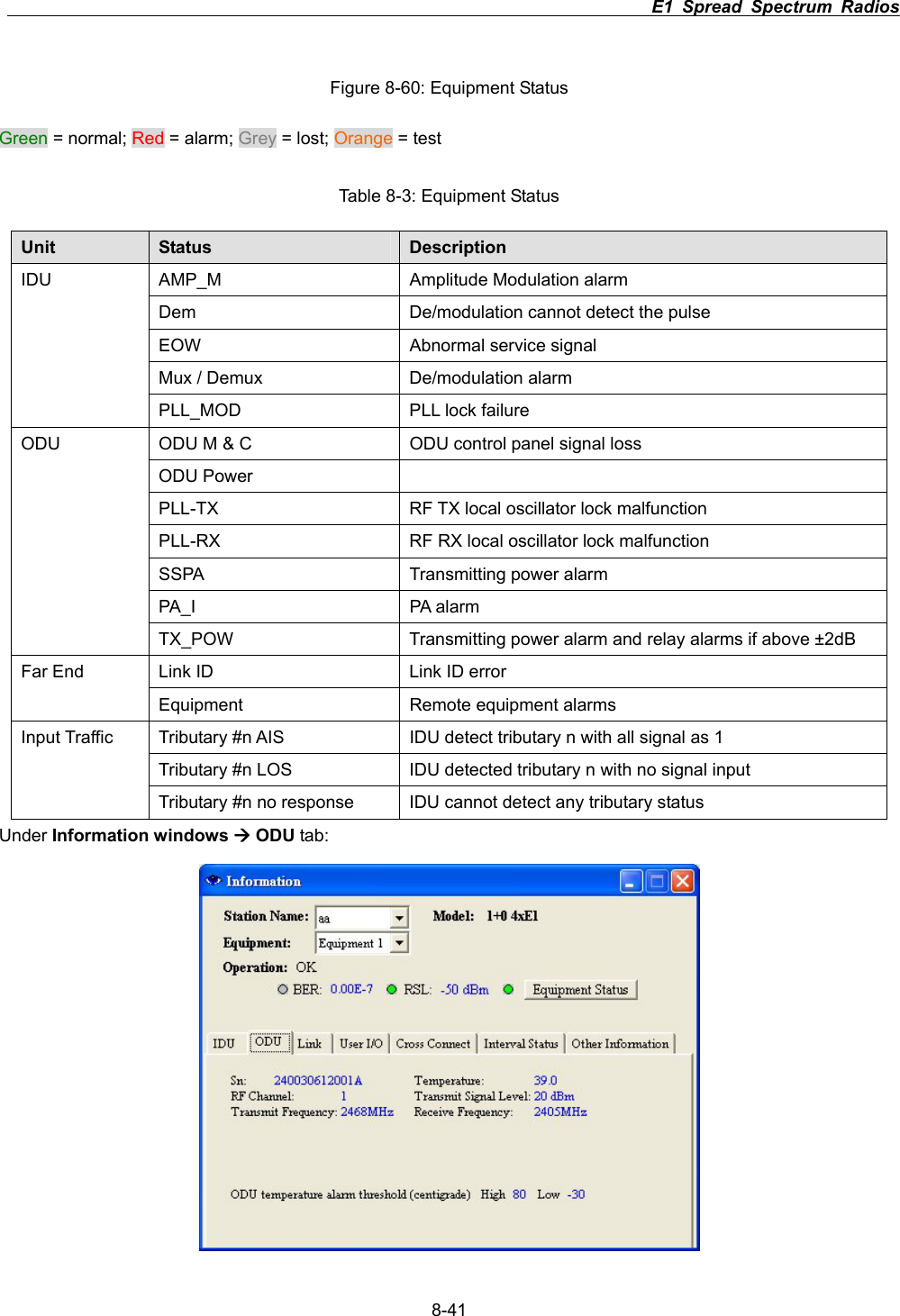

E1 Spread Spectrum Radios 8-41Figure 8-60: Equipment Status Green = normal; Red = alarm; Grey = lost; Orange = test Table 8-3: Equipment Status Unit Status Description AMP_M Amplitude Modulation alarm Dem De/modulation cannot detect the pulse EOW Abnormal service signal Mux / Demux De/modulation alarm IDUPLL_MOD PLL lock failure ODU M & C ODU control panel signal loss ODU Power PLL-TX RF TX local oscillator lock malfunction PLL-RX RF RX local oscillator lock malfunction SSPA Transmitting power alarm PA_I PA alarm ODUTX_POW Transmitting power alarm and relay alarms if above ±2dB Link ID Link ID error Far End Equipment Remote equipment alarms Tributary #n AIS IDU detect tributary n with all signal as 1 Tributary #n LOS IDU detected tributary n with no signal input Input Traffic Tributary #n no response IDU cannot detect any tributary status Under Information windows Æ ODU tab:

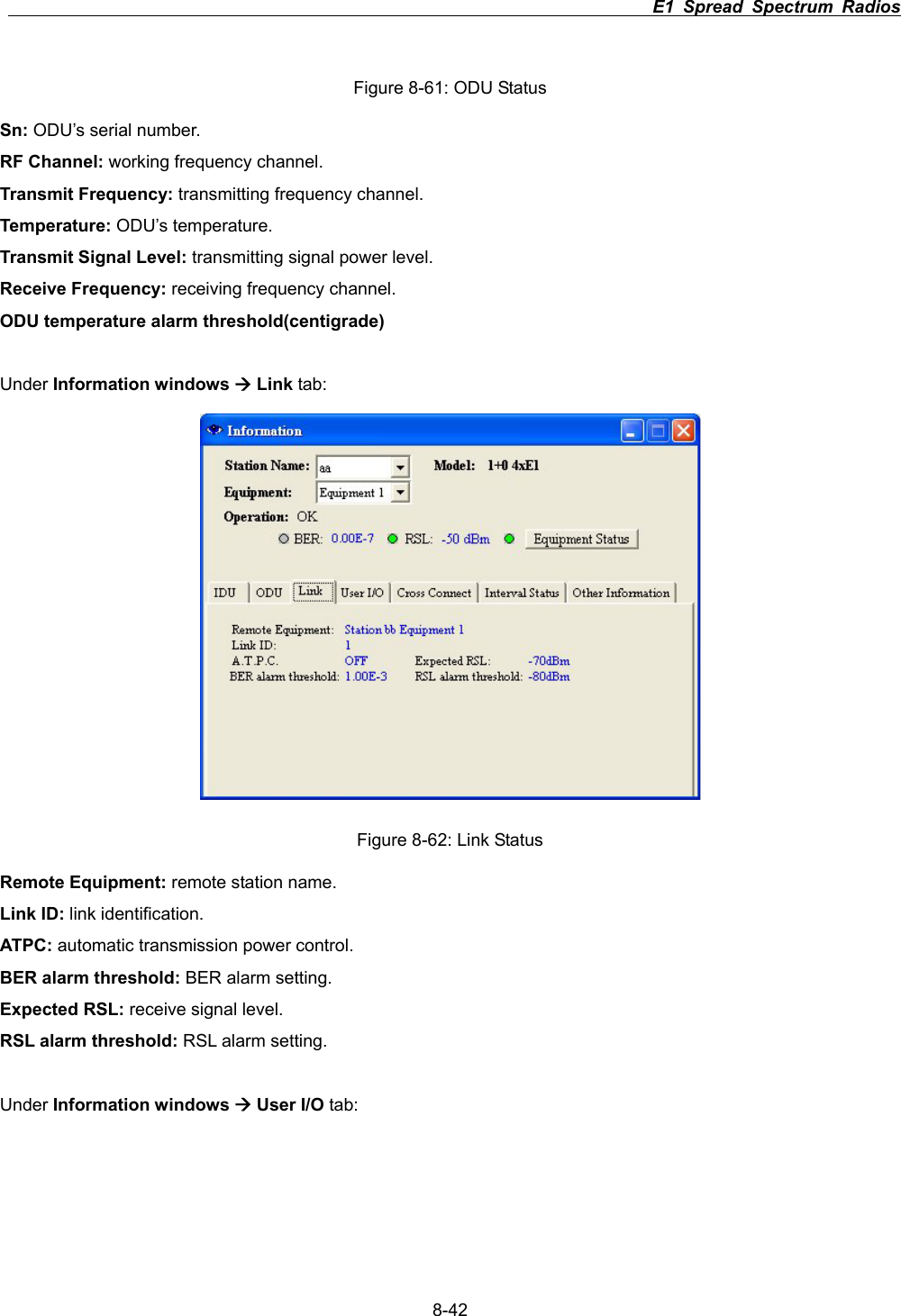

E1 Spread Spectrum Radios 8-42Figure 8-61: ODU Status Sn: ODU’s serial number. RF Channel: working frequency channel. Transmit Frequency: transmitting frequency channel. Temperature: ODU’s temperature. Transmit Signal Level: transmitting signal power level. Receive Frequency: receiving frequency channel. ODU temperature alarm threshold(centigrade) Under Information windows Æ Link tab: Figure 8-62: Link Status Remote Equipment: remote station name. Link ID: link identification. ATPC: automatic transmission power control. BER alarm threshold: BER alarm setting. Expected RSL: receive signal level. RSL alarm threshold: RSL alarm setting. Under Information windows Æ User I/O tab:

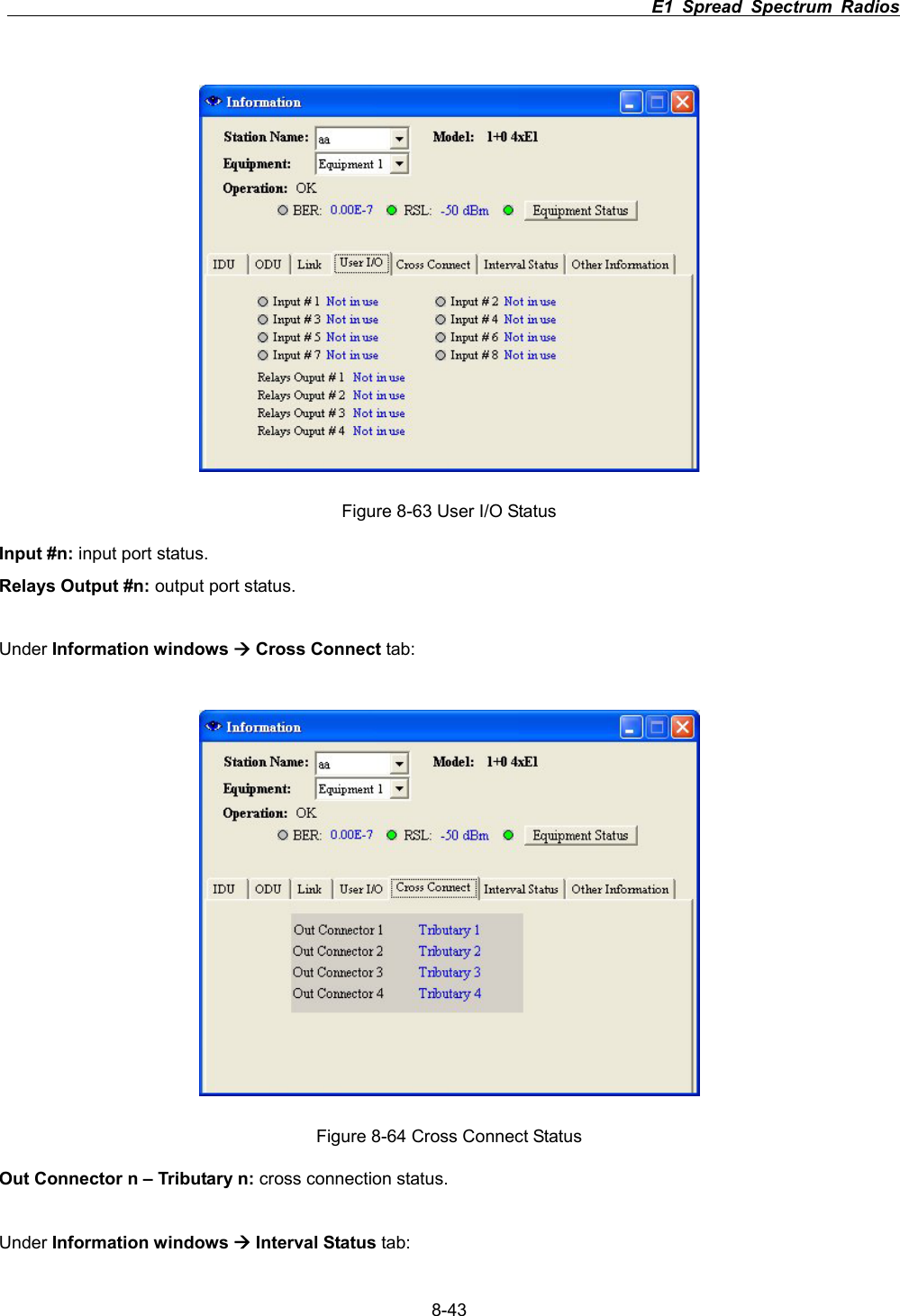

E1 Spread Spectrum Radios 8-43Figure 8-63 User I/O Status Input #n: input port status. Relays Output #n: output port status. Under Information windows Æ Cross Connect tab: Figure 8-64 Cross Connect Status Out Connector n – Tributary n: cross connection status. Under Information windows Æ Interval Status tab:

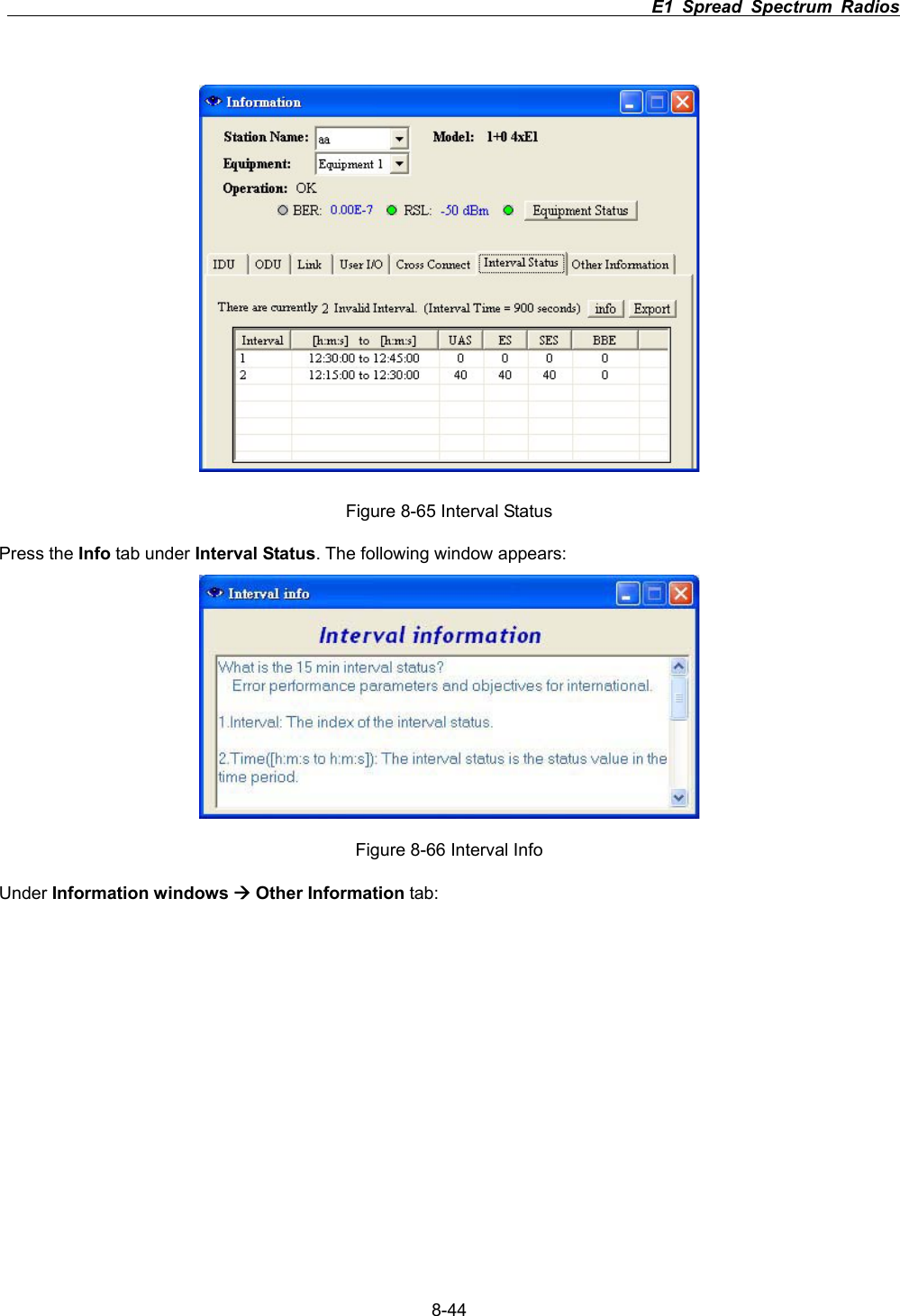

E1 Spread Spectrum Radios 8-44Figure 8-65 Interval Status Press the Info tab under Interval Status. The following window appears: Figure 8-66 Interval Info Under Information windows Æ Other Information tab:

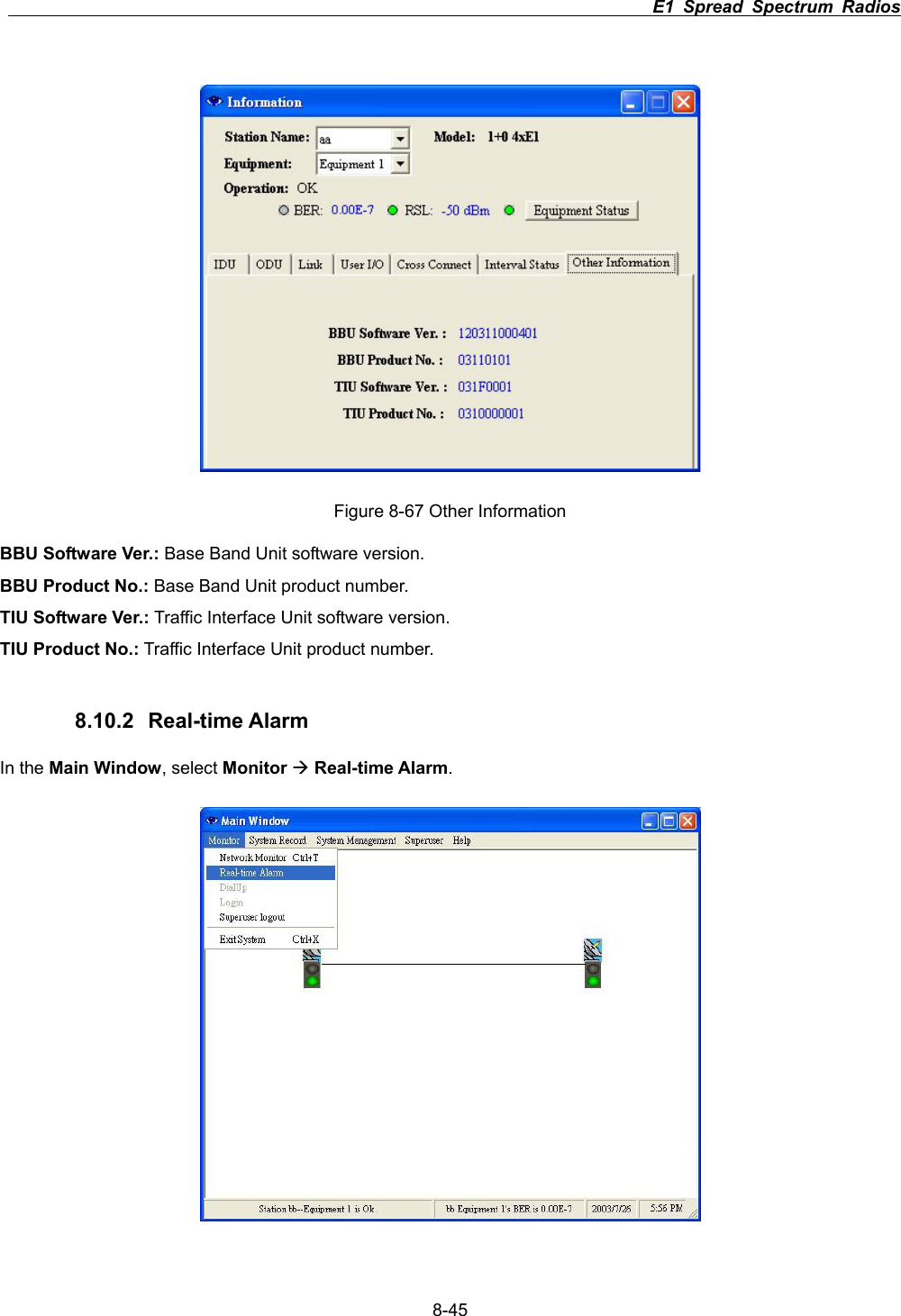

E1 Spread Spectrum Radios 8-45Figure 8-67 Other Information BBU Software Ver.: Base Band Unit software version. BBU Product No.: Base Band Unit product number. TIU Software Ver.: Traffic Interface Unit software version. TIU Product No.: Traffic Interface Unit product number. 8.10.2 Real-time Alarm In the Main Window, select Monitor ÆReal-time Alarm.

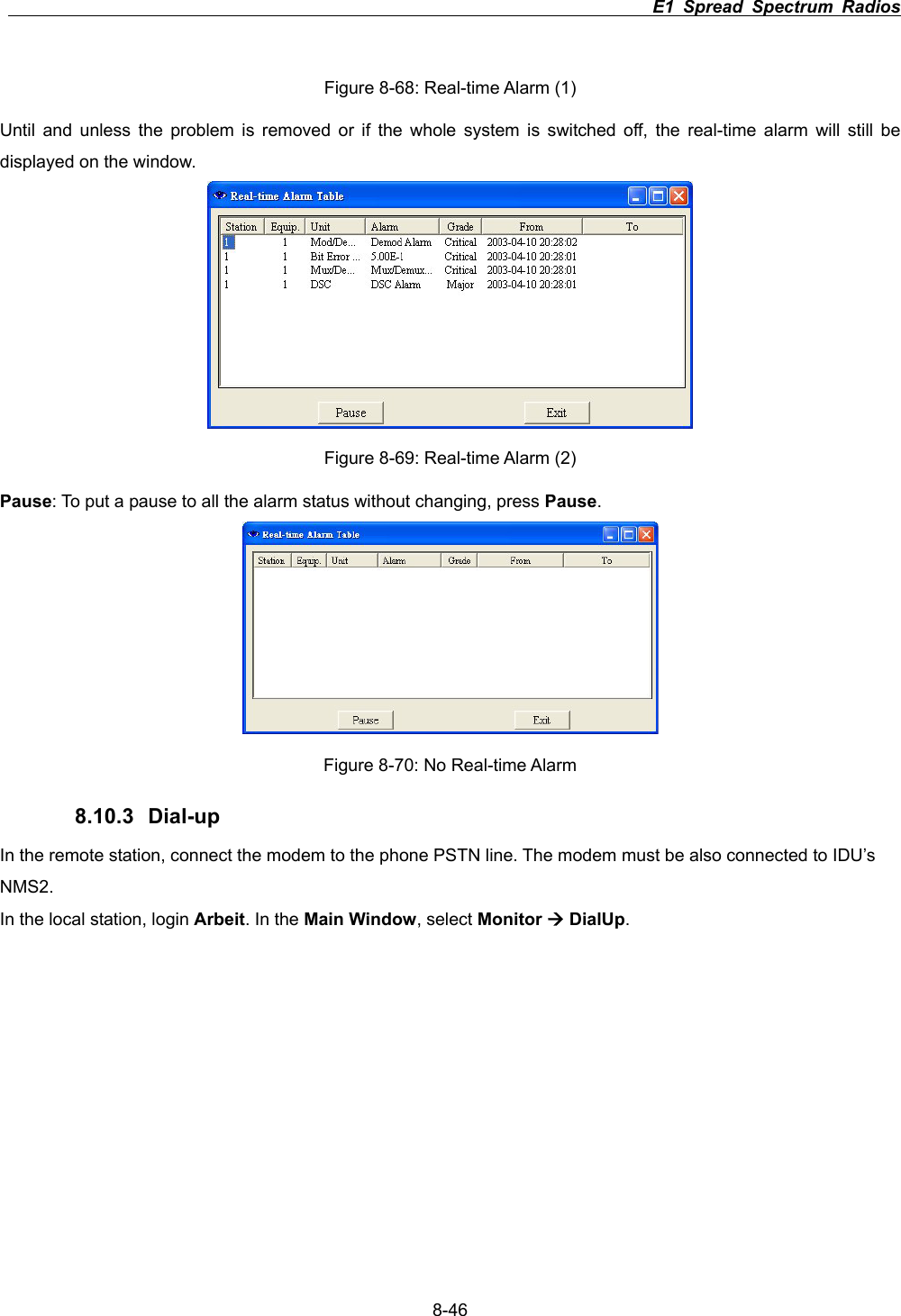

E1 Spread Spectrum Radios 8-46Figure 8-68: Real-time Alarm (1) Until and unless the problem is removed or if the whole system is switched off, the real-time alarm will still be displayed on the window. Figure 8-69: Real-time Alarm (2) Pause: To put a pause to all the alarm status without changing, press Pause.Figure 8-70: No Real-time Alarm 8.10.3 Dial-up In the remote station, connect the modem to the phone PSTN line. The modem must be also connected to IDU’s NMS2.In the local station, login Arbeit. In the Main Window, select Monitor Æ DialUp.

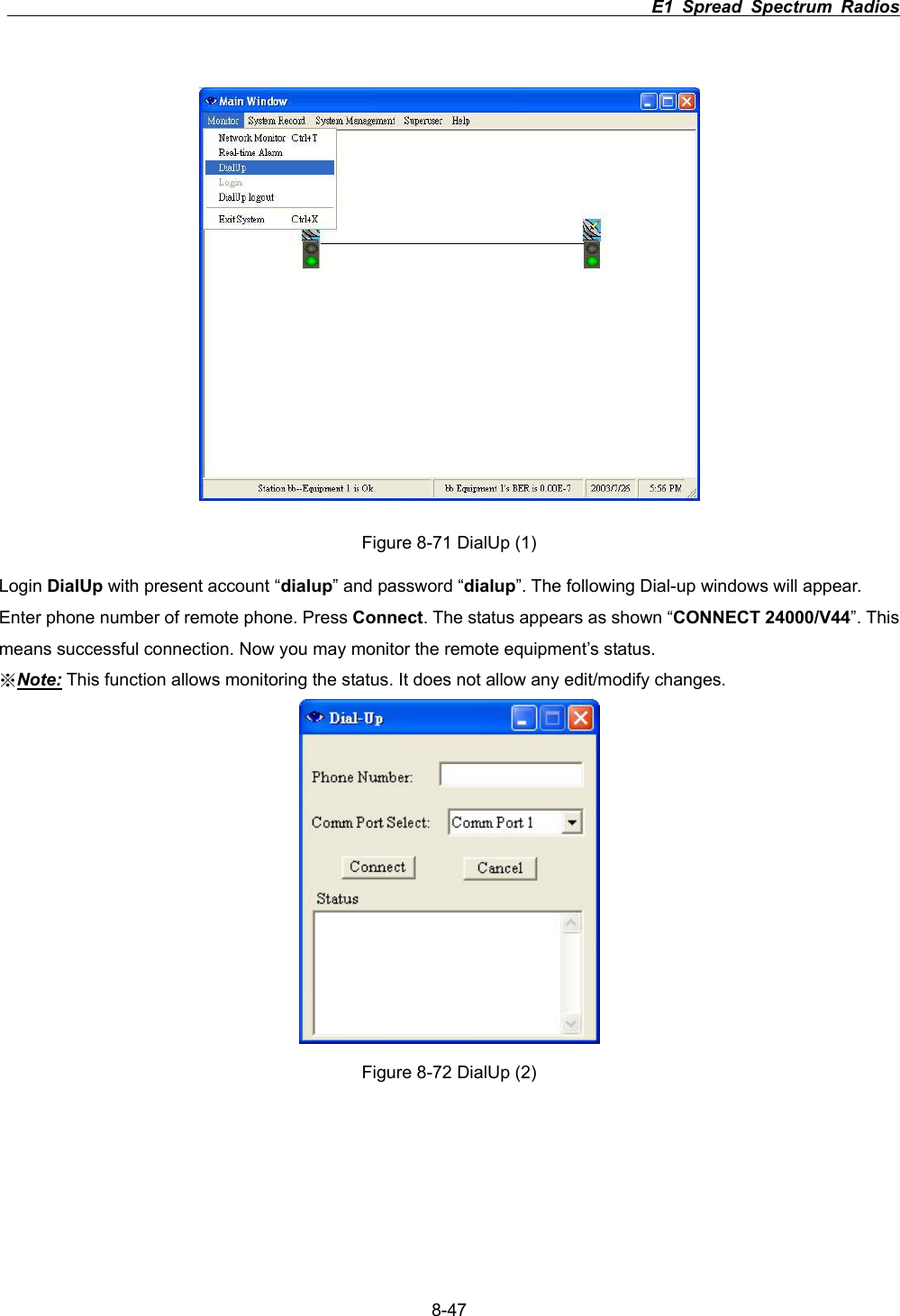

E1 Spread Spectrum Radios 8-47Figure 8-71 DialUp (1) Login DialUp with present account “dialup” and password “dialup”. The following Dial-up windows will appear. Enter phone number of remote phone. Press Connect. The status appears as shown “CONNECT 24000/V44”. This means successful connection. Now you may monitor the remote equipment’s status. ϡNote: This function allows monitoring the status. It does not allow any edit/modify changes. Figure 8-72 DialUp (2)

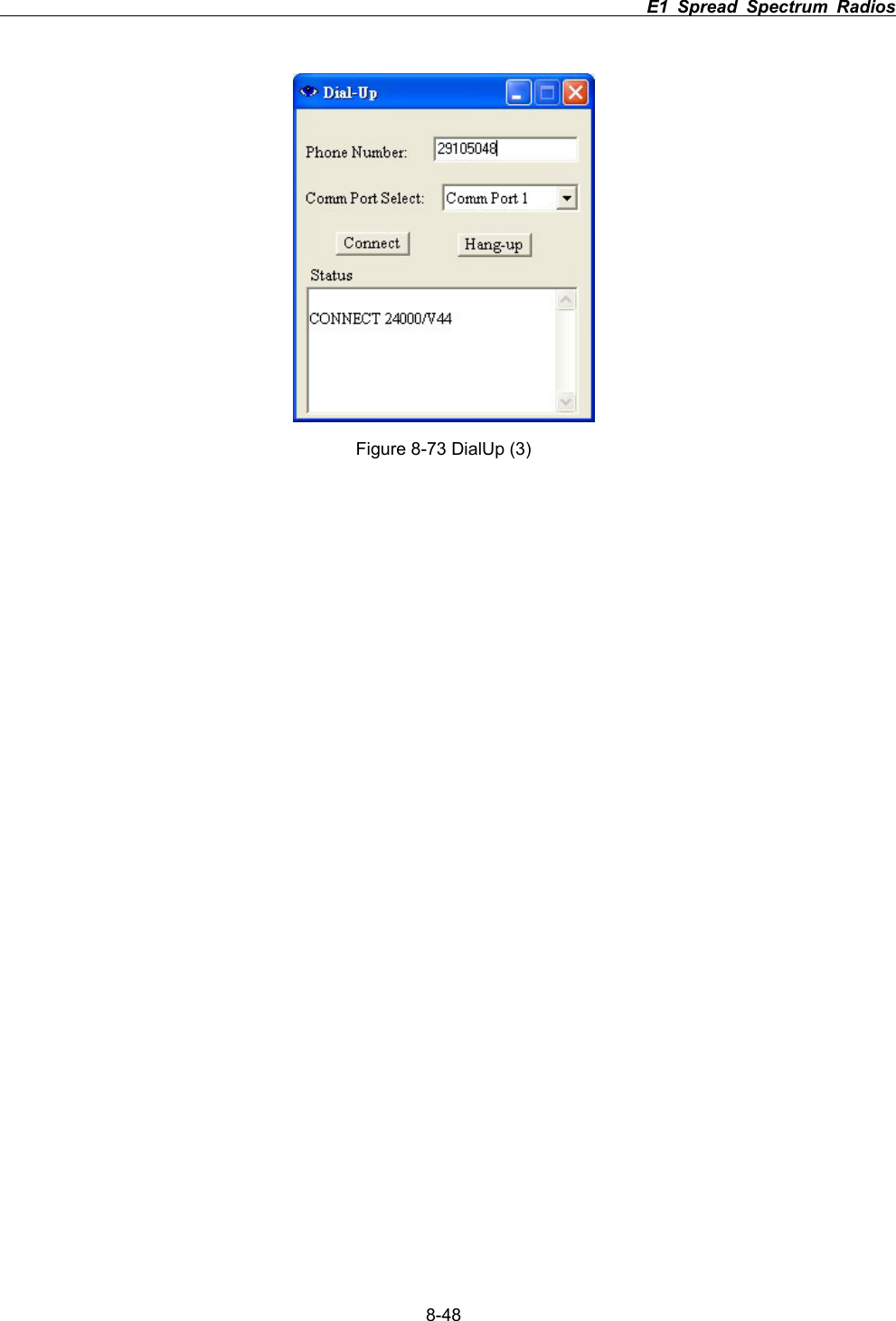

E1 Spread Spectrum Radios 8-48Figure 8-73 DialUp (3)

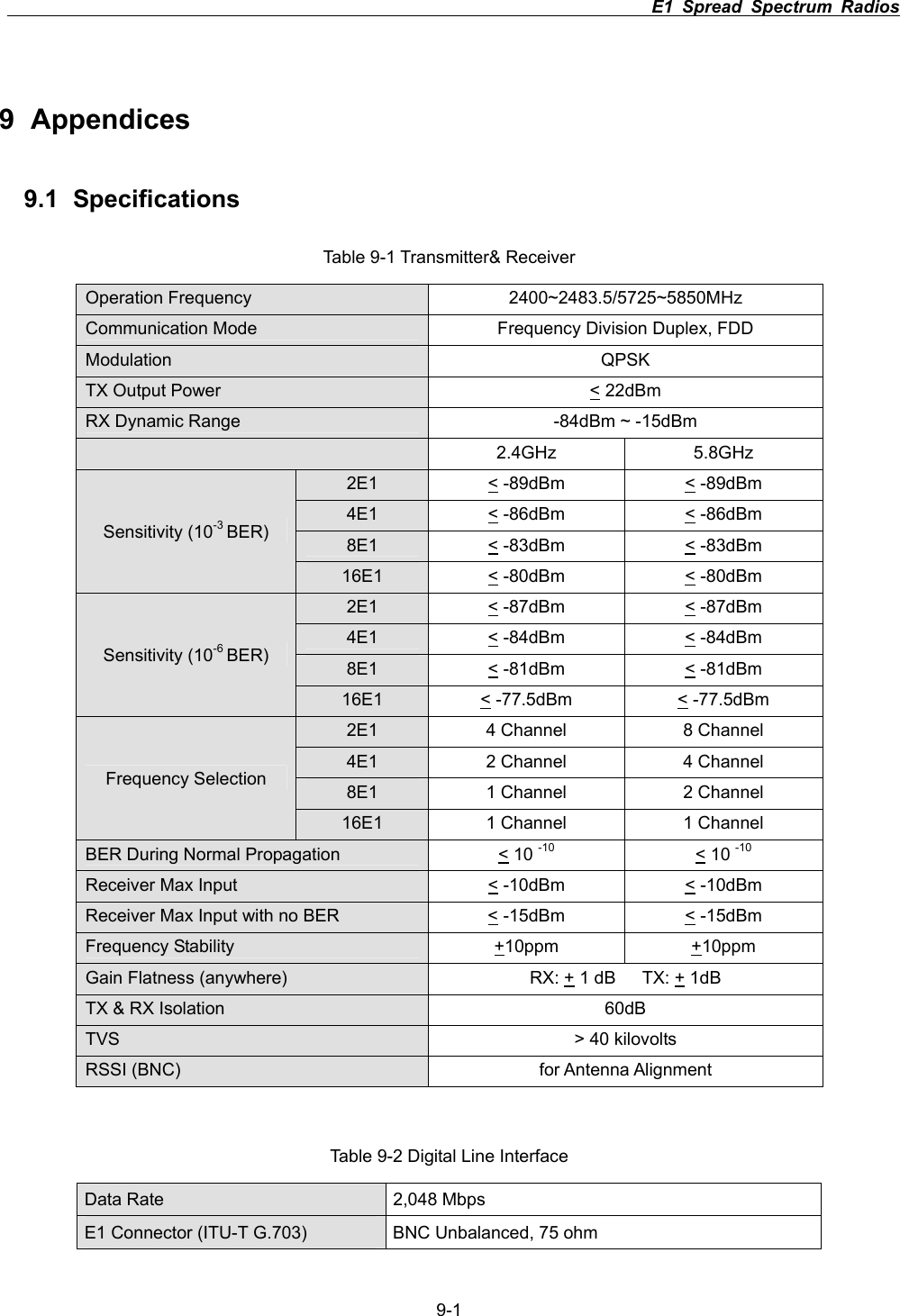

E1 Spread Spectrum Radios 9-19 Appendices 9.1 Specifications Table 9-1 Transmitter& Receiver Operation Frequency 2400~2483.5/5725~5850MHz Communication Mode Frequency Division Duplex, FDD Modulation QPSK TX Output Power < 22dBm RX Dynamic Range -84dBm ~ -15dBm 2.4GHz 5.8GHz 2E1 < -89dBm < -89dBm 4E1 < -86dBm < -86dBm 8E1 < -83dBm < -83dBm Sensitivity (10-3 BER)16E1 < -80dBm < -80dBm 2E1 < -87dBm < -87dBm 4E1 < -84dBm < -84dBm 8E1 < -81dBm < -81dBm Sensitivity (10-6 BER)16E1 < -77.5dBm < -77.5dBm 2E1 4 Channel 8 Channel 4E1 2 Channel 4 Channel 8E1 1 Channel 2 Channel Frequency Selection 16E1 1 Channel 1 Channel BER During Normal Propagation < 10 -10 < 10 -10Receiver Max Input < -10dBm < -10dBm Receiver Max Input with no BER < -15dBm < -15dBm Frequency Stability +10ppm +10ppm Gain Flatness (anywhere) RX: + 1 dB TX: + 1dB TX & RX Isolation 60dB TVS > 40 kilovolts RSSI (BNC) for Antenna Alignment Table 9-2 Digital Line Interface Data Rate 2,048 Mbps E1 Connector (ITU-T G.703) BNC Unbalanced, 75 ohm

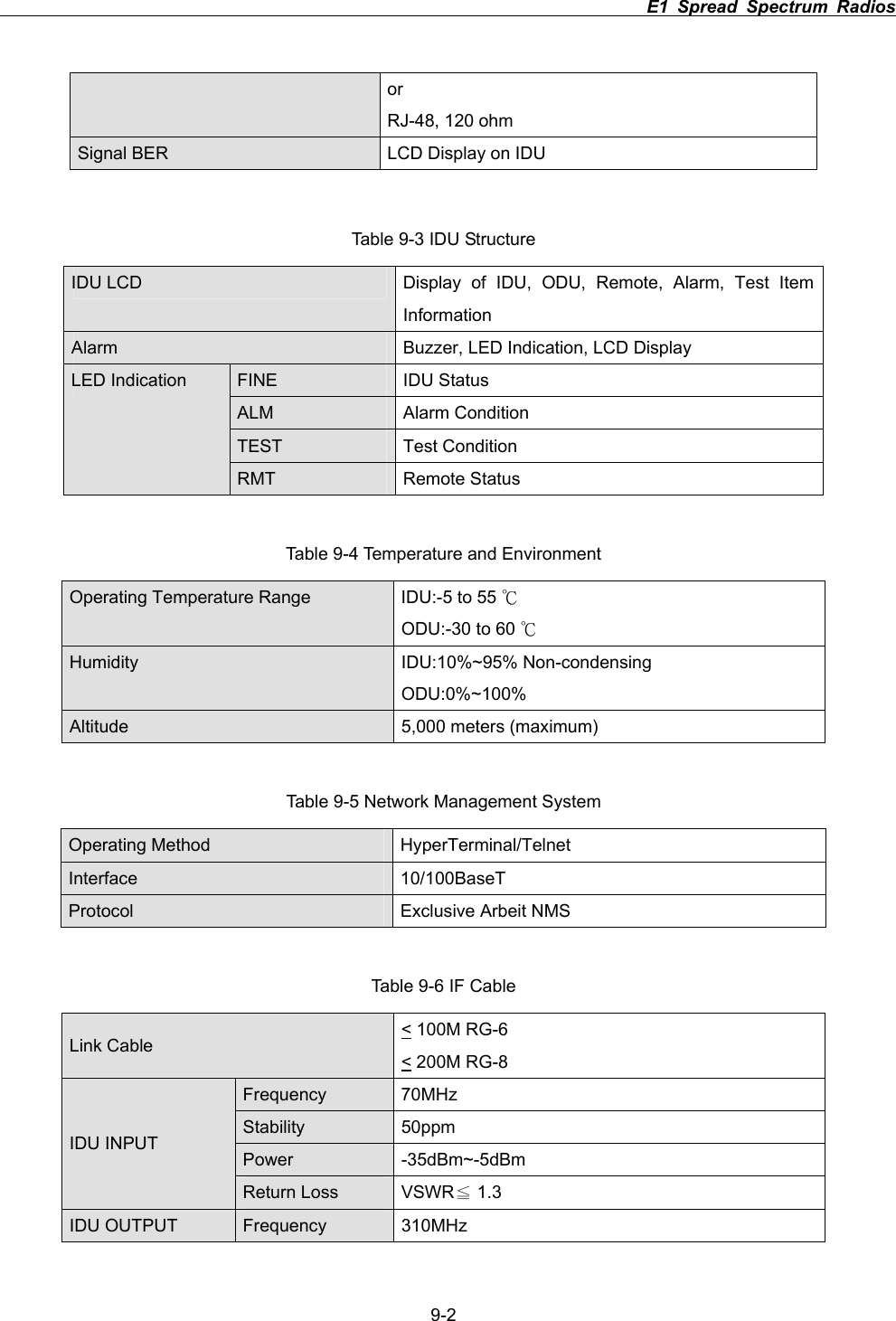

E1 Spread Spectrum Radios 9-2orRJ-48, 120 ohm Signal BER LCD Display on IDU Table 9-3 IDU Structure IDU LCD Display of IDU, ODU, Remote, Alarm, Test Item InformationAlarm Buzzer, LED Indication, LCD Display FINE IDU Status ALM Alarm Condition TEST Test Condition LED Indication RMT Remote Status Table 9-4 Temperature and Environment Operating Temperature Range IDU:-5 to 55 кODU:-30 to 60 кHumidity IDU:10%~95% Non-condensing ODU:0%~100% Altitude 5,000 meters (maximum) Table 9-5 Network Management System Operating Method HyperTerminal/Telnet Interface 10/100BaseT Protocol Exclusive Arbeit NMS Table 9-6 IF Cable Link Cable < 100M RG-6 < 200M RG-8 Frequency 70MHz Stability 50ppm Power -35dBm~-5dBm IDU INPUT Return Loss VSWR 1.3ЉIDU OUTPUT Frequency 310MHz

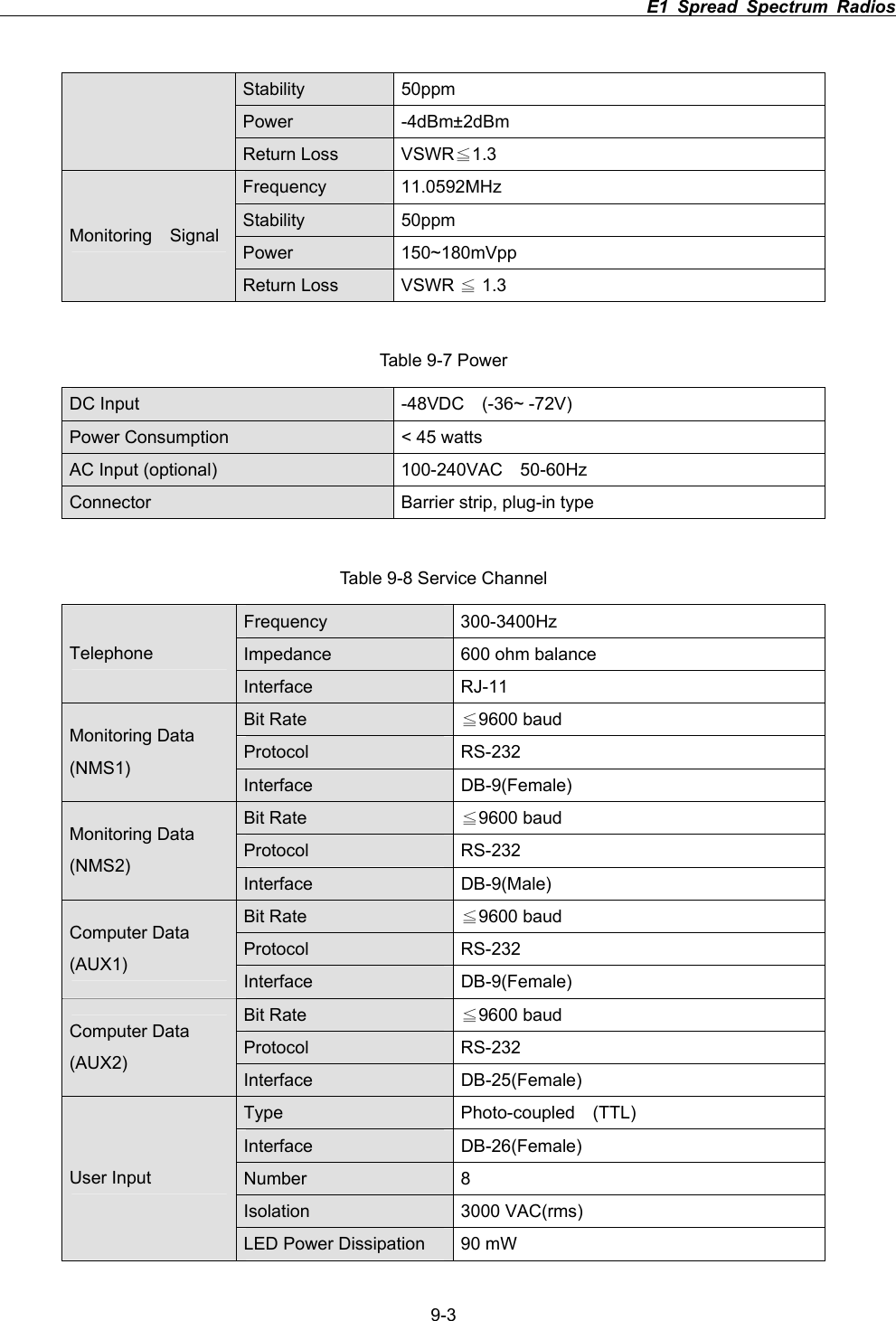

E1 Spread Spectrum Radios 9-3Stability 50ppm Power -4dBm±2dBm Return Loss VSWR 1.3ЉFrequency 11.0592MHz Stability 50ppm Power 150~180mVpp Monitoring Signal Return Loss VSWR 1.3ЉTable 9-7 Power DC Input -48VDC (-36~ -72V) Power Consumption < 45 watts AC Input (optional) 100-240VAC 50-60Hz Connector Barrier strip, plug-in type Table 9-8 Service Channel Frequency 300-3400Hz Impedance 600 ohm balance Telephone Interface RJ-11 Bit Rate 9600 baudЉProtocol RS-232 Monitoring Data (NMS1) Interface DB-9(Female) Bit Rate 9600 baudЉProtocol RS-232 Monitoring Data (NMS2) Interface DB-9(Male) Bit Rate 9600 baudЉProtocol RS-232 Computer Data (AUX1) Interface DB-9(Female) Bit Rate Љ9600 baud Protocol RS-232 Computer Data (AUX2) Interface DB-25(Female) Type Photo-coupled (TTL) Interface DB-26(Female) Number 8 Isolation 3000 VAC(rms) User Input LED Power Dissipation 90 mW

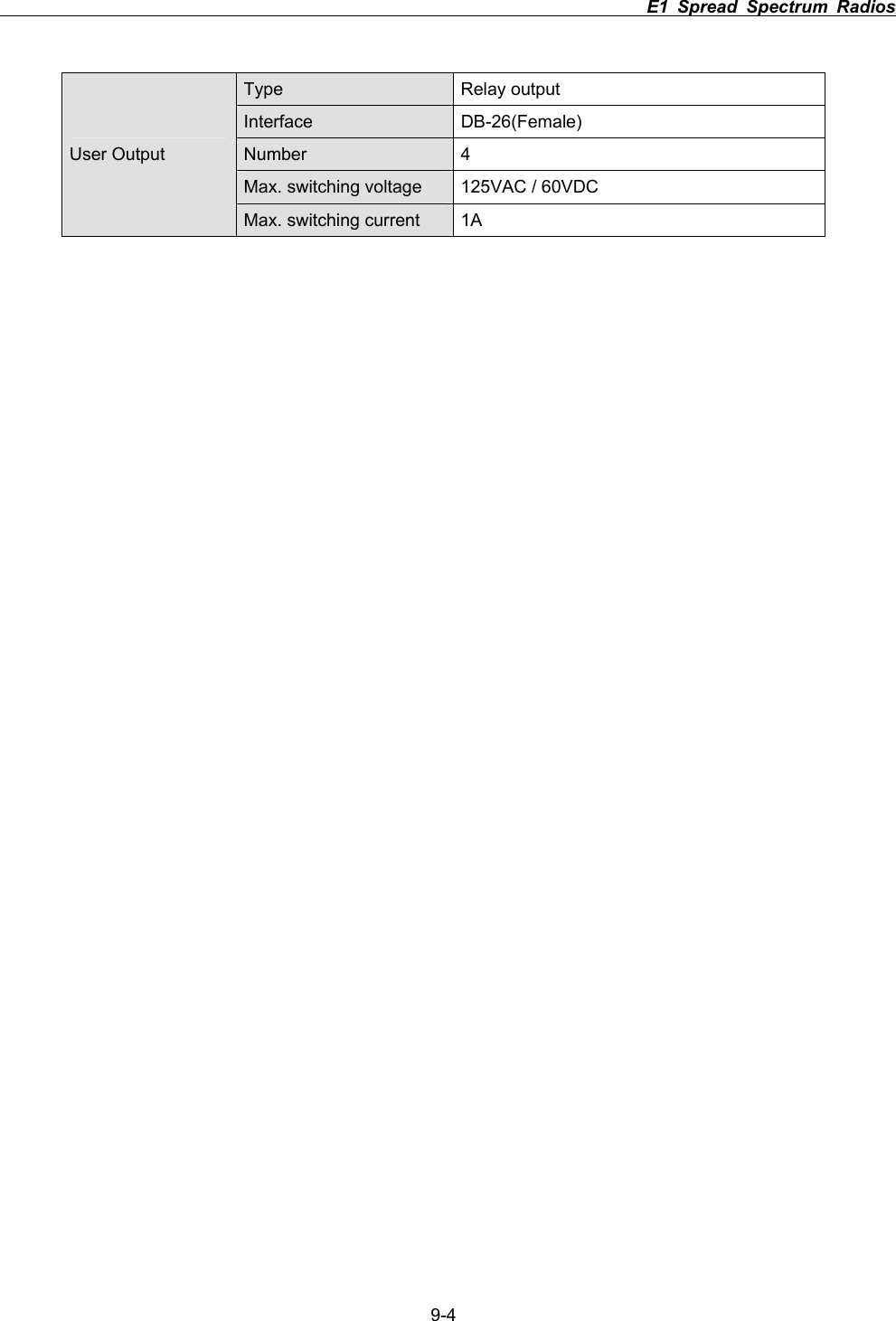

E1 Spread Spectrum Radios 9-4Type Relay output Interface DB-26(Female) Number 4 Max. switching voltage 125VAC / 60VDC User Output Max. switching current 1A

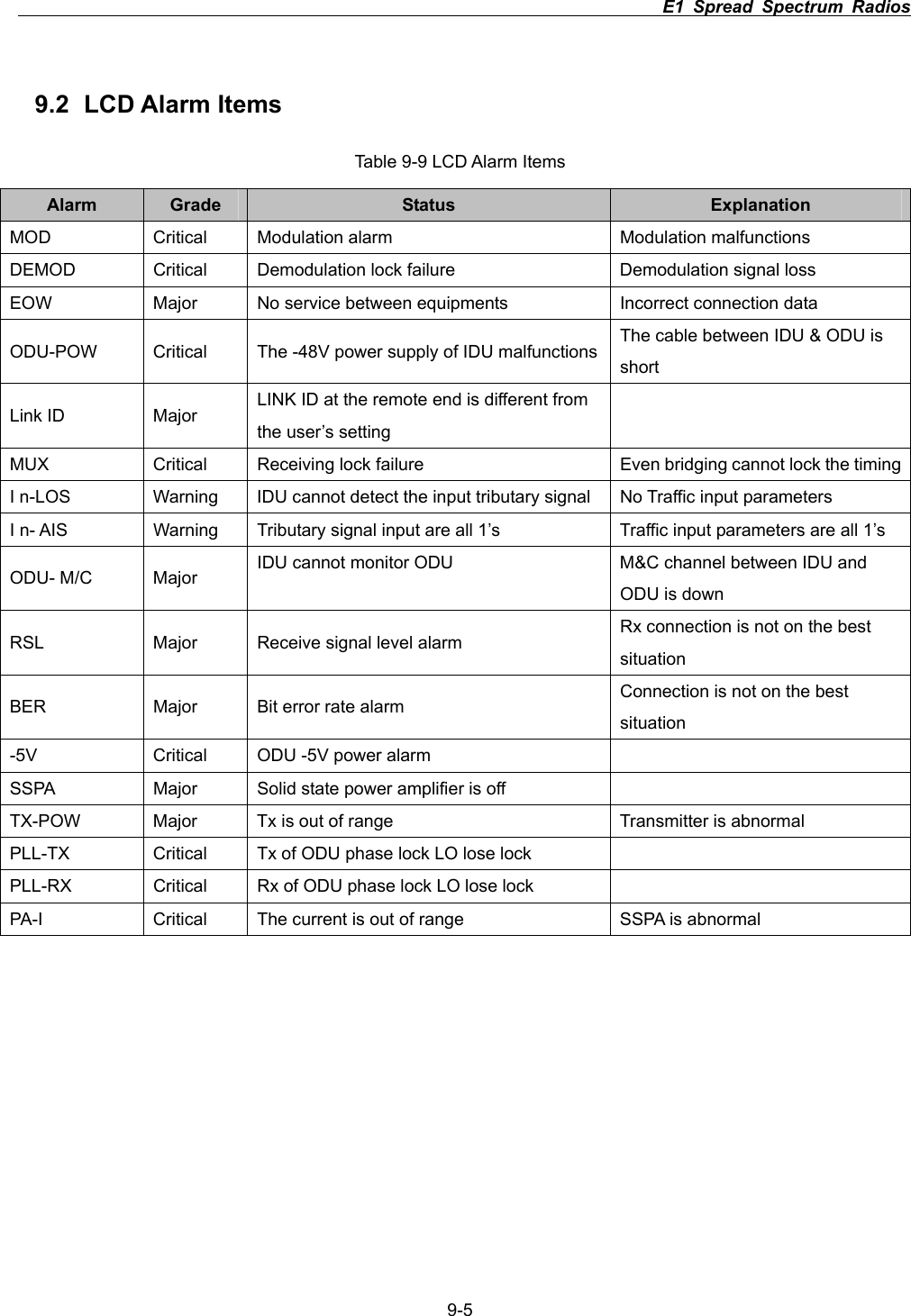

E1 Spread Spectrum Radios 9-59.2 LCD Alarm Items Table 9-9 LCD Alarm Items Alarm Grade Status Explanation MOD Critical Modulation alarm Modulation malfunctions DEMOD Critical Demodulation lock failure Demodulation signal loss EOW Major No service between equipments Incorrect connection data ODU-POW Critical The -48V power supply of IDU malfunctions The cable between IDU & ODU is short Link ID Major LINK ID at the remote end is different from the user’s setting MUX Critical Receiving lock failure Even bridging cannot lock the timingI n-LOS Warning IDU cannot detect the input tributary signal No Traffic input parameters I n- AIS Warning Tributary signal input are all 1’s Traffic input parameters are all 1’s ODU- M/C Major IDU cannot monitor ODU M&C channel between IDU and ODU is down RSL Major Receive signal level alarm Rx connection is not on the best situationBER Major Bit error rate alarm Connection is not on the best situation-5V Critical ODU -5V power alarm SSPA Major Solid state power amplifier is off TX-POW Major Tx is out of range Transmitter is abnormal PLL-TX Critical Tx of ODU phase lock LO lose lock PLL-RX Critical Rx of ODU phase lock LO lose lock PA-I Critical The current is out of range SSPA is abnormal

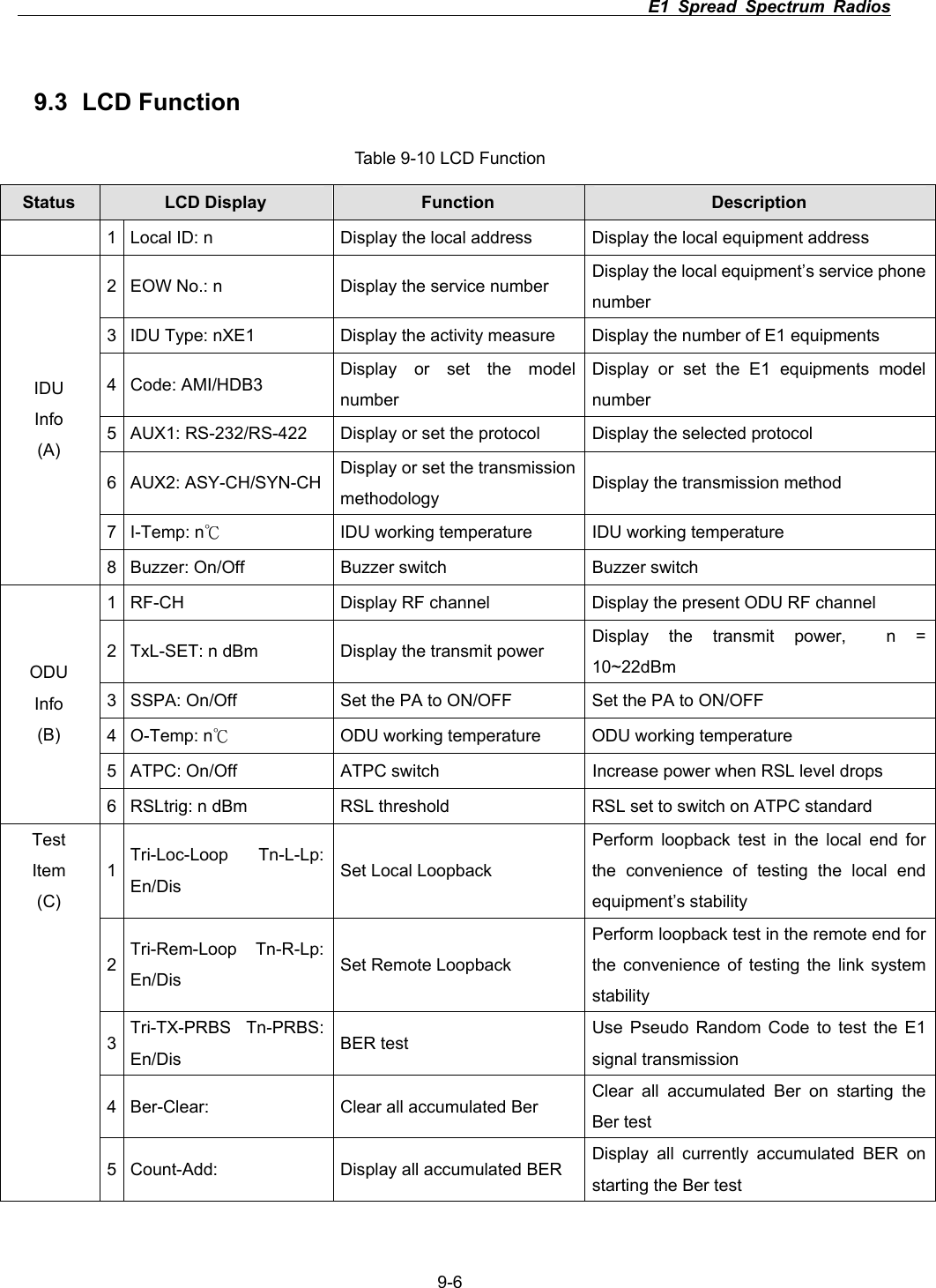

E1 Spread Spectrum Radios 9-69.3 LCD Function Table 9-10 LCD Function Status LCD Display Function Description 1 Local ID: n Display the local address Display the local equipment address 2 EOW No.: n Display the service number Display the local equipment’s service phone number 3 IDU Type: nXE1 Display the activity measure Display the number of E1 equipments 4 Code: AMI/HDB3 Display or set the model number Display or set the E1 equipments model number 5 AUX1: RS-232/RS-422 Display or set the protocol Display the selected protocol 6 AUX2: ASY-CH/SYN-CH Display or set the transmission methodology Display the transmission method 7 I-Temp: nк IDU working temperature IDU working temperature IDUInfo(A)8 Buzzer: On/Off Buzzer switch Buzzer switch 1 RF-CH Display RF channel Display the present ODU RF channel 2 TxL-SET: n dBm Display the transmit power Display the transmit power, n = 10~22dBm3 SSPA: On/Off Set the PA to ON/OFF Set the PA to ON/OFF 4 O-Temp: nк ODU working temperature ODU working temperature 5 ATPC: On/Off ATPC switch Increase power when RSL level drops ODUInfo(B)6 RSLtrig: n dBm RSL threshold RSL set to switch on ATPC standard 1Tri-Loc-Loop Tn-L-Lp: En/Dis Set Local Loopback Perform loopback test in the local end for the convenience of testing the local end equipment’s stability 2Tri-Rem-Loop Tn-R-Lp: En/Dis Set Remote Loopback Perform loopback test in the remote end for the convenience of testing the link system stability3Tri-TX-PRBS Tn-PRBS: En/Dis BER test Use Pseudo Random Code to test the E1 signal transmission 4 Ber-Clear: Clear all accumulated Ber Clear all accumulated Ber on starting the Ber test TestItem(C) 5 Count-Add: Display all accumulated BER Display all currently accumulated BER on starting the Ber test

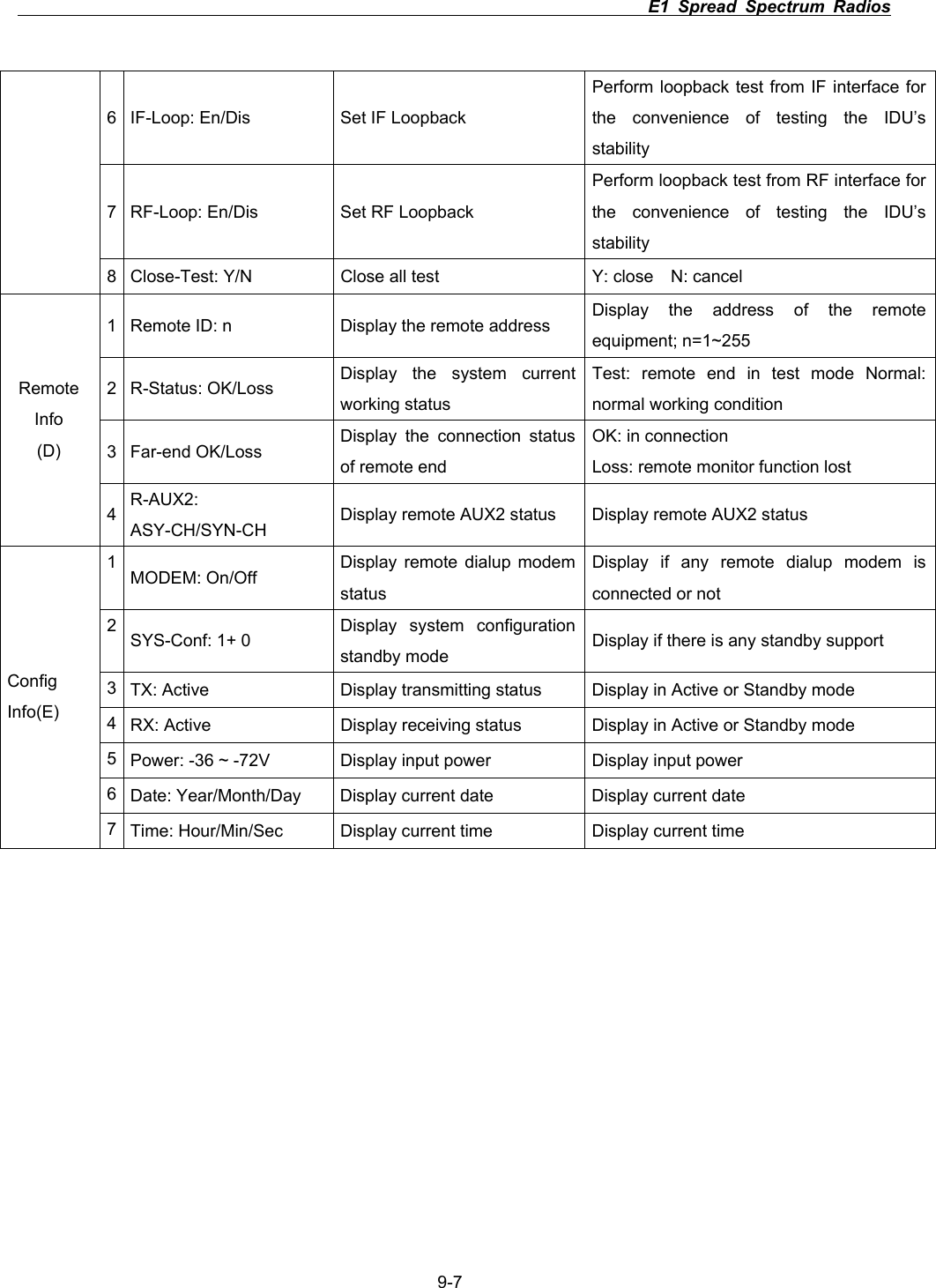

E1 Spread Spectrum Radios 9-76 IF-Loop: En/Dis Set IF Loopback Perform loopback test from IF interface for the convenience of testing the IDU’s stability7 RF-Loop: En/Dis Set RF Loopback Perform loopback test from RF interface for the convenience of testing the IDU’s stability8 Close-Test: Y/N Close all test Y: close N: cancel 1 Remote ID: n Display the remote address Display the address of the remote equipment; n=1~255 2 R-Status: OK/Loss Display the system current working status Test: remote end in test mode Normal: normal working condition 3 Far-end OK/Loss Display the connection status of remote end OK: in connection Loss: remote monitor function lost RemoteInfo(D) 4R-AUX2: ASY-CH/SYN-CH Display remote AUX2 status Display remote AUX2 status 1MODEM: On/Off Display remote dialup modem statusDisplay if any remote dialup modem is connected or not 2SYS-Conf: 1+ 0 Display system configuration standby mode Display if there is any standby support 3TX: Active Display transmitting status Display in Active or Standby mode 4RX: Active Display receiving status Display in Active or Standby mode 5Power: -36 ~ -72V Display input power Display input power 6Date: Year/Month/Day Display current date Display current date ConfigInfo(E)7Time: Hour/Min/Sec Display current time Display current time

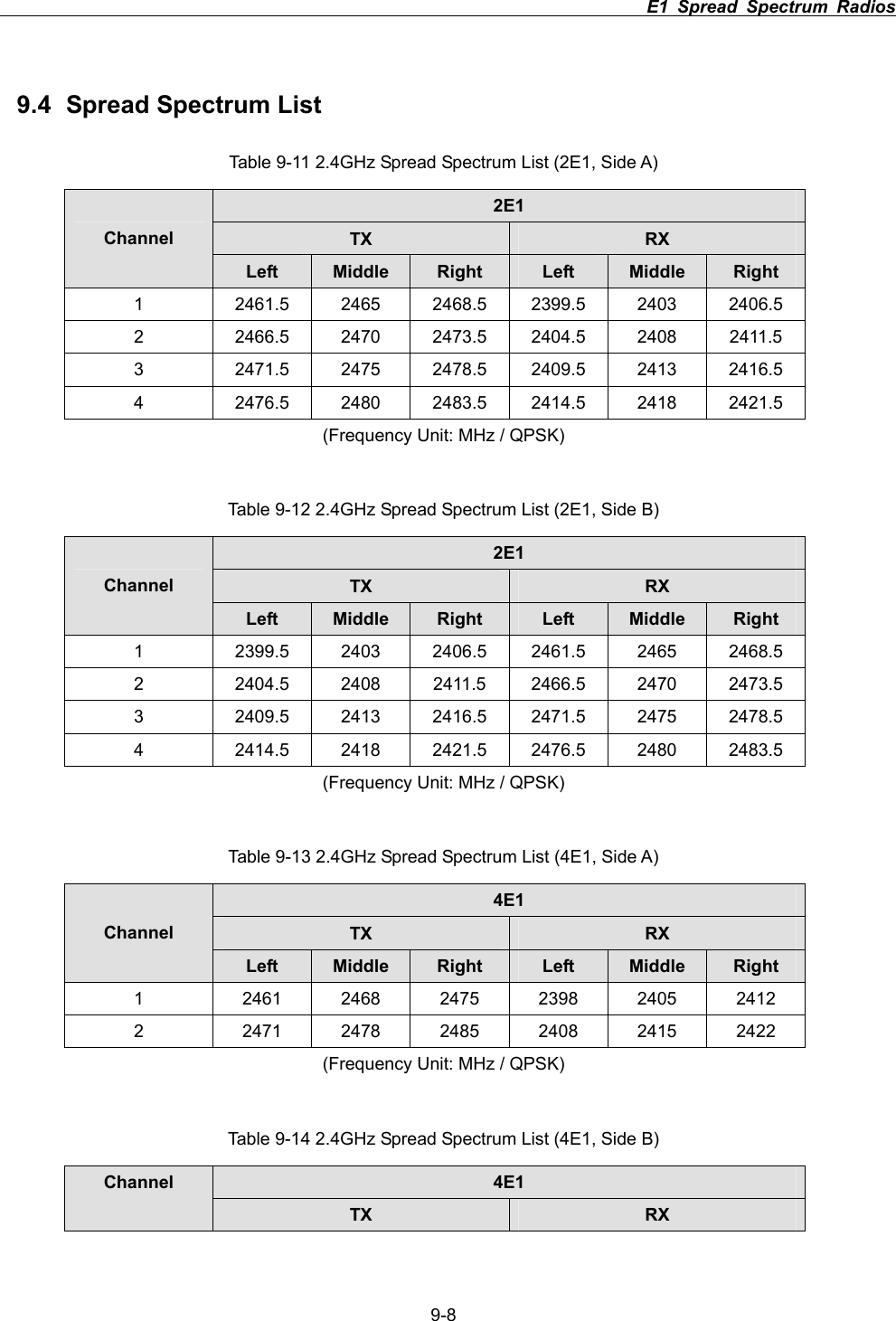

E1 Spread Spectrum Radios 9-89.4 Spread Spectrum List Table 9-11 2.4GHz Spread Spectrum List (2E1, Side A) 2E1TX RXChannel Left Middle Right Left Middle Right1 2461.5 2465 2468.5 2399.5 2403 2406.5 2 2466.5 2470 2473.5 2404.5 2408 2411.5 3 2471.5 2475 2478.5 2409.5 2413 2416.5 4 2476.5 2480 2483.5 2414.5 2418 2421.5 (Frequency Unit: MHz / QPSK) Table 9-12 2.4GHz Spread Spectrum List (2E1, Side B) 2E1TX RXChannel Left Middle Right Left Middle Right1 2399.5 2403 2406.5 2461.5 2465 2468.5 2 2404.5 2408 2411.5 2466.5 2470 2473.5 3 2409.5 2413 2416.5 2471.5 2475 2478.5 4 2414.5 2418 2421.5 2476.5 2480 2483.5 (Frequency Unit: MHz / QPSK) Table 9-13 2.4GHz Spread Spectrum List (4E1, Side A) 4E1TX RXChannel Left Middle Right Left Middle Right1 2461 2468 2475 2398 2405 2412 2 2471 2478 2485 2408 2415 2422 (Frequency Unit: MHz / QPSK) Table 9-14 2.4GHz Spread Spectrum List (4E1, Side B) 4E1Channel TX RX

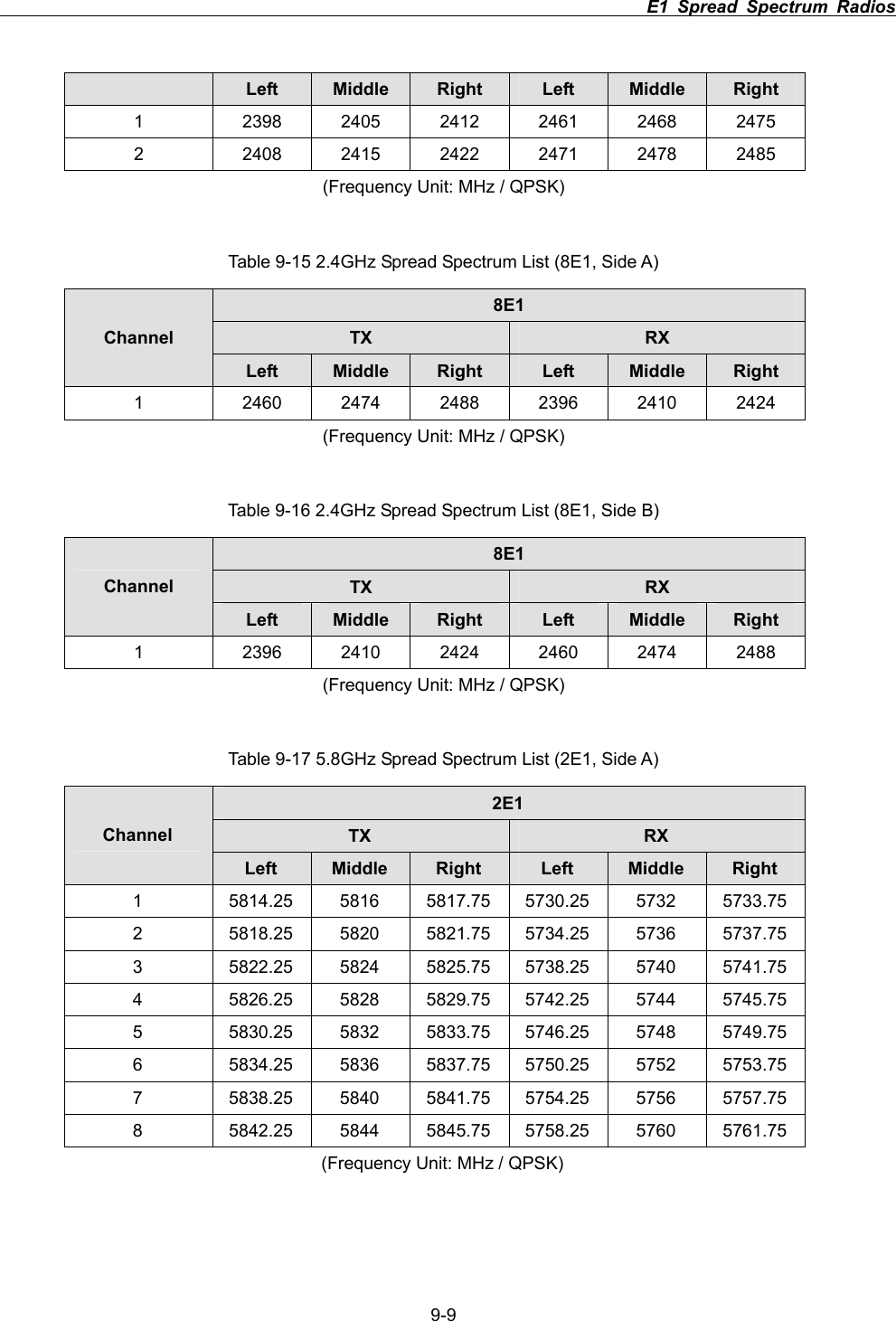

E1 Spread Spectrum Radios 9-9Left Middle Right Left Middle Right1 2398 2405 2412 2461 2468 2475 2 2408 2415 2422 2471 2478 2485 (Frequency Unit: MHz / QPSK) Table 9-15 2.4GHz Spread Spectrum List (8E1, Side A) 8E1TX RXChannel Left Middle Right Left Middle Right1 2460 2474 2488 2396 2410 2424 (Frequency Unit: MHz / QPSK) Table 9-16 2.4GHz Spread Spectrum List (8E1, Side B) 8E1TX RXChannel Left Middle Right Left Middle Right1 2396 2410 2424 2460 2474 2488 (Frequency Unit: MHz / QPSK) Table 9-17 5.8GHz Spread Spectrum List (2E1, Side A) 2E1TX RXChannel Left Middle Right Left Middle Right1 5814.25 5816 5817.75 5730.25 5732 5733.75 2 5818.25 5820 5821.75 5734.25 5736 5737.75 3 5822.25 5824 5825.75 5738.25 5740 5741.75 4 5826.25 5828 5829.75 5742.25 5744 5745.75 5 5830.25 5832 5833.75 5746.25 5748 5749.75 6 5834.25 5836 5837.75 5750.25 5752 5753.75 7 5838.25 5840 5841.75 5754.25 5756 5757.75 8 5842.25 5844 5845.75 5758.25 5760 5761.75 (Frequency Unit: MHz / QPSK)

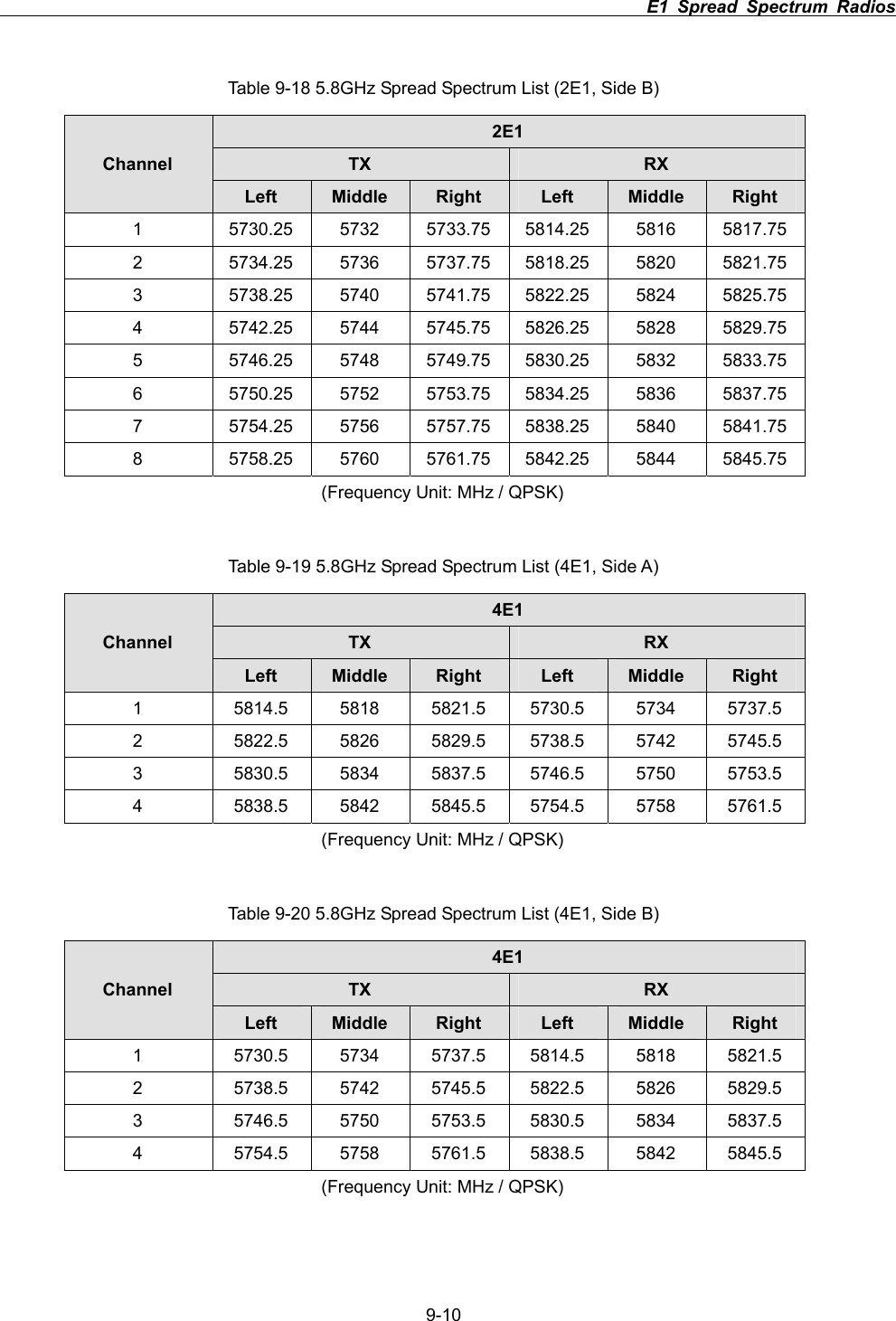

E1 Spread Spectrum Radios 9-10Table 9-18 5.8GHz Spread Spectrum List (2E1, Side B) 2E1TX RXChannel Left Middle Right Left Middle Right1 5730.25 5732 5733.75 5814.25 5816 5817.75 2 5734.25 5736 5737.75 5818.25 5820 5821.75 3 5738.25 5740 5741.75 5822.25 5824 5825.75 4 5742.25 5744 5745.75 5826.25 5828 5829.75 5 5746.25 5748 5749.75 5830.25 5832 5833.75 6 5750.25 5752 5753.75 5834.25 5836 5837.75 7 5754.25 5756 5757.75 5838.25 5840 5841.75 8 5758.25 5760 5761.75 5842.25 5844 5845.75 (Frequency Unit: MHz / QPSK) Table 9-19 5.8GHz Spread Spectrum List (4E1, Side A) 4E1TX RXChannel Left Middle Right Left Middle Right1 5814.5 5818 5821.5 5730.5 5734 5737.5 2 5822.5 5826 5829.5 5738.5 5742 5745.5 3 5830.5 5834 5837.5 5746.5 5750 5753.5 4 5838.5 5842 5845.5 5754.5 5758 5761.5 (Frequency Unit: MHz / QPSK) Table 9-20 5.8GHz Spread Spectrum List (4E1, Side B) 4E1TX RXChannel Left Middle Right Left Middle Right1 5730.5 5734 5737.5 5814.5 5818 5821.5 2 5738.5 5742 5745.5 5822.5 5826 5829.5 3 5746.5 5750 5753.5 5830.5 5834 5837.5 4 5754.5 5758 5761.5 5838.5 5842 5845.5 (Frequency Unit: MHz / QPSK)

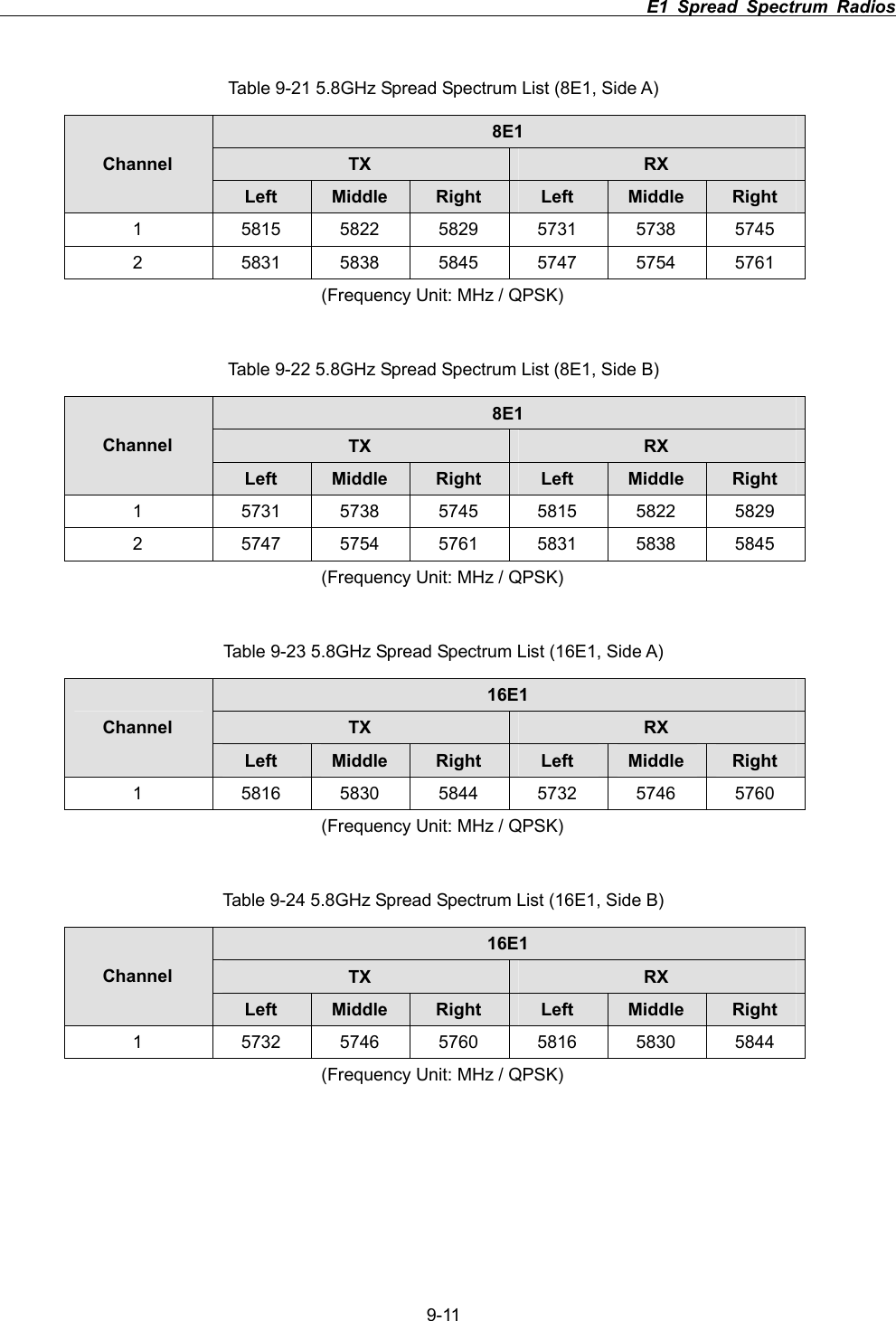

E1 Spread Spectrum Radios 9-11 Table 9-21 5.8GHz Spread Spectrum List (8E1, Side A) 8E1TX RXChannel Left Middle Right Left Middle Right1 5815 5822 5829 5731 5738 5745 2 5831 5838 5845 5747 5754 5761 (Frequency Unit: MHz / QPSK) Table 9-22 5.8GHz Spread Spectrum List (8E1, Side B) 8E1TX RXChannel Left Middle Right Left Middle Right1 5731 5738 5745 5815 5822 5829 2 5747 5754 5761 5831 5838 5845 (Frequency Unit: MHz / QPSK) Table 9-23 5.8GHz Spread Spectrum List (16E1, Side A) 16E1TX RXChannel Left Middle Right Left Middle Right1 5816 5830 5844 5732 5746 5760 (Frequency Unit: MHz / QPSK) Table 9-24 5.8GHz Spread Spectrum List (16E1, Side B) 16E1TX RXChannel Left Middle Right Left Middle Right1 5732 5746 5760 5816 5830 5844 (Frequency Unit: MHz / QPSK)

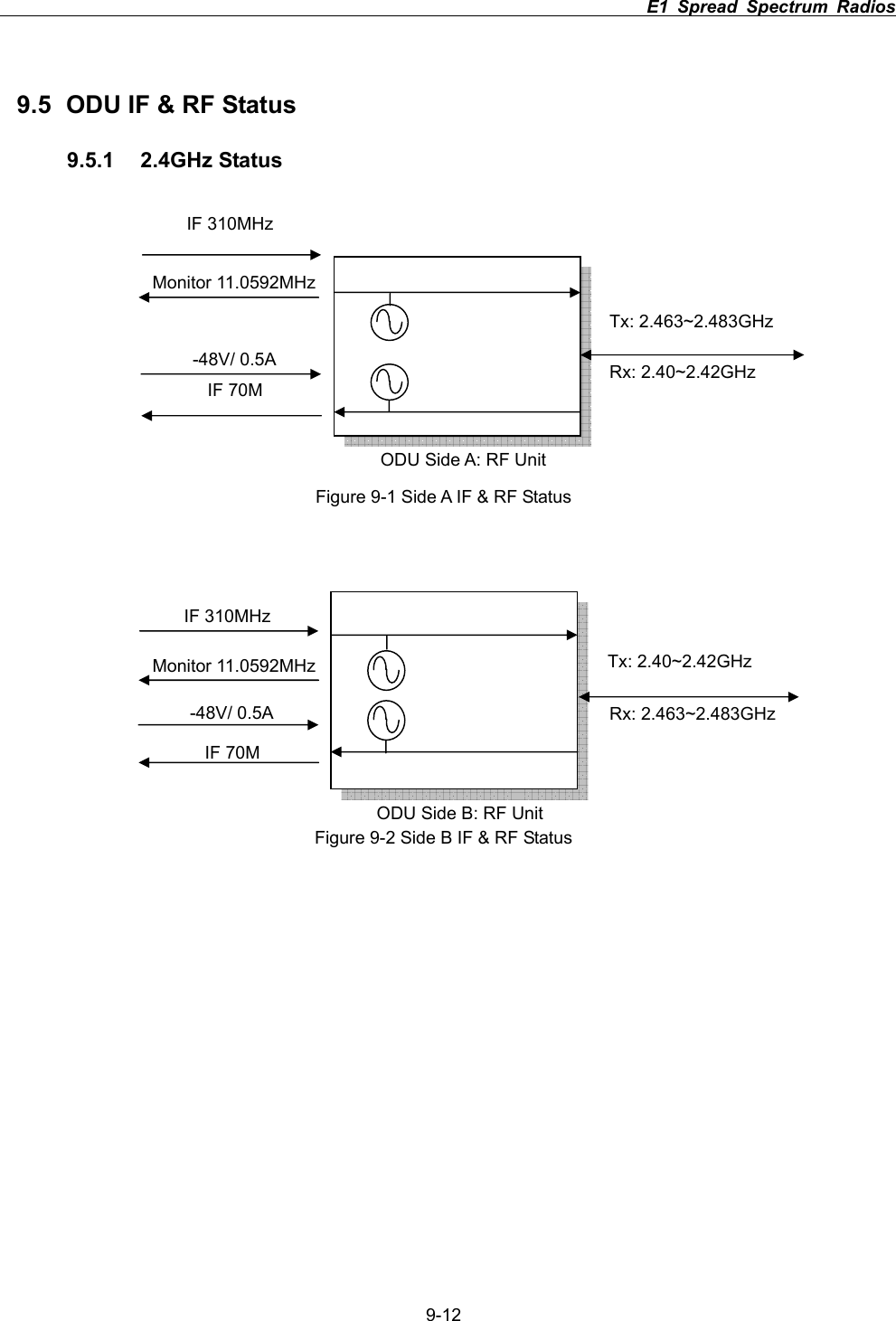

E1 Spread Spectrum Radios 9-129.5 ODU IF & RF Status 9.5.1 2.4GHz Status Figure 9-1 Side A IF & RF Status Figure 9-2 Side B IF & RF Status ODU Side B: RF UnitTx: 2.40~2.42GHz Tx: 2.463~2.483GHz ODU Side A: RF UnitRx: 2.40~2.42GHz Rx: 2.463~2.483GHz IF 310MHz IF 70M -48V/ 0.5A Monitor 11.0592MHz IF 310MHz IF 70M -48V/ 0.5A Monitor 11.0592MHz

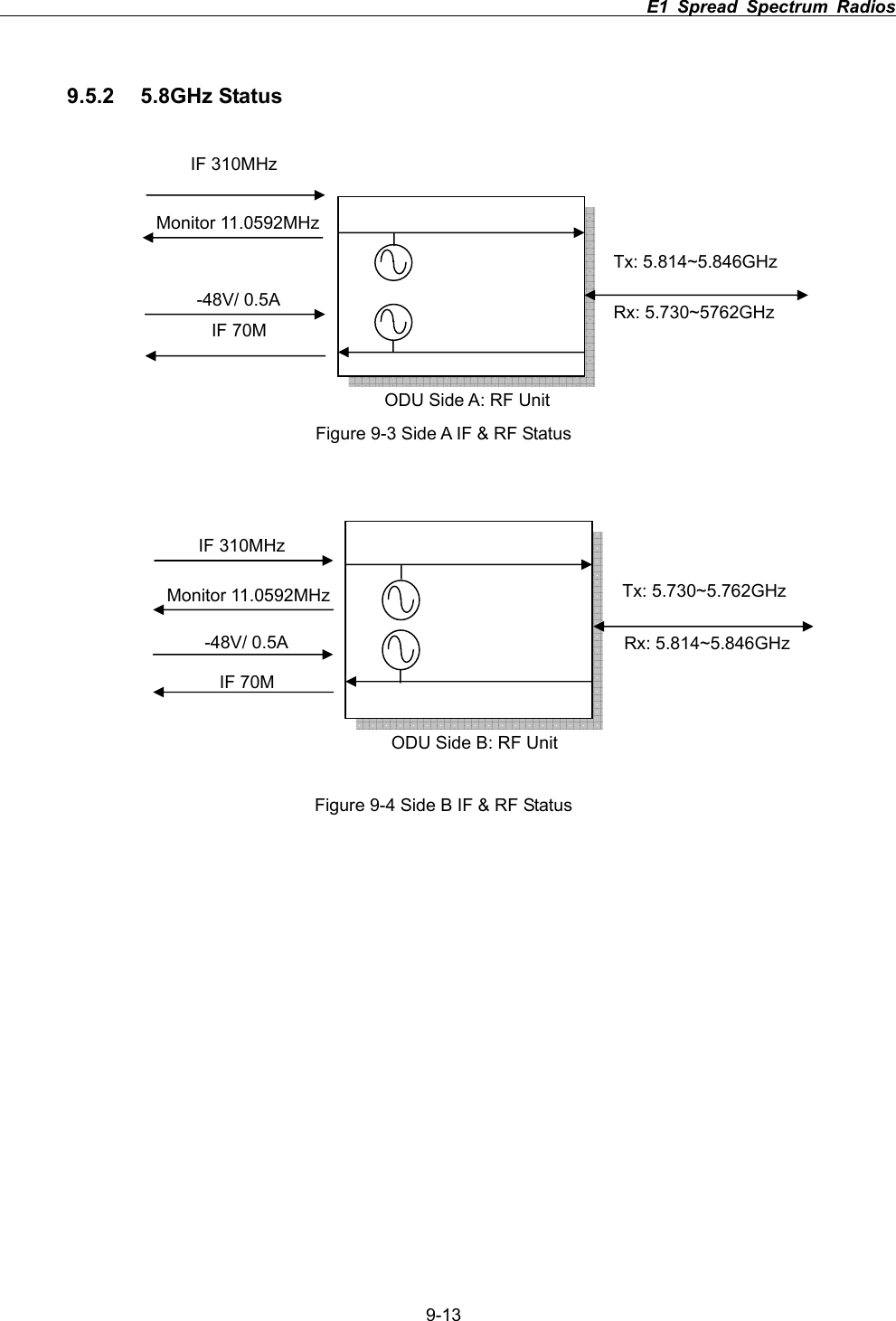

E1 Spread Spectrum Radios 9-139.5.2 5.8GHz Status Figure 9-3 Side A IF & RF Status Figure 9-4 Side B IF & RF Status Tx: 5.814~5.846GHz ODU Side A: RF UnitRx: 5.730~5762GHz IF 310MHz IF 70M -48V/ 0.5A Monitor 11.0592MHz ODU Side B: RF UnitTx: 5.730~5.762GHz Rx: 5.814~5.846GHzIF 310MHz IF 70M -48V/ 0.5A Monitor 11.0592MHz

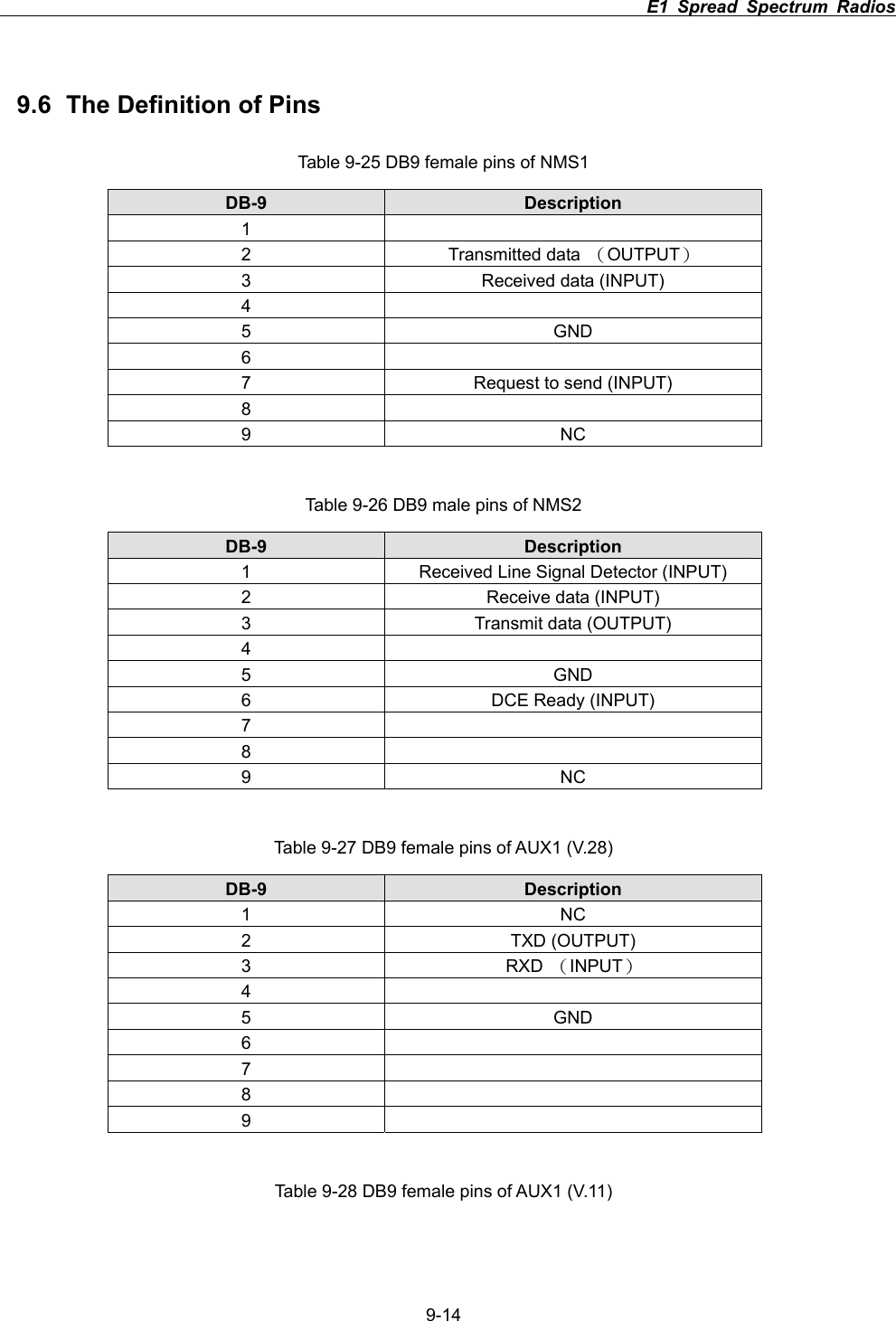

E1 Spread Spectrum Radios 9-149.6 The Definition of Pins Table 9-25 DB9 female pins of NMS1 DB-9 Description 12 Transmitted data ΰOUTPUTα3 Received data (INPUT) 45 GND 67 Request to send (INPUT) 89 NC Table 9-26 DB9 male pins of NMS2 DB-9 Description 1 Received Line Signal Detector (INPUT) 2 Receive data (INPUT) 3 Transmit data (OUTPUT) 45 GND 6 DCE Ready (INPUT) 789 NC Table 9-27 DB9 female pins of AUX1 (V.28) DB-9 Description 1 NC 2 TXD (OUTPUT) 3 RXD ΰINPUTα45 GND 6789Table 9-28 DB9 female pins of AUX1 (V.11)

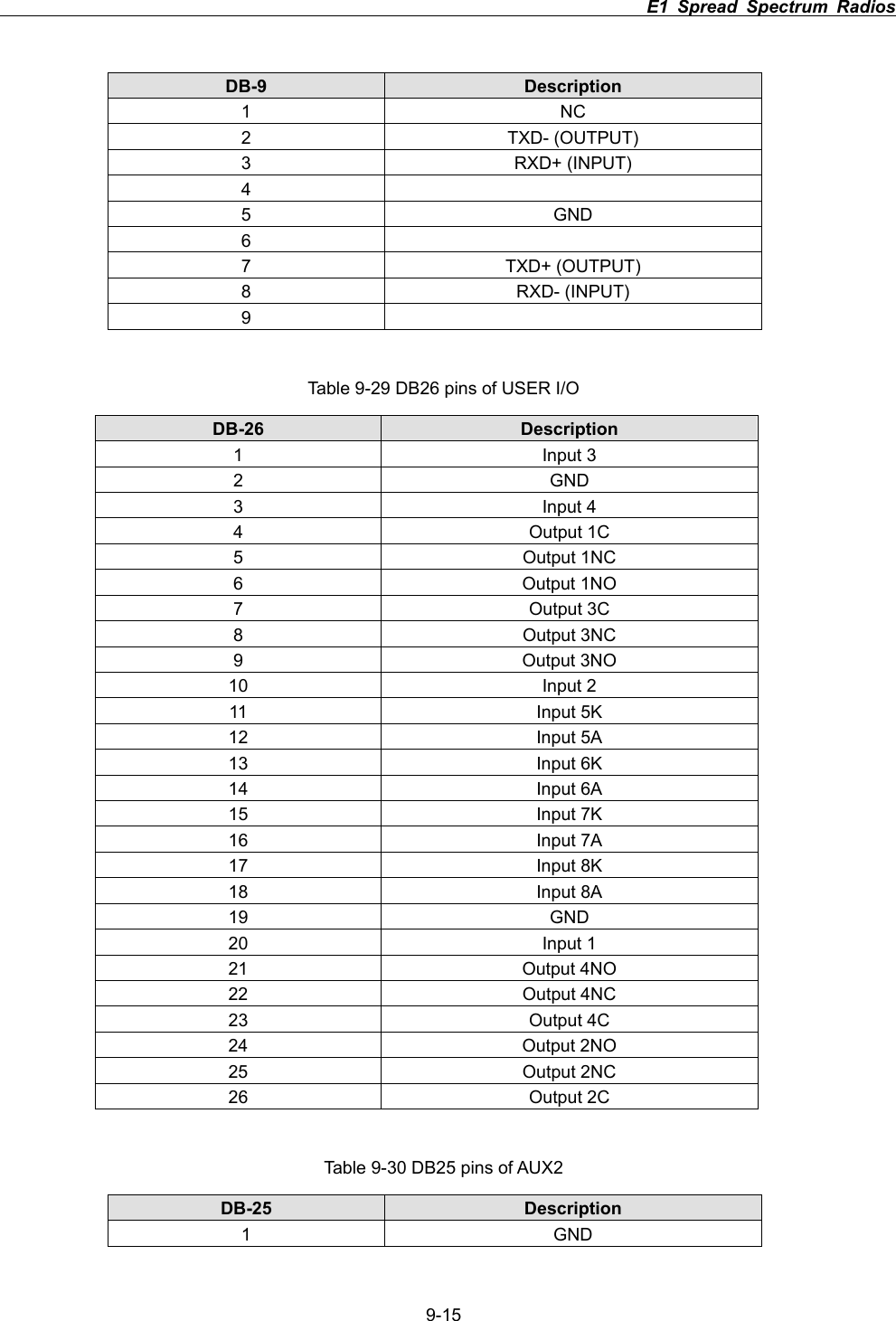

E1 Spread Spectrum Radios 9-15DB-9 Description 1 NC 2 TXD- (OUTPUT) 3 RXD+ (INPUT) 45 GND 67 TXD+ (OUTPUT) 8 RXD- (INPUT) 9Table 9-29 DB26 pins of USER I/O DB-26 Description 1 Input 3 2 GND 3 Input 4 4 Output 1C 5 Output 1NC 6 Output 1NO 7 Output 3C 8 Output 3NC 9 Output 3NO 10 Input 2 11 Input 5K 12 Input 5A 13 Input 6K 14 Input 6A 15 Input 7K 16 Input 7A 17 Input 8K 18 Input 8A 19 GND 20 Input 1 21 Output 4NO 22 Output 4NC 23 Output 4C 24 Output 2NO 25 Output 2NC 26 Output 2C Table 9-30 DB25 pins of AUX2 DB-25 Description 1 GND

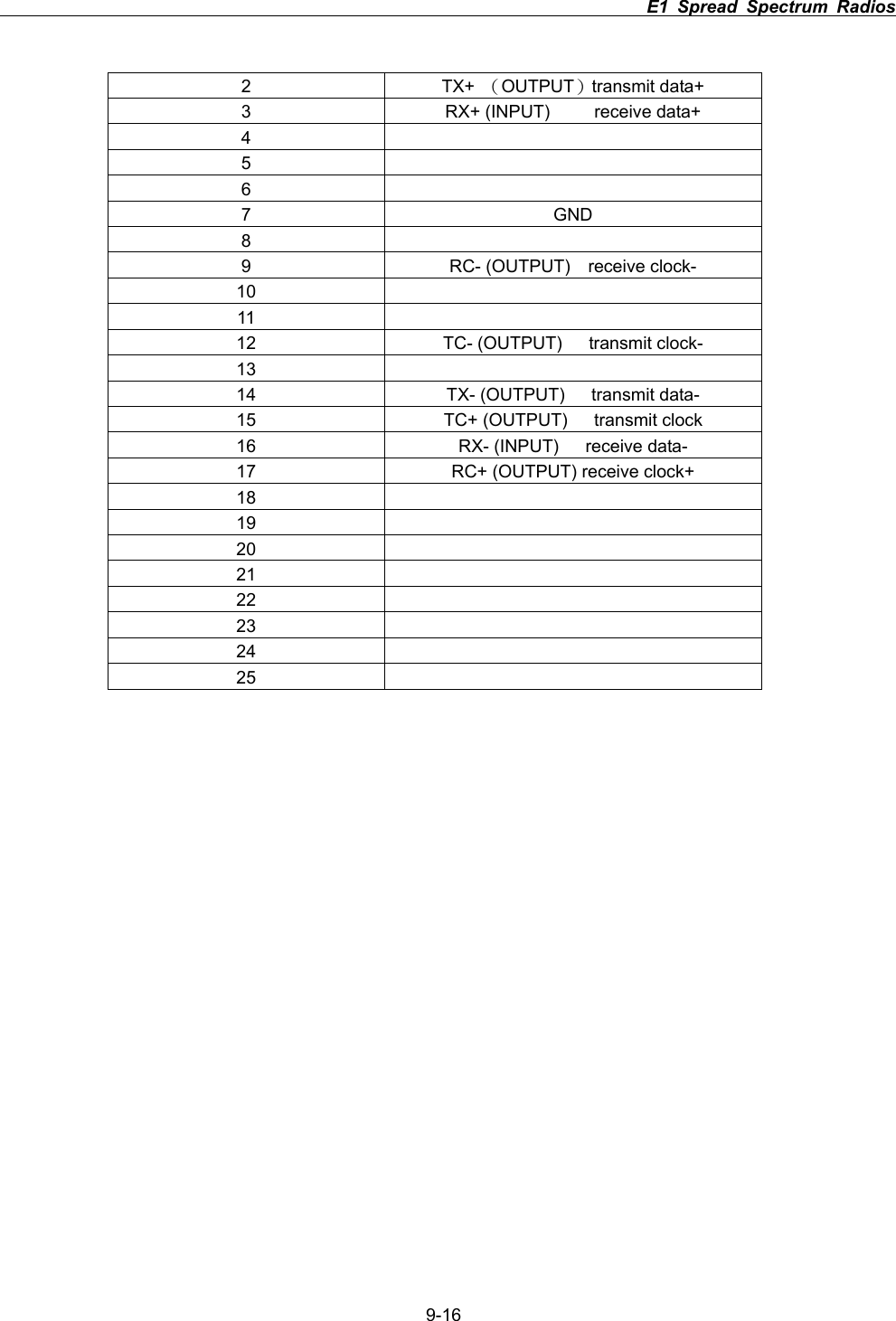

E1 Spread Spectrum Radios 9-162 TX+ ΰOUTPUTαtransmit data+ 3 RX+ (INPUT) receive data+ 4567 GND 89 RC- (OUTPUT) receive clock- 1011 12 TC- (OUTPUT) transmit clock- 1314 TX- (OUTPUT) transmit data- 15 TC+ (OUTPUT) transmit clock 16 RX- (INPUT) receive data- 17 RC+ (OUTPUT) receive clock+ 1819202122232425

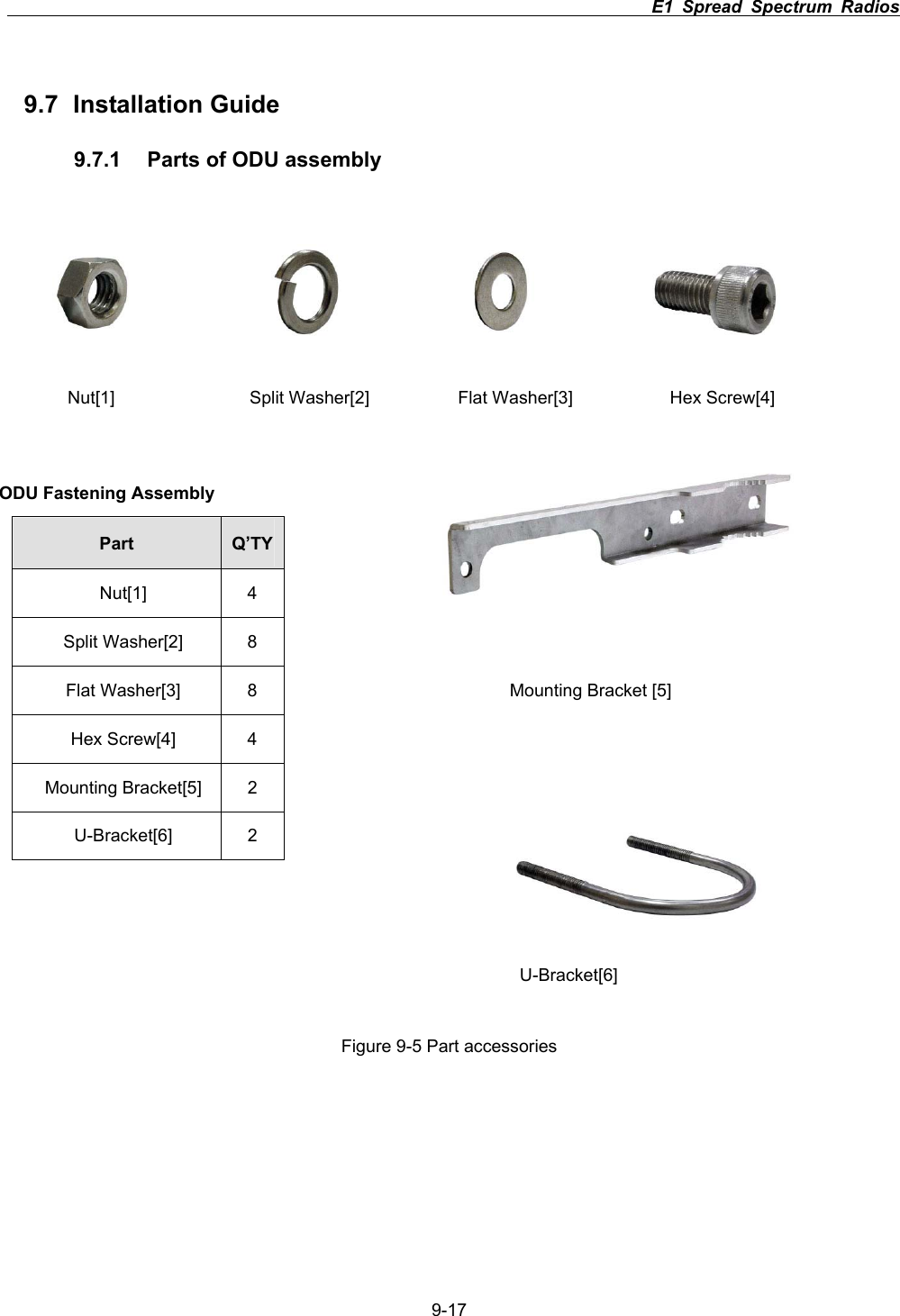

E1 Spread Spectrum Radios 9-179.7 Installation Guide 9.7.1 Parts of ODU assembly Nut[1] Split Washer[2] Flat Washer[3] Hex Screw[4] ODU Fastening Assembly Figure 9-5 Part accessoriesPart Q’TYNut[1] 4 Split Washer[2] 8 Flat Washer[3] 8 Hex Screw[4] 4 Mounting Bracket[5] 2 U-Bracket[6] 2 Mounting Bracket [5]U-Bracket[6]

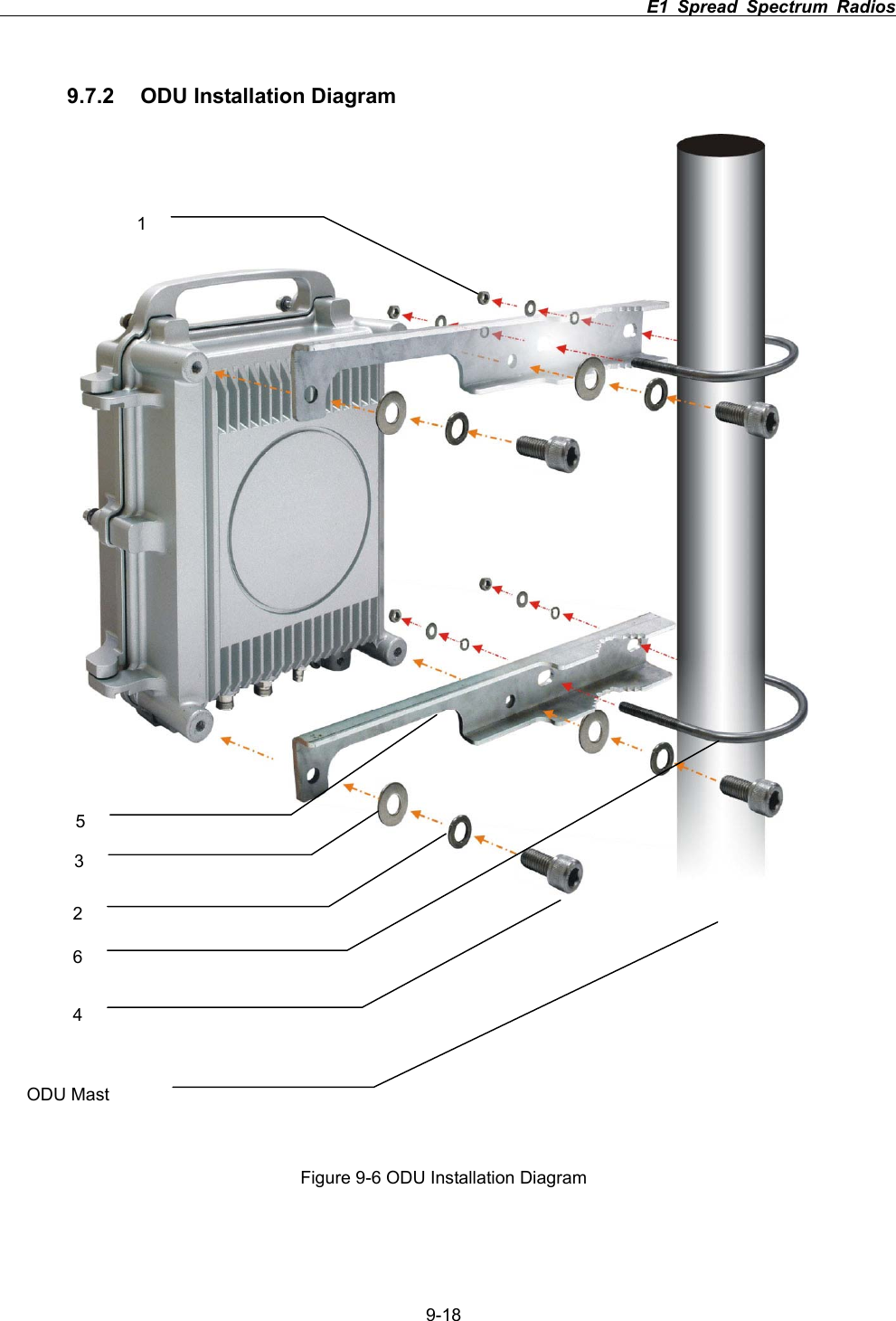

E1 Spread Spectrum Radios 9-189.7.2 ODU Installation Diagram Figure 9-6 ODU Installation Diagram123456ODU Mast

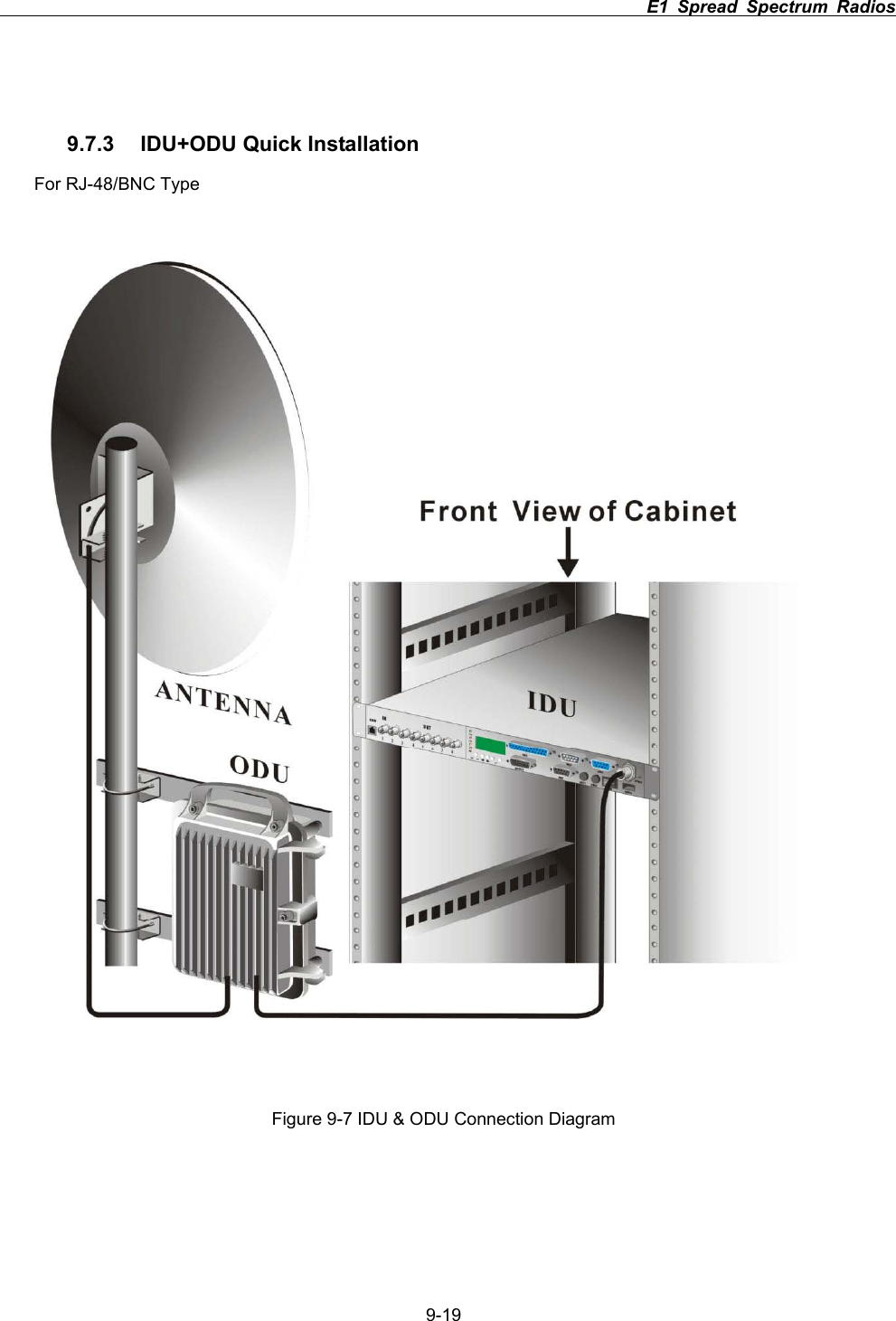

E1 Spread Spectrum Radios 9-199.7.3 IDU+ODU Quick Installation For RJ-48/BNC Type Figure 9-7 IDU & ODU Connection Diagram

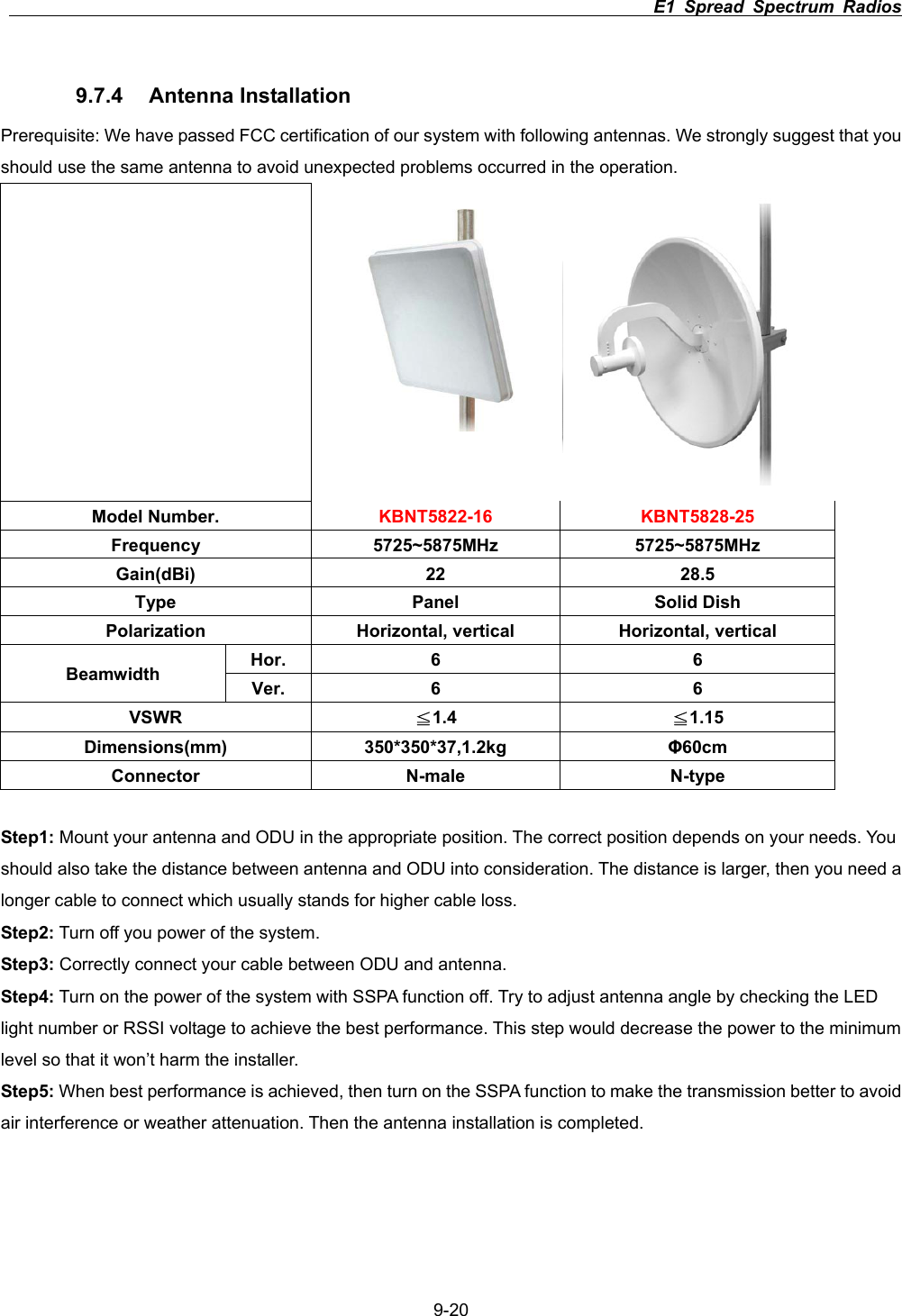

E1 Spread Spectrum Radios 9-209.7.4 Antenna Installation Prerequisite: We have passed FCC certification of our system with following antennas. We strongly suggest that you should use the same antenna to avoid unexpected problems occurred in the operation. Model Number. KBNT5822-16 KBNT5828-25 Frequency 5725~5875MHz 5725~5875MHz Gain(dBi) 22 28.5 Type Panel Solid Dish Polarization Horizontal, vertical Horizontal, vertical Hor. 6 6 Beamwidth Ver. 6 6 VSWR Љ1.4 Љ1.15 Dimensions(mm) 350*350*37,1.2kg ĭ60cmConnector N-male N-type Step1: Mount your antenna and ODU in the appropriate position. The correct position depends on your needs. You should also take the distance between antenna and ODU into consideration. The distance is larger, then you need a longer cable to connect which usually stands for higher cable loss. Step2: Turn off you power of the system. Step3: Correctly connect your cable between ODU and antenna. Step4: Turn on the power of the system with SSPA function off. Try to adjust antenna angle by checking the LED light number or RSSI voltage to achieve the best performance. This step would decrease the power to the minimum level so that it won’t harm the installer. Step5: When best performance is achieved, then turn on the SSPA function to make the transmission better to avoid air interference or weather attenuation. Then the antenna installation is completed.

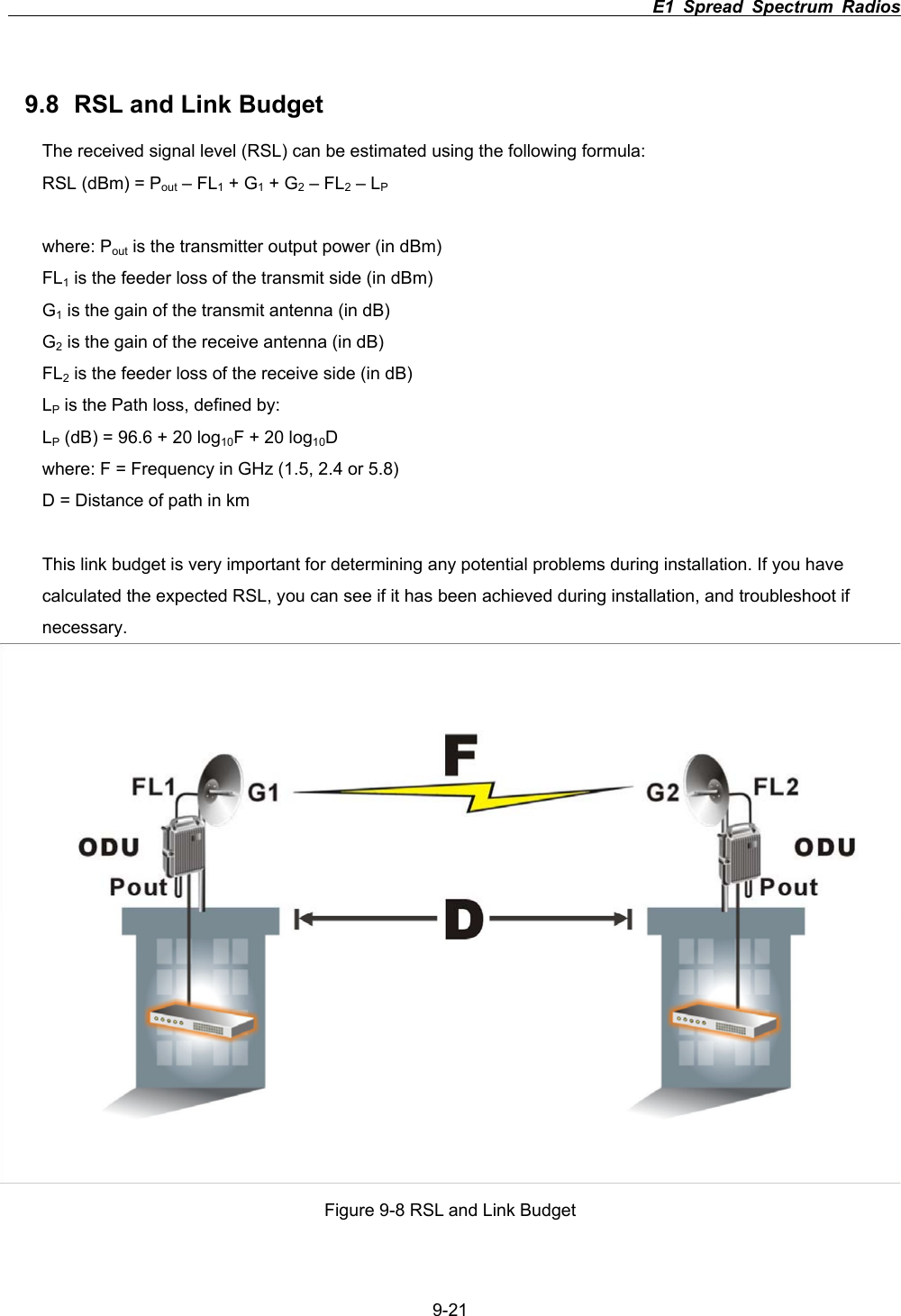

E1 Spread Spectrum Radios 9-219.8 RSL and Link Budget The received signal level (RSL) can be estimated using the following formula: RSL (dBm) = Pout – FL1 + G1 + G2 – FL2 – LPwhere: Pout is the transmitter output power (in dBm) FL1 is the feeder loss of the transmit side (in dBm) G1 is the gain of the transmit antenna (in dB) G2 is the gain of the receive antenna (in dB) FL2 is the feeder loss of the receive side (in dB) LP is the Path loss, defined by: LP (dB) = 96.6 + 20 log10F + 20 log10Dwhere: F = Frequency in GHz (1.5, 2.4 or 5.8) D = Distance of path in km This link budget is very important for determining any potential problems during installation. If you have calculated the expected RSL, you can see if it has been achieved during installation, and troubleshoot if necessary. Figure 9-8 RSL and Link Budget
