KAZ USA VDT985 Thermometer User Manual UIS V1601

KAZ USA INC Thermometer UIS V1601

User manual-rev1

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 1 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009    User Interface Specification VDT985 (Project V1601)   Vick’s Bluetooth Digital Stick Thermometer
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 2 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009   Table of Contents 1 Introduction ............................................................................................................................. 5 1.1 Purpose ......................................................................................................................... 5 1.2 Scope ............................................................................................................................ 5 1.3 References .................................................................................................................... 5 1.4 Terms and Abbreviations ............................................................................................... 5 2 Responsibilities ....................................................................................................................... 5 3 User interface .......................................................................................................................... 5 3.1 Device ID ....................................................................................................................... 5 3.2 App ID ........................................................................................................................... 6 4 Device Workflow ...................................................................................................................... 6 4.1 User action with thermometer workflow ......................................................................... 6 5 App Workflow .......................................................................................................................... 8 5.1 First Time App Launch: Terms, Privacy, & App Tour ....................................................... 8 5.2 TOUR: ........................................................................................................................... 9 If user selects TAKE TOUR from opening sequence, below app screens appear. .................... 9 5.3 First Time Pairing ........................................................................................................ 10 5.4 Home Screen (Take Temp) .......................................................................................... 11 5.5 Taking a Measurement ................................................................................................ 11 5.5.1 Enabling Bluetooth and Selecting Profile .......................................................... 11 If the APP is reopened after being closed, it will first make sure BT is enabled on the phone and then proceed to home screen. If BT is not enabled screen below will appear. User will enable Bluetooth on PHONE settings. User selects profile by using arrows to rotate carousel. ......... 11 5.5.2 Bluetooth and Thermometer status -Sequence to take Measurement ............... 12 5.5.3 Measurement complete .................................................................................... 14 5.6 Profiles ........................................................................................................................ 15 5.7 History ......................................................................................................................... 16

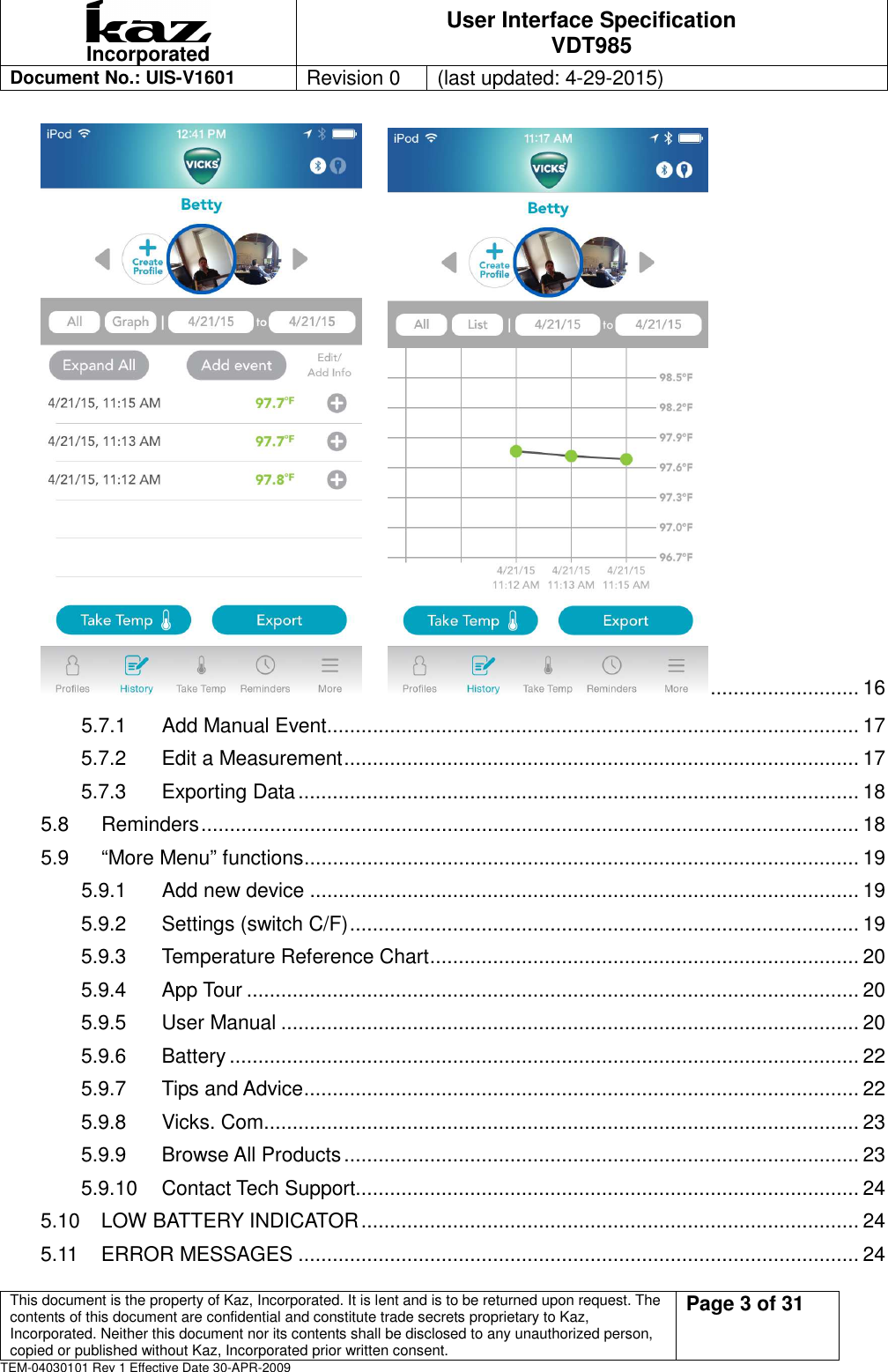

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 3 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009        .......................... 16 5.7.1 Add Manual Event............................................................................................. 17 5.7.2 Edit a Measurement .......................................................................................... 17 5.7.3 Exporting Data .................................................................................................. 18 5.8 Reminders ................................................................................................................... 18 5.9 “More Menu” functions ................................................................................................. 19 5.9.1 Add new device ................................................................................................ 19 5.9.2 Settings (switch C/F) ......................................................................................... 19 5.9.3 Temperature Reference Chart ........................................................................... 20 5.9.4 App Tour ........................................................................................................... 20 5.9.5 User Manual ..................................................................................................... 20 5.9.6 Battery .............................................................................................................. 22 5.9.7 Tips and Advice ................................................................................................. 22 5.9.8 Vicks. Com ........................................................................................................ 23 5.9.9 Browse All Products .......................................................................................... 23 5.9.10 Contact Tech Support........................................................................................ 24 5.10 LOW BATTERY INDICATOR ....................................................................................... 24 5.11 ERROR MESSAGES .................................................................................................. 24
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 4 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.11.1 Low temperature display ................................................................................... 25 5.11.2 Ambient Error .................................................................................................... 25 5.11.3 System Error ..................................................................................................... 26 5.11.4 Premature Removal of Thermometer ................................................................ 27 5.11.5 Remove Thermometer Error ............................................................................. 28 5.12 Enter Water bath/Calibration mode .............................................................................. 28 6 InSight Tables (programmed into the app) ............................................................................. 28 6.1 US app Insight colors -No AgeSmart ........................................................................... 29 6.2 EMEA and CA app Insight colors –With AgeSmart....................................................... 29 7 Document Information and Approval ...................................................................................... 30 7.1 Revision History .......................................................................................................... 30 7.2 Approval ...................................................................................................................... 31 7.3 Effective date: .............................................................................................................. 31

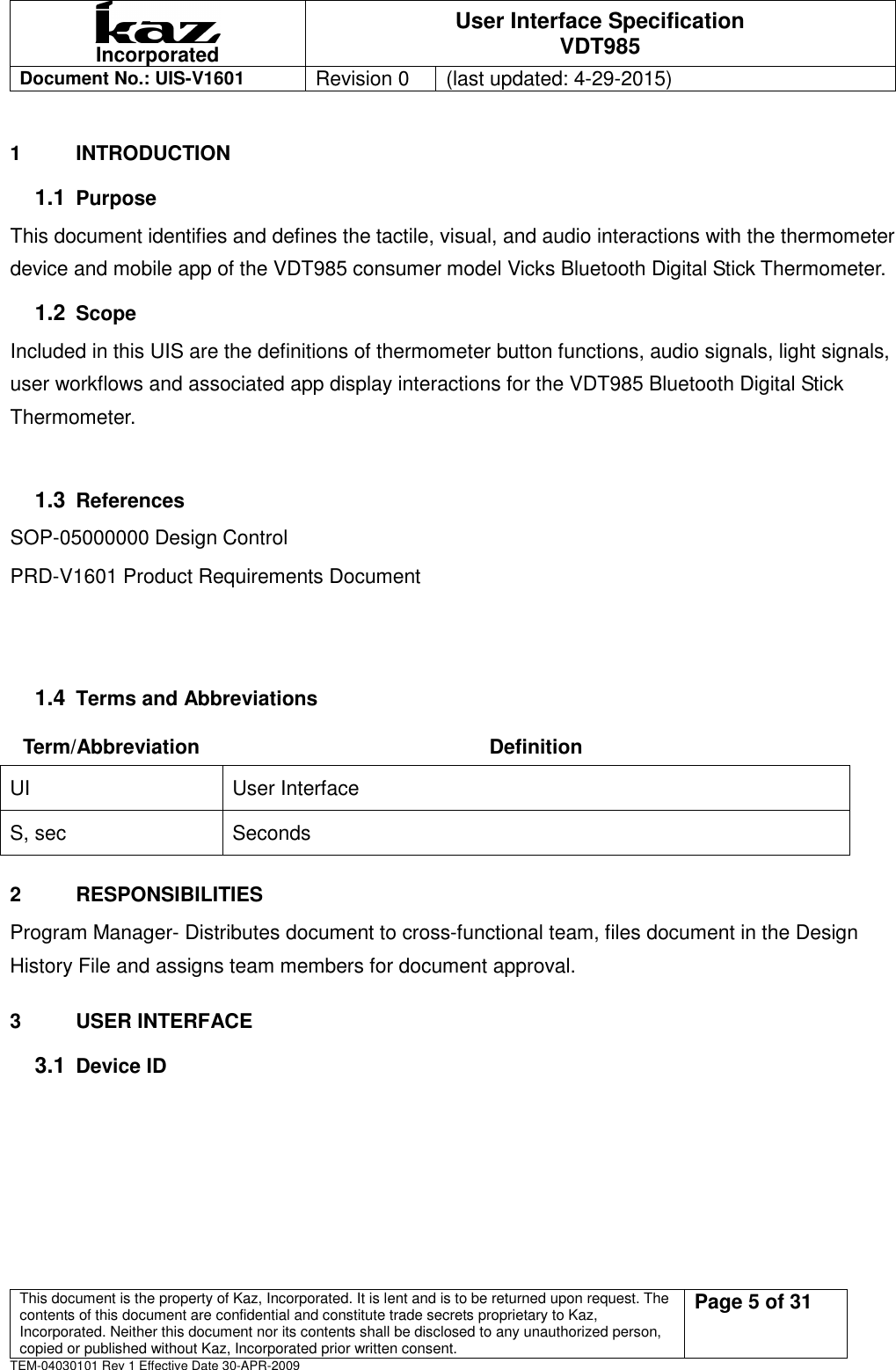

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 5 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 1  INTRODUCTION   1.1 Purpose This document identifies and defines the tactile, visual, and audio interactions with the thermometer device and mobile app of the VDT985 consumer model Vicks Bluetooth Digital Stick Thermometer. 1.2 Scope Included in this UIS are the definitions of thermometer button functions, audio signals, light signals, user workflows and associated app display interactions for the VDT985 Bluetooth Digital Stick Thermometer.  1.3 References SOP-05000000 Design Control PRD-V1601 Product Requirements Document     1.4 Terms and Abbreviations Term/Abbreviation  Definition UI  User Interface S, sec  Seconds 2  RESPONSIBILITIES Program Manager- Distributes document to cross-functional team, files document in the Design History File and assigns team members for document approval.   3  USER INTERFACE 3.1 Device ID

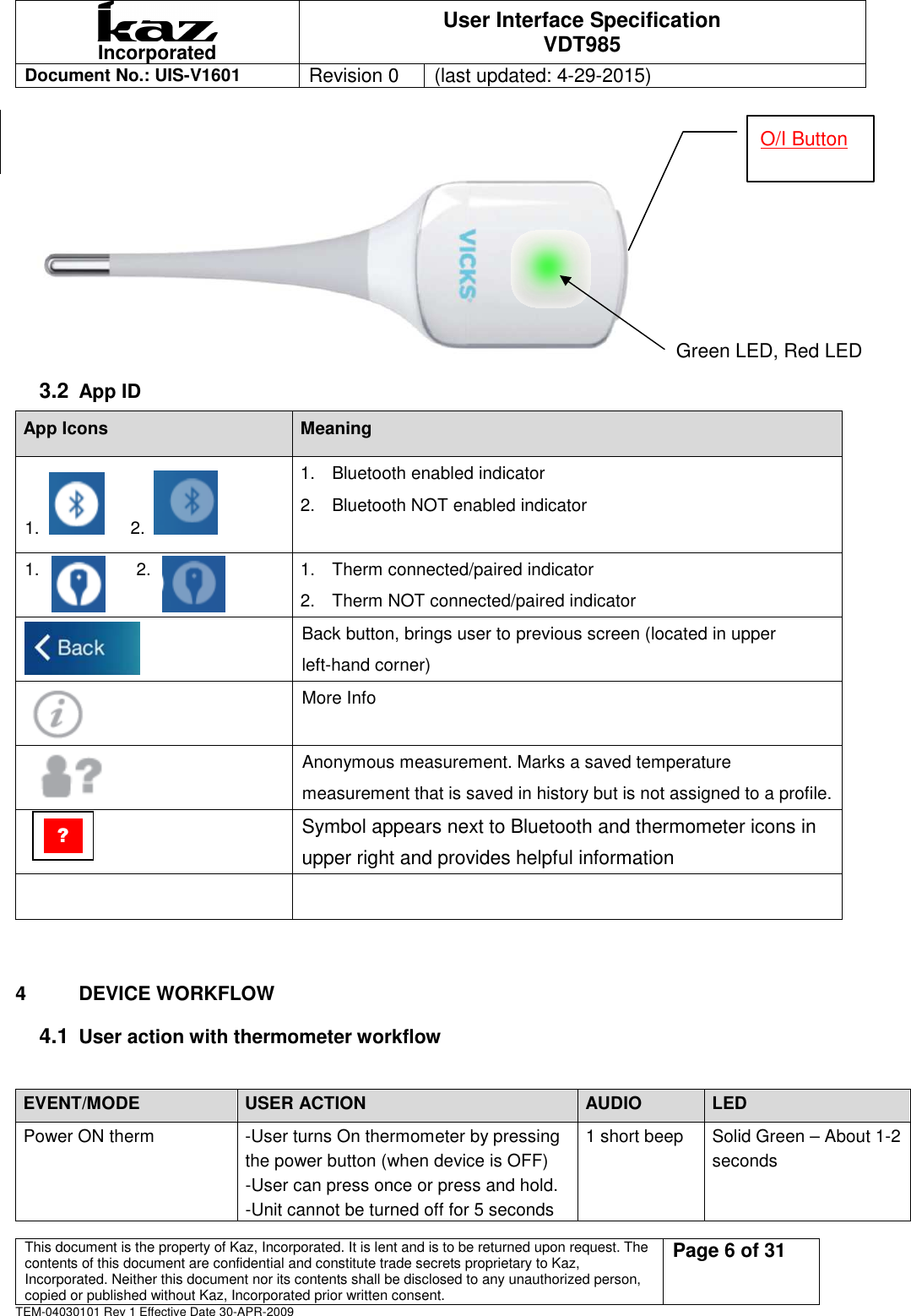

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 6 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009     Green LED, Red LED 3.2 App ID App Icons  Meaning 1.       2.   1.  Bluetooth enabled indicator 2.  Bluetooth NOT enabled indicator  1.                      2.  1.  Therm connected/paired indicator 2.  Therm NOT connected/paired indicator  Back button, brings user to previous screen (located in upper left-hand corner)  More Info  Anonymous measurement. Marks a saved temperature measurement that is saved in history but is not assigned to a profile.   Symbol appears next to Bluetooth and thermometer icons in upper right and provides helpful information     4  DEVICE WORKFLOW   4.1 User action with thermometer workflow    EVENT/MODE  USER ACTION  AUDIO  LED Power ON therm  -User turns On thermometer by pressing the power button (when device is OFF) -User can press once or press and hold. -Unit cannot be turned off for 5 seconds 1 short beep  Solid Green – About 1-2 seconds O/I Button ?

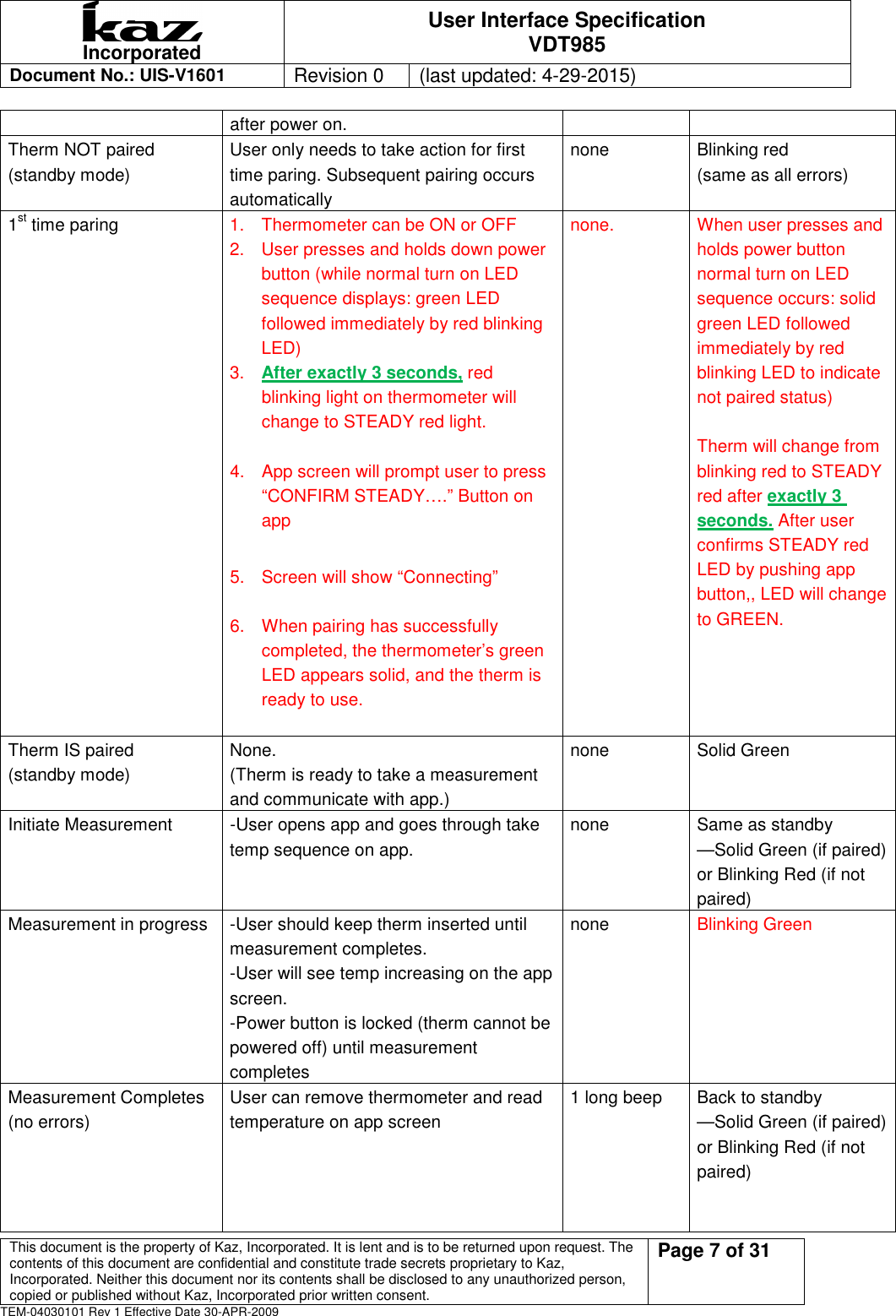

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 7 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 after power on. Therm NOT paired (standby mode) User only needs to take action for first time paring. Subsequent pairing occurs automatically none  Blinking red   (same as all errors)  1st time paring  1.  Thermometer can be ON or OFF 2.  User presses and holds down power button (while normal turn on LED sequence displays: green LED followed immediately by red blinking LED)   3.  After exactly 3 seconds, red blinking light on thermometer will change to STEADY red light.  4.  App screen will prompt user to press “CONFIRM STEADY….” Button on app    5.  Screen will show “Connecting”    6.  When pairing has successfully completed, the thermometer’s green LED appears solid, and the therm is ready to use.  none.  When user presses and holds power button normal turn on LED sequence occurs: solid green LED followed immediately by red blinking LED to indicate not paired status)  Therm will change from blinking red to STEADY red after exactly 3 seconds. After user confirms STEADY red LED by pushing app button,, LED will change to GREEN.  Therm IS paired   (standby mode) None.   (Therm is ready to take a measurement and communicate with app.) none  Solid Green  Initiate Measurement    -User opens app and goes through take temp sequence on app.    none  Same as standby —Solid Green (if paired) or Blinking Red (if not paired) Measurement in progress  -User should keep therm inserted until measurement completes.   -User will see temp increasing on the app screen. -Power button is locked (therm cannot be powered off) until measurement completes none  Blinking Green Measurement Completes (no errors) User can remove thermometer and read temperature on app screen 1 long beep  Back to standby   —Solid Green (if paired) or Blinking Red (if not paired)
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 8 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 Measurement Error     Ambient Error Hi/Lo Temp Error System Error Error message will appear on app screen (See below for specific error message app screens.) 2 quick beeps repeated 5x   (same as V966) Steady RED appears on thermometer until Take temp button is pressed or user navigates away from error screen 10% & 20% Low Therm Battery Low battery warning displays on app screen only. none  none Less than 2.2 V Battery  Dead battery warning displays on app screen only. 2 quick beeps repeated 5x   (same as V966) Steady red Power OFF therm  -User presses power button (when device is ON, but not actively taking a measurement) -Cannot be powered off within 5secs of power on- do we still want this? 1 short beep  LED off Therm auto powers OFF  Device powers OFF automatically after 2mins of continuous standby   1 short beep  LED off Short beep ~0.5sec Long beep ~2 sec 5  APP WORKFLOW   5.1 First Time App Launch: Terms, Privacy, & App Tour The following screen sequence illustrates the first time the app is opened after being downloaded. User is prompted to accept privacy policy, take tour and pair thermometer.

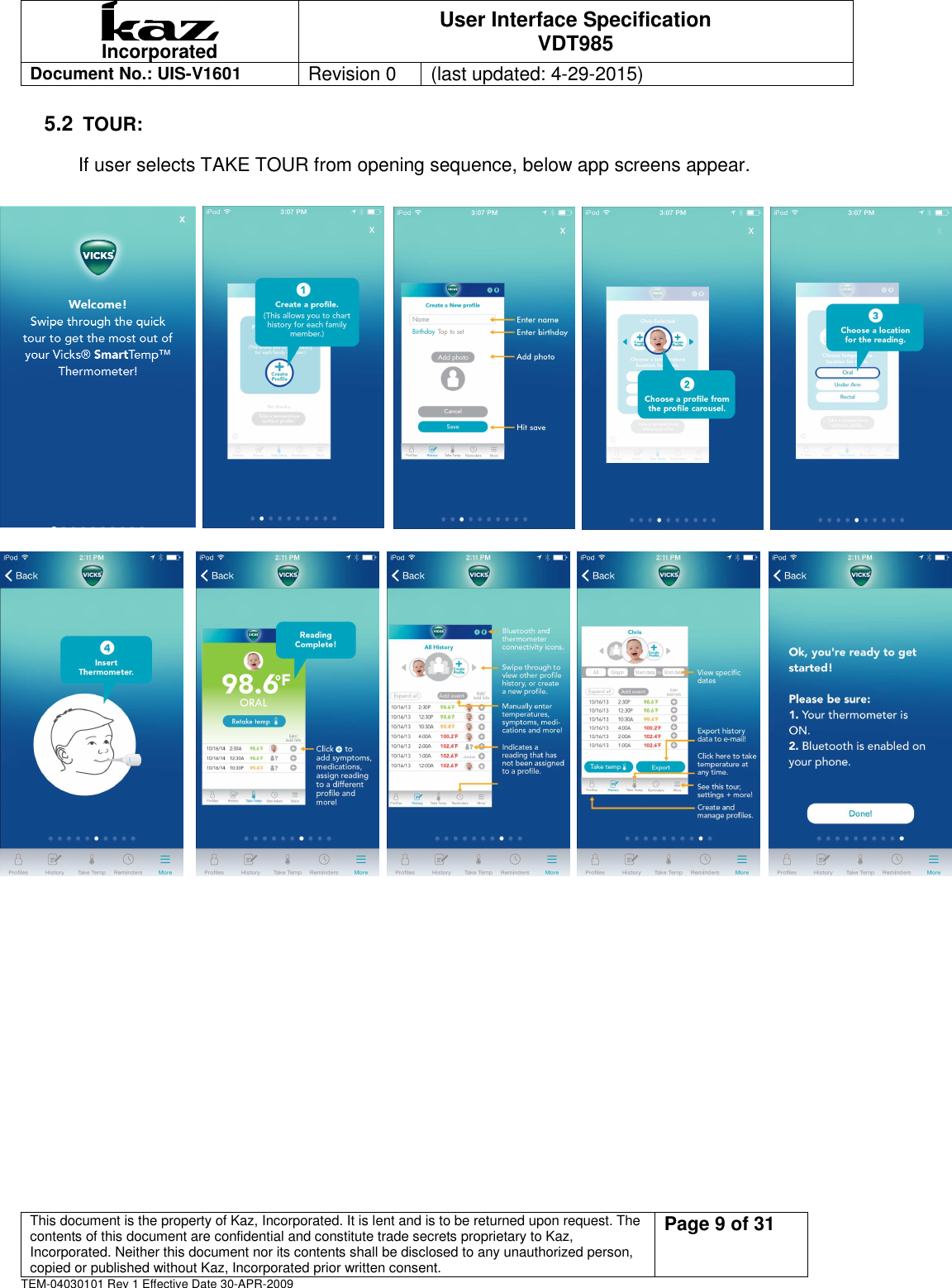

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 9 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.2 TOUR:   If user selects TAKE TOUR from opening sequence, below app screens appear.

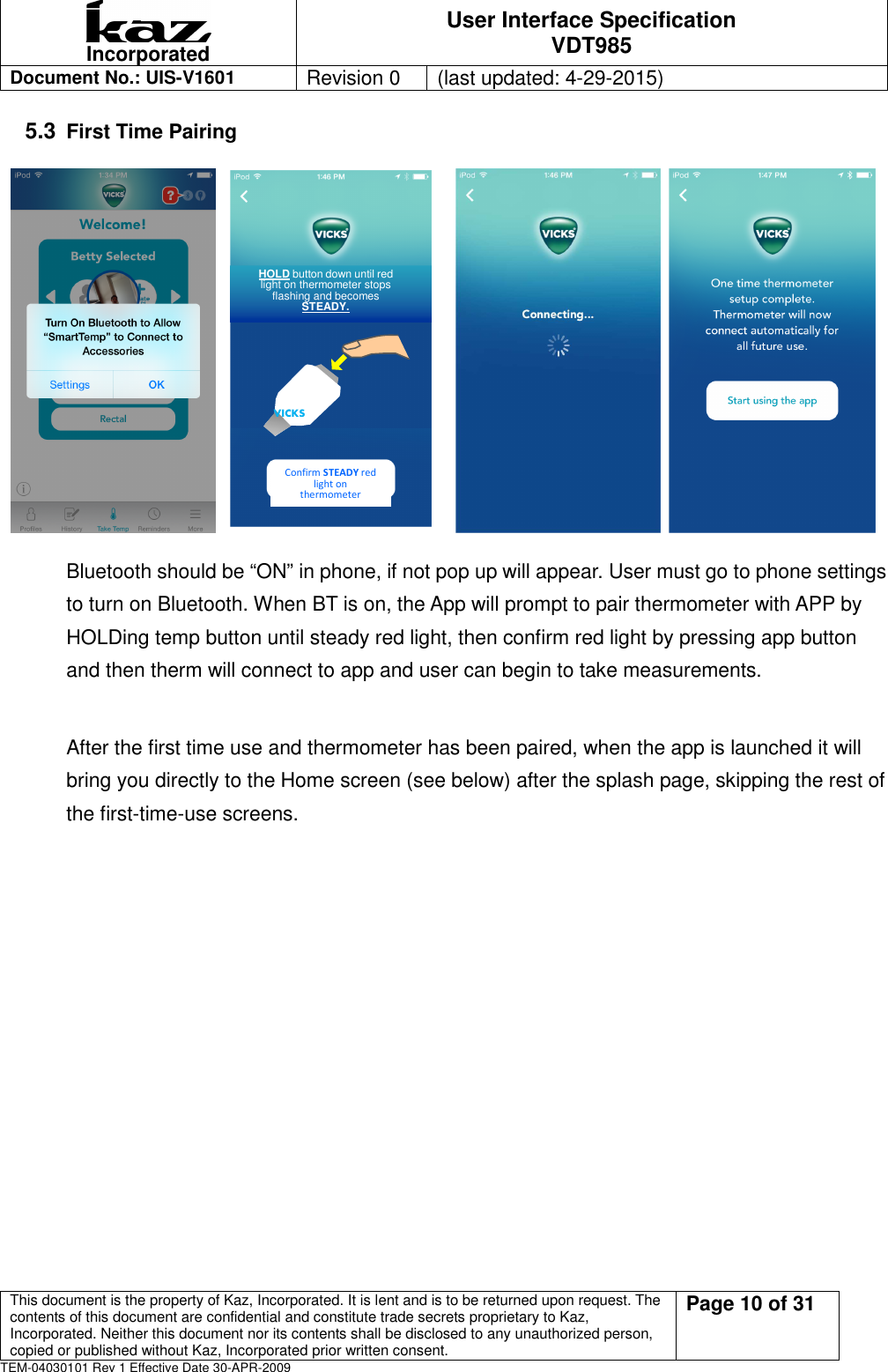

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 10 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.3 First Time Pairing                                                             Bluetooth should be “ON” in phone, if not pop up will appear. User must go to phone settings to turn on Bluetooth. When BT is on, the App will prompt to pair thermometer with APP by HOLDing temp button until steady red light, then confirm red light by pressing app button and then therm will connect to app and user can begin to take measurements.    After the first time use and thermometer has been paired, when the app is launched it will bring you directly to the Home screen (see below) after the splash page, skipping the rest of the first-time-use screens.  HOLD button down until red light on thermometer stops flashing and becomes STEADY. Confirm STEADY red light on thermometer VICKS

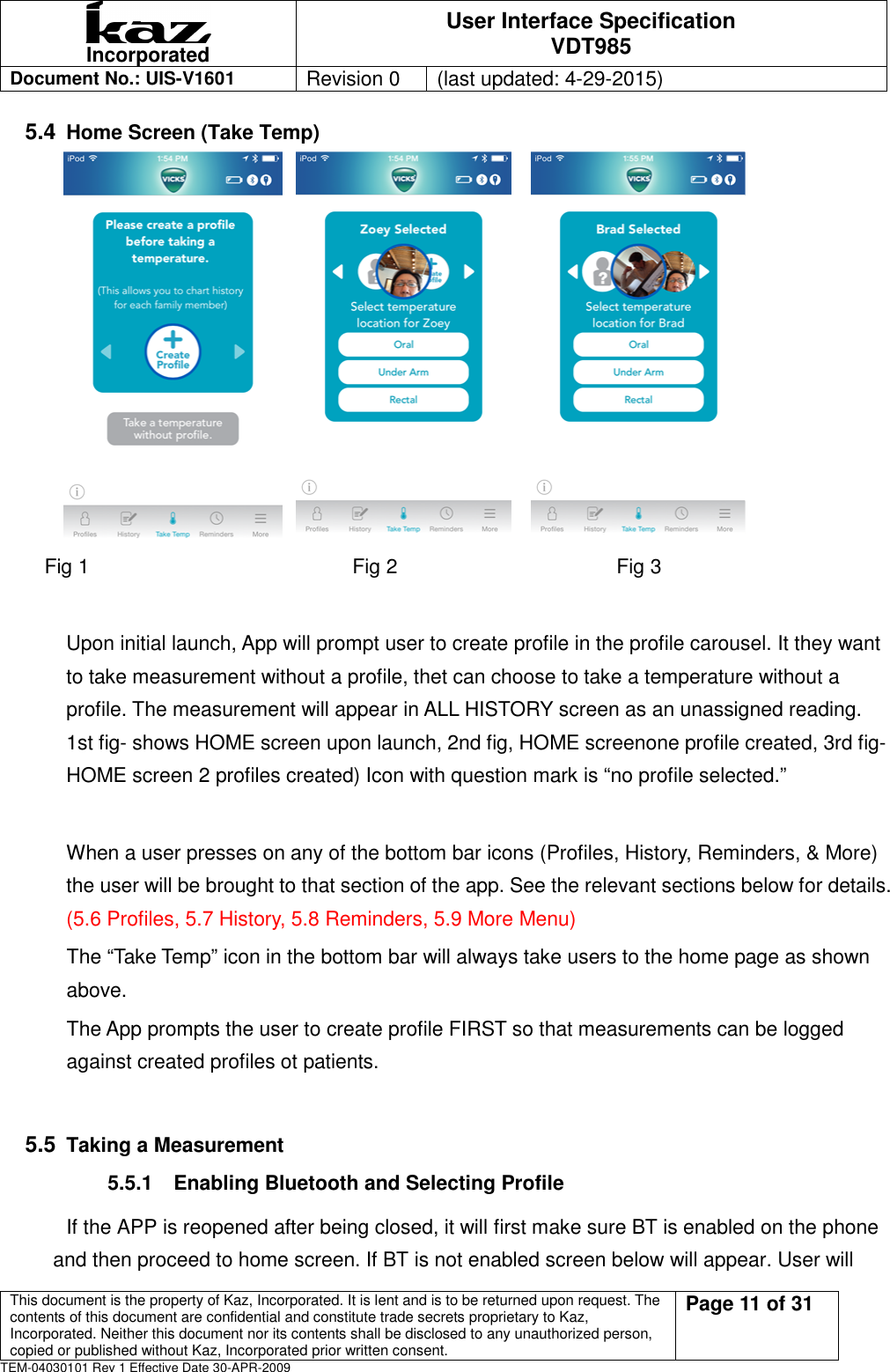

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 11 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.4 Home Screen (Take Temp)                            Fig 1            Fig 2          Fig 3  Upon initial launch, App will prompt user to create profile in the profile carousel. It they want to take measurement without a profile, thet can choose to take a temperature without a profile. The measurement will appear in ALL HISTORY screen as an unassigned reading.   1st fig- shows HOME screen upon launch, 2nd fig, HOME screenone profile created, 3rd fig- HOME screen 2 profiles created) Icon with question mark is “no profile selected.”  When a user presses on any of the bottom bar icons (Profiles, History, Reminders, & More) the user will be brought to that section of the app. See the relevant sections below for details. (5.6 Profiles, 5.7 History, 5.8 Reminders, 5.9 More Menu) The “Take Temp” icon in the bottom bar will always take users to the home page as shown above. The App prompts the user to create profile FIRST so that measurements can be logged against created profiles ot patients.  5.5 Taking a Measurement   5.5.1  Enabling Bluetooth and Selecting Profile     If the APP is reopened after being closed, it will first make sure BT is enabled on the phone and then proceed to home screen. If BT is not enabled screen below will appear. User will

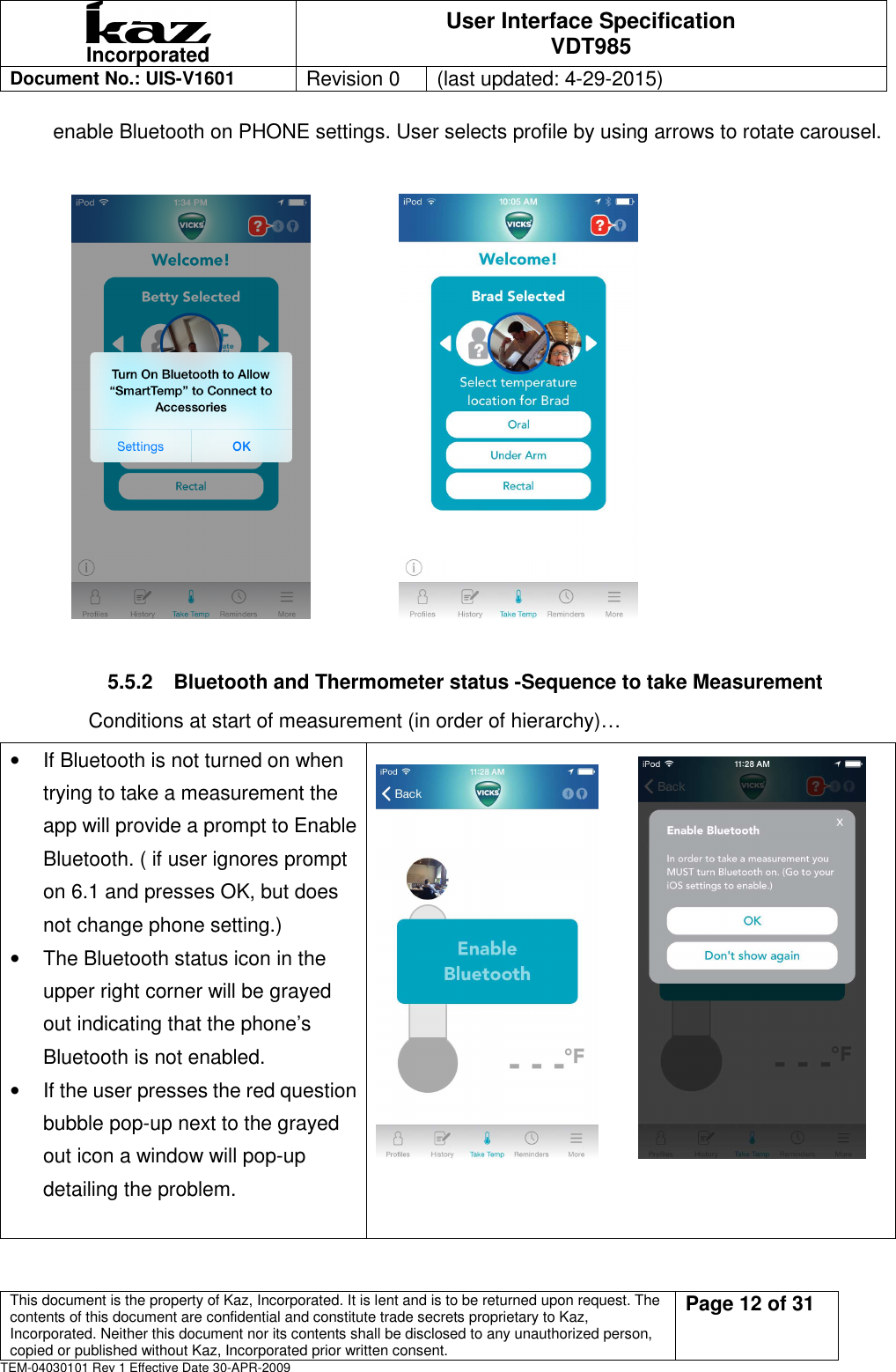

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 12 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 enable Bluetooth on PHONE settings. User selects profile by using arrows to rotate carousel.                                            5.5.2  Bluetooth and Thermometer status -Sequence to take Measurement Conditions at start of measurement (in order of hierarchy)… •  If Bluetooth is not turned on when trying to take a measurement the app will provide a prompt to Enable Bluetooth. ( if user ignores prompt on 6.1 and presses OK, but does not change phone setting.) •  The Bluetooth status icon in the upper right corner will be grayed out indicating that the phone’s Bluetooth is not enabled. •  If the user presses the red question bubble pop-up next to the grayed out icon a window will pop-up detailing the problem.

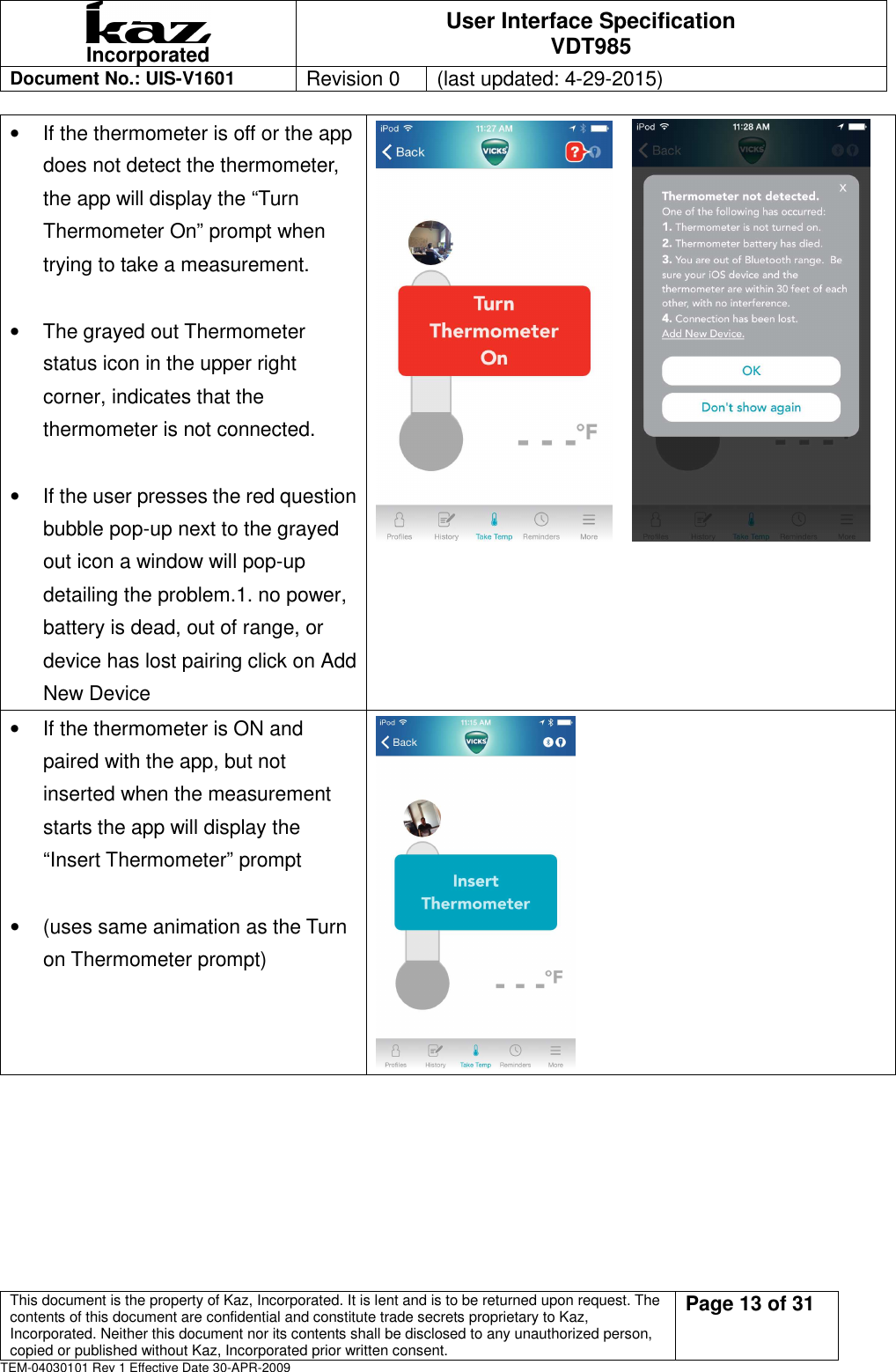

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 13 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 •  If the thermometer is off or the app does not detect the thermometer, the app will display the “Turn Thermometer On” prompt when trying to take a measurement.  •  The grayed out Thermometer status icon in the upper right corner, indicates that the thermometer is not connected.    •  If the user presses the red question bubble pop-up next to the grayed out icon a window will pop-up detailing the problem.1. no power, battery is dead, out of range, or device has lost pairing click on Add New Device      •  If the thermometer is ON and paired with the app, but not inserted when the measurement starts the app will display the “Insert Thermometer” prompt  •  (uses same animation as the Turn on Thermometer prompt)

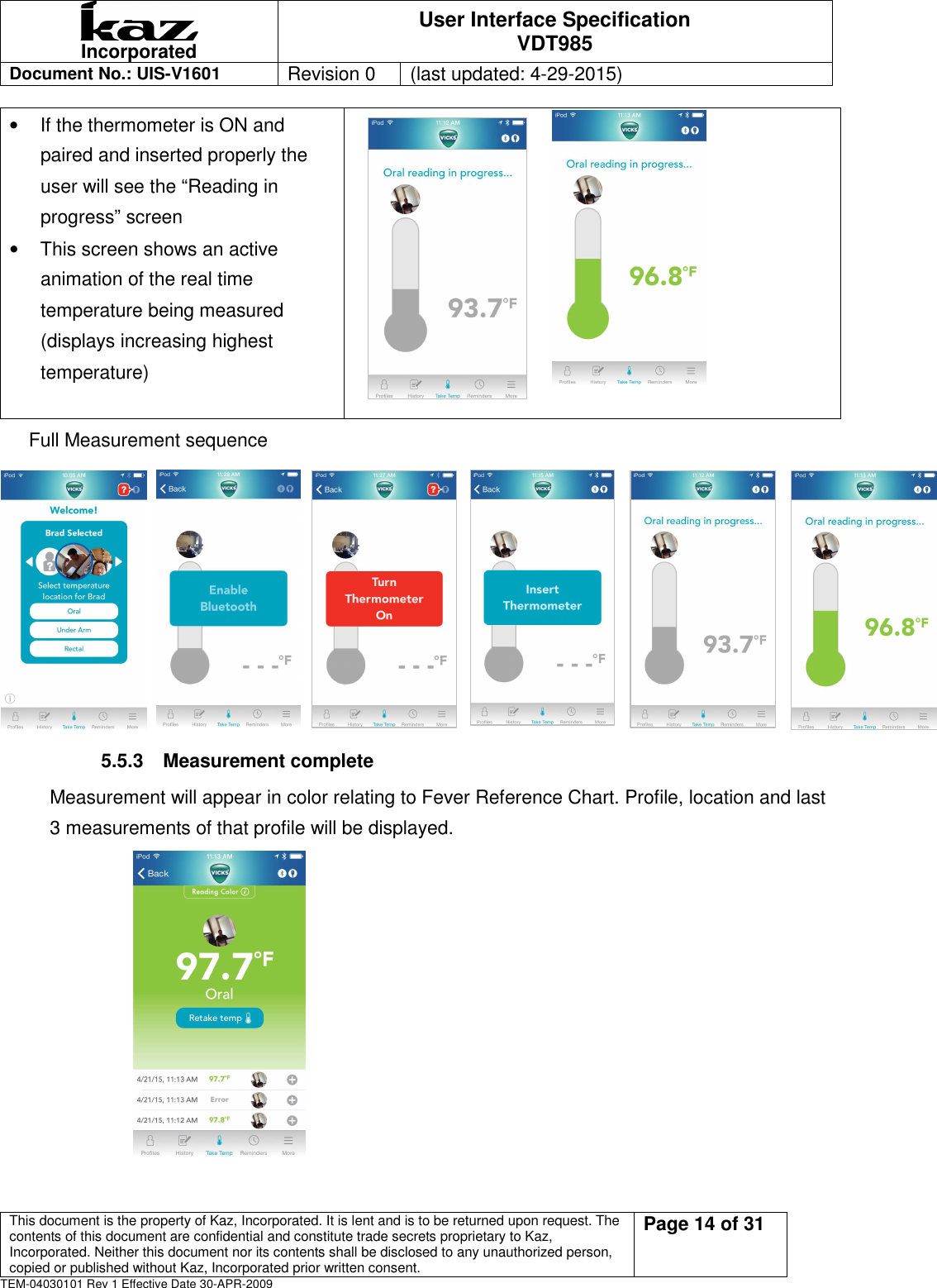

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 14 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 •  If the thermometer is ON and paired and inserted properly the user will see the “Reading in progress” screen   •  This screen shows an active animation of the real time temperature being measured (displays increasing highest temperature)                               Full Measurement sequence        5.5.3  Measurement complete Measurement will appear in color relating to Fever Reference Chart. Profile, location and last 3 measurements of that profile will be displayed.

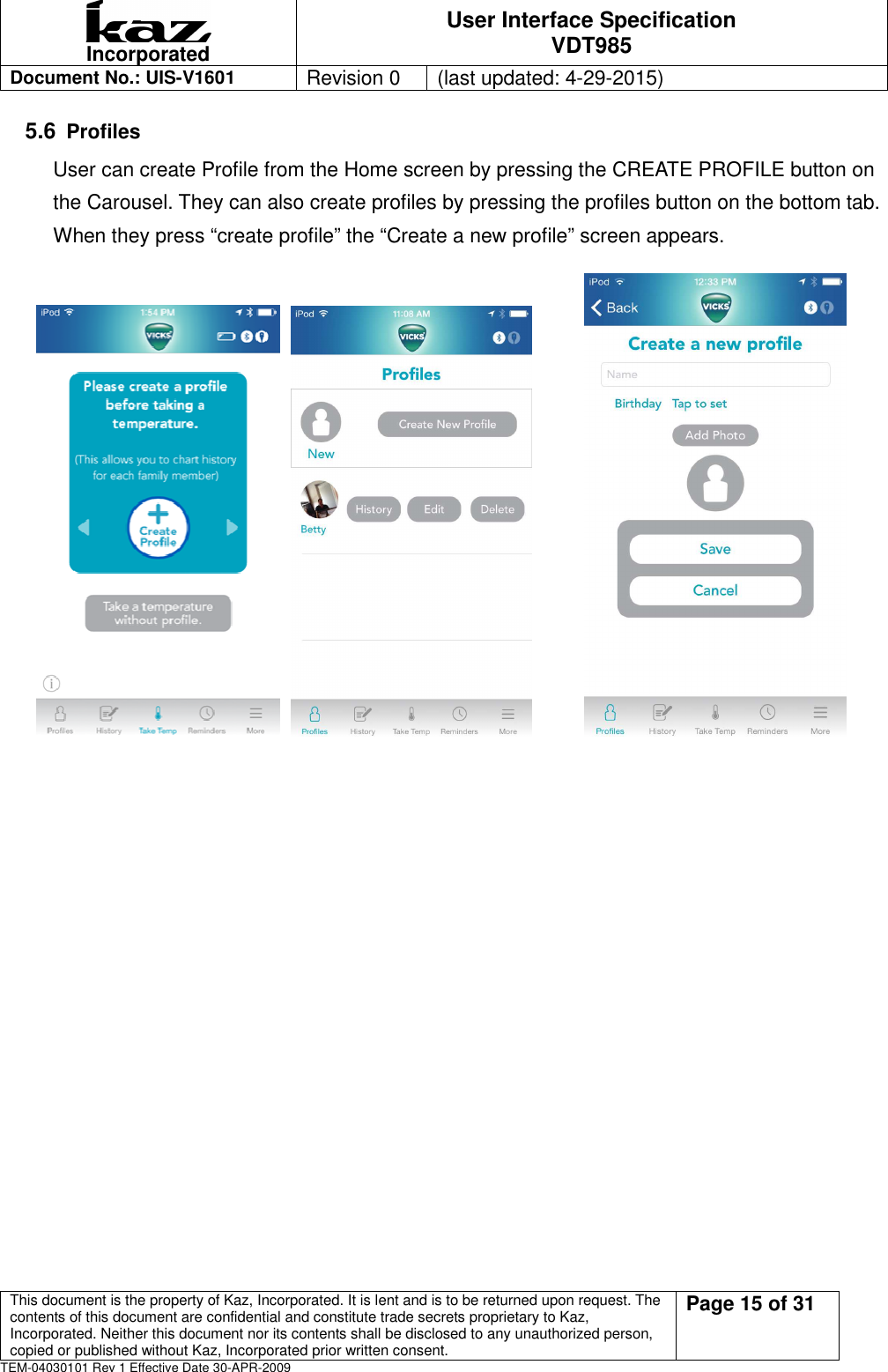

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 15 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.6 Profiles User can create Profile from the Home screen by pressing the CREATE PROFILE button on the Carousel. They can also create profiles by pressing the profiles button on the bottom tab. When they press “create profile” the “Create a new profile” screen appears.

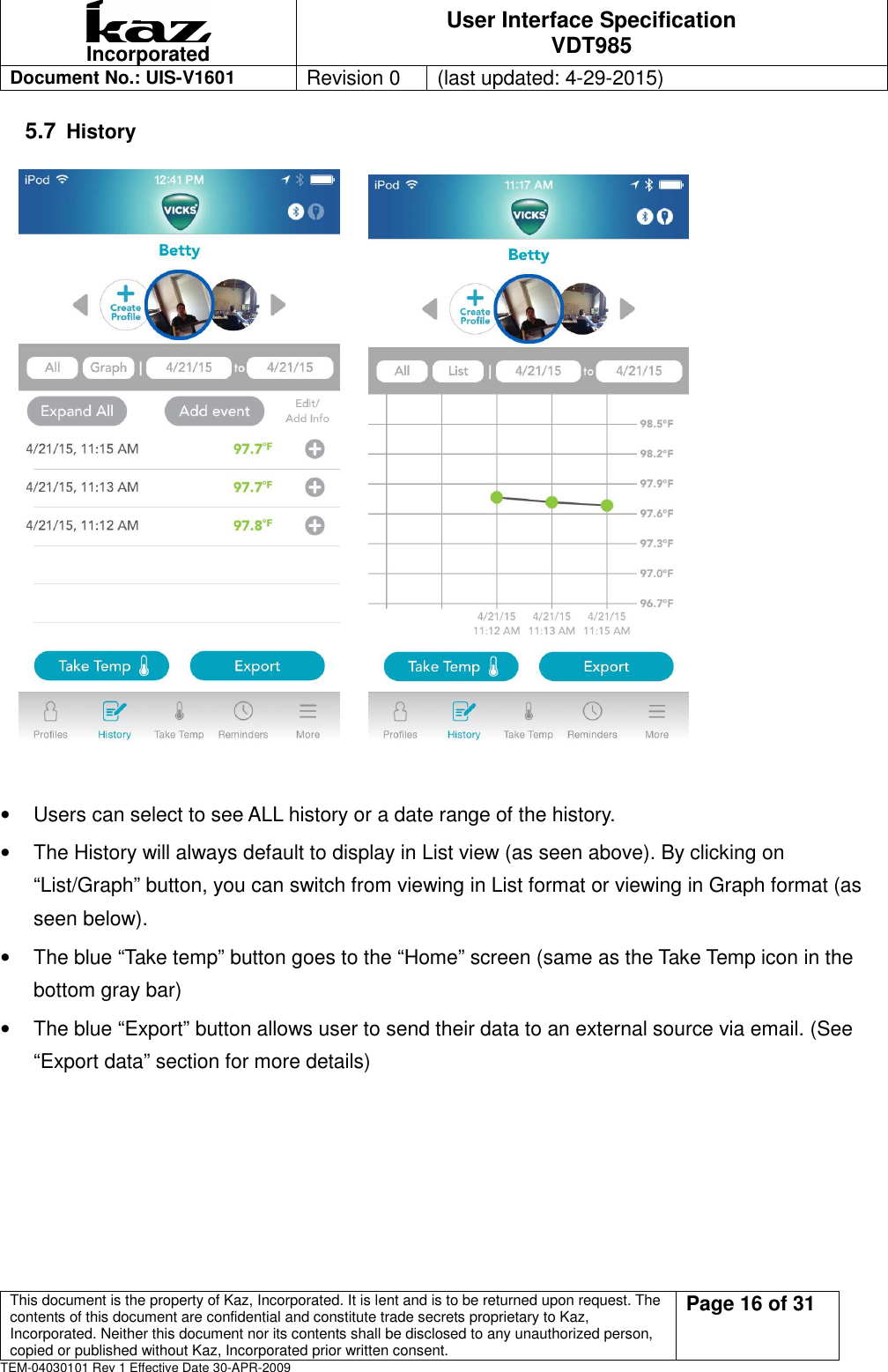

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 16 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.7 History                 •  Users can select to see ALL history or a date range of the history. •  The History will always default to display in List view (as seen above). By clicking on “List/Graph” button, you can switch from viewing in List format or viewing in Graph format (as seen below). •  The blue “Take temp” button goes to the “Home” screen (same as the Take Temp icon in the bottom gray bar) •  The blue “Export” button allows user to send their data to an external source via email. (See “Export data” section for more details)

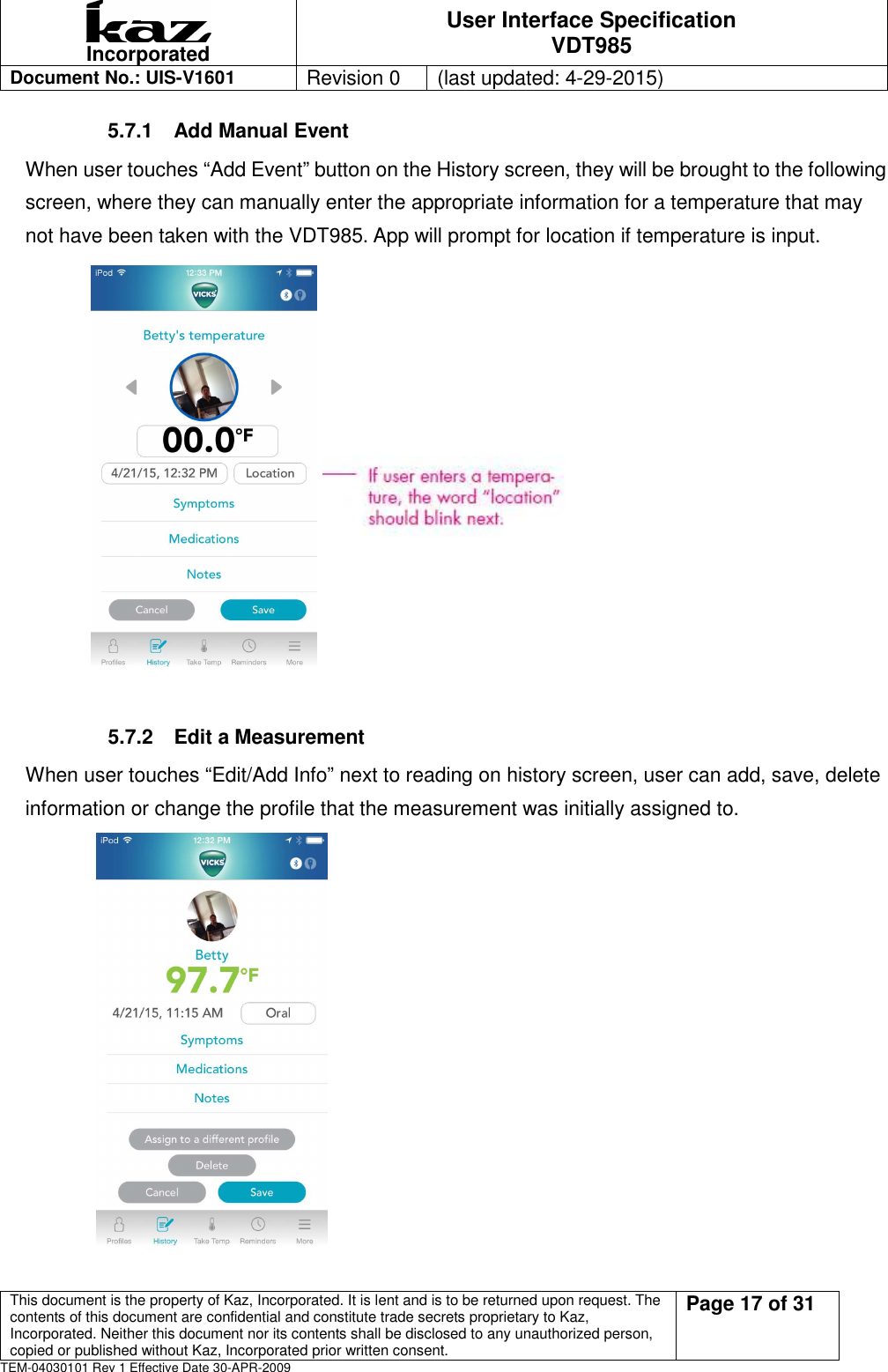

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 17 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.7.1  Add Manual Event   When user touches “Add Event” button on the History screen, they will be brought to the following screen, where they can manually enter the appropriate information for a temperature that may not have been taken with the VDT985. App will prompt for location if temperature is input.             5.7.2  Edit a Measurement   When user touches “Edit/Add Info” next to reading on history screen, user can add, save, delete   information or change the profile that the measurement was initially assigned to.

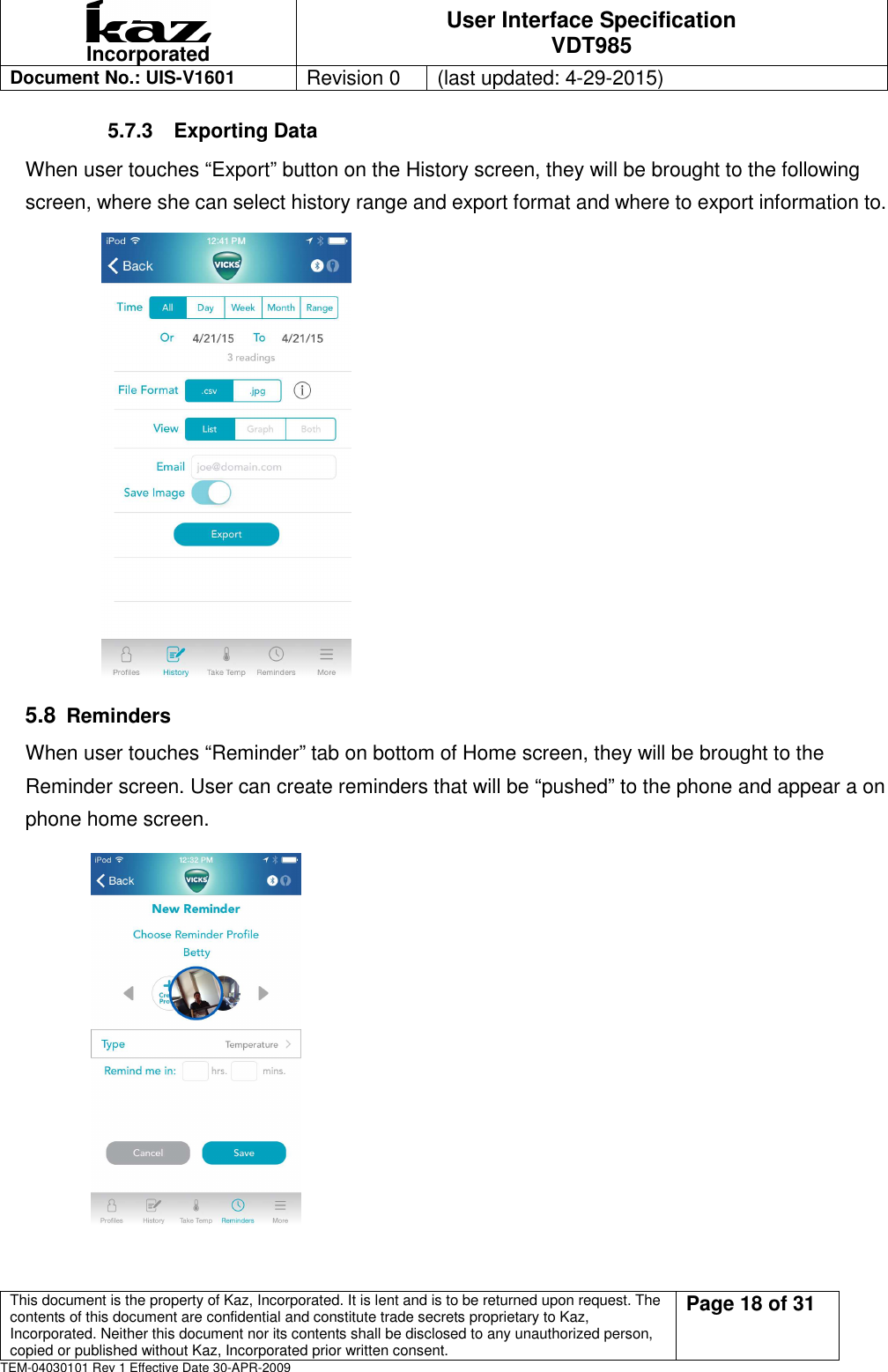

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 18 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.7.3  Exporting Data When user touches “Export” button on the History screen, they will be brought to the following screen, where she can select history range and export format and where to export information to.             5.8 Reminders When user touches “Reminder” tab on bottom of Home screen, they will be brought to the Reminder screen. User can create reminders that will be “pushed” to the phone and appear a on phone home screen.

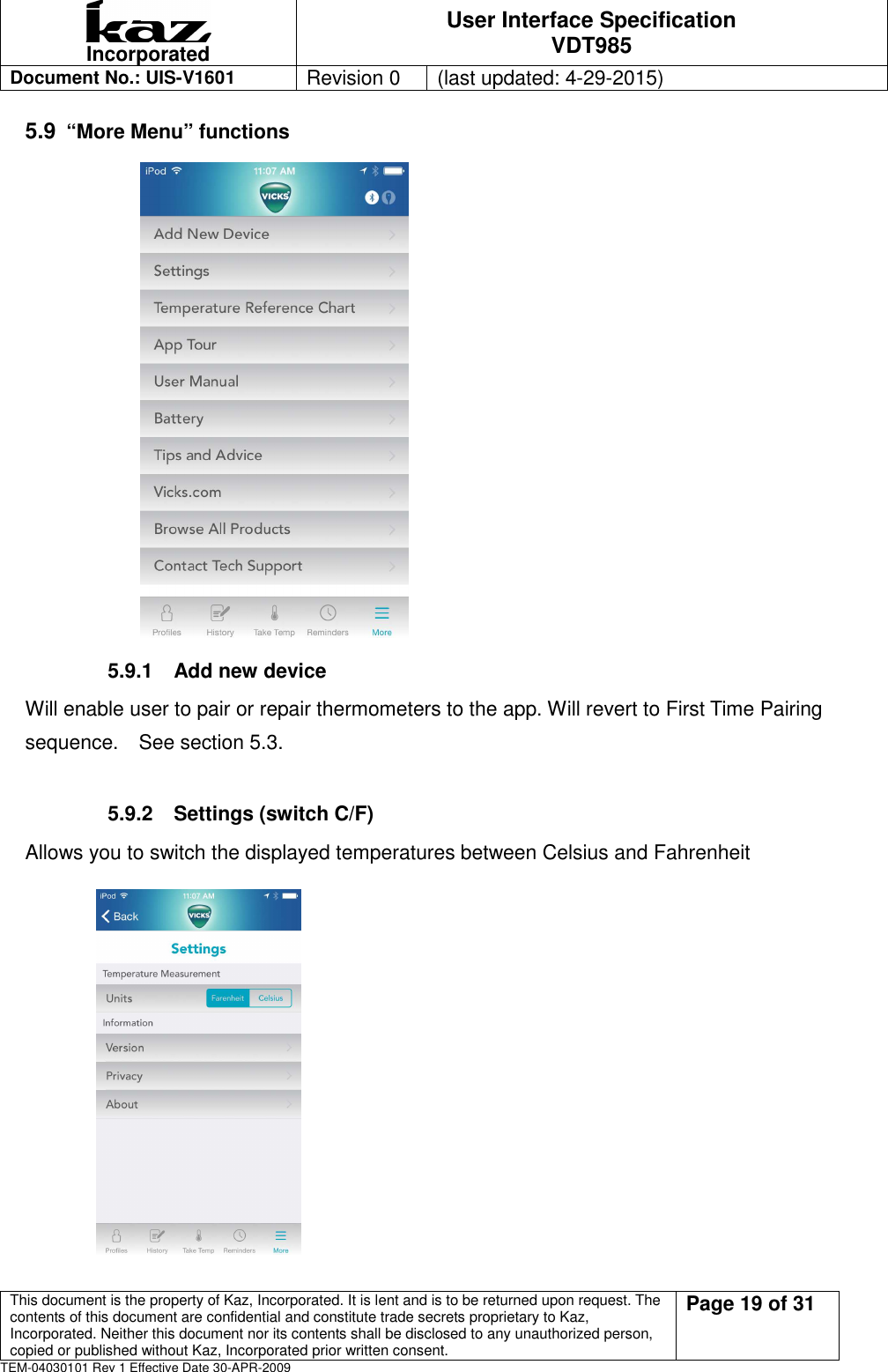

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 19 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9 “More Menu” functions                            5.9.1  Add new device Will enable user to pair or repair thermometers to the app. Will revert to First Time Pairing sequence.    See section 5.3.  5.9.2  Settings (switch C/F) Allows you to switch the displayed temperatures between Celsius and Fahrenheit

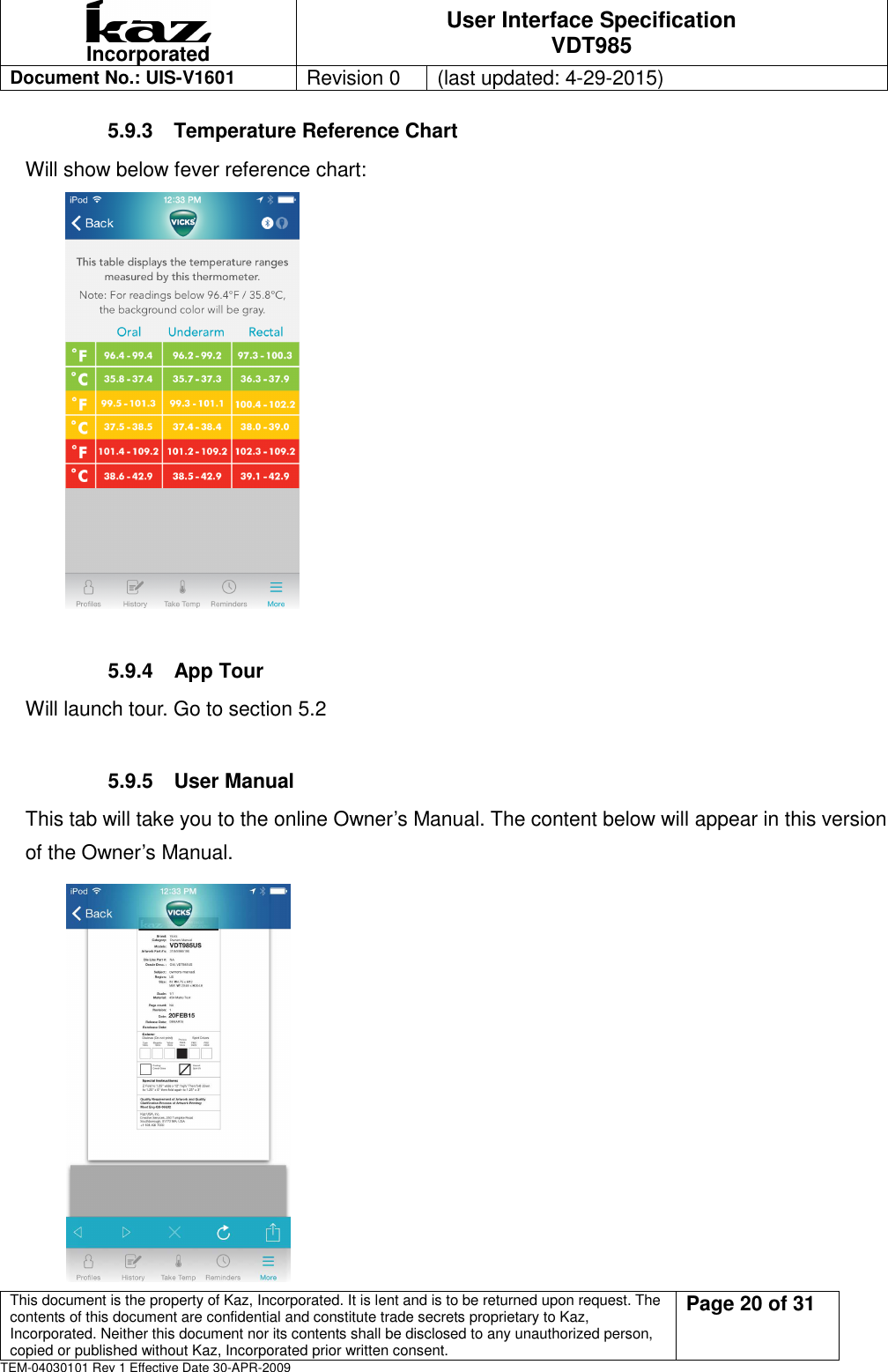

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 20 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9.3  Temperature Reference Chart Will show below fever reference chart:        5.9.4  App Tour Will launch tour. Go to section 5.2  5.9.5  User Manual This tab will take you to the online Owner’s Manual. The content below will appear in this version of the Owner’s Manual.

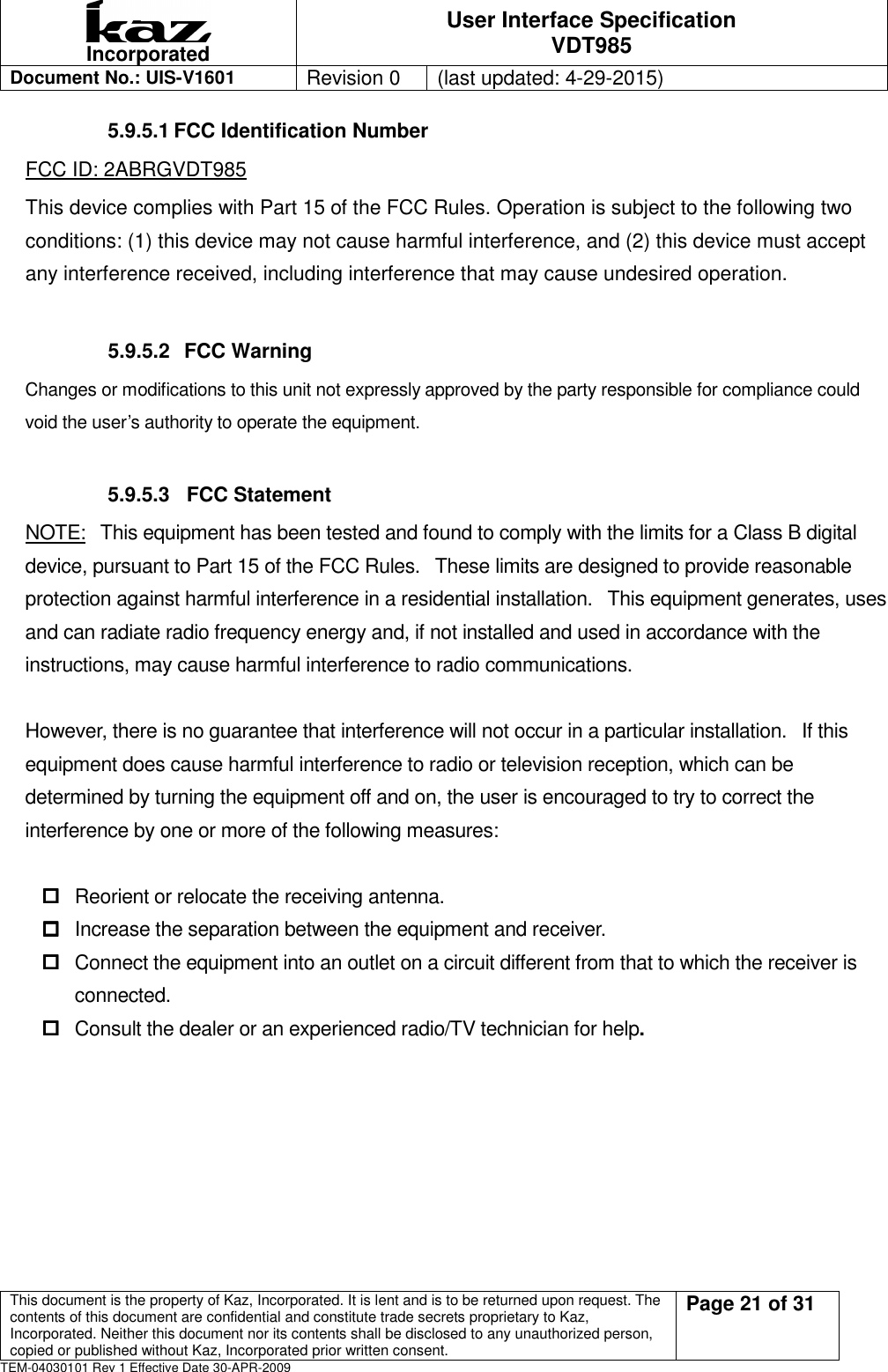

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 21 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9.5.1 FCC Identification Number FCC ID: 2ABRGVDT985 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  5.9.5.2   FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  5.9.5.3   FCC Statement NOTE:   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.   These limits are designed to provide reasonable protection against harmful interference in a residential installation.   This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.   If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

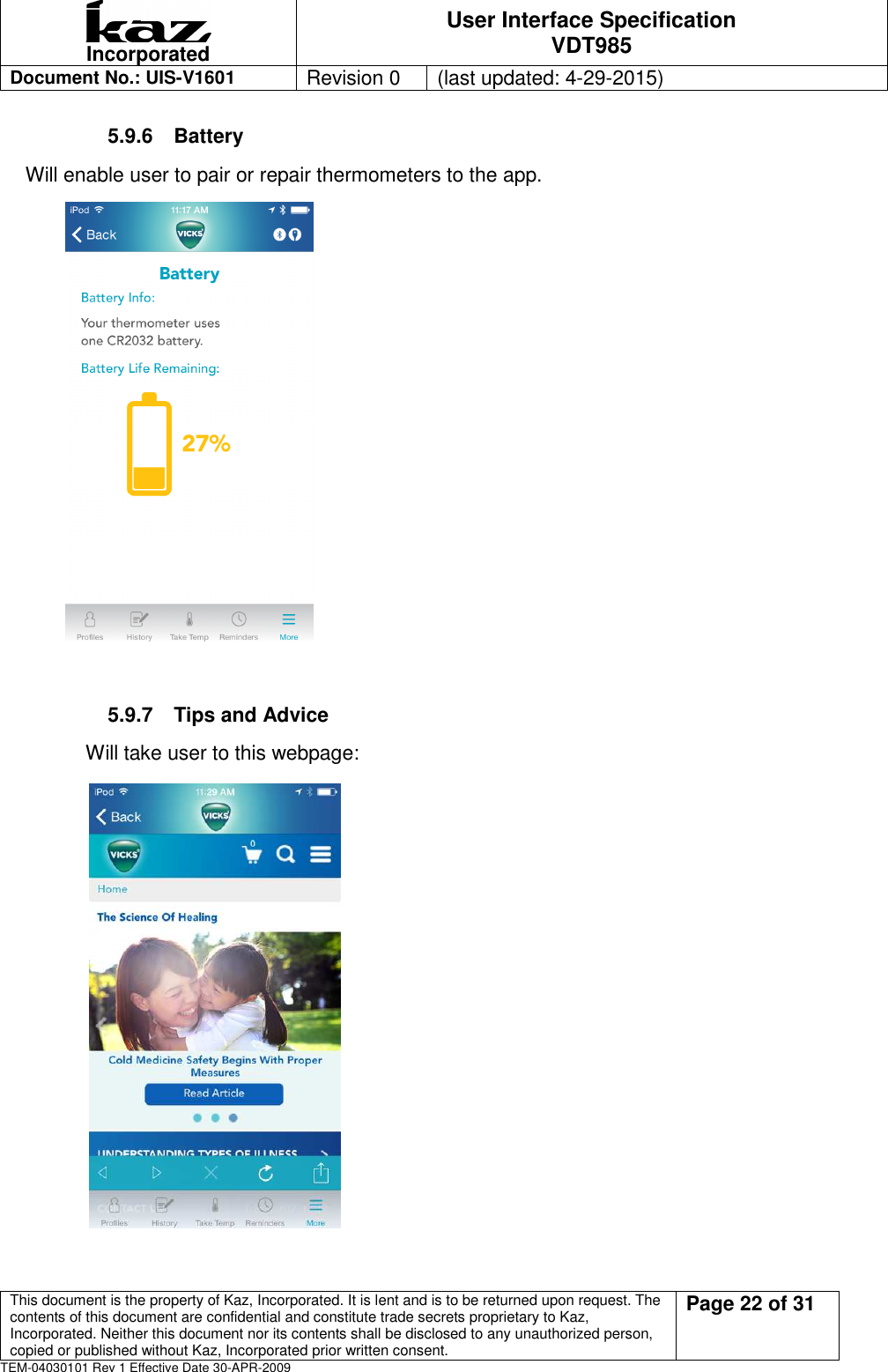

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 22 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9.6  Battery Will enable user to pair or repair thermometers to the app.                      5.9.7  Tips and Advice             Will take user to this webpage:
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 23 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9.8  Vicks. Com         Will take user to this webpage:         5.9.9  Browse All Products Will take user to this webpage:

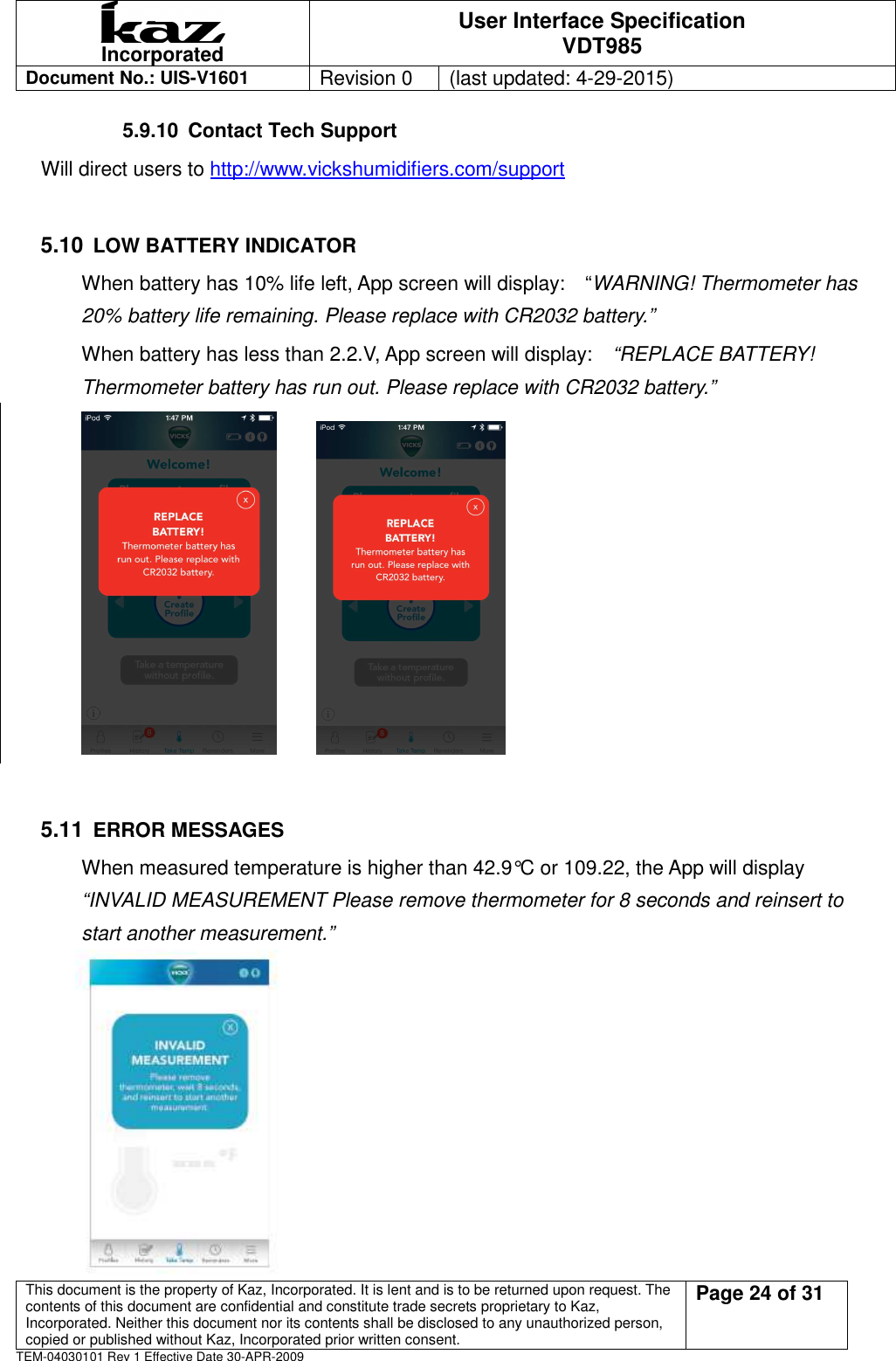

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 24 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.9.10  Contact Tech Support Will direct users to http://www.vickshumidifiers.com/support   5.10 LOW BATTERY INDICATOR When battery has 10% life left, App screen will display:    “WARNING! Thermometer has 20% battery life remaining. Please replace with CR2032 battery.” When battery has less than 2.2.V, App screen will display:    “REPLACE BATTERY!   Thermometer battery has run out. Please replace with CR2032 battery.”                       5.11 ERROR MESSAGES When measured temperature is higher than 42.9°C or 109.22, the App will display   “INVALID MEASUREMENT Please remove thermometer for 8 seconds and reinsert to start another measurement.”
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 25 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.11.1  Low temperature display When measured temperature is below 89.6F or 32C App will display: “INVALID MEASUREMENT    Please remove thermometer for 8 seconds and reinsert to start another measurement.”          5.11.2  Ambient Error When ambient temperature is BELOW 50F or 10C, the App will display:    “ENVIRONMENT TOO COLD. Please move to a warmer temperature for 15 minutes and try again.”          When ambient temperature is ABOVE 104F or 40C, the App will display:    “ENVIRONMENT TOO HOT. Please move to a warmer temperature for 15 minutes and try again.”

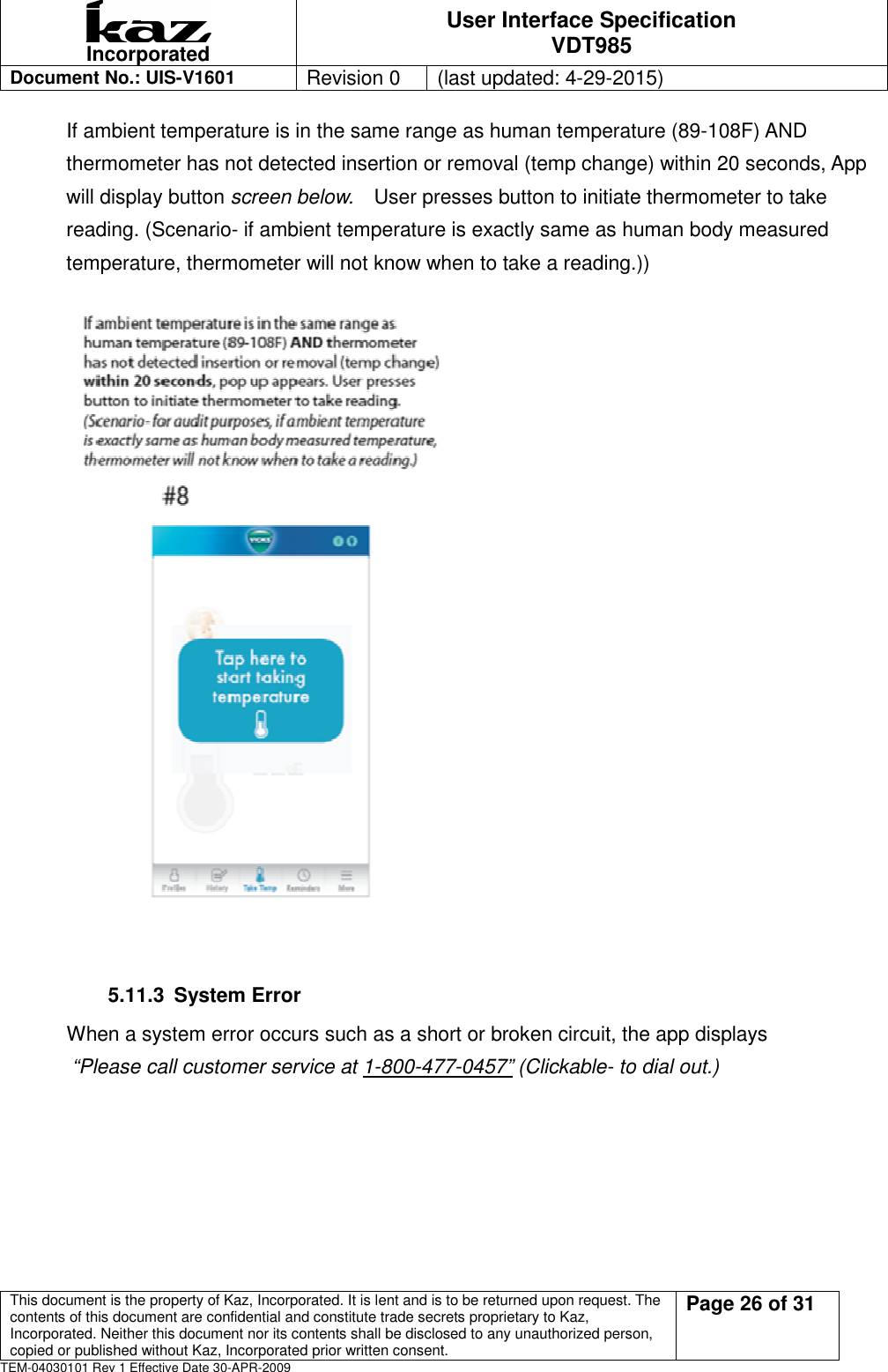

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 26 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 If ambient temperature is in the same range as human temperature (89-108F) AND thermometer has not detected insertion or removal (temp change) within 20 seconds, App will display button screen below.    User presses button to initiate thermometer to take reading. (Scenario- if ambient temperature is exactly same as human body measured temperature, thermometer will not know when to take a reading.))   5.11.3  System Error When a system error occurs such as a short or broken circuit, the app displays   “Please call customer service at 1-800-477-0457” (Clickable- to dial out.)

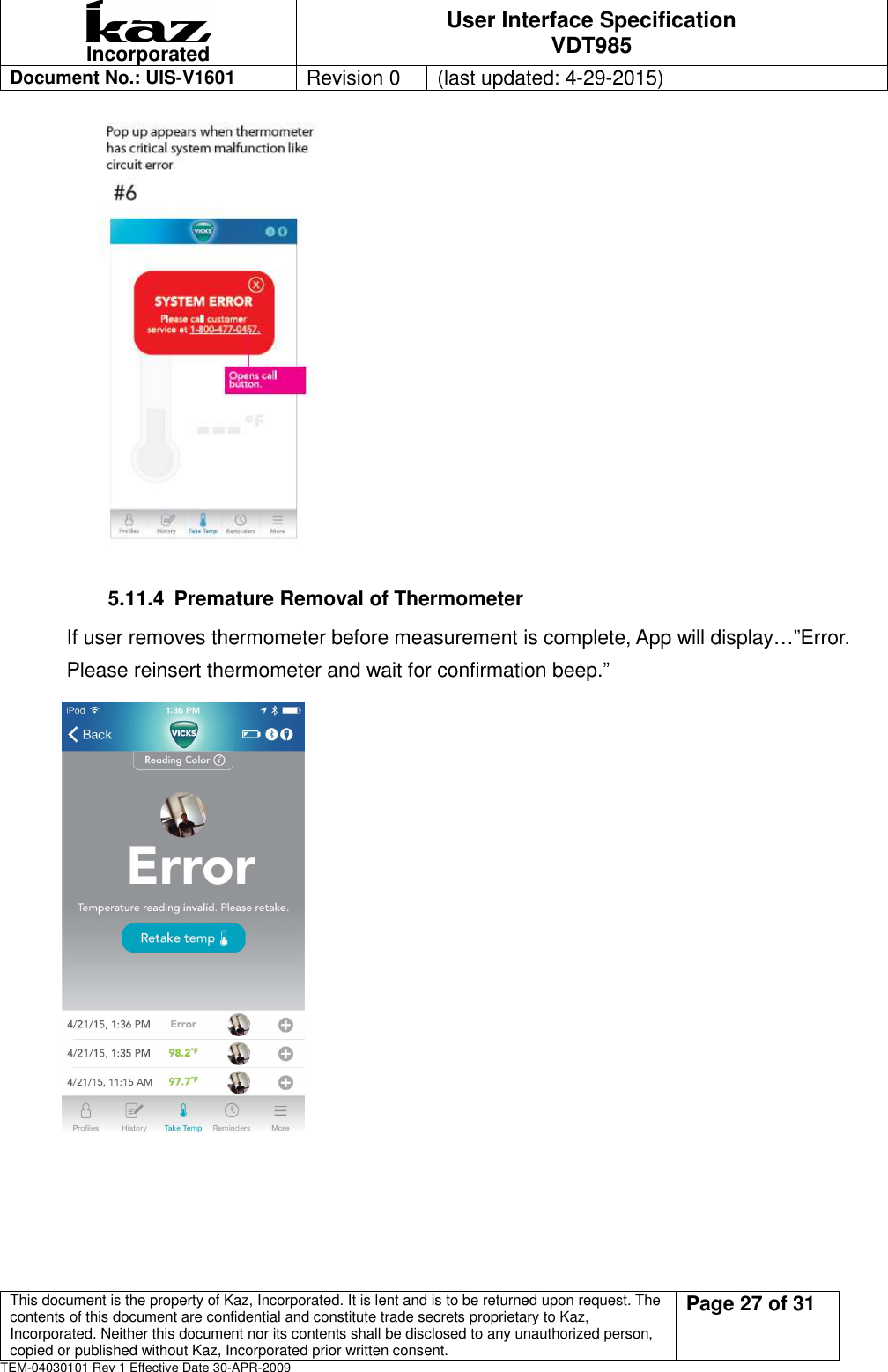

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 27 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009      5.11.4  Premature Removal of Thermometer If user removes thermometer before measurement is complete, App will display…”Error. Please reinsert thermometer and wait for confirmation beep.”

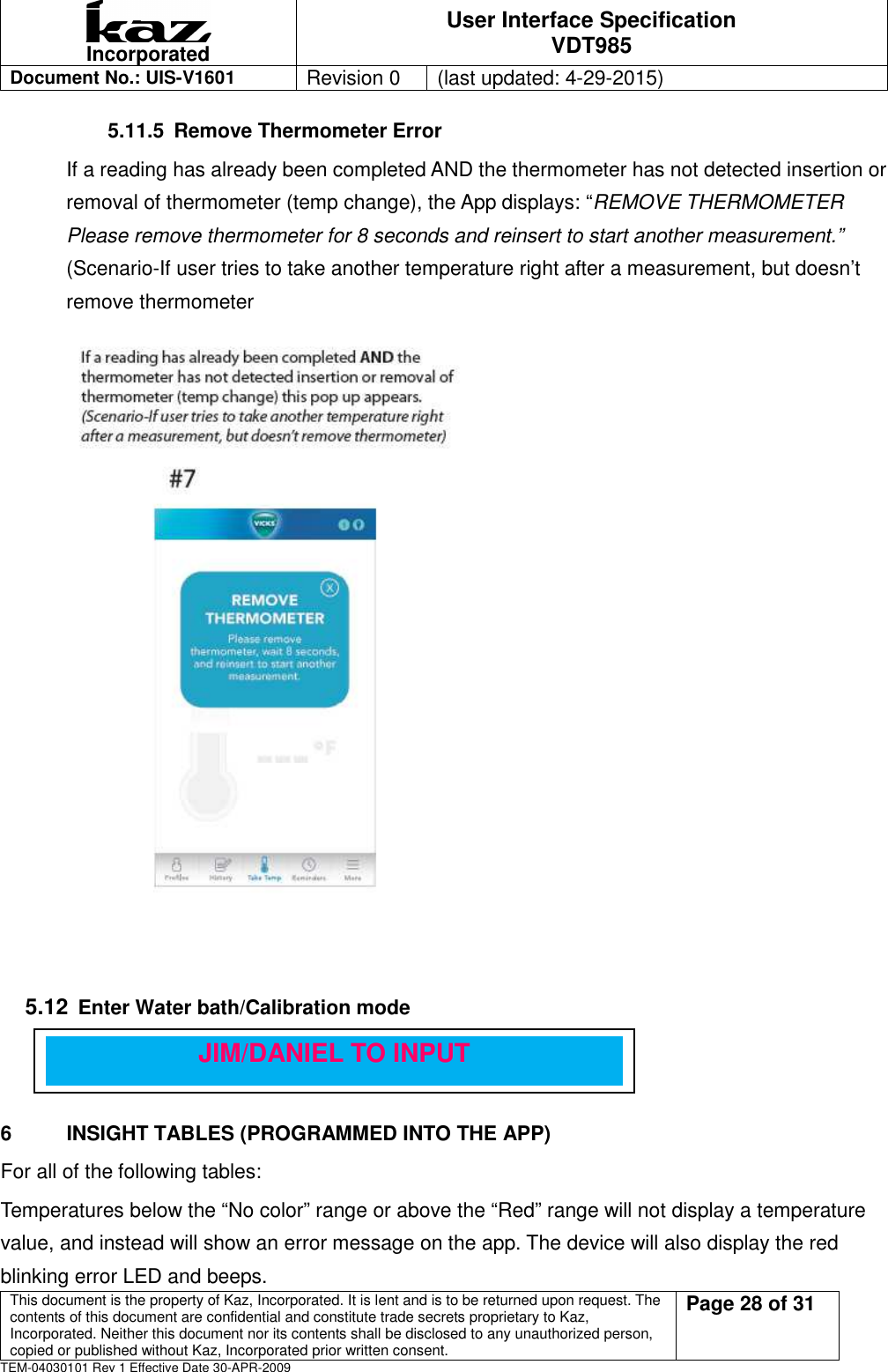

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 28 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 5.11.5  Remove Thermometer Error If a reading has already been completed AND the thermometer has not detected insertion or removal of thermometer (temp change), the App displays: “REMOVE THERMOMETER   Please remove thermometer for 8 seconds and reinsert to start another measurement.”    (Scenario-If user tries to take another temperature right after a measurement, but doesn’t     remove thermometer                                                                    5.12 Enter Water bath/Calibration mode      6  INSIGHT TABLES (PROGRAMMED INTO THE APP) For all of the following tables: Temperatures below the “No color” range or above the “Red” range will not display a temperature value, and instead will show an error message on the app. The device will also display the red blinking error LED and beeps. JIM/DANIEL TO INPUT
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 29 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009 6.1 US app Insight colors -No AgeSmart Site  Scale No Color   (but temp displays) Green (Healthy Temperature) Yellow (Slightly Elevated) Red (Elevated) Oral  °F  ≥89.6  ≤96.3  >96.3  ≤99.4  >99.4  ≤101.3  >101.3 ≤109.2 °C  ≥32.0  ≤35.7  >35.7  ≤37.4  >37.4  ≤38.5  >38.5  ≤42.9 Under Arm °F  ≥89.6  ≤96.1  >96.1  ≤99.2  >99.2  ≤101.1  >101.1 ≤109.2 °C  ≥32.0  ≤35.6  >35.6  ≤37.3  >37.3  ≤38.4  >38.4  ≤42.9 Rectal  °F  ≥89.6  ≤97.2  >97.2  ≤100.3  >100.3 ≤102.2  >102.2 ≤109.2 °C  ≥32.0  ≤36.2  >36.2  ≤37.9  >37.9  ≤39.0  >39.0  ≤42.9  6.2 EMEA and CA app Insight colors –With AgeSmart  Site Age Range No Color (but temp displays) Green (Healthy Temperature) Yellow (Slightly Elevated) Red (Elevated) Oral ≤ 3 months <96.4°F    or   <35.8°C ≥96.4°F      or   ≥35.8°C ≤99.4°F    or     ≤37.4°C N/A  >99.4°F or   >37.4°C >3 months ≤ 36 months <95.7°F    or   <35.4°C ≥95.7°F      or   ≥35.4°C ≤99.6°F    or     ≤37.6°C >99.6°F    or   >37.6°C ≤101.3°F    or   ≤38.5°C >101.3°F or   >38.5°C >36 months <95.7°F    or   <35.4°C ≥95.7°F    or     ≥35.4°C ≤99.9°F    or      ≤ 37.7°C >99.9°F    or    > 37.7°C ≤103.0°F    or   ≤39.4°C >103.0°F or  >39.4°C Site  Age Range No Color   (but temp displays) Green (Healthy Temperature) Yellow (Slightly Elevated) Red (Elevated) JIM/DANIEL TO CHECK JIM/DANIEL TO CHECK

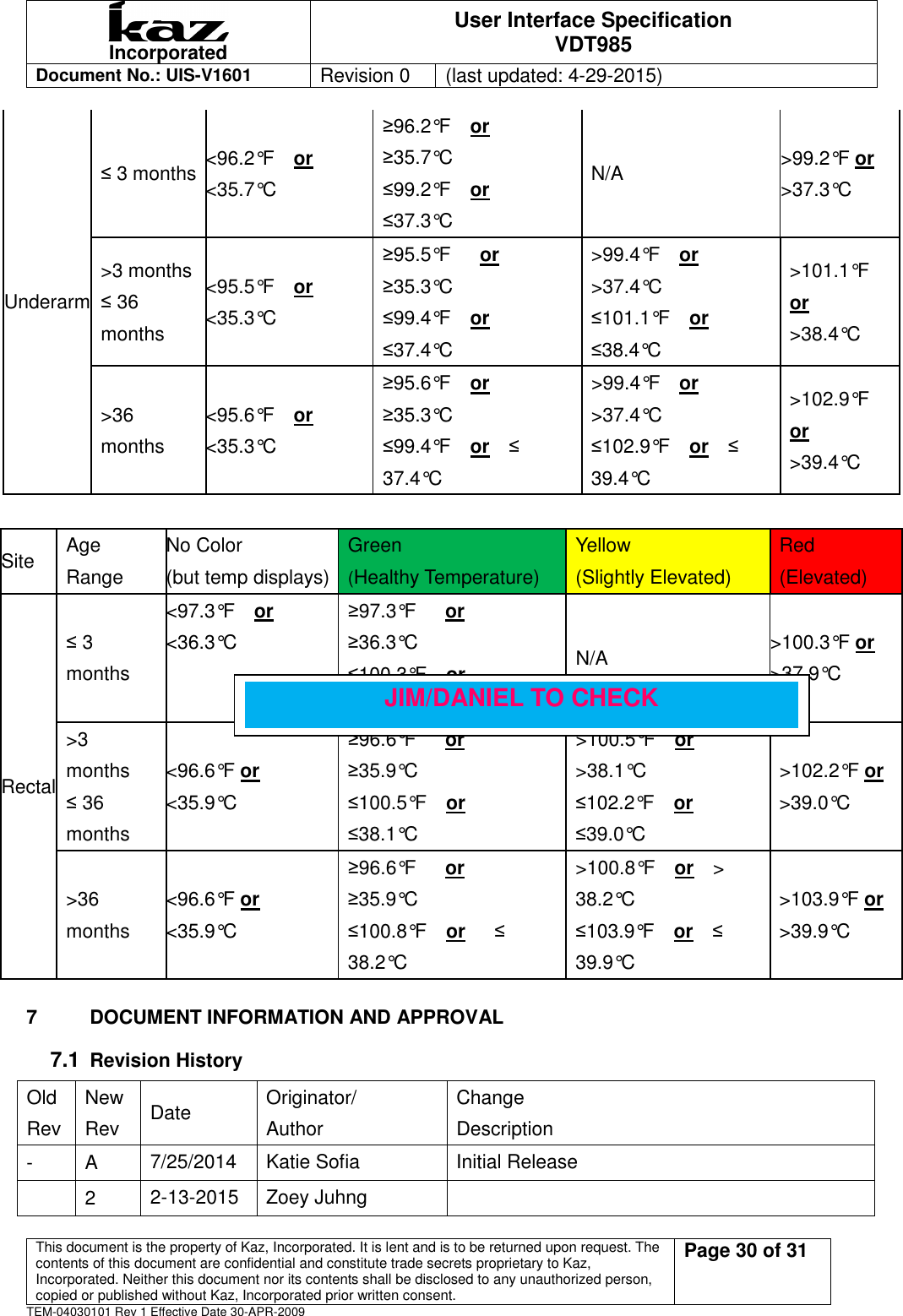

 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 30 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009  7  DOCUMENT INFORMATION AND APPROVAL 7.1 Revision History Old Rev New Rev  Date  Originator/ Author Change Description -  A  7/25/2014  Katie Sofia  Initial Release   2  2-13-2015  Zoey Juhng   Underarm≤ 3 months <96.2°F    or   <35.7°C ≥96.2°F    or       ≥35.7°C ≤99.2°F    or       ≤37.3°C N/A  >99.2°F or   >37.3°C >3 months ≤ 36 months <95.5°F    or   <35.3°C ≥95.5°F      or   ≥35.3°C ≤99.4°F    or     ≤37.4°C >99.4°F    or >37.4°C ≤101.1°F    or   ≤38.4°C >101.1°F or   >38.4°C >36 months <95.6°F    or   <35.3°C ≥95.6°F    or     ≥35.3°C ≤99.4°F    or    ≤ 37.4°C >99.4°F    or   >37.4°C ≤102.9°F    or    ≤ 39.4°C >102.9°F or   >39.4°C Site  Age Range No Color   (but temp displays) Green (Healthy Temperature) Yellow (Slightly Elevated) Red (Elevated) Rectal≤ 3 months <97.3°F    or   <36.3°C ≥97.3°F      or    ≥36.3°C ≤100.3°F    or     ≤37.9°C N/A  >100.3°F or   >37.9°C >3 months ≤ 36 months <96.6°F or   <35.9°C ≥96.6°F      or   ≥35.9°C ≤100.5°F    or     ≤38.1°C >100.5°F    or   >38.1°C ≤102.2°F    or   ≤39.0°C >102.2°F or   >39.0°C >36 months <96.6°F or   <35.9°C ≥96.6°F      or   ≥35.9°C ≤100.8°F    or      ≤ 38.2°C >100.8°F    or    > 38.2°C ≤103.9°F    or    ≤ 39.9°C >103.9°F or  >39.9°C JIM/DANIEL TO CHECK
 Incorporated User Interface Specification VDT985   Document No.: UIS-V1601   Revision 0    (last updated: 4-29-2015)  This document is the property of Kaz, Incorporated. It is lent and is to be returned upon request. The contents of this document are confidential and constitute trade secrets proprietary to Kaz, Incorporated. Neither this document nor its contents shall be disclosed to any unauthorized person, copied or published without Kaz, Incorporated prior written consent.                                                             Page 31 of 31 TEM-04030101 Rev 1 Effective Date 30-APR-2009   3  2_13_2015 Zoey Juhng     4  4_21_15  Zoey Juhng     6  4_28_15  Zoey Juhng     7  4_29-15  Zoey Juhng            7.2 Approval 7.3 Effective date:   Approval signatures are filed at Document Control   Function  Name  Signature  Date Program Management  Daniel Lawton       Industrial Design  Zoey Juhng     Marketing (US)  Lynne Hammell     Marketing (Canada)  Bhawna Sharma    Marketing (EMEA)  Julien Charriere     Research and Development (PE)  Gary Hu     Operations (Microlife)  Willis Chan     Regulatory?  Raj K     Quality?  Billy Li
