KIMIN Electronics LT37U41 LCD TV Monitor User Manual 033D sam

Kimin Electronic Co., Ltd LCD TV Monitor 033D sam

User manual

OWNER’S MANUAL
OWNER’S MANUAL
DIGITAL TV
DIGITAL TV
Please read this manual carefully before operating your set.
Retain it for future reference.
LT32U41H
LT37U41H
3
WARNING / CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING/CAUTION
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building, as close to the point of
the cable entry as practical.
NOTE TO CABLE/TV INSTALLER
Do not attempt to modify this product in any way without written authorization from the dealer.
Unauthorized modification could void the user’s authority to operate this product.
CAUTION
4
WARNING / CAUTION
Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
c. Disposal of this product must be carried out in accordance to the regulations of your local authority.
To prevent fire or shock hazards, do not expose this product to rain or moisture.
FCC NOTICE
On Disposal
Changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Caution
5
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15.Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids,
such as vases, are placed on the apparatus.
6
Important Safety Instructions
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the
user to the presence of uninsulated "dangerous voltage " within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the pres-
ence of important operating and maintenance (servicing) instructions in the literature accompa-
nying the product.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
Prolonged use of headphones at a high volume may cause health damage on your ears.
NN
NNOO
OOTT
TTEE
EE
16.To completely disconnect this apparatus from the AC Mains, disconnect the mains plug from the AC
receptacle.
17.The mains plug of the power supply cord shall remain readily operable.
18.This apparatus shall be connected to a Mains socket outlet with a protective earthing connection.
7
Contents
WARNING / CAUTION 3-4
Important Safety Instructions 5-6
Contents 7-8
Accessories 9
Supplied Accessories 9
Installing Batteries 9
Controls And Connectors 10-13
Front Panel 10
Rear Panel 11
Remote Control 12-13
Installation 14-15

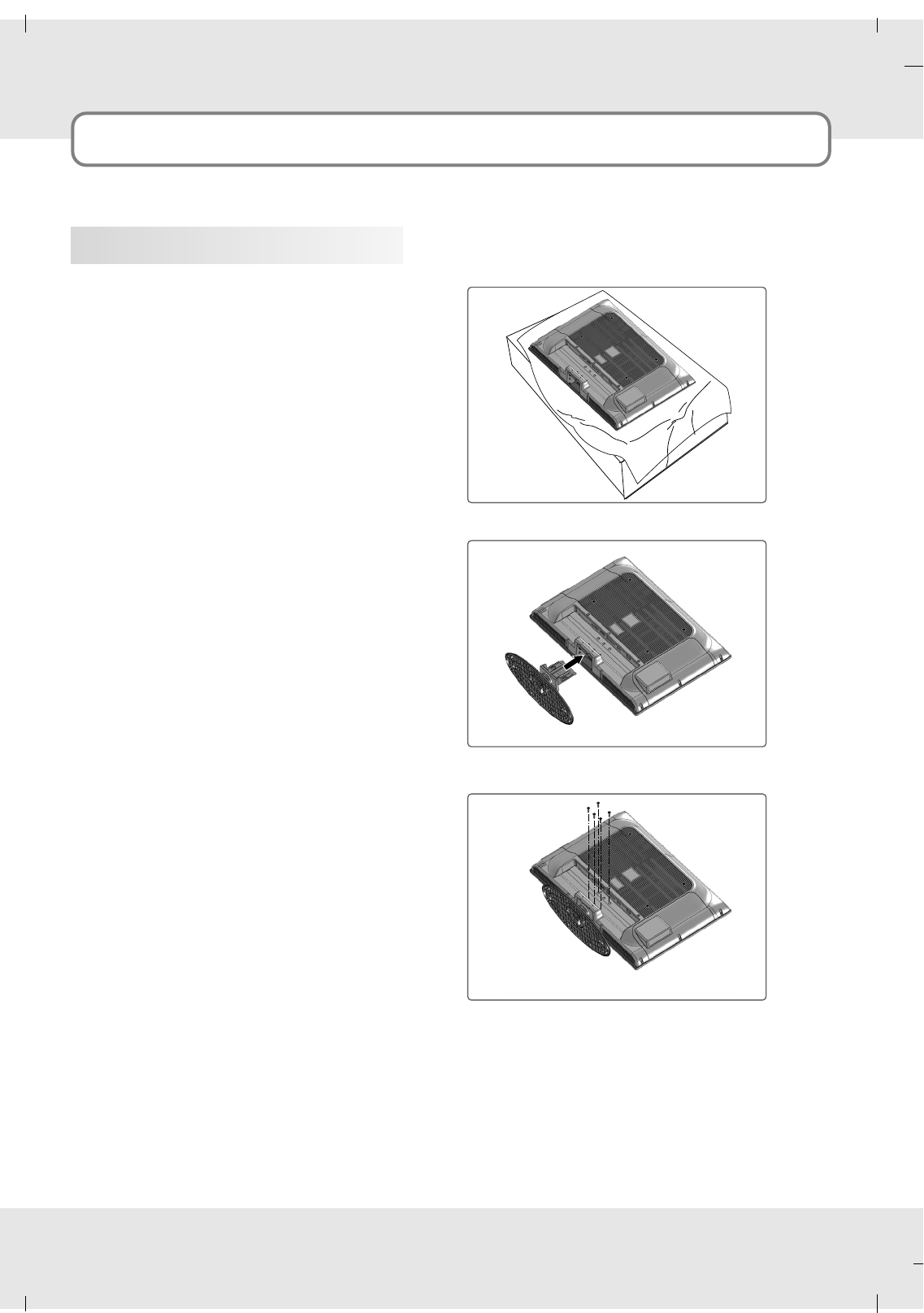

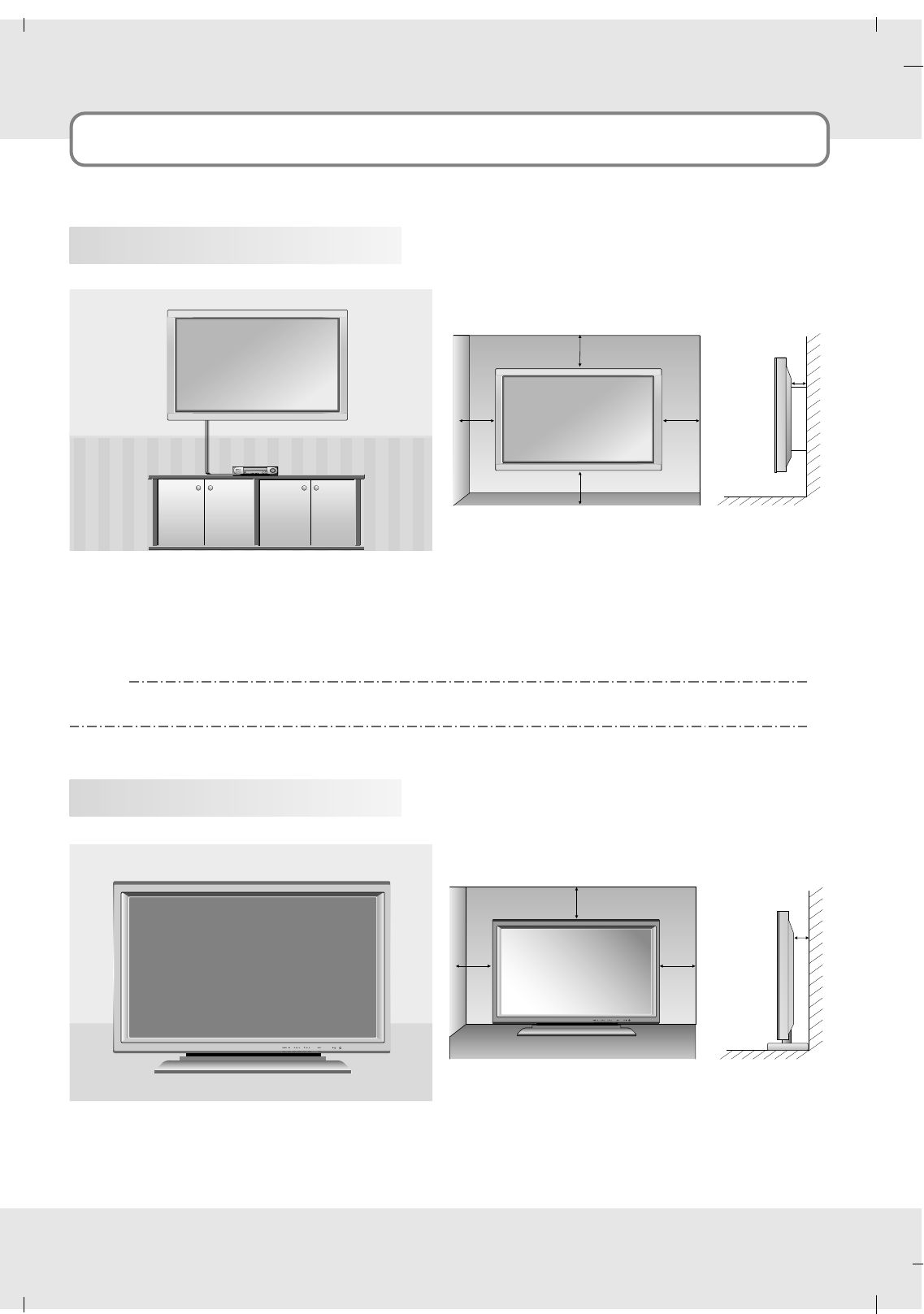

Stand Installation 14
Wall mount Installation 15
Desktop Pedestal Installation 15
Connections 16-25

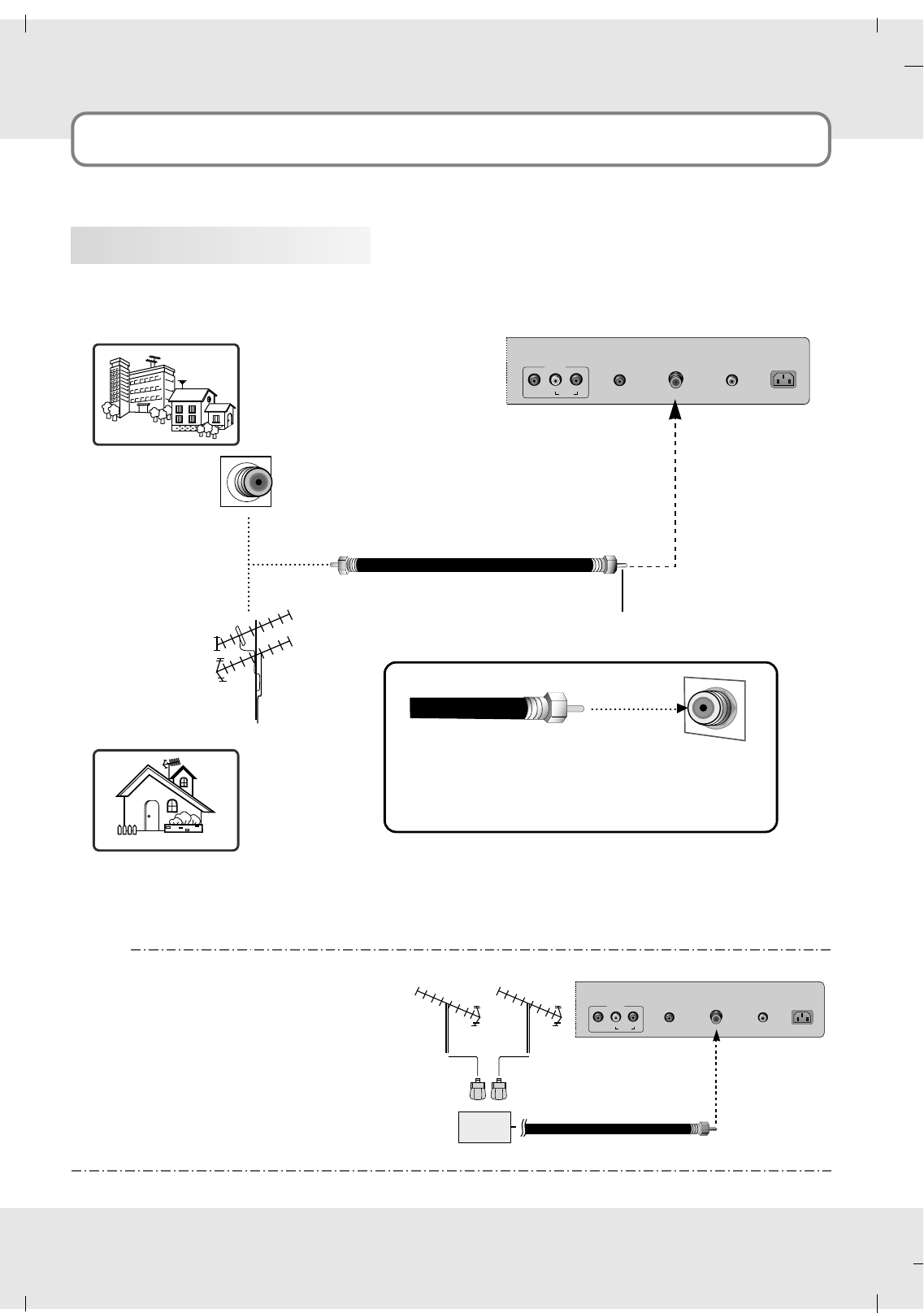

Antenna Connection 16

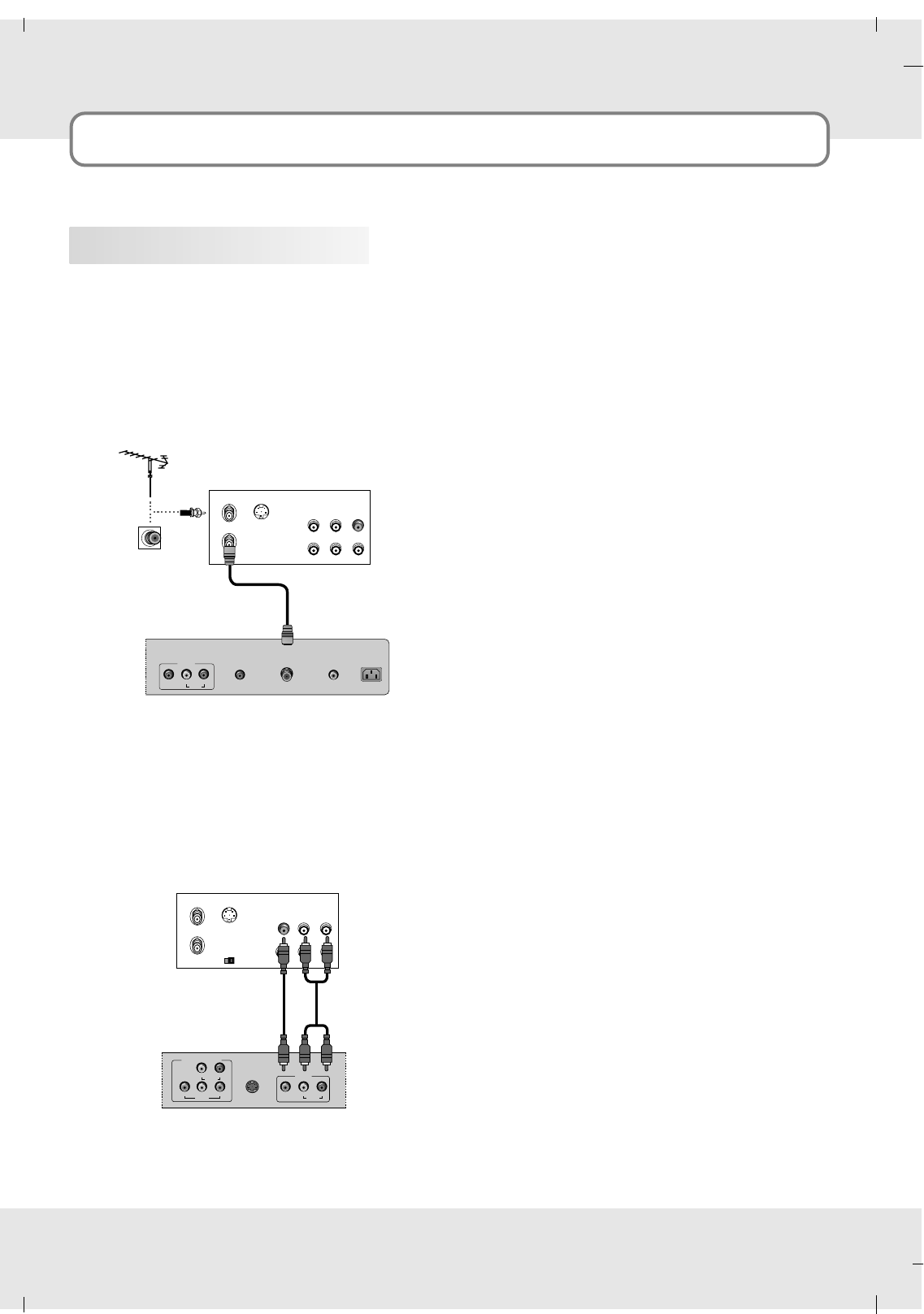

VCR Connection 17-18
DVD Connection 19-20
HDSTB Connection 21-22
External A/V Source 23
Digital Audio Out 23

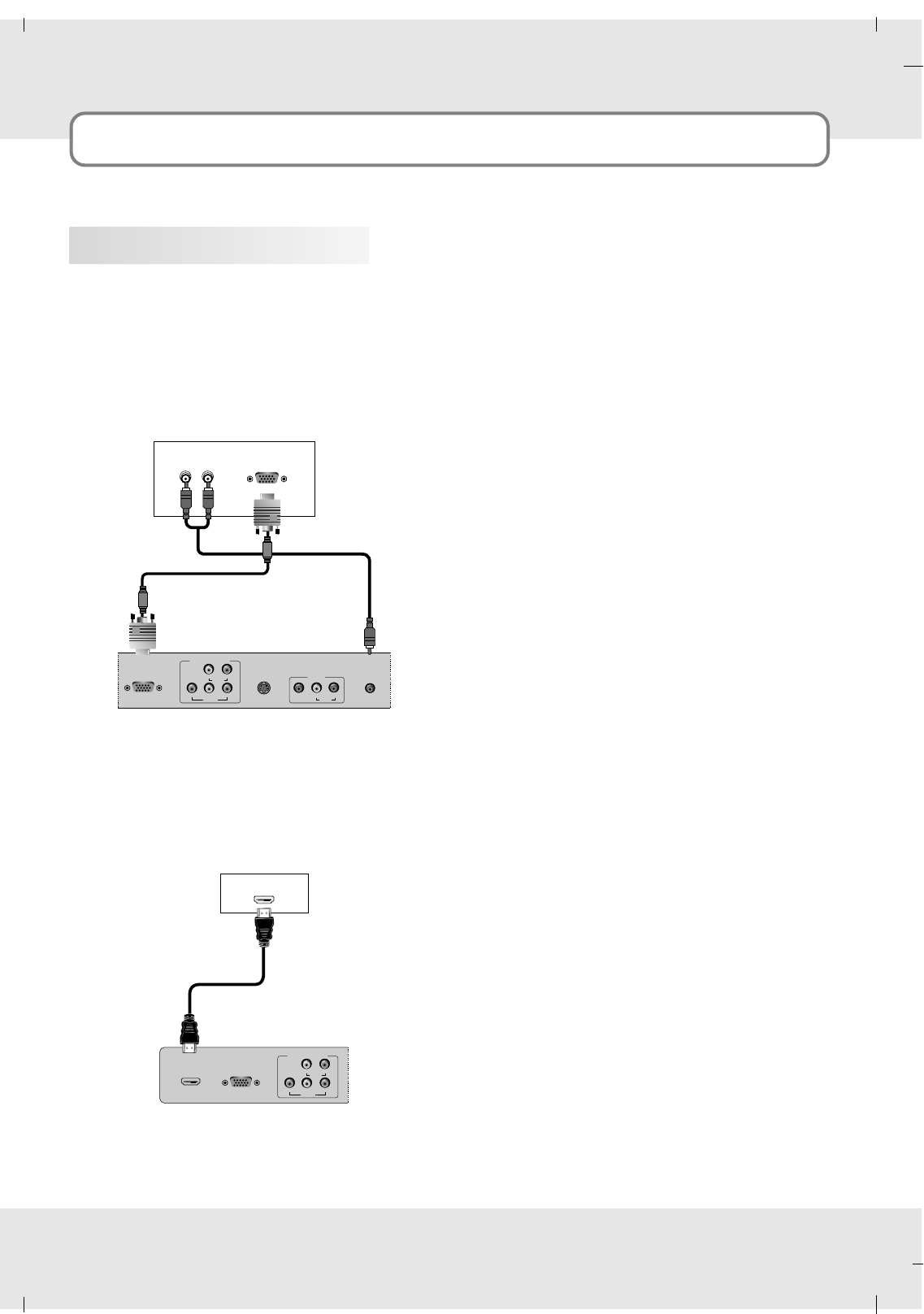

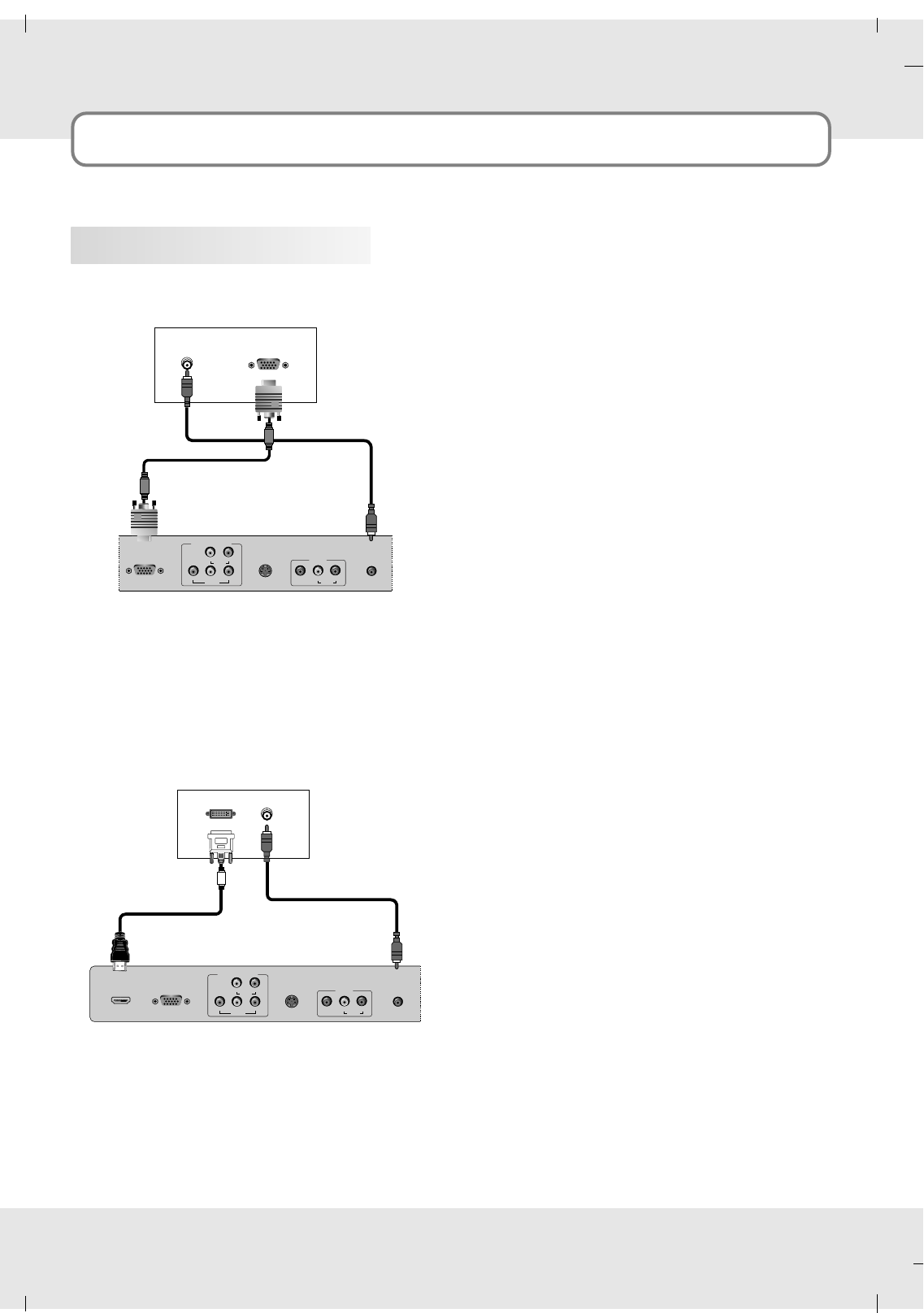

PC Connection 24
Resolution 25
Basic Operation 26-27
Turning On or Off 26
Channel Selection 26
Volume Adjustment 26
Sound Mute 26
Quick View 26
Input Selection 27
Language Selection 27

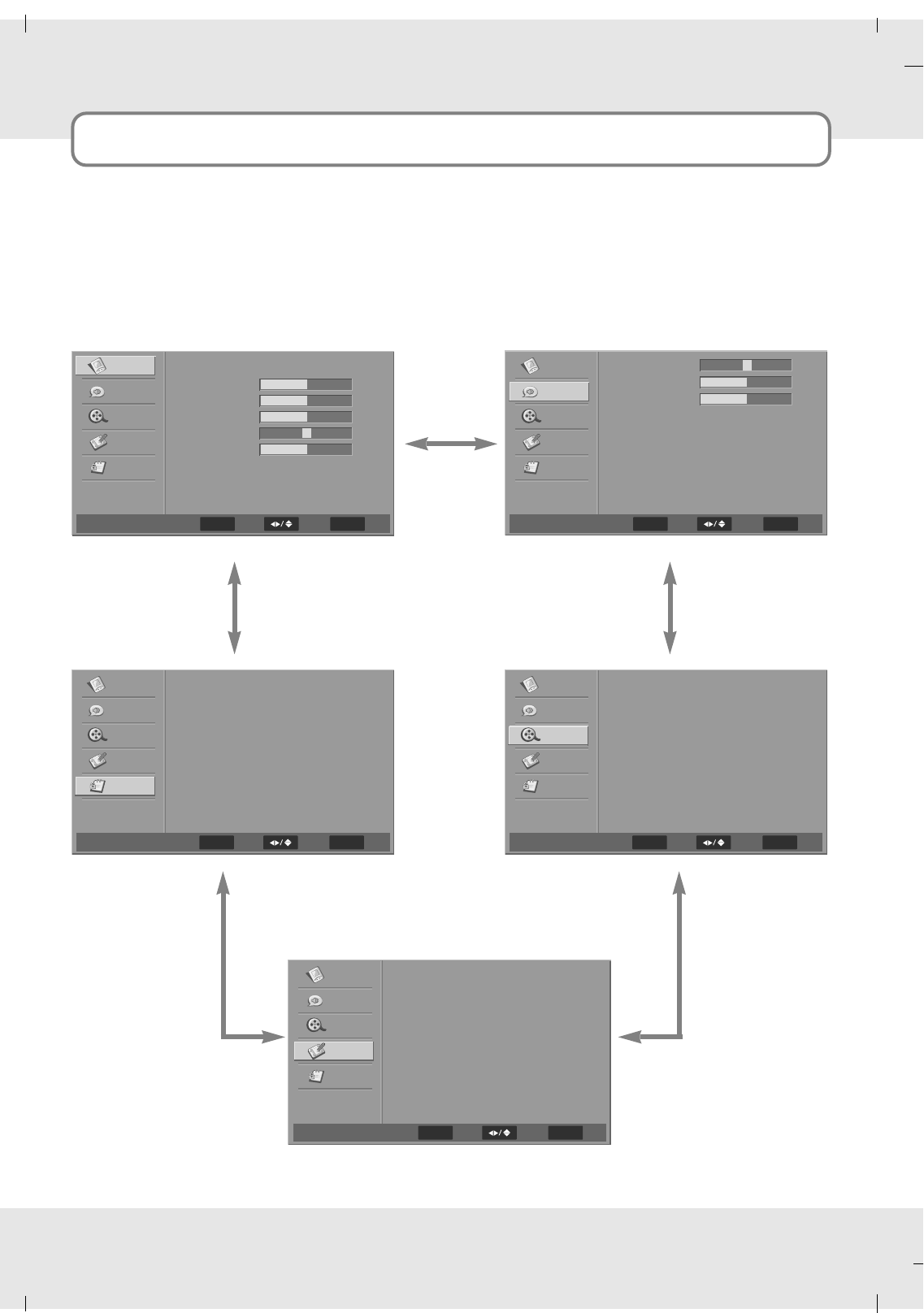

On Screen Menus 28
Setting up TV Channel 29-31
Auto Scan 29
Add/Delete Channel 30
EPG(Electronic Program Guide) 31
Picture Controls 32-34
Auto Picture Controls 32
Manual Picture Controls 33
Color Temperature 34
Advanced Video 35-40
Dynamic Noise Reduce 35
Black Level Extender 36
White Peak Limiter 37
8
Contents
CTI(Color Transient Intensity) 38
Flesh Tone 39
Adaptive Luma Control 40
Sound Controls 41-44
Auto Sound Controls 41
Manual Sound Controls 42
Digital Output 43
Auto Volume Control 44
Stereo/SAP Broadcast Setup 44
Time Setting 45-49
Time Zone Setting 45
Auto Time Setting 46
Manual Time Setting 47
Auto On/Off Time Setting 48
Sleep Timer 49
Captions 50-52
Closed Caption-Analog 50
Closed Caption-Digital 51
Closed Caption Options 52
Reset 53
Reset Default 53
Parental Control 54-62
Enter your password 54
Set Password 54
Rating Enable/Disable 55
TV Ratings for USA 56-57
Movie Ratings 58
TV Rating English for Canada 59
TV Rating French for Canada 60
Downloadable Rating 61
Clean All 62
Setting the PC Mode 63-67
Auto Picture Controls 63
Manual Picture Controls 64
Color Temperature 65
Auto Adjustment 66
Manual Adjustment 67
Special Functions 68
Picture Format 68
Specification 69
Troubleshooting 70
Warranty Card 72
Registration Card 73-74
9
Accessories
Supplied Accessories

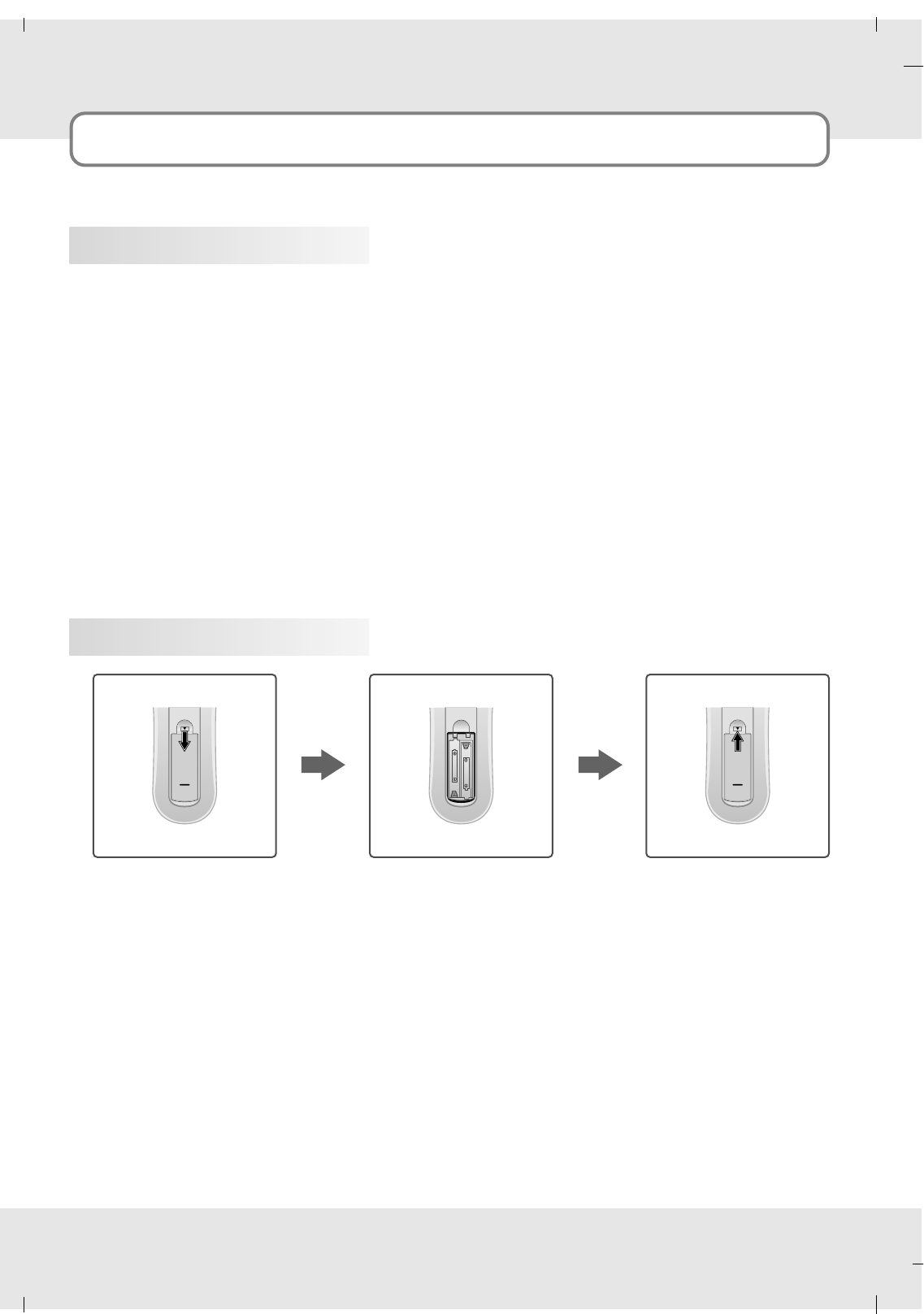

Installing Batteries
1
Open the battery cover
on the back side.
Ensure that the following accessories are included with your product.
If an accessory is missing, please contact our support department at (866) 280-1998 or contact us
through our website located at www.soyo.com/content/Product_Support/147
User must use shielded signal interface cables with ferrite cores to maintain standard compliance for
the product.
1. Remote
2. Batteries
3. Power Cord
4. Owner’s Manual
5. 6-bolts for stand assembly
2
Insert two batteries in
correct polarity, match
(+ with +), and match
(- with -).
Don't mix old batteries
with new batteries.
3
Close the battery cover.
10
Controls And Connectors

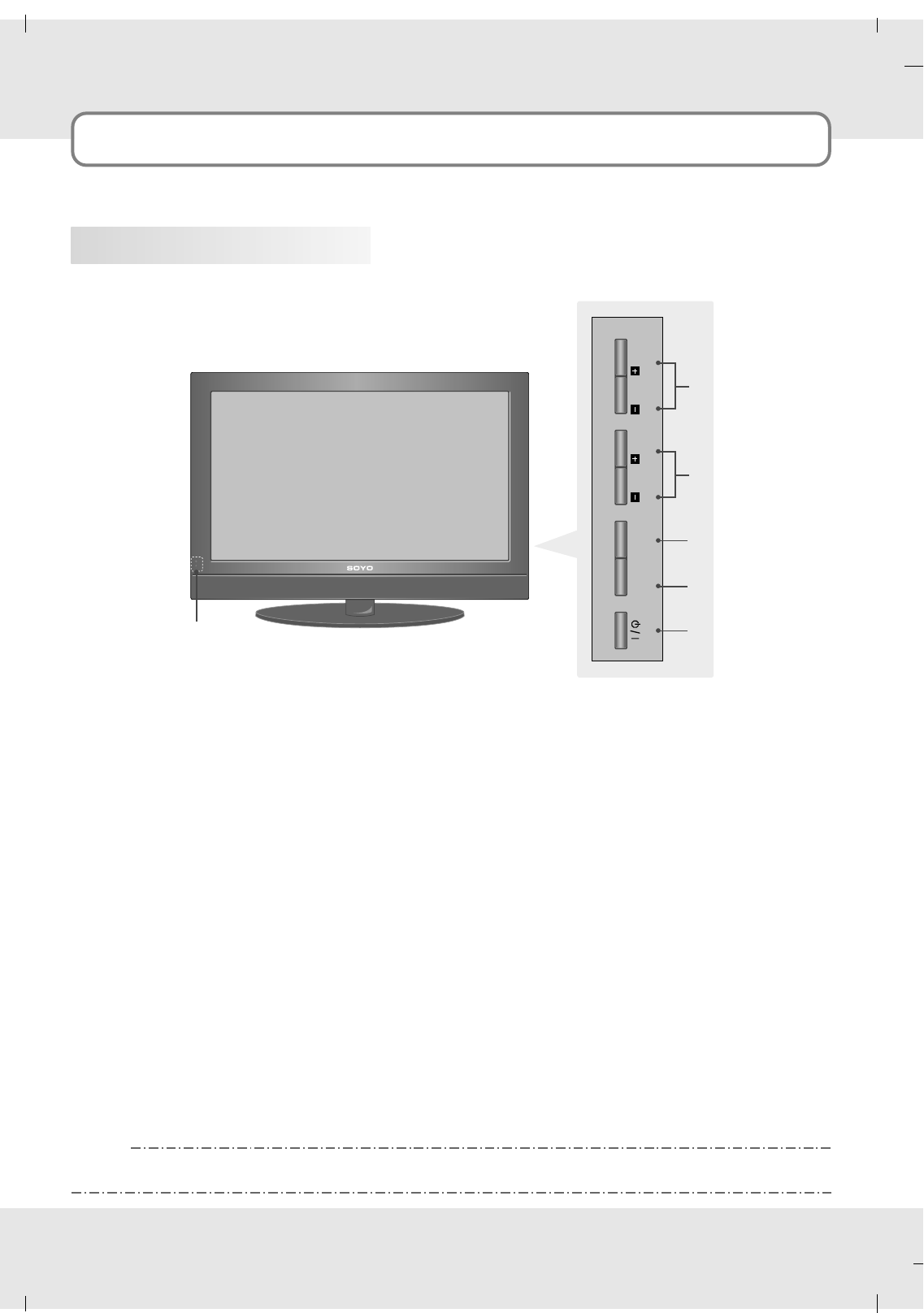

Front Panel
6
1
2
3
4
5
VOL VOL CH CH TV/AV MENU
1. VOL + / VOL -
Adjusts menu setting.
Adjusts sound level.
2. CH + / CH -
Select a channel.
3. TV/AV
Selects the TV, AV,S-Video, YPbPr,VGA or HDMI mode.
4. MENU
Display on screen menus.
5. POWER
Switches the set on or off.
6. Power Indicator
Illuminates in bright blue when the TV is in standby mode.
Illuminates in dark blue when the TV is switched on.
Remote control sensor
Accepts the IR signal of remote controller.
Here shown may be somewhat different from your set.
NN
NNOO
OOTT
TTEE
EE
11

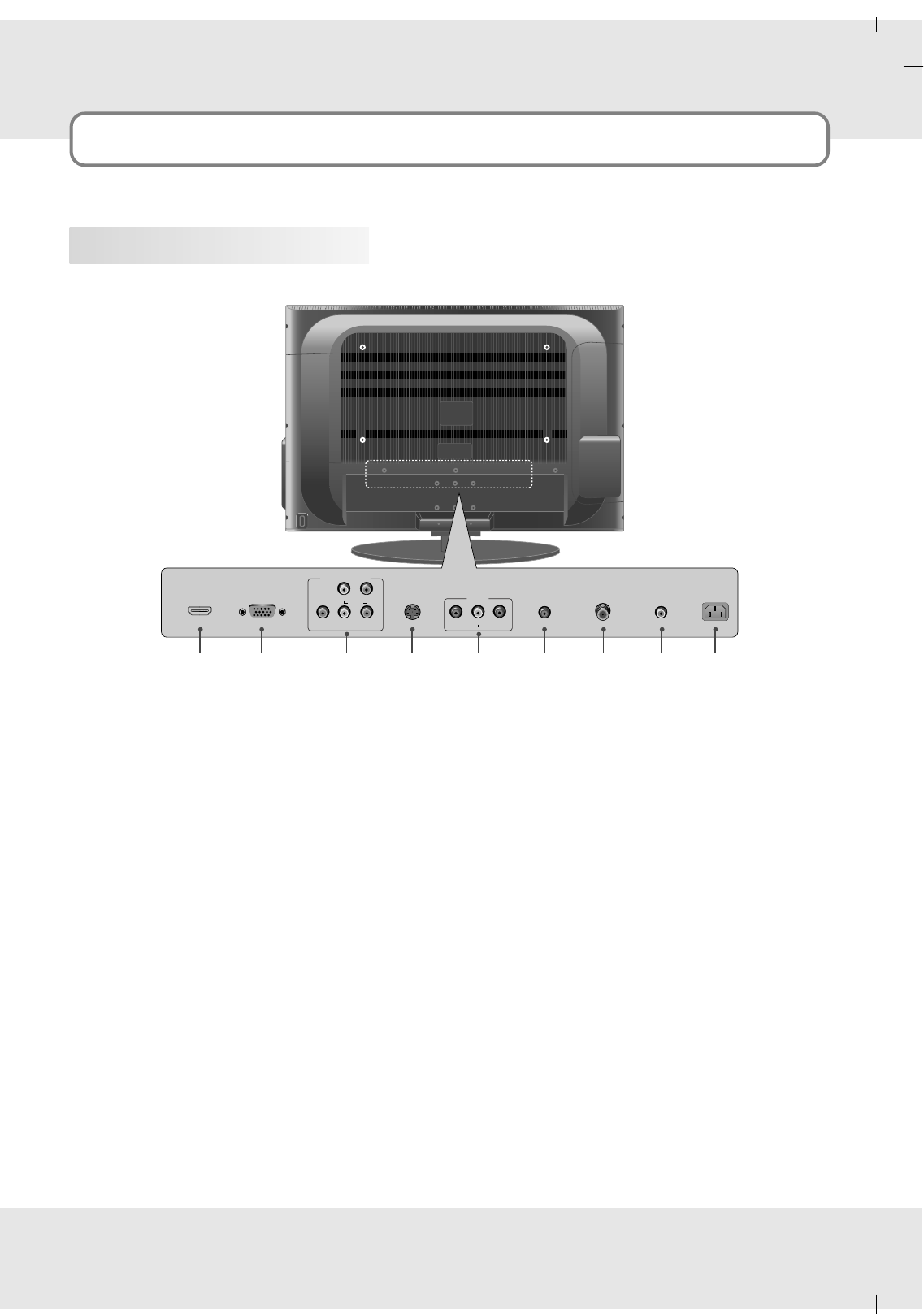

Controls And Connectors
Rear Panel
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
AC IN
S-VIDEO
IN
ANTENNA/
CABLE IN
2 4 6 7 8 91
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO AV IN
AUDIO
L
VIDEO R
3 5
1. HDMI/DVI IN
Connect to the HDMI jack for device with HDMI
output. (This input can also be used as a DVI
connection with an HDMI to DVI adaptor and
separate analog audio inputs.)
2. RGB IN (PC)
Connect to the video output jack on your PC.
3. COMPONENT IN
Video/Audio inputs for Component.
4. S-VIDEO IN
Connect the output of an S-VIDEO device to
the S-VIDEO input.
5. AV IN
Connect RCA cable to an appropriate external
A/V device such as VCR, DVD or Camcorder.
6. AUDIO IN (RGB/DVI)
Connect to the audio output jack on your PC.
7. ANTENNA/CABLE IN
Connect to your antenna or cable box for TV
signal.
8. DIGITAL AUDIO OUT(COAXIAL)
Connect digital audio to various types of equip-
ment.
9. AC IN
This TV operates on an AC power.
12
Controls And Connectors

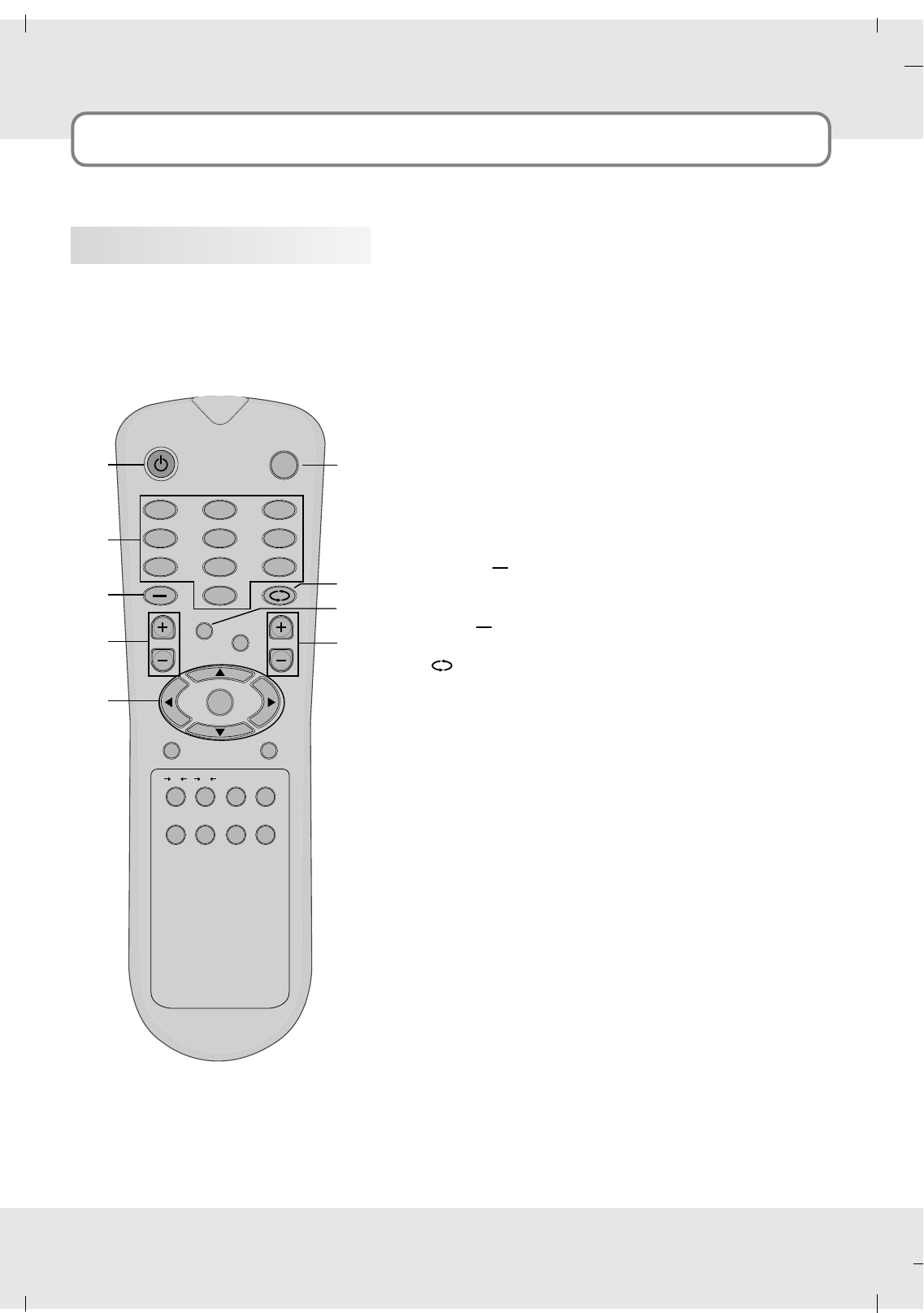

Remote Control
1 2 3
4 5 6
7 8 9
0
EXIT
VOL CH
MENU MUTE
OK
SOURCE
POWER
SLEEP ZOOM
IPI ISI
EPGMTSCC DISPLAY
1. POWER
Switches the set on or off.
2. SOURCE
Selects the TV, AV,S-Video, YPbPr,VGA or HDMI
mode.
3. NUMBER BUTTONS
Selects channel numbers.
4. Hyphen( )
Press to select DTV channels.
For example, to select channel ‘10-1’, press ‘10’ then
press ‘ ’ and ‘1’.
5.
Switch to the previous channel number.
6. VOL+ / VOL-
Adjusts sound level.
7. CH+ / CH-
Select a channel.
8. EXIT
Clear all on-screen menus and return to TV viewing
from any menu.
9. Navigational Controls
Adjusts menu settings.
Selects menu item.
Accepts your selection.
-All the functions can be controlled with the remote control handset.
-Some functions can also be adjusted with the buttons on the side panel of the set.
-Before using remote control handset, please install the batteries.
1
3
4
6
2
5
7
8
9
13

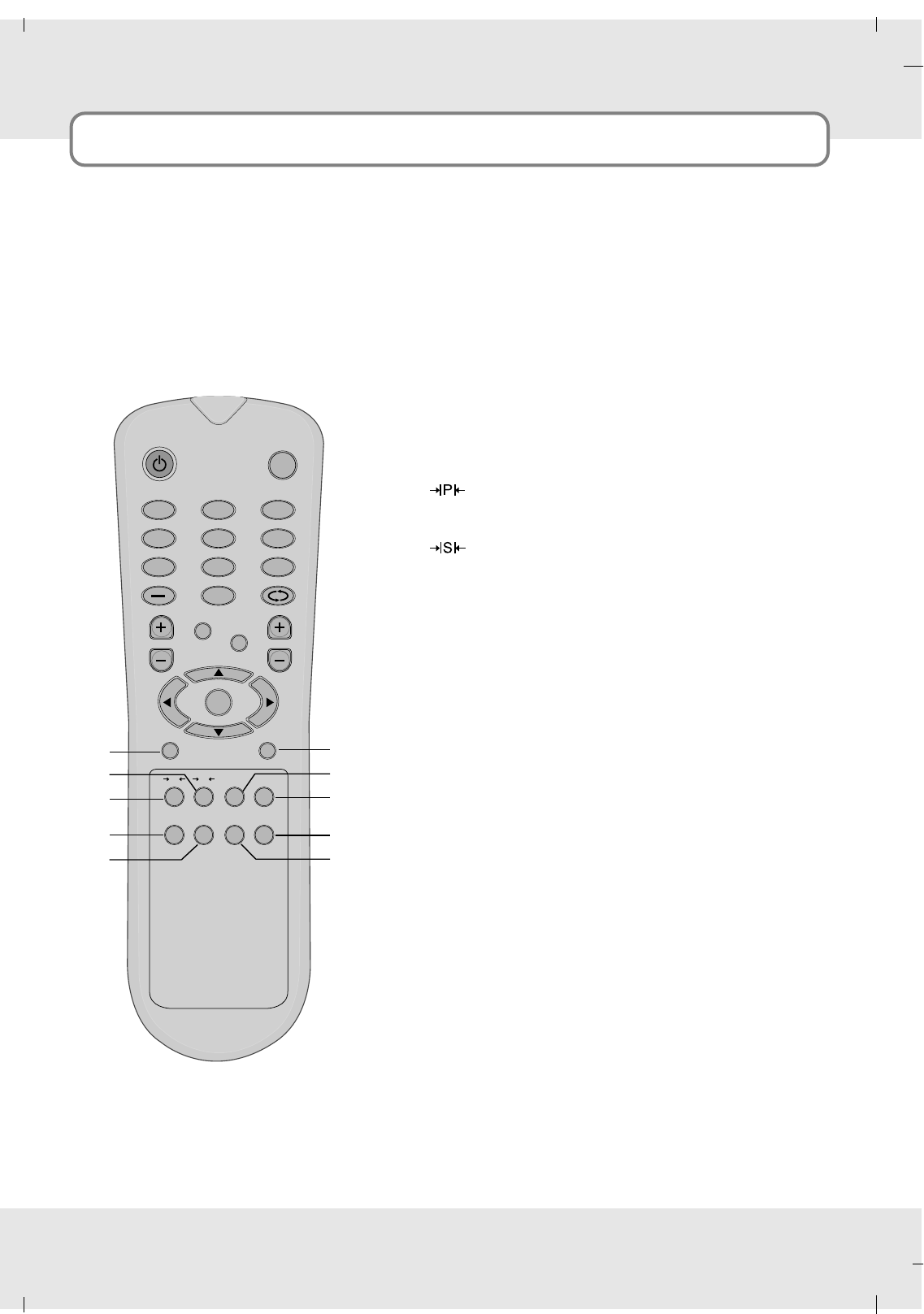

Controls And Connectors
1 2 3
4 5 6
7 8 9
0
EXIT
VOL CH
MENU MUTE
OK
SOURCE
POWER
SLEEP ZOOM
IPI ISI
EPGMTSCC DISPLAY
10. MENU
Display on screen menus.
11. MUTE
Switches the sound on or off.
12.
Recalls your preferred picture setting.
13.
Recalls your preferred sound setting.
14. SLEEP
Sets the sleep timer.
15. ZOOM
Selects your desired picture format.
16. CC
Select the Caption menu directly.
17. MTS
Select MTS sound : Mono, Stereo and SAP in Analog
Channel.
Change the audio language in DTV Channel.
18. EPG
Displays the program guide.
19. DISPLAY
Shows the present screen information.
10
12
13
16
17
11
14
15
19
18
14
Installation
Stand Installation
1. Carefully place the product screen side
down on a cushioned surface that will
product and screen from damage.
2. Assemble the product stand with the
product as shown.
3. Install the 5 bolts securely, in the back of
the product in the holes provided.
15
Installation
Wall mount Installation
4 inches
4 inches
4 inches
4 inches
4 inches
The set can be installed on a wall as shown above.
For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.
Detailed instructions are available from your dealer, refer to the optional Wall Mounting Bracket
Installation and Setup Guide. (Wall Mount Sold Separately)
Desktop Pedestal Installation
4 inches
4 inches
4 inches
4 inches
The set can be mounted on a desk as shown above.
For proper ventilation, allow a clearance of 4 inches on each side from the wall.
Detailed instructions are available from your dealer, refer to the optional Desktop Stand Installation and
Setup Guide.
-Do not install the Wall-Mount except the Qualified Service Personnel.
NN
NNOO
OOTT
TTEE
EE
16
Connections
Antenna Connection
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
ANTENNA/
CABLE IN
AV IN
AUDIO
L
VIDEO R
AC IN
Multi-family Dwellings/ Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Wall Antenna Socket
RF Coaxial Wire (75 ohm)
VHF
UHF
Outdoor Antenna
Turn clockwise to tighten.
Be careful not to bend the bronze wire when
connecting to an antenna port.
* Separately purchase a RF Coaxial Wire(75 ohm)
-To improve the picture quality in a poor
signal area, please purchase a signal
amplifier and install properly.
-If the antenna is not installed properly,
contact your dealer for assistance.
NN
NNOO
OOTT
TTEE
EE
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
ANTENNA/
CABLE IN
AV I N
AUDIO
L
VIDEO R
AC IN
VHF UHF
Signal
Amplifier
17
Connections
VCR Connection
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
ANTENNA/
CABLE IN
AV IN
AUDIO
L
VIDEO R
AC IN
ANT IN
ANT OUT S-VIDEO
IN
OUT
(R) AUDIO (L) VIDEO
1. Connect the Antenna out socket of the VCR to
the Antenna input socket on the TV.
2. Press the Power button on the VCR and match
the appropriate input selection between the TV
and VCR for viewing.
-To avoid picture noise (interface), leaves an adequate distance between the TV and the VCR.
AAWhen connecting with an antenna
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV I N
S-VIDEO
IN
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
1. Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yel-
low, Audio Left = white, and Audio Right = red)
2. Insert a video tape into the VCR and press
PLAY on the VCR.
3. Select the AV input source with using the
SOURCE button on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
AAWhen connecting with a RCA cable
VCR
VCR
Back panel of the set
Back panel of the set
18
Connections
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV IN
S-VIDEO
IN
1. Connect the S-VIDEO output of the VCR to the
S-VIDEO input on the set. The picture quality is
improved; compared to normal composite (RCA
cable) input.
2. Connect the audio outputs of the VCR to the
AV AUDIO L, R input jacks on the set.
3. Insert a video tape into the VCR and press
PLAY on the VCR.
4. Select the S-Video input source with using the
SOURCE button on the remote control.
5. Refer to the VCR manual for operating instruc-
tions.

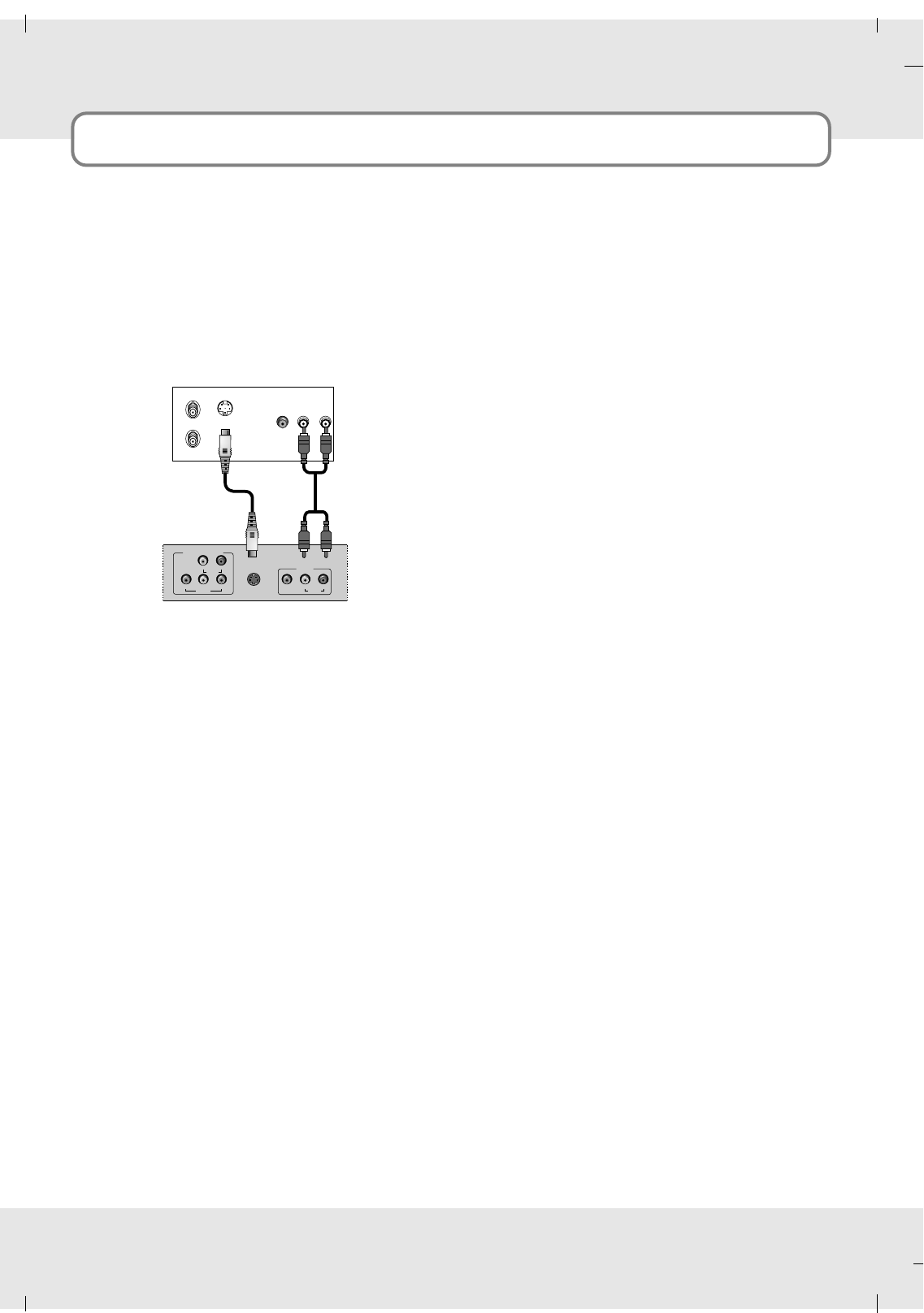

AAWhen connecting with a S-Video cable
VCR
Back panel of the set
19
Connections
DVD Connection
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV I N
S-VIDEO
IN

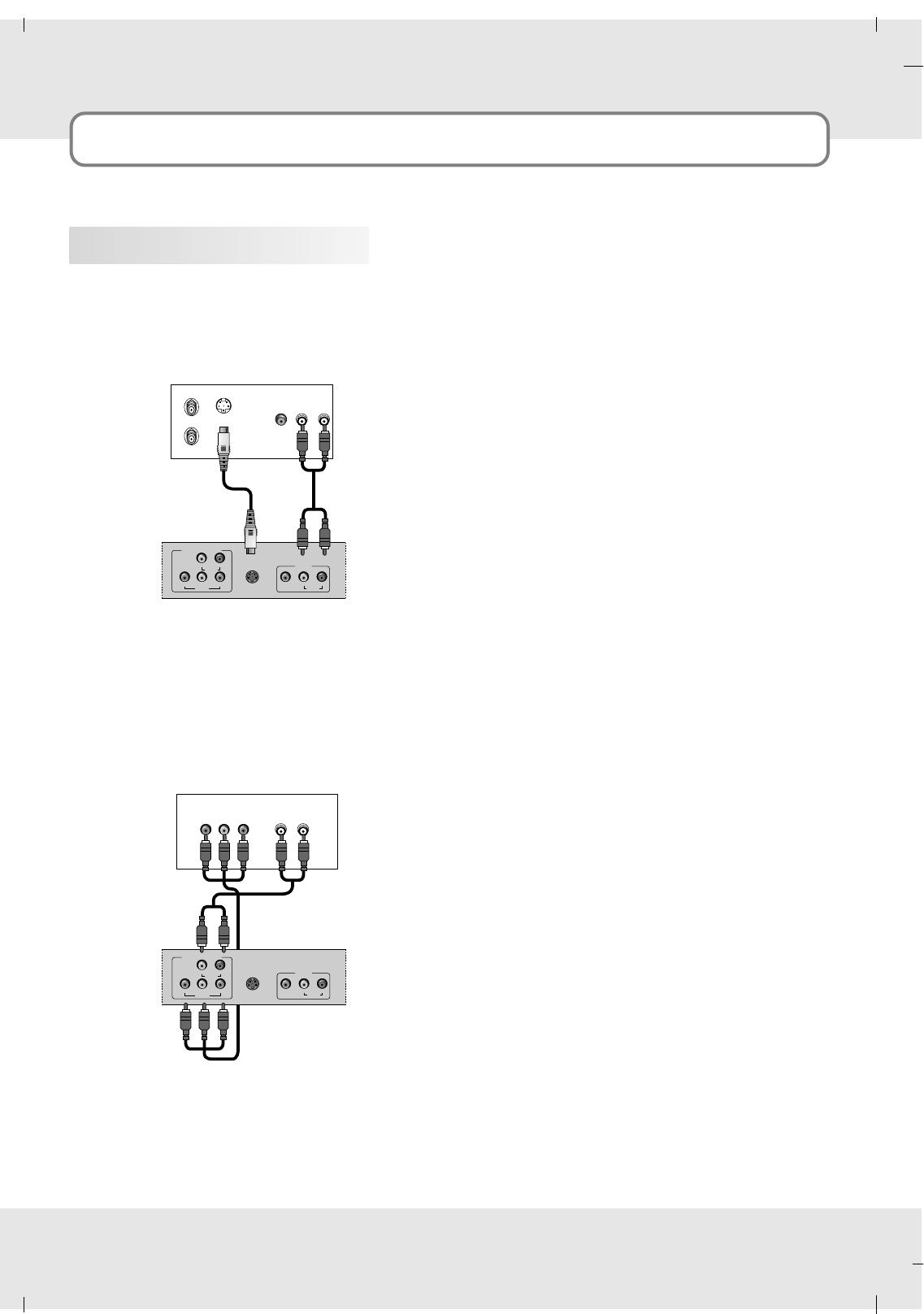

1. Connect the S-VIDEO output of the DVD to the
S-VIDEO input on the set.
2. Connect the audio outputs of the DVD to the
AV AUDIO L, R input jacks on the set.
3. Turn on the DVD player, insert a DVD.
4. Select S-Video input source with using the
SOURCE button on the remote control.
5. Refer to the DVD player's manual for operating
instructions.
AAWhen connecting with a S-Video cable
(L) AUDIO (R)
YPb Pr
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV IN
S-VIDEO
IN

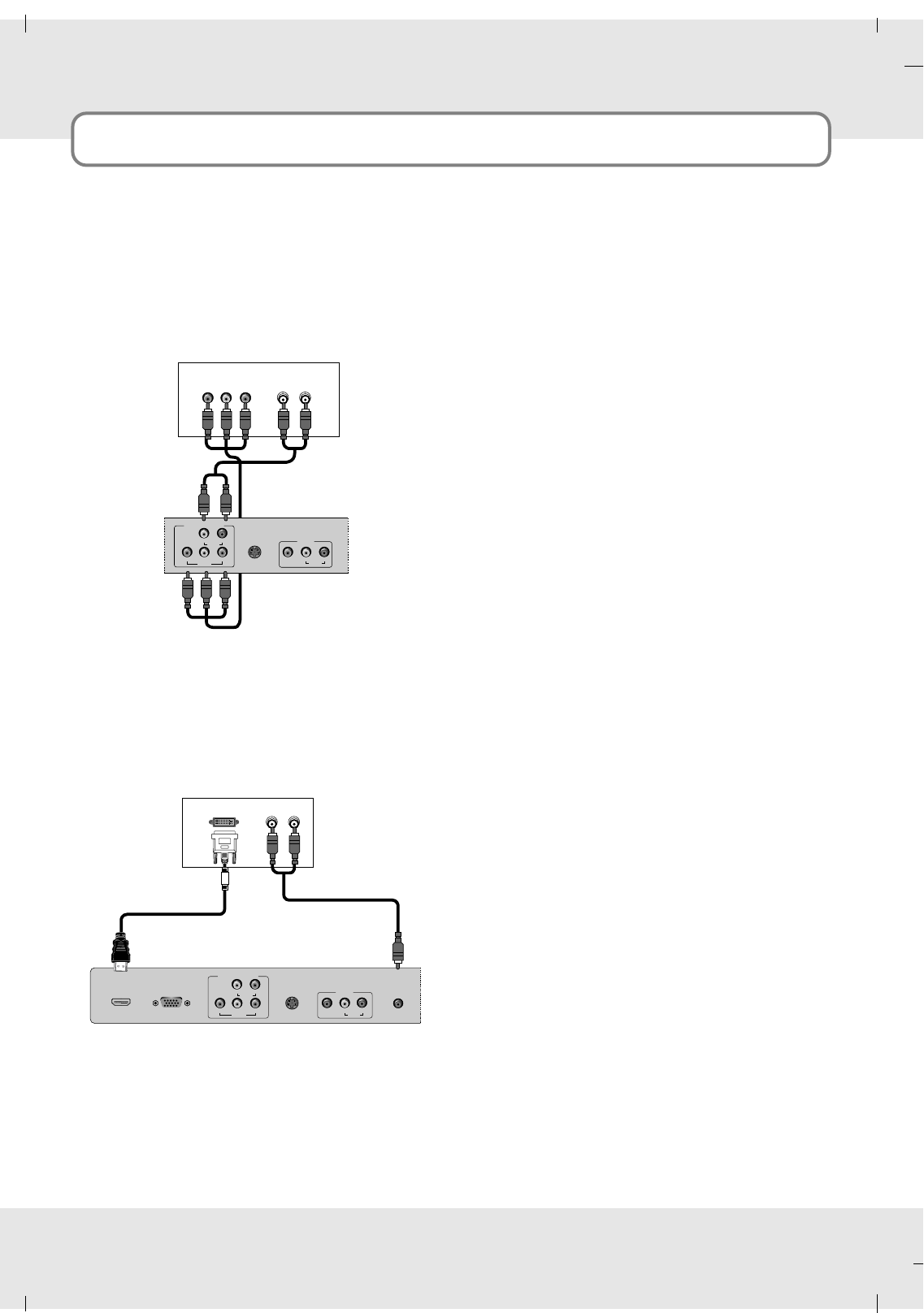

1. Connect the video outputs (Y, PB, PR) of the
DVD to the COMPONENT VIDEO(Y, Pb, Pr)
jacks on the set.
2. Connect the audio outputs of the DVD to the
COMPONENT AUDIO L, R jacks on the set.
3. Turn on the DVD player, insert a DVD.
4. Select YPbPr source with using the SOURCE
button on the remote control.
5. Refer to the DVD player's manual for operating
instructions.
AAWhen connecting with a Component cable
DVD
Back panel of the set
DVD
Back panel of the set
20
Connections
HDMI/DVI
IN
RGB IN
(PC)
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO
HDMI-DVD OUTPUT

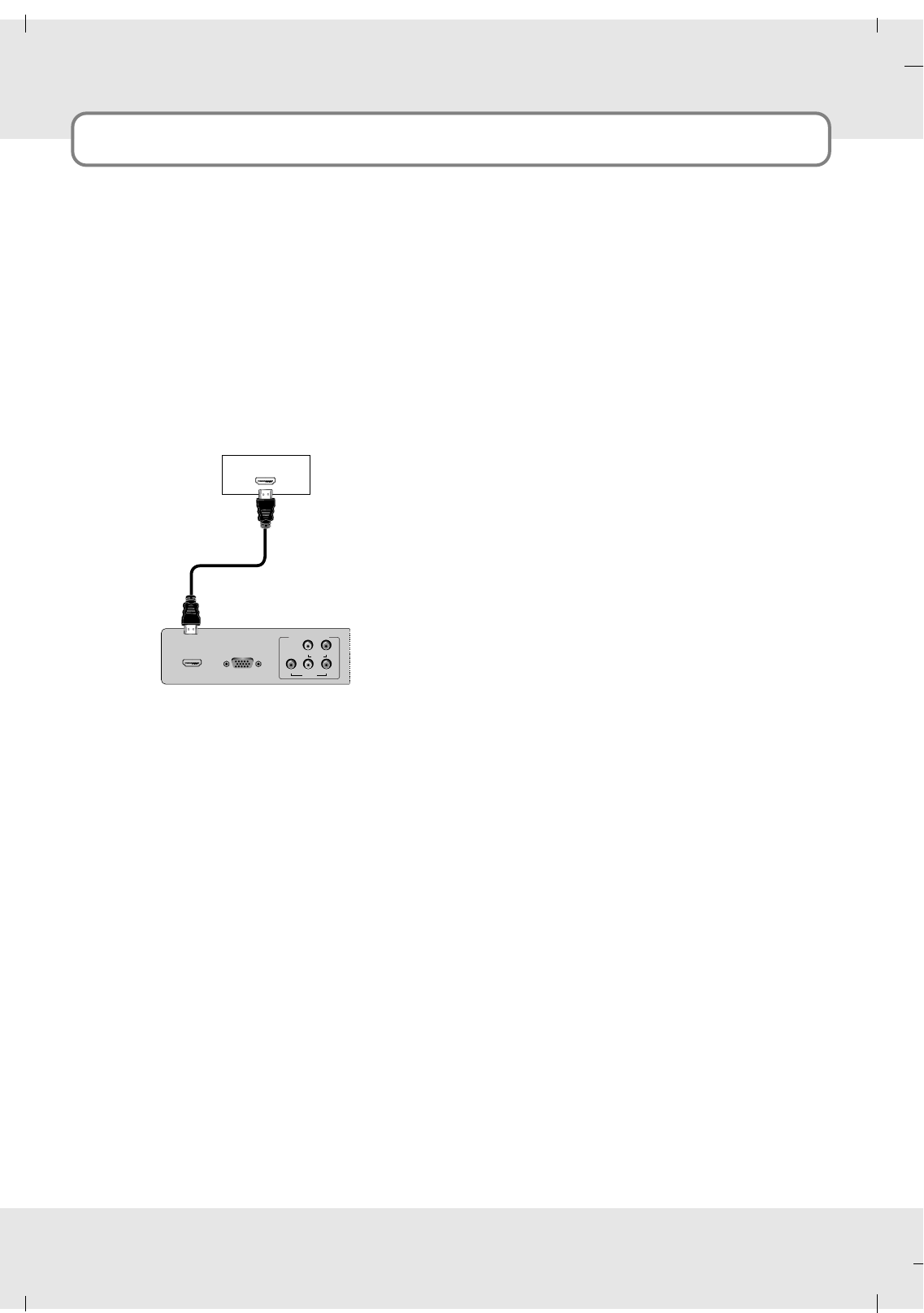

1. Connect the HDMI output of the DVD to the
HDMI/DVI IN jack on the set.
2. Select HDMI input source with using the
SOURCE button on the remote control.
3. Refer to the DVD player's manual for operating
instructions.
AAWhen connecting with a HDMI cable
DVD
Back panel of the set
21
Connections
HDSTB Connection
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO AV IN
AUDIO
L
VIDEO R
(R) AUDIO (L) RGB-DTV OUTPUT
1. Connect the RGB output of the digital set-top
box to the RGB IN (PC) jack on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) jack on the set.
3. Turn on the digital set-top box.
4. Select VGA input source with using the
SOURCE button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
AAWhen connecting with a D-Sub 15 pin cable
HDMI/DVI
IN
RGB IN
(PC)
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO
HDMI-DVD OUTPUT
1. Connect the HDMI output of the digital set-top
box to the HDMI/DVI IN jack on the set.
2. Turn on the digital set-top box.
3. Select HDMI input source with using the
SOURCE button on the remote control.
4. Refer to the digital set-top box manual for oper-
ating instructions.
AAWhen connecting with a HDMI cable
-This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.
However, if you do receive Digital signals from a digital set-top box or other digital external device,
refer to the figure as shown below.
Digital Set-top Box
Digital Set-top Box
Back panel of the set
Back panel of the set
22
Connections
(L) AUDIO (R)
YPb Pr
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV I N
S-VIDEO
IN
1. Connect the video outputs (Y, PB, PR) of the
digital set-top box to the COMPONENT
VIDEO(Y, Pb, Pr) jacks on the set.
2. Connect the audio outputs of the digital set-top
box to the COMPONENT AUDIO L, R jacks on
the set.
3. Turn on the digital set-top box.
4. Select YPbPr source with using the SOURCE
button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
AAWhen connecting with a Component cable
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO AV IN
AUDIO
L
VIDEO R
DVI-DTV OUTPUT (R) AUDIO (L)
1. Connect the DVI output of the digital set-top
box to the HDMI/DVI IN jack on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) jack on the set.
3. Turn on the digital set-top box.
4. Select HDMI input source with using the
SOURCE button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
AAWhen connecting with a HDMI to DVI cable
Digital Set-top Box
Back panel of the set
Digital Set-top Box
Back panel of the set
23

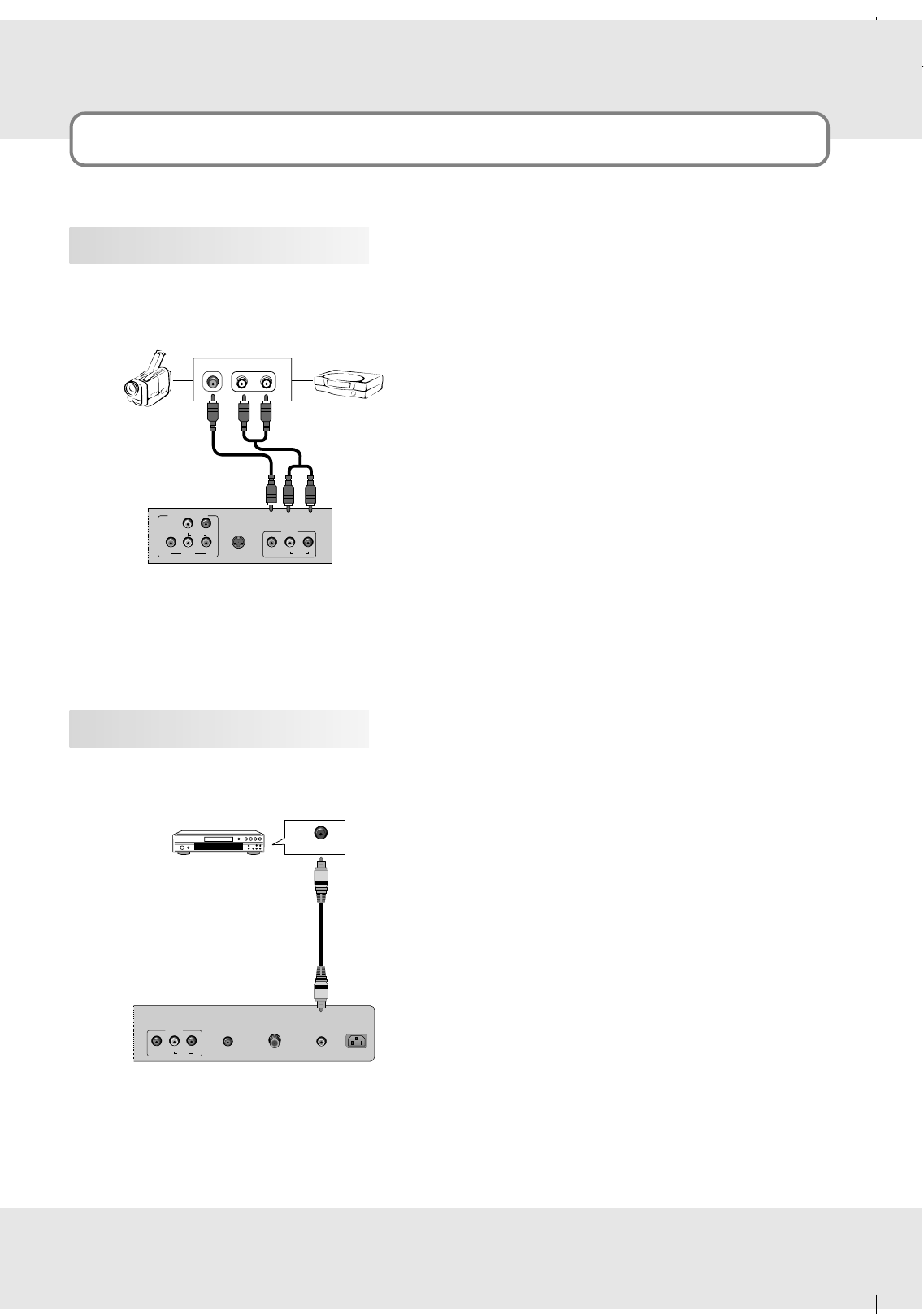

External A/V Source
VIDEO
YPb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV IN
S-VIDEO
IN
L-AUDIO-RVIDEO
OUT
1. Connect the AUDIO/VIDEO jacks between TV
and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio
Right = red)
2. Select the AV input source with using the
SOURCE button on the remote control.
3. Operate the corresponding external equipment.
4. Refer to the external equipment manual for
operating instructions.
Camcorder Video game set
Back panel of the set
Digital Audio Out
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT(COAXIAL)
ANTENNA/
CABLE IN
AV IN
AUDIO
L
VIDEO R
AC IN
DIGITAL AUDIO
IN(COAXIAL)
1. Connect one end of the coaxial cable to the
TV’s DIGITAL AUDIO OUT(COAXIAL) port.
2. Connect the other end of the coaxial cable to
the digital audio input on the audio equipment.
3. Refer to the external audio equipment manual
for operation.
Audio Equipment
Back panel of the set
Connections
24
Connections
PC Connection
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO AV IN
AUDIO
L
VIDEO R
DVI OUTPUT AUDIO OUT
1. Connect the DVI output of the PC to the
HDMI/DVI IN jack on the set.
2. Connect the PC audio outputs to the AUDIO IN
(RGB/DVI) jack on the set.
3. Turn on the PC and the set.
4. Select HDMI input source with using the
SOURCE button on the remote control.
AAWhen connecting with a HDMI to DVI cable
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO AV I N
AUDIO
L
VIDEO R
AUDIO OUT PC OUTPUT
1. Connect the RGB output of the PC to the RGB
IN(PC) jack on the set.
2. Connect the PC audio outputs to the AUDIO IN
(RGB/DVI) jack on the set.
3. Turn on the PC and the set.
4. Select VGA input source with using the
SOURCE button on the remote control.
AAWhen connecting with a D-Sub 15 pin cable
PC
Back panel of the set
PC
Back panel of the set
25
Connections
Resolution
Resolution
640 x 480
800 x 600
1024 x 768
31.47
35.16
37.88
48.36
59.94
56.25
60.32
60.00
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
a. The synchronization input form is separate.
b. If the resolution is not supported, ‘Not Support!’ message will be displayed.
NN
NNOO
OOTT
TTEE
EE
26
Basic Operation
Turning On or Off
Standby Setup: The AC power cord must be connected to have the TV in standby mode and ready to
be turned on. Press the ON/OFF button on the side panel of the TV to go into standby mode.
1. If the TV is in standby mode, press the POWER button on the remote or the TV itself to turn the TV
on.
2. Press the POWER button again on the remote controller or the TV itself to turn the TV off.
Channel Selection
You can select a channel number with the CH+ /CH- button or NUMBER buttons.
Volume Adjustment
Press the VOL+ / VOL- button to adjust the sound level.
Sound Mute
Press the MUTE button. The sound is switched off and the mute display appears.
To cancel mute mode, press the MUTE or VOL+ / VOL- button again.
Quick View
Press the button to view the last channel you were watching.
27
Basic Operation
Input Selection
1. Press the SOURCE button to change the input mode.
2. Press the Down or Up button to select your desired
mode.
3. Press the OK button to change your selected mode.
Language Selection
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select OSD Language.
3. Press the Left or Right button to select your
desired language.
4. The on screen menu will then appear in the
selected language.
Input Source
AV
S-Video
YPbPr
VGA
HDMI
TV
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FFGG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
28
On Screen Menus
Parental ENTER Enter MENU ExitSelect
GG
Video
Audio
TV
Setup
Parental
Setup ENTER Enter MENU ExitSelect
TV ENTER Enter MENU ExitSelect
Audio MENU Exit
ENTER Enter Select
Video MENU Audio MENU
User
PCM
Off
0
40
40
FF GG
FF GG
FF GG
Parental MENU
Program Block
Change Password
Clean All
GG
GG
GG
TV MENU
Setup MENU
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
Video
Audio
TV
Setup
Parental
GG
Video
Audio
TV
Setup
Parental
Your TV’s OSD(On Screen Display) may differ slightly from what is shown in this manual.
1. Press the MENU button and then use Down or Up button to select each menu.
2. Press the OK button and then Down, Up, Left and Right buttons to navigate to the available menus.
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
Video
User FF GG
45
50
50
0
0
GG
GG
ENTER Enter MENU Exit
Select
Video
Audio
TV
Setup
Parental
GGBalance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
29

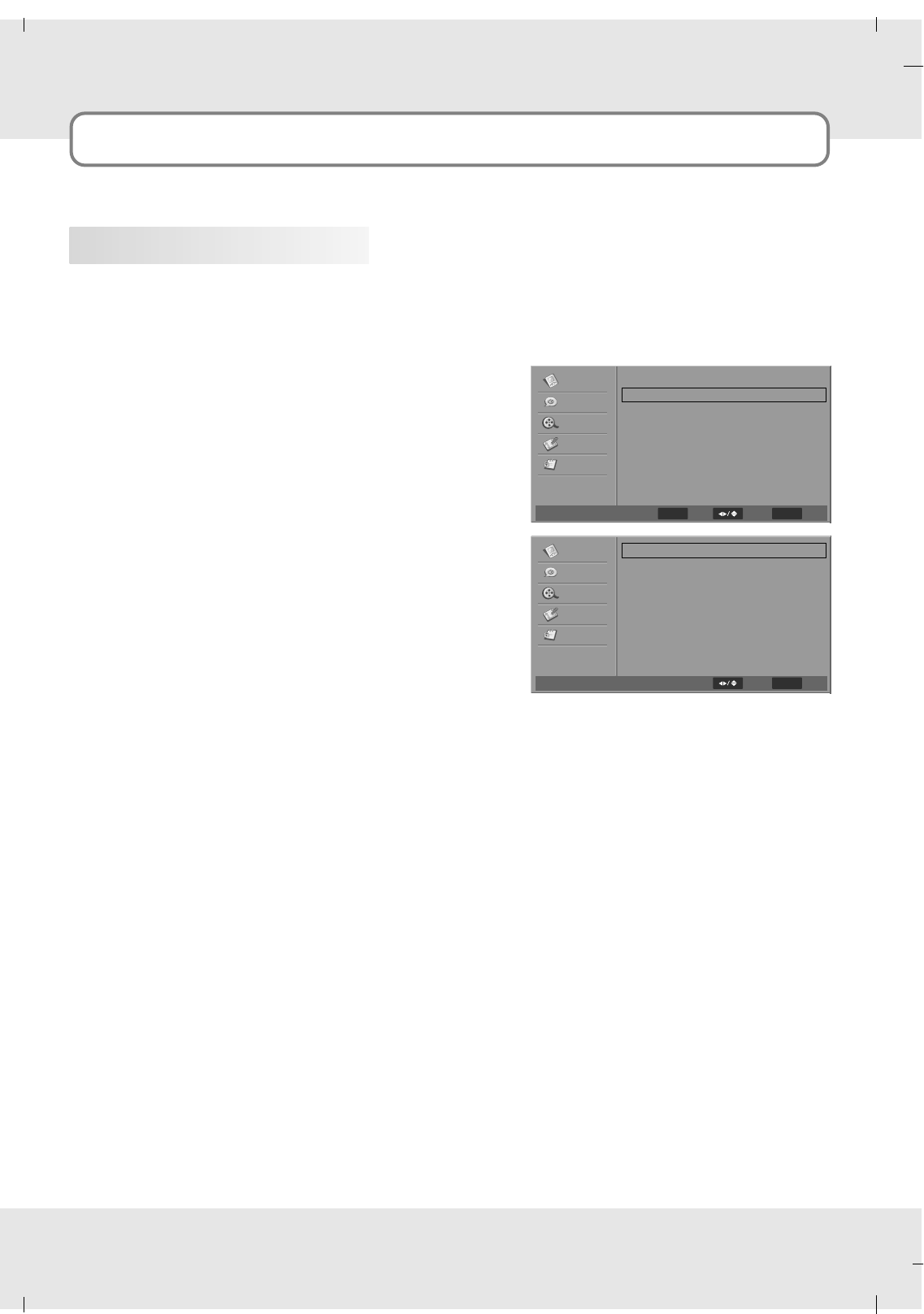

Setting up TV Channel
Auto Scan
Automatically finds all channels available through the Antenna or Cable and stores them in memory on
the channel list.
1. Press the MENU button and then press the Down
or Up button to select the TV.
2. Press the OK button and then press the Down or
Up button to select Tuner Mode.
3. Press the Left or Right button to select Antenna
or Cable.
4. Press the Down or Up button to select Channel
Scan.
5. Press the OK button to start auto search.
The TV will begin memorizing all of the available
channels.
6. Press the MENU button at any time to interrupt the
memorization process.
TV MENU Exit
Select
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
TV
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Scan MENU Back
Select
Channel Scan
Video
Audio
TV
Setup
Parental
GG
MENU Cancel
Status:Scanning..
Analog Channels:1
Digital Channels:0
10%
Cable
30
Setting up TV Channel
You can manually store or remove channels in whatever order you desire.
1. Press the MENU button and then press the Down
or Up button to select the TV.
2. Press the OK button and then press the Down or
Up button to select Channel Skip.
3. Press the OK button and then press the Down or
Up button to select channel you want to add or
delete.
If you want to skip the selected channel, press the
OK button.
4. Save the other channels in the same method.
5. Press the MENU button to return to the previous
menu.
Add/Delete Channel
TV
Tuner Mode
Channel Scan
Channel Skip
Cable FF GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter MENU Back
Select
Channel Skip
1Analog
2Analog
3Analog
4Analog
5Analog
6Analog
7Analog
8Analog
9Analog
10 Analog
Video
Audio
TV
Setup
Parental
GG
ENTER Set MENU Back
Select
31
Setting up TV Channel
Displays Broadcasting guide of received channel.
1. Press the EPG button to display the Electronic Program Guide.
2. Press the Left or Right button to change channel and display the broadcasting guide at the bottom
of the screen.
EPG(Electronic Program Guide)
Sunday, 3-February-2008 9:00:00 PM
9:01 PM-10:09 PM Sun, 3-Feb Not Rated
7 FF7-1 ABC D-2 GG8
EE
Today 9:00 PM HD
Today 10:00 PM
Today 11:00 PM
Tomorrow 12:00 AM ABC
Tomorrow 12:50 AM HD1
32
Picture Controls
-If you want to select Picture Mode directly, press the button.
-Every time you press the button, it will switch between Soft,Standard,Vivid or User.
-When you adjust Brightness, Contrast,Saturation, HUE or Sharpness, Picture Mode changes
to User.
Auto Picture Controls
Picture Mode adjusts the set for the best picture appearance.
Select the preset value in the Picture Mode menu.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Picture Mode.
3. Press the Left or Right button to select Soft,
Standard, Vivid or User.
4. Press the MENU button to return to the previous
menu.
Soft
Select this option to display with a soft image.
Standard
The most general and natural screen display status.
Vivid
Select this option to display with a sharp image.
User
Select this option to use the user-defined setting.
NN
NNOO
OOTT
TTEE
EE
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
33

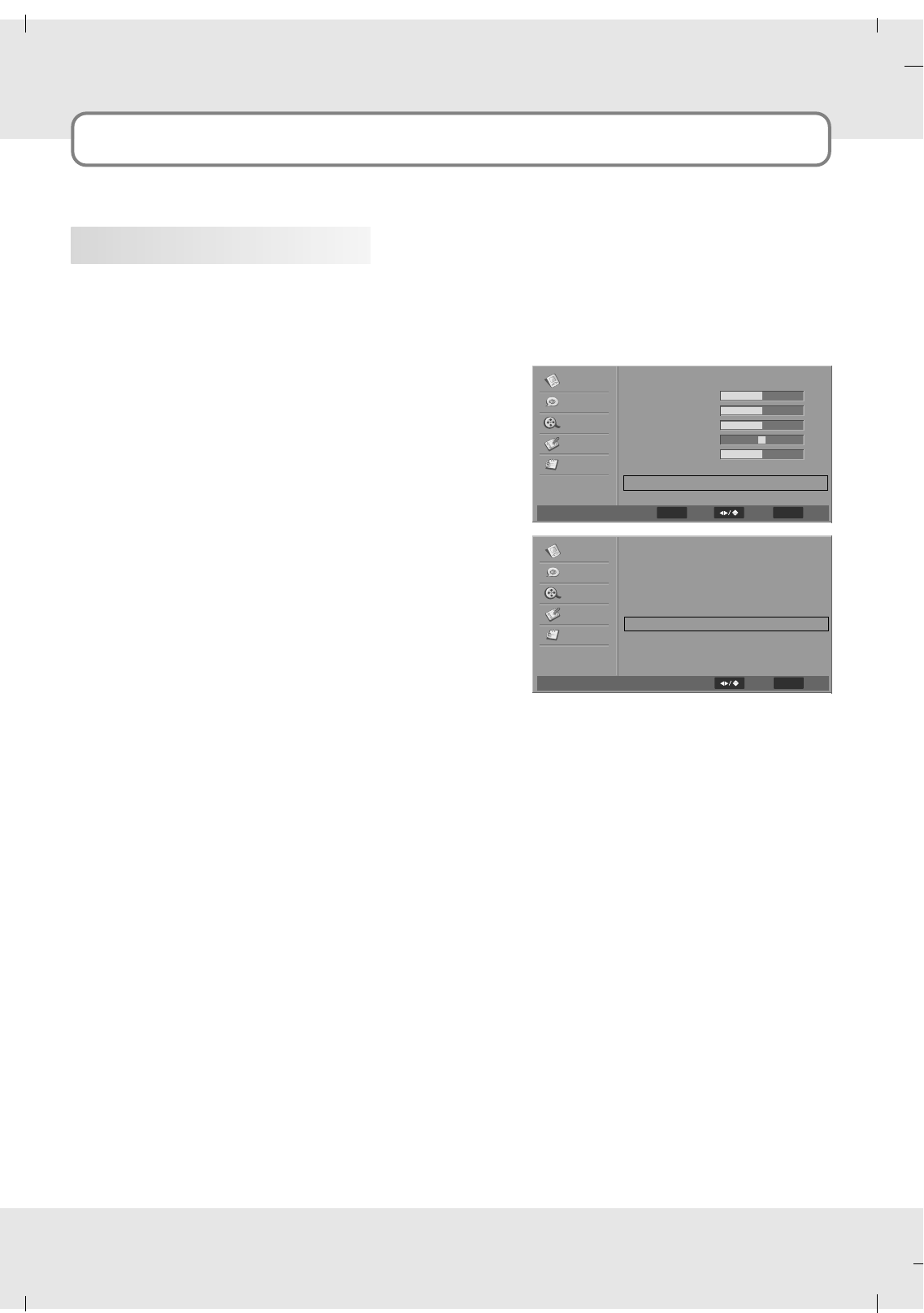

Picture Controls

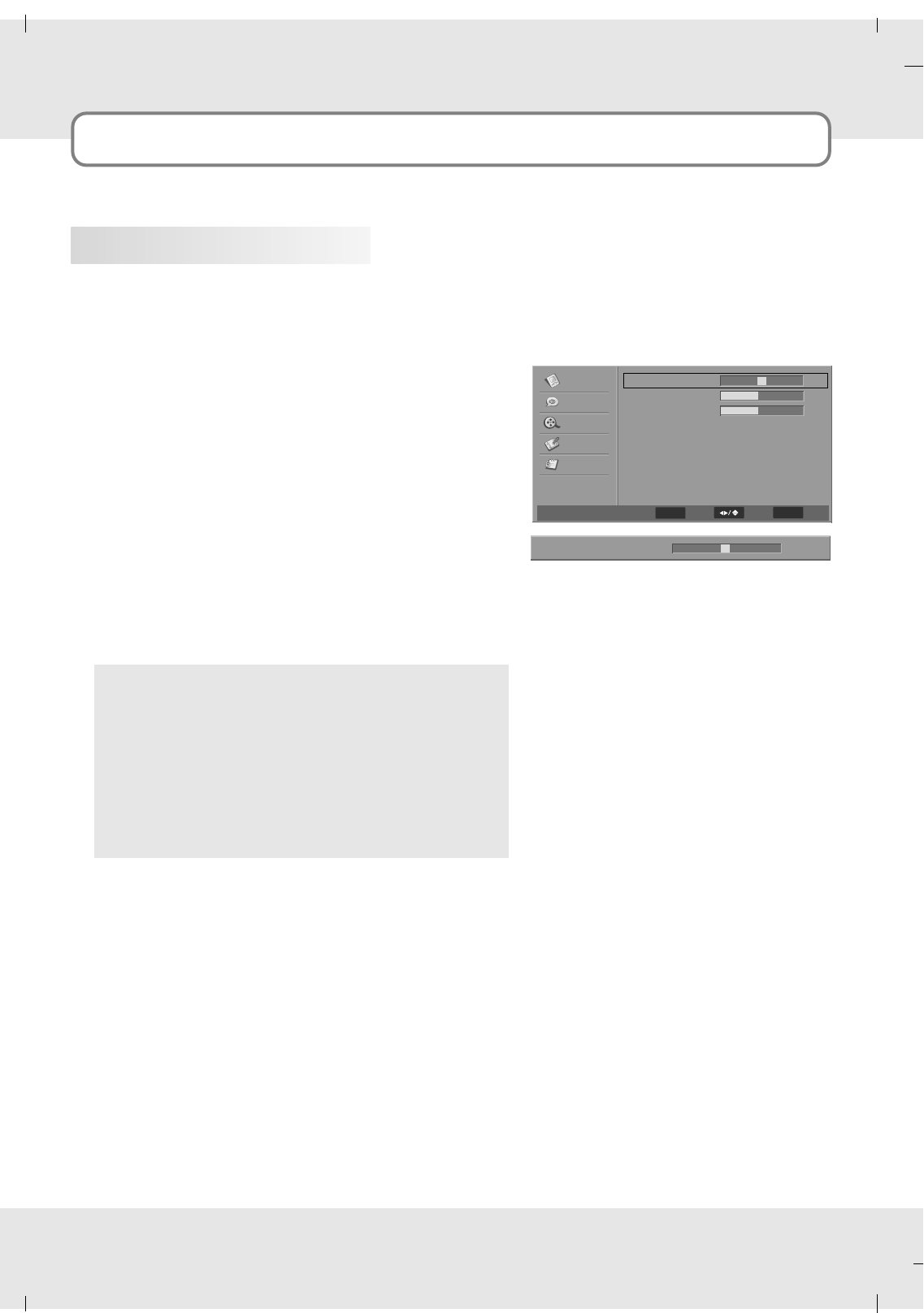

Manual Picture Controls
You can adjust picture Brightness, Contrast,Saturation, HUE and Sharpness to the levels you prefer.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select desired picture option.
(Brightness, Contrast,Saturation, HUE,
Sharpness)
3. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
4. Press the MENU button to return to the previous
menu.
Brightness
Increases or decreases amount of white in the your
picture.
Contrast
Adjusts the difference between the light and dark lev-
els in the picture.
Saturation
Adjusts intensity of all colors.
HUE
Adjusts the balance between red and green levels.
Sharpness
Adjusts the level of sharpness in the edges between
the light and dark areas of the picture. The lower the
level, the softer the image.
Brightness 60
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Adjust
34

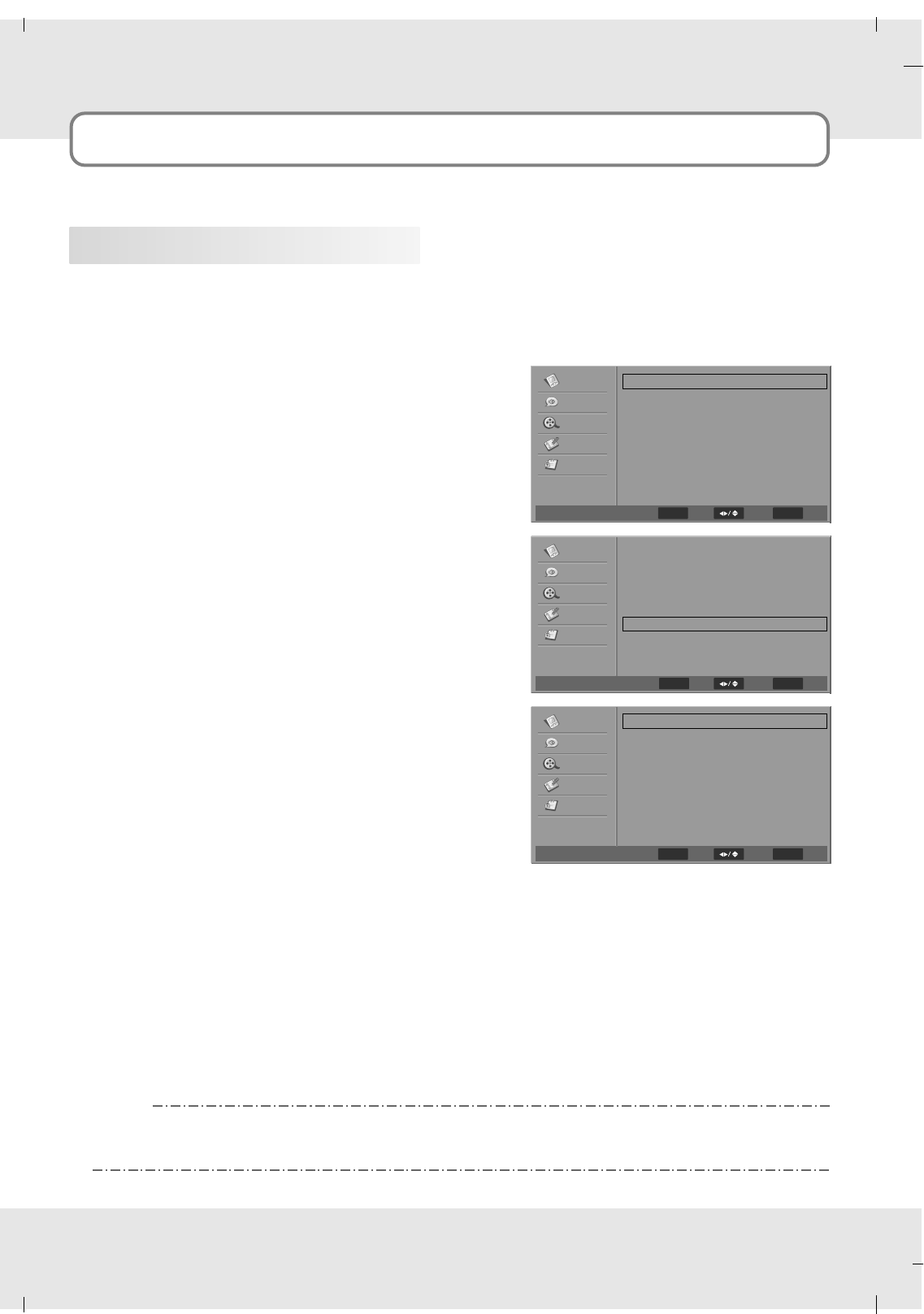

Picture Controls

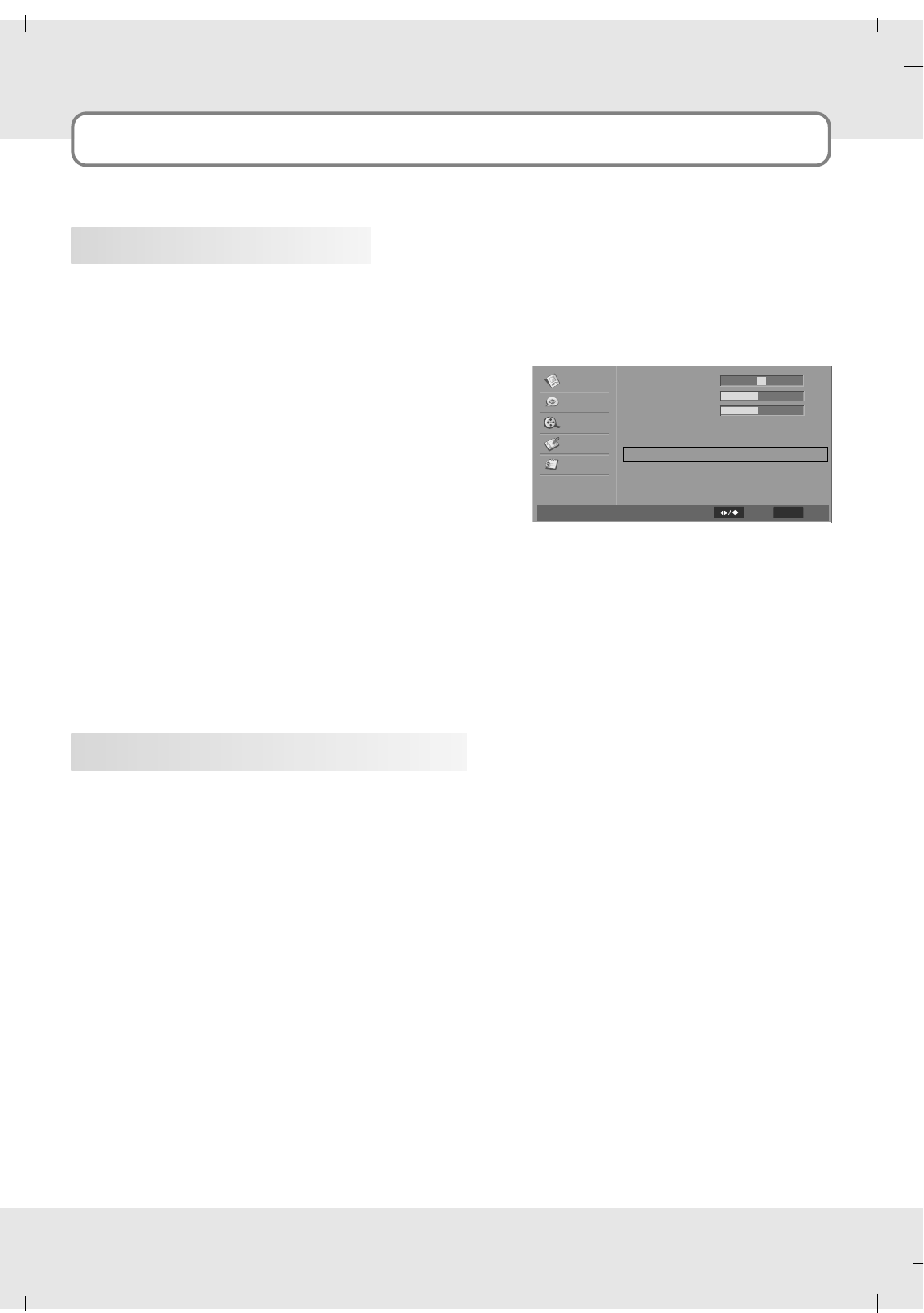

Color Temperature
You can adjust to color temperature you prefer.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Color Temperature.
3. Press the OK button and then press the Left or
Right button to select Cool,Standard,Warm or
User.
4. Press the Down or Up button to select desired
color item.
5. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
6. Press the MENU button to return to the previous
menu.
-To you adjust R Gain, G Gain, B Gain, or Color Temperature change to Picture Mode to User.
NN
NNOO
OOTT
TTEE
EE
Color Temperature
Color Temperature
R Gain
G Gain
B Gain
Standard FF GG
0
0
0
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
R Gain 0
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
35

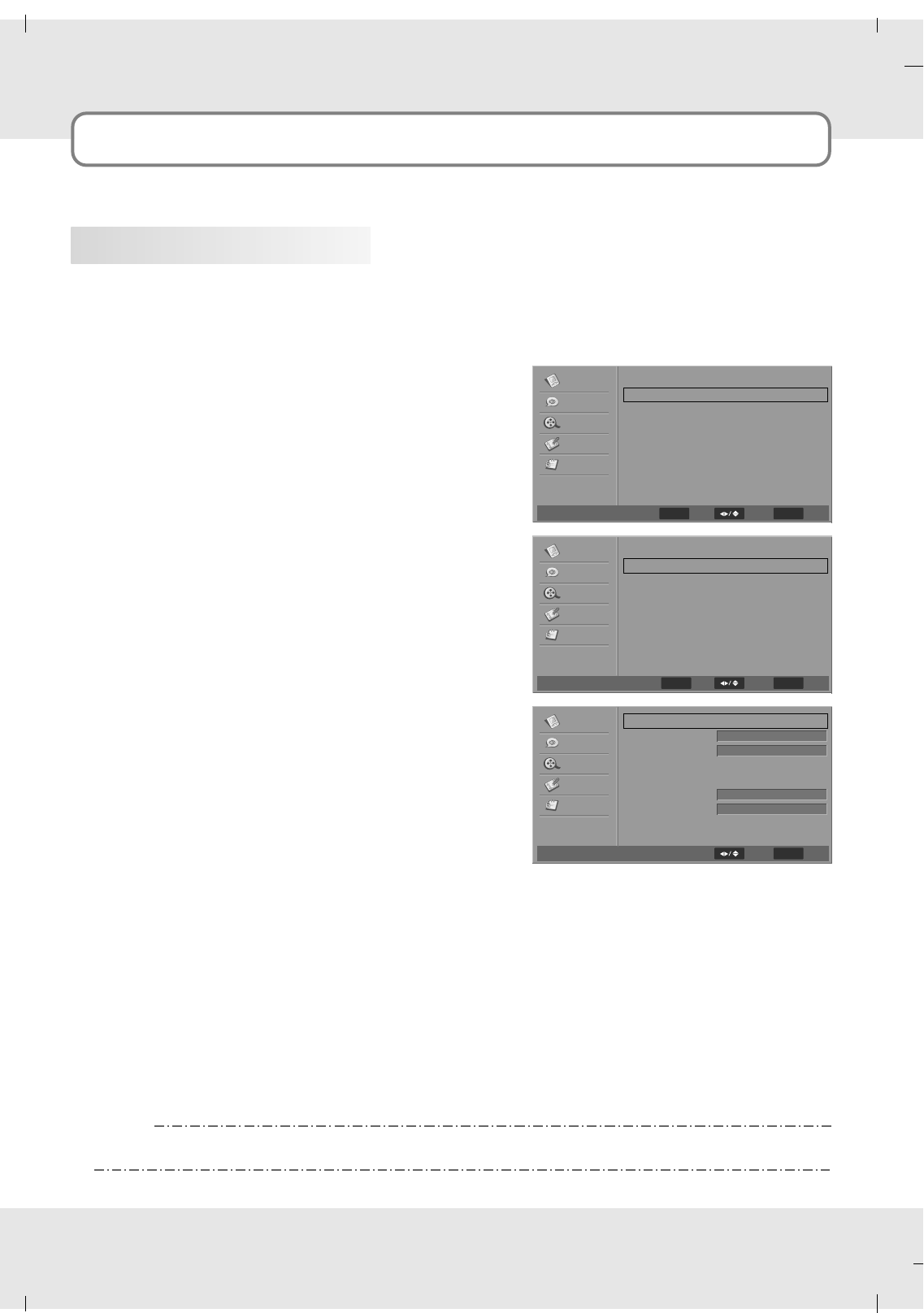

Advanced Video

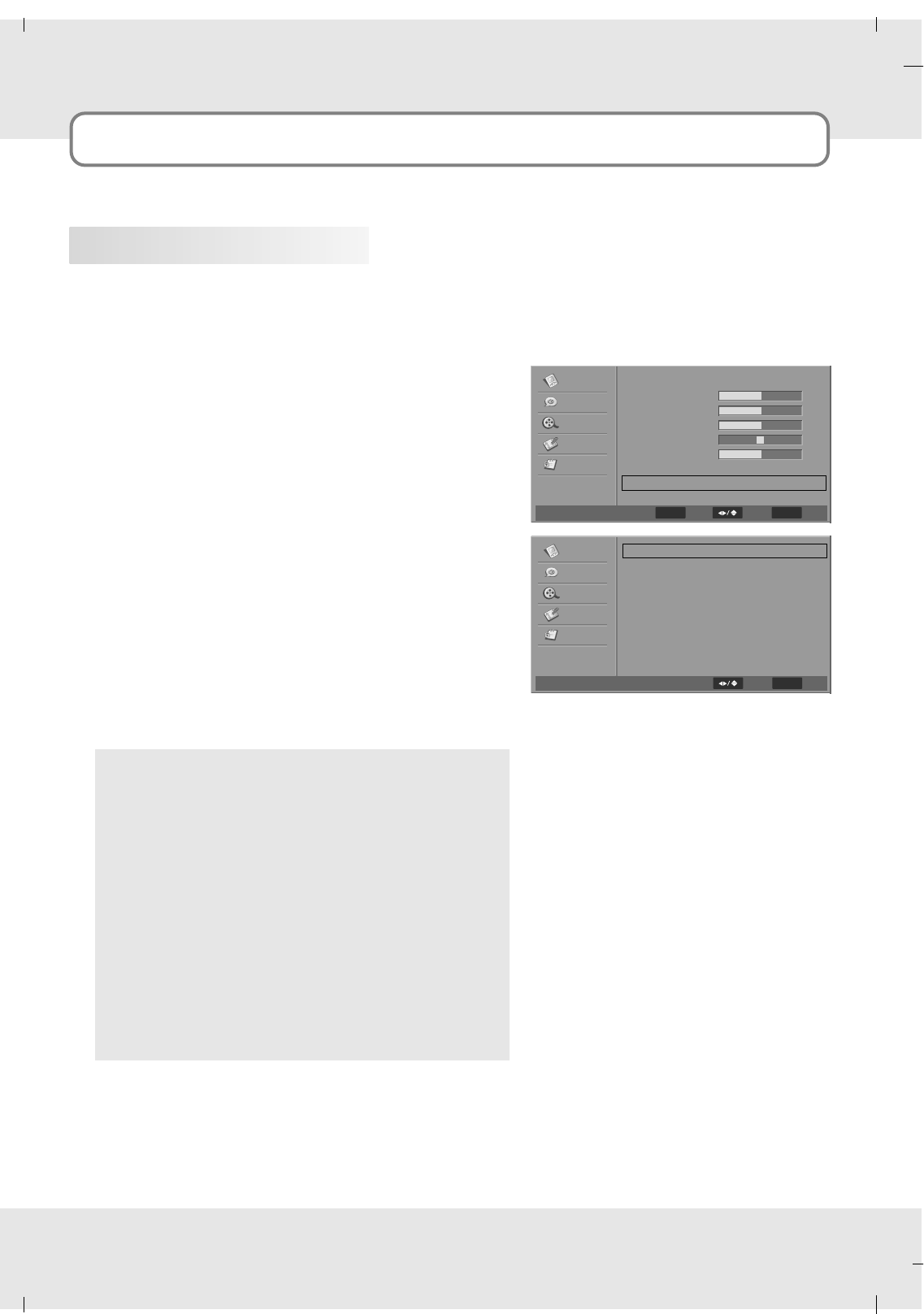

Dynamic Noise Reduce
Use this feature to reduce picture artifacts caused by the digitizing of image motion content that may be
present in the picture.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select DNR.
4. Press the Left or Right button to select Off, Low,
Medium, Strong or Auto.
5. Press the MENU button to return to the previous
menu.
Off
Turns the screen noise reduction function off.
Low
Reduces screen noise at a low level.
Medium
Reduces screen noise at a medium level.
Strong
Reduces screen noise at a high level.
Auto
Adjusts automatically screen noise according to
received signal.
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
36
Advanced Video

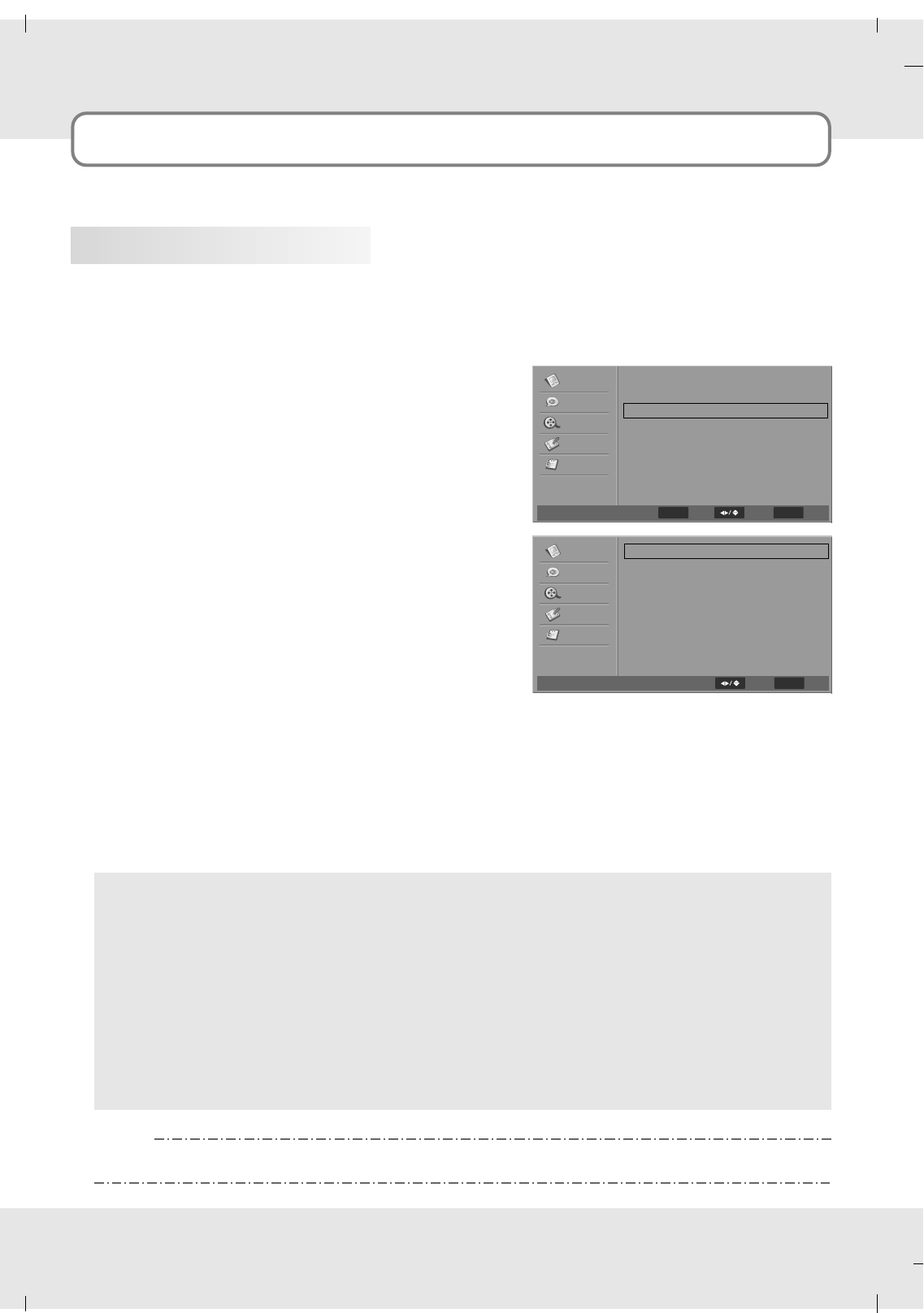

Black Level Extender
Use this feature to increase the picture reproduction performance in the dark areas of the picture.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select Black Level Extender.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous
menu.
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
37
Advanced Video
White Peak Limiter
Use this feature to limit excessive amounts of white in bright areas of the picture, this is caused by a
lower sync level from a channel being received from the antenna or cable.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select White Peak Limiter.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous
menu.
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
38
Advanced Video
CTI(Color Transient Intensity)
This feature can be used to reduce the time taken to transition from one color to another.
The effect will be seen as sharpening the border between colors.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select CTI.
4. Press the Left or Right button to select Off, Low,
Medium or Strong.
5. Press the MENU button to return to the previous
menu.
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
39
Advanced Video
Flesh Tone
In some cases, activation of this feature can result in a more pleasing production of sky and flesh color.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select Flesh Tone.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous
menu.
-Flesh Tone can not be adjusted in PC mode.
NN
NNOO
OOTT
TTEE
EE
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
40
Advanced Video

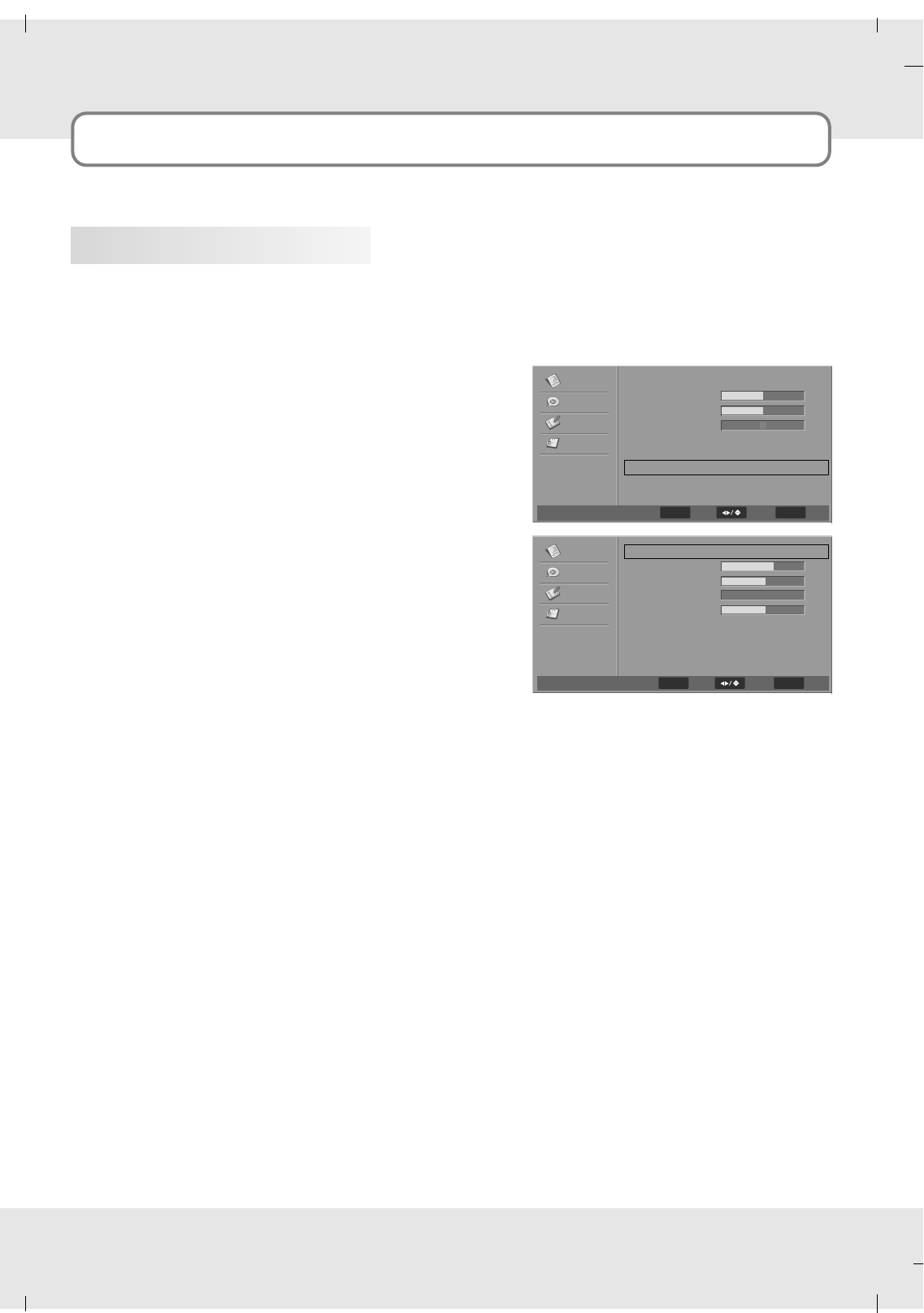

Adaptive Luma Control
Large areas of darkness in a picture will result in a lower Average Picture Level (APL) and the overall
picture will look too dark; activation of this feature will raise the APL to counteract this effect.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Advanced Video.
3. Press the OK button and then press the Down or
Up button to select Adaptive Luma Control.
4. Press the Left or Right button to select On or Off.
5. Press the MENU button to return to the previous
menu.
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
User FF GG
60
50
50
0
0
GG
GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Advanced Video
DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control
Medium
Off
On
Low
Off
On
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
41
Sound Controls
Auto Sound Controls
This Sound Mode automatically adjusts the sound controls to the recommended settings.
1. Press the MENU button and then press the Down
or Up button to select the Audio.
2. Press the OK button and then press the Down or
Up button to select Sound Mode.
3. Press the Left or Right button to select Voice,
Concert, Jazz or User.
4. Press the MENU button to return to the previous
menu.
Voice
Select this option while watching a show that is
mostly dialog.
Concert
Select this option to when listening to music to enjoy
the original sound.
Jazz
This option highlights bass and also emphasizes
instruments such as piano and guitar.
User
Select this option to manually adjust the audio
settings.
-If you want to change the Sound Mode without entering the menus, press the button.
-Each time you press the button, it will switch between Voice, Concert, Jazz and User.
-When you manually adjust the Bass or Treble, the Sound Mode will change to User.
NN
NNOO
OOTT
TTEE
EE
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
Voice
Off
Off
0
40
40
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
42
Sound Controls

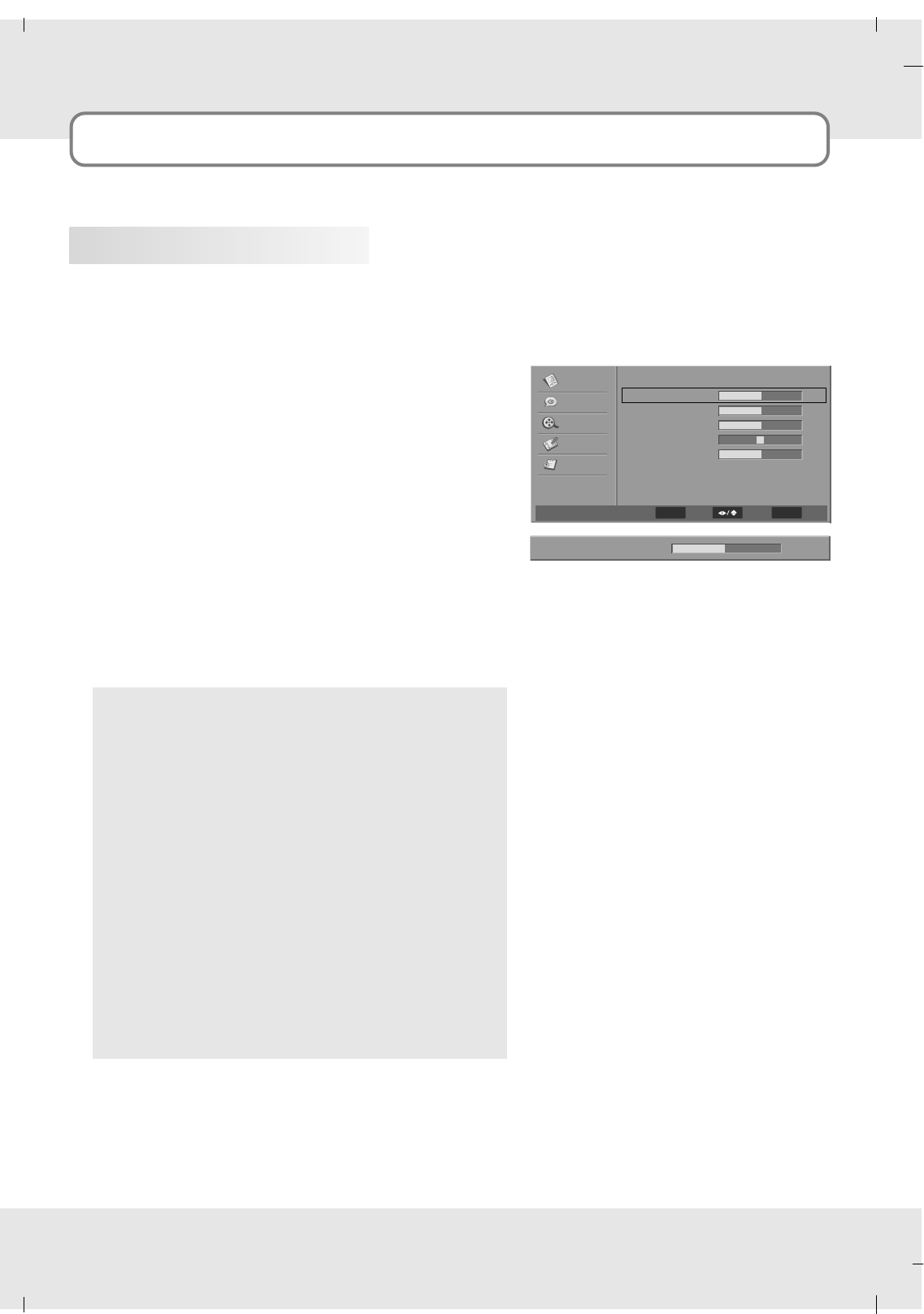

Manual Sound Controls

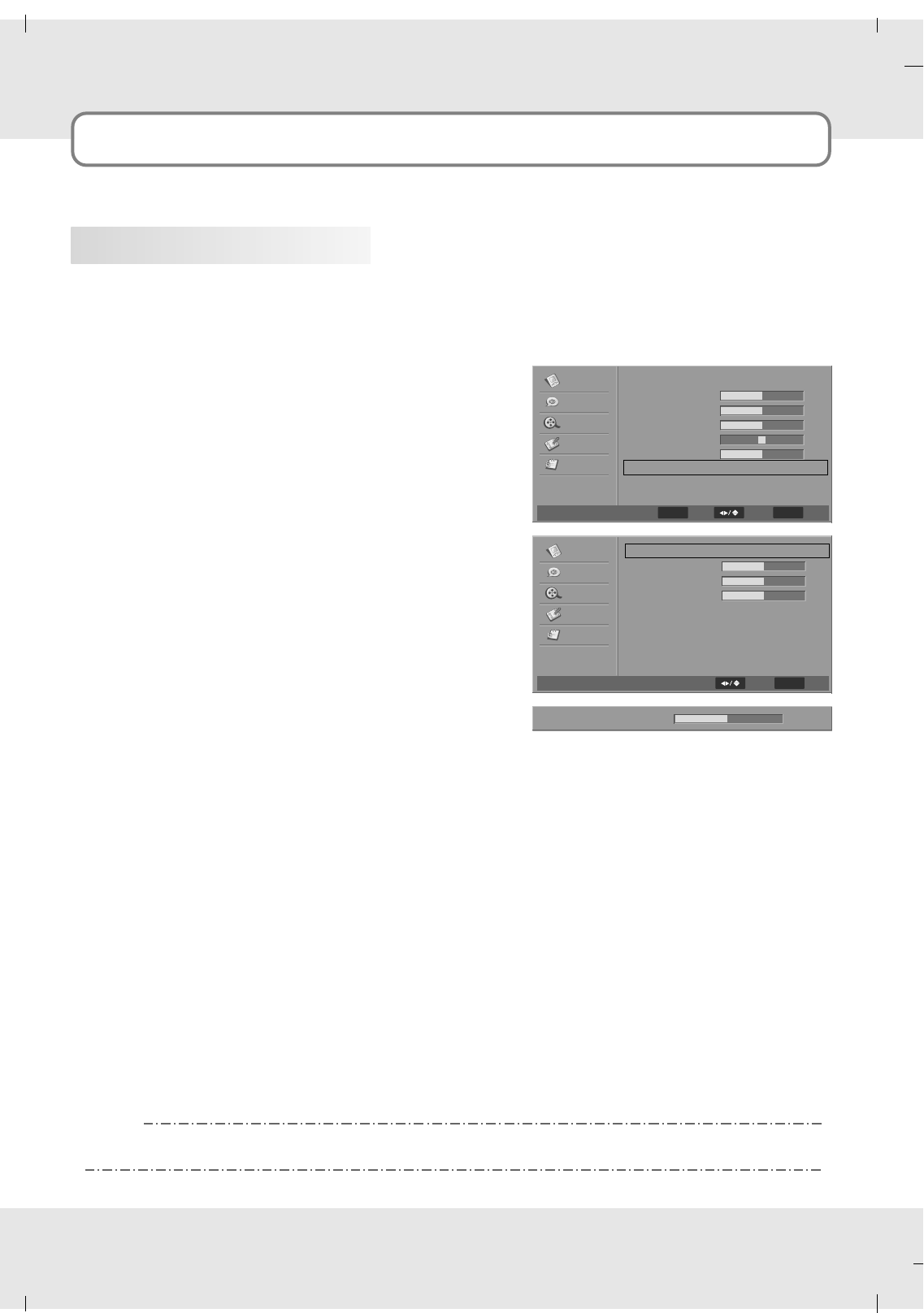

This function allows you to manually adjust the audio settings to your preferred levels.
1. Press the MENU button and then press the Down
or Up button to select the Audio.
2. Press the OK button and then press the Down or
Up button to select desired picture option.
(Bass, Treble, Balance)
3. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
4. Press the MENU button to return to the previous
menu.
Bass
This adjusts the range of the low pitch sound.
Treble
This adjusts the range of the high pitch sound.
Balance
Adjusts the left to right sound balance between the
built-in speakers.
Balance 0
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
Voice
Off
Off
0
40
40
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
ENTER Adjust
43

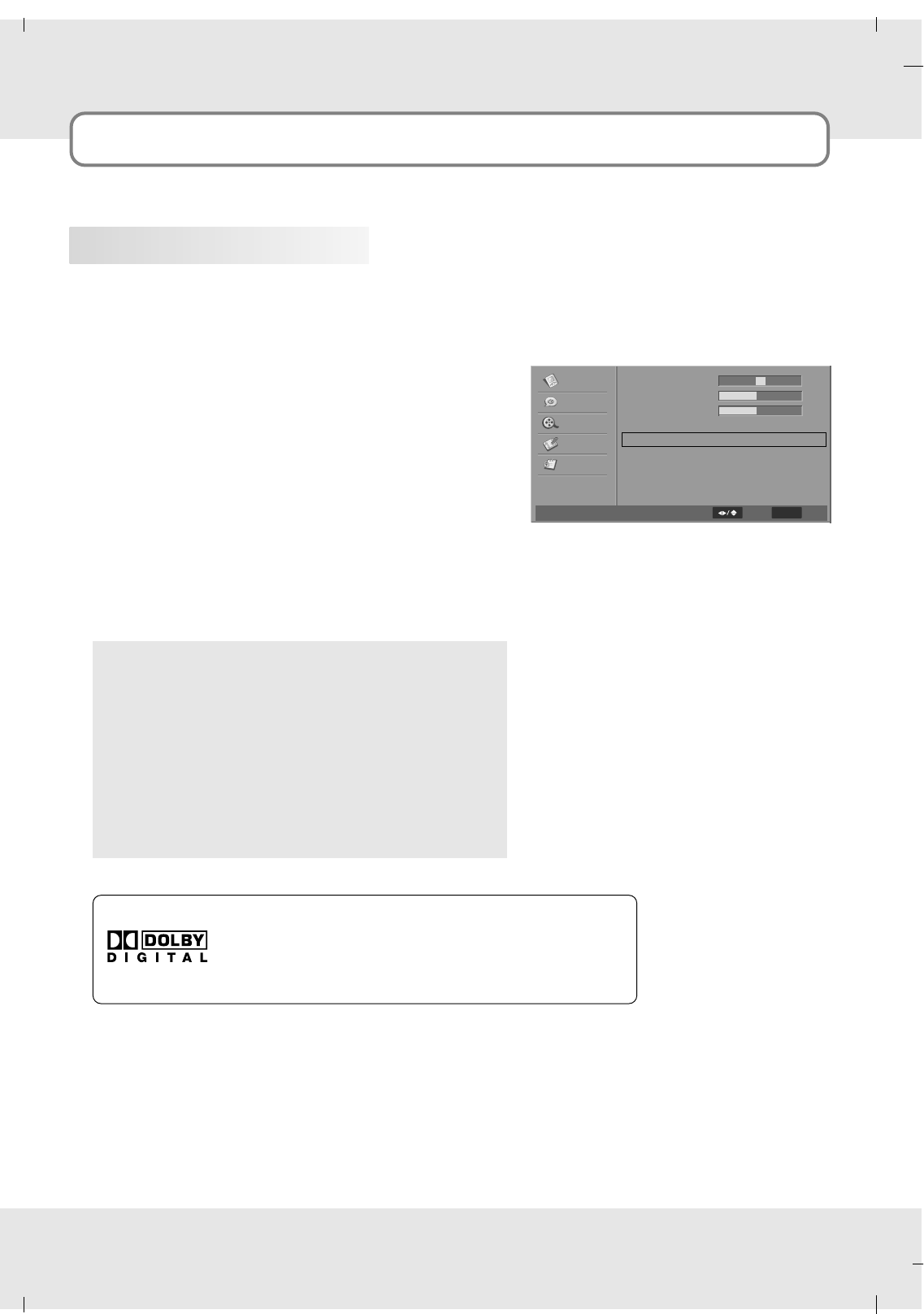

Sound Controls
This option activates Digital Audio Output. This is recommended for use with other devices capable of
receiving digital audio signals. (This mode is set to Off by default)
Digital Output
1. Press the MENU button and then press the Down
or Up button to select the Audio.
2. Press the OK button and then press the Down or
Up button to select Digital Output.
3. Press the Left or Right button to select Off,
Dolby Digital or PCM.
4. Press the MENU button to return to the previous
menu.
Off
Television will only output an Analog audio signal.
(This mode is set to Off by default)
Dolby Digital
Television will output a digital audio signal.
PCM (Pulse-code modulation)
This mode creates a digital representation of an ana-
log siginal and is only used with an audio CD signal.
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
Voice
Off
Off
0
40
40
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
This product is under license of Dolby Laboratories.
The “Dolby” or D symbol is a trademark of Dolby
Laboratories.
<Dolby Digital>
44
Sound Controls
Stereo/SAP Broadcast Setup
This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that the station
may transmit.
The television will automically switch to Mono sound if the broadcasted channel is transmitted in Mono.
Also, you can manually select Mono if you want to listen to a stereo or SAP broadcasted channel in
Mono.
1. Use the MTS button to select your desired MTS mode in analog signal.
Each time you press the MTS button, Mono, Stereo, or SAP appear in turn.
If other languages available on the digital signal, select them with the MTS button.
2. Press EXIT button to save and return to TV viewing.
This function automatically stabilizes the volume level while changing to channels with different audio
levels.
Auto Volume Control
1. Press the MENU button and then press the Down
or Up button to select the Audio.
2. Press the OK button and then press the Down or
Up button to select Auto Volume Control.
3. Press the Left or Right button to select On or Off.
4. Press the MENU button to return to the previous
menu.
Audio
Balance
Bass
Treble
Sound Mode
Digital Output
Auto Volume Control
Voice
Off
Off
0
40
40
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
MENU Back
Select
45

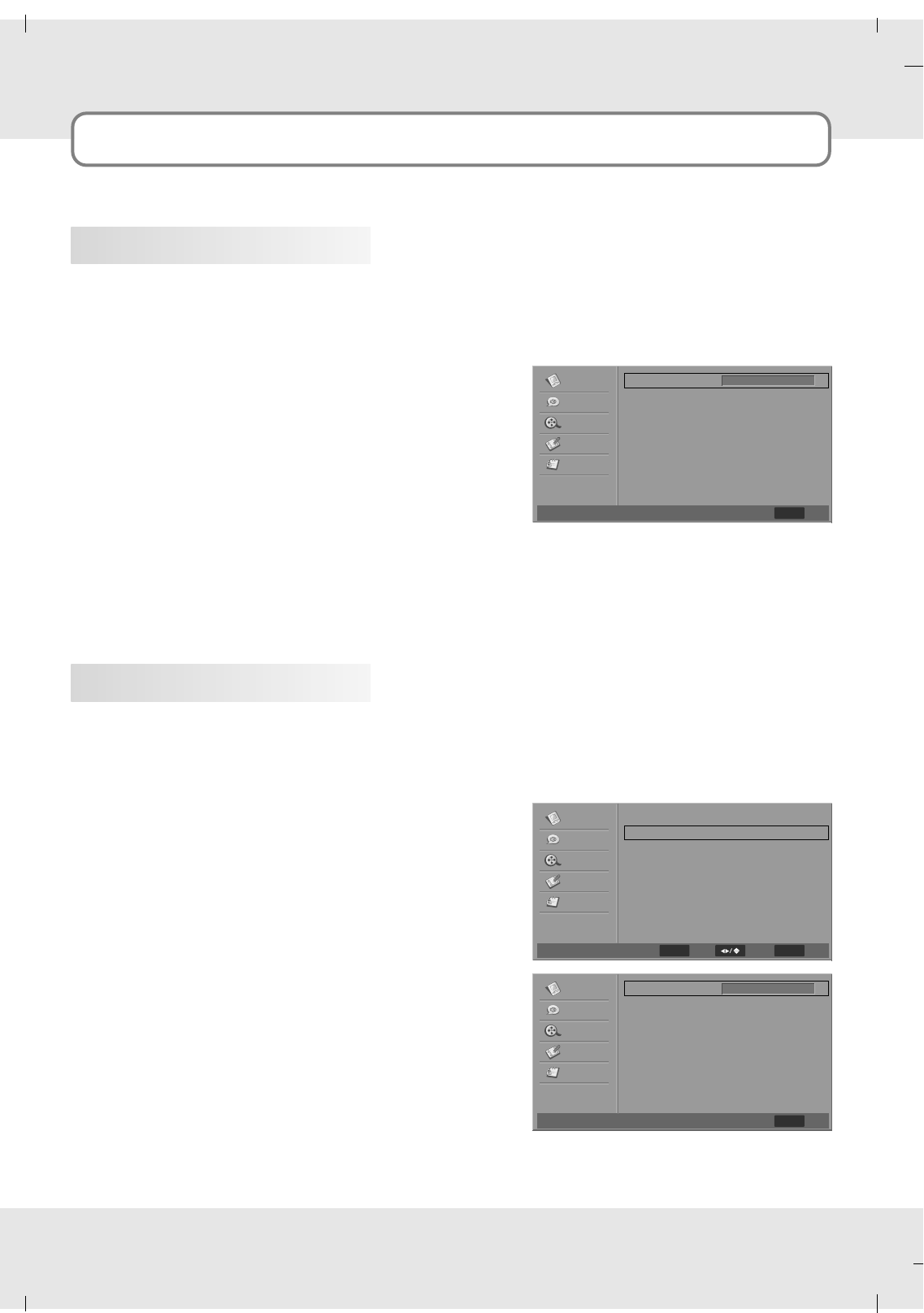

Time Setting
Time Zone Setting

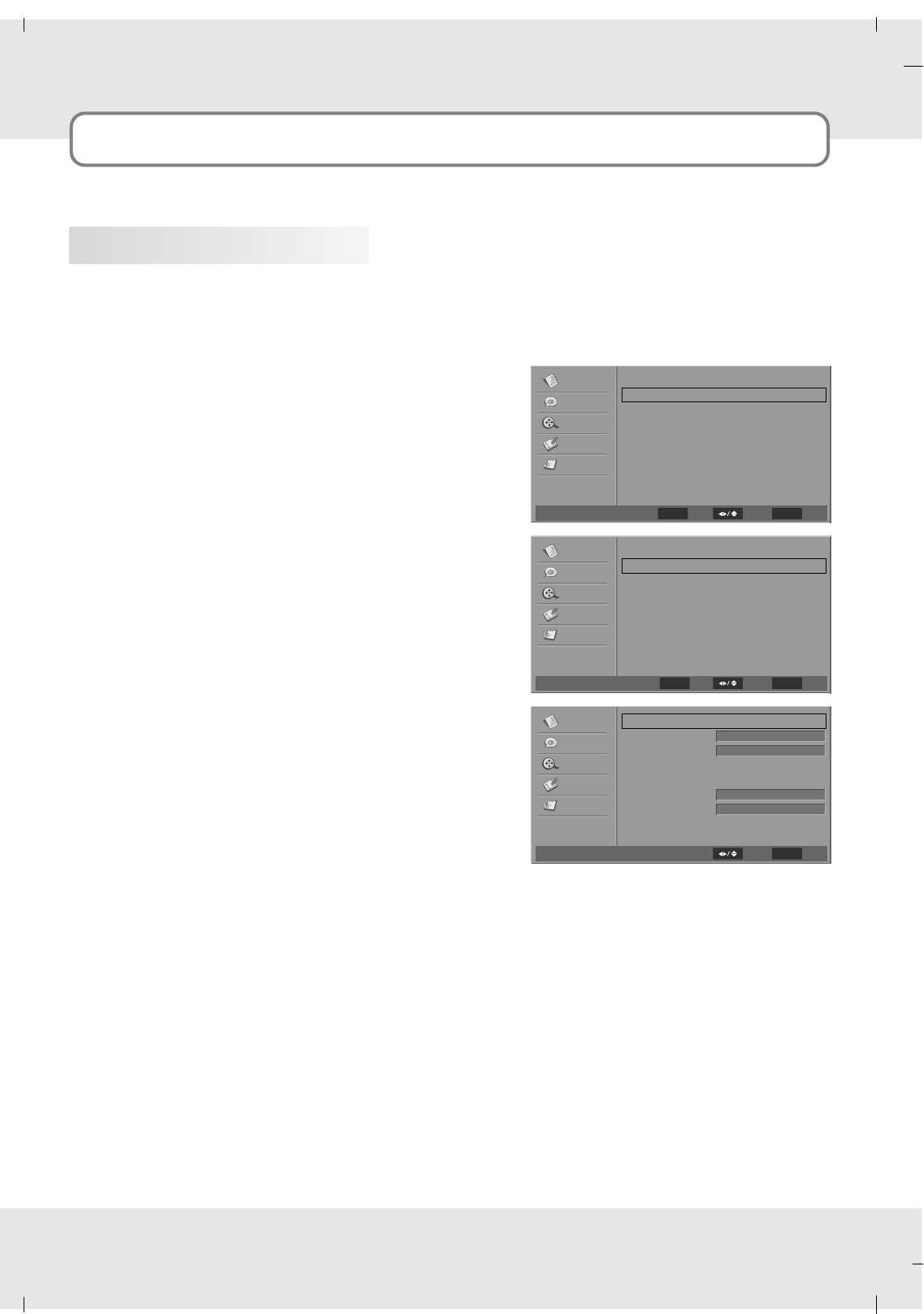

You can set the Time Zone for your local area.
This is operated from the Auto Synchronization.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Time Setup.
3. Press the OK button and then press the Down or
Up button to select Time Zone.
4. Press the Left or Right button to select your view-
ing area time zone.
(Eastern Time, Indiana, Central Time, Mountain
Time, Arizona, Pacific Time, Alaska, Hawaii)
5. Press the MENU button to return to the previous
menu.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Time Setup MENU Back
Select
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
46
Time Setting
Auto Time Setting
The time is set automatically from a digital channel signal.
The digital channel signal includes information for the current time provided by the broadcasting station.
Set the time manually if the current time is set incorrectly by the Auto Synchronization function.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Time Setup.
3. Press the OK button and then press the Down or
Up button to select Time.
4. Press the OK button and then press the Down or
Up button to select Auto Synchronization.
5. Press the Left or Right button to select On.
6. Press the MENU button to return to the previous
menu.
-If Auto Synchronization is selected to On, Date and Time menus are cannot be adjusted.
NN
NNOO
OOTT
TTEE
EE
Time MENU Back
Select
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
Video
Audio
TV
Setup
Parental
GG
On
2008/01/01
00:00:00
Off
00:00:00
00:00:00
FF GG
FF GG
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time Setup MENU Back
Select
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
47
Time Setting
Manual Time Setting
If the current time setting is wrong, this function allows you to set the clock manually.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Time Setup.
3. Press the OK button and then press the Down or
Up button to select Time.
4. Press the OK button and then press the Down or
Up button to select Auto Synchronization.
5. Press the Left or Right button to select Off.
6. Press the Down or Up button to select Date or
Time.
7. Press the Left or Right button to move the posi-
tion and use number buttons to set present date or
time.
8. Press the MENU button to return to the previous
menu.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time Setup MENU Back
Select
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time MENU Back
Select
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
Video
Audio
TV
Setup
Parental
GG
Off
2008/01/01
00:00:00
Off
00:00:00
00:00:00
FF GG
FF GG
48
Time Setting
Auto On/Off Time Setting
The timer function operates only if the current time has been set.
The TV turns on/off automatically with the Power On/Off Timer function.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Time Setup.
3. Press the OK button and then press the Down or
Up button to select Time.
4. Press the OK button and then press the Down or
Up button to select Timer.
5. Press the Left or Right button to select On.
If Timer is selected to Off, Power On Timer and
Power Off Timer menu are cannot be adjusted.
6. Press the Down or Up button to select Power On
Timer or Power Off Timer.
7. Press the Left or Right button to move the posi-
tion and use number buttons to set TV on or off
time.
8. Press the MENU button to return to the previous
menu.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time Setup MENU Back
Select
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time MENU Back
Select
Auto Synchronization
Date
Time
Timer
Power On Timer
Power Off Timer
Video
Audio
TV
Setup
Parental
GG
Off
2008/01/01
00:00:00
Off
00:00:00
00:00:00
FF GG
FF GG
49
Time Setting
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Time Setup.
3. Press the OK button and then press the Down or
Up button to select Sleep Timer.
4. Press the Left or Right button to select desired
sleep time.
The timer begins to count down from the number
of minutes selected.
5. Press the MENU button to return to the previous
menu.
Sleep Timer
The sleep timer automatically switches the set to standby after the preset time elapses.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Time Setup MENU Back
Select
Time Zone
Time
Sleep Timer
Eastern Time
Off
FF GG
GG
FF GG
Video
Audio
TV
Setup
Parental
GG
-If you want to select Sleep Timer directly, press the SLEEP button.
-
Every time you press the button, it will switch between Off,5,10, 15, 30, 45, 60, 90, 120,180 and 240.
NN
NNOO
OOTT
TTEE
EE
50
Captions
Closed Caption-Analog
The Analog Caption function operates when watching regular analog channels.
Analog caption displays information at any position on the screen and is usually the program’s dialog.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Caption.
3. Press the OK button and then press the Down or
Up button to select Analog Closed Caption.
4. Press the Left or Right button repeatedly to select
Off, CC1,CC2, CC3,CC4,TEXT1,TEXT2,
TEXT3 or TEXT4.
5. Press the MENU button to return to the previous
menu.
Caption
The term for the words that scroll across the bottom
of the TV screen; usually the audio portion of the pro-
gram provided for the hearing impaired.
TEXT
The term for the words that appear in a large black
frame and almost cover the entire screen; usually
messages provided by the broadcaster.
-If you want to select Caption directly, press the CC button.
NN
NNOO
OOTT
TTEE
EE
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Caption MENU Back
Select
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Video
Audio
TV
Setup
Parental
GG
51
Captions
Closed Caption-Digital
The Digital Caption function only operates on digital channels.
Choose the language you want the DTV captions to appear in.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Caption.
3. Press the OK button and then press the Down or
Up button to select Digital Closed Caption.
4. Press the Left or Right button repeatedly to select
Off, SERVICE1,SERVICE2, SERVICE3,SER-
VICE4,SERVICE5 or SERVICE6.
5. Press the MENU button to return to the previous
menu.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Caption MENU Back
Select
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Video
Audio
TV
Setup
Parental
GG
52
Captions
Closed Caption Options
Customize the DTV captions that appear on your screen.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Caption.
3. Press the OK button and then press the Down or
Up button to select Digital Caption Style.
4. Press the OK button and then press the Down or
Up button to select Caption Style.
5. Press the Left or Right button to select Custom.
6. Press the Down or Up button to select desired
caption option.
(Font Size, Font Color, Font Opacity,
Background Color, Background Opacity,
Window Color, Window Opacity)
7. Press the Left or Right button to customize your
preference.
8. Press the MENU button to return to the previous
menu.
Font Size
Set the size the words will appear in.
Font Color
Choose a color for the text.
Font Opacity
Specify the opacity for the text color.
Background Color
Select a background color.
Background Opacity
Select the opacity for the background color.
Window Color
Select a color for the edges.
Window Opacity
Select the opacity for the edges.
-If Caption Style is selected to As Broadcaster, Caption Options are cannot be adjusted.
NN
NNOO
OOTT
TTEE
EE
Digital Caption Style MENU Back
Select
Caption Style
Font Size
Font Color
Font Opacity
Background Color
Background Opacity
Window Color
Window Opacity
Custom
Large
White
Solid
Black
Solid
Black
Trasparent
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
FF GG
Video
Audio
TV
Setup
Parental
GG
Caption MENU Back
Select
Analog Closed Caption
Digital Closed Caption
Digital Caption Style
Off
Off
FF GG
FF GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
53

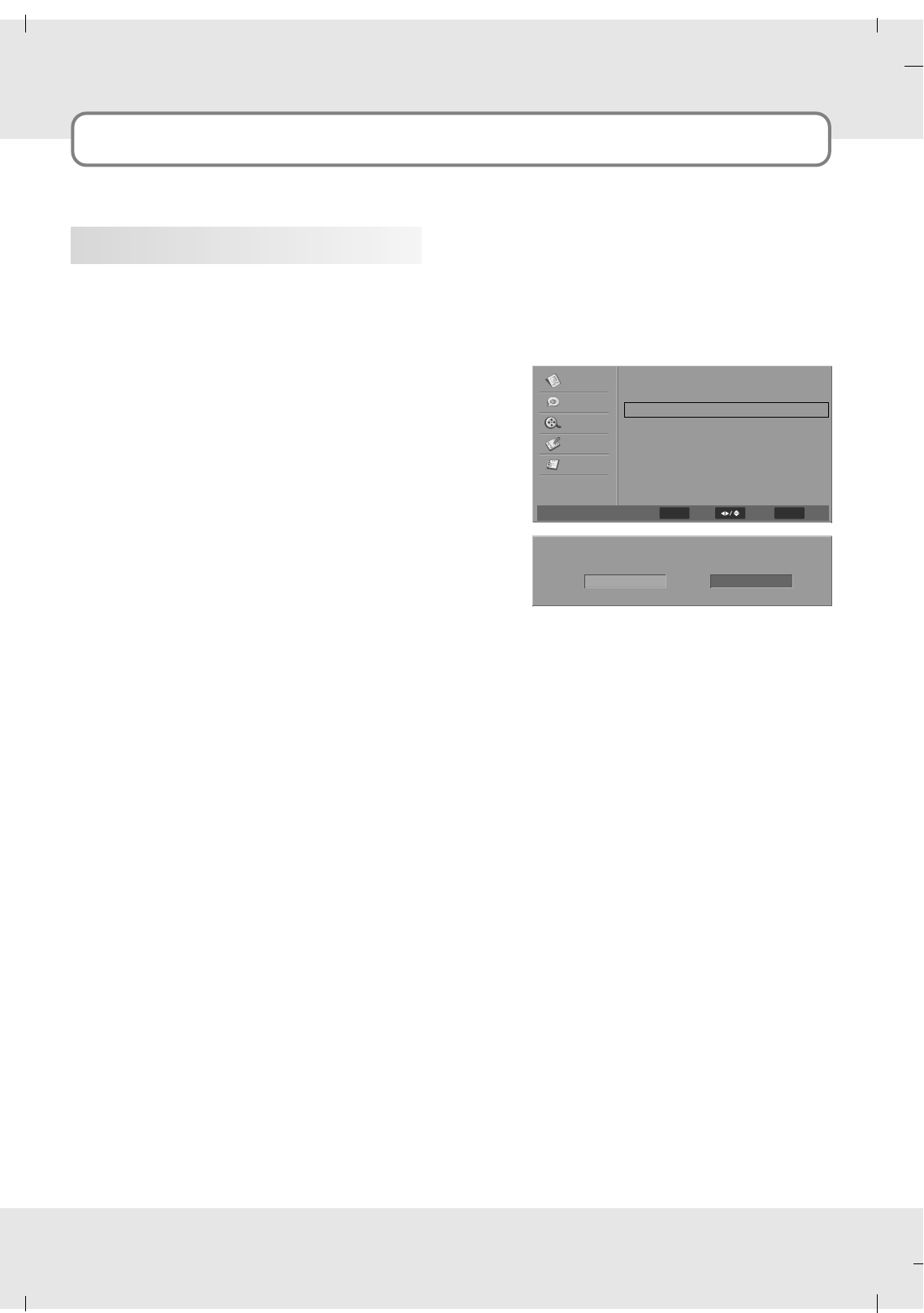

Reset
Reset Default
Use to quickly reset all the menu options to their original factory preset values.
This function deletes all TV channels.
1. Press the MENU button and then press the Down
or Up button to select the Setup.
2. Press the OK button and then press the Down or
Up button to select Reset Default.
3. Press the OK button and then press the Left or
Right button to select OK.
4. Press the OK button to reset.
5. Reset the menu options to original values.
6. Press the MENU button to return to the previous
menu.
Setup MENU Back
Select
OSD Language
Time Setup
Caption
Reset Default
English FF GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Are you sure?
OK Cancel
ENTER Enter
54
Parental Control
Enter your password
Parental Control can be used to block specific channels, ratings and other viewing sources.
Set up blocking schemes to block specific channels, ratings, and external viewing sources.
Apassword is required to gain access to this menu.
1. Press the MENU button and then press the Down or
Up button to select the Parental.
2. Press the OK button and then enter password as
requested.
3. The TV is set up with the initial password “0-0-0-0”.
Parental MENU Back
Password
Video
Audio
TV
Setup
Parental
GG
Change Password MENU Back
New Password
Confirm Password
Video
Audio
TV
Setup
Parental
GG
Set Password
Change the password by inputting a new password twice.
1. After inputting the password, press the Down or
Up button to select Change Password.
2. Press the OK button and then select any 4 digits
for your new password and enter the them on the
New Password.
3. As soon as the 4 digits are entered, re-enter the
same 4 digits on the Confirm Password.
4. Then your changed password has been memo-
rized.
5. Press the MENU button to return to the previous
menu.
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
55
Parental Control
Rating Enable/Disable
Enables or disables the blocking scheme you set up previously.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select Rating Enable.
3. Press the Left or Right button to select On or Off.
When you select On, the Program Block menus
are enable.
4. Press the MENU button to return to the previous
menu.
Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
56
Parental Control
TV Ratings for USA
Prevents children from watching certain TV programs, according to the rating limits set.
The children rating will not apply to TV programs until you select the ratings you want to be blocked.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select U.S. TV Ratings.
3. Press the OK button.
4. Press the Down or Up or Left or Right buttons to
choose and OK button to set up the menu options
for U.S. TV Ratings.
5. Press the MENU button to return to the previous
menu.
U.S TV Ratings MENU Back
Select
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Allowed Rating
ADL S VFV
Video
Audio
TV
Setup
Parental
GG
Blocked Rating
ENTER Set
Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
ENTER Enter
57
Parental Control
TV (FCC) Content Sub-Categories:
D:Dialog...sexual innuendo.
L:Offensive language.
S:Sexual Situation
V:Violence.
FV:Fantasy or cartoon violence.
TV-MA
Mature audiences only.
This program may contain mature themes,
profane language, graphic violence and
explicit sexual content.
TV-14
Parents strongly cautioned.
This program may contain sophisticated
themes, sexual content, strong language and
more intense violence.
TV-PG
Parental guidance suggested.
The program may contain infrequent coarse
language, limited violence, some suggestive
sexual dialog and situations.
TV-G
General audience.
This contains little or no violence, no strong
language, and little or no sexual dialog or situ-
ations.
TV-Y7
Directed for older children.
Themes and elements in this program may
include mild physical or comedic violence, or
may frighten children under the age of seven.
TV-Y
All children.
The themes and elements in this program are
specifically designed for a very young audi-
ence, including children from ages two – six.
TV (FCC) Age Categories
58

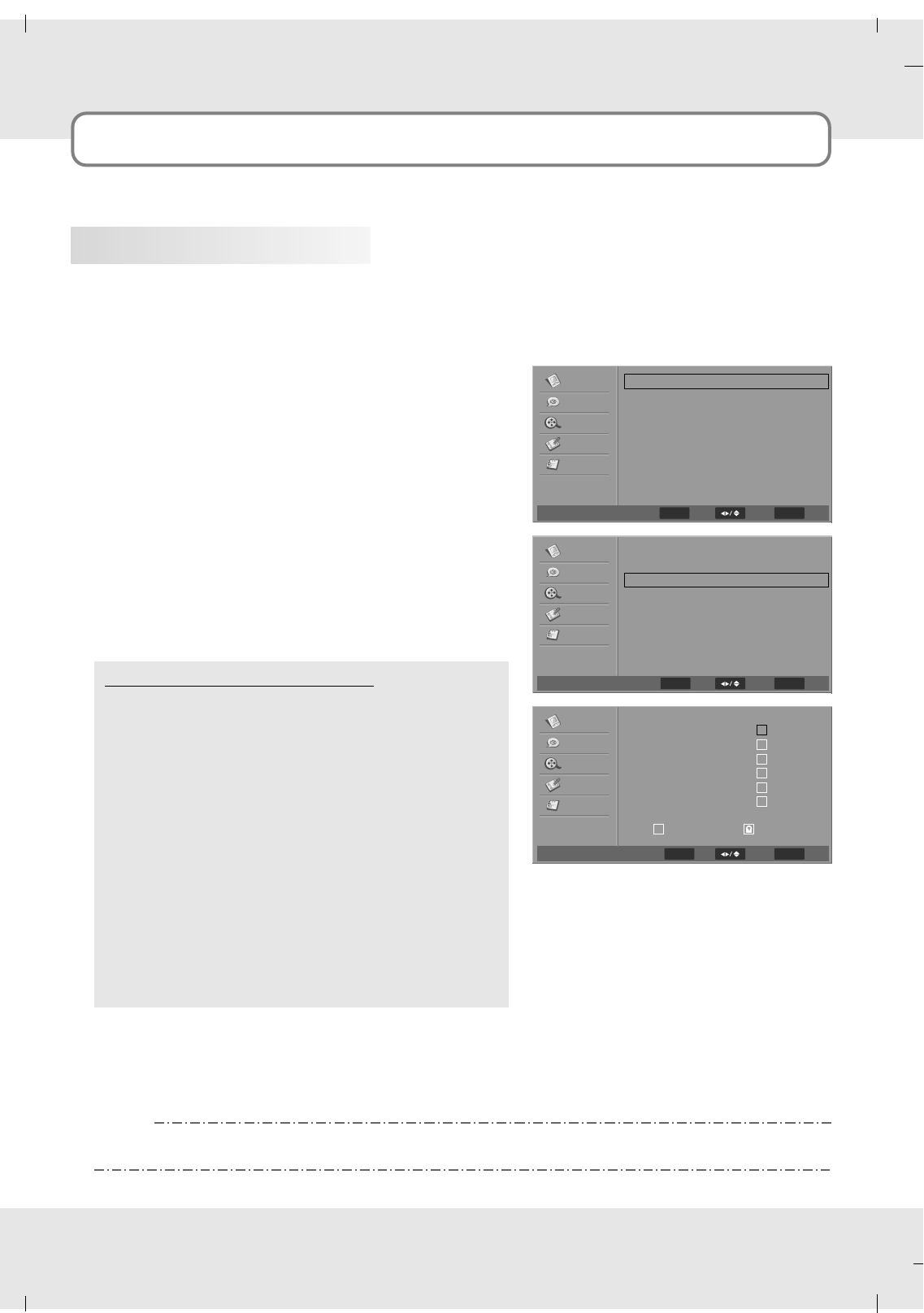

Parental Control
Movie Ratings
Blocks movies according to the movie ratings limits specified so children cannot view certain movies.
Applies to movies broadcasted on TV and allows you to select which ratings you want blocked.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select U.S. Movie Ratings.
3. Press the OK button.
4. Press the Down or Up buttons to choose and OK
button to set up the menu options for U.S. Movie
Ratings.
5. Press the MENU button to return to the previous
menu.
U.S Movie Ratings MENU Back
Select
G
PG
PG-13
R
NC-17
X
Allowed Rating
Video
Audio
TV
Setup
Parental
GG
Blocked Rating
ENTER Set
G
General Audience.
PG
Parental guidance suggested.
PG-13
Parents strongly cautioned.
R
Restricted.
NC-17
No one 17 and under admitted.
X
Adults only.
The MPAA Rating System (Movies)
-If you set PG-13 : G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.
NN
NNOO
OOTT
TTEE
EE
Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
ENTER Enter
59

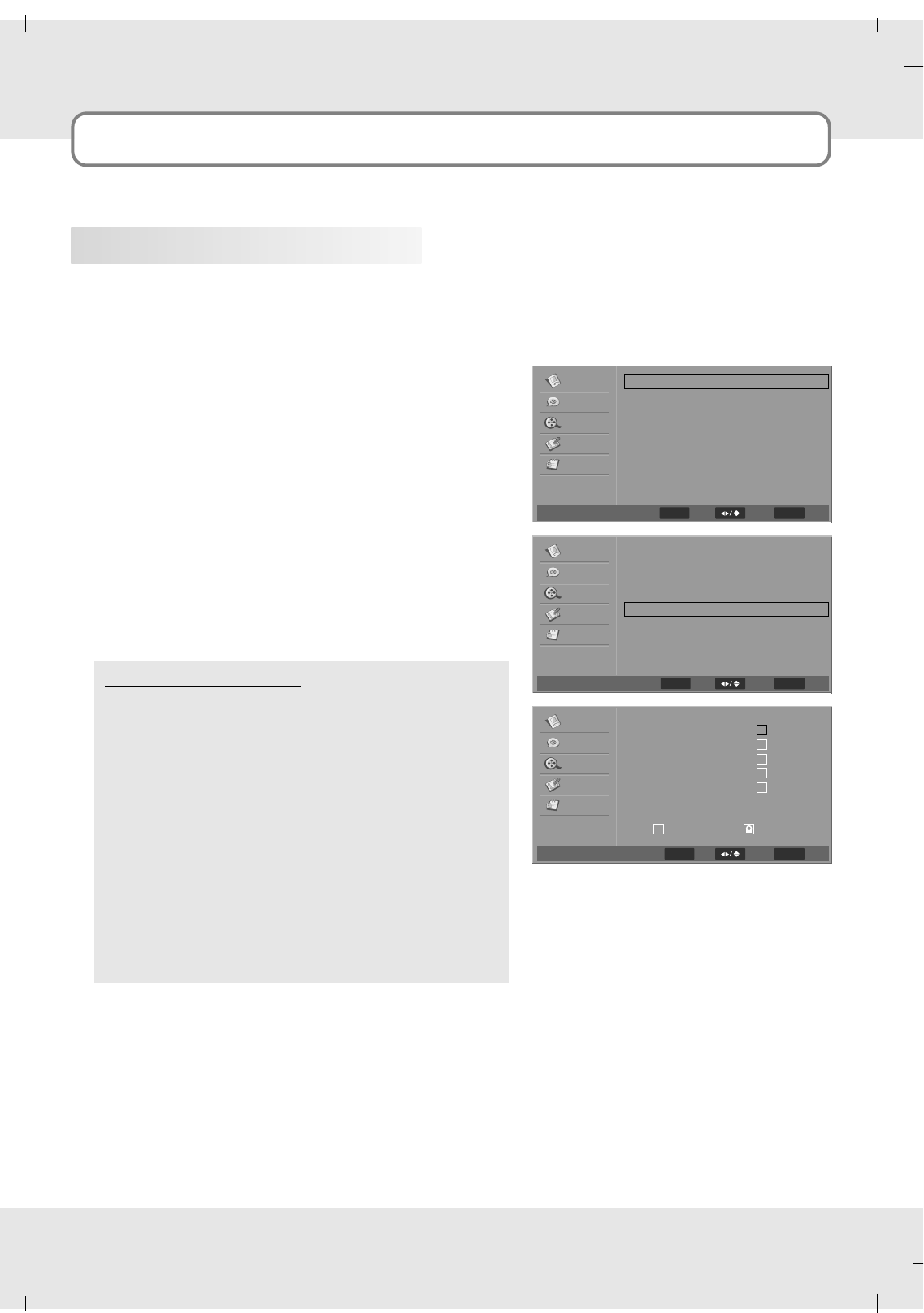

Parental Control
TV Rating English for Canada
Selecting canadian english language rating system.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select Canadian English Ratings.
3. Press the OK button.
4. Press the Down or Up buttons to choose and OK
button to set up the menu options for Canadian
English Ratings.
5. Press the MENU button to return to the previous
menu.
Canadian English Ratings MENU Back
Select
C
C8+
G
PG
14+
18+
Allowed Rating
Video
Audio
TV
Setup
Parental
GG
Blocked Rating
ENTER Set
C
Children
C8+
Children eight years and older
G
General programming, suitable for all audiences
PG
Parental Guidance
14+
Viewers 14 years and older
18+
Adult programming
Canadian English Ratings Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
ENTER Enter
60
Parental Control
TV Rating French for Canada
Selecting canadian french language rating system.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select Canadian French Ratings.
3. Press the OK button.
4. Press the Down or Up buttons to choose and OK
button to set up the menu options for Canadian
French Ratings.
5. Press the MENU button to return to the previous
menu.
Canadian French Ratings MENU Back
Select
G
8 ans+
13 ans+
16 ans+
18 ans+
Allowed Rating
Video
Audio
TV
Setup
Parental
GG
Blocked Rating
ENTER Set
G
General
8 ans+
General-Not convenient for little children
13 ans+
Not convenient for children of 13 years and younger
16 ans+
Not convenient for children of 16 years and younger
18 ans+
This programs is only for adult
Canadian French Ratings Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
ENTER Enter
61
Parental Control
-
This function may become available in the future and will be available only for digital channel signal.
-This function operates only when TV has received Region5 Rating data.
NN
NNOO
OOTT
TTEE
EE
Downloadable Rating
Your TV’s OSD (On Screen Display) may differ slightly from what is shown in this manual.
1. After inputting the password, press the Down or
Up button to choose Program Block.
2. Press the OK button and then press the Down or
Up button to select Open V-Chip.
3. Press the OK button twice.
4. Press the Down or Up buttons to choose the
menu options for Open V-Chip.
5. Press the OK button.
6. Press the MENU button to return to the previous
menu.
Open V-Chip MENU Back
Select
U.S.(50 States+Possessions) GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Program Block MENU Back
Select
Rating Enable
U.S. TV Ratings
U.S. Movie Ratings
Canadian English Ratings
Canadian French Ratings
Open V-Chip
On FF GG
GG
GG
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
ENTER Enter
62

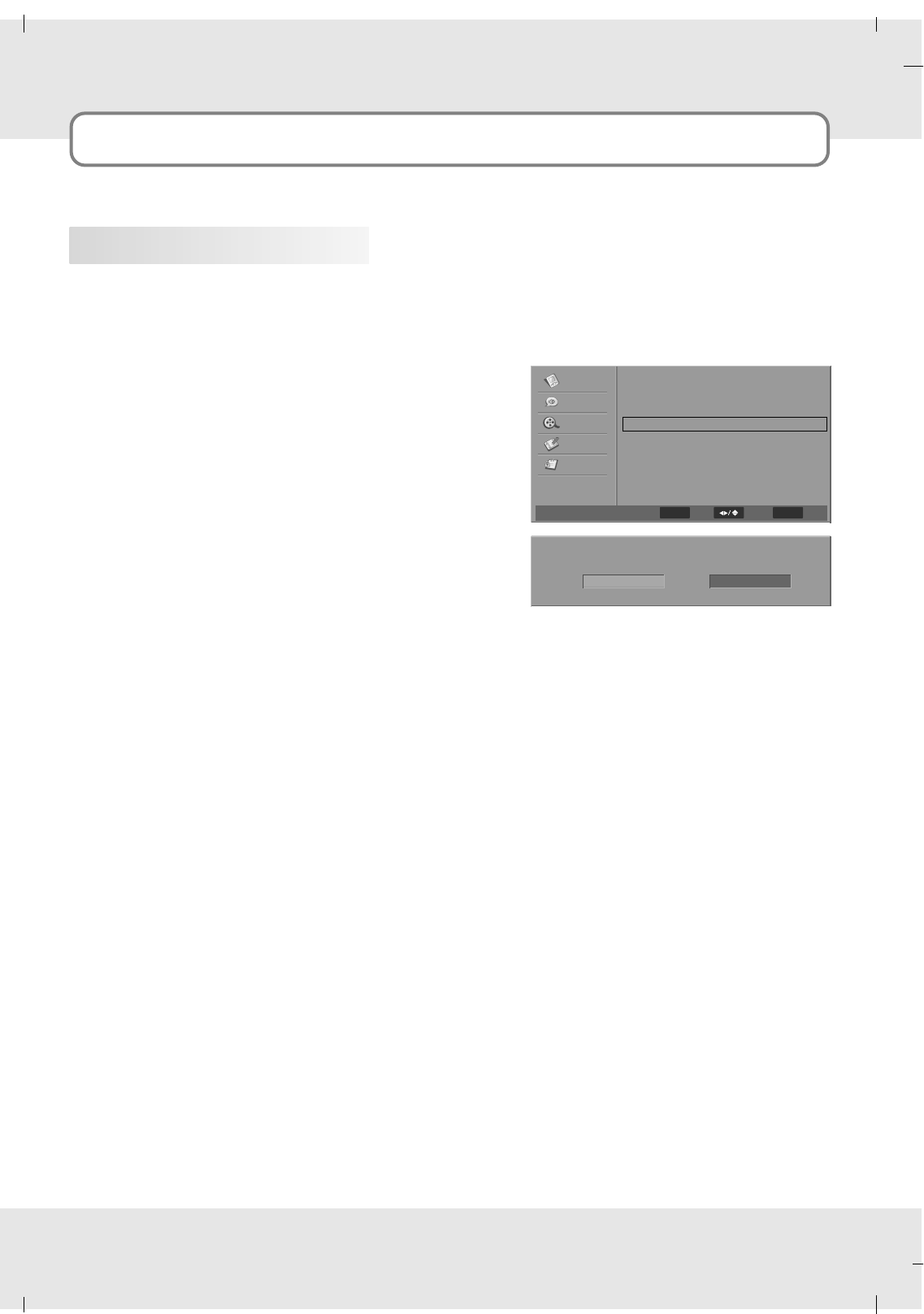

Parental Control
Clean All
Use to quickly clean the Program Block menu options.
1. After inputting the password, press the Down or
Up button to choose Clean All.
2. Press the OK button and then press the Left or
Right button to select OK.
3. Press the OK button to clean the Program Block
menu options.
4. Press the MENU button to return to the previous
menu.
Parental MENU Back
Select
Program Block
Change Password
Clean All
GG
GG
GG
Video
Audio
TV
Setup
Parental
GG
ENTER Enter
Are you sure?
OK Cancel
63
Setting the PC Mode
-Select the VGA mode by pressing SOURCE button.
-If you want to select Picture Mode directly, press the button.
-Every time you press the button, it will switch between Soft,Standard,Vivid or User.
-When you adjust Brightness, Contrast, HUE,Picture Mode changes to User.
Auto Picture Controls
Picture Mode adjusts the set for the best picture appearance.
Select the preset value in the Picture Mode menu.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Picture Mode.
3. Press the Left or Right button to select Soft,
Standard,Vivid or User.
4. Press the MENU button to return to the previous
menu.
Soft
Select this option to display with a soft image.
Standard
The most general and natural screen display status.
Vivid
Select this option to display with a sharp image.
User
Select this option to use the user-defined setting.
NN
NNOO
OOTT
TTEE
EE
Video
Picture Mode
Brightness
Contrast
HUE
Color Temperature
Advanced Video
VGA
User FF GG
60
50
0
GG
GG
GG
Video
Audio
Setup
Parental
GG
MENU Back
Select
64
Setting the PC Mode
Manual Picture Controls
You can adjust picture Brightness, Contrast and HUE to the levels you prefer.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select desired picture option.
(Brightness, Contrast, HUE)
3. Press the OK button and then press the Left or
Right button again to make appropriate adjust-
ments.
4. Press the MENU button to return to the previous
menu.
Brightness
Increases or decreases amount of white in the your
picture.
Contrast
Adjusts the difference between the light and dark lev-
els in the picture.
HUE
Adjusts the balance between red and green levels.
-Select the VGA mode by pressing SOURCE button.
NN
NNOO
OOTT
TTEE
EE
Video
Picture Mode
Brightness
Contrast
HUE
Color Temperature
Advanced Video
VGA
User FF GG
60
50
0
GG
GG
GG
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Adjust
Brightness 60
65
Setting the PC Mode
Color Temperature
Adjusts the display to your desired color temperature.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select Color Temperature.
3. Press the OK button and then press the Left or
Right button to select Cool,Standard,Warm or
User.
4. Press the Down or Up button to select desired
color item.
5. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
6. Press the MENU button to return to the previous
menu.
-When you adjust R Gain, G Gain, B Gain or Color Temperature change Picture Mode to User.
NN
NNOO
OOTT
TTEE
EE
Color Temperature
Color Temperature
R Gain
G Gain
B Gain
Standard FF GG
0
0
0
Video
Audio
Setup
Parental
GG
MENU Back
Select
Video
Picture Mode
Brightness
Contrast
HUE
Color Temperature
Advanced Video
VGA
User FF GG
60
50
0
GG
GG
GG
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Enter
R Gain 0
66
Setting the PC Mode
VGA
Auto Adjust
H.Position
V.Position
Phase
Clock
GG
60
50
0
100
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Enter
Auto Adjustment
This function is for the automatic adjustment of the screen position, clock, phase and scale in pc mode.
The displayed image will disappear for a few seconds while the auto configuration is in progress.
Although the image is still not correct, your set is functioning properly but needs further adjustment.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select VGA.
3. Press the OK button and then press the Down or
Up button to select Auto Adjust.
4. Press the OK button to start auto adjust.
5. If picture needs to be adjusted more after Auto
Adjust, you can adjust manually.
For more information on Manual Adjust, refer to
the next page.
Video
Picture Mode
Brightness
Contrast
HUE
Color Temperature
Advanced Video
VGA
Custom FF GG
60
50
0
GG
GG
GG
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Enter
67
Setting the PC Mode
Manual Adjustment
If the picture isn’t clear after auto adjustment and especially if characters are still trembling, adjust the
picture phase manually.
To correct the screen size, adjust Clock.
1. Press the MENU button and then press the Down
or Up button to select the Video.
2. Press the OK button and then press the Down or
Up button to select VGA.
3. Press the OK button and then press the Down or
Up button to select H.Position or V.Position.
4. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
5. Press the Down or Up button to select Phase or
Clock.
6. Press the OK button and then press the Left or
Right button to make appropriate adjustments.
7. Press the MENU button to return to the previous
menu.
H.Position
This function is to adjust horizontal position of screen.
V.Position
This function is to adjust vertical position of screen.
Phase
This function allows you to remove any horizontal
noise and clear or sharpen the image of characters.
Clock
This function is to minimize any vertical bars or
stripes visible on the screen background.
And the horizontal screen size will also change.
VGA
Auto Adjust
H.Position
V.Position
Phase
Clock
GG
60
50
0
100
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Adjust
Video
Picture Mode
Brightness
Contrast
HUE
Color Temperature
Advanced Video
VGA
Custom FF GG
60
50
0
GG
GG
GG
Video
Audio
Setup
Parental
GG
MENU Back
Select
ENTER Enter
H.Position 60
68
Special Functions
Picture Format
You can watch the screen in various picture formats; 4:3, ZOOM, Auto, Full.
If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on
the screen and remain visible.
Repeatedly press the ZOOM button to select your desired picture format.
AA4:3
Following selection will lead you to view a picture with an original 4:3 aspect ratio, with gray bars
appearing at both the left and right sides.
AAZOOM
When your set receives the wide screen signal, when selected it will adjust the picture horizontally,
in nonlinear proportion, to fill the entire screen.
AAAuto
When your set receives the wide screen signal, it will change automatically the picture format that
has been sent.
AAFull
You can enjoy the cinema or general TV program through the 16:9 mode.
The screen 16:9 is viewed just like that but the screen 4:3 is magnified to the left and right so that
the screen 16:9 is full.
-You can only select 4:3,Zoom,Auto and Full below 480p.
-You can only select 4:3 and Full above 720p.
-You can only select 4:3 and Full in VGA mode.
NN
NNOO
OOTT
TTEE
EE
69
Specification
Model
Dimension
Weight
Horizontal
Height
Thickness
796.0 mm
583.0 mm
233.0 mm
14.3 kg
1,000:1 typical
500 cd/m2typical
1366 (H) x 768 (V)
16.7M colors
2.5W + 2.5W
135W
915.0 mm
682.0 mm
330.0 mm
22 kg
1,000:1 typical
500 cd/m2typical
1366 (H) x 768 (V)
16.7M colors
2.5W + 2.5W
175W
O HDMI / DVI IN
O RGB IN(PC)
O COMPONENT IN
O S-VIDEO IN
O AV IN
O AUDIO IN (RGB / DVI)
O ANTENNA / CABLE IN
O DIGITAL AUDIO OUT
(COAXIAL)
O AC IN
Contrast Ratio
Brightness
Panel Resolution
Display Color
Audio Output
Consumption
External Port
LT32U41H LT37U41H
70
Troubleshooting
Problem
No picture on screen.
The remote control doesn’t work.
Picture appears slowly, after
switching on.
No or Poor color
Horizontal/Vertical bars or
picture shaking
Unusual sound from inside the
set.
OCheck whether the set is turned on.
OPower cord inserted into wall outlet?
OTest if there is power coming from the wall outlet by
plugging in another product into the wall outlet where the
set’s power cord was plugged in.
OCheck to see if there is any object between the set and
the remote control causing obstruction.
OCheck to see if the batteries are installed with the correct
polarities.
OInstall new batteries.
OThis is normal as the image is muted during the start up
process of the set. Please contact your service center, if
the picture has not appeared after five minutes.
OSelect color in the Picture menu and press the Left or
Right button.
OCheck for local interference such as a nearby electrical
appliance or power tool.
OAchange in ambient humidity or temperature may result
in an unusual noise at the time of switching off or on of
the set and does not indicate a fault with the set.
Check Point
71
MEMO
DIGITAL TV
DIGITAL TV
P/NO : 3350GDKM0058A
GPN08MA033D

Navigation menu
