User Manual
Installation Guide
RFID Wall Reader
Installed with
InSync RAC
Rev. A — 10/2017
P/N 047 515909
Cover
3
InSync Wall Reader
InSync Wall Reader Instructions - (All Models)
*CAUTION* Wear Safety Glasses While Preparing Wall
Introduction
The RFID wall mounted reader provided by dormakaba is compact, lightweight, rugged and water resistant, able to
withstand temperatures from -30°F to 150°F (-35°C to 66°C). It is made from durable materials and comes with at
least 15 feet (4.6 m) of cable. The reader is capable of functioning up to distances of 500 feet (152.4 m) when
powered from the RAC controller board.
The reader has a blue LED that indicates that the unit is powered. The reader also provides visual feedback when
access is granted

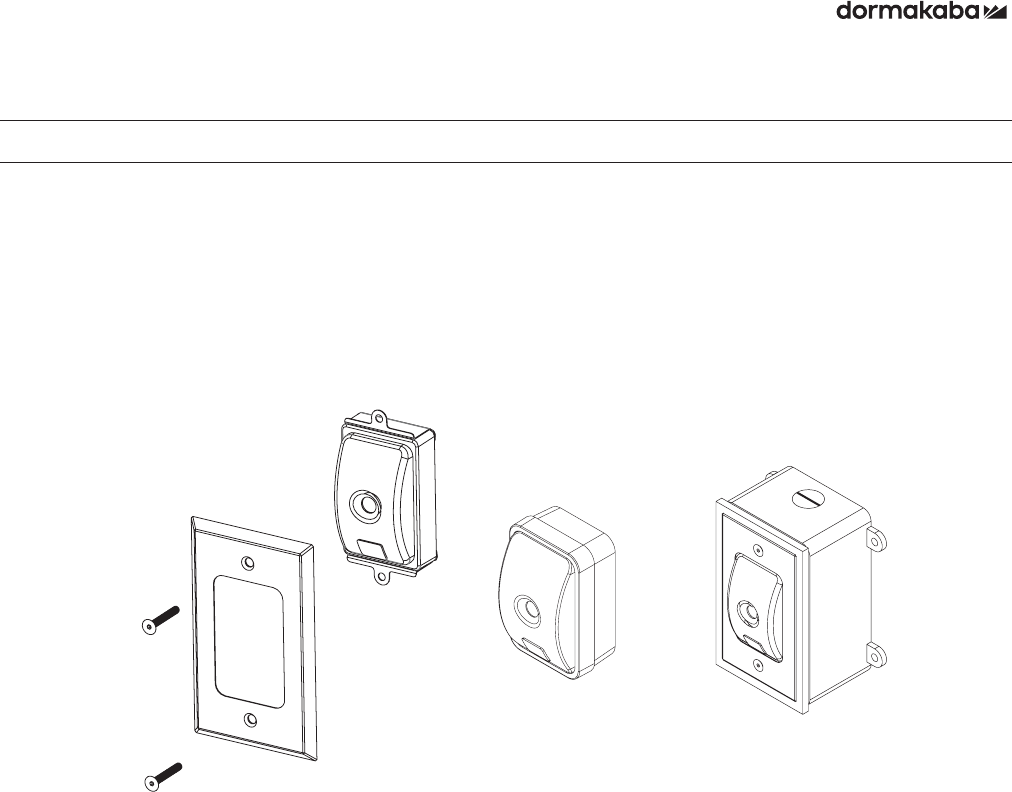

Flush Mount
Surface Mount
Gang Box Mount
Regulatory Compliance:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interf erence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications of this product, not approved by manufacturer will void the user’s authority to operate
the equipment.
“ This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.”
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
FCC-Q8SRINM
IC-4652A-RINM
4 5
InSync Wall Reader InSync Wall Reader
Insync Wall Reader Instructions - (All Models)
Instructions
1. Use drilling template provided to prepare surface for installation
2. Route the wire to the Insync RAC enclosure and connect to the controller board as per the column “RAC Reader
Connection” in table 1, or as per Figure B
3. Route the other end of the wire through the hole in the mounting plate to the back of the reader and connect as
per column “Reader Connection” in table 1 or as per Figure A
RAC to Wall Reader Connection
Signal Reader Connection
Terminal Block
RAC Wire Color Comments
Reader Connection
GND JP1-2 J1, Pin 2 Black GND
+12V JP1-1 J1, Pin3 Red +12V
RS485+ JP3-2 J2, Pin 1 + J3, Pin 1* White See Note
RS485- JP3-1 J2, Pin 2 + J3, Pin 2* Green See Note
Note: Jumper cables as shown in Figure B must be connected for the reader to operate correctly
Table 1: Insync RAC and Wall Reader Connections
IMPORTANT: The jumper cables supplied with the reader must be connected as shown in Figure B and Table 1 for the
contactless reader to operate properly.
.

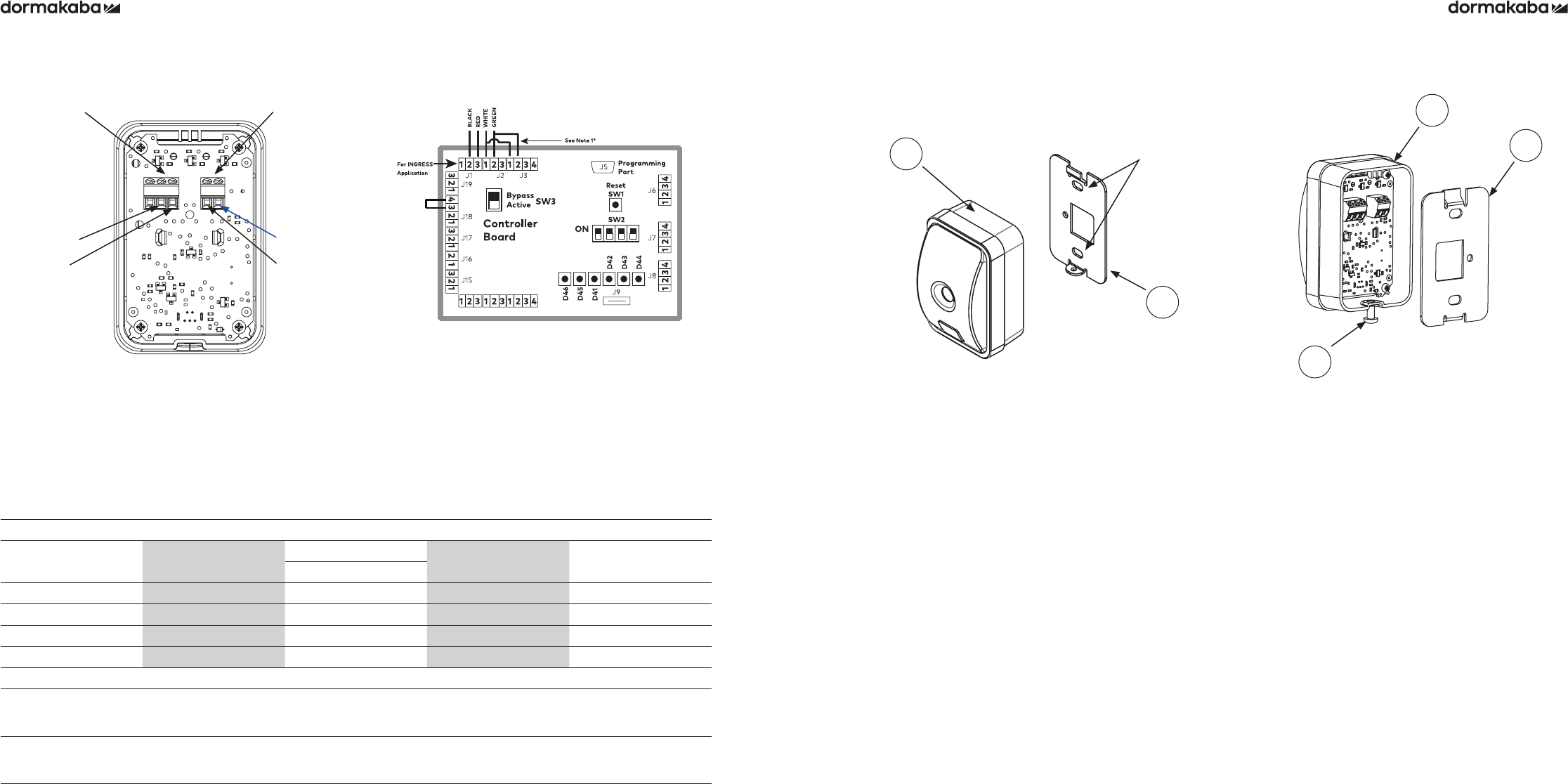

Figure B. Insync RAC Controller BoardFigure A. InSync Wall Reader
InSync Wall Reader Instructions - (Surface Mount)
Mounting Screw
Holes
3
3
2
1
2
Instructions
1. Pull cable(s) for RAC through hole in the back plate and, if applicable, through the gasket then screw the mounting
plate of the reader to the wall using the screws provided. Use the 1 ⁄" wood screws and inserts for drywall, or use
the ⁄" steel screws for mounting on a metal frame
2. Connect cables for Insync RAC as per page 4 of this document
3. Hook the top of the reader enclosure (item #2) onto the top of the mounting plate (item #3) and secure together
with the included screw (item #1), tightened at the bottom of the reader
JP1-2 Black
JP1-1 Red
JP3-1 Green
JP3-2 White
JP1 JP3
6 7
InSync Wall Reader InSync Wall Reader

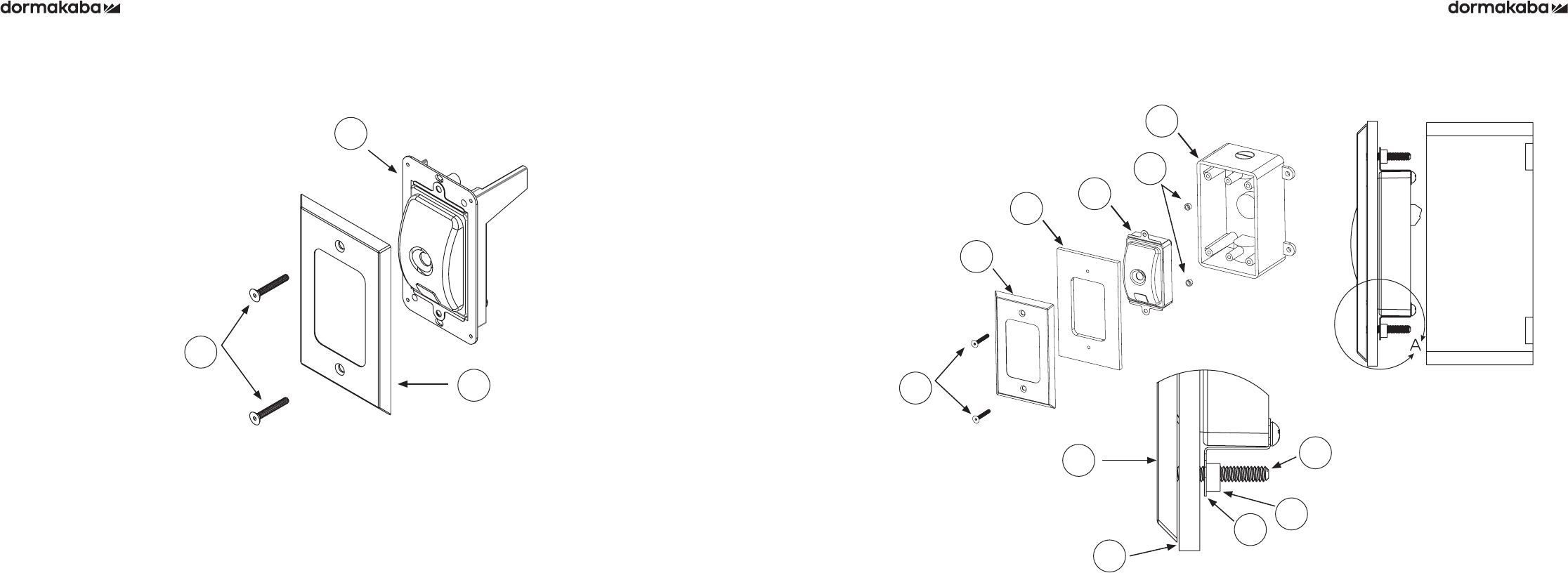

InSync Wall Reader Instructions - (Flush Mount)
FIGURE 1
1
3
2
Instructions
1. Remove screws (item #1) to remove reader assembly (item #2) from bracket
2. Install the drywall bracket on the wall
3. Connect cables for Insync RAC as per page 4 of this document
4. Install reader (item #2) then faceplate (item #3) using screws (item #1)
InSync Wall Reader Instructions - (Gang Box Mount)
1
2
3
4
6
5
2
3
4
5
1Detail A
FIGURE 3
Instructions
1. Remove screws (item #1) to gain access to reader assembly (item #4)
2. Carefully remove reader assembly (item #4) (see warning above) remove protective film from reader face
3. Install the gang box with proper screws, not provided
4. Connect cables for Insync RAC as per page 4 of this document
5. Reader assembly orientation to be as shown on page 3 in Figure A.
6. Re-assemble items #1 through #5 in order as shown in detail A, then assemble to gang box (item #6) and
tighten screws.
