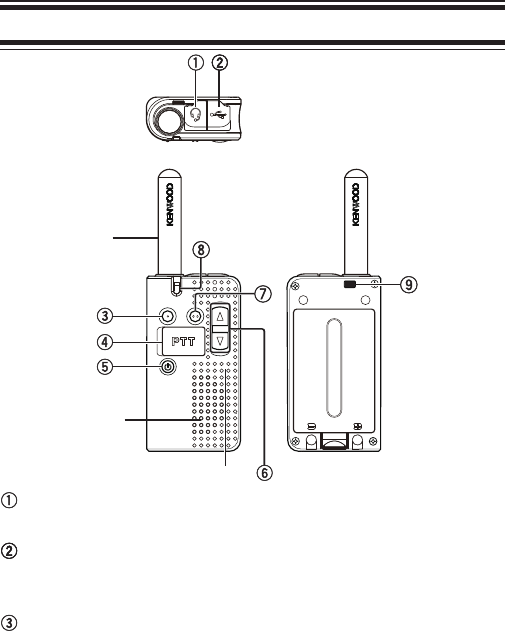

ORIENTATION
Phone jack (3.5mm)
Connect the earphone/microphone plug to this jack.
Micro USB jack (B Type)
Connect a USB cable to this jack to charge the transceiver
battery pack.
Function key-1
Press and hold this key for 1 second to activate its
programmable function.
The default settings are [Scan](press) and [Super Lock]
(hold).
Antenna
Microphone
Speaker
• For function descriptions and details on how to change the
function of the Function key-1, refer to “KEY ASSIGNMENT
MODE”.
PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
Power switch
Hold for 1 second to turn the transceiver power ON.
Hold for 2 seconds to turn the transceiver power OFF.
Momentarily press this key while the transceiver power is
ON to activate the Battery Level Guide. Refer to the Battery
Level Guide table.
Up/Down key
Press these keys to adjust the volume, change the channel,
• To change the operating frequency or QT/DQT settings of a
channel, refer to “CHANNEL SETUP MODE”.
Function key-2
Press this key to change the function of the Up/Down keys as
follows:
Volume Adjustment mode → Channel Select mode.
Hold this key for 1 second to activate its programmable
function.
The default setting is [Monitor].
• For function descriptions and details on how to change the
function of the Function key-2, refer to “KEY ASSIGNMENT
MODE”.
LED indicator
Refer to the LED Indicator Status table.
Strap hole
Connect a commercially available strap here.
