Keymat Technology DS40 AXS Series S40 iClass SE PIN-Contactless Reader User Manual DS40 xx 08KT

Keymat Technology Ltd AXS Series S40 iClass SE PIN-Contactless Reader DS40 xx 08KT

Contents

Datasheet

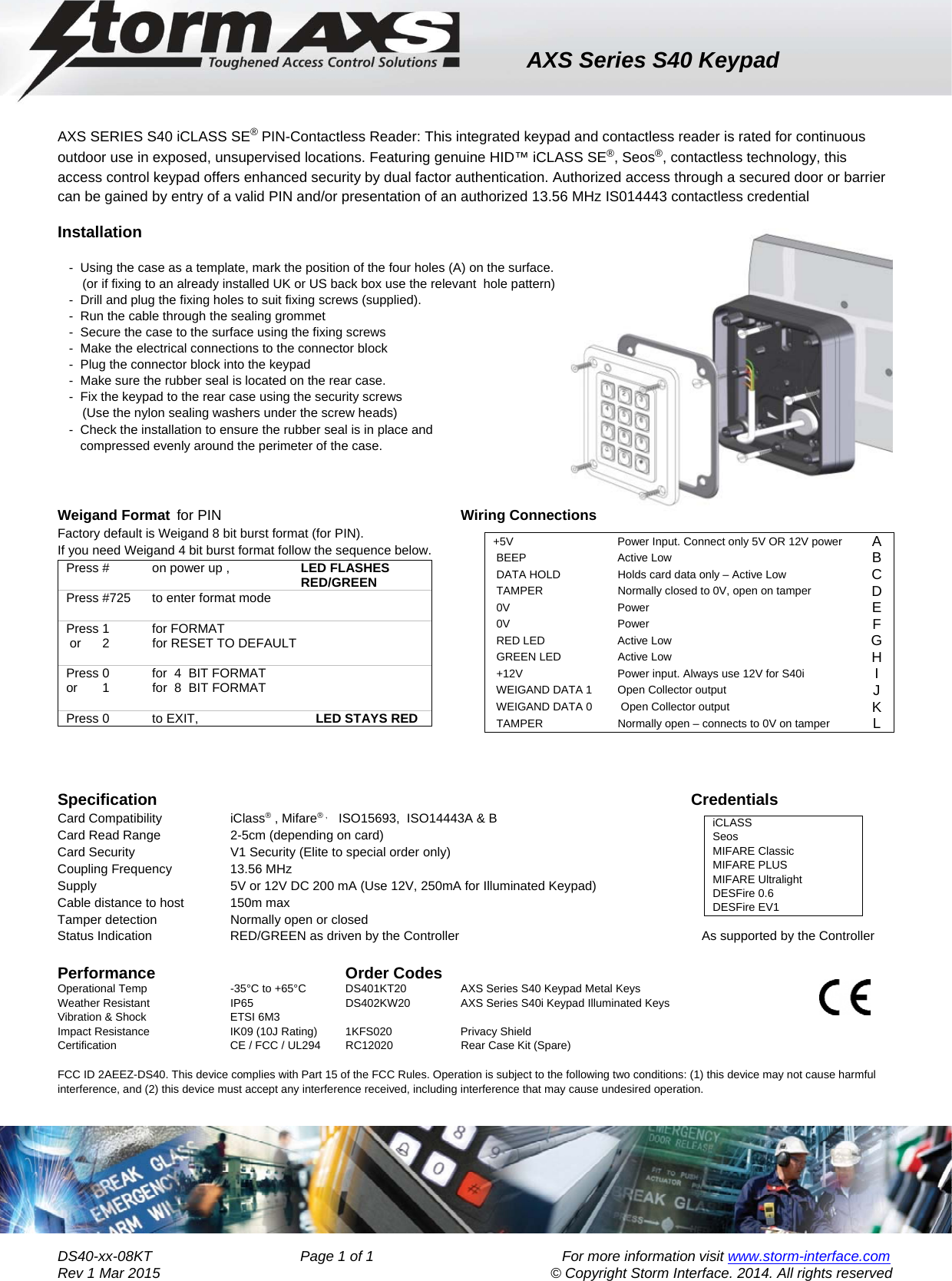

AXS Series S40 Keypad    DS40-xx-08KT                                     Page 1 of 1                                               For more information visit www.storm-interface.com              Rev 1 Mar 2015                                     © Copyright Storm Interface. 2014. All rights reserved  AXS SERIES S40 iCLASS SE® PIN-Contactless Reader: This integrated keypad and contactless reader is rated for continuous outdoor use in exposed, unsupervised locations. Featuring genuine HID™ iCLASS SE®, Seos®, contactless technology, this access control keypad offers enhanced security by dual factor authentication. Authorized access through a secured door or barrier can be gained by entry of a valid PIN and/or presentation of an authorized 13.56 MHz IS014443 contactless credential Installation  -  Using the case as a template, mark the position of the four holes (A) on the surface.        (or if fixing to an already installed UK or US back box use the relevant  hole pattern) -  Drill and plug the fixing holes to suit fixing screws (supplied). -  Run the cable through the sealing grommet -  Secure the case to the surface using the fixing screws -  Make the electrical connections to the connector block  -  Plug the connector block into the keypad -  Make sure the rubber seal is located on the rear case. -  Fix the keypad to the rear case using the security screws         (Use the nylon sealing washers under the screw heads) -  Check the installation to ensure the rubber seal is in place and  compressed evenly around the perimeter of the case.      Weigand Format  for PIN     Wiring Connections Factory default is Weigand 8 bit burst format (for PIN).     If you need Weigand 4 bit burst format follow the sequence below. Press #            on power up ,                    LED FLASHES                                                                    RED/GREEN Press #725      to enter format mode  Press 1            for FORMAT  or      2            for RESET TO DEFAULT  Press 0            for  4  BIT FORMAT or       1            for  8  BIT FORMAT  Press 0            to EXIT,                                 LED STAYS RED    Specification       Credentials  Card Compatibility         iClass® , Mifare® ,     ISO15693,  ISO14443A & B    Card Read Range    2-5cm (depending on card)             Card Security            V1 Security (Elite to special order only)           Coupling Frequency       13.56 MHz              Supply                 5V or 12V DC 200 mA (Use 12V, 250mA for Illuminated Keypad)    Cable distance to host 150m max        Tamper detection  Normally open or closed        Status Indication    RED/GREEN as driven by the Controller      As supported by the Controller  Performance    Order Codes         Operational Temp          -35°C to +65°C  DS401KT20  AXS Series S40 Keypad Metal Keys    Weather Resistant             IP65    DS402KW20  AXS Series S40i Keypad Illuminated Keys   Vibration & Shock             ETSI 6M3         Impact Resistance             IK09 (10J Rating)   1KFS020    Privacy Shield Certification            CE / FCC / UL294  RC12020    Rear Case Kit (Spare)           FCC ID 2AEEZ-DS40. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.   +5V     Power Input. Connect only 5V OR 12V power  A  BEEP   Active Low  B  DATA HOLD   Holds card data only – Active Low  C  TAMPER   Normally closed to 0V, open on tamper  D  0V   Power   E  0V   Power  F  RED LED   Active Low  G  GREEN LED   Active Low  H  +12V   Power input. Always use 12V for S40i  I  WEIGAND DATA 1   Open Collector output  J  WEIGAND DATA 0    Open Collector output  K  TAMPER   Normally open – connects to 0V on tamper  L    iCLASSSeosMIFARE Classic           MIFARE PLUSMIFARE UltralightDESFire 0.6DESFire EV1
