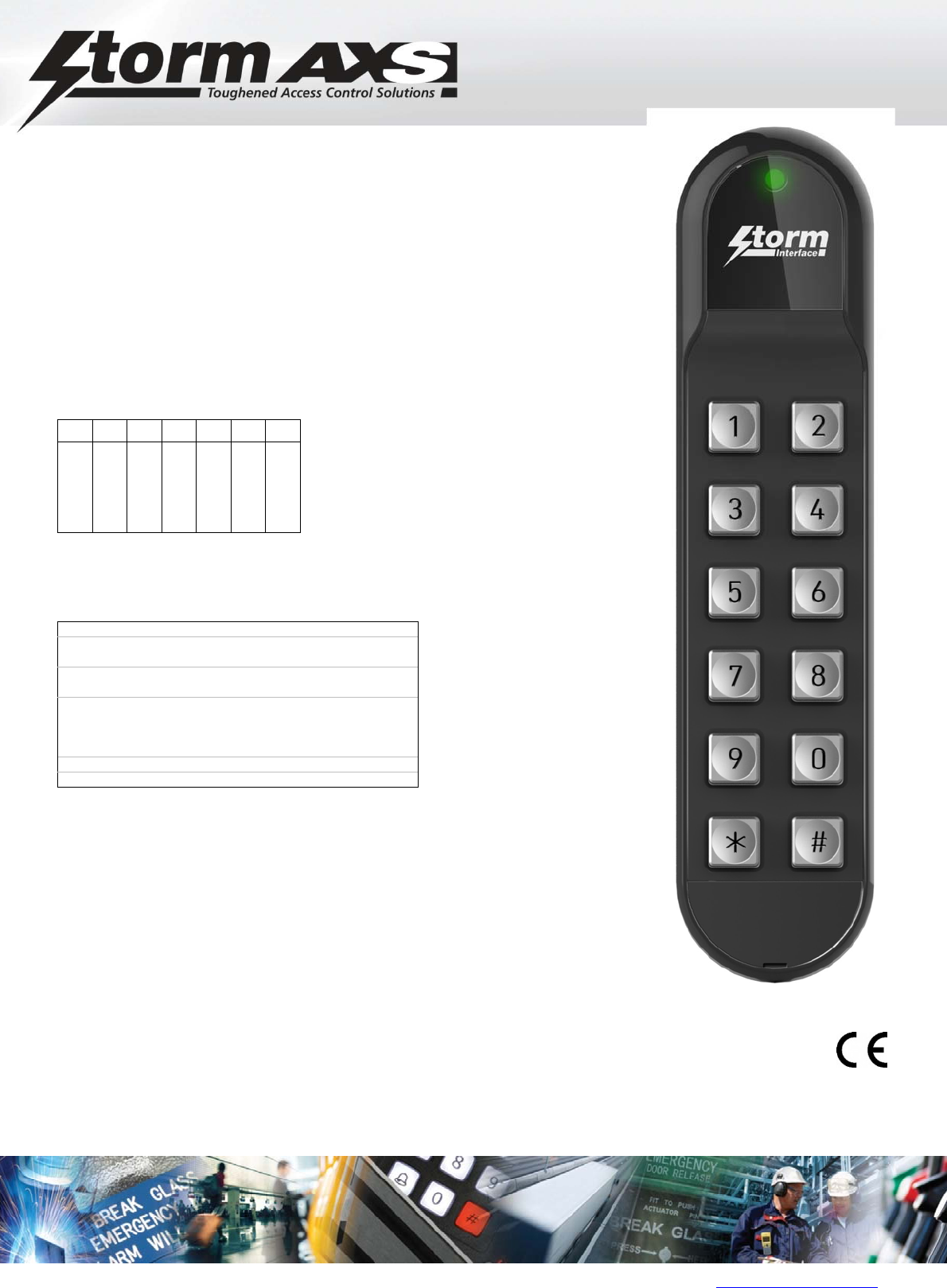

AXS Series – S60 Keypad
DS60-xx-08KT Page 1 of 1 For more information visit www.storm-interface.com
Rev 1 Sep 2015 © Copyright Storm Interface. 2015. All rights reserved
This mullion format integrated keypad and contactless reader is rated for continuous outdoor use
in exposed, unsupervised locations. Featuring genuine HID
®
iCLASS SE
®
, Seos
®
, contactless technology,
this access control keypad offers enhanced security by dual factor authentication.
Additionally available with HID
®
multiCLASS SE
®
for legacy 125kHz technology.
Authorized access through a secured door or barrier can be gained by entry of a valid PIN and/or
presentation of an authorised contactless credential.
Installation
- Fix the rear plate to the wall with 2 x screws
- Make the wiring connections to the keypad
- Set the rear halo illumination switch (default is ON, colour is blue)
- Fit the keypad to the rear plate : locate at top and then push to engage clip
- ( If you need to remove then use the supplied tool to disengage the clip)
Wiring Connections
Weigand Format for PIN
Factory default is Weigand 4 bit burst format (for PIN).
If you need other Weigand formats follow the sequence below.
(to set site code on 26/32 bit refer to the S60 Engineering Manual)
Press # on power up , LED FLASHES RED/GREEN
Press #725 to enter format mode
Press 1 for FORMAT
Press 1 for 4 BIT FORMAT
or 2 for 8 BIT FORMAT
or 3 for 26 BIT FORMAT
or 4 for 32 BIT FORMAT
Press 0 to EXIT, LED STAYS RED
Specification
Card Compatibility iClass
®
, Mifare
® ,
ISO15693, ISO14443A & B
Card Read Range 2-11cm (depending on card)
Credentials iClass
®,
SEOS
®
, Mifare Classic,Plus & Ultralight, Desfire 0.6 & EV1
Card Security V1 Security (Elite to special order only)
Coupling Frequency 13.56 MHz
Supply 12V DC +/- 15% at 500mA max
Dimensions 205mm H x 45mm W x 21mm D (max)
Tamper detection Either normally open or normally closed (set by wiring connections)
Status Indication RED/GREEN as driven by the Controller (as supported by the controller)
Performance Order Codes
Operational Temp -35°C to +70°C DS601K20 AXS Series S60 iClass keypad, metal keys, mullion format
Weather Resistant IP65 DS602W20 AXS Series S60i iClass keypad, illuminated keys, mullion format
Vibration & Shock ETSI 6M3
Impact Resistance IK09 (10J Rating) DS601K2P AXS Series S60M Multiclass keypad, metal keys, mullion format
Certification CE / FCC / IC / UL294 DS602W2P AXS Series S60iM Multiclass keypad, illuminated keys, mullion format.
FCC ID 2AEEZ-DS60. Industry Canada IC 20014-DS60. This device complies with Part 15 of the FCC Rules and Industry Canada licence exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. HID ®, Seos® and iCLASS SE® are trademarks of HID Global Corporation / ASSA ABLOY AB. Storm,
Storm Interface and Storm AXS are trademarks of Keymat Technology Ltd.
Weigand 1
Weigand 0
TAMPER
0 V
BEEPER
LED
+12 V
