Kingwave Technology KW5405 5.8GHz Wireless CCD Color Camera User Manual KW5301070622 001
Kingwave Technology Co., Ltd. 5.8GHz Wireless CCD Color Camera KW5301070622 001
Users Manual

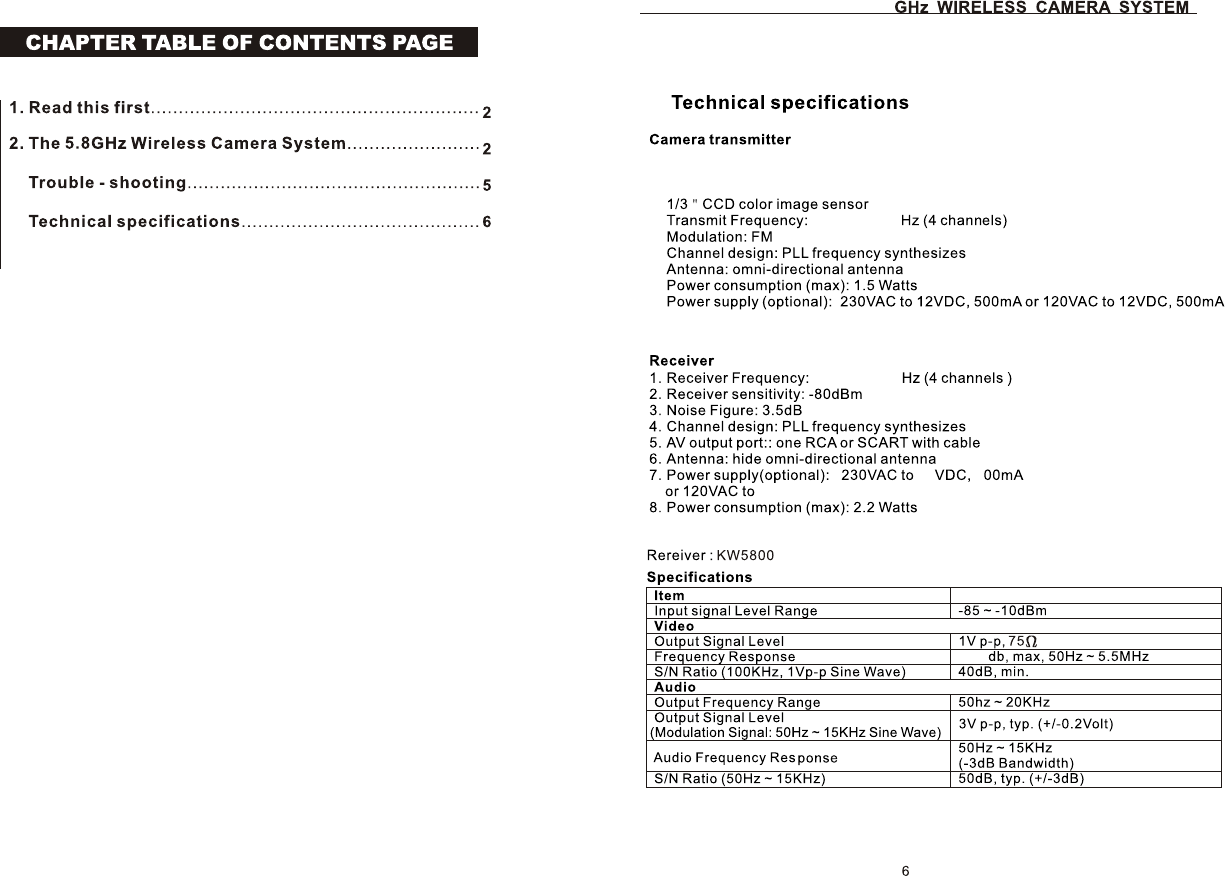

/5221F
KW5800
12VDC 500mA
12 5
5725~5875M
5725~5875M
Channel Frequency
CH1 5740MHz CH2 5780MHz
CH3 5820MHz CH4 5860MHz

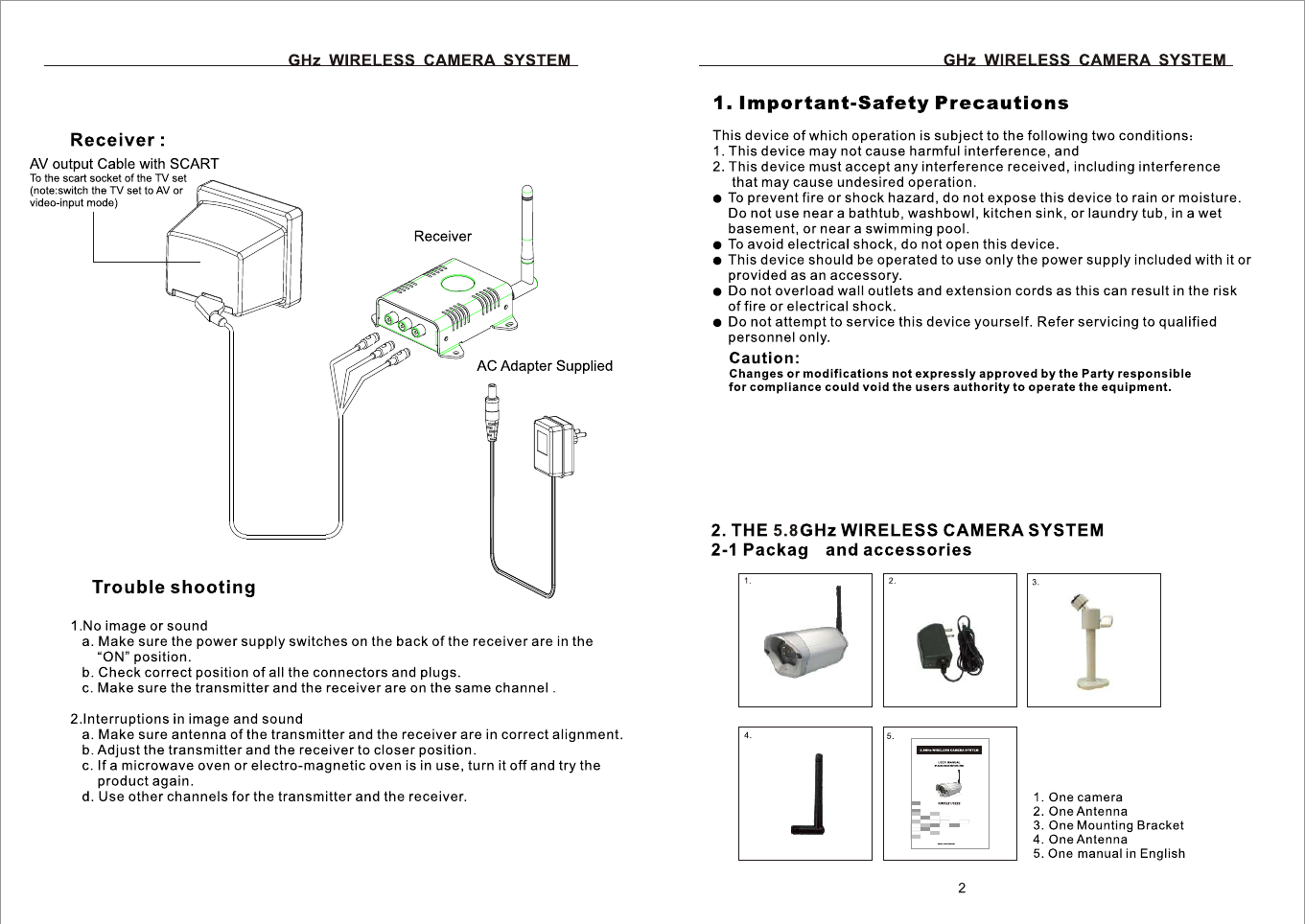

1.
2.
3.
4.
5.
6.
7.
8.
5.8
4.
3.
4.
±0.5
5.8
12VDO (500mA)
5.8
e
KW5221/KW5522
3.
5
Notice : The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements and void
user’s authority to operate the device.
5.8
Channel Frequency
CH1 5740MHz
CH2 5780MHz
CH3 5820MHz
Ch4 5860MHz

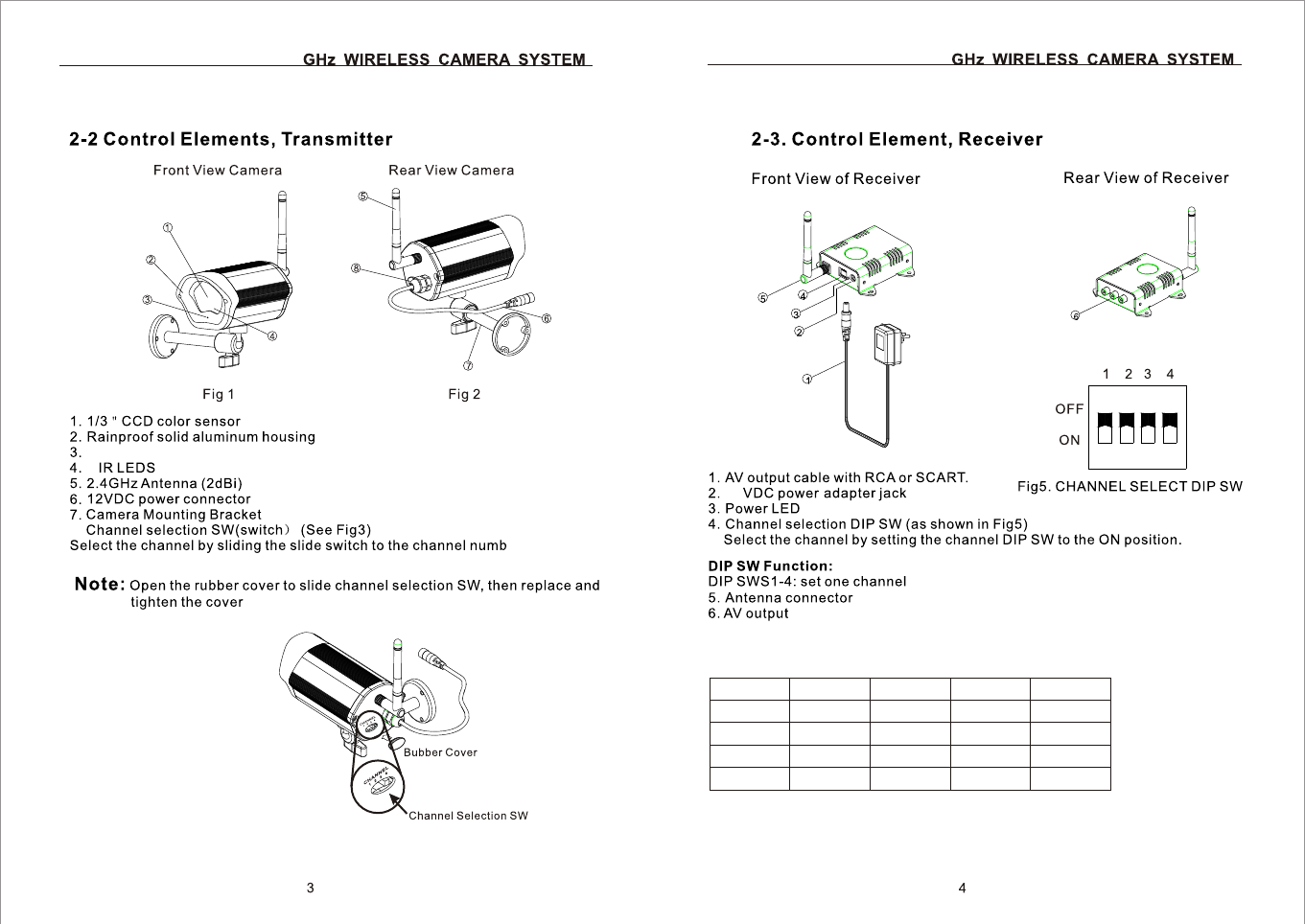

5.8
12
CH 1
CH 3
CH 5
CH 7
D I P 1 D I P 2 D I P 3 D I P 4
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
OFF
ON
ON
ON
ON
OFF
OFF
3.Selectable Channels:
8
8.
IR Sensor
KW5301 MANUAL
5.8GHz Wireless Multi - Receiver
5.8GHz Wireless Multi - Receiver
KW5301070622-001
CHAPTER TABLE OF CONTENTS
1.CE Statement……………………………………………..........
2.Important-Safety precautions………………………….......
3.Checking Contents of Box………………….…………........
4. Panel Controls and Features………………………...........
5.Installation of the system……………………………….......
6.Orienting Device for Optimum Performance………........
7. Troubleshooting, Care and maintenance………….........
8. Specifications…………………………………………….......
2
2
3
4
5
9
9
10
Receiving Frequency Band
Input Signal Level Range
Antenna Connector
Channel Input Gain Control Level
Noise Figure
Video Output
Output Port
Power connector (DC Jack)
Power Supply
Dimension
Weight
Operating temperature
5740~5860GHz
-85dBm ~-10dBm
SMA female connector
+15~-30 dB adj.
3dB
1V p-p ＠ 75 ohm
4 BNC female connector
5.5Ø2.1
12VDC/2A
216mm×183mm×46mm
1420 g
0°C~50°C
8. Specifications
All specification subject to change without notice
10
29
1. Important-Safety Precautions
■ To prevent fire or shock hazard, do not expose this device to rain or moisture.
■ To avoid electrical shock, do not open this device.
■ This device should be operated to use only the power supply included with it or
provided as an accessory.
■ Do not overload wall outlets
■ Do not attempt to service this device yourself. Refer servicing to qualified personnel only.
Note:
The user is encouraged to try to correct the interference by one or more of the following
measures:
■ Reorient or relocate the receiving antenna.
■ Increase distance between the equipment and receiver.
■ Connect the equipment into a different circuit outlet from the receiver's.
■ Consult with the dealer or an experienced radio/TV technician for help.
Cautions:
1.Screw 5.8GHz antenna to the antenna socket at the rear of the camera first
before plug in the power cord.
2.Changes or modifications are not expressly permitted.
3.Put the movable antenna as high as possible for best performance.
6.Orienting Device for Optimum Performance
This device should be placed on a flat, stable surface to prevent damage to it from falling.
■ Since all homes are different for optimum reception, additional slight rotate antenna
may be necessary.
■ For optimum performance you maybe rotate the channel input gain control on the
device individually when you use the device.
7. Troubleshooting, Care and maintenance
Please read this owner's manual carefully and follow the steps described in it. If you still have
difficulties, consult the following table. It will guide you though the most common problems and
their solutions
Interference:
Noisy picture
No picture
Problem Possible solutions
■ Check all cable connections.
■ Make sure power plugs are pushed all the way in.
■ Check power switches on the digital color quad process or or
digital video recorder or monitor.
■ Check the power on/off switches on the camera and the device
■ Adjust antenna orientation of camera and the device.
■ Adjust the channel input gain control of the device.
■ If using a microwave oven, turn it off.
■ Remove microwave oven from path between camera and
the device.
Notice : The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements and void
user’s authority to operate the device.
KW5301 MANUAL
5.8GHz Wireless Multi - Receiver
3 8

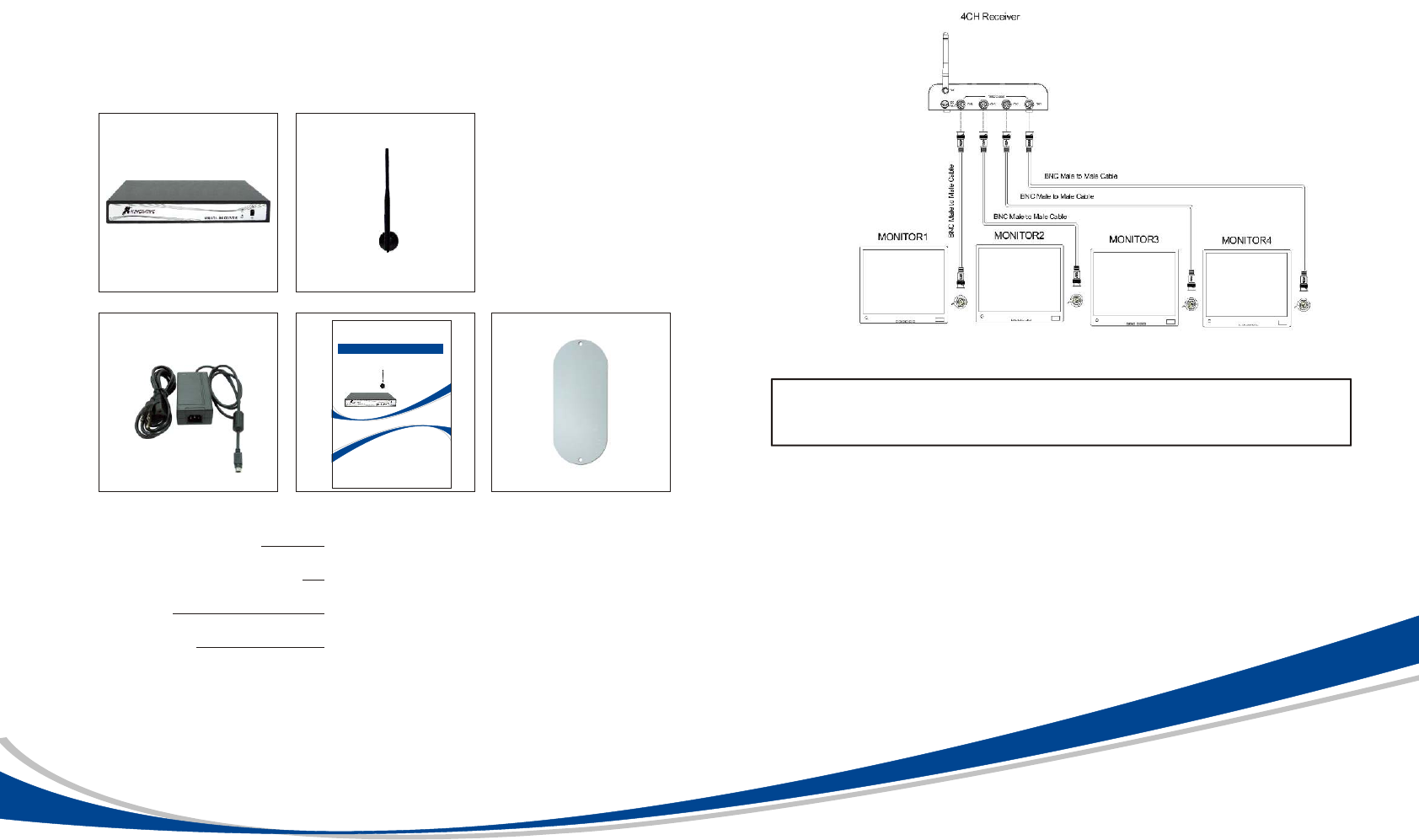

3. Checking Contents of Box
Make sure that all of the items shown as below are included
with your 5.8 GHz Wireless Multi-Receiver System. If something is missing,
please contact your dealer as soon as possible.
1. 4 Channels Multi-Receiver
2. 2.4GHz Wireless dipole Antenna
3. Power Adapter
4. Manual In English
5.Metal Sheet for magnetic antenna
x1
X1
x1
x1
■ Operation With 4 Monitors
Be sure to set the power switch on the device and monitors to the off
position before processor with the following steps
1. 2.
3. 4. 5.
47
4. Panel Controls and Features
The following illustrations show the names of each component,button and switch
connectors on the receiver.
FRONT VIEW FOR THE MULTI-RECEIVER
Power ON/OFF Switch
12V Power LED Indicator
5V Power LED Indicator
REAR VIEW FOR THE MULTI-RECEIVE
12V DC input power connector
BNC Female Connector for CH3 Video Output
BNC Female Connector for CH2 Video Output
ANT SMA Female Connector
BNC Female Connector for CH4 Video Output
BNC Female Connector for CH1 Video Output

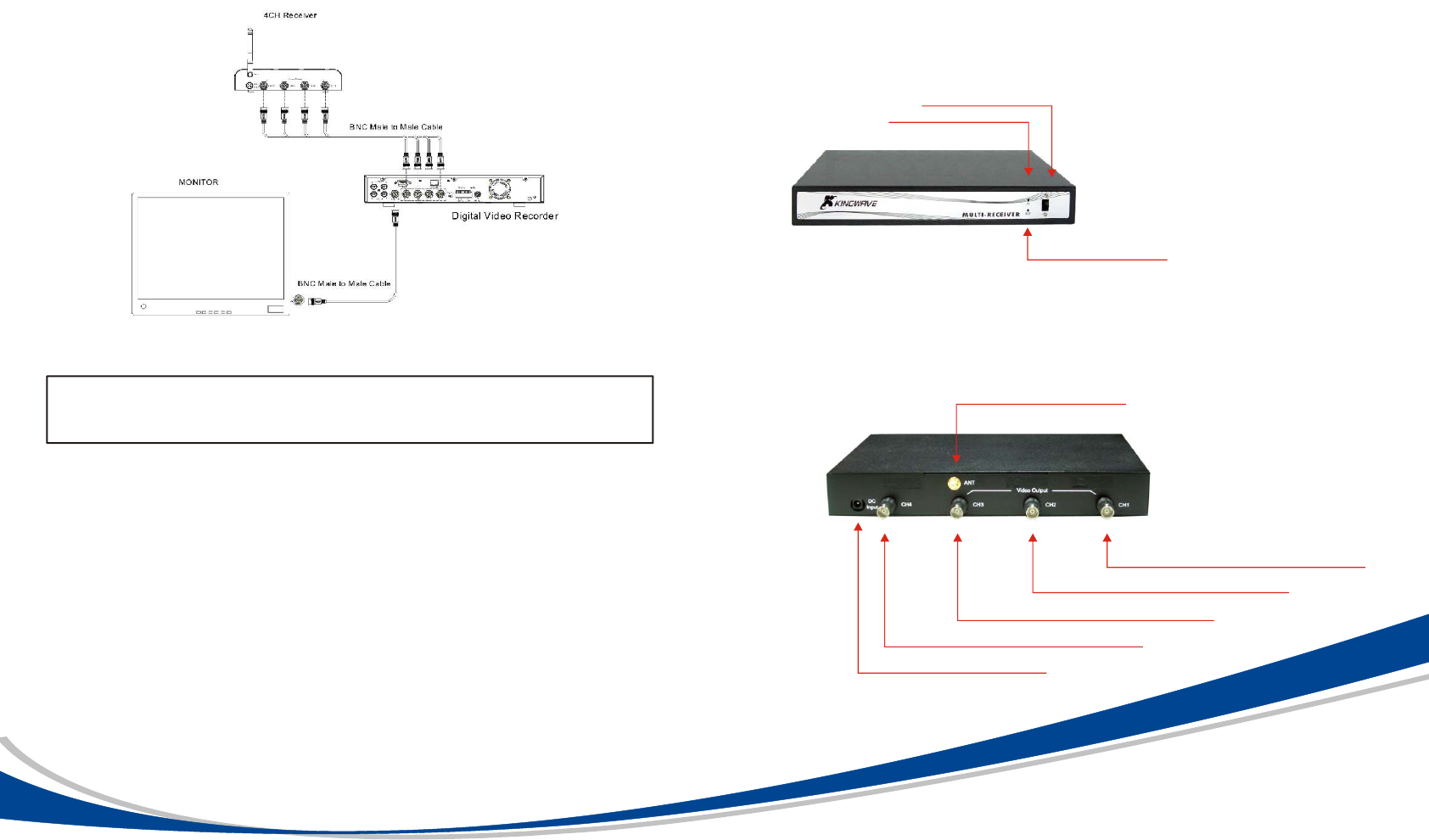

■ Operation With Digital Video Recorder and Monitor
Be sure to set the power switch on the device and Digital Video Recorder
and monitor to the off position before processor with the follow steps
5
5.Installation of the system

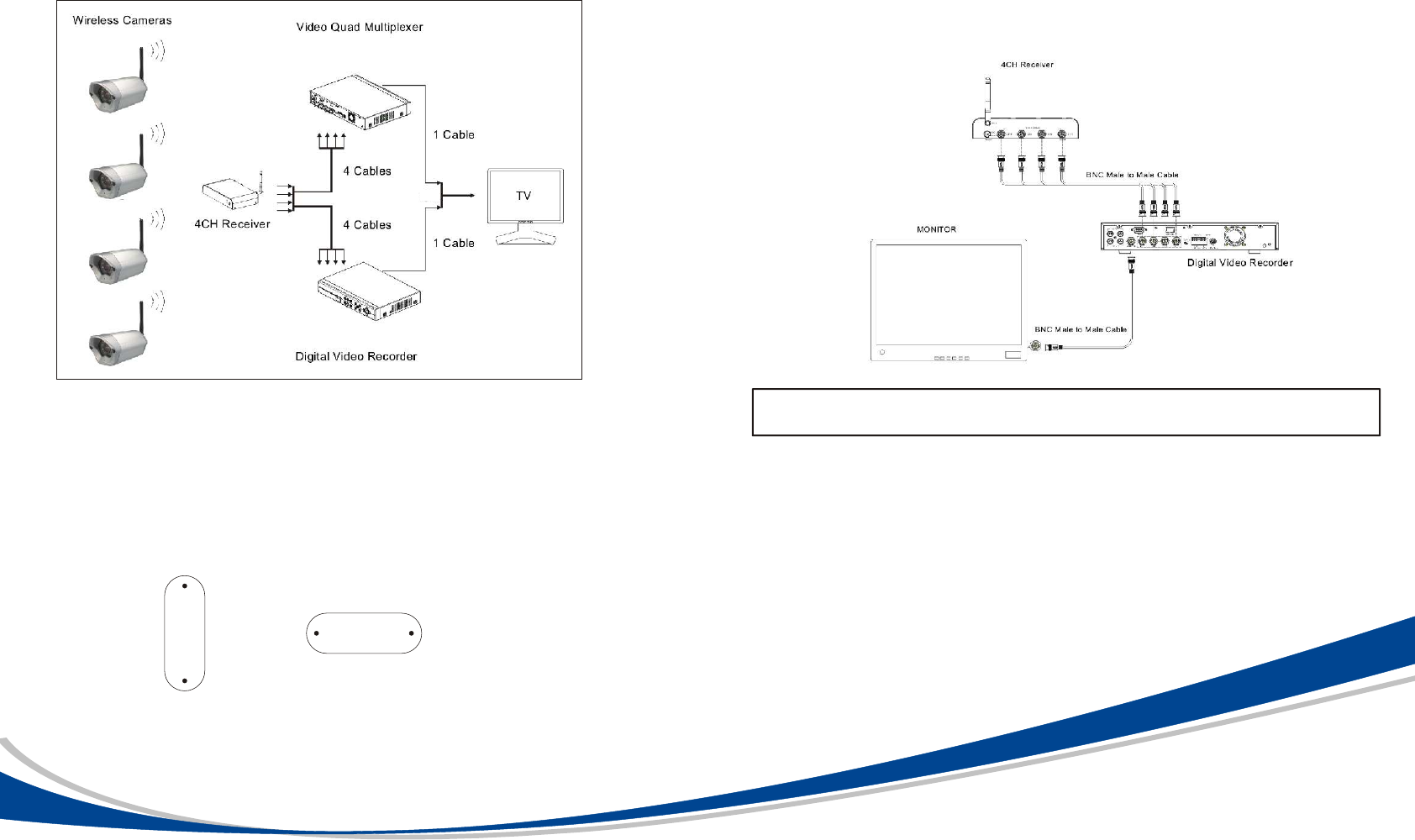

This system is suggested to match following equipment:
˙Wireless Cameras.
˙Digital Color Quad Processor
˙Digital Video Recorder.
6
Make sure the POWER switch is on the『OFF 』position before connection
■ Operation With Digital Color Quad Processor and Monitor
Be sure to set the power switch on the device and digital color quad processor
and monitor to the off position before processor with the follow steps
5. Install the metal sheet for magnetic antenna
1.Put the antenna as high as possible. Higher than body tall is better.
2.Fixed the metal sheet on the best performance position.
3.Put antenna on the metal sheet and adjust for best performance.
or
OR
