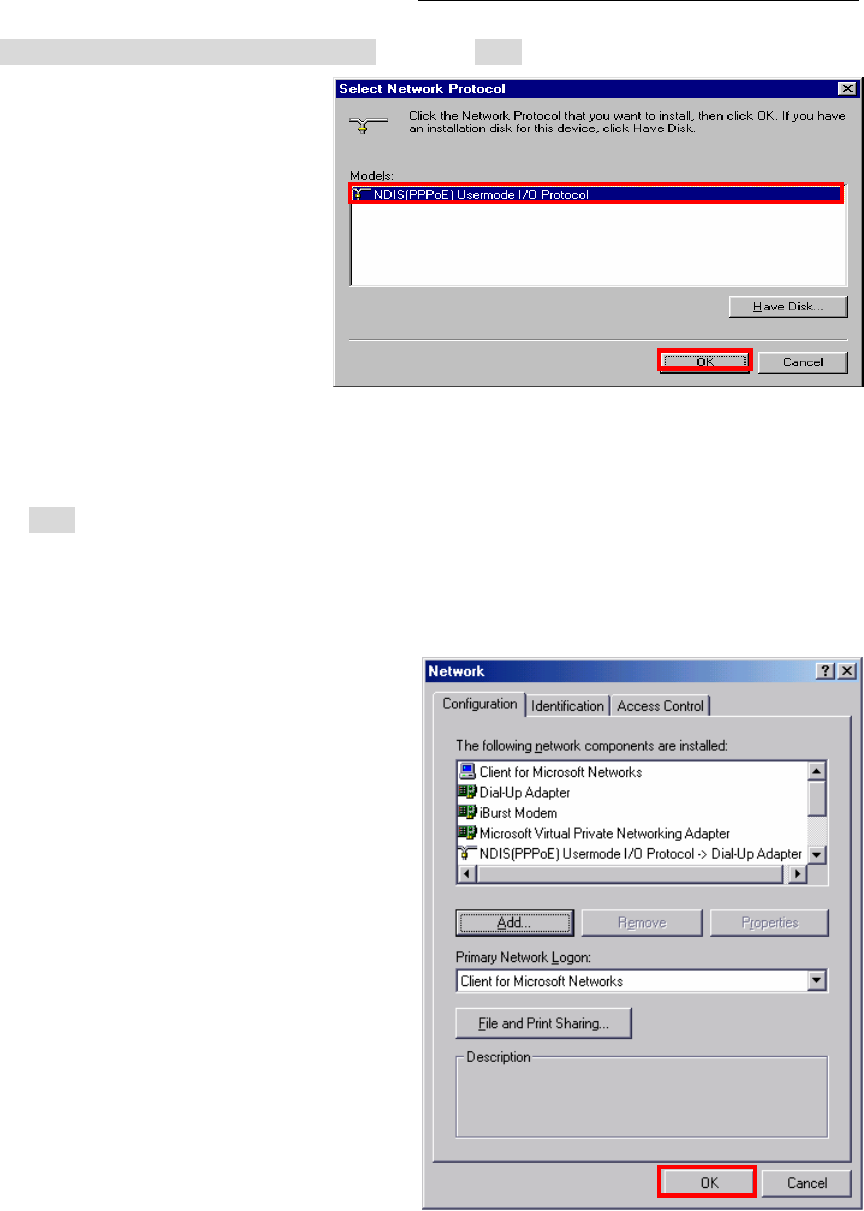

51. Select [NDIS(PPPoE) Usermode I/O Protocol], click the [OK] button.
NOTE: If the same dialog at step 47 is popped up again, cancel once and repeat from step
45.
52. Click the [OK] button.
NOTE: One of the protocols added shall be;
“NDIS(PPPoE) User mode I/O Protocol -> iBurst Modem”; or
“NDIS(PPPoE) User mode I/O Protocol -> iBurst Modem Type 02-01”.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 55 -

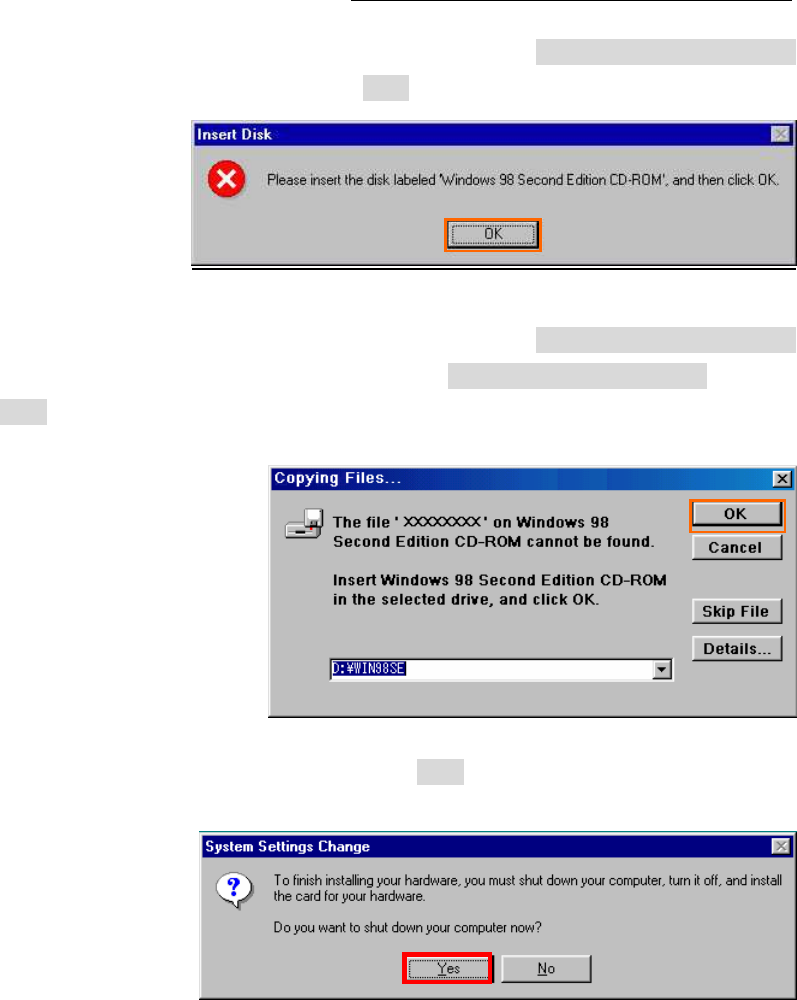

NOTE: If the dialog window as shown below appears, insert [Windows 98SE CD-ROM]
into the CD-ROM drive and click the [OK] button.
NOTE: If the dialog window as shown below appears, insert [Windows 98SE CD-ROM]
into your PC and enter the directory of your [Windows 98SE CD-ROM],click the
[OK] button. “xxxxxxxx“ in the picture below is a file name that can not be
found.

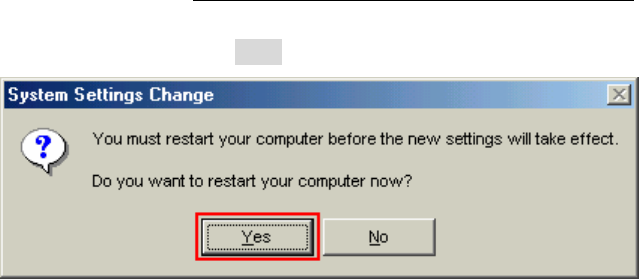

53. The dialog window shown below will appear, click the [Yes] button, and shut down your PC,
then turn on your PC again.
NOTE: If the PC doesn’t shutdown itself, try to press Alt+Ctrl+Del keys several times.
NOTE: To connect to the Internet, refer to page 64.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 56 -
Installation for
Installation forInstallation for
Installation for Mac OS X
Mac OS X Mac OS X
Mac OS X
NOTE:
The installation software are applied to Mac OS X 10.1.5/10.2/10.3/10.4 except Mac Intel models.
Make sure OS version on your PC and a corresponding installation software package for the iBurst
Modem.
NOTE:
All screen copies in this section are based on Mac OS X 10.4 except in step 3.
1. Make sure to remove the iBurst Modem out from your PC.
ATTENTION:
Don
DonDon
Don’
’’
’t
t t
t plug
plugplug
plug the
the the
the iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem
into
into into
into your PC until completion of installation.
your PC until completion of installation.your PC until completion of installation.
your PC until completion of installation.
2. Turn your PC on and login as an administrative user.
3. Insert the Software Utility CD provided by the network operator into your CD-ROM drive; or
execute the appropriate installation software.

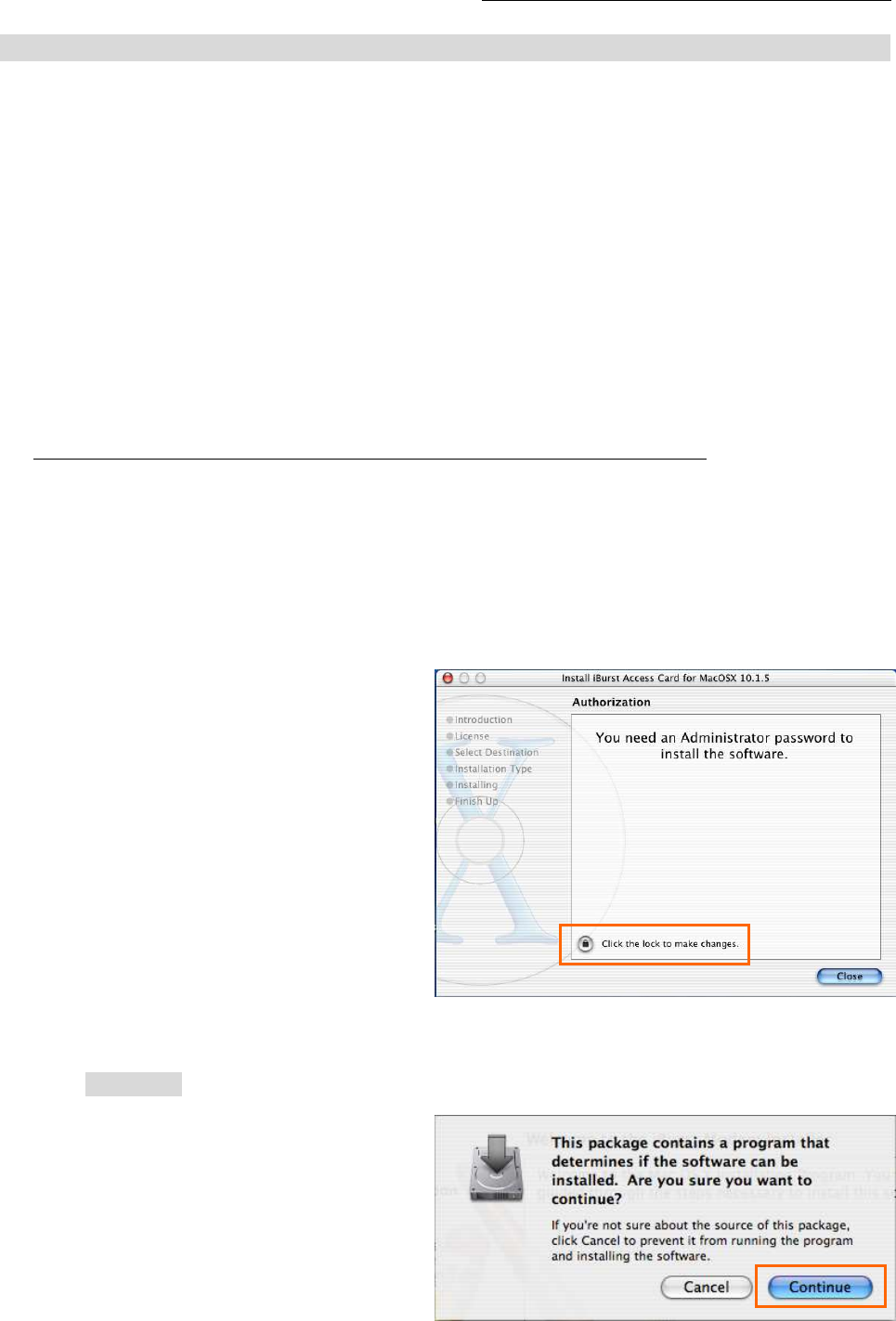

NOTE: If the window shown below appears, click “Click the lock to make changes”.
4. In case of version 10.3 or later, the confirmation message shown below will appear.
Click [Continue] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 57 -

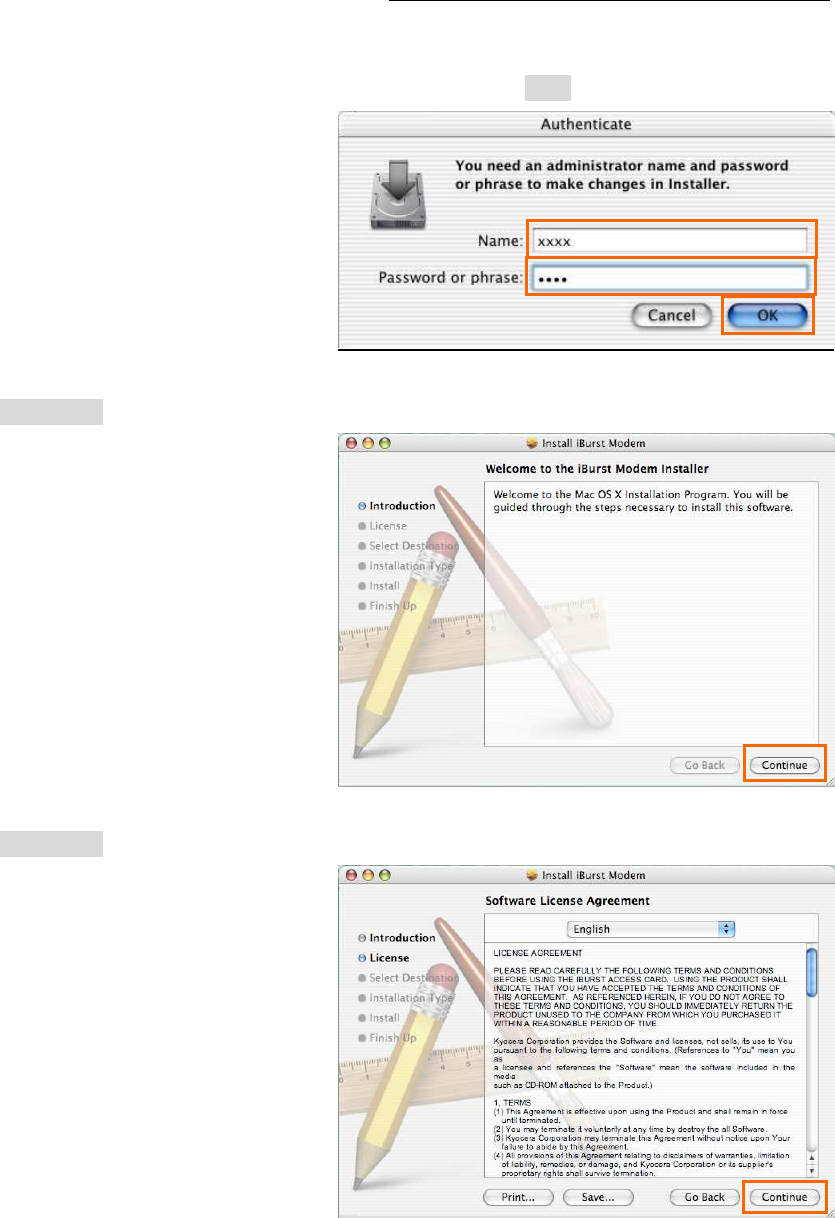

5. In case of version 10.2 or older, “Authenticate” dialog will appear.
Enter an administrator name and password, and then click the [OK] button.
6. Click the [Continue] button.
7. Click the [Continue] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 58 -

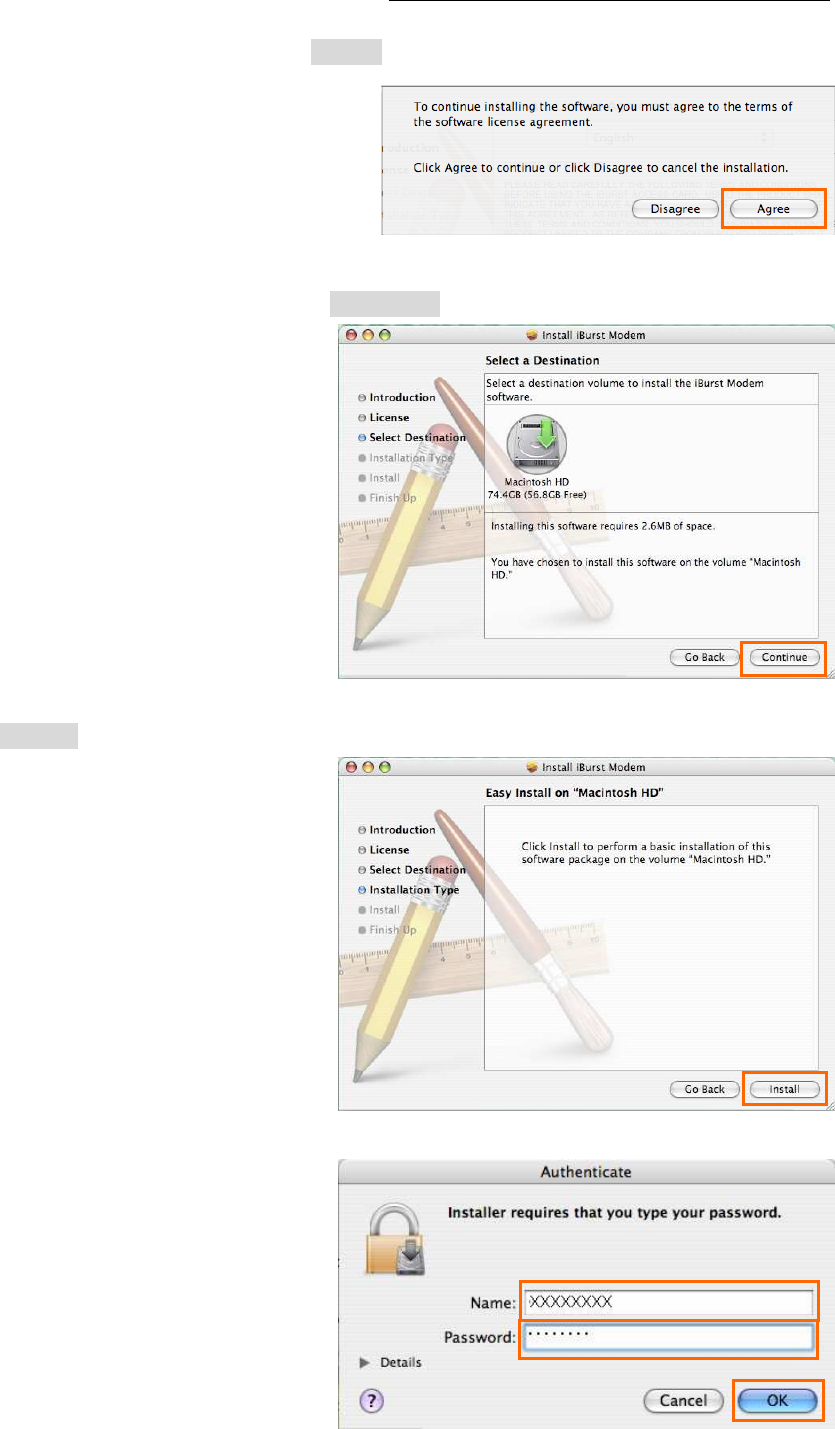

8. The following dialog will appear click the [Agree] button.
9. Select a destination disk, and then click the [Continue] button.
10. Click the [Install] button after appearing dialog window as shown below.
NOTE: In case of version 10.4, “Authenticate” dialog will appear at here.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 59 -

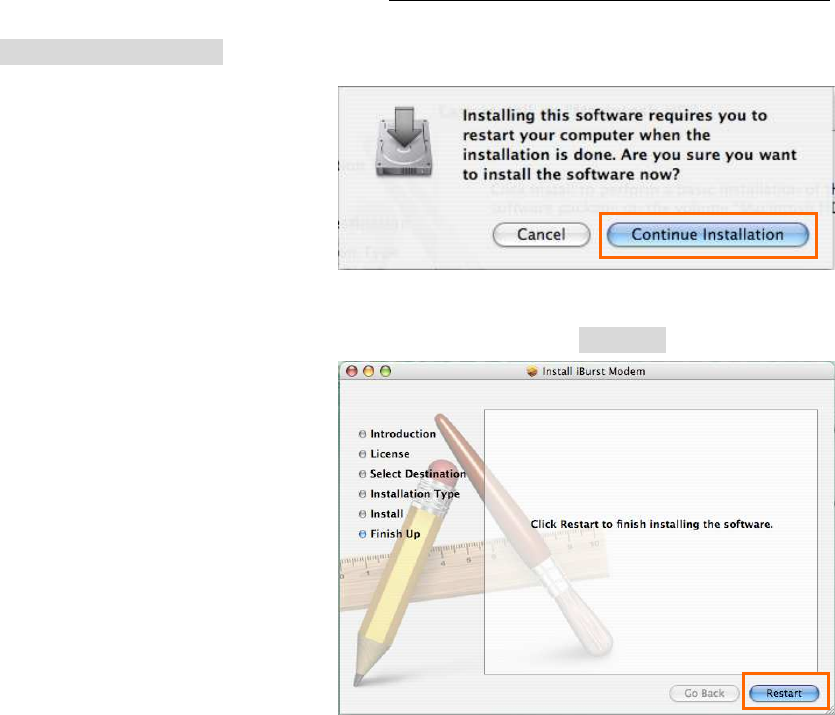

11. Click the [Continue Installation] button.
12. When finish installing, the dialog shown below will appear. Click the [Restart] button.
NOTE: To connect to the Internet, refer to page 65.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 60 -
Connection Establishment
Connection EstablishmentConnection Establishment
Connection Establishment
Connection Establishment for Windows XP
Connection Establishment for Windows XPConnection Establishment for Windows XP
Connection Establishment for Windows XP
1. Make sure to plug the iBurst Modem into a PC card slot of your PC.
2. Click the [Start] button, followed by selecting [Control Panel] as shown below.
3. Click [Network and Internet Connections] in the [Control Panel] display.
4. Next, click [Set up or Change your Internet connection].
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 61 -
5. When the [Internet Properties] dialog window appears, click the [Setup] button.
6. [New Connection Wizard] will begin and the dialog window as shown below will appear.
Click the [Next >] button in the dialog window.
7. Select [Connect to the Internet] and click the [Next >] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 62 -

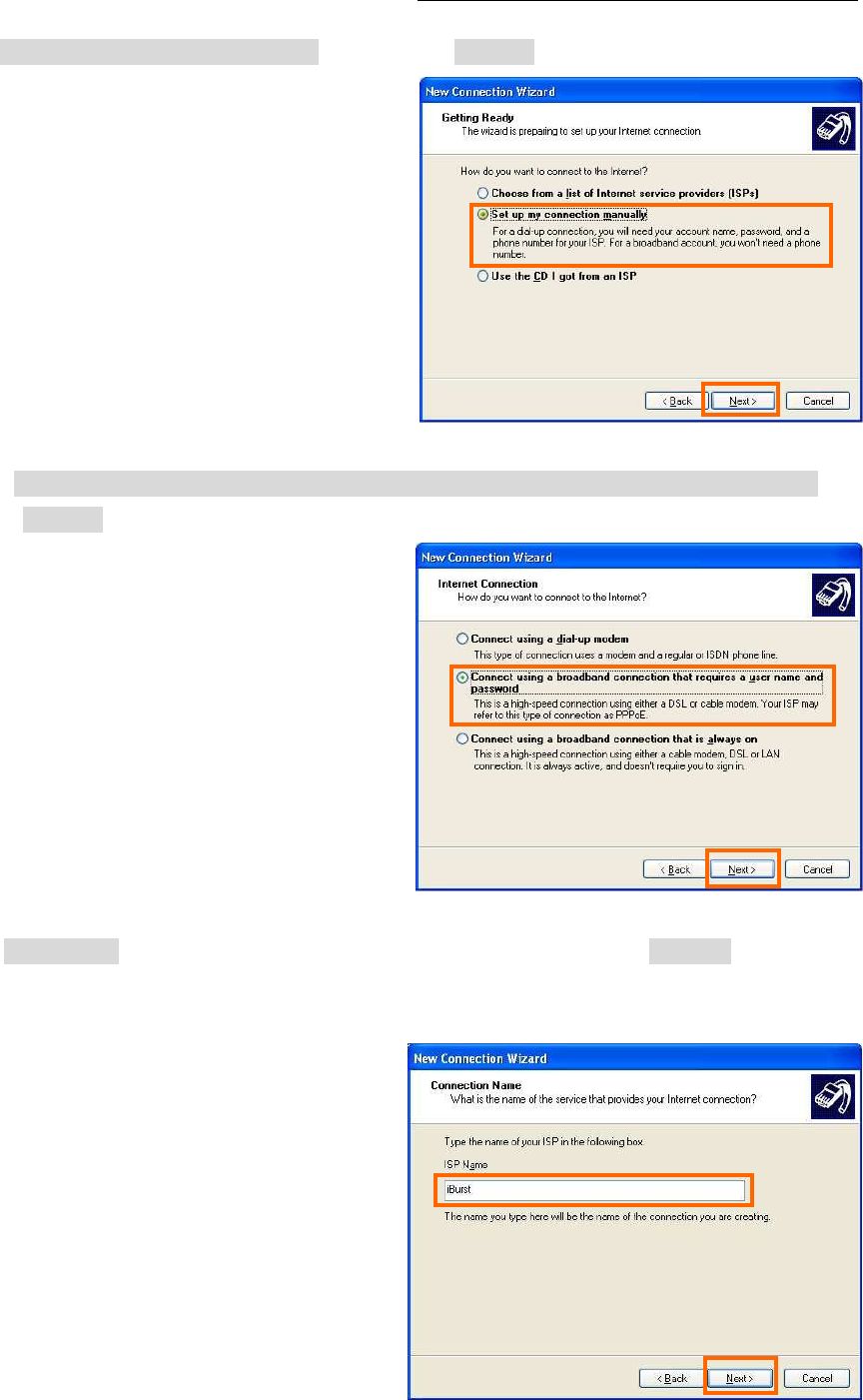

8. Select [Set up my connection manually] and click the [Next >] button.
9. Select [Connect using a broadband connection that requires a user name and password] and
click the [Next >] button.
10. Fill in [ISP Name] edit box with an ISP Name, followed by clicking the [Next >] button. Note
that any ISP name is acceptable.
ISP Name is “iBurst” for example.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 63 -

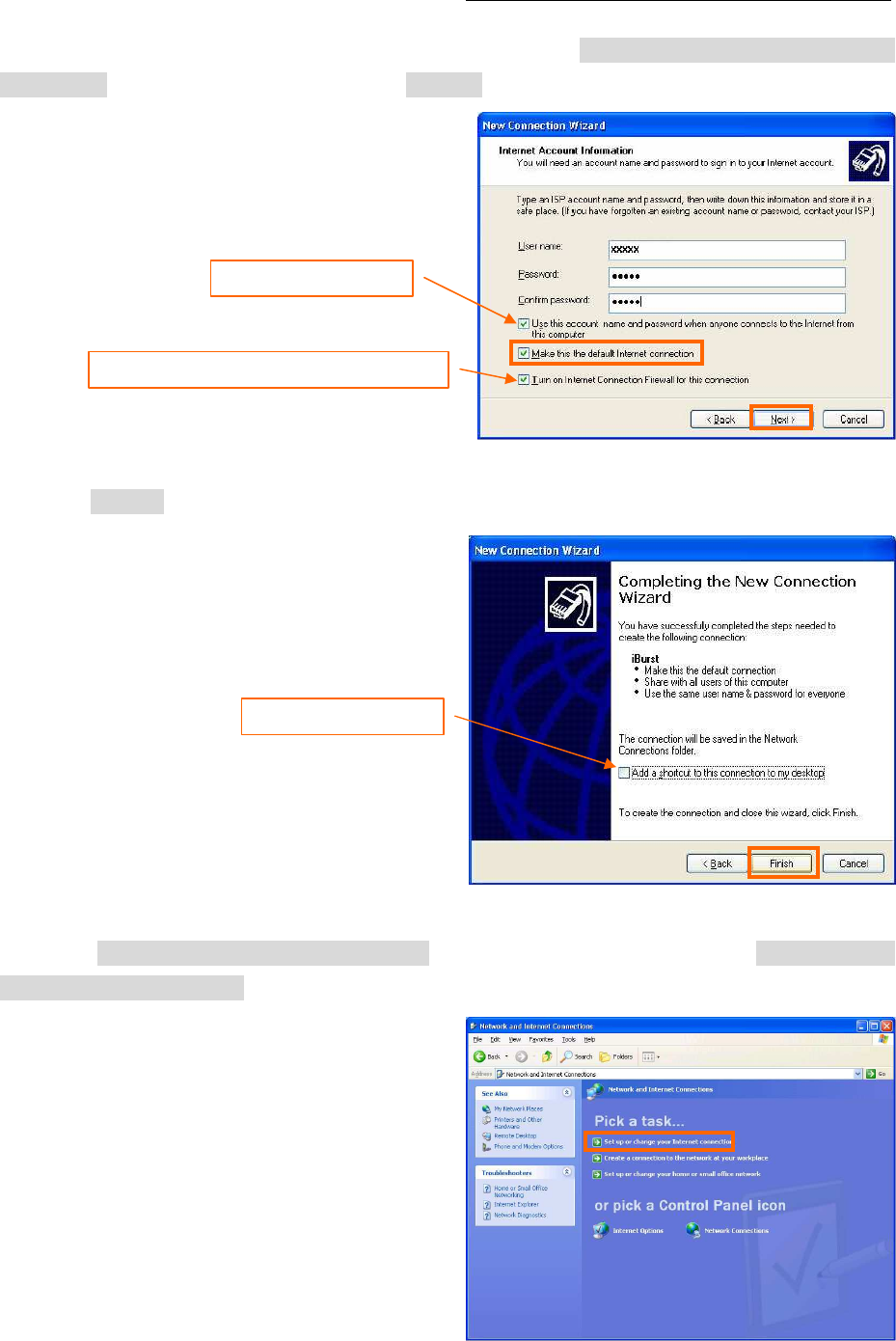

11. Enter user name and password and make sure that the [Make this the default Internet
connection] check box is checked. Click the [Next >] button.
12. Click the [Finish] button.
13. When the [Network and Internet Connection] window pane appears again, click [Set up change
your Internet Connection].
Check it if you want.
Nothing in case SP2 of Windows XP.
Check it if you want.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 64 -

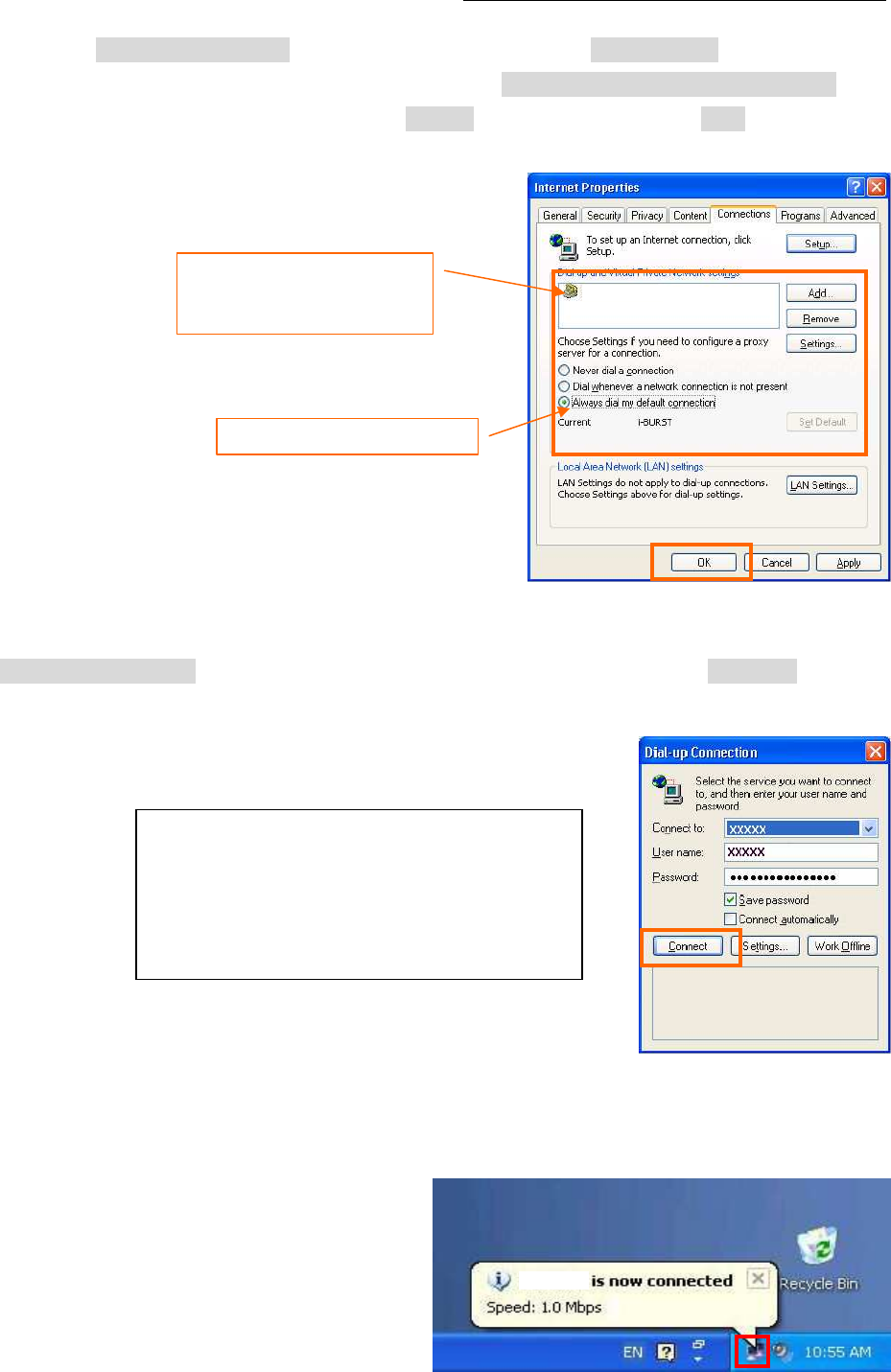

14. When the [Internet Properties] dialog window appears and the [Connections] pane is displayed,
confirm the connection name and make sure that the [Always dial my default connection] radio
button is checked, followed by clicking the [Apply] button. Then, click the [OK] button to close
the dialog window
15. At this point, the connection configuration is completed. When you open Internet Explorer, the
[Dial-up Connection] dialog window as shown below will appear. Click the [Connect] button to
connect to the network.
16. When the connection establishment process is complete, a message indicating completion of the
connection will appear at the task tray as shown below.
Select “Always dial ...”.
step 10 above must be the
default connection.
NOTE:
If you don’t choose “Always dial my default
connection” at step 14 above, you have to
open this dial-up connection dialog
manually every when you want to connect to
the Internet.
iBurst
iBurst (Default)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 65 -
Connection Establishment for Windows 2000/Me/98SE
Connection Establishment for Windows 2000/Me/98SEConnection Establishment for Windows 2000/Me/98SE
Connection Establishment for Windows 2000/Me/98SE
NOTE: You have to execute the procedure in this section every when you want to connect to the
Internet.
1. Make sure to plug the iBurst Modem into a PC card slot of your PC.
2. Double click the shortcut icon on the PC desktop; or click [Start] -> [Programs] -> [iBurst] ->
[iBurst_Modeml Connect UTL]

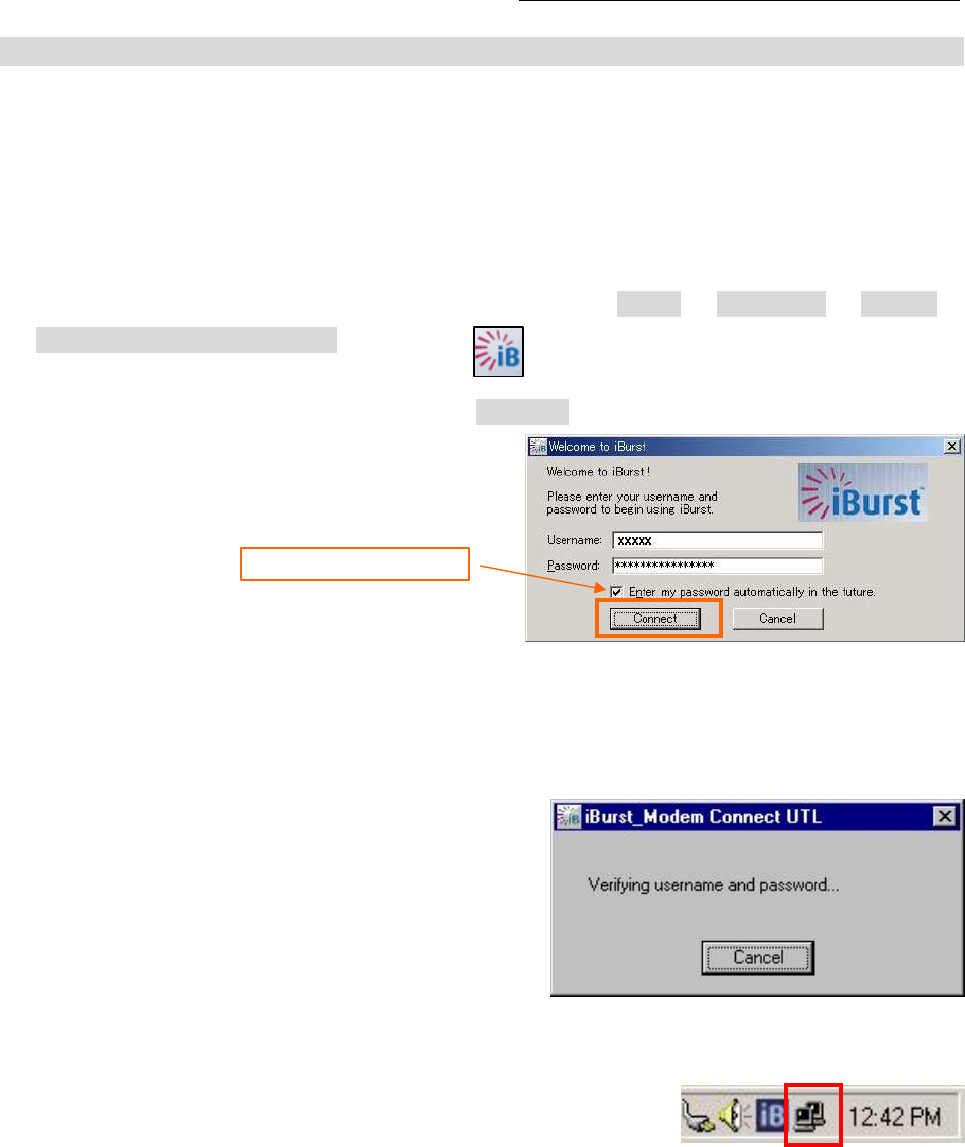

3. Enter user name and password and click the [Connect] button.
NOTE: ‘Cancel’ to close the dialog.
‘Property’ to open properties of the dial-up connection for iBurst Modem.

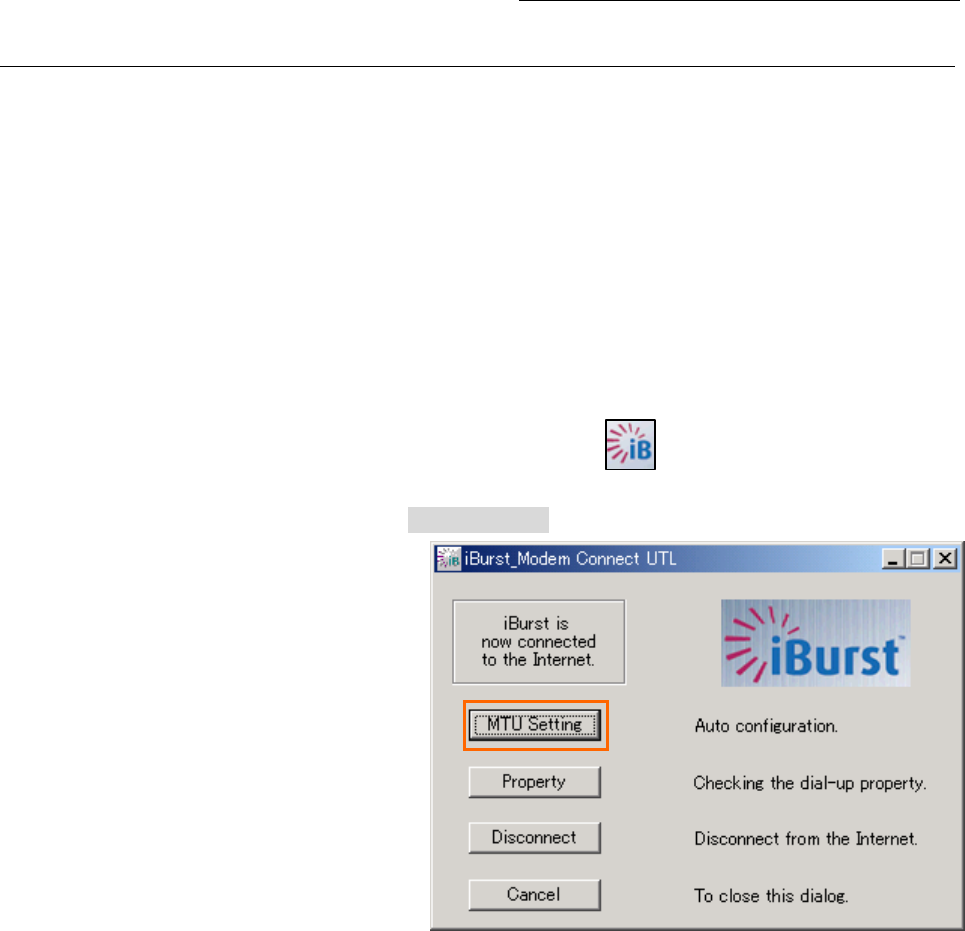

4. While connecting to network, the following connection status window is displayed.
5. When logging on successfully, a network connection icon will be displayed at the task tray.
Check it if you want.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 66 -
Connection Establishment for Mac OS X
Connection Establishment for Mac OS XConnection Establishment for Mac OS X
Connection Establishment for Mac OS X
1. Make sure to plug the iBurst Modem into a PC card slot of your PC.
2. Select [System Preferences…] on the Apple menu.
3. Click [Network] in the [System Preferences] window.
4. After the 1st insertion of the iBurst Modem, you will find the pop-up shown below. Take note
the name of the new port. Click [OK].
X
)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 67 -
5. Click on the drop down menu of the [Show]; and
Select [Ethernet Adaptor (en X)] indicated in the previous step.
NOTE: The ‘X’ in the “en X” is the port number and it shall be the biggest one among
them when 1st connection.

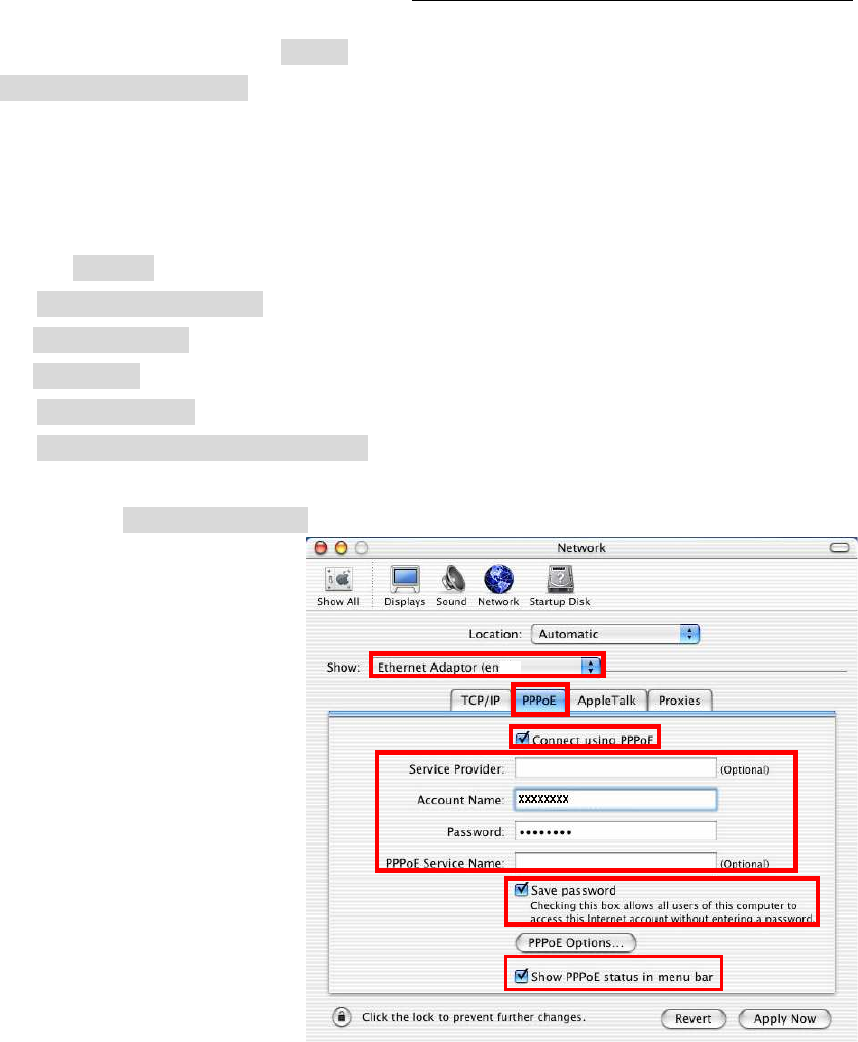

Additionally, set as follows.
• Select the [PPPoE] tab.
• Check [Connect using PPPoE].
• Enter [Account Name] provided by the network operator.
• Enter [Password] provided by the network operator.
• Check [Save password] If you require the computer to remember your password.
• Check [Show PPPoE status in menu bar].
NOTE: If uncheck this option, you cannot see the icon described in the step 9.
• And then, click [PPPoE Options…]
X
)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 68 -

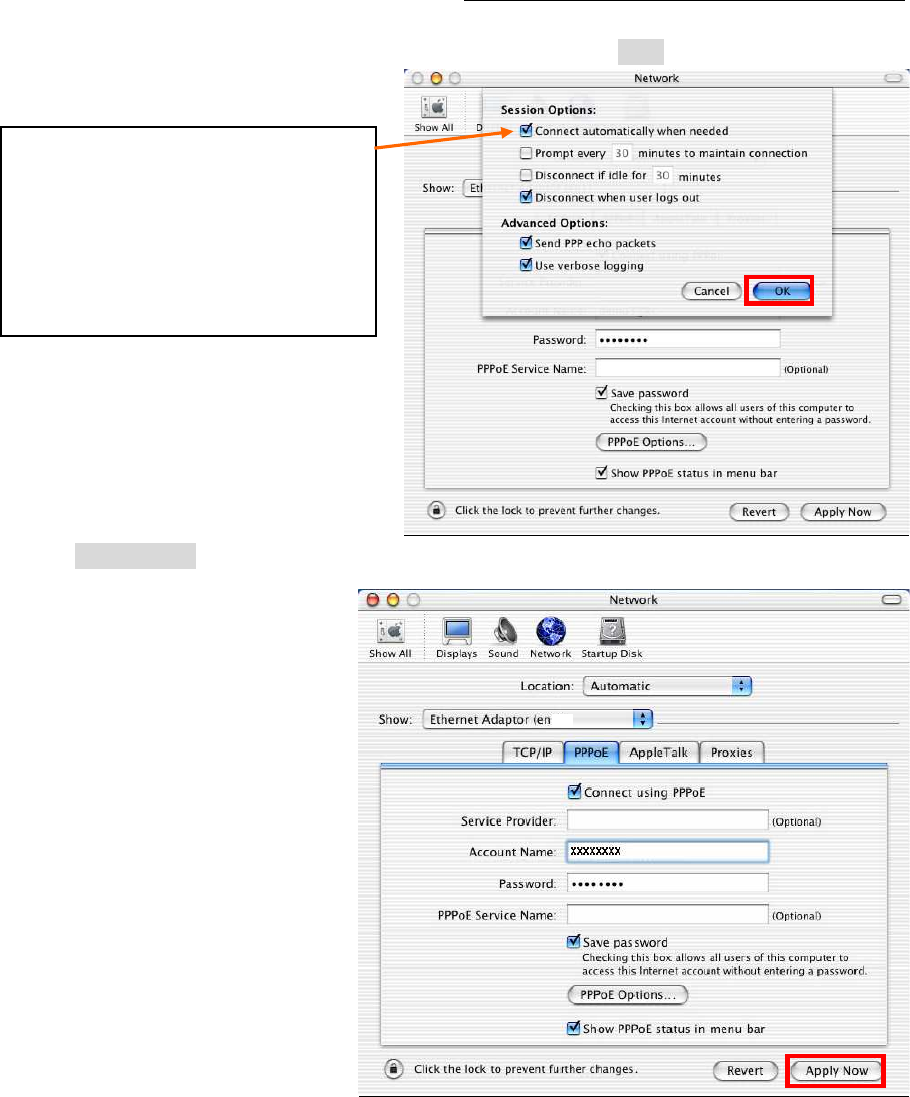

6. On the PPPoE Options dialog, set everything as follows and click [OK].
7. Click the [Apply Now] button.
8. At this point, the connection configuration is completed. When you open any internet
application software, e.g. a web browser, the internet connectivity will be activated
automatically.
NOTE:
If you don’t enable “Connect
automatically when needed”, you
have to make connection by
following from step 9 every when
you want to connect to the
Internet.
X
)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 69 -

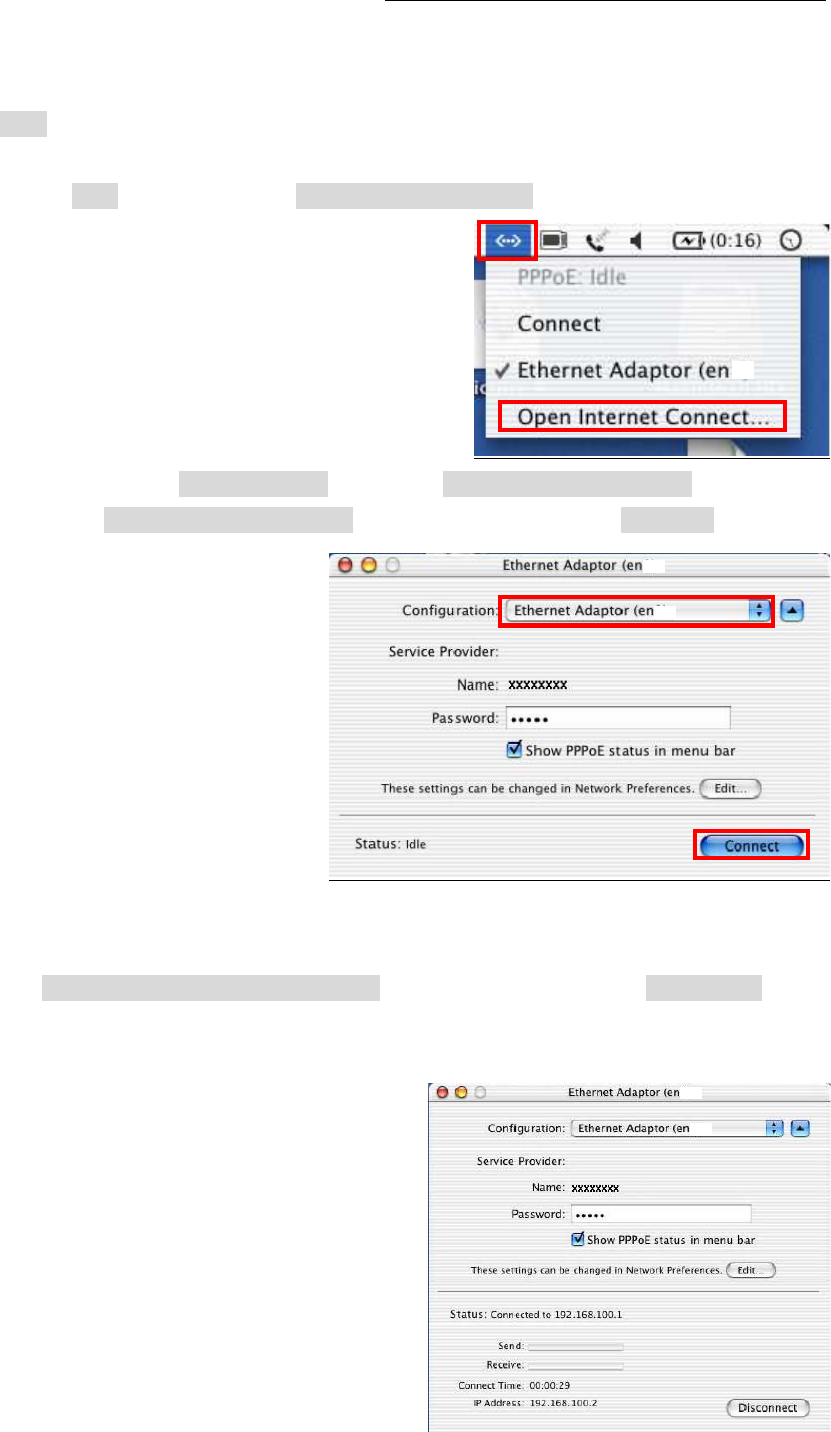

NOTE: To check the internet connectivity, follow the steps below.
9. Click the <---> icon at the top right of screen, and select the Ethernet Adapter you choose in
step 5.
In addition, click <---> again and choose [Open Internet Connect]
10. Click on drop down menu of [Configuration], and select [Ethernet Adaptor (en X)].
The configuration of [Ethernet Adaptor (en X)] will be displayed, click the [Connect] button.
NOTE: In case of version 10.4, dialog layout is different and you can find the adapter by
expanding icon array, clicking “>>”, at the top of the dialog.
11.
When
the box [Show PPPoE status in menu bar] is checked, PPPoE Status [Connected]
will be
displayed after having finished connection. However, Ethernet Adaptor display will little differ by
OS Version.
X
)
X
)
X
)
X
)
X
)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 70 -
Chapter 3 Utility Software
Chapter 3 Utility SoftwareChapter 3 Utility Software
Chapter 3 Utility Software
This chapter describes the features and usage of the
This chapter describes the features and usage of the This chapter describes the features and usage of the
This chapter describes the features and usage of the
Utility Software
Utility Software Utility Software
Utility Software for iBurst Modem.
for iBurst Modem.for iBurst Modem.
for iBurst Modem.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 71 -
Using Utility Software
Using Utility Software Using Utility Software
Using Utility Software
Using Utility Softwa
Using Utility SoftwaUsing Utility Softwa
Using Utility Software for Windows
re for Windows re for Windows
re for Windows
To open the utility dialog.
1. To open the utility dialog, click the icon on the computer’s task tray; or click
[Start] -> [Programs] -> [iBurst] -> [iBurst_Modem UTL]. When the dialog opens, the [Link
Info] pane will be displayed as shown below.
2. To close the utility dialog window, click the [OK] button or the [Cancel] button or the ‘X’ button
at upper-right corner of the dialog window.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 72 -

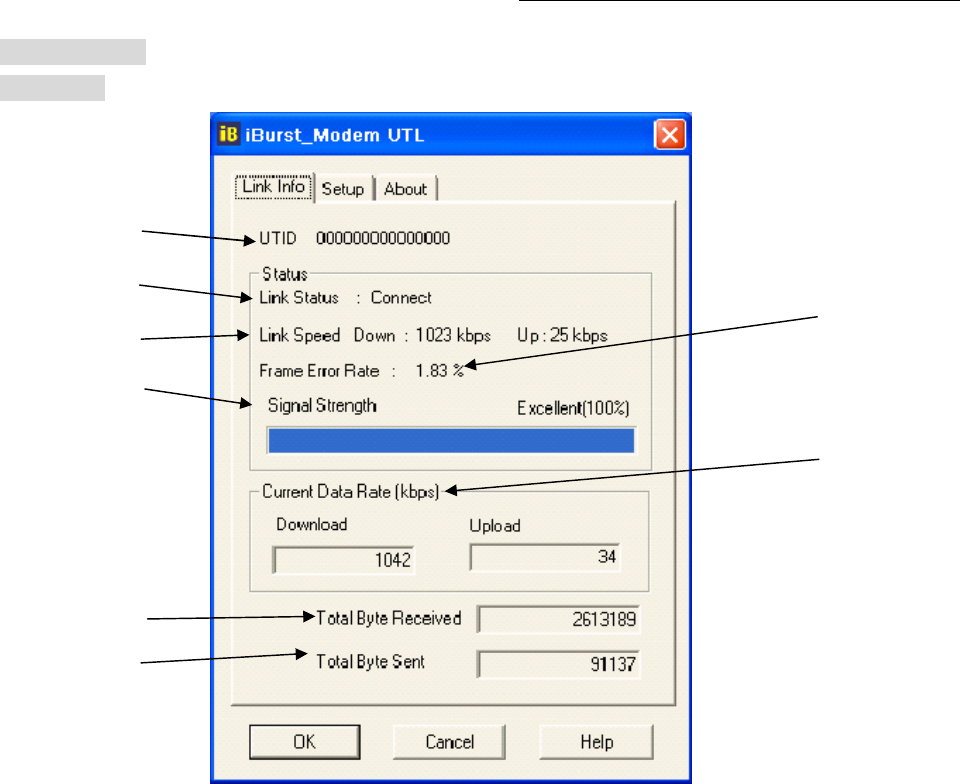

Link Info Pane
[Link Info] pane indicates several communication status about iBurst Modem.
The following descriptions are about each item on the pane.
(1) UTID
UTIDUTID
UTID
UTID is an identifier assigned to the iBurst Modem. This will be used for maintenance
support.
(2) Link Stat
Link StatLink Stat
Link Status
usus
us
This indicates current link status between the iBurst Modem and the access point.
Connect
ConnectConnect
Connect
:
::
:
The link is connected.
No Connect
No ConnectNo Connect
No Connect
: The iBurst Modem is connected with your PC but the link is not
connected.
No
No No
No iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem
:
::
:
There is no iBurst Modem connected with your PC.
(3) Link Speed
Link SpeedLink Speed
Link Speed
This indicates current bandwidth allocated automatically between the iBurst Modem and
a radio base station.
(4) Frame Error Rate
Frame Error RateFrame Error Rate
Frame Error Rate
This indicates current Frame Error Rate on the downlink air.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 73 -
(5) Signal Strength
Signal StrengthSignal Strength
Signal Strength
This indicates current signal strength of the received radio signal. The signal bar
indicates the level visually in percentage and the status words are categorized according
to the percent level as follows.
No Signal :
No Signal :No Signal :
No Signal :
0%
Poor :
Poor :Poor :
Poor :
In the range of 1 to 24%
Fair
FairFair
Fair :
: :
:
In the range of 25 to 49%
Good
GoodGood
Good : In the range of 50 to 74%
Excellent
ExcellentExcellent
Excellent :
: :
:
In the range of 75 to 100%
(6) Current Data Rate
Current Data RateCurrent Data Rate
Current Data Rate
This indicates current throughputs on both directions.
(7) Total Byte Received
Total Byte ReceivedTotal Byte Received
Total Byte Received
Total Byte Received indicates the total number of bytes received from the access point
since the communication link is established.
(8) Total Byte Sent
Total Byte SentTotal Byte Sent
Total Byte Sent
Total Byte Sent indicates the total number of bytes transmitted to the access point since
the communication link is established.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 74 -

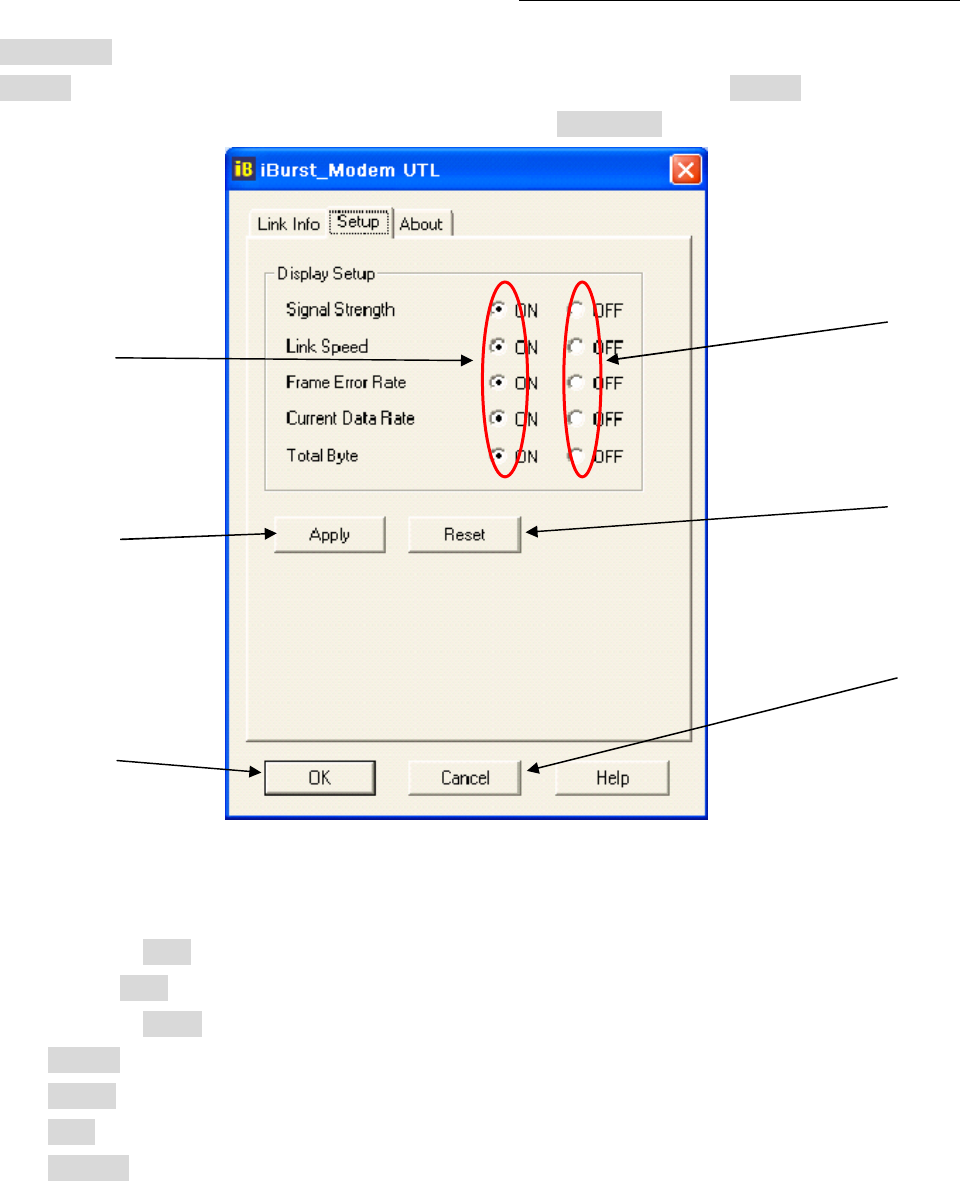

Setup Pane
[Setup] pane can be displayed in the main dialog window by clicking the [Setup] tab. This pane
controls enabling/disabling to show each indicator on the [Link Info] pane.
The following descriptions are about each item on the pane.
(1) Selecting [ON] enables the corresponding indicator on the Link Info pane.
All are [ON] as the default.
(2) Selecting [OFF] disables the corresponding indicator on the Link Info pane.
(3) [Apply] button activates every setting above.
(4) [Reset] button enables and activates all settings above.
(5) [OK] button activates every setting above and close the dialog.
(6) [Cancel] button closes the dialog without activation of the settings.
(1)
(2)
(3)
(4)
(5)
(6)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 75 -
About Pane
[About] pane shows the version information about software, hardware and copyrights.
The following descriptions are about each item on the pane.

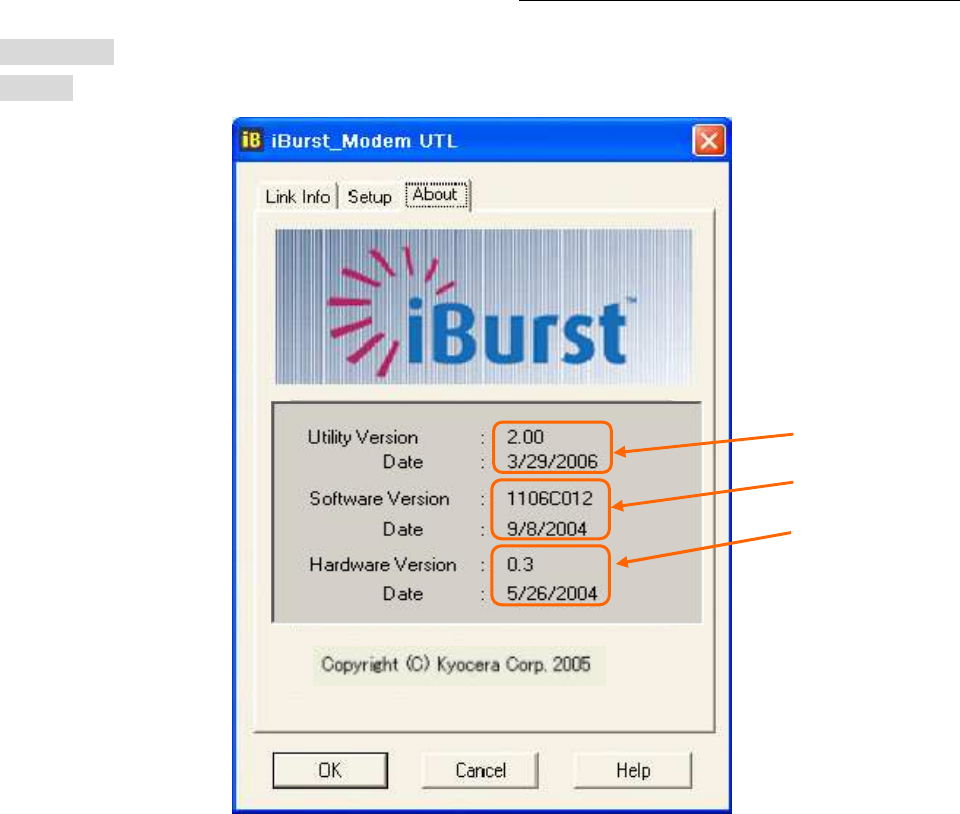

(1) This shows the version number and the build date of this Utility Software.
(2) This shows the firmware version and the build date of the iBurst Modem.
(3) This shows the hardware version and the manufactured date of the iBurst Modem.
(1)
(2)
(3)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 76 -

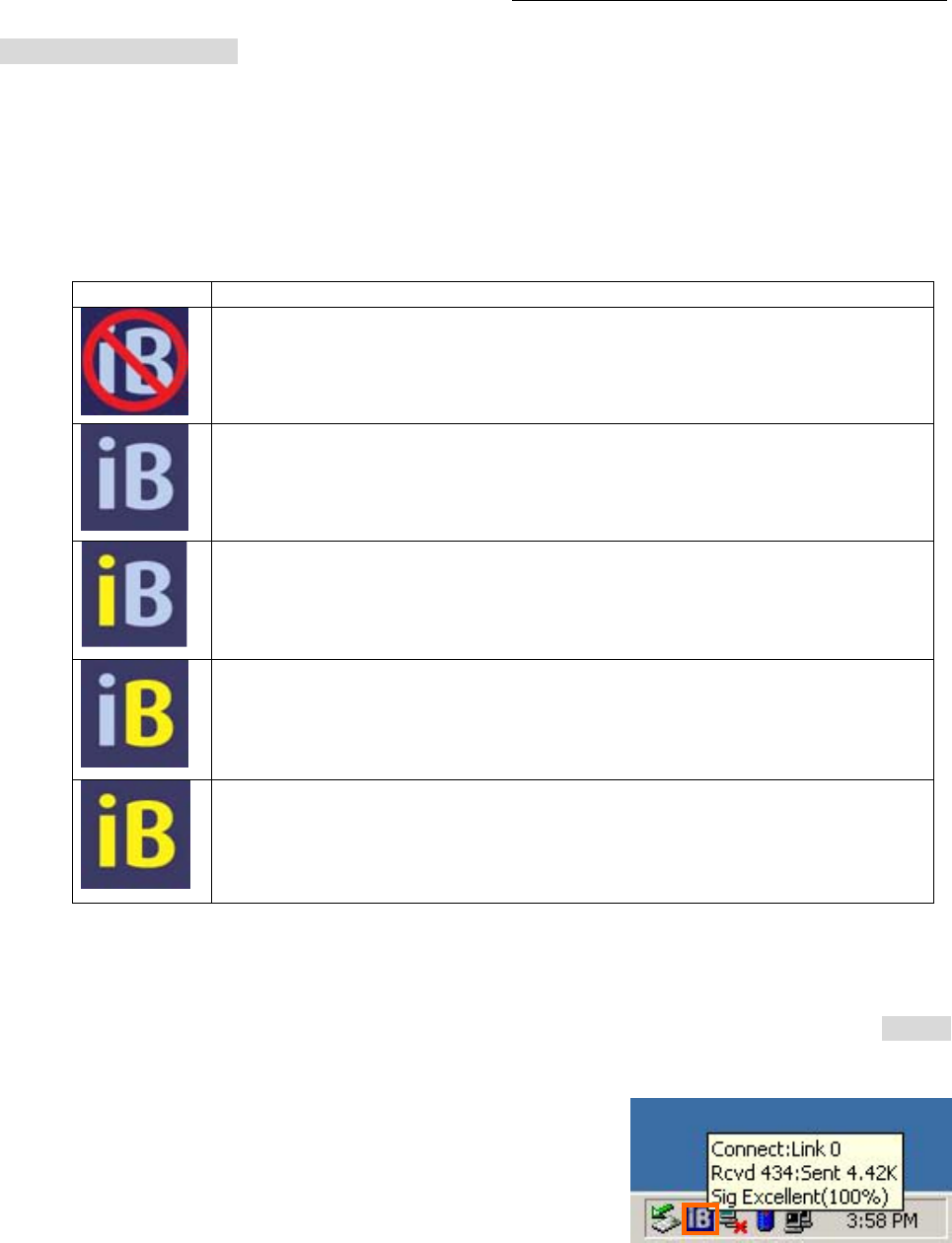

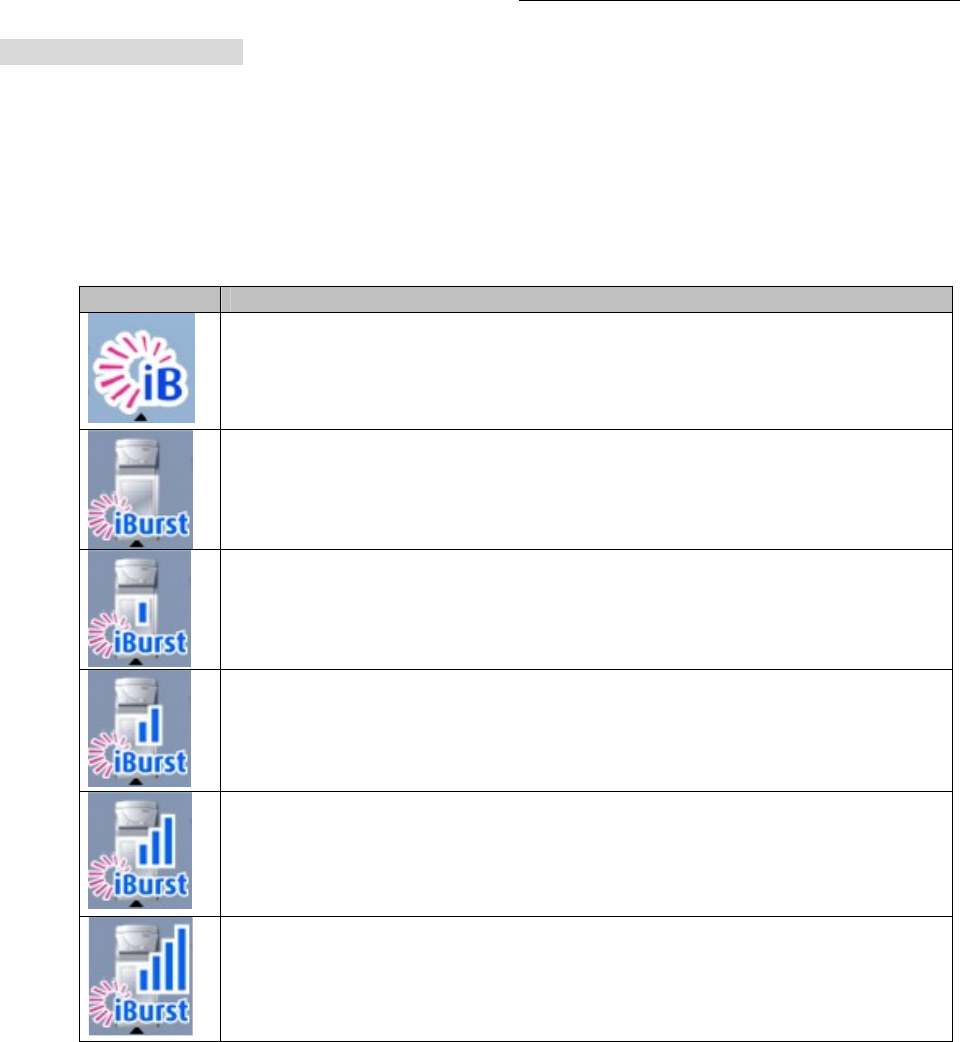

Icon Display in task tray
When the Utility Software for iBurst Modem is running, an icon of the Utility Software will be
displayed in the task tray of the computer monitor according to communication status of the iBurst
Modem.
The table below shows icons with status descriptions.
Pointing on the iBurst icon on the task tray, a baloon indicates
Link Status, Total Byte Received,
Link Status, Total Byte Received, Link Status, Total Byte Received,
Link Status, Total Byte Received,
Total Byte Sent
Total Byte SentTotal Byte Sent
Total Byte Sent
and
Signal Strength
Signal StrengthSignal Strength
Signal Strength as shown below, but depending on the settings on the [Setup]
pane.
Icon
IconIcon
Icon
Status of
Status ofStatus of
Status of
iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem
iBurst Modem is not connected with your PC.
There is no transmission nor reception on iBurst Modem.
iBurst Modem is transmitting data.
iBurst Modem is receiving data.
iBurst Modem is both transmitting and receiving data.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 77 -
Using Utility Software for Mac OS
Using Utility Software for Mac OS Using Utility Software for Mac OS
Using Utility Software for Mac OS X
X X
X

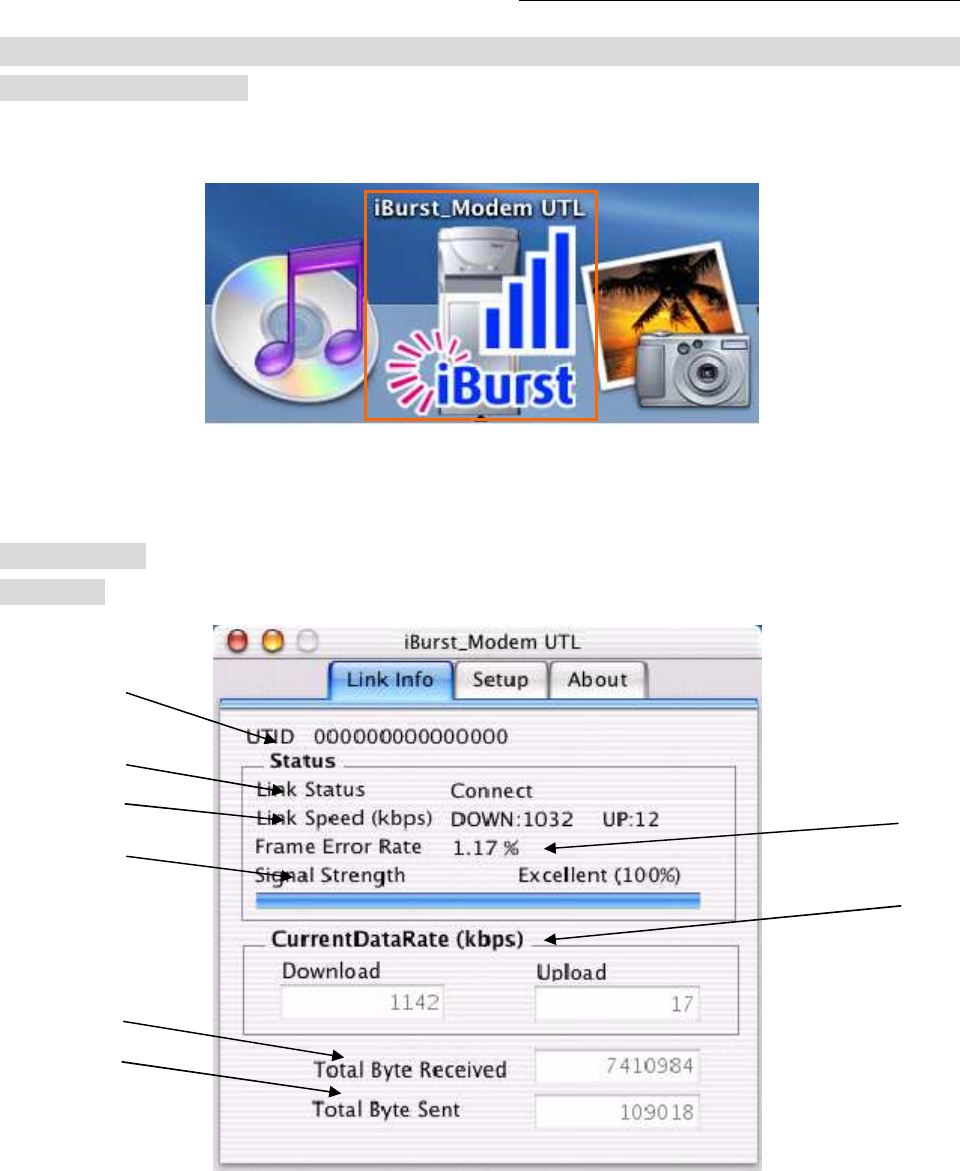

To open the utility dialog.
1. Click the iBurst_Modem UTL icon on the Dock.
2. “Link Info” pane of iBurst_Modem UTL dialog appears as shown below.
Link Info Pane
[Link Info] pane indicates several communication statuses about iBurst Modem.
The descriptions in next page are about each item on the pane.
(1)
(2)
(3) (4)
(5)
(6)
(7)
(8)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 78 -
(1) UTID
UTIDUTID
UTID
UTID is an identifier assigned to the iBurst Modem. This will be used for maintenance
support.
(2) Link Status
Link StatusLink Status
Link Status
This indicates current link status between the iBurst Modem and the access point.
Connect :
Connect :Connect :
Connect :
The link is connected.
No Connect
No Connect No Connect
No Connect : The iBurst Modem is connected with your PC but the link is not
connected.
No iBurst
No iBurstNo iBurst
No iBurst_Modem
_Modem_Modem
_Modem :
: :
:
There is no iBurst Modem connected with your PC.
(3) Link Speed
Link SpeedLink Speed
Link Speed
This indicates current bandwidth allocated automatically between the iBurst Modem and
a radio base station.
(4) Frame Error Rate
Frame Error RateFrame Error Rate
Frame Error Rate
This indicates current Frame Error Rate on the downlink air.
(5) Signal Strength
Signal StrengthSignal Strength
Signal Strength
This indicates current signal strength of the received radio signal. The signal bar
indicates the level visually in percentage and the status words are categorized according
to the percent level as follows.
No Signal :
No Signal :No Signal :
No Signal :
0%
Poor :
Poor :Poor :
Poor :
In the range of 1 to 24%
Fair :
Fair :Fair :
Fair :
In the range of 25 to 49%
Good
GoodGood
Good : In the range of 50 to 74%
Excellent :
Excellent :Excellent :
Excellent :
In the range of 75 to 100%
(6) Current Data Rate
Current Data RateCurrent Data Rate
Current Data Rate
This indicates current throughputs on both directions.
(7) Total Byte Received
Total Byte ReceivedTotal Byte Received
Total Byte Received
Total Byte Received indicates the total number of bytes received from the access point
since the communication link is established.
(8) Total Byte Sent
Total Byte SentTotal Byte Sent
Total Byte Sent
Total Byte Sent indicates the total number of bytes transmitted to the access point since
the communication link is established.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 79 -

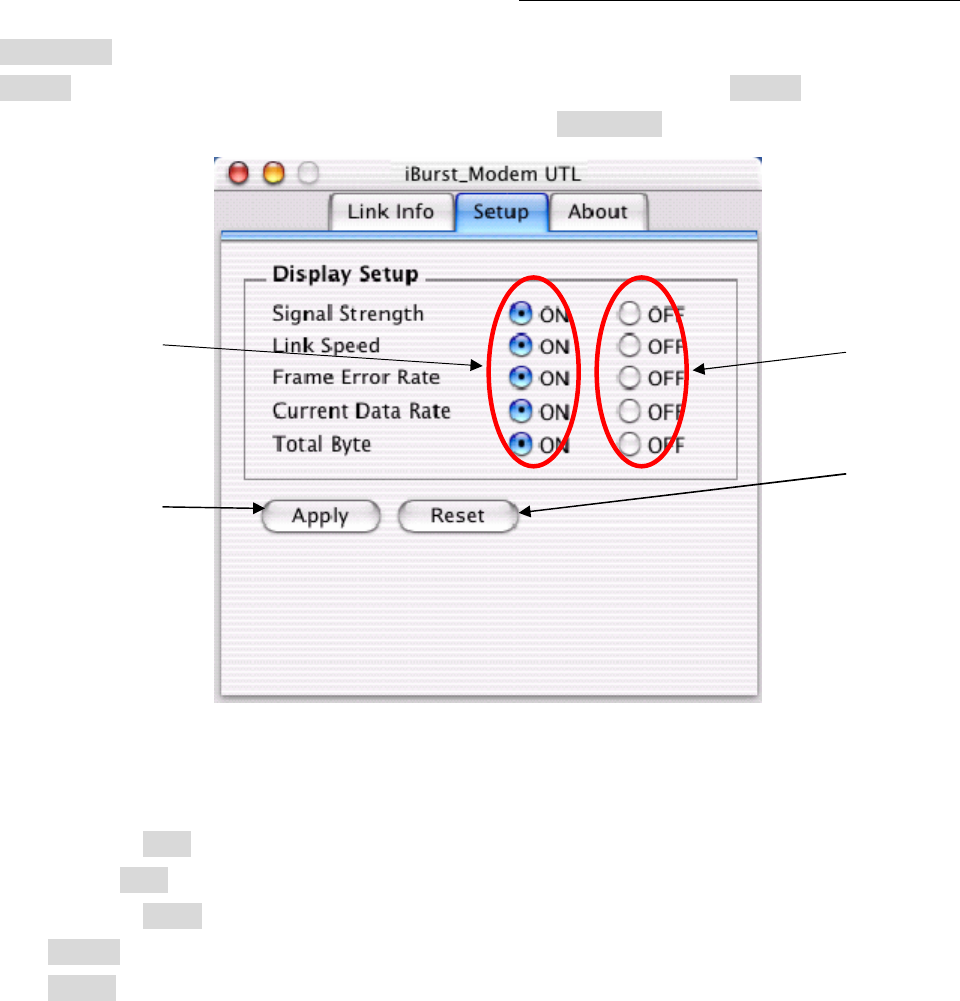

Setup Pane
[Setup] pane can be displayed in the main dialog window by clicking the [Setup] tab. This pane
controls enabling/disabling to show each indicator on the [Link Info] pane.
The following descriptions are about each item on the pane.
(1) Selecting [ON] enables the corresponding indicator on the Link Info pane.
All are [ON] as the default.
(2) Selecting [OFF] disables the corresponding indicator on the Link Info pane.
(3) [Apply] button activates every setting above.
(4) [Reset] button enables and activates all settings above.
(1)
(3)
(2)
(4)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 80 -
About Pane
[About] pane shows the version information about software, hardware and copyrights.
The following descriptions are about each item on the pane.

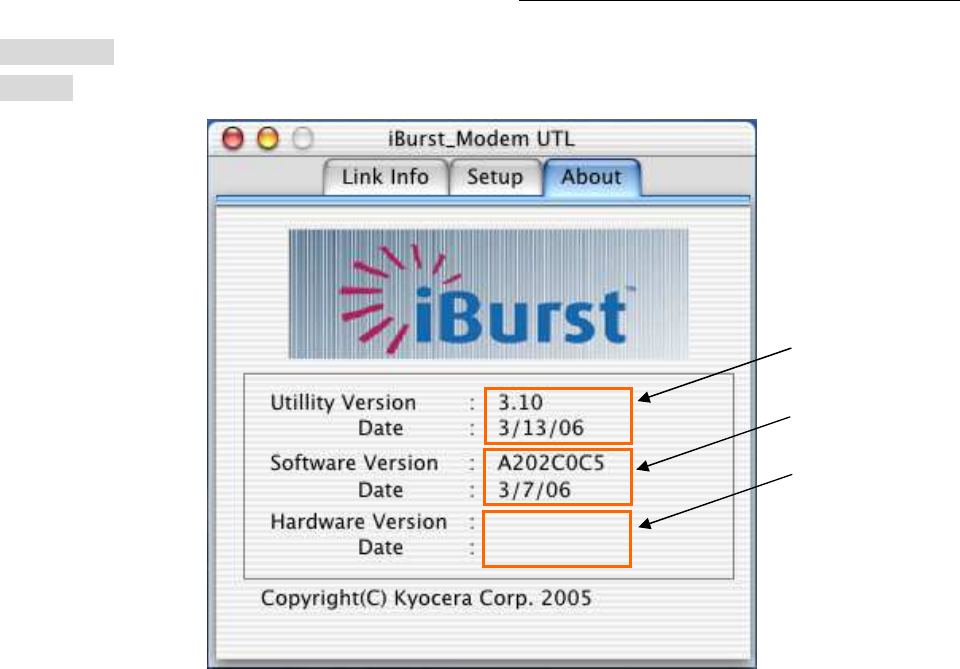

(1) This shows the version number and the build date of this Utility Software.
(2) This shows the firmware version and the build date of the iBurst Modem.
(3) This shows the hardware version and the manufactured date of the iBurst Modem.
1.0
3/24/06
(1)
(2)
(3)
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 81 -

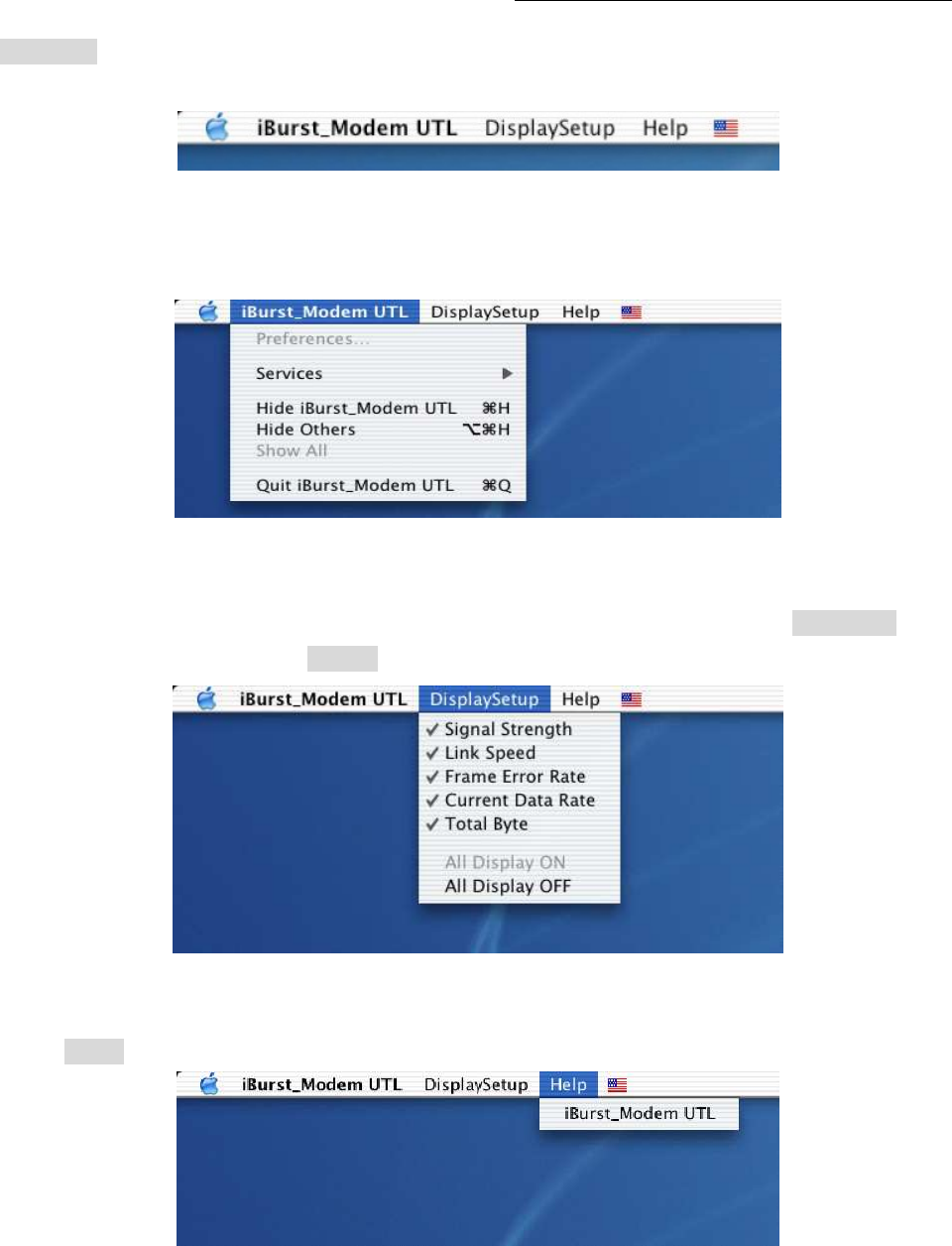

Menu Bar
It will be displayed while the iBurst Modem utility is active.
(1) iBurst_Modem UTL menu
The menu is used to quit the iBurst Modem utility or to perform other operations.
(2) DisplaySetup menu
The menu is used to control enabling/disabling to show each indication on the [Link Info] pane.
The function is the same as the [Setup] pane of the dialog.
(3) Help menu
The [Help] window will appear when help menu is selected.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 82 -
Icon Display on the Dock
When the Utility Software for iBurst Modem is running, an icon of the Utility Software will be
displayed in the task tray of the computer monitor according to communication status of the iBurst
Modem.
The table below shows icons with status descriptions.
Icon
IconIcon
Icon
Activities on iBurst Modem
Activities on iBurst ModemActivities on iBurst Modem
Activities on iBurst Modem
iBurst Modem is not plugged into the PC Card slot.
iBurst Modem is plugged ,and Si
gnal Strength is
No Signal
.
iBurst Modem is plugged ,and S
ignal Strength is
Poor
.
iBurst Modem is plugged ,and S
ignal Strength is
Fair
.
iBurst Modem is plugged ,and S
ignal Strength is
Good
.
iBurst Modem is plugged ,and S
ignal Strength is
Excellent
.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 83 -
Chapter 4 MTU Optimizer Software & Network
Chapter 4 MTU Optimizer Software & Network Chapter 4 MTU Optimizer Software & Network
Chapter 4 MTU Optimizer Software & Network P
PP
Property
ropertyroperty
roperty
This chapter describes the features and usage of the MTU
This chapter describes the features and usage of the MTU This chapter describes the features and usage of the MTU
This chapter describes the features and usage of the MTU
Optimizer Software
Optimizer SoftwareOptimizer Software
Optimizer Software
for iBurst Modem.
for iBurst Modem.for iBurst Modem.
for iBurst Modem.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 84 -
MTU Optimizer Software & Network Property
MTU Optimizer Software & Network Property MTU Optimizer Software & Network Property
MTU Optimizer Software & Network Property
MTU optimizer software measures the optimized packet size between your PC and a HOST. It is
recommended to tune MTU size in order to avoid any throughput problem. This function is a part
of Kyocera PPPoE dialer and it is available on Windows 98SE, ME and 2000.
NOTE: You need to make a Internet connection through the iBurst Modem prior to start
this procedure.
1. While your PC is being connected to the Internet through the iBurst Modem, double click the
iBurst connection utility icon.
2. When the dialog will appear, click the [MTU Setting] button.
NOTE: ‘Property’ to open properties of the dial-up connection for iBurst Modem.
‘Disconnect’ to disconnect from the Internet.
‘Cancel’ to close the dialog.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 85 -
3. The [MTU Setting] dialog is as follows.
4. There are 2 methods to decide MTU size, i.e. manually or automatically.
5. If you want to change MTU size manually, type a value in the MTU field and click the [Update]
button. Your PC may request to restart it.

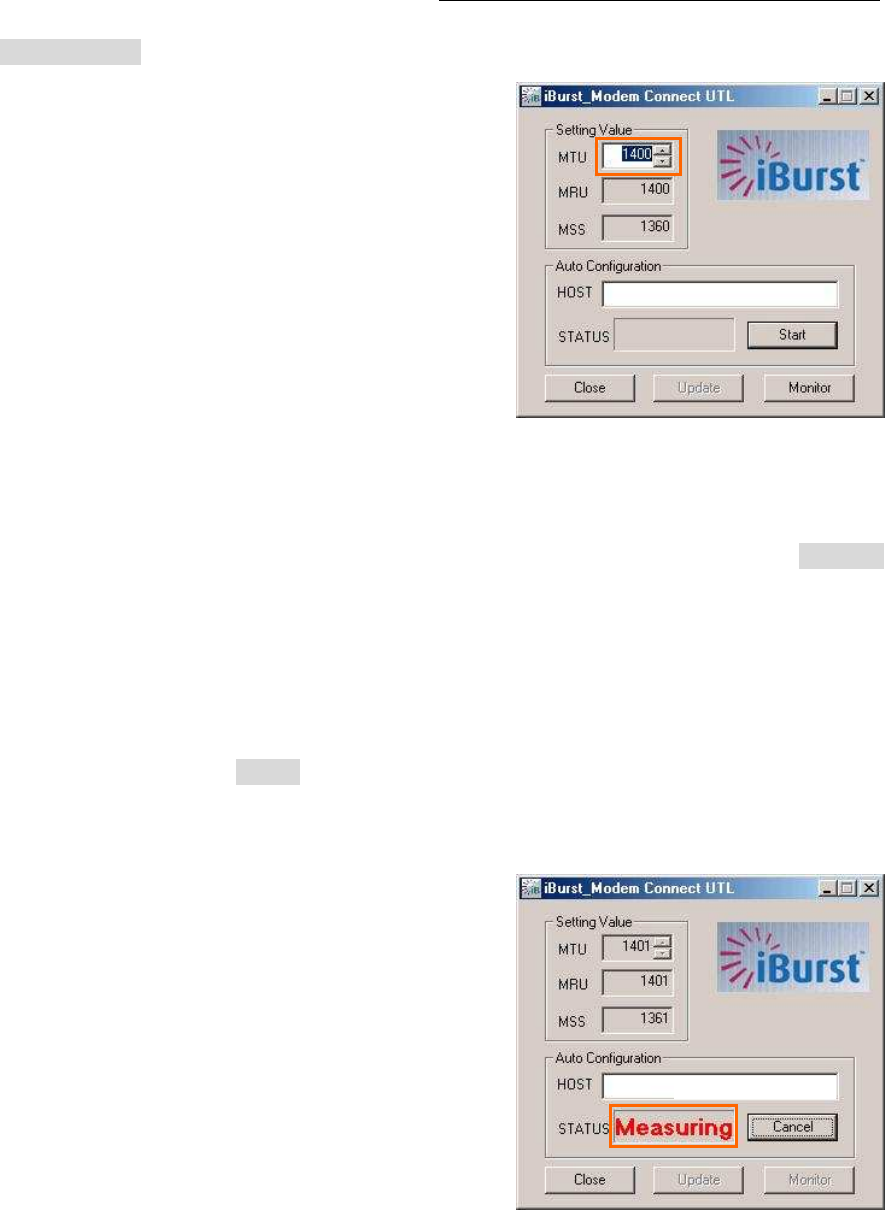

6. If you want to optimize MTU size automatically,
A) type a target URL or an IP address of the HOST, which will be notified by the network
operator, and click the [Start] button.
B) The optimizer starts measuring and every value will be varied automatically.
NOTE: ‘Cancel’ to stop measuring.
XXX.XXX.XXX.XXX
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 86 -

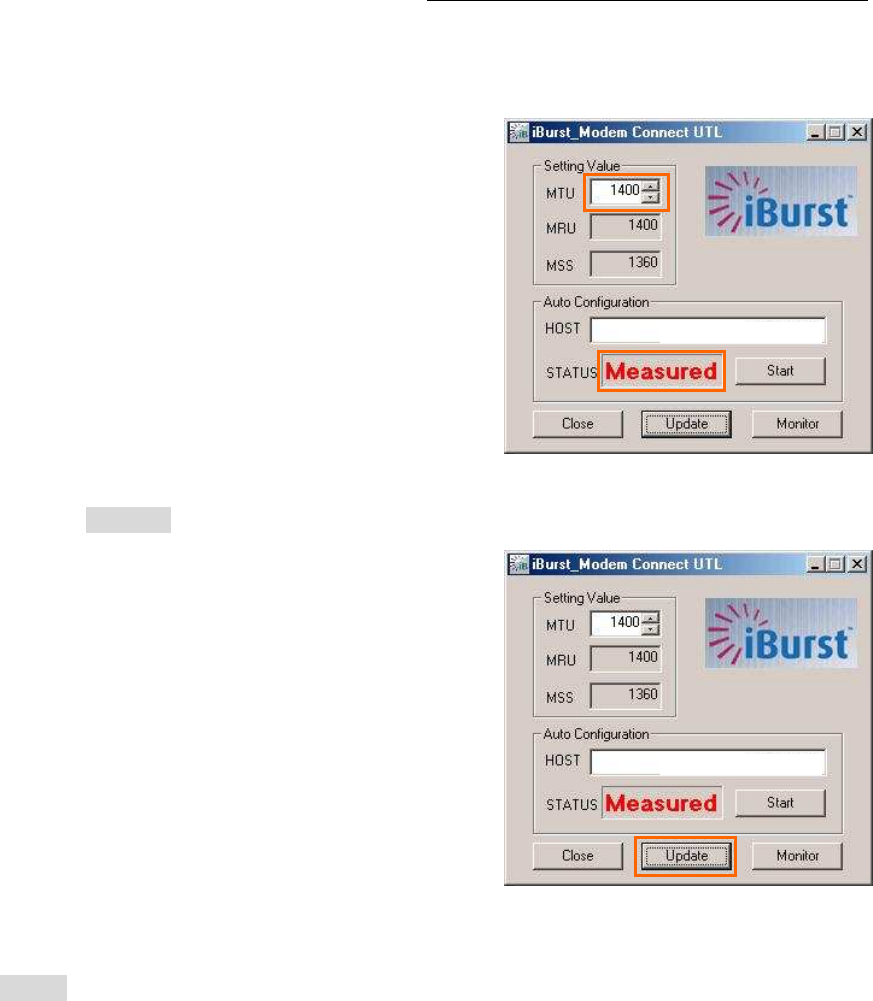

C) The optimizer will finish automatically with a result of the optimized MTU size in the
MTU field.
D) Click the [Update] button to memorize into your PC. Your PC may request to restart it.
NOTE: ‘Monitor’ to revoke the result and show the current memorized MTU size.
7. Click [Close] to close the dialog.
8. If you updated, you need to restart your PC to take effect.
XXX.XXX.XXX.XXX
XXX.XXX.XXX.XXX
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 87 -
Chapter 5 Uninstallation
Chapter 5 UninstallationChapter 5 Uninstallation
Chapter 5 Uninstallation
This chapter describes how to uninstall
This chapter describes how to uninstall This chapter describes how to uninstall
This chapter describes how to uninstall iBurst software
iBurst softwareiBurst software
iBurst software.
..
.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 88 -
iB
iBiB
iBusrt Software Uninstallatio
usrt Software Uninstallatiousrt Software Uninstallatio
usrt Software Uninstallation
n n
n
Uninstallation for Windows XP/200
Uninstallation for Windows XP/200Uninstallation for Windows XP/200
Uninstallation for Windows XP/2000
0 0
0
NOTE: All screen copies in this section are examples on Windows XP.
1. Close all programs that are currently running.
2. Remove the iBurst Modem from the computer.

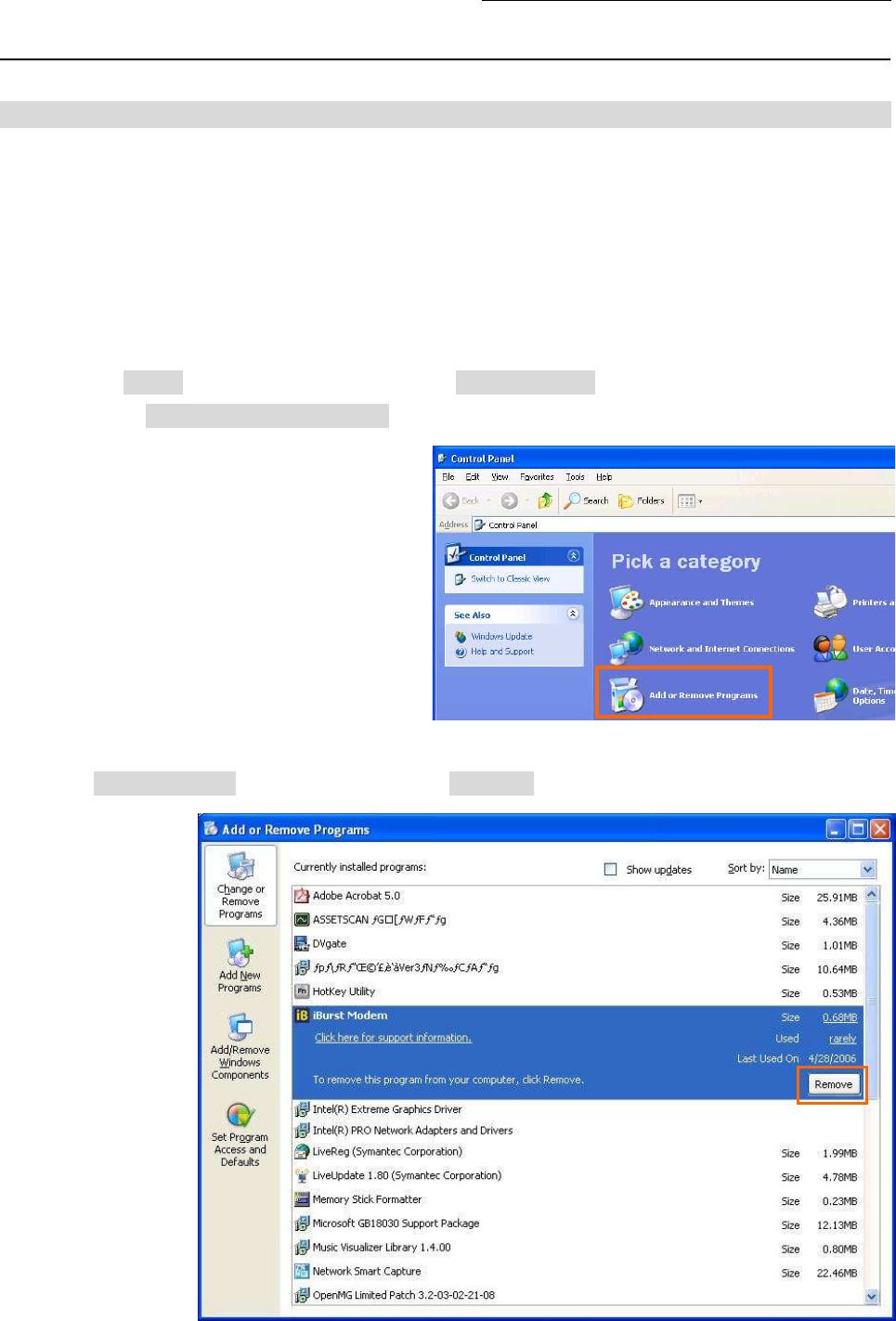

3. Click the [Start] button, followed by selecting [Control Panel] to open Control Panel, and then
double click [Add or Remove Programs].
4. Select [iBurst Modem] software, and click the [Remove] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 89 -

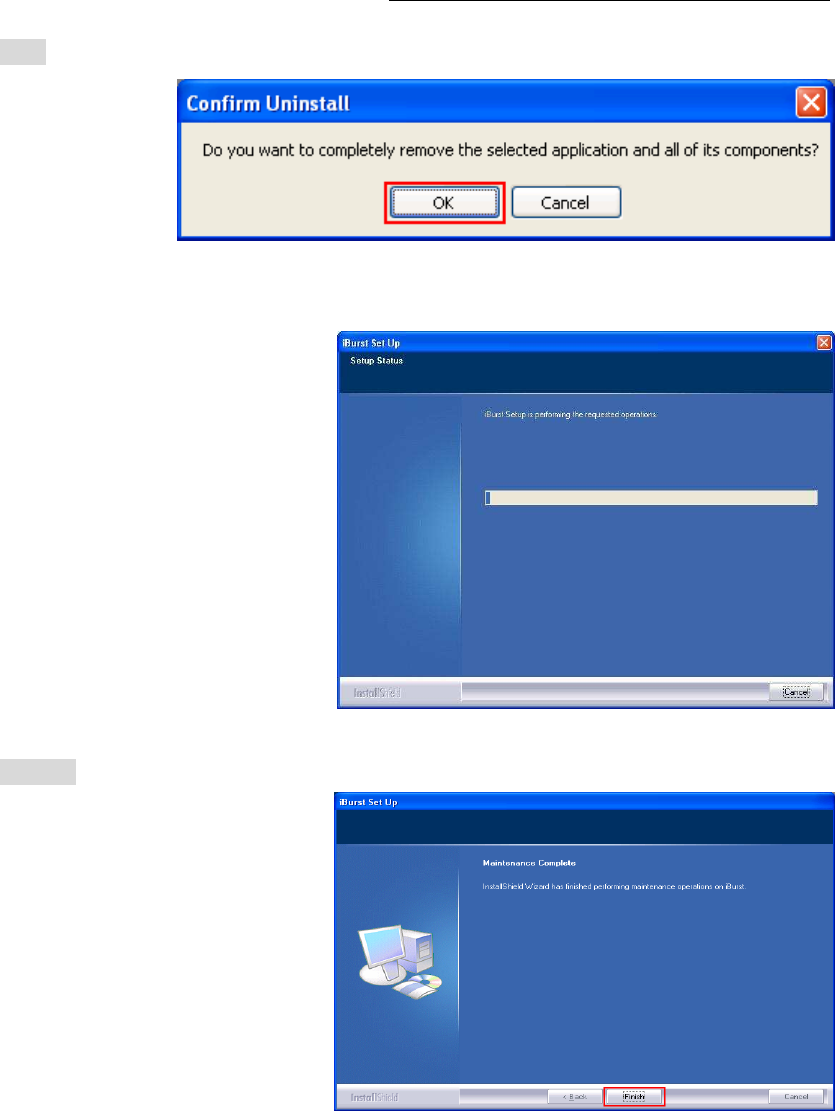

5. Click the [OK] button after appearing dialog window as shown below.
6. The following dialog window will appear, and uninstallation of software begins.
7. Click the [Finish] button after appearing dialog window as shown below.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 90 -
Uninsta
UninstaUninsta
Uninstallation for Windows Me/98S
llation for Windows Me/98Sllation for Windows Me/98S
llation for Windows Me/98SE
E E
E
1. Close all programs that are currently running.
2. Remove the iBurst Modem from the computer.

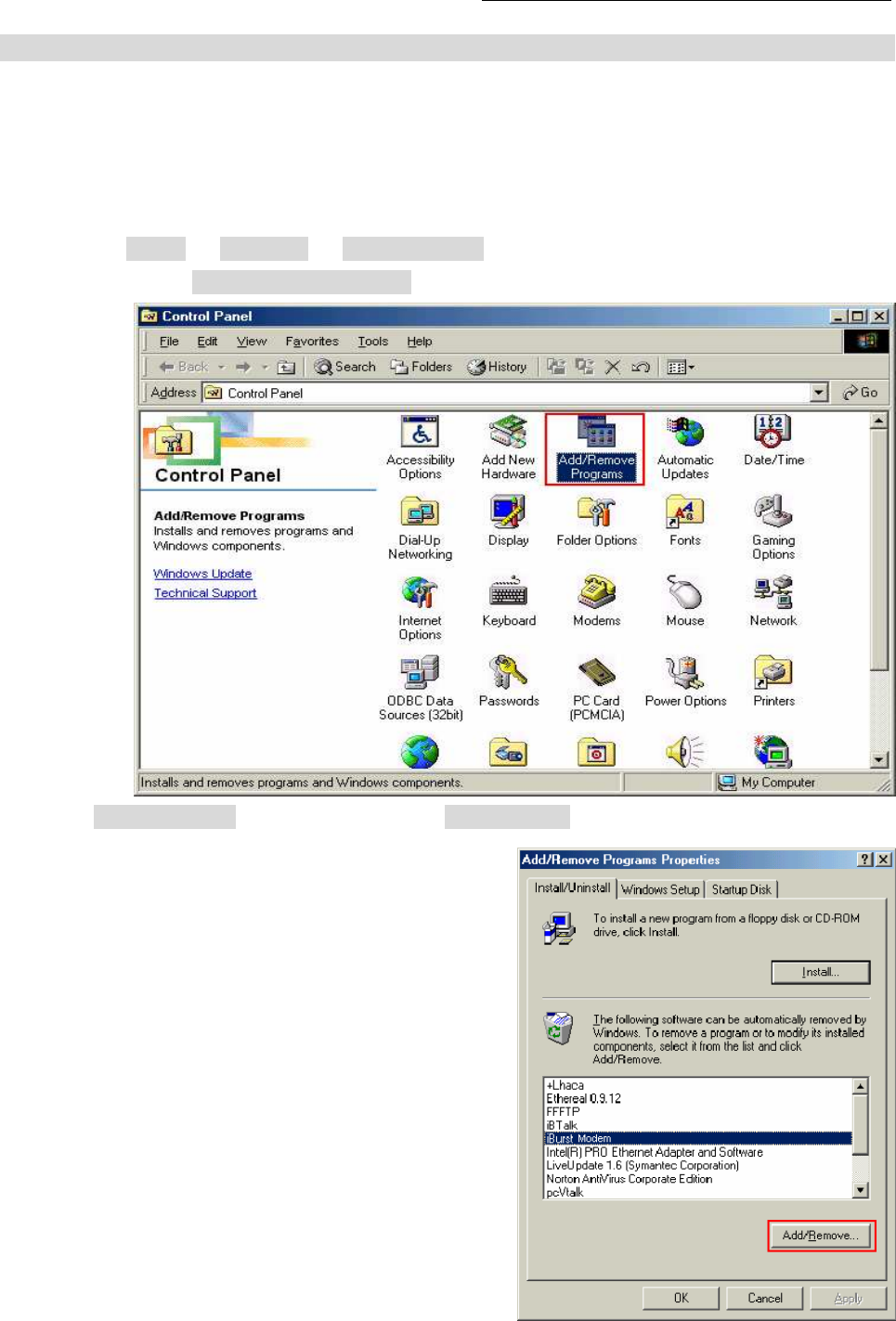

3. Click the [Start] -> [Settings] -> [Control Panel] to open Control Panel as shown below, and
then double click [Add/Remove Programs].
4. Select [iBurst Modem] software,and click the [Add/Remove] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 91 -

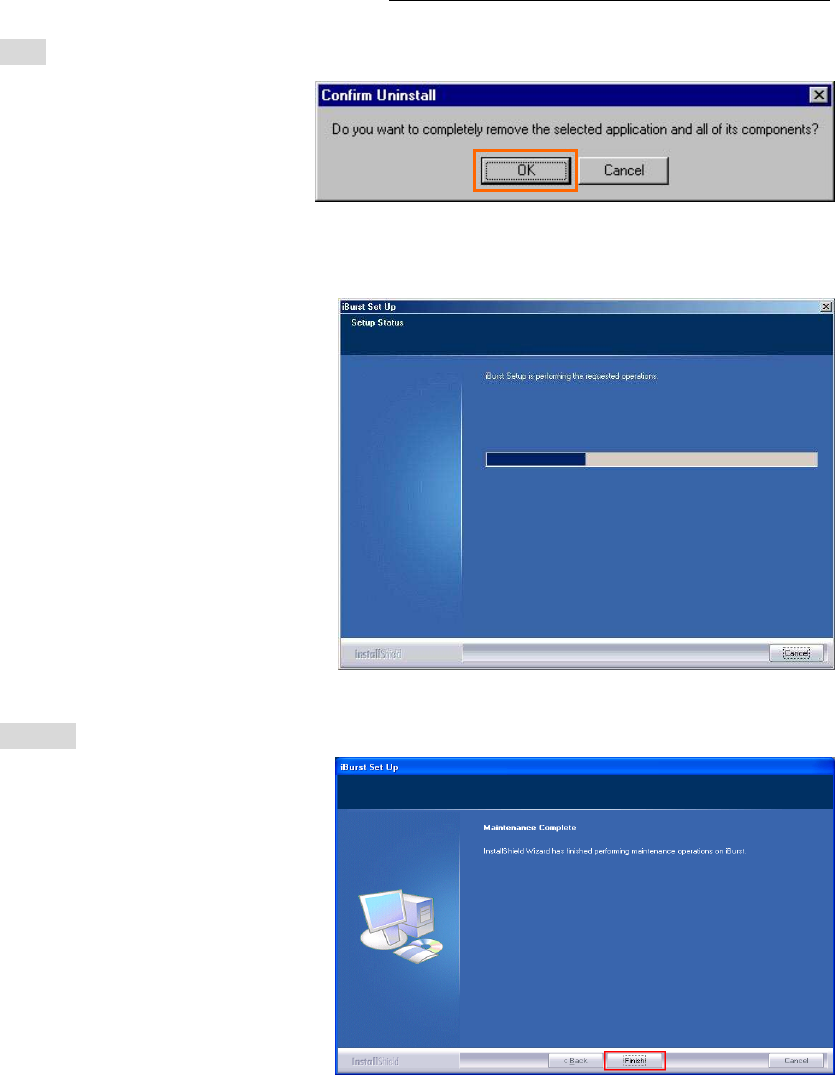

5. Click the [OK] button when appearing the message as shown below.
6. The following dialog window will appear, and uninstallation of software begins.
7. Click the [Finish] button after appearing dialog window as shown below.
NOTE: In case that the uninstaller shows a selection of restarting your PC, it is
recommended to restart it.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 92 -

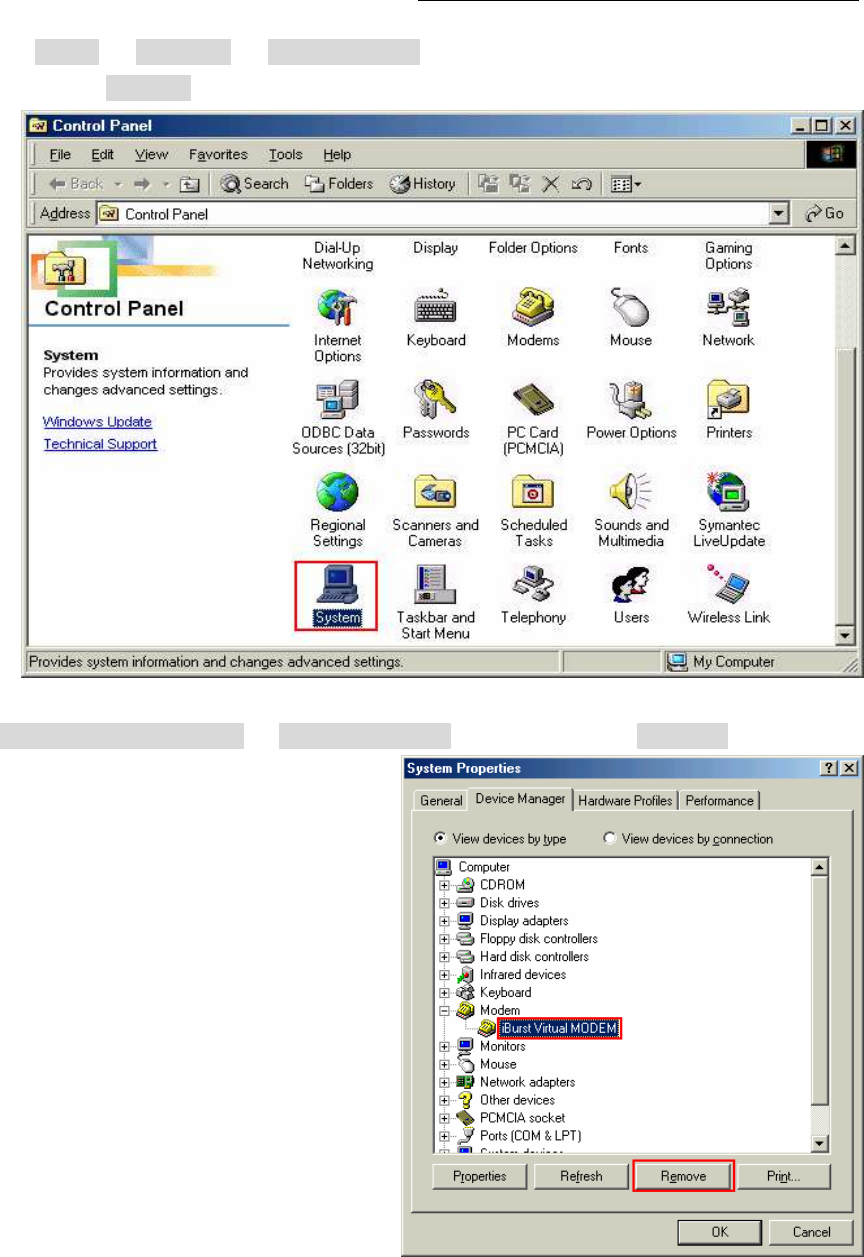

8. Click the [Start] -> [Settings] -> [Control Panel] to open Control Panel as shown below, and
then double click [System].

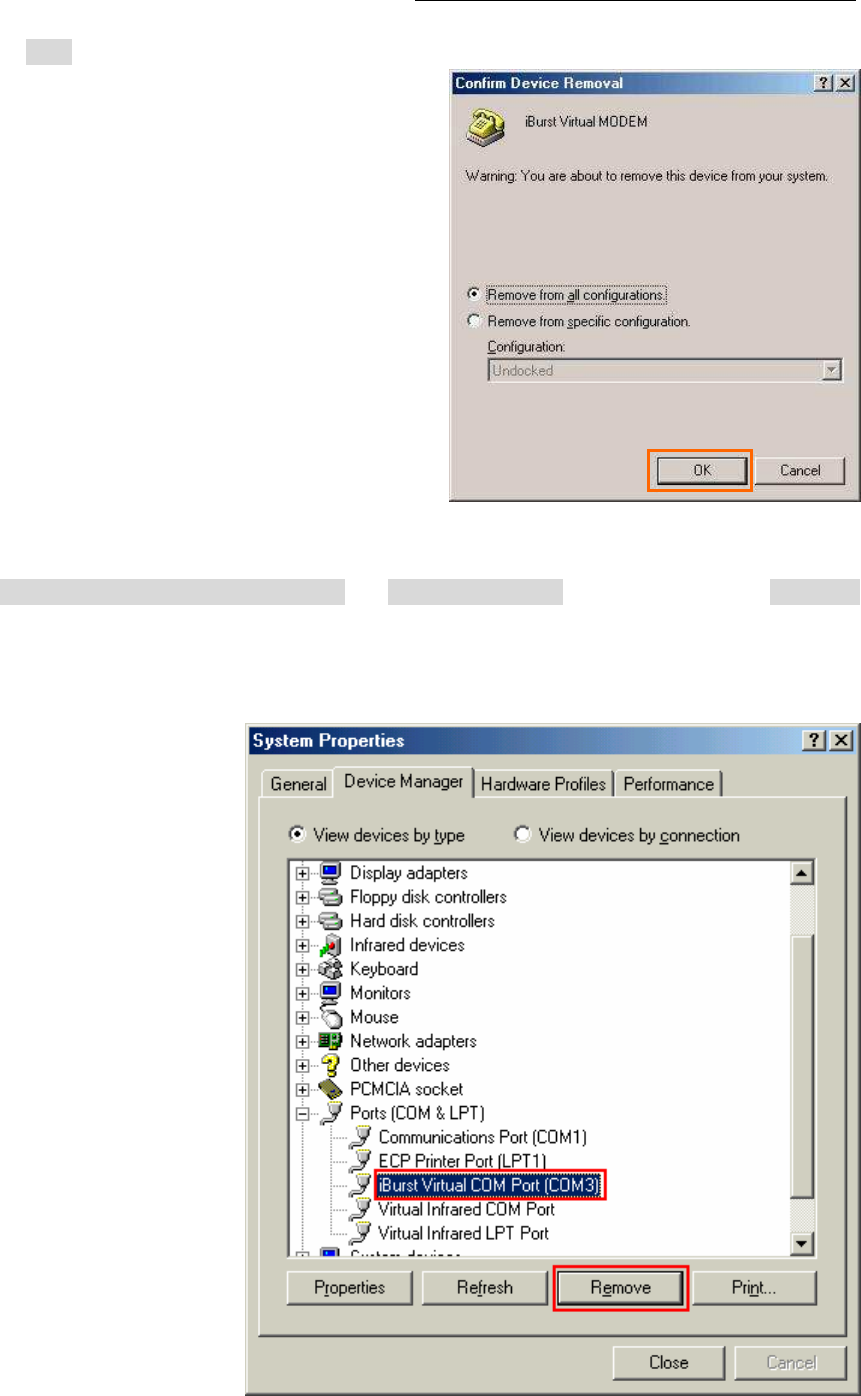

9. Select [iBurst Virtual MODEM] on [Device Manager] tab, then click the [Remove] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 93 -
10. Click the [OK] button.
NOTE: In case Windows 98SE, no selection is on the dialog.

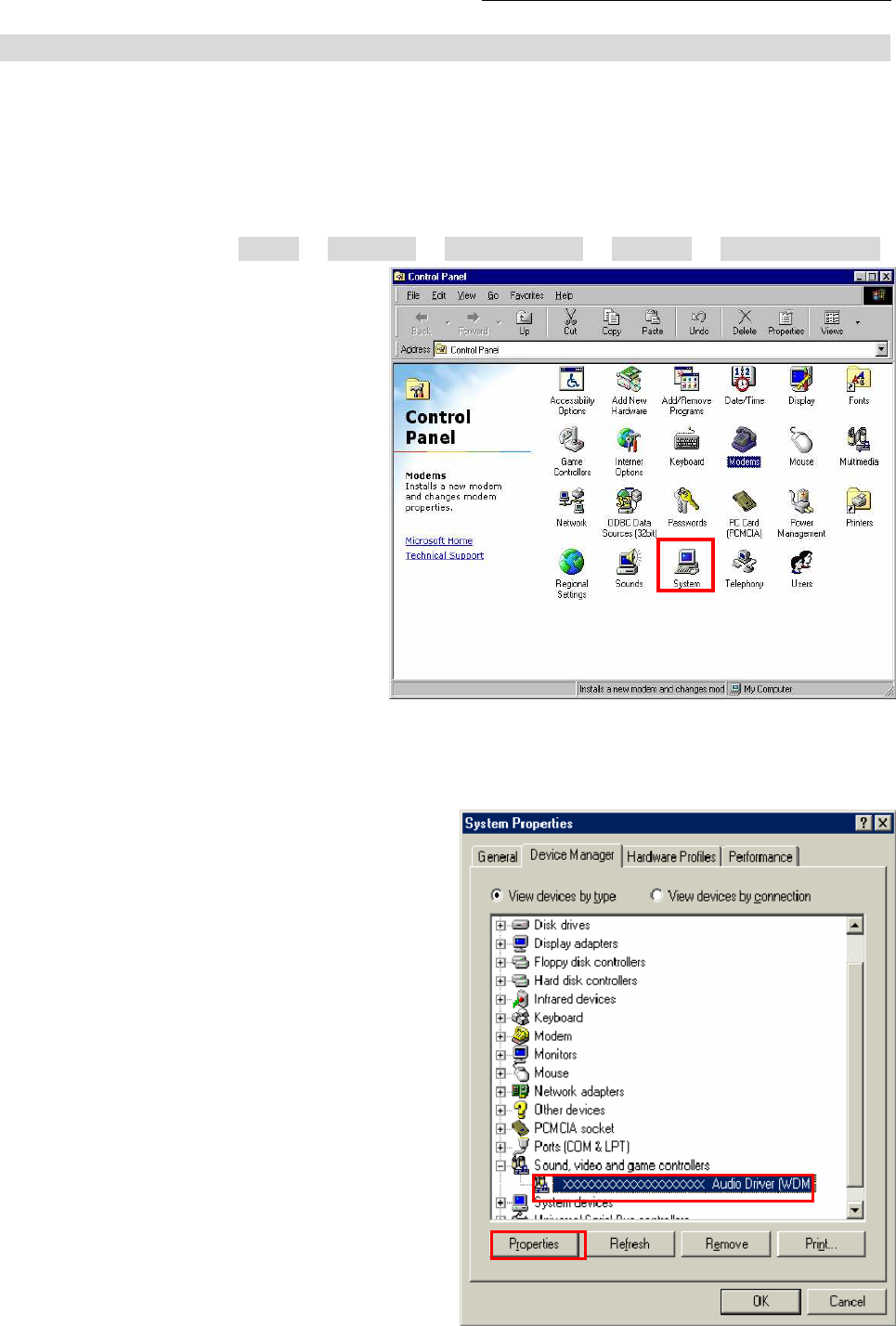

11. Select [iBurst Virtual COM Port(COMx)] on [Device Manager] tab, then click the [Remove]
button.
NOTE: The ‘X’ in “COM x” above is a COM port number assigned automatically.
“COM3” in the picture below is an example.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 94 -

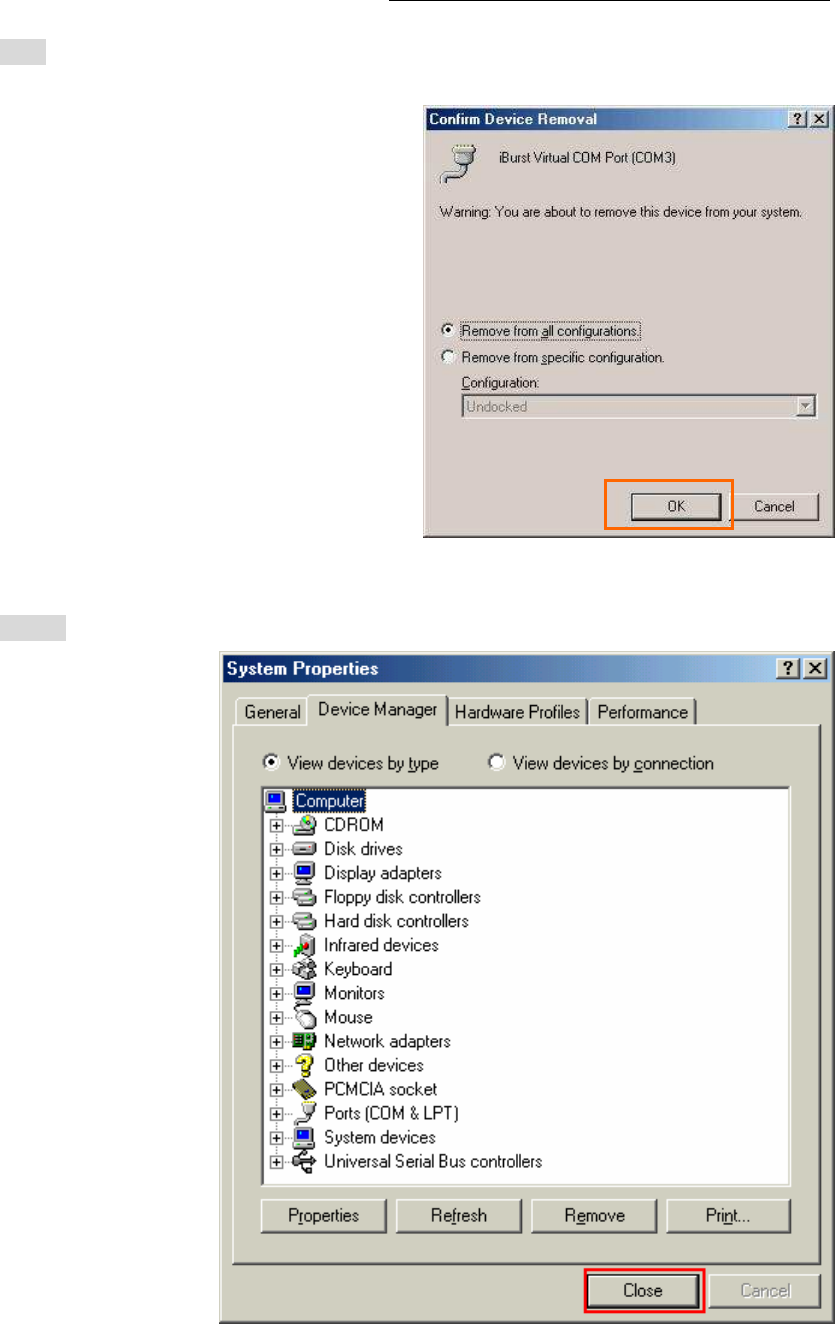

12. Click the [OK] button.
NOTE: “COM3” in the picture below is an example.
NOTE: In case Windows 98SE, no selection is on the dialog.
13. Click the [Close] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 95 -
14. Click the [Start] -> [Settings] -> [Control Panel] to open Control Panel as shown below, and
then double click [Network].
15. Select [NDIS(PPPoE)Usermode I/O Protocol -> xxxxxx] on [Configuration] tab, then click the
[Remove] button.(Repeat the above steps if the other [NDIS(PPPoE)Usermode I/O Protocol]
components are installed.)
16. Click the [OK] button to close Network dialog.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 96 -
17. The dialog window shown below will appear, click the [Yes] button, and restart your PC.
NOTE: If the PC doesn’t shutdown itself, try to press Alt+Ctrl+Del keys several times.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 97 -
Uninstallation for Mac OS
Uninstallation for Mac OS Uninstallation for Mac OS
Uninstallation for Mac OS X
X X
X
1. Close all programs that are currently running.
2. Remove the iBurst Modem from the computer.

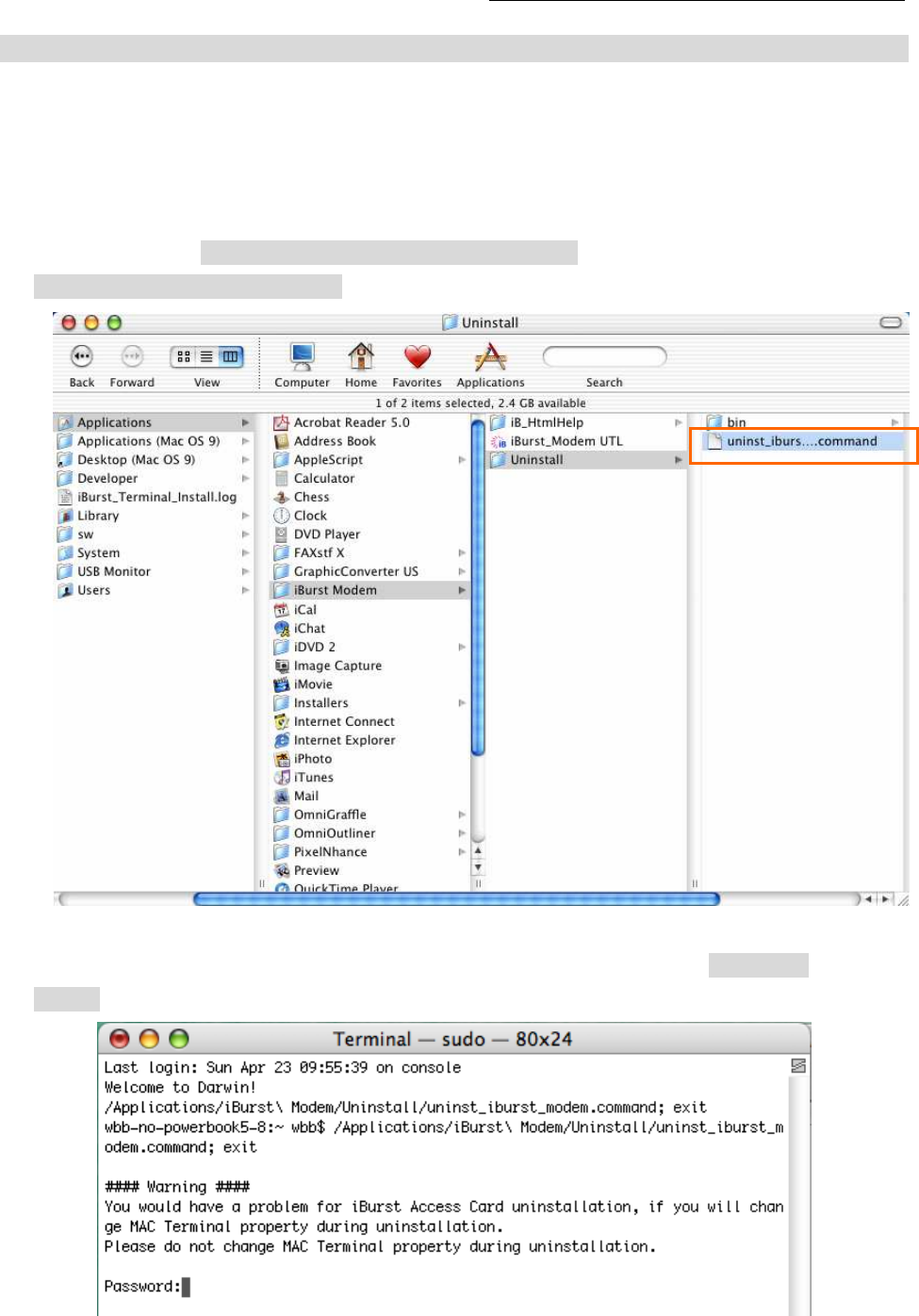

3. Open the folder [Applications\iBurst Modem\Uninstall], then double click the script file
[uninst_iburst_modem.command].
4. The terminal window shown below will appear. Type administrator’s [password] and press
[Enter] key.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 98 -
5. Press [y] and [Enter] key to restart your computer.
ATTENTION
: Don’t change any properties of MAC Terminal while
uninstallation. Otherwise you would have a problem on uninstalling of
iBurst Modem software.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 99 -
Chapter 6 Trouble shooting
Chapter 6 Trouble shootingChapter 6 Trouble shooting
Chapter 6 Trouble shooting
This chapter describes how to solve the trou
This chapter describes how to solve the trouThis chapter describes how to solve the trou
This chapter describes how to solve the trouble
bleble
ble
when you use
when you use when you use
when you use iBurst.
iBurst.iBurst.
iBurst.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 100 -
Windows
WindowsWindows
Windows
Illegal han
Illegal hanIllegal han
Illegal hang
gg
g-
--
-up when install
up when install up when install
up when install iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem.
..
.
Windows 98SE may need a couple minutes to shutdown itself,
Windows 98SE may need a couple minutes to shutdown itself,Windows 98SE may need a couple minutes to shutdown itself,
Windows 98SE may need a couple minutes to shutdown itself,
o
oo
or may hang
r may hangr may hang
r may hang-
--
-up in worst case after
up in worst case after up in worst case after
up in worst case after
iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem device driver installation.
device driver installation. device driver installation.
device driver installation.
This case is from Windows OS and competition with o
This case is from Windows OS and competition with oThis case is from Windows OS and competition with o
This case is from Windows OS and competition with other devices.
ther devices.ther devices.
ther devices.
The following
The followingThe following
The following
gives you the procedure to fix this problem.
gives you the procedure to fix this problem.gives you the procedure to fix this problem.
gives you the procedure to fix this problem.
1. Open Network property [Start] -> [Settings] -> [Control Panel] -> [System].
2. Select [Device Manager] tab. Disable sound card device and other which will not effect for
Windows performance, i.e. network card and modem.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 101 -

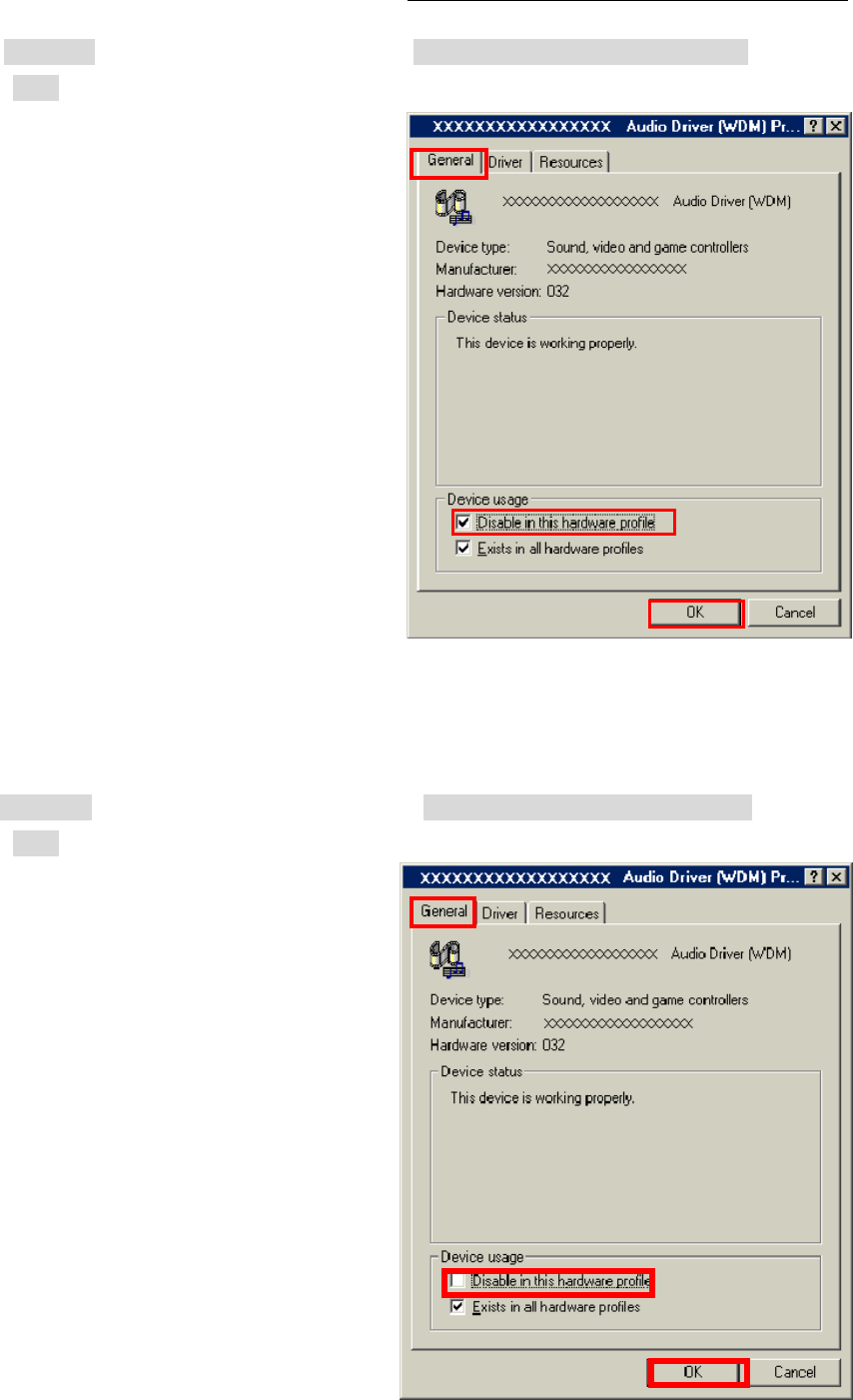

3. On the [General] tab, check the box labeled the [Disable in this hardware profile], and then
click the [OK] button.
4.
Plug the iBurst Modem into a PC card slot.
5.
On the [General] tab, uncheck the box labeled the [Disable in this hardware profile], and
then click the [OK] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 102 -
Illegal hang
Illegal hangIllegal hang
Illegal hang-
--
-up when set up
up when set up up when set up
up when set up dialer
dialerdialer
dialer
Windows 98SE may need a couple minutes to shutdown itself, or may hang
Windows 98SE may need a couple minutes to shutdown itself, or may hangWindows 98SE may need a couple minutes to shutdown itself, or may hang
Windows 98SE may need a couple minutes to shutdown itself, or may hang-
--
-up in worst case after
up in worst case after up in worst case after
up in worst case after
iBurst Modem
iBurst ModemiBurst Modem
iBurst Modem Virtual COM Port driver installation.
Virtual COM Port driver installation. Virtual COM Port driver installation.
Virtual COM Port driver installation.
This case is from Windows OS and competition with other devices.
This case is from Windows OS and competition with other devices.This case is from Windows OS and competition with other devices.
This case is from Windows OS and competition with other devices.
The following gives you th
The following gives you thThe following gives you th
The following gives you the
ee
e
procedure
procedureprocedure
procedure
t
tt
to fix this problem
o fix this problemo fix this problem
o fix this problem.
..
.
1. Open Device Manager [Start] -> [Settings] -> [Control Panel] -> [System] -> [Device Manager].
2. Disable sound card device and other which will not effect for Windows performance, ie network
card and modem.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 103 -

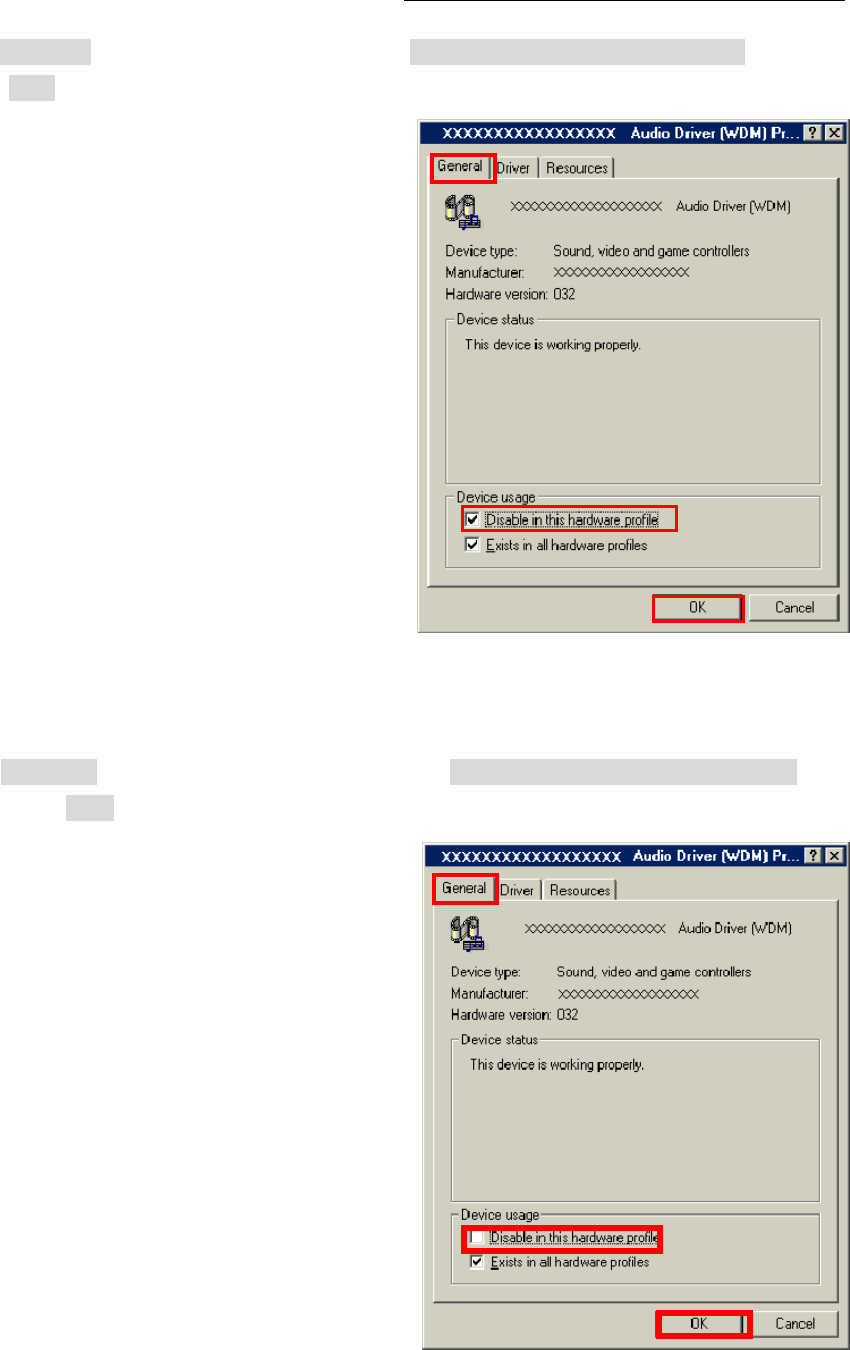

3. On the [General] tab, check the box labeled the [Disable in this hardware profile], and then
click the [OK] button.
4. Re-install iBurst Modem Virtual COM Port driver according to installation procedure,
chapter 2 "Installation for Windows 98SE" step 19.
5. On the [General] tab, uncheck the box labeled the [Disable in this hardware profile], and then
click the [OK] button.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 104 -
Mac
Mac Mac
Mac
Data rate
Data rate Data rate
Data rate
iBurst Modem would not perform maximum data rate when it connects with Mac PC.
This is obviously caused by Mac OS.
And typical data rate connecting with Mac is 800Kbps at downlink and 240Kbps at uplink.
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 105 -
Chapter 7 Information
Chapter 7 InformationChapter 7 Information
Chapter 7 Information
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 106 -
FCC Compliance Statement
FCC Compliance Statement FCC Compliance Statement
FCC Compliance Statement
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
▬
Reorient or relocate the receiving antenna.
▬
Increase the separation between the equipment and receiver.
▬
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
▬
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
FCC RF Radiation Exposure StatementFCC RF Radiation Exposure Statement
FCC RF Radiation Exposure Statement
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The available scientific evidence does not show that any health problems are associated with using
low power wireless devices. There is no proof, however, that these low power wireless devices are
absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used. Whereas high levels of RF can produce health effects (by
heating tissue), exposure to low-level RF that does not produce heating effects causes no known
adverse health effects. Many studies of low-level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects might occur, but such findings
have not been confirmed by additional research. UTC has been tested and found to comply with
FCC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to OET65. The maximum SAR levels tested
iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual iBurst Modem Card Model (UTC) Manual
iBurst Modem Card Model (UTC) Manual
Kyocera Corporation Revision 1.01 --- June.08.2006
- 107 -
for UTC has been show to be 0.507 W/kg at Body.

Navigation menu
