LCN 1450 Series Drop Plate Installation Instructions Guide 110984

User Manual: LCN LCN 1450 Drop Plate Installation Guide Installation Guide

Open the PDF directly: View PDF PDF.
Page Count: 4

*71376*
71376
Pull side Arm Mounted On:
1450-18 Drop Plate
1450-18FC Drop Plate
Right Hand Door Shown
Left Hand Door Opposite

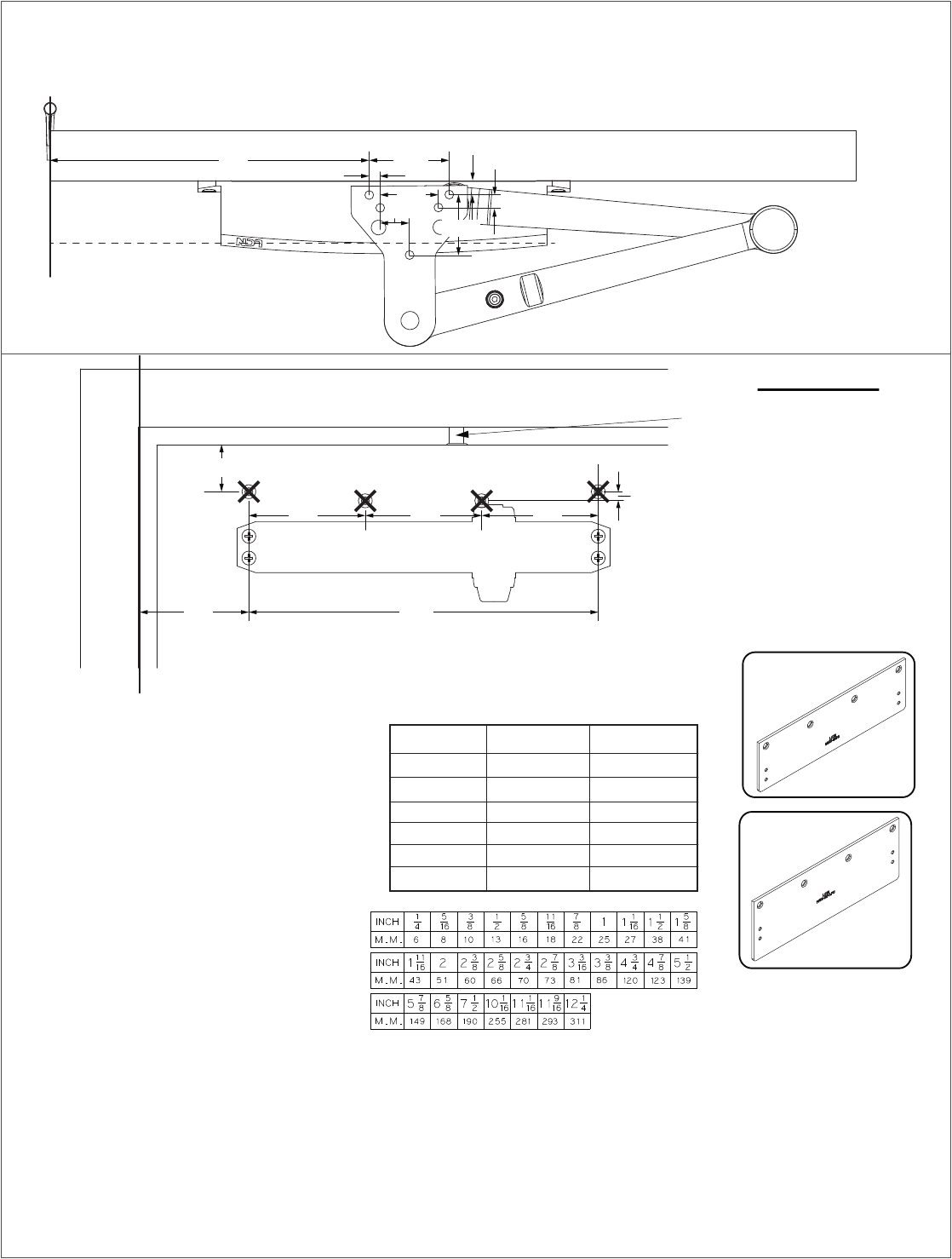

1450 PULL SIDE (DOOR MOUNT) DROP PLATES
1450-18PA
1450-18
1450-18FC

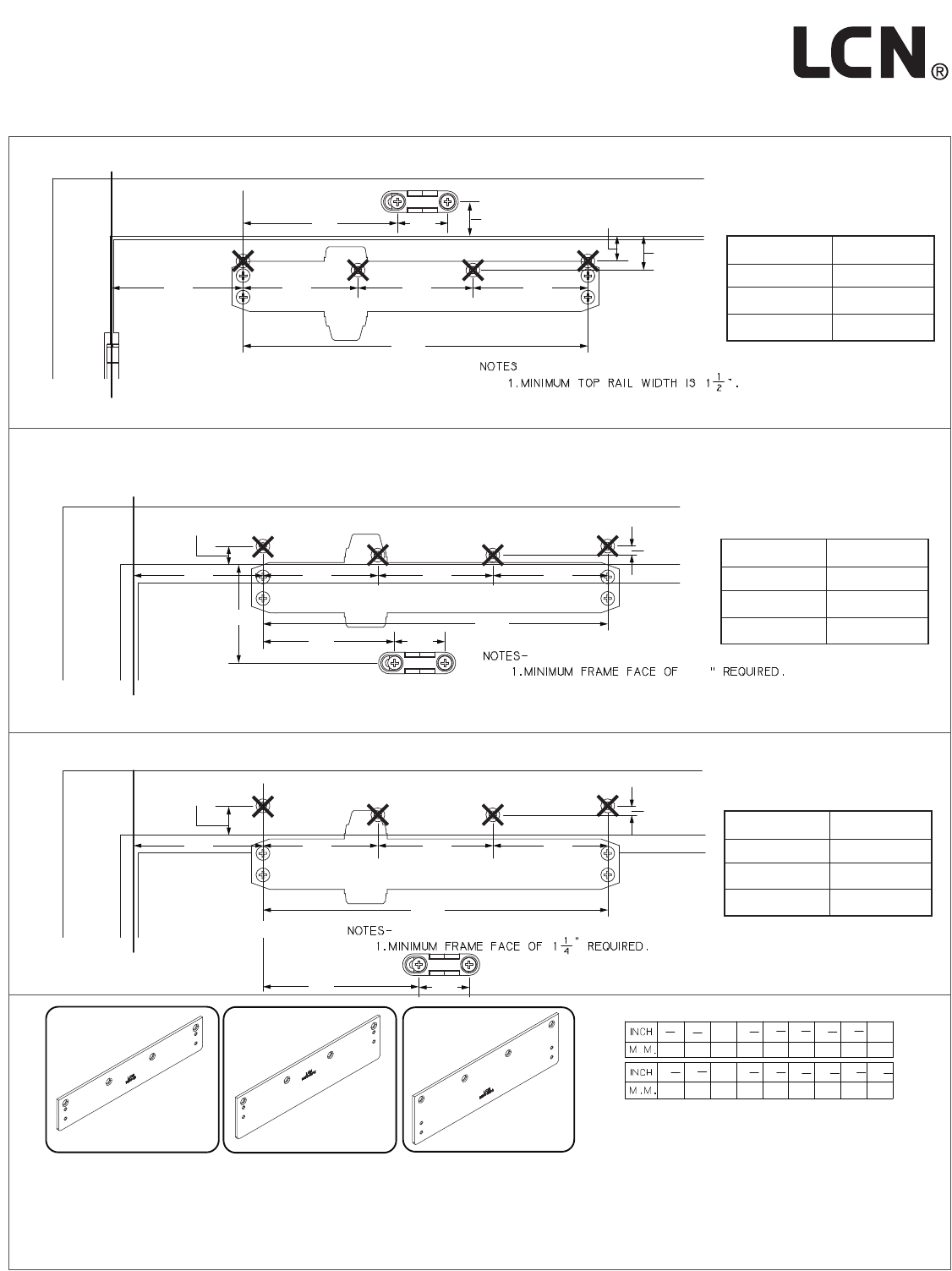

1450 PUSH SIDE (TOP JAMB) DROP PLATES
Push Side Arm Mounted On:
1450-18 Drop Plate
Push Side Arm Mounted On:
1450-18PA Drop Plate
1450-18 Drop Plate
1450-18PA Drop Plate
General Notes:
2. On Top Jamb Mounting When Overhead Stop is Used, Shoe Must Be Lowered To Clear Holder.
3. For 180° Opening On Hinge Face Mounts, Max Buttsize Is 5" X 5"
4 Reinforcing Per ANSI/SDI-100 Recommended For Hollow Metal Doors and Frames.
1. On Top Jamb & Hinge Face Mounts. Locate Closer & Shoe From C Of Pivot or Swing Clear Hinge Pin When Used.
L
1
2
7
16
11
15
16
4
4
1
8
5
1
2
7
3
4
7
7
8
8
1
4
711
1
4
11
5
8
12
3
4
2
3
8
2
3
4
1
1
4
1
1
2
13 25 32
11 38 49 60 70
105 140
102
178 197 200 210 286 295 324
4"4"4"A
C
Lof Hinge/Pivot
1³⁄₄"5¹⁄₂"
1³⁄₄"
1³⁄₄"
5¹⁄₂"
5¹⁄₂"
⁷⁄₈"
1³⁄₁₆"
1"
Opening
To 100° 7 ¹⁄₂"
6"
4 ¹⁄₂"
Over 130°
100° -130°
Dimension A
Left Hand Door Shown
Right Hand Door Opposite
C
Lof Hinge/Pivot
A
12"
⁵⁄₈"
⁵⁄₁₆"Opening
To 100° 7 ¹⁄₂"
6"
4 ¹⁄₂"
Over 130°
100° -130°
Dimension A
Left Hand Door Shown
Right Hand Door Opposite
C
Lof Hinge/Pivot
A
12"
1”⁵⁄₁₆"Opening
To 100° 7 ¹⁄₂"
6"
4 ¹⁄₂"
Over 130°
100° -130°
Dimension A
12"
4"4"4"
3"
4"
4"
4"4"
⁷⁄₈
Drop Plate
1450 Series
Installation Instructions
Push Side Parellel Arm Mounted On:
1450-18PA Drop Plate
1450-18PAFC Drop Plate
Left Hand Door Shown
Right Hand Door Opposite

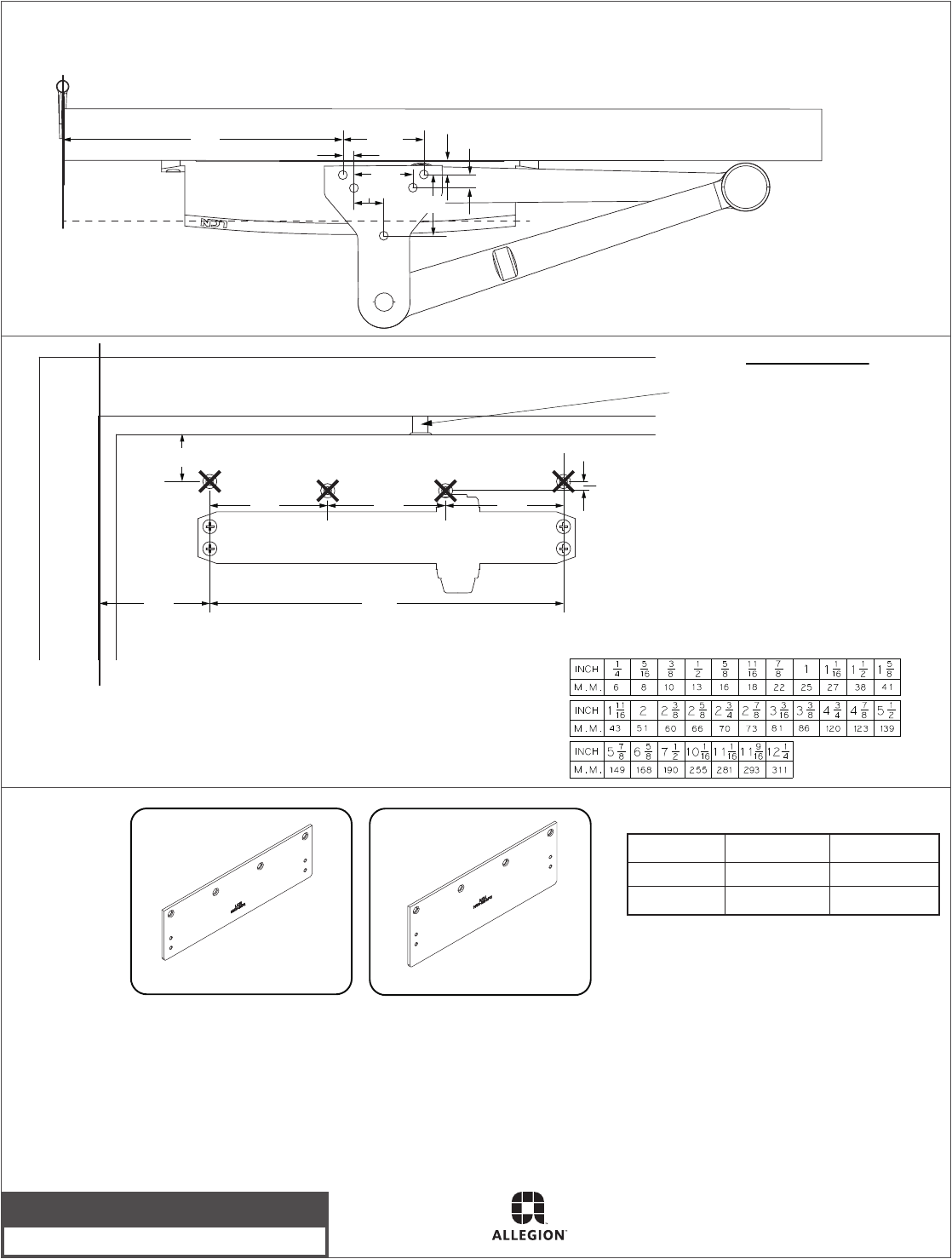

1450 Push Side (Door Mount) Drop Plates
General Notes:
2. On Top Jamb mounting when overhead stop is used, shoe must be lowered to clear holder.
3. Reinforcing Per ANSI/SDI-100 recommended for hollow metal doors and frames.
1. On Top Jamb & Hinge Face mounts. Locate closer & shoe from C of pivot or swing clear hinge pin when used.
L
1
2
5
16
1
3
4
3
1
2
5
1
2
8
3
4
11
1
2
12
3
4
2
3
8
2
3
4
1
1
16
1
11
16
13
8 17 27 43 44 60
89 140
11
16
7
8
5
1
4
133 222 292 324
22 70
1450-18PA
1450-18PAFC
Opening
To 100° 9 ¹⁄₂"
7"
3 ³⁄₄"
1 ¹⁄₄"
Over 130°
Dimension A Dimension B
12”B
⁵⁄₁₆”
4”4”4”
1 ⁵⁄₈”
C
Lof Hinge/Pivot
C
Lof Hinge/Pivot
A
Door
Stop 2"
2 ³⁄₄"
³⁄₈"
¹⁄₂"⁷⁄₁₆"
1⁷⁄₈
Push Side, Parellelarm Mounted On:
1450-18PA Drop Plate
1450-18PAFC Drop Plate
General Notes:
Notes:
1. If door is hung on pivots
1. Minimum Top Rail Width
is 1 ¹⁄₂"
Locate closer and shoe from
C of pivot point.
2. Top rail less than 4 3/4
Requires drop plate.
3. All dimensions applicable
For hold open or dead stop.
4. Delayed action optional.
5. Reinforcing per. ANSI/SDI-100
Recommended for hollow
Metal door and frames.
6. 5/8 maximum allowable side
Stop.
7. Using fasters prodvided
Mount drop plate with
(4) 1/4 - 14 x 1 3/8 S.R.T.
Mount closer to drop plates
(4) 1/4 - 20 x 1/2 P.H.M.S.
Increase this dimension to
15/16 for spring cush FC
L
1450-18PAFC
*
1450-18PA
1450 Cush
Drop Plates
Use spacer block provided
for Fifth screw
¹⁄₂" or ⁵⁄₈"
IMPORTANT
Opening
85° 11"
10 ¹⁄₄"
9 ¹⁄₂"
8 ⁷⁄₈"
8 ¹⁄₄"
7 ⁵⁄₈"
5 ¹⁄₂"
4 ³⁄₄"
4"
3 ³⁄₈"
2 ³⁄₄"
2 ¹⁄₈"
90°
95°
100°
105°
110°
Dimension A Dimension B
12”B
⁵⁄₁₆”
4”4”4”
1 ¹⁄₄”
C
Lof Hinge/Pivot
C
Lof Hinge/Pivot
Door
Stop
A
2"
1 ³⁄₈"
2 ³⁄₄"
³⁄₈"
⁵⁄₁₆"
⁷⁄₁₆"
2 ¹⁄₁₆"
© Allegion 2015
Printed in U.S.A.
71376 Rev. 01/16-b
Push Side, Parellel Arm Mounted On:
1450-18PA Drop Plate
1450-18PAFC Drop Plate
Left Hand Door Shown
Use spacer block provided
for Fifth screw
¹⁄₂" or ⁵⁄₈"
IMPORTANT
Right Hand Door Opposite

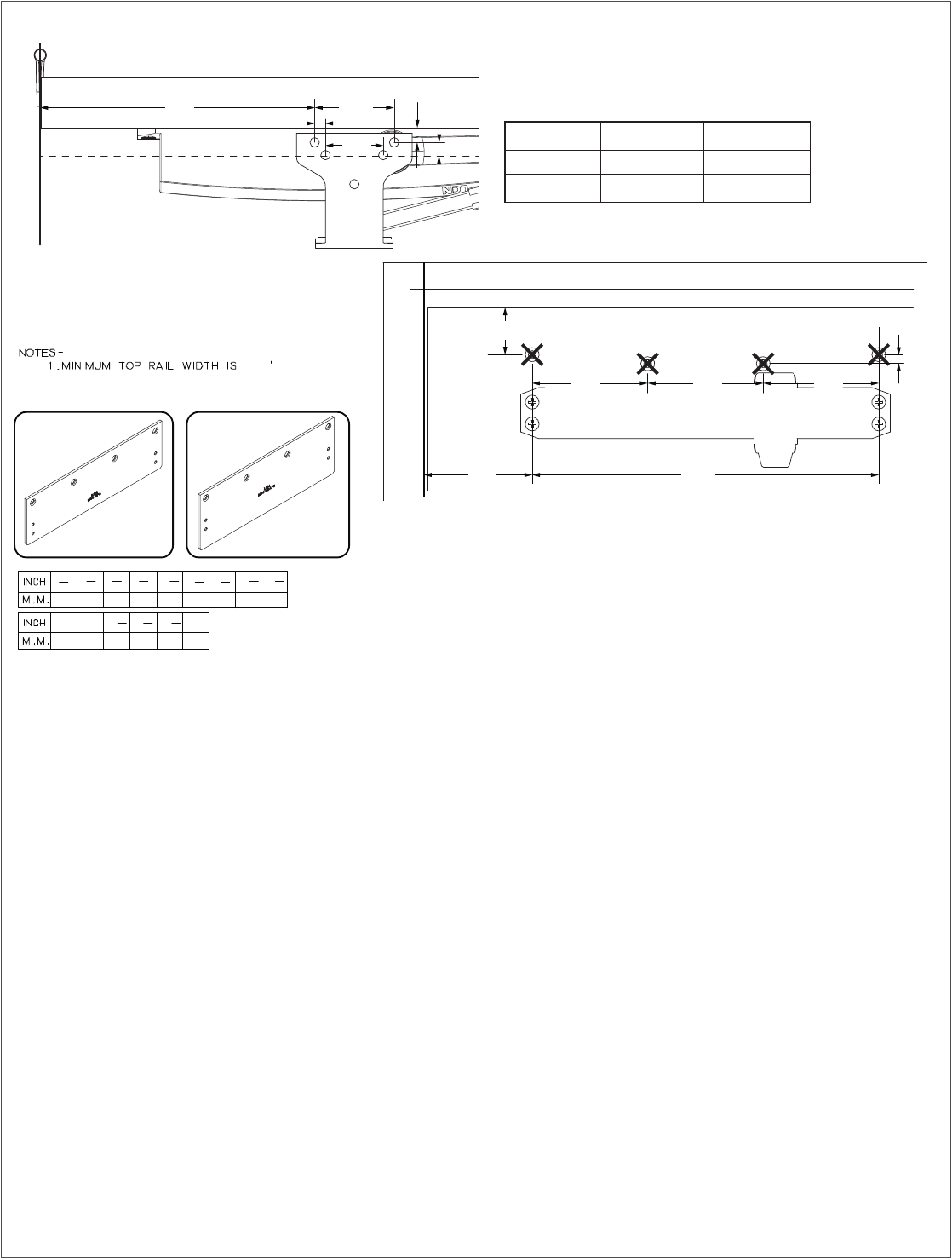

1450 EDA
Drop Plates
1450-18PA
1450-18PAFC
General Notes:
2. Closer size 12 1/4 x 2 3/4 x 2 3/8.
3. Top rail less than 4 3/4 requires drop plate.
4. All dimensions applicable for hold open.
5. Delayed action optional.
6. Reinforcing per ANSI/SDI-100 recommended for hollow metal door and frames.
7. 5/8 maximum allowable side stop.
8. Using fasters provided mount drop plate with (4) 1/4 - 14 x 1 3/8 S.R.T. mount closer
to drop plates with (4) 1/4 - 20 x 1/2 p.H.M.S. Max. Butt hinge size 5 x 5.
1. If door is hung on pivots locate closer and shoe from C of pivot point. (consult factory if using swing clear hinges.)
L
Opening
To 100° 9 ¹⁄₂"
7"
3 ³⁄₄"
1 ¹⁄₄"
Over 120°*
Dimension A
* Door openings to 180˚
conditions permitting
Dimension B
A
Door
Stop 2"
1"
2 ³⁄₄"
³⁄₈"
¹⁄₂"⁷⁄₁₆"
2 ¹⁄₁₆"
12”B
⁵⁄₁₆”
4”4”4”
1 ¹⁄₄”
C
Lof Hinge/Pivot
