LG CNS KSCCB400C BUS TICKETING SYSTEM(RFID) User Manual
LG CNS CO., LTD. BUS TICKETING SYSTEM(RFID) Users Manual
LG CNS >
Users Manual
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 1
Bus Ticketing System(B400C)
Manual
(TVM)
Ver 1.0
Korea Smart Card Co., Ltd
This document is the property of Korea Smart Card Co., Ltd. and no part of this document
shall be copied or duplicated or given to other parties without written authorization
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 2
Table of Contents
1. TVM ............................................................................................................................................. 3
1.1 Introduction ........................................................................................................................................ 3
1.2 Caution ................................................................................................................................................ 3
1.3 Tool & Equipment .............................................................................................................................. 3
1.4 Descriptions ......................................................................................................................................... 4
1.5 Block Diagram .................................................................................................................................... 6
1.6 Specifications ...................................................................................................................................... 7
1.7 Main Modules ................................................................................................................................. 111
1.7.1 Cash Box .................................................................................................................................................... 111
1.7.2 Switching Mode Power Supply (SMPS) .................................................................................................... 122
1.7.3 CARD DISPENSER .................................................................................................................................. 133
1.7.4 BILL Module ............................................................................................................................................... 14
1.7.5 COIN Module .............................................................................................................................................. 16
1.7.6 Space Heater ................................................................................................................................................ 17
1.7.7 Other ............................................................................................................................................................ 17
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 3
1. TVM
1.1 Introduction
This manual provides information on the use and the spec of the machine for the users.
1.2 Caution
1. Please read the manual carefully for safe use.
2. The machine must be kept in a cool area.
3. Use the proper devices or tools to dissemble the machine to prevent damage.
4. Be sure the power is off before dissembling the machine.
5. BEWARE: electric shock or other safety related accidents.
1.3 Tool &Equipment
1. Screwdriver, WrenchDriver(M8), Hexagon Wrench Driver(M5), L-Wrench Driver(M6)
, Torx WrenchDriver(M3)
2. USB (TVM version / CSC version)
3. SAM (TVM / CSC)
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 4
1.4 Descriptions
DISPLAY
BUTTON
(BUY&CHARGE)
CARD DISPENSER
COIN SLOT
BILL SLOT
REFUND COIN
DISPLAY
CARD DISPENSER
RFID ANTTENA
CARD STACKER
DISCARDED TICKET BOX
SMPS (TVM/CSC)
SMPS (TVM/CSC)
CASH BOX
COIN MODULE
FRONT
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 5

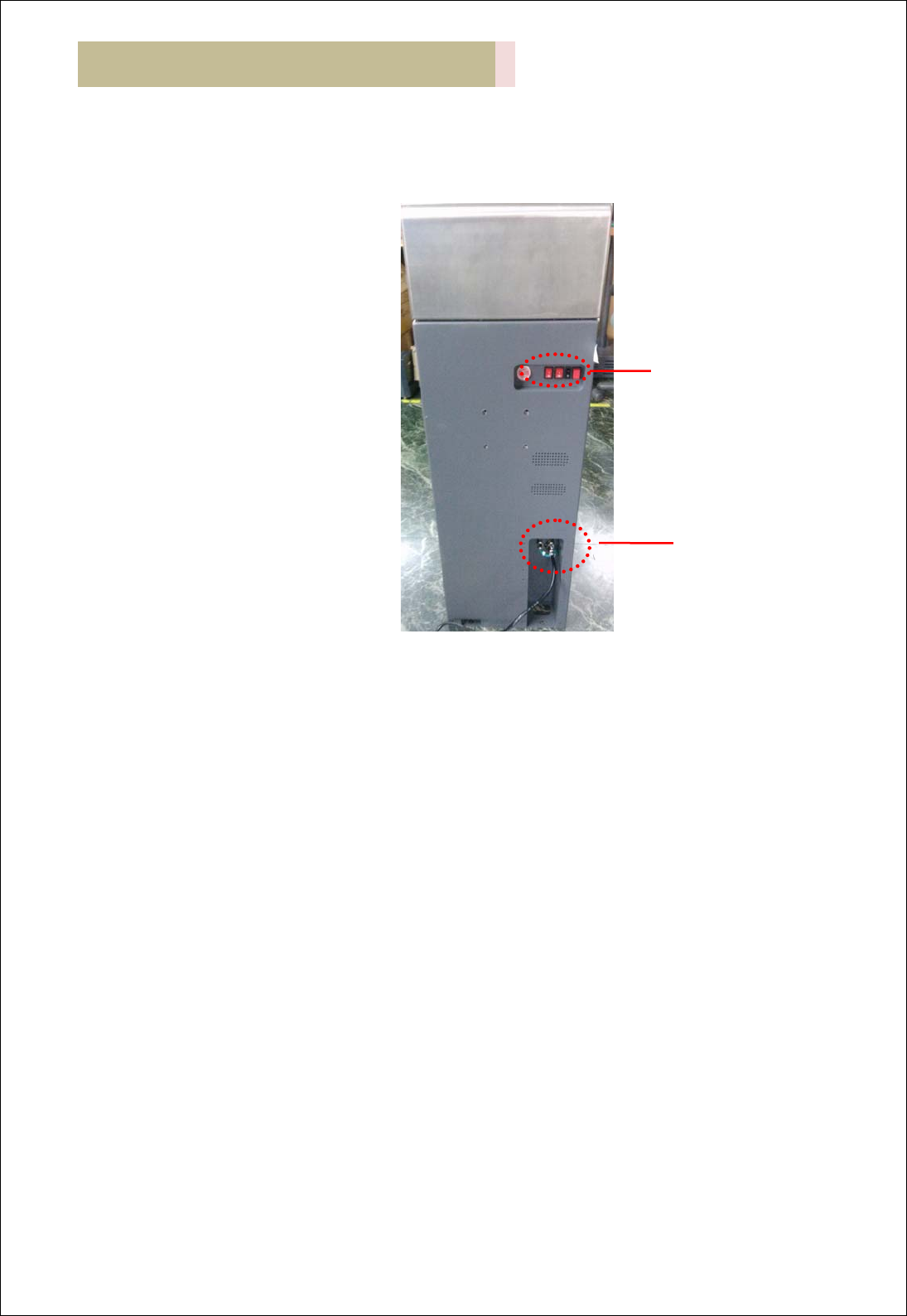

POWER SWITCH
EXTERNAL
INPUT/OUTPUT
REAR
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 6

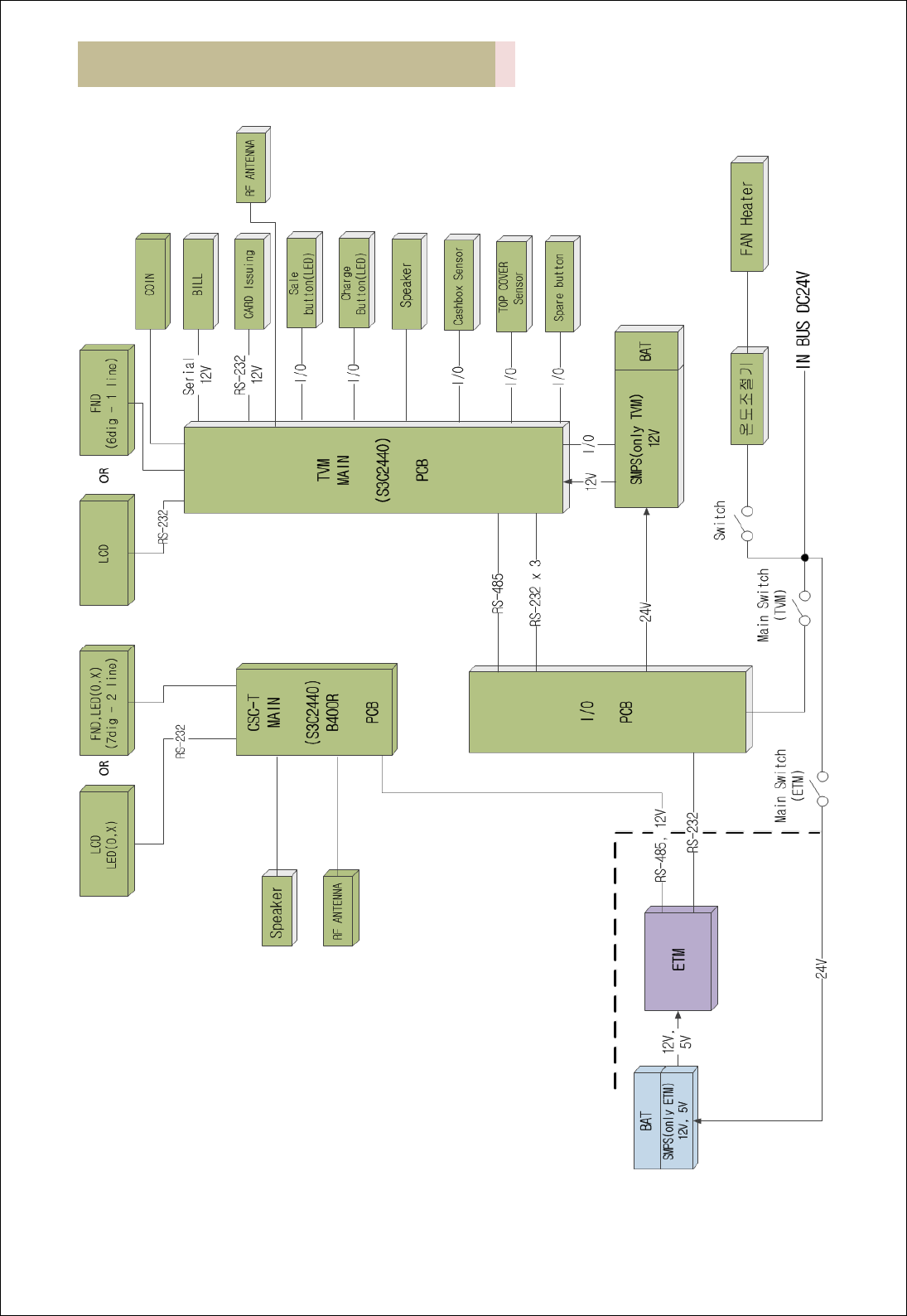

1.5 Block Diagram
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 7
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 8
1.6 Specifications
1.6.1 Specifications
No. Category Detail Remarks
1 TVM Main PCB Samsung ARM9 core 32bit : S3C2440 400Mhz
Audio Codec
1x USB(host Ver 1.1)
4x SIMM slots
Volume S/W
2 O.S.(Version) Embedded Linux 2.6.2.1
3 Display PCB
-TVM-
DFSTN Negative Graphic LCD
Water Proof Button (2ea)
Buzzer
4 Display PCB
-CSC-
DFSTN Negative Graphic LCD
Buzzer
5 CSC-T main PCB Samsung ARM9 core 32bit : S3C2440 400Mhz
Audio Codec
1x USB(host Ver 1.1)
8x SIMM slots
Volume S/W
5 Card Dispenser 200pcs(incase of 0.8mm only, flat card)
ISO 14443 AType / mifare
RS-232C
Discarded ticket processing
DC12V ±5% 850mA (Max 2.5A)
280mm(D) x 105mm(W) x 200mm(H)
6 Bill Accepter Escrow = 1 Bill
Serial(RS232-based) /CCNET
DC12V / stand by:200mA,(Max: 2A)
7 Coin Accepter Fast coin Acceptance up to 10 coin per seconds
Parallel, ccTalk, SGI
12V (standby 200mA , Coin acceptance 500mA)
8 SMPS(TVM) IN : DC24V (DC20V - DC30V)
OUT : DC12V/7A
1x Battery DC12V
Power Fail signal
9 SMPS(ETM) IN : DC24V (DC20V - DC30V)
OUT : DC12V/7A
1x Battery DC12V
Power Fail signal
10 Space Heater Unit DC 24V / 3.7A (90W)
180x60x60
11 Speaker 2x 3W, 4Ω
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 9
1.6.2 Temperature
Operating: 0℃ - +55℃
Humidity: 45% - 70%
1.6.3 Power Supply Requirements
Supply Voltage: DC24V (DC20V - DC30V)
Current Consumption
Stand-by: 1.1A
Operational: 1.7A (Max : 7A / Full load & Heater Unit)
1.6.4 Weight
Base Unit: 50Kg
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 10

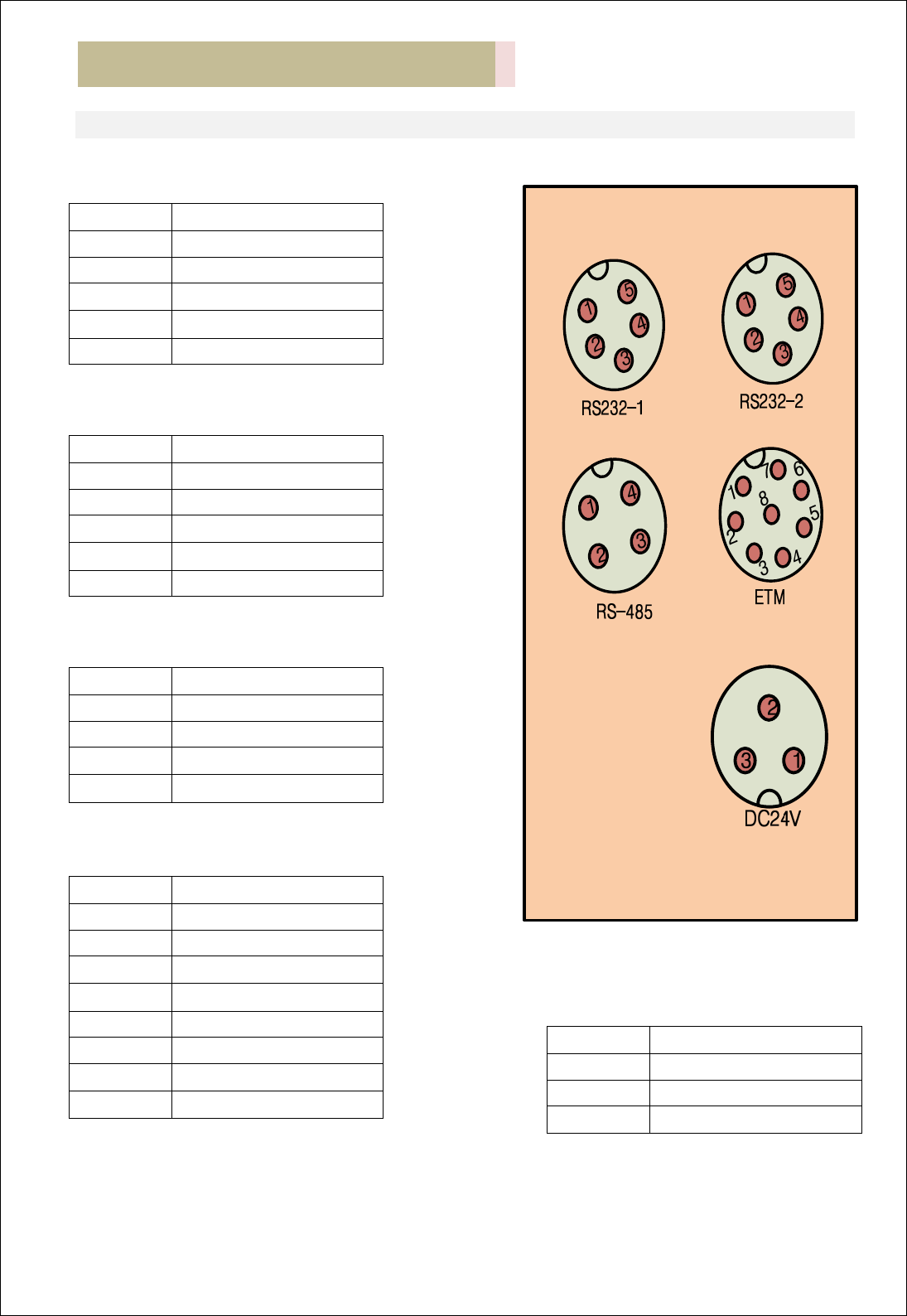

1.6.5 Mating Connector
1. RS232-1
2. RS232-2
3. RS-485
4. ETM
5. DC24V
Pin No. Signal Description
1 DC12V(OUT)
2 UART_TX
3 UART_RX
4 GND
5 NC
Pin No. Signal Description
1 DC12V(OUT)
2 UART_TX
3 UART_RX
4 GND
5 NC
Pin No. Signal Description
1 DC12V(OUT)
2 TVM 485+
3 TVM 485-
4 GND
Pin No. Signal Description
1 DC12V(OUT)
2 DC5V(OUT)
3 UART_TX
4 UART_RX
5 ETM_12V
6 CSC 485+
7 CSC 485-
8 GND
Pin No. Signal Description
1 DC24V(OUT)
2 GND
3 EARTH
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 11

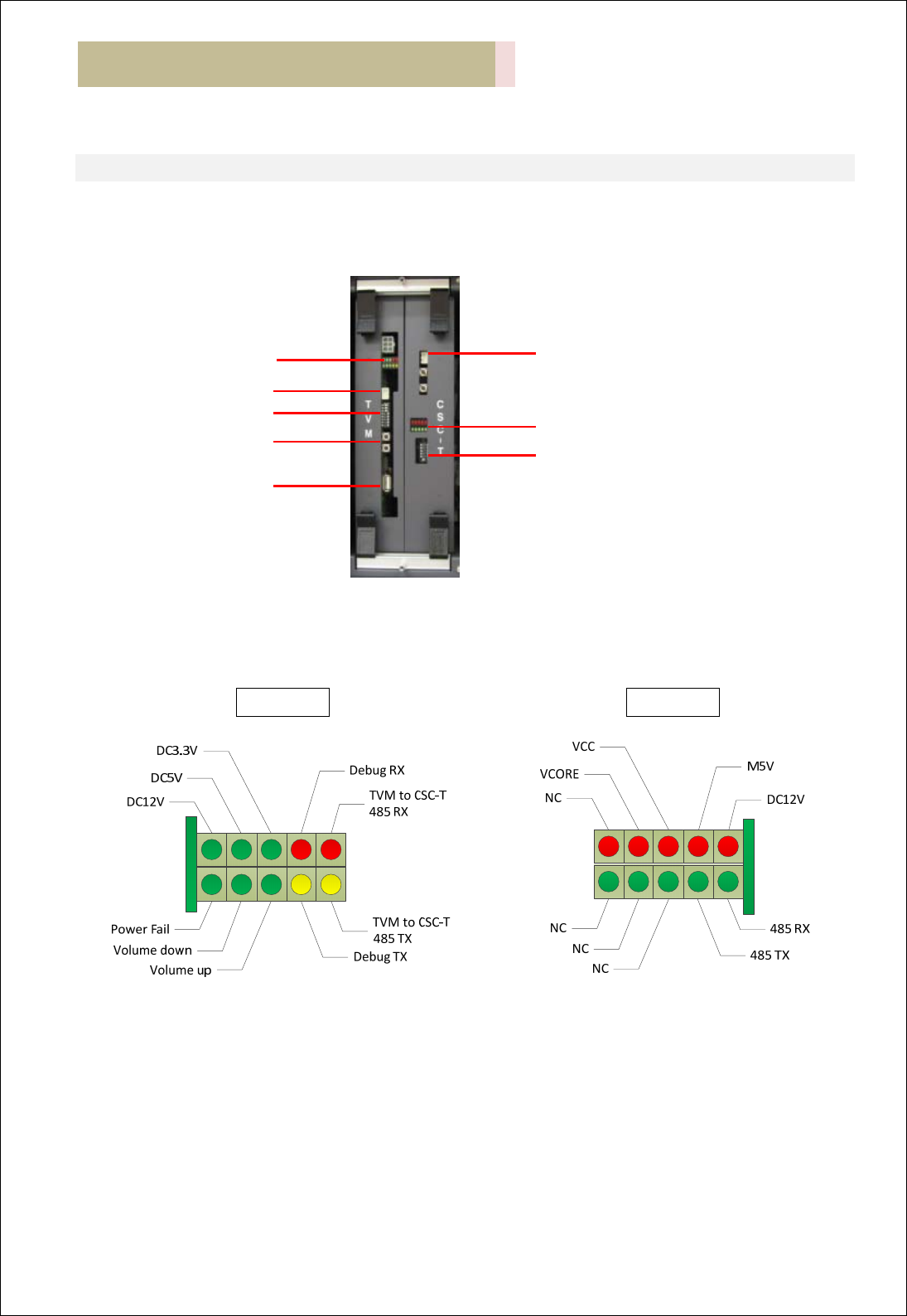

1.6.6 TVM, CSC-T main PCB Names
LED Indicator
TVM LED
TVM DIP Switch
TVM Volume Switch
(UP, DOWN)
TVM USB
TVM Debug
CSC-T Debug
CSC-T LED
CSC-T DIP Switch
TVM CSC-T
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 12
1.7 Main Modules

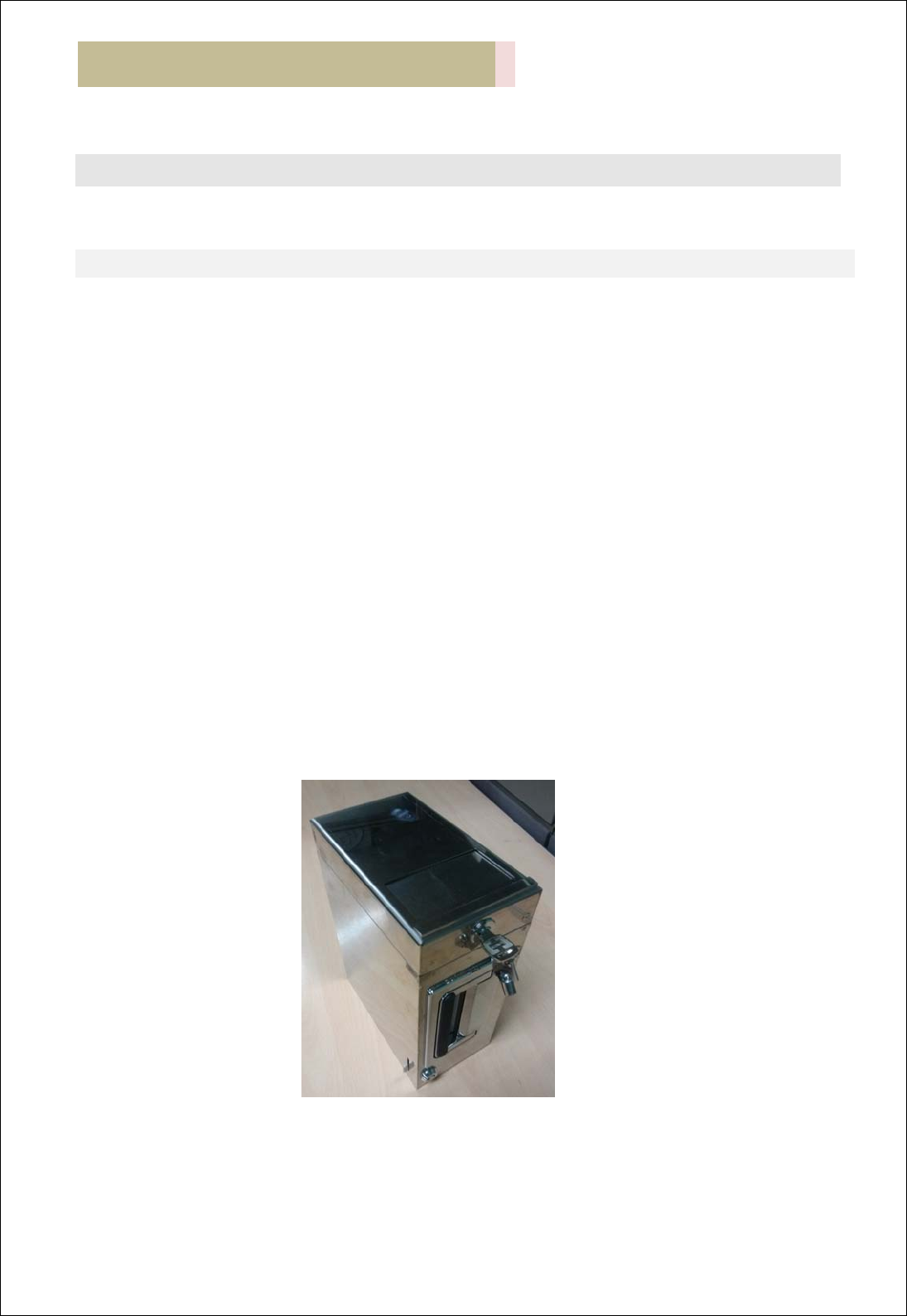

1.7.1 Cash Box
Specifications
Size: 183mm(w) x 201mm(h) x 230mm(d)
Capacity: 400 (Free fall type)
Material: Stainless Steel
Key lock
3Keys
Caution: Be sure not to lose or misplace your cashbox key.
The cashbox may be damaged at shock or drop.
Be sure to understand the manual before installing
or removing the cashbox (refer to Cashbox Installation and Removal).
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 13

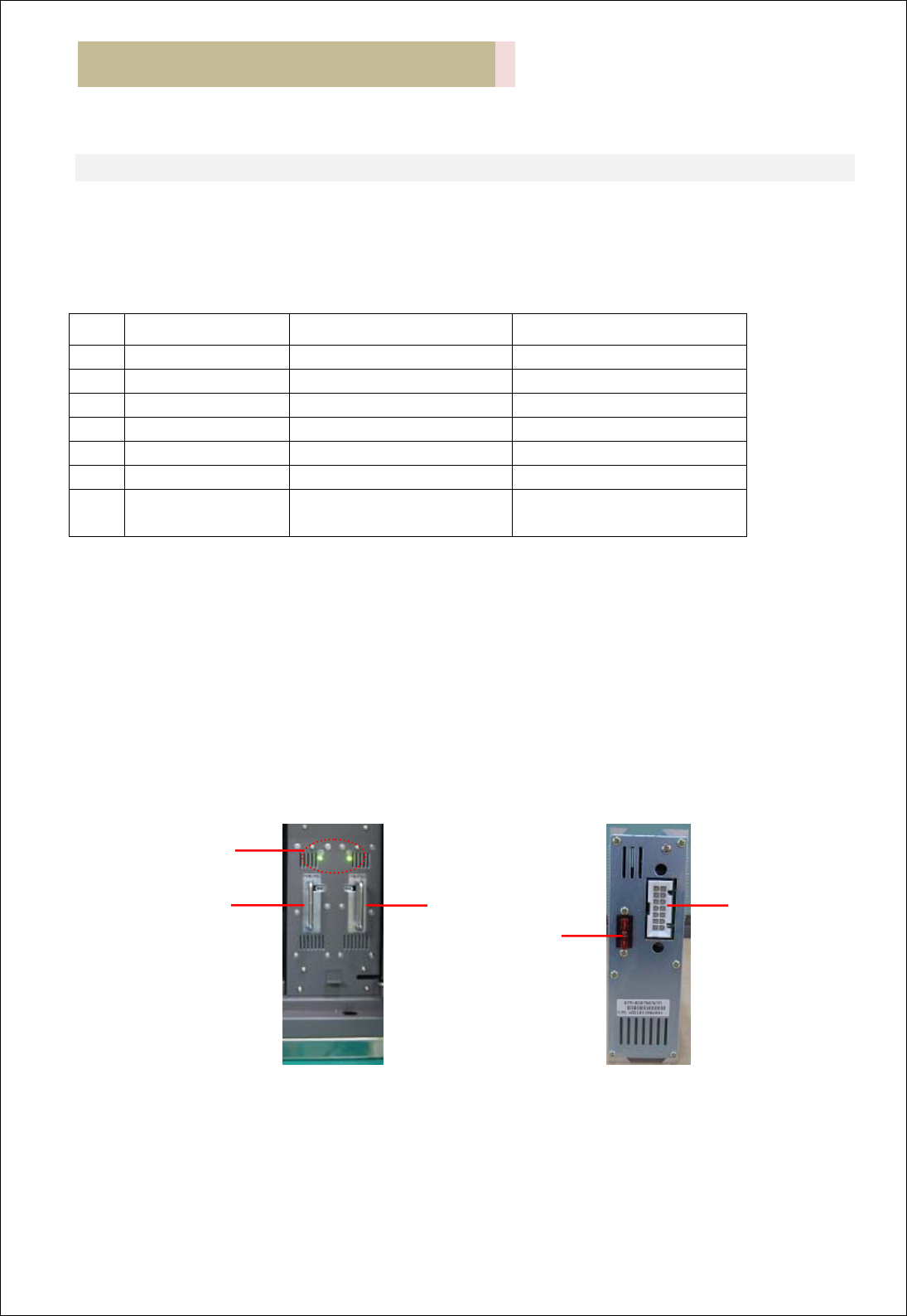

1.7.2 Switching Mode Power Supply (SMPS)
Specifications
No. Function TVM ETM
1 Power IN DC24V (DC20V - DC30V) DC24V (DC20V - DC30V)
2 Power OUT DC12V/7A DC12V/7A
3 Battery
#2 1x DC12V 1x DC12V
4 LED(Green) O O
5 FUSE 10A 10A
6 Power Fail signal O O
7 Protection Over Current
Over Voltage
Over Current
Over Voltage
#1.Do not share the power for TVM and ETM; make sure they are plugged in separately.
#2.When the input power is shut off, UPS kicks in by the backup battery.With the fully charged battery,
the system will be powered for about 5 minutes (However, it may be shorter depending on the battery life
or obsolete battery).
To prevent any damage or significantly lowered battery life from over-discharge, the battery output power
is automatically cut off when the power is not supplied within a certain period of time after the input power
is shut off.
#3.Be sure that the battery case is not worn off to facilitate the battery installation and removal.
TVM ETM
Power out LED
FUSE
IN/OUT
Connector
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 14

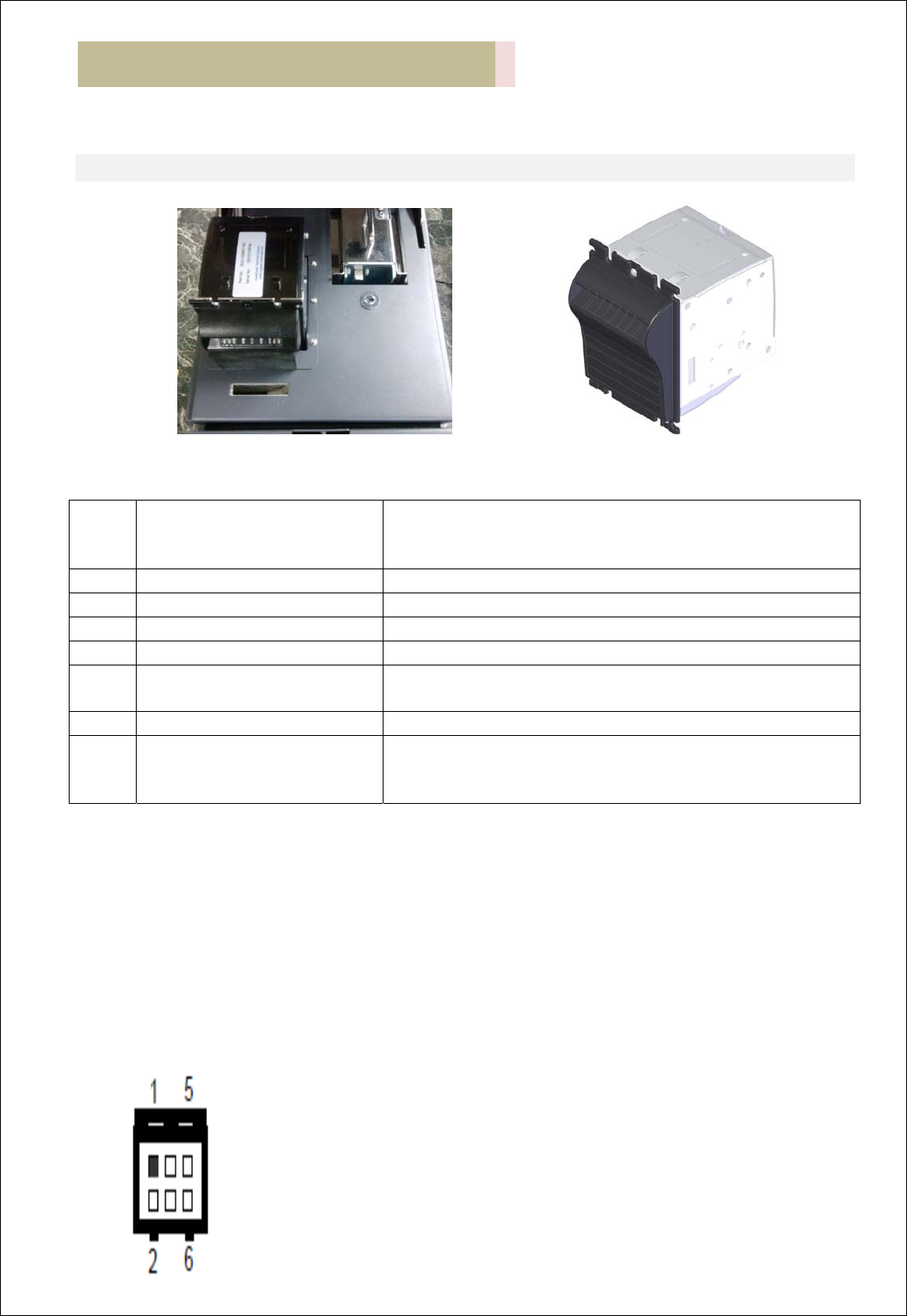

1.7.3 CARD DISPENSER
Specifications
1. Card Type ISO 14443 A Type / Mifare
2 Card Stack Capability 200pcs (incase of 0.8mm only, flat card)
3 Function Discarded ticket processing
4 Interface RS-232C
5 Power DC12V ±5% 850mA (Max 2.5A)
6 Size 280mm (D) x 105mm (W) x 200mm (H)

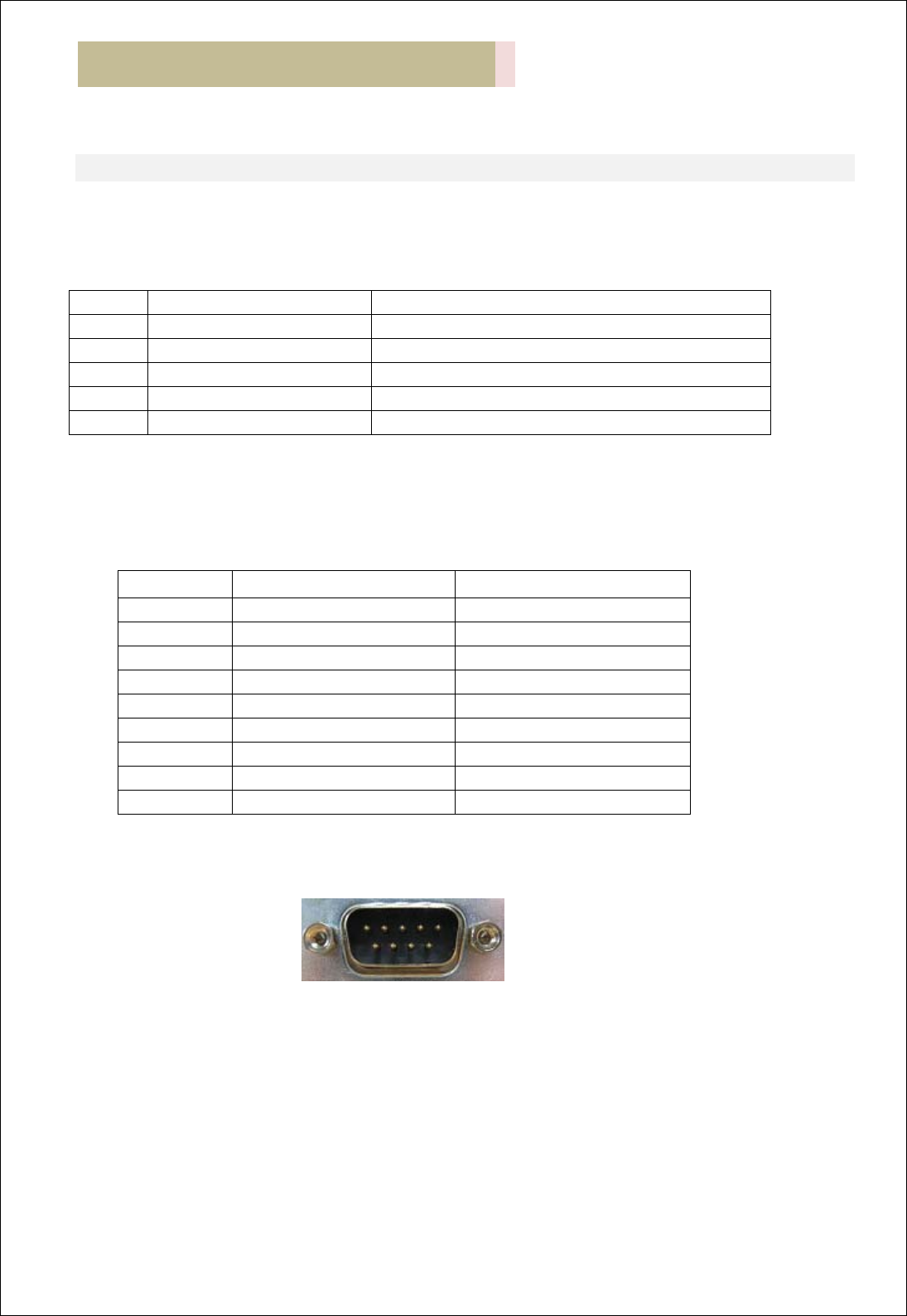

Pin Connections
Pin Number Signal Description Note
1 DC12V
2 RS232 TX
3 RS232 RX
4 GND
5 GND
6 NC
7 NC
8 NC
9 NC
1 2 3 4 5
6 7 8 9
PC SUB-9
p
in
(
male
)
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 15
1.7.4 BILLMODULE
Specifications
1 Acceptable CashCode Length: 92.5 mm
Width: 132 mm
HeIght : 100.6 mm
2 Insertion Direction 4-way
3 Validation Method Optical/Transparency/Reflection/MAG
4 Interface Serial
5 Escrow 1 banknote
6 LED LED lamp (upper position of faceplate)
Full-color lightning (gradation/solid)
7 Power Supply Voltage 12V DC ±5 %
8 Rated Power Consumption Standby: Approx. 0.1 A
Operation: Approx. 0.8 A
Max: Approx. 1.4 A (Max. 300 ms)
Connector
The following diagram is the interface connector as viewed from the acceptor side or from
a relay board.
1) Power Connector
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 16

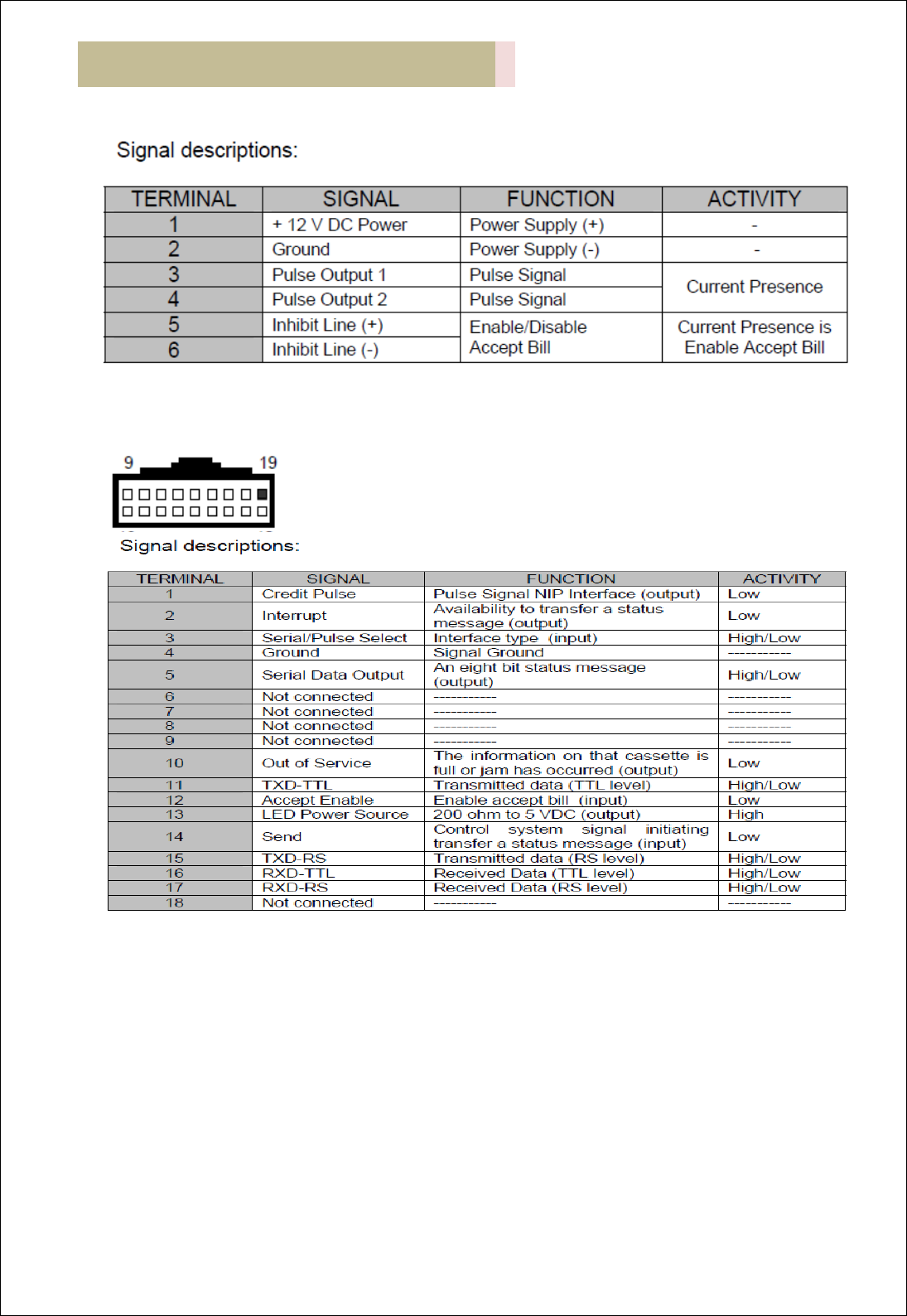

2) Data Connector
DIP Switch Settings
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 17
The switches are located at the CPU board.
The VU(MVU) bill Validator operates in two basic modes: Validation Mode and
Service Mode.
Validation Mode: This is the mode for normal operation.
Service Mode: This is the mode for programming and testing.

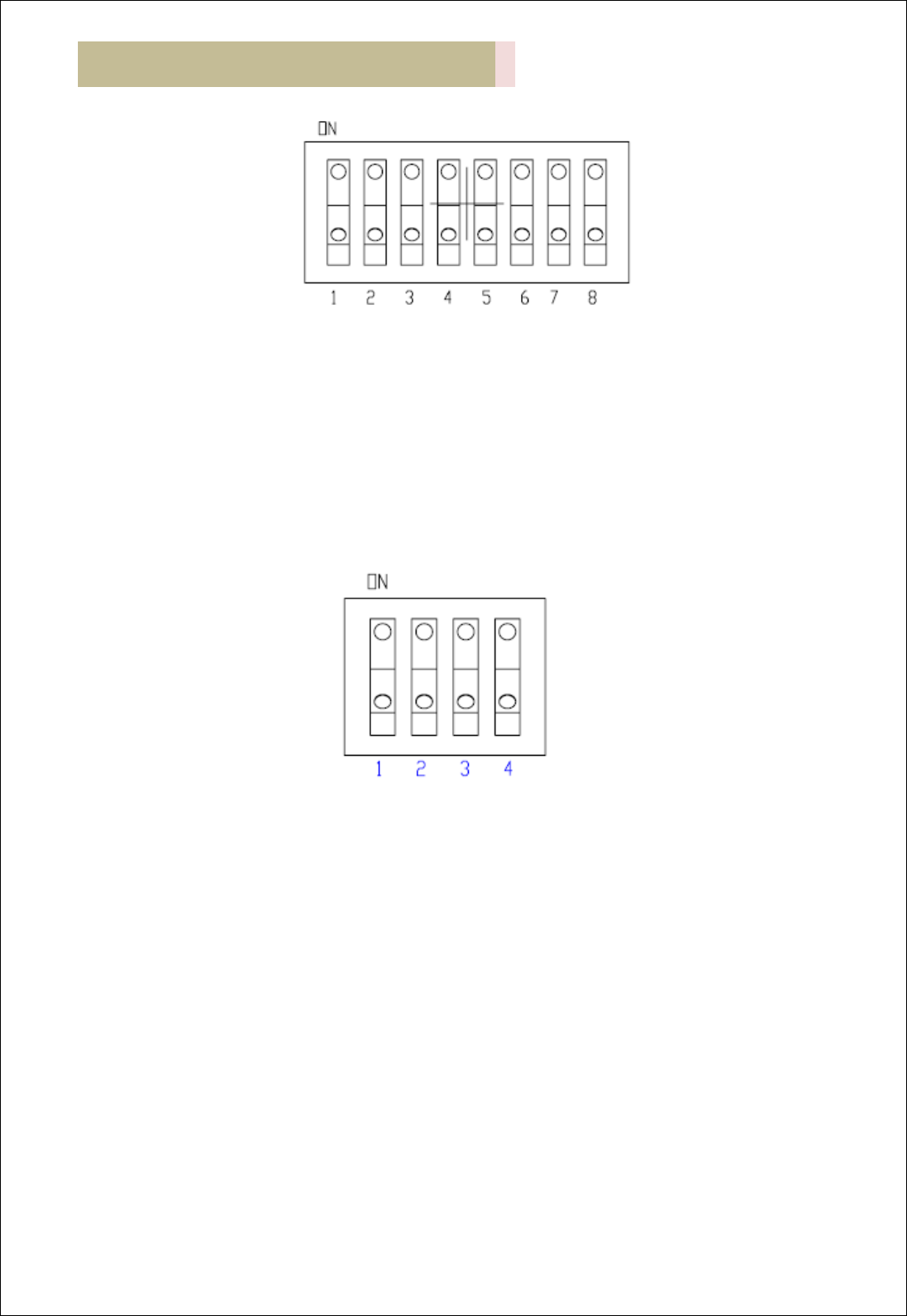

A set of 8 DIP switches (SW1) defines the settings and programs the Bill Validator to
recognize and validate different denominations or define other parameters.
A set of 4 DIP switches (SW1) defines the settings of interface type.
For a complete explanation of switch description, please see the software User’s Guide
(enclosed to each bill validator and available at www.cashcode.com).
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 18

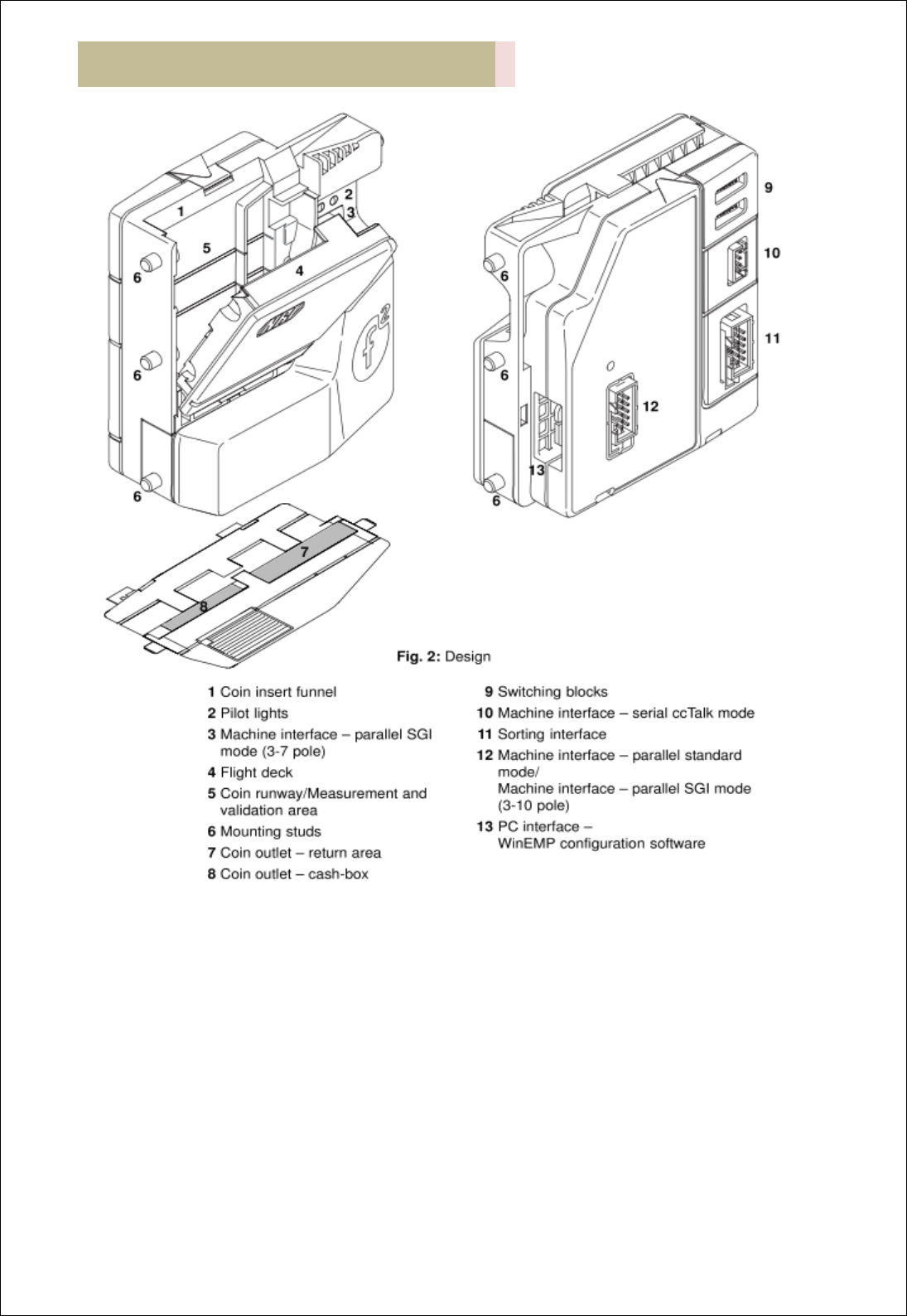

1.7.5 COIN MODULE
Specifications
1 Function Fast coin Acceptance up to 10 coin per seconds
2 Interface Parallel, ccTalk, SGI
3 Power 12V (standby 200mA , Coin acceptance 500mA)
4 Operating range 0°C to 60°C ,
5 Coin acceptance 32 coin types max. in 2 x 16 or 1 x 32 channels
Coin diameter:15–32.5mm
Coin thickness:1.5–3.3mm
Speed:10 coins/sec.
6 Mounting position Vertical, max. deviation: ± 2°
7 Size 102mm (D) x 89mm (W) x 52mm (H)
8 Mark of conformity CE
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 19
Connector
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 20
1.7.6 Space heater
Specifications
1 Function Space Heating
3 Power 24V / 3.7A (90W)
4 Operating range Analog SW : -20°C to 50°C ,
5 Serface Temp Arround : 23°C , End of heater 50°C ,
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 21
1.7.7 Others
Power S/W
GENERAL (Subpart A)
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
UNINTENTIONAL RADIATORS (Part15, Subpart B, 15.105)
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
① Reorient or relocate the receiving antenna.
② Increase the separation between the equipment and receiver.
③ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
④ Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
Cashless Bus Ticketing System for rapidKL
Buses(KSCC-B400C)
Manual(SPEC)
Copyright KSCC 22
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications (including the antenna) made to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
