LG CNS KSCCCBR400A AUTOMATIC RECHARGER User Manual Manual
LG CNS CO., LTD. AUTOMATIC RECHARGER Manual
LG CNS >
Users Manual
Sistema de Recaudo Control e Información y
Servicio al Usuario Proyect
Maintenance and Repair Manual
(Heavy)
Automatic Recharger
CB-EDR-HM-00-V1.0
Copyright ⓒ LG CNS
It is forbidden to copy and distribute on certain or whole part of this content without precedent approval of LG CNS
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic
Recharger Page i of All
Document Prepared by: Reviewed by: Approved by:
Maintenance and
Repair Manual (Heavy)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic
Recharger Page ii of All
Document History
Previous
Version Present
Document Date Numeral Changes Type
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic
Recharger Page iii of All
Table Of Contents
1. AUTOMATIC RECHARGER EQUIPMENT STRUCTURE ....................................... １
1.1 Overview ............................................................................................................... １
1.2 External / Internal Structure and Main Module .................................................. １
1.2.1 External Structure ............................................................................................. １
1.2.2 Main Module Structure I .................................................................................... ２
1.2.3 Internal Structure .............................................................................................. ３
1.2.4 Main Module Structure II ................................................................................... ４
2. ERROR HANDLING ................................................................................................. ６
2.1.1 Supply of the power (1/3) .................................................................................. ６
2.1.2 Power Supply (2/3) ........................................................................................... ７
2.1.3 Power Supply (3/3) ........................................................................................... ８
2.1.4 USB Trouble (1/2) ............................................................................................. ９
2.1.5 USB Trouble (2/2) ......................................................................................... １０
2.1.6 LCD Screen Trouble (1/2) ............................................................................. １１
2.1.7 LCD Screen Trouble (2/2) ............................................................................. １２
2.1.8 Keypad Trouble (1/2) .................................................................................... １３
2.1.9 Keypad Trouble (2/3) .................................................................................... １４
2.1.10 Keypad Trouble (3/3) .................................................................................. １５
2.1.11 RTC Trouble (1/2) ....................................................................................... １６
2.1.12 RTC Trouble (2/2) ....................................................................................... １７
2.1.13 Bill Module Trouble (1/3) ............................................................................. １８
2.1.14 Bill Module Trouble (2/3) ............................................................................. １９
2.1.15 Bill Module Trouble (3/3) ............................................................................. ２０
2.1.16 Printer Trouble (1/2) .................................................................................... ２１
2.1.17 Printer Trouble (2/3) .................................................................................... ２２
2.1.18 Printer Trouble (3/3) .................................................................................... ２３
3. DEVICE MAINTENANCE ..................................................................................... ２４
3.1 Automatic Recharger ...................................................................................... ２４
3.1.1 Outline .......................................................................................................... ２４
3.1.2 Structure ....................................................................................................... ２４
3.1.3 Specification ................................................................................................. ２５

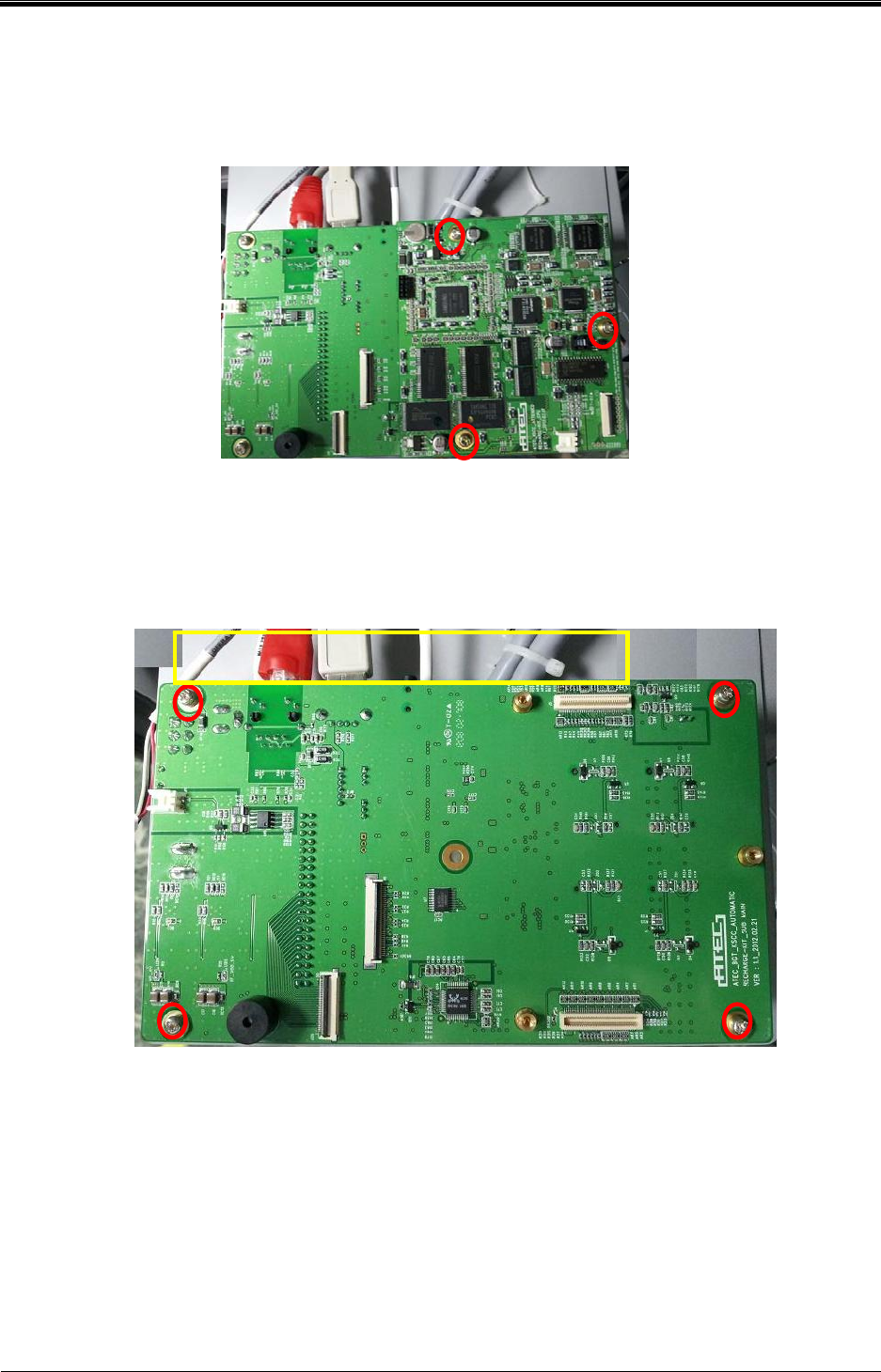

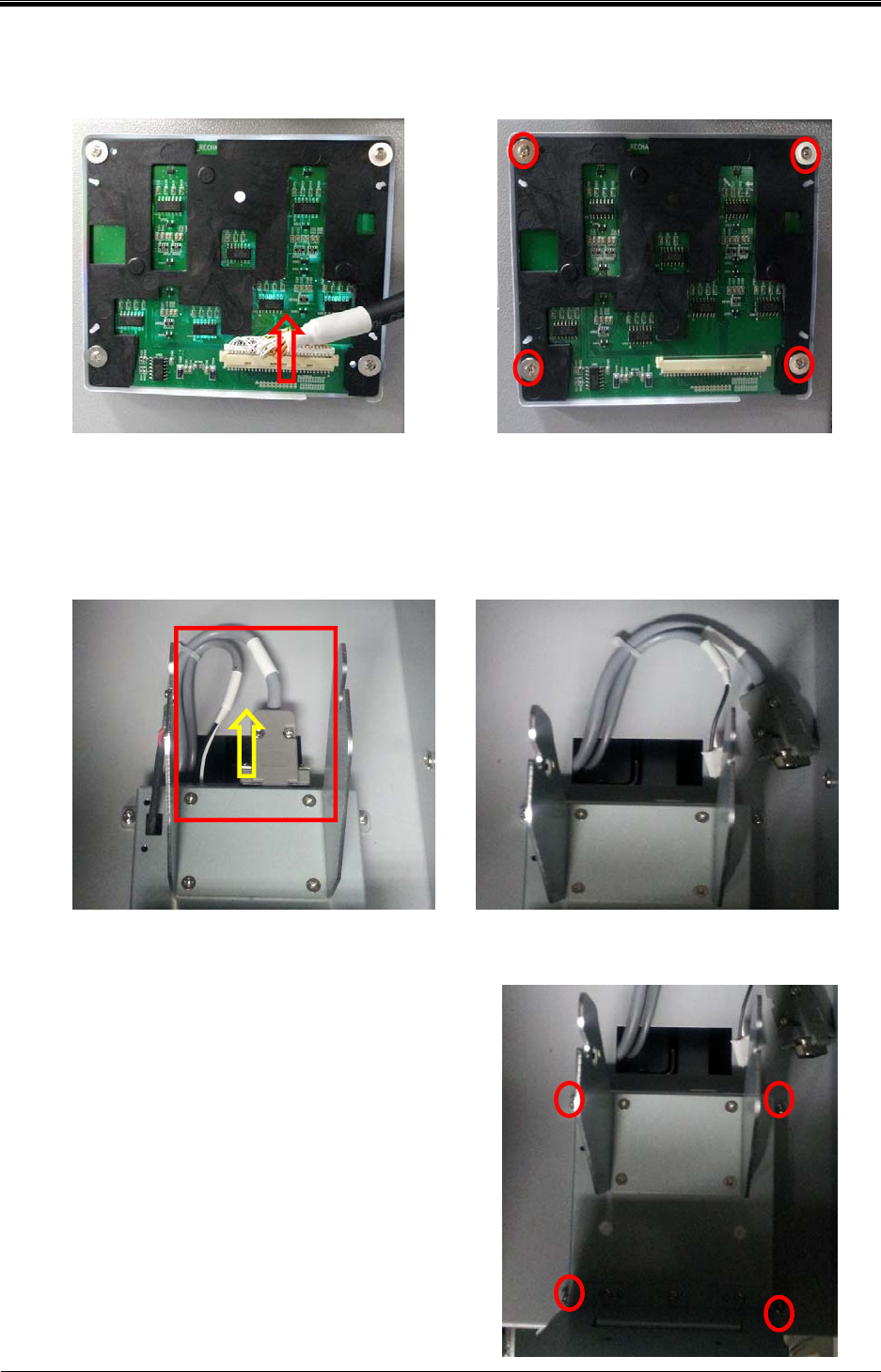

3.1.4 Replacement Method .................................................................................... ３１

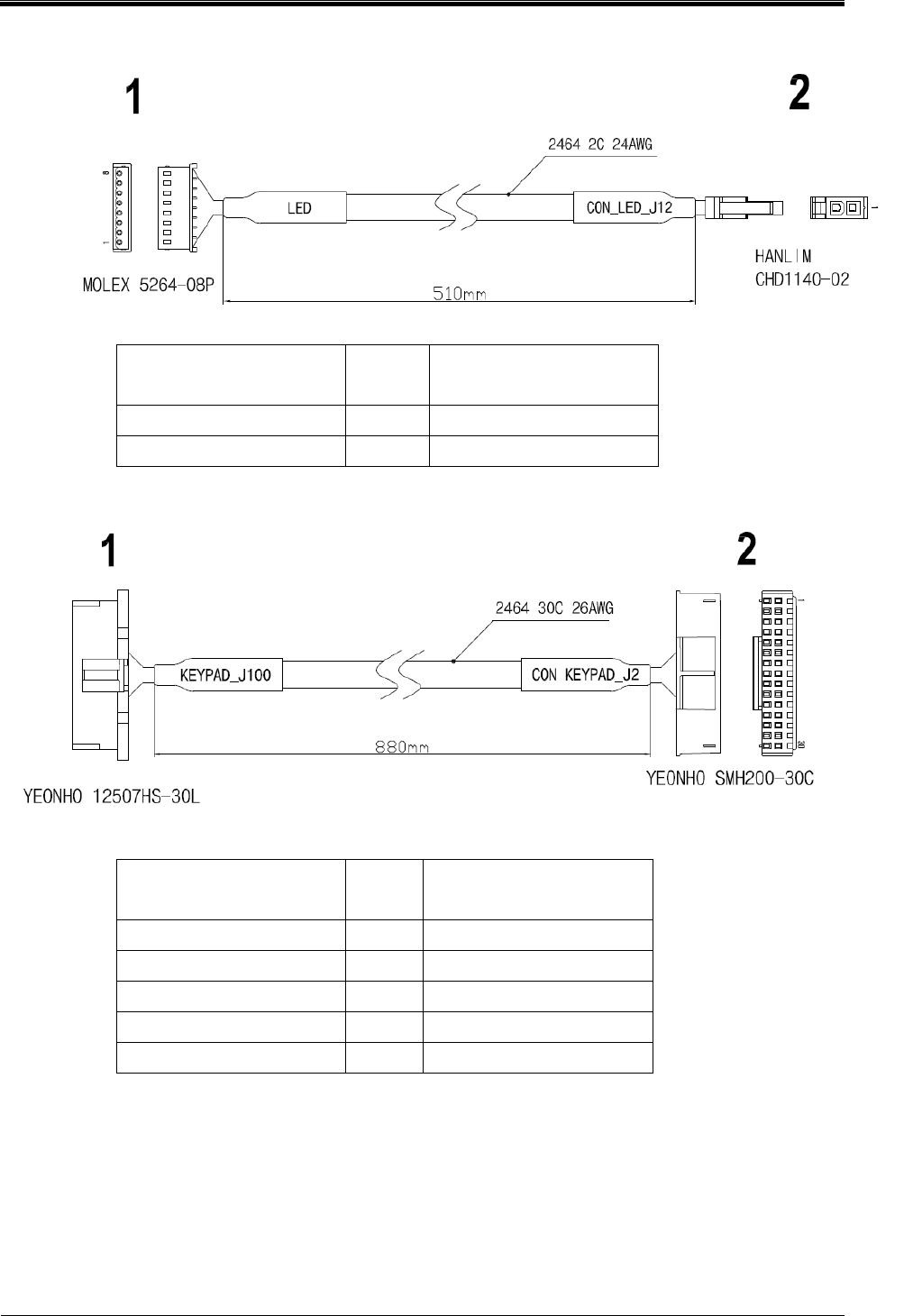

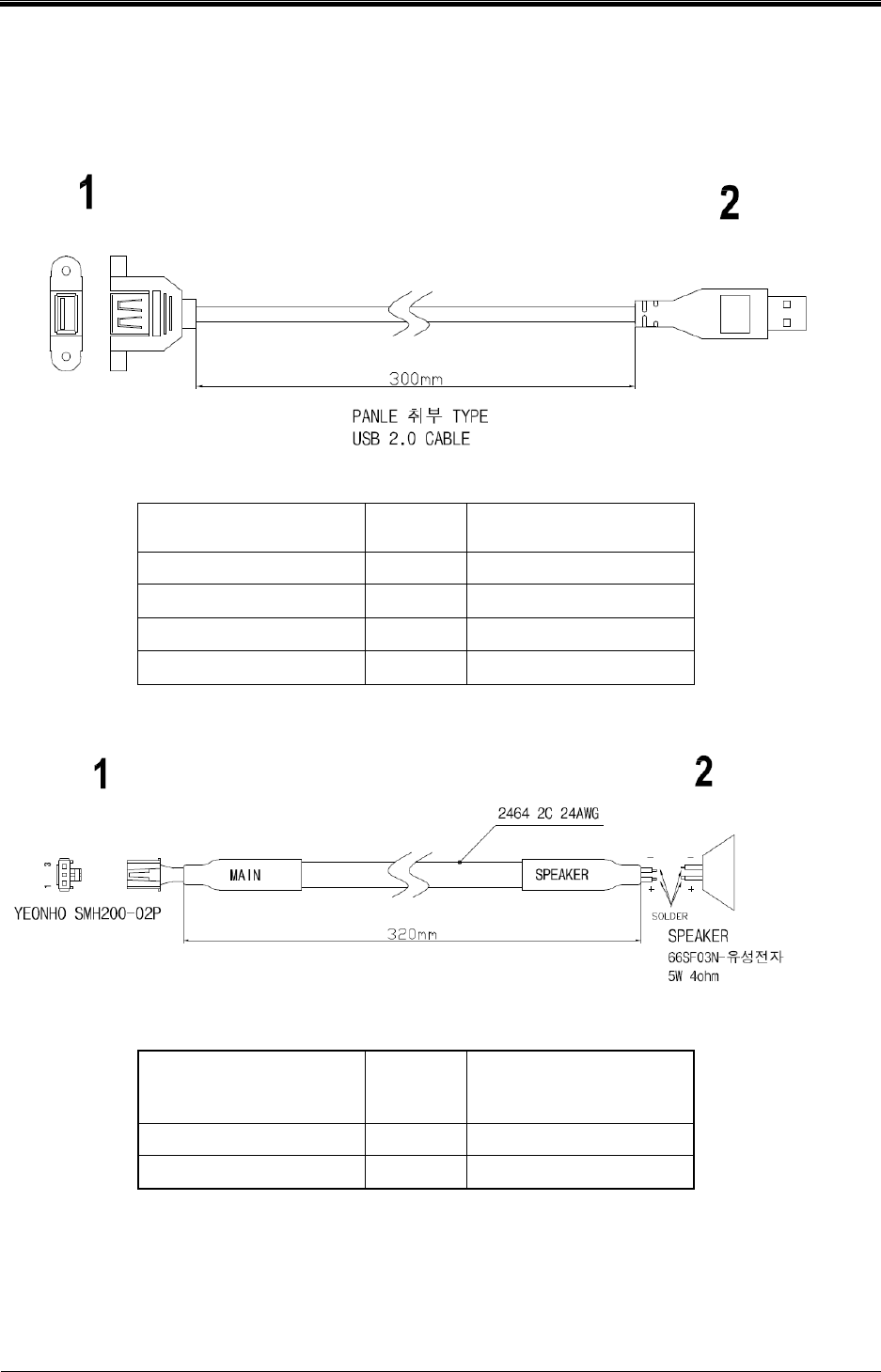

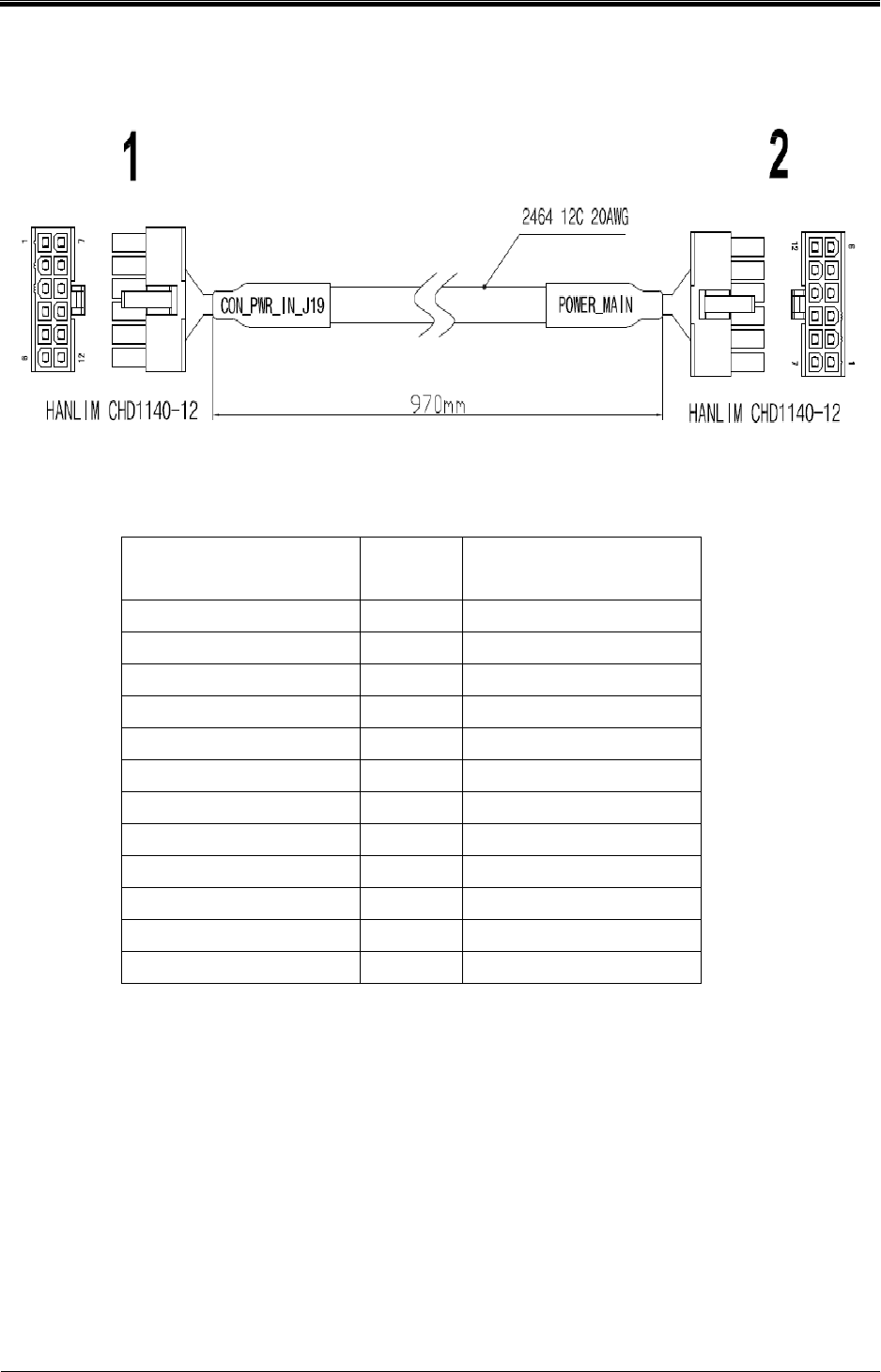

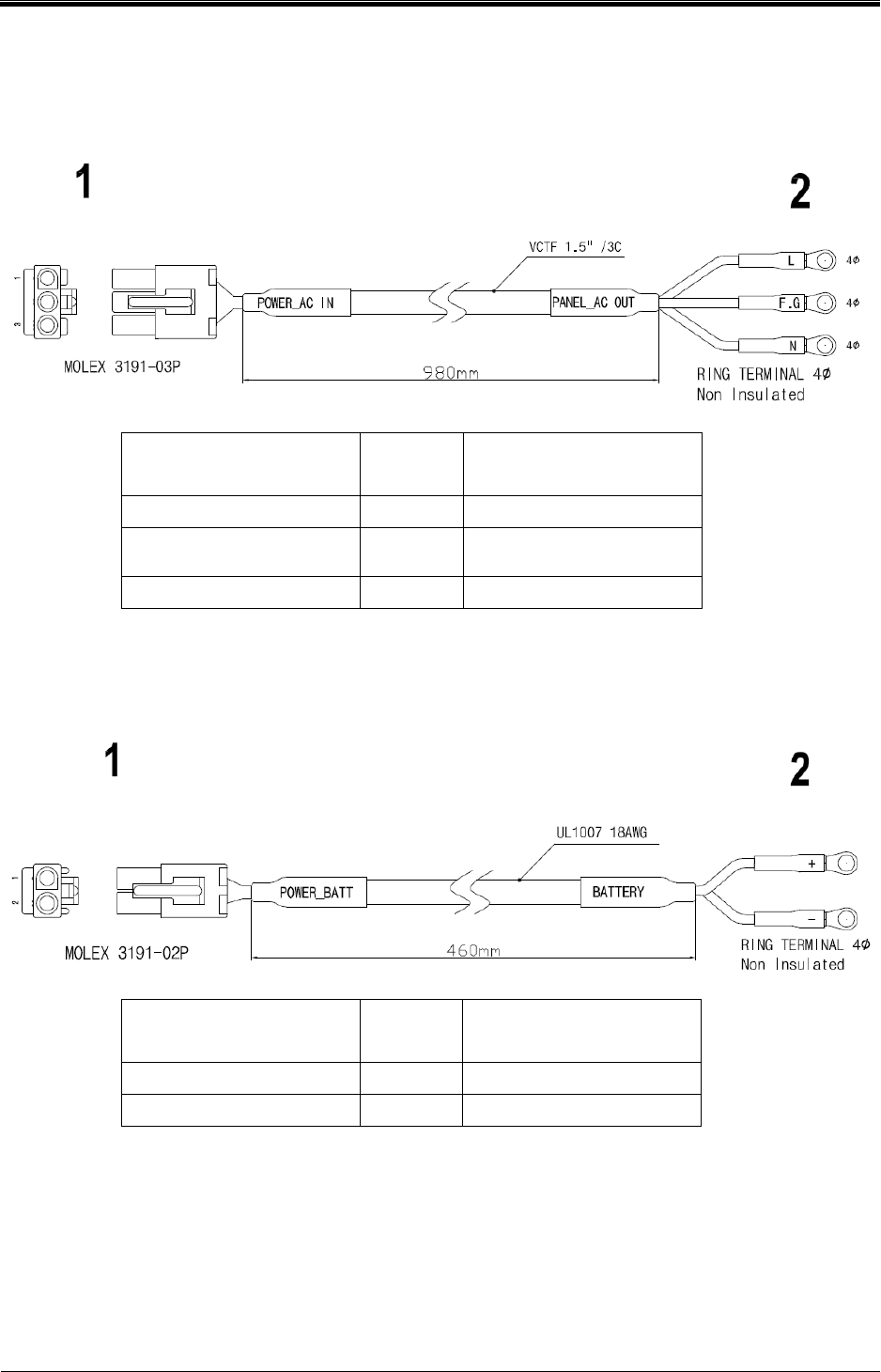

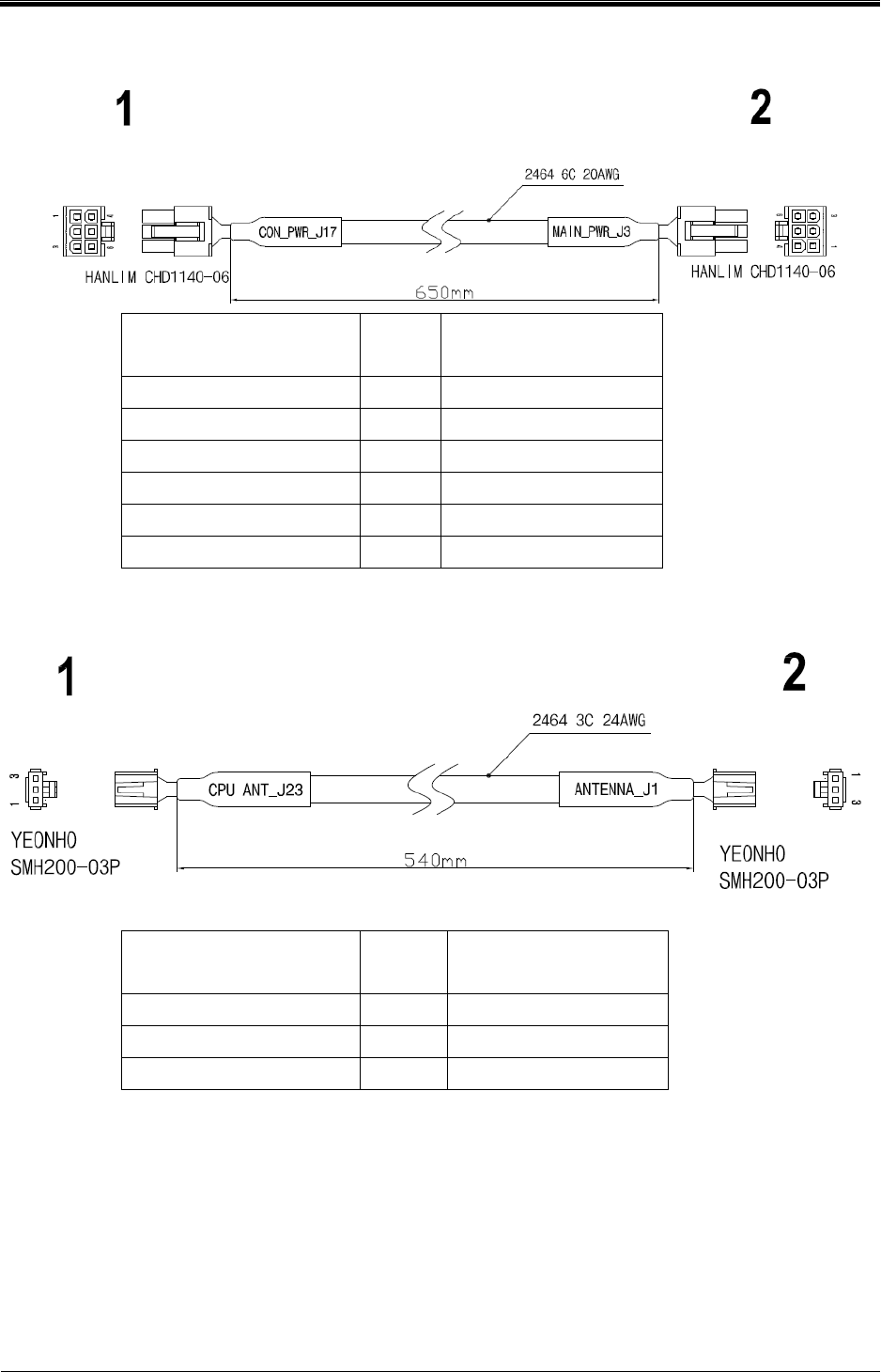

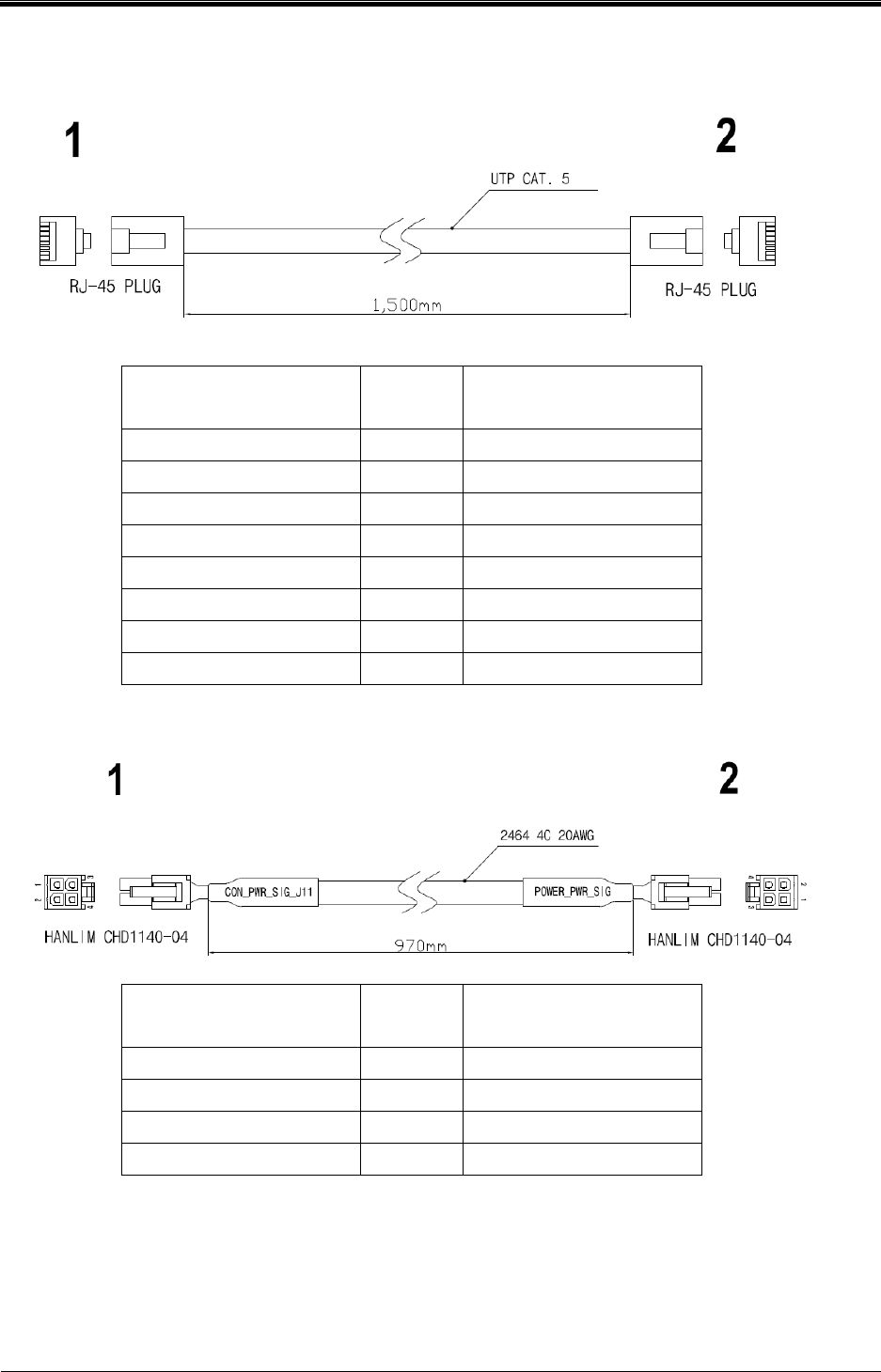

3.1.5 Connector Specification ................................................................................ ３８
3.2 Maintenance Flow chart .................................................................................. ５０
4. AUTOMATIC RECHARGER INSTALLATION AND UPDATE ............................ ５１
4.1 Automatic Recharger Installation ................................................................... ５１
4.1.1 Procedure ..................................................................................................... ５１
4.1.2 Device Registration ....................................................................................... ５２
4.1.2.1 Power ON ....................................................................................................... ５２

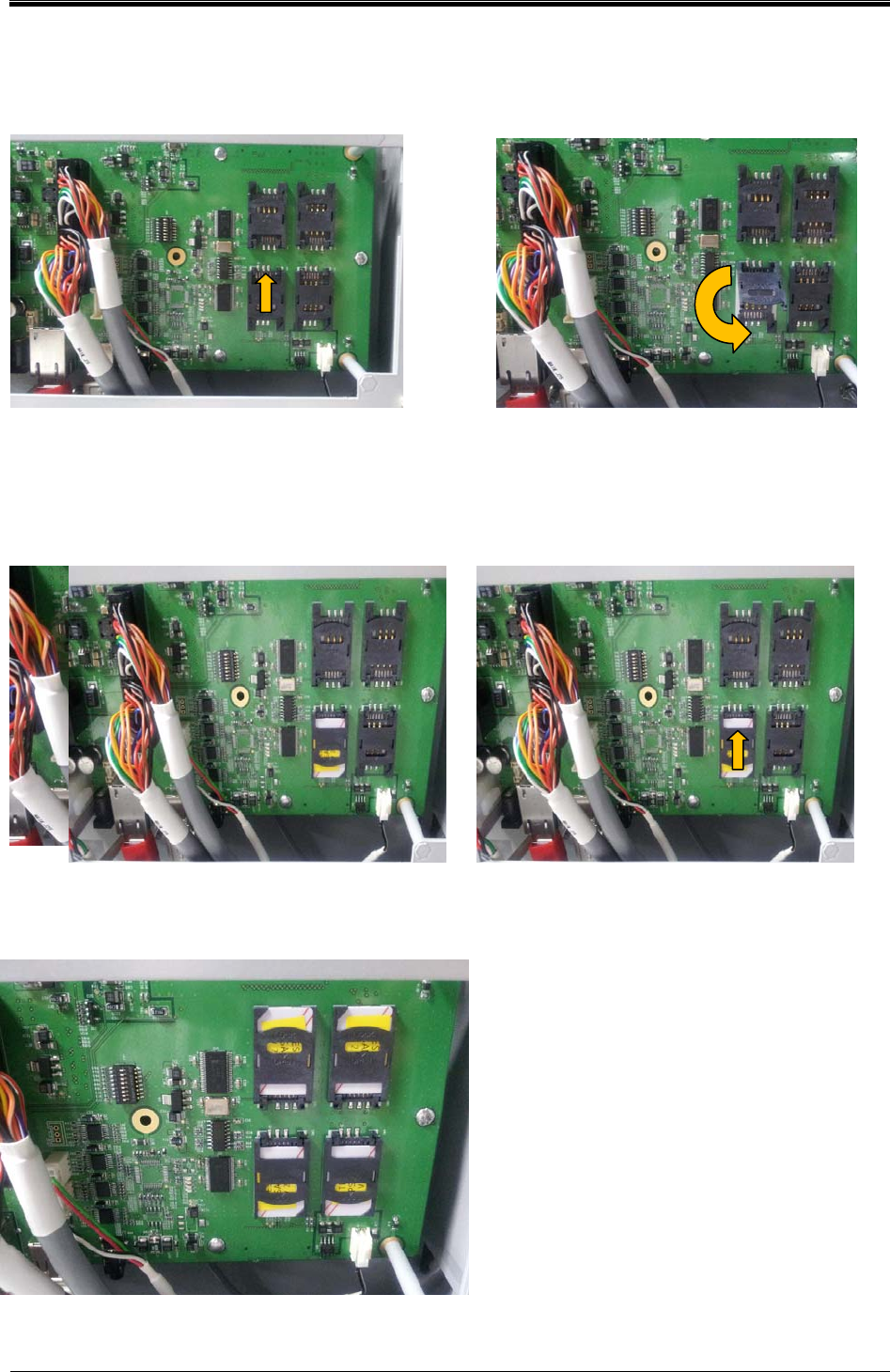

4.1.2.2 SAM Card Mounting ....................................................................................... ５３
4.1.2.3 USB Mounting Method .................................................................................... ５４
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic
Recharger Page iv of All
5. AUTOMATIC RECHARGER HEAVY MAINTENANCE ....................................... ５５
5.1 CPU Board ........................................................................................................ ５５
5.1.1 CPU BOARD Specification ........................................................................... ５５
5.1.1.1 CPU Board Specification ................................................................................ ５５
5.1.1.2 CPU Board Block Diagram ............................................................................. ５５
5.1.1.3 CPU Board Check point .................................................................................. ５６
5.1.2 Sub BOARD Specification ............................................................................ ５７
5.1.2.1 Sub Main Board Specification ......................................................................... ５７
5.1.2.2 Sub Main Board Block Diagram ...................................................................... ５７
5.1.2.3 Sub Main Check point ..................................................................................... ５８
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１
of All
1. Automatic Recharger Equipment Structure
1.1 Overview
The Automatic Recharger is recharged the transit card.
1.2 External / Internal Structure and Main Module

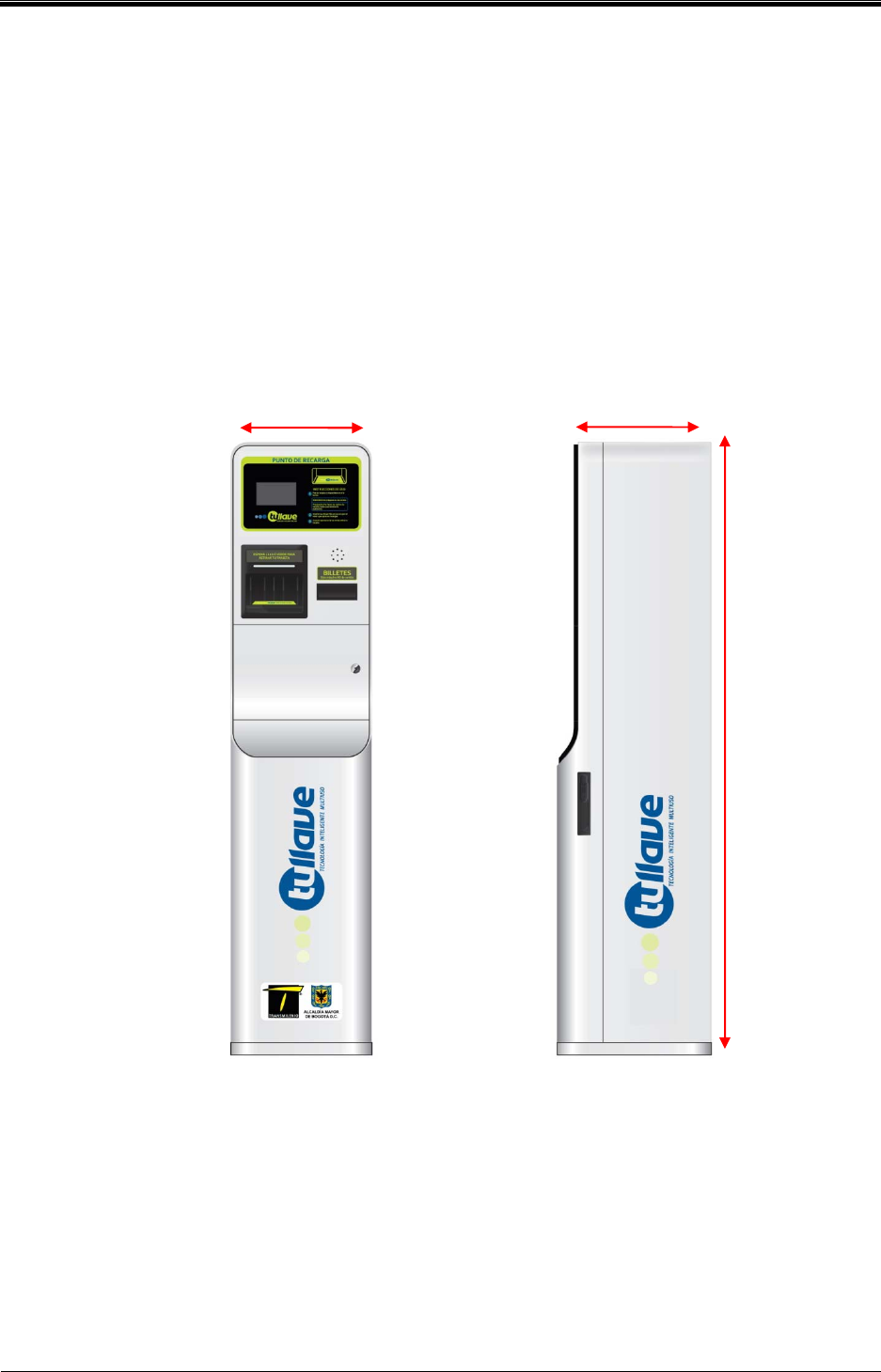

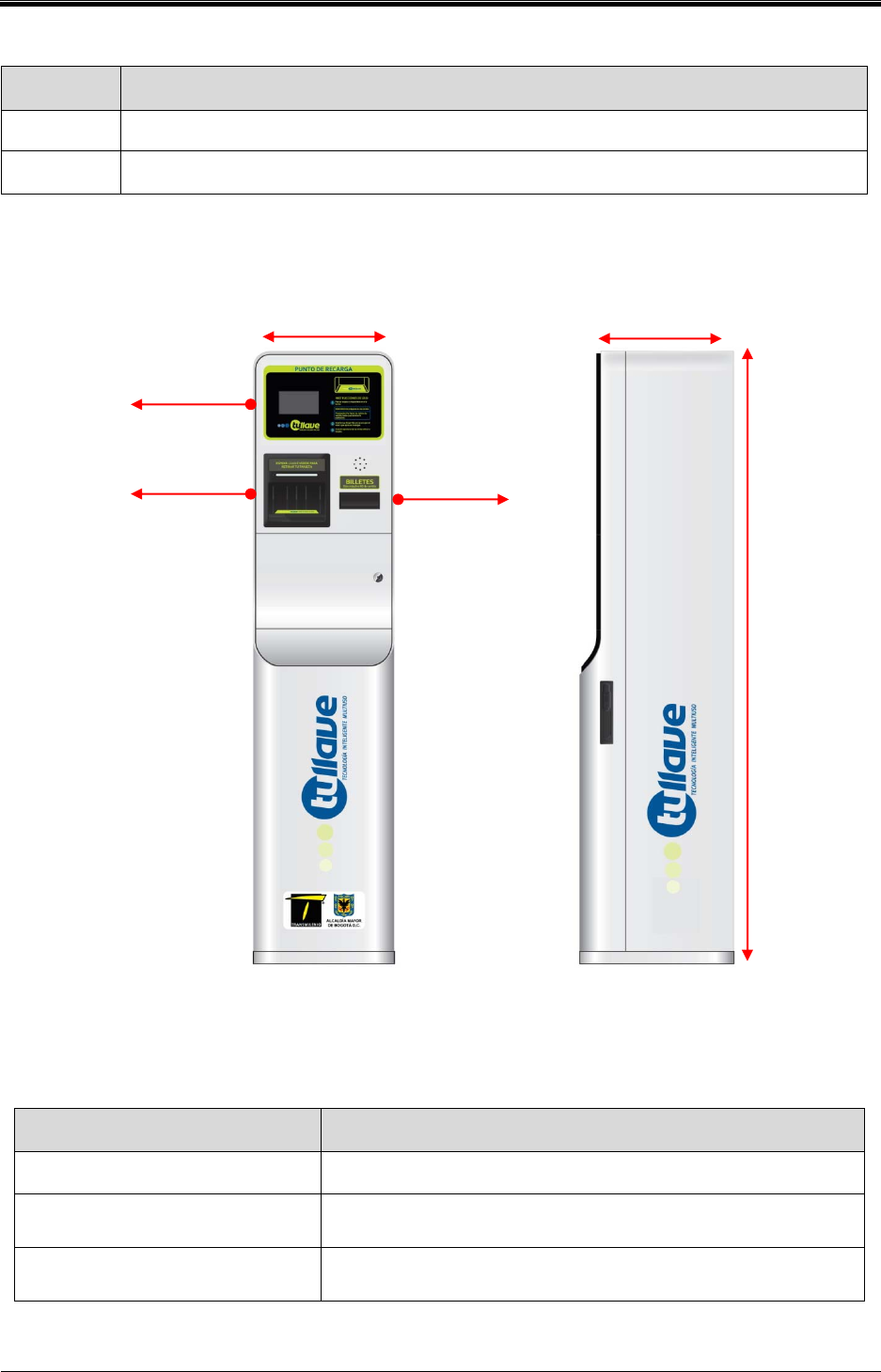

1.2.1 External Structure
[Automatic Recharger]
390mm (W) 440mm (D)
1500mm (H)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２
of All
Division 내 용
Size 440mm(D) x 1500mm(H) x 390mm(W)
Material BASE PLATE(SUS), Exterior (STEEL, Painted_SLIVER)
1.2.2 Main Module Structure I
Automatic Recharger
Name Explanation
1) 4.3’ LCD Display of operation information
2) RFID Antenna ISO14443 Type A, 13.56MHz card recognition and
charging
3) Bill Module 6 varieties of colombia bill
Insert each 1 bill
1
)
2
)
3
)
390mm (W) 440mm (D)
1500mm (H)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３
of All

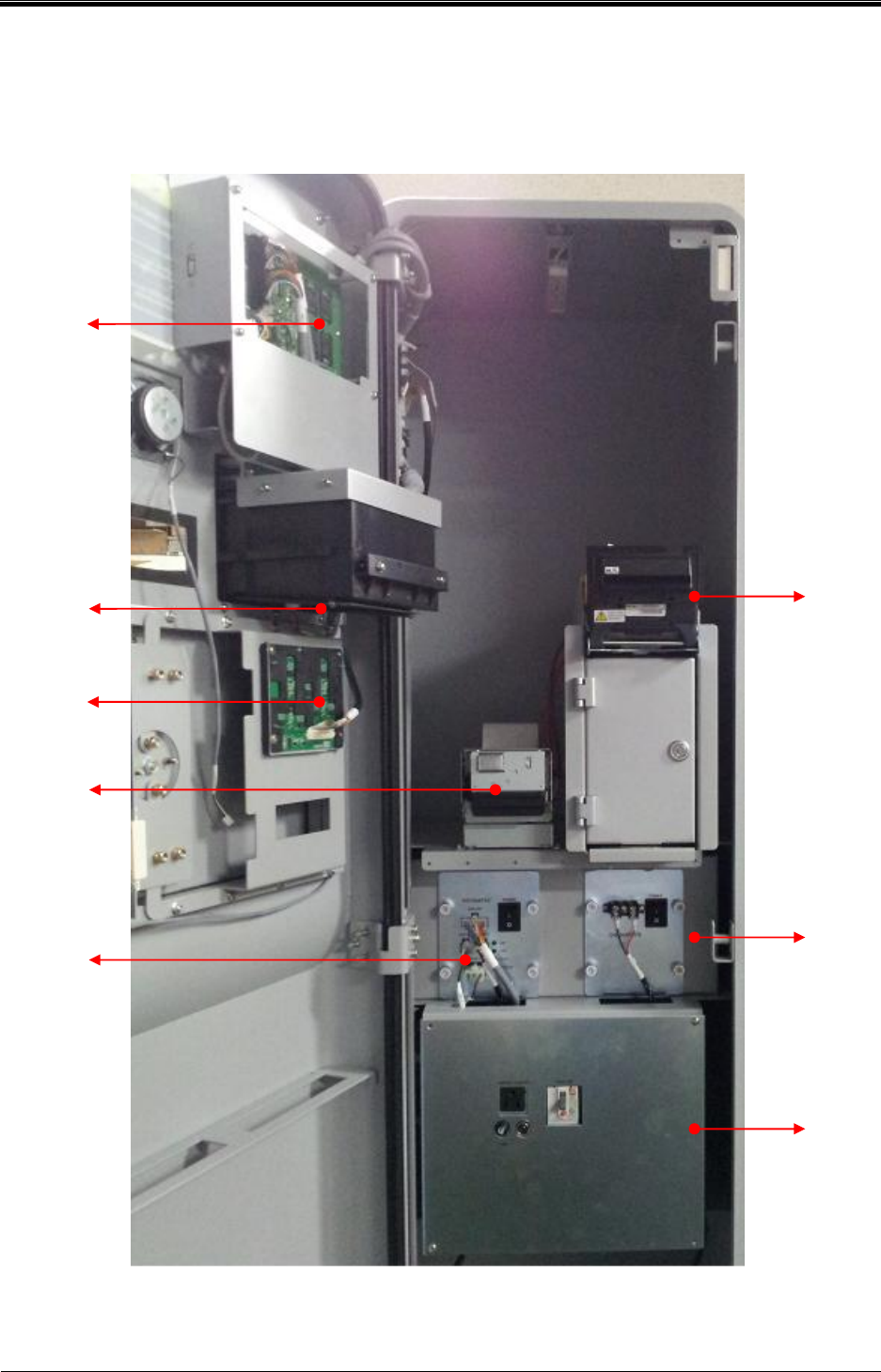

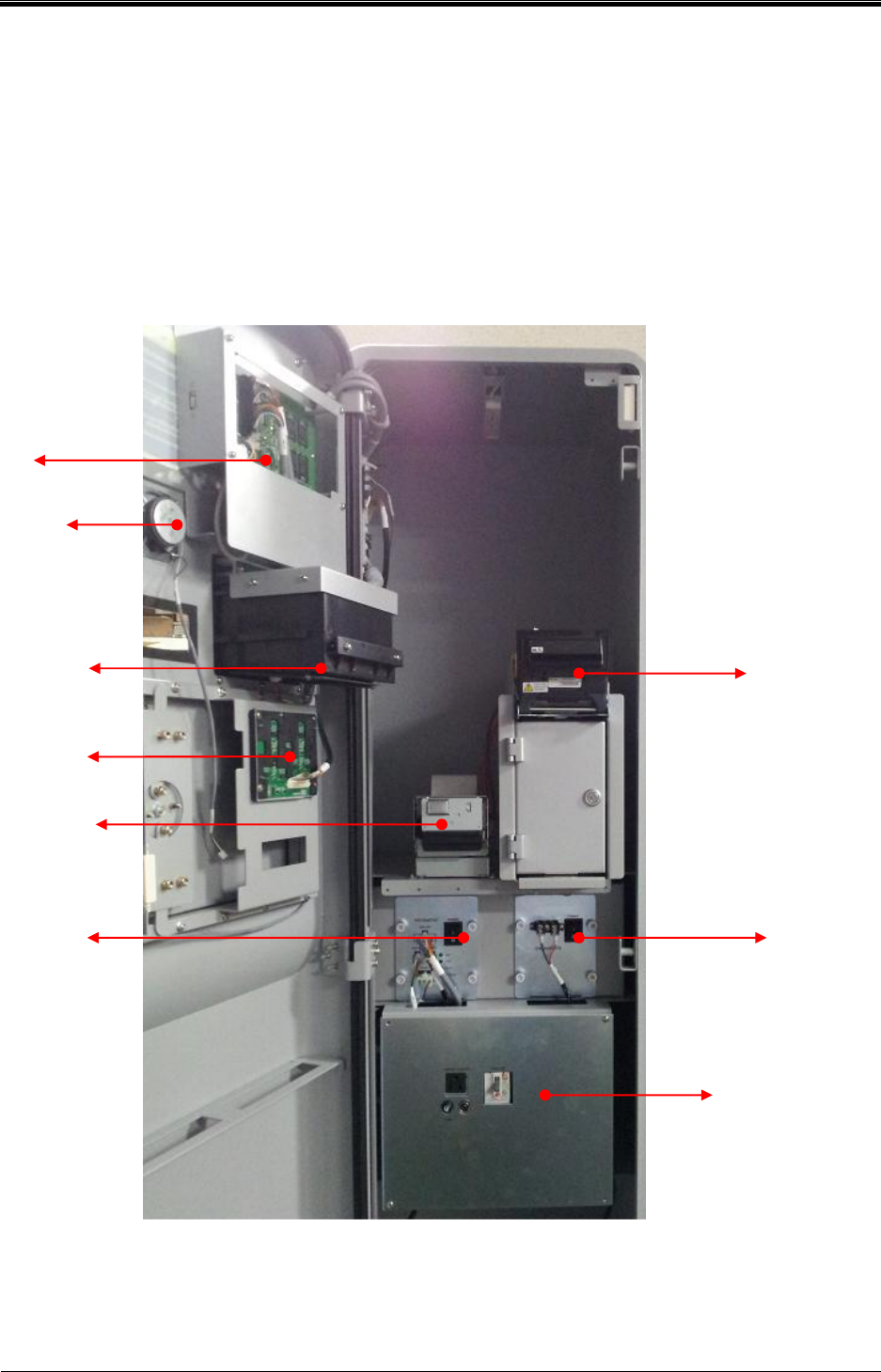

1.2.3 Internal Structure
Bill Module
Batter
y
Power Panel
RF Antenna
Keypad
Printer
SMPS
CPU, SUB,
LCD Board
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４
of All
1.2.4 Main Module Structure II
1) Printer Module
Print daily closing , accounting statement.
2) RFID Antenna
13.56MHz RF Card
ISO 14443 Type A

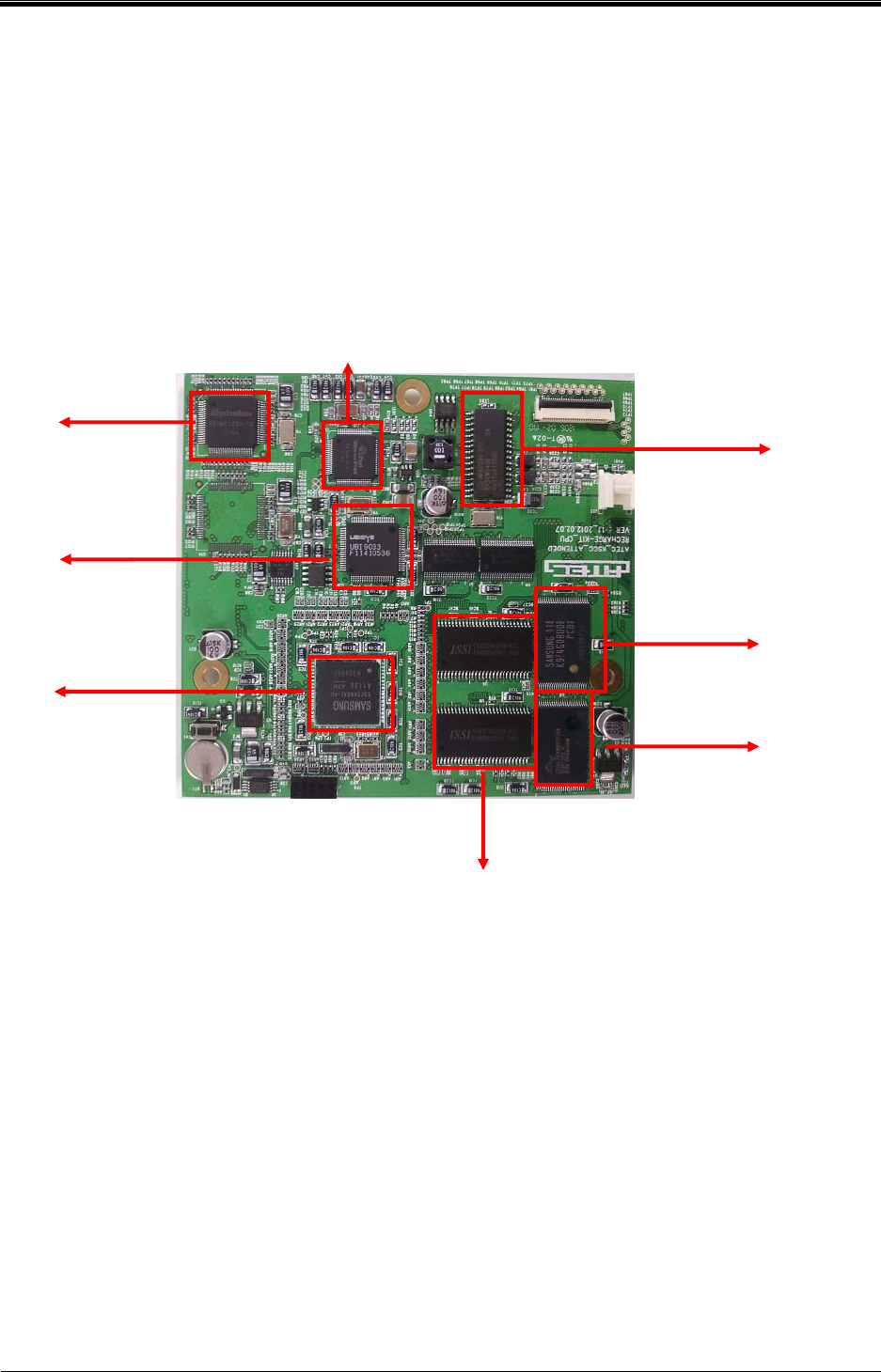

3) CPU Board
Control all attached equipment of Automatic Recharger and transfer data to main server.
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF Module
- RC531( Type A)

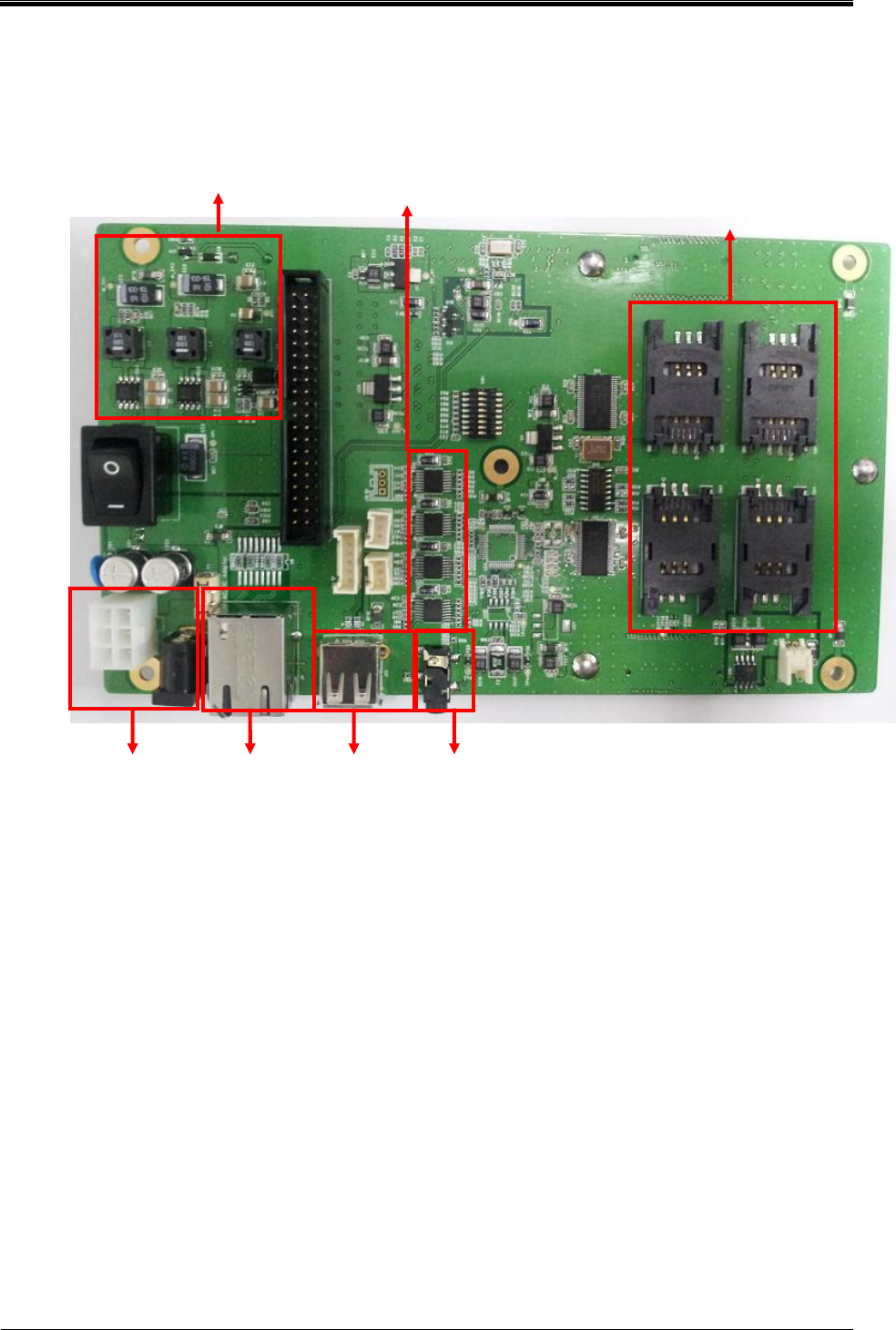

4) Sub Main Board
Control I/O communicating CPU Board.
Exterior PORT
- Ethernet : 1
- USB : 1
- RS -232 : 5
SAM
- Socket 4EA(SIM Type)
Sound
- SW Codec controal
- Speaker : 5W * 1
5) I/O Board
Control I/O communicating CPU Board and Sub Main Board.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５
of All
6) Bill Module
: Recognize 6 varieties of Colombian Bill.
7) SMPS
: AC 110V, DC24V, DC12V
8) Battery
: Operate for 2 minute by using SMPS sub power.
9) Power Panel
: Input AC120V, output AC120V
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
６
of All
2. Error Handling

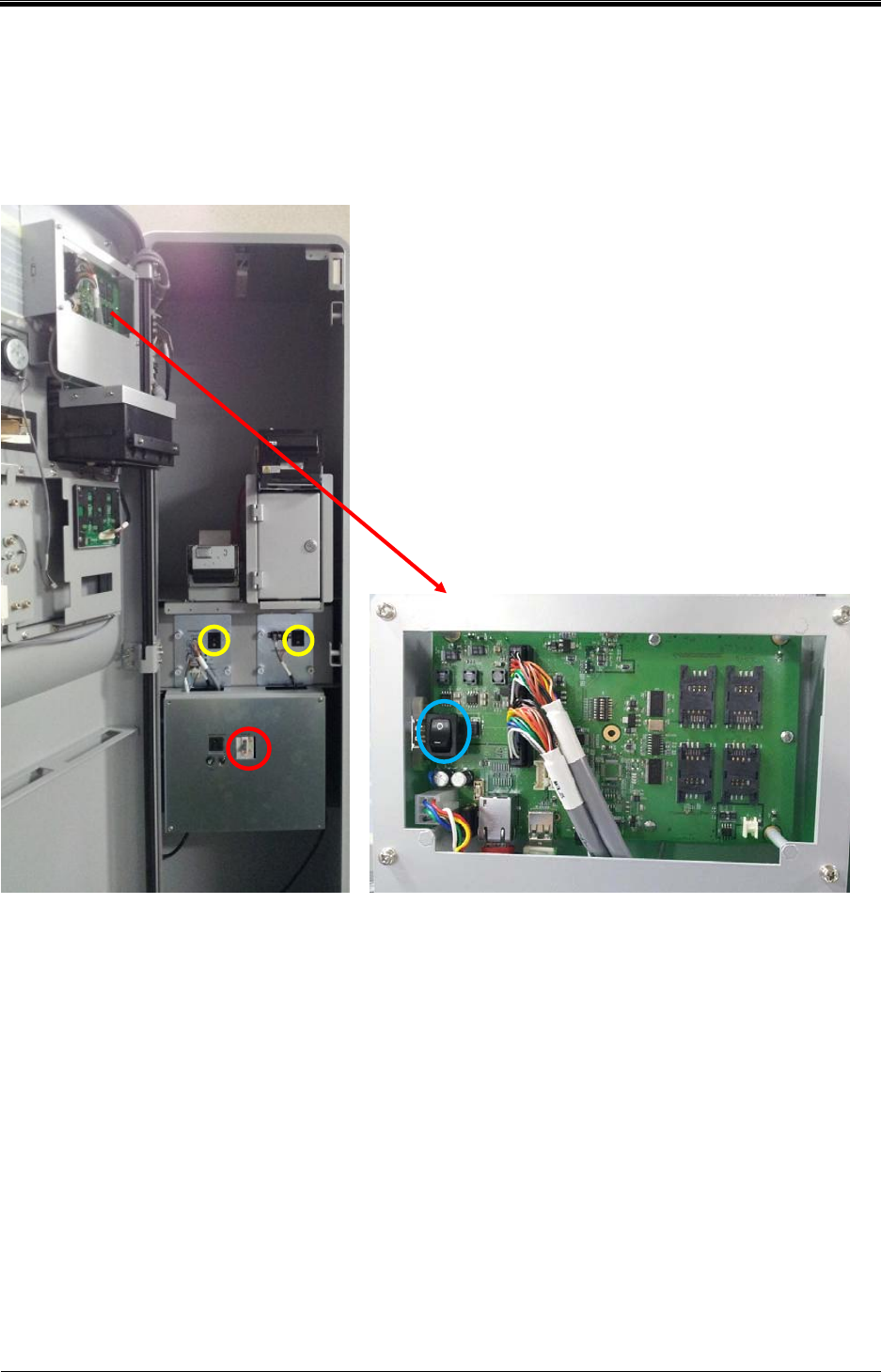

2.1.1 Supply of the power (1/3)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
７
of All

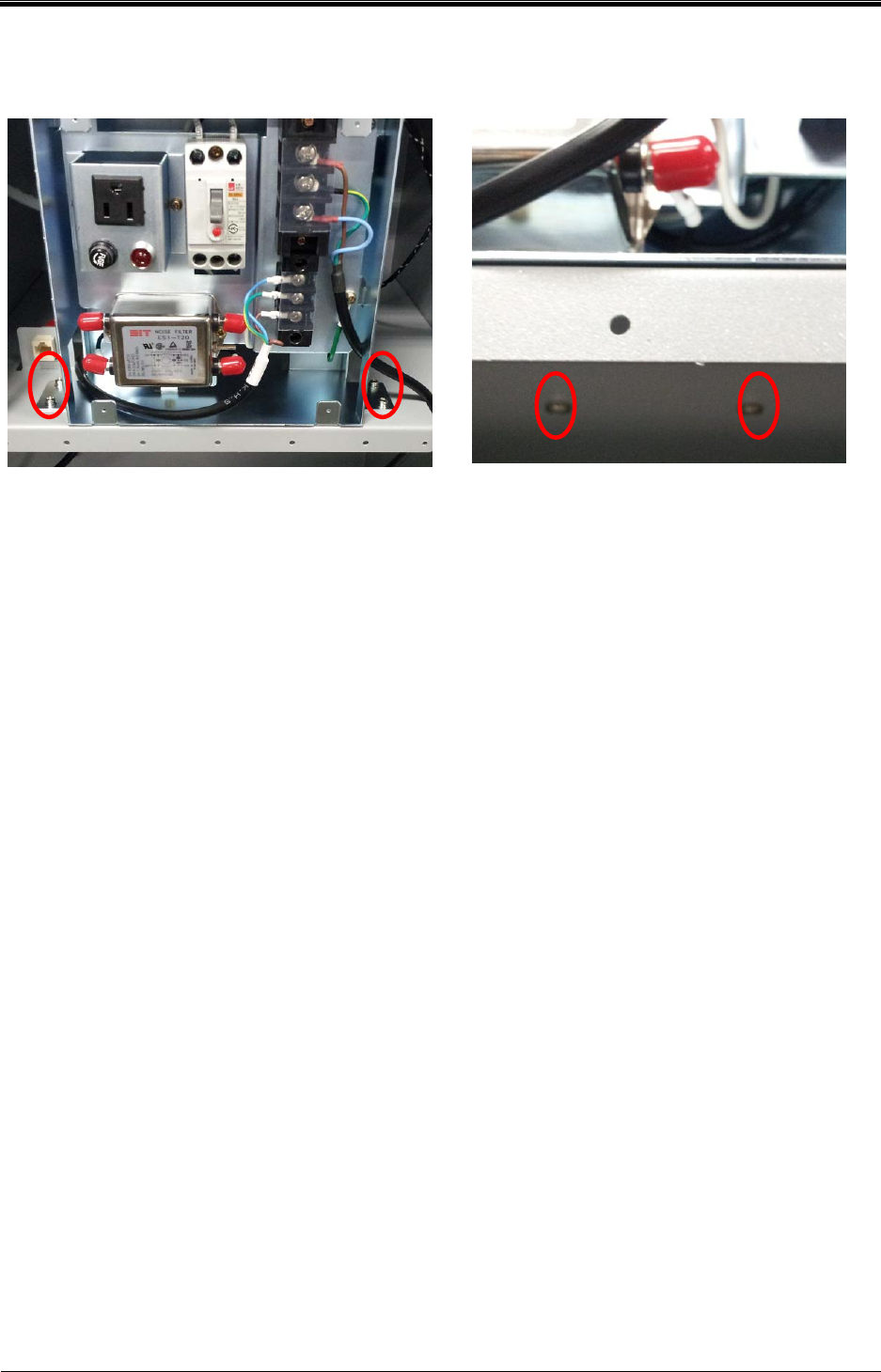

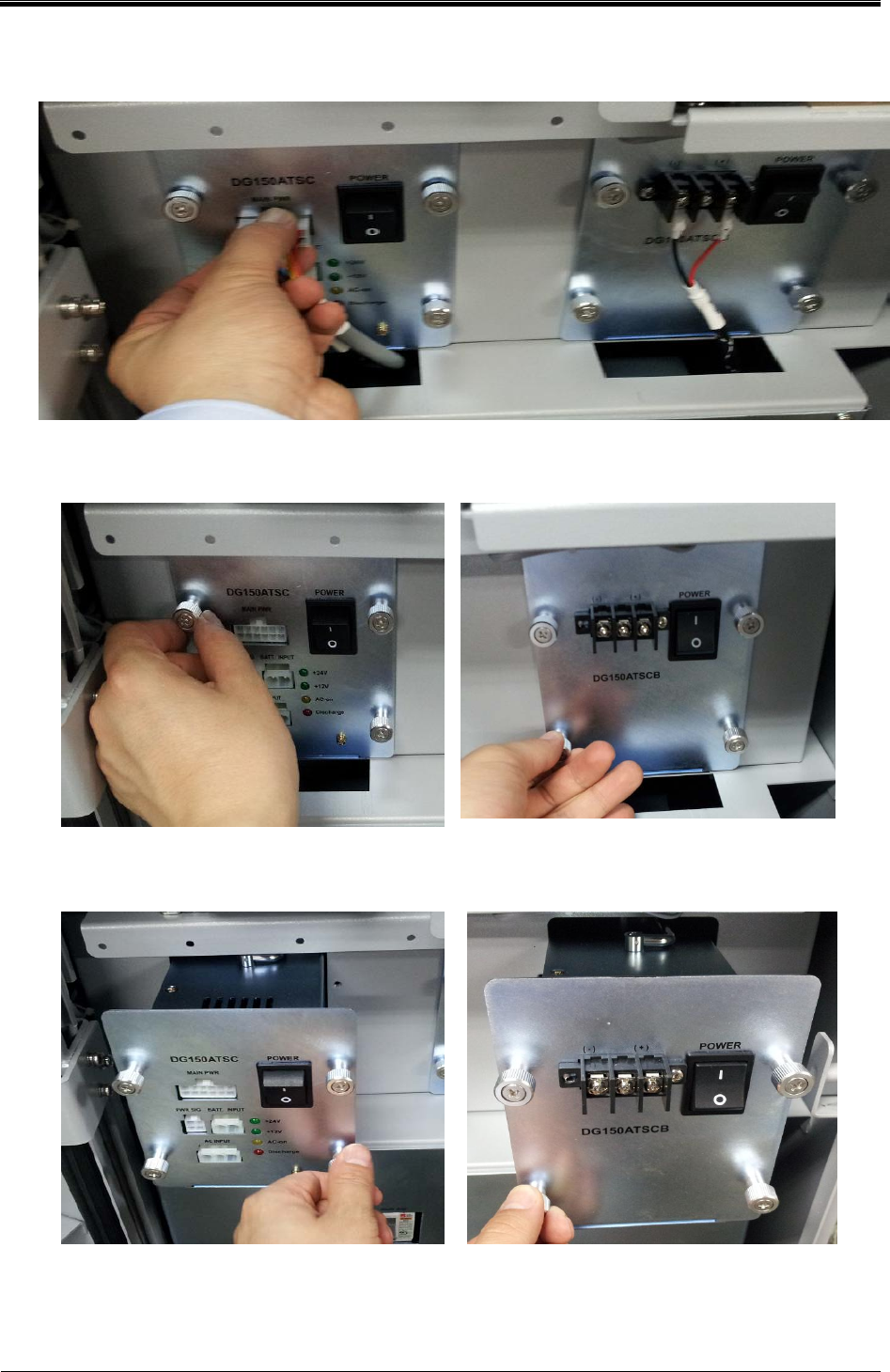

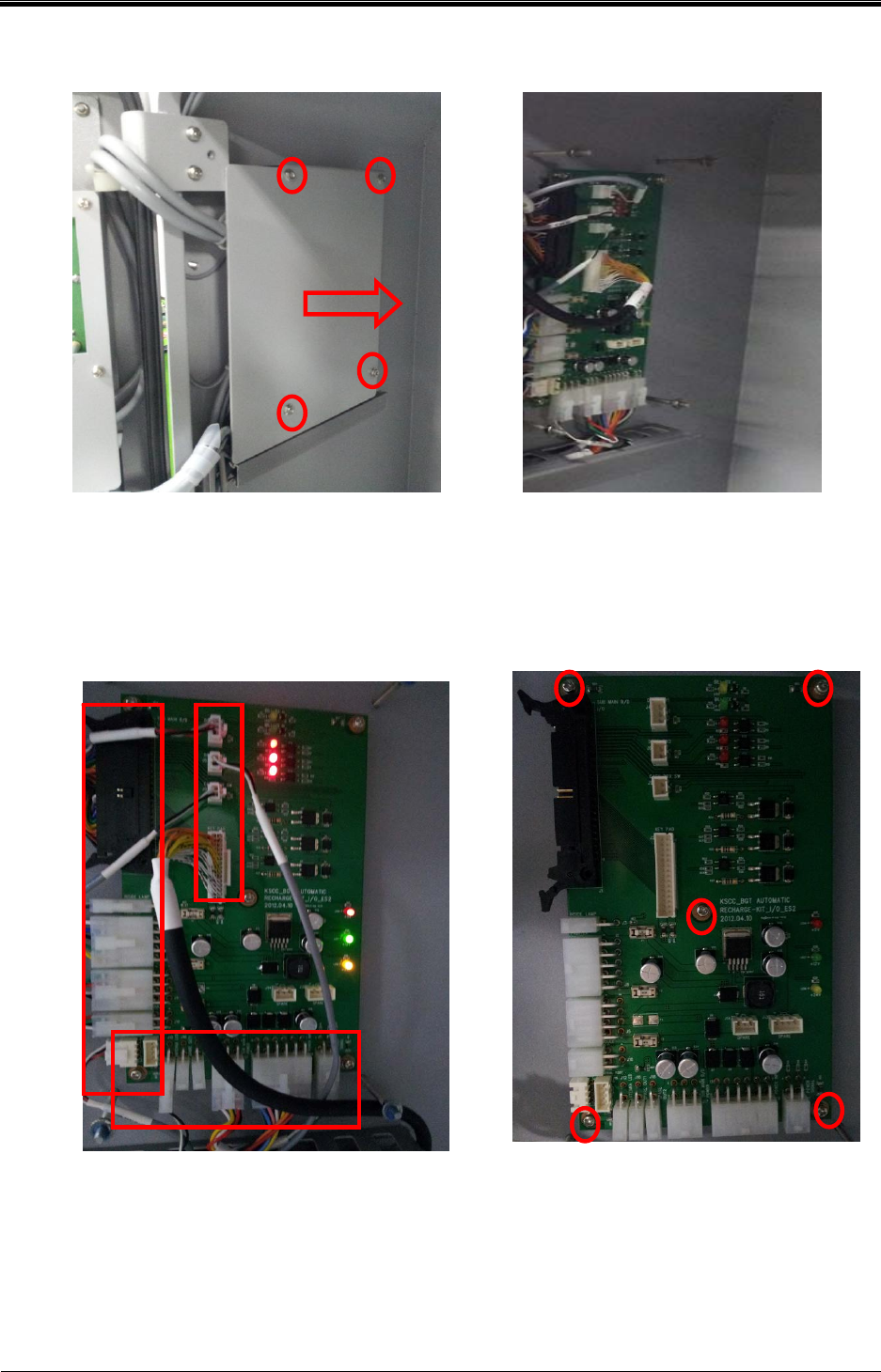

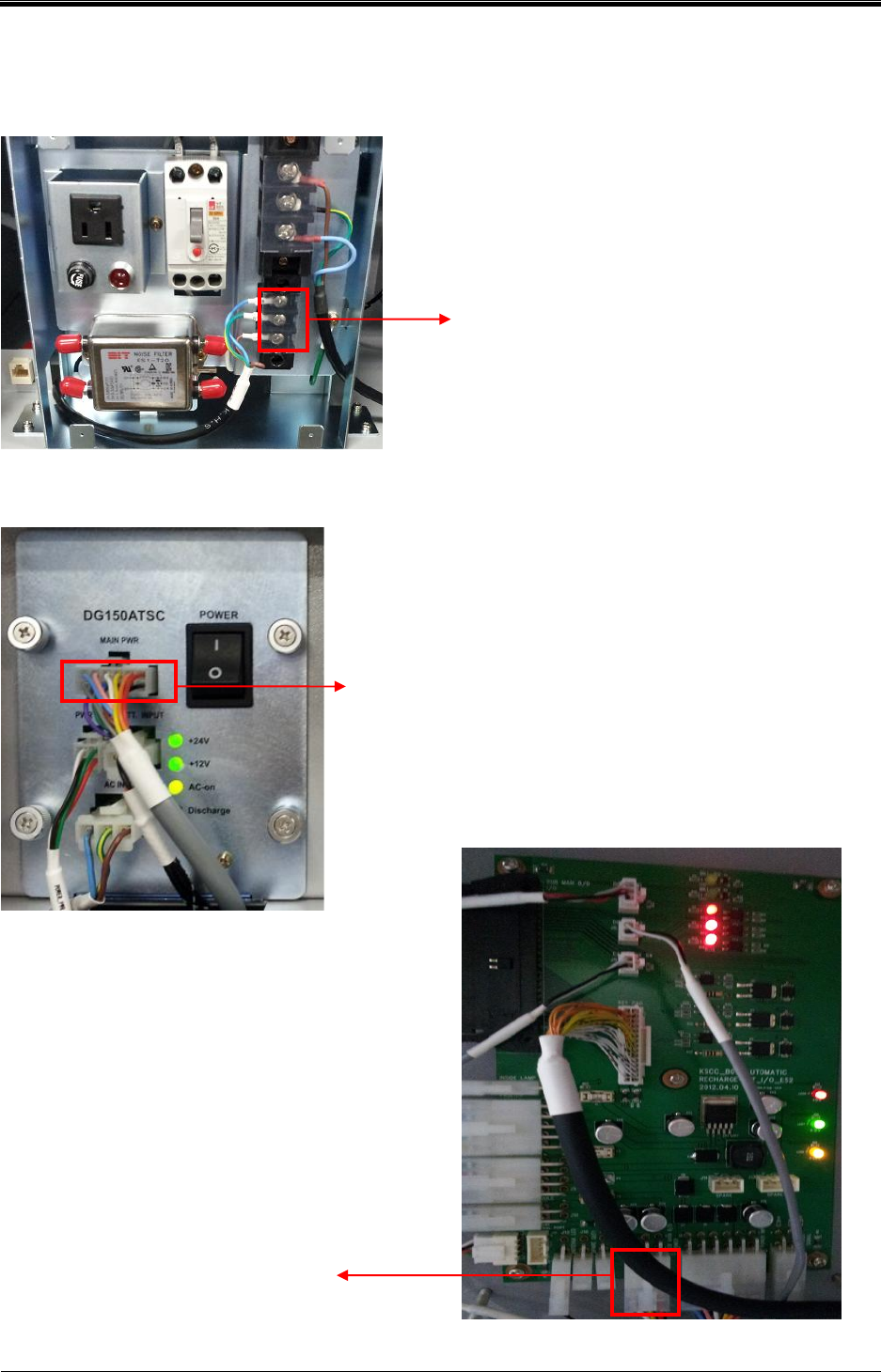

2.1.2 Power Supply (2/3)
<Power Panel>
<SMPS>
<Connecter Board>
Output Voltage
AC 110V
Check
Output Voltage
DC12V Check
Output Voltage
DC12V Check
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
８
of All

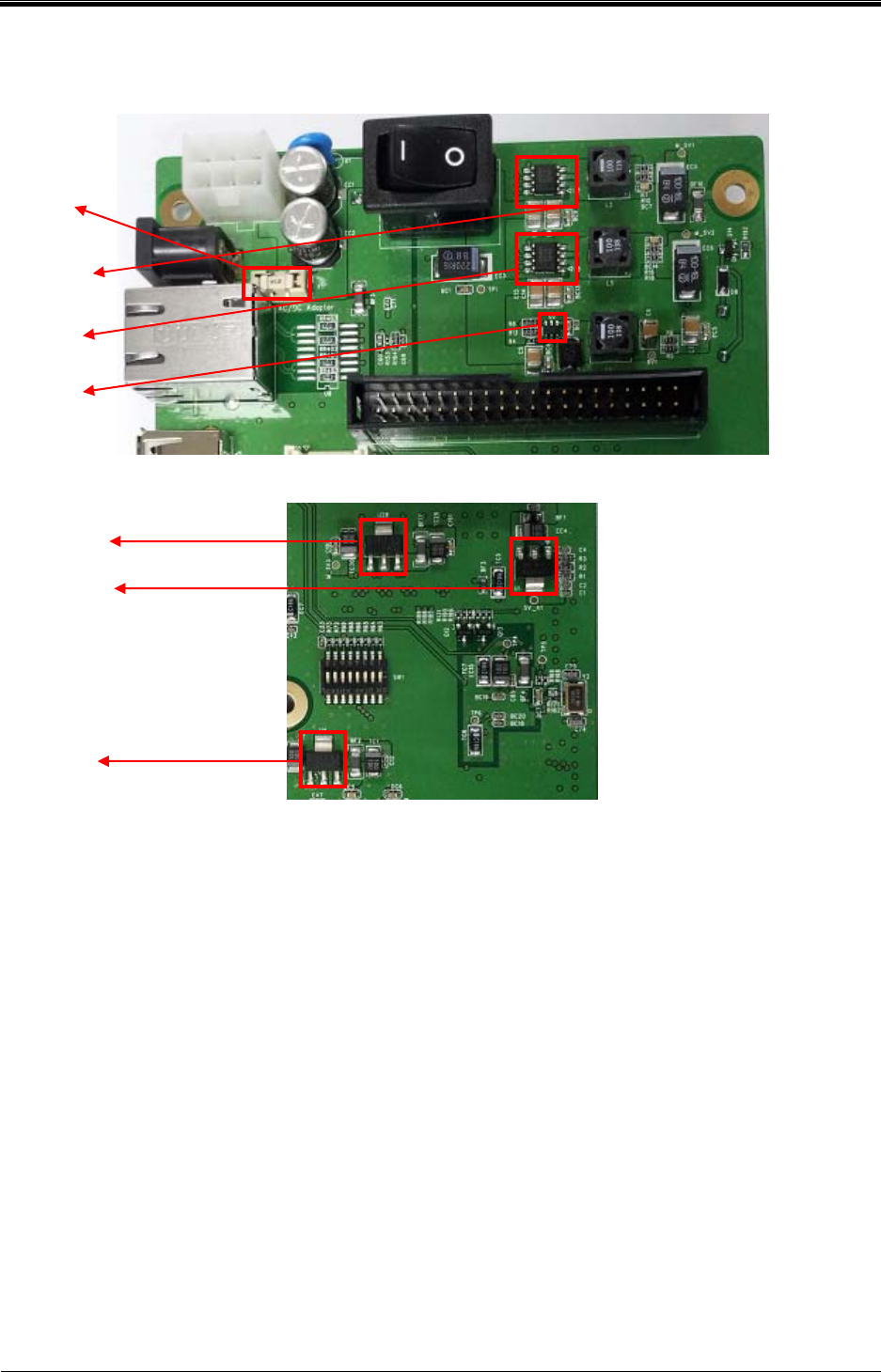

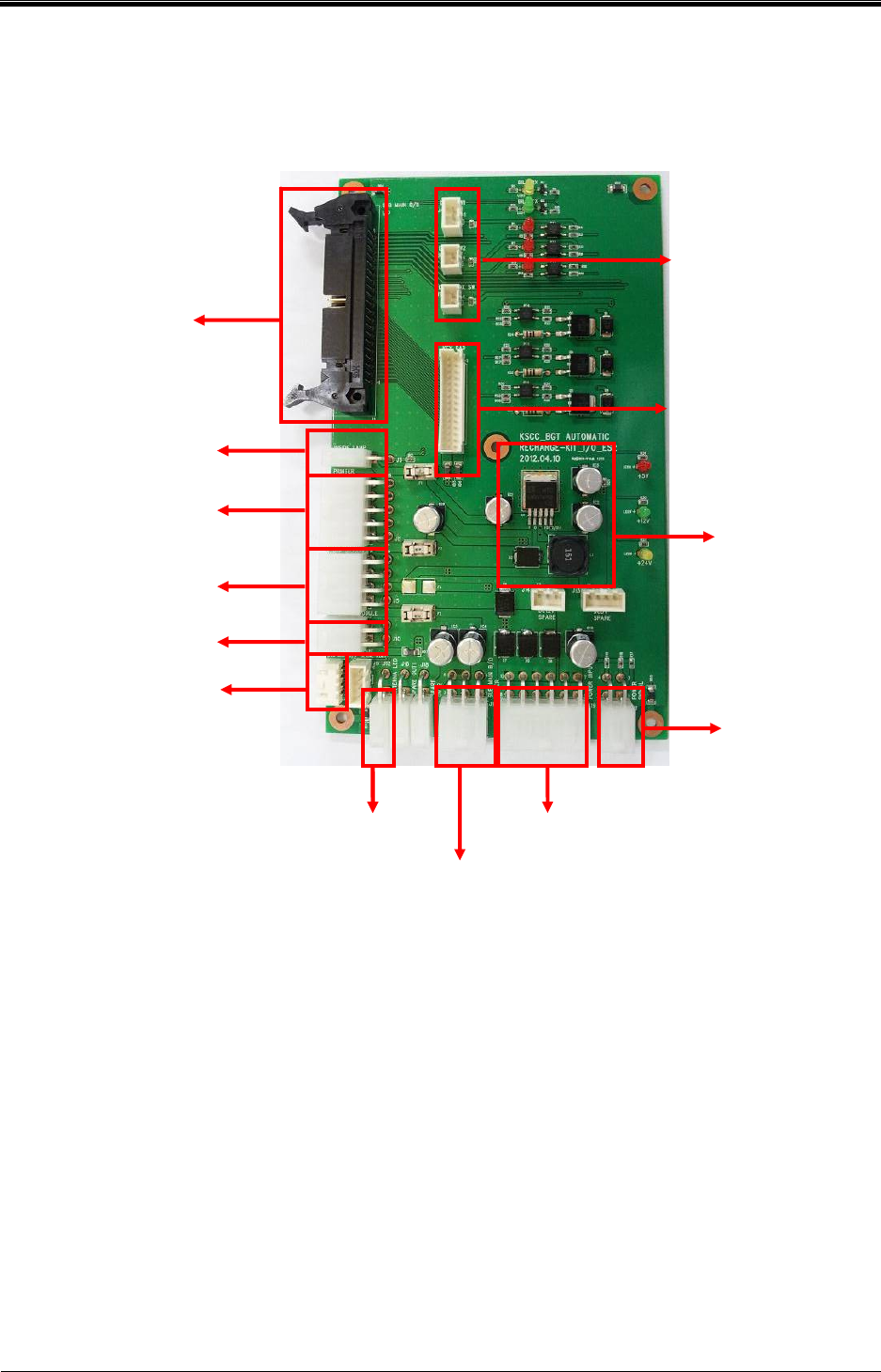

2.1.3 Power Supply (3/3)
Fuse
(
F1
)
Check
U3 Out
p
ut 5V Check
U5 Out
p
ut 5V Check
U2 Out
p
ut 8V Check
U28 Output 3.3V
Check
U1 Out
p
ut 5V Check
U4 Out
p
ut 3.3V Check
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
９
of All
2.1.4 USB Trouble (1/2)
Cannot update USB
- Replace USB Memory stick
Check USB Memory
from PC
FAIL
Check USB file system
(
FAT32 is not
FAIL
PASS
- Format USB by FAT file system
PASS
Check CPU board USB
host controller IC(U12)
FAIL
- Replace CPU PCB
PASS
Check USB power
PASS
- Replace SUB Main PCB
FAIL
No trouble
PASS
Check USB Cable - Replace USB Cable
FAIL
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１０
of All

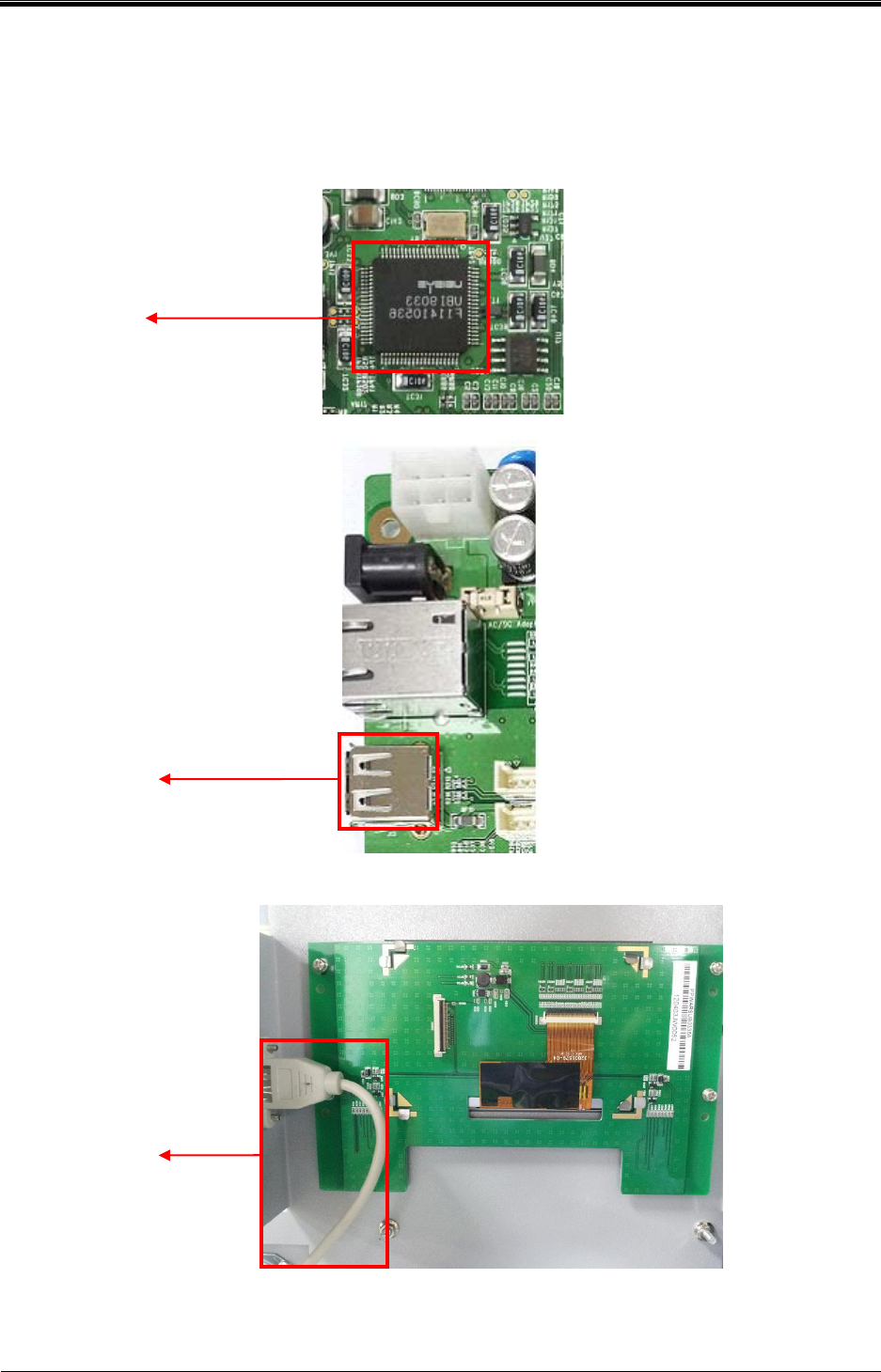

2.1.5 USB Trouble (2/2)
Check of U21 USB
Controller
Check USB Power
Pin No. 1 5V
Check USB Cable
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１１
of All

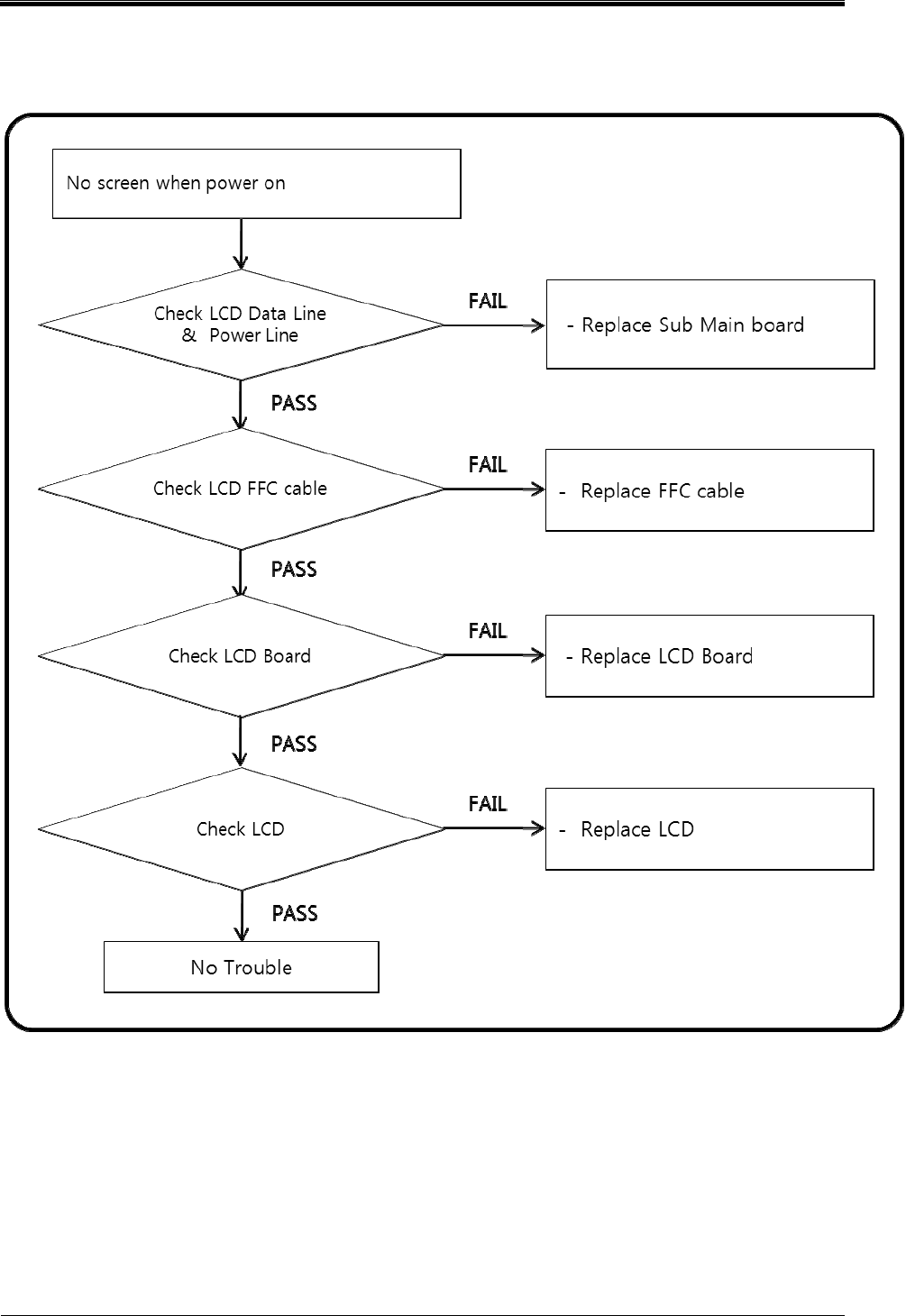

2.1.6 LCD Screen Trouble (1/2)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１２
of All

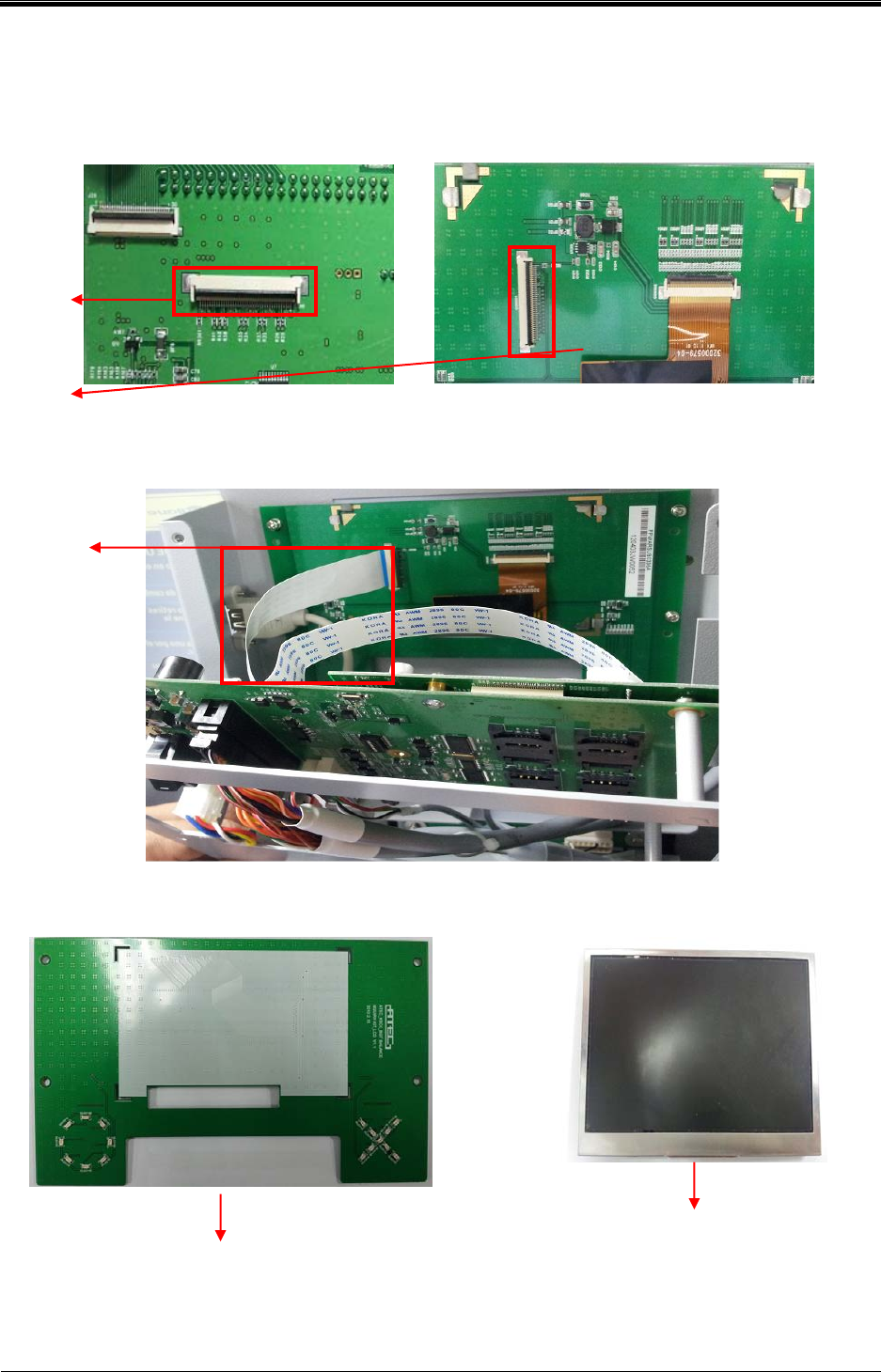

2.1.7 LCD Screen Trouble (2/2)
Check LCD Data &
Power Line (Sub Main)
Check LCD Data &
Power Line (LCD B/D)
Check LCD FFC Cable
Check LCD
Check LCD Board
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１３
of All

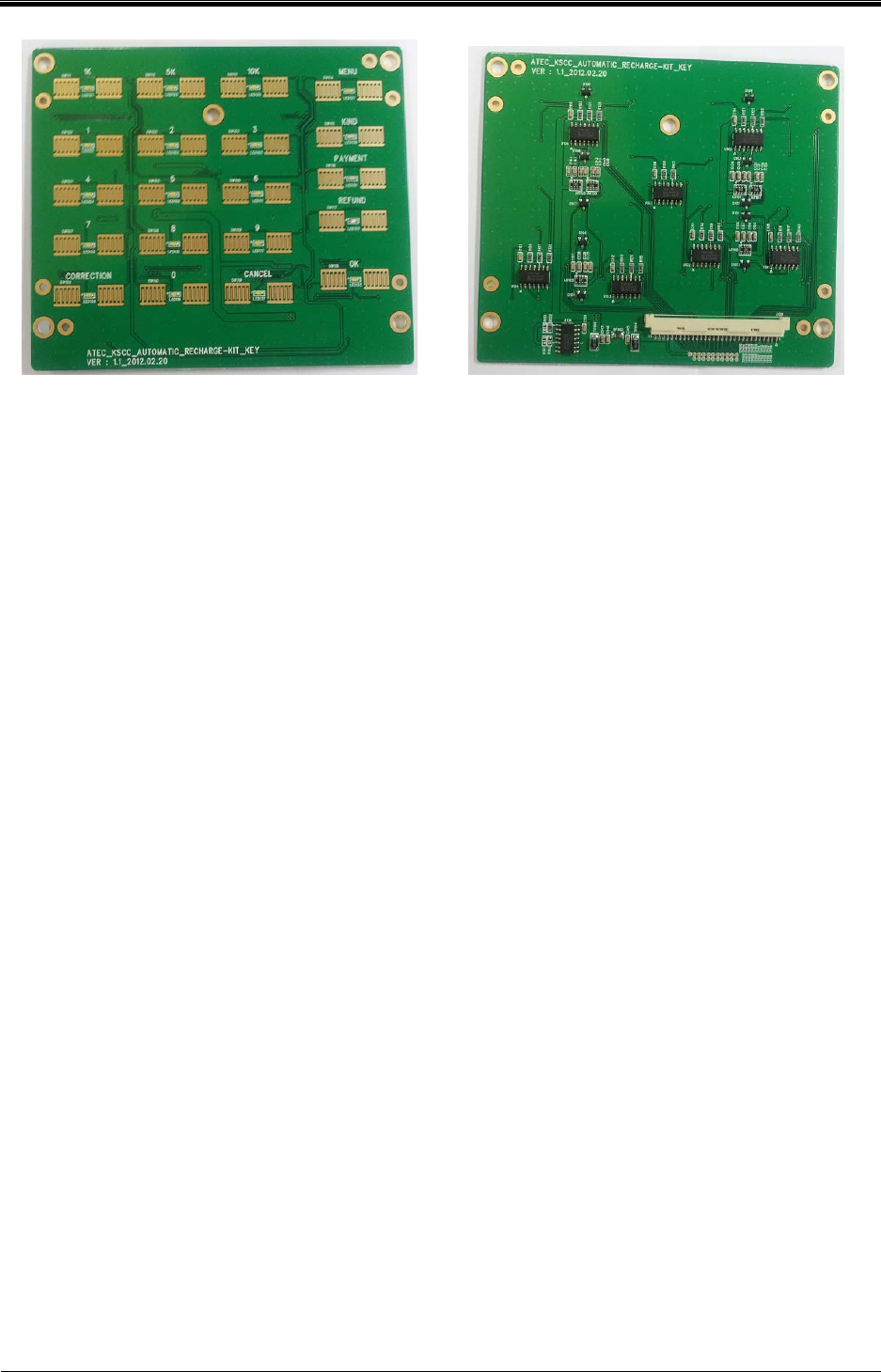

2.1.8 Keypad Trouble (1/2)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１４
of All

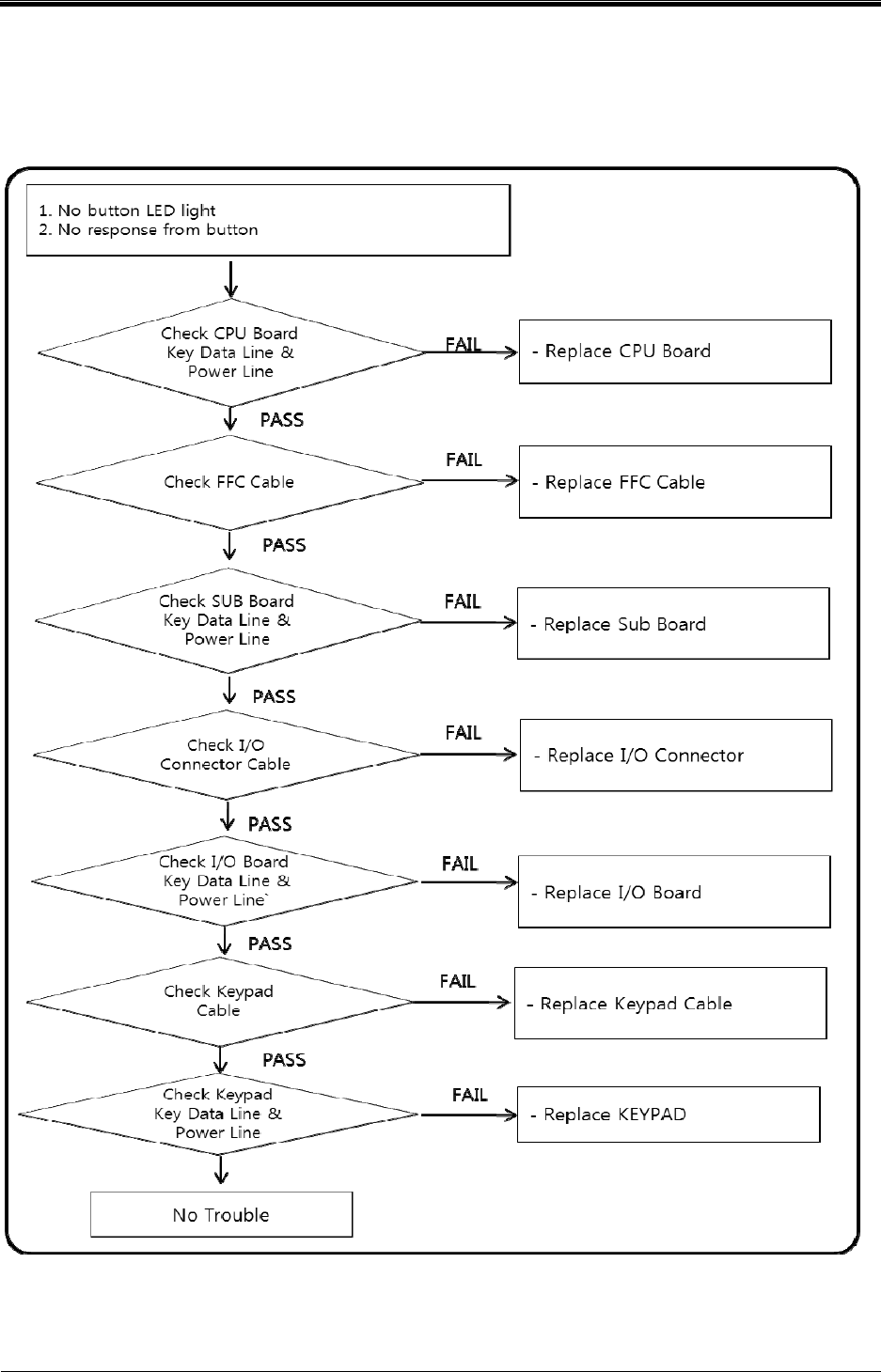

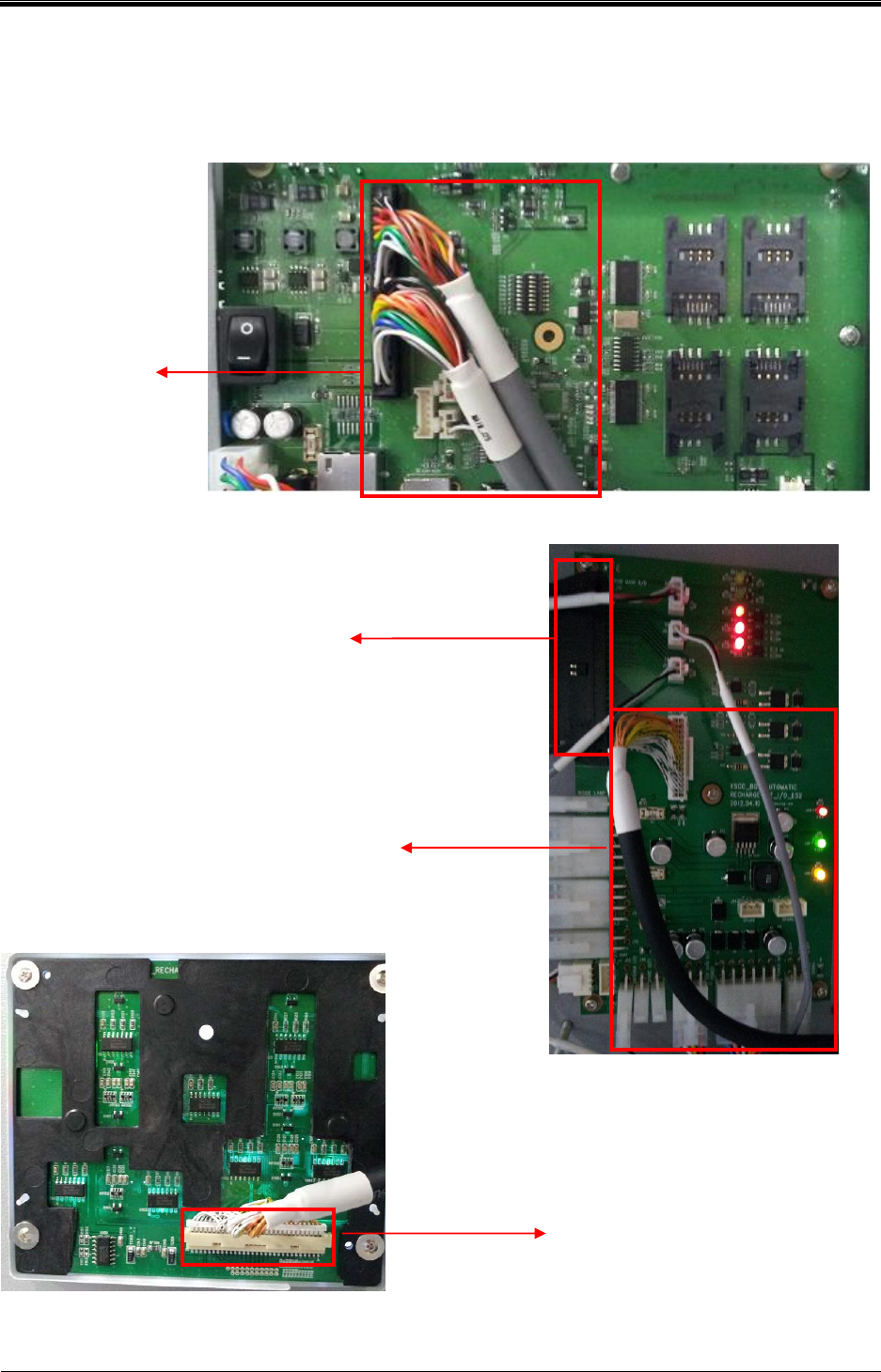

2.1.9 Keypad Trouble (2/3)
Check CPU Board
Key Data Line
& Power Line
Check FFC
Cable
Check SUB Board Key
Data Line & Power
Line
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１５
of All
2.1.10 Keypad Trouble (3/3)
Check I/O
Connector Cable
Check I/O Board
Key Data Line &
Power Line
Check Keypad
Cable
Check Keypad
Key Data Line &
Power Line
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１６
of All
2.1.11 RTC Trouble (1/2)
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１７
of All

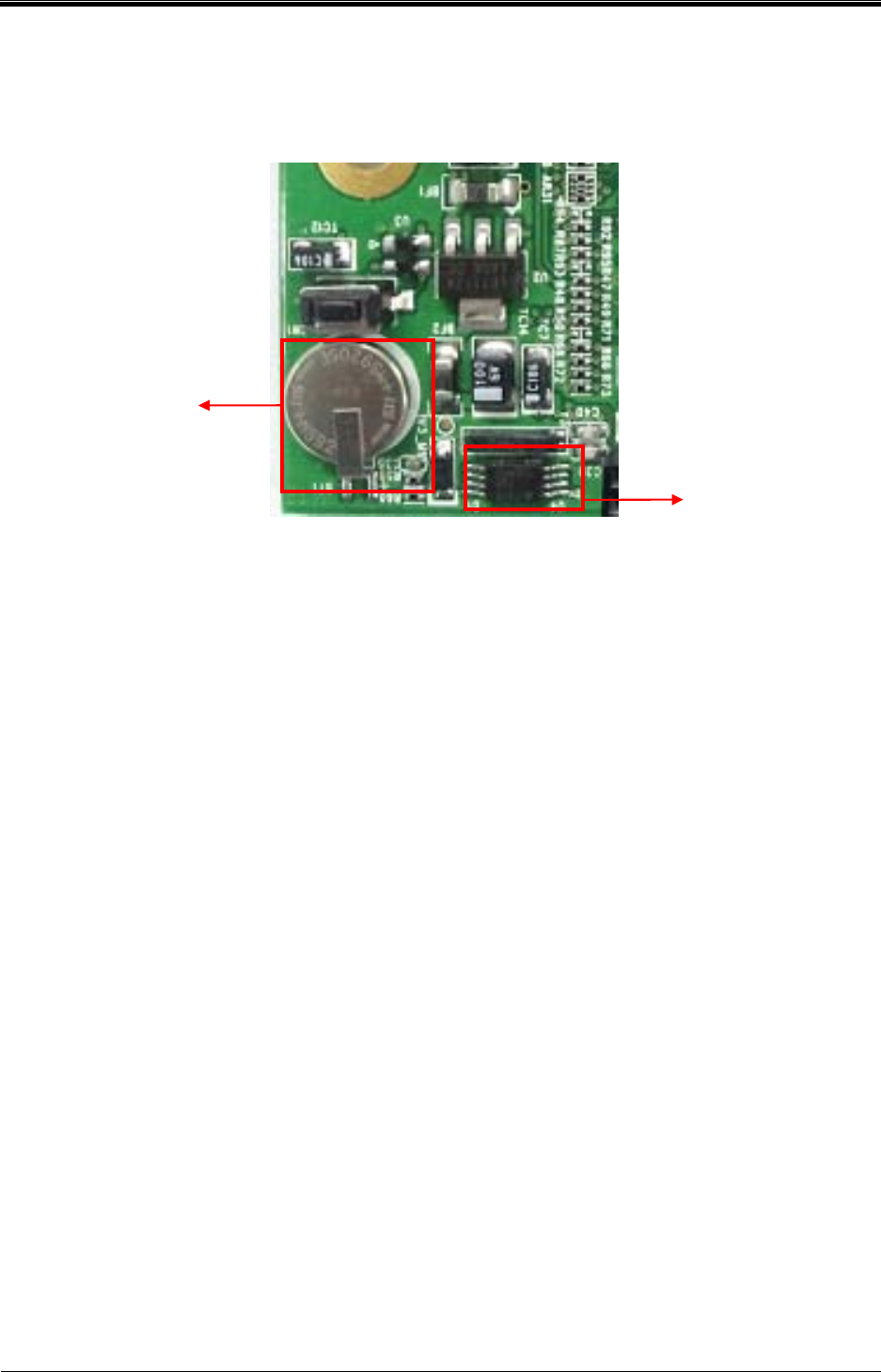

2.1.12 RTC Trouble (2/2)
Check RTC Battery
Check RTC IC
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１８
of All

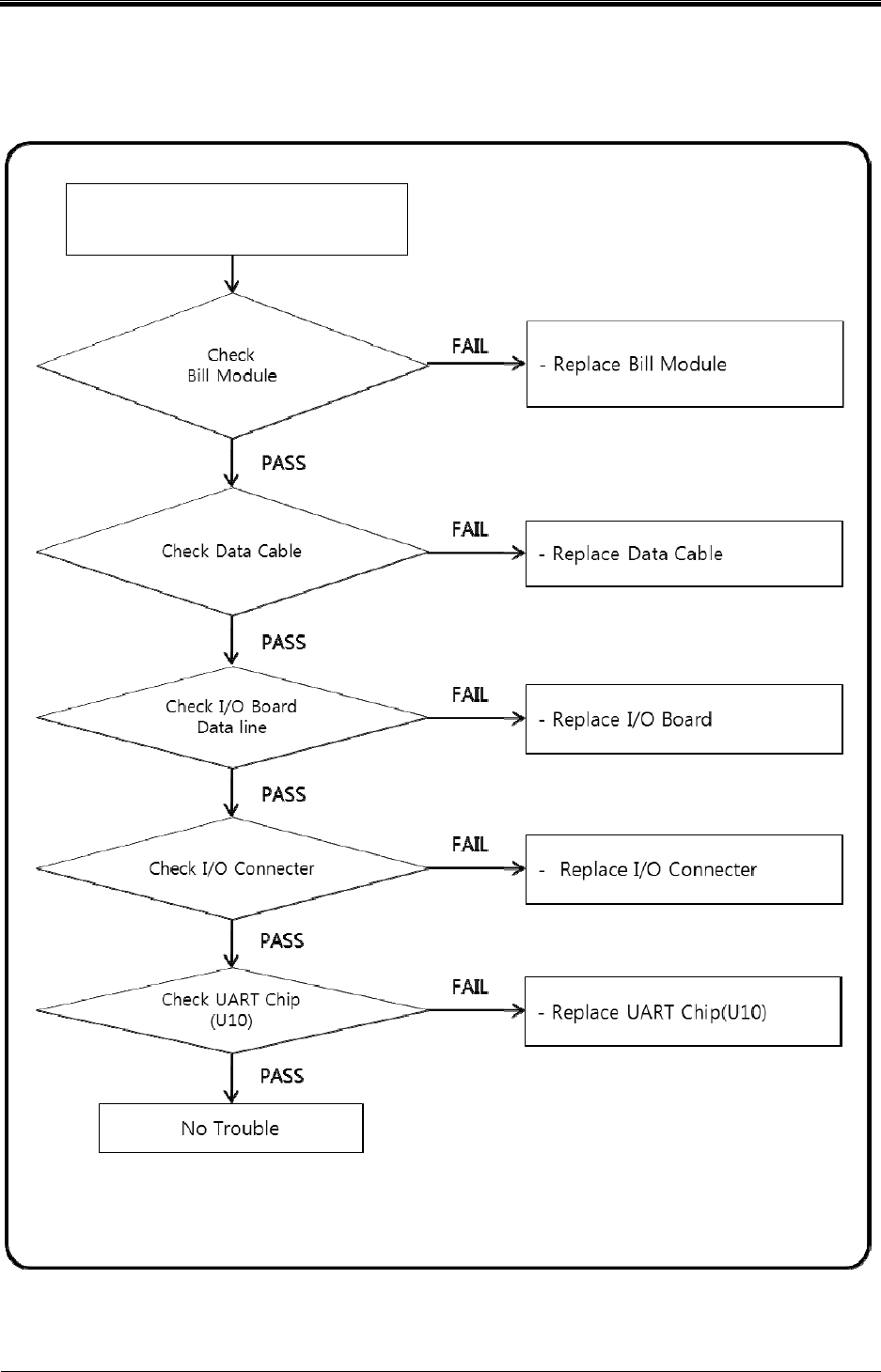

2.1.13 Bill Module Trouble (1/3)
Bill Module Trouble
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
１９
of All

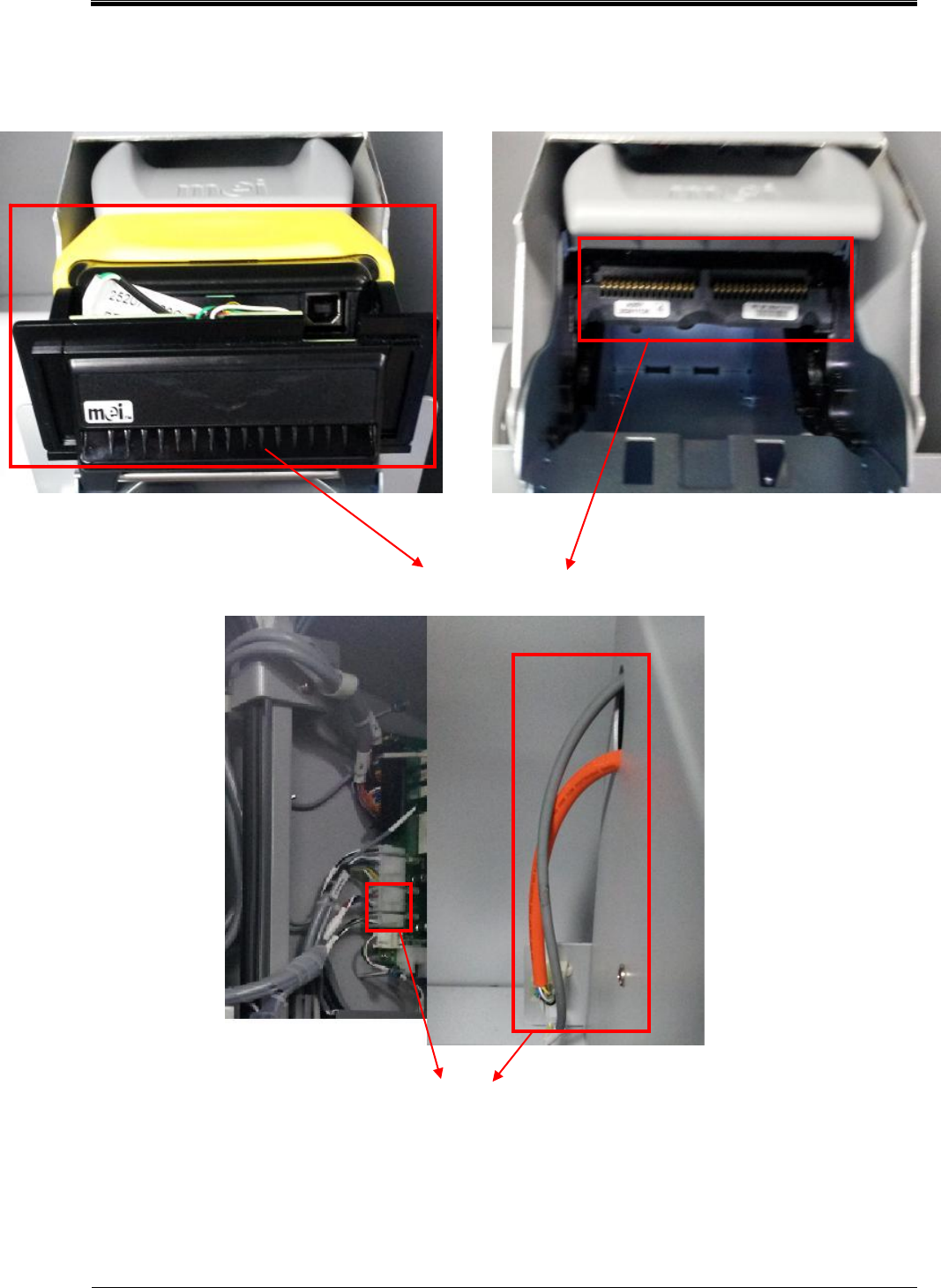

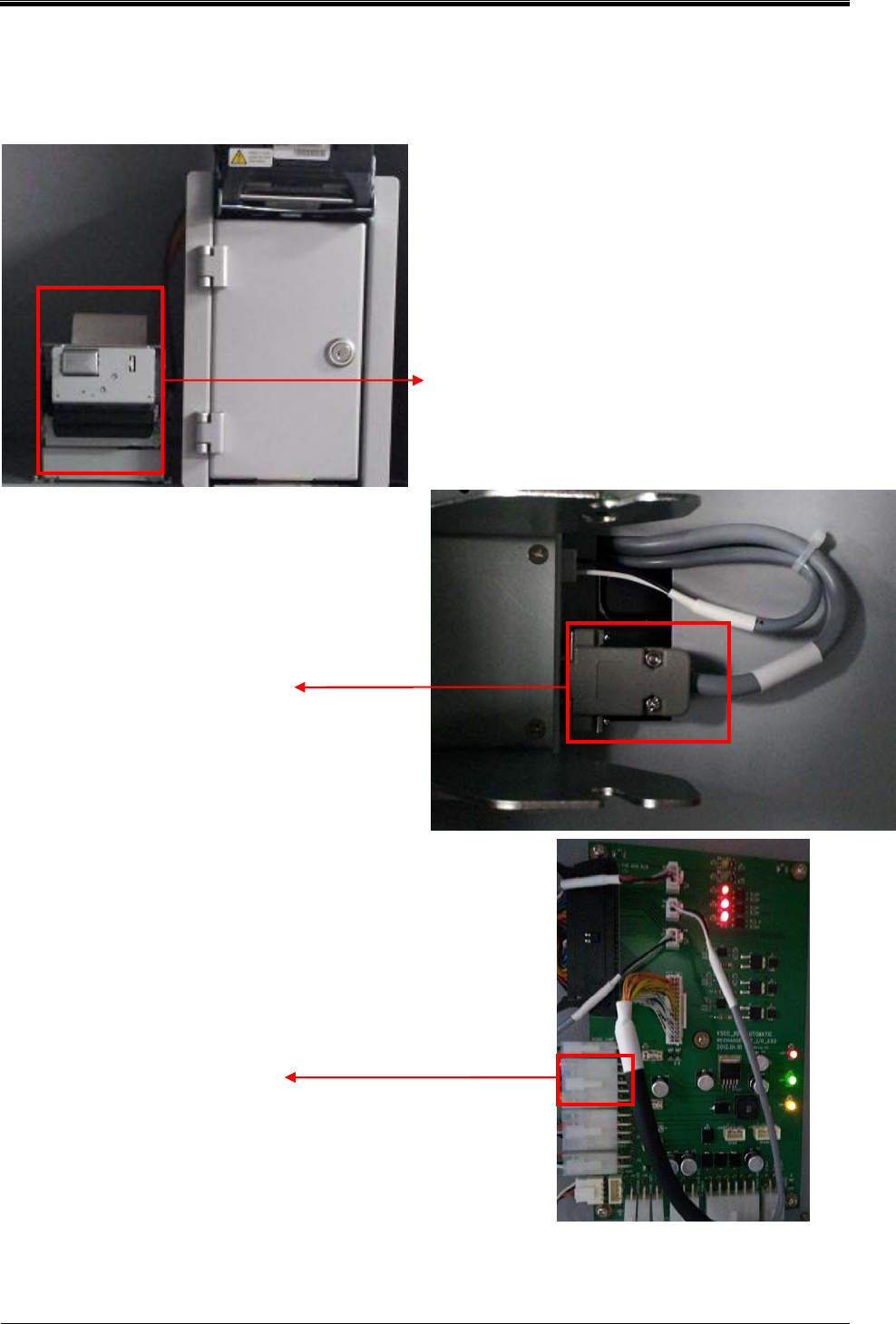

2.1.14 Bill Module Trouble (2/3)
Check Bill Module
Check Data Cable
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２０
of All

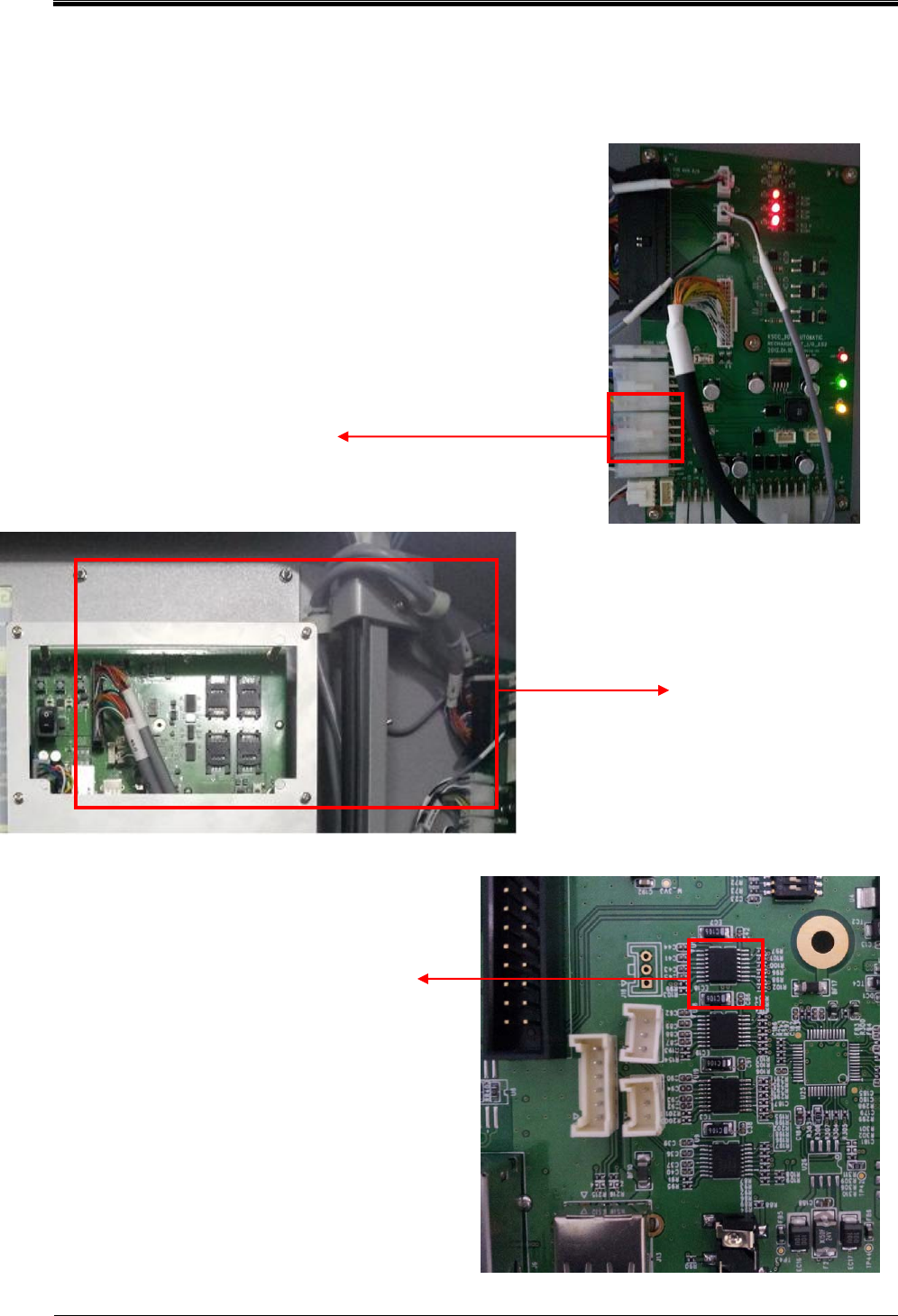

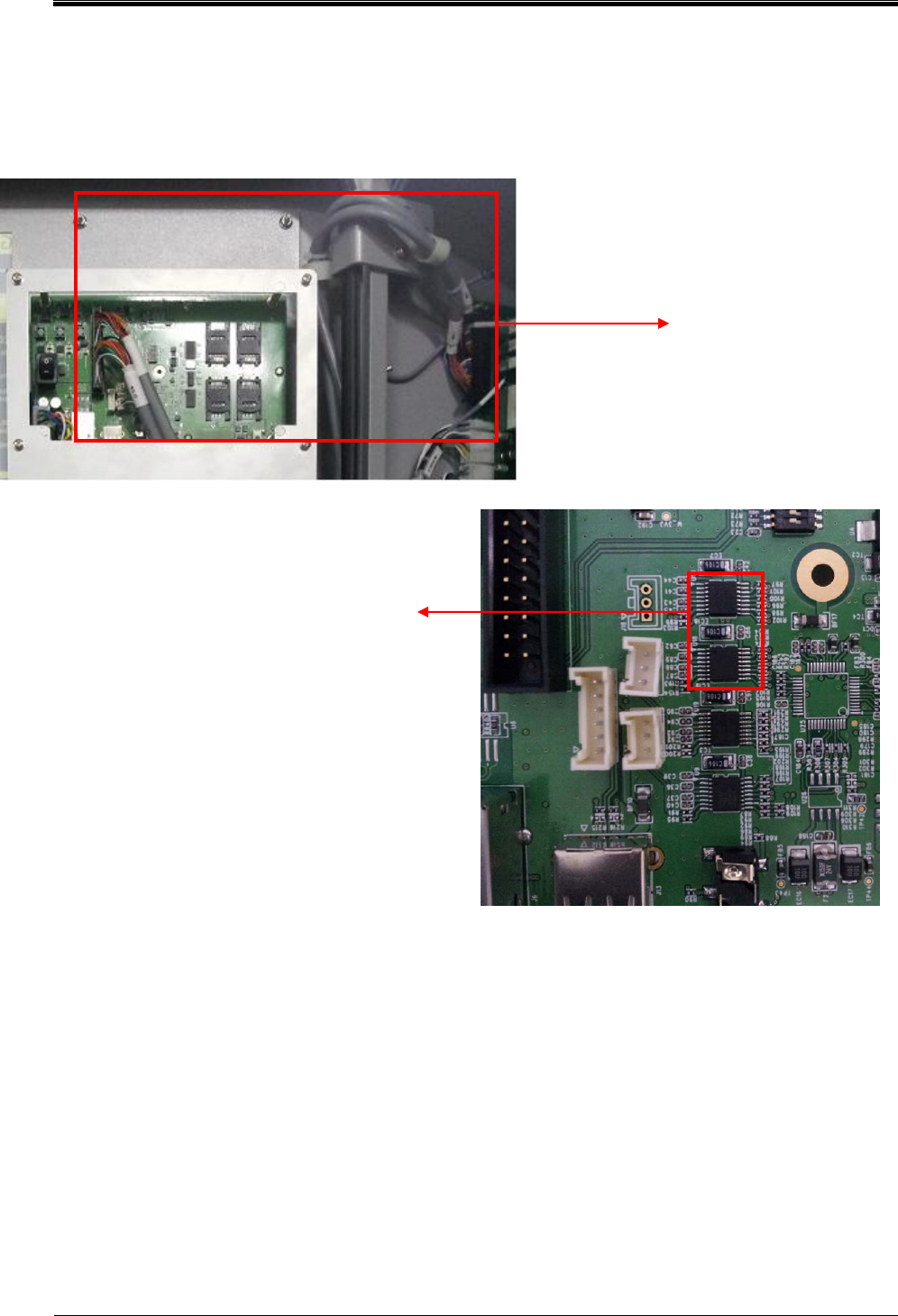

2.1.15 Bill Module Trouble (3/3)
Check UART Chip
(U10)
Check I/O Connecter
Check I/O Board
Data line
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２１
of All

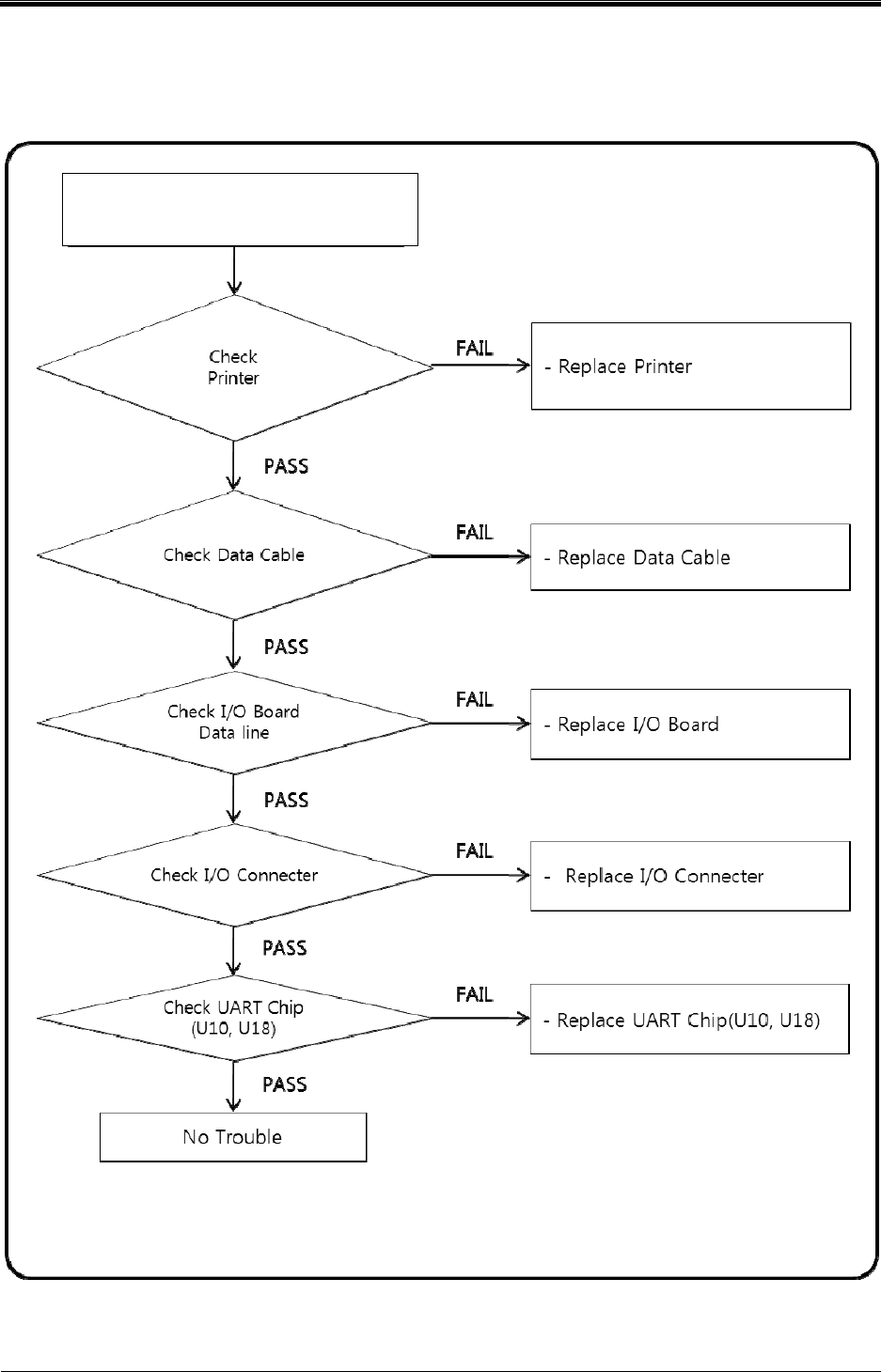

2.1.16 Printer Trouble (1/2)
Printer Trouble
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２２
of All
2.1.17 Printer Trouble (2/3)
Check I/O Board
Data line
Check Data Cable
Check Printer
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２３
of All
2.1.18 Printer Trouble (3/3)
Check UART Chip
(U10, U18)
Check I/O Connecter
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２４
of All
3. Device Maintenance
3.1 Automatic Recharger
3.1.1 Outline
3.1.2 Structure
Bill Module
Batter
y
Power Panel
Antenna
Keypad
Printer
SMPS
CPU, SUB,
LCD Board
Speaker
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２５
of All
3.1.3 Specification

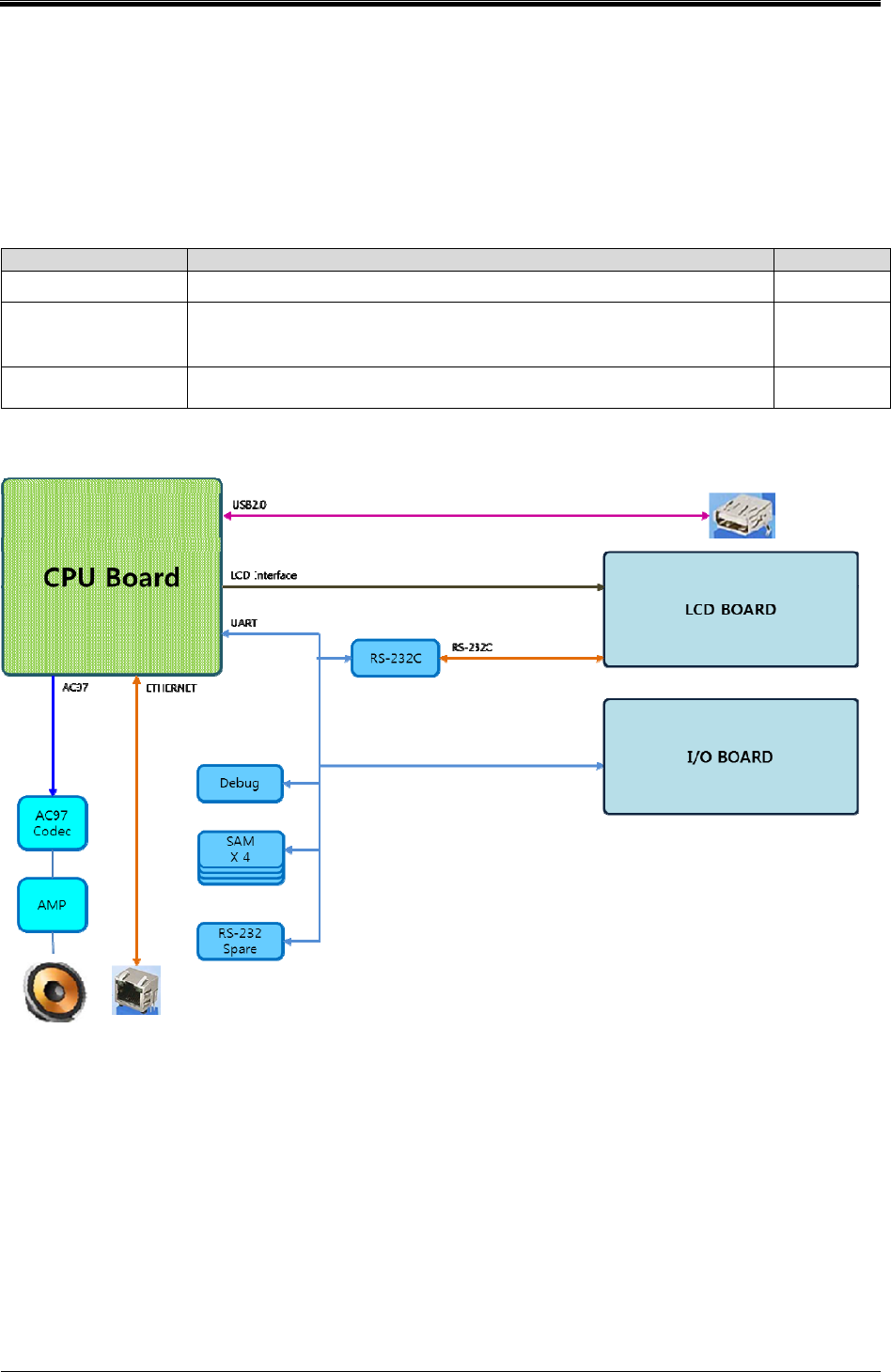

1) CPU Specification
CPU Board is the core board and plays main program also control the
communication of module.
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF Module
- RC531 (Type A)
EXT_UART
- SB16C554A
USB Controller
- UBI9033
EXT
_
UART
USB
Controller IC
S3C2440
RC531
ETHERNET
NAND FLASH
NOR FLASH
SDRAM
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２６
of All
ETHERNET
- W5100 (WIZNET)
2) SUB Main Board Specification
Communicate with CPU Board and control various I/O device.
AC97 Codec
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２７
of All
Exterior PORT
- Ethernet : 1
- USB : 1
- RS -232 : 5
: Printer 1, Bill Module1, RFID Reader1, Debug 1, Spare Port 1
SAM
- Socket 4EA(SIM Type)
-
Sound
- SW Codec control
- Speaker : 5W * 1
Input Power
- DC12V Input from I/O Board
SIM Slot
RS-232
POWER PART
Power
Debug
USB
Ethernet
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２８
of All
3) I/O Board Specification
Communicate with CPU Board, Sub main board and control I/O device.
4) Antenna Board Specification
Recognize card connecting CPU Board RC531.
5) Keypad Specification
I/O Connecte
r
KEYPAD
Co
nn
ec
t
er
Senor Connecte
r
Power Part
Inside Lamp Connecter
Printer Connecter
Bill Module Connecter
RFID Module Connecter
Spare RS-232 Connecter
Antenna LED Connecter
Sub Main Power Connecter
Main Power Connecter
Power Signal Connecter
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
２９
of All
Transfer entered Key value through I/O Board to CPU Board.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３０
of All
6) SMPS and Battery Specification
- SMPS : Supplied power from Power Panel and output DC 12/24V.
- Battery : 140W(Max) for 2minute.
7) Power Panel Specification
- Supply power from outside power.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３１
of All
3.1.4 Replacement Method

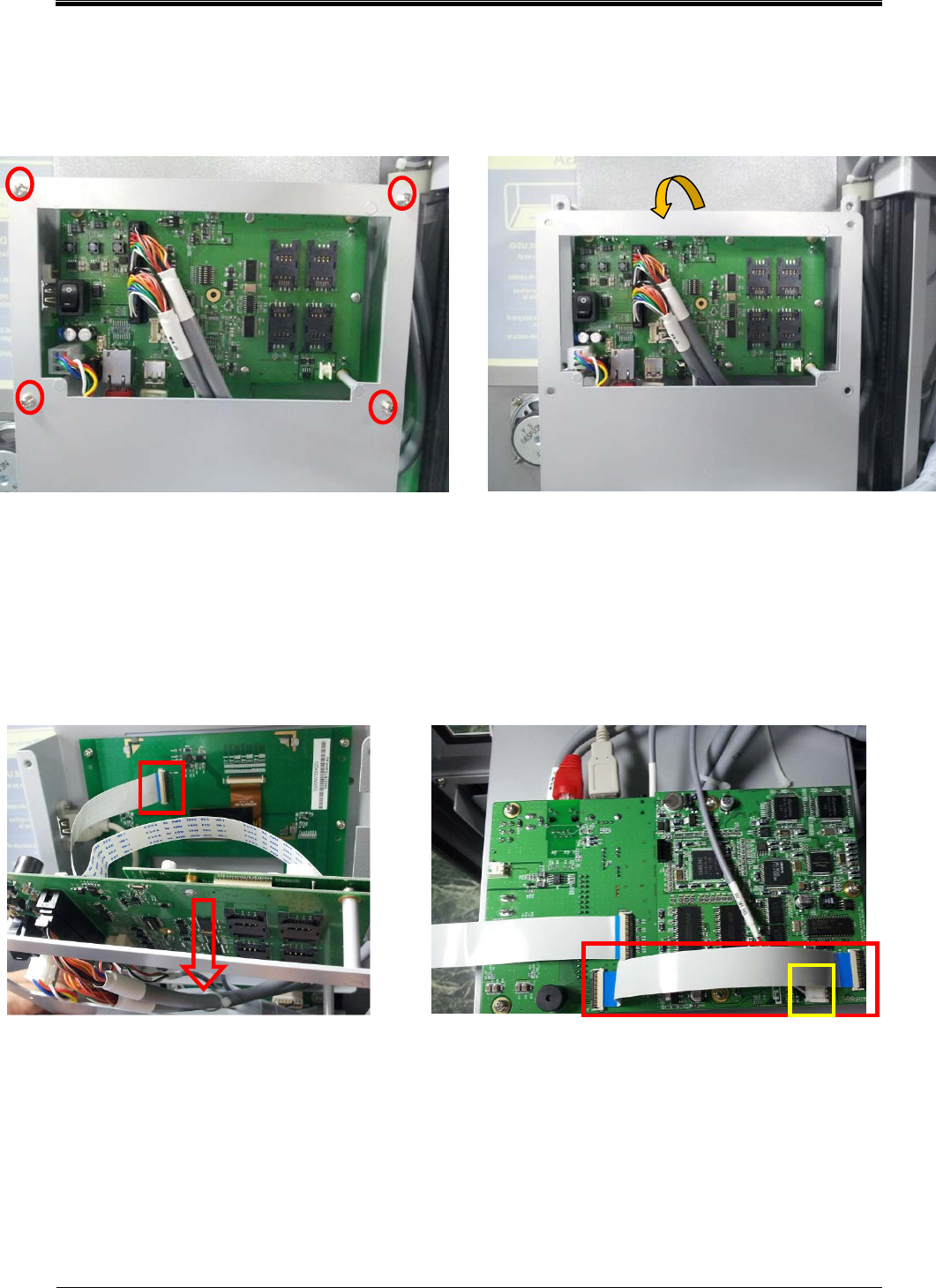

1) CPU Board Separation
① Unfasten the screw which is fixed to Sub Main Bracket and let down it.
② Remove 40Ping FFC cable which is connecting LCD Board and let it down in
direction of arrow.
③ Remove 30Pin FFC cable and Antenna Cable which is connecting Sub Main Board.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３２
of All
④ Unfasten fixed screw which is connecting Sub Main Board and separate Sub
Main Board.
2) Sub Main Board Separation
① Unfasten fixed screw which is connecting Sub Main Bracket and separate
Sub main Board.
② Separate Connector which is connecting Sub Main Board.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３３
of All
3) I/O Board Separation
① Unfasten fixed screw connecting I/O Cover and separate in direction of arrow.
② Remove connector connecting I/O Board.
③ Unfasten fixed screw which is connecting I/O Board and separate it.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３４
of All
4) KEYPAD Board Separation
① Remove Connector which is connecting.
② Separate fixed screw which is connecting KEYAPAD and separate KEYPAD.
-
5) PRINTER Separation
① Separate Connector which is connecting Printer.
② Unfasten fixed screw which is
Connected to exterior mechanism
and separate it.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３５
of All

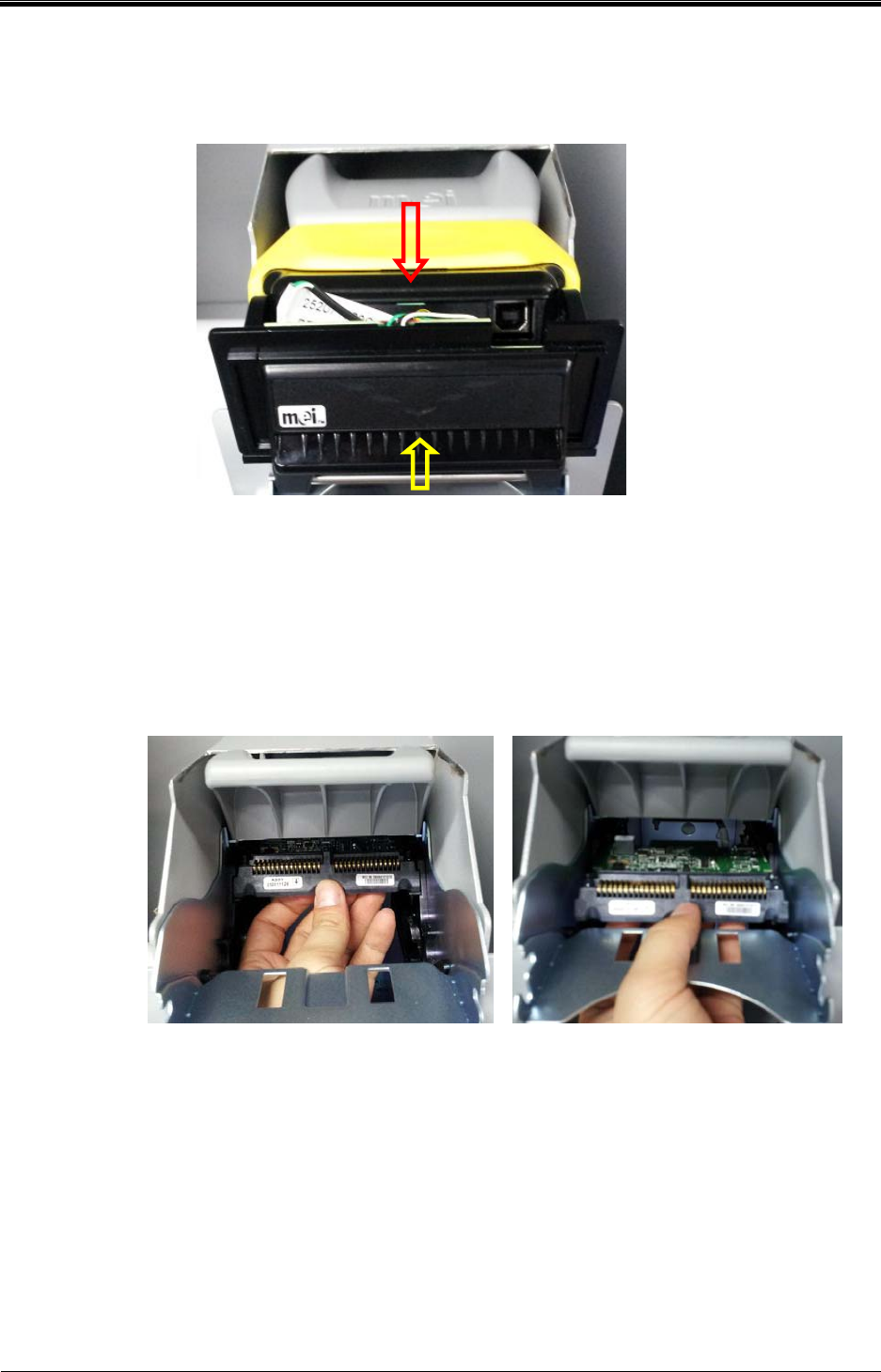

6) BILL MODUEL Separation
① Pull Silver Bar of Bill Module up and separate it in the direction of red arrow.
② Hold the bottom of Bill Module PCB and pull forward.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３６
of All
7) SMPS 및 BATTERY Separation
① Separate Connector which is connecting SMPS and Battery.
② Unfasten fixed screw which is connecting to exterior and pull forward.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３７
of All
8) POWER PANEL Separation
Separate the fixed screw which is connected device.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３８
of All
3.1.5 Connector Specification
1) USB2.0 Cable
CON '1’
(USB2.0) Color CON '2’
(Sub Board J13)
1 1
2 2
3 3
4 4
2) Speaker Cable
CON '1’
'(Sub Board J11,J12) Color CON '2’'
(66SF03N-
5W 4ohm)
1 WHITE 1
2 BLACK 2
3) Inside Lamp Cable
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
３９
of All
CON '1'
(Connecter Board J3) Color CON '2'
(INSIDE LAMP)
1 12V 2
2 GND 1
4) Main Door_SW Cable
CON '1'
(Main Door_SW) Color CON '2'
(Connecter
Board_J4)
1 BLACK 3
2 RED 2
3 WHITE 1
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４０
of All

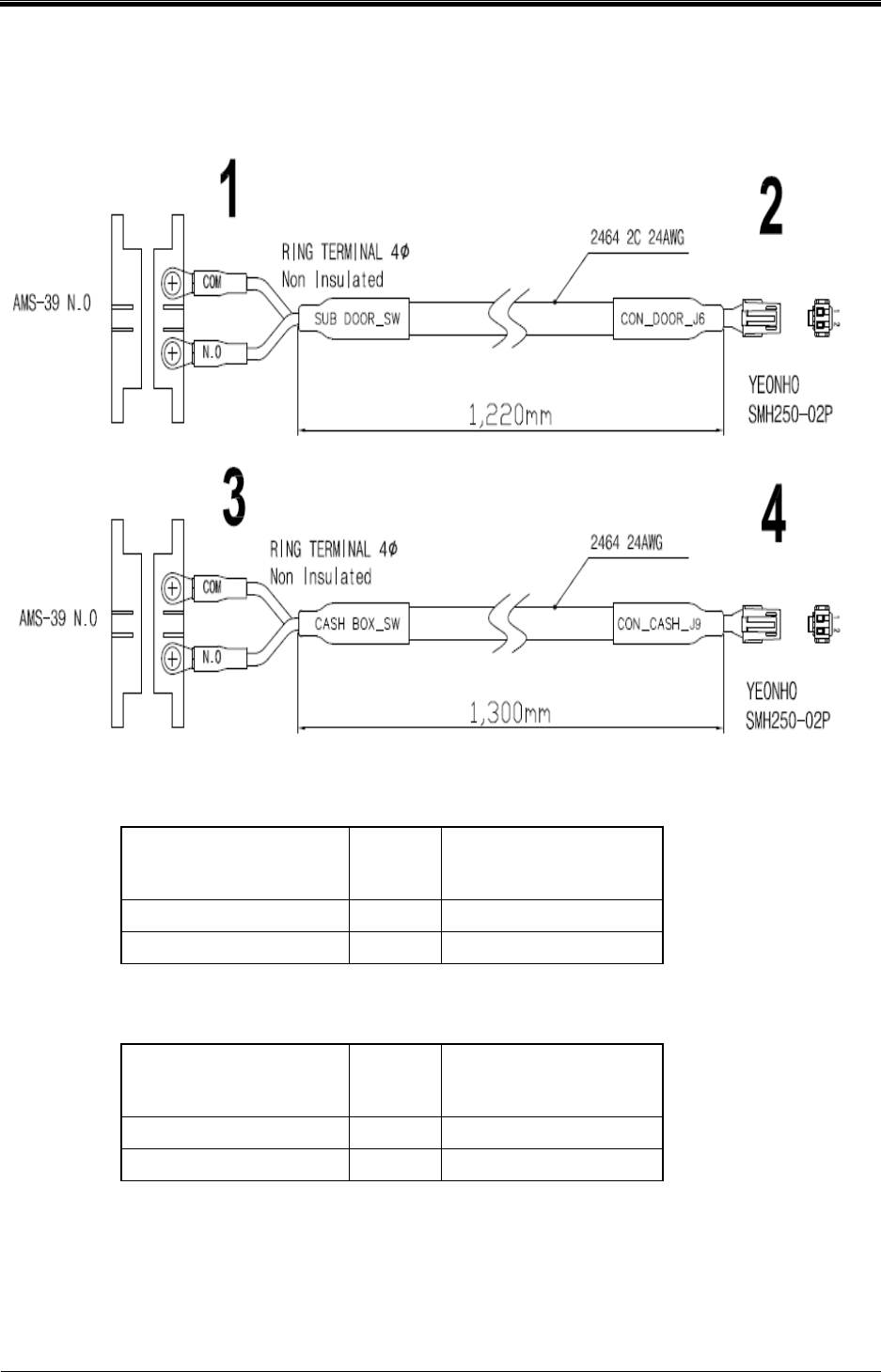

5) SUB DOOR, CASH BOX S/W Cable
CON '1'
(SUB Door_SW) Color CON '2'
(Connecter
Board_J6)
COM BLACK 2
N. O WHITE 1
CON '3'
(CASH BOX_SW) Color CON '4'
(Connecter
Board_J9)
COM BLACK 2
N. O WHITE 1

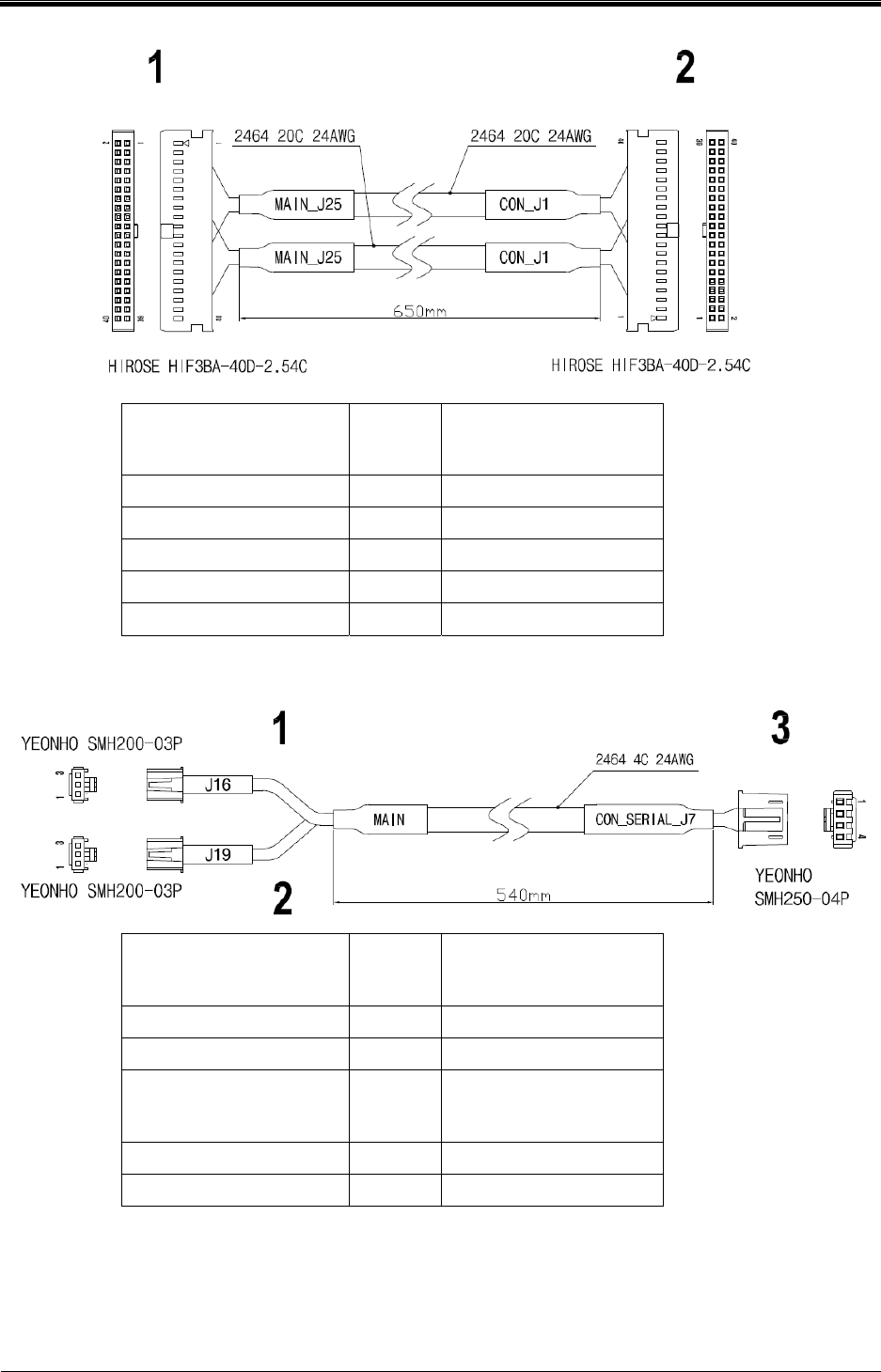

6) MAIN IF Cable
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４１
of All
CON '1'
(SUB Board_J25) Color CON '2'
(Connecter
Board_J1)
1 1
2 2
…. ….
39 39
40 40
7) Main Serial Cable
CON '1'
(SUB Board_J16) Color CON '3'
(Connecter
Board_J7)
1 1
2 2
CON '2'
(SUB Board_J16) Color CON '3'
(Connecter
Board_J7)
1 3
2 4
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４２
of All
8) Main Power Cable
CON '1'
(Connector Board_J17) Color CON '2'
(Sub Board_J3)
1 1
2 2
3 3
4 4
5 5
6 6
9) Antenna Cable
CON '1'
(CPU Board_J23) Color CON '2'
(Antenna Board_J1)
1 RED 1
2 WHITE 2
3 BLACK 3
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４３
of All
10) Antenna LED Cable
CON '1'
(LED Board) Color CON '2'
(Connecter Board_J12)
1 WHITE 1
6 BLACK 2
11) KEYPAD Cable
CON '1'
(KEYPAD Board) Color CON '2'
(Connecter Board_J2)
1 1
2 2
… …
29 29
30 30
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４４
of All

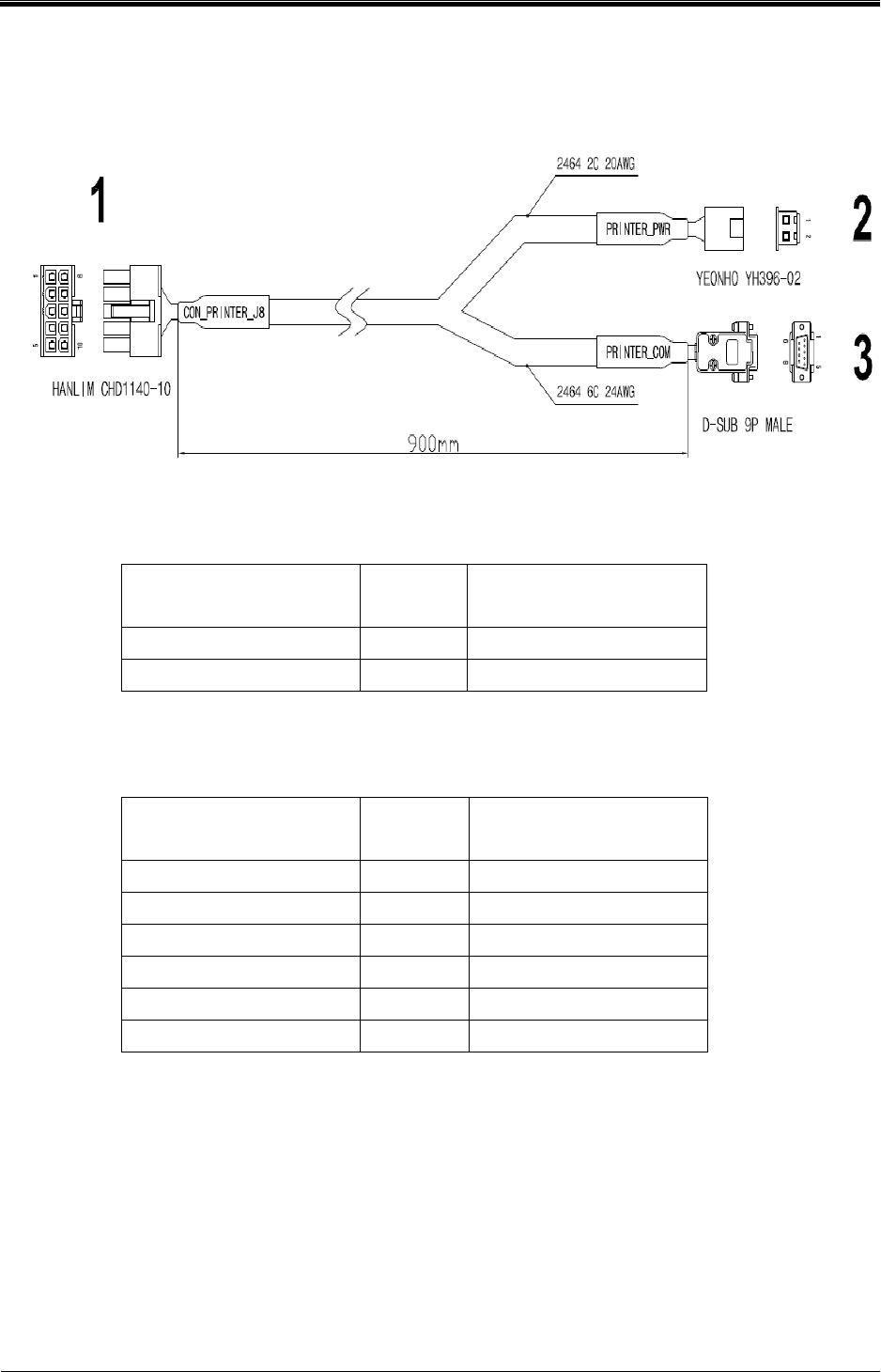

12) Printer Cable
CON '1'
(Connector Board J8) Color CON '2'
(PRINTER_PWR)
1 RED 1
3 BLACK 2
CON '1'
(Connector Board J8) Color CON '2'
(PRINTER_PWR)
4 BLACK 5
5 ORANGE 2
6 YELLOW 3
7 GREEN 6
9 BLUE 8
10 PINK 7
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４５
of All
13) BILL RFID READER Cable
CON '1'
(Connector Board J10) Color CON '2'
(BILL RFID)
1 RED 1
2 BLACK 2
3 BLUE 3
4 WHITE 4
14) BILL Module Cable
CON '1'
(Connector Board J5) Color CON '2'
(BILL Module)
1 BLACK 5
2 WHITE 11
3 BLACK 7
7 RED 6
8 GREEN 12
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４６
of All
15) LAN Cable
CON '1'
(RJ-45) Color CON '2'
(RJ-45)
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
16) Power Signal Cable
CON '1'
(Connector Board J11) Color CON '2'
(SMPS SIGNAL)
1 RED 1
2 BLACK 2
3 BLUE 3
4 WHITE 4
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４７
of All
17) Power Input Cable
CON '1'
(Connector Board J19) Color CON '2'
(Sub Main)
1 BLACK 1
2 BLACK 2
3 BLACK 3
4 BLACK 4
5 BLACK 5
6 BLACK 6
7 RED 7
8 RED 8
9 WHITE 9
10 WHITE 10
11 WHITE 11
12 WHITE 12
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４８
of All
18) AC Input Cable
CON '1'
(SMPS AC IN) Color CON '2'
(POWER_AC OUT)
1 BROWN L
2 Greenish
yellow F. G
3 BLUE AC_N
19) Battery Cable
CON '1'
(SMPS BATT_OUT) Color CON '2'
(BATTERY)
1 RED VCC
2 BLACK GND

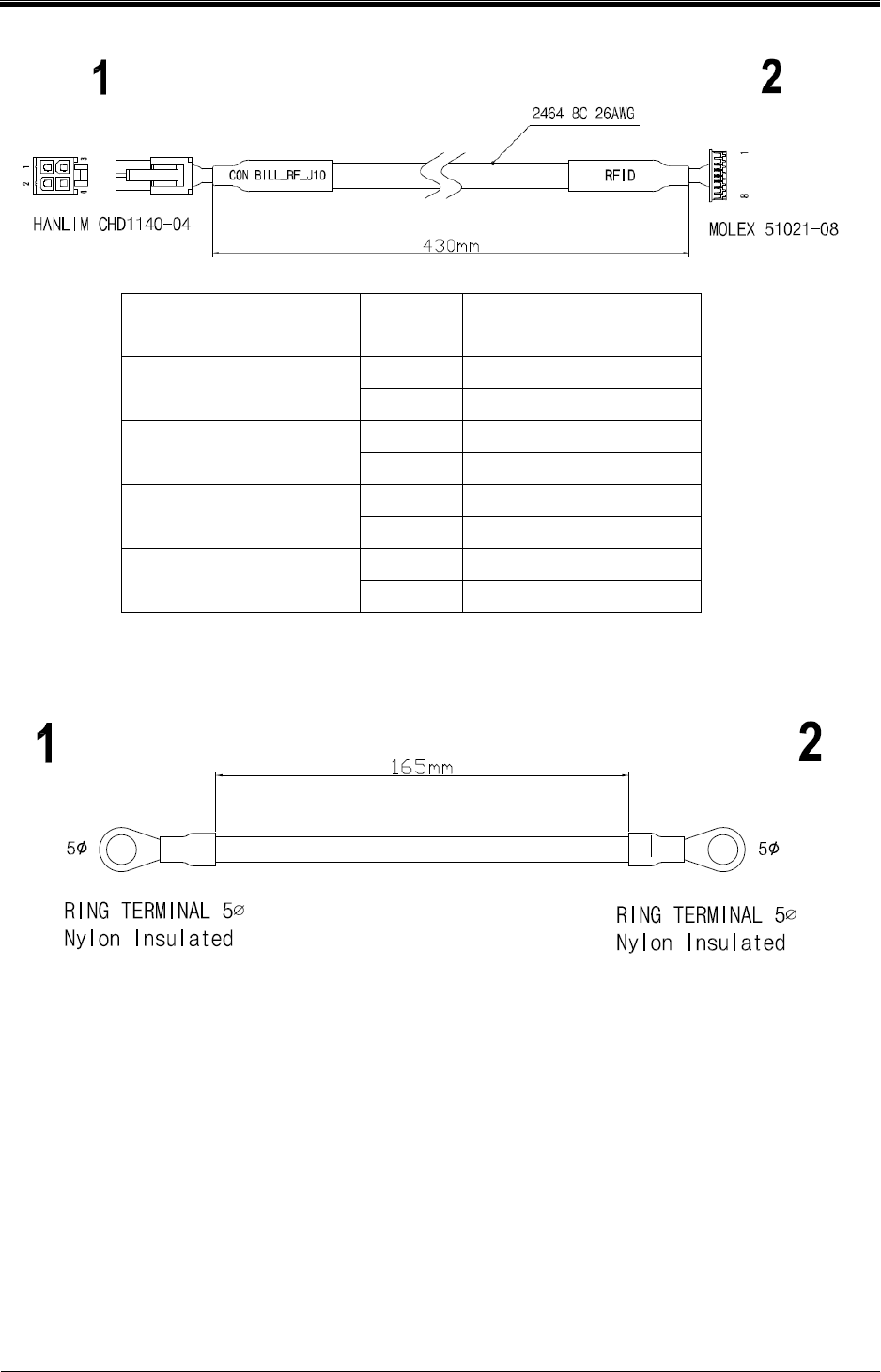

20) RFID Cable
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
４９
of All
CON '1'
(SMPS BATT_OUT) Color CON '2'
(BATTERY)
1 Red 1
Red 2
2 BLACK 7
BLACK 8
3 BLUE 3
BLUE 4
4 WHITE 5
WHITE 6
21) FREME Ground
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５０
of All

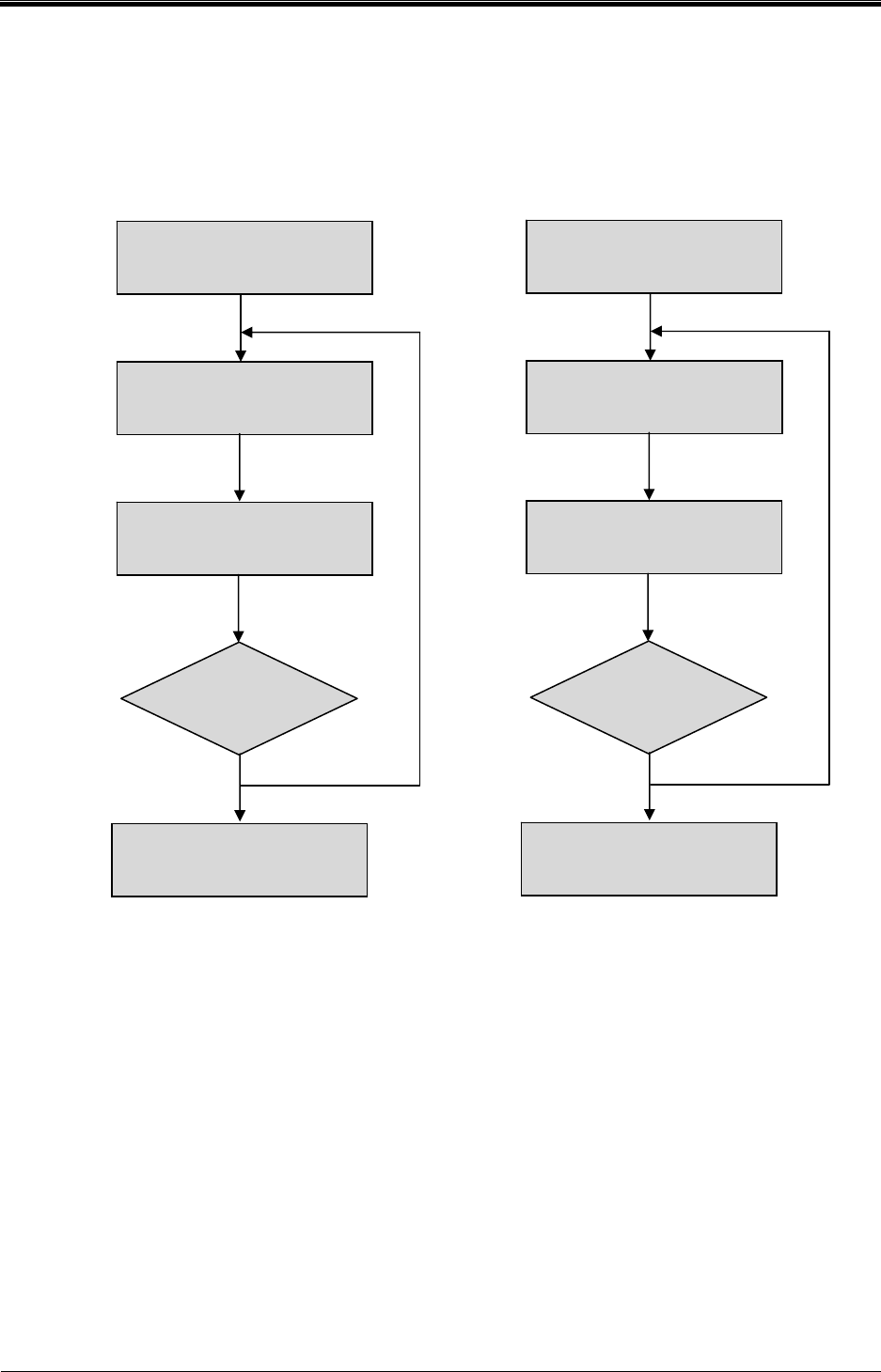

3.2 Maintenance Flow chart
1) Tool : Screwdriver, Tester
2) Notice
- Check each part of the adjustment value for every 12months or in a tim
ely
manner.
Conduct
TEST
Erro
r
Check ERROR CODE
Device maintenance
and replacement due to
MANUAL
Repair complete
OK NO
Conduct
TEST
Receive replacement
parts
Check maintenance
referral and ERROR CODE
Device repair due to
MANUAL
Repair complete
OK NO
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５１
of All
3) Detail check items
No Items Inspection c
y
cle Remarks
1
month 3months 6months 12months
1
Power/Voltage Check
2
Operation of Printer
3
Operation of KEYPAD
4
Check of LCD Operation
5
Check of SMPS Operation
6
Check of BATTERY Operation
7
Check of BILL MODULE Operation
8
Check of POWER panel Operation
4. Automatic Recharger Installation and update
4.1 Automatic Recharger Installation
4.1.1 Procedure
No Division Contents 비고
1
Device
registration
1) Power ON
2) SAM Mounting Method
3
)
USB Mountin
g
Method
… … … …
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５２
of All
4.1.2 Device Registration
4.1.2.1 Power ON
① Power Panel Power S/W ON
② SMPS Power S/W ON, Battery S/W ON
③ Sub Main Board S/W ON
1
2
2
3
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５３
of All

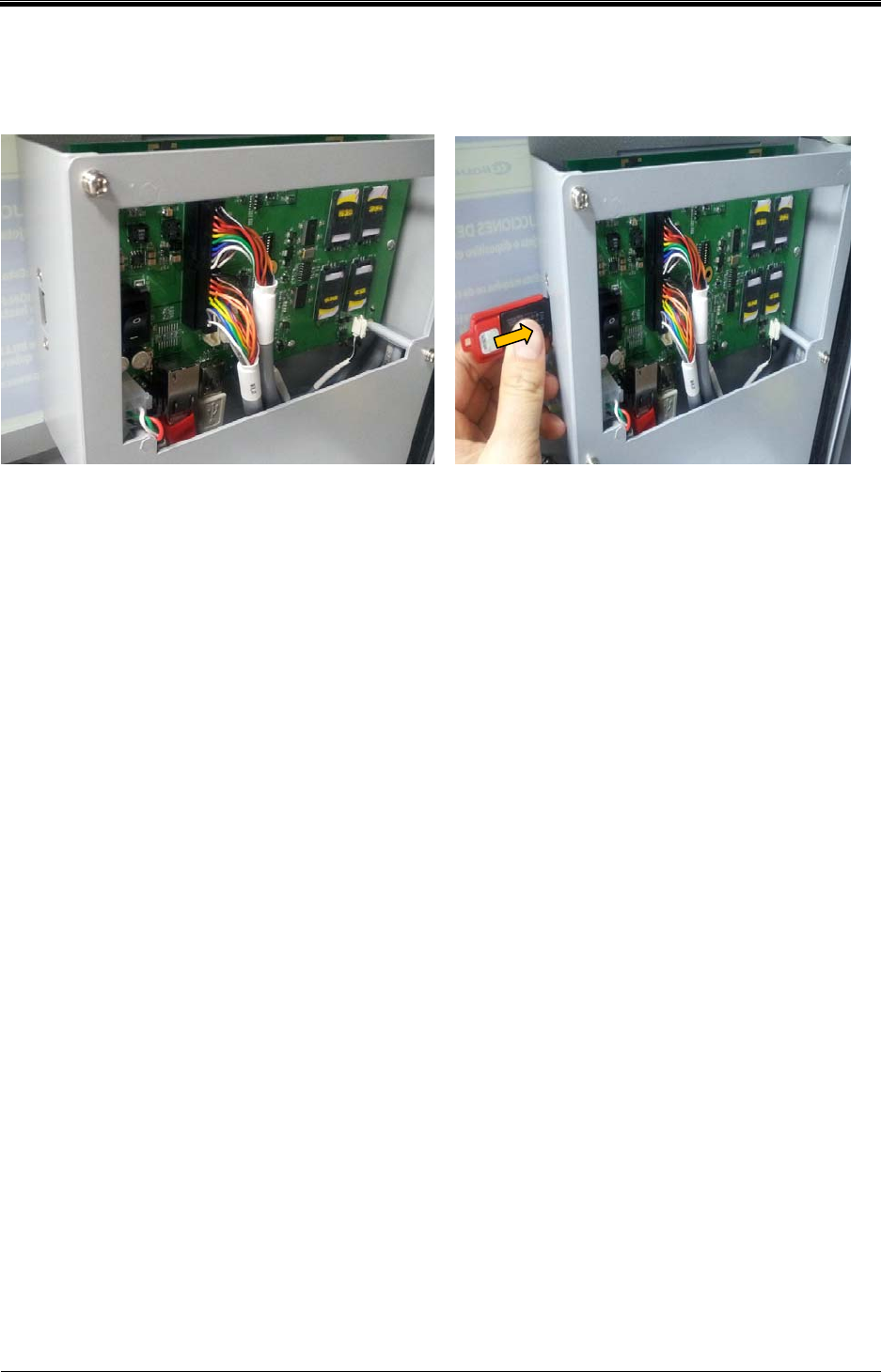

4.1.2.2 SAM Card Mounting
<Picture 1> <Picture 2>
① Push the SAM slot like Picture 1 and lift the cover in direction of the arrow like
<Picture 3> <Picture 4>
② Combine the SAM card like picture 3 and push and fix SAM Slot in direction of the
arrow like picture 4.
③ Insert the rest of 3 slots using same method.
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５４
of All
4.1.2.3 USB Mounting Method
① Turn off the module
② Insert USB to USB PORT and power on
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５５
of All
5. Automatic Recharger Heavy Maintenance
5.1 CPU Board
5.1.1 CPU BOARD Specification
5.1.1.1 CPU Board Specification
CPU Board : Main board of the attended recharger and operate main program so that
control all of module communication and function.
Division Specification Remarks
CPU
S3C24440
Memory SDRAM : 128MByte
Nor Flash : 8MByte
Nand Flash : 512 MB
y
te
RF Module ISO 14443 Type A
5.1.1.2 CPU Board Block Diagram
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５６
of All

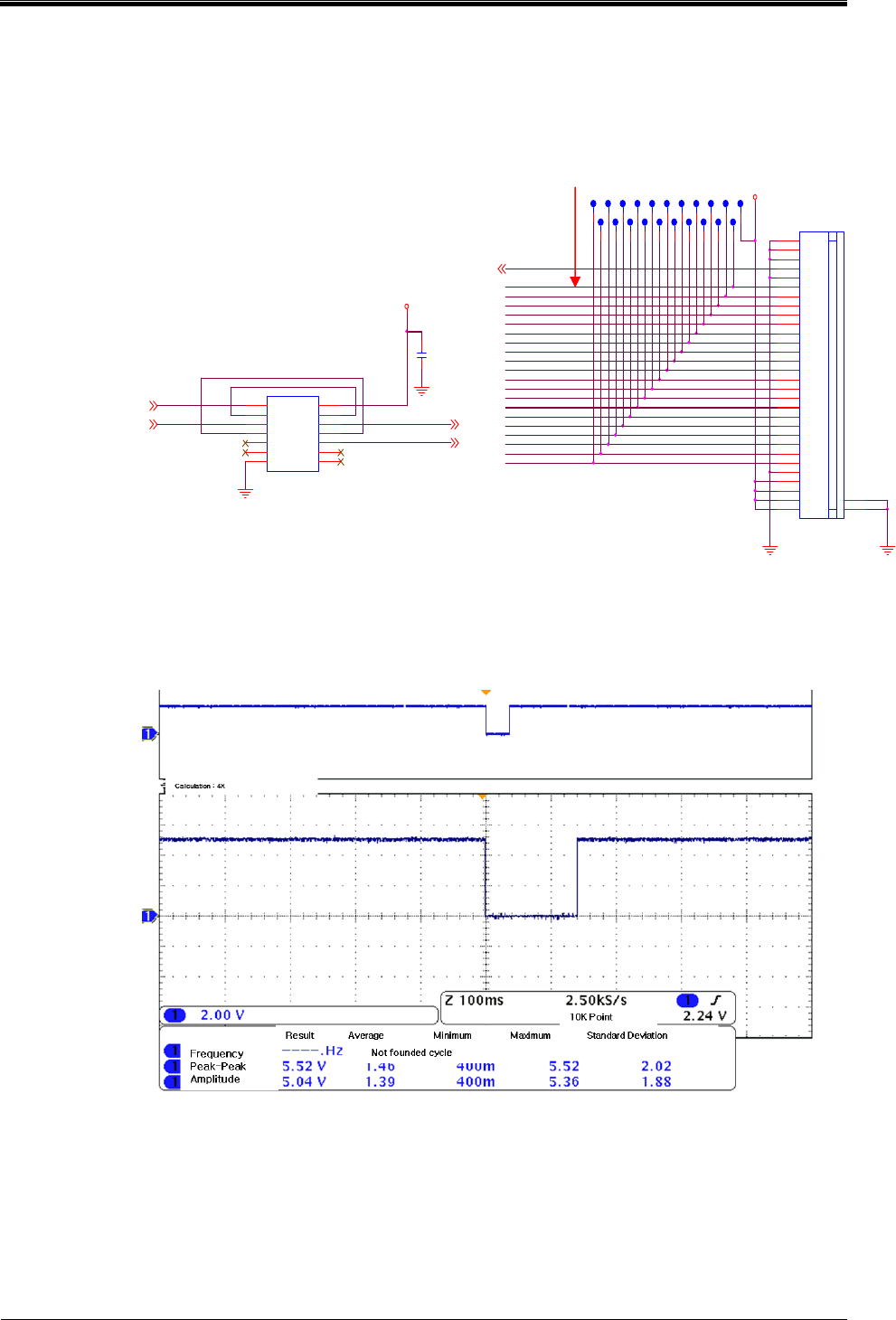

5.1.1.3 CPU Board Check point
- KEYPAD
TP100
TP103
TP102
TP101
2
7
2
U107
74HC14D
SOIC14(P1.27-W7.0)\74HC14D
1A
1
1Y
2
2A
3
2Y
4
3A
5
3Y
6
GND
74Y 8
4A 9
5Y 10
5A 11
6Y 12
6A 13
VCC 14
KEY_5.0V
C116
100nF
C-1608
MENU
M_#KEY_IRQ1
4
10K
CORRECTION
5K
TP119
TP118
J100
DST520-030
DST520-030
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30 31 31
32 32
M5.0V
3_I
2_I
1K
TP116
TP117
KIND
REFUND
CANCEL
6
9
8
0
OK
5
M_#KEY_IRQ1
1
TP115
TP114
TP112
TP113
3
TP111
TP110
PAYMENT
TP108
TP109
TP120
TP107
TP106
TP104
TP105
3
① Circuit description
: Invert input signal and send it to CPU.
(Check other signal’s frame is same as others or not.)

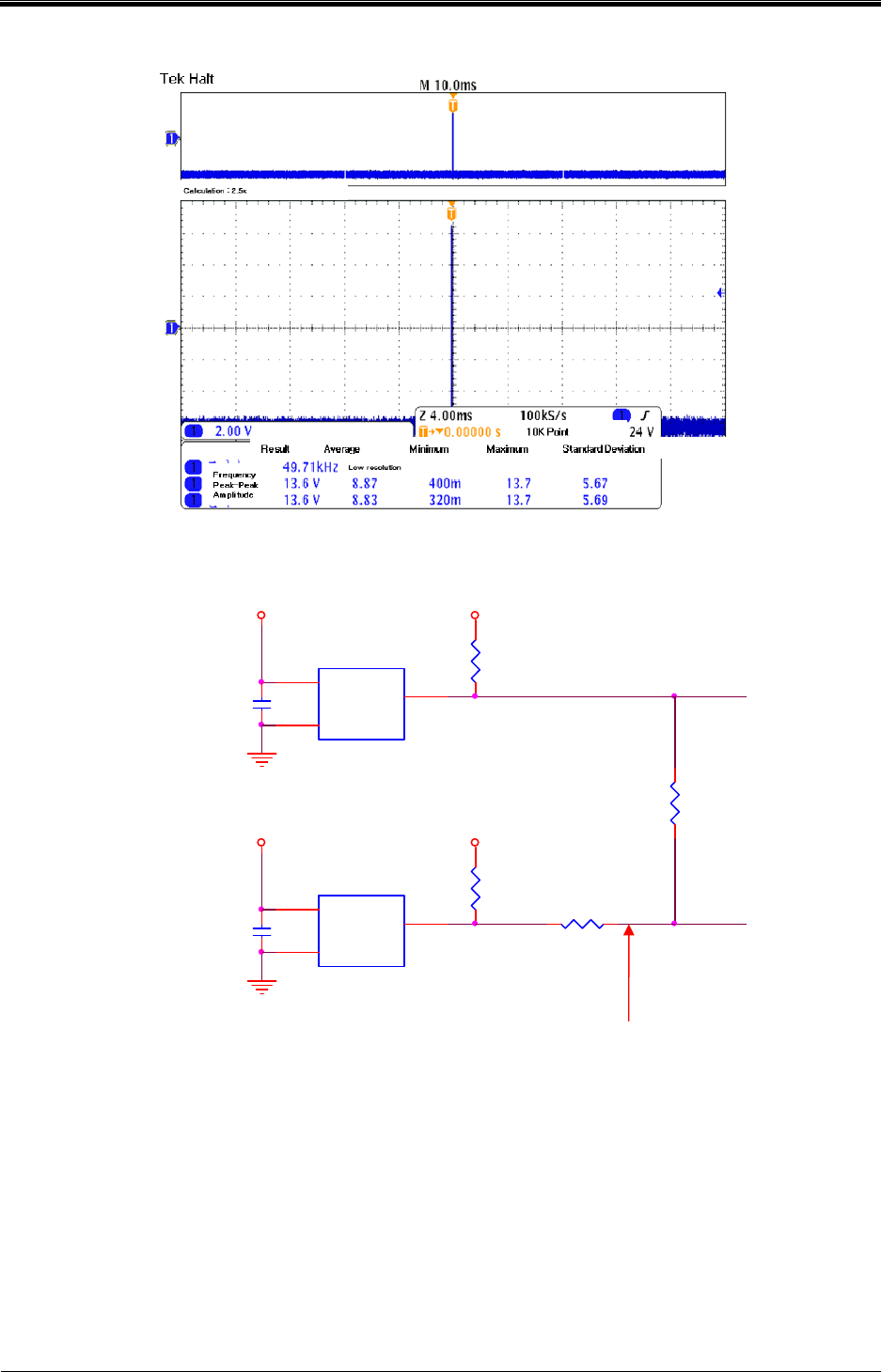

② Waveform measurements
<Normal key input waveform>
Test Point
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５７
of All
5.1.2 Sub BOARD Specification
5.1.2.1 Sub Main Board Specification
- Communicated with CPU Board and control I/O.
A
riticle Specification Remarks
CPU S3C24440
Memory SDRAM : 128MByte
Nor Flash : 8MByte
Nand Flash : 512 MB
y
te
RF Module ISO 14443 Type A
5.1.2.2 Sub Main Board Block Diagram
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５８
of All
5.1.2.3 Sub Main Check point
- RS-232
③ Circuit description
: Change UART signal into RS -232 signal
④ Waveform measurements
< Normal TX waveform >
CUSTOM_RX[3]
VDD_3.3V
TC3
10uF/16V
TC-3216-A
12
CUSTOM_TX[3]
VDD_3.3V
R91 1K R-1005 R88 100R R-1005
R95 1K R-1005
R90 100R R-1005
C39 100nF
C-1005
CPU DEBUGER
DBG_TX[3] DBG_TX
DBG_RX[3] DBG_RX
J7
TSH-3813
STEREO-JACK-SH381D-PA9T-A
2
3
1
C37 100nF
C-1005
C38 100nF
C-1005
R86 100R R-1005
R92 100R R-1005
R87 1K R-1005
C36 100nF
C-1005
R93 1K R-1005
U9
SP3232EY
TSSOP16
C1+
1
C1-
3
C2+
4
C2-
5
T1IN
11
T2IN
10
R1OUT
12
R2OUT
9
GND
15
T1OUT 14
T2OUT 7
R1IN 13
R2IN 8
VCC 16
V- 6
V+ 2
R89 100R R-1005
R94 100R R-1005
C40 100nF
C-1005
TX Test Point
RX Test Point
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
５９
of All

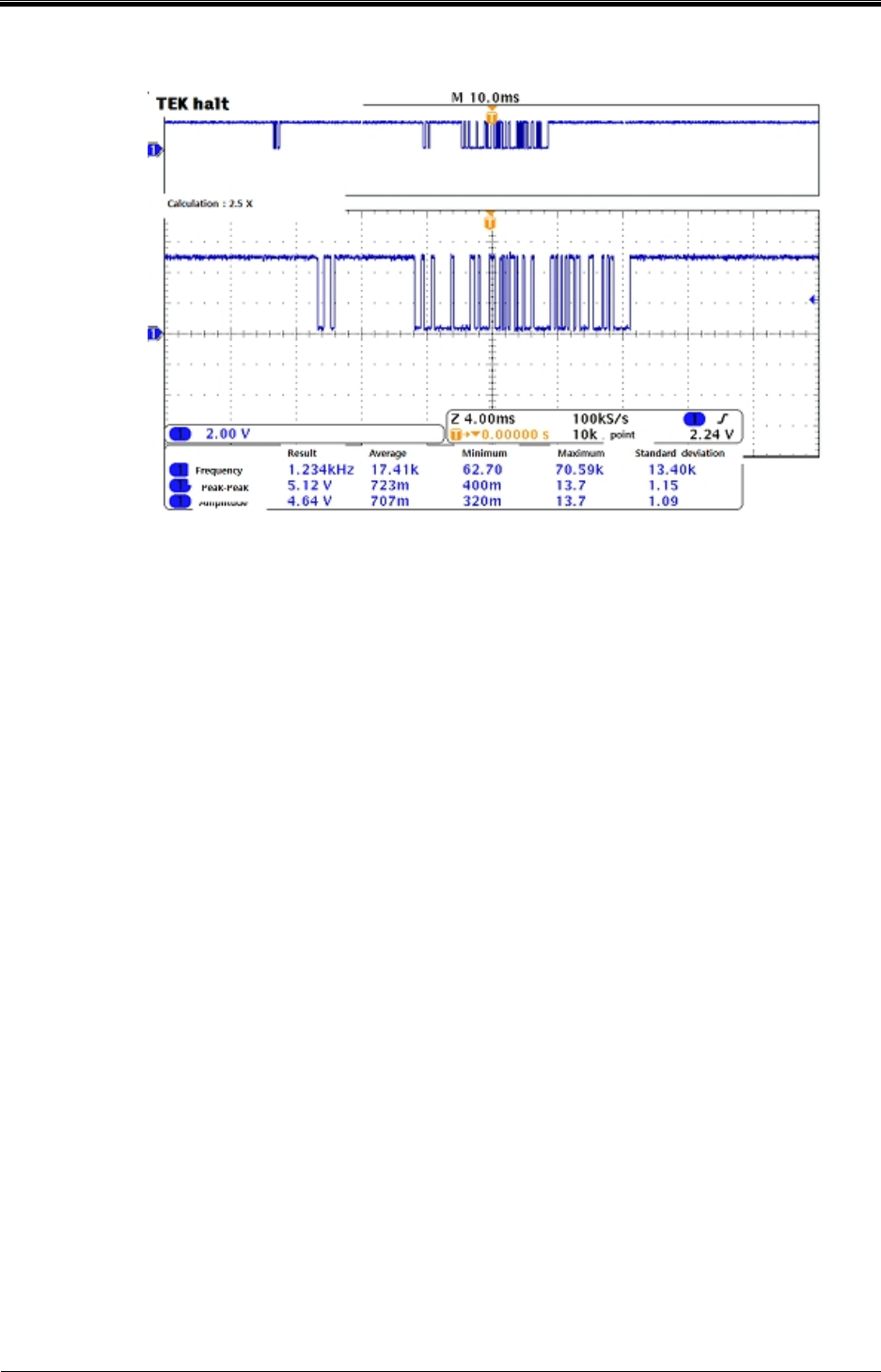

< Normal TX waveform >
- SIM Part (Clock)
SAM5.0VSAM5.0V
SIM_CLK2
R201
1K
R-1608
C86
100nF
C-1608
1 2
Y3
3.6864MHz(SCO-105)
VCC
4
OUT 3
GND
2
SAM5.0VSAM5.0V
C47
100nF
C-1608
1 2
SIM_CLK1
Y1
3.6864MHz(SCO-105)
VCC
4
OUT 3
GND
2
R124
1K
R-1608
R1002
Z_0R
R-1608
R1003 0R R-1608
① Circuit description
: Circuit that supply the stable Clock to allow SIM Card to operate.
Test Point
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
６０
of All

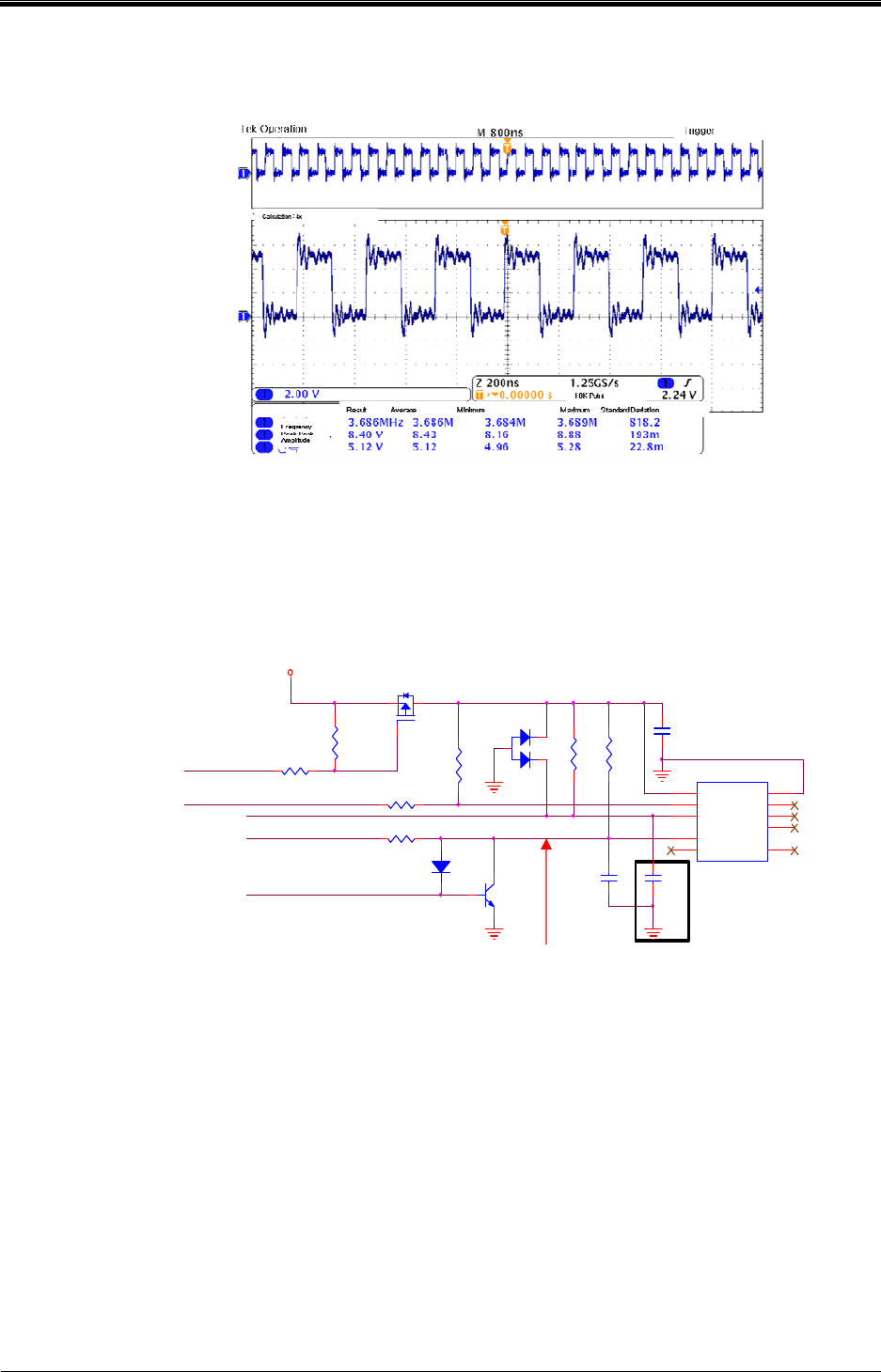

② Waveform measurements
<Normal Clock Wavement>
- SIM Part (Signal)
GND
R125
10K
R-1608
C50
30pF
C-1608
R136 100R R-1608
Q3
Z_MMBT3904(SOT-23)
1
2 3
C48
100nF
C-1608
R129 1K
R-1608
R126
10K
D4
SD103B(SOD123)
12
R127
1K
R-1608
Q1
SI2301DS(SOT-23)
1
32
R128
1K
R-1608
31
2
ZD1
Z_L16513
SIM_PWR_ON1_5V
SAM5.0V
SIM_RX1_A
SIM SOCKET #1
SIM_RESET_ON1_5V
SIM_TX1_A
R134 100R
R-1608
SIM_CLK1
SM1
DRC017S
VCC
1
RST
2
CLK
3FU1 4
GND 5
VPP 6
SIO
7FU2 8
S1
9S2 10
C51
Z_10pF
C-1608
① Circuit description
: Circuit that realize to recognize SIM CARD
Test Point
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
６１
of All
② Waveform measurements
<Waveform when normally recognize SIM CARD>
Bogota SIRCI Project User Requirement Definition
CB-EDR-HM-00-V1.0 Automatic Recharger Page
６２
of All
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
.
