Contents

User Manual 1

Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
ENERGYSTAR is a set of power-saving
guidelines issued by the U.S.
Environmental Protection Agency(EPA).
As an ENERGY STAR
Partner LGE U. S. A.,Inc.
has determined that this
product meets the ENER-
GY STAR guidelines for
energy efficiency.
P/NO : 38289U0527A (0607-REV06)
Printed in Korea
OWNER’S MANUAL
LCD TV
MODELS: 32LC2D
32LC2DC
37LC2D
42LC2D
PLASMA TV
MODELS: 42PC3D 42PC1DVH
42PC3DC 42PC3DH
42PC3DV 42PC3DVA
50PC3D 50PC3DH
50PC3DX
Internet Home Page : http://www.lge.com
http://www.lg.ca
http://www.lgcommercial.com
2
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-
tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user’s authority to operate this product.
U.S.A. only -----------------------------------------------
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-800-243-0000
http://www.lgusa.com
---------------------------------------------------------------
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
W
Warning
arning
3
Safety Instructions
WARNING :
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. When the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the apparatus.
11. Only use the attachments / accessories specified by
the manufacturer.
Safety Instructions
Safety Instructions
Owner's Manual
4
Safety Instructions
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when moving
the cart / apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normal-
ly, or has been dropped.
15. DISCONNECTING DEVICE FROM MAINS
- Mains plug is the disconnecting device. The plug
must remain readily operable.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
Note
- If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on. This is normal, there is noth-
ing wrong with TV.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have
no adverse effect on the monitor's performance.
- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some
temporary distortion effects on the screen.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
For LCD TV
5
Contents
Contents
Contents
Introduction
Installation
Operation
32 Turning on the TV
32 Volume Adjustment
32 Channel Selection
32 On Screen Menus Language Selection
33 On Screen Menus Selection and Adjustment
34 EZ Scan (Channel Search)
34 Manual Scan
35 Channel Edit
36 DTV Signal Strength
36 Input Source
37 Input Label
38 EZ Picture
38 APM (Adaptive Picture Mode)
39 Manual Picture Control (EZ Picture-Custom option)
39 Color Temperature Control
39 Video Reset
40 Audio Language
40 EZ SoundRite
41 EZ Sound
41 Manual Sound Control (EZ Sound-Custom option)
42 Stereo/SAP Broadcasts Setup
42 Front Surround
43 TV Speakers On/Off Setup
43 BBE
2 Warnings
3~4 Safety Instructions
7 Accessories
8 Controls (Model Name: 32/37/42LC2D**)
8 Swivel Stand (42LC2D** only)
9 Connection Options (Model Name: 32/37/42LC2D**)
10 Controls (Model Name: 42PC1D**/42PC3D**/50PC3D**)
11 Connection Options (Model Name: 42PC1D**/42PC3D**/50PC3D**)
12~16 Remote Control Key Functions
17 Various Installation
18~20 Basic Connection
21 Antenna or Cable Connection
22~23 VCR Setup
23 External AV Source Setup
24~25 DVD Setup
26~27 HDSTB Setup
28 Monitor Out Setup
28 Digital Audio Output
29~31 PC Setup
Setup Menu
Options
Video Menu
Options
Audio Menu
Options
Basic operation
External
Equipment
Connections
6
Contents
Reference
44 Auto Clock Setup
44 Manual Clock Setup
45 On/Off Timer Setup
45 Sleep Timer
46 Auto Off
47 Aspect Ratio Control
48 Cinema 3:2 Mode Setup
48 Caption
49 Caption/Text
50 Caption Option
50 Low Power (42PC1D**/42PC3D**/50PC3D** only)
51 ISM (Image Sticking Minimization) Method (42PC1D**/42PC3D**/50PC3D** only)
52~53 Parental Lock Setup
54~59 External Control Device Setup
60~61 IR Codes
62 Programming the Remote
63~64 Programming Codes
65~66 Troubleshooting Checklist
66 Maintenance
67~68 Product Specifications
Option Menu
Features
Lock Menu Options
Operation
Time Menu
Options
7
Introduction
Accessories
Accessories
Introduction
Introduction
Owner’s Manual
75ΩRound Cable
Power Cord
Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the
dealer where you purchased the product.
VOL
FLASHBK
CH
1 2 3
456
78
0
9
APM
ADJUST
SAP
EZ SOUND
EZ PIC
FREEZE
DAY -
GUID
MENU
MUTE
PAGE
PAGE
FAV
EXIT
TIMER
CC
INFO
ENTER
VOL
CH
POWER
123
456
78
0
9
MENU
MUTE FAV
DAY -
GUIDE
DAY+
RA
TIO
VCR
TV
DVD
ENTER
APM
ADJUST
SAP
EZ SOUND
EZ PIC
FREEZE
FLASHBK
PAGE
PAGE
EXIT
TIMER
CC
INFO
AUDIO
CABLE
STB
MODE
TV INPUT INPUT
Remote Control /
Batteries
D-sub 15 pin cable
2-eye-bolts 2-TV brackets
2-Wall brackets
2-TV Bracket Bolts
For 32/37/42LC2D**
For 42PC1D**, 42PC3D**, 50PC3D**
Carefully place the product screen side down on a
cushioned surface that will protect product and
screen from damage.
1
Place the hook of the stand in the back of the
product as shown.
2
Install the 4 bolts provided securely, in the back of the
product.
3
Stand Installation for 32LC2D**
Twister Holder
Arrange the wires
with the twister holder.
4-bolts for stand
assembly
See below for detail
information.
32LC2D** only42LC2D** only
Cable
Management
(Refer p.18)
Polishing Cloth
Polish the TV with
the cloth.
42PC1D**, 42PC3D** only
2-Wall brackets
2-bolts
(Refer p.19)
Polishing Cloth
* Slightly wipe stained spot on the exterior only with the polishing cloth for the product exterior
if there is stain or fingerprint on surface of the exterior.
* Do not wipe roughly when removing stain. Please be cautions of that excessive power may
cause scratch or discoloration.
8
Introduction
Controls
Controls (Model Name: 32/37/42LC2D**)
(Model Name: 32/37/42LC2D**)
- This is a simplified representation of front panel.
- This picture shown below may be somewhat different from your TV.
R
CH
CH
VOL
VOL
ENTER
ENTER
MENU
MENU
INPUT
INPUT
CHANNEL (D, E)
Buttons
VOLUME (F,G)
Buttons
ENTER Button
MENU Button
INPUT Button
(Power) Button
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is
switched on.
- The TV can be conveniently swivelled on its stand 30°
to the left or right to provide the optimum viewing angle.
Swivel Stand (42LC2D** only)
R
30°30°
9
Introduction

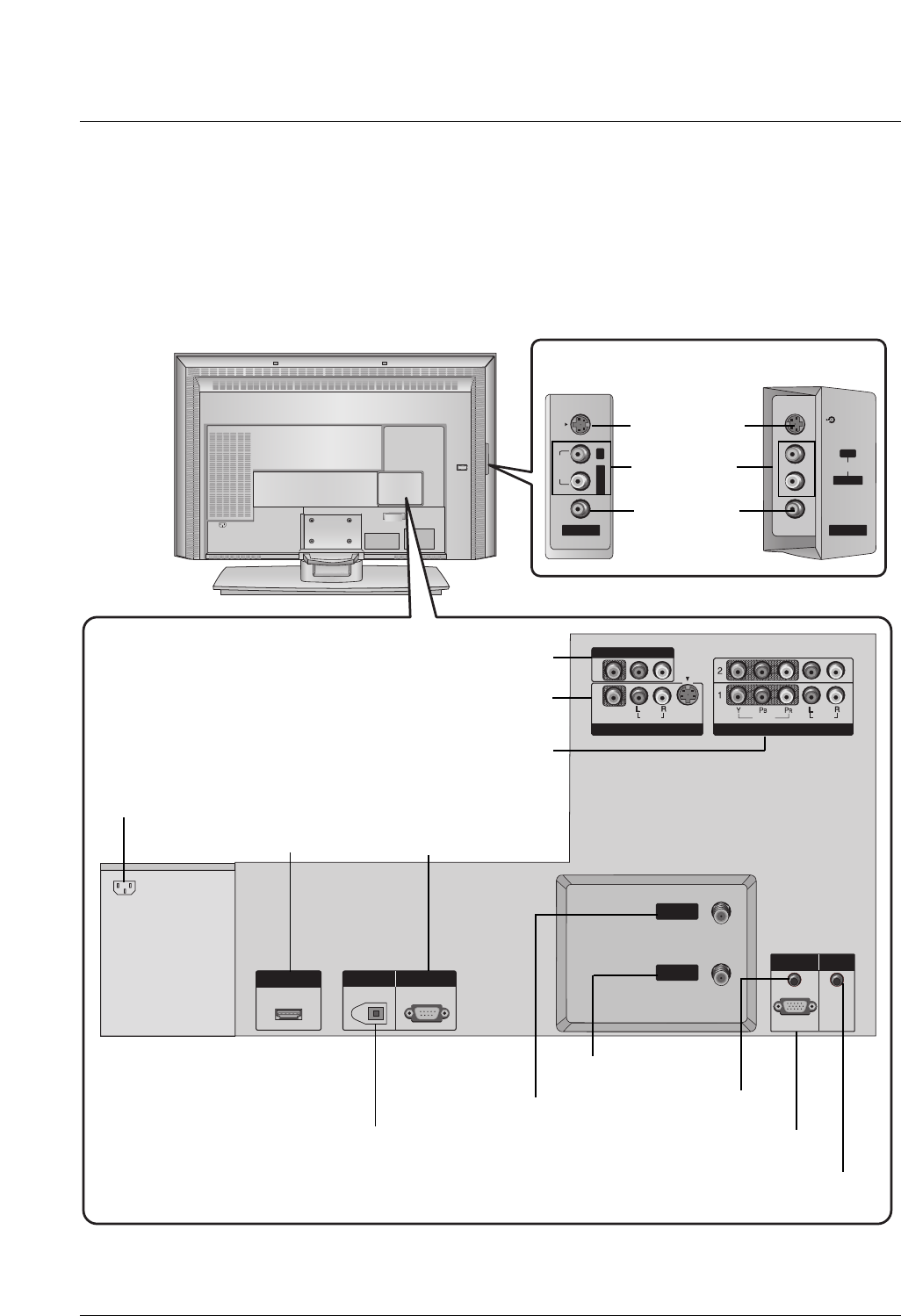

Connection Options (Model Name: 32/37/42LC2D**)
Connection Options (Model Name: 32/37/42LC2D**)
AC IN
AV IN 2
AV IN 2
L/
L/
MONO
MONO
R
AUDIO
AUDIO
S-VIDEO
S-VIDEO
VIDEO
VIDEO
AC IN
L/
L/
MONO
MONO
R
AUDIO
AUDIO
S-VIDEO
S-VIDEO
VIDEO
VIDEO
AV IN 2
AV IN 2
HDMI/DVI IN
HDMI/DVI IN
DIGITAL AUDIO
DIGITAL AUDIO
OUT
OUT
OPTICAL
PTICAL
RS-232C IN
RS-232C IN
(CONTROL
(CONTROL
&
SERVICE)
SERVICE)
VIDEO
VIDEO
AUDIO
AUDIO
MONO
(
)
VIDEO
VIDEO
AUDIO
AUDIO
COMPONENT IN
COMPONENT IN
S-VIDEO
S-VIDEO
AV IN 1
AV IN 1
AV OUT
AV OUT
ANTENNA
ANTENNA
IN
IN
CABLE
CABLE
IN
IN
RGB (PC
RGB (PC
/DTV)
DTV)
RGB IN
RGB IN
AUDIO (RGB/DVI)
AUDIO (RGB/DVI)
REMOTE
REMOTE
CONTROL IN
CONTROL IN
AUDIO Input
S-VIDEO Input
37/42LC2D** 32LC2D**
VIDEO Input
DIGITAL AUDIO OUT
OPTICAL
AV OUT
AV IN1
COMPONENT IN 1/2
HDMI / DVI IN
ANTENNA IN
CABLE IN
AUDIO (RGB/DVI)
RGB (PC/DTV)
AC IN
RS-232C INPUT
(Control &Service)
REMOTE CONTROL Port
- Here shown may be somewhat different from your TV.
10
Introduction
Controls
Controls (Model Name: 42PC1D**/42PC3D**/50PC3D**)
(Model Name: 42PC1D**/42PC3D**/50PC3D**)
- This is a simplified representation of front panel.
- This picture shown below may be somewhat different from your TV.
CH
VOL
ENTER
MENU
INPUT
CH
VOL
ENTER
MENU
INPUT
CHANNEL (D, E)
Buttons
VOLUME (F,G)
Buttons
MENU Button
ENTER Button
INPUT Button
(Power)
Button
Power/Standby Indicator
• illuminates red in standby
mode.
• illuminates green when the set
is switched on.
CHANNEL (D, E)
Buttons
VOLUME (F,G)
Buttons
ENTER Button
MENU Button
INPUT Button
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is switched on.
(Power) Button
42PC1D**
42PC3D**/50PC3D**

Navigation menu
