ASSEMBLING AND PREPARING

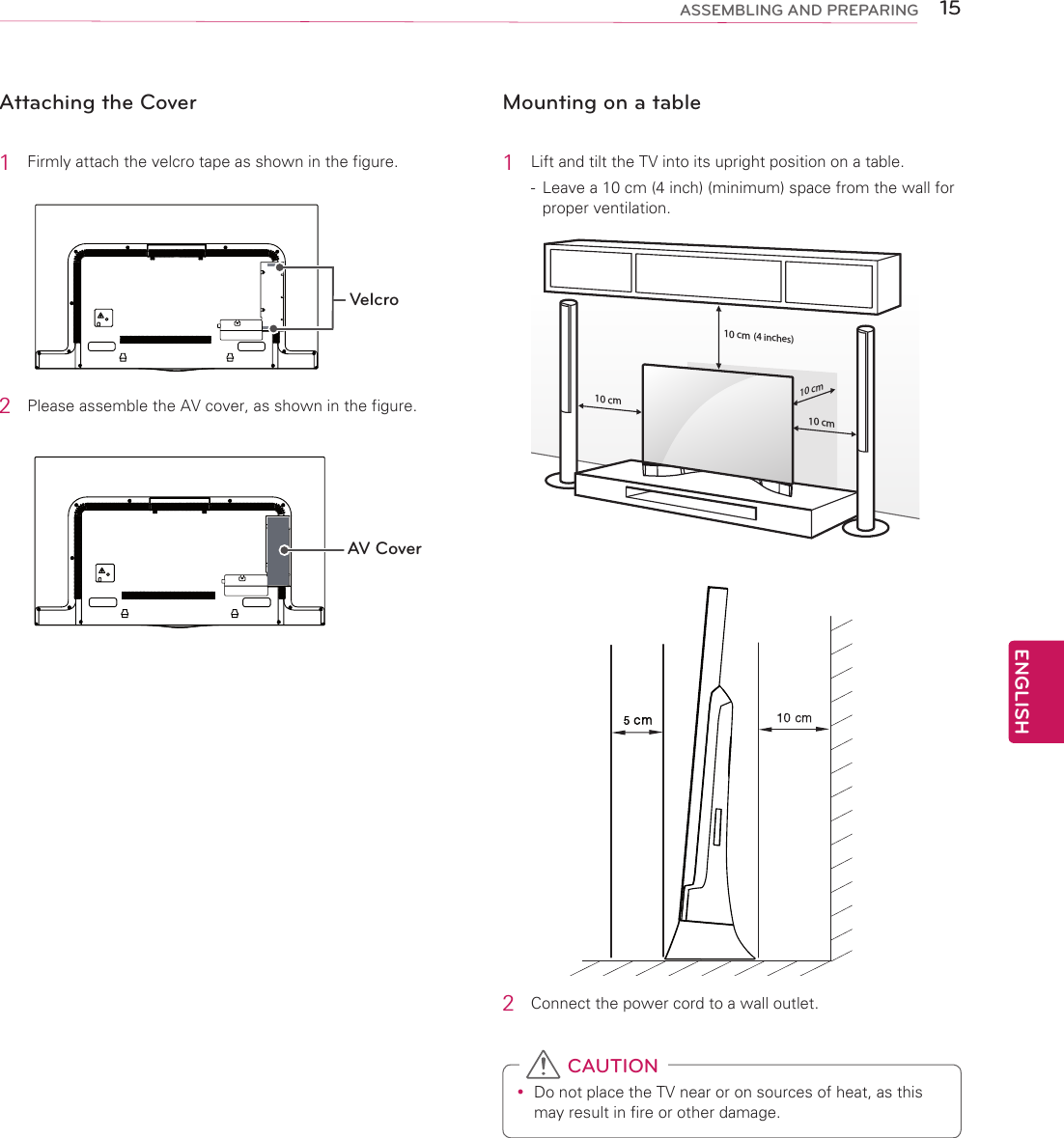

Attaching the Cover
1 Firmly attach the velcro tape as shown in the figure.
Velcro
2 Please assemble the AV cover, as shown in the figure.
AV Cover

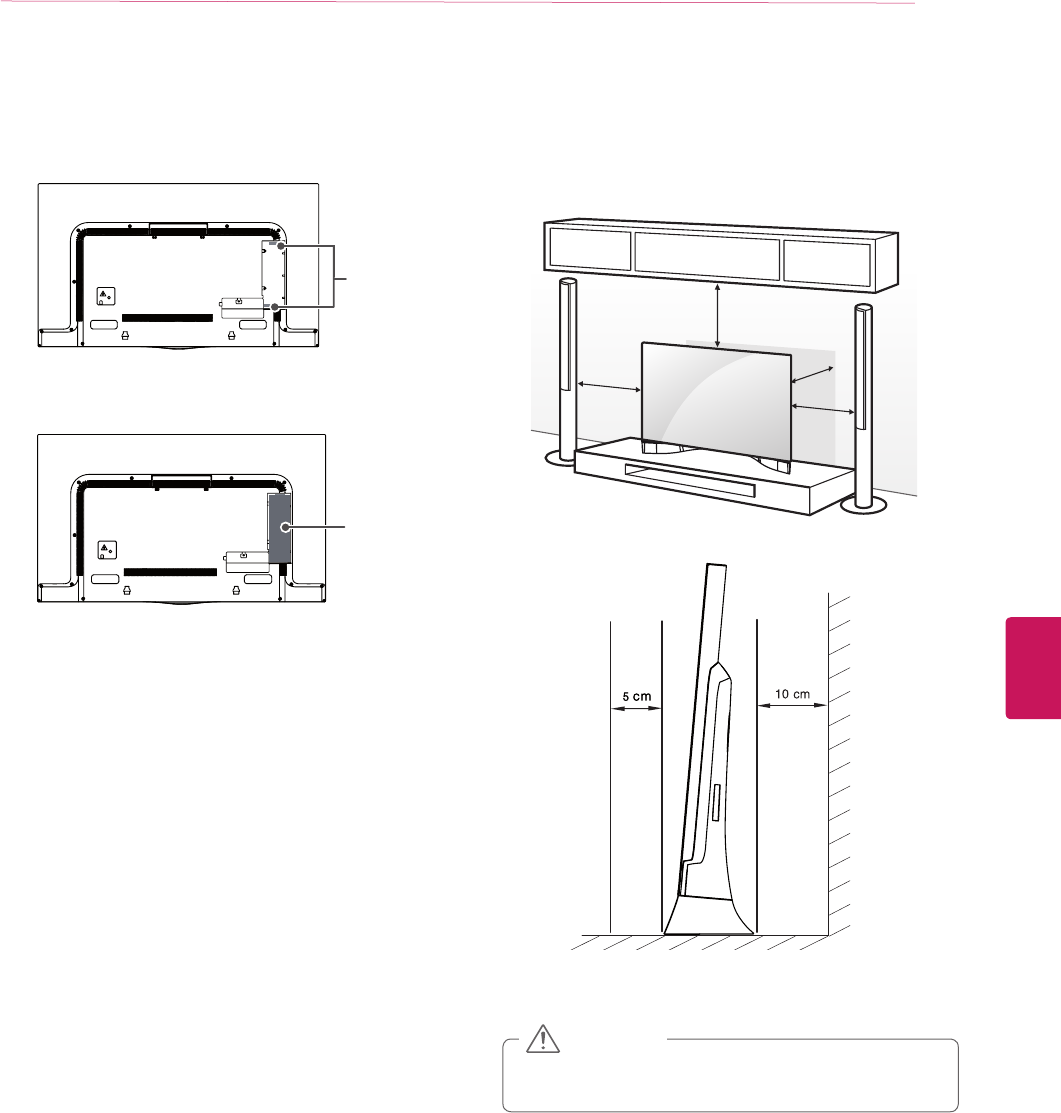

Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (4 inch) (minimum) space from the wall for
proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
yDo not place the TV near or on sources of heat, as this
may result in fire or other damage.
CAUTION
(4 inches)
ENGLISH
16 ASSEMBLING AND PREPARING

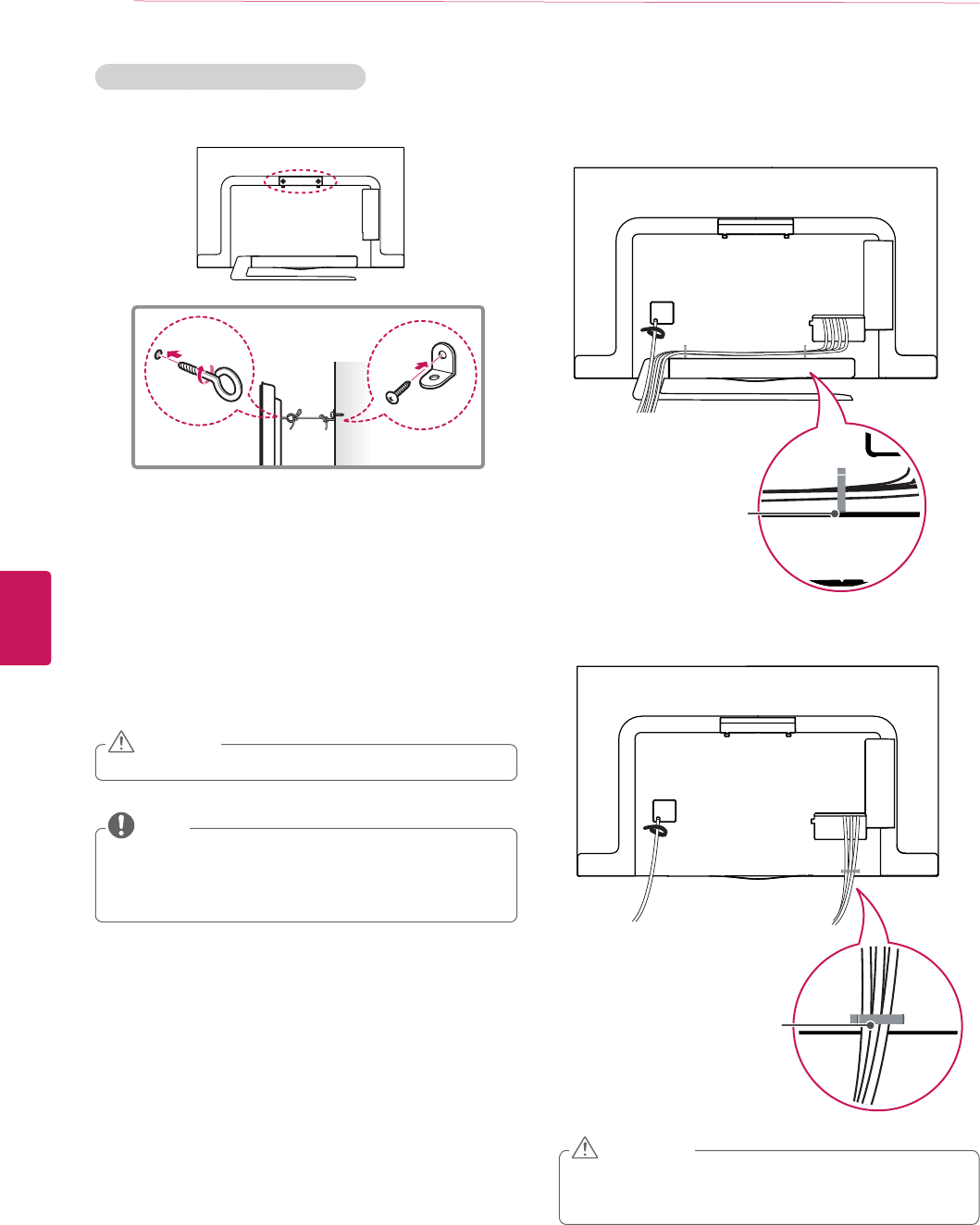

Securing the TV to a wall (optional)
(Depending on model)
1 Insert and tighten the eye-bolts, or TV brackets and bolts on
the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove
the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on
the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy
rope.
Make sure to keep the rope horizontal with the flat surface.
yMake sure that children do not climb on or hang on the TV.
CAUTION
yUse a platform or cabinet that is strong and large enough
to support the TV securely.
yBrackets, bolts and ropes are optional. You can obtain
additional accessories from your local dealer.
NOTE
Tidying cables
1 Gather and bind the cables with the Cable Holder.
Cable Holder
2 Gather and bind the cables with the Cable Holder
Cable Holder
yDo not move the TV by holding the cable holder, as the
cable holders may break, and injuries and damage to the
TV may occur.
CAUTION
ENGLISH
17
ASSEMBLING AND PREPARING
Using Video Call Camera
Front
Microphones
Lens
Stand
Activity Indicator
Product Handling
yDo not let the camera get wet. Liquid getting into the
camera could cause a short circuit.
yWipe the camera gently with a dry cloth to remove any
dust or dirt. If the product is very dirty, spray a mild
detergent on the cloth first.
yDo not clean with thinner, alcohol, benzene or any other
volatile agent. These may damage the product’s surface
or affect its operation.
yDo not disassemble, repair or alter the product. Incorrect
disassembly may cause a fire, electric shock, or injury.
yDo not shake the camera.
yDo not pull on the cable.
Rear
USB Cable
Stand-Arm
Stand-Cable holder
Stand-Bottom
Installation Instructions
yMake sure you have enough space for connections when
installing the product.
yDo not install in a dusty, dirty or moist area.
yDo not install in direct sunlight or near a heat source.
yMagnetic objects, such as speakers, may interfere with
the camera’s operation.
yInstall the product in a place with moderate temperature
and humidity. The recommended temperature range is 0
°C (32 °F) to 40 °C (104 °F).
yStrong electromagnetic waves from other devices could
interfere with the camera’s operation.
yRemove all the protective plastic bags (Vinyl) before use.
The product and company names contained in this manual
may or may not be registered trademarks or copyrights, and
are only used for identification or explanatory purposes. All
trademarks reserved.
No emergency calls with Skype
Skype is not a telephony replacement service, and cannot be
used for emergency service dialing.
ENGLISH
18 ASSEMBLING AND PREPARING

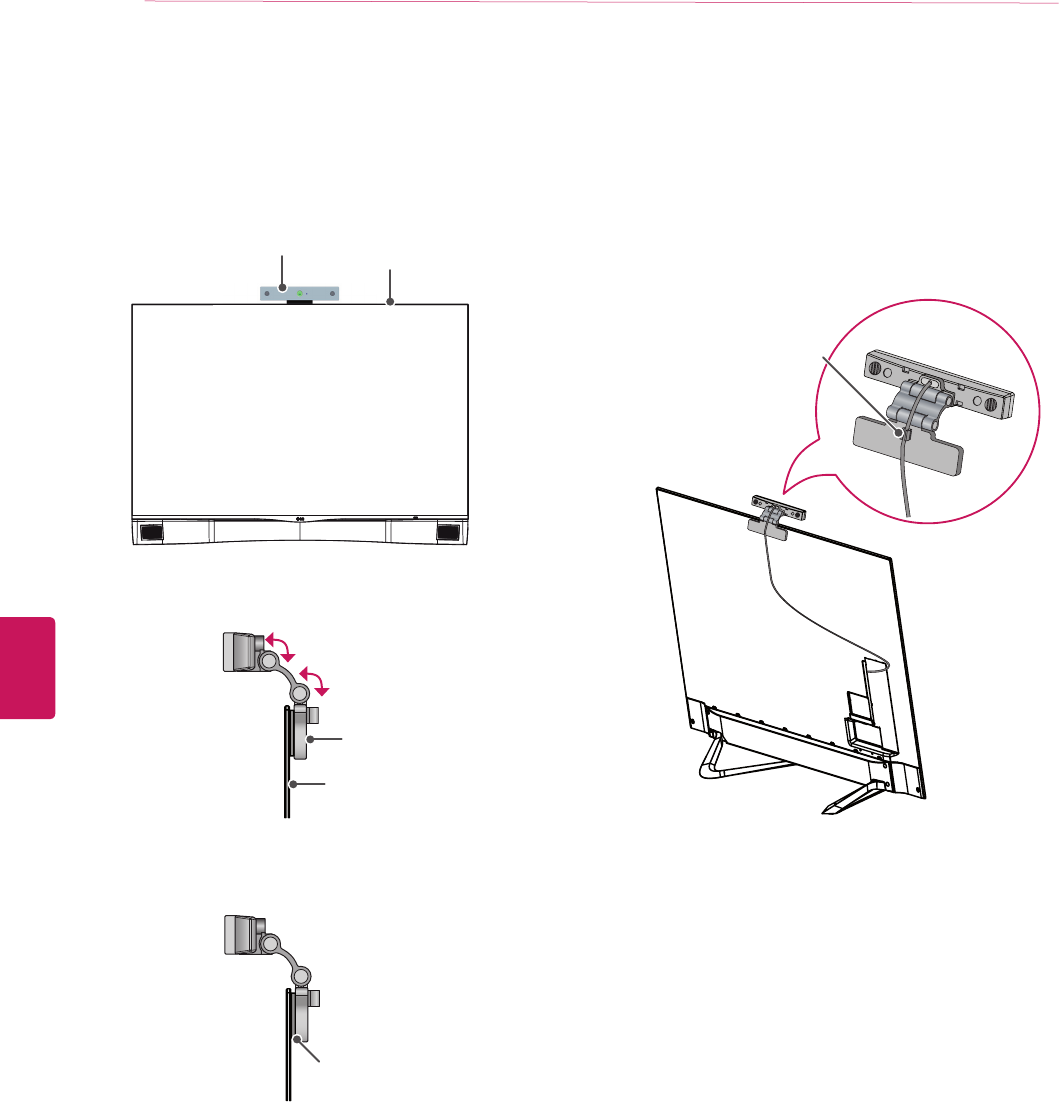

1 Unfold the stand and put it on the top center of the TV set.
2 Bend the stand of the video call camera.
TV
Video Call Camera
3 Firmly attach the TV stand to the back of the TV set using
the velcro tape.
Velcro tape
4 Insert the video call camera’s cable into the cable holder.
Please open the USB Camera Cover for video call camera’s
cable connection.The camera shall be connected to the
CAM terminal as shown in the figure.
Stand-Cable
holder
Preparing Video Call Camera
Video Call Camera TV
ENGLISH
19
ASSEMBLING AND PREPARING
yFor the best quality video and audio outputs, install the
camera on the top-center of your TV.
ySet up with the television switched off.
yWhen using external speakers, allow sufficient space
between the microphones and the speakers.
yThe TV must be connected to a network for Skype to
work.
NOTE
yFor best results when using a external speakers on your
TV, only use the front right/left (stereo) speakers when
using Skype.
yWhen making a video call with Skype using a PC, the
Skype software version for Windows should be 4.2 or
newer. (Visit the Skype homepage (www.skype.com) for
operating systems other than Windows, e.g. OS X, Linux,
etc.)
yVideo calls can not be made to a Mac that runs Skype 2.8
or lower.
yContent can be changed or deleted depending on Content
Provider.
yPlease visit the content providers web site for specific
information on their services.
yThe software update screen will automatically appear
when an update is available.
yFor some models, you cannot use input devices such
as a keyboard and mouse while using Skype (premium
content).
NOTE
ENGLISH
20 MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to
the manual provided with each device.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items
and a RF cable is optional.
yMake sure not to bend the copper wire of the RF
cable.
Copper wire
yComplete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
CAUTION
yIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
yThe external device connections shown may differ slightly from illustrations in this manual.
yConnect external devices to the TV regardless of the order of the TV port.
yIf you connect a gaming device to the TV, use the cable supplied with the gaming device.
yRefer to the external equipment’s manual for operating instructions.
NOTE
yUse a signal splitter to use more than 2 TVs.
yVisit http://lgknowledgebase.com for more information
about the antenna and cable connection. Search for
antenna.
yDTV Audio Supported Codec: MPEG, Dolby Digital.
NOTE
Antenna
Coaxial (75Ω)
Terminal
(*Not Provided)
UHF Antenna
VHF Antenna
ENGLISH
21
MAKING CONNECTIONS
Connecting to a HD receiver, DVD Player or VCR
Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode.

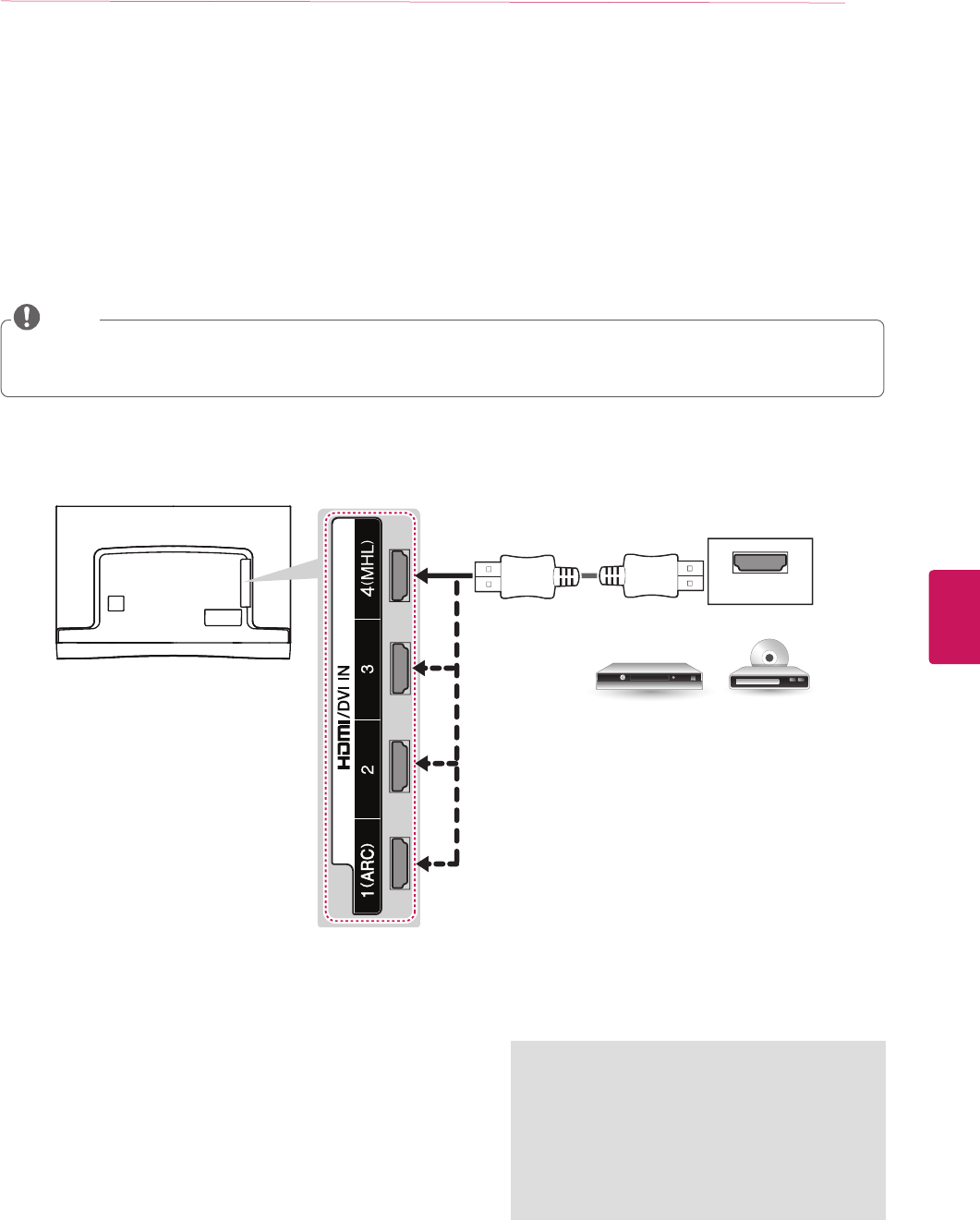

HDMI Connection
HDMI is the best way to connect a device.
Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI
cable as shown in the following illustration.
Choose any HDMI input port to connect.
It does not matter which port you use.
ARC (Audio Return Channel)
yWhen connected with a high-speed HDMI
cable, digital audio can be sent to a compactible
device without an additional optical audio cable.
yARC is only supported on the HDMI input
1 (ARC) port. An external audio device that
supports ARC should be connected to HDMI 1
if you wish to use ARC.
HDMI
DVD / Blu-Ray / HD Cable Box / HD STB
(*Not Provided)
yUse the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function.
yHigh Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
yHDMI Audio Supported Format: PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz / 88 kHz / 96 kHz / 176 kHz / 192 kHz)
NOTE
ENGLISH
22 MAKING CONNECTIONS

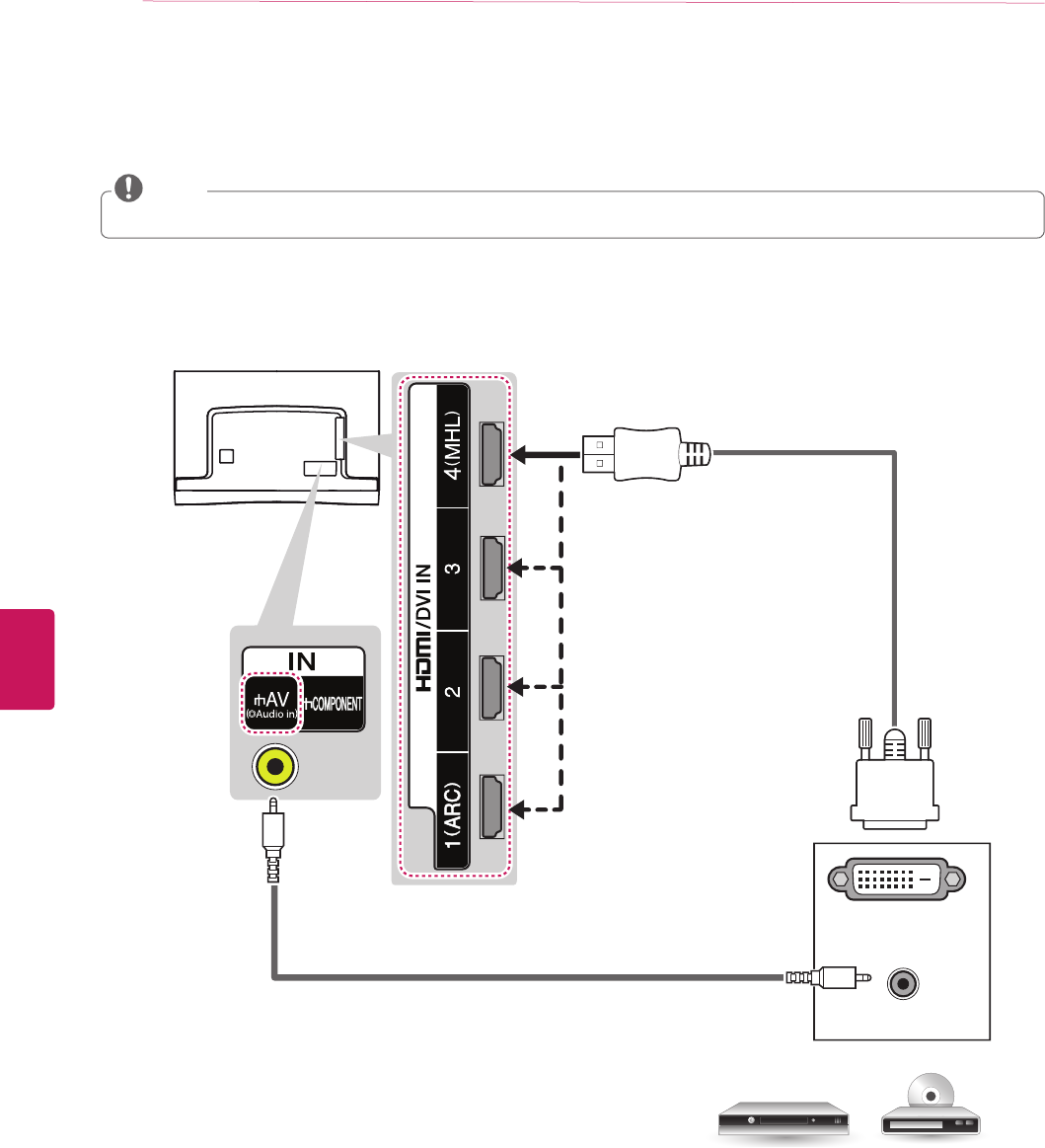

DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable
as shown in the following illustration. To transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect.
It does not matter which port you use.
yWhen using the HDMI/DVI cable, Single link is only supported.
NOTE
AUDIO OUT
DVI OUT
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
YELLOW
