LG Electronics USA 55EA8800UA OLED TV MONITOR User Manual MFL67652661 en indd

LG Electronics USA OLED TV MONITOR MFL67652661 en indd

User Manual 4

ENGLISH23MAKING CONNECTIONSConnecting to a mobile phoneMobile High-definition Link (MHL) is an interface for transmitting digital audio/visual signals from mobile phones to television sets. yConnect the mobile phone to the HDMI IN 4 (MHL) port to view the phone screen on the TV. yThis only works with an MHL-enabled phone. yWith some MHL supporting mobile phones, you can use the TV remote to control the phone. yAn MHL passive cable is needed to connect the TV and a mobile phone. yRemove the MHL cable from the TV when: - the MHL function is disabled - your mobile device is fully charged in standby mode NOTE4 (MHL) (*Not Provided)MHL CableMobile phone

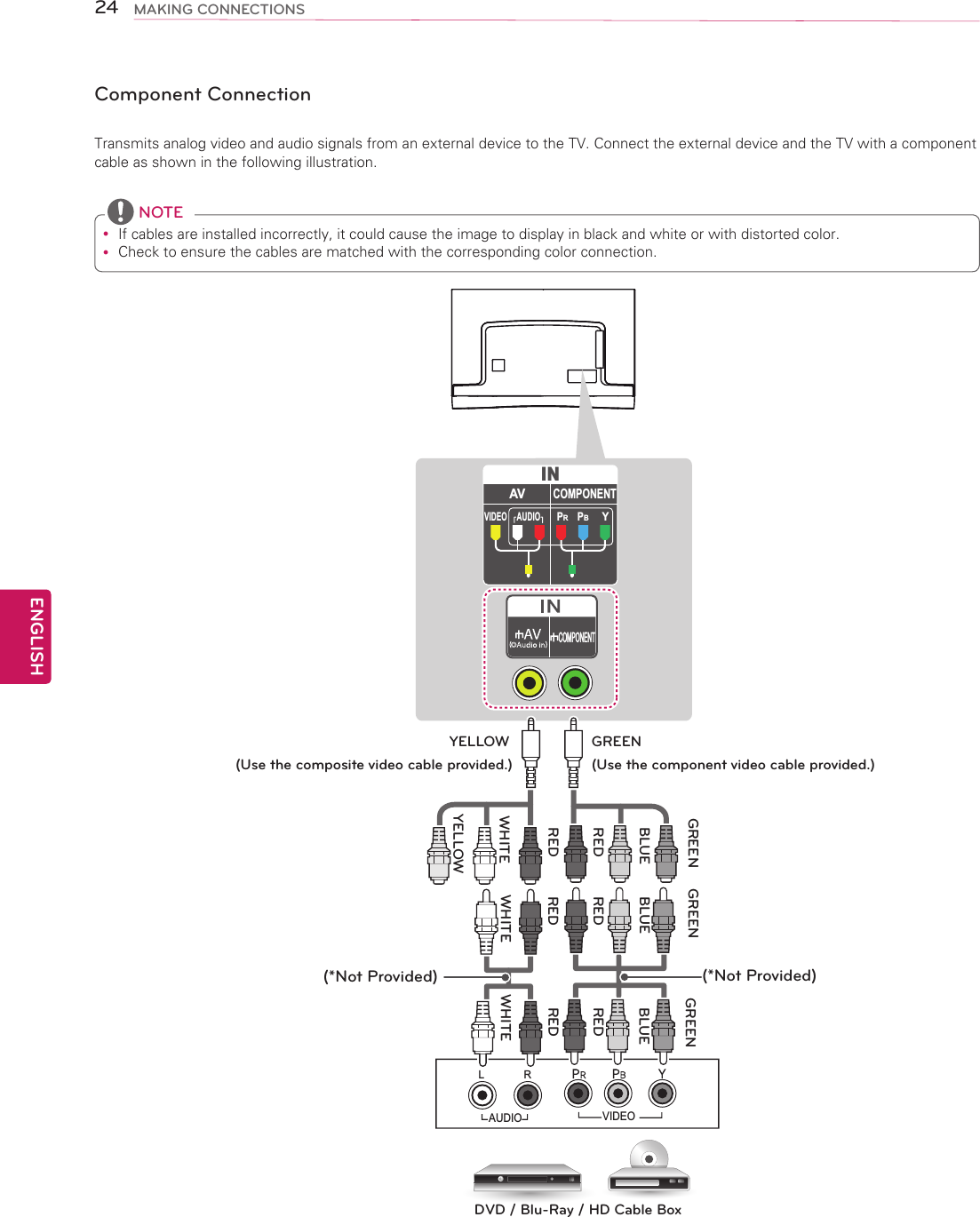

ENGLISH24 MAKING CONNECTIONSComponent ConnectionTransmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration. yIf cables are installed incorrectly, it could cause the image to display in black and white or with distorted color. yCheck to ensure the cables are matched with the corresponding color connection. NOTEINCOMPONENTAVVIDEO AUDIOYPBPRVIDEOAUDIOL RDVD / Blu-Ray / HD Cable BoxGREENBLUEREDREDWHITEGREENYELLOWYELLOWWHITEREDGREENBLUEREDWHITEREDGREENBLUERED(Use the composite video cable provided.) (Use the component video cable provided.)(*Not Provided)(*Not Provided)
ENGLISH25MAKING CONNECTIONSComposite ConnectionTransmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration.INCOMPONENTAVVIDEO AUDIOYPBPRVIDEOMONO( )AUDIOL RVCR / DVD / Blu-Ray / HD Cable BoxREDWHITEYELLOWWHITEREDWHITEREDYELLOW YELLOWYELLOW(Use the composite video cable provided.) yIf you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV. yCheck to ensure the cables are matched with the corresponding color connection. NOTE(*Not Provided)
ENGLISH26 MAKING CONNECTIONSConnecting a PC yIt is recommended to use an HDMI connection for the best image quality. yDepending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. yIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. yThe synchronization input form for Horizontal and Vertical frequencies is separate. yDepending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly. yIf you are using DVI out from a PC, you have to connect analog audio separately. Refer to the instructions on the next page. yWhen using the HDMI/DVI cable, Single link is only supported. NOTEHDMI Connection or DVI to HDMI ConnectionChoose method A or B to make connection.Method A: HDMI ConnectionAUDIO OUT DVI OUTHDMI(*Not Provided)PCChoose any HDMI input port to connect. It does not matter which port you use.

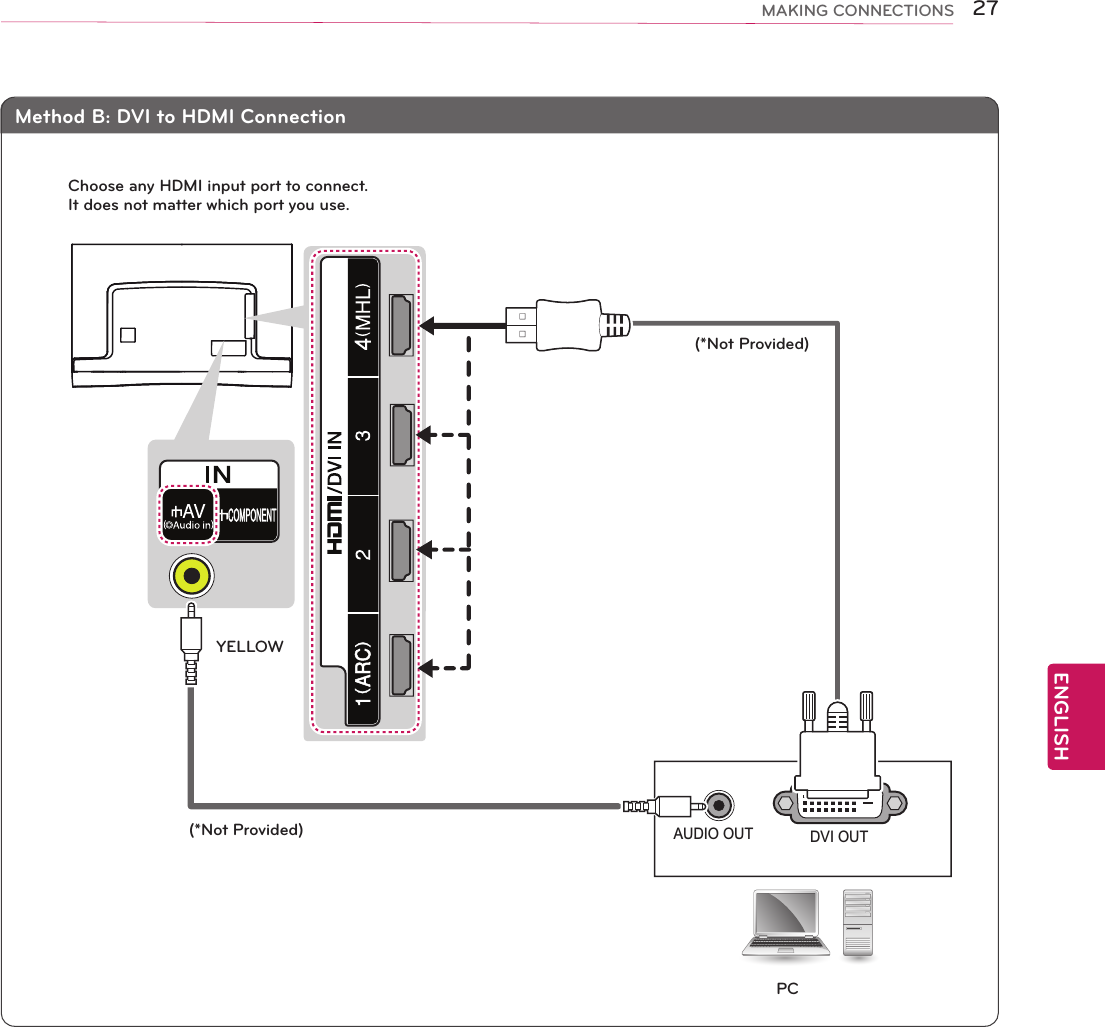

ENGLISH27MAKING CONNECTIONSMethod B: DVI to HDMI ConnectionAUDIO OUT DVI OUTHDMIPC(*Not Provided)(*Not Provided)YELLOWChoose any HDMI input port to connect.It does not matter which port you use.
ENGLISH28 MAKING CONNECTIONSConnecting to an Audio SystemYou can use an optional external audio system instead of the built-in speaker.Digital Optical Audio ConnectionTransmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration. yDo not look into the optical output port. Looking at the laser beam may damage your vision. yAudio with ACP (Audio Copy Protection) function may block digital audio output. NOTEOPTICAL AUDIO INDigital Audio System(*Not Provided)
ENGLISH29MAKING CONNECTIONSConnecting Headphones Listening to sound with headphonesHeadphone(*Not Provided)Connecting a USB DeviceConnect a USB storage device such as USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.Choose any USB input port to connect. It does not matter which port you use. ySome USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly. NOTE3(1A)(*Not Provided)USB / USB HUB / HDD yDo not use headsets (earphones) at high volume or for a long time. Otherwise, it may cause damage to your hearing. yAUDIO menu options are disabled when headphones are connected. yWhen changing AV MODE with a headphone connected, the change is applied to video but not to audio. yOptical Digital Audio Out is not available when connecting a headphone. yHeadphone impedance: 16 Ω yMax audio output: 0.624 mW to 1.04 mW yHeadphone jack size: 0.35 cm (0.13 inches) NOTE
ENGLISH30 MAGIC REMOTE CONTROL FUNCTIONSMAGIC REMOTE CONTROL FUNCTIONSWhen the message “Magic remote control battery is low. Change the battery.” is displayed, replace the battery. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution. Be sure to point the remote control at the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse. yDo not mix old and new batteries, as this may damage the remote control. CAUTIONThis remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.VOL CH /Q.MENUAccesses the Universal Control (Depending on country)Accesses the quick menus. Wheel(OK)Selects menus or options and confirms your input. Scrolls through the saved programmes. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Remote Control works as a regular remote control. To display the pointer again, shake the Magic Remote Control from side to side. (POWER) Turns the TV on or off.Used for viewing 3D video. BACK Returns to the previous level. CH Scrolls through the saved programmes or channels.Navigation buttons (up/down/left/right) Scrolls through menus or options. MUTEMutes all sounds. VOL Adjusts the volume level. Voice recognition-This is a beta version and only available in selected functions for supported models. -Network connection is required to use the voice recognition function.1. Press the Voice recognition button.2. Speak slowly and precisely. When a voice is recognized, the processing message appears on the screen.• Use the magic remote control no further than 10 cm from your face.SMART Accesses the Smart Home.Pointer (RF transmitter) LIGHTING ON/OFFTurns the light on and off.If you set it to ON, the light automatically turns off in 5 seconds
ENGLISH31MAGIC REMOTE CONTROL FUNCTIONSRegistering Magic Remote ControlThe Magic Remote Control operates by pairing with your TV. Please register the remote as follows.How to register the Magic Remote Control(Wheel)To register automatically, turn the TV on and press the Wheel (OK). When registration is completed, the completion message appears on the screen.If registration fails, turn the TV off and back on, then press the Wheel (OK) to complete registration. How to Re-register the Magic Remote ControlBACKSMART1 Press and hold the BACK and SMART buttons together for 5 seconds to reset, then register it by following “How to register the Magic remote control” above.2 To re-register the Magic remote control, press and hold the BACK button for 5 seconds toward the TV.How to use Magic Remote Control1 You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down. »If the pointer does not work properly leave the remote control for 10 seconds then use it again.2 If the pointer disappears, move the remote control slightly to left or right. Then, it will automatically appear on the screen. »If the pointer has not been used for a certain period of time, it will disappear.1If you press Wheel (OK) on the Magic remote control, the screen appears. Shows information about the current program and screen.2You can select My Apps Menu.Precautions to Take when Using the Magic Remote Control yUse the Magic remote control within the maximum communication distance (10 m, 32.8 ft). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure. yA communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic remote control. yThe Magic remote control may be damaged or may malfunction if it is dropped or receives a heavy impact. yTake care not to bump into nearby furniture or other people when using the Magic remote control. yManufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference. yIt is recommended that an Access Point (AP) be located more than 1 m (3.28 ft) away from the TV. If the AP is installed closer than 1 m (3.28 ft), the Magic remote control may not perform as expected due to frequency interference.
ENGLISH32 WATCHING TVWATCHING TVTurning the TV on for the first timeWhen you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.1 Connect the power cord to a power outlet.2 In Standby mode, press the power button on the remote control to turn the TV on. The Initial setting screen appears if you turn the TV on for the first time. yYou can also access Initial Setting by accessing OPTION in the main menu. NOTE3 Follow the on-screen instructions to customize your TV settings according to your preferences.Language Selection Selects a language to display.Environment Selection Select Home for the home environment.Time Zone SettingSelects the time zone and daylight saving. (Depending on country)Auto Energy Saving mode Select Auto Energy Savingmode.Network Connection Sets your network to enable network-related features on the TV.Select TV watching Type Set the TV and set-top box for each watching type. (Depending on country)Auto Tuning Scans and saves available channels automatically.Using camera and microphone To use voice and gesture recognition feature, lift up the built-in camera.(Depending on country)Setting is complete Confirms the setting options.Experience Magic Remote ControlSimple guide of Magic Remote Control (Depending on model) ySelect Home when prompted. Store mode puts the TV in demo mode. yIf you select Store, the any customized settings will switch back to the default settings of Store in 5 minutes. yPower Indicator feature is disabled in Store Demo mode. NOTE4 When the basic settings are complete, press the Wheel (OK). yIf you do not complete the Initial setting, it will appear whenever the TV turns on. yDisconnect the power cord from the power outlet when you do not use the TV for a long period of time. NOTE5 To turn the TV off, press the power button on the remote control.
ENGLISH33USING THE USER GUIDEUSING THE USER GUIDEUser Guide allows you to easily access detailed TV information.1 Press SMART button to access the Smart Home menus.2 Select User Guide and press the Wheel (OK) button.User GuideTo use input deviceTo set time optionsTo set languageTo set captionTo set Magic remote controlTo set TV lock optionsUser GuideIndex Online User GuideOPTIONCHANNEL SettingPICTURE, SOUND SettingLG SMART FunctionAdvanced FunctionInformation12 3 4 51Shows the video you were watching.2Guide categories.3List of topics in the current category.You can use / button to move between pages.4An index of key words present in the User Guide.5Provides the detailed information on the functions of LG Smart TV when the Internet is connected.(It may not be available depending on the country/language.)OPTION > To set languageSMART  Settings  OPTION  LanguageSelects Menu Language and Audio Language displayed on the screen.Menu LanguageAudio LanguageSelects a screen menu language.[In Digital Mode Only]Selects the desired language when watching digitalbroadcasting containing several audio languagesVoiceRecognitionLanguageSelect the language to make voice search✎ Only the voice search adopted model support thissetting.Try NowClose121Shows the description of the selected menu. You can use / to move between pages.2Moves to the selected menu directly from the User Guide.(Depending on country)To set other optionsIndex Online User Guide
ENGLISH34 SPECIFICATIONSSPECIFICATIONSProduct specifications may be changed without prior notice due to upgrade of product functions.Power requirement AC 100 - 240 V ~ 50 / 60 HzTelevision System NTSC-M, ATSC, 64 & 256 QAMProgram Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135External Antenna Impedance 75 ΩEnvironmentconditionOperating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)Operating Humidity Less than 80 %Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)Storage Humidity Less than 85 %MODELS 55EA8800(55EA8800 - UA)Dimensions (W x H x D)With stand 1,230 x 790 x 233 (mm)48.4 x 31.1 x 9.1 (inches)Without stand 1,230 x 715 x 25.4 (mm)48.4 x 28.1 x 1 (inches)Weight With stand 18.0 Kg (39.6 Ibs)Without stand 13.2 Kg (29.1 Ibs)Current Value / Power consumption TBD
ENGLISH35SPECIFICATIONSHDMI (DTV) supported modeResolution Horizontal Frequency (kHz)Vertical Frequency (Hz)720 x 480 31.46931.5059.9460.001280 x 720 44.9645.0059.9460.001920 x 108033.7233.7526.9727.00033.71633.7567.4367.50059.9460.0023.9724.00029.97630.0059.9460Component supported modeResolution Horizontal Frequency (kHz)Vertical Frequency (Hz)720 x 480i 15.7315.7359.9460.00720 x 480p 31.4731.5059.94601280 x 720p 44.9645.0059.9460.001920 x 1080i 33.7233.7559.9460.001920 x 1080p26.9727.0033.7133.7567.43267.50023.97624.0029.9730.0059.9460.00Component port connecting informationComponent ports on theTV Y PB PRVideo output portson DVD playerY PB PRY B-Y R-YY Cb CrY Pb PrHDMI (PC) supported modeResolution Horizontal Frequency (kHz)Vertical Frequency (Hz)640 x 480 31.469 59.94800 x 600 37.879 60.311024 x 768 48.363 60.001152 x 864 54.348 60.0531360 x 768 47.712 60.0151280 x 1024 63.981 60.0201920 x 1080 67.5 60.00
ENGLISH36 SPECIFICATIONSWireless LAN module (WN8122E1) specificationStandard IEEE802.11a/b/g/nFrequency Range 2400 to 2483.5 MHz 5725 to 5850 MHzOutput Power (Max.)802.11a: 16.5 dBm 802.11b: 16 dBm 802.11g: 15.5 dBm 802.11n - 2.4GHz: 15.5 dBm 802.11n - 5GHz: 16.5 dBm yBecause band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table. yContains FCC ID: BEJWN8122E1 Contains IC: 2703H-WN8122E1Bluetooth module (BM-LDS401) specification Standard Bluetooth Version 3.0Frequency Range 2400 ~ 2483.5 MHzOutput Power (Max.) 10 dBm or lower yContains FCC ID: BEJLDS401 Contains IC: 2703H-LDS401
ENGLISH37SPECIFICATIONS3D supported mode yVideo, which is input as below media contents is switched into the 3D screen automatically.3D supported mode automaticallyInput Signal Horizontal Frequency (kHz)Vertical Frequency (Hz) Playable 3D video formatHDMI1080p54.00 24 F/P, L/A67.50 3027.00 24 S/S, T&B, S/S Full33.75 3067.50 60 S/S, T&B1080i 67.5060F/P, F/A33.75 S/S, T&B, S/S Full720p 90.00 F/P, L/A45.00 S/S, T&B, S/S Full480p 63.00 F/P, L/A31.50 T/B, S/S, S/S FullUSB 1080p 33.75 30 S/S, T&B, C/B, MPO(Photo)DLNAS/S : Side by Side, S/S Full : Side by Side Full, S/S Half :Side by Side Half,T/B : Top & Bottom, F/P : Frame Packing, F/A : Field Alternative, L/A : Line Alternative, C/B : Checker Board,R/I : Row Interleaving, C/I: Column Interleaving, F/S : Single Frame Sequential
ENGLISH38 SPECIFICATIONS / ExTERNAL CONTROL DEVICE SETUP3D supported mode manuallyInput Signal Playable 3D video formatTV -2D to 3D, S/S, T&BATV(CVBS) -Component -HDMI-PC1080p 2D to 3D, S/S, T&B, C/B, R/I, C/I(60Hz : F/S)Others 2D to 3D, S/S, T&BHDMI-DTVInterlace 2D to 3D, S/S, T&BProgressive 2D to 3D, S/S, T&B, C/B, R/I, C/I(60Hz : F/S )USB / DLNA (Movie)704 x 480p (Over) 2D to 3D, S/S, T&B, C/B, R/I, C/I(60Hz : F/S )704 x 480i (Over) 2D to 3D, S/S, T&B704 x 480 (Under) 2D to 3DUSB / DLNA (Photo)320 x 240 (Over) 2D to 3D, S/S, T&B320 x 240 (Under) 2D to 3DMiracast™ / WiDi1024 x 768p2D to 3D, S/S, T&B1280 x 720p1920 x 1080pOthers 2D to 3DExTERNAL CONTROL dEVICE SETUPTo obtain the external control device setup information, please visit ‘www.lg.com’.
ENGLISH39MAINTENANCEMAINTENANCECleaning Your TVClean your TV regularly to keep it at peak performance and to extend the product lifespan. yBefore Cleaning, turn the power off and disconnect the power cord and all other cables. yWhen the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. CAUTIONScreen, frame, cabinet and standTo remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. yDo not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions. yDo not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen’s finish and cause discoloration. yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. yWhen cleaning your TV, do not spray water directly on the left and right speakers at the bottom of the TV. yDo not let any water enter your TV and keep it dry.» Otherwise, this may cause damage to the product, such as corrosion. CAUTIONPower cordRemove the accumulated dust or dirt on the power cord regularly.

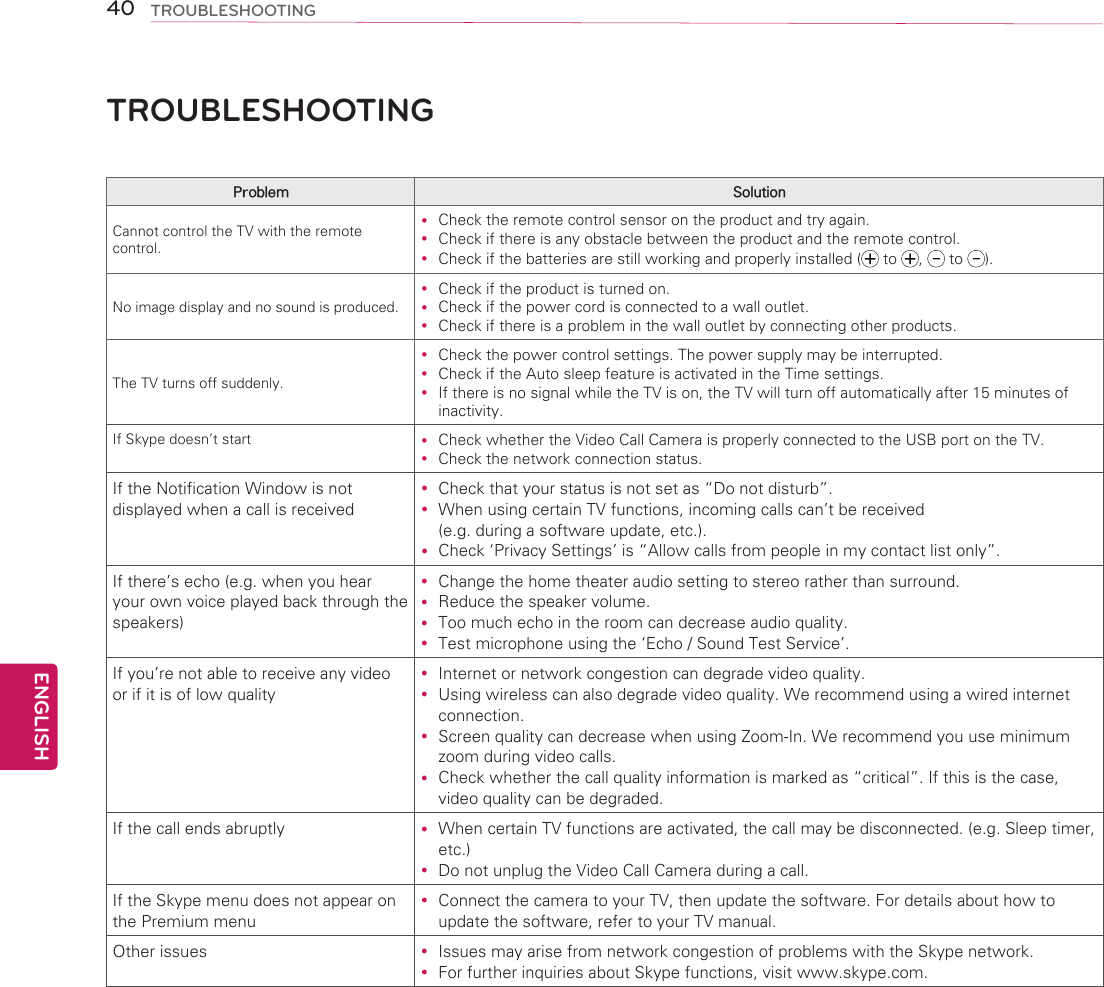

ENGLISH40 TROUBLESHOOTINGTROUBLESHOOTINGProblem SolutionCannot control the TV with the remote control. yCheck the remote control sensor on the product and try again. yCheck if there is any obstacle between the product and the remote control. yCheck if the batteries are still working and properly installed ( to , to ).No image display and no sound is produced. yCheck if the product is turned on. yCheck if the power cord is connected to a wall outlet. yCheck if there is a problem in the wall outlet by connecting other products.The TV turns off suddenly. yCheck the power control settings. The power supply may be interrupted. yCheck if the Auto sleep feature is activated in the Time settings. yIf there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.If Skype doesn’t start yCheck whether the Video Call Camera is properly connected to the USB port on the TV. yCheck the network connection status.If the Notification Window is not displayed when a call is received yCheck that your status is not set as “Do not disturb”. yWhen using certain TV functions, incoming calls can’t be received (e.g. during a software update, etc.). yCheck ‘Privacy Settings’ is “Allow calls from people in my contact list only”.If there’s echo (e.g. when you hear your own voice played back through the speakers) yChange the home theater audio setting to stereo rather than surround. yReduce the speaker volume. yToo much echo in the room can decrease audio quality. yTest microphone using the ‘Echo / Sound Test Service’.If you’re not able to receive any video or if it is of low quality yInternet or network congestion can degrade video quality. yUsing wireless can also degrade video quality. We recommend using a wired internet connection. yScreen quality can decrease when using Zoom-In. We recommend you use minimum zoom during video calls. yCheck whether the call quality information is marked as “critical”. If this is the case, video quality can be degraded.If the call ends abruptly yWhen certain TV functions are activated, the call may be disconnected. (e.g. Sleep timer, etc.) yDo not unplug the Video Call Camera during a call.If the Skype menu does not appear on the Premium menu yConnect the camera to your TV, then update the software. For details about how to update the software, refer to your TV manual.Other issues yIssues may arise from network congestion of problems with the Skype network. yFor further inquiries about Skype functions, visit www.skype.com.
CHILD SAFETY: It Makes A Difference How and Where You Use Your Flat Panel DisplayCongratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:THE ISSUE yThe home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. yFlat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.THIS MANUFACURER CARES! yThe consumer electronics industry is committed to making home entertainment enjoyable and safe.TUNE INTO SAFETY yOne size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display. yCarefully read and understand all enclosed instructions for proper use of this product. yDon’t allow children to climb on or play with furniture and television sets. yDon’t allow place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers. yRemember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. yCare should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS: yUse a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL). yFollow all instructions supplied by the display and wall mount manufacturers. yIf you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation. yMake sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer. yA minimum of two people are required for installation. Flat panel displays can be heavy
ederal Communications Commission(FCC) Statement) Federal Communications Commission(FCC) StatementYou are cautioned that changes or modifications not expressly approved by You are cautioned that changes or modifications not expressly approved by the part responsiblethe part responsiblefor compliance could void the user’s authority to operate the equipmentfor compliance could void the user’s authority to operate the equipmentfor compliance could void the user s authority to operate the equipment.for compliance could void the user s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.Class B digital device, pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful These limits are designed to provide reasonable protection against harmful it f i id tili tlltiit f i id tili tlltiinterference in a residential installation.interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a However, there is no guarantee that interference will not occur in a particular installationparticular installationparticular installation.particular installation.If this equipment does cause harmful interference to radio or television If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the the user is encouraged to try to correct the interference by one or more of the following measures:interference by one or more of the following measures:--. Reorient or relocate the receiving antenna.. Reorient or relocate the receiving antenna.--. Increase the separation between the equipment and receiver.. Increase the separation between the equipment and receiver.--. Connect the equipment into an outlet on a circuit different from that to . Connect the equipment into an outlet on a circuit different from that to which the receiver is connectedwhich the receiver is connectedwhich the receiver is connectedwhich the receiver is connected--. Consult the dealer or an experienced radio/TV technician for help.. Consult the dealer or an experienced radio/TV technician for help.

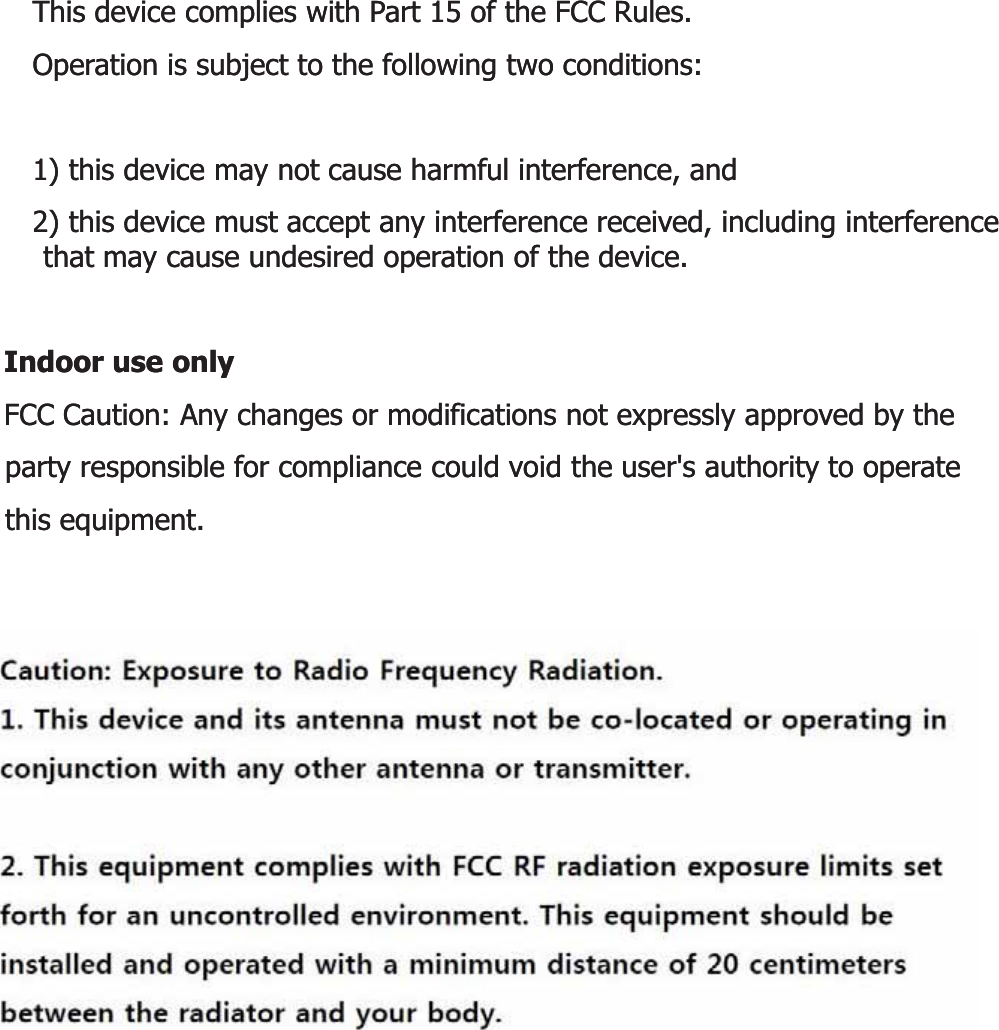

This device complies with Part 15 of the FCC Rules.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:Operation is subject to the following two conditions:1) this device may not cause harmful interference, and1) this device may not cause harmful interference, and2) this device must accept any interference received, including interference 2) this device must accept any interference received, including interference that may cause undesired operation of the device.that may cause undesired operation of the device.Id lId lIndoor use onlyIndoor use onlyFCC Caution: Any changes or modifications not expressly approved by the FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate party responsible for compliance could void the user's authority to operate this equipment.this equipment.
The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service.MODEL SERIAL
