Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
LED TV
* LG LED TV applies LCD screen with LED backlights.
47LA6950
50LA6950
55LA6950
ENGLISH
2IMPORTANT SAFETY INSTRUCTIONS
yDo not use this apparatus near water.
Short-circuit
Breaker
Power Supply
yClean only with a dry cloth.
Short-circuit
Breaker
Power Supply
yDo not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Short-circuit
Breaker
Power Supply
yDo not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Short-circuit
Breaker
Power Supply
yDo not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
Short-circuit
Breaker
Power Supply
yKeep the product away from direct sunlight.
Short-circuit
Breaker
Power Supply
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
Short-circuit
Breaker
Power Supply

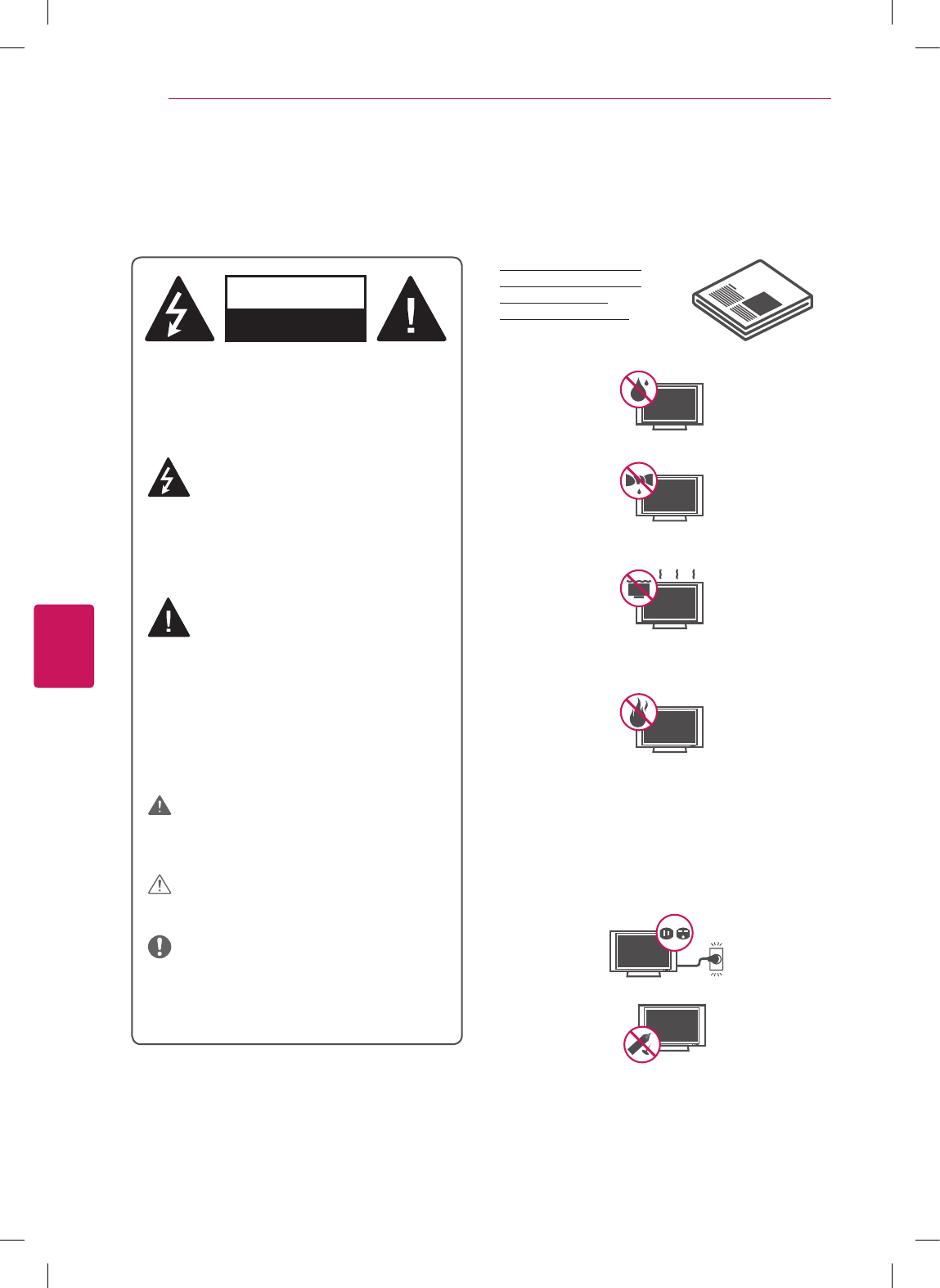

WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
CAUTION
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
The note helps you understand and use the product
safely. Please read the note carefully before using
the product.
WARNING: This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
ENGLISH
3

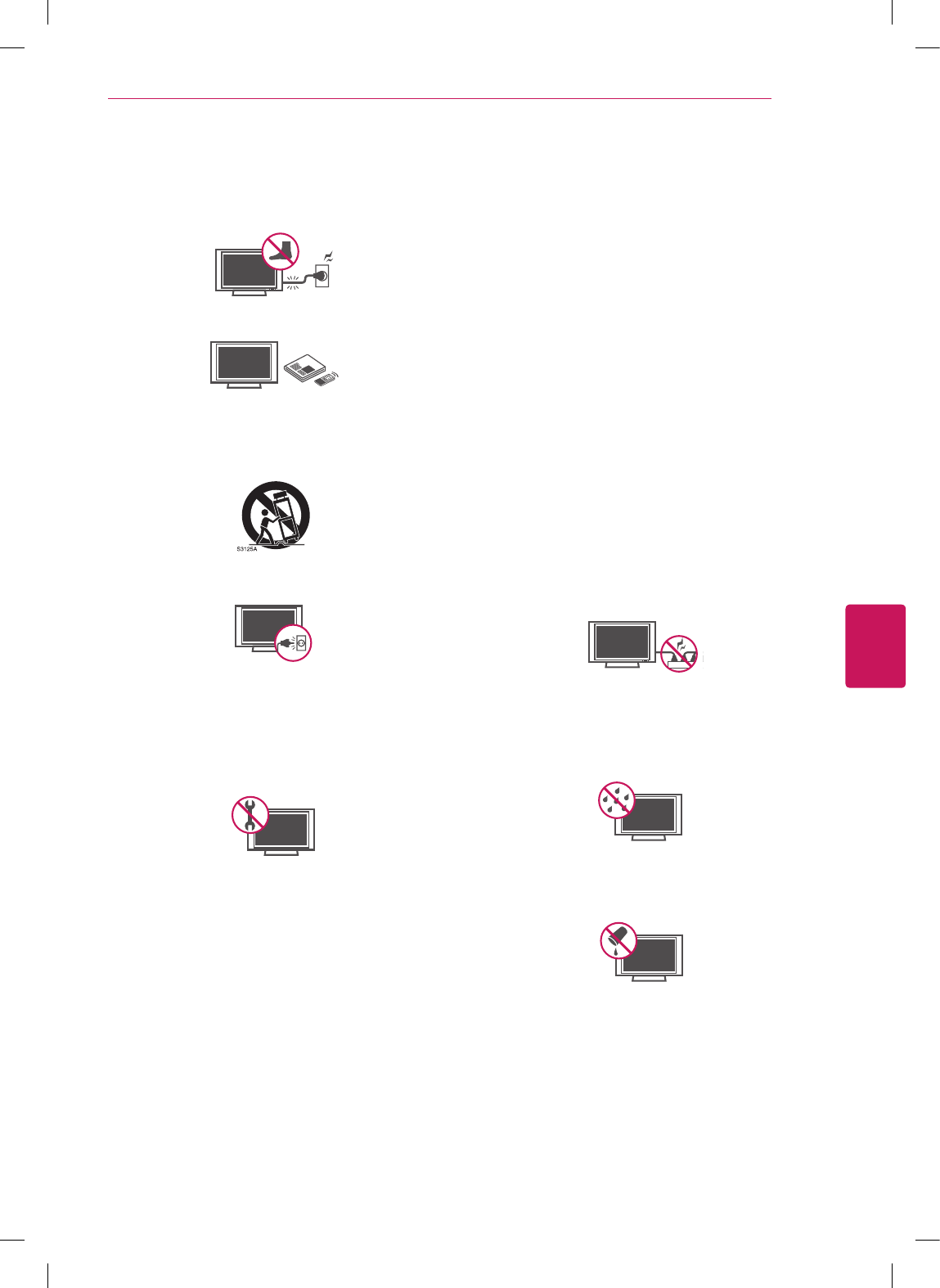

IMPORTANT SAFETY INSTRUCTIONS
yProtect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Short-circuit
Breaker
Power Supply
yOnly use attachments/accessories specified by the
manufacturer.
Short-circuit
Breaker
Power Supply
yUse only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Short-circuit
Breaker
Power Supply
yUnplug this apparatus during lightning storms or
when unused for long periods of time.
Short-circuit
Breaker
Power Supply
yRefer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Short-circuit
Breaker
Power Supply
yDo not stick metal objects or any other conductive
material into the power cord. Do not touch the end
of the power cord while it is plugged in.
yKeep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
yCAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed upon a
dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner’s manual to be certain. Do
not connect too many appliances to the same AC
power outlet as this could result in fire or electric
shock. Do not overload wall outlets. Overloaded
wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part
by an authorized service. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance. Do
not move the TV with the power cord plugged in.
Do not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power cord.
Do not pull on the power cord to unplug the TV.
Short-circuit
Breaker
Power Supply
yWarning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
Short-circuit
Breaker
Power Supply
yDo not expose to dripping or splashing and do not
place objects filled with liquids, such as vases, cups,
etc. on or over the apparatus (e.g. on shelves above
the unit).
Short-circuit
Breaker
Power Supply
ENGLISH
4IMPORTANT SAFETY INSTRUCTIONS
yGrounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
yAs long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
yDo not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product.

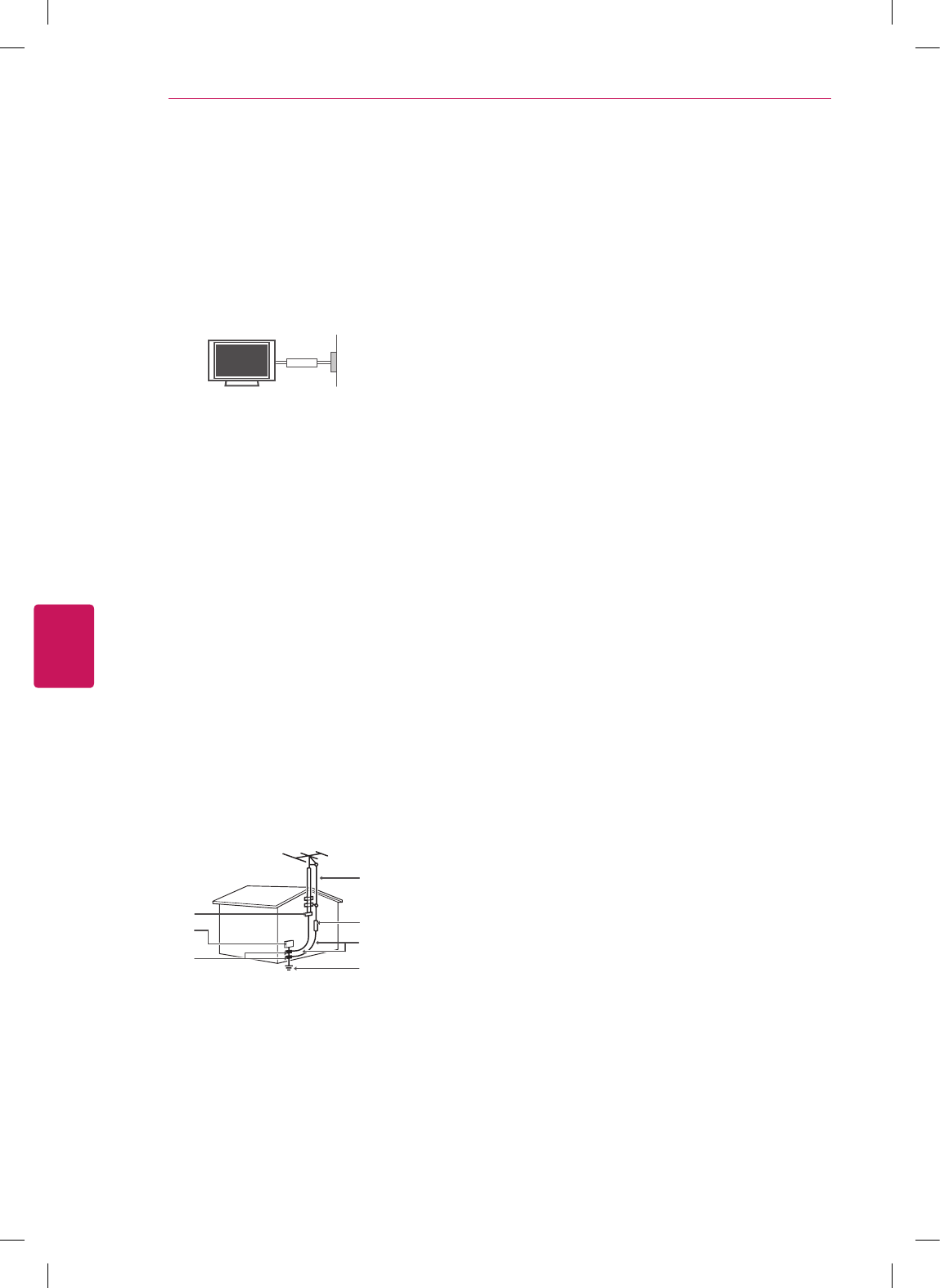

yOutdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Section 810 of the
National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
yCleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.
yMoving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press or put
stress on the front panel of the TV.
yVentilation
Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty places.
yIf you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
yDo not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil or pen, or make
a scratch on it.
yNever touch this apparatus or antenna during a
thunder or lightning storm.
yWhen mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
yDo not allow an impact shock or any objects to fall
into the product, and do not drop anything onto the
screen.
yDisconnecting the Main Power
The power outlet used with this device must remain
easily accessible.
yStore the accessories (battery, etc.) in a safe
location out of the reach of children.
yThis apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact your
local authorities for disposal or recycling information.
yDo not dispose of batteries in a fire.
yDo not short circuit, disassemble or allow the
batteries to overheat.
ENGLISH
5

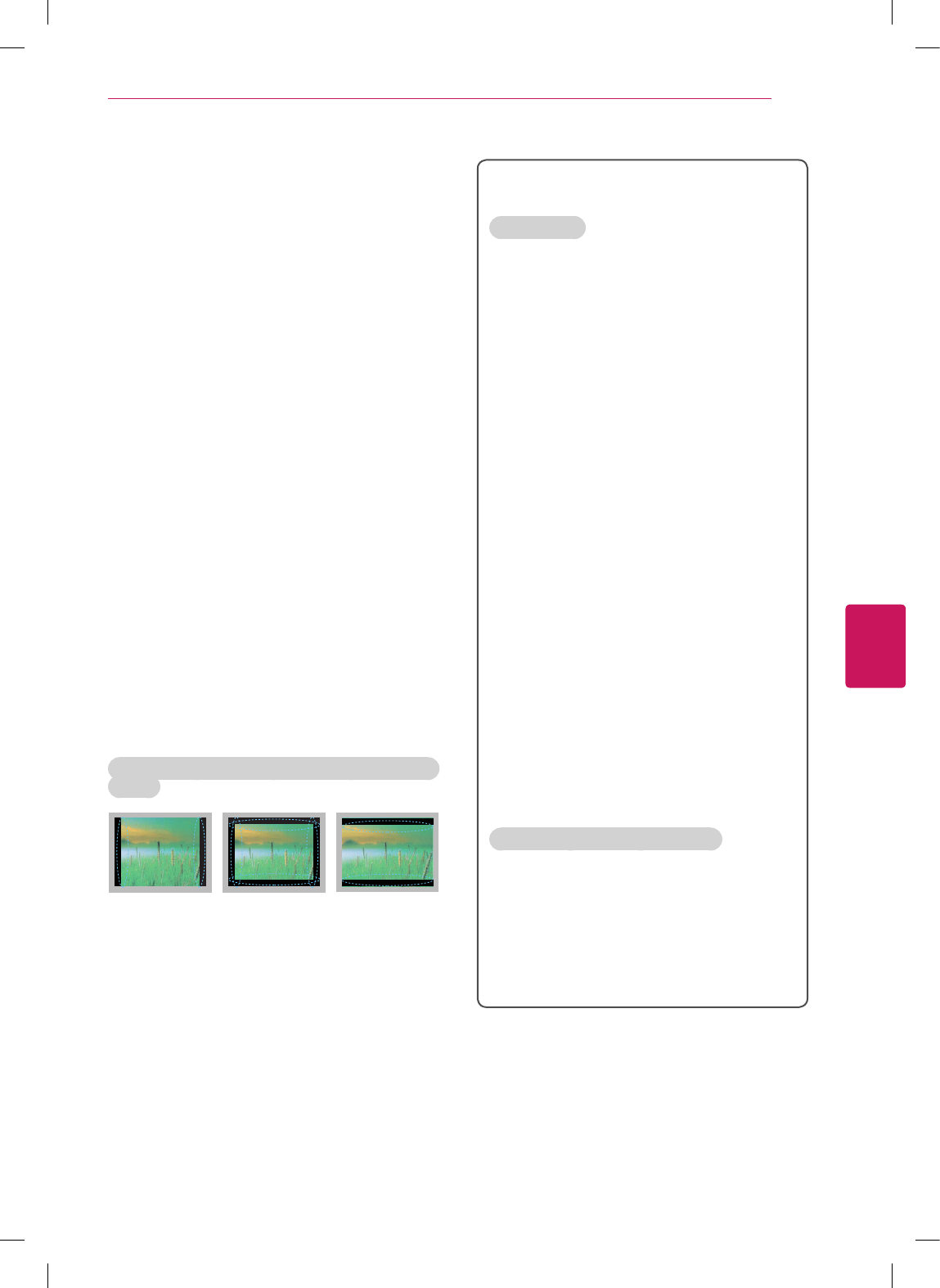

IMPORTANT SAFETY INSTRUCTIONS
yDot Defect
The Plasma or LCD panel is a high technology
product with resolution of two million to six million
pixels. In a very few cases, you could see fine dots
on the screen while you’re viewing the TV. Those
dots are deactivated pixels and do not affect the
performance and reliability of the TV.
yGenerated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to temperature and
humidity. This noise is common for products where
thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level
noise is generated from a high-speed switching
circuit, which supplies a large amount of current
to operate a product. It varies depending on the
product.
This generated sound does not affect the
performance and reliability of the product.
yTake care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
yIf the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV’s performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary distortion effects on the
screen.
Preventing “Image burn” or “Burn-in” on your TV
screen
yIf a fixed image displays on the TV screen for a long
period of time, it will be imprinted and become a
permanent disfigurement on the screen. This is
“image burn” or “burn-in” and not covered by the
warranty.
yIf the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
yAvoid displaying a fixed image on the TV screen for
a long period of time (2 or more hours for LCD, 1
or more hours for the Plasma TV) to prevent image
burn.
For USA and Canada
FCC NOTICE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
ENGLISH
6IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
yViewing Time
- When watching 3D content, take 5 - 15 minute
breaks every hour. Viewing 3D content for a long
period of time may cause headache, dizziness,
fatigue or eye strain.
Those that have a photosensitive seizure or
chronic illness
ySome users may experience a seizure or other
abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D content.
yDo not watch 3D videos if you feel nauseous,
are pregnant and/ or have a chronic illness such
as epilepsy, cardiac disorder, or blood pressure
disease, etc.
y3D Content is not recommended for those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
yIf you have strabismus (cross-eyed), amblyopia
(weak eyesight) or astigmatism, you may have
trouble sensing depth and easily feel fatigue due to
double images. It is advised to take frequent breaks
than the average adult.
yIf your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D
content.
Symptoms which require discontinuation or
refraining from watching 3D content
yDo not watch 3D content when you feel fatigue
from lack of sleep, overwork or intoxication.
yWhen these symptoms are experienced, stop using/
watching 3D content and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience or
fatigue.
CAUTION
Viewing Environment
yViewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D content. If
you feel discomfort in viewing 3D content, move
further away from the TV.
Viewing Age
yInfants / Children
- Usage/ Viewing 3D content for children under the
age of 5 are prohibited.
- Children under the age of 10 may overreact and
become overly excited because their vision is in
development (for example: trying to touch the
screen or trying to jump into it. Special monitoring
and extra attention is required for children watching
3D content.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than one of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
yTeenagers
- Teenagers under the age of 19 may be stimulated
to light coming from 3D videos. Advise them not
to watch 3D videos for a long time when they are
tired.
yElderly
- The elderly may perceive less of a 3D effect than
the youth. Do not sit closer to the TV than the
recommended distance.
Cautions when using the 3D glasses
yOnly use LG 3D glasses. Otherwise, you may not
be able to view 3D videos properly.
yDo not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
yUsing modified 3D glasses may cause eye strain or
image distortion.
yDo not keep your 3D glasses in extremely high or
low temperatures. It will cause deformation.
yThe 3D glasses are fragile and are easy to
scratched. Use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the
3D glasses with sharp objects or clean/wipe them
with chemicals.
ENGLISH
7
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit ‘www.lg.com’.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to
play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit ‘http://opensource.lge.com’.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to ‘opensource@lge.com’. This offer
is valid for three (3) years from the date on which you purchased the product.
ENGLISH
8TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
6 Viewing 3D Imaging
7 LICENSES
7 OPEN SOURCE SOFTWARE NOTICE
8 TABLE OF CONTENTS
9 INSTALLATION PROCEdURE
9 ASSEMBLING ANd PREPARING
9 Unpacking
11 Optional Extras
12 Parts and Buttons
13 Lifting and moving the TV
14 Setting up the TV
14 - Attaching the stand
15 - Mounting on a table
17 - Tidying cables
18 - Mounting on a wall
19 MAKING CONNECTIONS
19 Connecting to an antenna or cable
20 Connecting to a HD receiver, DVD Player or VCR
20 - HDMI Connection
21 - DVI to HDMI Connection
22 - Connecting to a mobile phone
23 - Component Connection
24 - Composite Connection
25 Connecting a PC
25 - HDMI Connection DVI to HDMI Connection
27 Connecting to an Audio System
27 - Digital Optical Audio Connection
28 Connecting Headphones
28 Connecting a USB Device
29 MAGIC REMOTE CONTROL
FUNCTIONS
30 - Registering Magic Remote Control
30 - How to use Magic Remote Control
30 - Precautions to Take when Using the Magic
Remote Control
31 WATCHING TV
31 Turning the TV on for the first time
32 USING THE USER GUIdE
33 SPECIFICATIONS
36 ExTERNAL CONTROL dEVICE SETUP
37 MAINTENANCE
37 Cleaning Your TV
37 - Screen, frame, cabinet and stand
37 - Power cord
37 TROUBLESHOOTING
TABLE OF CONTENTS
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
yThe available menus and options may differ from
the input source or product model that you are
using.
yNew features may be added to this TV in the
future.
NOTE
ENGLISH
9
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
INSTALLATION PROCEdURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING ANd PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the warranty.
ySome models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.

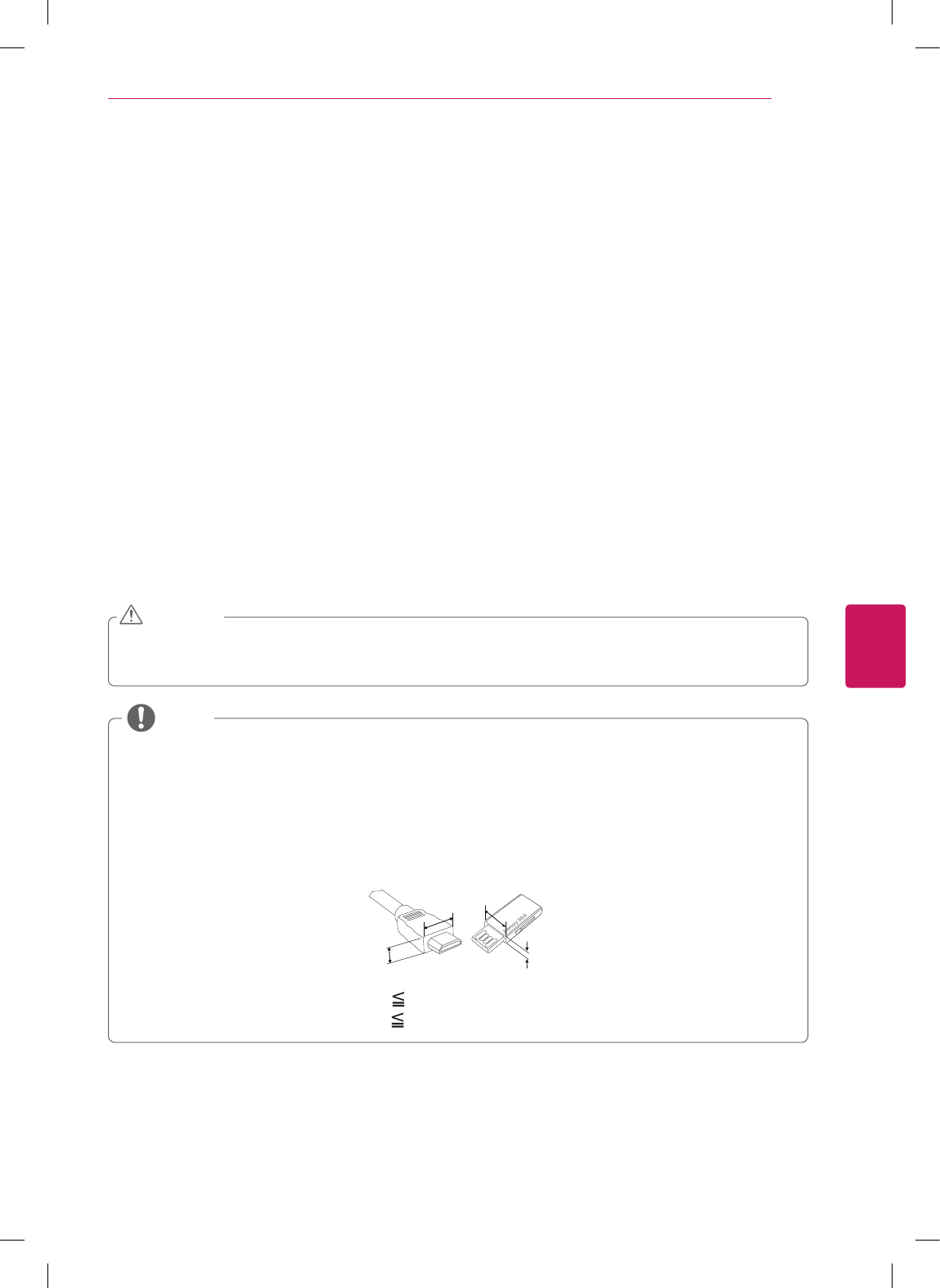

CAUTION
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches)
thick and 18 mm (0.7 inches) width.
yUse an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's
USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE
ENGLISH
10 ASSEMBLING AND PREPARING
CH
VOL
/Q.MENU
BACK

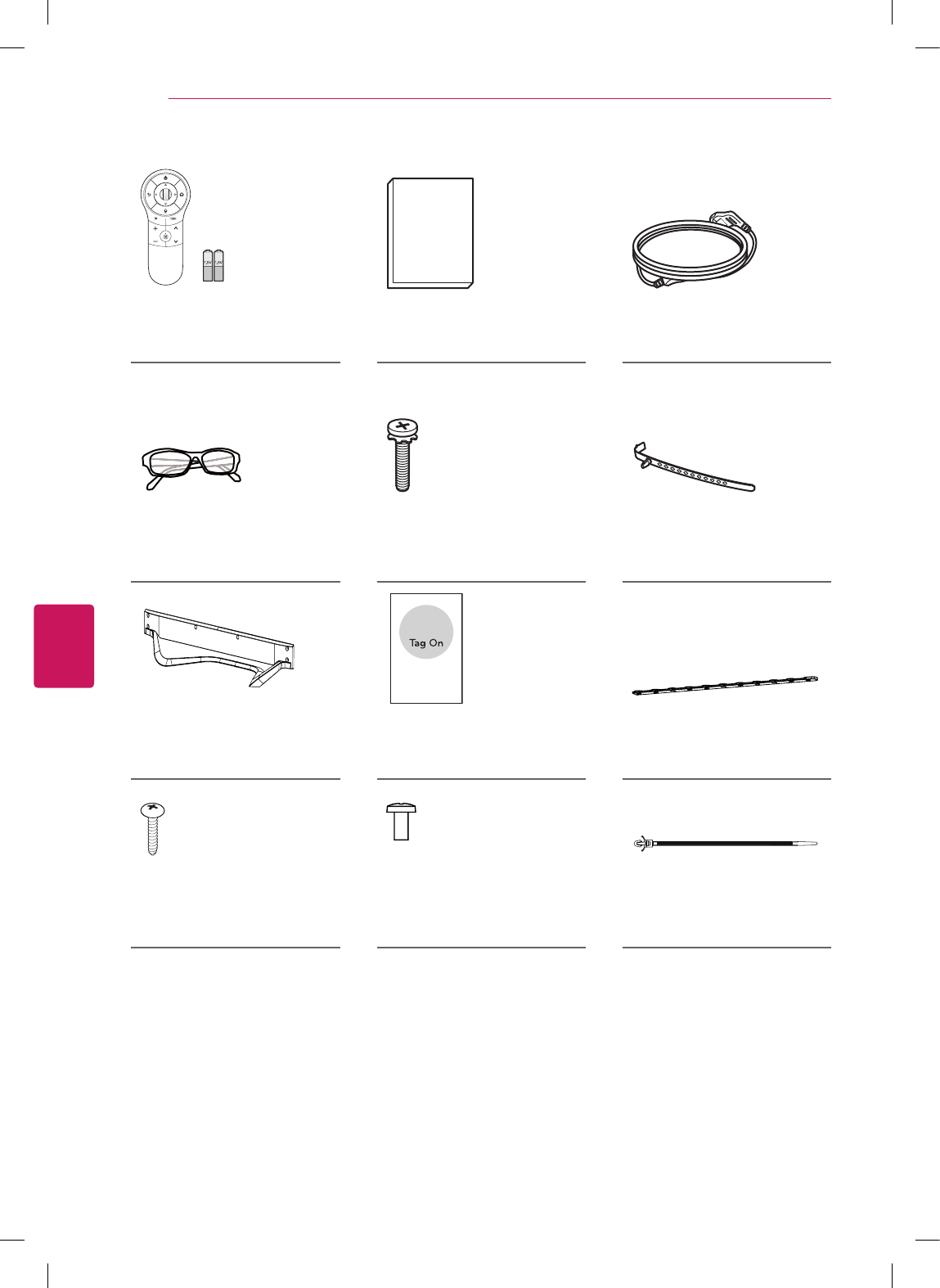

Home
Magic Remote Control,
Batteries (AA)
(See p.28)
Owner’s Manual Power Cord
Cinema 3D Glasses
The number of 3D glasses may
differ depending on the model
or country.
Stand Screws
4 EA, M4 x 20
(See p.14)
Cable Holder
(Depending on model)
(See p.17)
Stand Base
(See p.14)
Tag On
Near Field Communication (NFC)
tag.
Desk-mount Cable
1 EA
(See p.15)
Desk-mount Screw
1 EA
(See p.15)
Bracket Screw
1 EA
(See p.15)
Cable Tie
1 EA
(See p.17)
ENGLISH
11
ASSEMBLING AND PREPARING

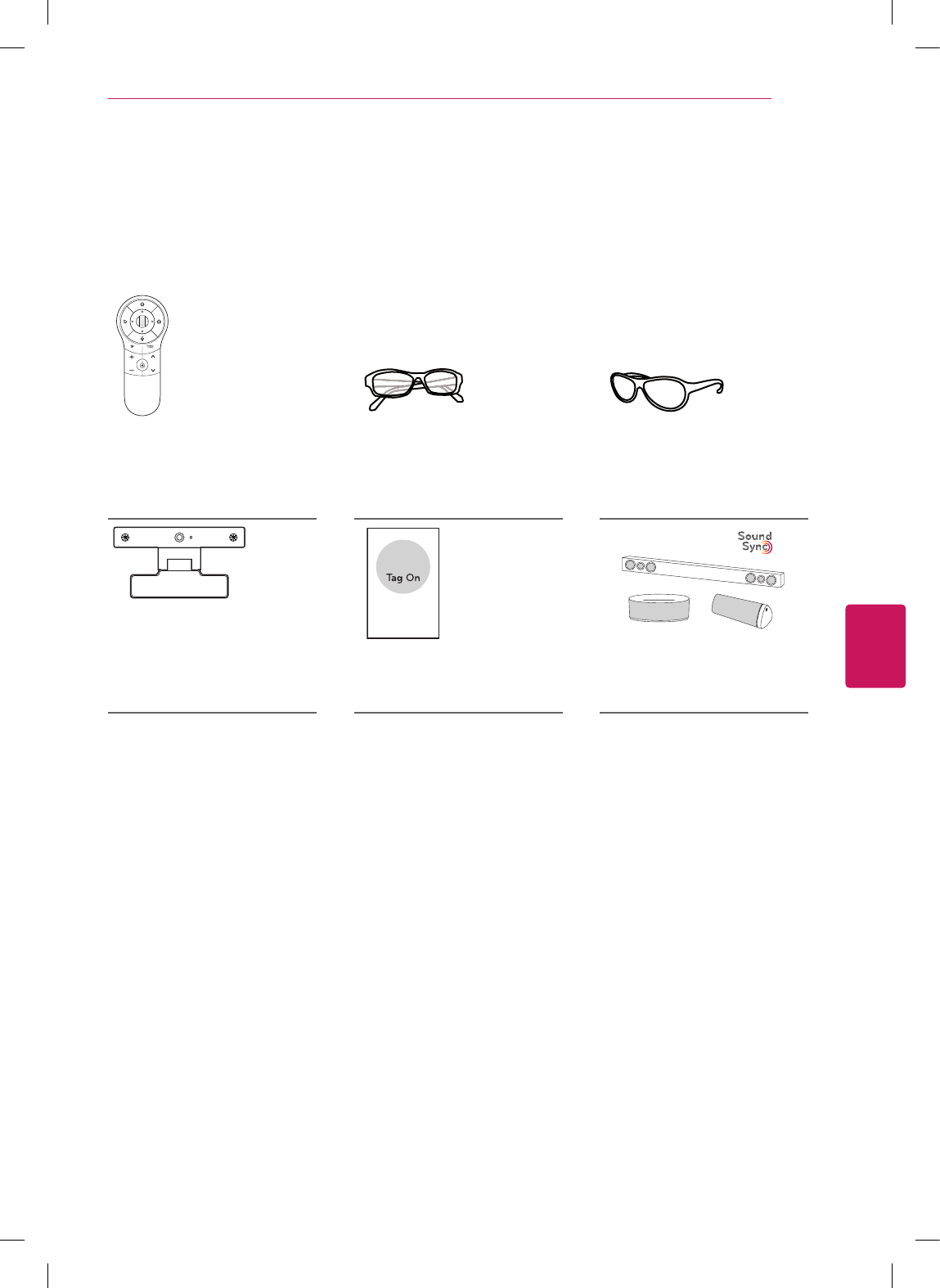

Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed manufacturer’s circumstances or policies.
AN-MR400G
Magic Remote
AG-F***
Cinema 3D Glasses. All glasses
with the Cinema 3D logo
support the TVs in this manual.
AG-F***DP
Dual Play Glasses. For playing
head-to-head games. Converts
most 2 player split-screen ga-
mes to full screen.
AN-VC***
Video Call Camera
Tag On
Near Field Communication (NFC)
tag.
LG Audio device
CH
VOL
/Q.MENU
BACK Home
ENGLISH
12 ASSEMBLING AND PREPARING

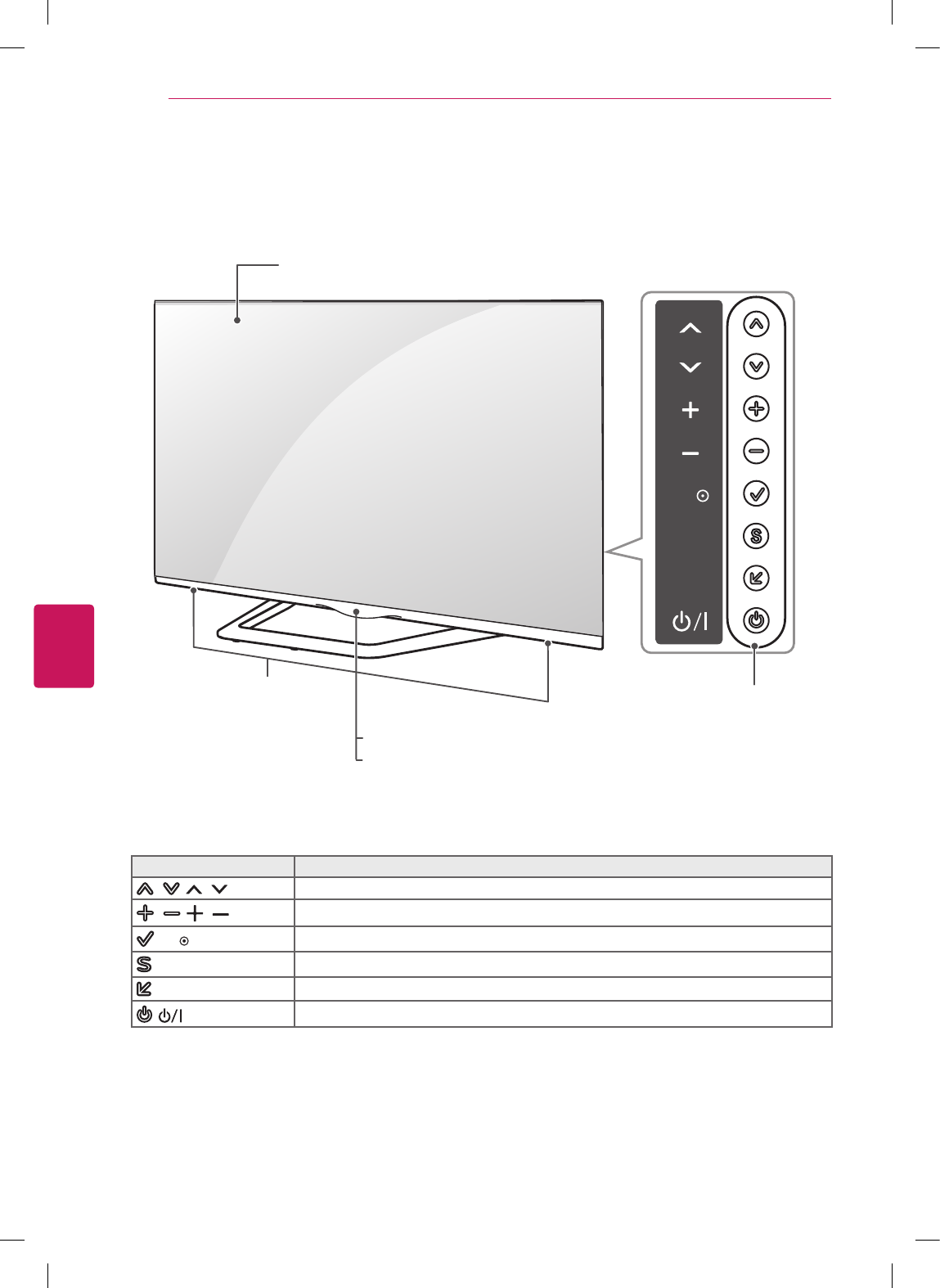

Parts and Buttons
Button Description
/ ( / ) Scrolls through the saved channels.
/ ( / ) Adjusts the volume level.
(OK ) Selects the highlighted menu option or confirms an input.
(SETTINGS)Accesses the main menus, or saves your input and exits the menus.
(INPUT)Changes the input source.
( ) Turns the power on or off.
SETTINGS
INPUT
OK
Screen
Remote control
LG Logo Light
Buttons
Speakers
ENGLISH
13
ASSEMBLING AND PREPARING

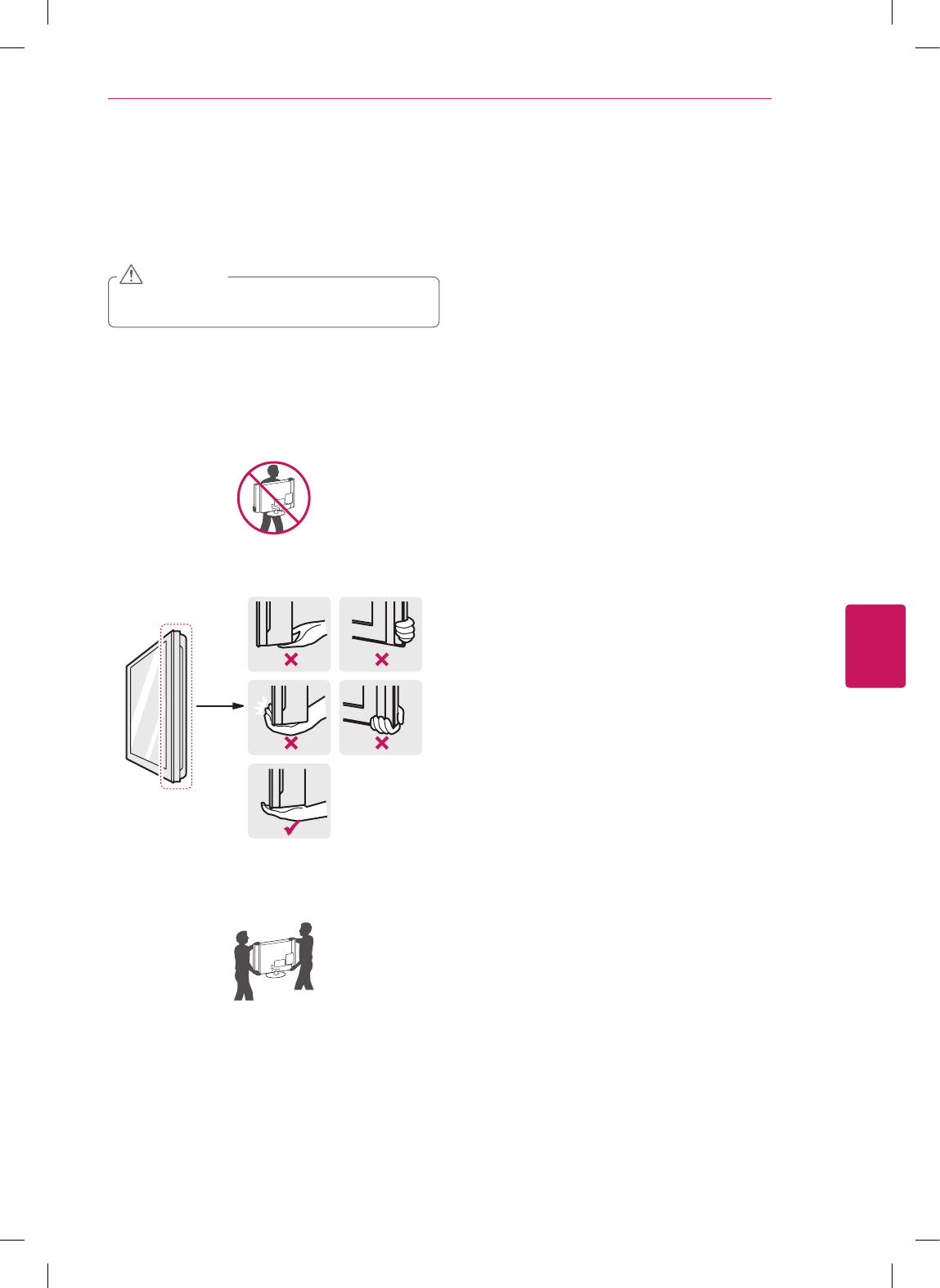

Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
yAvoid touching the screen at all times, as this may
result in damage to the screen.
CAUTION
yHold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
yWhen transporting a large TV, there should be at
least 2 people.
yWhen transporting the TV by hand, hold the TV as
shown in the following illustration.
yWhen transporting the TV, do not expose the TV to
jolts or excessive vibration.
yWhen transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.
yIt is recommended to move the TV in the box or
packing material that the TV originally came in.
yBefore moving or lifting the TV, disconnect the
power cord and all cables.
yWhen holding the TV, the screen should face away
from you to avoid damage.
ENGLISH
14 ASSEMBLING AND PREPARING
Setting up the TV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other
furniture.

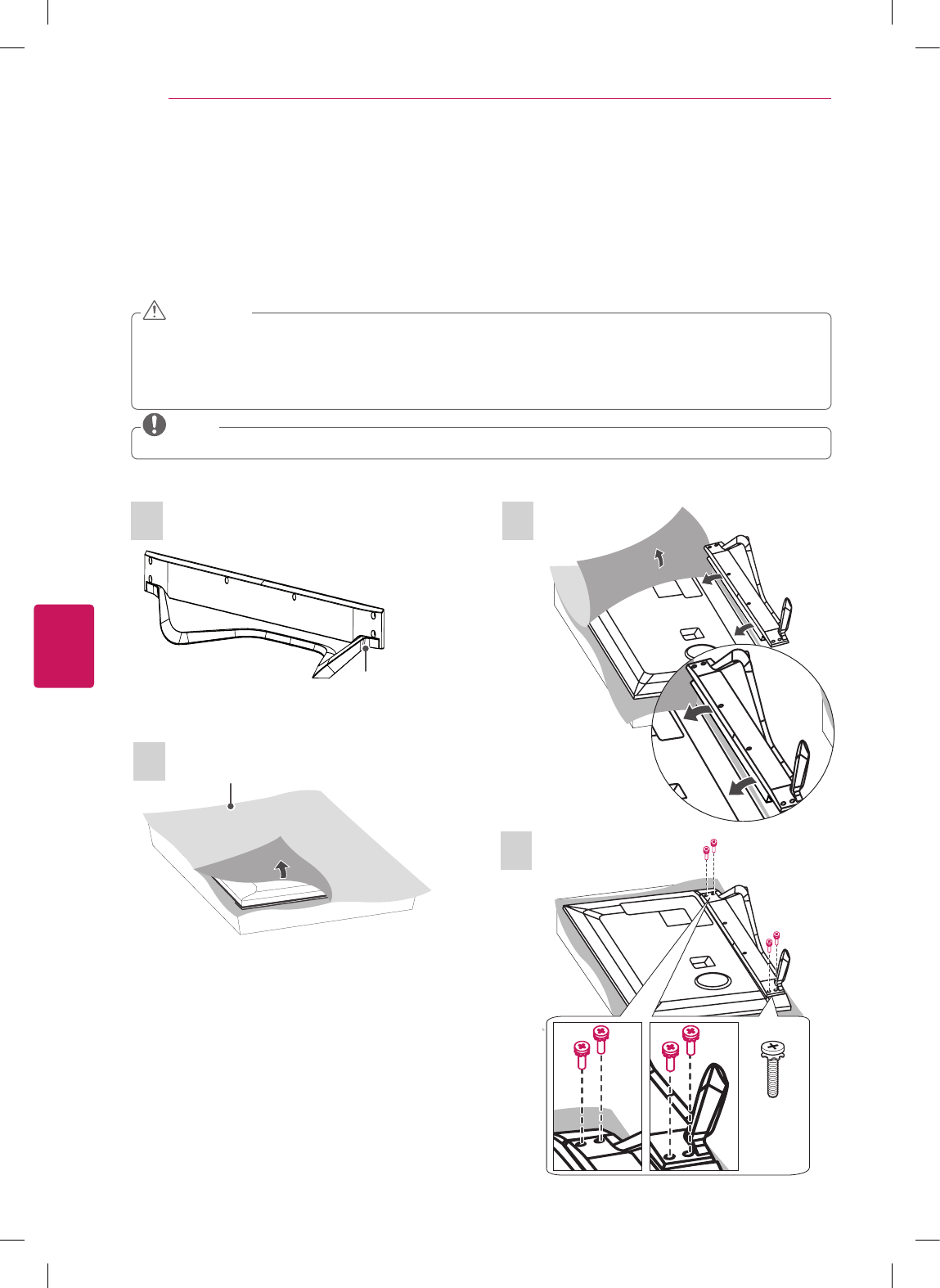

Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
yWhen attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to
protect the screen from scratches.
yMake sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward
after being installed.)
yDo not tighten the screws with too much force; otherwise they may be damaged and come loose later.
CAUTION
yRemove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
NOTE
3
2
4
Wrapping bag (Depending
on model)
1
Stand Base
M4 x 20
4EA
ENGLISH
15
ASSEMBLING AND PREPARING

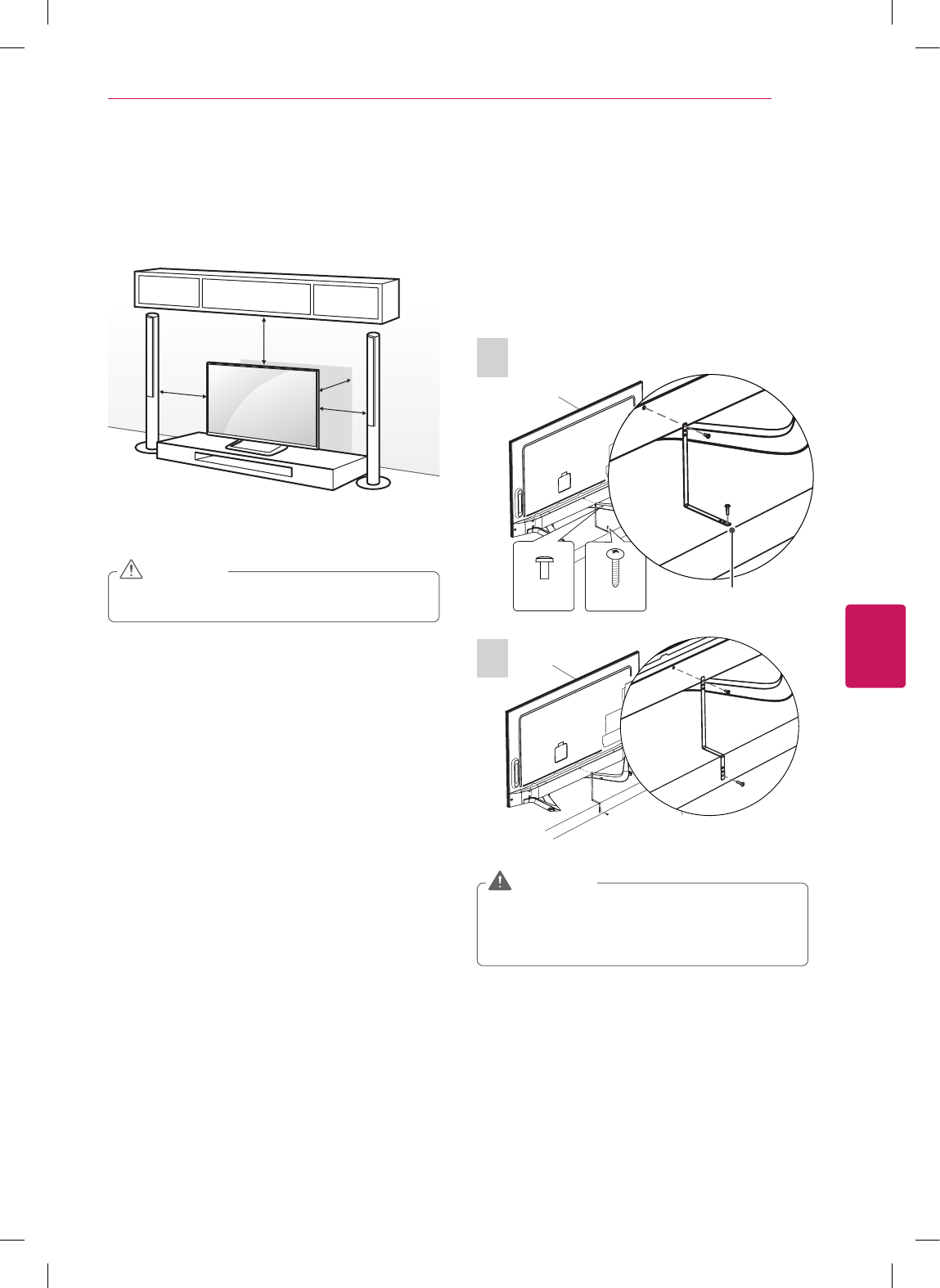

Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for
proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
yDo not place the TV near or on sources of heat, as
this may result in fire or other damage.
CAUTION
Securing the TV to a table
(For 47LA6900, 47LA6950, 60LA7400)
1 Connect the Desk-mount Cables to the Stand Base
using the Bracket Screws.
2 Fix the Desk-mount Cables to a table using the Desk-
mount Screws.
3 Once the TV is fixed, move the table close to the
wall. Children may go in, causing injuries.
1
Desk-mount Cable
P4 x 10 P4 x 20
2
yTo prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the TV
may cause injury.
WARNING

Navigation menu
