WATCHING TV
WATCHING TV
Turning the TV on for the first time
When you turn the TV on for the first time, the Initial
setting screen appears. Select a language and customize
the basic settings.
1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on the
remote control to turn the TV on.
The Initial setting screen appears if you turn the TV
on for the first time.
yYou can also access Initial Setting by accessing
OPTION in the main menu.
NOTE
3 Follow the on-screen instructions to customize your
TV settings according to your preferences.
Language Selection* Selects a language to
display.
Enviroment Selection Select Home* for the home
environment.
Time Zone Setting Selects the time zone and
daylight saving.
(Depending on country)
Network Connection Sets your network to enable
network-related features on
the TV.
Select TV watching
Type
Set the TV and set-top box
for each watching type.
Auto Tuning Scans and saves available
channels automatically.
Setting is complete. Confirms the setting options.
Experience Magic
Remote Control
Simple guide of Magic
Remote Control
ySelect Home* when prompted. Store* mode
puts the TV in demo mode.
yIf you select Store*, the any customized
settings will switch back to the default settings
of Store* in 5 minutes.
yThe Standby light feature is disabled in Store
Demo mode.
NOTE
4 When the basic settings are complete,
press the Wheel (OK).
yIf you do not complete the Initial setting, it will
appear whenever the TV turns on.
yDisconnect the power cord from the power
outlet when you do not use the TV for a long
period of time.
NOTE
5 To turn the TV off, press the power button on the
remote control.
ENGLISH
32 USING THE USER GUIDE
USING THE USER GUIdE

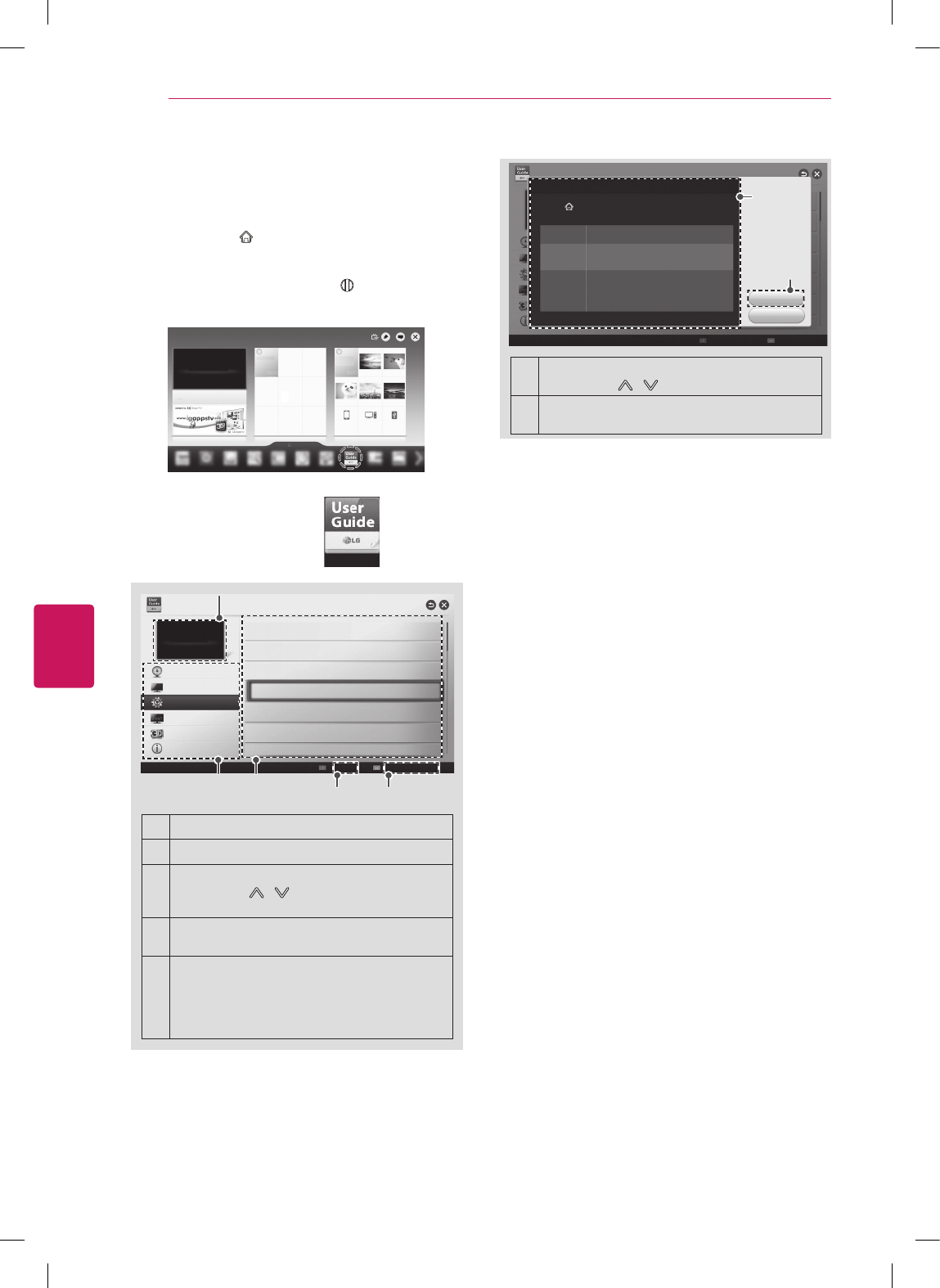

User Guide allows you to easily access detailed TV
information.
1 Press SMART( ) button to access the Smart Home
menus.
2 Select User Guid and press the Wheel(OK)
button.
User Guide
To use input device
To set time options
To set language
To set caption
To set Magic remote control
To set TV lock options
User Guide
Index View on the Internet
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
Information
1
2 3 4 5
1Shows the video you were watching.
2Guide categories.
3List of topics in the current category.
You can use / button to move between
pages.
4An index of key words present in the User
Guide.
5
Provides the detailed information on the
functions of LG Smart TV when the Internet is
connected.
(It may not be available depending on the
country/language.)
OPTION > To set language
SMART Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu
Language
Audio
Language
Selects a screen menu language.
[In Digital Mode Only]
Selects the desired language when watching digital
broadcasting containing several audio languages
Voice Search
Language
Select the language to make voice search
✎ Only the voice search adopted model support this
setting.
Try Now
Close
1
2
1Shows the description of the selected menu.
You can use / to move between pages.
2Moves to the selected menu directly from the
User Guide.
(Depending on country)
ENGLISH
33
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement AC 100 - 240 V ~ 50 / 60 Hz
Television System Analog : NTSC-M, DTV : DVB-T
Program Coverage VHF 2-13, UHF 14-69, CATV 1-125, DTV 14-69
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 - 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C
Storage Humidity Less than 85 %
MODELS
47LA6900
(47LA6900-UD)
50LA6900
(50LA6900-UE)
47LA6950
(47LA6950-UD)
50LA6950
(50LA6950-UE)
Dimensions
(W x H x D)
With stand 1063 x 697 x 269 (mm) 1112 x 720 x 292 (mm)
Without stand 1063 x 627 x 34.5 (mm) 1112 x 713 x 34.5 (mm)
Weight With stand 16.7 kg 19 kg
Without stand 14.6 kg 17.3 kg
Current Value / Power consumption 1.2 A / 120 W TBD
MODELS
55LA6900
(55LA6900-UD)
55LA6950
(55LA6950-UD)
Dimensions
(W x H x D)
With stand 1233 x 793 x 316 mm
Without stand 1233 x 723 x 34.7 mm
Weight With stand 22.8 kg
Without stand 20.0 kg
Current Value / Power consumption 1.4 A / 140 W
MODELS 47LA7400
(47LA7400-UD)
55LA7400
(55LA7400-UD)
Dimensions
(W x H x D)
With stand 1063 x 697 x 269 (mm) 1233 x 793 x 316 mm
Without stand 1063 x 627 x 34.5 (mm) 1233 x 723 x 34.7 mm
Weight With stand 16.7 kg 22.8 kg
Without stand 14.6 kg 20.0 kg
Current Value / Power consumption 1.2 A / 120 W 1.4 A / 140 W
MODELS 60LA7400
(60LA7400-UA)
Dimensions
(W x H x D)
With stand 1352 x 854 x 316 (mm)
Without stand 1352 x 794 x 59.9 (mm)
Weight With stand 27.6 kg
Without stand 24.8 kg
Current Value / Power consumption TBD
ENGLISH
34 SPECIFICATIONS
HDMI (DTV) supported mode
Resolution Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
720X480 31.469
31.50
59.94
60.00
1280X720 44.96
45.00
59.94
60.00
1920X1080
33.72
33.75
26.97
27.000
33.716
33.75
67.43
67.500
59.94
60.00
23.97
24.000
29.976
30.00
59.94
60
HDMI (PC) supported mode
Resolution Horizontal
Frequency (kHz)
Vertical Frequency
(Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768 48.363 60.00
1152 x 864 54.348 60.053
1360 x 768 47.712 60.015
1280 x 1024 63.981 60.020
1920 x 1080 67.5 60.00
Wireless LAN module (WN8122E1) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz
Output Power (Max.)
802.11a: 16.5 dBm
802.11b: 16 dBm
802.11g: 15.5 dBm
802.11n - 2.4GHz: 15.5 dBm
802.11n - 5GHz: 16.5 dBm
yBecause band channel used by the country could
be different, the user can not change or adjust the
operating frequency and this product is set for the
regional frequency table.
yContains FCC ID: BEJWN8122E1 / Contains IC:
2703H-WN8122E1
Bluetooth module (BM-LDS401) specification
(For LA6250 series)
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
yContains FCC ID: BEJLDS401 / Contains IC:
2703H-LDS401
Component supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480i 15.73 59.94
15.73 60.00
720x480p 31.47 59.94
31.50 60
1280x720p 44.96 59.94
45.00 60.00
1920x1080i 33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.500 60.00
Component port connecting information
Component ports on the
TV Y PB PR
Video output ports
on DVD player
Y PB PR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
ENGLISH
35
SPECIFICATIONS
3D supported mode (For 3D TV)
yVideo, which is input as below media contents is switched into the 3D screen automatically.
3D supported mode automatically
Input Signal Horizontal
Frequency (kHz)
Vertical
Frequency (Hz) Playable 3D video format
HDMI
1080p
54.00 24
F/P, L/A
67.50 30
27.00 24
33.75 30
67.50 60
1080i 67.50
60
F/P, F/A
33.75 S/S, T&B, S/S Full
720p 90.00 F/P, L/A
45.00 S/S, T&B, S/S Full
480p 63.00 F/P, L/A
31.50 T/B, S/S, S/S Full
USB 1080p 33.75 30 S/S, T&B, C/B, MPO(Photo)
DLNA
Playable 3D video format
DTV Dual Stream
S/S : Side by Side , T/B : Top & Bottom, F/P : Frame Packing, F/A : Field Alternative
L/A : Line Alternative, S/S Full :Side by Side Full, C/B : Checker Board
R/I : Row Interleaving, C/I: Column Interleaving, F/S : Single Frame Sequential
ENGLISH
36 SPECIFICATIONS / EXTERNAL CONTROL DEVICE SETUP
3D supported mode manually
Input Signal Playable 3D video format
TV -
2D to 3D, S/S, T&B
ATV(CVBS) -
Component -
HDMI-PC 1080p 2D to 3D, S/S, T&B, C/B, R/I, C/I
(60Hz : F/S)
Others 2D to 3D, S/S, T&B
HDMI-DTV
Interlace 2D to 3D, S/S, T&B
Progressive 2D to 3D, S/S, T&B, C/B, R/I, C/I
(60Hz : F/S )
USB / DLNA
(Movie)
704 x 480p (Over) 2D to 3D, S/S, T&B, C/B, R/I, C/I
(60Hz : F/S )
704 x 480i (Over) 2D to 3D, S/S, T&B
704 x 480 (Under) 2D to 3D
USB / DLNA
(Photo)
320 x 240 (Over) 2D to 3D, S/S, T&B
320 x 240 (Under) 2D to 3D
Miracast™ /
WiDi
1024 x 768p
2D to 3D, S/S, T&B1280 x 720p
1920 x 1080p
Others 2D to 3D
ExTERNAL CONTROL dEVICE SETUP
To obtain the external control device setup information, please visit ‘www.lg.com’.
ENGLISH
37
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep it at peak performance and to extend the product lifespan.
yBefore Cleaning, turn the power off and disconnect the power cord and all other cables.
yWhen the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
CAUTION
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe
immediately with a dry cloth.
yDo not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the
screen and image distortions.
yDo not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as
these may damage the screen’s finish and cause discoloration.
yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the remote
control.
yCheck the remote control sensor on the product and try again.
yCheck if there is any obstacle between the product and the remote control.
yCheck if the batteries are still working and properly installed ( to , to ).
No image display and no sound is
produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
yCheck the power control settings. The power supply may be interrupted.
yCheck if the Auto sleep feature is activated in the Time settings.
yIf there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of
inactivity.

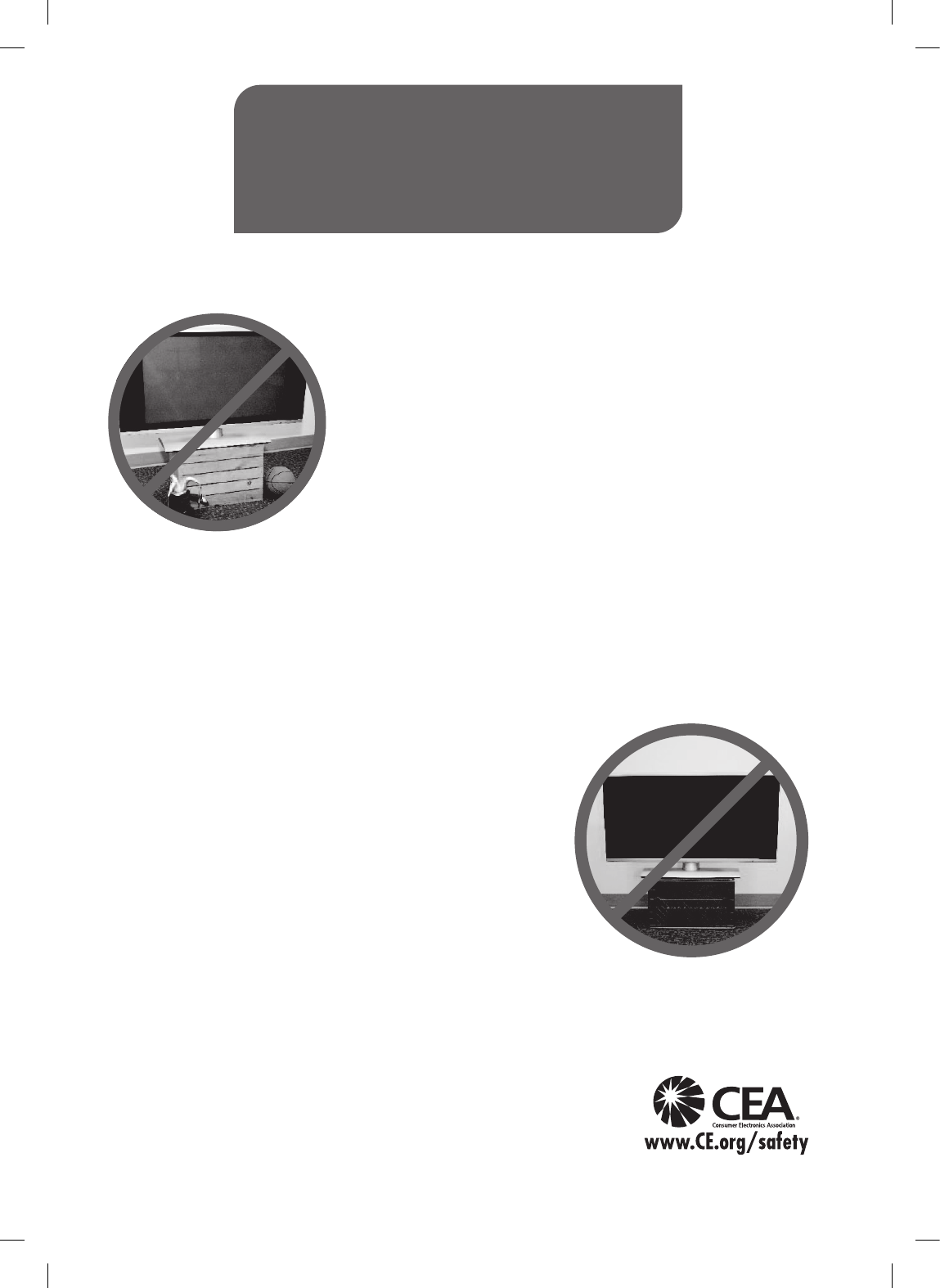

CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
yThe home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
yFlat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
yThe consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
yOne size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your flat panel
display.
yCarefully read and understand all enclosed instructions for proper use
of this product.
yDon’t allow children to climb on or play with furniture and television
sets.
yDon’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
yRemember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
yCare should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
yUse a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
yFollow all instructions supplied by the display and wall mount
manufacturers.
yIf you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
yMake sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
yA minimum of two people are required for installation.
Flat panel displays can be heavy

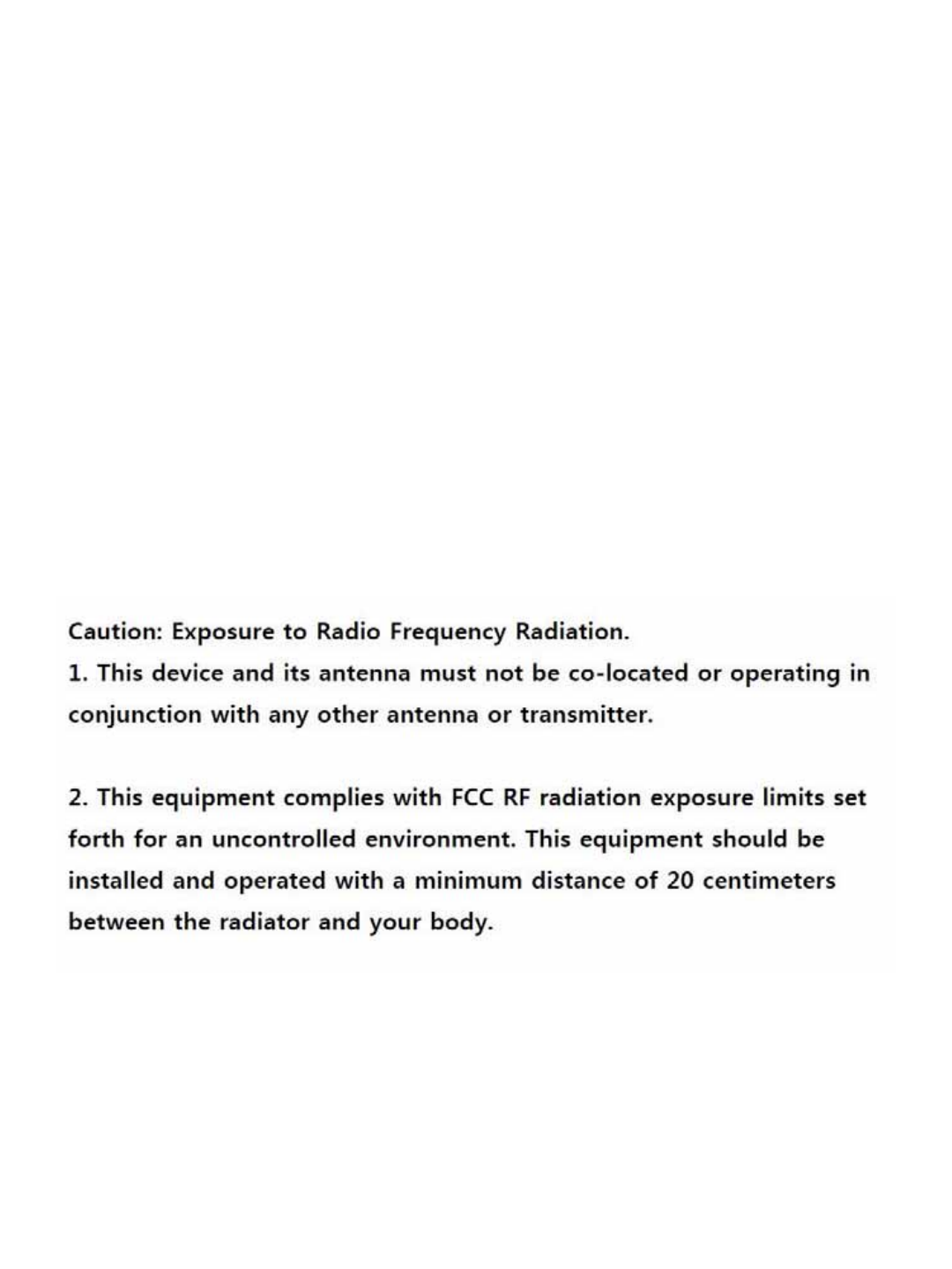

ederal Communications Commission(FCC) Statement) Federal Communications Commission(FCC) Statement
You are cautioned that changes or modifications not expressly approved by You are cautioned that changes or modifications not expressly approved by
the part responsiblethe part responsible
for compliance could void the user
’
s authority to operate the equipmentfor compliance could void the user
’
s authority to operate the equipment
for
compliance
could
void
the
user s
authority
to
operate
the
equipment
.
for
compliance
could
void
the
user s
authority
to
operate
the
equipment
.
This equipment has been tested and found to comply with the limits for a This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful These limits are designed to provide reasonable protection against harmful
it f i id tili tlltiit f i id tili tllti
i
n
t
er
f
erence
i
n a res
id
en
ti
a
l
i
ns
t
a
ll
a
ti
on.
i
n
t
er
f
erence
i
n a res
id
en
ti
a
l
i
ns
t
a
ll
a
ti
on.
This equipment generates, uses and can radiate radio frequency energy This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a However, there is no guarantee that interference will not occur in a
particular installationparticular installation
particular
installation
.
particular
installation
.
If this equipment does cause harmful interference to radio or television If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the the user is encouraged to try to correct the
interference by one or more of the following measures:interference by one or more of the following measures:
--. Reorient or relocate the receiving antenna.. Reorient or relocate the receiving antenna.
--. Increase the separation between the equipment and receiver.. Increase the separation between the equipment and receiver.
--. Connect the equipment into an outlet on a circuit different from that to . Connect the equipment into an outlet on a circuit different from that to
which the receiver is connectedwhich the receiver is connected
which
the
receiver
is
connectedwhich
the
receiver
is
connected
--. Consult the dealer or an experienced radio/TV technician for help.. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference 2) this device must accept any interference received, including interference
that may cause undesired operation of the device.that may cause undesired operation of the device.
Id lId l
I
n
d
oor use on
lyI
n
d
oor use on
ly
FCC Caution: Any changes or modifications not expressly approved by the FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate party responsible for compliance could void the user's authority to operate
this equipment.this equipment.
The model and serial number of the TV is located
on the back and one side of the TV.
Record it below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality for
ENERGY STAR.

Navigation menu
