User manual 3
16 Plasma Monitor
Installation

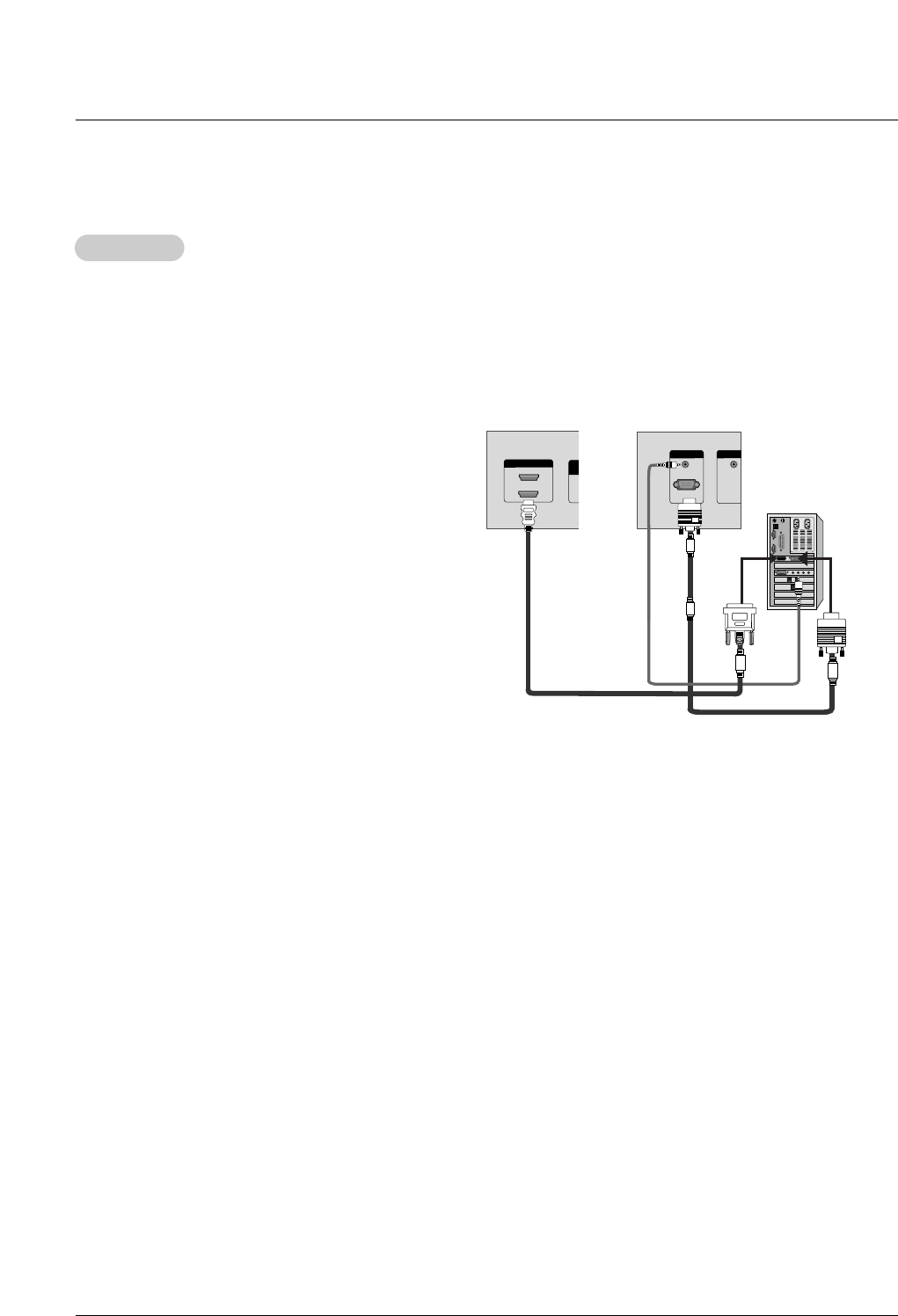

How to connect
1. To get the best picture quality, adjust the PC
graphics card to a 1600x1200, 60Hz.
2. Use the monitor’s RGB INPUT or HDMI1 port for
video connections, depending on your PC connec-
tor.
If the graphic card on the PC does not output ana-
log and digital RGB simultaneously, connect only
one of either RGB INPUT or HDMI1 INPUT to dis-
play the PC on the monitor.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or HDMI1; (the other mode is set to
Plug and Play automatically by the monitor.)
3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.
How to use
1. Turn on the PC and the monitor.
2. Turn on the display by pressing the POWER button on the monitor's remote control.
3. Use the INPUT button on the remote control to select RGB or HDMI1.
4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES: • Use a HDMI to DVI cable.
• Avoid keeping a fixed image on the monitor's screen for a long period of time. The fixed image may become
permanently imprinted on the screen. Use the Orbiter screen saver when possible.
• The synchronization input form for Horizontal and Vertical frequencies is separate.

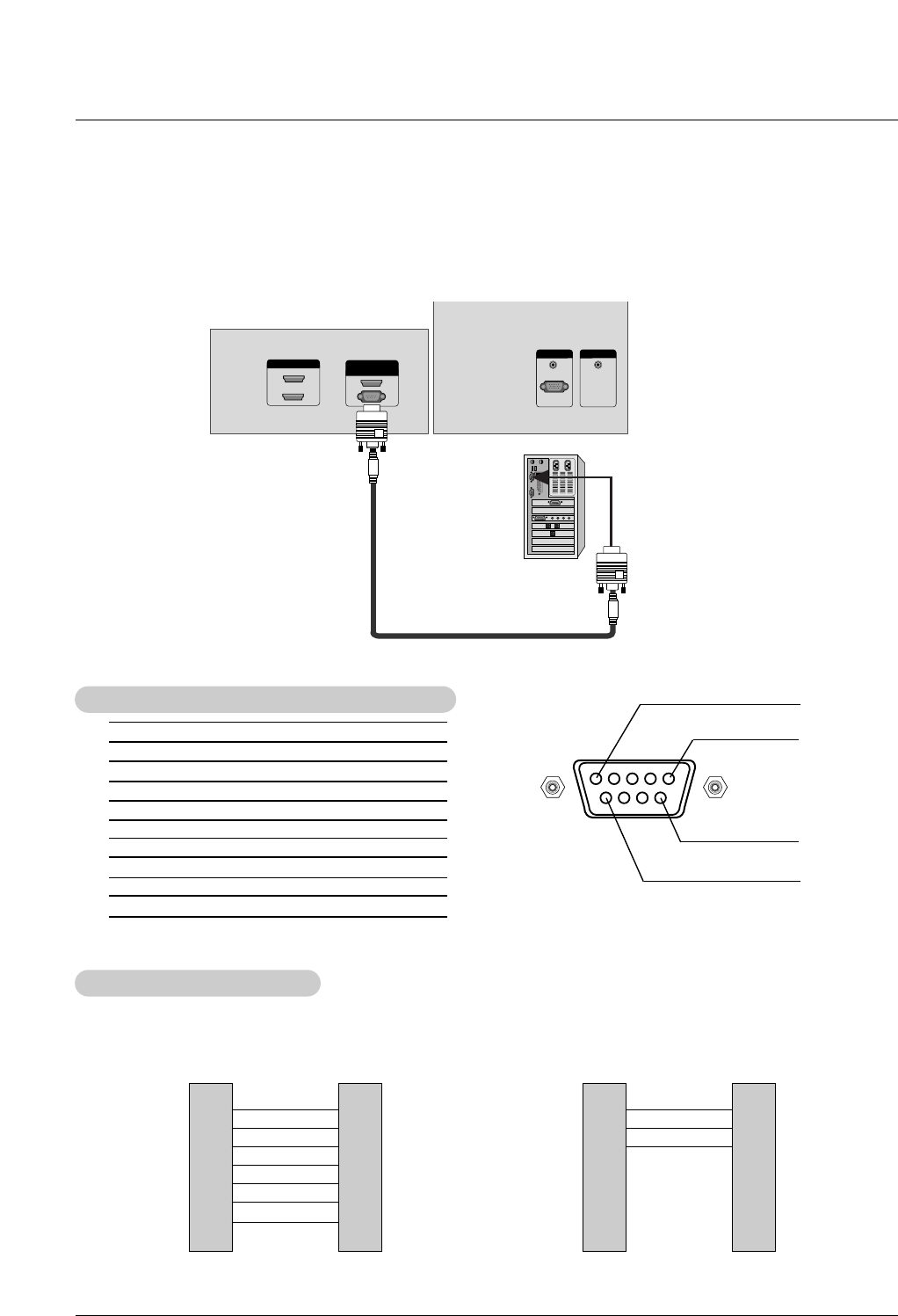

PC Setup
PC Setup
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB IN
RGB(PC/DTV)RGB(PC/DTV)
REMOTE
CONTROL IN
HDMI/DVI IN
1
2
RS-232C IN
(CONTROL & SERVICE)
- This monitor provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The monitor sends
configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel
(DDC) protocol.
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scanning
rate for the graphic card.
External Equipment Connections
External Equipment Connections
Owner’s Manual 17
Installation
Monitor Display Specifications (RGB-PC / DVI-PC Mode)
Resolution
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.469
31.469
35.000
37.861
37.500
43.269
37.879
46.875
53.674
49.725
48.363
56.476
60.023
63.981
80.000
75.00
66.587
70.08
59.94
66.66
72.80
75.00
85.00
60.31
75.00
85.06
74.55
60.00
70.06
75.02
60.02
75.00
60.00
59.934
Vertical
Frequency(Hz)
832x624
1024x768
1600x1200
1920x1080
1280x1024
- HDMITM, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC."
- This monitor can receive the High-Definition Multimedia
Interface(HDMI).
- This monitor supports HDCP(High-bandwidth Digital Contents
Protection) Protocol for 480p, 720p, 1080i, 1080p modes.
- When you Connect with HDMI Source Devices (DVD Player
or Set Top Box) supporting Auto HDMI function, automatical-
ly, support Plug & Play and then set the HDMI Source
Devices(1920 x 1080i). After reading in HDMI Source Devices
using Display Data Channel(DDC) Protocol, EDID stored in
monitor is used. If HDMI Source Devices not supported Auto
HDMI is been, the Resolution is setted, manually.
- To get the best picture quality, adjust the DVD Player or Set
Top Box output resolution to 1920 x 1080i.
How to connect
When Source Devices(DVD Player or Set Top Box) support
HDMI.
- If Source Devices have HDMI Output Connector, Source
Devices connect to DTV with HDMI Cable .(not supplied with
the product).
- If Source Devices support Auto HDMI, automatically, Source
Devices divert output resolution in 1920 x 1080i. But if not,
resolution divert Manually Setting for reference Manual of
Source Devices.
- To get the best picture quality, adjust the DVD Player or Set
Top Box output resolution to 1920 x 1080i.
- Because HDMI sends Digital Video and Audio with one cable,
need not especial Audio Cable for using HDMI Cable.
18 Plasma Monitor
Operation
Operation
Operation
Menu Language Selection
Menu Language Selection
T
Turning on the Monitor
urning on the Monitor
Turning on the Monitor just after installation
1. Connect power cord correctly. At this moment, the Monitor is switched to standby mode.
2. Press the INPUT or button on the Monitor or press the POWER, INPUT button on the remote
control and then the Monitor will switch on.
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use DD/ EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD/ EEbutton to select Language.
3. Press the GGbutton and then use DD/ EEbutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the ENTER button to save.
• Press the MENU button to return to the previous menu.
Owner’s Manual 19
Operation
1. Press the APC button repeatedly to select the picture appearance setup option as shown below.
APC (Auto Picture Control)
APC (Auto Picture Control)
- To initialize values (reset to default settings), select the Normal option.
1. Press the MENU button and then use DD / EEbutton to select the PICTURE menu.
2. Press the GGbutton and then use DD / EEbutton to select ACC .
3. Press the GGbutton and then use DD / EEbutton to select either Cool (Preset), Normal
(Default), Warm (Preset).
4. Press the ENTER button to save the new settings.
Auto Color
Auto Color T
Temperature Control
emperature Control
- APC adjusts the Monitor for the best picture appearance.
- When adjusting Picture menu options (contrast, brightness, color, sharpness, and tint) manually, APC automati-
cally changes to Off.
- Readjust Picture menu settings for each following input source as preferred.
Picture Menu Options
Picture Menu Options
•You can also select Daylight, Optimum, Night time or Off in the PICTURE menu.
•Daylight, Optimum, and Night time settings are preset for optimum picture quality at the factory and cannot be
changed.
Daylight Optimum Night time Off

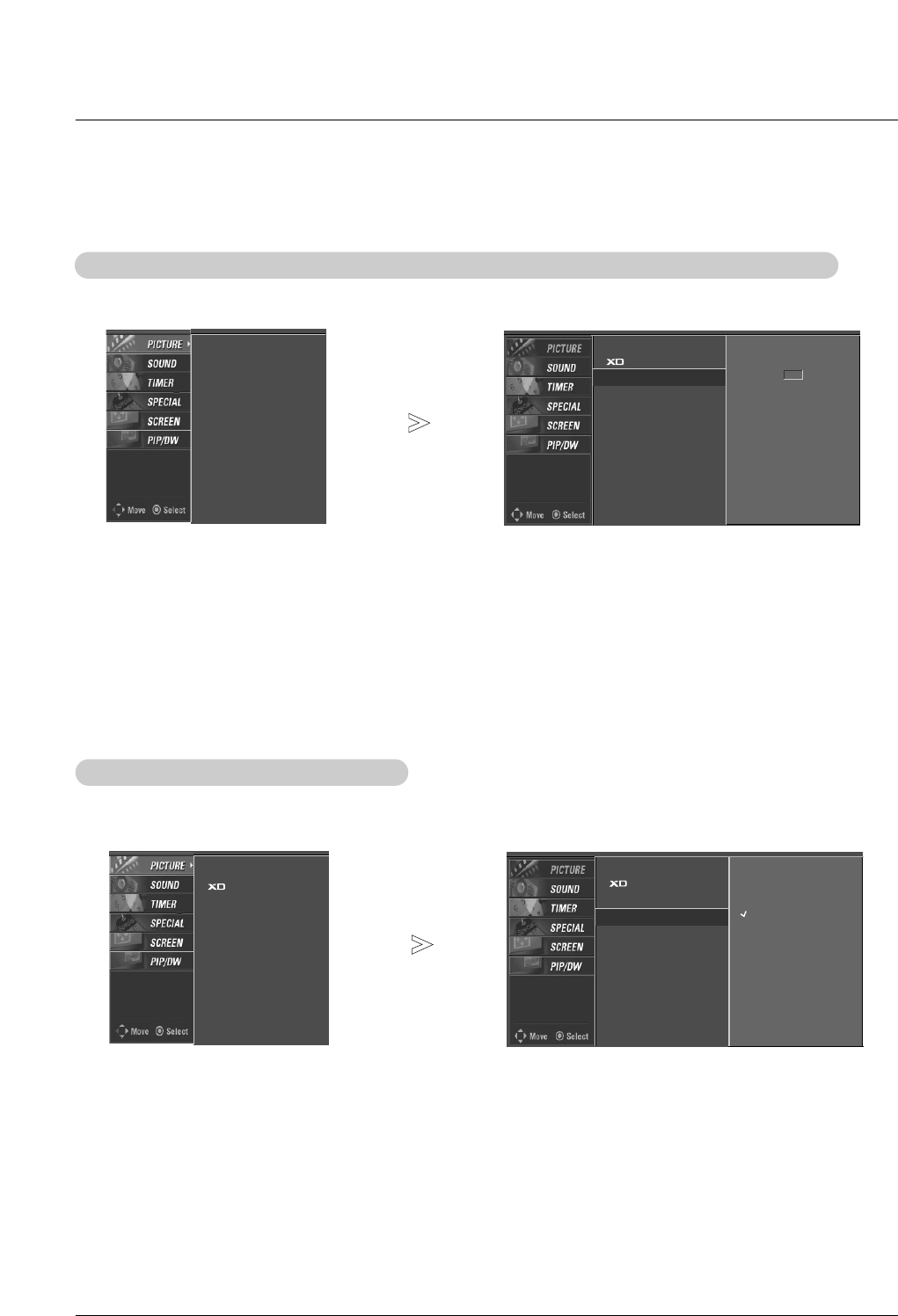

- XD is LG Electronic’s unique picture improving technology to display a real HD
source through an advanced digital signal processing algorithm.
- When selecting APC options (Daylight, Optimum and Night time), XD is auto-
matically change to On.
XD
XD
1. Press the button repeatedly as shown below.
On Off
APC
ACC
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
APC
ACC GG
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
Cool
Normal
Warm
20 Plasma Monitor
Operation
Picture Menu Options continued
Picture Menu Options continued
- Use Fleshtone to select the desired skin color option.
1. Press the MENU button and then use DD / EEbutton to select the PICTURE menu.
2. Press the GGbutton and then use DD / EEbutton to select Fleshtone.
3. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments.
• The adjustment range is 0 ~ 3.
4. Press the ENTER button to save the new settings.

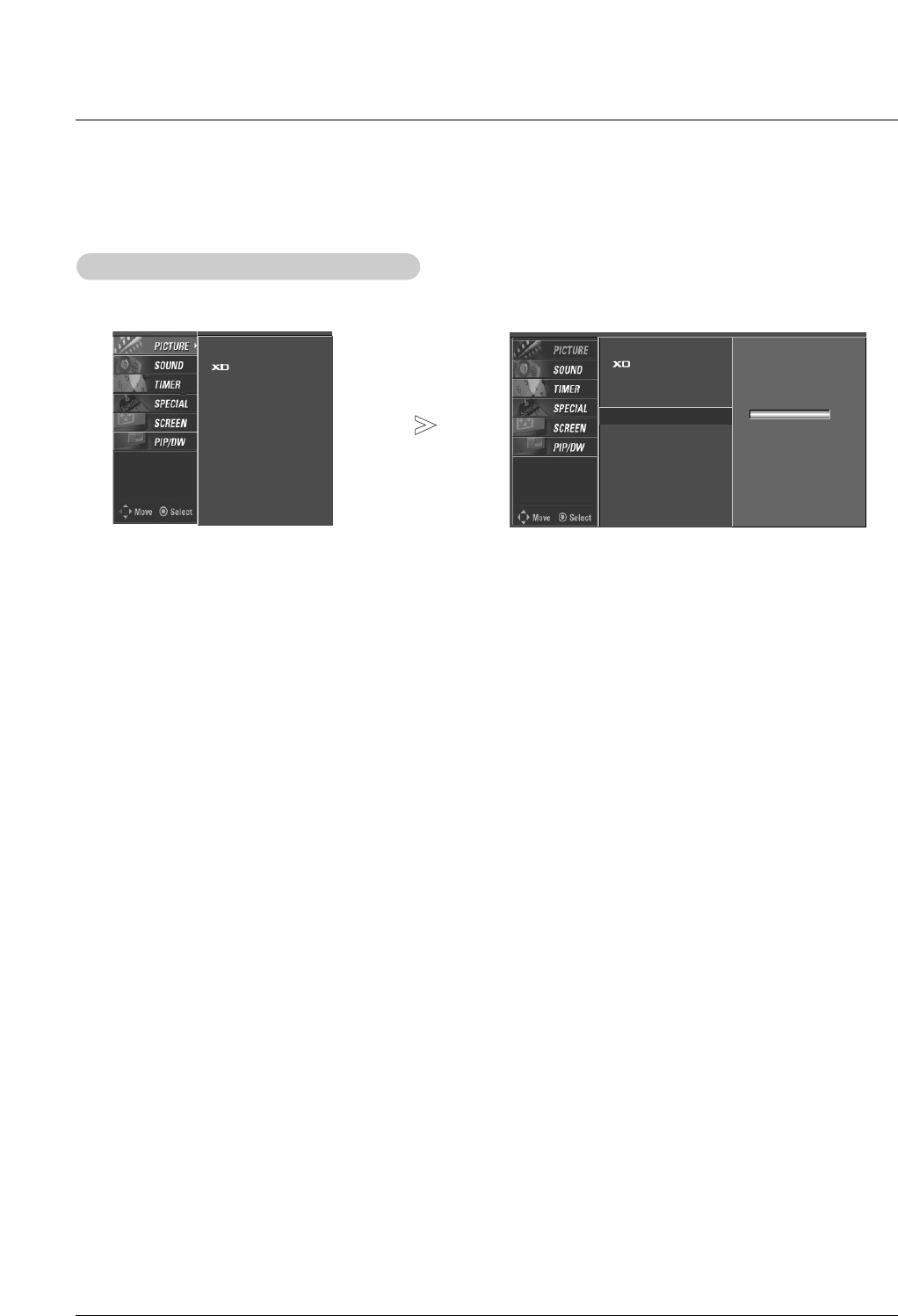

Fleshtone (V
Fleshtone (Video1-2-3-4, Component 1-2, RGB-DTV
ideo1-2-3-4, Component 1-2, RGB-DTV, DVI-DTV and HDMI-DTV Mode only)
, DVI-DTV and HDMI-DTV Mode only)
- If the monitor is connected to external equipment using sRGB, set sRGB to On to adjust for the color difference.
1. Press the MENU button and then use DD / EEbutton to select the PICTURE menu.
2. Press the GGbutton and then use DD / EEbutton to select sRGB.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
sRGB (only RGB-PC, DVI-PC Modes)
sRGB (only RGB-PC, DVI-PC Modes)
APC
ACC
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
APC
ACC GG
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
0
APC
ACC
sRGB
Contrast 100
Brightness 55
Color 55
APC
ACC
sRGB GG
Contrast 100
Brightness 55
Color 55
On
Off
Owner’s Manual 21
- You can adjust picture contrast, brightness, color, sharpness, and tint to the levels you prefer.
1. Press the MENU button and then use DD / EEbutton to select the PICTURE
menu.
2. Press the GGbutton and then use DD / EEbutton to select the desired picture
option (Contrast,Brightness,Color,Sharpness or Tint).
3. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments.
4. Press the ENTER button to save the new settings.
Manual Picture Control (
Manual Picture Control (Off option)
option)
APC
ACC
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
APC
ACC
Fleshtone
Contrast 100 GG
Brightness 60
Color 50
Sharpness 50
Tint 0
22 Plasma Monitor
1. Press the MENU button and then use DD / EEbutton to select the SOUND menu.
2. Press the GGbutton and then use DD / EEbutton to select the desired sound option (Balance,Treble or Bass).
3. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments.
4. Press the ENTER button to save the new settings.
Manual Sound Control (Dasp
Manual Sound Control (Dasp Off option and balance)
option and balance)
DASP
BBE
AVL
Balance 0
Treble 50
Bass 50
DASP
BBE
AVL GG
Balance 0
Treble 50
Bass 50
Off
Sound Menu Options
Sound Menu Options
1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
- DASP lets you enjoy the best sound without any special adjustment because the Monitor has the appropriate
sound options based on the program content.
- When adjusting sound options (treble, bass) manually, DASP automatically changes to Off.
SRS TSXT Flat Music Movie Sports
•You can also adjust DASP in the SOUND menu.
•SRS TSXT, Flat, Music, Movie, and Sports are preset for good sound quality at the factory and cannot be changed.
•is a trademark of SRS Labs, Inc.
•TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Owner’s Manual 23
Operation

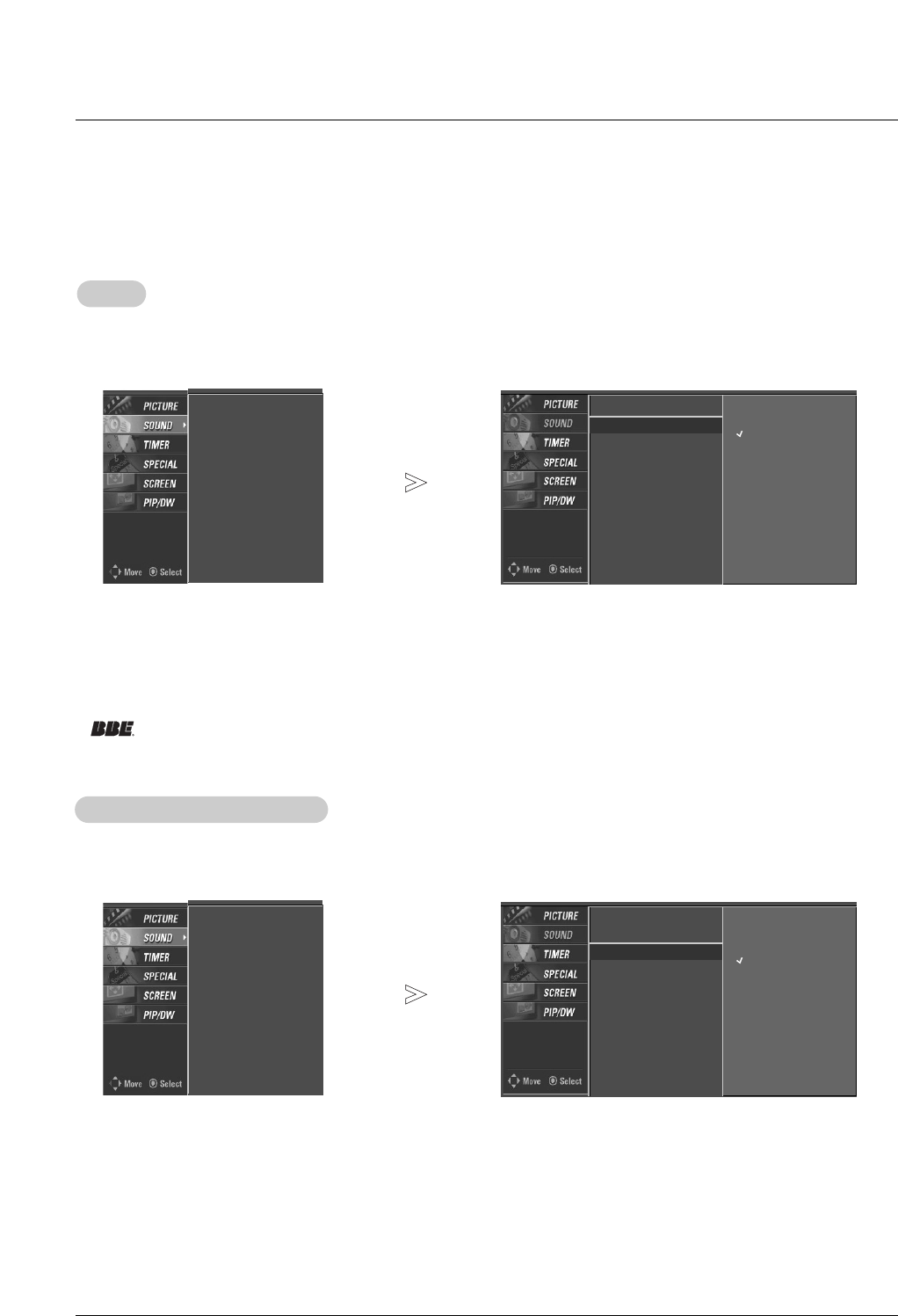

1. Press the MENU button and then use DD / EEbutton to select the SOUND menu.
2. Press the GGbutton and then use DD / EEbutton to select BBE.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
BBE
BBE
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use DD / EEbutton to select the SOUND menu.
2. Press the GGbutton and then use DD / EEbutton to select AV L .
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
- BBE High Definition Sound restores clarity and presence for better speech intelligibility and musical realism.
•Manufactured under license from BBE Sound, Inc.
•Treble, Bass or BBE aren’t suitable for SRS TSXT mode.
DASP
BBE
AVL
Balance 0
Treble 50
Bass 50
DASP
BBE GG
AVL
Balance 0
Treble 50
Bass 50
On
Off
DASP
BBE
AVL
Balance 0
Treble 50
Bass 50
DASP
BBE
AVL GG
Balance 0
Treble 50
Bass 50
On
Off
24 Plasma Monitor
Operation

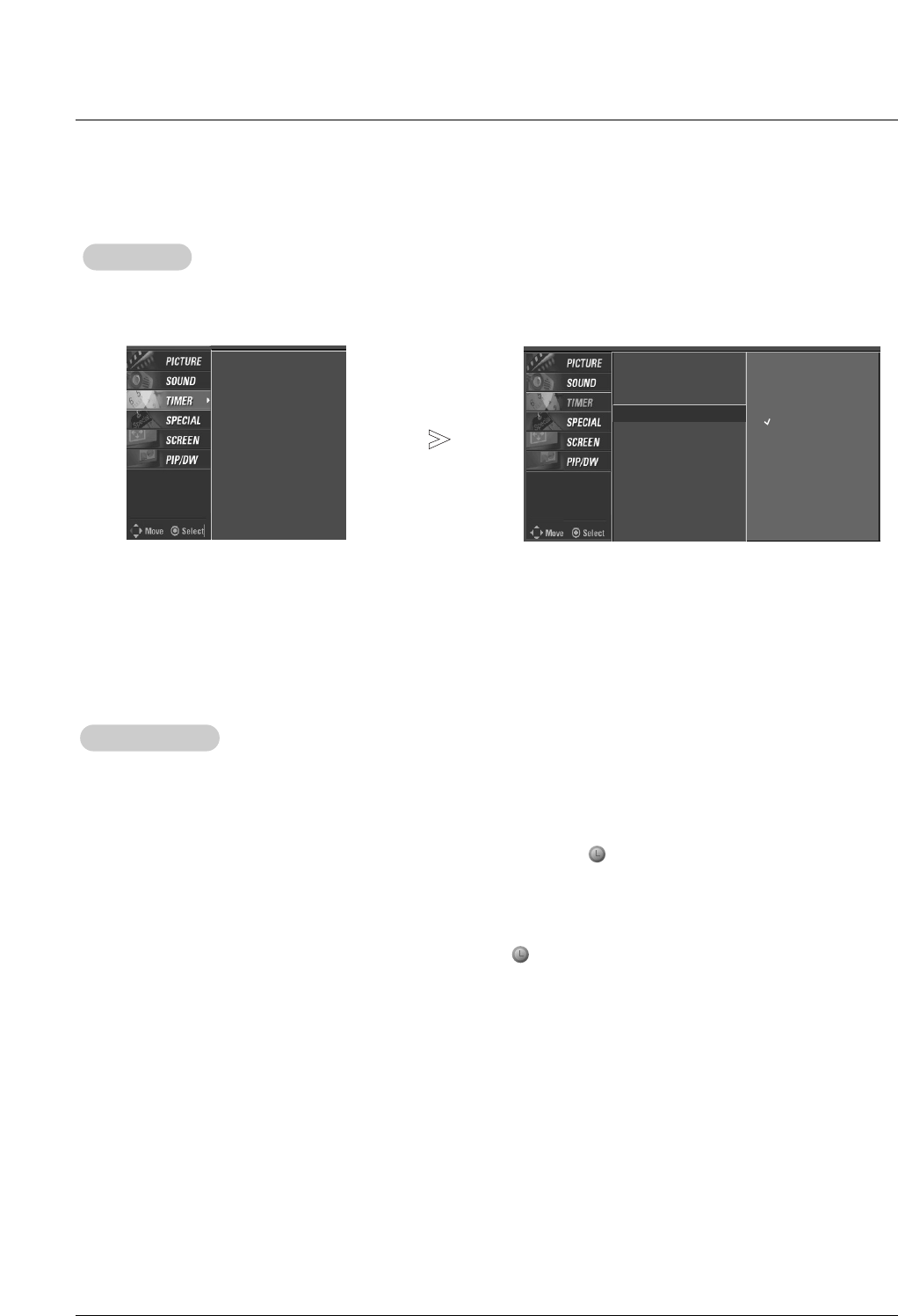

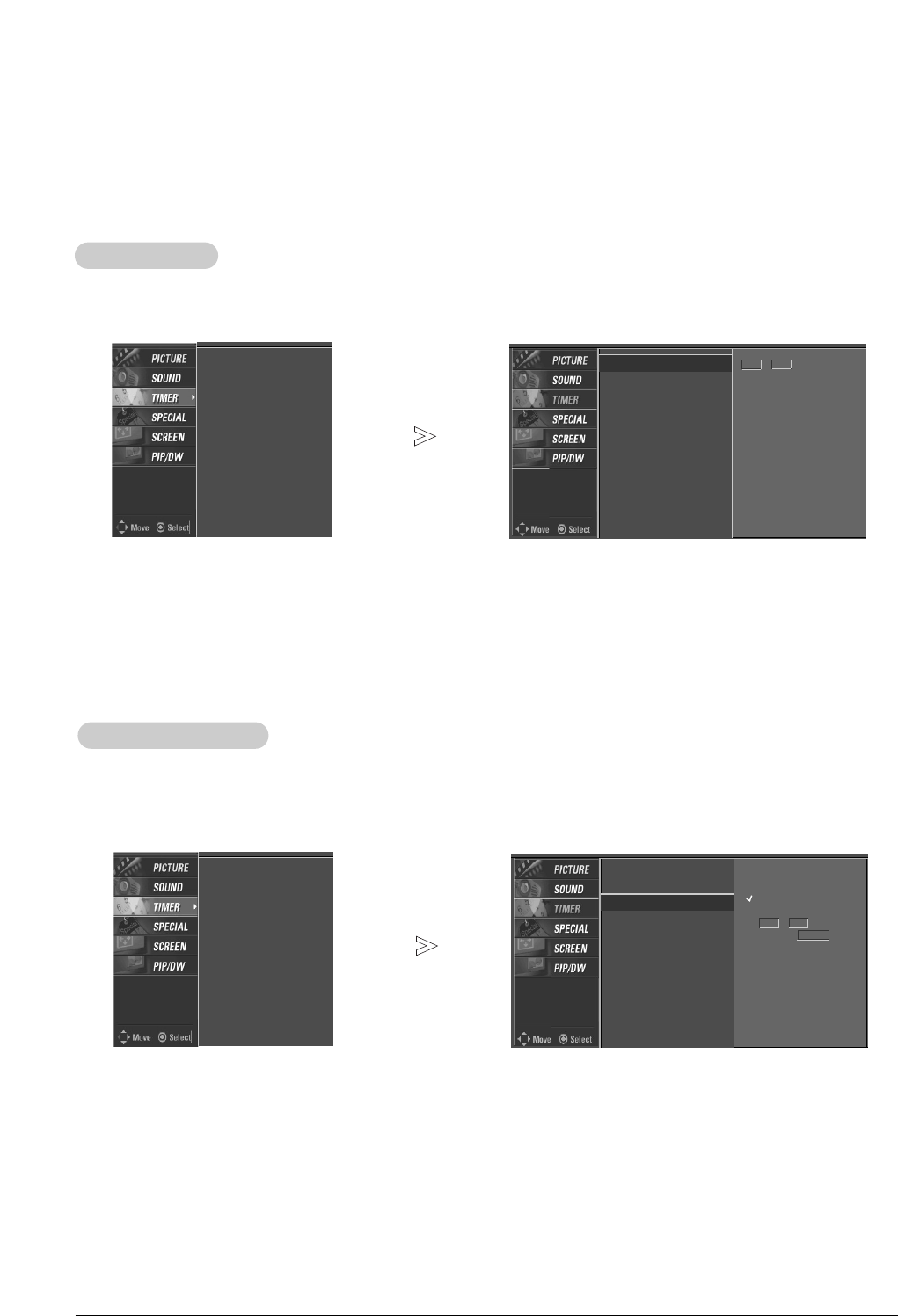

- Timer function operates only if current time has already been set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
- If you do not press any button within 2 hours after the monitor turns on with the On Timer function, the monitor will
automatically revert to standby mode.
On/Of
On/Off
f T
Timer Setup
imer Setup
1. Press the MENU button and then use DD / EEbutton to select the TIMER menu.
2. Press the GGbutton and then use DD / EEbutton to select Off timer or On timer.
3. Press the GGbutton and then use DD / EEbutton to select On.
• To cancel On/Off timer function, select Off.
4. Press the GGbutton and then use DD / EEbutton to set the hour.
5. Press the GGbutton and then use DD / EEbutton to set the minutes.
For only On timer function; Press the GGbutton and then use DD / EEbutton to set volume level.
6. Press the ENTER button to save the new settings.
Clock Setup
Clock Setup
- If current time setting is wrong, correct the clock setting.
1. Press the MENU button and then use DD / EEbutton to select the TIMER menu.
2. Press the GGbutton and then use DD / EEbutton to select Clock.
3. Press the GGbutton and then use DD / EEbutton to set the hour.
4. Press the GGbutton and then use DD / EEbutton to set the minutes.
5. Press the ENTER button to save the new settings.
T
Timer Menu Options
imer Menu Options
Clock
Off timer
On timer
Auto off
Clock GG
Off timer
On timer
Auto off
- - : - - AM
Clock
Off timer
On timer
Auto off
Clock
Off timer
On timer GG
Auto off
On
Off
6 : 30 AM
Volume 17
Owner’s Manual 25
Auto Of
Auto Off
f
- If there is no input signal, the Monitor turns off automatically after 10 minutes.
1. Press the MENU button and then use DD / EEbutton to select the TIMER menu.
2. Press the GGbutton and then use DD / EEbutton to select Auto off.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
Sleep
Sleep T
Timer
imer
- The sleep timer turns the Monitor off at a preset time. Note that this setting is cleared when the monitor is turned off.
1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the
screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the monitor turns off, press the SLEEP or ENTER button once.
4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.
zz
zz
Clock
Off timer
On timer
Auto off
Clock
Off timer
On timer
Auto off GGOn
Off
26 Plasma Monitor
Special Menu Options
Special Menu Options

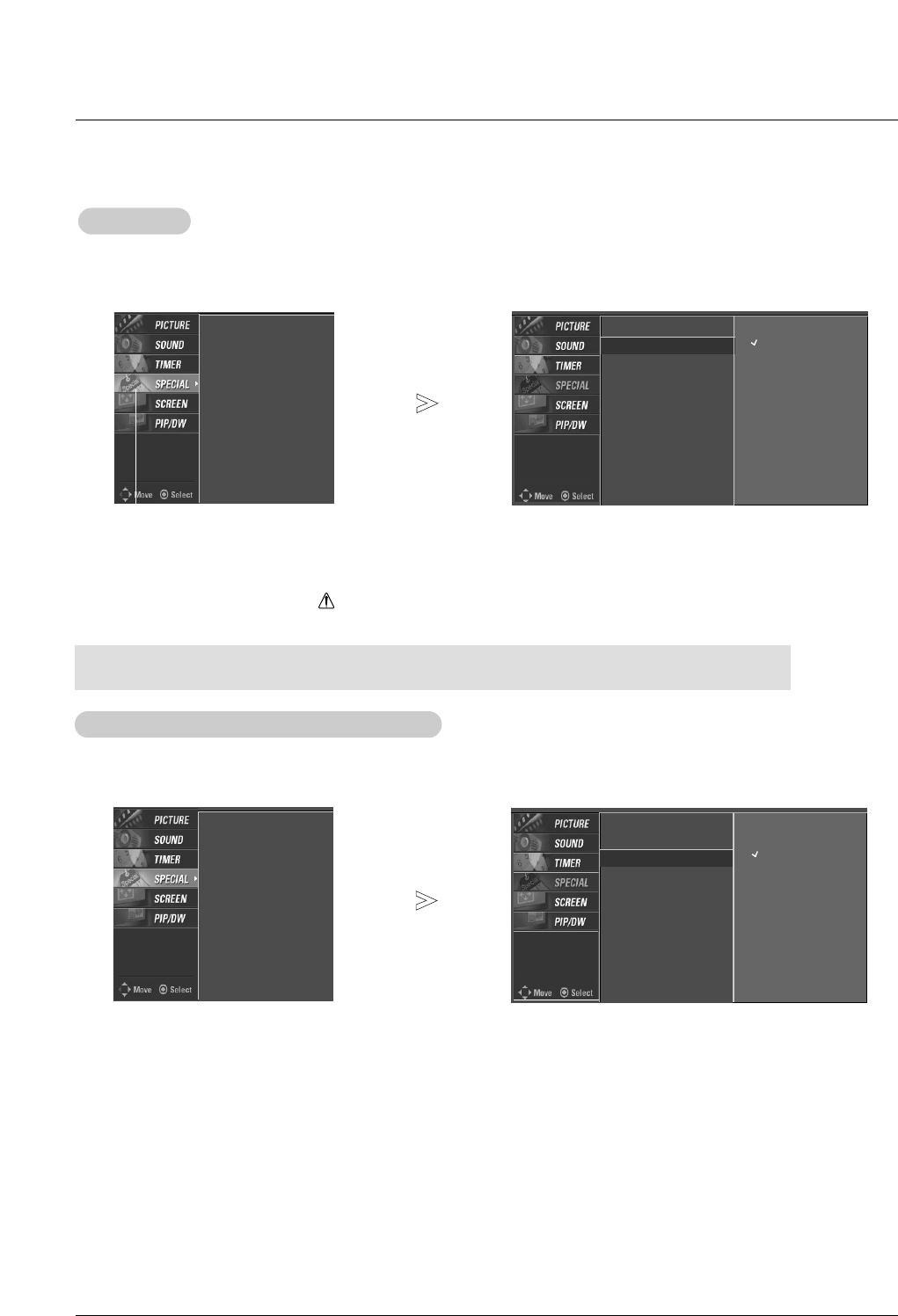

Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing by disabling the front panel controls.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
1. Press the MENU button and then use DD / EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD / EEbutton to select Key lock.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
• When you select On, the display ‘ Key lock’appears on the screen if any button on the front panel is pressed.
4. Press the ENTER button to save the new settings.
-In setting Key lock ‘On’, if the monitor is turned off with the remote control, press the INPUT on the monitor
or POWER, INPUT on the remote control to turn the monitor on.
W
- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining; even when you change the image. Avoid allowing a fixed or still image to remain on the Monitor's
screen for a long period of time.
1. Press the MENU button and then use DD / EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD / EEbutton to select ISM Method.
3. Press the GGbutton and then use DD / EEbutton to select either Normal, White wash, Orbiter, or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set this to Normal.
• White wash
White Wash removes permanent images from the screen. Note: An excessive permanent image may be impossible to clear
completely using White Wash. To return to normal viewing, press the any button.
ISM (Image Sticking Minimization) Method
ISM (Image Sticking Minimization) Method
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a
permanent image on the screen, the image will move every 2 minutes.
• Inversion
Inversion will automatically invert the plasma display panel color every 30 minutes.
4. Press the ENTER button to save the new settings.
Language
Key lock
ISM Method
Low power
Set ID
Index
Language
Key lock GG
ISM Method
Low power
Set ID
Index
Language
Key lock
ISM Method
Low power
Set ID
Index
Language
Key lock
ISM Method GG
Low power
Set ID
Index
On
Off
Normal
White wash
Orbiter
Inversion
Owner’s Manual 27
1. Press the MENU button and then use DD / EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD / EEbutton to select Index.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
INDEX
INDEX
- Switches LED Display on or off.

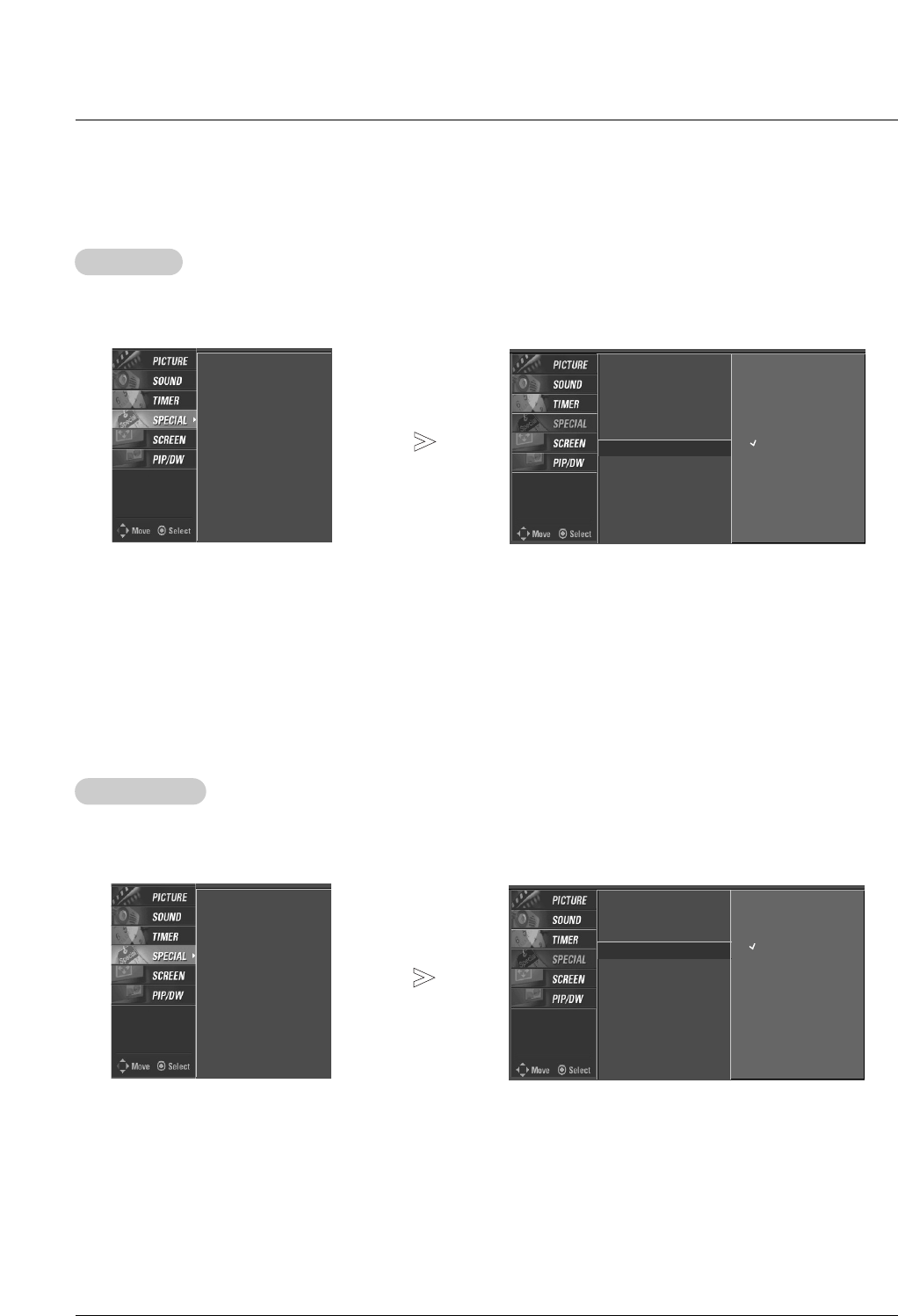

Low Power
Low Power
- Low power reduces the plasma display's power consumption.
1. Press the MENU button and then use DD / EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD / EEbutton to select Low power.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
• When you select On, the screen darkens.
4. Press the ENTER button to save the new settings.
Language
Key lock
ISM Method
Low power
Set ID
Index
Language
Key lock
ISM Method
Low power
Set ID
Index GGOn
Off
Language
Key lock
ISM Method
Low power
Set ID
Index
Language
Key lock
ISM Method
Low power GG
Set ID
Index
On
Off
28 Plasma Monitor
Operation

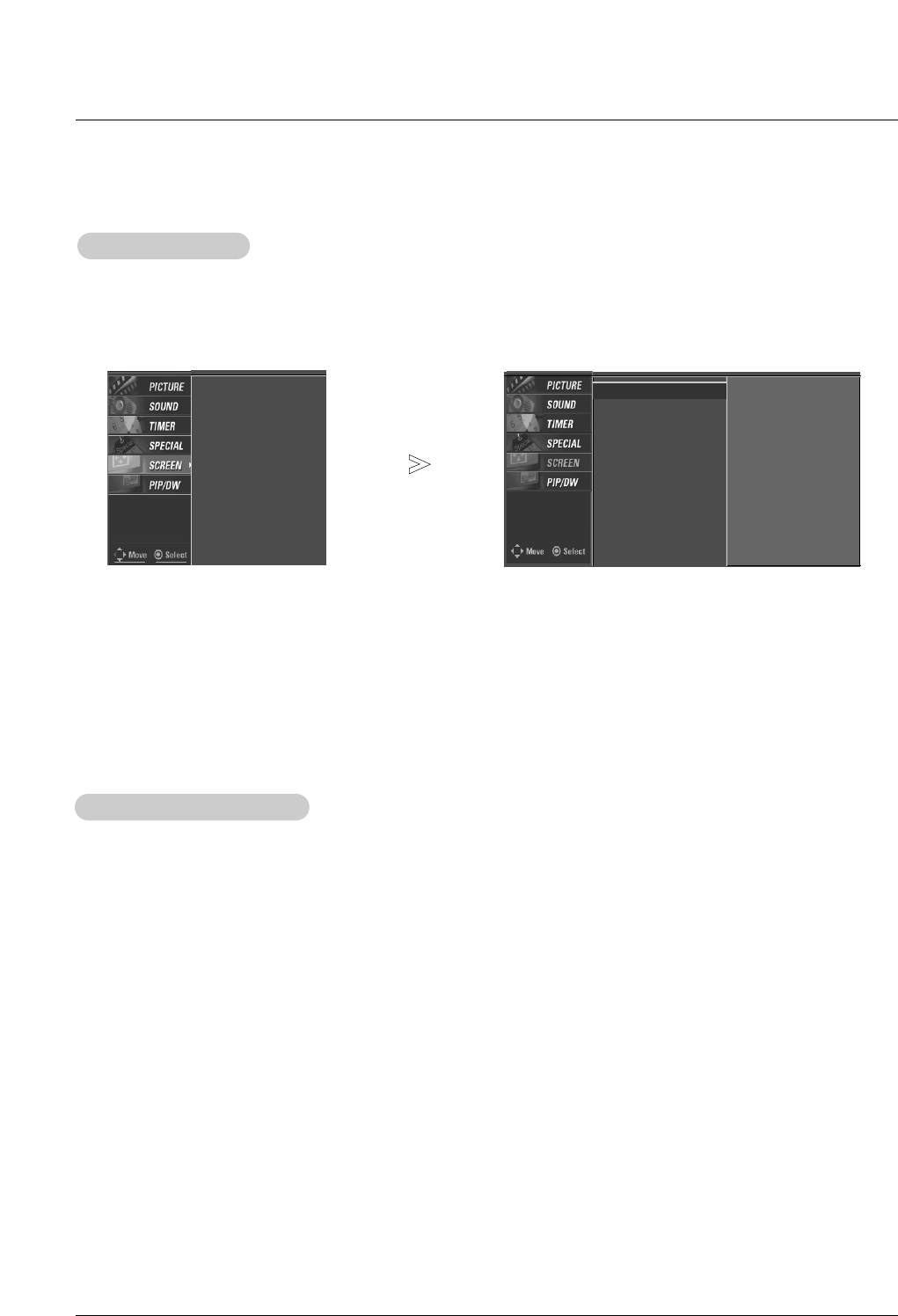

Auto
Auto Adjustment
Adjustment
- RGB (PC) mode only; This function doesn’t work for RGB-DTV.
- Automatically adjusts picture position and minimizes image shaking.
- After adjustment, if the image is still not correct, your Monitor is functioning properly but needs further adjustment.
- The Auto config., Position and Manual config. are not active in DVI mode.
1. Press the MENU button and then use DD / EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select Auto config..
3. Press the GGbutton to run Auto configure.
• When Auto config. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto config., you can make further adjustments
with the Manual config. option.
Screen Menu Options
Screen Menu Options
Setting Picture Format
Setting Picture Format
- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.
- RGB/DVI-PC: 4:3, 16:9
- Component 480i, Video sources : 4:3, 16:9, Horizon and Zoom.
- RGB-DTV/DVI-DTV/Component 480p,720p,1080i/HDMI 480p,720p,1080i : 4:3, 16:9 and Zoom.
1. Press the ARC button repeatedly to select the desired picture format. You can also select picture format in the
SCREEN menu.
• 4:3
- Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both
the left and right sides.
• 16:9
- Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
- Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.
• Zoom
- Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config. GG
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
To start
Owner’s Manual 29
Operation
1
4
▲
▼
◀▶
2-Split zoom
▲
▼
◀▶
12
54
4-Split zoom
▲
▼
◀▶
12 3
456
789
9-Split zoom
- Enlarges the picture in correct proportions.
- Split Zoom can be used for all input sources.
- In 2-Split Zoom mode, you can only move the image up or down.
- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.
1. Press the SPLIT ZOOM button repeatedly to select either 2, 4 , or 9 Split Zoom.
2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged
image with the DD / EE / FF / GGbutton. To return to normal viewing, press the SPLIT ZOOM button again.
Example of choosing 5. Section 5 is enlarged to fill
the screen.
▲
▼
◀▶
12 3
456
789
9-Split zoom

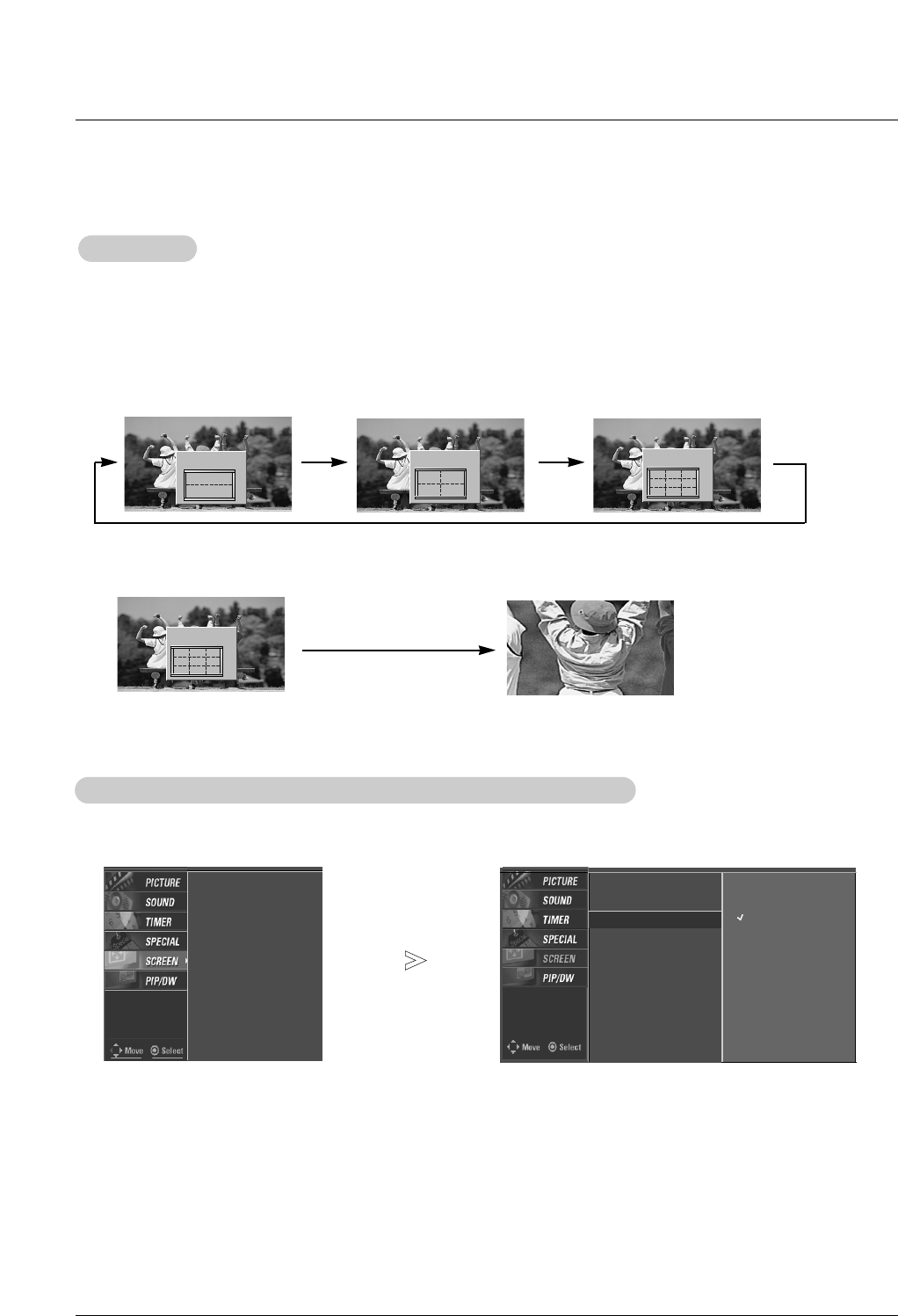

Split Zoom
Split Zoom
- Sets up the monitor for the best picture appearance for viewing movies.
1. Press the MENU button and then use DD / EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select Cinema..
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
Cinema Mode Setup (V
Cinema Mode Setup (Video1-2 and Component 480i mode only)
ideo1-2 and Component 480i mode only)
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config.
ARC
Cinema GG
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
On
Off
30 Plasma Monitor
Operation
Screen Menu Options continued
Screen Menu Options continued
- This function works in the following mode:
RGB-PC, RGB-DTV (480p,720p,1080i,1080p), COMPONENT (480p,720p,1080i).
1. Press the MENU button and then use DD / EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select Position.
3. Press the GGbutton and then use DD / EE/ FF / GGbutton to adjust the position.
4. Press the ENTER button to save the new settings.

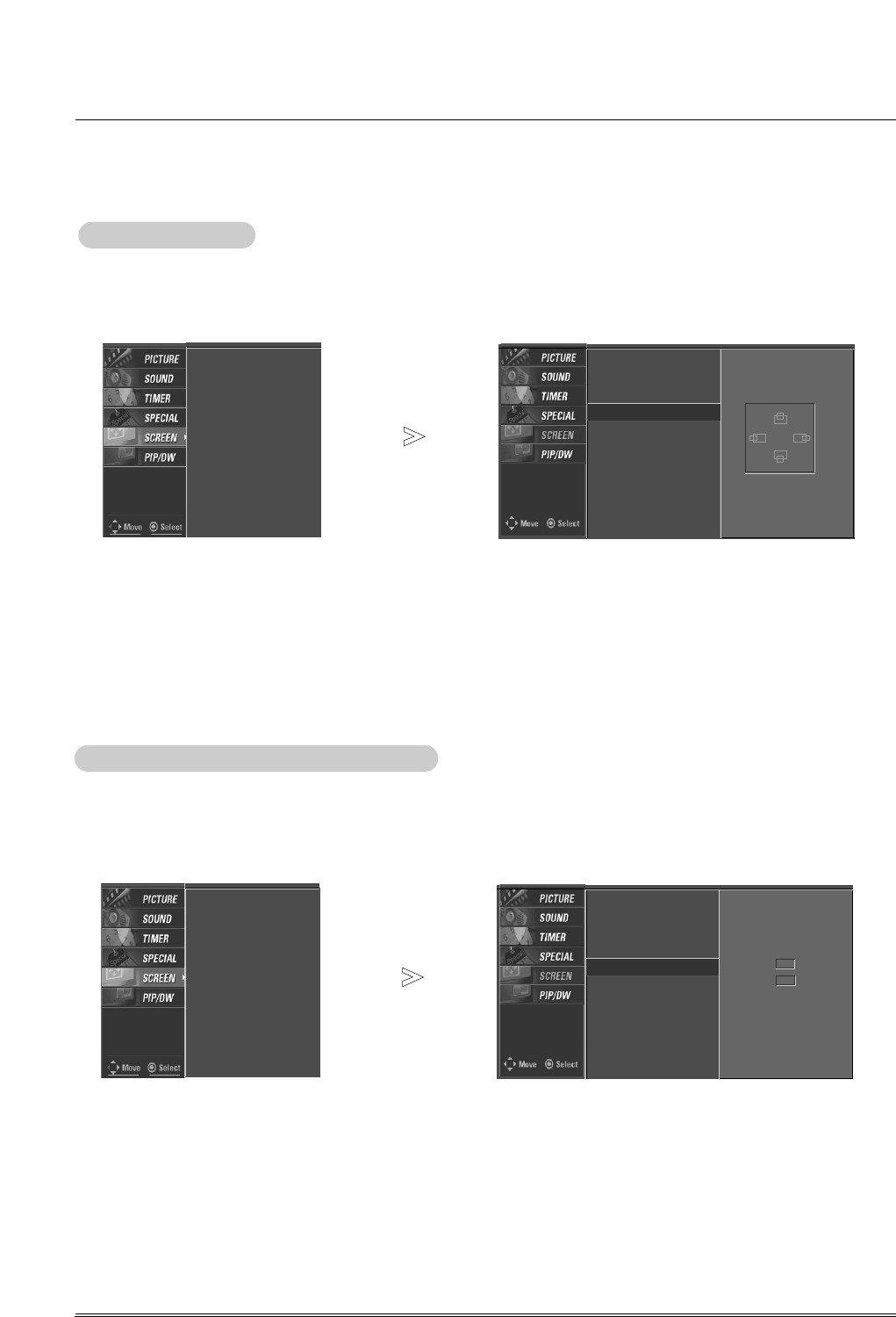

Screen Position
Screen Position
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config.
ARC
Cinema
Position GG
Manual config.
Reset
Black level adj.
PC/DTV Mode
DD
FFGG
EE
Manual Configure (RGB-PC mode only)
Manual Configure (RGB-PC mode only)
- If the image still isn’t clear after auto adjustment is completed and especially if characters are still jittery, adjust the
picture Phase manually.
- To correct the screen size, adjust Clock.
1. Press the MENU button and then use DD / EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select Manual config..
3. Press the GGbutton and then use DD / EEbutton to to select Phase or Clock.
4. Use the FF / GGbutton to make appropriate adjustments.
• The Phase adjustment range is 0 ~ 30.
• The Clock adjustment range is -127 ~ +128.
5. Press the ENTER button to save the new settings.
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config.
ARC
Cinema
Position
Manual config. GG
Reset
Black level adj.
PC/DTV Mode
Phase 0
Clock 0
Owner’s Manual 31
1. Press the MENU button and then use DD / EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select Reset.
3. Press the GGbutton.
•You can initialize Manual config., Position, Split zoom, PIP size, PIP position, PIP transparency and sub pic-
ture size for DW.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- This function operates in every mode.
- To initialize the adjusted value.
1. Press the MENU button and then use DD /EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD /EEbutton to select PC/DTV Mode.
3. Press the GGbutton and then use DD /EEbutton to select the desired resolution.
4. Press the ENTER button to save the new settings.
PC/DTV Mode
PC/DTV Mode
- To see a normal picture, match the resolution of RGB mode (480p/640x480, 1080p/1920x1080) or HDMI mode
(1080p/1920x1080) in the SCREEN menu.
- It can be selected the DTV/PC mode by user.
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config.
ARC
Cinema
Position
Manual config.
Reset GG
Black level adj.
PC/DTV Mode
To start
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode
Auto config.
ARC
Cinema
Position
Manual config.
Reset
Black level adj.
PC/DTV Mode GG640x480
32 Plasma Monitor
Operation
Screen

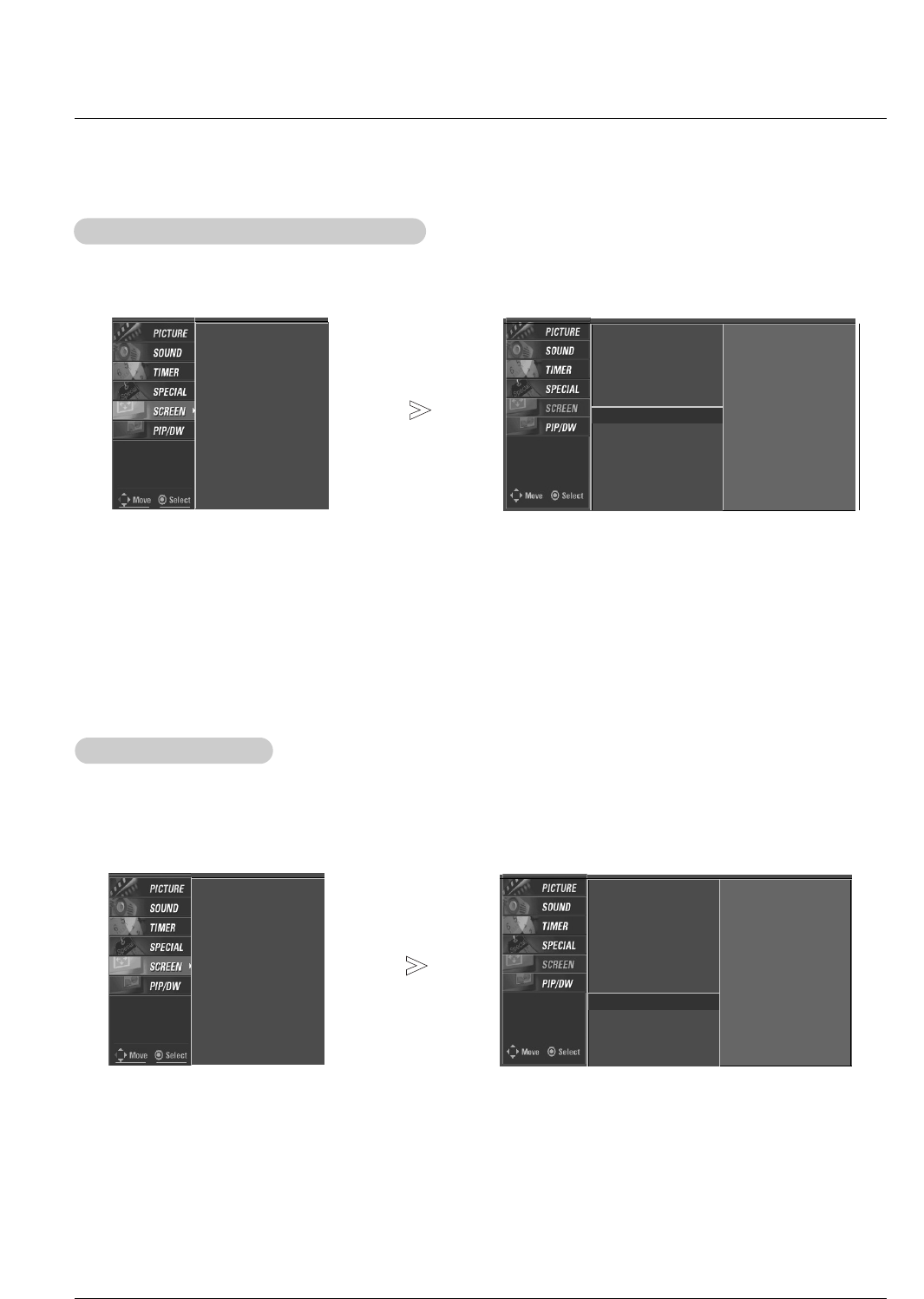

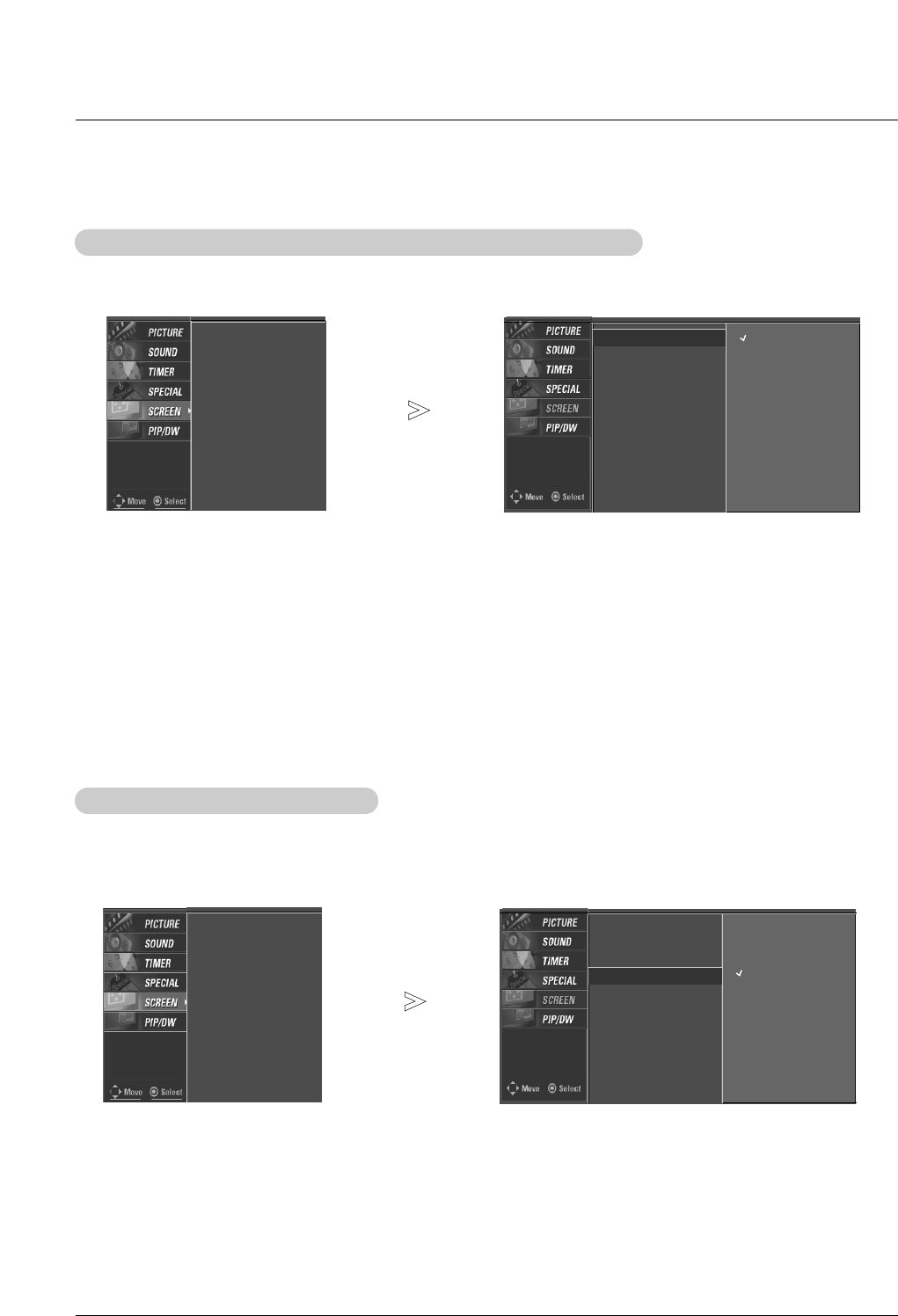

Screen Adjustments (V
Adjustments (Video1-2 and Component 480i mode only)
ideo1-2 and Component 480i mode only)
- Use this function to correct jittering or picture instability while viewing a video tape.
1. Press the MENU button and then use DD /EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD /EEbutton to select Screen adj..
3. Press the GGbutton and then use DD /EEbutton to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment. (Except VCR)
4. Press the ENTER button to save the new settings.
- You can select NR to reduce the picture noise which may appear on the screen during watching the TV.
- This function is not available for use in RGB[PC], HDMI[PC] mode.
NR (Noise Reduction)
NR (Noise Reduction)
1. Press the MENU button and then use DD /EEbutton to select the SCREEN menu.
2. Press the GGbutton and then use DD / EEbutton to select NR.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the ENTER button to save the new settings.
Screen Menu Options continued
Screen Menu Options continued
Screen adj.
ARC
Cinema
NR
Reset
Black level adj.
Screen adj. GG
ARC
Cinema
NR
Reset
Black level adj.
TV
VCR
Screen adj.
ARC
Cinema
NR
Reset
Black level adj.
Screen adj.
ARC
Cinema
NR GG
Reset
Black level adj.
On
Off
Owner’s Manual 33
Operation
W

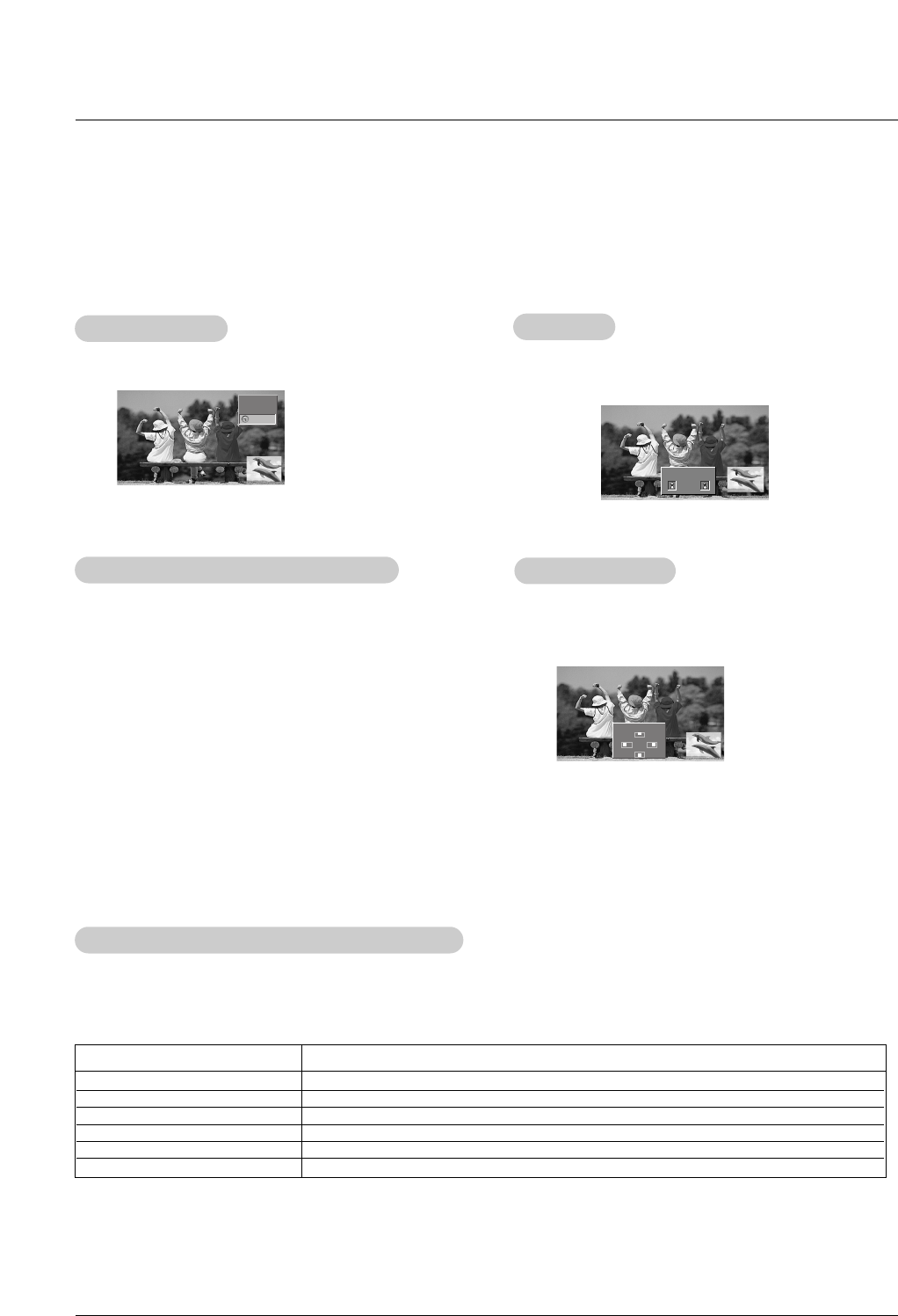

Watching PIP
atching PIP
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
- This function doesn’t work for RGB-DTV(1080p).
- If input signals(50Hz/60Hz) of the main and sub pictures are different in PIP/DW mode, the screens are unnatural.
Press the PIP button repeatedly to turn PIP on or off.
PIP
PIP Size
Size
Press the WIN.SIZE button and then use FF / GGbutton to
change the sub picture size.
Moving the PIP
Moving the PIP
Press the WIN.POSITION button.
Press the DD / EE/ FF / GGbutton repeatedly until desired posi-
tion is achieved. The sub picture moves up/down/left/right.
Selecting an Input Signal Source for the PIP
Selecting an Input Signal Source for the PIP
Use the PIP INPUT button to select the input source for the
sub picture.
◀▶
▲
▼
Win.position
PIP
PIP (Picture-In-Picture) Feature
(Picture-In-Picture) Feature
10 : 30
Component
Video
Win.size
FFGG
PIP
PIP T
Transparency (PIP
ransparency (PIP Mode only)
Mode only)
- To make the PIP clear or opaque.
1. Press the MENU button and then use DD / EEbutton to
select the PIP/DW menu.
2. Press the GGbutton and then use DD / EEbutton to select PIP
Transparency .
3. Press the GGbutton and then use FF / GGbutton to adjust
PIP transparency.
4. Use the FF / GGbutton to make appropriate adjustments.
• The adjustment range of PIP Transparency is 0 ~ 10.
5. Press the ENTER button to save.
Main Picture Source Available Sub Picture Sources
Video
Component 480i
Component 480p/720p/1080i
RGB/DVI-DTV(480p/720p/1080i)
RGB/DVI-PC
HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i, RGB/DVI-PC
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i, RGB/DVI-PC
Video, Component 480i, RGB/DVI 480p/720p/1080i, RGB/DVI-PC
Video and Component 480i/480p/720p/1080i
Video and Component 480i/480p/720p/1080i
Video and Component 480i
34 Plasma Monitor
Operation

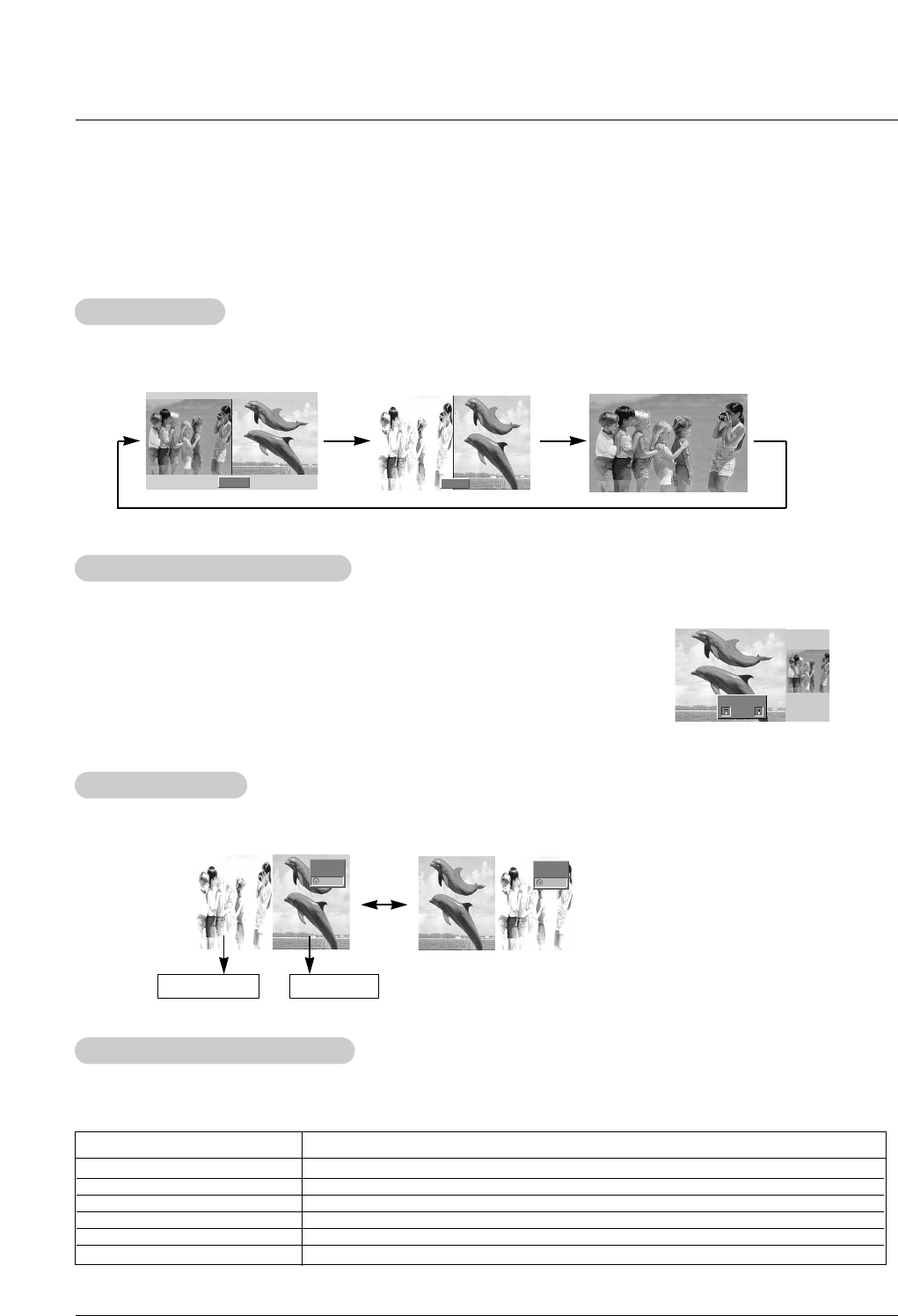

Selecting a Source for the DW
Selecting a Source for the DW
W
Watching DW
atching DW
Press the DW button repeatedly to select one of the DW options.
Sub Picture Size
Sub Picture Size Adjustment
Adjustment
Press the WIN.SIZE button.
•Use the FF / GGbutton to change the sub picture size.
•Using the WIN.SIZE function in DW mode, main and sub picture sizes are changed
simultaneously.
Using the WIN.SIZE function in PIP mode, sub picture size is changed.
•WIN.POSITION is not functional in DW mode.
DW 1
DW 2
◀▶
- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at the
same time. Each source is given half the screen.
- This function doesn’t work for RGB-DTV(1080p).
DW Setup Option
DW Setup Option
Win.size
FFGG
Use the PIP INPUT button to select the input source for the sub picture.
Main Picture Source Available Sub Picture Sources
Video
Component 480i
Component 480p/720p/1080i
RGB/DVI-DTV(480p/720p/1080i)
RGB/DVI-PC
HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i, RGB/DVI-PC
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i, RGB/DVI-PC
Video, Component 480i, RGB/DVI 480p/720p/1080i, RGB/DVI-PC
Video and Component 480i/480p/720p/1080i
Video and Component 480i/480p/720p/1080i
Video and Component 480i
Swapping the DW
Swapping the DW
Use the SWAP button to switch the main and sub pictures in DW mode.
10 : 30
10 : 30
Component
Video
Video
Component
Main Picture Sub Picture
Owner’s Manual 35
External Control Device Setup
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configuration
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3- Wire Configuration
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of Connector: D-Sub 9-pin Male
ype of Connector: D-Sub 9-pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
HDMI/DVI IN HDMI/DVI IN
1
2
RS-232C INRS-232C IN
(CONTROL & SERVICE)
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIO
( )
S-VIDEO
VIDEO IN
VIDEO IN 3 VIDEO IN 4
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB INRGB IN
RGB(PC/DTV)RGB(PC/DTV)
REMOTE REMOTE
CONTROL INCONTROL IN
36 Plasma Monitor
External Control Device Setup
Transmission
* [Command 1]: k, j, m
* [Command 2]: To control PDP set.
* [Set ID]: You can adjust the set ID to choose desired moni-
tor ID number in Special menu. Adjustment range
is 1 ~ 99. When selecting Set ID ‘0’, every con-
nected PDP set is controlled. Set ID is indicated
as decimal (1~99) on menu and as Hexa decimal
(0x0~0x63) on transmission/receiving protocol.
* [DATA]: To transmit command data.
Transmit ‘FF’data to read status of command.
* [Cr]: Carriage Return
ASCII code ‘0x0D’
* [ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
[Command2][ ][Set ID][ ][NG][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
01. Power k a 0 ~ 1
02. Input Select k b 1 ~ 9
03. Aspect Ratio k c 0 ~ 3
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Remote Control Lock Mode
k m 0 ~ 1
14. PIP/DW k n 0 ~ 3
15. Split Zoom k p 0 ~99
16. PIP Position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color Temperature k u 0 ~ 2
21. PIP Input Select k y 1 ~ 9
22. Abnormal State k z 0 ~ a
23. ISM Method j p 0 ~ 3
24. Low Power j q 0 ~ 1
25. Picture Size Setting j t 0 ~30
for DW mode
26. Auto Configure j u 1
27. Key m c
Key code
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
Command Reference List
Command Reference List

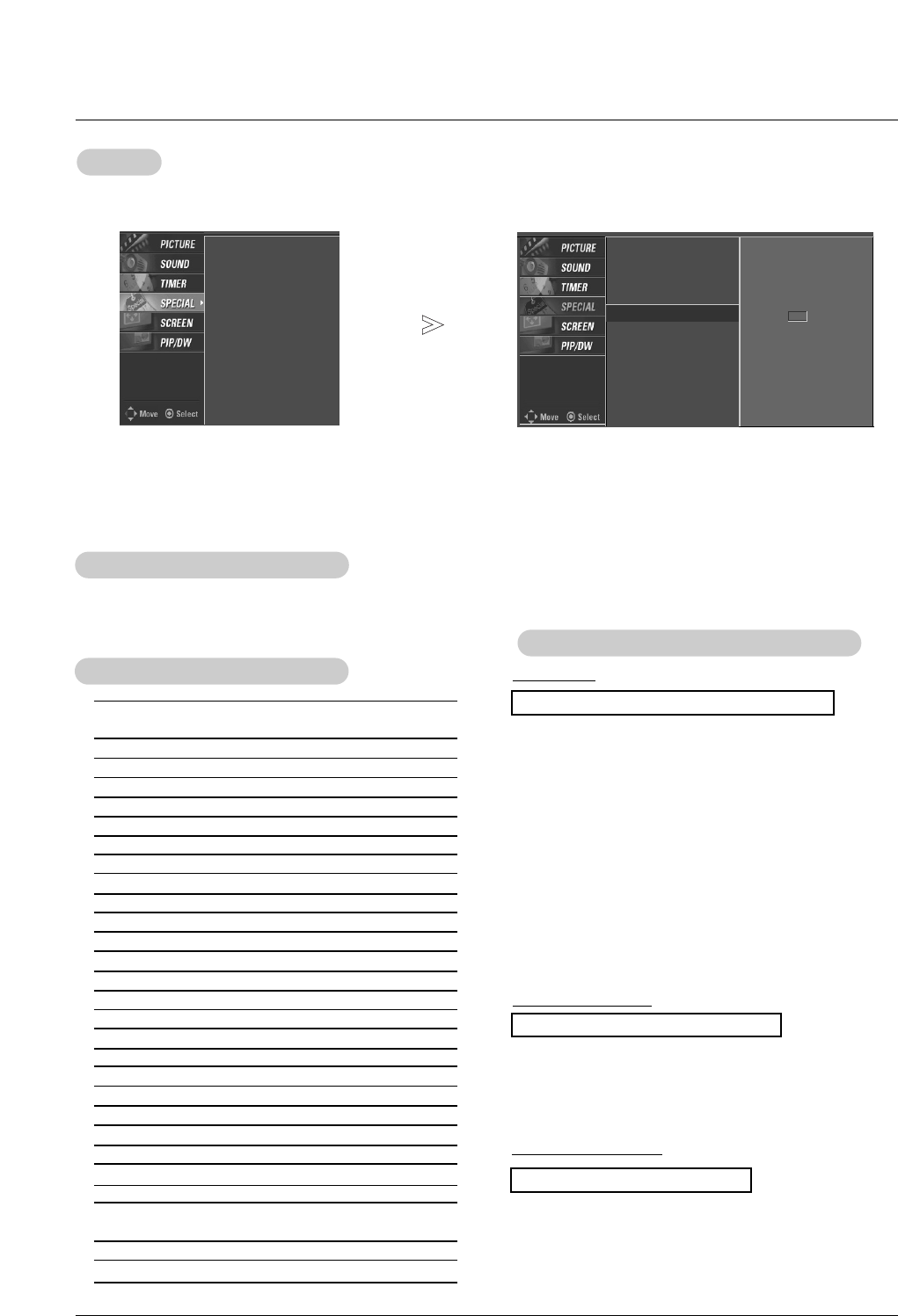

Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 34.
1. Press the MENU button and then use the DD /EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD /EEbutton to select Set ID.
3. Press the GGbutton and then use F / Gbutton to adjust Set ID to choose the desired monitor ID number.
• The adjustment range of Set ID is 1 ~ 99.
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
Data 1: Illegal Code
2: Not supported function
Language
Key lock
ISM Method
Low power
Set ID
Index
Language
Key lock
ISM Method
Low power
Set ID GG
Index
1
Owner’s Manual 37
External Control Device Setup
02. Input Select (Command 2:b) (Main Picture Input)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
button on the Monitor's remote control.
Transmission
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command 2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off 1 : Power On
* In a like manner, if other functions transmit ‘FF’data
based on this format, Acknowledgement data feedback
presents status about each function.
[a][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command 2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Screen menu.
Transmission
Data 0 : Normal screen (4:3)
1 : Wide screen (16:9)
2 : Wide screen (Horizon)
3 : Full screen (Zoom)
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command 2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command 2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command 2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
Data Min : 0 ~ Max : 64
38 Plasma Monitor
External Control Device Setup
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and front panel controls on the
monitor
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: lock off 1: lock on
•If you’re not using the remote control and front panel con-
trols on the monitor, use this mode. When main power is
on/off, remote control lock is released.
[m][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Picture menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Picture menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping 1’.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
Data Min : 0 ~ Max : 64
Data Red : 0 ~ Green : 64
Data Min : 0 ~ Max : 64
Data 0: OSD off 1: OSD on
Data 0: lock off 1: lock on
07. Contrast (Command 2:g)
GTo adjust screen contrast.
You can also adjust contrast in the picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
Data Min : 0 ~ Max : 64
Owner’s Manual 39
External Control Device Setup
20. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust ACC in the Picture menu.
Transmission
Data 0: Cool 1: Normal 2: Warm
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
17. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 34.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
16. PIP Position (Command2:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using
Win.position on the remote control or in the PIP/DW menu.
Transmission
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
18. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 34.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
19. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 34.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
Data Min: 0 ~ Max: 64
Data Min: 0 ~ Max: 64
Data Min: 0 ~ Max: 64
Data 0: Cool 1: Normal 2: Warm
15. Split Zoom (Command2:p)
GTo operate split zoom function and select the split
zoom section number.
Transmission
Data Min: 0 ~ Max: 99
•Refer to ‘Real data mapping 2’.
[k][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
* Real Data Mapping 2
0 : Reset split zoom
21: Selection 1 of 2 split zoom
24: Selection 4 of 2 split zoom
41: Selection 1 of 4 split zoom
42: Selection 2 of 4 split zoom
44: Selection 4 of 4 split zoom
45: Selection 5 of 4 split zoom
91: Selection 1 of 9 split zoom
99: Selection 9 of 9 split zoom
Data Min: 0 ~ Max: 99
14. PIP / DW (Command2:n)
GTo control the PIP (Picture-in-Picture) or DW.
You can also control the PIP/DW using the PIP or DW button
on the remote control or in the PIP/DW menu.
Transmission
Data 0: PIP/DW off
1: PIP
2: DW1
3: DW2
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
Data 0: PIP/DW off
1: PIP
2: DW1
3: DW2
40 Plasma Monitor
External Control Device Setup
23. ISM Method (Command2:p)
GTo avoid having a fixed image remain on screen.
Transmission
Data 0: Normal
1: White wash
2: Orbiter
3: Inversion
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
26. Auto Configure (Command2:u)
GTo adjust picture position and minimize image shaking
automatically. Auto Configure only works in RGB-PC
mode.
Transmission
Data 1
•Refer to ‘Real data mapping1’. See page 34.
[j][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
25. Picture Size Setting for DW mode
(Command2:t)
GTo adjust main picture size in DW mode.
Transmission
Data Min: 0 ~ Max: 30
•Refer to ‘Real data mapping1’. See page 34.
[j][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
21. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP mode.
Transmission
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
22. Abnormal State (Command2:z)
GTo recognize an abnormal state.
Transmission
Data 0: Power on(signal)
1: Power on(No signal)
2: Remote control off
3: Sleep time off
4: RS-232C off
5: 5V monitor off
6: AC detect off
7: Fan Alarm off
8: Off timer off
9: No signal off
a: Connection Detect off
[k][z][ ][Set ID][ ][FF][Cr]
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
Data FF:Read
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 0: Normal
1: White wash
2: Orbiter
3: Inversion
24. Low Power (Command2:q)
GTo control the low power function on/off.
Transmission
Data 0: Low power off
1: Low power on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
Data 0: Low power off
1: Low power on
Data Min: 0 ~ Max: 30
Data 1
27. Key (Command2:c)
GTo adjust Key code for IR remote control.
Transmission
Data Key code : Refer to See page 38.
[m][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
* If you do not press any button within 2 hours after the monitor turns
on with the On Timer function, the monitor will automatically revert to
standby mode.
Owner’s Manual 41

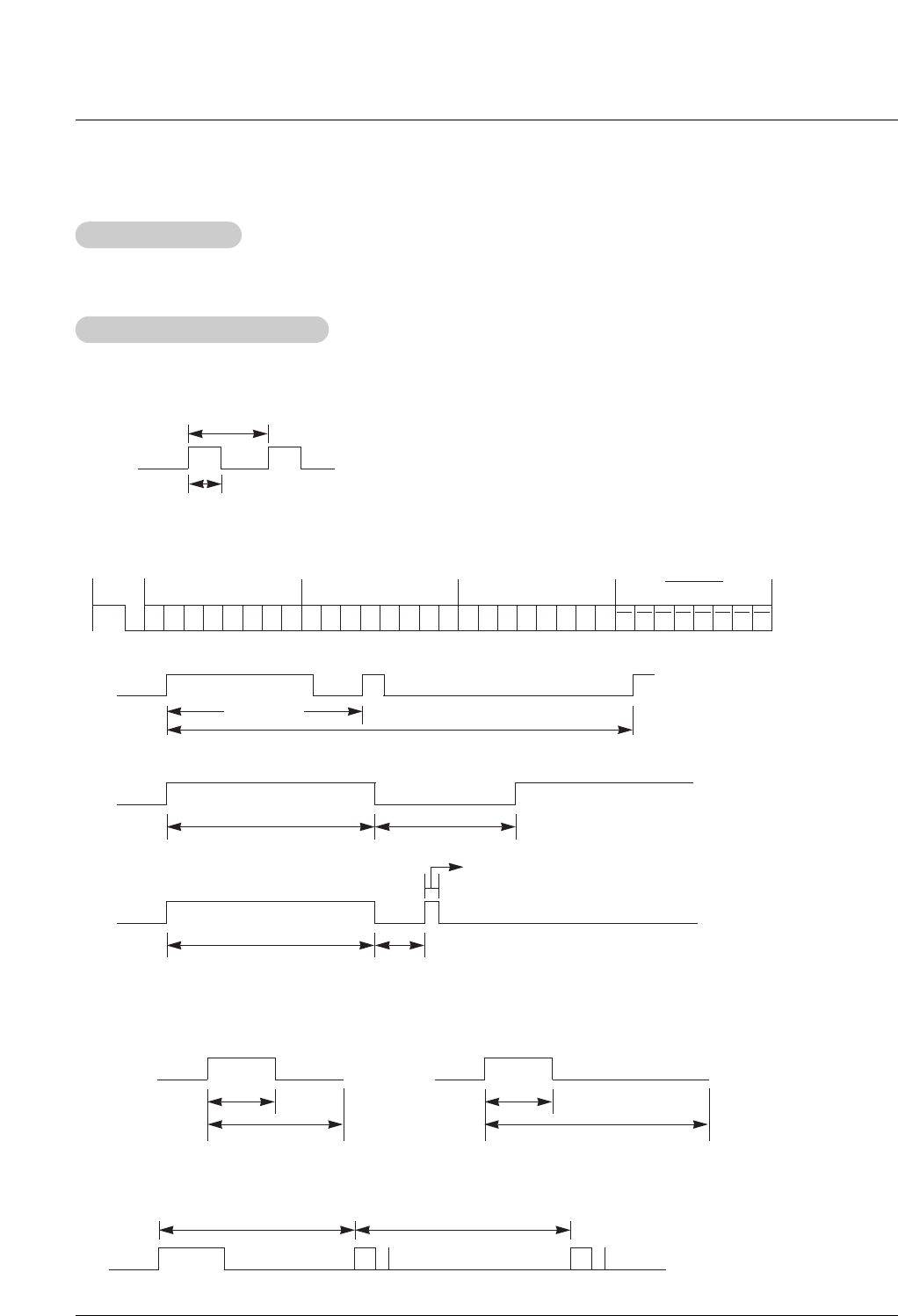

IR Code
G Connect your wired remote control to the Remote Control port on the Monitor.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code
High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
How to Connect
How to Connect
Remote Control IR Code
Remote Control IR Code
IR Code
IR Code
42 Plasma Monitor
IR Code
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
SLEEP
MUTE
POWER
VOL+
VOL-
CH+
CH-
APC
DASP
ENTER (Á)
AII INPUT SELECT
MENU
ARC
Split Zoom
Window Position
Window Size
F
G
D
E
EXIT
PIP
XD
PIP Input
DW
Video
HDMI
Key lock
Index
Auto config.
Input video1
Input video2
Input Component 1
Input Component 2
Input RGB
Input DVI
10
11
12
13
14
15
16
17
18
19
0E
09
08
02
03
00
01
4D
52
44
0B
43
79
7B
62
64
07
06
40
41
5B
60
92
61
6B
CD
CE
3E
75
99
5A
D0
BF
D4
D5
C6
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (4:3/16:9/Horizon/Zoom mode Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (Only RGB mode)
Discrete IR Code (Input Video 1 Selection)
Discrete IR Code (Input Video 2 Selection)
Discrete IR Code (Input Component 1 Selection)
Discrete IR Code (Input Component 2 Selection)
Discrete IR Code (Input RGB Selection)
Discrete IR Code (Input DVI Selection)
Code (Hexa) Function Note
Owner’s Manual 43
Programming the Remote
G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable
devices of other manufacturers.
Note that the remote control may not control all models of other brands.
Programming a code into a remote mode
Programming a code into a remote mode
Programming the Remote
Programming the Remote
1. Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR
and press the corresponding MODE button (VCR) on the remote control, while pointing at the component.
2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.
3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.
4. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component can
be found on the following pages. Again, if the code is correct, the device will turn off.
5. Press the MENU button to store the code.
6. Test the remote control functions to see if the component responds properly. If not, repeat from step 1.
44 Plasma Monitor
Programming the Remote
Programming Codes
Programming Codes
VCRs
VCRs
CA
CATV
TV
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
RK 091
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
SYLVANIA 067
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029 067
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
Owner’s Manual 45
Programming the Remote
Audio
Audio
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
DVD
DVD
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
BSR 053
CAPETRONICS 053
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
HYTEK 053
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
HDSTB
HDSTB
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 184
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143 253
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
254
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
46 Plasma Monitor
Troubleshooting Checklist
No output from one of
the speakers •Adjust Balance in the Sound menu. (Refer to p.21)
Unusual sound from
inside the monitor
•A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the monitor.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Test the wall power outlet, plug other product’s power cord into the wall outlet
where the Monitor’s power cord was plugged in.
No or Poor color
or Poor picture
•Select Color in the Picture menu and press the Gbutton.
(Refer to p.20)
•Keep a sufficient distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.9)
•Install new batteries. (Refer to p.9)
Picture OK &
No sound
•Press the VOLUME (+) button.
•Sound muted? Press MUTE button.
Picture appears slowly
after switching on
•This is normal, the image is muted during the plasma display startup process.
Please contact your service center, if the picture has not appeared after five
minutes.
Horizontal/vertical bars
or picture shaking •Check for local interference such as an electrical appliance or power tool.
T
Troubleshooting Checklist
roubleshooting Checklist
Owner’s Manual 47
Specifications
•The specifications shown above may change without notice for quality improvement.
Product Specifications
Product Specifications
MODELS
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Viewing Size (mm)
71PY1M
(71PY1M-WA)
68.9 / 1750
38.7 / 982
3.9 / 98
190.6 / 86.5
AC110-240V ~ 50/60Hz
1920 x 1080 (Dot)
1512.26
32 ~ 104°F (0 ~ 40°C)
Less than 80%
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
Environmental
condition
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
