DoCoMo W-CDMA, GSM/GPRS system

Thank you for purchasing the “FOMA L601i”.

Before or during use of the FOMA L601i, make sure that you read this manual and the separate manuals such as for the battery pack

thoroughly so that you can use the FOMA L601i correctly. If you feel any inconvenience in reading the manual, contact the DoCoMo

Information Center listed on the back page of this manual.

The FOMA L601i is designed to be your close partner. Treat it carefully at all times to ensure long-term performance.

Before using your FOMA phone

Because the FOMA phones use radio waves, they cannot be used in places where radio waves do not reach, such as inside tunnels,

underground, or in buildings; or the outside where radio waves are weak or out of the FOMA service area. They may not be used in the

high-rise buildings even when the antennas are unobstructed. You may also experience interruption of calls even when using without

moving while the radio waves are strong enough for the three antennas to appear on the display.

Use the FOMA phone carefully to avoid disturbing other people when in public, or in crowded or quiet places.

Since the FOMA phones use radio waves as the medium of telecommunication, calls may be tapped by the third party. However, the W-

CDMA and GSM/GPRS systems automatically support tapping prevention, so your conversation will be incomprehensible to the third party.

The FOMA phones change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the

digital signals may not be converted correctly, and in such a case, the voice heard may sound different from the actual original voice.

It is recommended that you make separate notes of the information stored in the FOMA phone and keep such notes in a safe place.

DoCoMo cannot be held responsible in any way for the loss of data stored in the phone.

The user hereby agrees that the user shall be solely responsible for the result of the use of SSL. Neither DoCoMo nor the certifier as listed

herein makes any representation and warranty as for the security in the use of SSL. In the event that the user shall sustain damage or loss

due to the use of SSL, neither DoCoMo nor the certifier shall be responsible for any such damage or loss.

Certifier: VeriSign Japan K.K. Betrusted Japan Co., Ltd. GeoTrust Japan, inc.

This FOMA phone can be used only via the FOMA network or Roaming service area by DoCoMo.

For those who use the FOMA phone for the first time

If this is the first time for you to use the FOMA phone, read this manual in the order as described below. Then you will get acquainted with the

outline of preparing and operating procedures for using your FOMA phone.

1. Attach and then charge the battery pack. >P37, P39

2. Turn the power to the FOMA phone ON, initialize, and confirm your phone number. >P43

3. Check the buttons on the FOMA phone for their roles. >P28

4. Confirm the meanings of icons that appear on the display. >P31

5. Learn how to operate the menus. >P34

6. Get well acquainted how to make and receive calls. >P46, P52

Note that “FOMA L601i” is referred to as “FOMA phone” in this manual.

The functions which use a miniSD memory card are described in this manual; however, you need to obtain a miniSD memory

card separately to make these functions available. See page 166 for the miniSD memory card.

It is prohibited to copy all or part of this manual without permission.

The instructions contained in this manual may be changed without notice.

How to Read/Refer to This Manual

The search methods and page structure of this manual are described here. Screen displays and illustrations

described in this manual are for reference. The actual ones might differ.

How to Refer to This Manual

By the following search methods, you can find pages where your desired functions and explanations are described:

Tabs on Cover ]Cover

Search from the tabs printed on the cover.

]See the next page for more details.

Index ]P306

Search from keywords when you know the names of

functions or services.

Contents ]P4

Search from the contents that categorize functions.

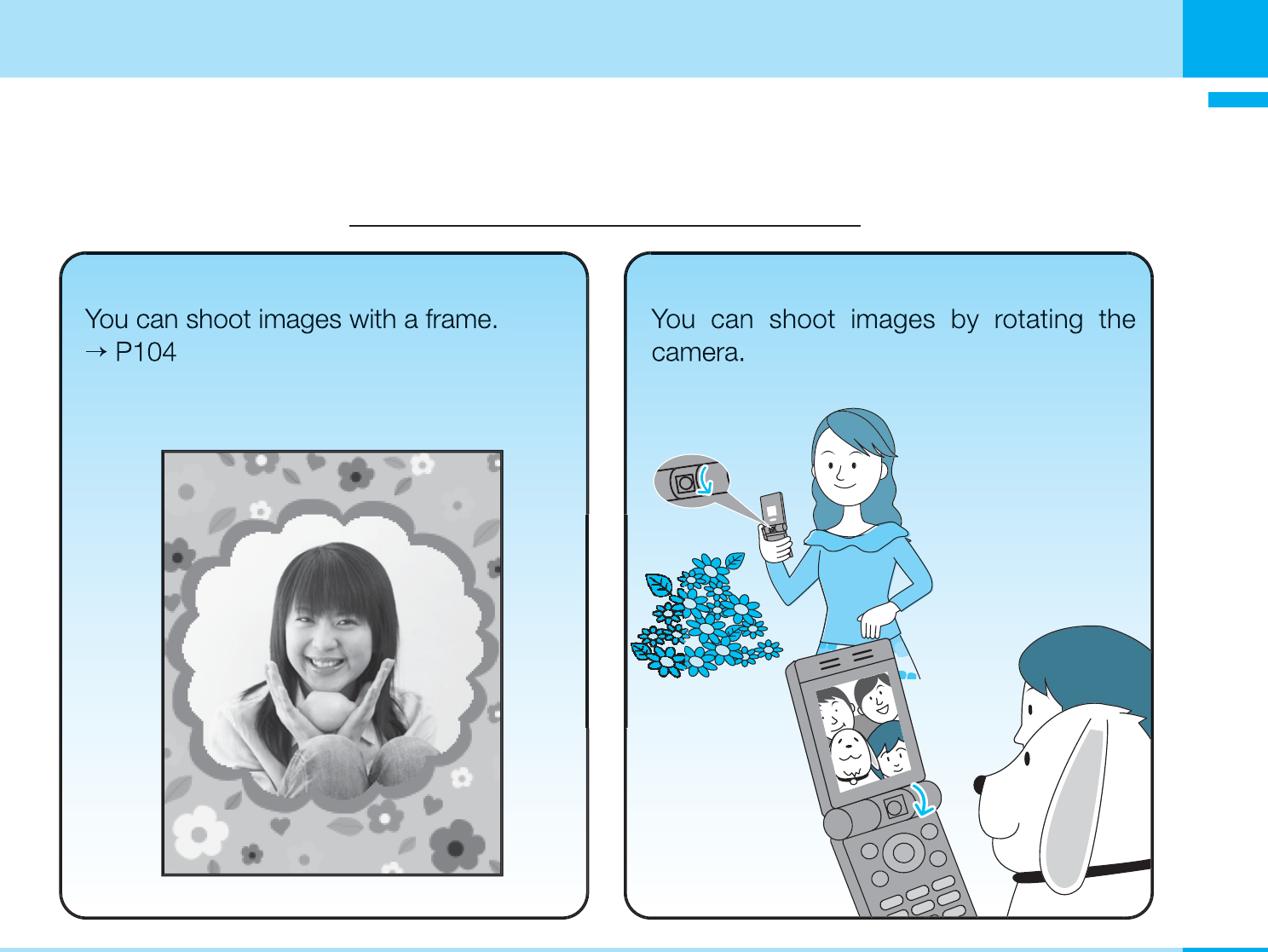

Features ]P6

Search from Features when you want to use specific functions of FOMA L601i such as new functions and useful

functions.

Menu List ]P224

Search from list for menus of FOMA L601i.

Quick Manual ]P316

Quick Manual gives you a clear, brief description about fundamental functions. You can take it with you when you

go outing.

How to Read/Refer to This Manual

aOverseas Use

See “Overseas use” (P213) for how to use your FOMA phone outside Japan.

How to Read/Refer to This Manual

aFrom the Tabs on the Cover

Search for the functions and explanations in the order of the Cover >First page of Chapter >Description page.

aFrom the Index

Search from the index when you know the names of functions or services.

Contents / Precautions

Confirming before use

Making Calls /

Receiving Calls

Making /

iving Video-phone Calls

Phonebook

Sound / Display

Settings

Safety settings

Multimedia

(Camera)

i-mode

Mail

i-appli

Data box

Adjusting the Ring Volume ....................68

Adjusting the Effect Tone Volume .........68

Selecting a Ring Tone ............................68

Selecting a Effect Tone..........................69

Setting a Vibrator ...................................70

Activating the Manner Mode .................70

Setting the Ringing Operation for

Incoming Mail .........................................71

Setting the Ringing Time........................72

Setting Sub Display................................73

Setting Fonts of Dial Characters ...........74

Setting Menu Display .............................75

Setting Backlight ....................................75

Setting Color Scheme ............................75

Sound /

Display

1 Ring volume

2 Effect tone volume

3 Select ringtone

4 Select effect tone

5 Vibration settings

6 Manner settings

7 Mail ring duration

Select

Sound

On the Stand-by display,

C[Menu] ]or “Sound”

To display the Sound menu

1 Main display

2 Sub display

3 Font

4 Menu style

5 Backlight

6 Color scheme

Select

Display

On the Standby display,

C[Menu] ]or “Display”

To display the Display menu

..125

..134

, 130

132,

..135

, 130

, 132

..126

, 130

Folder list (Meody)..................150

Folder list (Moving/i-motion) ...150

Mail list (Received)..................129

Mail list (Sent).........................135

Mail list (Unsent).....................137

Software list ...........................149

Sound .........................................68

Effect tone volume ...................68

Mail ring on/off .........................72

Manner mode ..........................70

Ring volume.............................68

Ringing time.............................72

Selecting a effect tone .............69

Selecting a ring tone ................68

How to Read/Refer to This Manual

How to use this manual

In this manual, operations of your FOMA phone are explained in the structure as shown below:

• Screen displays and illustrations described in this manual are for reference. The actual ones might differ.

Shows the title

Description of operations

Provides the operation

number and operation

method. > P34

Supplementary

description of functions

Shortcut operation

Shows button operation

from the Stand-by display.

Description of functions

Provides detailed

explanation of each

function.

Supplementary

description of functions

Index tab

Shows the chapter title.

These titles are described

in the tabs on the cover.

Screen

Shows the screen

displayed in the

process of or after

an operation.

Information

Gives necessary

information, notes,

and supplementary

explanation.

✽ The above page is a sample.

How to enter the menu

C#1

Contents/Precautions

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Contents/Precautions

Contents

Before using your FOMA phone....................... Rear side of Front Cover

For those who use the FOMA phone

for the first time ........................................... Rear Side of Front Cover

How to Read/Refer to This Manual ...................................................... 1

Contents ............................................................................................. 4

Features of FOMA L601i...................................................................... 6

Making Full Use of FOMA L601i!.......................................................... 8

Safety Precautions (Always follow the safety precautions.)................. 10

Notes on Handling............................................................................. 20

Intellectual Property Rights ................................................................ 23

Accessories and Main Options .......................................................... 25

Confirming before use......................................... 27

• Phone Parts and Functions • Display • Menu Operations

• How to Use the Soft Keys • Main Side Button Operations

• Using the UIM (FOMA Card) • Attaching/Removing the Battery Pack

• Charging the FOMA Phone • Turning Power ON

• Turning Power OFF • Clock/Time

• Using Caller ID Notification Service • Own Number

Making Calls/Receiving Calls.............................. 45

• Making Calls • Receiving Calls • Using Public mode (power off)

Making/Receiving Video-phone Calls ................ 51

• About Video-phone • Making Video-phone Calls

• Receiving Video-phone Calls

• Changing Settings for Video-phone Calls

Phonebook........................................................... 57

• Adding to Phonebook • Searching for Phonebook Entries

• Checking the Number of Saved Phonebook Entries

• Setting Phonebook • Setting Groups

• Displaying Own Number

Sound/Display ..................................................... 67

• Adjusting the Ring Volume • Adjusting the Effect Tone Volume

• Setting a Ring Tone • Setting an Effect Tone

• Setting a Vibrator • Activating the Manner Mode

• Setting Ringing Operations for Incoming Mail

• Setting Ringing Time • Setting Main Screen

• Setting Sub Display • Setting Fonts of Dial Characters

• Setting Menu Style • Setting Backlight

• Setting color Scheme

Settings ................................................................ 77

• Call/Answer • Call Feature • Video Phone • Date & Time

• Network (for overseas use) • Changing a Host from i-mode

• Security • • Others Settings

Safety settings ..................................................... 95

• Passwords

• Preventing the Phone from Activating the Operation of Function

• Other Safety Settings

Multimedia (Camera) ........................................... 99

• Notes for when using the camera • Using the Camera

• Taking Still Images • Shooting Moving Images

i-mode ................................................................ 109

• i-mode Menu • What is i-mode? • Displaying the iMenu display

• Displaying Sites from Bookmark • Displaying Screen memo

• Displaying Last URL • Displaying Internet Web Pages

• Displaying MessageR/F

• Checking Whether Center Holds MessageR/F

• Setting Functions of i-mode • Displaying Sites

• How to See/Use Sites • Using My Menu

• Changing i-mode Password

Contents/Precautions

Mail..................................................................... 127

• Mail Menu • i-mode Mail • Displaying Mail in Inbox

• Displaying Mail in Outbox • Displaying Mail in Unsent message

• Composing Mail • Checking New i-mode mail and Message

• Receiving Selected Mail • Checking whether Center Holds SMS

• Changing Mail Settings

i-appli ................................................................. 147

• What is i-appli • Downloading i-appli from Sites • Starting i-appli

Data box............................................................. 153

• Introduction of Data box • Displaying/Managing/Editing Images

• Playing back/Managing/Editing Moving Images/i-motion

• Playing back/Managing/Editing Melody

• Caution on Use of the miniSD Memory Card

• Inserting/removing miniSD memory card

• Playing back/Editing Data on the miniSD Memory Card

• Playing back i-motion (including of music file) downloaded by other

devices in FOMA phone

Tools................................................................... 171

• Using Alarm • Setting the Custom Menu

• Using the Infrared Exchange Function • Using Calculator

• Using Unit Converter • Using World Time • Using Stop Watch

• Using the miniSD Memory Card

Stationery........................................................... 181

• Using Schedule • Using Memo

• Using Date Search • Using Date Counter

Network Service ................................................ 189

• Available Network Services • Using Voice Mail

• Using Call Waiting Service • Using Call Forwarding Service

• Using Nuisance Call Barring Service

• Using Caller ID Notification Service

• Using Caller ID Request Service • Using Set Arrival Act

• Selecting Arrival Call Act • Registering Additional Services

• Registering Additional Guidance • Using English Guidance

• Using Service Dialing Number • Using Call Barring

Data Transmission............................................. 199

• Data Transmission Available from the FOMA phone • Before Use

• Glossary of Data Transmission Terms

• Preparation Flow for Data Transmission • AT command

Entering Characters........................................... 205

• Entering Characters • List of Character Assignment of Dial Buttons

Overseas Use..................................................... 213

• Network Settings • International Roaming Service

• Using the FOMA Phone Overseas

Appendix............................................................ 223

• Menu list • Pre-installed data • List of Terms

• Symbol/Special Character List • Pictograph and Emoticon List

• Common Phrase List • Kuten Code List • List of city in World time

• Multiaccess Combination Patterns

• Multitask Combination Patterns

• Service Available with FOMA Phones

• Introduction of Data Link • Troubleshooting

• Error Messages • Introduction of Options and Related Equipment

• Warranty and Maintenance Services

• Specific Absorption Rate of the Mobile Phone

• Export/Re-export regulations of Japan and USA

Index/Quick Manual .......................................... 305

• Index • Quick Manual

Contents/Precautions

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Contents/Precautions

Features of FOMA L601i

FOMA (Freedom Of Mobile multimedia Access) is the name of the DoCoMo service based on the W-CDMA format,

authorized as one of the world’s standards for third-generation mobile telecommunication systems (IMT-2000).

Main Futures

Video-phone >P52

You can have a conversation with the other party seeing

the face each other. You can also let the other party’s

voice heard from the speaker or the other party see the

landscape around you by rotating the camera.

Whole Range of Network Services

Voice Mail (Charged) >P190

Call Forwarding Service (Free) >P193

Call Waiting Service (Charged) >P192

SMS (Short Messages) (Monthly fee Free)

>P141

i-mode Function

Viewing sites >P120

This is on-line service to view the information via

connecting the site or homepage by operating the button

simply.

i-mode mail

P139

You can compose and send i-mode mail. Also, you can

attach images, moving images and melodies for sending.

i-motion >P125

You can obtain images and music from sites or Internet

web pages.

i-motion Mail >P139, P140

You can attach moving images shot by the camera or i-

motion movies obtained from sites or Internet web pages to

i-mode mail for sending.

i-appli >P148

You can download and use a variety of i-appli software

programs from sites.

For example, you can download and enjoy a variety of

games.

Contents/Precautions

International Roaming >P214

You can make/receive voice/video-phone calls, perform

i-mode communication, exchange i-mode mail and SMS

messages and perform data transmission with a

personal computer connected to your FOMA phone

abroad with the same phone number. Moreover,

subscribers of the Voice Mail or Call Forwarding Service

can use the network services.

Useful Functions for Overseas Use

Unit converter >P176

You can convert a value of currency, surface, length,

weight, temperature, volume or velocity from one unit

to another. You can use Unit converter in confirming a

price converted into yen when you shop overseas.

World time

P178

You can check the date and time of 58 cities in the

world. Also, a world map is displayed so that you can

confirm the locations of cities and the national flags. You

can use Global Clock in confirming the date and time

and the location of your next destination on a trip.

Dual clock display

P73

You can display the time of two cities on the Stand-by

display at the same time. For example, you can view the

time difference by setting the city of a stay place.

Using the Infrared Exchange

P174

You can exchange the data with FOMA handset via

Infrared.

To display a character in phonebook

P58

In a phonebook, you can set the image and the character

for each entry. You can make your own character by

changing “Face”, “Hair”, “Tops”, “Bottoms”, “Accessory”

and “Scenery”.

Camera Functions >P101, P106

You can shoot still images and moving images using the

rotatable camera (1,300,000 effective pixels and 1,300,000

recording pixels). You can shoot not only a person or

landscape but also yourself by rotating the camera.

You can use various functions such as adjusting images,

zooming images, special effects when you shoot images.

Compatible with miniSD Memory Card

P166, P179

You can save still images/moving images shot by the

camera or video camera of the L601i phone and melodies

by using a miniSD memory card (option). Saved data can

easily be exchanged between the L601i phone and a

personal computer. You can save the i-motion or music file

composed by external device in miniSD memory, and then

play them in FOMA phone. (You might not play the files if

the condition to play doesn't meet.)

Contents/Precautions

Making Full Use of FOMA L600i!

"Video-phone", communication seein

the face each other.

Contents/Precautions

Sim

le and Eas

Camera Function

Contents/Precautions

Safety Precautions

(Always follow the safety precautions.)

aBefore using the FOMA phone, read these

safety precautions carefully so that you can use

it correctly. After reading the precautions, keep

them in a safe place for later reference.

aBe sure to observe these safety precautions

because they are designed to protect you or

those around you from causing injury and to

avoid unnecessary damage to the property.

aThe symbols below indicate the levels of danger

or damage that can be caused if the particular

precautions are not observed.

aThe following symbols show specific directions:

a“Safety Precautions” are divided into the

following six sections:

General precautions for FOMA phone, batteries,

adapters/chargers, and UIM ............................... P11

Precautions for FOMA phone ............................. P13

Precautions for batteries ..................................... P15

Precautions for adapters/chargers ...................... P17

Precautions for UIM ............................................ P18

Notes on using near electronic

medical equipment.............................................. P19

This symbol indicates that incorrect

handling will almost certainly cause

death or serious injury.

This symbol indicates that incorrect

handling poses a risk of causing

death or serious injury.

This symbol indicates that incorrect

handling poses a risk of causing

injury or damage to the product or

property.

Danger

Warning

Caution

Denotes things not to do (Prohibition)

Don’t

Denotes not to disassemble.

Denotes not to touch with wet hands.

Denotes not to use where it could get wet.

Do not

disassemble

No wet

hands

Avoid

water

Denotes mandatory instructions (matters that

must be complied with).

Denotes to pull the power plug out of the

outlet.

Pull the power

plug out

Contents/Precautions

General precautions for FOMA

phone, batteries, adapters/chargers,

and UIM

Danger

Use only the batteries and adapters /

chargers approved by DoCoMo for the

FOMA phone.

If you use any type of battery, adapter or charger

other than the specified one, the FOMA phone,

battery or other devices may leak, overheat, burst,

catch fire, or get damaged.

Battery Pack L01 FOMA AC Adapter 01

FOMA AC Adapter 01 for both overseas and

domestic usage FOMA DC Adapter 01

• For other specified products, contact a handling

counter such as a DoCoMo shop.

Do not disassemble, modify or solder the

FOMA phone or accessories.

Accidents such as fire, injury, electric shock, or

malfunction may result. The battery may leak,

overheat, bust or catch fire.

Do not use or leave the FOMA phone or

accessories in places where it is exposed

to direct sunlight, or in extremely high

temperatures such as inside a car in the

summer heat.

Otherwise, the devices may deform or malfunction,

battery may leak, overheat, burst, or catch fire, or

performance and longevity may deteriorate. Also, part

of the case might be heated, causing bare skin burns.

Do not let the FOMA phone or accessories

get wet.

If liquids such as water or pet urine get onto them,

overheating, electric shock, fire, malfunction, injuries

or others may result. Pay attention to the place of use

of the way of handling.

Warning

Do not use near places such as gas

stations where there is danger of fire or

explosion.

If used in dusty places or where there are flammable

gases such as propane or gasoline, explosions or fire

may result.

Don’t

Avoid

water

Don’t

Do not

disassemble

Contents/Precautions

Warning

Do not place the batteries, the FOMA

phone, adapters/chargers, or UIM in

microwave ovens or high-pressure

containers.

The battery may leak, overheat, burst, or catch fire.

The FOMA phone or the adapter/charger may

overheat, smoke, or catch fire, or its circuit parts may

burst.

Do not throw the FOMA phone or

accessories, or subject them to severe

shocks.

The battery may leak, overheat, burst, catch fire, or

cause damage to the equipment.

Be careful not to let electroconductive

materials (metal pieces, pencil leads, etc.)

contact with the charging terminal or

external connecting terminals. Also, make

sure that those are not entered into the

inside of the FOMA phone.

Short-circuit could cause catching fire or malfunction

of the FOMA phone.

If the FOMA phone or accessories begins

to emit an odor, overheat, discolor, deform,

etc., while being used, charged, or stored,

take the countermeasures as follows;

1. Pull the power plug off the outlet or socket.

2. Shut down the power to the FOMA phone.

3. Remove the battery pack from the FOMA phone.

If you use the devices with these symptoms not

handled, they may overheat, burst, or catch fire, or

the battery may leak.

Caution

If children use the FOMA phone or

accessories, a guardian should explain the

safety precautions and correct operations.

The guardian should also make sure that

the instructions are followed during use.

Otherwise, injury may result.

Do not place the FOMA phone or

accessories on unstable locations such as

wobbly tables or slanted locations.

The FOMA phone or accessories may fall, resulting in

injury or malfunction.

Keep out of the reach of babies and

infants.

Accidental swallowing or injury may result.

Do not store in humid or dusty places, or in

high temperature environments.

Malfunction may result.

Don’t

Contents/Precautions

Caution

Temperature of the FOMA phone, battery

pack or adapter /charger may rise if charging

the battery, shooting moving images, playing

back or using the video phone, i-mode or i-

appli repeatedly or continuously for a long

time.

Prolonged direct contact with a high temperature

part may cause redness, itching, rash, etc. on

skin depending on your physical conditions or

predisposition.

Be careful especially when using the FOMA

phone connected to the adapter / charger

continuously for a long time.

Precautions for FOMA phone

Warning

Turn off the FOMA phone in places where

use is prohibited such as in airplanes and

hospitals.

Otherwise, electronic devices and electronic medical

appliances may be adversely affected. If the Auto

Power ON function is set, deactivate the setting, then

turn the power off.

For use inside medical facilities, make sure that you

comply with their regulations.

You may be punished for using the FOMA

phone in airplanes, which is prohibited by law.

Turn off the FOMA phone when near high-

precision electronic devices or devices

using weak electronic signals.

The FOMA phone may possibly cause these devices

to malfunction.

Electronic devices that may be affected:

Hearing aids, implanted cardiac pacemakers,

implanted defibrillators, other medical electronic

devices, fire alarms, automatic doors and other

automatically controlled devices.

If you are using an implanted cardiac pacemaker,

implanted defibrillator or any other electronic

medical device, consult the manufacturer or

retailer of the device for advice regarding possible

effects from the radio waves.

If you have any implanted electronic

medical equipment, do not place your

FOMA phone in a chest pocket or inner

pocket.

If the FOMA phone is positioned close to electronic

medical equipment, it may cause that equipment to

malfunction.

Don’t

Contents/Precautions

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Contents/Precautions

Warning

For those with weak heart conditions, the

vibrator and ring volume must be adjusted

carefully.

Those functions may cause an effect on the heart.

Do not operate the FOMA phone while

driving a vehicle.

Operating a mobile phone during driving has been

prohibited since November 1, 2004 according to the

revised Road Traffic Law. During driving, make sure

that you activate Public mode (power off) or the Voice

Mail Service.

Do not directly point the infrared data port

at someone’s eyes during transmission.

His/Her eyes may possibly be affected. Other

infrared devices may operate erroneously if the

infrared data port is pointed at them during

transmission.

When talking on the speaker phone, be

sure to keep the FOMA phone away from

your ear.

Otherwise, your hearing could be impaired.

Do not shine the light close to eyes.

Doing so can damage eyesight. Also, accidents such

as injury might occur if someone is startled or

dazzled by the light.

Do not put the FOMA phone in the place

where it could be affected by an expanded

airbag, etc., on the dashboard.

If the airbag expands, the FOMA phone could hit you

and others, causing accidents such as injury and the

FOMA phone could become damaged.

If thunder starts to rumble while you are

using the FOMA phone outdoors, turn the

power off, and move to a safe place.

Otherwise, you could be struck by lightning or suffer

an electric shock.

Caution

Do not swing the FOMA phone by its strap.

The FOMA phone may hit you or persons around

you, and accident such as injury or malfunction may

result.

Don’t

Contents/Precautions

Caution

Itching, rash or eczema may be caused

depending on your physical conditions or

predisposition. If an abnormality occurs,

stop using the FOMA phone immediately,

and then seek medical attention.

Metals are used for the following parts:

Do not allow liquids such as water, or

foreign materials such as metal pieces or

flammable materials to get into the UIM

insertion slit or miniSD memory card slot of

the FOMA phone.

Fire, electric shock or malfunction may occur.

Electronic devices in some types of cars

can be affected by use of the FOMA phone.

For safety’s sake, do not use the FOMA phone inside

such cars.

Do not place magnetic cards or similar

objects near the FOMA phone or between

phone parts.

Information on magnetic cards such as cash cards,

credit cards, telephone cards and floppy disks may

be deleted.

Be careful not to let your finger or the strap

get caught when you open and close the

FOMA phone.

Accidents such as injury or malfunction may result.

Precautions for batteries

aCheck the description on the label of the

battery pack for the type of battery.

Danger

If the battery fluid gets into your eyes, do not

rub them. Flush your eyes with clean water

and get medical attention immediately.

Otherwise, the loss of eyesight may result.

Do not throw the battery into fire.

The battery may leak, overheat, burst or catch fire.

Don’t

Description Type

Li-ion Lithium-ion battery

(Li-polymer) (Lithium-polymer battery)

Where it is used Material

Navigation Button Aluminum (coated)

Around the camera

Earpiece/Speaker and

their surrounding Chrome plating

Contents/Precautions

Danger

Do not let any metal such as a wire contact

the terminal. Also, do not carry or store the

battery together with a metal necklace.

The battery may leak, overheat, burst or catch fire.

Do not pierce it with nails, hit it with a

hammer, or step on it.

The battery may leak, overheat, burst or catch fire.

Do not use excessive force to attach the

battery to the FOMA phone when you

cannot attach it successfully. Also, check

that the battery is the right way round

when you attach it.

The battery may leak, overheat, burst or catch fire.

Warning

If the battery fluid comes in contact with

skin or clothes, immediately stop using,

then wash affected areas thoroughly with

clean water.

The battery fluid is harmful to skin.

If charging is not completed at the end of

the specified charging time, stop charging.

Otherwise, the battery may leak, overheat, burst or

catch fire.

If it leaks or emits an odor, immediately

stop using the battery and keep it away

from fire.

The battery fluid, being flammable, may catch fire and

cause an explosion.

Caution

An exhausted battery should not be

disposed of with other waste.

The battery may catch fire or destroy the environment.

After insulating the battery terminals with tape, bring

them to a handling counter such as a DoCoMo shop

or dispose of them in accordance with local waste

disposal regulations.

Don’t

Contents/Precautions

Precautions for adapters/chargers

Warning

Never short-circuit the charging terminals

when the adapter is plugged into the

power outlet or cigarette lighter socket.

Also, never touch the charging terminals

with fingers or other bare skin.

Fire, malfunction, electric shock or injury may result.

Do not touch the power cord of the

adapter/charger, or power outlet with wet

hands.

Electric shock or injury may result.

Do not use the AC adapter in steamy

places such as a bathroom.

Electric shock may occur.

When the adapter/charger is not to be

used for a long period of time, unplug the

power cord from the outlet.

Otherwise, electric shock, fire, or malfunction may

result.

Do not use a damaged adapter/charger

cord or power cord.

Electric shock, overheating or fire may result.

If liquids such as water get in the charger,

unplug the power cord immediately from

the outlet or cigarette lighter socket.

Liquid inside the charger may cause electric shock,

smoke, or fire.

When plugging the AC adapter into the

power outlet, firmly plug it in, taking care

not to contact with metal straps or the like.

Otherwise, electric shock, short-circuit or fire may

result.

Use the adapter/charger at the specified

VAC.

Otherwise, fire or malfunction may result. When

using the FOMA phones overseas, use FOMA AC

Adapter 01 for both overseas and domestic usage.

AC adapter: 100 VAC

FOMA AC Adapter for both overseas and domestic

usage: 100 to 240 VAC

(Connect only to home AC outlet)

DC adapter: 12/24 VDC

(For negative (-) grounded vehicles only)

If a fuse of the DC adapter has blown,

replace it with a specified fuse.

Otherwise, catching fire or malfunction may result.

For the specified fuse, see the user’s manual.

Pull the power

plug out

Don’t

Pull the power

plug out

Don’t

No wet

hands

Don’t

Contents/Precautions

Warning

The DC adapter is for use only in a negative

(-) grounded vehicle. Do not use them in a

positive (+) grounded vehicle.

Fire may result.

Keep the power plugs dust-free.

Otherwise, fire may result.

Place the charger on a stable location

during charging. Do not cover or wrap the

charger in cloth or bedding.

The FOMA phone may become separated, or the

charger may overheat, leading to fire or malfunction.

If it starts to thunder, do not touch the

FOMA phone and adapter/charger.

You might be struck by lighting or suffer an electric

shock.

Caution

Before cleaning, pull the plug out of the

power outlet or cigarette lighter socket.

Otherwise, electric shock may result.

Always hold the plug when pulling the

adapter/charger out of the power outlet or

socket.

If you pull the plug out by the cord, the cord may be

damaged, which could result in electric shock or fire.

Do not place heavy objects on the

adapter/charger cord and power cord.

Electric shock or fire may result.

Precautions for UIM

Caution

Be careful when removing the UIM (IC

portion).

Your hand or finger may be injured.

Don’t

Pull the power

plug out

Don’t

Contents/Precautions

Notes on using near electronic medical

equipment

aThe description below meets “Guidelines on the

Use of Radio-communication Equipment such as

Cellular Telephones – Safeguards for Electronic

Medical Equipment” by the Electromagnetic

Compatibility Conference Japan.

Warning

Turn off the phone in crowded areas such as

inside trains during rush hour, as someone

with an implanted cardiac pacemaker or

implanted defibrillator may be near you.

Operation of an implanted cardiac pacemaker or

implanted defibrillator can be affected by radio waves.

Comply with the following in hospitals or

health care facilities:

• Do not carry the FOMA phone into operating

rooms, intensive care units (ICU) or coronary care

units (CCU).

• Turn off the FOMA phone in hospital wards.

• If there is any electronic medical equipment near

you, turn off the FOMA phone even when in a

location such as a lobby.

• Comply with any regulations of hospital and health

care facilities instructing you not to use or carry in a

mobile phone.

• If the Auto Power On function is set, deactivate the

setting, then turn the power off.

If you use an implanted cardiac pacemaker

or implanted defibrillator, use the mobile

phone 22cm or more away from an

implanted cardiac pacemaker or implanted

defibrillator.

Operation of an implanted cardiac pacemaker or

implanted defibrillator can be affected by radio waves.

Patients using electronic medical equipment

other than implanted cardiac pacemakers

or implanted defibrillators (outside medical

establishments for treatment at home, etc.)

should check the influence of radio waves

upon the equipment by consulting its

manufacturer.

Operation of electronic medical equipment can be

affected by radio waves.

Contents/Precautions

Notes on Handling

General notes

aDo not let the equipment get wet.

The FOMA phone, battery and adapter/charger, UIM

(FOMA card) are not waterproofed. Do not use them in

environments, which are high in humidity such as in

bathrooms, and do not allow them to get wet from rain.

Furthermore, if carrying them against your body, the

internal parts may become corroded if exposed to body

perspiration.

If the parts are found to have been damaged due to

exposure to the liquids, any repairs will not be covered by

warranty, or repairs may not be possible.

This may be repaired at a cost if repairs are possible.

aUse a dry soft cloth to clean the equipment.

• The screen of the FOMA phone sometimes has a

special coating so that it is easier to see. If you rub it

roughly with a dry cloth, it might be scratched. Take

care of the way of handling, and use only a dry, soft

cloth such as used for cleaning glasses.

When the FOMA phone is left with water drops or stains

on the display, smear might be generated or its coating

might be peeled off.

• Do not use alcohol, thinner, benzene, detergent or other

solvents for cleaning, otherwise the printing may be

removed or discoloration may result.

aOccasionally clean the connecting terminals of

the equipment using a dry cotton swab.

If the connector terminal becomes soiled, the connection

might deteriorate so that the power goes off or the battery

does not charge fully. Wipe the connector terminal with a

dry cloth or cotton swab.

aDo not place the FOMA phone near an air

conditioner outlet.

Condensation may form due to rapid changes in

temperature, and this may corrode internal parts and

cause malfunction.

aDo not place the FOMA phone in places where

it may be subjected to excessive pressure.

Do not place the FOMA phone in a bag along with many

other articles or in a trouser pocket, because this can

damage the LCD display and internal circuitry.

Malfunctions caused by such damage are not covered by

the warranty.

aDo carefully read each instruction manual

attached to the battery or adapter/charger.

Notes on handling the FOMA phone

aAvoid using in extremely high or low

temperatures.

The FOMA phone should be used within a temperature

range of -20 °C to 60°C and a humidity up to 85%.

Contents/Precautions

aThe FOMA phone, if operated near ordinary

phones, televisions or radios that are in use,

may affect them. You should operate your

FOMA phone as far away from such equipment

as possible.

aIt is recommended that you make separate

notes of the information stored in the FOMA

phone and keep such notes in a safe place.

We take no responsibility for any loss of the stored data

items.

aDo not sit with the FOMA phone in your

trousers or skirts pocket. Do not place the

FOMA phone under heavy objects in a bag.

Malfunction may result.

aMake sure that nothing, such as a strap, gets

caught between the parts of the FOMA phone

when you close it.

Otherwise, malfunction or breakage may result.

aThe FOMA phone becomes warm during use or

charging but this is not an abnormality. Use the

FOMA phone as it is.

aDo not leave the FOMA phone with a camera

pointing direct to the sunlight.

Pixels may be discolored or burns may result.

Notes on handling batteries

aBatteries have a limited life.

If the usable time of your FOMA phone is extremely short

even when the battery is fully charged, replace the battery.

Make sure that you only buy the specified battery.

aCharge the battery in a place with an ambient

temperature of 0°C to +40°C.

aMake sure that the battery is charged when

you use the FOMA phone for the first time or

have not used it for a long period of time.

aThe usable time of the battery varies depending

on the usage environment or its remaining life.

aStore the batteries in a well ventilated place out

of direct sunlight.

When you do not use the battery for a lengthy period of

time, remove it from the FOMA phone with the battery

power completely drained, and store it in the plastic bag

wrapping the battery pack.

Notes on handling chargers and adapters

aCharge the battery in a place with an ambient

temperature of 0°C to 40°C.

aCharge the battery where:

• There is excessive humidity, vibration, and dust.

• There are no ordinary phones, television sets or radios

nearby.

Contents/Precautions

aDuring charging, the adapter or charger may

become warm. This is not an abnormality, so

continue charging.

aDo not use the DC Adapter for charging the

battery when the car engine is not running.

The car battery could go flat.

aWhen using the power outlet having the

disengaging prevention mechanism, observe

the instructions given in that instruction manual.

aDo not give a strong shock. Also, do not

deform the charging terminal.

Malfunction may result.

Notes on handling the UIM

aNever use more force than necessary when

detaching the UIM.

aDo not use unnecessary force when inserting it

into the phone.

aThe UIM may become warm during use, but

this is not a sign of a malfunction. Continue

using it as it is.

aThe warranty does not cover damage caused

by inserting the UIM into some other types of

IC card reader/writer.

aAlways keep the IC portion clean.

aUse a dry soft cloth to clean the equipment.

aIt is recommended that you make separate

notes of the information stored on the UIM and

keep such notes in a safe place.

We take no responsibility for any loss of the stored data

items.

aFor the environmental protection, bring any

unneeded UIMs to a handling counter such as

a DoCoMo shop.

aAvoid using in extremely high or low

temperatures.

aDo not damage, carelessly touch, or short-

circuit the IC.

Data might be lost or damage to the IC could result.

aDo not drop the UIM or subject it to strong

impacts.

Malfunction may result.

aDo not bend the UIM or place heavy objects on

it.

Malfunction may result.

Notes on handling the Camera

You may be imposed punishment according to the

law and rule (such as nuisance prevention ordinance)

if you use the FOMA phone to give a remarkable

nuisance and misdeed to the public.

Contents/Precautions

Intellectual Property Rights

Copyrights and Rights of Portrait

You have no right to copy, modify, or distribute the contents

of which a third party holds the copyright such as text,

images, music, or software downloaded from web pages on

the Internet, or images shot by the cameras of this product

without permission from the copyright holder except for when

the copy or quote is for personal use that is allowed by the

Note that it may be prohibited to shoot or record live

performances or exhibitions even for personal use. Make sure

that you refrain from taking portraits of other persons and

distributing such portraits over the Internet without consent,

as this violates portrait rights.

Trademarks

• “FOMA”, “mova”, “i-mode”, “i-appli”, “i-motion”, “i-motion

Mail”, “MessageF”, “i-melody”, “mopera”, “mopera U”,

“WORLD CALL”, “WORLD WING”, “Deco-mail” “Public

mode”, “My DoCoMo” and the logos of “FOMA”, “i-mode”,

and “i-appli” are trademarks or registered trademarks of

NTT DoCoMo, Inc.

• “Multitask” is a trademark of the NEC Corporation.

• “Catch phone” (Call Waiting Service) is a registered

trademark of Nippon Telegraph and Telephone

Corporation.

• Java and Java related trademarks and logos are

trademarks or registered trademarks of Sun Microsystems,

Inc. in the United States and other countries.

• miniSD

is a trademark of SD Association.

• NetFront and are trademarks

or registered trademarks of ACCESS Co.,Ltd. In Japan and

other countries.

• Microsoft, MS, and Windows are registered trademarks or

trademarks of Microsoft Corporation in the United States

and other countries.

• Windows XP is abbreviation of Microsoft

Windows

Professional operating system or Microsoft

Windows

Home Edition operating system.

• Windows 2000 is Microsoft

Windows

2000 Professional

operating system.

• Windows Me is abbreviation of Microsoft

Windows

Millennium Edition operating system.

• Windows 98 is abbreviation of Microsoft

Windows

operating system.

• Windows 98SE is abbreviation of Microsoft

Windows

operating system SECOND EDITION.

• Sometimes transcribed like Windows XP, 2000, Me, 98SE,

98.

Please respect the privacy of individuals around you when

taking and sending photos using camera-equipped mobile

phones.

Contents/Precautions

• Other company names and product names described in

the text are trademarks or registered trademarks of those

companies.

Others

• This product contains NetFront v3.0 for FOMA Internet

browser software of ACCESS Co., Ltd.

NetFront v3.0 is a product of ACCESS Co., Ltd.

• Some part of the software in this product contains modules

developed by Independent JPEG Group.

• Adobe and Acrobat Reader are trademarks or registered

trademarks of Adobe systems Incorporated in the US and

other countries.

• This product is licensed under the MPEG-4 patent portfolio

license for the personal and non-commercial use of a

consumer to

– encode video in compliance with the MPEG-4 Visual

Standard (“MPEG-4 Video”) and/or

– decode MPEG-4 Video that was encoded by a consumer

engaged in a personal and non-commercial activity

and/or was obtained from a licensed video provider. No

license is granted or implied for any other use.

Additional information may be obtained from MPEG LA, LLC.

• Licensed by QUALCOMM Incorporated under one or more

of the following United States Patents and/or their

counterparts in other nations:

4,901,307 5,490,165 5,056,109 5,504,773 5,101,501

5,506,865 5,109,390 5,511,073 5,228,054 5,535,239

5,267,261 5,544,196 5,267,262 5,568,483 5,337,338

5,600,754 5,414,796 5,657,420 5,416,797 5,659,569

5,710,784 5,778,338

Contents/Precautions

Accessories and Main Options

• Instruction manual

•Quick Manual

included (P316)

• L601i Handset

(with Warranty and

Rear Cover L01)

• CD-ROM for L601i

• FOMA AC Adapter 01

Compatible with standard

• FOMA AC Adapter for Abroad 01

(With Warranty card and Instruction Manual)

Other Options >P297

• Battery Pack L01

Confirming before use

Phone Parts and Functions .................. 28

Display ................................................... 31

Menu Operations................................... 34

How to Use the Soft Keys..................... 34

Main Side Button Operations ............... 35

Using the UIM (FOMA Card) ................. 36

Attaching/Removing the

Battery Pack .......................................... 37

Charging the FOMA Phone................... 39

Turning Power ON................................. 43

Turning Power OFF ............................... 43

Clock/Time ............................................ 43

Using Caller ID Notification Service ..... 43

Own Number.......................................... 43

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

Phone Parts and Functions

The Name and function of each part of the FOMA phone are as follows.

• This manual describes operation of each button using an illustration of the button.

)

(

;

Dimensions (H x W x D):

Approx. 89 x 47 x 25 mm

When closed excluding a

projection part

Weight:

Approx. 120g

With battery attached

Confirming before use

1Earpiece/Speaker

Sounds for incoming calls and alarm.

Also, you hear the other party’s voice through this

speaker when using the speaker phone.

: When you use speakerphone, you should not close the ear.

2Main display >P31

3Camera

For shooting still images and moving images, and for

sending images on a video-phone call. Rotate the

camera to take a shot.

>P52, P101, P106

4Earphone/Microphone terminal

For connecting a Flat-plug Earphone/Microphone Set

with Switch (option) ,etc. Do not forcibly pull the

earphone/microphone cover .

: You can rotate it forward or inward in the status of opening.

5MMail button

Press from the Stand-by display to bring up the Mail

menu. >P128

Press from the Stand-by display for two seconds to

receive i-mode mail. >P117, P143

6KNavigation button

For selecting an item and scrolling the display.

The following operations can be performed from the

Stand-by display:

UUp button : The phonebook list screen appears.

>P60

DDown button : The custom menu screen appears.

>P173

LLeft button : Received call screen appears.

>P78

RRight button : Redialed call screen appears.

>P79

7TVideo-phone button

Press to make/receive video-phone calls. >P52, P54

Press on the Stand-by display to view the other party that

you made the latest call.

Press to switch modes, etc. in entering mode

(Pictograph/Symbol/Emoticon).

8CMenu/Select button

Press on the Stand-by display to bring up the Main

menu.

P34

An operation displayed in the soft key area can be

executed.

P34

9AStart button

Press to make/receive voice calls. >P46, P48

Press on the Stand-by display to view the other party

that you made the latest call.

Switch between full-pitch and half-pitch while

characters are entered.

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

!FEVolume buttons

For adjusting the volume >P35

"Dial button

#GCamera button

Press from the Stand-by display to start up a camera.

>P101

$*(asterisk) button

Press to enter “ ” and to switch between upper case

and lower case while characters are entered.

%Microphone

For speaking to the other party.

For recording sound when shooting moving images by

the camera.

&Ii-mode button

Press from the Stand-by display to bring up the i-

mode menu. >P110

Press for two seconds from the Stand-by display to

bring up software list screen. >P149

Press from the entering character mode to switch the

mode (Hiragana/Katakana/English/ Number)

An operation displayed in the soft key area can be

executed. >P34

(NMultitask button

Press to bring up the Task Manager.

Press and hold for at least one second to bring up the

New Task screen.

>P269

)QClear button

Press to return to the previous operation.

Also, press to clear entered text.

~PPower/End button

Press to turn the power on. Press and hold for at least

2 seconds to turn the power off. >P43

Press to end calls and end functions.

+#(Sharp)/ Manner Mode button

Press and hold for at least one second from the

Stand-by display to activate/deactivate the Manner

Mode. >P70

Also, press to enter “#” and to start a new line while

characters are entered.

,Connector terminal

For connecting adapters and cables.

-Sub display >P32

.Light

Press to light up for shooting by the camera.

/Antenna

Do not cover the antenna with your hands, etc. to use

the phone in better conditions.

:Strap hole

;Rear cover

<Infrared data port

Point this port to the other device for infrared

exchange. >P174

=miniSD memory card slot

Open the cover to insert a miniSD memory card.

>P167

Confirming before use

Display

Main Display

1~ : Shows the level of the received radio waves.

: Out of service area.

2: Displayed during a voice call.

: Displayed during a video-phone call.

: Displayed during a voice call using the speaker phone.

3(Blinks): while i-mode is activated.

(Blinks): during i-mode transmission.

: Displayed during trying dialup connection.

: Displayed during dialup connection.

: Displayed while an SSL-enabled page is displayed or

obtained.

4: Displayed while “All Call Rejection” is activated.

5: Displayed while a function (Task) is activated.

6(White): Displayed when the i-mode Center holds mail.

(Pink): Displayed when the box for i-mode mail at the i-

mode Center is full.

(White): Displayed when the i-mode Center holds a

MessageR (Request).

(Pink): Displayed when the box for MessagesR.

(Request) at the i-mode Center is full.

(White): Displayed when the i-mode center holds a

MessageF (Free).

(Pink): Displayed when the box for MessagesR/F at the

i-mode Center is full.

(White): Displayed when the i-mode Center holds mail,

a messageR (Request) and a messageF (Free).

(Pink): Displayed when the boxes for i-mode mail,

MessagesR (Request) and MessagesF (Free) at the i-

mode Center are full.

7(White): Displayed when unread mail exists.

(White): Displayed when an unread SMS message exists.

(White): Displayed when unread mail and SMS

message exist.

(Pink): Displayed when the inbox is full.

: Displayed when the area for SMS messages in the

UIM (FOMA card) is full.

1 23456 789!" #

$%&()

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

8(White): Displayed when a Voice Mail message exists.

(Pink): Displayed when the box for Voice Mail

messages is full.

9(White): Displayed when an unread MessageR

(Request) exists.

(Pink): Displayed when the box for MessagesR

(Request) is full.

!: Displayed when an unread MessagesF (Free) exists.

(Pink): Displayed when the box for MessagesF (Free) is

full.

": Displayed when i-appli is being started.

: Displayed when i-appli auto start failed.

#~ : Shows the battery level.

$(Pink): Displayed during Manner mode.

(Blue): Displayed during Original manner mode.

%: Displayed when the ringtone for incoming voice

call or video-phone call sounds, not activating a

vibration.

: Displayed the vibration for incoming call is

activated to “Pattern 1” or “Pattern 2” the alarm is

mute when incoming voice call or video-phone

call, and the vibration operated being linked with a

melody.

: Displayed when a vibration and a ringtone sounds

at the same time.

: Displayed when a vibration and a ringtone do not

activate.

&: Displayed while an alarm is set.

: Displayed when today’s schedule exists.

: Displayed when an alarm is set and today’s

schedule exists.

(: Displayed while a miniSD memory card is inserted.

):Displayed when an error occurs on the UIM (FOMA

card).

Sub Display

: Shows the level of the received radio waves.

: Out of service area.

2: Displayed during a voice call.

: Displayed during a video-phone call.

123456

Confirming before use

: Displayed while using the speaker phone.

: Displayed during trying dialup connection.

: Displayed during dialup connection.

3: Displayed while “All Call Rejection” is activated.

4(White): Displayed when the i-mode Center holds mail,

MessageR/F, an unread mail, SMS, MessageR/F, or

the message in answering machine exists.

(Pink): Displayed when the box for mail, MessageR/F

at the i-mode Center Mail, SMS, MessageR/F, or the

message in answering machine is full in inbox or

FOMA card (UIM card).

5: Displayed when an alarm is set.

: Displayed when today’s schedule exists.

: Displayed when an alarm is set and today’s

schedule exists.

6~ : Show the battery level.

Subdisplay

The various information such as clock, icons are displayed

as follow.

Missed call/ New received E-mail

When closing the flip of FOMA handset, “X Missed call” or

“X Message” is displayed.

• When you open the flip on displaying “X Missed call”,

you can view the time or phone number in main display.

You can view the call history by pressing C. If you

press I[Close], “X Missed call” will not be displayed

anymore.

• When you open the flip on displaying “X Message”, the

pop up message on the subdisplay will be disappeared

after confirming the screen.

Information

• After closing the FOMA phone, the contents of sub display will

be slided to other place.

(Thu)(Thu)

1 Message

(Thu)(Thu)

1 Missed call

NTT DoCoMo

Alarm 1

12 : 34

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

Menu Operations

Example: How to set the “Stand-by display” of the “Main

display”.

aSelecting a function by K

1. On the Stand-by display, C[Menu] ]Enlarge

by using K]C]Highlight “Main display” by

using H]Move the cursor to “Stand-by display”

by using H]C

aSelecting a function by pressing the key

corresponding to the menu number

1. On the Stand-by display, C[Menu] ]Enlarge

by using K]C]1]1

How to Use the Soft Keys

To execute an operation displayed in the soft key area on

the Main display, press the corresponding button as

below.

Information

• (Navigation icon) that indicates the directions in which you

can scroll and select items using Kis also displayed in the

soft key area.

• Items displayed in the soft key area vary depending on the

display.

KC 1 1

1 Main display

2 Sub display

3 Font

4 Menu style

5 Backlight

6 Color scheme

Display

Select

1 Stand-by display

2 Incoming call

3 Outgoing call

Select

Display

Select

Display

KC HC HC

1 Main display

2 Sub display

3 Font

4 Menu style

5 Backlight

6 Color scheme

Display

Select

1 Stand-by display

2 Incoming call

3 Outgoing call

Select

Display

Select

Display

01/01[Sun]

Soft key area

Mail Menu i-mode

Main Side Button Operations

aMajor operations that can be performed by pressing

FE/Gwith the FOMA phone closed

aMain operations that can be executed by pressing

FE/Gwith the FOMA phone opened

Confirming before use

Play back/pause moving

images/a melody

Start the camera

When moving images/a melody is

paused ]G(Play back)

While moving images/a melody is

played back ]G(Pause)

During standby ]Press G

FOMA phone operation How to operate

Adjust the button tone

volume During standby ]FE

During a voice call/video-phone

call ]FE

Adjust the volume for

moving image/melody

playback

Scroll the List display by

page

• The cursor is moved on

some displays.

Switch the Monthly

Schedule displays by month

While moving images/a melody is

played back ]FE

While each List display is

displayed ]FE

While the Monthly Schedule

display is displayed ]FE

Zoom

While the Still Image/Moving

Image Finder display is displayed

]FE

Adjust the volume

Incoming call ]Press Gfor two

seconds

While an alarm / schedule alarm is

sounding ]Press Efor two

seconds

Stop the alarm

Reject an incoming call

In stand-by (OFF >ON) ]F/G

In stand-by (ON >OFF) ]E

Switch the display light of

the sub display to ON/OFF

FOMA phone operation How to operate

Adjust the volume of a ring

tone for incoming call Incoming call ]FE

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

Using the UIM (FOMA Card)

Your phone number and contracted contents for the

service, etc. are recorded in the UIM. You need to insert it

into the FOMA phone to make/receive calls or perform

transmission.

Refer to the UIM manual for details of how to use it.

Inserting/Removing UIM (FOMA Card)

Insert/remove the UIM after you remove the rear cover

and battery pack and turn off the power of the FOMA

phone beforehand (P38).

• Remove the AC adapter and options beforehand.

Inserting

1. Insert the UIM with its IC-side facing downwards

in the direction of the arrow underneath the guide.

Removing

1. While pressing the stopper from the above, slide

the UIM in the direction of the arrow to remove it.

Notch

Guide

Stopper

Confirming before use

Information

• When inserting or removing the FOMA card, close the flip, and

then put it on your hand. Take care not to accidentally torch or

scratch the IC.

About Password of UIM

You can set two passwords, PIN1 and PIN2, for a UIM.

>P96

UIM Restriction Functions

The UIM has a restriction function to protect your data and

files.

If you obtain the following types of data and files with the

UIM inserted, restrictions are automatically imposed to

disable them when the UIM is not inserted or when

another UIM is inserted.

• Images/melodies/i-motion/i-appli obtained from sites

and Internet web pages

• Files attached to i-mode mail messages and

MessagesR/F

Differences of UIM

There are two types of UIM, the green UIM and the blue

UIM. There are differences in specifications of the following

functions between those UIMs:

Attaching/Removing the Battery Pack

Make sure that you attach the dedicated battery pack L01

for FOMA L601i to use it.

UIM (Green)

Function UIM (Blue)

Number of digits of the phone

book that can be stored in the

UIM phonebook

Up to 26 digits Up to 20 digits

WORLD WING Can be used Cannot be used

Service dialing Can be used Cannot be used

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

Attaching

1. While pressing the rear cover in the direction of the

arrow 1, slide it in the direction of the arrow 2.

2. Insert the battery pack in the direction of the arrow

with the label facing upwards and

push it in the

direction of the arrow.

3. Slide the rear cover in the direction of the arrow

until it clicks to attach it in place.

Removing

1. While pressing the rear cover in the direction of the

arrow of 1, slide it in the direction of the arrow 2

to remove it.

Confirming before use

2. Take the projection of the battery pack to lift it up

in the direction of the arrow.

Information

• Attach/ remove the battery pack with the FOMA phone closed

and held in your hand after you turn off the power. In addition,

If you attach/ remove the battery pack forcibly, it may damage

the charging connector of battery.

• Take care not to attach or remove the rear cover. Note that if

the rear cover is forcibly, the slot of rear cover can be damaged.

• For details about the battery, see the manual for Battery Pack L01.

Charging the FOMA Phone

Charging

Connect exclusive AC Adapter (option) to charge the

battery after attaching the battery pack to the FOMA

phone (P38). You need FOMA AC Adapter 01 for both

overseas and domestic usage (option) separately when

using the FOMA phone overseas.

1. Open the cover of the external connector terminal

of the FOMA phone.

: You can rotate it forward or inward in the status of

opening.

2. While pressing the release buttons on both sides

of the connector of the AC adapter, connect it

horizontally to the FOMA phone with the arrows-

engraved side facing upwards in the direction of

the arrow.

3. Insert the AC adapter’s plug into a power socket.

Projection

Release button

AC100V

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

• If you start to charge the battery, the charging start

tone will sound.

• When the battery is charged with the FOMA phone

turned on, the battery level icon ( ) is displayed.

After charging, the alarm sound for ending the

charging will ring, and then animation is disappeared.

• If you charge the FOMA phone with the power off, the

animation for the battery level is displayed. When

charging finishes, the charging end tone sounds and

the animation ends.

• When switching on the phone by charger, the following

message appears depending on battery level. When

"Charging" or "Charging done", the animation or mark

of battery is displayed at the same time.

- In case the battery is empty: “Please wait” >“Low

battery Please wait” >“Charging” >“Battery

charged”

- In case the battery is low: “Please wait” >

“Charging” >“Battery charged”

Information

• When you use the FOMA phone for the first time, the battery

pack is not fully charged. Fully charge the battery before using it.

• When you attach the AC adapter to the FOMA phone, do not

use unnecessary force. The FOMA phone and the connector

may be damaged.

• Do not remove the battery pack and the UIM during charging.

• If the battery cannot be charged correctly, turn off the power

once, remove the battery pack, and then reattach it to charge

the battery again.

• If the battery level becomes less than 10% during a video-

phone call, connecting the AC adapter may not charge the

battery fully, and the power may go off.

• Refer to the instruction manuals for FOMA AC Adapter 01

(option) and FOMA AC Adapter 01 for both overseas and

domestic usage (option) for details.

• When switching on the phone by charger, the stand-by screen

will be returned with displaying power on animation if you press

power key for at least one second in a screen of charging.

Removing the AC Adapter

After charging completes, disconnect the AC adapter from

the FOMA phone.

1. Disconnect the connector's plug from the power

socket.

2. While pressing the release buttons on both sides

of the connector, remove it horizontally from the

FOMA phone in the direction of the arrow.

Release button

Confirming before use

3. Close the cover of the external connector terminal

of the FOMA phone.

Checking the Battery Level

You can check an estimate of the battery level by the

Battery Level display.

• The Battery Level display indicates just an estimate of

the battery level.

When You Need to Charge the Battery

If the battery is completely flat, a message appears,

flickers, and the battery alarm sounds. If you press

, the

battery alarm will be stopped with disappearing the message.

Information

•

If you set “Manner mode” or “Original manner mode” of battery

alarm, the alert tone does not ring.

Precautions on the Battery Pack

Use the FOMA phone’s dedicated Battery Pack to get the

most out of the your FOMA phone.

aBattery life

• Batteries are consumables. The usage time of all

chargeable batteries shortens slightly each time they

are charged. The battery’s life is considered to be

exhausted when the usage time of the battery after

charging is about half the time it was at purchase.

(The life of the battery is about one year. However, it

might be shorter if used very frequently.)

aDo not charge for long periods of time (several days)

with the FOMA phone turned on.

• Do not leave the FOMA phone power on for long

periods of time while charging. Otherwise, when

charging finishes, the FOMA phone will attempt to

receive power from the battery so that when you

actually use the FOMA phone, you will be able to do

so for just a short amount of time before the battery

alarm sounds. If this happens, charge the battery

correctly. When charging the battery again, first

disconnect the FOMA phone from the AC adapter

and then set it again.

For environmental protection, bring the exhausted

battery to an NTT DoCoMo, dealer, or recycle shop.

Li-ion

Confirming before use

Ç)égópëOÇÃämîF

Confirming before use

aEstimated usage time for battery

The usable time of the battery varies depending on the

usage environment or its remaining life.

• Continuous talk time is the estimated time when radio

waves can be sent and received normally.

• Continuous stand-by time is the estimated time you

can use the FOMA phone in motion when it is closed

and can receive radio waves normally. The standby

time could be about half of this estimate depending

on the battery level, function settings, other ambient

conditions such as temperature, the status of radio

waves in the area (weak or no radio waves, for

instance) and the status of the network of the country

in which you stay. The continuous standby time will

be shorter if you don't insert the UIM (FOMA card).

When you use i-mode communications, the

talk/transmission time and standby time will be

shorter. Further, even if you do not make calls or

execute i-mode transmission, the talk/transmission

time and standby time will be shorter if you compose

i-mode mail, start up a downloaded i-appli.

• The continuous standby time for standstill is the

average number of hours you can use the FOMA

phone in standstill status when it is closed and can

receive radio waves normally.

• The continuous standby time for in motion is the

average number of hours you can use the FOMA

phone in the combined status of ”standstill”, “moving”

and “out of service area” when it is closed, in an area

where it can receive radio waves normally.

• The talk/transmission time and standby time will also

be shorter than the above-mentioned estimates when

you execute data transmission or multi-access or

when you use the camera or the light.

aEstimated time for charging battery

• The estimated charging time is for when the FOMA

phone is off and the battery is being charged from

empty. The charging time will be longer if you charge

the battery with the power turned on.

aOther precautions

• The battery does not have to be empty before you

charge it.

• Do not use any other adapter than the specified one.

It may shorten the life of the battery.

• Make sure the battery is charged when you have not

used the FOMA phone for a long period of time

because the life of the battery becomes shorter.

FOMA AC Adapter 01 Approx. 180 minutes

Stand-by time

Network Continuous talk time

FOMA / 3G Static : about 550 hrs

Dynamic : about 450 hrs

Voice call : about 200 min

Video call : about 150 min

GSM/GPRS Static : about 500hrs Voice call: 350 minutes

Confirming before use

Turning Power ON

• Before you turn on the power, make sure that the UIM is

inserted and that the battery is fully charged.

1. Press P

• After the Wake-up display is displayed, the Stand-by

display appears.

Information

•When charging, you need to press and hold Pfor at least 2

seconds.

•If “PIN code request” (P90) is set to “ON”, you need to enter

your PIN1 code.

•If “All lock” (P90) is set to “Power on”, you need to enter your

terminal security code.

Turning Power OFF

1. Press and hold Pfor at least two seconds

• The Exit display appears and the power is off.

Information

•The time to turn off the FOMA phone will be longer. Depending

on the status of network, the lead time can be different. During

switching off the power, do not repeat to power on/off.

Clock/Time

You can set the date and time and daylight saving time.

See “Setting Date & Time” (P86) for details of how to set

them up.

Using Caller ID Notification Service

The Caller ID Notification Service enables you to notify the

other party of your phone number when you make a call.

See “Using Caller ID Notification Service” (P194) for details

of how to set it up.

Own Number

You can display your phone number recorded in the UIM.

1. On the Stand-by display, C]0

• See “Displaying Own Number” (P65) for details of

how to change the settings on the Own Number

display.

Making Calls ...........................................46

Receiving Calls.......................................48

Using Public mode (power off) ..............49

Making Calls/

Receiving Calls

Making Calls/Receiving Calls

Making Calls

1. Enter the other party’s phone number

•Q:The last digit is cleared. To clear all digits,

press and hold it for at least one second.

•C[Save]: You can add new phone number to

phonebook. This function is activated by step 2 on

page 58.

•I[Search]: You can search for the phone number in

phonebook. See the contents after step 3 on page 60.

2. A

]

Start talking when the other party answers

• Press and hold Qfor at least two second: You

can switch ON/OFF the speaker phone.

•I[Hold]/[Unmark] : You can put a call on hold or

release hold.

: Unavailable unless you are the Call waiting service subscriber.

3. Pto end the call after talking.

Information

• If you press Aafter entering the number from 0 to 9 in the

Enter Phone Number screen, you can make a call directly

matching the the number saved in memory.

• When the Flat-plug Earphone/Microphone Set with Switch

(option) is attached, you can only talk on the Earphone /

Microphone regardless that the speaker phone is ON/OFF.

• When the call is disconnected, the alert sound sounds from a

receiver.

Using the Submenus of the Enter Phone

Number Display

1. From the Enter Phone Number screen (see left),

M[Menu]

]

Select from the following submenu

items

Notify caller ID

Set whether to notify your phone number per call.

–Not notify : “#31#” is added in front of the phone

number entered, but the phone number is not notified.

–Notify : “ 31#” is added in front of the phone

number entered, and the phone number is notified.

–Cancel : The added “#31#” or “ 31#” is deleted.

Menu Save

The other party's name Ŧ1

The other party's phone number

Call duration

The other party's picture Ŧ2

Ŧ1: In case of the other party you don't

“Unregistered” will be displayed when

receiving or making a call.

Ŧ2: The picture will be displayed when

you register the picture in phonebook.

Talking

EpDpNp!Ubsp

Menu Save Search

Making Calls/Receiving Calls

Select prefix

The number saved in “Setting the Prefix” (P83) is

added in front of the phone number entered.

International call

The international access code saved in “International dial

setting” (P84) is added in front of the phone number

entered.

Save

You can save the entered phone number into the

Phonebook. Go to step 2 on page 58 of "Adding to

Phonebook".

Search phonebook

You can search for the phone number in phonebook. After

searching, Go to step 3 on page 60 of " Searching for

Phonebook Entries".

Information

•You can make a call after inputting “#31#”(Not notify) or “

31#” (Notify) in front of phone number.

Using the Submenus of the Talking screen

1. From the Talking screen (P46), M[Menu]

]

Select

from the following submenu items

New call 1

You can put the current call on make and hold a call

to another party.

End active call

You can hang up the call.

Hold 1/Cancel held call 1

You can put/release the call on hold.

Mute 2/Unmute 2

You can mute/unmute the voice transmitted to the other

party.

1: Available for Call Waiting Service subscribers only.

To use this service, go to “Using Call Waiting Service” (P192).

2: Not displayed during call is held.

Making a Call From the Dialed/Received Call Record

1. From the Stand-by display, L/R/A/T

]

Select a record ]

Information

•See “Using the Submenu of the Received Calls display” (P78) for

submenus.

Making a Call from the Phonebook

1. From the Stand-by display, L/R/A/T

]

Select the other party you want to call

]

Information

• To switch the phonebook list to display between the FOMA

phone and UIM, select M[Menu] >“Display switch” >

“Display data” on the phonebook list screen.

International Calls

You can make an international call easily using the

DoCoMo international call service “WORLD CALL”.

Making Calls/Receiving Calls

When you have signed up for FOMA service, you have

contracted to use “WORLD CALL” (except those who

have applied not to use it).

aHow to make calls

009130 >010 >Country code >Area code >

Destination phone number >A

• This service is not available with billing plans.

• Application/monthly fee for WORLD CALL is free of

charge.

• The WORLD CALL charges are added to your monthly

FOMA bill.

• Contact “DoCoMo Information Center” on the back

page of this manual for inquiries about WORLD CALL.

• If the other party uses a specific 3G mobile phone

overseas, you can make an “International Video-phone

Call” by dialing out using Tafter following the dialing

method described above.

– See DoCoMo web page for the information about

connectable countries and telecommunications carriers.

– Images sent from the other party may blur on your

FOMA phone or you may not be able to connect,

depending on the other party’s phone used for the

international video-phone.

Making an International Call Easily

• Confirm that the “Setting Prefix Dial” (P83) is set to

“AUTO” and “009130010” (WORLD CALL) is set for

“IDD prefix code” in “IDD prefix setting”.

1. On the Stand-by display, press and hold 0for at

least one second to enter “+”

2. Enter Country code >Area code >Destination

phone number

]

A(T)

3. Pto end the call after talking

Adjusting the Volume

1. Press FE during a call

Information

• The changed volume is held even after ending the call.

Receiving Calls

1. When you receive a call, A

•I[Silent]: You can set to no sound for incoming call.

•A: You can put the call on hold.

2. Pto end the call after talking

• When the call is disconnected, the alert sound

sounds from a receiver.

Menu Silent

Calling

The other party's imageŦ2

Ŧ1: In case the other party you don't

phonebook, "Unregistered" will

be displayed.

Ŧ2: The image will be displayed when

you register the picture in phonebook.

DoCoMo Taro

The other party's nameŦ1

The other party's phone number

Making Calls/Receiving Calls

When you didn't get a call

•C[OK] : You can view the list of received call.

•I[Close] : You can close the screen for missed call.

Using the Submenu of the Ringing Display

1. From the Ringing screen (P48), M[Menu]

]

Select

from the following submenu items

Voice mail 1

The Call is connected to the Voice Mail Service

Center.

Call rejection

The call is disconnected without answering it.

Call forwarding 2

The call is forwarded to the phone number registered.

1: If you use voice mail service menu, you should register this

service in operator. For details, see “Using voice mail

service” (P190).

2: If you use call forwarding menu, you should register this

service in operator. For details, please refer to the “Using

Call Forwarding Service” (P193).

Using Public mode (power off)

Public mode is an auto-answer service that lays stress on

manners in public spaces. Once you activate Public mode

(power off), the guidance is played back telling that you

cannot take the call as you are currently in a place

(in hospital, airplane, or in around priority seat in a train)

where use is prohibited. Then the call is disconnected.

• This FOMA phone does not support Public mode

(Driving mode).

1. *25251

]

• Public mode (power off) is set. (Nothing is changed in

the Stand-by display.)

• After setting Public mode (power off) and turning off

the power, the guidance “The person you are calling

is currently in an area where use is prohibited. Please

try again later.” is played back for incoming calls.

aTo release Public mode (power off)

*25250 ]A

aTo check Public mode (power off) for the setting,

*25259 ]A

When Public mode (power off) is activated

When incoming a voice call, the guidance is played back

to the caller telling that

you are currently in an area where use is prohibited,

and then the call is disconnected. When incoming a video-

phone call, the video- guidance is played back to the

caller, and then the call is disconnected.

1 Missed call

DoCoMo Taro

[Thu]

OK Close

The name is not registered in

phonebook cannot be displayed.

Making Calls/Receiving Calls

• This setting is continued until you release the setting by

dialing “ 25250”. If you just switch on, this setting is not

released.

• The Public mode (power off) guidance is played back

even when you are out-of-service area or out-of-reach of

radio waves.

Activating between network services and Public

mode (power off)

If you use Public mode (power off) and Network service at

the same time, the operation will be activated as follow.

Depending on the setting or calling, the network service

can be preferred, so the activation of Public mode (power

off) or the record of missed call may not be displayed.

aVoice Mail Service

aCall Forwarding Service

aNuisance Call Blocking Service

aCaller ID Display Request

1: If the ring time for protecting a house or call forwarding is

set to “0 second”, the caller does not hear the Public

mode (power off) guidance, and the call is not recorded in

call history.

2: If the ring time for a call forwarding is set to “0 second”,

the call is not recorded in call history.

3: The call is not recorded in the history of received calls.

Response to Incoming Voice calls

Response to Incoming Video-phone calls

Response to Incoming Voice calls

Response to Incoming Video-phone calls

For the call from the phone

number registered to be rejected,

plays back the Call Rejection

guidance, and then the call is

disconnected. 3

For the call from the phone

number registered to be rejected,

plays back the Call Rejection

guidance, and then the call is

disconnected. 3

Response to Incoming Voice calls

Response to Incoming Video-phone calls

Response to Incoming Voice calls

Plays back the Public mode

(power off) guidance to caller, and

then the call is connected to the

Voice mail Service Center. 1

Does not play back the video

guidance to caller, and the call is

connected without connecting to

the Voice Mail Service Center.

Plays back the Public mode

(power off) guidance to caller, and

then the call is connected to the

Voice mail Service Center. 1The

guidance depends one setting of

Call Forwarding Service.

Does not play back the video

guidance for Public mode, and the

call is forwarded to the forwarding

destination. 2If the destination

does not support video-phone call,

the call is disconnected.

• For the caller without a caller ID,

plays back the Caller ID Request

guidance, and then the call is

disconnected.

• For the caller with a caller ID,

plays back the Public mode

(power off) guidance, and then

the call is disconnected.

• For the caller without a caller ID,

plays back the video guidance

for Caller ID Request, and then

the call is disconnected.

• For the caller with a caller ID,

plays back the video guidance for

Public mode (power off), and

then the call is disconnected.

About Video-phone ................................52

Making Video-phone Calls.....................52

Receiving Video-phone Calls.................54

Changing Settings for

Video-phone Calls..................................55

Making/Receiving

Video-phone Calls

Making/Receiving Video-phone Calls

About Video-phone

When both you and the other party use DoCoMo video-

phones, you can talk seeing each other.

• DoCoMo video-phones conform to 3G – 324M 2

standardized by the international standard 3GPP 1.

You cannot connect to the video-phone that uses a

different format.

1 : 3GPP (3rd Generation Partnership Project) is the regional

standards organization for developing common technical

specifications for third-generation mobile

telecommunications systems (IMT–2000).

2 : 3G–324M is the international standard for the third

generation of mobile video-phones.

• The video-phone call is activated by the speed of

64kbps.

Making Video-phone Calls

1. Enter the other party’s phone number

• The Enter Phone Number screen (P46) is displayed.

2. T]Start talking when the other party answers

• The voice of the other party is heard from the

speaker when starting the call.

• Press and hold Qfor at least two seconds: You

can switch ON/OFF the speaker phone.

•C[Image]/[Camera]: You can switch between

Substitute image and your photo image for sending

to the other party.

•I[Hold]/[Cancel]: You can put the call on hold or

release hold.

3. Press Pto end the call after talking

Information

• See “International Calls” (P48) for how to make international

calls.

•When the Flat-plug Earphone/Microphone Set with Switch

(option) is attached, you can only talk on the Earphone/

Microphone regardless of whether the speaker phone is

ON/OFF.

• You can listen to the voice through speakerphone in spite of

the status of manner mode.

Using the Submenu of the Enter Phone

Number screen

See “Using the Submenus of the Enter Phone Number

screen” (P46) of voice calls for the submenus available.

The other party's image

The volume during a call

Call duration

Own image

Menu Image Hold

Description

Mark

Speaker phone ON/OFF

Zooming

Making/Receiving Video-phone Calls

Using the Submenus of the Talking screen

Setting item/Setting at purchase >P241

1. From the Talking screen (P52), M[Menu] ]Select

from the following submenu items

End call

The call is disconnected.

Hold

You can put the call on hold. You can cancel the

function by pressing I[Cancel].

Substitute image/Camera image

You can switch to the Substitute image for sending to

the other party. >P85

Camera settings

You can set the camera of video phone call. You can

select the icon by pressing J. After setting, press

I[Close].

–Zoom : The camera image is zoomed. (x1/x2)

–Brightness : You can change the brightness of

photo images.

–Night mode : You can set it up when using the

camera in a dark place.

Video-phone settings

You can set the display of video phone call. After

setting, press I[Done]. >P84

–Display setting : You can set the display method

for the Talking screen.

• Both…: The other party’s image and your image

are displayed.

• Other…: Only the other party’s image is displayed.

• Me…: Only your image is displayed.

–Sub screen : If you select “Both” of “video-phone

settings”, you can set the image which displayed

each screen.

• Me…: Only your image is displayed.

• Other…: Only the other party's image is displayed.

–Display light: You can set the lighting method of

the backlight on the Talking screen.

•Always on : Always lights during a call.

•Terminal setting : Follows the settings on the

“Main screen” of the “Backlight”. >P75

Sending image quality

You can set the quality of images to be sent to the

other party.

–Normal : Sends images in standard quality and

motion speed.

–Prefer motion quality : Sends images laying stress

on motion speed. Prefer motion quality is effective

for moving images.

–Prefer image quality : Sends images laying stress

on image quality. Prefer image quality is effective if

there is little motion.

Making/Receiving Video-phone Calls

Making a Video-phone call from the

Dialed/Received Call Record

1. On the Stand-by display, L/R/A/T]Select

a history ]T

Information

• See “Using the Submenu of the Received Call Record Screen”

(P78) for the submenu.

Making a Video-phone Call from the

Phonebook

1. On the Stand-by display U, or Search for

phonebook entries (P60) ]Select a party to call ]

Information

• To switch the phonebook to display between the FOMA

phone and UIM, select M[Menu] >“Display switch” >

“Display data” on the phonebook list screen.

Adjusting the Volume

1. Press H/FE during a call.

Information

• The changed volume is held even after ending the call.

Receiving Video-phone Calls

1. When you receive a call, T/A

•C[Substitute]: You can receive a call. The substitute

image will be sent to the other party.

•P: You can put the call on hold. The holding

image will be sent to the other party. If you press C,

you can answer the call.

2. Pto end the call after talking

Information

•When inserting the switch of the Flat-plug Earphone /

Microphone set with Switch (option), you can connect a call

by earphone regardless of Speakerphone ON/OFF.

• You can listen to the voice through speakerphone on manner

mode.

Menu Image

Calling video-phone

The other party's imageŦ2

Ŧ1: In case the other party you don't

phonebook, “Unregistered” will

be displayed.

Ŧ2: The image will be displayed when

you register the picture in

phonebook.

DoCoMo Taro

The other party's nameŦ1

The other party's phone number

Making/Receiving Video-phone Calls

• If you answer a video-phone call by pressing the switch of the

Flat-plug Earphone/ Microphone set with Switch (option) when

closing the flip, the image on hold will be sent.

Using the Submenus of the Ringing screen

See “Using the Submenus of the Ringing screen” (P49) of

voice calls for the submenus available. Note that “Voice

mail” is not displayed for video-phone calls.

Changing Settings for Video-phone Calls

C]]

You can set the operation and display for video-phone

calls. See “Setting Operation and Display for Video-phone

Calls” (P84) and “Selecting an Image for Video-phone

Calls” (P85) for details of the settings.

Adding to Phonebook ............................58

Searching for Phonebook Entries..........60

Checking the Number of Saved

Phonebook Entries.................................63

Setting Phonebook.................................63

Setting Groups .......................................64

Displaying Own Number ........................65

Phonebook

On the Stand-by display,

C[Menu] ]or “Phonebook”

To display the Phonebook menu

Select

Phonebook

1 Add to phonebook

2 Search phonebook

3 No. of phonebook

4 Phonebook settings

5 Group settings

6 Own number

Select

Phonebook

Adding to Phonebook

C]]

Two types of phonebooks are available, the phonebook

saved in the handset of the FOMA phone and the

phonebook saved in UIM.

1. From the Phonebook menu (P57), “Add to

phonebook”

2. Select an item to save

(Handset) / (FOMA card (UIM))

Select a storage location of the Phonebook (Handset

/ UIM).

(Name)

Enter a name. Unless you enter a name, the

Phonebook entry cannot be saved.

(Reading)

Enter reading of the name. Automatically inserted if

you enter “Name”.

(Number 1 ~ 5) 1

Enter a phone number. If you press M[Icon] after

entering, you can set a mark other than .

(Mail addr 1 – 3) 1 3

Enter a mail address. If you press M[Icon] after

entering, you can set a mark other than .

Group (Handset)/ (Group

(FOMA card (UIM))

Select a group to save.

(Image) 2

Select an image to be displayed when you receive a

call and display Phonebook.

–No image : No image is set.

–Character: You can set the character. Select the

part (Face, Hair, Tops, Bottoms, Acc., Scenery) by

pressing H, and then select the item by pressing

J. After setting, press C.

–Select picture : You can select from images saved

in “My picture” of “Data box”. >P154

–Take picture: You can start a camera. Go to step 2

on page 102 of “Taking Still Images”. The size of

image 80x96 cannot be rotated.

(Set ringtone) 2

You can set a ring tone for when you receive a voice /

video-phone call from registered caller.

–Data box : You can select from melodies saved in

“Melody” of “Data box”. >P164

–Terminal setting : Go to the settings of “Select ring

tone”. >P68

Handset

No group

Name

Reading

Number1

Mail addr1

Add to phonebook

Select Save

Phonebook

(Set mail ringtone) 2

You can set a ring tone for when you receive mail

from registered sender.

–Data box: You can select from melodies saved in

“Melody” of “Data box”. >P164

–Terminal setting: Follows the settings of

“ringtone”. >P68

(URL) 2

You enter an URL.

(Postal code) 2

You can enter a postal code.

(Home addr) 2

You can enter a home address.

(Company name) 2

You can enter a company name.

(Job title) 2

You can enter a job title.

(Company addr) 2

You can enter a company address.

(Memo) 2

You can enter a memo.

1 : Only one entry is saved if the storage location for the

Phonebook is set to “FOMA card (UIM)”.

2 : Not displayed if the storage location for the Phonebook is set

to “FOMA card (UIM)”.

3 : You register “Phone number XXXX” or “Phone number

XXXX@docomo.ne.jp” (XXXX: Security code) when you add the

mail address including of security code of four digits.

3. After storing, I[Save] ] Enter a memory number

(0-499) ]C

Saving in UIM

1. From the Saving Phonebook Entries screen (P58),

select the (Handset) field ]Select using J

2. Enter required items

• See Step2 (P58) of “Adding to Phonebook” for details

of the items.

3. I[Save]

Information

• For phone numbers of the Phonebook saved in Memory No

0 – 9 (one saved in “Number1”), if you press 0~9and

then press A(T) from the Stand-by display, you can make

a voice (video-phone) call.

• 500 Phonebook entries can be saved in the FOMA phone and

50 Phonebook entries can be saved in the UIM. Note that the

number of savable entries may be fewer depending on the

saved contents. >P63

Phonebook

Searching for Phonebook Entries

C]]

You can display the Phonebook in the FOMA phone

handset / UIM specifying a search method.

1. From the Phonebook menu (P57), “Search

phonebook”

•I[UIM]/[Hndset]: You can switch Phonebook

Search screens between the FOMA phone handset

and the UIM.

2. Select the following search method

Show all data

Press the buttons 1~0corresponding to the

50 Japanese syllables (corresponding to Columns) for

searching. If you press *, you can search for

Other item. You can switch tab of the 50 syllabary by

pressing J.

Group search

You can specify a group for searching. (Group 1~30

(FOMA Handset)/ 1~10 (FOMA card)). After searching,

you can switch groups by pressing J.

Reading search

You can search by entering some of the characters

contained in the reading of the name.

Memory No. search

You can search by entering a memory number (0-499).

You can switch tab of the syllabary by pressing J.

Phone No. search

You can search by entering part of the phone

number.

Domain search

You can search by specifying a domain. You can

switch domains byJ.

• To use specifying domain, see “Creating a domain

list” (P64).

: Not selectable on the Phonebook Search display of UIM.

3. The Phonebook List meeting the search method is

displayed.

•A/T: You can make a voice call or video-phone

call to the selected phone number saved in

phonebook.

•I[Mail] : You can compose i-mode mail to

selected mail address saved in phonebook. Go to

step 3 on page 139 of "Composing i-mode mail ".

: If the selected mail address is not registered in

phonebook, you cannot use this function.

DoCoMo Ichiro

DoCoMo Jiro

DoCoMo Saburo

DoCoMo Taro

• The above is an example of the

screen after carrying out “Show all

data” search.

഼Ȝȥ

Phonebook

4. Select the desired Phonebook

]

•A/T: You can make a voice call or video-phone

call to the phone number saved in phonebook.

•C[Call] : You can make a call to selected phone

number.

•C[Mail] : You can compose i-mode mail to selected

mail address saved in phonebook. Go to step 3 on

page 139 of “Composing i-mode mail”.

•C[Connect] : You can connect the homepage of

selected URL.

Using the Submenus of the Phone List

display

Setting item/Setting at purchase >P241

1.From the Phonebook List screen (P60), M[Menu]

]

Select from the following submenu items

Search ctgry menu 1

–

Handset

/UIM

Group settings :

After “Group

search”, you can set the each displayed group in the

phonebook list screen. Go to step 2 on page 65 of

“Using the Submenus of the Group Settings screen”.

–Input char chg: You can switch entry modes for

the Character Entry column displayed at the top of

the phonebook list screen after “Reading search”.

–Return to input: You can return without “Input

character change”.

–Create domain list: You can create a new domain

list from the Phone List display after “Domain search”.

Go to step 2 on page 64 of “Creating a Domain List”.

Mail/URL 2

–Compose mail: The mail address saved in the

selected Phonebook is entered into the destination.

Go to step 3 on page 139 of “Composing i-mode

mail message”.

–Compose SMS: The phone number saved in the

selected Phonebook is entered into the destination. Go

to step 3 on page 141 of “Creating SMS”.

–Connect to URL: Connected to the web page with

the URL saved in the selected Phonebook.

Add new

You can create a new phonebook. Go to step 2 on page

58 of “Adding to Phonebook” for items to be saved.

Edit

You can edit the selected Phonebook. Go to step 2 on

Page 58 of “Adding to Phonebook” for items to be saved.

Send Ir data 3

You can send the Phonebook selected through

infrared ray communication. For Infrared exchange,

see "Using the Infrared Exchange" (P174).

002 DoCoMo Ichiro

Phonebook

Copy

–Copy to UIM 4:You can copy the Phonebook

selected to the UIM.

–Select copy to UIM 4:You can copy multiple

Phonebooks selected to the UIM. If you press M,

you can select all data. After selecting, press

I[Done].

–Copy to handset 5:You can copy the Phonebook

selected to the handset of the FOMA phone.

–Select copy to handset 5:You can copy multiple

Phonebooks selected to the handset of the FOMA

phone. If you press M, you can select all data. After

selecting, press I[Done].

Search by

You can select another search method to display a

phonebook. For the searching method, Go to step 2 on

page 60 of “Searching for Phonebook Entries”.

Delete

–Delete: You can delete the Phonebook selected.

–Delete selected: You can delete the multiple

Phonebooks selected. If you press M, you can

select all data. After selecting, press I[Done].

–Delete all: You can delete Phonebook

(Handset/UIM) to display. After deleting all data, the

display goes back to Stand-by mode.

Display switch

–Display image 3:If an image is registered in

phonebook list, you can set whether to display the

image or not. >P64

–Display data: You can switch Phonebooks

between the handset of the FOMA phone and the

UIM to display. >P63

1: You can user phonebook list by Group search except for “No

group”, “Reading search”, “Phone No. search” and “Domain

search”. You may not be able to select it depending on the

search method or storage status of the Phonebook selected.

2: You cannot select it if no phone number/mail address/URL is

stored in the Phonebook selected.

3: Not selected in Phonebook for UIM.

4: Displayed on the Phonebook of the handset.

5: Displayed on the Phonebook of the UIM.

Information

• During a call, you cannot activate ‘Copy’ and ‘Send Ir data’

menu.

Using the Submenus of the Detailed

Phonebook Display

From the Detailed Phonebook screen (P61), M[Menu]

]Select from the following submenu items

Mail/URL 1

–Compose mail: The mail address saved in the

phonebook displayed is entered into the Address.

Go to step 3 (P139) of “Composing i-mode mail

message”.

Phonebook

–Compose SMS: The phone number saved in the

phonebook displayed is entered into the Address. Go

to step 3 (P141) of “Composing SMS”.

–Connect to URL: Connected to the homepage of

the URL saved in the Phonebook displayed.

Edit

You can edit the phonebook. Go to step 2 on page

58 of “Adding to Phonebook”.

Send Ir data 2

You can send the phonebook entry on display by

infrared. For details, please refer to “Using the Infrared

Exchange Function” (P174).

Copy to UIM 3

You can copy the phonebook entry to the FOMA card

(UIM).

Copy to handet 4

You can copy the phonebook entry to the FOMA handset.

Delete

You can delete the phonebook entry.

1: You cannot select it if no phone number/mail address/URL is

stored in the Phonebook selected.

2: Not selected in Phonebook for UIM.

3: Displayed during displaying the Phonebook of the handset of

the FOMA phone.

4: Displayed during displaying the Phonebook of the UIM.

Information

• During a call, you cannot activate “Copy” and “Send Ir data”

menu.

Checking the Number of Saved

Phonebook Entries

C]]

You can check the number of phonebook entries saved in

the handset of the FOMA phone and in the UIM as well as

the number of phonebook entries available.

From the Phonebook menu (P57), “No. of phonebook”

Information

• Actual savable number of phonebook may be fewer depending

on the contents saved in Phonebook of the UIM.

Setting Phonebook

Setting Display Data

C]]

You can set whether to display the phonebook of the

handset of the FOMA phone or the phonebook of the UIM

when displaying a phonebook.

Setting item/Setting at purchase >P231

1. From the Phonebook menu (P57), “Phonebook

settings” ]“Display data” ]“Handset only”/“UIM

only”

Phonebook

Creating a Domain List

C]]

You can store domains to be used when doing “Domain

Search” (P60).

Setting item/Setting at purchase >P231

1. From the Phonebook menu (P57), “Phonebook

settings” ]“Create domain list”

•I[Disp.] : You can view all domain registered in a list.

: You cannot use this menu when you select no input screen.

•M[Delete] : You can delete the domain saved.

: You cannot use this menu when you select “@docomo.ne.jp”

or no input screen.

2. Select the domain list field

]

]Enter a domain

]

Selecting a Search Method

C43

You can set the search method for when you pressUon

the Stand-by display and bring up the phonebook search

display.

Setting item/Setting at purchase >P231

1. From the Phonebook menu (P57), “Phonebook

settings”

]

“Search by”

]

Select a search method

•Go to step 2 on page 60 of “Searching the

Phonebook Entries” for the search method.

Information

• If the “Display data” (See left) is set to “UIM only”, you cannot

select “Memory No. search”.

Displaying Images

C]]

You can set whether to display the image set when

selecting a phonebook with “ (image setting)” set (P58)

on the phonebook list screen.

Setting item/Setting at purchase >P231

1. From the Phonebook menu (P57), “Phonebook

settings”

]

“Display image”

]

“ON”/“OFF”

Setting Groups

C]]

You can save the group name for Group of the

phonebook. You can also set a ring tone for each group.

1. From the Phonebook menu (P57), “Group settings”

•Group settings display appears.

•I[UIM]/[Handset]: You can switch the Group settings

displays between the FOMA phone (handset) and the

UIM.

Phonebook

2. Select the group to set

]

Select the

following item to register

]

After setting, press

I[Finish]

Group name

You can save the name of the group.

Ringtone

You can set a ring tone for when a call comes in.

–Data box: You can select from the melodies stored

in “Melodies” of “ Data box”. >P164

–Terminal setting: Follows the settings of

“ringtone”. >P68

Mail ringtone

You can set a ring tone for when mail comes in.

–Data box: You can select from the melodies saved

in “Melody” of “Data box”. >P164

–Terminal setting: Follows the settings of “Select

ringtone”. >P68

: Not displayed on the Group setting display of the UIM.

Information

• You cannot set to “No group”.

Using the Submenus of the Group Settings

Screen

1. From the Group Settings screen (P64), M[Menu]

]

Select from the following submenu items

Reset 1

You can reset the settings of the group selected.

Move 2

You can change the order of the group selected.

Edit

You can edit the group selected. Go to step 2 (See

left) of “Setting Groups”.

Reset all 3

You can reset the settings and order of all groups.

1: You cannot use this menu when the selected group is not edited.

2: You cannot use this menu in FOMA card group setting screen.

3: You cannot use this menu when not moving or editing a group.

Displaying Own Number

C]]

You can display your phone number recorded in the UIM.

1. From the Phonebook menu (P57), “Own number”

• The Own number screen appears.

Information

•

You can also check your own number by pressing

from

the Stand-by display.

Phonebook

Displaying Details of Own Number

1. From the Own number screen, C

[Detail]

]

Enter

your terminal security code

]

• The Detail screen appears.

•A/T: You can make a voice/ video-phone call by

the number registered in. (not own number)

•C[Call] : You can make a voice call by the selected

phone number.

: You cannot use your own number.

•C[Mail]: You can compose i-mode mail to selected

mail address.

•C[Connect]: You can connect the homepage of

selected URL.

Using the Submenu of the Detail display

1. From the Detail display (See above), M

[Menu]

]

Select from the following submenu items

Mail/URL 1

–Compose mail: The mail address registered in my

number will be entered to destination. Go to step 3

on page 139 of “Composing Mail”.

–Compose SMS

:The phone number registered in

my number will be entered to destination. Go to step

3 on page 141 of “Compose SMS”.

–Connect to URL: You can connect the homepage

of URL registered in my number.

Edit

You can store your own information. For adding

method, Go to step 2 on page 58 of “Adding to

Phonebook”. However, your number registered in

“ ”cannot be edited.

Send Ir data 3

You can send your own number through infrared ray

transmission. For details related to infrared exchange,

go to “Using the Infrared Exchange Function” on P174.

Reset 4

You can reset the edited own number information to

its default.

1: You cannot use this menu if the phone number/ mail/ URL are

not registered.

2: You cannot use the menu despite you operate the number

registered in own number.

3: You cannot use this menu during a call.

4: You cannot use this menu when the own number information is

not edited.

Adjusting the Ring Volume ....................68

Adjusting the Effect Tone Volume .........68

Setting a Ring Tone................................68

Setting an Effect Tone ...........................69

Setting a Vibrator ...................................70

Activating the Manner Mode .................70

Setting Ringing Operations for

Incoming Mail ........................................72

Setting Ringing Time..............................72

Setting Main Screen...............................72

Setting Sub Display................................74

Setting Fonts of Dial Characters ...........75

Setting Menu Style .................................75

Setting Backlight ....................................75

Setting color Scheme.............................76

Sound/

Display

1 Ring volume

2 Effect tone volume

3 Select ringtone

4 Select effect tone

5 Vibration settings

6 Manner settings

7 Mail ring duration

Select

Sound

On the Stand-by display,

C[Menu] ]or “Sound”

To display the Sound menu

1 Main display

2 Sub display

3 Font

4 Menu style

5 Backlight

6 Color scheme

Select

Display

On the Standby display,

C[Menu] ]or “Display”

To display the Display menu

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Sound/Display

Adjusting the Ring Volume

C]]

Setting items/Setting at purchase >P234

1. From the Sound menu (P67), “Ring volume” ]

Select from the following adjustment items ]

After setting,I[Done]

Voice call

You can adjust the ring tone volume for voice calls.

Video-phone

You can adjust the ring tone volume for video-phone

calls.

Mail tone

You can adjust the ring tone volume for mail.

MessageR tone

You can adjust the ring tone volume for MessageR.

MessageF tone

You can adjust the ring tone volume for MessageF.

SMS tone

You can adjust the ring tone volume for SMS.

Information

•When you receive mail, mssage R/F, or SMS on opening the

flip, the alarm sound will be fixed to level 1 regardless of each

setting “Ring volume”. However, if you set level 0 of ring tone,

the alarm does not sound.

Adjusting the Effect Tone Volume

C]]

Setting items/Setting at purchase >P234

1. From the Sound menu (P67), “Effect tone volume”

]Select from the following adjustment items ]

After setting,I[Done]

Key tone

You can adjust the key pad sound volume.

Power ON/OFF

You can adjust the tone volume for when turning the

FOMA phone on or off.

Flip tone

You can adjust the tone volume for when opening or

closing the FOMA phone.

Feedback tone

You can adjust the tone volume for when a popup is

displayed.

Setting a Ring Tone

C]]

You can set the ring tone for voice call, video-phone call

or mail. You cannot set some melodies for ring tones such

MP4 file. But, you can set the SMF or MFi file as a ring

tone.

Sound/Display

• You cannot set the melody saved in miniSD memory card.

•

For the melody registered at purchase, see “List of

melody” (P251).

Setting items/Setting at purchase >P234

1. From the Sound menu (P67), “Select ringtone” ]

Select from the following adjustment items ]

After setting, I[Done]

• Select from the melodies stored in “Melody” in “Data

box” respectively. >P164

Voice call

You can select a ring tone for voice calls.

Video-phone

You can select a ring tone for video-phone calls.

Mail tone

You can select a ring tone for mail.

MessageR tone

You can select a ring tone for messageR.

MessageF tone

You can select a ring tone for messageF.

SMS tone

You can select a ring tone for SMS.

Information

• If you have set a ring tone depending on the voice call/ video

phone call/ Mail, the ring tone is preferred. The priority order is

as follows:

1Ringtone set in the FOMA phone’s phonebook >Set the

phonebook (P58)

2Ringtone set for a group of the FOMA phone’s phonebook

>Set group (P64)

3Ringtone volume/Video call ring tone/Mail, Messsage ring

tone >Select the ring tone (P68)

• The sound setting of voice mail will be applied as the setting

value of SMS.

Setting an Effect Tone

C]]

Setting items/Setting at purchase >P234, P235

1. From the Sound menu (P67), “Select effect tone” ]

Select from the following adjustment items ]After

setting, I[Done]

Key tone

You can set whether to emit an effect tone for when

you touch the buttons.

Power ON/OFF

You can set whether to emit an effect tone for when

you switch ON or OFF the FOMA phone.

Flip tone

You can set whether to emit an effect tone for when

you open or close the FOMA phone.

Feedback tone

You can set whether to emit an effect tone for when a

popup is displayed.

Sound/Display

Setting a Vibrator

C]]

Setting items/Setting at purchase >P235

1. From the Sound menu (P67), Vibration settings ]

Select from the following setting items ]After

setting, I[Done]

Incoming call

You can select a vibration pattern for when a voice

call or a video-phone call comes in.

–Pattern1 (Vibration only): This activates the

vibration to pattern 1. Regardless of ring tone, the

tone for incoming call does not sound.

–Pattern2 (Vibration only): This activates the

vibration to pattern 2. Regardless of ring tone, the

tone for incoming call does not sound.

–melody + vibration: The vibration and the melody

for incoming call are activated at the same time.

–OFF: The vibration is not activated in FOMA phone.

Message

You can set a vibration pattern for when mail,

messageR/F or SMS comes in.

–Pattern 1(Vibration only): This activates the

vibration to pattern 1. Regardless of ring tone, the

tone for incoming call does not sound.

–Pattern 2(Vibration only): This activates the

vibration to pattern 2. Regardless of ringtone, the

tone for incoming call does not sound.

–melody + vibration: The vibration and the melody

for incoming call are activated at the same time.

–OFF: The vibration is not activated in FOMA phone.

Activating the Manner Mode

You can set whether to mute the ring tone, key pad sound

and any other sound from the speaker to avoid annoying

people around you. If the manner mode is activated, an

incoming call or alarm, etc. is notified with vibrator.

• You can change the activation on setting manner mode

to “Original manner mode”. >P71

1. From the Stand-by display, press and hold #for

at least two seconds

•

The handset of the FOMA phone vibrates displaying

(blue/in the Original manner mode) or (pink/in

the Manner mode).

• You can cancel it by pressing#for at least two

seconds with the Manner mode activated.

Sound/Display

Changing Manner Modes

C]]

You can change operations in the Manner mode.

Setting at purchase >P235

1. From the Sound menu (P67), “Manner settings” ]

Select from the following setting items

Manner mode

You can set the Manner mode.

Original manner mode

You can customize operations in the Manner mode.

After setting, press I[Done].

–Incoming call sound: You can set whether to

make the ring tone sound when a voice call or

video-phone call comes in.

–Incoming call vib.: You can set whether to vibrate

the phone when a voice call or video-phone call

comes in.

–Message sound: You can set whether to make the

ring tone sound when mail, messageR/F or SMS

comes in.

–Message vibration: You can set whether to vibrate

the phone when mail, messageR/F or SMS comes

in.

–Key tone: You can set whether to make the key

operation sound when you do key operations.

–Flip tone: You can set whether to make an effect

tone sound when you open or close the FOMA

phone.

–Low battery tone: You can set whether to make a

battery alarm tone sound when the battery is flat.

Information

• The following sounds are emitted even when the manner

mode is activated.

– The shutter tone on shooting still and moving image. >P104

– The alert tone for disconnecting a call. >P46, P48

– The alert tone to reconnect >P82

– The alert tone for the quality of calling >P83

• If you try to play the melody, moving image or i-motion on

manner mode, the confirmation screen appears and you can

select whether to play with sounds.

Sound/Display

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Setting Ringing Operations for Incoming Mail

C]]

You can set whether to make the ring tone sound when

mail or SMS comes in. You can also set ringing duration

and cycle of rings.

Setting items/Setting at purchase >P235

1. From the Sound menu (P67), “Mail ring duration” ]

Select from the following setting items ]After

setting, I[Done]

Mail ring ON/OFF

You can set whether to make the ring tone sound

when mail comes in. If you select “ON”, you can set

the ringing duration or cycle of ringing.

Mail ring duration

You can set ringing time and number of rings for the

ringing tone.

–Time: After select Sec. section by pressing D, you

can enter duration of ringing.

–Cycle: After select Cycle section by pressing D,

you can enter the number of cycle.

Setting Ringing Time

C]]

You can specify the mute time in seconds before ringing

starts when a voice call or video-phone call which is not

registered in phonebook comes in. This function is effective

as a countermeasure for nuisance calls such as one ring

phone scam.

Setting items/Setting at purchase >P235

1. From the Sound menu (P67), Select “Set mute

seconds” ]Enter ring time. ]I[Done]

Information

• If the voice call or video-phone call which are not registered in

phonebook disconnects within the setting ringing time, they are

not recorded in received call list.

Setting Main Screen

You can set the display for stand-by display or

Incoming/outgoing screen as Main display.

You can set the maximum of the image size of 1280 x

1024 and the file size of 500 KB on the Stand-by display.

Depending on the image, some cannot be set properly.

• You cannot set the image in miniSD memory card.

• When the image saved in stand-by mode, making and

receiving a call at purchase, please refer to “Pre-installed

data” (P248)

Sound/Display

Setting the Stand-by Display

C]]

You can set wallpapers and clock displays for the Stand-

by display.

Setting items/Setting at purchase >P235, P236

1. From the Display Menu (P67), “Main display” ]

“Stand-by display” ]Select from the following

setting items ]After setting, I[Done]

Clock type

You can set the display format of the clock in Stand-

by mode. If you set it to “Dual clock”, you can view

the time of two cities at the same time.

Wallpaper 1

You can set wallpaper to be displayed on the Stand-

by display.

• Select an image saved on “My picture” of “Data

box”. >P154

Clock font color 2

You can set the clock font color of the clock display.

Clock1 3

The city name (Tokyo) is displayed. This is a city name

of clock displayed in Stand-by screen. You cannot

change the city name in this mode.

Clock2 3

If you set “Dual clock”, this menu is displayed. You

can set the clock of another city.

1: If “Clock type” is set to “Theme1”, “Theme2”, “Theme 3”.

“Theme 4”, this menu is not displayed.

2: If “Clock type” is set to “Small digital”, this menu is displayed.

3: If “Clock type” is set to “Dual clock”, this menu is displayed.

Information

• If you press M[View], you can confirm the display set.

• If you want to change from “Tokyo” to the other city, go to

“Using World time” (P178).

Setting the Display for Incoming Calls

C]]

You can set the image displayed when you receive an

incoming call.

Setting items/Setting at purchase >P236

1. From the Display Menu (P67), “Main display” ]

“Incoming call”

•

Select from the images saved on “My picture” of “Data

box”.

P154

Setting Display for Outgoing Calls

C]]

You can set the image displayed when you make a call.

Setting items/Setting at purchase >P236

1. From the Display Menu ]“Main display” ]

“Outgoing call” (P67)

Sound/Display

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

•

Select from the images saved on “My picture” of “Data

box”.

P154

Setting Sub Display

You can set images of the stand-by display for Sub

display and displays for incoming and outgoing calls. You

can set the maximum of the image size of 1280 x 1024

and the file size of 500 KB on the stand-by display.

Depending on the image, some cannot be set properly.

• You can set the image in miniSD memory card as a

wallpaper when making/ receiving a call.

• When the image saved in stand-by mode, making and

receiving a call at purchase, see “Pre-installed data at

purchase” (P248)

Setting Stand-by Display

C]]

You can set wallpapers and clock displays on the Stand-

by display.

Setting items/Setting at purchase >P236

1. From the Display Menu (P67), “Sub display” ]

“Stand-by display” ]Select from the following

setting items ]After setting, I[Done]

Clock type

You can set the display format for the clock.

Wallpaper

You can set the wallpaper to be displayed on the

Stand-by display.

•

Select from the images saved on “My picture” of “Data

box”.

P154

Clock font color

You can set the font color of the clock display.

: If “Clock type” is set to “Small digital”, this menu is displayed.

Information

• You can view the screen after setting by pressing M[View].

Setting Display for Incoming Calls

C]]

You can set the image to be displayed when you receive a

call.

Setting items/Setting at purchase >P236

1. From Display Menu (P67), “Sub display” ]

“Incoming call”

•

Select from the images saved on “My picture” of “Data

box”.

P154

Sound/Display

Setting the Display for Outgoing Calls

C]]

You can change the image to be displayed when you

make a call.

Setting items/Setting at purchase >P236

1. From Display Menu, “Sub display” ]“Outgoing

call” (P67)

•

Select from the images saved on “My picture” of “Data

box”.

P154

Setting Fonts of Dial Characters

C]]

You can set the sizes and colors of the dial fonts

displayed when you make a call, etc.

Setting items/Setting at purchase >P236

1. From the Display Menu (P67), “Font” ]Select from

the following setting items ]After setting,

I[Done].

Dial font size

Select a size of dial fonts.

Dial font color

Select a color of dial fonts.

Setting Menu Style

C]]

You can set the style of the Menu Style that appears when

pressing C[Menu] on the Stand-by display.

Setting items/Setting at purchase >P236

1. From the Display Menu (P67), “Menu style” ]

“Grid”/“List” ]I[Done]

Setting Backlight

C]]

You can set the lighting duration of the Main screen, Sub

display or buttons.

Setting items/Setting at purchase >P236, P237

1. From the Display Menu (P67), “Backlight” ]Select

from the following setting items =>After setting,

I[Done].

Main display

Set the lighting duration of the Main screen.

Sub display

Set the lighting duration of the Sub display.

Keypad

Set the lighting duration of the buttons.

Sound/Display

Setting color Scheme

C]]

You can set the color scheme of the Main screen.

Setting items/Setting at purchase >P237

1. From the Display Menu (P67), “Color scheme” ]

Select the color scheme you want to set ]I

[Done].

Information

• If you press C[View], you can view the screen after setting.

Call/Answer ............................................78

Call Feature ............................................82

Video Phone ...........................................84

Date & Time ............................................86

Network (for overseas use) ....................87

Changing a Host from i-mode ...............89

Security...................................................90

Language................................................91

Others Settings.......................................92

Settings

On the Stand-by display,

C[Menu] ]or “Settings”

To display the Settings menu

1 Call/ Answer

2 Call feature

3 Video-phone

4 Date & Time

5 Network

6 Host selection

7 Security

Select

Settings

Select

Settings

Call/Answer

Checking Call History

Displaying Received Call Records

C]]

111

You can view the record of received call.

1. From the Settings menu (P77), “Call/Answer” ]

“Call history” ] “Received calls”

•A/T: You can make a call to the other party of

the record being recorded.

•I[Delete]: You can delete the record being selected.

2. Select a call record ]C

•A/T: You can make a call to the other party in a

list.

•I[Delete]: You can delete the list of call record.

•J: You can view the call record.

Using the Submenu of the Received Calls screen/

Details screen

1. From the Received Calls screen (See left)/Detail

screen (See above), M[Menu] ] Select from the

following submenu items

You can view details of the call record selected.

Add to phonebook 2

You can register a new phonebook.

Recv. Calls (1/26)

Menu Delete

[Date]

[Time]

[duration]

DoCoMo Ichiro

Recv. Calls (1/26)

Menu View Delete

DoCoMo Taro

DoCoMo Ichiro

DoCoMo Jiro

DoCoMo Saburo

This list will be displayed when the

phone number in a list are registered

in phonebook list. You can view the

list by pressing J.

Settings

Icon Description

Received voice calls

Received video-phone calls

Rejected calls

Missed calls (Voice calls)

Missed calls (Video-phone calls)

Settings

Send mail 3

The mail address stored in the phonebook is entered

into the Address. Go to step 3 (P139) of “Composing i-

mode mail message”.

Delete

You can delete the call record selected on display.

Delete all 1

You can delete all the call records.

Go to list 4

You can return to the screen of received call list.

1: Not selected in sub-menu of detail screen.

2: Not selected if information on the caller of the call record

selected is stored in the phonebook.

3: Not selected if information on the caller of the call record

selected is not stored in the phonebook.

4: Selected in sub-menu of detail screen.

Displaying Redial Items (Dialed Call Records)

C]]

112

You can view dialed call records.

1. From the Settings menu (P77), “Call/Answer” ]

“Call history” ] “Redial”

• The Redial display appears.

2. Select Redial ]C

• The Details display appears.

Information

• See “Using the Submenu of Received Calls Screen”/“Using

the Submenu of the Detailed Screen” (P78) for the display

operation method and the submenus available from the Redial

display/Detail screen.

Displaying All Call Records

C]]

113

Received and dialed call records are displayed together.

1. From the Settings menu (P77), “Call/Answer” ]

“Call history” ] “All calls”

• The All calls screen appears.

2. Select a history ]C

• The Detail screen appears.

Information

• See “Using the Submenu of Received Call Records

Screen” / “Using the Submenu of the Detailed Screen”

(P78) for the display operation method and the submenus

available from the All Calls screen / Detail screen.

Mark Description

Dialed voice calls

Dialed video-phone calls

Settings

Displaying Call Time

C]]

You can confirm call duration for each call type. You can

confirm the following items:

• The displayed call duration is a standard. The real of call

duration can be different.

1. From the Settings menu (P77), “Call/Answer” ]

“Call duration”

• Call duration display appears.

Last call

You can confirm the last call duration.

Received calls

You can confirm the received call duration.

Redial calls

You can confirm the dialed call duration.

All calls

You can confirm the total call duration.

Information

• If the display of call time is over “9999999:59:59”, the setting

will be back to “00:00:00”.

Resetting call duration

1. Select a call duration you want to clear on the Call

duration screen (See above) ]I[Reset] ]Enter

your terminal security code ]C]“Yes”

• To clear all the call durations ]M[Menu] ] “Reset

all”

Setting Earphone/Microphone Auto Answer

C]]

You can set how to answer an incoming call with the Flat-

plug Earphone/Microphone Set with Switch (option)

connected.

Setting item/Setting at purchase >P237

1. From the Settings menu (P77), “Call/Answer” ]

“Auto answer” ] Select from the following setting

items >After setting, I[Done]

Auto answering

You can set the earphone/microphone auto answer to

ON/OFF.

Delayed time (0–120 SEC)

You can set the time between receiving call and

answering a call automatically.

Information

• If you use the Flat-plug Earphone/Microphone Set with Switch

(option), you can answer a voice call or video-phone call by

pressing the switch of the earphone only.

Settings

Setting to Reject/Accept Incoming Calls

C]]

You can set whether to reject incoming calls.

Setting item/Setting at purchase >P237

1. From the Settings menu (P77), “Call/Answer” ]

“Reject/Accept call” ] Enter your terminal

security code ]C

• The Reject/Accept call display appears.

2. Select from the following setting items

You can set whether to accept all incoming calls.

Reject on list

You can reject the incoming call from the specific

other party. You can set the party's phone number to

reject a call by pressing I[Setup] (See below).

Reject all calls

–Silent : You can disable the ringing tone for all

incoming calls.

–Disconnect call : You can reject all incoming calls.

Information

•When rejecting a call by “Reject on list” or “Reject all calls”, the

record will be remained.

Setting Reject call List

1. From the Reject/Accept call display (See left),

Select “Reject on list” ] I[Setup]

• The icons of call reject on a list will be displayed.

•M[Menu]: You can edit/delete the list set.

2. I[Add] ]Select from the following setting items

]After setting, I[Done]

Reject types

–Silent : Disables the ring tone when receiving the

call from the other party set to “Reject number”.

–Disconnect call : Rejects incoming calls when

receiving the call from the other party set to “Reject

number”.

Reject number

Enter the phone number of a caller you want to reject.

You can select a phone number from the phonebook

by pressing C[Search]. If you press , you can select

the phone number from the phonebook.

: If you use M[Menu] >Edit from the reject on list. you cannot

use the function.

Mark Description

The type of reject call is set “Silent”.

The type of reject call is set “Disconnect call”.

Settings

Setting Memory Reject Call

C]]

You can set whether to reject calls from callers whose

phone numbers are not registered in the phonebook or

not being informed the Caller ID.

Setting item/Setting at purchase >P237

1. From the Settings menu (P77), “Call/Answer” ]

“Memory reject call” ]“ON”/“OFF”

Setting an Answer Mode

C]]

You can set whether to answer a voice call by pressing a

button other thanA

Setting item/Setting at purchase >P237

1. From the Settings menu (P77), “Call/Answer” ]

”Answer mode” ]Select from the following

setting items

Press send key

You can answer a call by pressing Aonly.

Open flip

You can answer a call by opening the FOMA phone. If

the FOMA phone is open already, you can answer a

call by A.

Press any key

You can answer a call by pressing any key except for

M,I,FE,G.

Information

• This setting is not available for video phone call.

Call Feature

Setting the Reconnect Control

C]]

You can set whether to make an alarm sound to inform

you when you are reconnected immediately after

disconnected owing to bad radio wave conditions.

Setting item/Setting at purchase >P237

1. From the Settings menu (P77), “Call feature” ]

”Reconnect alarm” ]Select from the following

setting items

High alarm

Set high alarm sounds.

Low alarm

Set Low alarm sounds.

No alarm

No sound.

Information

• The time to reconnect the network can be different depending

on the status of phone or radio. (the maximum 10 seconds)

• The duration to reconnect the network can be chargeable.

• Depending on the status of phone or radio, the alarm may not

sound, and then disconnect it.

Settings

Setting Quality Alarm

C]]

You can set whether to make an alarm sound to inform

you when a call is liable to be disconnected midway

because of bad radio wave conditions.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“Quality alarm” ]Select from the following

setting items

High alarm

Set high alarm sounds.

Low alarm

Set low alarm sounds.

No alarm

No sound.

Setting Minute Reminder

C]]

You can check the call duration by beep sound every

minute during a voice call. (Not support this function for

Video-phone call)

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“Minute reminder” ]“ON”/“OFF”

Information

• This setting is not available with a video-phone call.

Setting Prefix Dial

C]]

You can store prefix numbers such as international access

code or “#31# / 31#” and add it to the beginning of the

phone number to dial.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“Prefix dial”

• The Prefix Dial screen appears.

2. Select a PREFIX field to enter ]Enter a number ]

I[Done]

Setting International Dial

Setting Auto assist

C]]

251

You can set whether to automatically replace “+´” at the

beginning of a phone number with an international access

code such as “009130010” for making an international call.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“International dial” ]“Auto assist setting” ]

“Auto”/“OFF”

Settings

Setting IDD prefix

C]]

252

You can set the international access code to be added to

the beginning of a phone number for making an

international call.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“International dial” ]“IDD prefix setting” ]Select

from the following setting items ]After setting,

I[Done]

IDD prefix name

Enter the name of an international call service.

IDD prefix code

Enter an international access code.

Setting Close setting

C]]

You can set how the FOMA phone works when it is

folded.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Call feature” ]

“Close setting” ]Select from the following setting

items

End the call

The call is disconnected.

Continue(Mute)

The microphone is mute during Continue (Mute) call.

This function is available for only voice call.

Information

• During video-phone call, if you close the flip, the call will be

ended regardless of this setting.

Video-Phone

You can change settings for the video-phone operation

and display.

Changing the Video-Phone Settings

C]]

You can set how the FOMA phone works and screens

when making a video-phone call.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Video-phone” ]

“Video-phone settings” ]Select from the

following setting items ]After setting, I[Done]

VoiceCall AutoSwitch

Sets (ON/ OFF) whether to redial by automatically

switching to a voice call if the other party is unable to

answer a video-phone call.

Settings

Display setting

You can set how to display the Talking screen.

–Both : Your image and the other party’s image are

displayed.

–Other : Only the other party’s image is displayed.

–Me : Only your image is displayed.

Sub screen

You can set an image to be displayed on the sub

screen when “Display setting for video phone call” is

set to “Both”.

–Me : Your image is displayed.

–Other : The other party’s image is displayed.

Send camera image

You can set whether to send your image to the other

party. If set to “OFF”, a substitute image is sent to the

other party.

Sending img. quality

–Prefer image quality : Sends images laying stress

on image quality. Prefer image quality is effective if

there is little motion.

–Normal : Sends images in standard quality and

motion speed.

–Prefer motion quality : Sends images laying stress

on motion speed. Prefer motion speed is effective

for moving images.

Display light

–Always on : Keeps the display lit during a call.

–Terminal setting : Follows the settings of the

“Backlight” of the “Main display”. >P75

Selecting a Video-phone Image

Changing Substitutive images

C]]

321

You can set a substitute image to send in place of your

own image during a video-phone call.

Setting item/Setting at purchase >P238

1. From the Settings menu (P77), “Video-phone” ]

“Image settings” ]“Substitutive image” ]Select

from the following setting items ]After setting,

I[Done]


–Default Image : The image by default.

–Selected image : You can select an image other

than the default image from the “Image list”.

Image list

You can select an image for when “Image” is set to

“Selected image”. Select from images stored in “My

picture” of “Data box”. >P154

Changing Response Hold Image

C]]

322

You can set an image to display when you put the call on

hold during ringing of a video-phone call.

Setting item/Setting at purchase >P238

Settings

1. From the Settings menu (P77), “Video-phone” ]

”Image settings” ]”Response hold image”

• See “Changing Substitutive image” (P85) for the

subsequent operations.

Changing On-hold Images

C]]

323

You can set an image to display when you put the call on

hold during ringing of a video-phone call.

Setting item/Setting at purchase >P238,P239

1. From the Settings menu (P77), “Video phone” ]

“Image settings” ]“On-hold image”

• See “Changing Substitutive image” (P85) for the

subsequent operations.

Date & Time

Setting Time

C]]

You can set the time of city which is already set “Home”

(the city at purchase: Tokyo) by “World time”. (P178)

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), Select “Date &

Time” ]“Set time” ]Select from the following

setting items ]After setting, I[Done]

Set time

Press Jto select an input item (hour, minute,

second, am/pm ). Use the numeric keys to enter

numbers. Press Cto switch between am/pm .

Time format

You can set whether to display time in the 12-hour

format or in the 24-hour format.

Hour indication

You can set whether the alarm will sound or not after

setting (00 min). You can select the ring tone as an

alarm. If you don't want this indication, set “OFF”.

: Displayed if “Time format” is set to “12-hour”.

Setting Date

C]]

You can set the date.

Setting item/Setting at purchase >P239

Settings

1. From the Settings menu (P77) ]Select “Date &

Time” ]“Set date” ]Select from the following

setting items ]After setting, I[Done]

Set date

Press Jto select an input item (year, month, date).

Use the numeric keys to enter numbers.

Date format

You can change display formats of the date.

(DD/MM/YYYY, MM/DD/YYYY, YYYY/MM/DD)

: YYYY stands for Year, MM stands for Month, and DD stands for

Day.

Setting Daylight Saving

C]]

You can set daylight saving time.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Date & Time” ]

“Daylight saving” ]“ON”/“OFF”

Information

• The country applying to the Summer time by using “World time”

(P178) is set as a home. After setting, it is displayed in Summer

time.

Network (for overseas use)

Selecting the Network Connection Mode

C]]

You can select a network setting method in case

destination networks (Communication carriers) change for

overseas use, etc.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Network” ]

“Network selection” ]Select from the following

setting items

Auto

Automatically searches for the network for setting.

Manual

The network search display appears, allowing you to

select a network from the list displayed after search.

Information

• It may take a few minutes to find the network.

• If you set “Auto”, you can search the network automatically in the

situation as follow.

– When you switch on – Out of service area

• If you stop searching the network manually, the setting will be

changed to “Auto”.

Settings

Setting the Network Mode

C]]

You can set a type of network to search for when networks

are searched according to “Network selection”.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Network” ]

“Network mode” ]Select from the following

setting items

Auto

Searches all the networks connectable.

WCDMA only

Searches only networks supporting 3G.

GSM only

Searches only networks supporting GSM/GPRS.

Information

• You cannot exchange the data through packet service under

GSM network.

Registering a Network of Preferred list

C]]

Adding Networks

If the network is searching automatically, you can add a

preferable network (communication carrier) to be

connected to.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Network” ]

“Preferred lists”

2. M[Menu] ]Select from the following setting

items

•I[Delete]: You can delete the network selected.

Search network

You can select from the network list stored in the

FOMA phone for adding.

Enter new network

You can enter the country code (MCC) and the

network code (MNC) for adding. After setting, press

I[Done].

Delete

You can delete the selected network.

Move up

You can move the selected network upward. The

network which is moved upward is preferred.

Settings

Move down

You can move the selected network downward. The

network placed downward is preferred.

: If you register multiple networks, you can use this menu.

Information

• If the network is not registered, [Menu], [Delete] of soft key

area on list to register will not be displayed. To add new

network, press I[Add].

• The registered data is saved in FOMA card.

Displaying the Network Name

C]]

You can set whether to display the name of the network

currently set on the Stand-by display.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Network” ]

“Network name display” ]“Display on”/“Display

off”

Changing a Host from i-mode

Setting / Changing the Host

C]]

Normally, you do not need to change the setting.

You can set a host to use services of various providers

other than i-mode. If the host is changed, i-mode

becomes unavailable.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Host selection” ]

From the Host selection screen, I[Add] ]Enter

your terminal security code ]C]Set the

following items ]After setting, I[Done]

• The host set is displayed on the Host selection

screen with attached to it.

Host name

Enter the name displayed on the Host selection

screen.

Host address

Enter the address of the host.

Access point

Enter the Access point (URL, etc.).

Settings

Information

• To switch the host back to “i-Mode” or to switch to another

host, select “i-Mode”/other hosts and press Con the Host

selection screen.

• If you press M[Menu] on the Host selection screen, you can

edit / delete / display the host set. Note that you cannot edit /

delete pre-installed “i-Mode”.

• In Access point menu, you should enter IP address in PDP

type.

Security

Setting All Lock

C]]

You can set whether to lock requiring to enter the terminal

security code to operate function. During All Lock, “All

lock” is displayed on the Stand-by display.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Security” ]“All

lock” ]Select from the following setting items

Power on

You can set whether to lock the FOMA phone when

you turn of the power. You need to enter your terminal

security code to set it.

Immediate

Sets All lock immediately. You need to enter your

terminal security code to set it.

none

You can release All lock. You need to enter your

terminal security code to release it.

Releasing All Lock

1. Press either one of 1~0]Enter your

terminal security code ]C

•

On the locked display,

[Emergency]: You can call

emergency information (110/118/119).

Setting PIN Code Request

C]]

You can set to enter PIN1 code when you turn on the

power to the FOMA phone.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Security” ]“PIN

code request” ]“ON”/“OFF” ]Enter PIN1 code ]

Settings

Changing Your Password

Changing the PIN1 code / PIN2 code

C]]

731 /

C]]

732

You can change the PIN1 code / PIN2 code. To change

the PIN1 code, you should set “PIN code request” to

“ON”. The default code is “0000”.

1. From the Settings menu (P77), “Security” ]

“Change password” ]“PIN1 code”/“PIN2 code”

2. Enter the current PIN1 code/PIN2 code ]C

3. Enter a new PIN1 code/PIN2 code ]C

4. Enter the same code that you did in Step 3 again ]

Information

• If you enter a wrong PIN code over three times, the PIN code

will be locked automatically. If you unlock the PIN code, see

“Preventing the Phone from Activating the Operation of

Function” (P97).

Changing Your Terminal Security Code

C]]

733

You can change your terminal security code.

Setting item/Setting at purchase >P239

1. From the Settings menu (P77), “Security” ]

Change password” ]“Security code”

• For the subsequent steps, just like the steps to change

the PIN1 code / PIN2 code, enter your current terminal

security code, enter a new terminal security code and

then enter the same code again for confirmation.

C]]

You can switch the languages of the FOMA phone

between Japanese and English.

Setting item/Setting at purchase >P240

1. From the Settings menu (P77), “ ”]

“”/“English”

Current PIN1 code. R:3

New PIN1 code

Verify PIN1 code

Change PIN1 code

The remaining time to enter

PIN is available

Settings

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Information

• This setting is registered in FOMA phone and FOMA card

which is inserted now. If you insert other FOMA card which

registered other settings, the settings of FOMA card will be

preferred.

Others Settings

Checking the Memory Status

C]]

You can check the usage status and available space of the

memories of the handset of the FOMA phone and the

miniSD memory card.

1. From the Settings menu (P77), “Others” ]“Memory

status” ]Select from the following items

Common memory

You can check the empty or the reseved capacity

(Standard) of the common memory in which data such

as My picture, i-motion, Melody are stored.

Reserved memory

You can check the empty or the reserved capacity of the

common memory in which data for Phonebook,

Schedule, Memo, Date counter are stored.

UIM memory

You can check the empty or the reseved capacity

(Standard) of the common memory in which data for

“Phonebook”, “SMS”.

miniSD

You can check the empty or reserved capacity of

miniSD memory card.

Resetting the Settings

Clearing the Memory

C]]

921

You can clear all the data recorded in the handset of the

FOMA phone and the miniSD memory card.

1. From the Settings menu (P77), “Others” ]“Reset

settings” ]“Clear memory” ]Select from the

following items

• You need to enter your terminal security code for

deleting.

Handset contents

Clears all the data saved in the Data box folder of the

FOMA phone.

Handset personal info.

Clears all the personal data saved in the FOMA phone

such as phonebooks, schedule, call history and so on.

miniSD

Clears all the data saved in the minisd folder of the

miniSD memory card.

Settings

Initializing the Default Settings

C]]

922

You can reset to all settings at purchase except for

“i-mode setting” and “Mail setting”.

1. From the Settings menu (P77), “Others” ]“Reset

settings” ]Default settings “Yes” ]Enter the

terminal security code ]Press C

Information

•When you reset the date and time, you cannot play span/

period restricted i-motion file.

Changing the Settings for the SMS Center

C]]

Normally, you do not need to change the settings.

You can change the SMS centers to use.

Setting item/Setting at purchase >P240

1. From the Settings menu (P77), “Others” ]“SMS

center” ]“Select from the following setting items

]After setting, I[Done]

SMSC

–DoCoMo : You can use the DoCoMo SMS center.

–Others : You can use another company’s SMS

center.

Address

If “SMSC” is set to “others”, you can enter the

address of the SMS center.

Resetting the holiday

C]]

You can reset all settings of holiday of FOMA phone to

settings at purchase.

1. From the Settings menu (P77), “Others” ]“Reset

holiday” ]“Yes”

Passwords ..............................................96

Preventing the Phone from

Activating the Operation of Function ....97

Other Safety Settings.............................98

Safety settings

Passwords

For some functions of the FOMA, you need to enter

your password. In addition to the Terminal security

Code for operating respective mobile phone functions,

the Network Security Code to use network services,

and i-mode password are available. These passwords

help you utilize your FOMA phone.

Information for Passwords

• Do not use the easy-to-decipher figures such as

“Birthday”, “the part of phone number”, “Area code or

Room number”, “1111”, “1234” to prevent it from

being known by others. Note that you make a memo

to set the password.

• Make sure that prevent the password from being

known by others. If the password is known by third

party, NTT DoCoMo will not have any other

responsibility concerning the mischief or the mis-use of

handset.

• There is no request the client's password from NTT

DoCoMo.

• Note that if you do not remember password, you need

to bring an identification card such as a driver's

license, FOMA handset, FOMA card to a handling

counter such as a DoCoMo shop. For details, consult

"DoCoMo Information Center" described on the back

page of the manual.

Terminal security code

The terminal security code is set “0000” at purchase. You

can change the terminal security code. To change the

code, see “Changing Your Terminal Security Code” (P91).

Network Password

The Network Security Code is a four-digit number required for

using various network services and for various procedures at

the “ e” (DoCoMo e-site). The security code is

determined at the time of contract. The user has an ID and a

password of “My DoCoMo” which is the integrated support

site for PC can change new network password through PC.

In addition, you can change various procedures of DoCoMo

e-site in i-mode.

For “My DoCoMo”, “DoCoMo e-site”, see the cover of this

manual.

i-mode Password

The i-mode password is a four-digit password required for

registering, deleting My-menu, Messaging service, applying

for or cancelling an i-mode password. (The service provider

can supply its own password.)

The default for i-mode password is “0000”, but you can

change it. If you change the password from i-mode, see

“Changing i-mode Password” (P126).

Safety settings

PIN1 code/PIN2 code

For the FOMA card, you can set the two security code,

namely the PIN1 code and PIN2 code. The default for

these security code is “0000”, but you can change these

codes as you lock. To change the codes, see “Setting

PIN Code Request” (P90), “Changing the PIN1 code /

PIN2 code” (P91).

aPIN1 Code

The PIN1 code is the four- to eight-digit code for checking

the user each time the UIM is inserted into the FOMA

phone or each time the FOMA phone is turned on so that

you can prevent the third party from using your UIM. If you

enter PIN1 code, you can receive or make a call or

activate the operation.

aPIN2 Code

The PIN2 code is the four-to eight- digit code for using the

user certificate or applying for the issue of it and executing

reset Total Cost.

This FOMA phone does not have this function.

Information

• If you purchase a new FOMA phone and use the existing

FOMA card with new FOMA phone, use PIN1 code and PIN2

code you have set previously.

• If you enter a wrong PIN1 code/ PIN2 code three times in

succession on the display requiring its entry, the PIN1 code/

PIN2 code is locked automatically. To unlock the code, you

need to enter PIN lock release code.

Releasing PIN lock code

PIN lock releasing code is a eight-digit password to

release locking PIN1 code, PIN2 code. You cannot

change it.

Information

• If you enter a wrong "PIN unlock code" 10 times in succession,

it is automatically locked. In case of this, you need to bring the

FOMA phone, UIM and an identification card such as a driver's

license to a handling counter such as a DoCoMo shop.

Preventing the Phone from Activating

the Operation of Function

To protect the information or data in FOMA phone, you

can activate the security function to prevent from

activating the operation or the function.

Safety settings

Setting All Lock

After locking FOMA phone, if you don't enter terminal

password, you cannot activate the phone. To set this

function, see “Setting All Lock” (P90).

Setting not to display mail without

permission

You can set the security function for the Inbox, Outbox,

and Unsent of the Mail menu. To set this function, see

“Display” of “Mail setting” (P145).

Other Safety Settings

The FOMA phone has the following safety settings in

addition to the “Security” function:

Safety settings

Purpose Function/Service

To change the mail

address

To receive/reject mail

sent from i-mode

phones only

To receive mail from

specified domains

(company) only

To reject mail from

specified senders

To reject 200th and

succeeding i-mode

messages sent from a

single i-mode phone on

the same day

To reject unsolicited Ad

mail

To reject SMS

reception

To store/check safety

information when a

disaster occurs

To stop the mail

function temporarily

To check the settings

for the mail function

Change mail address

Receive/Reject i-mode

mail only

Receive from specified

domain

Receive Selected

Mail/Reject Selected Mail

Selected Mail Senders

Reject unsolicited Ad

mail/Reject mail

Se/Confirm SMS

Rejection Settings

i-mode Disaster

Message Board Service

Suspend Mail

Confirm Settings

Reference

Refer to

“i-mode

User’s

Manual”

Purpose Function/Service

To reject calls from

specified callers

To receive calls from callers

registered in the phonebook

Not to take nuisance

calls

Not to take calls from

callers not notifying caller ID

To receive necessary

mail only

Reject/Accept call

Memory reject call

Nuisance call barring

Caller ID request

Receive option

Reference

P81

P82

P194

P143

Notes for when using the camera.............100

Using the Camera ......................................101

Taking Still Images.....................................101

Shooting Moving Images...........................106

Multimedia (Camera)

1 Camera-mode

2 Movie-mode

Select

Multimedia

On the Stand-by display,

C[Menu] ]or “Multimedia”

To display the Multimedia menu

Select

Multimedia

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

100

Multimedia (Camera)

Notes for when using the camera

• If the lens is stained with finger prints or something oily,

you cannot shoot clear images. Clean the lens with a

soft cloth before shooting images.

• If the lens is exposed to direct sunlight for a long time,

the color filter inside and images may be discolored.

• If shooting or saving images after leaving the FOMA

phone in a warm place for a long time, image quality

may deteriorate.

• Do not cover the lens with fingers, etc. when shooting

images.

• When the battery level is low, you can't activate camera

and movie mode.

• If you shoot a fast moving subject, it may be recorded a

little off the displayed position.

• Be careful not to move your hands when taking a shot.

Hold the FOMA phone securely with your hands so that

it does not move, or place the FOMA phone in a stable

place and use the self timer when taking a shot.

• If you move your hands when shooting a moving image

or if you shoot a rapidly moving image, the image may

be blurred.

• If you try to directly shoot a strong illuminant such as

the sun and a lamp, the image may become dim or

blurred.

• The camera has been made with highly precise

technologies, and there may be points and lines that

always look bright as well as pixels and lines that

always look dim. Also, acknowledge that when

shooting an image in a place where light intensity is

small, it looks a little rough, and noises such as white

lines increase.

• If the storage location is set to the miniSD memory

card, do not pull out the miniSD memory card while

you are using the camera. Malfunction of the FOMA

phone may result.

• If the battery is flat, you are not able to save still or

moving shot images.

• Since the camera consumes electric power quickly, do

not operate the camera for a long time or leave it for a

long time.

• It may take a long time until images are displayed on

the shooting display after starting the camera

depending on the settings.

• Images shot by the cameras might differ from actual

subjects in color tone and brightness.

• To protect from taking a picture without informing, the

shutter tone will be sounded on manner mode. Also,

even when the Flat-plug Earphone/Microphone Set

with Switch (option) is attached to the FOMA phone,

the shutter sound is emitted from the speaker.

Multimedia (Camera)

101

Multimedia (Camera)

Copyrights and Rights of Portrait

You have no right to copy, modify, or distribute the

contents of which a third party holds the copyright such

as text, images, music, or software downloaded from web

pages on the Internet, or images shot by the cameras of

this product without permission from the copyright holder

except for when the copy or quote is for personal use that

is allowed by the Copyright Law. Note that it may be

prohibited to shoot or record live performances or

exhibitions even for personal use. Make sure that you

refrain from taking portraits of other persons and

distributing such portraits over the Internet without

consent, as this violates portrait rights.

Using the Camera

You can adjust the angle of camera on setting the scene

of a person, an landscape or a portrait.

Information

• If you shoot an image by adjusting the lens within the FOMA

phone as shown, the image is saved as Mirror.

Taking Still Images

C]]

You can take still images. The taken still images are saved

into the “Camera” folder of “My picture” in “Data box” of

the FOMA phone. You can set the storage location to the

miniSD memory card. If you set the storage location to the

miniSD memory card, the taken still images are saved into

"My picture”. To save the images, you can se t“Save to”

(P104).

Adjust the angle by

rotating a camera to

an arrow direction.

Lens

Please respect the privacy of individuals around you when

taking and sending photos using camera-equipped

mobile phones.

102

Multimedia (Camera)

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

1. In Stand-by mode, press G

•H/FE: You can set the magnification of the image.

•J: You can change the brightness of the image.

•I

[Album]: You can view the “Camera” folder of “My

picture”.

2. After confirming the subject, C

•I

[Mail]: You can compose the message with

attaching the image. Go to step 2 on page 139 of

“Composing i-mode mail”.

•C

[OK]: You can save the image.

•M

[Menu] : You can delete the picture in sub-menu.

>P105

After taking a multishot

After taking a multishot (P103), you can view the display as

follow.

•C[View

]

: You can use a zooming in the selected file.

•I

[Mail]: You can compose i-mode mail with attaching the

selected file. Go to step 2 on page 139 of “Composing

i-mode mail”.

•Q: Returns back to Stand-by mode to take a picture.

Camera

Menu View Mail

The file size of selected one

Menu OK Mail

SavedSaved

Menu Rec. Album

103

Multimedia (Camera)

Icons on the Still Image Finder Stand-by Screen

• Indicates the status of the still image shot setting.

1: The remaining number of shots varies depending on the

settings of shooting. (The value is for a reference.)

2 : The value varies depending on the value set.

Using the Sub Menus of the Still Image

Finder Stand-by Screen

You can set up functions to take still images.

Setting item/Setting at purchase >P242

1. From the Finder Stand-by display (P102), M[Menu]

]Select from the following submenu items by

using

]After setting, C]I[Close]

(Size)

You can set the photo size.

(Quality)

You can set the image quality to store shots of still

images.

(Light)

You can set the radiation method of flash when taking

a shot.

–OFF : Does not flash

–Auto : Automatically flashes according to the

shooting conditions such as when shooting in a

dark place

–Always on : Always lights while the camera is on

–When taking : Always flashes when pushing the

shutter regardless of the brightness of the shooting

location.

DescriptionIcon

Camera mode (Still image shot mode)

Remaining number of shots

Storage

location

Handset memory

OFF

Automatic

Always on

When taking

miniSD

Light

settings

Auto timer

Size

Zoom

Brightness

Multishot

No restriction

100KB

Size

restriction

9KB

Super fine

Fine

Storage


quality

setup Normal

104

Multimedia (Camera)

(Multishot)

You can set the number of continuous shots of still

images to be taken by pushing the shutter.

(Zoom)

You can set the magnification of the image.

(Brightness)

You can set brightness (exposure) of the image.

(White balance)

You can revise the color tone for the image. This

setting is for a shot image with an unnatural color

tone.

(Night mode)

This setting is for when taking a shot in a dark place,

etc.

(Frame shot)

This setting is for when taking a shot with a frame

attached to the subject. Select “Choose Frame” and

select a frame using J>Press C.

(Auto timer)

You can set Auto timer. Select the number of seconds

between pressing the shutter and starting taking a

shot.

(Effect)

This setting is for when taking a shot with special

effect applied to the image.

(Shutter sound)

You can set a tone to sound when the shutter is pushed.

• If you select an item, a sample tone sounds.

(Size restriction)

You can limit the size to store shots of still images.

(Flicker tuning)

You can set the frequency to protect from waving the

screen.

(Save to)

You can set the location to store shots of still images.

Information

• If taking a shot with the “size” set to “1280x1024”, you cannot

use the zoom.

• If “Multishot” is set, the “Size” automatically changes to

“320x240”. After setting Multishot off, you cannot change the

size any more.

• If the “Frame shot” is set, the “size” automatically changes to

“176x220”. After the Frame shot, Multishot have been set off,

you cannot change the “Size”.

• You cannot set “Multishot” and “Frame shot” at the same

time.

• If you are unable to store in the size set in “Size restriction”,

automatically lower the resolution to store images.

• If “Size restriction” has been set to “100KB” or “9KB”, you

cannot set up “Quality”.

• If “Size restriction” has been set to “9Kbyte”, you cannot take

images in “Multishot” or “Frame shot”.

105

Multimedia (Camera)

• If you set Flicker tuning, twinkling will not be removed

completely depending on the environment or the color tone of

actual subject.

• For the frame image stored by default, see “Frame” (P250) in

“Data stored by default”.

Using the submenus of the Still Image

Shooting End Screen

Setting item/Setting at purchase >P243

1. From the Still Image Shooting End Screen (P102) /

Multishot Shooting End Screen (P102), M[Menu]

]Select from the following submenu items

New picture

The Finder screen returns.

Mark/Unmark

You can delete the file which was shot by multishot. After

selecting the file, press M[Menu] >“Delete”.

–Mark : You can mark a file at a time.

–Mark all : You can mark all the files collectively.

–Unmark : You can unmark the file marked by

“Mark” or one of the files marked by “Mark all” at a

time.

–Unmark all : You can unmark the file marked by

“Mark” or all the files marked by “Mark all”.

Send via mail

You can attach shots of still images to i-mode mail for

sending. Go to step 2 (P139) of “Composing i-mode

mail message”.

Delete (Selected shot )

You can delete a shot of a still image.

Set as wallpaper

You can select the “Main display” or “Sub display” to

set as wallpaper.

Slide show

–Go : You can display still images shot in Multishot in

order.

–Settings : You can set up “View as” and “Time

interval (secs)” for slide show. After setting, press

I[Done].

Make animated GIF

You can select multiple files to create animation. After

selecting files, press I[Make].

Sort by

You can sort files.

View by

You can change file display methods.

File property

You can display the name, size and type of the file

being selected.

: Displayed only after taking images in Multishot.

106

Multimedia (Camera)

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Shooting Moving Images

C]]

You can shoot moving images. The shot moving images

are saved into the “Camera” folder of “i-motion” in “Data

box” on the handset. You can set the storage location to

the miniSD memory card. To save the image in miniSD

memory card, set icon (P108).

1. From the Multimedia menu (P99) , “Movie-mode”

< Moving Image Finder Stand-by>

•H/FE : You can change the magnification of the

images.

•J: You can change the brightness of the images.

•I

[Album]: You can view the folder of “Camera” in

“i-motion”.

2. After confirming the subject, C

•H/FE: You can change the magnification of an

image.

•Q: If you press this key on recording, the moving

image is not saved, and return to stand-by mode to

take a picture.

•C[Stop]: Press this key to end the camera.

3. The shooting is ended.

Menu OK Mail

SavedSaved

Stop

Illuminates in red during shot.

Shot elapsed time/maximum shot time

Shot elapsed time is displayed with a bar.

Menu Rec. Album

107

Multimedia (Camera)

•I[Mail]: You can compose i-mode mail with

attaching the selected file. Go to step 2 on page 139

of “Composing i-mode mail”.

•C[OK]: Return to the Moving Image Finder Stand-by

screen.

•M[Menu] : You can delete the picture in sub-menu.

>P105

Icons on the Moving Image Finder Stand-by Screen

• Indicates the status of the moving image shot setting.

• See “Icons on the Still Image Finder Stand-by Screen”

(P103) for other Icons.

Using the Submenu of the Moving Image

Finder stand-by Screen

You can set up functions to shoot moving images.

Setting item/Setting at purchase >P243

1. From the Moving Image Finder Stand-by screen

(P106), M[Menu] ]Select from the following

submenu items by using J]After setting, C]

I[Close]

(Quality)

You can set the image quality to store shots of moving

images.

(Light)

You can set the radiation method of flash when shooting.

–OFF : Does not flash.

–Always on : Always lights while the video camera is

on.

–When recording : Always lights while recording

regardless of the brightness of the shooting location.

(Zoom)

You can set up the magnification of the images.

(Brightness)

You can set up brightness (exposure) of the images.

(White balance)

You can revise the color tone for the images. This setting

is for shot images with an unnatural color tone.

(Night mode)

This setting is for when shooting a shot in a dark

place, etc.

Description

Icon

Light settings (Always on/when recording)

Recording time (for Mail)

Sound+Video

Video only

Sound only

Movie type

Movie mode (Taking a moving image)

108

Multimedia (Camera)

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

(Effect)

This setting is for when shooting a shot with special

effect applied to the image.

(Recording time)

You can set the recording time for moving images.

(Flicker tuning)

You can set the frequency to protect from waving the

screen.

(Save to)

You can set the location to save shots of moving images.

(Type)

You can set whether or not images / sound are

recorded when shooting moving images.

Information

• If “Recording time” is set to “Mail attach”, the recording time

varies according to the “Quality” setting.

• When you set “Recording time” to “60 mins”, you save the

date in miniSD memory card.

• If you set Flicker tuning, twinkling will not be removed

completely depending on the environment or the color tone of

actual subject.

Using the Submenus of Moving Image

Shooting End Screen

1. From the Moving Image Shooting End screen

(P106), M[Menu] ]Select from the following

submenu items

New movie

The Finder screen returns.

Send via mail

You can attach shot moving images to i-mode mail for

sending. Go to step 2 (P139) of “Composing i-mode

mail message”.

Delete

You can delete shot moving images.

109

i-mode Menu ........................................110

What is i-mode? ...................................110

Displaying the iMenu display...............110

Displaying Sites from Bookmark .........111

Displaying Screen memo .....................112

Displaying Last URL.............................113

Displaying Internet Web Pages ...........113

Displaying MessageR/F .......................114

Checking Whether Center Holds

MessageR/F .........................................117

Setting Functions of i-mode ................117

Displaying Sites....................................120

How to See/Use Sites ..........................122

Using My Menu ....................................125

Changing i-mode Password ................126

i-mode

Select

On the Stand-by display,

C[Menu] ]or “i-mode”

To display the i-mode menu

Select

i-mode

110

i-mode

i-mode Menu

The i-mode menu is the basic display for viewing various

sites and Internet web pages. You can use each function of

i-mode from the i-mode menu.

What is i-mode?

i-mode is the online service that makes use of the display

of the i-mode phone to enable you to use convenient

information from i-mode sites (programs) and homepages

supporting i-mode and to exchange mail easily.

• Refer to “i-mode User’s Manual” for details.

• Not all the services described in “i-mode User’s

Manual” are supported. Check the description of the

models supporting each service with “i-mode User’s

Manual”.

Displaying the iMenu display

C]]

You can access each i-mode site from iMenu.

1. From the i-mode menu (P109), “iMenu”

•

Refer to “i-mode User’s Manual” for items displayed on

the iMenu display.

• See “Displaying Sites” (P120) for the subsequent

operations.

DescriptionMenu item

Connects to the i-mode Center

Displays your favorite sites and Internet

web pages.

Enter URL to connect to the internet.

Displays pages of sites, etc. saved in the

FOMA phone.

Displays the most recently accessed

site or Internet web page.

Bookmark

Last URL

Displays a list of the received

MessageR/F.

Message

You can set the FOMA functions related

to i-mode.

You can check whether the i-mode

Center holds mail and MessageR/F.

Check new

message

Go to

location

Screen memo

i-mode

setting

111

i-mode

Displaying Sites from Bookmark

C]]

You can directly access your favorite sites from Bookmark.

• For the registration method, see “Using the Submenus

of the Site Screen” (P120).

1. From the i-mode menu (P109), “Bookmark”

2. Select a bookmark ]C

• Connected to the site.

Using the Submenus of the Bookmark List

Screen

1. From the Bookmark List screen (See above),

[Menu] ]Select from the following submenu

items

Connect

You can connect to the selected Bookmark site.

Edit bookmark

You can edit the title and URL of the selected

Bookmark. After editing, press I[Done].

Delete

You can delete the selected Bookmark.

Delete selected

You can select and delete multiple Bookmarks. After

selecting, M[Menu]>Select “Delete”

Delete all

You can delete all the Bookmarks registered. To delete

all, C>Enter terminal security code >C[Done].

URL

You can display the URL of the selected Bookmark.

Copy URL

You can copy the URL of the selected Bookmark. For

the copy, see “Copying/Cutting/Pasting” (P209).

Compose message

You can paste the URL of the selected Bookmark to

the text of i-mode mail and send it. Go to step 2 of

“Composing i-mode mail” (P139).

Ir exchange

You can send the selected Bookmark using infrared

rays. For details, see “Using the Infrared Exchange

Function” (P174).

Menu Select

112

i-mode

Displaying Screen memo

C]]

You can display the web pages saved without connecting

to i-mode.

• For the registration method for the site screen, see

“Using the submenus for the Site screen” (P120).

1. From the i-mode menu (P109), “Screen memo”

2. Select a screen memo ]C

• The Screen Memo List screen appears.

Using the Submenus of the Screen Memo

Screen

1. From the Screen memo List screen See above

[Menu] ]Select from the following submenu

items

View

You can display the selected screen memo.

Edit title

You can edit the title of the selected screen memo.

Delete

You can delete the selected screen memo.

Delete selected

You can select and delete multiple screen memos.

After selecting,

[Menu]

Select “Delete”.

Delete all

You can delete all the screen memos. To delete all, C

>Enter terminal security code >C[Done].

URL

You can display the URL of the selected screen

memo.

Protect ON/OFF

You can give or cancel protection for the selected

screen memo. You cannot delete protected screen

memos.

Using the Submenus of the Screen Memo

Screen

1. From the Screen memo display See left M[Menu]

]Select from the following submenu items

Save graphics 1

You can select and save an image contained in a

screen memo. You can confirm the saved image by

“My picture” of “Data box”>”i-mode” folder. >P154

Menu Select

Screen memo

i-mode

DescriptionIcon

Protected Screen

memo

Unprotected Screen

memo

113

i-mode

Show properties

–URL : You can display the URL of the displayed

screen memo.

–Page properties : You can check the title and URL

of the displayed screen memo.

–Certificates 2:You can display the certificate used

by the displayed screen memo.

Retry 3

A GIF animation is played back from the beginning.

Edit title

You can edit the title of the displayed screen memo.

Delete

You can delete the displayed screen memos.

Protect ON/OFF

You can activate or cancel protection for the displayed

the page. You cannot delete protected saved pages.

1: Not selected this menu in case the screen memo does not

include an image.

2: Not selected this menu in case the certificate is not used as a

screen memo.

3: Not selected this menu in case screen memo does not include

of GIF animation.

Displaying Last URL

C]]

When you end i-mode, the URL of the page displayed last is

stored as “Last URL”. By using “Last URL”, you can connect

to the site or Internet web page you visited last time.

1. From the i-mode menu (P109), “Last URL” ]I

[Done]

Information

•

If you press Cin screen of URL, you can edit the latest URL

address.

Displaying Internet Web Pages

C]]

You can display web pages supporting i-mode and

directly access sites from the history of the sites you

visited by entering their URLs.

1. From the i-mode menu (P109), “Go to location” ]

Select from the following items

Input address

You can display Internet web pages supporting i-mode

by entering URLs. After entering, press I[Done] to

access.

URL history

You can directly access sites by selecting URLs you

visited from the URL history.

Information

• You can enter URL up to 256 characters by half width.

• You can view the list up to 50 address in URL history.

• Depending on the type of the accessed Internet site, the page

might not be displayed correctly.

i-mode

114

i-mode

• Web pages other than Internet web pages supporting i-mode

might not be displayed correctly.

Using the Submenus of the URL Screen

1. From URL history screen, press M]Select

submenus

Connect

You can connect the site in URL history.

Edit URL

You can connect URL in history after editing URL

address.

Delete

You can delete the history of URL.

Delete all

You can delete the history of all URL to register. To

delete all, C>Enter terminal security code >C

[Done].

Compose message

You can compose i-mode mail with attaching URL to

the text. Go to step 2 on page 139 of “Composing i-

mode mail”.

Displaying MessageR/F

C]]

You can display received MessagesR/F.

• MessageR:

Your required information is delivered automatically

once you apply for the message service on the site

providing the service.

• MessageF:

Messages are delivered free of charge by performing

the Received settings in the option settings. Refer to

“i-mode User’s Manual” for how to set it up.

: If you register FOMA service since October 1, 2004, the default

setting is Received.

i-mode

115

i-mode

1. From the i-mode menu (P110), “Message” ]

“MessageR”/“MessageF”

•J/FE: You can check the previous or next page when

the multiple pages are.

2. Select a MessageR/F to display ]C

•J: Displays the history of messageR/F.

•FE: You can scroll the screen.

Information

•You can save MessageR up to 100 and MessageF up to 50.

Depending on the size of message, the number of message

to save can be reduced.

Icons on the MessageR/F List Screen and the

Display MessageR/F Screen

Menu Select

MessageR

Menu Select

i-mode

DescriptionIcon

Unread MessageR/F

Read MessageR/F

Protected MessageR/F

Subject

An image is attached.

A file with the UIM operation restriction function

set up is attached.

MessageR/F with a file attached or pasted

Attached melody

A melody is attached or pasted.

Received date and time

116

i-mode

Using the Submenus of the MessageR/F

List Screen

Setting item/Setting at purchase >P244

1. From the MessageR/F List screen (P115),

M[Menu] ]Select from the following submenu

items

Delete

You can delete the selected MessageR/F.

Delete selected

You can select and delete multiple MessagesR/F. After

selecting, M[Menu] >Select “Delete”.

Delete all

You can delete all the MessagesR/F. To delete all, C

>Enter terminal security code >C[Done].

Protect ON/OFF

You can give or cancel protection for the selected

MessageR/F. You cannot delete protected MessagesR/F.

Sort

You can sort MessagesR/F displayed on the List

screen.

Filter

You can change types of the MessageR/F displayed

on the List screen.

Using the Submenus of the Display

MessageR/F Screen

1. From the Display MessageR/F screen (P115),

M[Menu] ]Select from the following submenu

items

Delete

You can delete the displayed MessageR/F.

Protect ON/OFF

You can give or cancel protection for the displayed

MessageR/F. You cannot delete protected

MessagesR/F.

Add to phonebook 1

You can add phone number or mail address displayed

on the MessageR/F to phonebook. Go to step 2 on page

58 of “Adding to the phonebook”.

Save pasted data 2

You can save the melody ( ) to attach the message

request/ free. You can view the saved melody “Melody”

of “Data box” >“i-mode” folder. >

Save attach file 2

You can save the melody ( ) or image ( ) to

attach the MessageR/F. You can view the saved

melody or the image “Melody”/“My picture” of “Data

box”

“i-mode” folder.

P154, P164

1: You can select this menu after selecting the phone number or

mail address to register. If the item to register does not exist,

you cannot activate this function.

i-mode

117

i-mode

2: You can activate this function after selecting the file saved in. If

the file to save in you cannot select this menu.

Automatically Receiving MessageR/F

If you receive a MessageR/F, contents of the MessageR/F

are automatically displayed.

1. Receive a MessageR or MessageF

•

(White) or (White) is displayed.

2. The reception results are displayed

• To confirm the received MessageR/F right away,

select “MessageR”/”MessageF” and then press C.

•Q: Returns to previous screen.

Checking Whether Center Holds

MessageR/F

C]]

You can check whether the i-mode Center holds any i-

mode mail and/or MessageR/F that arrived when the

phone was out of the service area or turned off.

1. From the Stand-by screen, press M[Mail] at least

for two seconds

• The Check Result screen appears. To read the

received MessageR/F right away, select

“MessageR”/”MessageF” and then press C.

Information

•If the i-mode Center holds i-mode mail and/or a MessageR/F,

an icon (P31) is displayed. Note that the icon may not be

displayed if i-mode mail or a MessageR/F arrives at the i-

mode Center while the FOMA phone is turned off.

Setting Functions of i-mode

You can set functions of i-mode and MessageR/F.

Home

C]]

You can set the URL of a web page displayed when “Home”

is selected and whether to enable/disable “Home” (P121).

Setting items/Setting at purchase >P224

1. From the i-mode menu (P109), “i-mode setting” ]

“Home”

2.“Enable” or “Disable”

3. Select the URL field ]C]Enter a URL ]C

• If “ [Done] Disable” is selected, you cannot enter a

URL.

4. I[Done]

i-mode

118

i-mode

View

C]]

You can set functions related to displaying sites and

screen memos.

Setting at purchase >P224, 225

1. From the i-mode menu (P109), “i-mode setting” ]

“View” ]Select from the following setting items ]

After setting, I[Done]

Character size

You can change the character size for text of sites,

screen memos pages and MessagesR/F.

Image display

You can set whether to display images contained in

sites, and screen memos.

Scroll

You can set the number of lines scrolled when

pressing Hon a display displaying text of sites,

screen memos and MessagesR/F.

Message list disp.

You can set whether to display contents of a

MessageR/F in line (1/2 line).

Pasted melody

You can set whether to activate a melody of received

messageR/F. (If you set “Cancel”, the melody is

deleted.)

: MessageR/F is displayed regardless of setting of image display.

Certificates

C]]

You can set a certificate used for displaying SSL-enabled

sites.

1. From the i-mode menu (P109), “i-mode setting” ]

“Certificates” ]M[Menu] ]Select from the

following setting items

Certificate info

You can view the selected certificate.

Valid/Invalid

You can set whether to validate or invalidate the

selected certificate.

• You can check the status of a certificate by the

following symbols. : Valid : Invalid

Information

• If “Valid/Invalid” is set to “Invalid”, you cannot display the sites

with that certificate.

i-mode

119

i-mode

Others

C]]

You can set i-mode connection timeout and the type of

message to check. You can also check the i-mode

settings.

Setting items/Setting at purchase >P225

1. From i-mode menu (P109), “i-mode setting” ]

“Others” ]Select from the following setting items

Connection timeout

It may take long to download from some sites. You

can set the time to wait before cancelling

downloading. (60 seconds, 90 seconds, Unlimited)

After setting, press I[Done].

i-motion auto play

You can set whether to play back an i-motion movie

automatically, for when you have downloaded a

standard (normal) type of i-motion movie from a site.

After setting, press I[Done].

Check new message

You can set the type of message to check for when

you “Check new message” from i-mode mail,

MessageR and MessageF. After setting, press

I[Done].

Check settings

You can check the individual “i-mode setting”.

Reset settings

You can reset each of the “i-mode setting” to their

defaults. To reset the settings, C>Enter terminal

security code >C[Done].

Reset data

Deletes all data related to i-mode (Bookmark, Screen

memo, URL history) except for MessageR/F. But, you

cannot delete the message saved in UIM. To reset the

data, C>Enter terminal security code >C[Done].

Information

• Even when you have set “Connection Timeout” to “Unlimited”,

you may be disconnected owing to radio wave conditions.

i-mode

120

i-mode

Displaying Sites

You can connect to sites by easy key operation, and use

various types of services offered by IPs (Information Service

Providers). (For some sites, you might need to apply to the

IPs separately.)

1. From the i-mode menu (P109), “iMenu”

• blinks during i-mode communication.

2. Select an item (link) ]C

<Site>

•FE: You can scroll the menu.

•P: You can end i-mode.

Information

• If there is a number in front of the item showing the link, you

can connect to that link directly by pressing the same number

on the keypad. Note that some sites cannot be connected.

• Depending on the site, images might not be displayed.

• Depending on the site connected, the confirmation screen

might appear stating that mobile phone information is sent.

Your mobile phone information (the model and the serial

number of your mobile phone) is sent to the IP (Information

Service Provider) over the Internet, so could be deciphered by

third parties. The phone number, address or age are not sent

to IP (Information Service provider).

Using the Submenus of the Site Screen

1. From the Site screen (left), M[Menu] ]Select

from the following submenu items

Add bookmark

You can add the URL of the Site screened to Bookmark.

You can register the site as a Bookmark (Edit mode for

title and URL) by pressing I[Done]. You can access

directly the site from the registered bookmark.

Add screen memo

You can save a displayed web page as a screen

memo. You can display screen memos without

connecting to i-mode. >P112

Save graphics 1

You can select and save an image contained in a web

page.

P124

Show properties

–URL : You can check the URL of the displayed site.

–Page properties : You can check information on

the displayed web page.

–Certificates 2:You can check the certificate used

by the displayed site.

Menu list

Menu Select

i-mode

121

i-mode

Bookmark list

You can view a list of bookmarks registered by “Add

bookmark”. If you select a bookmark, you can directly

access the site.

Go to location

–Input address : You can access web pages

supporting i-mode by entering URL. After entering it,

and then pressing I[Done], you can connect the

site.

–URL history : You can select the URL history of a

displayed site to directly access the web page.

Screen memo list

You can view a list of pages saved as “Screen Memo”.

You can display the saved page by selecting it.

You can bring up the iMenu display.

Home

You can display the web page registered as “Home”

(P111).

Reload

You can reload data of a site. The contents of the site

will change to the latest information each time you

reload if the site has been updated.

Compose message

You can send the URL of site being displayed or the

URL for link with them inserted in the message. Go to

step 2 on page 139 of “Composing message”.

Change char. code

When characters are not displayed correctly, you can

convert them to the correct ones.

Add to phonebook 3

You can add the phone number and mail address

displayed on the web page to the phonebook. Go to

step 2 on page 58 of “Adding to phonebook”.

Retry 4

You can play back a GIF animation from the beginning.

1: You cannot activate this menu in case the image to save is not

included in a site or “Image” is set to not display. (P118)

2: If you don't have a certificate to access the site, you cannot

use this menu.

3: After selecting the phone number or mail address to register,

you can activate this menu. Otherwise, you cannot activate it.

4: You cannot activate this menu when GIF animation is not

included on displayed site.

i-mode

122

i-mode

Information

• A few sites cannot be allowed to save as a bookmark.

• When characters are not displayed correctly even after

“Change char. code”, repeat the operation. However, even

when you repeat this operation, the correct characters might

not come up. The original characters are displayed if you

repeat the operation four times.

• If you “Change char. code” when the correct characters are

displayed, wrong characters might come up instead.

SSL Pages

SSL pages use data encryption for data transmission to

prevent hacking and source-file overwriting so that you

can more safely exchange personal information.

• If you try to display an SSL-enabled page, the SSL

communication starting message appears. When an

SSL page is displayed, appears.

• When moving from an SSL page to a regular page, the

confirmation display appears. After “Yes” is selected, a

regular page is displayed and disappears.

How to See/Use Sites

Entering/Selecting Information on Sites

When you use a site, you may enter characters (text box) or

select an item from multiple choices (radio button, checkbox,

pull down menu).

i-mode

Used for item selection.

You can select only one

item.

Radio button

Used for item selection.

You can select multiple

items.

Checkbox

Display

Example Description

Name

You can enter characters.Text box

Used for item selection. If

you select a pull down

menu, a list of selectable

items is displayed.

Pull down

Password

Tokyo

Saitama

Kanagawa

Unselected

Selected

Unselected

Selected

123

i-mode

Returning to Obtained Previous Page/Going

to Obtained Next Page

The FOMA phone stores the last few screens displayed.

1. To display the previous page, L

To display the next page, R

Operations from Highlighted Information

You can easily make a call, send mail, and display Internet

web pages using highlighted information (phone numbers,

mail addresses, URLs, and so on) displayed on sites and in

mail and MessageR/F.

Phone To function/AV Phone To function

You can make a call by selecting displayed information

such as a phone number.

• You may not be able to use the Phone To/AV Phone To

function depending on the site.

1. Select information such as a phone number ]C

2. “Voice call”/“Video-phone call”

• You can send make a call after setting the Caller ID

notification depending on the screen.

Information

• You can add phone number information displayed on a web

page to the phonebook from the submenu of the site screen.

Mail To function

You can send mail by selecting displayed information such

as a mail address.

• You may not be able to use the Mail To function

depending on the site.

1. Select information such as a mail address ]C

• Go to step 2 of “Composing i-mode mail” (P139).

Information

• You can add mail address information displayed on a web

page to the phonebook from the submenu of the site screen.

Web To function

You can display a web page by selecting displayed

information such as URL.

• You may not be able to use the Web To function

depending on the site.

i-mode

124

i-mode

1. Select information such as URL ]Press I[Yes]

• If the confirmation screen to connect appears, press

I[Yes].

i-appli To function

You can start i-appli by selecting the displayed URL (link).

1. Select i-appli information ]C]I[Yes]

• After downloading is done, the screen for

confirmation will be displayed.

Information

• If “i-appli To” (P150) is set to “OFF”, you cannot start i-appli by

this operation.

Downloading Images from Sites

You can set images saved from the displayed web page

or screen memos. You can check the saved images by

“My picture” of “Data box” >“i-mode” folder. >P154

1. Displaying Site/ Saved Page screen ]

[Menu] ]

“Save graphics” ]

]Select an image ]

]

“Yes”

Information

• Some images cannot be saved.

• You cannot select “Save graphics” if the image to save is not

included or “Image” (P118) is set to not to save.

Downloading i-melody from Sites

You can download a melody from a site and set it.

1. Display a site that supports downloading of

melodies ]Select a melody ]C

• After the download is completed, the confirmation

screen appears.

2. Video content menu

• Save: You can save the downloaded melody.

• Play: You can play the downloaded melody.

• File property: This menu allows to view the

information of i-motion downloaded from network.

• Back: The menu is returned back to the site not

saving the melody.

Information

• Depending on the site, you might not be able to download

melodies.

• Some downloaded melodies might not be played back

successfully.

i-mode

125

i-mode

Obtaining i-motion Movies from Sites

The i-motion movie is a moving image file containing

images and sound. You can obtain i-motion movies from

sites supporting i-motion movies. >Check the “i-mode”

folder (P161).

• See “i-mode User’s Manual” for details.

1. Select an i-motion movie on a site that supports

downloading of i-motion movies ]C

• After downloading is done, the screen for

confirmation will be displayed.

2. Video content menu

• Save: You can save the i-motion downloaded from

network.

• Play : This menu allows to play i-motion downloaded

from network.

• File property : This menu allows to view the

information of i-motion downloaded from network.

• Back : This menu allows to return the site not saving

i-motion.

Information

• You can change the playback methods for while downloading

i-motion movies. >P119

• Some downloaded i-motion movies might not be played back

correctly.

• You cannot download i-motion movies in the streaming type

and the ASF format.

Using My Menu

If you register frequently used sites in My Menu, you will

be able to access them easily.

Registering Sites in My Menu

Bring up the page of the site to be registered

]

Select

“Register My Menu”

2. Select the i-mode password text box ]C]Enter

the i-mode password ]C]”Select”

• See “Changing i-mode Password” (right) for i-mode

password.

Information

• Some sites cannot be registered in My Menu.

• When you subscribe to a pay site in Menu List, it will be

registered in My Menu automatically.

Displaying Sites from My Menu

1. From the Stand-by display, I]”iMenu” ]

”My Menu” ]Select a site to access ]C

i-mode

126

i-mode

Changing i-mode Password

The “i-mode password” (four digits) is required to

subscribe to and unsubscribe from message services and

i-mode pay sites, and to do i-mode mail settings. At

purchase, this password is set to “0000” (four zeros), so

you need to change it to your own i-mode password. Be

sure not to let others know your i-mode password.

1.On the Stand-by display, I]“iMenu” ]

“Options” ]“Change i-mode Password”

2. Select the “Current Password” text box ]C]

Enter your i-mode password (four digits) ]C

• At purchase, the setting is “0000”, so enter “0000”

for the first time.

3. Select the “New Password” text box ]C]Enter

a new i-mode password (four digits) ]C

4. Select the “New Password (Confirmation)” text box

]C]Enter a new i-mode password (four digits)

] C]“Select”

• Enter the same number that you did in step 3.

Information

• If you forget your i-mode password, you can have it reset to

“0000” at a handling counter such as a DoCoMo shop. You

will be required to show your official identification (driver’s

license, etc.).

127

Mail Menu .............................................128

i-mode Mail...........................................128

Displaying Mail in Inbox.......................129

Displaying Mail in Outbox....................134

Displaying Mail in Unsent message ....137

Composing Mail ...................................139

Checking New i-mode mail and

Message ...............................................143

Receiving Selected Mail ......................143

Checking whether Center Holds SMS....144

Changing Mail Settings........................144

Mail

Select

Inbox

On the Stand-by display,

C[Menu] ]or “Mail”

To display the Mail menu

Select

Mail

Mail Menu

On the mail menu, the mail functions offered by the FOMA

phone are displayed.

i-mode Mail

The i-mode phone has the mail functions for exchanging e-

mail (electronic mail) via the Internet. You need to subscribe

to “i-mode” to use i-mode mail.

• See “i-mode User’s Manual” for more details.

• This model does not support all the services described

in “i-mode User’s Manual.”

Check which models support which services in “i-mode

User’s Manual.”

SMS messages (short messages)

You can send and receive SMS messages between

FOMA phones without subscribing to i-mode.

Sending and receiving SMS messages with subscribers to

overseas carriers in addition

to DoCoMo are also available. For information on the

countries and overseas carriers with which SMS

messages can be exchanged, see DoCoMo’s web site.

• Refer to “Network Services User’s Guide” for more

details.

Displaying Mail in Inbox

C]]

The inbox folder list is displayed. You can sort mail by

folder. When you open a folder, you can check the

records and contents of received i-mode mail and SMS

messages.

128

Mail

DescriptionMenu item

Inbox You can check the records and contents of

received i-mode mail and SMS messages.

You can check the records and contents of

sent i-mode mail and SMS messages.

You can check the contents of temporarily

saved i-mode mail and SMS messages.

You can bring up the display to compose

i-mode mail/SMS.

You can receive i-mode mail held at the i-mode

Center by checking the SMS Center.

You can receive SMS messages by checking the

SMS Center.

Outbox

Unsent

message

Compose mail

Check new

message

Receive option You can check the subjects of i-mode mail

held at the i-mode Center and select mail to

receive, or delete mail at the Center before

receiving it.

Check new

SMS

Mail setting You can change the settings of each mail

function of the FOMA phone.

1. From the Mail menu, “Inbox”

2. Select a folder ]C

•J/FE: You can view previous or after pages.

3. Select mail ]C

•I

[Reply]: You can reply the receiver. Go to step 3 on

page 139 of “Composing i-mode mail” / step 3 of page

141 “Composing SMS”.

•J: You can view previous or next mail.

•FE: You can scroll the screen.

Information

• To delete all displayed the contents in box setting “Security”

(P145) C>Enter terminal security code >C[Done].

• The deco mail via FOMA phone includes of text and URL.

If you select the URL, you can read deco mail. >P134

• You can save mail/SMS the maximum up to 400. Depending

on the size of mail/SMS, the number of mail/SMS to save can

be reduced.

Icons on the Received Mail Folder List Screen

Menu Reply

Ŧ: The menus are displayed same as

Ŧ2 ~ Ŧ3 of screen in the list of

received mail.

SubjectŦ

SenderŦ

The date to receive the mailŦ

Inbox

Menu Select

DoCoMo Taro

Hanako

DoCoMo Ichiro

SubjectŦ3

The time to receive the mailŦ1 SenderŦ2

Ŧ1: The mail you receive is displayed

on a time basis that day. From

the next day on, each message is

displayed by the date when you

received it.

Ŧ2: The name is displayed when the

entry is saved in phonebook.

Ŧ3: SMS is displayed as “SMS”

The number of not read mail

Folder

Inbox (1)

Menu Select

129

Mail

DescriptionIcon

(gray) Folder without unread mail/ SMS messages

Received Mail List and Marks on Display Screen

Using the Submenu of the Received Mail Folder

List Display

1. On the Received Mail Folder List screen (P129),

M[Menu] ]Select from the following submenu

items

Create folder

You can add a folder.

Rename folder

You can edit the name of the selected folder.

Mail received as To-type or sender

Mail received as Cc-type

Mail received as Bcc-type

A melody is pasted.

130

Mail

DescriptionIcon

A melody is attached.

i-appli launch information is pasted.

i-appli launch information is damaged.

An pasted melody is damaged.

DescriptionIcon

Unread mail

Read mail

Unread SMS messages

Read SMS messages

Unread SMS reports

Read SMS reports

Unread SMS messages in the UIM

Read SMS messages in the UIM

Protected mail/ SMS messages

Forwarded mail/ SMS messages

Replied mail/ SMS messages

Subject

Mail with a file to which the UIM

restrictions are set attached

Mail with a file attached or pasted

DescriptionIcon

Folder with unread mail/ SMS messages

Created folder without unread mail/ SMS

messages

Created folder with unread mail/ SMS

messages

(gray)

(blue)

Received date and time

An image is attached.

An image of 10000 byte over is attached.

An i-motion file is attached.

An pasted data is damaged.

131

Mail

Delete folder

You can delete the selected folder. You cannot delete

a folder in which mail is saved.

Auto-sort

You can set sort conditions to the selected folder. Go

to step 2 of “Distributing the received mail to the

folder automatically” (P133).

: These operations are not available when you select Inbox.

Using the Submenu of the Received Mail

List Screen

Setting item/Setting at purchase >P244

On the Received Mail Folder List screen (P129),

M[Menu] ]Select from the following submenu items

Move to folder 1

You can move the selected mail to other added folders.

Delete

You can delete the selected mail.

Delete selected

You can select and delete multiple mail messages. After

selecting mail messages, M[Menu]. >Select “Delete”.

Delete all

You can delete all mail messages in the folder. To

delete all, C>Enter terminal security code >C

[Done].

Protect ON/OFF 1

You can set or cancel the protection to the selected

mail. Protected mail cannot be moved/deleted.

Sort

You can sort the mail messages displayed on the List

display.

Filter

You can change the type of the mail messages displayed

on the List display.

UIM 2

You can move and copy the selected SMS message

to the UIM, and move and copy the SMS messages in

the UIM to the FOMA phone.

1: You cannot use this menu of SMS in the UIM.

2: You cannot use this menu in protected SMS or SMS delivery

report.

Information

• You can move mail messages from the created folder by user

to the pre-installed folders.

• If the inbox is full, the read mail will not be deleted until the

space is available to receive new mail.

Using the Submenu of the Received Mail

Display Screen

1. On the Received Mail Folder List screen (P129), M

[Menu] ]Select from the following submenu items

You can reply after selecting the method to reply. Go to

step 3 on page 139 of “Composing i-mode mail”/ step 3

on page 141 “Composing SMS”.

Mail

132

Mail

– Reply 1:You can reply to the sender of i-mode mail

from the detailed received mail list.

– Reply quoted 1:You can send the reply with

quoting the original text in your received i-mode mail.

– Reply all 1:You can reply all receivers and senders

at the same time.

– Reply quoted all 1:You can reply all receivers and

senders with quoting the original text in your

received i-mode mail.

Forward

You can forward the displayed mail to other party. Go to

step 2 (P139) of “Composing i-mode mail” or step 2 (P141)

of “Composing SMS messages.

Move to folder 2

You can move the displayed mail to other added

folders.

Delete

You can delete the displayed mail.

Protect ON/OFF 2

You can set or cancel the protection to the displayed

mail. The protected mail messages cannot be

moved/deleted.

Store address

You can register mail address/ phone number of

receiver on displaying the mail. Go to step 2 on page

58 of “Adding to Phonebook”

Add to phonebook 3

You can add the mail address included with other

address and phone number of the sender of the

displayed mail to the phonebook. Go to step 2 of

“Adding to Phonebook” (P58).

Save pasted data 1 4

You can save the melody ( ) pasted to the displayed

mail. You can check the saved melodies by selecting

“Data box”. >“Melody”. >“i-mode” folder. >P164

Save attach file 4

You can save an image ( ) and a melody ( ) of up

to 10000 bytes attached to the displayed mail. You can

check the saved images by selecting “Data box”. >

“My picture”. >“i-mode” folder. >P154, P164

Copy

• After selecting the item, see “Copying/Cutting/Pasting”

(P209).

– Body: You can copy the text.

– Subject 1:You can copy the title.

–

Sender: You can copy e-mail address or phone number

to sender.

UIM 5

You can move and copy the displayed SMS message

to the UIM, and move and copy the SMS messages in

the UIM to the FOMA phone.

1: This menu is not displayed in SMS.

2: You cannot use this menu in SMS of UIM.

Mail

133

Mail

3: You can activate this menu after selecting mail address and

phone number to register. Otherwise, you cannot activate this

function.

4: You can activate this menu after selecting the file to save. If the

file does not exist, you cannot activate this function.

5: You cannot activate this menu in i-mode mail, protected SMS.

Information

• The Submenu items for the SMS report / voice mail incoming

notification display screen are “Move to folder”, “Delete,” and

“Protect ON/OFF” only.

Distributing the received mail to the folder

automatically

The mail or SMS is applicable for the condition can be

saved the folder automatically. You can set this only to

additional folder.

1. On the Received Mail Folder List screen (P129),

select a folder to specify conditions ]M[Menu]

]Auto Sort

• The screen for automatic sort is displayed.

2. M[Menu] ]Select sub-menu.

Address 1 2

You can enter e-mail address or phone number to

distribute each folder.

– Open phonebook: You can input the phone

number in phonebook.

– Input address: You can input the address. When

you enter e-mail address, you input correctly to a

domain (the part of after @ mark).

Subject 1 2

You can input the subject of mail to distribute a folder.

Release

You can cancel one of conditions of distribution of folder.

Release all

You can cancel all conditions.

1 : You cannot set the multiple conditions in same folder.

2 : If the received mail is under multiple conditions, the setting of

“Address” is preferred.

Receiving i-mode Mail/SMS Messages

Automatically

When the FOMA phone is in the service area, it

automatically receives i-mode mail/ SMS messages.

1. Mail or an SMS message is received

• (White) or (White) is displayed.

2. The result of the reception is displayed

• If you want to check the received i-mode mail

message immediately, select “i-mode mail”, and then

press C.

•If you want to check the received SMS message

immediately, press C

•Q: Go to previous screen.

Mail

134

Mail

Saving Images over 10000 bytes

A JPEG image over 10000 bytes is not downloaded

properly to the FOMA handset. Therefore, you can save it

after extracting the data from URL for image view in mail

text, and connecting i-shot center.

1. On the Received Mail Folder List screen (P129),

select “URL” ]C]“Yes”

• For the method saving images, see “Obtaining

Images from Sites” (P124).

Information

• You can view the contents of received Deco-mail by this way.

Downloading i-motion Movies from i-motion Mail

Data of i-motion mail is not downloaded to the FOMA phone

even when it is received. You need to access the i-motion

mail Center from its URL given to the mail text to see an i-

motion movie to download and save the data. The saved i-

motion can be checked in “i-motion” of “Data box” >

“i-mode” folder (P161).

1. From the Received Mail Folder List screen (P129),

select the URL ]C]I“Yes”

• You can start to download i-motion.

• When downloading, you can play a few i-motions at the

same time.

2. After downloading, press Q

• Save: You can save the downloaded i-motion.

• Play: You can play downloaded i-motion.

• File property: You can view information of downloaded i-

motion from a site.

• Back: The site will be returned, not saving i-motion.

Displaying Mail in Outbox

C]]

The Sent Mail List is displayed. You can check the records

and contents of sent i-mode mail and SMS messages.

1. From the Mail menu (P127), select “Outbox”.

•J/F,E: If there are multiple pages, the previous or next

page is displayed.

Outbox

Menu Select

SubjectŦ3

The time to send the mailŦ1 ReceiverŦ2

Ŧ1: The mail you receive is displayed

on a time basis that day. From

the next day on, each message is

displayed by the date when you

received it.

Ŧ2: The name is displayed when the

entry is saved in phonebook.

Ŧ3: SMS is displayed as SMS

docomo. taro

docomo. jiro

docomo. saburo

Mail

2. Select a mail ]C

•J: Display the previous or next page.

•FE: Scroll by screen.

Information

• To display the box which is set “Security” (P145), press C>

Enter terminal security code >C[Done].

• You can save mail/SMS the maximum up to 400. Depending

on the size of mail/SMS, the number of mail/SMS to save can

be reduced.

Icons on the Sent Mail List display and the Sent Mail

display screen

Menu Select

Ŧ: The menus are displayed same as

Ŧ2 ~ Ŧ3 of screen in the list of

received mail.

SubjectŦ

The time to send the mailŦ

ReceiverŦ

135

Mail

Description

Icon

Mail successfully sent

Mail failed to be sent

SMS message successfully sent

Sent SMS messages in the UIM

SMS message failed to be sent

Protected mail/ SMS messages

Mail with a file attached

Mail with an attached file to which UIM

restrictions are set

Description

Icon

Mail address failed to be sent as

To-type mail

Mail address successfully sent as

Cc-type mail

Mail address failed to be sent as

Cc-type mail

Mail address successfully sent as

Bcc-type mail

Mail address failed to be sent as Bcc-

type mail

An image is attached.

A melody is attached.

Moving images are attached.

Subject

Mail address successfully sent as

To-type mail

Sent date and time

136

Mail

Information

• When sending an SMS message, the first part of the text is

displayed in the subject field of the list screen.

Using the Submenu of the Sent Mail List

Screen

Setting item/Setting at purchase >P244

1. From the Sent Mail Folder List screen (P135), M

[Menu] ]Select from the following Submenu items

Edit

You can edit the selected mail again. See

“Composing i-mode mail” (P139) / “Composing SMS

messages” (P141).

Delete

You can delete the selected mail.

Delete selected

You can select and delete multiple mail messages. After

selecting mail messages, M[Menu] >Select “Delete”.

Delete all

You can delete all mail messages in the folder. To delete

all, C>Enter terminal security code >C[Done].

Protect ON/OFF 1

You can set or cancel the protection to the selected

mail. Protected mail cannot be deleted.

Sort

You can sort the mail messages displayed in the list

screen.

Filter

You can change the type of the mail messages

displayed in the list display.

UIM 2

You can move and copy the selected SMS message

to the UIM, and move and copy the SMS messages in

the UIM to the FOMA phone.

1 : You cannot use this menu of SMS in the UIM.

2 : You cannot use this menu in i-mode mail or SMS delivery report.

Using the Submenu of the Sent Mail Display

Screen

1. From the Sent Mail Display screen (P134), M

[Menu] ]Select from the following Submenu items

Edit

You can edit the displayed mail again. Go to step 2 in

“Composing i-mode mail” (P139) /“Composing SMS

messages” (P141).

Delete

You can delete the displayed mail.

Protect ON/OFF 1

You can set or cancel the protection to the displayed

mail. The protected mail messages cannot be deleted.

Store address

You can register mail address/phone number of

receiver on displaying the mail. Go to step 2 on page

58 of “Adding to Phonebook”.

Mail

137

Mail

Add to phonebook 2

You can add the mail address and phone number of

the sender of the displayed mail to the phonebook.

Go to step 2 (P58) of “Adding to Phone Book”.

Copy 3

• After selecting the item, see “Copying/Cutting/

Pasting” (P209).

– Body: You can copy the text.

– Subject: You can copy the subject.

UIM 4

You can move and copy the displayed SMS message

to the UIM, and move and copy the SMS messages in

the UIM to the FOMA phone.

1: This function is not available in SMS of FOMA card.

2: After select the mail address/ phone number, you can activate

the function. Otherwise, you cannot activate the menu properly.

3: This function is not available for of the SMS.

This function is not available for the protected SMS.

Displaying Mail in Unsent message

C]]

The Unsent message List is displayed. You can check the

contents of saved i-mode mail and SMS messages which

have not been yet sent.

1. From the Mail menu (P127), “Unsent message”

•J/FE

: Displays the previous and next page in case

of being many pages.

2. Select a mail ]C

Information

• To display the box which is set “Security” (P145), press C>

Enter terminal security code >C[Done].

• You can save mail/ SMS the maximum up to 400. Depending

on the size of mail/ SMS, the number of mail/SMS to save can

be reduced.

Menu Select Send

Compose message

1Kbyte

0Kbyte

Unsent message

Menu Select

DoCoMo Ichiro

SubjectŦ3

The time to saveŦ1 ReceiverŦ2

Ŧ1: The mail you save is displayed on

a time basis that day. From the

next day on, each message is

displayed by the date when you

saved it.

Ŧ2: The name is displayed when the

entry is saved in phonebook.

Ŧ3: SMS is displayed as “SMS”

Mail

138

Mail

Icons on the Unsent Mail List display and the Unsent

Mail display screen Using the Submenu of the Unsent Message

List Screen

Setting item/Setting at purchase >P245

1. From the Unsent Message List screen (P137),

[Menu] ]Select from the following submenu

items

Send

You can send the selected mail.

Delete

You can delete the selected mail.

Delete selected

You can select and delete multiple mail messages.

After selecting mail messages, M[Menu]. >Select

“Delete”.

Delete all

You can delete all mail messages in the folder. To

delete all, C>Enter terminal security code >C

[Done].

Sort

You can sort the mail messages displayed in the list

display.

Filter

You can change the type of the mail messages

displayed on the list display.

Mail

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

DescriptionIcon

Unsent mail

Unsent SMS message

Mail with a file attached

A damaged file is pasted.

Subject

Address of To-type

Address of Cc-type

Mail with an attached file to which UIM

restrictions are set

Attached file

A pasted melody file is attached.

i-appli launch information is pasted.

A melody file is pasted.

An image file is attached.

A moving image file is attached.

A damaged melody file is attached.

Text

Address of Bcc-type

139

Mail

Using the Submenu of the Unsent Mail

Display Screen

From the Unsent Message List screen (P137), press

[Menu] and select a submenu item. See “Using the

Submenu of the Compose Mail display” (P142)/“Using the

Submenu of the Compose SMS Screen” (P142) for the

available submenu items.

Composing Mail

Composing i-mode Mail

C]]

You can create and send new i-mode mail.

1. From the Mail menu (P127), select “Compose Mail”

]“Compose message”

2. Select the Address field ]

]Enter the

address ]

3. Select the Subject field ]

]Enter the

subject ]

• In case of not attaching the file, Go to step 5.

4. Select (Attach file) item ]

]Add attached

file

• Select the file saved “My picture” of Data box” (P154)

/ “Melody”(P164) .

5. Select the Message field ]

]Enter

message ]

[Send]

Information

• Depending on the radio wave conditions, the characters might

not be sent successfully to the destination.

• You register “Phone number XXXX” or “Phone number

XXXX@docomo.ne.jp” (XXXX: Security code) when you add

the mail address including of security code of four digits. For

details, refer to “i-mode User's manual”.

• When half-pitch katakana and pictographs are used for mail

except for when exchanging mail between i-mode phones.

They might not be displayed correctly.

Using the Submenu of the Compose Mail

Display

1. From the Compose Mail display (See left)

[Menu]

]Select from the following Submenu items

Compose message

0Kbyte

Menu Select Send

Mail

140

Mail

Send

You can send the i-mode mail that you are

composing or editing.

Save

You can save the i-mode mail that you are composing

or editing in unsent message.

Add address

You can add addresses. You can specify multiple

addresses to send same i-mode mail to multiple

recipients at the same time. You can send same mail

to up to five addresses at a time.

– Open phonebook: You can add the address by

searching the phonebook.

– Input address: You can input the address directly.

Address menu 1

– Open phonebook: You can add the address by

searching the phonebook.

– Input address: You can input the address directly.

– Change to To: You can change the setting of

receiver to "To".

– Change to Cc: You can change the setting of

receiver to "Cc".

– Change to Bcc: You can change the setting of

receiver to "Bcc".

– Delete address: You can delete the address.

Attach file menu

– Attach file: You can select the file in “My picture”

(P154) / “i-motion” (P161) / “Melody” (P164) of “Data

box”.

– Delete att. file 2:You can delete the attachment file.

– Play/ Display file 2:You can play or view the file.

Add signature

You can insert a signature at the end of the text of mail.

• You need to register the signature beforehand.

>p145

Delete body

You can delete the i-mode mail that you are

composing or editing.

Delete mail

You can delete the mail on composing or editing.

1 : After selecting / / , you can operate the menu.

2 : After selecting , you can operate the menu.

Information

• The type or receiver

– To: Stands for the usual receiver

– Cc: You select Cc to inform the contents except for direct

receiver.

– Bcc: You select Bcc to inform the contents if you don't want

to be known to other receivers except for direct receiver.

• About attachable files

Mail

Maximum number of filesType of file

Melody

Up to 10 files 1

1 file 2

Image of 10,000 bytes

or less (JPEG, GIF)

Moving image/ i-motion movie

Image over 10,000

bytes (JPEG)

141

Mail

1 : Up to 10 files when the total size of a data file including

melodies and images is equivalent of 5,000 full-pitch

characters (i.e., 10,000 bytes).

2 : You can attach either an image or moving image/

i-motion movie of up to 10 Kbytes. You can attach the

file separately from melody files and images of 10,000

bytes or less.

• You cannot attach files that are prohibited from being

attached to mail or output from the FOMA phone to other

devices.

• When a JPEG image or an i-motion movie in excess of 10,000

bytes is attached, the number of characters you can enter in

the text field decreases by the equivalent of 100 full-pitch

characters (200 half-pitch characters).

• The i-mode phone of the mova service cannot receive GIF

images and melodies.

• Some attached files might be deleted at the i-mode Center or

not be received, displayed, or played properly by the

recipients.

Using the Submenu of the Creating next

Entry Screen

From creating next Entry screen press

[Menu] and select a

Submenu item. See “Using the Submenu of Character Entry

display” (P208) for the available Submenu items.

Composing SMS messages

C]]

You can create and send SMS messages. You can send

and receive SMS messages to and from the subscribers

to overseas carriers in addition to DoCoMo. For

information on the countries and overseas carriers with

which SMS messages can be exchanged, see DoCoMo’s

web site.

1. From the Mail menu (P127), select “Compose Mail”

]“Compose SMS”

2. Select the Address field ]

]Enter the

recipient’s phone number ]

3. Select the Message field ]

]Enter the

message ]

4. I[Send]

Menu Select Send

Compose SMS

Mail

142

Mail

If the recipient is a subscriber to an overseas carrier

other than DoCoMo:

“+” (Press key two times) ]“Country code” ]

“Mobile phone number of the recipient”

• If the mobile phone number starts with 0, enter the

number by omitting “0”.

Information

• Depending on the radio wave conditions, the characters might

not be sent successfully to the destination.

• When you send an SMS message to a subscriber to an

overseas carrier, if characters that the other party does not

support are included in its text, they might not be displayed

correctly.

• If the receiver has i-mode phone of mova service, it may be

received SMS from FOMA phone as i-mode mail.

• You cannot replay to an SMS message from a concealed

number / payphone/number with notification not supported.

• If the full-pitch characters are entered over 70 digits, some of

then can be deleted.

Using the Submenu of the Compose SMS

Display

1. From the Compose SMS display (P141),

[Menu]

]Select from the following Submenu items

Send

You can send an SMS message that you are

composing or editing.

Save

You can save an SMS message that you are

composing or editing in Draft box.

Address menu

– Open phonebook: You can add the address by

searching the phonebook.

– Input address: You can input the address directly.

SMS report request

You can set whether to request a report for the SMS

message that you are composing. An SMS report is

an SMS message to notify you when your SMS

message reaches the recipient.

SMS validity term

You can set the period during which the SMS Center

keeps the SMS message that you are composing or

editing when the recipient cannot receive it

immediately.

Delete body

You can delete a sentence inputting in text. The

phone number of receiver will not be deleted.

Delete SMS

You can delete the SMS message that you are

composing or editing.

Mail

143

Mail

Using the Submenu of the Compose SMS

Display

From the Compose SMS display, press M[Menu] and

select a submenu item. See “Using the Submenu of the

Character Entry display” (P208) for the available

Submenu items.

Checking New i-mode mail and Message

C]]

When your FOMA phone has been off or out of the service

area, you can check whether or not the i-mode Center

holds i-mode mail and messageR/F.

1. From the Stand-by screen, press Mfor at least

two seconds

• The Check results display appears. To read the

received i-mode mail immediately, select “Mail” and

press C.

Information

• When the i-mode Center holds i-mode mail and messageR/F,

the relevant icon (P31) is displayed. When mail or messages

arrive at the Center when, for instance, your FOMA phone is

off, the icon might not be displayed.

• Even when “Receive option” is set to “ON,” you will still receive

all mail messages held at the Center if you use “Check new

message.” If you do not want to receive all mail messages,

unmark “Mail” from the “Check new message” (P144).

Receiving Selected Mail

C]]

You can check the subject of i-mode mail held at the i-

mode Center and select mail to receive, or delete mail at

the Center before receiving it.

To use this function, you need to set “Receive option”

(P144) to “ON” beforehand.

1. From the Mail menu (P127), “Receive option”

• The phone is connected to the Center, and the

display for selecting mail to receive is displayed.

2. Select the pull-down menu for each mail ]C]

Select “Receive”, “Delete” or “Hold” ]C

3. Select “Receive/Delete” ]C

• The confirmation window is displayed.

4. Select “OK” ]C

• In step 2, the mail messages for which “Receive”

was selected are received immediately.

Information

• See “i-mode User’s Manual” for other operating methods in

addition to the aforementioned one and the icons in the

display

Mail

144

Mail

Checking whether Center Holds SMS

C]]

When your FOMA phone has been off or out of the service

area, you can check whether or not the SMS Center holds

SMS messages.

1. From the Mail menu (P127), “Check new SMS”

• The Check results display appears. To read the

received SMS messages immediately, select SMS

and press C.

Changing Mail Setting

Communication

C]]

You can change the settings related to communication of

mail and SMS messages.

Setting items/Setting at purchase >P228

1. From the Mail menu (P127), “Mail setting” ]

“Communication” ]Select from the following

setting items ]After setting,

[Done]

Receive opt. setting

You can set whether to select i-mode mail to receive.

If this function is set to “ON,” you cannot receive i-

mode mail automatically.

Receive attach file

You can set whether to receive images or melodies

attached to i-mode mail.

Check new message

When you receive messages by conducting “Check

New Message,” you can select an item to check from

i-mode mail, messageR, and messageF.

SMS report request

You can set whether to request an SMS report when

sending an SMS message. The SMS report notifies

you when your SMS message is delivered to the

destination.

SMS validity term

You can set the period of time that SMS messages

are held at the SMS Center when the recipient cannot

receive the messages.

Information

• The attachment file is set cannot be received because the

file is deleted from i-mode center.

• You can receive the melody of MFi format to attach to the

body of mail when you set the attachment .

Mail

145

Mail

Edit

C]]

You can make the settings related to a signature to be

attached to the mail text and quotation mark for when

replying to mail.

Setting items/Setting at purchase >P228, P229

1. From the Mail menu (P127), “Mail setting” ]“Edit”

]Select from the following setting items ]After

setting, I[Done]

Edit signature

You can set whether to automatically attach your

name and address (signature) at the end of the text

and can set the text of a signature.

Edit quotation

You can set symbols or sentences to be attached to

the head of the original text (quotation mark) for

“Reply quoted”.

View

C]]

You can make the settings related to the display of mail

and SMS messages.

Setting items/Setting at purchase >P229

1. From the Mail menu (P127), “Mail setting” ]

“View” ]Select from the following setting items ]

After setting, I[Done]

Character size

You can set the character size of the text on the Mail

display screen.

Scroll

You can set the number of lines to scroll when

pressing

on the Mail display screen. (1 line/ 3

lines/ 5 lines)

Mail list display

You can set the display method (the number of

lines/the contents displayed) on the mail list display.

Folder security

You can set security to Inbox, Sent box, and Draft box

in the Mail menu. To display the messages in the box

with security set, C>Enter terminal security code >

C[Done].

Melody auto play

You can set whether to automatically play a melody

attached or pasted on the mail display screen.

Pasted data

You can set whether to activate a melody or an i-appli

to data pasted to the received mail text.

Mail

146

Mail

Others

C]]

You can check the settings made in “Mail setting” and

reset the settings to the default.

1. From the Mail menu (P127), “Mail setting” ]

“Others” ]Select from the following setting items.

Check settings

You can check the settings made in the “Mail

settings”.

Reset settings

You can reset the settings made in the “Mail settings”

to the default. To reset settings, C>Enter terminal

security code >C[Done].

Reset data

You can delete all mail messages and MessageR/F

stored in the FOMA phone. To reset the datal, C>

Enter terminal security code >C[Done].

147

What is i-appli.......................................148

Downloading i-appli from Sites ...........148

Starting i-appli......................................149

i-appli

On the Stand-by display,

C[Menu] ]or “i-appli”

To display the Software List

Menu Select

Software list

āāࣻࣻɁຢɈൌഀ

Select

i-appli

148

i-appli

What is i-appli

By downloading various software programs on sites and

saving them into the FOMA phone, you can automatically

update the stock prices, weather information, etc. and

enjoy games even without connecting to the network.

• Refer to “i-mode User’s Manual” for details.

• This model does not support all the services described

in “i-mode User’s Manual”. Check which models

support which services in “i-mode User’s Manual”.

Downloading i-appli from Sites

Download the software from Sites and start the FOMA

phone.

1. Display a site that supports downloading of i-appli

]Select an item that enables you to download the

software ]C

2. After the download is finished, C

• After the download is finished, the communication

setup display may appear. After setting, press I

[Done].

• Some software may start right after it is downloaded.

In that case, the software may not have been saved.

When ending the software, the confirmation display

may appear asking whether to save it. Select “Yes”

to save it.

3. “Yes”/“No”

• Yes: Activates i-appli.

• No: the Site display returns.

Information

• Downloading is not available at some accessed sites.

• At downloading software, the confirmation display might

appear asking whether to use the “serial number of your

mobile phone/UIM”. Select “Yes” to start downloading. In this

case, the “serial number of your mobile phone/UIM” is sent to

the IP (Information Service Provider) over the Internet, so could

be deciphered by third parties. However, your phone number,

address, age and gender are not notified to the IP (Information

Service Provider) or others by this operation.

149

i-appli

Starting i-appli

1. Press and hold Ifor at least one second from the

Stand-by display.

2. Select the software to be launched ]C

•P: End the activation of i-appli.

Icons on the Software List

• Each mark will be displayed thinly when downloading by other

FOMA card or version- up of i-appli (Restriction on FOMA card).

Information

• Some software communicates after downloaded. You can let

it not communicate by the i-appli setting.

Using the Submenu of the Software List

Setting item/Setting at purchase >P245

• Some submenus may not be able to be set up

depending on the software.

1. From the Software List (See left), M[Menu] ]

Select from the following Submenu items

Create folder

You can create a folder.

Delete folder

You can delete the folder selected. You cannot delete

a folder in which software is saved.

Rename folder

You can edit the name of the folder selected.

Move to folder

You can move the folder selected to another folder

you composed.

Upgrade

You can upgrade the version of the software selected.

Delete

You can delete the software selected.

Software list

Menu Select

āāࣻࣻɁຢɈൌഀ

DescriptionIcons

i-appli that Auto start is set to

i-appli downloaded from SSL site

Normal i-appli

The folder you composed

(Blue)

150

i-appli

Delete selected

You can select and delete multiple pieces of software.

After selecting, M[Menu]. >Select “Delete”.

Delete all

You can delete all softwares in i-appli. To delete all,

C>Enter terminal security code >C[Done].

Sort

You can sort software.

Properties

You can check the name, size, etc. of the software

selected.

Certificate

You can check the owner, issuer, expiration date, etc.

of the certificate used for the software selected.

Network setting

You can set whether to communicate while the

software selected is being started.

I[Done].

i-appli To

You can set whether to start the software selected

from a site or mail. After setting, press I[Done].

Icon info setting

You can set whether icon information for i-mode mail,

SMS, messageR/F, battery level, Manner Mode, radio

wave strength and being out of area is to be used by

the software selected. After setting, press I[Done].

Autostart setting

You can set to activate the selected software

automatically. If you set “Yes” after selecting “Edit”,

you enter the method for activation and the time. After

setting, press I[Done].

Show desc setting

You can set whether to display software information

at i-appli downloading. After setting, press I[Done].

Autostart failure

You can check information when i-appli fails to start

automatically.

Trace info

You can check information when i-appli supporting the

trace function has been terminated due to an error.

System info

You can check system information such as memory

usage status of i-appli.

: You cannot use the folder you composed.

Information

• In “Show desc setting”, the setting value of this menu is not

reset by “Settings” >“Others” >“Reset settings” >“Default

settings”.

151

i-appli

Information

• Note that you might not be able to receive timely information if

you have set “Network Setting” to “OFF”.

• When “Upgrade” of the software, the confirmation display may

appear asking whether to use the “serial number of your

mobile phone / UIM”. If you select “Yes”, version upgrade

starts. In this case, your “mobile phone number / serial

number of UIM” is sent to the IP (Information Service Provider)

over the Internet, so could be deciphered by third parties.

However, your phone number, address, age, and gender are

not notified to the IP (Information Service Provider) or others

by this operation.

• If “Icon Info set” is set to “Use”, icon information for i-mode

mail, SMS, messageR/F, battery level, Manner mode, radio

wave strength and being out of area may be sent to the IP

(Information Service Provider) over the Internet just like your

“mobile phone number / serial number of UIM”, so could be

deciphered by third parties. However, your phone number,

address, age, and gender are not notified to the IP

(Information Provider) or others by this operation.

Pre-installed i-appli

This game is to remove the blocks when putting the block

has a same result after multiplying the serial number.

(Brain teaser by multiplication matrix)

1. From the screen of software list (P149), select

“”]C]Select the following menu

•I[Quit]: You can end a game.

Start 1

Starts the game.

Stage 1

You can select the stage (01~10) by pressing J

Continue 2

You can start the game on pause.

Key info

You can view the information of each button. After

displaying, when you press I[Menu], the menu is

returned back.

Help

You can view the information to remove the block.

After displaying, when you press J, you can change

the screen. If you press I[Menu], you can return to

menu.

Rank

You can view the status of score rank. After displaying,

you can return back to menu by pressing I[Menu].

Sound

You can set the sound of game. When you press C,

you can turn on or off sound.

1 : On pause the game, you cannot see these menus.

2 : On pause the game, you can see these menus.

152

i-appli

Screen on game

•M[Pause]/[Resume]: You can pause the game. If you

press it again, you can start it again.

•I[Menu]: After stopping the game, the menu will be

displayed.

Button activation on game

Go to Key info (P151) of menu for details.

Deleting the block

You can delete the falling blocks if you meet the condition.

When the blocks are full from 4th line to 7th line on left, the

game is over.

• In case the result after multiplying is two digits a, you

can paste the block beside same to the last number.

• See “Help” (P151), for the block except for number.

Game over

The screen of game over is displayed. If you press C,

you can view the score by displaying rank screen. If you

press I[Menu], you can return back to menu.

Information

• When you close the flip on game. the game is continuous.

Vertical direction Horizontal direction

< Combining the block of number 224>

All 3

blocks will

removed.

ŁĿ

If you remove the block, the number

will be reduced. If the number is 0,

the stage will be clear.

Indicates next block.

Indicates the current stage.

If the rest of block are done, the

block will be dropped beside 1 line.

Pause Menu

153

Introduction of Data box......................154

Displaying/Managing/

Editing Images......................................154

Playing back/Managing/

Editing Moving Images/i-motion .........161

Playing back/Managing/

Editing Melody......................................163

Caution on Use of the miniSD

Memory Card........................................166

Inserting/removing miniSD

memory card ........................................167

Playing back/Editing Data on

the miniSD Memory Card.....................168

Playing back i-motion (including of

music file) downloaded by other

devices in FOMA phone.......................169

Data box

On the Stand-by display,

C[Menu] ]or “Data box”

To display the Data box menu

1 My picture

2 i-motion

3 Melody

4 miniSD memory card

Select

Data box

Select

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

154

Data box

Introduction of Data box

Data box has the following items and folders:

: Folders added by the user are not included.

Displaying/Managing/Editing Images

C]]

You can display the shot still images, or still images

obtained from sites or i-mode mail.

The File Format To Display

• This FOMA phone supports to display file format as follow.

: Some files cannot be played depending on the file format.

Data box

Menu item ContentsFolder

My picture

i-motion

Shot still images, etc.

Still images usable for

frames and elements

Pre-installed still

images

i-motion obtained from

sites, etc.

Pre-installed moving

images

Camera

Item

Pre-installed

Camera

i-mode

Pre-installed

Menu item ContentsFolder

Melody

miniSD memory

card

Pre-installed

i-motion

Melody

Melodies obtained from

sites, etc.

Pre-installed melodies

i-mode

My picture

Data transfer

Still images obtained

through data

transmission, etc.

Data transfer

Melodies obtained

through data

transmission, etc.

Data transfer

Moving images obtained

through data

transmission, etc.

i-mode Still images obtained

from sites, etc.

Shot moving images by

video camera etc.

The folder structure

and the files saved in

the folder are the

same as those of the

FOMA phone (above).

File format JPEG, GIF

Pixel/File size

Under 1280x1024 dots/Under 500Kbyte

Extension name jpg, gif

155

Data box

Displaying Images

1. From Data box menu (P153), “My picture”

•I[View by] : You can select Simple list or Detailed

list depending on listing folder type.

2. Select a folder ]

•I[Mail] : You can send i-mode mail with attaching

an image file. Go to step 2 on page 139 of

“Composing message”.

3. Select a file ]

<Image>

•C[Full] : The image will be displayed fully.

•I[Mail] : You can send i-mode mail with attaching

the selected file. Go to step 2 on page 139 of

“Composing message”.

•J: Displays the previous/ next file.

The mark on the image file list

: The item is protected from sending the file except this FOMA

handset. You cannot edit the file or copy it from miniSD

memory card.

Menu Full Mail

File name

Go to My picture

Camera [1/11]

Menu Open Switch

File name and File size

being selected (in case

of files being selected )

Camera 5 Files

My picture [1/5]

Menu Open Switch

Folder name being selected

Number of files in the folder

being selected

DescriptionMark

Previous folder

The file set the limitation

Not recognized the file

156

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Using the Submenu of the Folder List

Setting item/Setting at purchase >P246

1. From the Folder List (P155), M[Menu] ]Select

from the following Submenu items

Open

You can open the folder selected.

New folder 1

You can create a folder.

Delete 1 2

You can delete the folders selected.

Sort by

You can sort the folders.

View by

You can change folder display methods.

Memory info.

You can check status of the storage area on the

FOMA phone / miniSD memory card, etc.

Folder property

You can check the name, size and the number of the

files in the folder of the folder selected.

1: You cannot use this menu “My picture”, “i-motion”, “Melody” in

miniSD memory card.

2: You cannot use this menu in pre-installed folder.

Information

• If you delete each image which set as a wallpaper in stand-by

mode, phonebook, or video-phone call, each one can be

returned to pre-installed setting.

If you delete the melody set as ring tone, alarm, or schedule,

each one can be returned to pre-installed setting.

Using the Submenu of the Image File List Display

Setting item/Setting at purchase >P246

1. From the Image File List screen (P155), Select a file

]M[Menu] ]Select from the following

Submenu items

New folder 1

You can create a folder.

Files 1

–View : You can display the file selected.

–Edit 2 4 :You can edit the file selected. >P159

You can edit only JPEG file.

–Move 3:You can move the selected file to other

folder. “Handset memory”/“miniSD memory card”

Select the folder

C>I

[Paste].

–Copy 3:You can copy the selected file to other

folder. “Handset memory”/“miniSD memory card”

Select the folder

C>I

[Paste].

–Delete : You can delete the file selected.

–Delete all : You can delete all the files in the folder.

You need to enter your terminal security code for

deleting.

–Rename : You can change the name of the file

selected.

157

Data box

Mark/Unmark 1

You can move, copy, and delete after selecting

multiple files. After selecting, press M[Menu] >“File”

>Select “Move”/“Copy”/“Delete”

–Mark : You can select a file at a time.

–Mark all : You can select all the files collectively.

–Unmark : You can deselect the file selected by

“Mark” or one of the files selected by “Unmark all” at

a time.

–Unmark all : You can deselect the file selected by

“Mark” or all the files selected by “Unmark all”.

Send via mail 1 4

You can attach a file to i-mode mail for sending. Go to

step 2 (P139) of “Compose i-mode mail ”.

Set as wallpaper 5

Select the “Main display” or “Sub display” and set as

wall paper for the Stand-by display, etc.

Slide show

–Go : Files in the folder are displayed in order.

–Settings : You can set the “view as” and “Time

interval (secs)”. After setting, press I[Done].

Make animated GIF 1 4 5

You can select up to 10 files to create animation. After

the files, press I[Make].

Sort by

You can sort files.

View by

You can change file display methods.

Memory info.

You can check status of the storage area on the

FOMA phone / miniSD memory card, etc.

File property

You can check the name, size and type, date and

time, resolution, file restriction of the selected file.

1: You cannot use this menu in “Item”, “Pre-installed” folder.

2: When you have JPEG file (Except for not protection file), you

can use this menu.

3: You cannot move and copy this menu in “Item”, “Pre-installed”

folder.

4: You cannot use this menu in protection file.

5: You cannot use this menu in image saved in miniSD memory

card.

Information

• If you delete the image set in stand-by mode, phonebook, or

video-phone, each image will be returned to the setting at

purchase.

158

Data box

Using the Submenu of the Image Display

Setting items/Setting at purchase >P246

1. From the Image display (P155), M[Menu] ]Select

from the following Submenu itemsM

Files 1

–Delete : You can delete the file displayed.

–Rename : You can change the name of the file

displayed.

–Edit 2:You can edit the file displayed. >P159

Send via mail 1 3

You can attach a file to i-mode mail for sending. Go to

step 2 of “Compose i-mode mail” (P139).

Full

You can bring up an image on the full display hiding the

soft keys and display information.

•J: The previous image/next image is displayed.

•Q: The full display is cancelled.

Zoom

Displays an image in a large size.

•M: Every time you press M, the displayed image

is enlarged.

•I: The image is displayed in the previous size.

•K: You can move the position of display of the

expanded image.

•Q: The zoom is cancelled.

Set as wallpaper 4

Select the “Main display” or “Sub display” to set as

wallpaper for the Stand-by display.

Slide show

–Go : Files in the folder are displayed in order.

–Settings : You can set the “View as” and “Time

interval (secs)” for the slide show. After the setting,

press I[Done].

Go to list

The list screen reappears. (P155)

File property

You can check the name, size, and type , date and

time, resolution, file restriction of the selected file.

1: You cannot use this menu in “Item”, “Pre-installed” folder.

2: When you have JPEG file (Except for not protection file), you

can use this menu.

3: You cannot use this menu in protection file.

4: The image in miniSD memory can be disabled.

Information

• If you delete each image which set as a wallpaper in stand-by

mode, phonebook, or video-phone call, each one can be

returned to pre-installed setting.

• If the image in miniSD memory card, you cannot set it as a

wallpaper.

159

Data box

Editing Still Images

You can edit a still image. The edited still image is saved into

the folder containing the original still image. There are some

cases where you may not be able to edit.

Setting items/Setting at purchase >P246

1. From the Image File List (P155) Display (P155),

Select a file, from the Image Display screen, Press

M[Menu] ]“Files” ]“Edit”

• The screen to edit the image is displayed.

2. From the Edit display, M[Menu] ]Select from the

following editing methods ]After setting,

C[Save]

• After editing in screen, you can operate the function

as follow.

–M[Menu]: Displays the menu to edit.

–I[Undo]: Returns back to previous menu

Save

You can save the edited still image.

Rotate

You can rotate a still image 90 degrees to the left or

to the right.

1) Left side / Right side

•M[Rotate]: You can rotate a still image 90 degrees

to the left or to the right.

•I[Cancel]: You can cancel editing.

2) Press C

Resizing

You can change the size of a still image.

Insert

–Text : You can paste a text to a still image.

• If you press M[Menu], you can change the

settings of “Font size” and “Font color”.

1) Select a text box ]C

2) Enter text ]C

•M[Text]: You can change the text box.

•I[Cancel]: Returns back to previous menu.

3) C]Select a position of the text using K]

–Frame : A frame is added to a still image.

Select a frame to set up.

1) ]C

•M[Rotate]: You can rotate a still image 180

degrees to the left or to the right.

•I[Cancel]: You can cancel editing.

2) Press C

160

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

–Element : An element is pasted to a still image.

• If you press M[Menu], you can select a size of the

element from “Large”, “Medium” and “Small”.

1) Select an element ]C

2) Select a position to paste the stamp by K]

• If you continue to add same element, repeat step

•M[More]: You can select each element.

3) I[Done]

Clipping

1) Select the size for trimming. ]C

• The range for trimming is marked in red line.

2) Select the position for trimming by pressing

K]C

• If you select User defined size, you can adjust the

coverage for trimming of each picture. You can

move the red cursor by pressing K, and then set

the starting and ending point for trimming by

pressing C.

Effect

–Black & White : Makes the color tone black and

white.

–Sepia : Makes the color tone sepia.

–Negative : Reverses the color tone.

–Black & White negative : Makes the color tone

black and white and reverses black and white.

–Color balance : Emphasizes or weakens light and

shade of colors such as red, green, blue.

–Contrast : Emphasizes or weakens contrast.

–Sharpness : Emphasizes the contour.

–Softness : Gradates the contour.

–Mosaic Blur : Applies the mosaic. Moves to red

line by pressing K, and then set the starting and

ending point to apply the mosaic by pressing C.

Mirror

Reverse the image horizontally.

Undo

Undoes the edited file.

This menu is not displayed if you select the file before being

edited.

Information

• You can “Resizing” only to make it smaller than the original still

image. You may not be able to change the size depending on

the display size of the original image.

• If a screen proportion of the size selected by “Resize” and is

different with the other size of still image, it can be saved by

other size, not selected one.

• In the size “1280 x 1024” of still image, you cannot set “Insert”

and “Effect”.

• The size for setting “Frame” is “352 x 288”, “320 x 240” “176 x

220”, “176 x 144”, “128 x 96”. You cannot set the other size to

“Frame”.

161

Data box

• You cannot specify a display size larger than the original still

image to “Trimming”.

• The text box, Frame image, element at purchase, refer to “Text

box” (P251), “Frame” (P250), “Element” (P251) of “Appendix”.

• When the image size is over VGA(640X480), you cannot use

the function such as insert, effect, clipping.

• If aspect ratio for resizing of image is different with the ratio of

selected image, the image can be resized differing with the size

you want.

Playing back/Managing/

Editing Moving Images/i-motion

C]]

You can play back moving images shot by the camera, or

moving images obtained from sites, or from i-mode mail.

Playable file format

FOMA handset can play the file as follow.

• You cannot a few files depending on file format being compatible

with a phone.

Playing back Moving Images / i-motion

1. From the Data box menu (P153), “i-motion”

•I[Switch] : You can change the type of display of

folder.

2. Select a folder ]C

•I[Mail] : You can send i-mode mail with attaching

the selected file. Go to step 2 on page 139

“Composing message”.

• See step 2 “Display screen” (P155) for

the mark on display screen.

Go to i-motion

Camera [1/8]

Menu Open Switch

The name of file, the file size

(When selecting a file)

Voice file

Camera 5 File

i-motion [1 / 4]

Menu Open Switch

The folder name on selecting

The number of file in folder

Code system

File format

Extension name

MP4

MP4 file Image MPEG4, H.263,

Voice AAC, AMR

MP4, 3gp

162

Data box

3. Select a file ]C

•C/G[Plays back]: Pauses

•I[Stop]: Stops

•J: Plays back the previous file / next file

•J(Press and hold): The images are fast forwarded

/ fast rewound while it is pressed

•H,FE: Adjust volume

Using the Submenu of the Folder List

See “Using the Submenu of the Folder List” of images (P155)

for the submenus available.

Using the Submenu of the Moving Image

File List

Setting item/Setting at purchase >P247

1. From the Moving Image File List (P161), Select a

file ]M[Menu] ]Select from the following

Submenu items

Play

Plays back the file selected.

New folder 1

You can create a folder.

Files 1

–Move 2:You can move the file selected to another

folder. “Handset memory”/“miniSD memory card” >

Select a folder to move >C>I[Paste].

–Copy 2:You can copy the file selected to another

folder. “Handset memory”/“miniSD memory card” >

Select a folder to move >C>I[Paste].

–Delete : You can delete the file selected.

–Delete all : You can delete all files in the folder. If

you delete all files, you enter a phone password.

–Rename : You can change the name of the file

selected.

Mark/Unmark 1

You can mark or unmark files. If you select this menu,

you can move, copy and delete multiple files. After

selecting , M[Menu] >“File” >Select “Move”/“Copy”/

“Delete”.

Menu Pause Stop

Volume

Playback bar

Playback elapsed time /

maximum playback time

Stereo / monaural

163

Data box

–Mark 2:You can select a file at a time.

–Mark all : You can select all the files collectively.

–Unmark : You can deselect the file selected by

“Mark” or one of the files selected by “Mark all” at a

time.

–Unmark all : You can deselect the file selected by

“Mark” or all the files selected by “Mark all”.

Send via mail 1 3

You can attach a file to i-mode mail for sending. Go to

step 2 (P139) of “Compose i-mode mail”.

Sort by

You can sort files.

View by

You can change file display methods.

Memory info.

You can check the status of the storage area on the

FOMA phone / miniSD memory card, etc.

File property

You can check the name, size, and type, date and

time, resolution, file restriction of the selected file.

1: You cannot use the file in “Pre-installed” folder.

2: You cannot move or copy the file in “Pre-installed” folder. Also,

you cannot move or copy the restriction file to miniSD memory

card.

3: You cannot use this menu in restriction file.

Using the Submenu of the Moving Image

Playback Screen

As for MP4 file, only voice, not recording the image, see

“Using the Submenu of the Melody Playback” (P166).

Setting item/Setting at purchase >P247

1. From the Moving Image Playback display (P162),

M[Menu] ]Select from the following Submenu

items

Pause 3(Play 5)

You can pause the moving images being played

back.

Send via mail 1 2

You can compose a message and attach it to i-mode

mail for sending. Go to step 2 (P139) of “Composing i-

mode message”.

Expand 3

You can view the whole moving image without displaying

the indication of soft key or player.

•

: cancel this function.

Snap 124

You can save paused moving images as still images.

Snapped images are saved into the “Camera” folder

of “My picture”.

Mute (Unmute)

You can play back moving images muting the sound.

164

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Player settings

You can change settings of the visual effect and the

color tone of the player.

File property

You can display the name, size, and type of the file

selected.

1: You cannot use this menu in “Pre-installed” menu.

2: You cannot use this menu in restriction file.

3: You can use this menu on playing the file.

4: You can use this menu on pause.

5: You can use this menu after pausing or ending to play back the

file.

Playing back/Managing/Editing Melody

C]]

You can play back pre-installed melodies, and melodies

obtained from sites, etc.

Playable file format

• This FOMA phone supports to display file format as

follow.

1: Some files may not be played back in file format supported in

this phone.

2: The voice format of AAC or AMR of MPEG4 is saved as 3gp file

in “i-motion” folder.

Playing Back Melody

1. From the Data box menu (P153), “Melody”

•I[Switch] : You can change the type of display of

folder.

2. Select a folder ]C

•I[Mail] : You can attach the file to i-mode mail.

Go to step 2 on page 139 of “Composing i-mode mail”.

• See step 2 “Display screen” for the mark

on display screen.

Pre-installed [1/46]

Menu Open Switch

Go to Melody

File name/File size

Melody [1/3]

Menu Open Switch

Data transfer

0 File

i-mode

0 File

Pre-installed

45 Files

Folder name

The number of files in a folder.

File format 1

Extension name

SMF, MFi, MP4 2

mid, mld

165

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

3. Select a file ]C

–C,G: Plays back / pauses

–J: Plays pack the previous file / next file

–J(Press and hold): Melodies are fast forwarded /

fast rewound while pressing it.

–H/FE: Adjusts the sound volume

–I[]: Sets the repeat area (Starting point/

Ending point) If you press in setting, you can

release it.

Using the Submenu on the Folder List

See “Using the Submenu of the Folder List” of Images (P156)

for the submenu items available.

Using the Submenu of the Melody File List

See “Using the Submenu of the i-motion File List” (P162)

for the Submenus available.

Information

• If you delete the melody set as the tone for incoming call,

alarm, and schedule, each melody returns to setting at

purchase.

Using the Submenu of the Melody Playback

Screen

Setting item/Setting at purchase >P247

1. From the Melody Playback display (P165),

M[Menu] ]Select from the following Submenu

items

Pause 5(Play 6)

You can pause the melody being played back.

Send via mail 1 2

You can attach melody files to i-mode mail for sending.

Go to step 2 (P139) of “Composing i-mode mail”.

Ringtones 2 3 4

You can set a ring tone for voice or video phone calls.

Mute (Unmute)

You can mute the tone for playing back melodies.

Volume

Playback bar

Playback elapsed time /

maximum playback time

Menu Pause

166

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Set repeat 3 4

You can select a repeat method.

–None : You can repeat none file.

–Current file ( ) : You can repeatedly play back

the current melody.

–All files ( ) : You can repeatedly play back all

the melodies in the folder.

–Shuffle : You can shuffle and play back all the

melodies in the folder.

Area repeat ( )5

You can specify a playback area for playing back

melodies. You can set the starting point ( ) and

ending point ( ) by pressing I[]. If you press in

setting, you can release it.

Player settings

You can change settings of the visual effect and the

color tone of the player.

File property

You can display the name, size, and type, date and

time, duration, ringtone, file restriction of the selected

file.

1: You cannot use the menu in pre-installed folder.

2: You cannot use this menu in restriction file.

3: You can use this menu in MP4 file, not recording the image.

4: You cannot use this menu in melody saved in miniSD memory

card.

5: You can use this menu on playing.

6: You can use this menu on pause or ending to play back.

7: You cannot use this menu on pause or ending to play back.

Information

• You can also change settings of the ring tone from the

Melody File List Screen. From the Melody File List screen

(P164), press M[Menu] select a “Ringtone”.

Caution on Use of the miniSD

Memory Card

You need to obtain a miniSD memory card separately

to use the functions related to the miniSD memory

card. The miniSD memory card is available at mass

retailers for home electric appliances, etc.

• The miniSD memory card adapter is available at mass

retailers for home electric appliances, etc.

• The FOMA L601i is compatible with a miniSD memory

card (commercial item) of up to 1G bytes (as of March

2006). However, this does not necessarily guarantee

the proper operation of each maker's miniSD memory

card. See the following for the latest information.

– i-mode: “i Menu” >“Menu list” >“Mobile Phone Maker”

>“WOWLG”

– PC : http://jp.lge.com/index.do

• You may not be able to use the miniSD memory card

you formatted using a personal computer and other

devices. Be sure to use the miniSD memory card

formatted with the FOMA L601i.

• The miniSD memory card may be lost or deformed due

to an accident or failure. It is advisable to back up

important data.

167

Data box

• Note that we take no responsibility for direct or indirect

damages or incidental guarantee due to the use of the

miniSD memory card.

– Damages arising from missing opportunities of calls

or transmission

– Damages caused by erasing the data you saved in

the FOMA phone or miniSD memory card

• Damages caused by erasing the data you saved in the

FOMA phone or miniSD memory card During processing

of the card, never remove the miniSD memory card, or turn

off the FOMA phone. Confirm that processing of the card

does not go on before turning off the FOMA phone and

removing the miniSD memory card.

• The miniSD memory card has an operating life. If you

use the miniSD memory card for a long time, you may

not be able to write new data on it, or the card is

disabled.

• Do not delete or move folders in the miniSD memory

card using a personal computer. The FOMA L601i may

fail to read the miniSD memory card.

• If you have written the data incompatible with the

FOMA L601i on the miniSD memory card using a

personal computer, the FOMA L601i cannot read it.

• Do not insert or remove the miniSD memory card with

the FOMA phone turned on. It may damage the miniSD

memory card or its data.

• Note that miniSD memory card may pop out when you

insert or remove it.

• Confirm the direction of the miniSD memory card, and

then insert or remove it straight. (If you obliquely insert

the miniSD memory card into the slot, the memory card

may be damaged.)

• It may take long to select or display contents of the

miniSD memory card.

Inserting/removing miniSD

memory card

Inserting the memory card

1Open the cover of miniSD memory card's slot to an

arrow indication.

2Insert the miniSD memory card into the slot slowly to

listen to "click!" with the golden connectors facing up.

3Close the cover of miniSD memory card's slot to an

arrow indication.

168

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Removing the memory card

1Open the cover of miniSD memory card's slot to an

arrow indication.

2Push the miniSD memory card into the slot lightly.

• The miniSD memory card is released from the slot.

3Pull the memory card out of slot straightly.

4Close the cover of miniSD memory card's slot to an

arrow indication.

Playing back/Editing Data on the

miniSD Memory Card

C]]

You can insert a miniSD memory card into the FOMA phone

to use it as an external memory. If you insert it into a miniSD

memory card adapter, you can use a SD memory card-

enabled personal computer.

• When using a miniSD memory card for the first time, you

need to format it in accordance with “Resetting miniSD”

(P180). Be sure to format on the FOMA phone.

Information

• You can check usage status, and available space of the

miniSD memory card. . >P156, P157, P163.

Folder Configuration on miniSD Memory Card

aTo be displayed by FOMA Phone

For “Introduction of Data box” (P154), see “miniSD

memory card” on the cover.

When you move/copy the file from FOMA phone to

miniSD memory card or save the still image and moving

image in miniSD memory directly, the folder being

compatible with a file is created automatically in miniSD

memory card.

• When moving/copying files from a personal computer

to the miniSD memory card, you need to adopt the

following folder configuration.

169

Data box

1: i-motion includes of music file.

2: This folder indicates the still image or thumb mark of moving

image. The folder is composed automatically after saving the

file in “1 my picture”, “2 i-motion”. Do not delete/ move/ save

the file in this folder.

Information

• A folder name or file name has a limit in the number of

characters. The number of characters is except for the

number of extension name.

– Folder name : Up to 15 characters

– File name : Up to 36 characters

Copying / Moving Files between the FOMA

Phone and the miniSD Memory Card

See “Copy” and “Move” of “Using the Submenu of the

Image File List” (P156) or “Using the Submenu of the Moving

image File List” (P162) for the operation method.

Displaying / Playing Back Files on the

miniSD Memory Card

• On the FOMA phone, you might not be able to display or

play data which was saved to the miniSD memory card

from other devices.

1. From the Data box menu (P153), “miniSD memory

card”

• See “Displaying Images” (P155), “Playing Back Moving

Images / i-motion Movies” (P161) and “Playing Back

Melodies” (P164) for the subsequent operations.

Playing back i-motion (including of

music file) in FOMA phone

C]]

You can play the music downloaded from internet or CD in

FOMA phone after saving them in miniSD memory card.

You need to obtain a miniSD memory card separately to use

the functions related to the miniSD memory card. The

miniSD memory card is available at mass retailers for home

electric appliances etc. >P166

miniSD

1 my picture.......Folder to save still images

2 i-motion...........Folder to save moving images

/i-motionŦ1 movies

3 melody.............Folder to save melodies

privateŦ2

lge

thumb

170

Data box

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

• The music file saved in miniSD memory card should be

treated by personal use.

• Be sure not to infringe on the intellectual property rights

and the others of copy-right of third party .

• Do not move or exchange the music file saved in miniSD

memory card to other devices such as personal

computer.

1. You can change the file format from music file of

CD to AAC (3gp) by using the software to convert

the extension.

For details about software, please contact the homepage of

software provider.

2. After inserting miniSD memory card to personal

computer, you can copy the music file in “2 i-

motion” folder. (P169)

• The file name of step 1 is written by half-pitch, so you

change the name within 36 characters.

aIn case of not existing the “2 i-motion” folder

The FOMA phone creates the folder automatically by

selecting “Data box” >“miniSD memory card” after

inserting miniSD memory card. And then, you insert the

card into personal computer after removing it FOMA

phone.

3. After inserting miniSD memory card into FOMA

phone (P167), press Cin stand-by mode ]“Data

box” ]“miniSD memory card” ]Select “i-motion”

folder ]C]Select the file to play ]C

• After this step, Go to step 3 on page 162 of “Playing

back Moving Images/i-motion”.

Information

• In FOMA phone, the music file cannot be played back

continuously despite saving the multiple files.

• Although you close the flip, the music can be played back

continuously. But, you cannot control the volume.

• If you connect a Flat-plug Earphone/Microphone Set (P29),

you can listen to the music by headphone.

171

Using Alarm ..........................................172

Setting the Custom Menu ....................173

Using the Infrared Exchange

Function................................................174

Using Calculator...................................175

Using Unit Converter............................176

Using World Time.................................178

Using Stop Watch ................................179

Using the miniSD Memory Card ..........179

Tools

On the Stand-by display,

C[Menu] ]or “Tools”

To display the Tools menu

1 Alarm

2 Custom menu

3 IrDA

4 Calculator

5 Unit converter

6 World time

7 Stop watch

Select

Tools

Select

Tools

172

Tools

Using Alarm

C]]

You can set Alarm to alert you at the specified time. You

can also set Snooze or an alarm tone.

Setting Alarm

Setting item/Setting at purchase >P230

1. From the Tools menu (P171), “Alarm”

•I[ON]/[OFF] : You can set the alarm ON or OFF.

2. Select the alarm to edit ]C]Select the item to

edit ]C]After editing, I[Done].

(Setting ON/OFF)

You can select “ON” or “OFF”. To set Alarm, select

“ON”.

Time setting

You can set the time for making the alarm sound.

(Setting repeat)

You can select the type of repeat.

• If you set “Except holiday”, the alarm does not alert

on Sunday or holiday (P184).

(Melody)

You can select an alarm tone.

• Select from alarm tone stored in “Melody” in “Data

box”. >P164

(Memo)

You can enter an alarm name.

(Snooze)

Select the time intervals of Snooze. If you do not want

to use Snooze, select “OFF”.

When the Specified Time Comes

When the specified time comes, the display informing of

Alarm appears. To stop Alarm, do the following operations:

•C[OFF]: You can cancel the setting of alarm. If you set

the snooze, you can cancel it.

•I[Snooze]: Alarm stops. The set Snooze continues.

aDuring a Voice/Video-phone Call

An alarm does not sound at the specified time during a

call because the icon is not displayed on upper side. After

ending the call, the alarm will be alerted on time.

09 : 00

ɺˁĜʸāǍ

09 : 00

ɺˁĜʸāǎ

09 : 00

ɺˁĜʸāǏ

09 : 00

ɺˁĜʸāǐ

Alarm

Menu Edit OFF

Tools

DescriptionIcon

Alarm is set to “ON”

Alarm is set to repeat

173

Tools

• After ending to play a file/to take image, the alarm will

be sounded with displaying alarm screen.

aDuring playing back moving image, melody/

activating camera, video camera

An alarm does not sound at the specified time during a

call because the icon is not displayed on upper side.

After ending the call, the alarm will be alerted on time.

Information

• If the UIM is not installed, the FOMA phone does not turn on

and the alarm does not sound.

• If the alarm cannot be sounded during activating i-appli, the

alarm icon blinks on upper of the screen instead of alarm

sound.

Using the Submenu of the Alarm List Screen

1. From the Alarm List screen (P172),

M[Menu]

]

Select from the following Submenu items

Edit

You can edit the selected alarm. Go to step 2 on page

172 of “Setting alarm”.

ON/(OFF)

You can activate/deactivate the selected alarm.

Mark/Unmark

After editing the alarm, you can select ON or OFF.

–Mark: You can mark one alarm at a time.

–Mark all: You can mark all alarms at once.

–Unmark:

You can unmark one alarm at a time, which

you selected by “Mark” or “Mark all”.

–Unmark all: You can collectively unmark all alarms

you selected by “Mark” or “Mark all”.

Setting the Custom Menu

C]]

You can specify functions to store in the Custom menu. If

you store functions frequently used in the Custom menu,

you can quickly start the functions simply by pressing

Don the Stand-by display.

Setting item/Setting at purchase >P232

From the Tools menu (P171), “Custom menu”

•C[Select]: You can activate the selected menu.

•I[Edit]: You can change the menu saved as

Custom.

1 Search phonebook

2 Mail

3 i-mode

4 Camera-mode

5 Alarm

6 Select ringtone

7 [Menu7]

Custom menu

Menu Select Edit

174

Tools

2. Use Hto select a blank line ]I[Add]

• The list of functions that can be stored in the Custom

menu appears.

3. Select a function ]C

• You cannot select the menu which is already

registered.

Using the Submenu of the Custom Menu

Display

From the Custom menu display (P173), M[Menu]

]

Select from the following Submenu items

Add new 1

You can add a function to be registered from the

function list. Go to step 3 of “Setting the Custom

Menu” (See above).

Open 2

You can start the function selected.

Edit 2

You can change the functions registered. Go to step

3 of “Setting the Custom Menu” (See above).

Delete 2

You can delete a function registered.

Delete all

You can delete all the functions registered.

1: This Submenu item is displayed when a blank line is selected.

2: This Submenu item is displayed when a registered function is

selected.

Using the Infrared Exchange Function

C]]

You can send and receive data such as Phonebook and

Bookmark by using the infrared exchange to and from other

FOMA phones and personal computers supporting the

infrared exchange function.

The data to send by infrared

: You cannot send or receive the image registered in

phonebook.

Performing Infrared Exchange

Place the FOMA phone parallel to another device so that the

infrared data ports of these devices face each other.

• The infrared data port is located on the right side of the

FOMA phone. >P28

• Place the FOMA phone on a stable location such as a

table and do not move it during communication.

• The distance for infrared exchange should be within 20

cm.

Data Contents

1 available (Phonebook of

FOMA phone)

1 available

Own number

Phonebook

Bookmark

175

Tools

Information

• During infrared exchange, do not remove the battery. If you

remove the battery during exchange the data via infrared, this

operation will be stopped.

• If the battery is low, you cannot exchange the data via infrared.

Before activating this menu, check the capacity of battery.

• During data exchange by infrared when receiving a voice call

or video-phone call, you can get a call with stopping to

exchange infrared. If you don't send or receive the data,

activate infrared function again after ending a call.

• Receiving the data by infrared can be dependent on the

capacity of memory. If you cannot receive the data, delete

unnecessary data, and then activate infrared menu again.

• Before activating the infrared between the other phone, you

check the compatibility of each equipment.

• You might not be able to exchange the data by infrared

depending on the type of FOMA phone or personal computer.

Sending Data

Make the receiving end ready for receiving the data and

then start sending data within 30 seconds following the

steps below.

1. Display of the data to be sent

]

M[Menu]

]

“Send Ir data”

2. Make sure that the receiving end is ready for

receiving the data

]

“Yes”

Receiving Data

1. From the Tools menu (P171), “IrDA”

2. Send data at the sending end

3. Receive the data

Using Calculator

C]]

You can perform calculation such as addition, subtraction,

multiplication, and division. Use the numeric buttons to

enter numbers. For other operations, follow the

instructions on the display.

From the Tools menu (P171), Select “Calculator”

< Calculator screen >

•*: Used for enter decimal number.

•#: Used for enter the parenthesis.

•Q: Userd for delete the number to backward.

•I[AC]: You can delete the number or cancel the

calculation.

Calculator

func.

176

Tools

Using the Function Menu of the Calculator Display

From the Calculator display (P175), M[func]

]Select from the following function menu items

+/-

Switches between positive and negative numbers

sin

Used for calculation of trigonometric functions.

cos

Used for calculation of trigonometric functions.

tan

Used for calculation of trigonometric functions.

log

Used for calculation of logarithmic functions.

Used for calculation of natural logarithms.

exp

Used for calculation of exponential functions.

sqrt

Used for calculation of square roots (root).

deg

Specifies the unit of angle to “degree”.

rad

Specifies the unit of angle to “radian”.

Using Unit Converter

This is useful function to convert currency, surface, length,

weight, temperature, volume, and velocity.

Converting Unit of Currency

C]]

This is a useful function for converting the yen on hand to

the dollar, etc.

Setting at purchase >P232

1. From the Tools menu (P171), “Unit converter” ]

“Currency”

• The screen for converting a currency is displayed.

(P177)

2. Select the currency ]I[Rate]

Current rate

Done

Setting for currency name

Setting for currency rate

123

177

Tools

3. Select next item ]After setting, press I[Done].

Currency unit field

Select the unit of the currency. If you press C, you

can edit the currency. But, you cannot change “ ”.

Value Entry field

You can set the rate of currency. For example, in case

you convert from to (Ex. 1 120

), you can set to 120, to 1.

•#: Enters the decimal point.

•Q: Deletes the character which you enter.

Converting the currency

The currency setting the rate converts to the other

currency. You can enter the currency in up/ down field to

input. The field not input will be displayed the value after

converting.

1. “Unit converter” from “Tool”(P171) ]“Currency”

2. Select next item.

Currency unit field

You can set the unit of the exchange rate.

Exchange rate entry field

You can enter the exchange rate.

•#: You can enter decimal number.

•Q: Deletes the character which you enter.

•I[Reset]: The numerical value is reset.

Currency

Menu List Rate

Exchange rate 120 : 1

Exchange rate 1 : 1

Rate unit field

Currency unit field

Value entry field

178

Tools

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Converting Unit of Surface

C]]

You can change the unit of surface. You can enter the

unit in up/ down field to input. The field not input will be

displayed the value after converting.

Setting item/Setting at purchase >P232

1. From the Tools menu (P171), “Unit converter” ]

“Surface”

• The Surface Unit Conversion display appears

Surface unit field

You can select the unit of surface.

• You can convert the surface unit either from top or

bottom.

Value entry field

Enter a numerical value of the surface to be converted.

•#: Enters the decimal point.

•Q: Deletes the number which you already

entered.

•I: [Reset]: The numerical value is reset.

Converting Unit of Length/Weight/

Temperature/Volume/Velocity

C]]

53~7

Setting item/Setting at purchase >P232,P233

1. From the Tools menu (P171), “Unit converter”

]“Length”/“Weight”/“Temperature”/“Volume”/“Ve

locity”

• For the subsequent operations, follow the same

operations as “Converting Unit of Surface” (see left).

Using World Time

C]]

You can check the date and time of major cities in the

world.

The time of city “Home” is set by the time of “Setting

date/time” (P86).

Surface unit field

Value entry field

Surface

List

Acre

Hectare

179

Tools

From the Tools menu (P171), “World time”

•C[List]: You can select a city to display the city list.

2. Use Jto select a city to be checked

•I[Set]: The selected city is set as Home.

Using the Submenu of the World Time Display

Setting item/Setting at purchase >P233

1. From the World time display (see above),

M[Menu]

]

Select from the following Submenu

items

Choose city

You can choose a city. After choosing press C.

Set time zone

Sets the home country time zone.

: This menu is not displayed if you select the city as a home.

Using Stop Watch

C]]

You can use the FOMA phone as a stop watch.

1. From the Tools menu (P171), Select “Stop watch”

•C[Go]/[Stop]: You can start or stop counting.

•I[Reset]: You can reset the result of counting.

• During counting, you can do the following

operations.

–I[Lap]: The lap time is recorded and displayed at

the bottom of the display.

–M[Detail]: You can view the list of the lap records.

Using the miniSD Memory Card

You can check data or files saved in the miniSD memory

card. You can also check the usage status/free space of

the memory and can format (initialize) the miniSD memory

card.

Using Data box

C]]

From the Tools menu (P171), “miniSD memory card”

]“Data box”

• You can check or play back the still images, moving

images/i-motion movies and melody files saved in

“miniSD memory card” of “Data box”. >P155, P161,

P164

Tokyo

Jan 01 (Sun) 06 : 37

Home: Tokyo

Jan 01 (Sun) 06 : 37

World time

Menu List

The date and time set as

home city

The city name and time

which are checked

180

Tools

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Checking Memory Information

C]]

You can check the usage status or free space of the

miniSD memory card.

Setting item/Setting at purchase >P233

From the Tools menu (P171), “miniSD memory card”

]“Memory info.” ] Select an item to be checked

Formatting the miniSD Memory Card

C]]

You can format the miniSD memory card to use it on the

FOMA phone.

From the Tools menu (P171), “miniSD memory card”

] “Reset miniSD card” ] “miniSD”

Information

• Resetting deletes all the files saved in the miniSD memory card.

Please make sure that no important files are saved in the

miniSD memory card before formatting.

181

Using Schedule....................................182

Using Memo.........................................185

Using Date Search...............................186

Using Date Counter .............................186

Stationery

On the Stand-by display,

C[Menu] ]or “Stationery”

To display the Stationery menu

1 Scheduler

2 Memo

3 Date search

4 Date counter

Select

Stationery

Select

Stationery

182

Stationery

Using Schedule

C]]

Storing Schedule Events

1. From the Stationery menu (P181), “Scheduler”

– The monthly display (P183) appears.

2. Select a date to store a schedule event. ]I[Add]

3. Select from the following items to store ]After

storing, I[Done]

Start date

You can set a date to start the schedule event. You

can enter a date by pressing Rand dial buttons.

You can select a date from the calendar display by

pressing C.

End date

You can set a date to end the schedule event. You

can enter a date by pressing Jand dial buttons.

You can select a date from the calendar display by

pressing C.

None 1(Schedule type)

You can set a type of the schedule event.

Time

You can set time to start and end the schedule event.

–All day: The schedule event is stored as an all-day

event.

–Set time:: You can set time to start and end the

event by selecting the time field. You can enter the

time by using Jand dial buttons.

Subject

You can set a subject of the schedule event. You

cannot store the event without entering a subject.

Alarm

You can set whether or not to be notified by an alarm

when the date and time specified in “Start date” and

“Time” come. You can select a melody 1when the alarm

function is set to other than “No alarm”.

• You can select the menu from “Melody” of “Data box”.

>P164

Repeat 2

You can set the repeat setting for the schedule event.

If you do not want to repeat it, select “Once”

1: The content you've set is displayed.

Edit

Add new

ǎǌǌǒğǌǒğǌǍāĪǰȄȑī

None

Time

Subject

All day

ǌǌćǌǌā

āǎǏćǑǕ

Done

Stationery

183

Stationery

2: If “Start date” and “End date” are different, you use only

“Once”.

Information

• When the specified time of a schedule event setting by alarm

comes, the display to notify it appears.

–C[OK]: After stopping the alarm, you can view the time and

the subject of schedule. If you press Cagain, the alarm will

be released.

–I[Snooze]: You can set the snooze.

• As for the operation of alarm setting during a call or taking a

photo, see “When the Specified Time Comes” (P172).

Checking Schedule Events

From the Stationery menu (P181), “Scheduler”

•13: You can move the year of date.

•79/FE: You can move the month of date.

•5: You can move the current date .

•I[Add]: You can add your own schedule.

Go to step 3

on page 182 of “Storing Schedule Events”.

2. Select a date in which a schedule event is stored

•I[Add]: You can add your own schedule.

Go to step 3

on page 182 of “Storing Schedule Events”.

•J

: Displays the schedule of previous and next day.

3. Select a schedule event ] C

• For details, see page 182.

10 : 00am ~ 11 : 00am

Alarm01.mid

2006/06/01 (Thu)

None

Umbrella

No alarm

Once

View (20/23)

Edit Delete

2006/06/01 (Thu)

Menu Select Add

00 : 00 ~ 23 : 59

ȥȜȹɄ

00 : 00 ~ 23 : 59

ɄȥȜȹɄ

The number of schedule events stored

in the date on which the cursor is place

Mo Tu We Th Fr Sa Su

2006 June

Menu Select Add

The date registered the schedule

will be underlined.

DescriptionIcon

Sets the alarm setting.

Sets the repeat setting.

DescriptionIcon

Start date of schedule

End date of schedule

The type of schedule

Holiday

Alarm

184

Stationery

•C[Edit]: You can edit the selected schedule. Go to

step 3 on page 182 of “Storing Schedule Events”.

•I[Delete]: You can delete this selected schedule.

•J: Displays the previous and next schedule.

Using the Submenus of the Monthly Display

From the monthly display (P183),

[Menu] ]Select

from the following submenu items.

Add new

You can add a new schedule event. See Step 2

(P182) of “Storing Schedule Events”.

Open

You can see the details of the schedule events of the

selected date (Daily display).

Set holiday

You can set the selected date to holiday. After

entering the date for holiday, press I[Done]. The

setting date is marked in red color.

–On the day: Enter the holiday name and set the

selected date as a holiday.

–Weekly: Enter the holiday name and set the day of

the selected date as a holiday for every week.

–Monthly: Enter the holiday name and set the

selected date as a holiday for every month.

–Annually: Enter the holiday name and set the

selected date as a holiday for every year.

–Duration (2~31): Enter the holiday name and set

the holiday period and its title.

Go to date

The cursor is moved to the specified date. You can

enter a date by pressing Jand dial buttons.

Delete

–Holiday: All the schedule events set as holidays are

deleted.

–Old schedules: Deletes all the schedule events

stored for up to the preceding day of the selected

date are deleted.

–Current day schedules: The schedule events of

the selected date are deleted.

–Current week schedules: All the schedule events

of the week of the selected date are deleted.

–Current month schedules: All the schedule events

of the month of the selected date are deleted.

–All schedules: All the schedule events are deleted.

: You cannot the menu if select the date which you've already set

“Set holiday”.

185

Stationery

Using the Submenus of the Daily Display Screen

1. From the Daily display screen (P183), M[Menu] ]

Select from the following Submenu items

Add new

You can add a new schedule event. See Step 3

(P182) of “Storing Schedule Events”.

Open

The details of the selected schedule event (Display

screen) are displayed.

Edit 1 2

You can edit the selected schedule event. See Step 3

on page 182 of “Storing Schedule Events”.

Set holiday 1 2

You can set the selected date as a holiday. See

“Holiday settings” of “Using the Submenus of the

Monthly Display Screen” (P184) for the setting items.

Mark/Unmark

You can delete all after selecting multiple schedules.

After selecting, press I[Delete].

Go to Date

Displays the schedule you've already set. You can

enter a date by pressing Jand dial buttons.

Delete

You can delete schedule events.

1: You cannot use this menu when you select the date which is

already set as the holiday in “Set holiday”.

2: You cannot use this menu When you select the date which is

already set as the holiday of screen “1day” displayed.

Using Memo

C]]

Creating Memo

You can create and save a memo.

1. From the Stationery menu (P181), “Memo”

• The memo display (See right) appears.

2. I[Add] ]Enter a memo ]C

Viewing Memo

You can view the memo that you created.

1. From the Stationery menu (P181), “Memo”

<Memo>

2. Select a memo to view ]C

•

The screen will be displayed.

Memo (1/2)

Menu Select Add

2006/06/01 (Thu)

Meeting June 1

2006/06/01 (Thu)

Video-phone call

186

Stationery

•C[Edit]: You can edit the selected memo.

•I[Delete]: You can delete the selected memo.

•J

: Displays the previous and next memo.

Using the Submenus of the Memo Display/

Display Screen

1. From the Memo display (P185)/Display screen

(P185), M[Menu] ]Select from the following

submenu items

Add new

You can create a memo. See Step2 (P185) of

“Creating memo”.

Open

The display screen of the selected memo is displayed.

Edit

You can edit the selected memo. See Step2 (P185) of

“Creating memo”.

Mark/Unmark

This function is used when you select and delete

multiple memos. After selecting, press I[Delete].

Delete

You can delete the memo selected or displayed.

: This menu is not displayed in submenus of screen.

Using Date Search

C]]

You can search for the date the target date after a specified

period from a specified date. For instance, you can search for

the date after 90 days from the current date for convenience.

From the Stationery menu (P181), “Date search”

]

Select from the following setting items

•I[Reset]: You can reset all values of setting.

From

You can enter a date to start the search. Enter the

date by using Jand the dial buttons.

After

You can enter the number of days. Use the numeric

keys to enter the number of days. For instance, if you

want to know the date after 90 days from the “Start

date,” enter 90.

Using Date Counter

C]]

If you store the name and date of an event such as a

birthday, you can check how many days remain before

the event or how many days have passed after the event.

Storing Events in Date Counter

1. From the Stationery menu (P181), “Date counter”

187

Stationery

• The Date counter display (P187) appears.

2. I[Add] ]Select from the following setting items

]After setting, I[Done]

(Date)

You can set the date of an event. Enter the date by

using Jand the dial buttons.

(Memo)

You can enter a memo. You cannot set without

entering.

Displaying Date Counter

1. From the Stationery menu (P181), “Date counter”

I[Add]: You can compose the date counter. Go to

step 2 (See above) of “Storing Events in Date

Counter”.

2. Select a date counter ]C

•C[Edit]: You can edit the selected daily counter. Go

to step 2 (See left) of “Storing Events in Date

Counter”.

•I[Delete]: You can delete the selected daily counter.

•J: Displays the date counter of previous and next

day.

Using the Submenu of the Date Counter

Display/Display Screen

1. From the Date counter display (See left)/display

screen (See above), M[Menu] ]Select from the

following submenu items

Add new

You can store an event to the date counter. See

Step2 (See left ) of “Storing Events in Date Counter”.

View (1/2)

Menu Edit Delete

2006/05/31 (Wed)

D-day : -1

Meeting

Date counter (1/2)

Menu Select Add

Meeting - 1

ǎǌǌǒğǌǑğǏǍ

Destination +16

ǎǌǌǒğǌǒğǍǓ

– before a number: The number of days

before the specified date

+ before a number: The number of days

after the specified date

188

Stationery

Open

You can view the selected date counter.

Edit

You can edit the date counter selected or displayed.

See Step2 of “Storing Events in Date Counter”.

Mark/unmark

This function is used when you select and delete

multiple date counters. After selecting, press I

[Delete].

Delete

You can delete the date counter selected or

displayed.

: This menu is not displayed in submenus of screen.

189

Available Network Services .................190

Using Voice Mail ...................................190

Using Call Waiting Service...................192

Using Call Forwarding Service.............193

Using Nuisance Call Barring Service...194

Using Caller ID Notification Service ....194

Using Caller ID Request Service..........194

Using Set Arrival Act ............................195

Selecting Arrival Call Act......................195

Registering Additional Services...........196

Registering Additional Guidance .........196

Using English Guidance .......................197

Using Service Dialing Number .............198

Using Call Barring.................................198

Network Service

On the Stand-by display,

C[Menu] ]or “NW service”

To display the Network service menu

Select

NW service

1 Voice mail

2 Call waiting

3 Call forwarding

4 Nuisance call barring

5 Caller ID notification

6 Caller ID request

7 Set arrival act

Select

NW service

Available Network Services

The following are the DoCoMo Network Services available

from the FOMA phone:

• See “Network Services User's Guide” for more details.

• Not all services described in “Network Services User's

Guide” are supported.

• Contact “DoCoMo Information Center” on the back

page of this manual for subscription or inquiry for the

Network Services.

Information

• The Network Services that are operated by connecting to the

Network Service Center are not available when you are out of

the service area.

• You can store services newly provided by DoCoMo Network

Services in the FOMA phone. >P196

Using Voice Mail

C]]

If your FOMA phone is out of the service area or the

power is turned off, or when you cannot answer a call

within the set time, the Voice Mail Center holds voice mail

messages on behalf of you. You can check the voice mail

message anywhere in Japan.

•

If a call comes in from a caller not notifying caller ID with

“Caller ID request” activated, the Caller ID Request

guidance is played back and the center will not hold voice

mail messages.

• Even if Voice Mail is activated, incoming video-phone

calls will not be connected to the Voice Mail Center,

and the call is disconnected after the duration set in

ringing time for Voice mail elapsed.

190

Network Service

Service

Reference

Monthly feeApplication

Voice Mail

See Right

ChargedRequired

Call Waiting Service P192ChargedRequired

Call Forwarding Service

P193FreeRequired

Nuisance Call Barring Service

P194FreeRequired

P194Free

Not required

Caller ID Notification Service

P194Free

Not required

English Guidance

Not required

Free P197

Service Dialing Number

Not required

Free P198

Caller ID Request Service

Public mode (power off)

Not required

Free P49

191

Network Service

1. From the Network Service menu (P189), Voice mail

]Select from the following setting items

Activate voice mail

You can start using Voice Mail.

Set ringing time

You can set the time from the first ring until the call is

connected to the Voice Mail Service Center

Deactivate voice mail

You can stop using Voice Mail.

Voice mail status request

You can check the current settings of Voice Mail

Service.

• If you press M[Menu] in setting confirmation

screen, you can set the service of voice mail or

ringing time.

Play messages

You can play back messages recorded as Voice Mail.

Voice mail setting

You can connect to the Voice Mail Service Center to

change the settings of Voice Mail by following the

voice guidance.

Check messages

You can check whether or not new messages are

recorded.

Notify missed call

If the FOMA phone is turned off or out of the service

area, you are informed by SMS (Short Message Service)

of missed calls when the FOMA phone is turned on or in

the service area again.

–Activate missed call notification: You can start

using Missed Call Notice Service.

–Deactivate missed call notification: You can

stop using Missed Call Notice Service.

–Missed call notification status request: You can

check the settings of the Missed Call Notice Service.

Delete voice mail icon

You can delete displayed in the icon view area.

Set message alert ringer

You can set the ring tone to sound when a new

message is recorded.

192

Network Service

Using Call Waiting Service

C]]

When you receive another voice call during a call, you can

put the current call on hold to answer the new call. You

can also make a call to another party by putting the

current call on hold.

•

For details related to catch phone, refer to “Network

service operation guide”.

• When using Call Waiting, set “Arrival call act” to Voice

call >Answer. >P195

•

If a call comes in from a caller not notifying caller ID while

Caller ID Request Service is set to “Activate caller ID

Request”, the Caller ID Request guidance is played back

and Call Waiting is not available.

• When a video-phone call comes in during a voice call,

or a voice call comes in during a video-phone call, Call

Waiting does not work. The second call is recorded as

a missed call in Received Calls.

1. From the Network Service menu (P189), “Call

waiting” ]Select from the following setting items

Activate call waiting

You can start using Call Waiting Service.

Deactivate call waiting

You can stop using Call Waiting Service.

Call waiting status request

You can check whether the Call Waiting Service is

activated or deactivated.

Submenus on using Call Waiting Service

• If you press M, you can view the sub-menus.

aWhen a new call comes in during a call

Voice mail 1

When a new call comes in, the caller can connect the

voice mail center.

Call rejection

You can reject a call without receiving the call.

Call forwarding 2

You can forward the incoming call to the forwarding

destination you have registered.

End active call

You can answer a new call after finishing the current

call.

Mute/Unmute

The voice to send to the other party is set to mute or

unmute.

1: You can use the voice mail service when you have signed up

this service. See “Using Voice Mail” (P190) for details.

2: You can use the call forwarding service when you have signed

up this service. See next page for details.

193

Network Service

aWhen you receive a new call during a call

End

–End active call: After ending a call, you can take

the new call on hold.

–End held call: You can end a call on hold.

–End all calls: You can end all calls of both side.

Mute/Unmute

The voice to send to the other party is set to mute or

unmute.

Using Call Forwarding Service

C]]

You can forward an incoming call to the forwarding

number you have registered in advance when the FOMA

phone is turned off or out of the service area.

•

If a call comes in from a caller not notifying caller ID while

Caller ID Request Service is set to “Activate caller ID

Request”, the Caller ID Request guidance is played back

and the call is not forwarded.

• Call Forwarding Service will be automatically

deactivated if “Voice Mail Service” is set to “Activate

Voice mail”.

• This service is not available with some billing plans.

1. From the Network Service menu (P189), “Call

forwarding” ]Select from the following setting

items

Activate call forwarding

You can start using Call forwarding Service.

–Register fwd number: You can store the phone

number of the forwarding destination. If you press

M[Search], you can search for phonebook.

–Set ringing time: You can set the time from the

first ring until the call is forwarded.

Deactivate call forwarding

You can stop using Call forwarding Service.

You can change the phone number of the forwarding

destination. If you press M[Search], you can search

for phonebook.

Setting at forwarded party busy

You can set an incoming call to be connected to the

Voice Mail Service Center if the forwarded destination

is busy.

Call forwarding status request

You can check the current settings of Call Forwarding

Service.

194

Network Service

Using Nuisance Call Barring Service

C]]

You can set the FOMA phone to block calls from specific

phone numbers, such as mischievous calls or nuisance

calls. If a call comes in from the phone number stored, the

FOMA phone plays the Call Rejection guidance and the

call is disconnected.

1. From the Network Service menu (P189),

“Nuisance call barring” ]Select from the

following setting items

You can register the phone number of the call that

you answered the last for rejection.

Delete all entries

All the phone numbers registered for rejection are

deleted.

Delete most recent entry

You can delete the latest phone number in phonebook.

Using Caller ID Notification Service

C]]

You can notify your phone number to the other party

when dialing. When the other party's phone is the digital

terminal that supports caller ID, your phone number

appears on the other party’s phone.

• Your caller ID is important information, so take great

care to notify it.

1. From the Network Service menu (P189), “Caller ID

notification” ]Select from the following setting

items

Activate/Deactivate caller ID notification

You can display your phone number on the other

party's phone (display) when dialing. To use this

service, you enter the Network Security Code.

Caller ID notification status request

You can check the current settings of Caller ID

Notification.

Using Caller ID Request Service

C]]

Caller ID Request Service responds to anonymous callers

by playing the guidance asking them to redial with their

caller IDs notified and disconnects the calls automatically.

1. From the Network Service menu (P189), Caller ID

request” ]Select from the following setting items

Activate caller ID request

You can start using Caller ID Request Service.

Deactivate caller ID request

You can stop using Caller ID Request Service.

195

Network Service

Caller ID request status request

You can check the current settings of Caller ID

Request Service.

Using Set Arrival Act

C]]

You can activate or cancel the arrival call activation. For

details, refer to “Selecting Arrival Call Act” (See right). You

can view the current status.

1. From the Network Service menu (P189), “Set

arrival act” ]Select from the following setting

items

Activate arrival act

You can start using the response you set in “Arrival

Call Act”.

Deactivate arrival act

You can stop using the response you set in “Arrival

Call Act”.

Arrival act status request

You can check the current settings of Set Arrival Act.

Selecting Arrival Call Act

C]]

You can set how to respond to incoming voice calls while

you are on the phone.

• After setting the following arrival act, set “Arrival Call

Act” (See left) to “Activate arrival act” to start using the

set arrival act.

Setting item/Setting at purchase >P227

1. From the Network Service menu (P189), “Arrival

call act” ]Select from the following setting items

Answer

The phone rings. If Voice Mail, Call Waiting Service, or

Call Forwarding Service is activated, the phone

follows each setting.

Voice mail

Connects incoming calls to Voice Mail. Even if Call

Waiting Service is activated, the calls are connected

to Voice Mail.

Call forwarding

Forwards incoming calls to the forwarding phone

number registered. Even if Call Waiting Service or

Voice Mail is activated, the calls are forwarded.

Call rejection

Rejects incoming calls.

196

Network Service

Registering Additional Services

C]]

When a new service is provided by DoCoMo, you can

store it in the FOMA phone.

1. From the Network Service menu (P189), “Others”

]“Additional service”

• The additional service list will be displayed.

2. I[Edit] ]After editing, press C[Select]

USSD code

Enter the service code (USSD) supplied by DoCoMo.

Service name

Enter any service name. Press I[Edit] to edit.

Using the Submenu of the Additional Service

List Screen

1. From the Additional Service List screen,

M[Menu] ]Select from the following submenu

items

Edit

Edit a service.

Select

The selected service is executed.

Delete 1 item

The selected service is deleted.

Delete all

All the services registered are deleted.

: Not displayed if an unregistered service is selected.

Using Registered Services

1. From the Additional Service List screen, Select a

registered service ]C

Registering Additional Guidance

C]]

When you execute services added by “Additional Service”,

you can register reply messages that correspond to the

codes (USSD) returned from the Service Center. The reply

message is displayed when the registered code is

returned as a reply.

1. From the Network Service menu (P189), “Others”

]“Additional guidance”

• The reply message list will be displayed.

2. I[Set] ]After setting, press C[OK]

USSD code

Enter the service code (USSD) supplied by DoCoMo.

197

Network Service

Reply message

Enter a reply message name. Press I[Edit] to edit.

Using the Submenu of the Reply Message

List Screen

1. From the Reply Message List screen, M[Menu]

]Select from the following Submenu items

Set

You can set a reply message.

Delete 1 item

The selected reply message is deleted.

Delete all

The reply messages registered are all deleted.

: Not displayed if an unregistered service is selected.

Using English Guidance

C]]

You can set a language for the voice guidance to be

played back for outgoing or incoming calls or network

services.

Available Languages

1. From the Network Service menu (P189), “Others”

]“English guidance” ]Select from the following

setting items

Guidance setting

–Outgoing + Incoming call: You can set languages

of the guidance for outgoing and incoming calls.

Select “Yes” and then select a language.

–Outgoing call: You can set a language of the

guidance only for outgoing calls. Select “Yes” and

then select a language.

LanguageSetting

Japanese

Plays back the guidance in Japanese.

Plays back the guidance in English.

First plays back the guidance in

Japanese and then in English.

First plays back the guidance in

English and then in Japanese.

English

Japanese +

English

English +

Japanese

198

Network Service

–Incoming call: You can set a language of the

guidance only for incoming calls. Select “Yes” and

then select a language.

Guidance status request

You can check the current settings of the guidance.

Using Service Dialing Number

C]]

You can make a call to the DoCoMo repair counter and

DoCoMo Information Center.

1. From the Network Service menu (P189), “Others”

]“Service dialing number” ]Select from the

following items

Malfunction information

A call is connected to the DoCoMo repair counter.

General information

A call is connected to the DoCoMo Information

Center.

Lost on abroad (Chargeable)

(Abroad) From the information center of DoCoMo, the

call will be arrived.

• This is chargeable.

Malfunction on abroad (Chargeable)

From the network technical operation center, the call

will be arrived.

• This is chargeable.

: Depending on UIM, this menu cannot be displayed.

Using Call Barring

C]]

You can block all incoming calls while you are roaming

outside Japan with the FOMA phone.

1. From the Network Service menu (P189), “Others”

]“Call barring” ]Select from the following

setting items

Activate barring of incoming call -roam

–Barring all incoming calls: All incoming calls are

restricted. Enter your Network Security Code.

–Data calls barring: Only incoming video-phone

calls are restricted. Enter your Network Security

Code.

Deactivate barring of incoming call - roam

You can stop using Barring All Incoming When Roam.

Enter your Network Security Code.

Barring of incoming call -roam status request

You can check the settings of Barring All Incoming

When Roam.

199

Data Transmission Available from the

FOMA phone ........................................200

Before Use............................................201

Glossary of Data

Transmission Terms.............................202

Preparation Flow for

Data Transmission ...............................203

AT command ........................................203

Data Transmission

As for data transmissions, refer to Manual for data

transmission (Manual for Data communication.pdf)

in CD-ROM for details. To read this manual, it is

recommended to set up Adobe Reader (Over Ver

6.0). If your personal computer is not installed in this

program yet, you can download it from the latest

homepage of Adobe Systems Incorporation. (Note

that downloading the S/W can be chargeable.) For

details, see the homepage of Adobe Systems

Incorporation.

Data Transmission Available from the

FOMA phone

The data transmission services you can use by connecting

the FOMA phone to a personal computer are classified as

follows: packet transmission, and data transfer (OBEX).

• This FOMA handset does not support 64K data

transmission.

•

This FOMA handset is not applicable with Remote Wakeup.

•

This FOMA handset does not support FAX transmission.

Types of Transmission Available

Packet Transmission

This service charges a transmission fee according to the

amount of data you sent and received. The packet

transmission is suitable for sending and receiving data

only when data transmission is required, with a device

always connected to the network.

Internet connection service for FOMA

It uses an access point which supports FOMA packet

transmission such as “mopera U” and allows data

transmission at a maximum rate of 384kbps in

downloading and 64kbps in uploading.

FOMA L601i allows data transmission overseas using an

access point compatible with W-CDMA or GPRS packet

transmission.

• Note that uploading and downloading a massive

amount of data results in a high amount of

communication fee.

Data Transfer

This service transfers data using infrared rays. This data

transfer service is not chargeable.

By infrared exchange, you can exchange data with

another FOMA phone or a device having the infrared

exchange function such as a personal computer. >P167

Notes for Using Data Transmission

Charges of Internet service provider

To use the internet, you need to pay the charge for the

Internet service provider you use (referred to as “provider”

in this document).

Besides the FOMA service fee, you need to pay the

charge directly to the Internet service provider.

For details on the charges, contact the Internet service

DoCoMo.

You can use the DoCoMo Internet service, “mopera U”.

To use “mopera U”, subscription (charged) is required.

200

Data Transmission

201

Data Transmission

Setting access point (Internet service provider, etc.)

To use the packet transmission, connect to an access

point for packet transmission.

• You cannot connect to the DoPa access point.

• You cannot connect to PHS 64K or 32K data

transmission access point such as PIAFS.

About user authentication for accessing network

User certification (ID and password) may be required at

connection to some access points. In this case, enter your

ID and password on the transmission software (dial-up

network).An ID and a password are given from a connecting

provider or a network administrator of the connecting

access point. Consult your Internet Service Provider or

network administrator for details of the ID and password.

Conditions for packet transmission

To carry out the transmission using the FOMA phone by

connecting to a personal computer, the following

conditions are required. Even when these conditions are

satisfied, however, if the base station is congested or the

radio wave conditions are bad, you may not be able to

carry out transmission.

• The personal computer to be used should support the

FOMA USB cable.

• Within FOMA service area.

• The access point supports IP access of packet

transmission (PDP type) of the FOMA.

Before Use

System Environments

The following system environments are applicable to a

personal computer used for data transmission:

1: This does not support in Windows 98FE.

2: Required memory and hard disk space depends on system

configuration of a PC.

Requirements

• PC-AT compatible PC with CD-

ROM drive.

• USB port (USB Specification

Rev1.1/2.0 compliant)

• Display resolution: 800°X600 dots,

High Color (65,536 colors) or higher

recommended.

Item

PC unit

Hard disk space

Required memory

Windows XP, Windows 2000,

Windows Me, Windows 98SE (All

Japanese editions)

• Windows XP: 128M bytes or more 2

• Windows 2000: 64M bytes or more 2

• Windows Me and Windows 98SE:

32M bytes or more 2

OS 1

Free space of 5M bytes or more 2

202

Data Transmission

Information

• Purchase a dedicated FOMA USB Cable (option). The USB

Cable for personal computer cannot be used because the

shape of the connector differs.

Glossary of Data Transmission Terms

aAPN

An abbreviation for Access Point Name. Used to

identify an Internet service provider or Internet LAN

system you access for packet transmission.

For example, “mopera U” is expressed with character

string “mopera.net” in APN.

acid

An abbreviation for Context Identifier. A registration

number of the APN that is registered in the FOMA

phone in advance for packet transmission.

In the FOMA phones, you can register up to 10 cid

numbers (1 to 10).

aDNS

An abbreviation for Domain Name System, which

converts a name easy-to-understand for human-being.

For example, a domain name “mopera.net” is

converted into an address indicated by a number easy-

to-manage for computer.

aPDP type

An abbreviation for Packet Data Protocol, which

indicates packet transmission. Usually, the type

provider indicates will be selected from PPP access

point and IP access point.This FOMA phone supports

IP access service. For PDP type, consult provider or

network service.

aQoS

An abbreviation for Quality of Service, which indicates

the quality of network service. For the QoS setting of

the FOMA phone, you can specify a communication

rate.

: Connection rates vary depending on

communicating conditions, etc.

aW-TCP

A TCP parameter used to maximize the TCP/IP

transmission capability when carrying out the packet

transmission in the FOMA network. To maximize the

transmission performance of the FOMA phone, you

need to optimize the TCP parameter.

aPC Administrator right

Means the right with which the user can access all

functions of Windows XP and Windows 2000 systems.

A user without an administrator right

cannot install/uninstall transmission setup files (drivers)

and FOMA PC setup software, etc.

Data Transmission

203

Data Transmission

Preparation Flow for Data Transmission

The following outline shows a preparation flow for packet

transmission, and data transfer (OBEX) by connecting a

FOMA phone to a personal computer.

Transmission setup files and FOMA PC setup

software

Attached FOMA L601i CD-ROM contains the transmission

setup files (drivers) and FOMA PC setup software.

• The L601i transmission setup files are software (drivers)

required for packet transmission, and data transfer

using a USB Cable (option).

• The FOMA PC setup software can setup access points

(APN) for packet transmission and dial-up settings

easily.

AT command

AT commands are used to specify and modify the

functions of the FOMA phone on the personal computer.

FOMA phone is in conformity with AT commands.

For details, refer to “Data Transmission” (Manual for Data

communication.pdf) in CD.

Data Transmission

Packet transmission

Data transfer (OBEX)

Infrared rays

Install L600i transfer setup file

onto a personal computer

Specify a connecting access point

Data transfer (OBEX)

Using FOMA PC

setup software

Not using FOMA PC

setup software

Using infrared ray

> P174

Establish connection

205

Entering Characters ............................ 206

List of Character Assignment of

Dial Buttons ......................................... 212

Entering Characters

206

Entering Characters

About Character Entry Display

FOMA phone has some functions to enter characters for

phonebook or mail.

On the Character Entry display, information on the current

input mode or operation guidance is displayed.

1Remaining number of bytes: Remaining number of

characters you can enter is displayed in bytes.

2Operation guidance field: Full-pitch and half-pitch are

displayed.

3Input mode field: Input mode is displayed.

Setting the prediction conversion to enter

character

You can set ON/OFF to predict the conversion candidates

(P207) on entering Hiragana.

• This method is set “ON” at purchase.

1. From the Character Entry display, M[Menu] ]

“Input setting” ]“Prediction ON/OFF”

2. ON/OFF

Switching Input Mode

1. Press I[Mode] on the Character Entry display

(See left)

• Each time you press I[Mode], the input mode

switches.

“” ... You can enter Kanji and Hiragana.

“” ... You can enter Katakana.

“”…You can enter Alphabets.

:You can enter the capital letter.

“”…You can enter Numerals.

Switching Between Full-pitch/Half-pitch

• You cannot switch between full/half-pitch depending on

the display of character entry.

1. Press Aon the Full Entry display (See left)

Half

Full

Menu Set Mode

Message

Full

207

Entering Characters

• Each time you press A, the full-pitch and half-pitch

modes switch.

Switching Pictograph/Symbol/Emoticon Mode

• You cannot switch the mode depending on the display

of character entry.

1. Press Ton the Character Entry display (P206)

• Each time you press T, the input mode switches.

“” ... You can enter Pictographs.

“” ... You can enter full-pitch Symbols.

“” ... You can enter half-pitch Symbols.

“” ... You can enter Emoticons.

–I[Continue]: You can enter characters after

selecting the multiple. After selecting them, press

I[Set].

–A: You can change the page. If you select

“KeyGo”, the cursor will be jumped.

Entering Characters

You can enter characters by pressing numeric keys to

which desired characters are assigned.

•To allocate the character on each button, refer to “List of

Character Assignment of Dial Keys” (P212).

Entering Characters in Prediction mode

• You can this method on setting “ ” of Hiragana mode.

Enter characters on the Character Entry display (P206)

•M[KanaA1]: The entered characters are converted

to Katakana or Numerals.

•I[Conv]: The entered characters are converted to

Kanji or other characters.

•C: The entered characters are finalized.

2. Move the cursor to Prediction/Conversion area

using H

3. Select a character to convert ]C

Entering Characters in Normal mode

When entering the characters except for “ ” of Hiragana

mode, the conversion is not available. (After Step 2.)

1. On Character Entry display (P206), enter

characters

•M[Katakana/ Numeral] : You can convert the

characters on inputting to Katakana or number.

KanaA1 Set Conv.

Message

Prediction

Prediction Candidate/Area to

convert a candidate

208

Entering Characters

•C[Set] : You can confirm the character on

inputting.

: In Hiragana mode

2. DI [Convert]

3. Move the cursor by pressing Hto the area of

conversion candidates.

4. Select the character to convert. ]C

aSwitching Capital/ Small letter mode

To switch the capital/ small characters between them,

press *several times. If the character is not

correspond with each one, you cannot convert it.

• You cannot convert the character in numeral mode

(“1(12)”).

aEntering Full pitch/ Half pitch

After entering the character, press Aseveral times. If

the character is not correspond with each one, you

cannot convert it.

• You cannot enter it in English (“a(ab/AB)”) or numeral

(“1(12)”) mode.

aEntering a punctuation

Press *several times.

• You cannot enter it in English (“a(ab/AB)”) or numeral

(“1(12)”) mode.

aEntering Kanji character

Press #/D

• Press Din numeral mode (“1(12)” a line feed).

aEntering a Space

M[Menu] >“Special input” >Select “Space”. In case

of being the cursor at the middle of sentence, press R

to enter a space.

aDeleting a character

Press Qto move the cursor end to delete the

character. Move the cursor to the left of character you

want to delete and press Q. If you press Qfor at

least one second, you can delete all characters.

Using the Submenu on the Character Entry Display

• A few menu cannot be activated depending on the

display of character entry.

From the Character Entry display (P206), M[Menu]

]Select from the following Submenu items.

Common phrases

–Input common phrase: You can select and enter

the registered common phrases.

–Edit common phrase: You can create and register

common phrases and edit registered common

phrases. See step 2 in “Editing Common Phrases”

(P210).

Edit character

You can specify a range to copy/cut and paste

characters. See “Copying/Cutting/Pasting” (P209).

Edit word

You can register words. See Step 2 (P211) of

“Registering Words”.

Kuten code

Return Select Cont.

209

Entering Characters

Quote

–Phonebook: You can access a Phonebook entry

and quote the registered contents. Go to step 3 on

page 60 of “Searching Phonebook”.

–Own number: You can bring up your own number

and quote the registered contents.

Input setting

–Full/Half: You can switch between full-pitch and

half-pitch.

–Upper/Lower :You can switch between upper

case and lower case.

–Prediction ON/OFF: You can activate the

Prediction and Conversion function.

Special input

–Changing line: You can start a new line

–Space: You can enter a space

–Kuten code: You can enter characters using the

Kuten code.

: After converting the English mode “a(ab/AB)”, you can activate

the menu.

Entering Characters Using Kuten Code

You can enter characters or symbols using the four-digit

Kuten code.

• For details, see “Kuten code list” (P258).

From the Character Entry display (P206),

[Menu]

]“Special input” ]“Kuten code”

Enter a Kuten code using the numeric buttons ]C

• You can also select characters or symbols using K.

Copying/Cutting/Pasting

You can copy or cut a character string and paste it to

another display/position.

From the Character Entry display (P206), M[Menu]

]

“Edit character”

]

“Copy”/“Cut”

2. Move the cursor to the start position using

K]C

3. Move the cursor to the end position using K]C

4. Display the Character Entry display to which you

want to paste the copied/cut characters ]Move

the cursor to the desired position for pasting using

5. M

[Menu]

]

“Edit character”

]

“Paste”

• Select M[Menu] ]“Edit character” ]“Undo” in

sequence to undo cut or pasted characters.

Information

• If the number of characters which are copied or cut from the

sentence exceeds the limitation, you can paste them after

deleting the characters over limitation.

• When you paste the character after copying or cutting, its type

should be same. For example, you cannot input (half pitch of

English and number) hiragana or Chinese character in screen

to input mail address.

210

Entering Characters

• If you paste character lines including a line feed in the entry

screen that line feeds cannot be entered, it is replaced by a

blank (one-byte space).

Editing Common Phrases

You can edit registered common phrases or add new

common phrases.

1. From the Character Entry display (P206),

M[Menu] ]“Common phrases” ]“Edit common

phrase”

2. Select Category ]C

• The Select Common phrase display appears.

• If you press Cin common phrase list, you can view

all categories.

• If you register new phrase, select “Original”.

3. Select a common phrase to be changed

]I[Edit] ]Edit/input the common phrase ]C

Using the Submenus of the Edit Common

Phrase Display/ Select Common Phrase

Display / Input Common Phrase Display

From the Edit Common Phrase display (See left)/Select

Common Phrase display (See left)/Input Common

Phrase display (See left),

[Menu]

]

Select from the

following Submenu items.

Reset all 1

All common phrases are reset to their defaults.

Delete 1 item 2

A selected/displayed common phrase is deleted.

Reset 1 item 2

A selected/displayed common phrase is reset to its

default.

Category reset 2

All common phrases stored in the category are reset

to their defaults.

Cancel

You can cancel editing of common phrases.

1: Displayed on the submenu of the Edit Common Phrase display.

2: Displayed on the submenu of the Select Common Phrase

display.

Information

• If you activate the menu “Reset all”, the contents of “Original”

will be deleted.

Edit common phrase

Menu Select

2 Greeting

3 Business

4 Private

5 Reply

6 Pictograph idiom

7 Original

1 Internet

211

Entering Characters

Registering Words

For those words not displayed as the conversion

candidates or words with unusual readings, you can

registered, the words are displayed as conversion

candidates when their readings are entered.

1. From the Character Entry display (P206),

M[Menu] ]“Edit word”

• The registered Words List is displayed.

• Select a dictionary and press Cto confirm the

registered words.

2. I[New registration] ]Select the next item to

Reading

You can set reading of “Word”.

Word

You can set a word that will be displayed as a

conversion candidate when you enter characters

registered as “Reading”.

Deleting Words

1. From the Registered Words list (See above),

M[Menu] ]“Delete 1 item”/“Delete all” ]“Yes”

212

Entering Characters

List of Character Assignment of Dial Buttons

You can enter a character by pressing dial button. On pressing one button, you can enter multiple characters as follow the

table. Whenever you press the button on pressing #button at the same time, the character will be changed in reverse order.

1: In full-pitch mode, “ ” or “ ” is displayed only when the character to which “ ” or “ ” can be added is displayed.

2: You can enter a character in full-pitch mode. 3: In half-pitch mode, “ ~ ” is displayed. 4: You can enter a character in half-pitch mode.

If you set capital mode in “Switching Capital/Small letter mode” (P209), the capital letter will be displayed at first.

213

Network Settings................................. 214

International Roaming Service ........... 214

Using the FOMA Phone Overseas...... 216

Overseas Use

214

Overseas Use

Network Settings

C]]

You can connect 3G network setting at purchase. If you use

GSM/GPRS network, set “GSM” or “Automatic” of “Setting

the Network Mode” (P88). If you know the network in your

area, you can select it directly. For details to set the network

refer to “Network Settings (for overseas use)” (P87).

International Roaming Service

Refer to “WORLD SERVICE User’s Guide” for details of

the communications services available while in

international roaming. NTT DoCoMo’s website offers the

downloadable latest version of “WORLD SERVICE User’s

Guide” as well as the latest information about WORLD

SERVICE:

http://www.nttdocomo.co.jp/service/world/

Application for WORLD WING

DoCoMo’s “WORLD WING” international roaming service

is available with no need for separate application.

However, subscribers who signed up for FOMA service on

or before August 31, 2005 and have not applied for

“WORLD WING” need to submit an application to use the

service. >P221

Before Departure

Charging the Battery

Make sure of the voltage available in the country or area of

stay and use the FOMA AC Adapter 01 for overseas and

domestic usage (a conversion plug adapter according to

the place of stay will be required).

Using Voice Mail/Call Forwarding from Overseas

Use of the Voice Mail or Call Forwarding service from

abroad is part of “remote operation” operation and

requires the activation in advance of Remote operation

before your departure. The procedure is:

159A]Follow the voice guidance

1]P

Before departure, make sure that you have the Network

Security Code, which may be required for remote-

accessing the Voice Mail etc.

If you have forgotten your Network Security Code, visit

a DoCoMo Shop or DoCoMo World Counter with an

identification document such as the driver’s license to

make necessary changes.

Overseas Use

215

Overseas Use

Using i-mode/i-mode Mail Overseas

To use i-mode or i-mode mail overseas, you need to set

“International Settings” to “YES”.

aTo change settings in Japan

• No packet transmission fees apply.

“iMenu” ]“Options” ]“International Settings” ]

“YES”

aTo change settings outside Japan

Packet transmission fees apply.

“iMenu” ]“International Settings” ]“YES”

•

If set to “NO”, you can send and receive i-mode mail

messages and view the i Menu only. The default setting

is “NO”.

Some i-mode sites may not be available depending on

the information provider.

Packet transmission fees apply to all types of access

from overseas including transmissions that are free of

charge in Japan.

Japan time applies even if i-mode sites are accessed

from overseas. Be careful when registering entries to or

deleting entries from My Menu at the beginning or end

of a month.

After Arriving at the Destination

Overseas Networks and Services Available

Services marked with “O” in the table above may not

be available depending on the mobile phone carrier

being used or the place of stay.

Visit the DoCoMo website for details about services

available in the individual countries or regions:

http://www.nttdocomo.co.jp/service/world/

Mail Menu i-modeMail Menu i-mode

01/28 [Sat]

See “Network Name” (P89)

to display the network

name on connecting and

to set it.

Network

Icon

Voice

Packet

transmission

(i-mode,

mopera U, etc.)

SMS

Video-

phone

GPRS

GSM

Information

• You can set whether to display Japan time together with the

local time on the stand-by display. >P73

Setting Mobile Phone Carrier

The network will be set after searching it automatically if

“Setting the Network Mode” (P88) is set to “Automatic” in

international roaming.

• You can set up beforehand the type of network on

searching by “Setting the Network Mode” (P88).

• If you search the network automatically, you can set the

preferred network by “Registering a Network from the

list” (P88).

• You can select the network manually. Refer to “Selecting

the Network Connection Mode” (P87).

Information

• “Network mode” is set to “Automatic” if “3G”/“GSM”,

“Network connection mode” are searching automatically.

• After you search with “Network mode” set to “Auto” and

“Network selection” set to “Manual”, the mode (“3G”/“GSM”)

the same as the type of network (communication carrier)

selected after the search is sets to “Network mode”.

Using the FOMA Phone Overseas

•

If the other party subscribes to a mobile phone carrier

supporting the FOMA video-phone, you can make a

video-phone call by pressing T.

Making Calls

aCalling from Overseas to Japan

• Check the setting “No prefix” in “Setting Prefix Dial”

(P83).

Press and hold 0for two seconds to display “+”

]81

(Country code for Japan)

]

Other party’s

phone number excluding “0 (zero)” at the beginning of the

area code

]A(T)

Example: When the other party is in one of the 23

wards of Tokyo (area code: 03)

“+”>81> 3> XXXX – XXXX

Calling another WORLD WING/WORLD WALKER user

• Make sure that “Auto assist setting” is set to “OFF”.

Press and hold 0for two seconds to display “+”

]81(Country code for Japan) ]Other party’s

phone number excluding “0 (zero)” at the beginning of

the area code ]A(T)

Example: When the other party has a mobile phone

number beginning with (090)

“+”

XXXX – XXXX

216

Overseas Use

Calling a mobile phone or fixed-line phone within the country of stay

Dial the other party’s phone number including the

area code

]

A(T)

Calling from the country of stay to a mobile phone or

fixed-line phone in another country (other than Japan)

• Make sure that “Auto assist setting” (P83) is set to

“OFF”

Press and hold 0for at least one second to display

“+”

]

Country code of the other party

]

Other party’s

phone number excluding “0 (zero)” at the beginning of

the area code

]

Receiving calls

When a call comes in, A(T)

Having Others Call You While Overseas

aReceiving a call from Japan

Have the other party call you at your regular mobile

phone number.

090

XXXX – XXXX/

080

XXXX – XXXX

]

CALL

aReceiving a call from a country other than Japan

International access code of the country the call

originates ]81(Country code of Japan)

]Your phone number excluding “0 (zero)” at the

beginning ]CALL

Troubleshooting

Unable to Make or Receive Calls/Always Out of

Service Area/Handset Does Not Turn ON

Possible causes for inability to make or receive calls,

reception level indication permanently being “Out of

service area” or the handset not turning on are:

• Weak radio waves being received or being out of the

service area

• Failure of the local switchboard or base station or

temporary line congestion

• Wrong operation of the handset

• Other

Visit the DoCoMo website for the latest information about

service areas and network interruption:

http://www.nttdocomo.co.jp/service/world/

In addition, make sure of the operation and try the following:

•

If you are indoors, see if the condition is the same outdoors.

•

See if your monthly charges have not exceeded the limit.

• Turn OFF the handset once and back ON.

• Manually select the mobile phone carrier to use.

If the problem persists after the above troubleshooting

procedures have been taken, contact the Network Technical

Support and Operations Center (P219).

217

Overseas Use

218

Overseas Use

Limit on Charges

• A limit is set for WORLD WING charges. When we have

recognized that your monthly charges exceeded the

limit, WORLD WING service is suspended until the end

of the month.

• The limit applies to charges including call charges, video-

phone call charges, packet transmission and SMS

transmission charges while in international roaming.

However, the limit does not apply to the international call

forwarding charges or charges for which the billing data

from the overseas carrier used have not been received by

DoCoMo, and the billed amount may exceed the limit. In

that case, the subscriber will still be responsible for the

monthly WORLD WING charges for use until the

suspension.

• When the payment of the monthly charges has been

confirmed, the suspension of WORLD WING service is

lifted (the lifting process may take some time after the

payment has been made). From overseas, the payment

can be made by credit card transaction (one-time

payment only).

• Contact the DoCoMo Information Center for details.

If i-mode is inaccessible

•

If i-mode sites other than “iMenu” is unavailable, first make

“International Settings” (P215). Some sites may not be

available depending on the information provider.

• The i-mode services may not be available depending

on the operator being used.

• Select a mobile phone carrier compatible with packet

transmission.

• For the latest information about overseas carriers

compatible with packet transmission, visit the DoCoMo

website.

• “i-mode” services offered by overseas carriers are not

available.

After Coming Back to Japan

• You have to set “3G” in network mode (P88).

• If the “Network selection” (P87) has been manually set

up overseas, switch to “Auto” or, after searching again,

select “JP DoCoMo-3G”.

Contact (While outside Japan)

If the handset is lost or stolen, etc.

<DoCoMo Information Center> (24-hour service)

aUniversal Number

International Call ID Number for the Universal Number

(see Table 1)

– 800-0120-0151

Local dialing charges may apply for the country or region of stay.

aIf the Universal Number above is not available

International access code for the country of stay (see

Table 2)

– 81-3-5366-3114

Dialing charges for calls to Japan will apply.

Please be aware that you are charged for call fee incurred

after the phone or UIM is lost or stolen. Contact the

Information Center immediately after the loss and follow

procedures to cancel the service.

If the Handset is not Working Properly

(24-hour service)

aUniversal Number

International Call ID Number for the Universal Number

(see Table 1)

– 800-5931-8600

Local dialing charges may apply for the country or region of stay.

aIf the Universal Number above is not available

International access code for the country of stay

(see Table 2)

– 81-3-6718-1414

Dialing charges for calls to Japan will apply.

The International Call ID Numbers for the Universal Number in Table

1 and international access codes in Table 2 are subject to change.

Major Country Codes

219

Overseas Use

Country/Region

Code

Australia 61

Austria 43

Belgium 32

Brazil 55

Canada 1

China 86

Czech 420

Country/Region

Code

Egypt 20

Fiji 679

Finland 358

France 33

Germany 49

Greece 30

Hong Kong 852

220

Overseas Use

Visit the WORLD WING website for other country

codes and details.

International Call ID Number for the Universal

Number (Table 1)

Major International Access Codes (Table 2)

Country/Region

Code

Australia 00

900

Austria 00

Belgium 00

Brazil 0021

Canada 011

China 00

Columbia 009

Denmark 00

France 00

Germany

Hong Kong

001

Country/Region

Code

Luxembourg 00

Malaysia 00

Netherlands

New Zealand

Norway

Philippines

Singapore 001

South Korea 001

Spain 00

Sweden

Switzerland

Taiwan 00

Thailand 001

Ireland 00

Country/Region

Code

Australia 0011

India 00

Indonesia 001

Country/Region

Code

Italy 00

Netherlands 00

UAE 00

UK 011

Country/Region

Code

Argentina 00

USA 011

Ireland 00

Country/Region

Code

UK 00

Israel 014

Italy 00

Country/Region

Code

Indonesia

Italy

Macao

Malaysia

689

Maldives 960

Netherlands 31

687

New Zealand 64

Norway

Peru

Singapore 65

India 91

Country/Region

Code

South Korea 82

Spain 34

Sweden 46

Switzerland 41

Tahiti 689

Taiwan 886

Thailand 66

Turkey 90

UK 44

USA 1

Philippines

Russia

Vietnam 84

Hungary 36

New Caledonia

221

Overseas Use

The Universal Number may not be available in some

areas.

The Universal Number can only be used in the

countries included in the table of International Call ID

Number for the Universal Number, as shown above.

When making calls from a hotel, you may be separately

charged for telephone usage fees by the hotel. (You will

be responsible for these fees.) Please check with the

hotel before you make calls.

Applying for WORLD WING

At DoCoMo e-site

aBy i-mode

“iMenu” ]“Charges&Applications” ]“DoCoMo e-site”

aFrom a personal computer

My DoCoMo (https://www.mydocomo.com/)

]

DoCoMo e-site

You need to enter your “Network Security Code” for

application by i-mode.

You need to enter your “My DoCoMo ID” and

“Password” for application from a personal computer.

DoCoMo e-site may not be available for the application

depending on the contracted contents.

Country/Region

Code

Belgium 00

Brazil 0041

0021

0023

Country/Region

Code

Switzerland 00

Sweden 00

Spain 00

Thailand

Taiwan

Turkey

001

Canada 011 002

China 00 00

Czech 00 Luxembourg 00

Denmark 00 Macao 00

00 Malaysia 00

990 Monaco 00

France 00 New Zealand 00

Germany 00 Norway 00

Greece 00 Philippines 00

Hong Kong 001 Poland 00

Hungary

South Korea

001

Portugal 00

Russia 810

Singapore 001 Vietnam 00

Philippine

Finland

222

Overseas Use

By phone

aFrom DoCoMo mobile phone or PHS

151 (toll-free)

Not accessible from fixed-line phones, etc.

aFrom fixed-line phones, etc.

0120–800–000

Also accessible from a mobile phone or PHS.

Make sure that you dial the correct number.

At DoCoMo Shop

Your local DoCoMo Shop accepts the application.

At the DoCoMo World Counter

Applications accepted even on the day of departure.

aDoCoMo World Counter Narita International Airport No.

1: 4F Central Building, Narita International Terminal 1

aDoCoMo World Counter Narita International Airport No.

2: B1F Main Building, Narita International Terminal 2

aDoCoMo World Counter Kansai International Airport: 4F

Kansai International Airport Terminal Building

aDoCoMo World Counter Central Japan International

Airport: Business Center P@tio, 3F Central Japan

International Airport Terminal Building

Processing the application may take time. Allow

sufficient time for application at the DoCoMo World

Counter.

For business hours, refer to “WORLD SERVICE User’s

Guide”.

How to Use WORLD CALL

aCheck the setting contents of “International Settings”

C[Menu] ]or “Settings” ]“Call feature” ]

“International dial” ]“IDD prefix setting”

• Set to use “009130010” for WORLD CALL.

aMaking

Display “+”

Country code

Area code

Other

party’s phone number

When you call a mobile phone, dial the mobile phone

number after the country code.

When the other party’s area code or mobile phone

number begins with 0, omit the zero when dialing

(this does not apply in some countries/regions).

223

Menu list ...............................................224

Pre-installed data .................................248

List of Terms 252

Symbol/Special Character List............253

Pictograph and Emoticon List .............254

Common Phrase List............................256

Kuten Code List....................................258

List of city in World time ......................267

Multiaccess Combination Patterns .....268

Multitask Combination Patterns..........269

Service Available with

FOMA Phones ......................................273

Introduction of Data Link .....................274

Troubleshooting ...................................275

Error Messages ....................................277

Introduction of Options and Related

Equipment ............................................297

Warranty and Maintenance Services ..297

Specific Absorption Rate of the

Mobile Phone .......................................300

Export/Re-export regulations of

Japan and USA.....................................300

Appendix

224

Appendix

Menu list

• You can select the function by pressing the button corresponding with the number in a table.

Appendix

i-appli

2 Image display

1 Character size

Pre-installed i-appli only

–

P147

No bookmarks

No screen memos

No URL history

http://

No URL history

No messages

–

Enable/Disable

URL Address: http://

Small/Standard

ON/OFF

P110

P111

P112

P113

P117

1 iMenu

2 Bookmark

3 Screen memo

4 Last URL

1 Input address

2 URL history

1 MessageR

2 MessageF

7 Check new message

8 i-mode setting

1 Home

2 View

5 Go to location

6 Message

P118

P114

i-mode P109

3 Scroll 1 line/3 lines/5 lines

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

225

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

5 Pasted melody

4 Message list disp.

ON/OFF

–

60 seconds/90 seconds/Unlimited

ON/OFF

Mail/MessageR/MessageF (All marked)

–

P119

–

P189

P190

P191

3 Certificates

4 Others

1 Connection timeout

2 i-motion auto play

3 Check new message

4 Check settings

5 Reset settings

6 Reset data

NW Service

1 Voice mail

1 Activate voice mail

2 Set ringing time

3 Deactivate voice mail

4 Voice mail status request

5 Play messages

6 Voice mail setting

7 Check messages

8 Notify missed call

1 line/2 lines

P118

Activate missed call notification

Deactivate missed call notification

226

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

P194

3 Call forwarding

1 Activate call forwarding

3 Call waiting status request

2 Deactivate call waiting

1 Activate call waiting

2 Call waiting

–

2 Deactivate call forwarding

3 Register the forwarding number

4 Setting at forwarded party busy

5 Call forwarding status request

4 Nuisance call barring

1 Register nuisance caller

2 Delete all entries

3 Delete most recent entry

5 Caller ID notification

1 Activate/Deactivate caller ID notification

2 Caller ID notification status request

6 Caller ID request

P193

–

–P192

–

9 Delete voice mail icon

0 Set message alert ringer

–

P191

1 Register fwd number

2 Set ringing time

Missed call notification status request

227

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

Answer/Voice mail/Call forwarding/Call rejection

Not recorded

–

8 Arrival call act

–

3 Arrival act status request

2 Deactivate arrival act

1 Activate arrival act

9 Others

2 Additional guidance

3 English guidance

4 Service dialing number

5 Call barring

–

–3 Caller ID request status request

7 Set arrival act

–

1 Activate barring of

incoming call - roam

1 Barring all incoming calls

2 Data calls barring

P198

P197

P196

P195

Outgoing+Incoming call/ Outgoing call/ Incoming call1 Guidance setting

2 Guidance status request

1 Malfunction information

2 General information

Lost on abroad (Chargeable)

Malfunction on abroad (Chargeable)

1 Activate caller ID request

2 Deactivate caller ID request

1 Additional service

228

Appendix

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

None/1 day/2 days/3 days

ON/OFF

Image, Melody (All marked)

ON/OFF

Mail, MessageR, MessageF (All marked)

P145

5 SMS validity term

4 SMS report request

3 Check new message

2 Receive attach file

1 Receive opt. setting

1 Communication

2 Edit

Inbox

Folder created by user

No messages

None

No messages

P127

P198

P129

P134

P137

P139

P143

P144

Mail

1 Inbox

2 Outbox

3 Unsent message

4 Compose mail

–

1 Compose message

P141

5 Check new message

6 Receive option

7 Check new SMS

8 Mail setting

–

Deactivate barring of incoming call - roam

Barring of incoming call - roam status request

229

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

2 i-motion

Small/Standard

1 line/3 lines/5 lines

1 line subject/1 line address/1 line name/2 lines address/2 lines name

ON/OFF

Pasted melody, i appliTo (All marked)

–

P145

Auto attach: No mark

Signature field: No mark

P146

4 Others

1 Check settings

3 Reset data

2 Reset settings

1 Edit signature

2 Edit quotation

3 View

1 Character size

2 Scroll

3 Mail list display

4 Folder security

5 Melody auto play

6 Pasted data

No data

None

Only preinstalled file

No data

None

Camera, Data transfer, i-mode

Folder created by user

Item,Pre-installed

Camera, Data transfer, i-mode

Pre-installed

Folder created by user

P154

P161

P153

1 My picture

Data box

Inbox, Outbox, Unsent message(All unmarked)

230

Appendix

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

Phonebook P57

1 Add to phonebook Not registered P58

P60

Not registered

4 miniSD memory card

P99Multimedia

P101

1 Camera-mode

P1062 Movie-mode

P181Stationery

P182

1 Scheduler

None

–

Folder created by user

P164

P168

P186

P185

Not registered

–

Not registered

4 Date counter

3 Date search

2 Memo

3 Melody No data

Only preinstalled file

Data transfer, i-mode

Pre-installed

Schedule type

No alarm/On time/Before 15

mins/Before 30 mins/Before 1

hour/Before 1 day/Before 3

days/ Before 1 week

Alarm

Repeat

None/Private/Anniversary/Trip/

Work/Meeting

2 Search phonebook

Once/Daily/Mon~Fri/Sat~Sun/

Weekly/Monthly/Yearly

231

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

–

1. @docomo.ne.jp

2~10. Not registered

Show all data/Group search/Reading search/

Memory No. search/Phone No. search/Domain search

ON/OFF

P60

1 Show all data

2 Group search

3 Reading search

4 Memory No. search

5 Phone No. search

6 Domain search

3 No. of phonebook P63

P63

1 Display data Handset only/UIM only

2 Create domain list

3 Search by

4 Display image

4 Phonebook settings

5 Group settings Group name: Group 1 - Group 30 (Not setting)

P656 Own number –

P171Tools

P172

ON/OFF setting: ON/OFF (Not setting)

ON/OFF

Once/Daily/Mon~ Fri/

Sat~Sun/Except holiday

(ON/OFF setting)

(Duration setting)

1 Alarm

232

Appendix

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

4 Calculator

3 IrDA –

–

P174

P173

P172

2 Custom menu 1 Search phonebook, 2Mail, 3i-mode, 4Camera-mode,

5Alarm, 6Select ringtone, 7~10 Not registered

OFF/In 5 mins/In 10 mins/

In 30 mins/In 1 hour/

In 2 hours/In 4 hours/

In 8 hours/In 1 day/In 1 week

(Snooze)

5 Unit converter

P175

P176

P177

P178

1 Currency / / / 1/

2/ 3

Acre/Hectare/Square in/

Square feet/Square yd/

Square miles/Square mm/

Square cm/Square m/

Square km

mm, cm, m, km, Inch, feet,

yard, mile

2 Surface

3 Length

Currency unit

Surface unit

Length unit

233

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

P179 267

km/h, meter/sec, mile/h,

feet/sec

–

7 Velocity

6 World time

7 Stop watch

8 miniSD memory card

1 Data box

2 Memory info.

mg, g, kg, ton, ounce, pound,

stone

Celsius/Fahrenheit

Milliliter, Liter, Cubic mm,

Cubic cm, Cubic meter,

Cubic inch, Gallon, Liq.pt,

Liq.oz, Fluid oz, Barrel

4 Weight

5 Temperature

6 Volume

1 Common memory

2 Reserved memory

3 UIM memory

4 miniSD

Weight unit

Temperature unit

Volume unit

Velocity unit

Home setting Tokyo

Choose city

234

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

MessageR tone

MessageF tone

SMS tone

Message03.mid

Message04.mid

Message05.mid

Flip tone

Power ON/OFF

Key tone

ON/OFF

Sound off/Sound1/Sound 2/

Sound3

ON/OFF

4 Select effect tone

2 Effect tone volume Key tone

Power ON/OFF

Flip tone

Feedback tone

Voice call

Video-phone

Mail tone

SMS tone

MessageF tone

MessageR tone

Mail tone

P68

Ring01.mid3 Select ringtone

Ring02.mid

Message02.mid

Video-phone

Voice call

P68

P67Sound

1 Ring volume Level 0~7 (Level 3)

Level 0~7 (Level 3)

– P1803 Reset miniSD card

235

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

8 Set mute seconds 0 Sec.

P72

Display

1 Main display P72

P67

Time 3 Sec./Duration 1 CycleMail ring duraiton

6 Manner settings Manner mode/Original manner mode

Message

Incoming call

OFF/Pattern 1 (Vibration only)/Pattern

2 (Vibration only)/melody + vibration

OFF/Pattern 1 (Vibration only)/Pattern

2 (Vibration only)/melody + vibration

P70

P71

1 Manner mode –

2 Original manner mode Incoming call sound ON/OFF

ON/OFF

7 Mail ring duration

Incoming call vib.

Message sound

Message vibration ON/OFF

Key tone

Flip tone

Low battery tone

ON/OFF

Mail ring ON/OFF

5 Vibration settings

Feedback tone ON/OFF P69

236

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

P75

Dial font size

Dial font color

Main display

3 Font

4 Menu style

5 Backlight

Small/Large

Total 16 colors (Orange)

Grid/List

10 seconds/30 seconds/60 seconds/

120 seconds/180 seconds

1 Stand-by display Clock type Analog/Small digital/

Large digital

Outgoing_call_clean

Wallpaper Sub_wind P74

2 Incoming call

3 Outgoing call

Clock font color Total 16 colors (Deep Blue)

3 Outgoing call

2 Sub display

Incoming_call_clean

2 Incoming call

Wallpaper Wind.jpg

Clock font color Total 16 colors (Black)

Clock1 Tokyo

Clock2 London

1 Stand-by display Clock type Do not show/Small digital/

Large digital/Dual clock/

Clock theme 1/Clock theme 2/

Clock theme 3/Clock theme 4

P73

237

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

5 Memory reject call

6 Answer mode

2 Call feature

1 Reconnect alarm

ON/OFF

Press send key/Open flip/Press any key

P82

P79

P78

P77

P76

No record

2 Call duration

1 Call history

1 Received calls

2 Redial

3 All calls

Settings

1 Call/Answer

Accept/Reject on list/Reject all calls

Last call, Received calls, Redial calls, All calls (00:00:00)

3 Auto answer

4 Reject/Accept call

P80

P81

Auto answering

Delayed time

(0~120 SEC)

ON/OFF

6 Color scheme Space/Lovely/Clear/Clean

P75

Sub display

Keypad

10 seconds/30 seconds/60 seconds/

120 seconds/180 seconds

10 seconds/30 seconds/60 seconds/

120 seconds/180 seconds

High alarm/Low alarm/No alarm

238

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

P86


Image list


Image list


Default image

/Selected image

Not setting

Default image

/Selected image

Not setting

Default image

/Selected image

1 Substitutive image

2 Response hold image

3 On-hold image

3 Video-phone

1 Video-phone settings

2 Image settings

VoiceCall AutoSwitch

Display setting

Sub screen

Send camera image

Sending img. quality

ON/OFF

Both/Other/Me

Me/Other

ON/OFF

Prefer image quality/Normal/Prefer motion quality

Display light Always on/Terminal setting

P85

5 International dial

6 Close setting

2 IDD prefix setting

Auto/OFF

WORLD CALL

009130010

IDD prefix name

IDD prefix code

End the call/Continue (Mute)

1 Auto assist setting

P84

2 Quality alarm

3 Minute reminder

4 Prefix dial P83

Not registeredPREFIX 2~3

PREFIX 1 009130010

ON/OFF

High alarm/Low alarm/No alarm

239

Appendix

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

3 Security code

Depending on the UIM (FOMA card) setting

P91

3 Change password

2 PIN code request

2 PIN2 code

1 PIN1 code

Depending on the UIM (FOMA card) setting

0000

5 Network

6 Host selection

1 Network selection

2 Network mode

3 Preferred lists

4 Network name display

Auto/Manual

Auto/WCDMA only/GSM only

Depending on user's setting

Display on/Display off

i - mode

P87

P89

7 Security

Power on/Immediate/None P90

1 All lock

3 Daylight saving

Hour indication OFF

/Cuckoo clock/Chime bell

2006.01.01

DD/MM/YYYY / MM/DD/YYYY /

YYYY/MM/DD

ON/OFF

Set date

Date format

2 Set date

P86

Image list Not setting

4 Date & Time

1 Set time 00 : 00 : 00

Set time

12-hour/24-hourTime format

240

Appendix

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

1 Clear memory

2 Default settings

3 SMS center

4 Reset holiday

2 Reset settings

–

DoCoMo

81903101652

SMSC

Address

P93

–

2 Reserved memory

3 UIM memory

4 miniSD

–

1. 2. English P91

9 Others

1 Memory status

1 Common memory –

P92

Menu Item Setting Item (Blue color: Setting at purchase)

Reference

: The setting is registered in FOMA phone and FOMA card (UIM), but if each setting is different, the setting of FOMA card is preferred.

241

Appendix

Default List of the Submenu/Function Menu Items

Video-phone talking screen >P52

Phonebook list screen >P59

Setting ItemsItems / Function Name

X1/X2

High/Medium/Low

ON/OFF

Both/Other/Me

Me/Other

Always on/Terminal setting

Normal/Prefer motion quality/Prefer image quality

Camera settings

(Zoom)

(Brightness)

(Night mode)

Video phone settings

Display setting

Sub screen

Display light

Sending img. Quality

Setting ItemsItems / Function Name

Show all data/Group search/Reading search/Memory No. search/Phone No.

search/Domain search

ON/OFF

Handset only/UIM only

Search phonebook

Phonebook settings

Display image

Display data

242

Appendix

*You need to obtain a miniSD memory card separately to use the functions related to the miniSD memory card. >P166

Still image finder stand-by screen >P102

Setting Items

Super fine/Fine/Normal

OFF/Auto/Always on/When taking

OFF/3/6/9

Auto/Daylight/Cloudy/Incandescent/Fluorescent

ON/OFF

Choose frame/No frame

None/3 sec./5 sec./10 sec.

None/Black & White/Sepia/Negative

Shutter 1/Shutter 2

No restriction/100KB/9KB

(Size)

(Quality)

(Light)

(Multishot)

(Zoom)

(Brightness)

(White balance)

(Night mode)

(Frame shot)

(Auto timer)

(Effect)

(Shutter sound)

(Size restriction)

Auto/50Hz area/60Hz area

(Flicker tuning)

Handset mem./miniSD

(Save to)

1280X1024/640X480/352X288/320X240/176X220/176X144/128X96/

Phonebook

Submenu Items

243

Appendix

Still Image Display (After taking a multishot) >P102

Moving Image Display >P106

Setting ItemsSubmenu Item

Main display/Sub display

Normal screen/Full screen

1 ~ 9 sec (s) (1)

Set as wallpaper

Slide show settings

View as

Time interval (secs)

Sort by

Setting ItemsSubmenu Item

Super fine/Fine/Normal

OFF/Always on/When recording

Auto/Daylight/ Cloudy/Incandescent/Fluorescent

ON/OFF

None/Black & White/Negative/Sepia

30 secs/1 min/2 mins/5 mins/60 mins/Mail attach

Handset mem./miniSD

Sound+Video/Video only/Sound only

(Quality)

(Light)

(Zoom)

(Brightness)

(White balance)

(Night mode)

(Effect)

(Recording time)

(Save to)

Auto/50Hz area/60Hz area

(Flicker tuning)

(Type)

View by

Name/Date/Type

Simple list/Detailed list/Grid

244

Appendix

MessageR/F list screen >P115

Received mail list screen >P131

Sent mail list screen >P134

Setting ItemsItems / Function Name

Sort

Filter

Setting ItemsItems / Function Name

Sort

Filter

Setting ItemsItems / Function Name

Sort

Filter

Subject(asc.)/Subject(desc.)/Address(asc.)/Address(desc.)/Date(asc.)/

Date(desc.)

All/Unread/Read/Protected/Not protected/Pasted/Attached/i-mode mail/

SMS/SMS report

Subject(asc.)/Subject(desc.)/Address(asc.)/Address(desc.)/Date(asc.)/

Date(desc.)

All/Protected/Not protected/Attached/i-mode mail/SMS

Subject(asc.)/Subject(desc.)/Date(asc.)/Date(desc.)

All/Unread/Read/Protected/Not protected/Pasted/Attached

245

Appendix

Unsent mail list screen >P138

Software list screen >P149

Setting ItemsSubmenu Item

Sort

Network setting

i-appli To

Icon info setting

Set/Not set

Show desc setting

Setting ItemsSubmenu Item

Sort

Filter

Subject (asc.)/Subject (desc.)/Address (asc.)/Address (desc.)/Date (asc.)/

Date (desc.)

Name (asc.)/Name (desc.)/Exec time (asc.)/Exec time (desc.)/

Create time (asc.)/Create time (desc.)/S/W size (asc.)/S/W size (desc.)/

Exec count (asc.)/Exec count (desc.)

Show/Don't show

All/Attached/i-mode mail/SMS

Autostart setting

Yes/No/Check every start

Yes/No

246

Appendix

Image folder list screen >P155/Image file list screen >P155/Image display screen >P155

Image edit screen >P159

Setting ItemsSubmenu Item

Slide show settings

Normal screen/Full screen

View as

1 sec ~ 9 secs (1 sec)

Time interval (secs)

Name/Date/Type

Simple list/Detailed list/Grid

View by

Sort by

Setting ItemsSubmenu Item

Resizing

Insert

Text

640x480/320x240/160x120/Wallpaper size/Phonebook size/Sub display size

Frame

Element

Clipping

>Text focus (P251)

>Frame (P250)

>Stamp (P251)

1280X960/640X480/320X240/160X120/Wallpaper size/Phonebook size

Effect Black & White/Sepia/Negative/Black & White negative/Color balance/Contrast/

Sharpness/Softness/Mosaic Blur

247

Appendix

Moving image folder list screen >P160/i-motion file list screen >P161/Moving image playback screen >P161

Melody folder list screen >P164/Melody file list screen >P164/Melody playback screen >P165

Setting ItemsSubmenu Item

Player settings

Spectrum analy/Dancing notes

Visual effect

Pink/Blue/Violet

Volume

Setting ItemsSubmenu Item

Name/Date/Type

Sort by

None/Current file/All files/Shuffle

Set repeat

Player setting

Spectrum analy/Dancing notes

Visual effect

Pink/Blue/Violet

Player skin

Volume

Sort by

View by

Name/Date/Type

Simple list/Detailed list/Grid

View by Simple list/Detailed list/Grid

OFF~Level 7 (Level3)

Player skin (Color)

OFF~Level 7 (Level3)

248

Appendix

Pre-installed data

In stand-by mode

aMain display

aSub-display

Clock_bg1

Flower

Clock_bg2

Red-glare

Clock_bg3

Space

Clock_bg4 Colorful

Wind

Sub_colorful Sub_flower Sub_red glare Sub_space Sub_wind

249

Appendix

The screen for receiving / making a call

aMain display

aSub display

Sub_incoming Sub_outgoing

Clean_in_calling

Incoming_call

Outgoing_call

Clean_out_calling

Incoming_call_clean (Gray)

Incoming_call_clear (Purple)

Incoming_call_lovely (Pink)

Outgoing_call_clean (Gray)

Outgoing_call_clear (Purple)

Outgoing_call_lovely (Pink)

Clear_in_calling

Lovely_in_calling

Space_in_calling

Clear_out_calling

Lovely_out_calling

Space_out_calling

250

Appendix

Frame

• The frame including of multiple file size can be different to view depending on file size.

251

Appendix

Element

• It can be different to view depending on file size.

Text focus

i-motion

Information

• L601i does not support 3D sound.

List of melody

• The copyright of each melody belongs to LG electronic

Japan, Inc.

Melody name

Alarm01 ~ Alarm03

Beautiful Life

Bless You

Blues Mania

Cave No.31

Chicken Soup

Come to Me

Dark Valley

Driving Bayside

Energetic Today

Funny Funky

Green Park

Hide and Seek

High as Moon

Hunter G

Melody name

If I Could

Jasmine

Keep Tension

Message01 ~ Message12

Nothing to Talk

Play Dominoes

Ring01 ~ Ring03

Roll the Dice

Salute for Me

Secret Of Nature

She Smiles

Touch of Light

Violet

Welcome My Friend

What Happened

File name

DiMAGIC eco-motion

252

Appendix

List of Terms

a3G:

It is the general term of the 3rd generation mobile

communications system based on the global

standard (IMT-2000) which is defined by ITU

(International Telecommunication Union).

a3GPP:

3GPP stands for 3rd Generation Partnership

Project, and it is the name and the standard of the

organization formed in order to standardize the

3rd generation mobile communications system.

aGSM:

GSM stands for Global System for Mobile

Communications, and it is one of the radio-

communications systems. It is the 2nd generation

mobile communications system whose standard

has been unified in Europe and which has spread

globally through out the world.

aGPRS:

GPRS stands for General Packet Radio Service,

and it is a packet communication service with

maximum of 115kbps transmission speed which

can be used in the GSM network.

aIrDA:

IrDA stands for Infrared Data Association, and it is

the name of the industry organization which

establishes the specification of the data

communications in Infrared rays and its standard.

aSSL:

SSL stands for Secure Sockets Layer, and it is the

data communication system which enciphers data

and communicates safely.

aUSB:

USB stands for Universal Serial Bus, and it is the

standard for connecting peripheral equipment with a

personal computer.

aRoaming:

Roaming uses the networks of the carriers tied up

with DoCoMo for communications out of DoCoMo’s

service area. When you use the phone

overseas, the services of DoCoMo, such as phone

calls and i-mode communications, can be received

by using the global roaming service.

253

Appendix

Symbol/Special Character List

aFull-pitch symbol

Special Character

Information

• Special characters might not be correctly displayed if they are sent to mobile phones which do not support i-mode or personal

computers.

254

Appendix

aHalf-pitch symbol

Pictograph and Emoticon List

Pictograph List

aPictograph1

aPictograph2

255

Appendix

Emoticon List

Information

• For the method of entering pictographs and emoticons, see “Switching Pictograph/Symbol/Emoticon” (P207).

Category

Happy

Cry

Chill

Expressions Category

Angry

Sweat

Surprise

Expressions Category

Embarrass

Greeting

Other

Expressions

256

Appendix

Common Phrase List

Category

Internet folder

Greeting folder

Phrase

@docomo.ne.jp

.ne.jp

.co.jp

.com

.or.jp

.go.jp

.ac.jp

http://

www.

.html

Category

Greeting folder

Business folder

Private folder

Phrase

Good morning

Good night

Good afternoon

Good evening

How are you?

Long time no see

Thank you for the other day.

I'm going

I'm back

Happy birthday!

I have always been indebted.

Thank you for your consideration.

I'm sorry

I'm so sorry seriously.

Give me as soon as possible.

Could you please wait for a second?

I'll contact you later on.

I'll send e-mail to you.

Please check the fax.

I'm late because the train is delayed.

Let's go out.

What about going out for drinking?

I'm late

I'll change

Stop

I'll go at first

257

Appendix

Category

Private folder

Reply folder

Pictograph

idiom folder

Phrase

I'm back now

It's time up

How can I do?

Where are you?

Thank you!

bye-bye!

Not good

Thank you

I'm sorry

Wait for a moment

Let's contact later

I can't do it now

I got it!!

Category

Pictograph

idiom folder

Original folder

Phrase

You can enter your own phrase from 1 to 0.

(Glad)

(OK)

(Lovely)

(Hello)

(Waiting a call)

(Happy)

(Angry)

(Christmas)

(Return)

( ? )

Kuten Code List

To enter a Kuten Code, first enter the three-digit number for “Kuten digits 1 to 3” and enter the one-digit number for

“Kuten digit 4”

• Some characters in Kuten Code List may appear different from those on the display.

258

Appendix

Kuten

digit

1 to 3

Kuten digit 4 Kuten digit 4 Kuten digit 4

Kuten

digit

1 to 3

Kuten

digit

1 to 3

259

Appendix

Kuten

digit

1 to 3

Kuten digit 4 Kuten digit 4 Kuten digit 4

Kuten

digit

1 to 3

Kuten

digit

1 to 3

LG Electronics USA L601I GSM Camera Phone User Manual

LG Electronics USA GSM Camera Phone

Contents

Part 1

Navigation menu

Namespaces

Views

Navigation
