User Manual

Car Navigation System

OWNER’S MANUAL

TUSON

ENGLISH

*XXXXXXXXX*

ENG

Thank you for purchasing this Car Navigation system.

This owner’s manual explains how to use the Hyundai Vehicle’s Navigation system.

Before using the product, read the contents of this owner’s manual carefully and use this product safely.

•The screens shown in this manual may differ from the actual screens of the product.

•The design and specification of this product may change without prior notification for product improvement.

•When transferring the vehicle to another individual, include this owner’s manual so that the next driver can continue

its use.

ENG

Safety notes

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE THE

COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with the arrowhead symbol

within an equilateral triangle is intended to alert

the user about the presence of uninsulated

dangerous voltage within the product’s enclosure

that may be of sufficient magnitude to constitute

a risk of electric shock.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

Always operate the vehicle in a safe manner. Do

not be distracted by the vehicle while driving and

always be fully aware of all driving conditions.

Do not change settings or any functions.

Pull over in a safe and legal manner before

attempting such operations.

To promote safety, certain functions are disabled

unless the parking brake is on.

To reduce the risk of electric shock, do not

remove the cover or back of this product. There

are no user-serviceable parts inside. Refer

servicing to qualified service personnel.

To reduce the risk of fire or electric shock, do

not expose this product to dripping or splashing

water, rain, or moisture.

When driving your vehicle, be sure to keep the

volume of the unit low enough to allow you to

hear sounds coming from the outside.

Do not drop it and avoid heavy impacts at

anytime.

The driver should not watch the monitor while

driving. If the driver watches the monitor while

driving, it may lead to carelessness and cause an

accident.

Precautions for safety

ENG Precautions for safety

WARNING:

•Don’t use a mobile phone when you are driving.

You must stop at a safe place to use a mobile

phone.

•The use of the navigation radio by no means

relieves the driver of his/her responsibilities.

The highway code must always be observed.

Always observe the current traffic situation.

•The applicable traffic regulations and the

prevailing traffic situation always take

precedence over the instructions issued by

the navigation system if they contradict one

another.

•For traffic safety reasons, use the navigation

system menus only before starting a journey or

when the vehicle is stationary.

•In certain areas, one-way streets, turn-off,

and entry prohibitions (e.g. pedestrian zones),

the navigation system will give a warning. Pay

particular attention to these kind of cases.

•The navigation system does not take the

relative safety of the suggested routes into

consideration:

Road blocks, building sites, height or weight

restrictions, traffic or weather conditions or

other influences which affect the route safety

or travel time are not taken into consideration

for the suggested routes. Use your own

discretion in order to decide on the suitability

of the suggested routes.

•The current legal road traffic speed limit always

takes priority over the values saved in the

data. It is impossible to provide an assurance

that the speed values of the navigation system

will always match those of the current traffic

regulations in every situation.

•Do not rely exclusively on the navigation

system when attempting to locate an

emergency service (hospital, fire service etc.).

It cannot be guaranteed that all available

emergency services in your vicinity are saved

in the database. Use your own discretion and

abilities to secure help in such situations.

CAUTION:

•Do not keep the navigation system running with

the engine stopped. Doing so may discharge the

vehicle battery. When you use the navigation

system, always keep the engine running.

•Do not disassemble or modify this system.

If you do, it may result in accidents, fire, or

electrical shock.

•Some states/provinces may have laws limiting

the use of video screens while driving. Use the

system only where it is legal to do so.

ENG

Precautions for safety 3

Safety notes � � � � � � � � � � � � � � � � � � � � � � � � � 3

Table of contents 5

General information 8

About USB � � � � � � � � � � � � � � � � � � � � � � � � � � � 8

Music file information � � � � � � � � � � � � � � � � � � 9

Video file information � � � � � � � � � � � � � � � � � � 9

Using iPod devices � � � � � � � � � � � � � � � � � � � � 9

Precautions upon using iPod ........................9

Supported iPod devices .................................9

Cautions upon using SD cards � � � � � � � � � � � 9

Ejecting and inserting SD cards ..................9

Usage of SD cards .......................................... 9

Name of each component 10

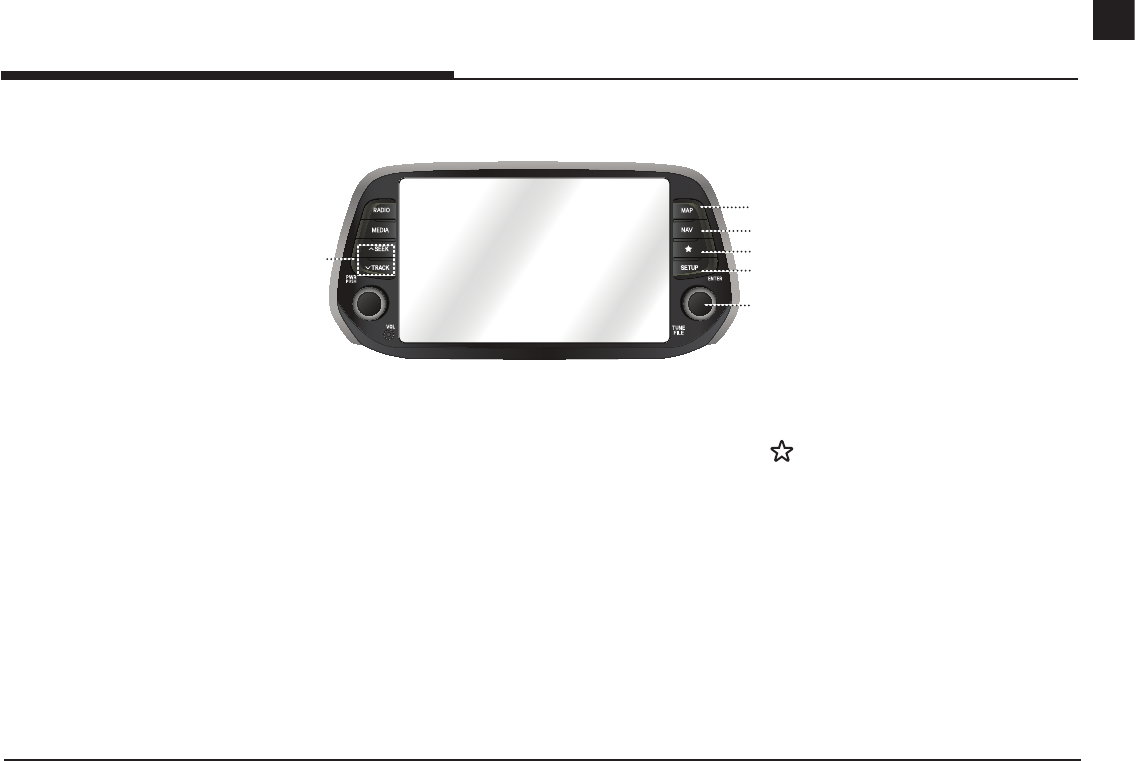

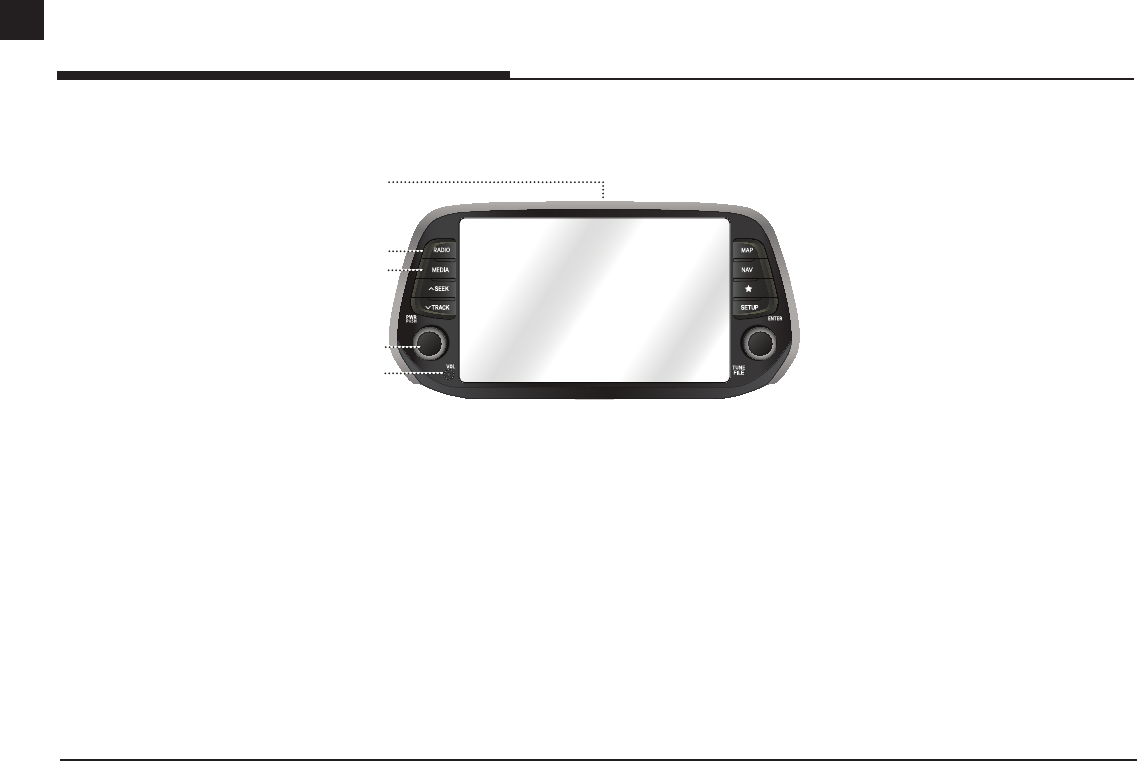

Head unit � � � � � � � � � � � � � � � � � � � � � � � � � � � �10

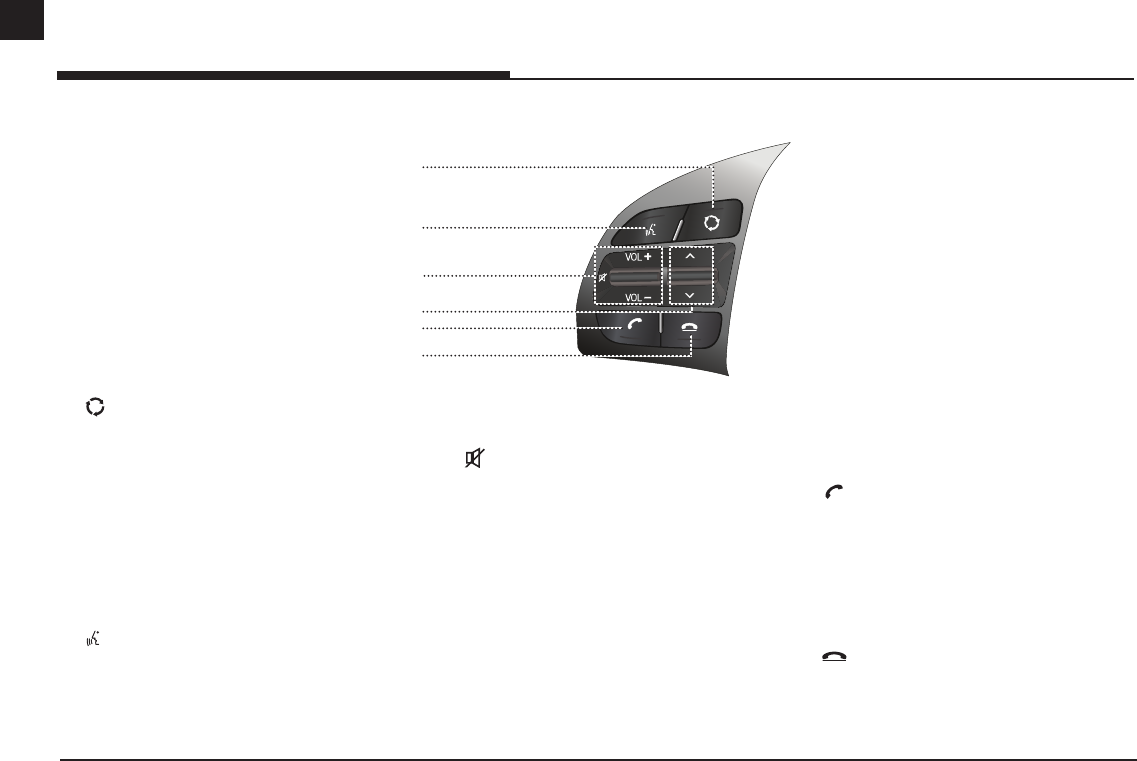

Steering wheel remote control � � � � � � � � � � �12

Basic operation 13

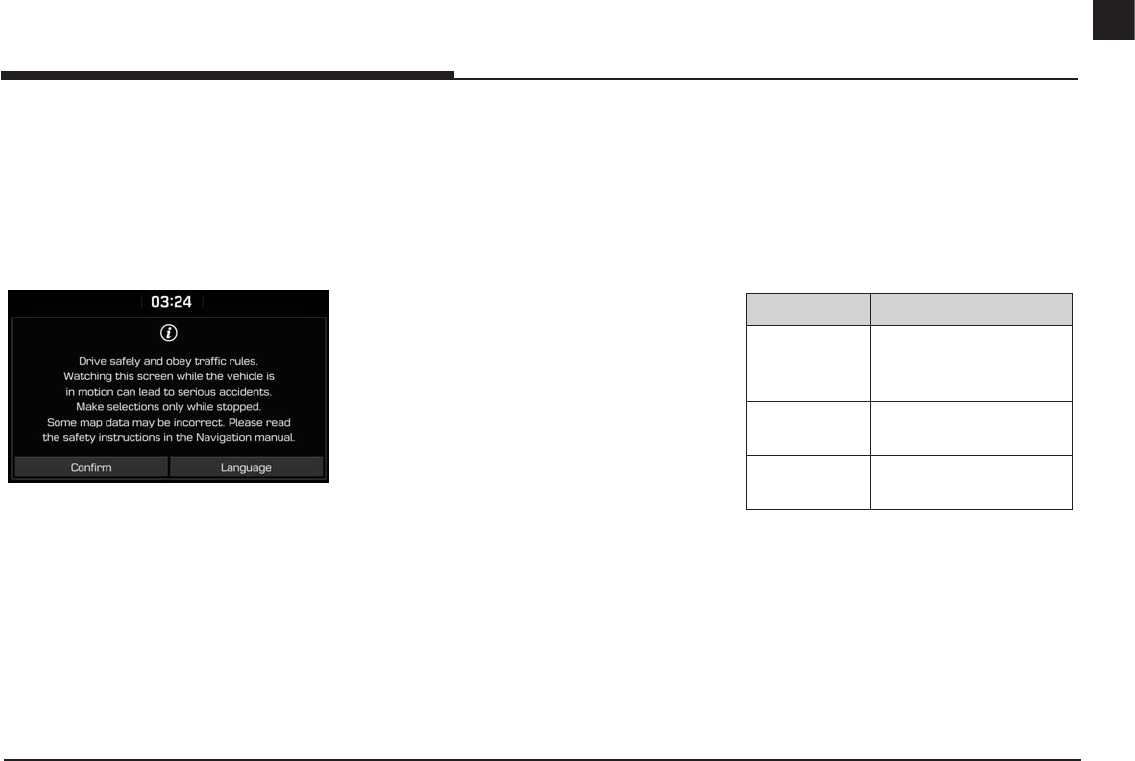

Starting the system for the first time � � � � �13

Turning the system on � � � � � � � � � � � � � � � � �13

Turning the system off � � � � � � � � � � � � � � � � �13

AV OFF � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13

AV ON � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13

Adjusting the volume � � � � � � � � � � � � � � � � � �13

Resetting the system � � � � � � � � � � � � � � � � � �14

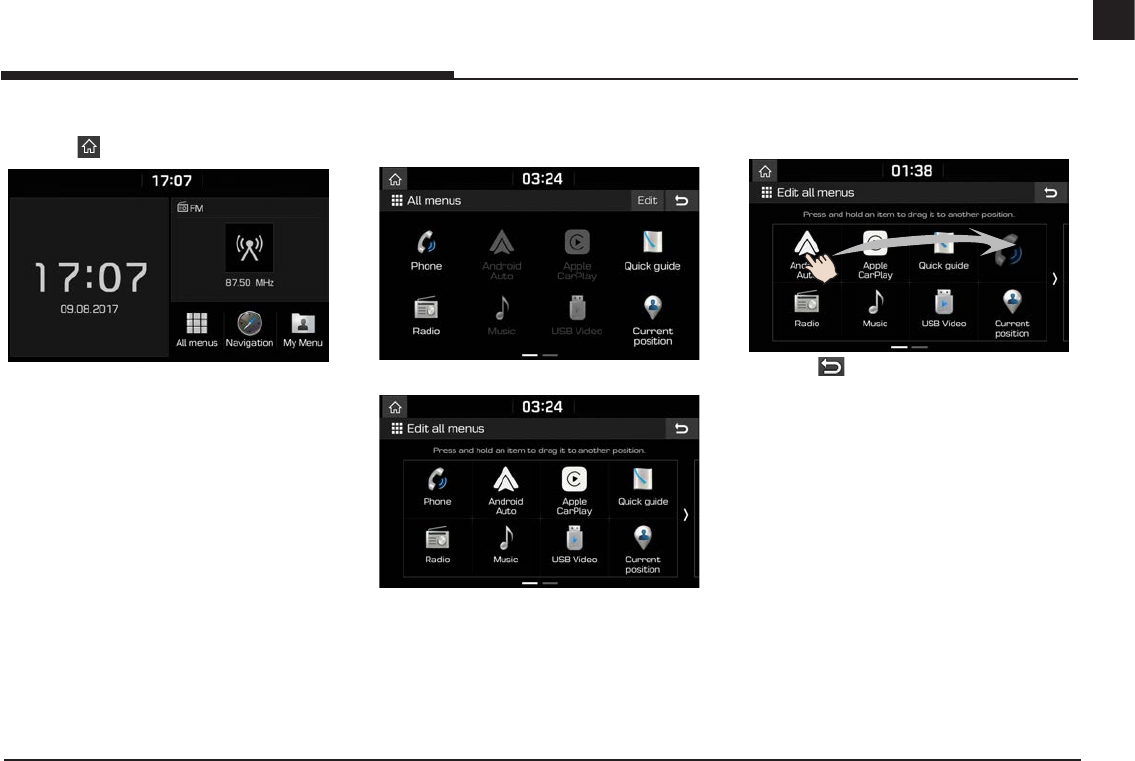

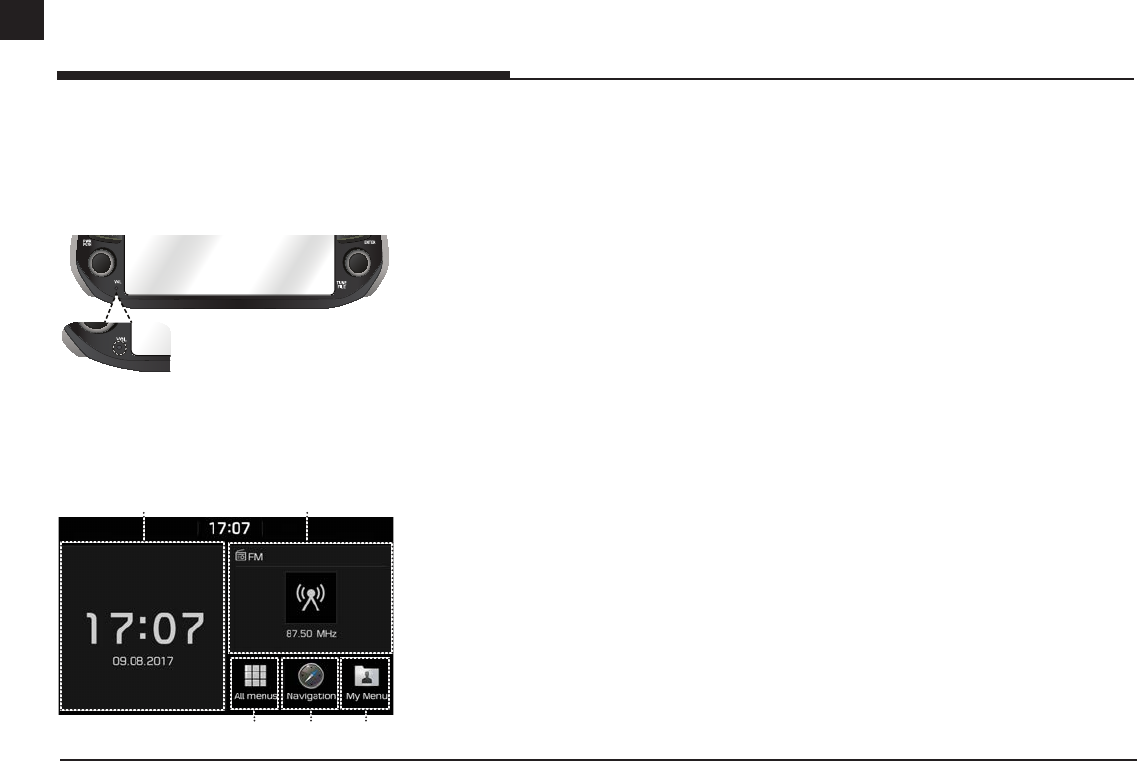

[Home] screen � � � � � � � � � � � � � � � � � � � � � � �14

Configuration for Home screen .................14

Basic operation for [Home] screen .........15

Editing the [All menus] ................................ 15

Adding your favourite menu items to

[My Menu] ......................................................16

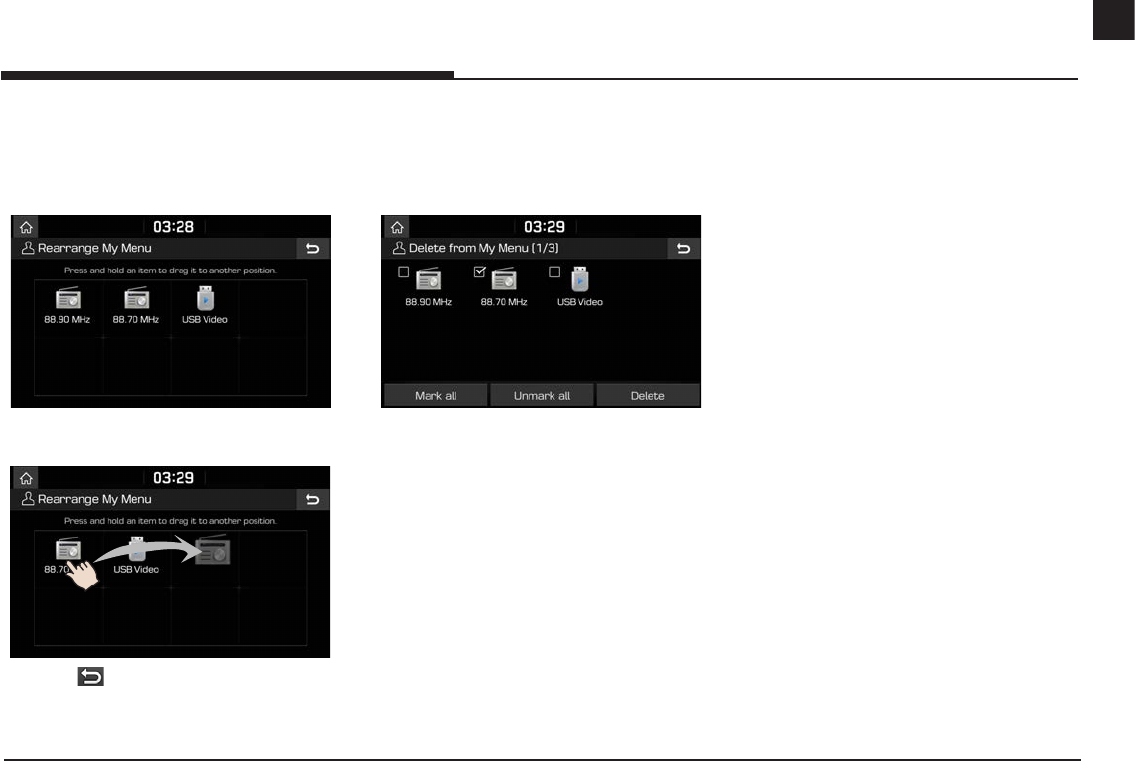

Rearranging the favourite menu items

of [My Menu] ................................................17

Deleting the favourite menu items of

[My Menu] ......................................................17

Playing last media source .......................... 17

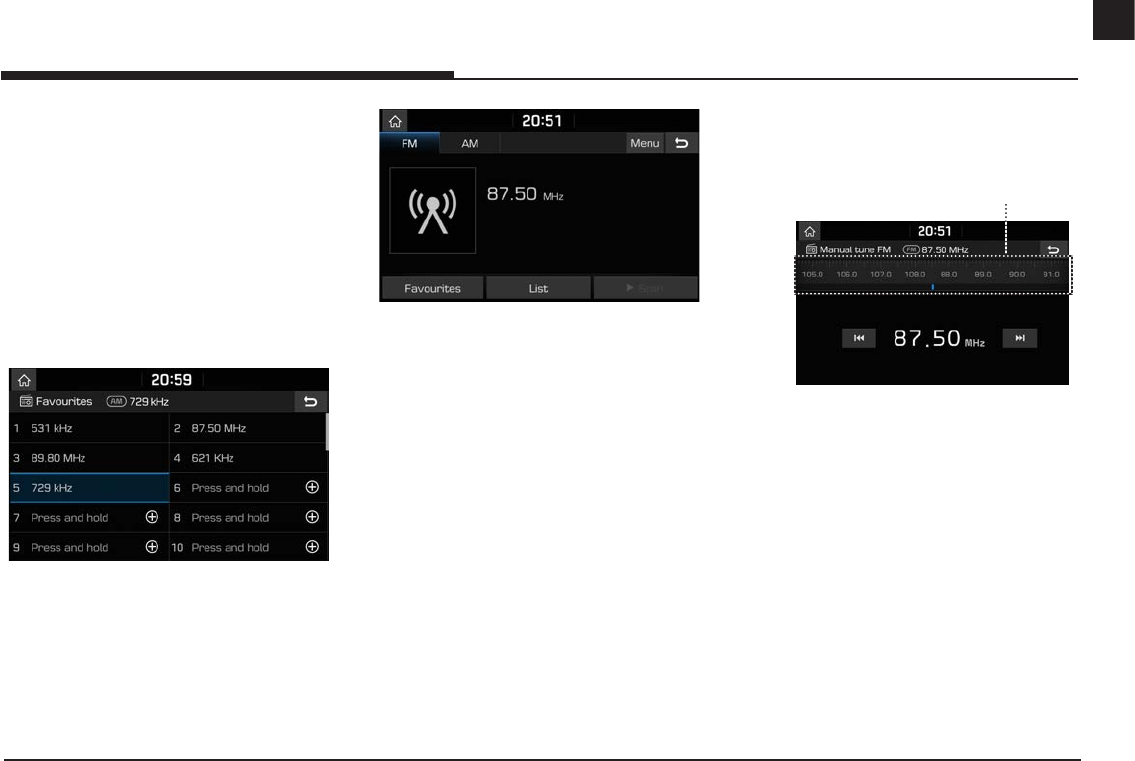

Radio operation 18

Listening to AM � � � � � � � � � � � � � � � � � � � � � � �18

Opening the station list sorted in

numerical order..............................................18

Auto search ....................................................18

Saving AM favourites ................................... 19

Listening to FM � � � � � � � � � � � � � � � � � � � � � � �19

Opening the station list ...............................20

Saving FM favourites ...................................20

Scan � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �20

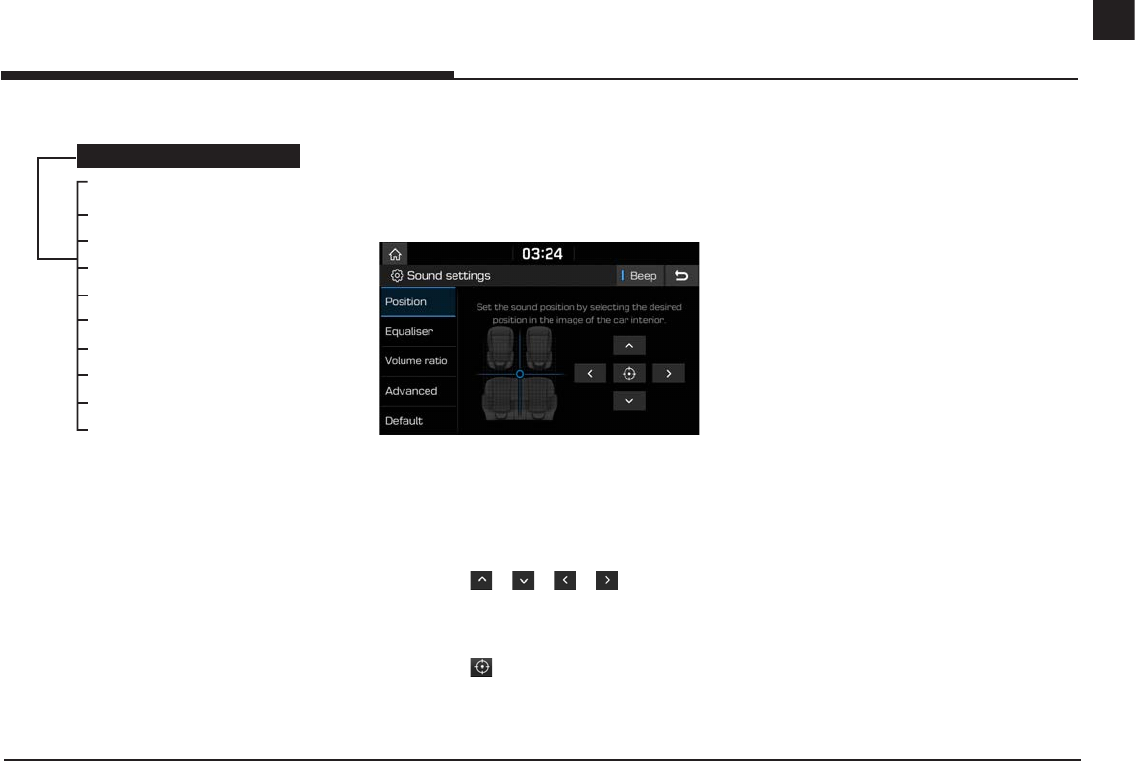

Sound settings � � � � � � � � � � � � � � � � � � � � � � �20

USB operation 21

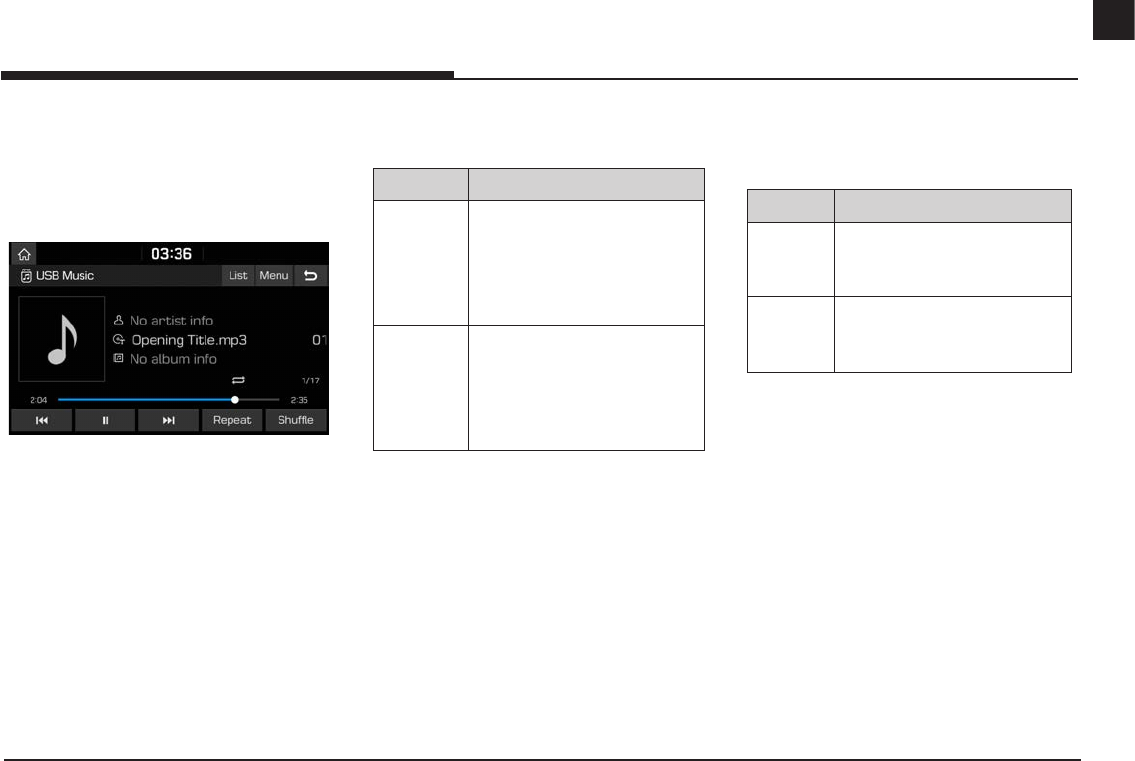

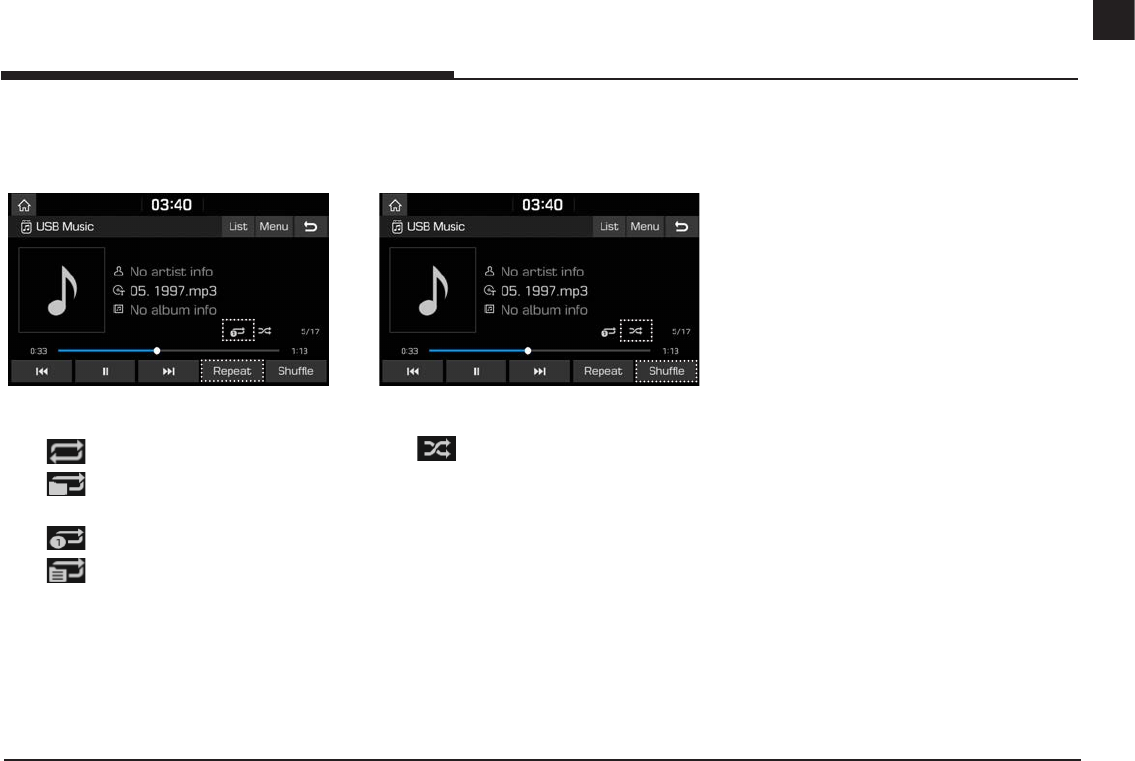

Playing USB music � � � � � � � � � � � � � � � � � � � �21

Pause ................................................................21

Skip ...................................................................21

Search ..............................................................21

Seek ..................................................................21

Delete current file ......................................... 22

List .....................................................................22

Repeat ..............................................................23

Shuffle .............................................................23

Sound settings ...............................................23

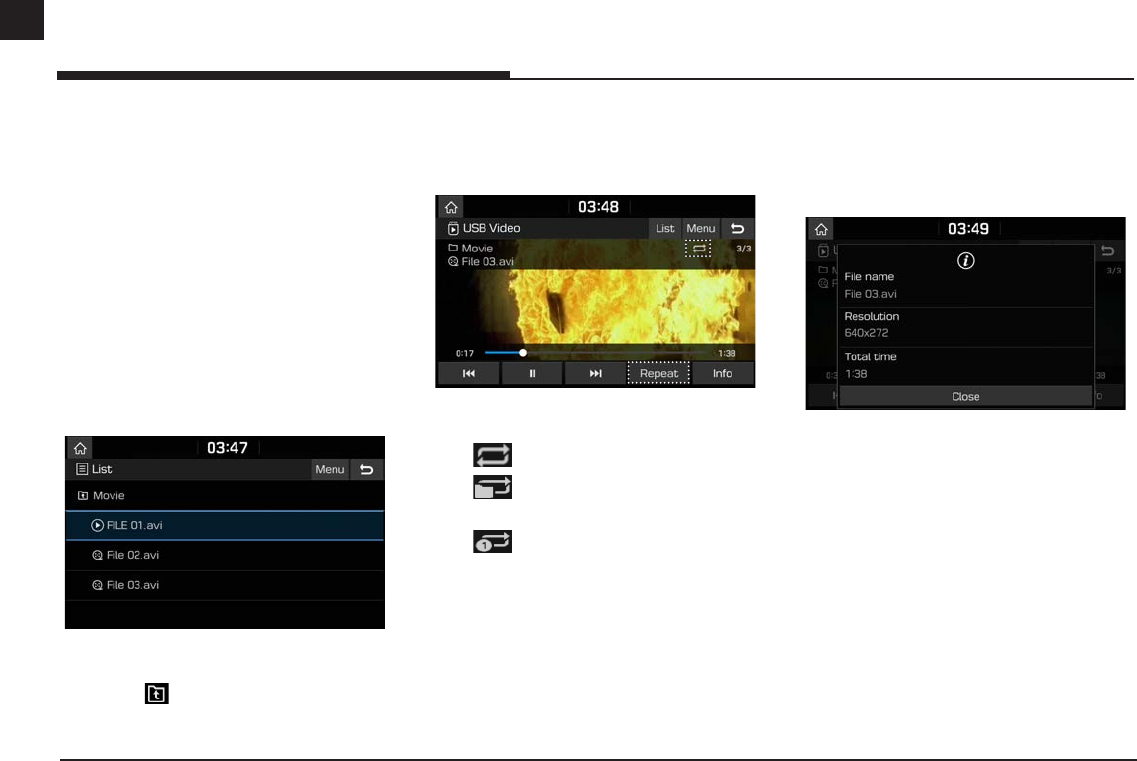

Viewing USB video � � � � � � � � � � � � � � � � � � � �23

Switching to menu screen or full screen

..23

Pause ................................................................23

Skip ...................................................................23

Search ..............................................................24

Seek ..................................................................24

List .....................................................................24

Repeat ..............................................................24

Info .................................................................... 24

Sound settings ...............................................24

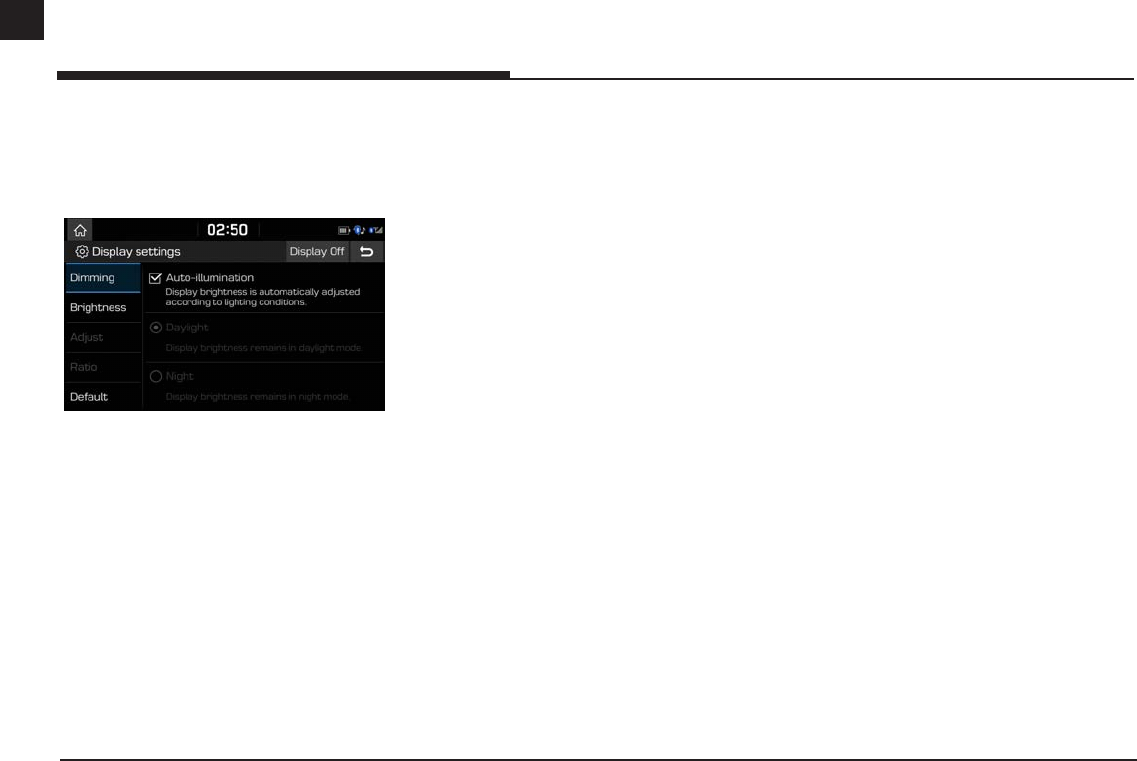

Display settings .............................................. 24

iPod operation 25

Playing iPod � � � � � � � � � � � � � � � � � � � � � � � � �25

Pause ................................................................25

Skip ...................................................................25

Search ..............................................................25

Seek ..................................................................25

List .....................................................................25

Repeat ..............................................................25

Shuffle .............................................................25

Sound settings ...............................................25

Auxiliary device operation 26

Playing an AUX source � � � � � � � � � � � � � � � � �26

Sound settings ...............................................26

Table of contents

ENG

Bluetooth® audio 27

Playing Bluetooth audio � � � � � � � � � � � � � � � �27

Starting the Bluetooth audio ...................... 27

Pause ................................................................27

Skip ...................................................................27

Repeat ..............................................................27

Shuffle .............................................................27

Connection settings ......................................27

Sound settings ...............................................27

Getting started with navigation 28

Precautions for safe driving � � � � � � � � � � � � �28

What is GNSS? � � � � � � � � � � � � � � � � � � � � � � �28

About satellite signals � � � � � � � � � � � � � � � � � �28

Acquiring satellite signals � � � � � � � � � � � � � � �28

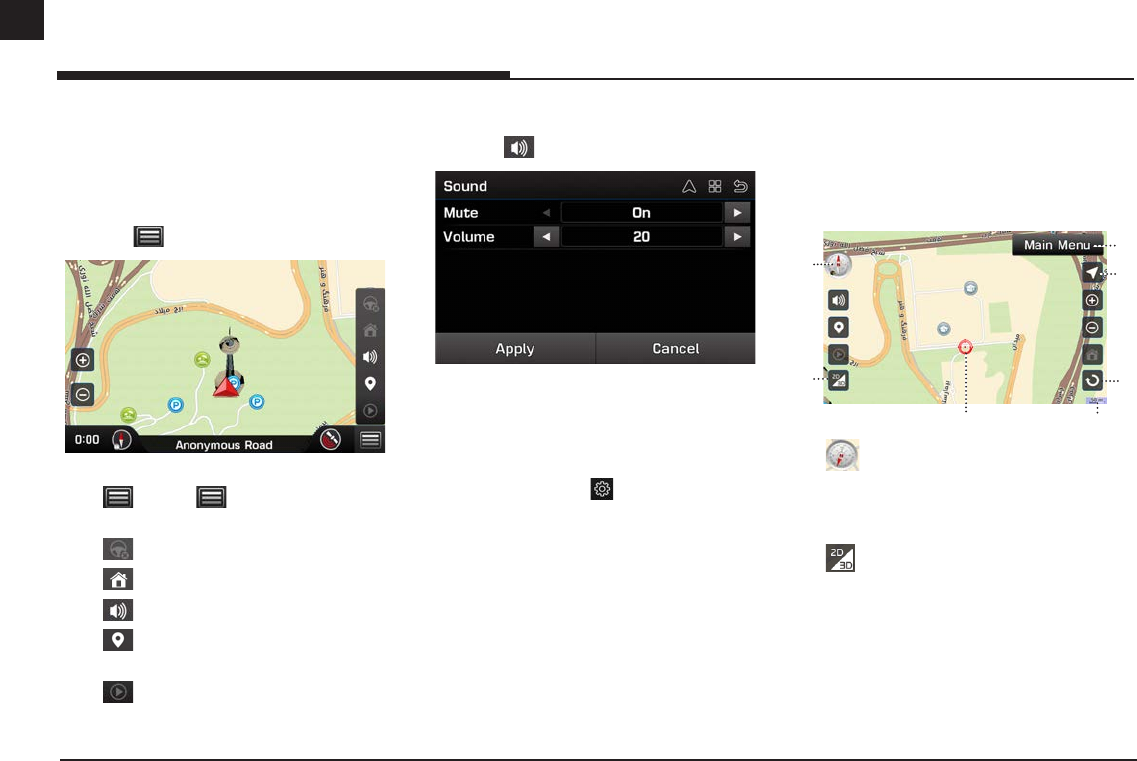

Operating navigation screen � � � � � � � � � � � � �29

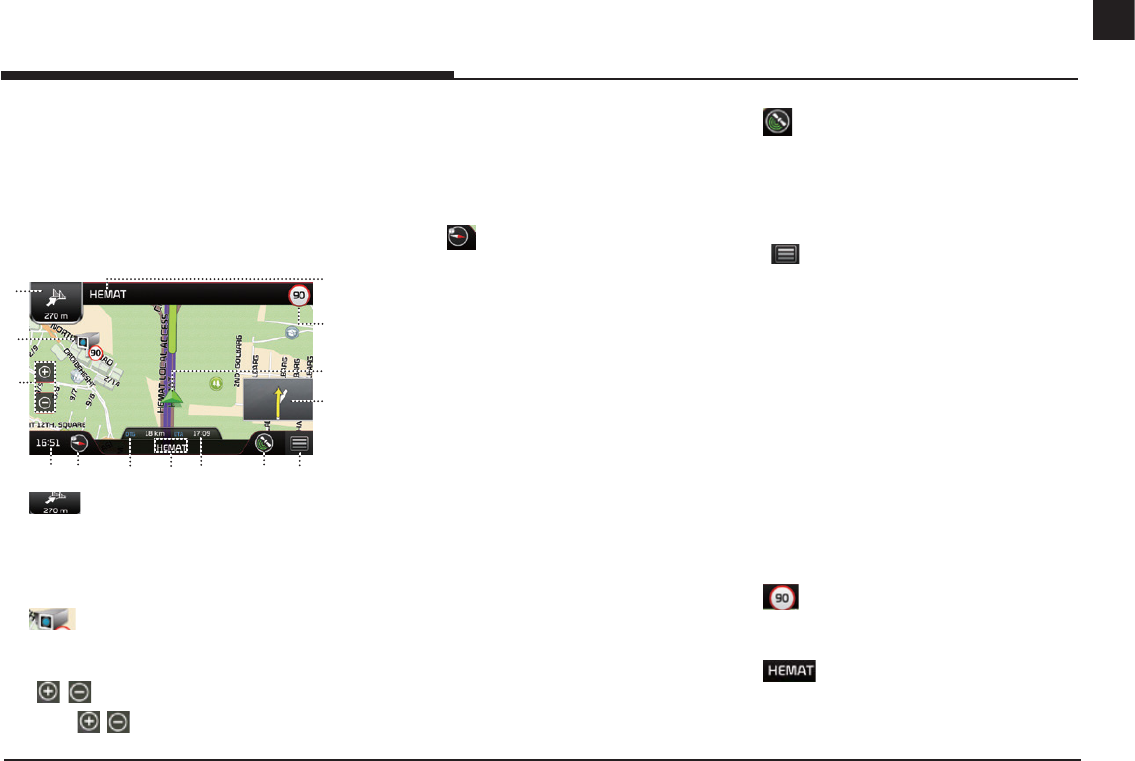

Map screen .....................................................29

Zoom in / Zoom out .....................................30

Quick menu .....................................................30

Sound setting for navigation ......................30

Scrolling the map screen .............................30

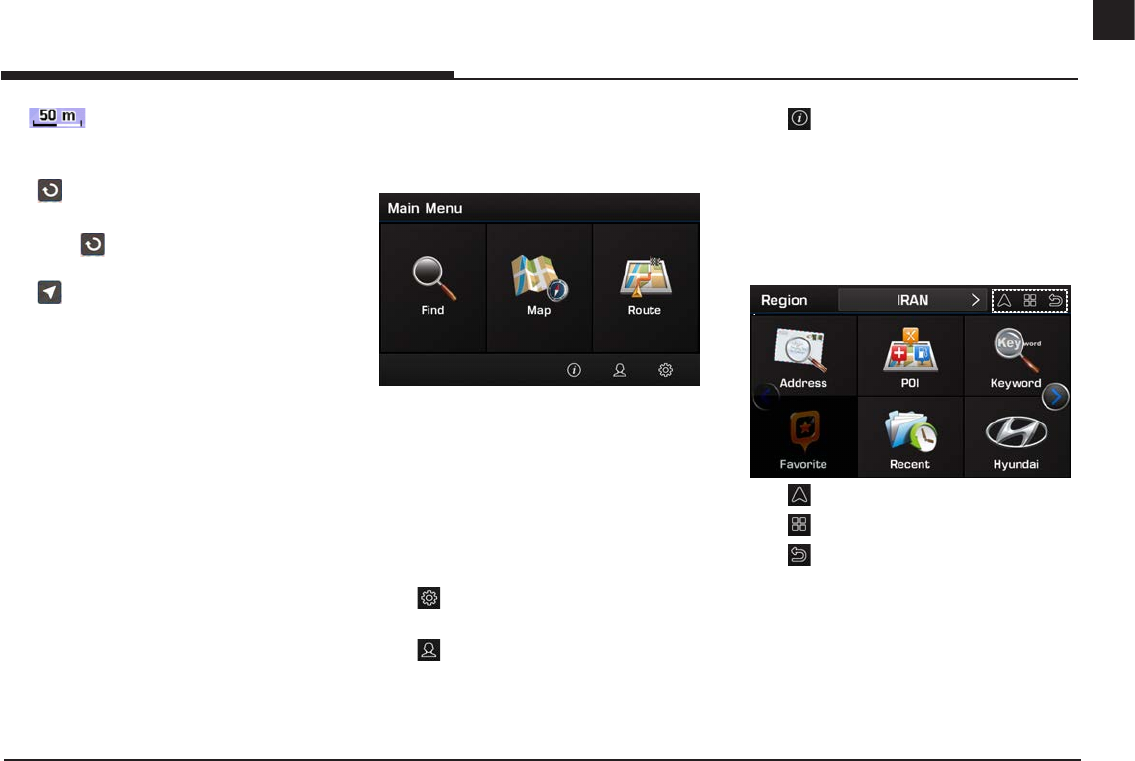

Main Menu � � � � � � � � � � � � � � � � � � � � � � � � � �31

Sub-menu operation � � � � � � � � � � � � � � � � � � �31

Searching for destination 32

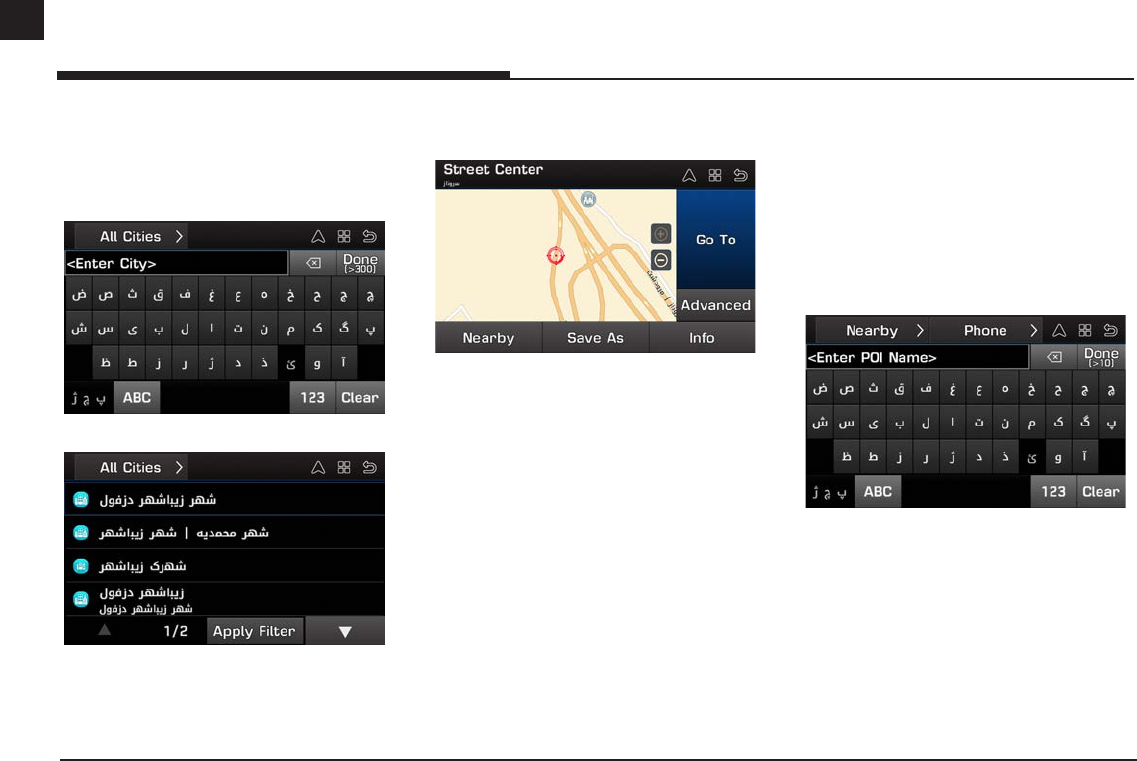

Address search � � � � � � � � � � � � � � � � � � � � � � �32

POI (Points of interest) � � � � � � � � � � � � � � � �32

Searching for POI by [POI] ........................32

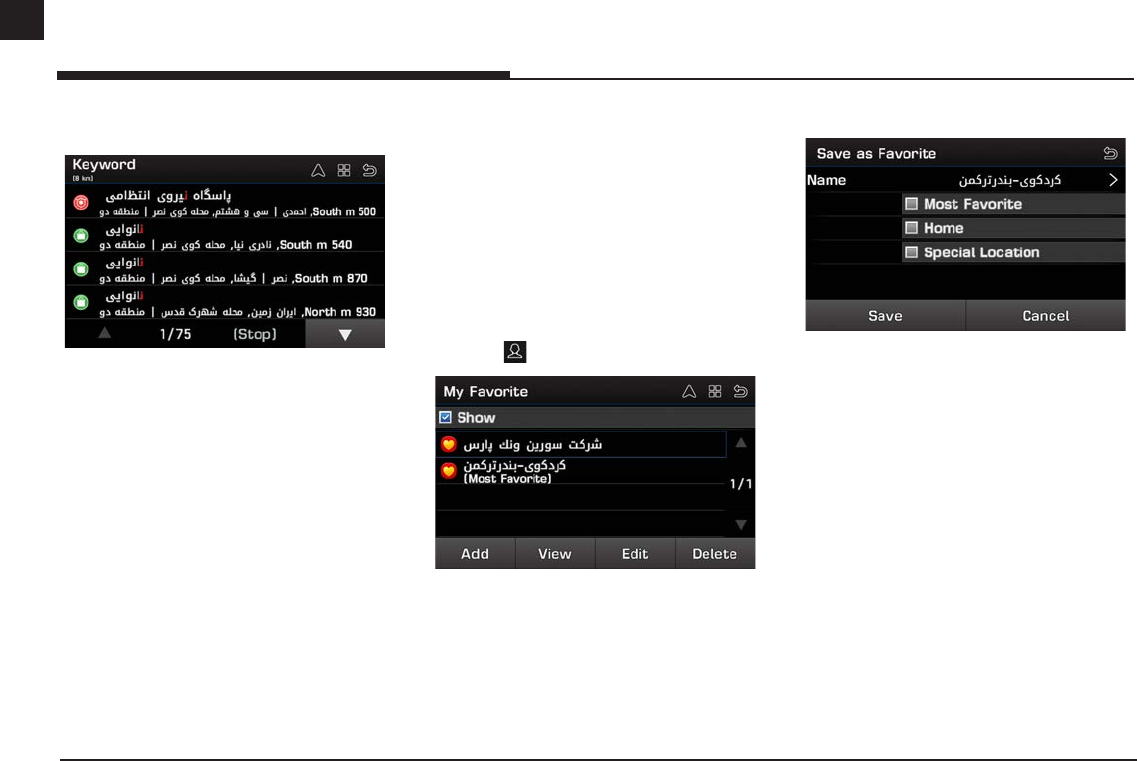

Keyword search � � � � � � � � � � � � � � � � � � � � � �33

Favorite � � � � � � � � � � � � � � � � � � � � � � � � � � � � �34

Adding favorite ..............................................34

Finding favorite ..............................................34

Viewing favorite.............................................35

Editing favorite ..............................................35

Deleting favorite ............................................35

Recent � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �35

Hyundai service � � � � � � � � � � � � � � � � � � � � � � �35

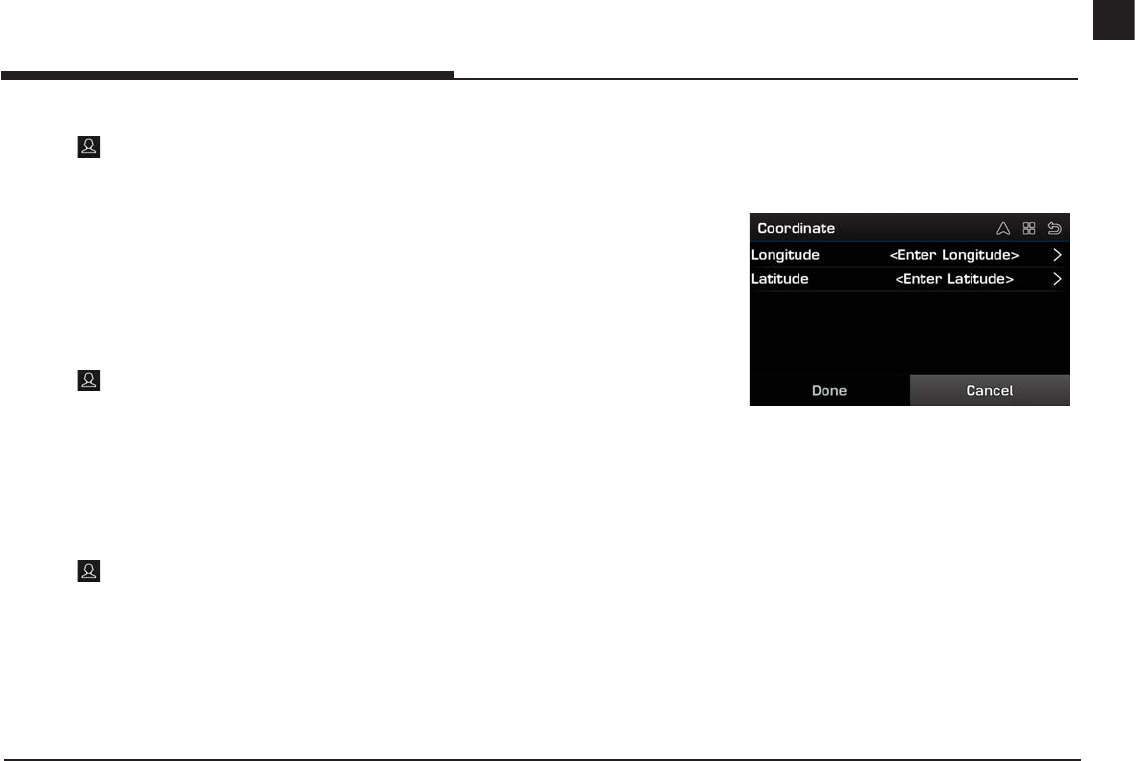

Coordinate � � � � � � � � � � � � � � � � � � � � � � � � � � �35

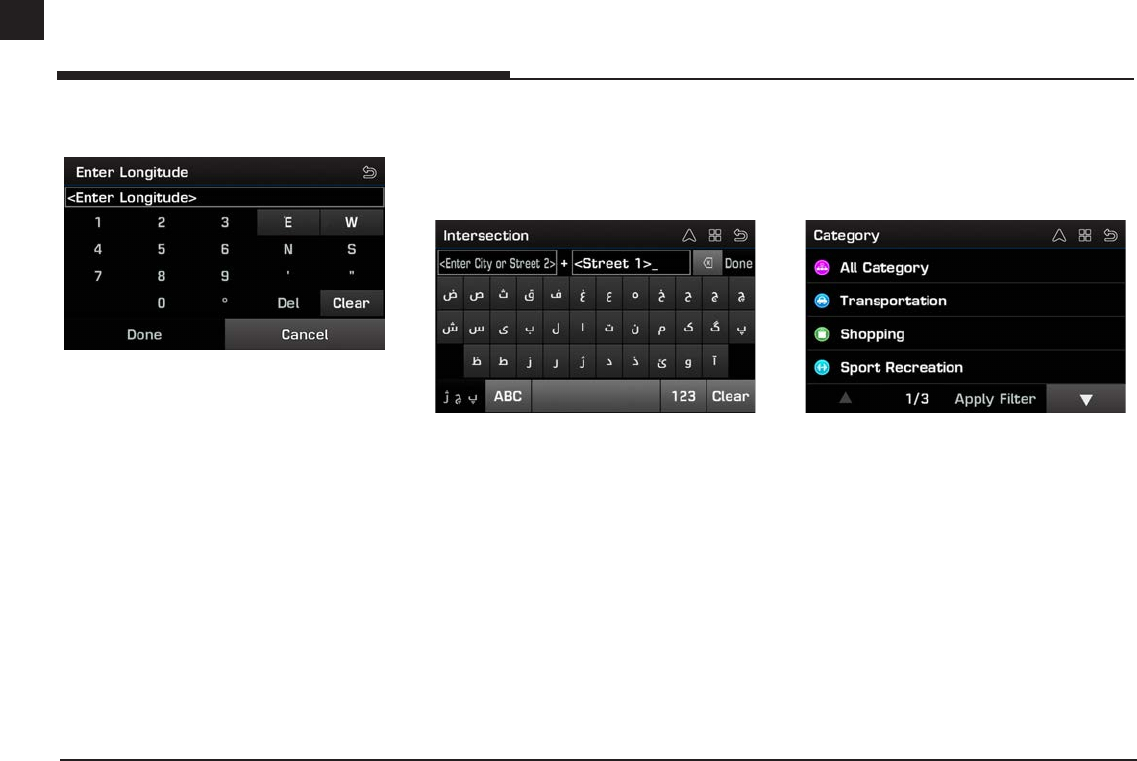

Intersection � � � � � � � � � � � � � � � � � � � � � � � � � �36

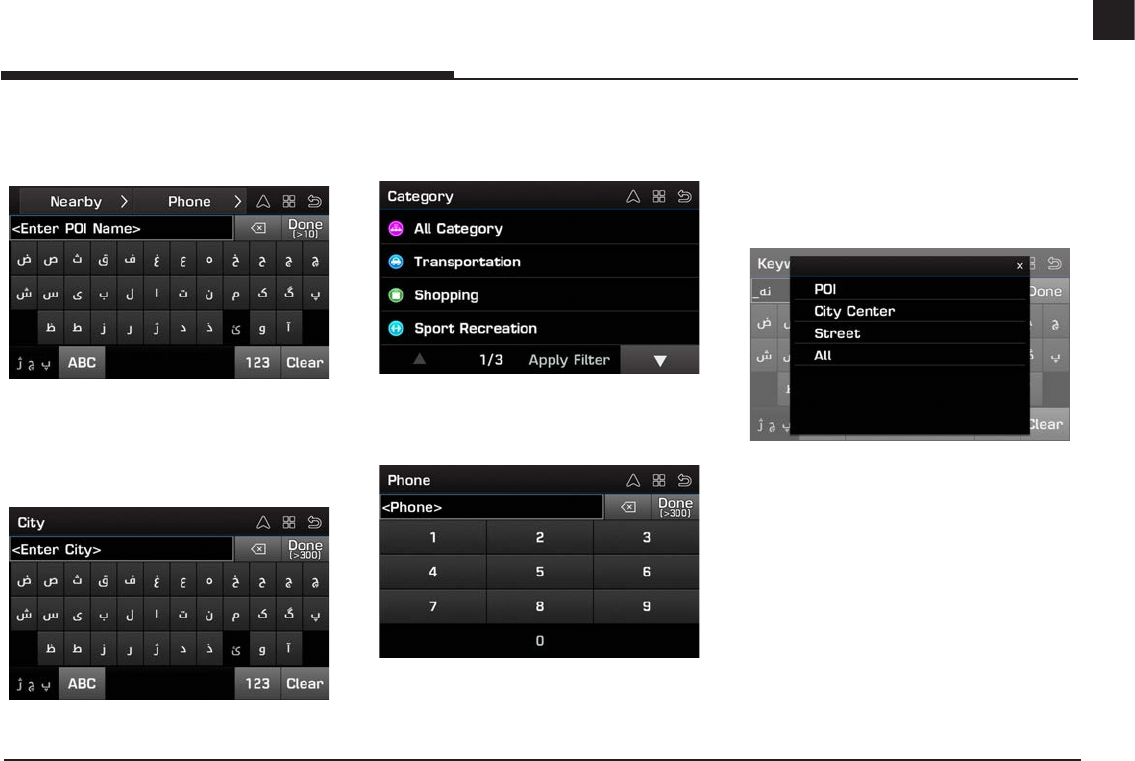

Category � � � � � � � � � � � � � � � � � � � � � � � � � � � �36

Current Position � � � � � � � � � � � � � � � � � � � � � �36

Using the route menu 37

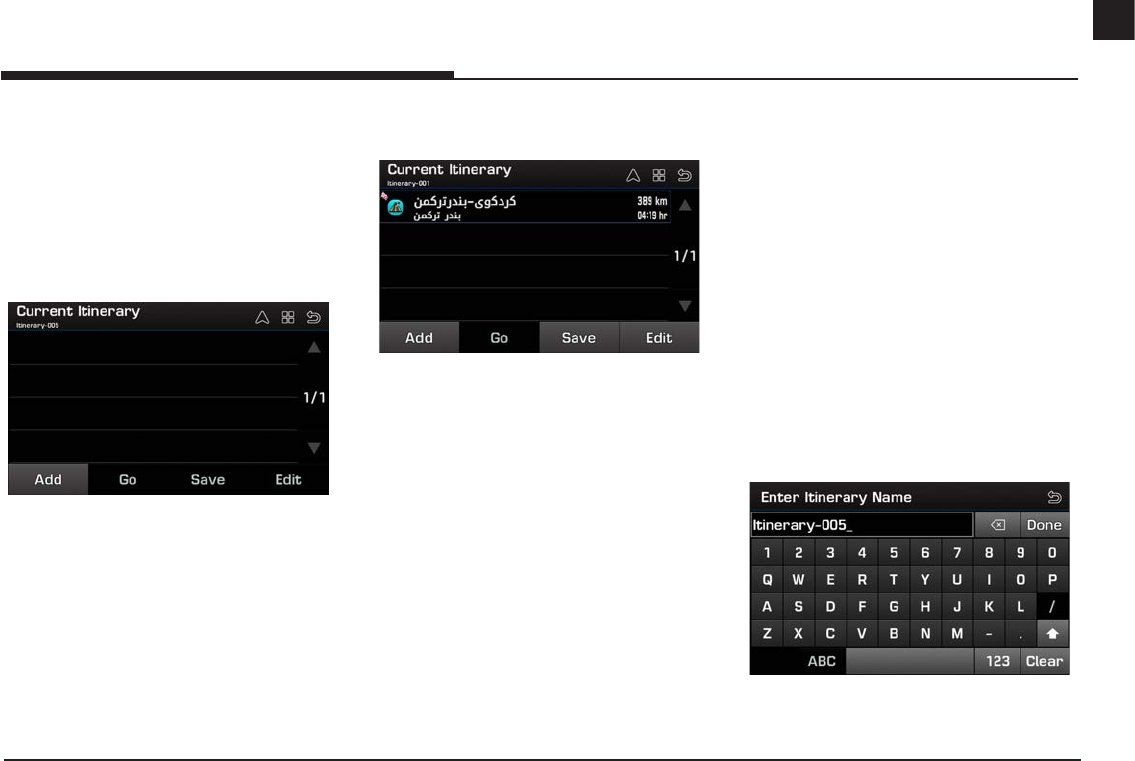

Itinerary � � � � � � � � � � � � � � � � � � � � � � � � � � � � �37

Adding itinerary's way points ....................37

Viewing the map information ..................... 37

Saving itinerary to [My Itinerary] ............37

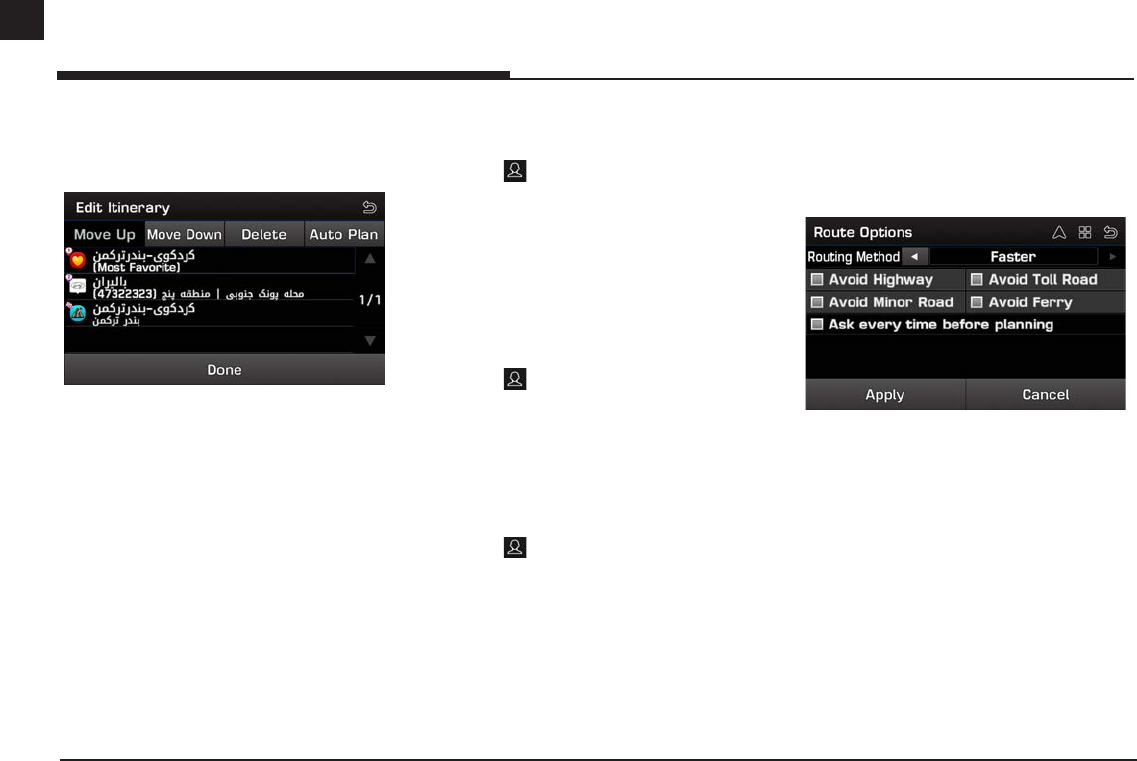

Rearranging itinerary's way points ..........38

Vacating itinerary's way points from

[Itinerary] ........................................................ 38

Loading itinerary from [My Itinerary]

into [Itinerary] ...............................................38

Renaming itinerary from [My Itinerary]

..38

Deleting itinerary from [My Itinerary] .... 38

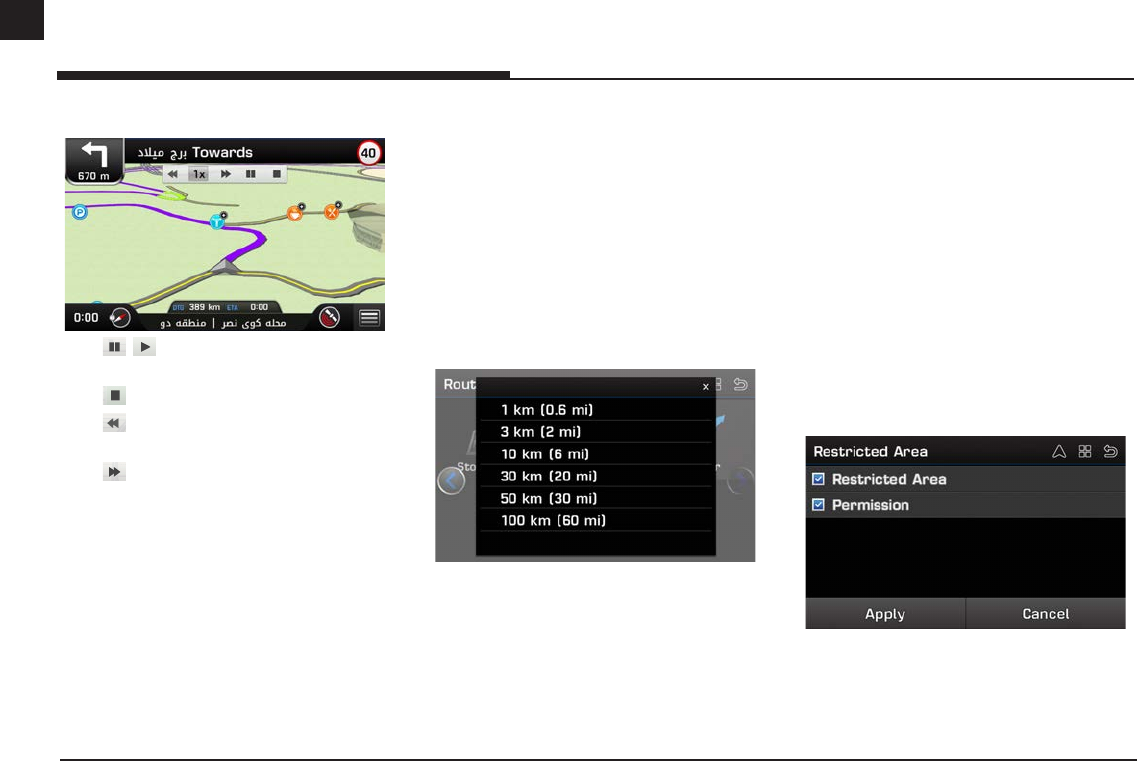

Route Options � � � � � � � � � � � � � � � � � � � � � � � �38

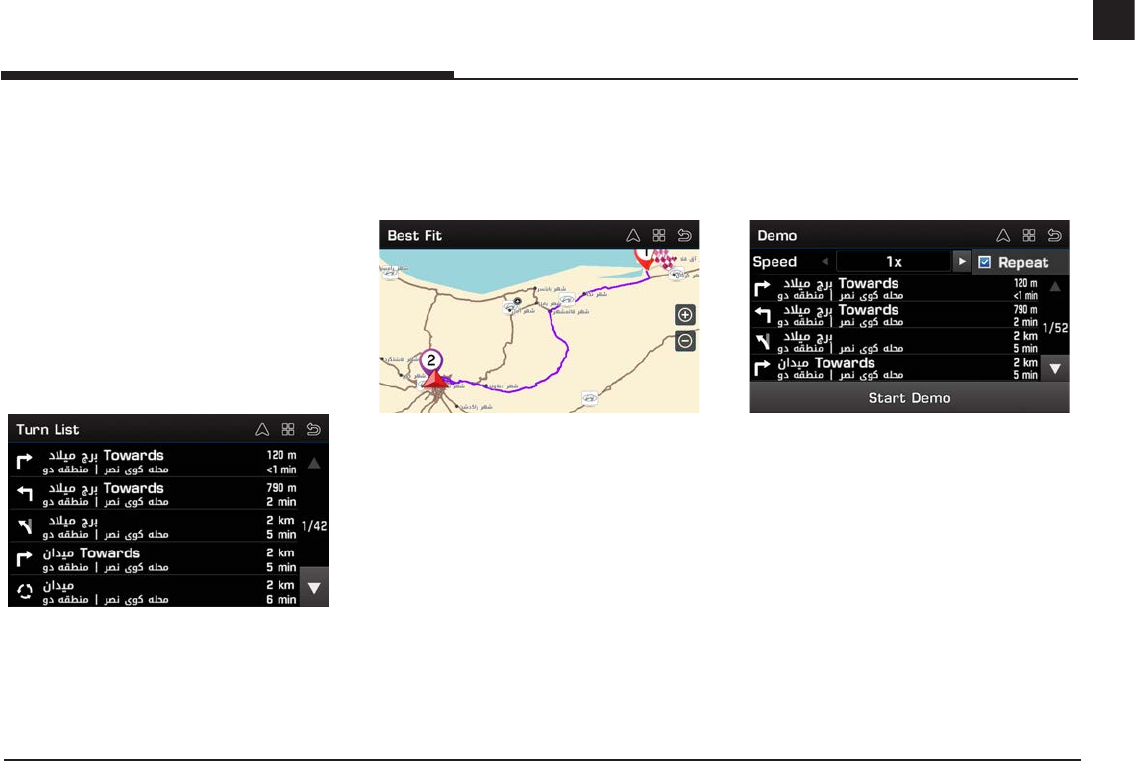

Turn List � � � � � � � � � � � � � � � � � � � � � � � � � � � �39

Best Fit � � � � � � � � � � � � � � � � � � � � � � � � � � � � �39

Cancel Route � � � � � � � � � � � � � � � � � � � � � � � � �39

Demo � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �39

Stop Demo � � � � � � � � � � � � � � � � � � � � � � � � � � �40

Bypass Waypoint � � � � � � � � � � � � � � � � � � � � � �40

Detour � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �40

Restricted Area � � � � � � � � � � � � � � � � � � � � � � �40

Settings for navigation 41

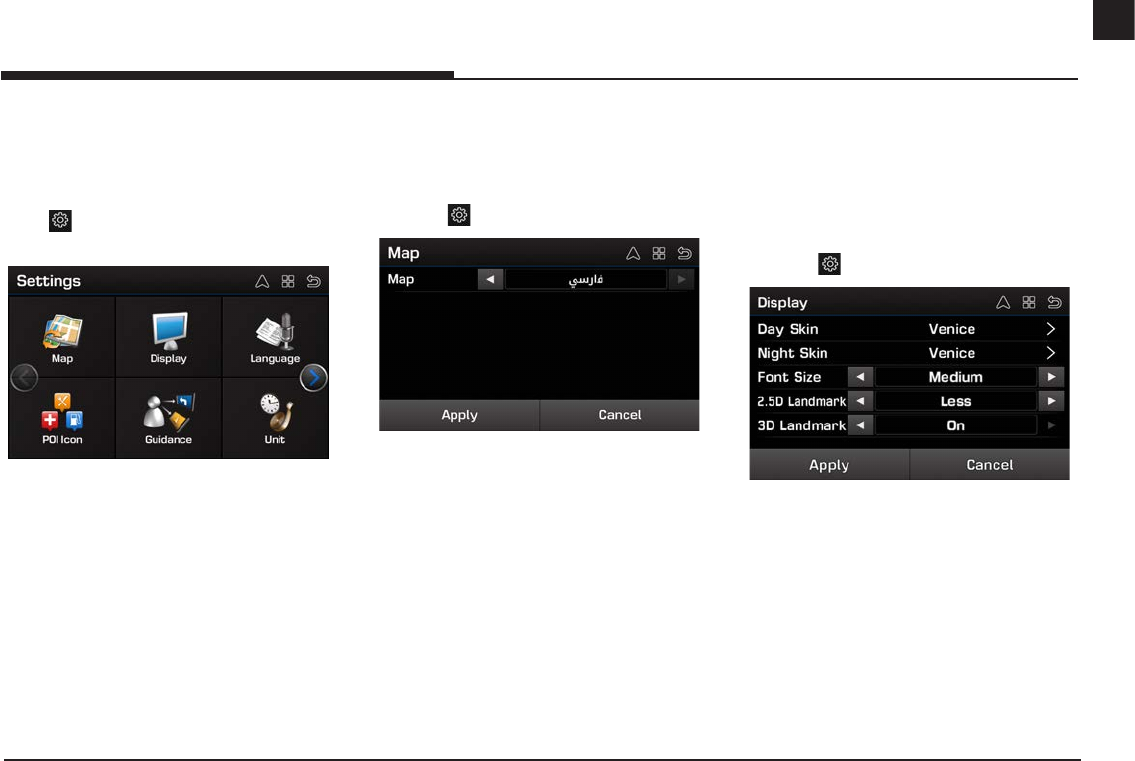

Settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � �41

Map ...................................................................41

Display .............................................................. 41

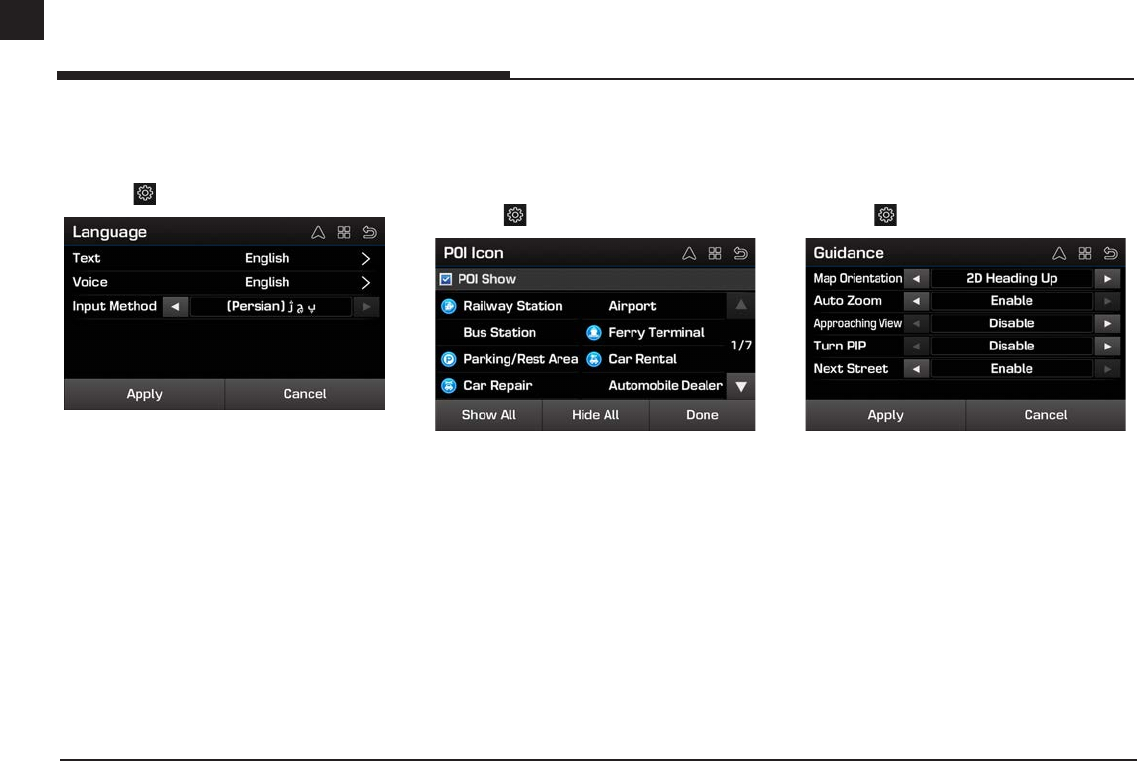

Language .........................................................42

POI Icon ...........................................................42

Guidance ..........................................................42

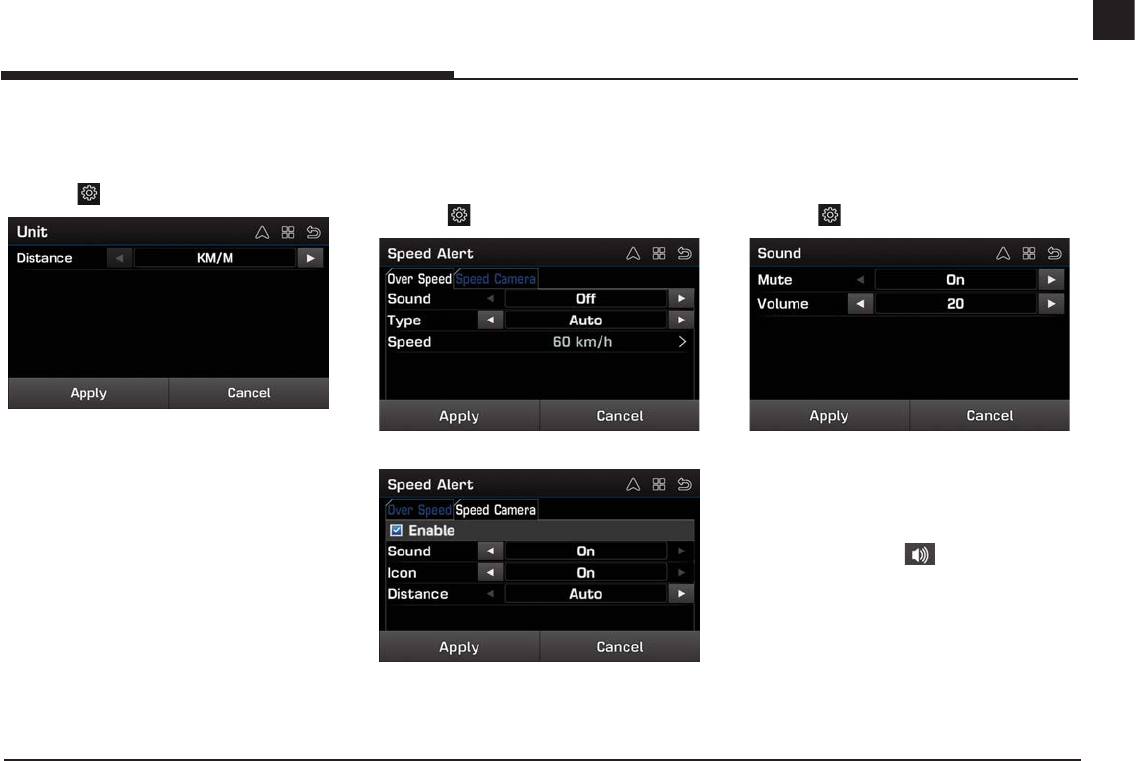

Unit ....................................................................43

Speed Alert .....................................................43

Sound................................................................43

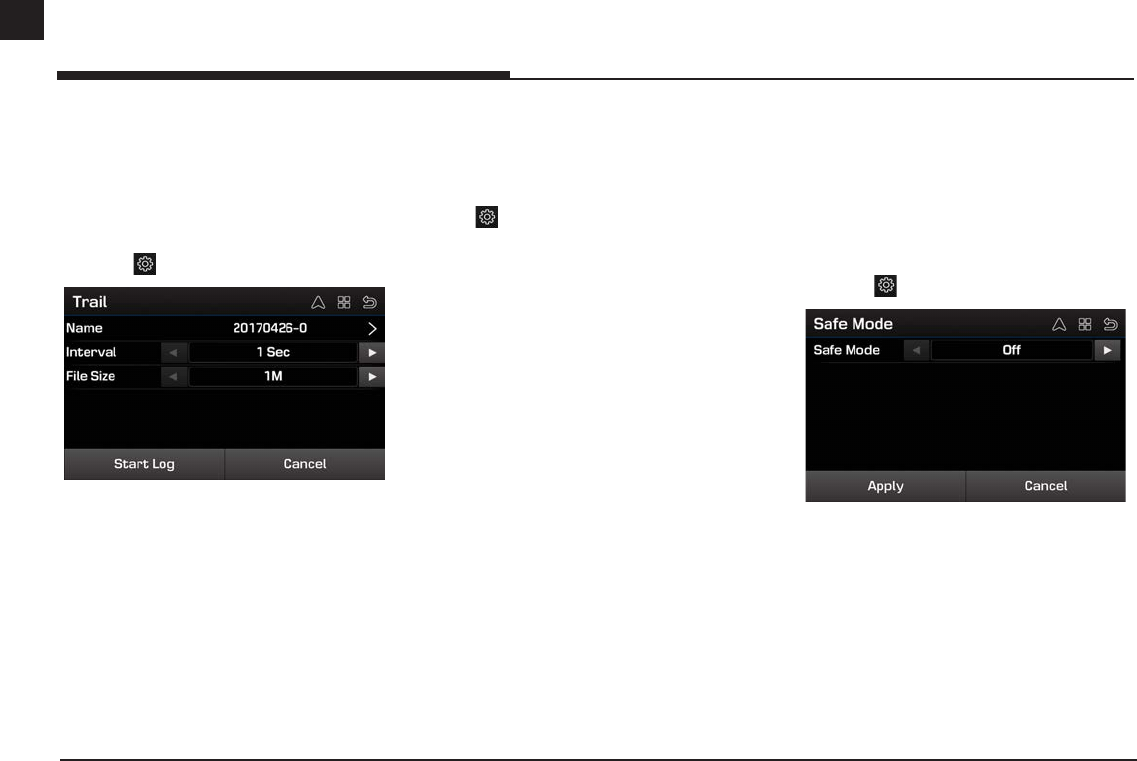

Trail ...................................................................44

Factory Default ..............................................44

Safe Mode .......................................................44

Checking on navigation system 45

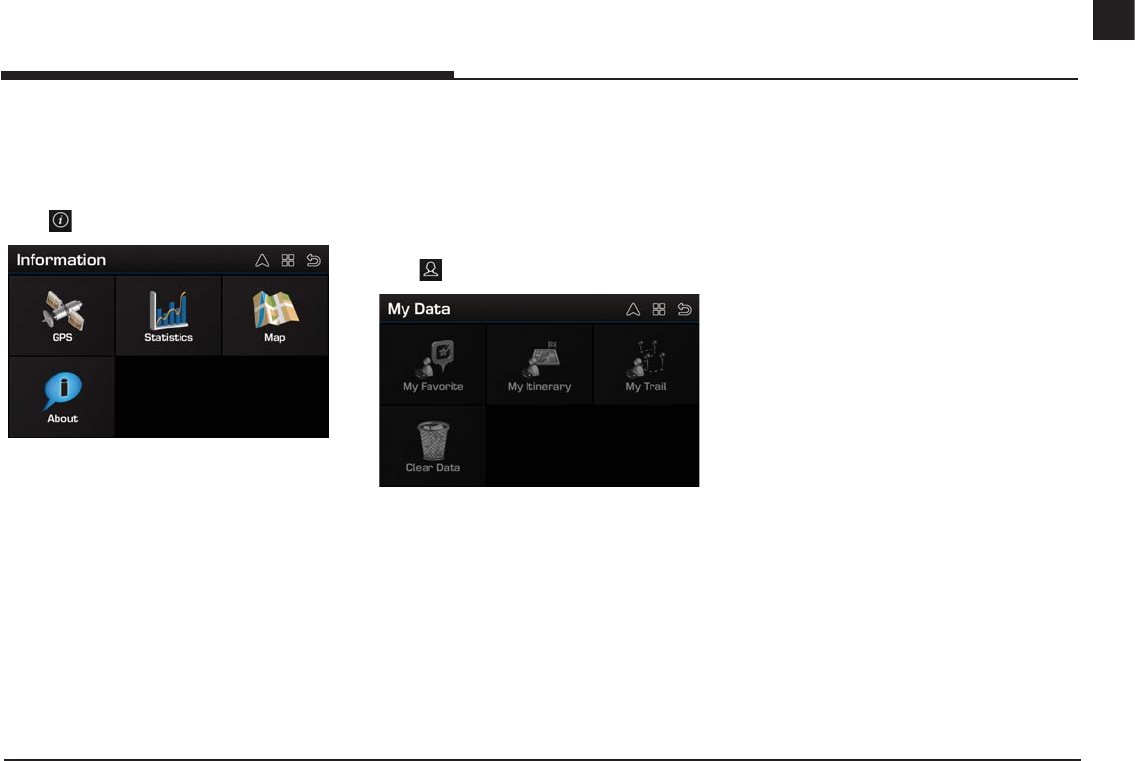

Information � � � � � � � � � � � � � � � � � � � � � � � � � �45

My Data � � � � � � � � � � � � � � � � � � � � � � � � � � � � �45

Android Auto/Apple CarPlay - option

What is Android Auto/Apple CarPlay? � � � � �46

Cautions ...........................................................46

Using Android Auto or Apple CarPlay � � � � �47

NOTICE .............................................................47

NOTICE-Android Auto ..................................47

NOTICE-Apple CarPlay ................................. 47

Table of contents

ENG

Table of contents

Bluetooth® Wireless Technology 48

Before using the Bluetooth hands-free� � � �48

What is Bluetooth Wireless Technology?

...48

Precautions for safe driving.......................48

Cautions upon connecting Bluetooth

phone................................................................48

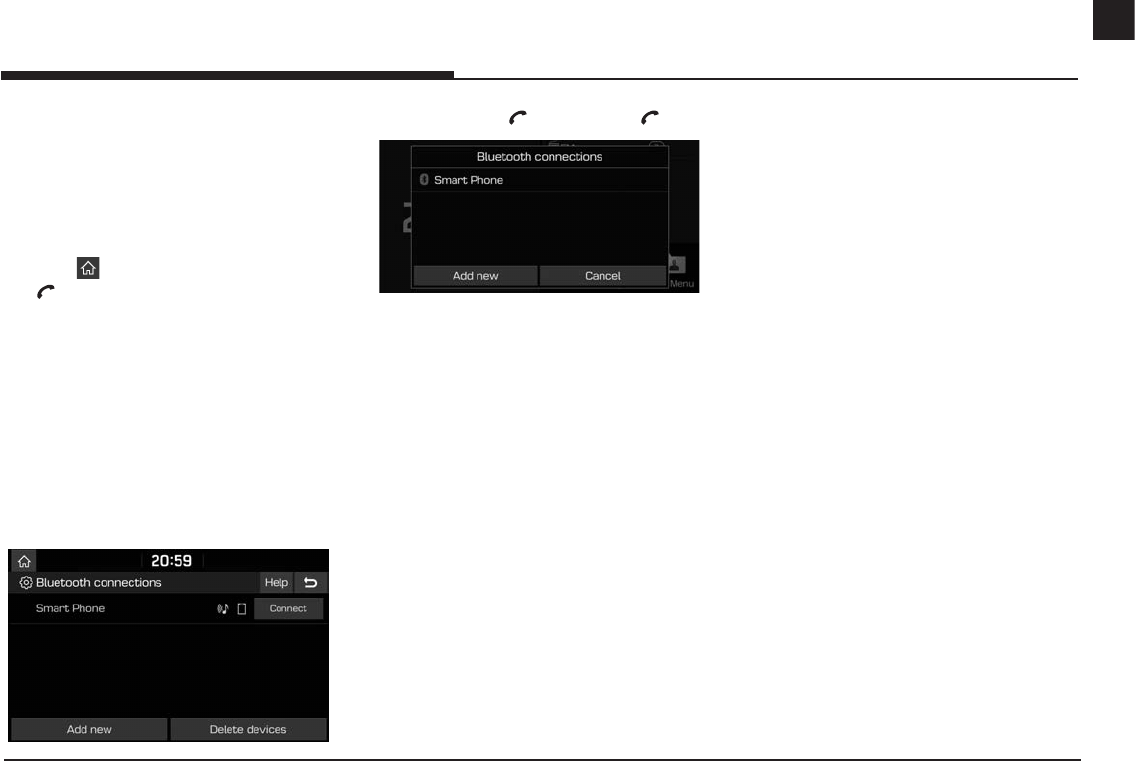

Pairing and connecting the unit and a

Bluetooth phone � � � � � � � � � � � � � � � � � � � � � �48

When no phones have been paired..........48

When a phone is already paired ...............49

When pairing additional device .................49

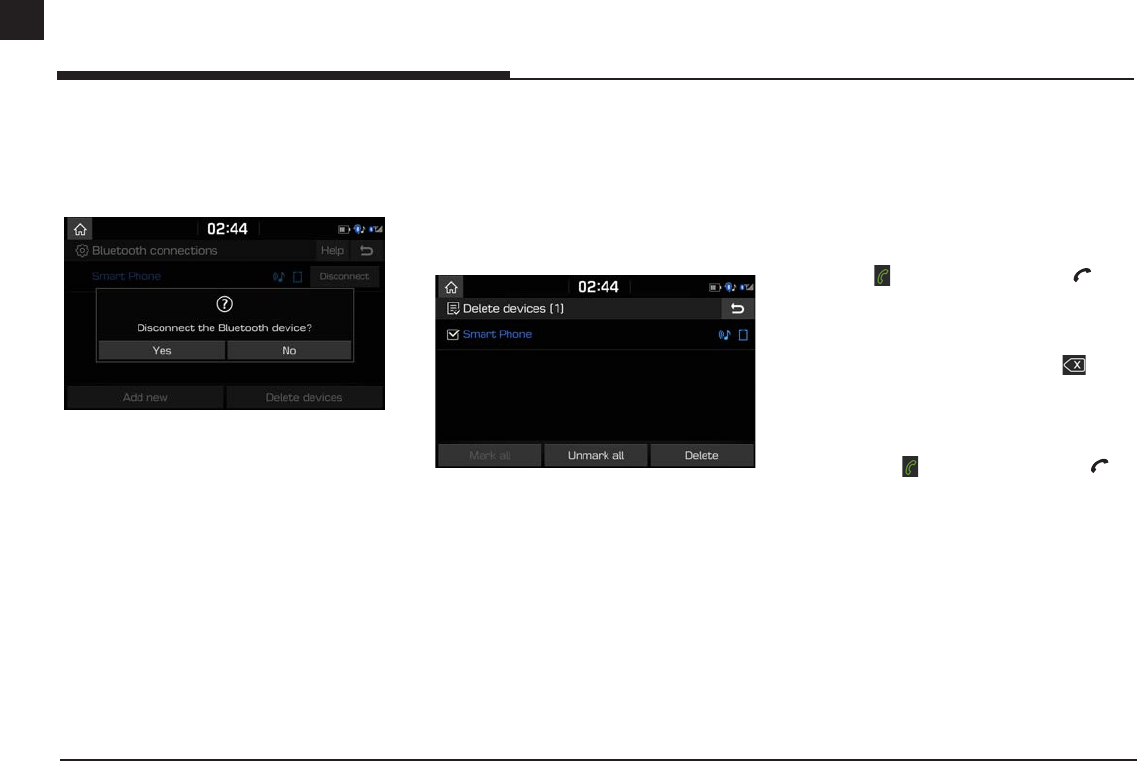

Disconnecting the connected phone ........50

Deleting Bluetooth devices .........................50

Making a call by entering phone number � �50

Making a call by redialling � � � � � � � � � � � � � �50

Answering/Rejecting a call � � � � � � � � � � � � � �51

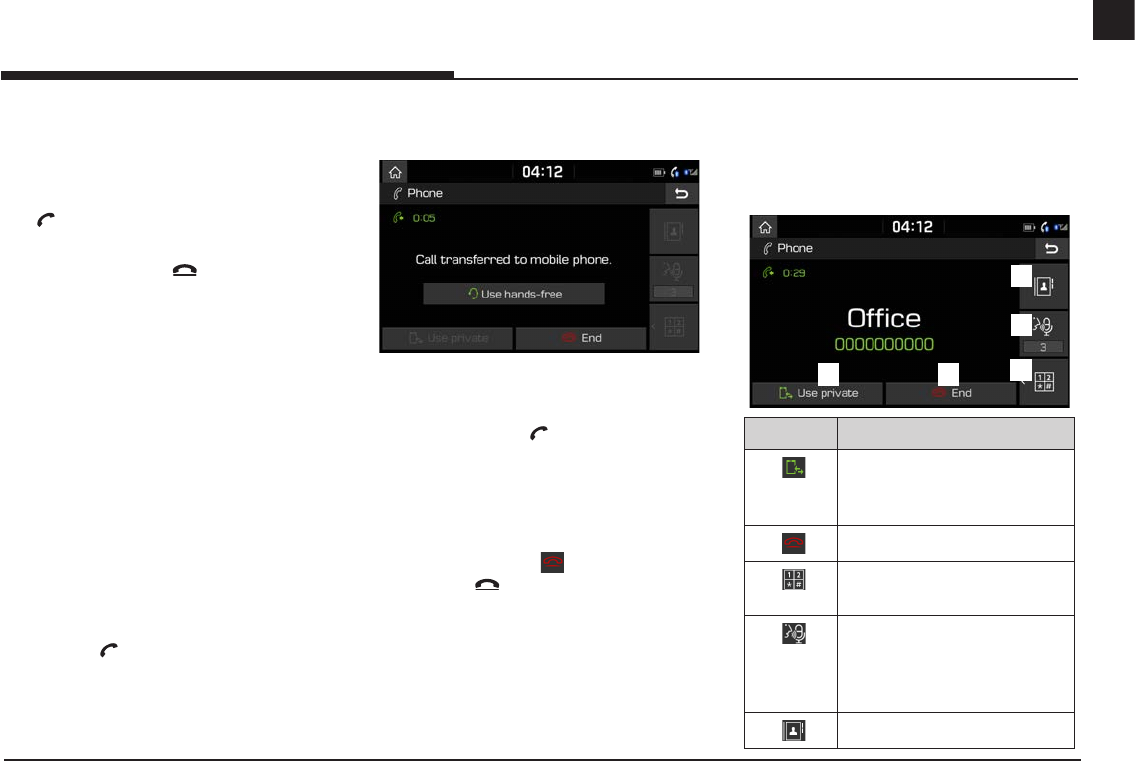

Switching call to the mobile phone � � � � � � �51

Ending a call � � � � � � � � � � � � � � � � � � � � � � � � �51

Using the menu during a phone call� � � � � � �51

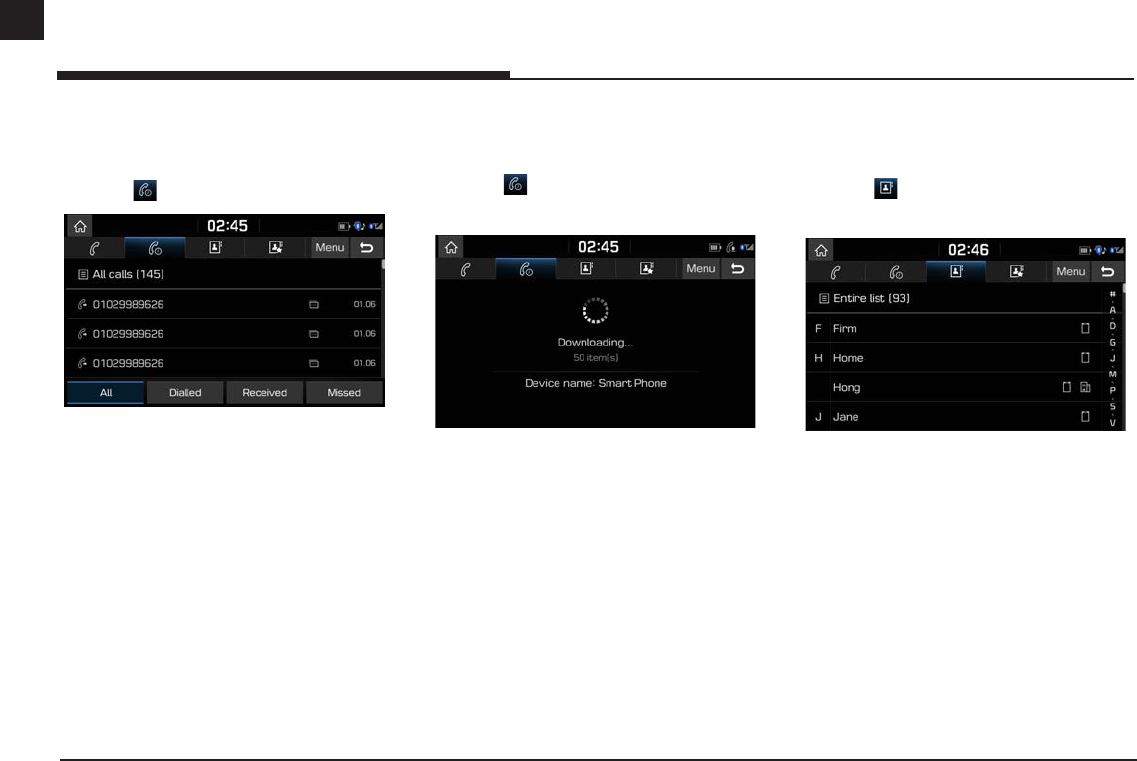

Calling list � � � � � � � � � � � � � � � � � � � � � � � � � � �52

Making a call from calling list .................... 52

Downloading call history .............................52

Contacts � � � � � � � � � � � � � � � � � � � � � � � � � � � �52

Making a call from contacts ......................52

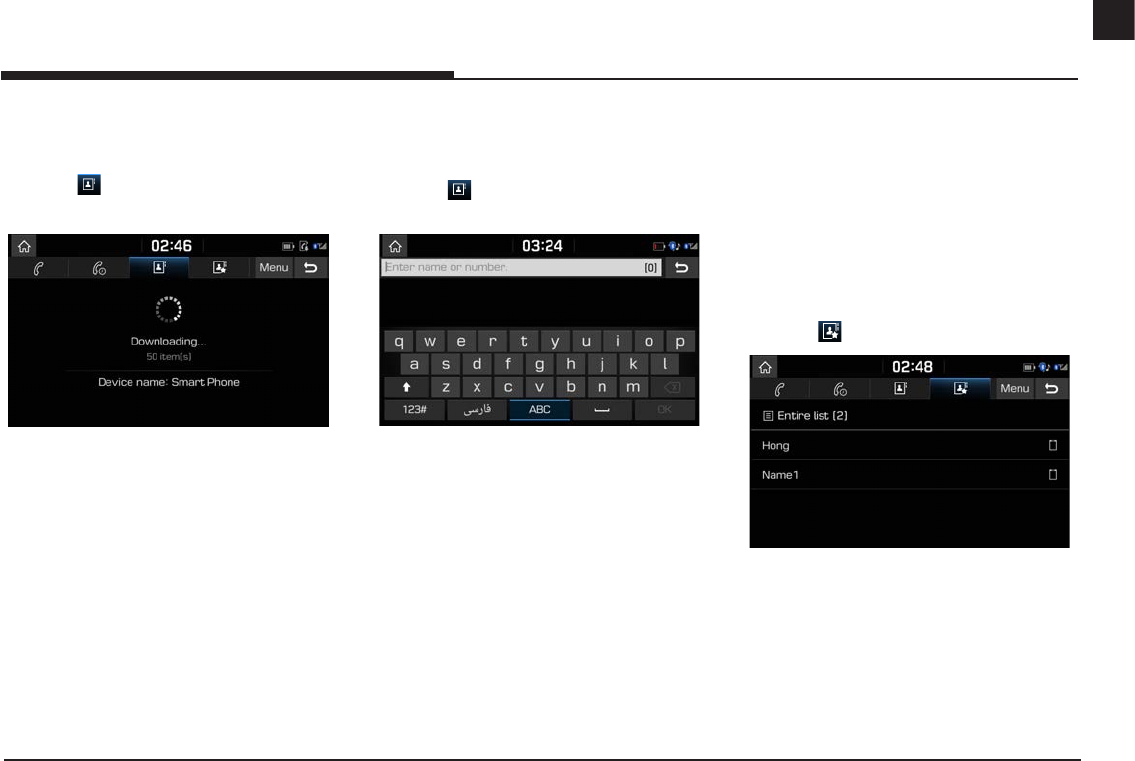

Downloading mobile phone contacts .......53

Searching by name or number ..................53

Favourites � � � � � � � � � � � � � � � � � � � � � � � � � � �53

Calling favourites ........................................... 53

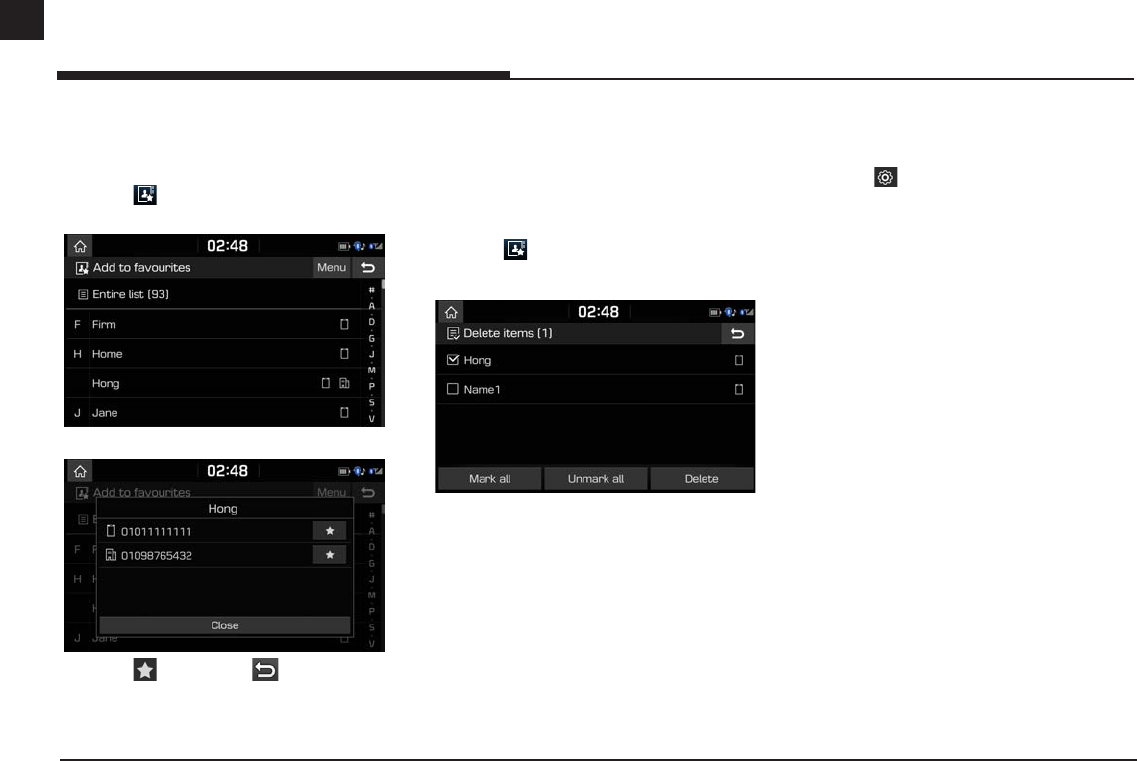

Adding as a favourite ...................................54

Deleting favourites ........................................54

Phone settings � � � � � � � � � � � � � � � � � � � � � � �54

Settings 55

[Settings] menu overview � � � � � � � � � � � � � � �55

Sound � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �55

Display � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �56

Bluetooth � � � � � � � � � � � � � � � � � � � � � � � � � � � �57

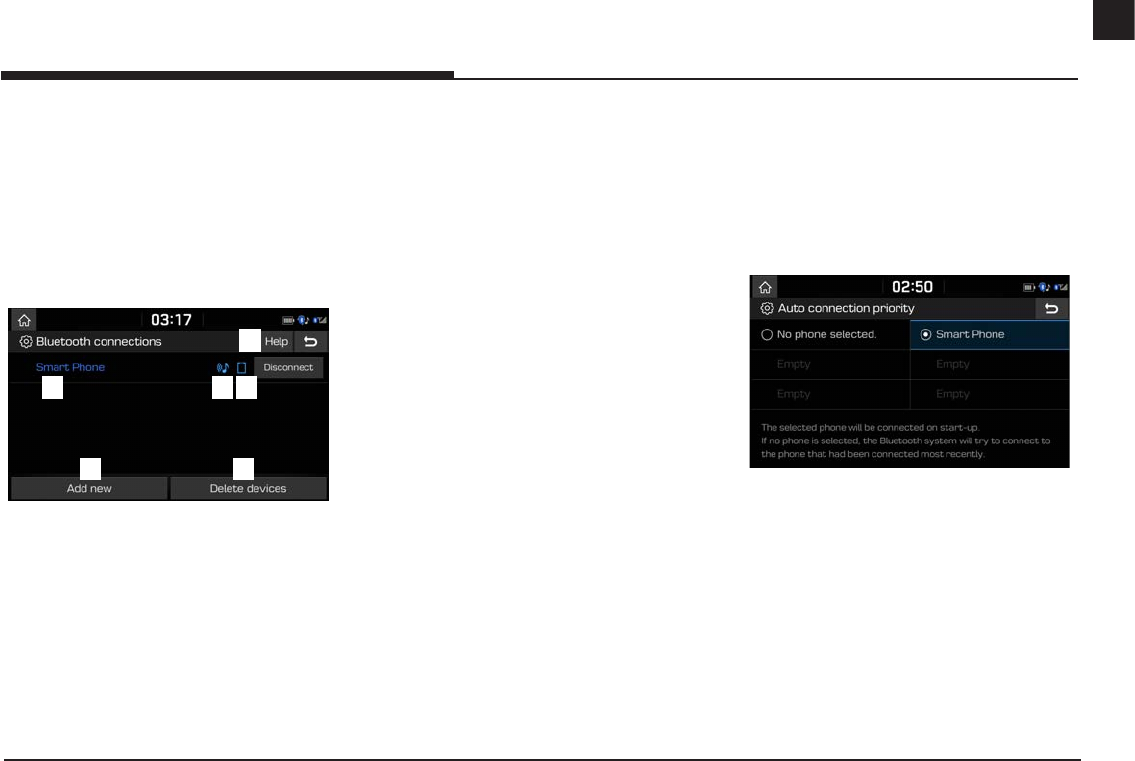

Bluetooth connections .................................57

Auto connection priority .............................57

System Bluetooth info .................................58

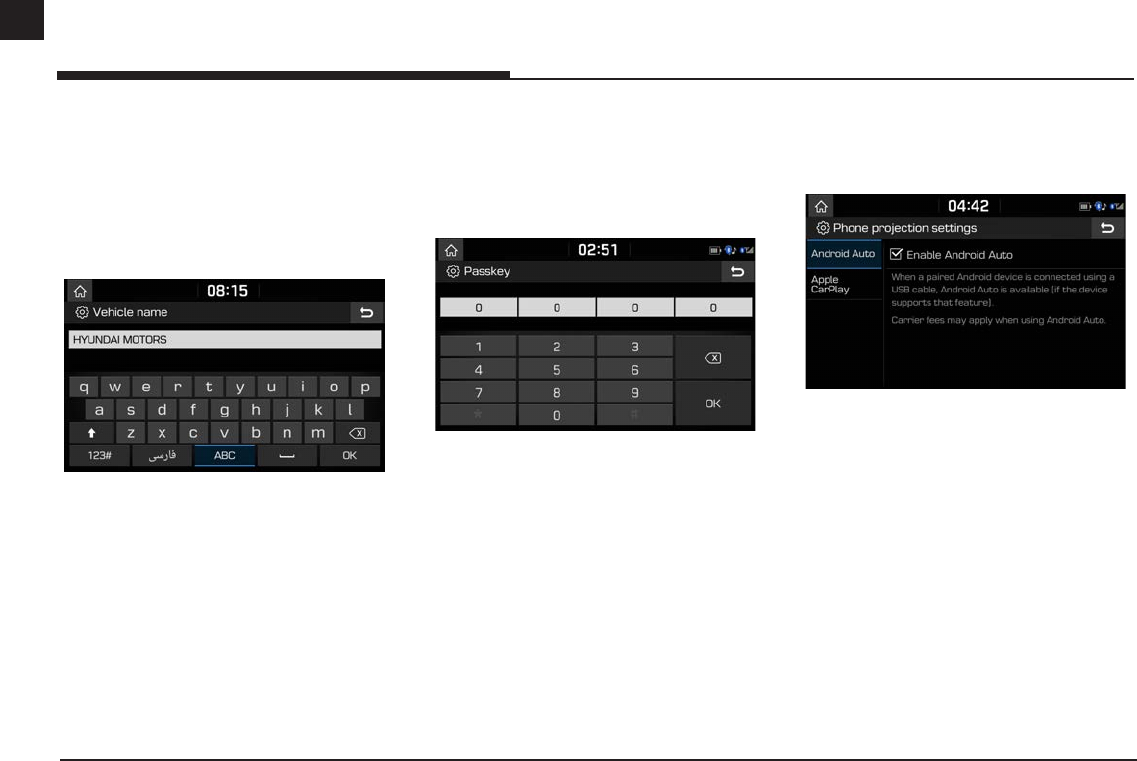

Vehicle name ..................................................58

Passkey ............................................................58

Default ..............................................................58

Phone projection � � � � � � � � � � � � � � � � � � � � �58

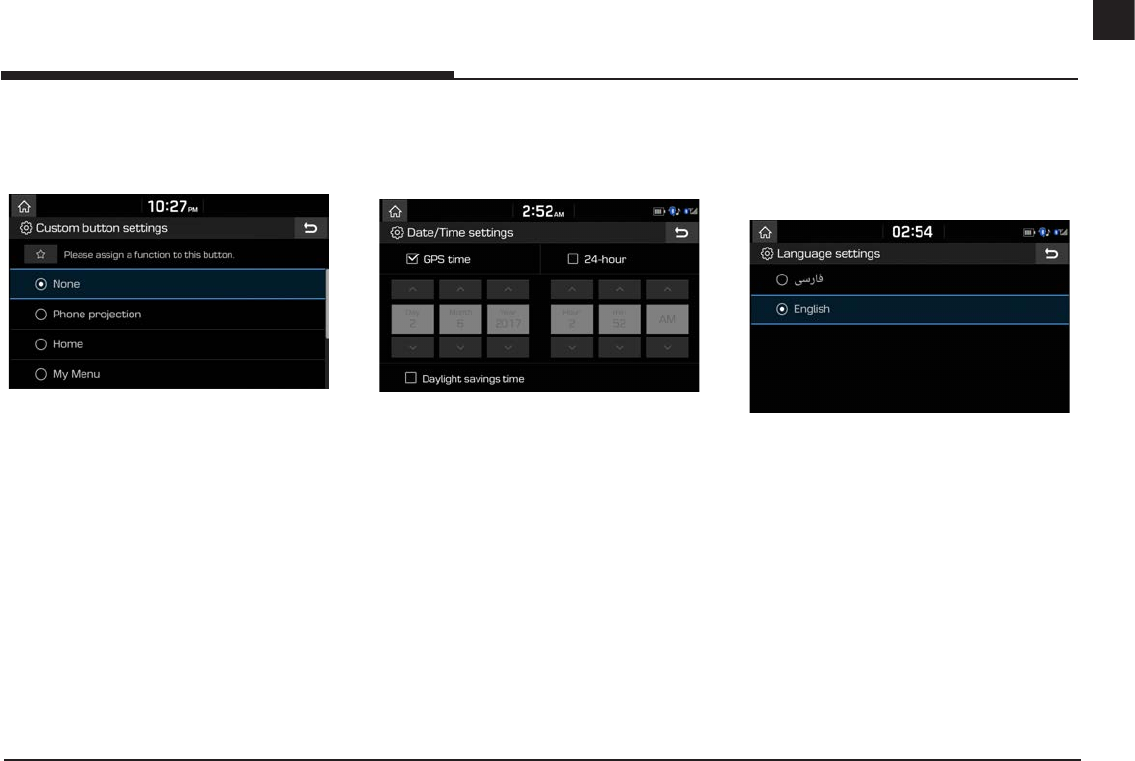

Custom button � � � � � � � � � � � � � � � � � � � � � � � �59

Date/Time � � � � � � � � � � � � � � � � � � � � � � � � � � �59

Language � � � � � � � � � � � � � � � � � � � � � � � � � � � �59

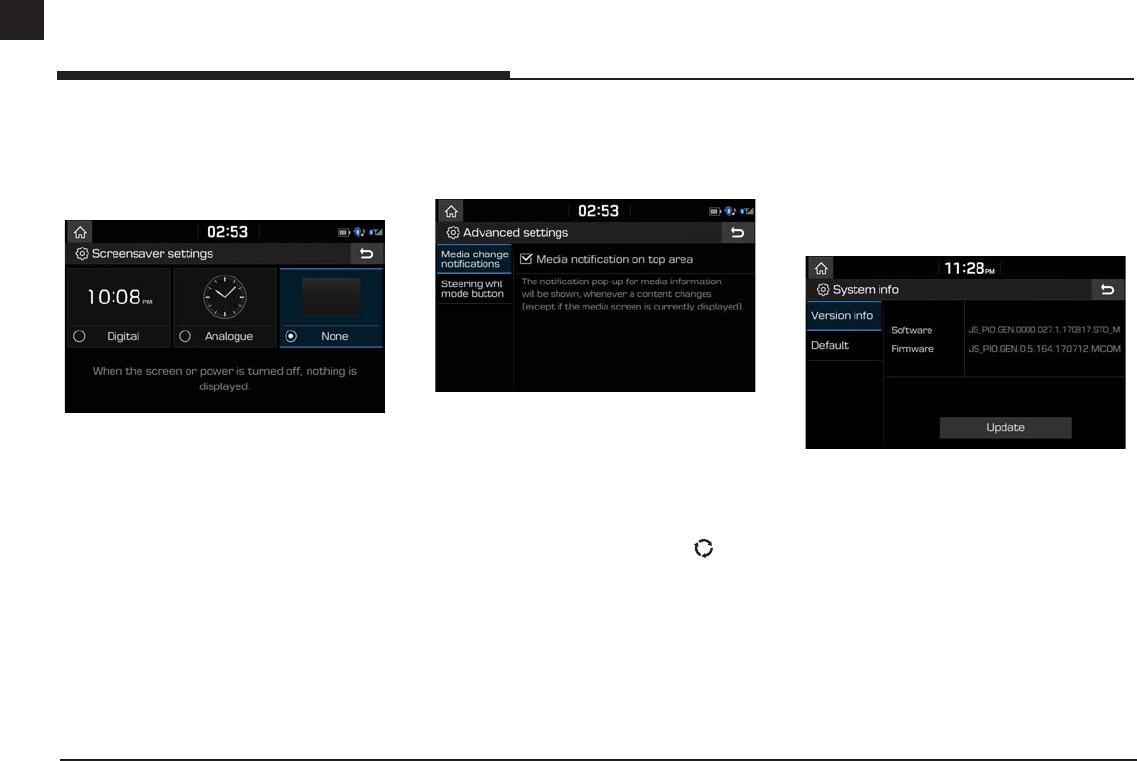

Screensaver � � � � � � � � � � � � � � � � � � � � � � � � � �60

Advanced � � � � � � � � � � � � � � � � � � � � � � � � � � � �60

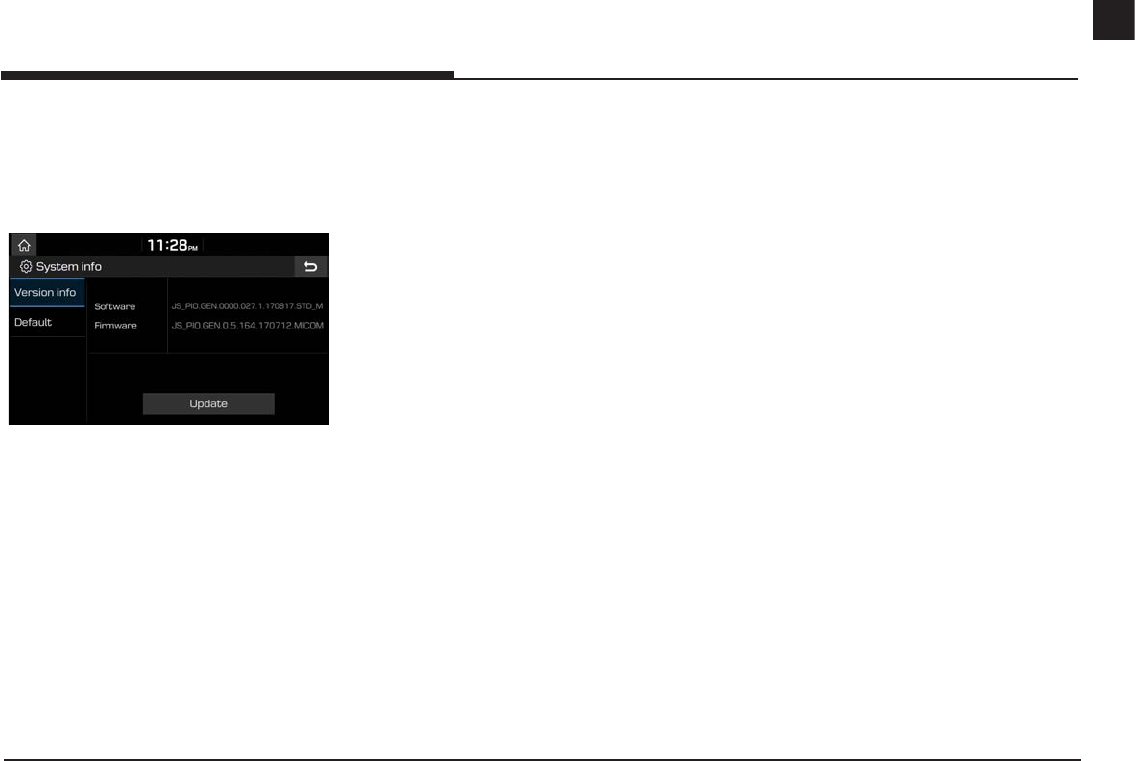

System info � � � � � � � � � � � � � � � � � � � � � � � � � �60

Version info.....................................................60

Update .............................................................. 61

Default ..............................................................61

Using rear camera 62

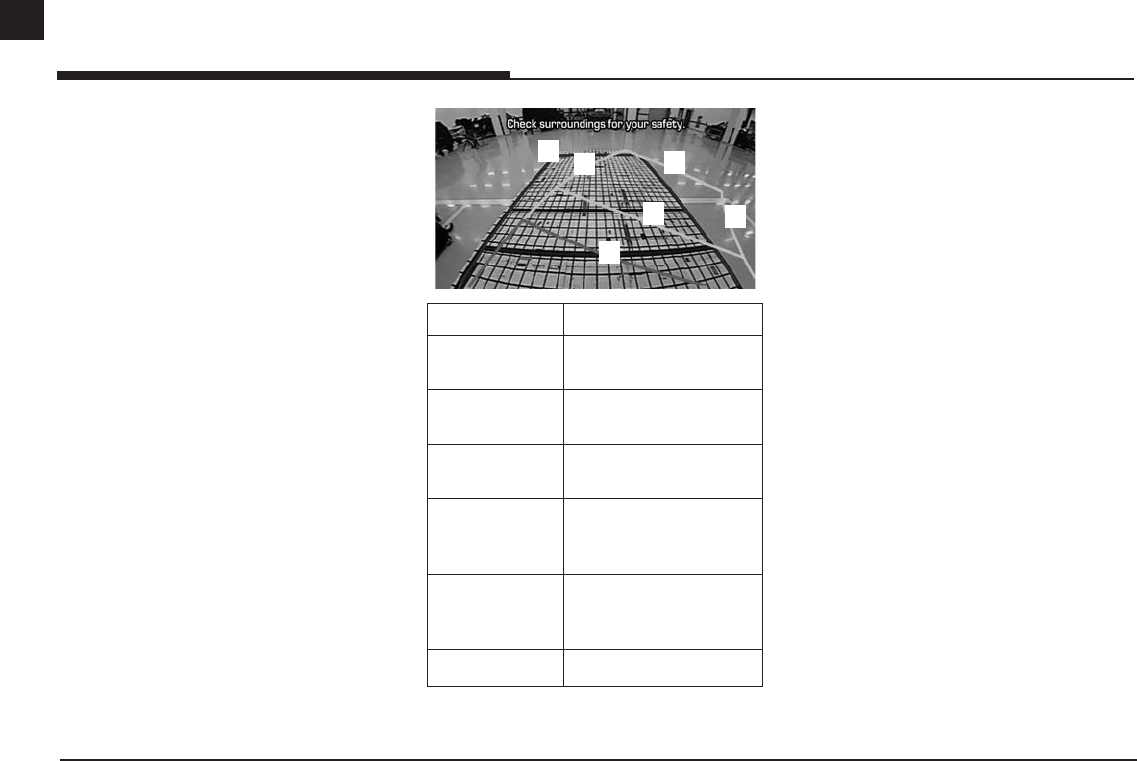

About rear camera � � � � � � � � � � � � � � � � � � � �62

Before thinking there is a product

defect 63

Troubleshooting 65

Trademarks and licenses 67

Bluetooth® Wireless Technology ...............67

iPod® ................................................................67

OPEN SOURCE SOFTWARE NOTICE .........67

DivX® ................................................................67

Specification 68

ENG General information

About USB

•Take precautions regarding static electricity

when connecting/disconnecting external USB

devices.

•Encoded MP3 players will not be recognised

when connected as an external device.

•When connecting an external USB device, the

device may not properly recognise the USB is

in some states.

•USB devices formatted as FAT 16/32, exFAT or

NTFS are supported.

- Read: FAT 16/32, exFAT, NTFS

- Write: FAT 16/32 (It may be limited when

using the POI export function.)

•Some USB devices may not be supported due

to compatibility issues.

•Avoid contact between the USB connector and

bodily parts/foreign objects.

•Repeated connecting/disconnecting of USB

devices within short periods of time may result

in product malfunction.

•The amount of time required to recognise the

external USB device may differ depending on

the type, size, or file formats stored on the

USB. Such differences in required time are not

indications of malfunction.

•The device may not recognise the USB device if

separately purchased USB hubs and extension

cables are being used. Connect the USB directly

with the multimedia terminal of the vehicle.

•When application programmes are installed to

specific USB, files may not properly play.

•The device may not operate normally if MP3

players, mobile phones, digital cameras, or other

electronic devices (USB devices not recognised

as portable disk drives) are connected with the

device.

•Charging through the USB may not work for

some mobile devices.

•The device may not support normal operation

when using a USB memory type other than

metal cover type USB memory.

•The device may not support normal operation

when using formats such as HDD type, CF, or

SD memory.

•The device will not support files locked by DivX

DRM (Digital Rights Management).

•USB memory sticks used by connecting an

adaptor (SD type or CF type) may not be

properly recognised.

General information

ENG

General information

Music file information

•Sampling frequency:

- 32, 44.1, 48 kHz (MP3, WMA, OGG, WAV)

- 1 Hz - 48 kHz (FLAC)

•Bit rate:

- 32 ~ 320 kbps (MP3, WMA, OGG, FLAC)

- 8 bit/16 bit (WAV)

•Version: Any version

•Playable file format: “.mp3”/ “.wma”/ “.ogg”/

“.flac”/ “.wav”

Video file information

•Playable file format: “.mpg”, “.mpeg”, “.dat”,

“.asf”, “.wmv”, “.mp4”, “.m4v”, “.divx”, “.avi”,

“.mkv”

•It may not properly work depending on the

storage type.

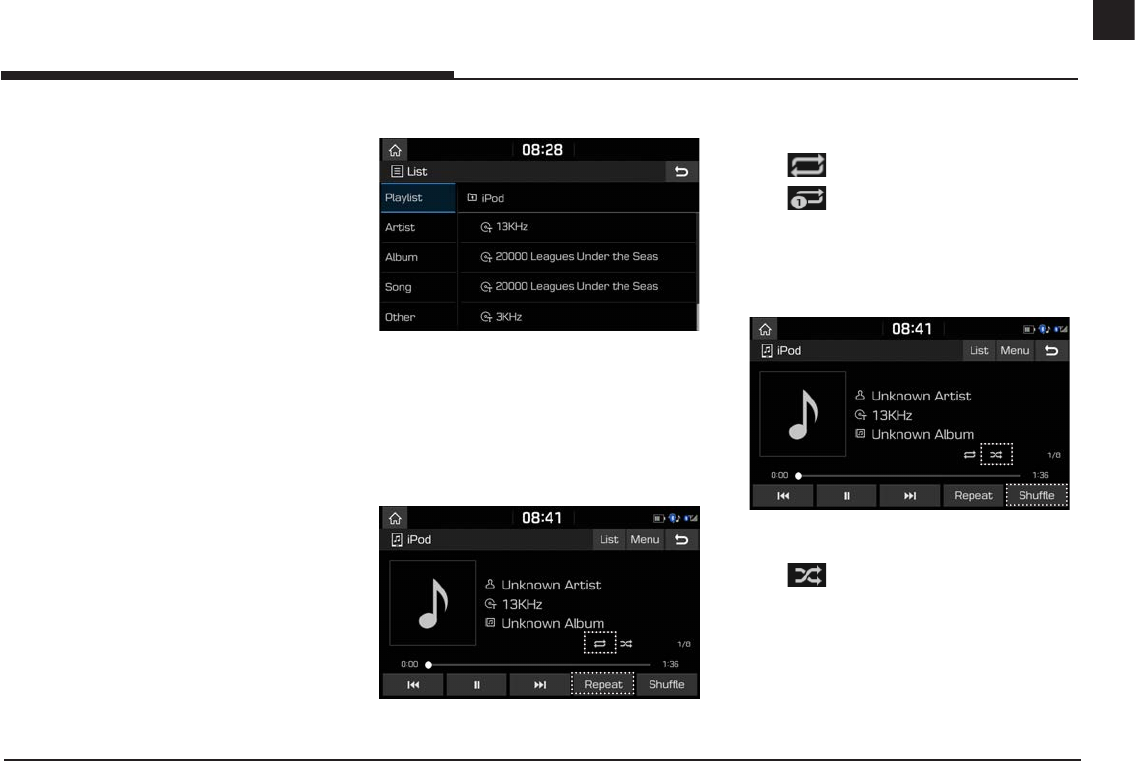

Using iPod devices

Precautions upon using iPod

iPod® is a registered trademark of Apple Inc.

•Some iPods with unsupported communication

protocols may not properly operate with the

system.

•If the iPod malfunctions due to an iPod device

defect, reset the iPod and try again. (To learn

more, refer to your iPod manual.)

•During ACC ON state, connecting the iPod

through the iPod cable (The cable that is

supplied when purchasing iPod/iPhone

product.) will charge the iPod through the

system. (However, iPad is not charged.)

•The use of genuine iPod cables supplied by

Apple is recommended. (The use of other

products may result in noise or abnormal

operation.)

•With some iPhones, streaming audio and iPod

control may occasionally conflict. If problems

persist, remove the iPhone and connect again.

•Use iPod with complete synchronisation to

iTunes. Unauthorised song addition may cause

abnormal operation.

•If iPod and Bluetooth are connected

simultaneously with the same iPhone, you

cannot use Bluetooth audio function.

•If iPod touch or iPhone is used, iOS5.0 or a

later version is recommended.

Supported iPod devices

iPhone7, iPhone7 Plus

iPhoneSE

iPhone6, iPhone6 Plus, iPhone6s, iPhone6s Plus

iPhone5C, iPhone5S, iPhone5

iPhone4S, iPhone4

iPhone3GS, iPhone3G, iPhone

iPod Touch (1st through~ 5th generation)

iPod Nano (1st through~ 7th generation)

iPod Classic (1st through~ 6th generation)

iPad WiFi (1st through~ 4th generation)

iPad Air WiFi (1st ~2nd generation)

iPad Mini (1st ~2nd generation)

Cautions upon using SD cards

Ejecting and inserting SD cards

•Ejecting and inserting SD cards while the

system is operating may result in SD card or

system errors. To eject or insert the SD card,

first turn off the system and the vehicle should

be off status.

•Eject/insert SD cards only to update the map

with a new version.

•When an SD card with the new version of

update software is installed, then the system

will reboot automatically.

Usage of SD cards

•The SD card is formatted to include only map

and new navi S/W.

•The SD card cannot be used to save and play

music.

•Do not add, delete, or format files within the SD

card.

ENG Name of each component

1. Cover for protecting SD card (SD

card insert slot)

Insert the SD card into the slot.

2. RADIO button

Converts to the last played radio mode

(FM, AM).

3. Reset hole

Press with a thin object to reset the unit

when it does not operate normally.

4. MEDIA button

If the playable media source is one, it

moves to the corresponding screen. If

the playable media sources are more

than two, it moves to the [Media] screen.

You can select a media source. ([USB

Music]/[USB Video]/[iPod]/[Apple

CarPlay]/[AUX]/[Bluetooth

Audio]/[Android Auto])

5. • POWER PUSH button

- Power on

Press this button in system OFF status.

- Power off

Press and hold this button in power ON

status.

• Volume control knob (VOL)

Turn anticlockwise or clockwise to control

volume.

• AV on/off

Press this button to turn AV on or off in

power ON status.

Name of each component

Head unit

ENG

Name of each component

6. SSEEK/TRACKW button

- When it is pressed for a short time

•AM mode: plays previous/next available

frequency.

•FM

mode

: plays previous/next available

station existing within [List] menu. (If

there is no or one station in the [List]

menu, the “Auto tuning” function is

executed.)

•MEDIA mode: plays previous/next file.

- When it is pressed and held

•AM mode: plays previous/next available

frequency.

•FM

mode

plays previous/next available

station existing within [List] menu.

•MEDIA mode (except for Bluetooth,

AUX and Android Auto):

rewinds or fast

forwards the file.

7. MAP button

Press to display the map screen of the

current location.

8. NAV button

Press to move to the navigation menu

screen.

9. SETUP button

Press to go to the [Settings] menu.

10.

(Custom button)

Press to go to the [Custom button settings]

menu. After setting, press to use desired

function.

11. ENTER/TUNE/FILE button

- AM mode: turn left/right to tune manually.

- MEDIA mode (except for Bluetooth, AUX,

Apple CarPlay and Android Auto): turn

left/right to search for the desired file and

press.

- Navigation mode: turn to the left/right to

change the map scale on the map screen.

ENG Name of each component

Steering wheel remote control

92/

1. (MODE) button

•Each time this button is pressed, the radio

or media mode is changed. You can select

the modes to toggle in settings.

•If the media is not connected, it is changed

in the order FM → AM →FM.

•When it is pressed and held, AV is turned

off. (But, the voice guidance works

normally in navigation mode.)

2. button

Press to switch to voice recognition mode

when the phone supporting Android

Auto/Apple CarPlay function is connected.

To cancel it, press the button again.

3. • Volume (VOL+/VOL-) button

Increases or decreases the volume level.

• (MUTE) button

Press to mute the sound. (It will be paused

in some media modes.)

4. S/W button

- When it is pressed for a short time

•Radio (FM, AM) mode: plays previous/

next favourites.

•MEDIA mode: plays previous/next file.

- When it is pressed and held

•Radio (FM, AM) mode: plays previous/

next available frequency.

•MEDIA mode (except for Bluetooth, AUX

and Android Auto):

rewinds or fast

forwards the file.

button

Press to operate Bluetooth hands-free

function.

•Press to accept a call.

•Press to make a call from last calls.

•Press and hold for redialling.

6. button

•Press to end the phone call during a call.

•Press to reject the call in the incoming call

screen.

ENG

Basic operation

Starting the system for the

first time

1. Press the engine start button or set the

ignition key to On or ACC.

Once the system is turned on, the booting

process will start and the safety warning

page is displayed.

2. Press [Confirm].

If you want to change the system language,

press [Language]. For more details, refer to

“Language” on page 59.

Notes

•You cannot operate the system while it is

booting up. It may take some time for all of the

features to be ready.

•The safety warning page is displayed every

time the ignition is turned on. The displayed

warnings are related to safety, please closely

read and comply with the safety warnings.

•If there is no operation for 10 seconds in the

safety warning screen the system automatically

switches to the last played mode.

Turning the system on

Press [POWER PUSH] on the head unit in system

OFF status.

Note

Pay attention to the volume setting when turning

the system on. A sudden output of extreme

volume upon turning the system on could lead

to hearing impairment. Adjust the volume to a

suitable levels before turning off the system.

Turning the system off

Press and hold [POWER PUSH] on the head unit

in system ON status.

AV OFF

Press [POWER PUSH] on the head unit to turn

AV off in power ON status.

AV ON

Press [POWER PUSH] on the head unit to turn

AV on in AV OFF status.

Adjusting the volume

Turn the volume control knob (VOL) on the head

unit to the left/right.

Mode Description

Radio or media During the radio or media

playback, turn to the

left/right.

Bluetooth call During a Bluetooth call,

turn it to the left/right.

Bluetooth bell During an incoming call,

turn to the left/right.

Basic operation

ENG

Resetting the system

This feature is used to reset the system in the

occurrence of an unforeseen error or problem.

Press “RESET” button. (The use of a clip or pin is

recommended when resetting the system.)

[Home] screen

Configuration for Home screen

1. Date/Time

•Shows the current date and time.

•Press the area to move to date and clock

settings.

2. AV widget

•Shows brief information on the radio or

media currently playing.

•Press the area to move to the mode for

what you are listening to.

3. All menus

Press [All menus] to move to all of the

items of the system menu.

•[Phone]: Operates Bluetooth hands-free

function.

•[Android Auto]: Runs [Android Auto]

function.

•[Apple CarPlay]: Runs [Apple CarPlay]

function.

•[Quick guide]: Moves to the quick guide

menu. ([Using the touch screen], [Home],

[Bluetooth], [Phone projection])

•[Radio]: Converts to the last played radio

mode.

•[Music]: Converts to the last played music

mode.

•[USB Video]: Converts to the last played

video mode.

•[Current position]: Displays the map screen

of the current position.

•[Navigation]: Moves to the [Navigation]

menu.

•[Settings]: Moves to the [Settings] menu.

•[My Menu]: Moves to the [My Menu]

menu.

4. Navigation

Press to move to the [Navigation] menu.

5. My Menu

•You can add and save up 24 menu items.

•You can add your favourite menu items to

have quick and easy access.

Basic operation

ENG

Basic operation for [Home] screen

1. Press [ ] on the screen.

2. Select a desired item and it moves to the

corresponding screen.

Editing the [All menus]

1. Press [All menus] on the [Home] screen.

2. Press [Edit] on the [All menus] screen.

3. Select the desired menu item from the list,

then drag and drop it to a desired place.

4. Press [ ].

Basic operation

ENG Basic operation

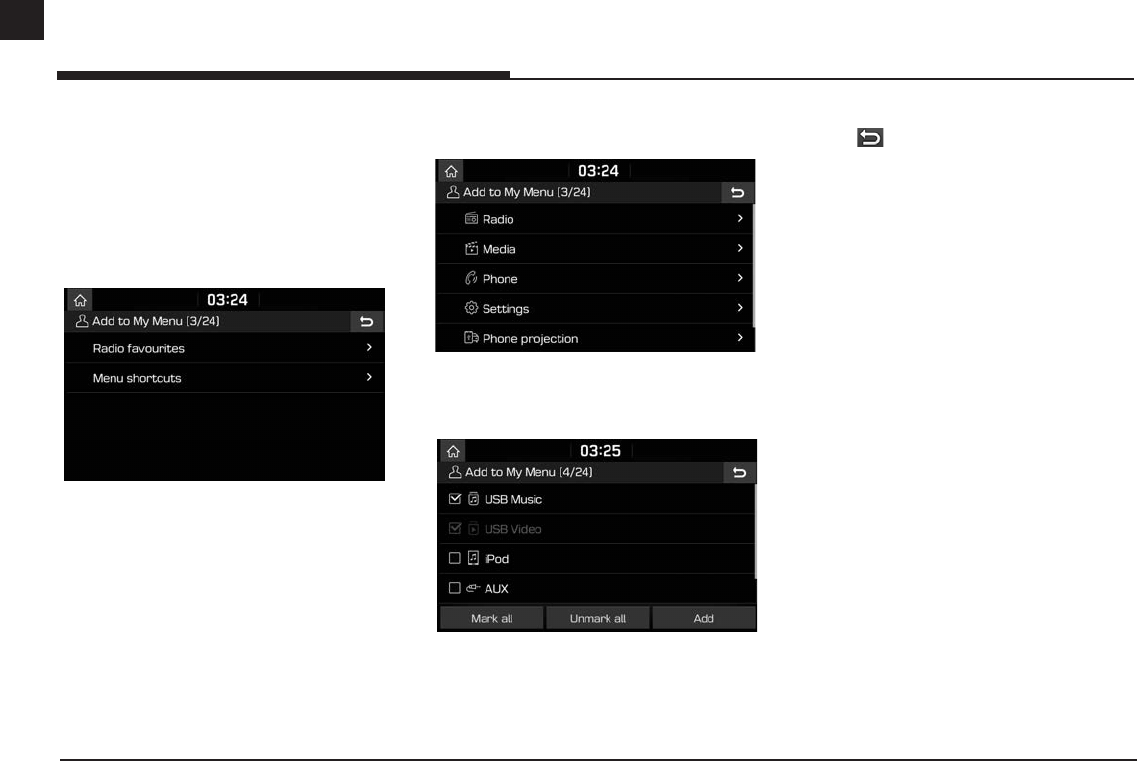

Adding your favourite menu items to

[My Menu]

1. Press [My Menu] on the [Home] screen or

[All menus] screen.

2. Press [Add to My Menu].

If your favourite menu items are already

added, press [Menu] > [Add].

3. Select one of the [Radio favourites], or

[Menu shortcuts] on the screen.

4. Select one of the categories.

5. Mark the subcategories.

6. Press [Add] > [Yes].

•[Mark all]: Marks all items.

•[Unmark all]: Unmarks all items.

Note

•Press [ ] to move to the previous screen.

•Up to 24 menu items can be added to [My

Menu].

•If you select the menu item added to [My

Menu], it moves to the corresponding screen.

ENG

Basic operation

Rearranging the favourite menu

items of [My Menu]

1. Press [My Menu] on the [Home] screen.

2. Press [Menu] > [Rearrange].

3. Select the desired menu item from the list,

then drag and drop it to a desired place.

4. Press [ ].

Deleting the favourite menu items

of [My Menu]

1. Press [My Menu] on the [Home] screen.

2. Press [Menu] > [Delete].

3. Select the desired items, then press [Delete]

> [Yes].

•[Mark all]: Marks all items.

•[Unmark all]: Unmarks all items.

Playing last media source

When you press the Engine Start button or set

the ignition key to ON/ACC ON, the media source

played the last time will play automatically. But,

the message "Reconnect last media source to

play." is displayed on the home screen if you set

the ignition key to ON/ACC ON with the existing

media source disconnected or removed.

ENG Radio operation

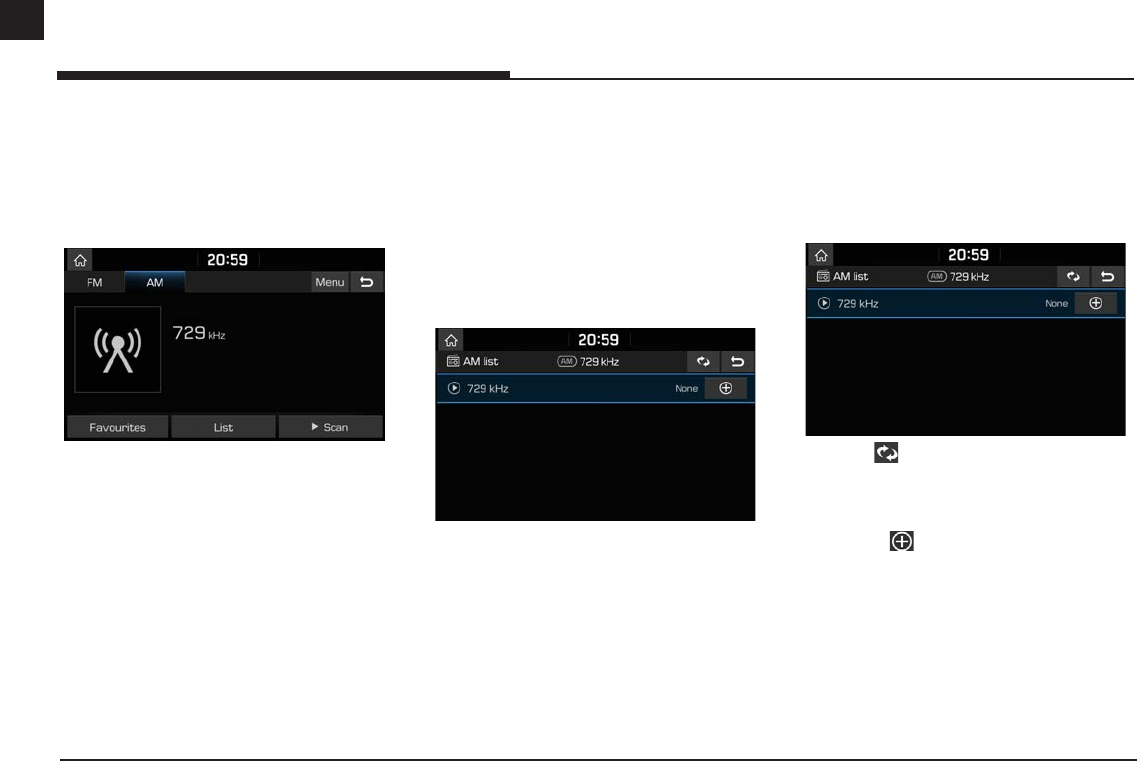

Listening to AM

1. Press [RADIO] on the head unit.

2. Press [AM] on the screen.

The AM screen of the most recent listened

station is displayed.

Note

Each time the [RADIO] button on the head unit is

pressed, the mode is changed in the order AM →

FM → AM.

3. Auto tuning:

Press [

SEEK/TRACK

] on the head unit.

- Plays next/previous available station.

Manual tuning:

Turn the right knob of the head unit left/right.

- The frequency moves up and down

accordingly.

Favourites tuning:

Press [Favourites]. Press the favourites

numbers of the desired broadcast station.

Opening the station list sorted in

numerical order

You can see station list with superior reception.

1. Press [AM] on the screen.

2. Press [List].

Auto search

This function lets you automatically search the

broadcast stations with superior reception.

1. Select the AM band.

2. Press [List].

3. Press [ ].

Note

If you want to save the stations to [Favourites]

menu, press [ ] and then press the desired

favourites number.

Radio operation

ENG

Radio operation

Saving AM favourites

It manually saves the listening frequency to

desired favourites list.

1. Select the AM band.

2. Select the frequency to save.

3. Press [Favourites].

4. Press the desired favourites number.

If you want to overwrite an existing

favourites, press and hold the respective

favourites number.

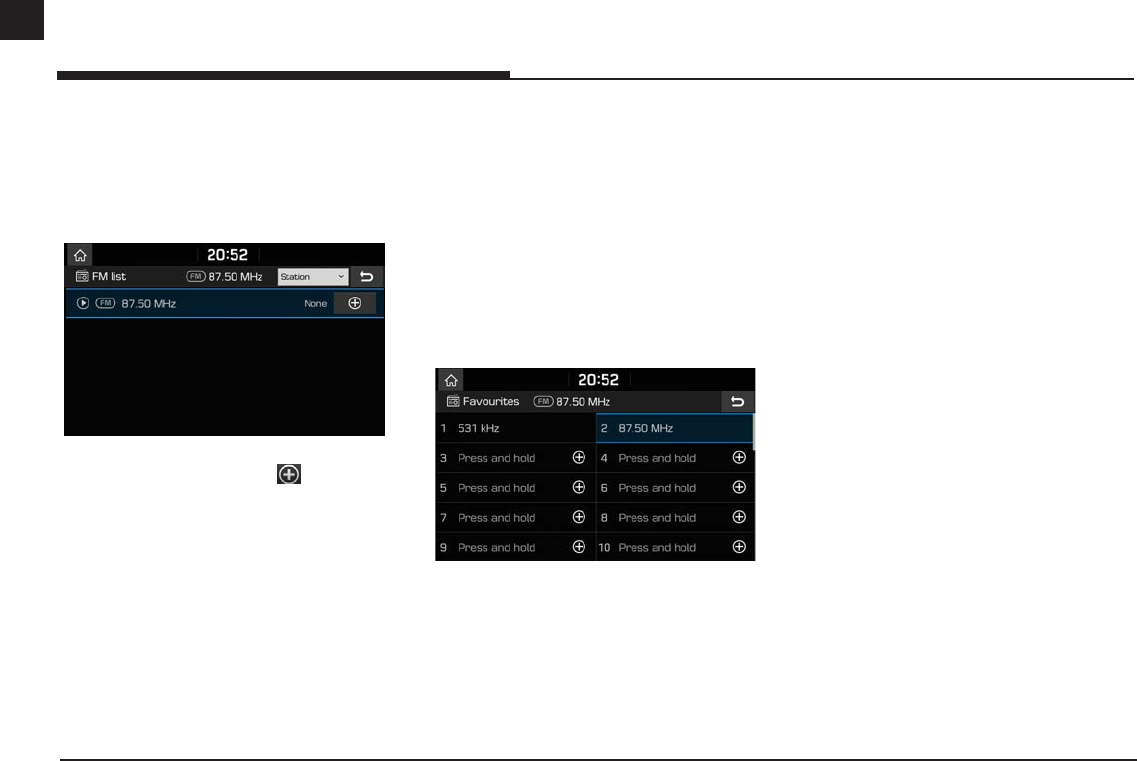

Listening to FM

1. Press [RADIO] on the head unit.

2. Press [FM] on the screen.

The FM screen of the most recent listened

station is displayed.

Note

Each time the [RADIO] button on the head unit is

pressed, the mode is changed in the order FM →

AM → FM.

3. Auto tuning (When there are no or one

station in [List] menu):

•Press [

SEEK/TRACK

] on the head unit.

- Plays next/previous available station.

List tuning (When there are two or more

stations in [List] menu):

•Press [

SEEK/TRACK

] on the head unit.

- Plays next/previous available station

existing within [List] menu.

Manual tuning:

•In the FM mode, press [Menu] > [Manual

tune FM].

Station bar

- Drag the station bar to the left/right to

find the radio station that you want.

- Press [

- Turn the right knob of the head unit

left/right, then press it when the desired

station is displayed in a highlighted colour.

Favourites:

•Press [Favourites]. Press the favourites

numbers of the desired broadcast station.

•Press [

S/W

] on the steering wheel

remote control.

ENG

Opening the station list

You can see the station list with superior

reception.

1. Press [FM] on the screen.

2. Press [List].

•If you want to save the stations to the

[Favourites] menu, press [ ] and then

press the desired favourites number.

•Press [Station] or [Programme type] to

arrange the list in station or programme

type order.

Saving FM favourites

It saves the listening station to the desired

favourites list.

1. Press [FM] on the screen.

2. Select the desired station.

3. Press [Favourites].

4. Press the desired favourites number.

If you want to overwrite an existing

favourites, press and hold the respective

favourites number.

Scan

This function scans all stations and plays only

stations with good signal strength for 5 seconds

each.

Press [

Scan].

Press [

Stop] to stop the scan function.

Sound settings

1. Press [Menu] > [Sound settings].

2. For details refer to page 55 (“Sound”).

Radio operation

ENG

USB operation

Playing USB music

You can play music files stored in a USB memory

device.

Connect a USB device to the USB port and

playback starts automatically.

Note

To play USB music while a different source is

playing, press [MEDIA] > [USB Music].

Pause

You can pause the playing file.

Press [M] during playback.

Press [

] to play it again.

Skip

You can play the previous or next file.

Position Description

Screen

•Press [

•Pressing [

] after 3

seconds of playback time

plays the current file from the

beginning.

Head unit

•Press [

SEEK/TRACK

•Pressing [

SEEK] after 3

seconds of playback time

plays the current file from the

beginning.

You can fast rewind/forward to a specific point

of a file.

Position Description

Screen Press and hold [C

V] and

then release at the point you

want.

Head unit Press and hold [

SEEK/

TRACK

]and then release at

the point you want.

Note

When you drag or touch the desired part on

the progress bar, the music of the selected part

plays.

Seek

You can play the file directly by searching for

the desired file.

1. To search for a desired file, turn the right

knob of the head unit left/right.

2. If the desired file is displayed, press the right

knob of the head unit to play the file.

USB operation

ENG USB operation

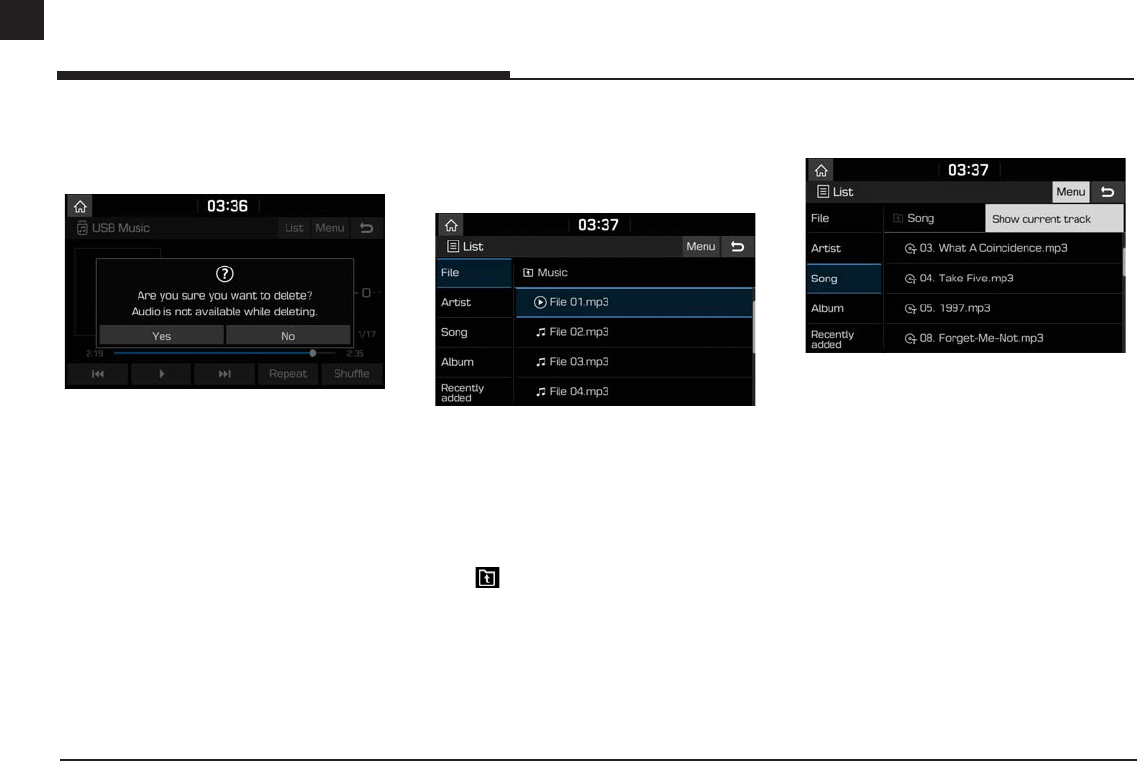

Delete current file

You can delete the currently playing file in a USB.

1. Press [Menu] > [Delete current file].

2. Press [Yes].

List

You can play the desired file by searching for the

file list of the USB menu.

1. Press [List].

2. Press the desired file after searching for a

category.

The category can be sorted by [File],

[Artist], [Song], [Album] or [Recently

added].

Note

Press [ ] to move to an upper folder.

Using the list menu

1. Press [Menu] in list screen.

2. Press [Show current track].

The screen moves to the file list currently

playing.

ENG

USB operation

Repeat

You can play a set of files repeatedly.

1. Press [Repeat].

2. Select the desired mode by pressing

[Repeat] repeatedly.

•[ ]: Plays all files sequentially.

•[]: Repeats all files within the current

folder.

•[]: Repeats the current file, only.

•[]: Plays the files sequentially within

the [Artist], [Song], [Album] or [Recently

added].

Shuffle

You can play files in random order.

1. Press [Shuffle].

2. Select the desired mode by pressing

[Shuffle] repeatedly.

•[]: Plays all files randomly.

Sound settings

1. Press [Menu] > [Sound settings].

2. For details, refer to page 55 (“Sound”).

Viewing USB video

You can watch video files saved in a USB memory

device.

1. Connect a USB device to the USB port.

2. Press [MEDIA].

To play video file while a different source is

playing, press [MEDIA] > [USB Video].

Switching to menu screen or full

screen

Press the screen repeatedly.

(If there is no operation for 10 seconds on menu

screen mode, it switches to full screen mode.)

Pause

You can pause the playing file.

For details, refer to page 21 (“Pause”).

Skip

You can play the previous or next file.

For details, refer to page 21 (“Skip”).

ENG USB operation

You can fast forward/rewind to a specific point

of a file.

For details refer to page 21 ("Search").

Seek

You can play the file directly by searching for

the desired file.

For details refer to page 21 ("Seek").

List

You can search for a desired video using the

video list.

1. Press [List].

•To move to the file list screen currently

playing, press [Menu] > [Now playing].

•Press [ ] to move to an upper folder.

2. Press the desired video.

Repeat

You can play a set of files repeatedly.

1. Press [Repeat].

2. Select the desired mode by pressing

[Repeat] repeatedly.

•[]: Plays all files sequentially.

•[]: Repeats all files within the current

folder.

•[]: Repeats the current file, only.

Info

This menu shows File name, Resolution and Total

time of the currently playing video.

Press [Info].

Sound settings

1. Press [Menu] > [Sound settings].

2. For details refer to page 55 (“Sound”).

Display settings

1. Press [Menu] > [Display settings].

2. For details refer to page 56 ("Display").

ENG

iPod operation

Playing iPod

1. Use an iPod exclusive cable to connect an

iPod to the USB connector.

2. Press [MEDIA].

To play an iPod while a different source is

playing, press [MEDIA] > [iPod].

Pause

You can pause the playing file. For details, refer

to page 21 (“Pause”).

Skip

You can play the previous or next file. For details,

refer to page 21 (“Skip”).

You can fast rewind/forward to a specific point

of a file. For details, refer to page 21 (“Search”).

Seek

You can play the file directly by searching for

the desired file. For details, refer to page 21

(“Seek”).

List

You can play the desired file by searching in the

files list in the iPod Menu.

1. Press [List].

2. Press the desired file after searching for

[Playlist], [Artist], [Album], [Song], or

[Other].

Repeat

You can play a set of files repeatedly.

1. Press [Repeat].

2. Select the desired mode by pressing

[Repeat] repeatedly.

•[]: Plays all files sequentially.

•[]: Repeats the current file, only.

Shuffle

You can play files in random order.

1. Press [Shuffle].

2. Select the desired mode by pressing

[Shuffle] repeatedly.

•[]: Plays all files randomly.

Sound settings

1. Press [Menu] > [Sound settings].

2. For details, refer to page 55 (“Sound”).

iPod operation

ENG Auxiliary device operation

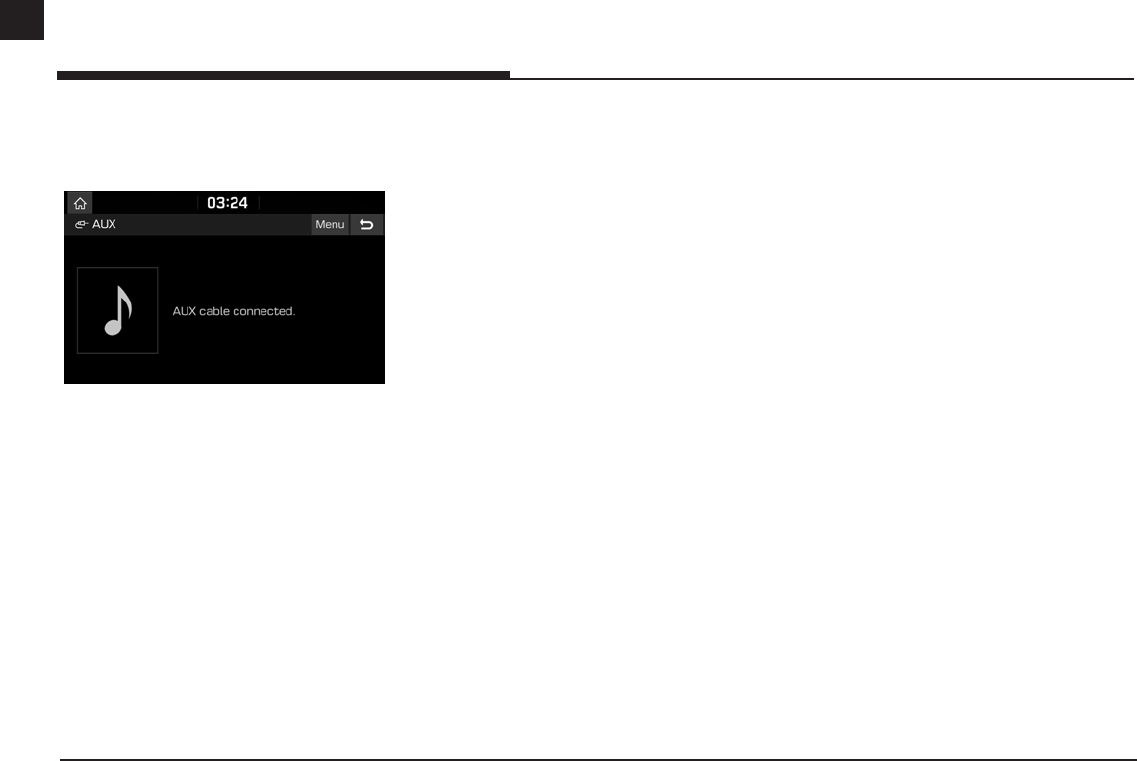

Playing an AUX source

1. Connect an auxiliary device to the AUX

terminal.

2. Play the auxiliary device.

Note

To play an auxiliary device while a different

source is playing, press [MEDIA] > [AUX].

Sound settings

1. Press [Menu] > [Sound settings].

2. For details refer to page 55 (“Sound”).

Auxiliary device operation

ENG

Bluetooth® audio

Playing Bluetooth audio

•Music stored in the mobile phone can be played

in the car through Bluetooth audio streaming.

•Bluetooth audio can be played only when a

Bluetooth phone or Bluetooth audio device

has been connected. To play Bluetooth audio,

connect the Bluetooth phone to the car system.

For more information on connecting Bluetooth,

please refer to the owner’s manual [Pairing and

connecting the unit and a Bluetooth phone] on

page 48.

•If Bluetooth is disconnected while playing

Bluetooth audio, the audio stream will be

interrupted.

•The audio streaming function may not be

supported in some mobile phones. Only one

function can be used at a time. You can not use

the Bluetooth hands-free and the Bluetooth

audio function at the same time. For example, if

you convert to the Bluetooth hands-free while

playing Bluetooth audio, the music stream is

paused.

•Playing music from the car is not possible when

there are no music files saved in the mobile

phone.

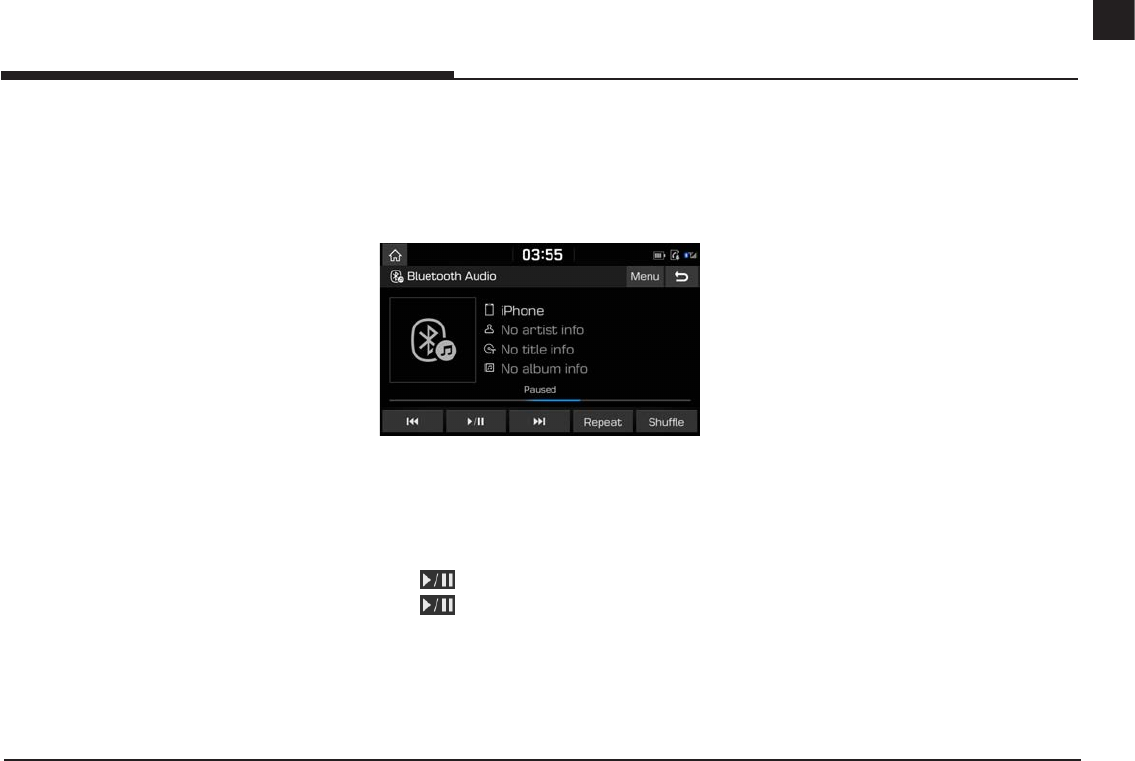

Starting the Bluetooth audio

1. Connect your Bluetooth device to the head

unit.

2. Press [MEDIA].

The Bluetooth audio screen is displayed.

Note

To play Bluetooth audio while a different source

is playing, press [MEDIA] > [Bluetooth Audio].

Pause

Press [ ] during playback.

Press [ ] to play it again.

Skip

You can play the previous or next file.

For details refer to page 21 (“Skip”).

Repeat

You can play a set of files repeatedly.

Select the desired mode by pressing [Repeat]

repeatedly.

Shuffle

You can play files in random order.

Select the desired mode by pressing [Shuffle]

repeatedly.

Note

These features may not be supported in some

Bluetooth devices.

Connection settings

1. Press [Menu] > [Connection settings].

2. For details refer to page 57 (“Bluetooth

connections”).

Sound settings

1. Press [Menu] > [Sound settings].

2. For details refer to page 55 (“Sound”).

Bluetooth® audio

ENG Getting started with navigation

Precautions for safe driving

Please observe and comply with local traffic

rules and regulations.

•The route displayed for destination guidance

is a reference and the route guidance will take

you to the vicinity of your destination. The

highlighted route is not always the shortest

distance, the least congested, and in some

cases, might not be the fastest route.

•Road, name, POI and speed limit may not always

be completely updated.

•The car position mark does not indicate

your exact location. This system uses GNSS

information, various sensors, and road map

data to display the current position. However,

errors in displaying your location may occur if

the satellite is transmitting inaccurate signals

or less than two satellite signals are received.

Errors that occur in such conditions cannot be

corrected.

•The position of the vehicle within the navigation

may differ from your actual location depending

on various reasons, including the satellite

transmission state, vehicle state (driving

location and conditions), etc. Additionally, the

car position mark may differ from the actual

position if the map data is different from the

actual road landscape, such as changes due

to the construction of new roads. If such

differences occur, driving for a short period

of time will automatically correct the position

of the vehicle through map matching or GNSS

information.

What is GNSS?

The GNSS(Global Navigation Satellite System) is

a satellite-based navigation system made up of

a network of 32 satellites placed into orbit by

the Global Positioning System (GPS) of U.S.A,

GLONASS of RUSSIA, etc.

GNSS works in any weather conditions, anywhere

in the world, 24 hours a day.

There are no subscription fees or setup charges

to use GNSS.

About satellite signals

Your unit must acquire satellite signals to

operate. If you are indoors, near tall buildings

or trees, or in a parking garage, the unit cannot

acquire satellite signals.

Acquiring satellite signals

Before the unit can determine your current

position and navigate a route, you must take the

following steps:

1. Go outside to an area free from tall

obstructions.

2. Turn on the unit.

Acquiring satellite signals can take a few

minutes.

Getting started with navigation

ENG

Getting started with navigation

Operating navigation screen

The navigation system displays various

information on the map screen.

Map screen

Press [MAP] or [NAV] > [Map] to access the map

screen.

4 5 6 7 910

Displays the distance to next turn, maneuver

at next turn and serial turn. Press to repeat

voice instructions.

Displays speed cameras.

3. [ / ] button

Press [ / ] button to set the zoom level

on the map screen.

4. Clock display

Displays the current time.

5. Map view button

Changes the map view perspectives.

Press

[ ] repeatedly to switch them.

- 2D North-up: The map always points

north regardless of the direction that the

vehicle is moving.

- 2D Heading-up: The map always displays

the vehicle’s direction as proceeding

towards the top of the screen.

- 3D Heading-up: The map always displays

the basic outline and details of the

surrounding roads and general area.

6. Remaining distance display

Displays the remaining distance to the

destination.

7. Street/city information display

Displays the current street information or city

information. Press to switch the display.

8. Arrival time display

Displays the estimated time until the arrival at

the destination.

Displays GPS receiver status. Press to check

GPS information.

- The status is green: GPS signal good.

- The status is red: GPS signal lost.

10. [ ] button

Displays functions in the sub menu.

11. PIP (Picture In Picture)

Displays the upcoming route with the

enlarged and simple picture when driving.

12. Vehicle position mark

Displays current vehicle position and direction.

- The mark is green: GPS signal good.

- The mark is Yellow: GPS signal weak.

- The mark is red: GPS signal lost.

- The mark is grey: When simulating.

13.

Displays speed limit information on the road.

14.

Displays the instruction for current turn.

Press to access the turn list.

ENG Getting started with navigation

Zoom in / Zoom out

To set the zoom level on the map screen, turn

the right knob of the head unit left/right.

Quick menu

1. Press [ ] on the map screen.

2. Press the desired item.

•[ ]: Press [ ] to open or close the

sub menu.

•[]: Cancels the route when it is set.

•[]: Moves to the home when it is set.

•[]: Moves to the sound settings screen.

•[ ]: Finds a destination by searching for

POI near the current position.

•[]: Starts simulation when the route is

set. (Page 39)

Sound setting for navigation

1. Press [ ] on the quick menu.

2. Set the guidance volume of navigation by

pressing [

]/[

], then press [Apply].

Note

You can access the sound setting menu for

navigation by pressing [ ] > [Sound].

Scrolling the map screen

Drag and drop the map screen to the desired

direction, then touch the desired point.

Information on the point is displayed on the

screen. It can be used as an electronic map.

3 4

Displays compass. Press to change the orient

of map.

button

Press the button to switch the map screen to

2D or 3D.

3. Selected location mark

Displays selected location (road or POI) with

information panel about it.

ENG

Getting started with navigation

Displays scale ruler.

5. [ ] button

Rotates the map screen.

Press

[ ] repeatedly to rotate or stop it.

6. [ ] button

Returns to current vehicle position.

7. [Main Menu] button

Moves to the main menu of navigation.

Main Menu

1. Press [NAV] or touch anywhere on the map

screen.

2. Press the desired option.

•[Find]: Finds a destination by using the

[Find] menu. (Pages 32-36)

•[Map]: Moves to the map screen or

navigation/free run screen.

•[Route]: Accesses the current route,

itinerary, statistics and map information.

(Pages 37-40)

•[] (Settings): Changes the software

settings of navigation. (Pages 41-44)

•[] (My Data): Maintains user specific

information like [My Favorite], [My

Itinerary], [My Trail], and [Clear Data].

(Page 45)

•[] (Information): Displays [GPS],

[Statistics] and information about the

navigation system. (Page 45)

Sub-menu operation

All sub-menus of navigation have the following

features at the top of the screen.

•[]: Moves to navigation/free run screen.

•[]: Moves to the main menu.

•[]: Moves to the previous screen.

ENG Searching for destination

Address search

You can find the destination by searching for an

address.

1. Press [Find] > [Address].

2. Enter the city name, then press [Done].

3. Select the desired item from the list (over

and over).

•If you want to search for a list of nearby

POI or streets, press [Nearby].

•If you want to save the location as the [My

Favorite], press [Save As].

•If you want to know information about the

selected location, press [Info].

•If you want to add intermediate waypoint

in route to your destination or set the

location as the start point to simulate the

route, press [Advanced].

4. Press [Go To].

•When the destination already set exists,

press [Replace] to move to another

destination recently set.

•Press [Extend] to extend the destination

already set.

•Press [Cancel] if you don’t want the

[Replace], [Extend].

POI (Points of interest)

You can set a POI as the destination using

different search methods.

Searching for POI by [POI]

When searching for POI by POI name in

[POI]

1. Press [Find] > [POI].

2. Enter a POI name, then press [Done].

3. Follow steps 3-4 of the “Address search” on

page 32.

Searching for destination

ENG

Searching for destination

When searching for POI by [Nearby] in

[POI]

1. Press [Find] > [POI].

2. Press [Nearby], then select one of the

[Around City]/[Near Car].

3. 1) When selecting the [Around City], follow

steps 2-4 of the “Address search” on

page 32.

2) When selecting the [Near Car], follow

steps 3-4 of the “Address search” on

page 32.

When searching for POI by [Phone] in

[POI]

1. Press [Find] > [POI] > [Phone].

2. Enter a phone number, then press [Done].

3. Follow steps 3-4 of the “Address search” on

page 32.

Keyword search

You can find the destination by searching for a

key word.

1. Press [Find] > [Keyword].

2. Enter a key word, then press [Done].

ENG Searching for destination

3. Select one of the [POI], [City Center],

[Street], [All].

•If you want to stop a search, press [Stop].

4. Follow steps 3-4 of the “Address search” on

page 32.

Favorite

If your favorites are already in the [Favorite]

menu, they can be easily retrieved by pressing

them.

First of all, store a favorite through [Save As]

of the “Address search” in order to activate

the [My Favorite] menu. Then, you can store

favorites in the [My Favorite] menu.

Adding favorite

1. Press [ ] > [My Favorite].

2. Press [Add], then select the desired position

through the destination search function.

3. Press [OK].

4. Press [>] to change the name and select one

of the Most Favorite, Home, Special Location,

then press [Save].

It is saved in the [My Favorite] menu

automatically.

Note

You can also store a favorite in the [My Favorite]

menu through [Save As] of the “Address

search”. (Page 32)

Finding favorite

1. Press [Find] > [Favorite].

2. Follow steps 3-4 of the “Address search” on

page 32.

ENG

Searching for destination

Viewing favorite

1. Press [ ] > [My Favorite].

2. Select the desired item from the list, then

press [View].

Switches to the map screen on what you

select.

3. Press [Info] to check information on what

you select. Press [Map] to switches to the

map screen again.

Editing favorite

1. Press [ ] > [My Favorite].

2. Select the desired item from the list, then

press [Edit].

3. Press [>] to change the name if you want

and select one of the Most Favorite, Home,

Special Location, then press [Save].

Deleting favorite

1. Press [ ] > [My Favorite].

2. Select the desired item from the list, then

press [Delete] > [Yes].

Recent

The destinations set through the search function

are automatically saved in the [Recent] menu.

You can reset them as the destination from the

[Recent] menu.

1. Press [Find] > [Recent].

2. Follow steps 3-4 of the “Address search” on

page 32.

Hyundai service

You can set the facilities of Hyundai dealers as

the destination.

1. Press [Find] > [Hyundai].

•You can also search for the facilities of

Hyundai dealers by pressing [Keyword].

2. Follow steps 3-4 of the “Address search” on

page 32.

Note

The information for the dealers facilities may

not correspond with a result of map information,

since the information can be provided up to date.

Coordinate

You can find a destination by entering the

coordinates of latitude and longitude.

1. Press [Find] > [Coordinate].

ENG Searching for destination

2. Press <Enter Longitude> and <Enter

Latitude> respectively.

3. Enter the coordinates and press [Done]

respectively.

4. Press [Done] again, then follow steps 3-4 of

the “Address search” on page 32.

Intersection

You can use this menu to determine the

intersection of two streets.

1. Press [Find] > [Intersection].

2. Enter each search box, then press [Done].

3. Follow steps 3-4 of the “Address search” on

page 32.

Category

You can search for a POI by the [Category]

menu.

1. Press [Find] > [Category].

2. Follow steps 3-4 of the “Address search” on

page 32.

Current Position

Press [Current Position] if you want to know

information on the current positon.

1. Press [Find] > [Current Position].

2. Follow steps 3-4 of the “Address search” on

page 32.

ENG

Using the route menu

Itinerary

The itinerary is a list of users who have defined

their way points to their destination. The

itinerary can be added/deleted/edited and its

order can be changed.

Adding itinerary's way points

1. Press [Route] > [Itinerary].

2. Press [Add].

3. Select a way point through the destination

search function, then press [OK].

4. If you want to add a way point (over and

over), follow steps 2-3.

5. Press [Go] if you want to start the itinerary's

route guidance.

Viewing the map information

1. Press [Route] > [Itinerary].

2. Press the desired item from the list.

3. Press [Info] to check information on what

you select. Press [Map] to switches to the

map screen again.

Saving itinerary to [My Itinerary]

If the itineraries are already saved in the [My

Itinerary] menu, they can be easily retrieved to

set the route.

First of all, you can save a itinerary to the [My

Itinerary] menu when you add the Itinerary’s

way points.

1. Press [Route] > [Itinerary].

2. Press [Save].

3. Enter the itinerary name, then press [Done].

It is saved in the [My Itinerary] menu

automatically.

Using the route menu

ENG Using the route menu

Rearranging itinerary's way points

1. Press [Route] > [Itinerary].

2. Press [Edit].

3. Select the desired item from the list, then

press [Move Up] or [Move Down].

4. Press [Done].

Vacating itinerary's way points from

[Itinerary]

This operation doesn’t mean the itinerary

saved in the [My Itinerary] menu is deleted, but

mean the itinerary from the [Itinerary] menu is

vacated.

1. Press [Route] > [Itinerary].

2. Press [Edit].

3. Select the desired item from the list, then

press [Delete].

4. Press [Done].

Loading itinerary from [My

Itinerary] into [Itinerary]

1. Press [ ] > [My Itinerary].

2. Select the desired item from the list, then

press [Load].

•When the itinerary already set exists in the

[Itinerary] menu, press [Yes] to replace it.

•Press [No] if you don’t want to replace it.

Renaming itinerary from [My

Itinerary]

1. Press [ ] > [My Itinerary].

2. Select the desired item from the list, then

press [Rename].

3. Enter a desired name, the press [Done].

Deleting itinerary from [My

Itinerary]

1. Press [ ] > [My Itinerary].

2. Select the desired item from the list, then

press [Delete].

3. Press [Yes].

Route Options

You can modify various route options according

to your needs.

1. Press [Route] > [Route Options].

2. Set the desired options, then press [Apply].

•[Routing Method]: This option allows you

to set the routing method as the Shorter

(distance), Faster (time).

•[Avoid Highway]: Highway is not

considered as route solutions.

•[Avoid Toll Road]: Toll roads is not

considered as route solutions.

•[Avoid Minor Road]: Minor roads in

communities or paved for walker is not

considered as route solutions.

•[Avoid Ferry]: Ferry is not considered as

route solutions.

ENG

Using the route menu

•[Ask every time before planning]: This

option allows you to set route options

each time you plan your route.

Note

The options set by user may not be supported

depending on condition.

Turn List

This function allows you to view the distance to

the next guide point and the turning direction at

that guide point.

1. Press [Route] > [Turn List].

2. Press the desired items to view a turn.

A map showing the location of the turn is

load.

Best Fit

You can check the entire route between your

current location and your destination.

Press [Route] > [Best Fit].

Cancel Route

If you want to stop the route guidance with

a route set, press [Route] > [Cancel Route] >

[Yes].

Demo

This function allows the user to simulate a route

guidance when a route is set.

1. Press [Route] > [Demo].

•[1x], [2x], [4x], [Full]: Set the speed of

driving simulation by pressing [

]/[

•[Repeat]: Select whether to repeat driving

simulation.

ENG Using the route menu

2. Press [Start Demo].

•[/ ]: Pauses or plays the driving

simulation.

•[ ]: Ends the driving simulation.

•[]: Sets the speed of driving simulation

slowly.

•[]: Sets the speed of driving simulation

fastly.

Stop Demo

When you press [NAV] during driving simulation,

press [Route] > [Stop Demo] to stop driving

simulation.

Bypass Waypoint

The route is recalculated to bypass waypoint

around the location or street when an itinerary

has more than 2 way points.

Press [Route] > [Bypass Waypoint] > [Yes].

Detour

The route is recalculated to take a detour around

the location or street.

1. Press [Route] > [Detour].

2. Select the desired item from the list.

The route is recalculated and the map screen

is displayed automatically.

Restricted Area

By using this menu, the most efficient traffic plan

will be provided to you according to having or

not having permission to enter different traffic

zones.

When the planned route passes through the

restricted area without permission, the navigation

system will display a warning message “You don’t

have permission! Can you go through restricted

area now?”.

If you press [Yes], the system starts navigation

according to the original route, otherwise it will

calculate another one.

1. Press [Route] > [Restricted Area].

2. Select the desired options, then press

[Apply].

ENG

Settings

The navigation system offers a high degree of

personalization settings as well as normal system

settings.

Press [ ] on the main menu screen to change

the software settings of navigation.

Map

For dual language map, this option could be

selected to dispaly the default language on the

map screen.

1. Press [ ] > [Map].

2. Select the desired language displayed on the

map screen by pressing [

]/[

], then press

[Apply].

Display

This menu allows you to change the display

features used by the navigation.

You can adjust the colour scheme to suit your

current lighting conditions for ease of visibility

and font size.

1. Press [ ] > [Display].

2. Select the desired options by pressing [D] >

[Done] or pressing [

]/[

3. Press [Apply].

Settings for navigation

ENG Settings for navigation

Language

This menu allows you to change languages in

using the navigation system.

1. Press [ ] > [Language].

2. Select the desired options by pressing

[D]/[

]/[

], then press [Apply].

•[Text]: In the navigation system, there are

2 texts to be selected.

•[Voice]: In the navigation system, there are

5 voice prompts to be selected

•[Input Method]: In the navigation system,

you can select the input method to be the

default keyboard when entering words.

POI Icon

All POI icons or several POI icons can be revealed

or hidden on the map screen for the improvement

of visibility.

1. Press [ ] > [POI Icon].

2. Select the desired items to reveal or hide

them, then press [Done].

•[Show All]: Shows all POI icons on the map

screen.

•[Hide All]: Hides all POI icons on the map

screen.

Guidance

This menu allows you to adjust Map Orientation

and set Auto Zoom, Approaching View, Turn PIP

and Next Street as Enable/Disable.

1. Press [ ] > [Guidance].

2. Select the desired options by pressing

[

]/[

], then press [Apply].

ENG

Settings for navigation

Unit

This menu allows you to change the measurement

units (distance) in using the navigation system.

1. Press [ ] > [Unit].

2. Select the desired option by pressing

[

]/[

], then press [Apply].

Speed Alert

You can set whether you will be notified about

speed cameras on the map screen and warned

against driving too fast.

1. Press [ ] > [Speed Alert].

2. On each screen, select the desired options

by pressing [

]/[

], then press [Apply].

Sound

You can set the sound setting for navigation. For

example, you can set Mute as On/Off and adjust

the guidance volume of navigation.

1. Press [ ] > [Sound].

2. Select the desired options by pressing

[

]/[

], then press [Apply].

Note

You can access the sound setting menu for

navigation by pressing [ ] on the quick menu.

ENG Settings for navigation

Trail

To enable the trail function, you can log the trail.

You can set the file name to save, interval and

file size.

When the file size reach the set value, the

navigation system stops logging the trail.

1. Press [ ] > [Trail].

2. Select the desired options by pressing

[D]/[

]/[

], then press [Start Log].

•[Name]: Change the trail’s name, then

press [Done].

•[Interval]: Set the interval as 1sec, 3secs,

5secs, 10secs, 1min, 5mins.

•[File Size]: Set the file size as 1M, 5M,

10M.

3. Press [Trail] > [Stop Log] if you want to stop

the log.

Factory Default

If you would like to clear all the settings in

the navigation system, you could restore them

through the factory default menu.

Press [ ] > [Factory Default] > [Yes] > [OK].

Safe Mode

This menu allow you not to touch the screen

when the vehicle speed is above 40km/hr. This is

to prevent you form dangerous operation when

driving.

To touch the screen is possible when the vehicle

speed is below 40km/hr.

1. Press [ ] > [Safe Mode].

2. Set the safe mode as On/Off by pressing

[

]/[

], then press [Apply].

ENG

Checking on navigation system

Information

This menu gives you information about your

route, itineraries, destinations, locations, and

maps.

Press [ ] on the main menu screen.

•[GPS]: Accesses information about satellite

coverage, current time, longitude, latitude,

altitude, quality of the signals received and

the status.

•[Statistics]: Accesses information about

your current location, heading, velocity,

time, etc.

•[Map]: Accesses information about the

maps the navigation system is using and

what maps you have available.

•[About]: Accesses information about the

navigation system, version number, memory

usage, etc.

My Data

In My Data, the navigation system offers the

UI to access your personal data such as My

Favorite, My Itinerary and My Trail.

You can save, edit or delete the personal data for

the conveniences of next time usage.

Press [ ] on the main menu screen.

•[My Favorite]: You can edit your favorite

destinations by accessing the my favorite

menu.

•[My Itinerary]: You can retrieve a planned

itinerary by pressing Load button. After

having a loaded itinerary (current itinerary),

you can add, edit or save the itinerary. If a

route already exists before you retrieve an

itinerary, a warning message will be shown.

•[My Trail]: You can use [Rename] or

[Delete] to manage the trails, also show a

trail on the map screen by pressing [Show].

•[Clear Data]: You can clear the data you

have saved here.

Checking on navigation system

ENG

※ Android Auto and Apple CarPlay aren't

available in some countries.

What is Android Auto/Apple

CarPlay?

Securely access your mobile phone while driving.

Various functions of your mobile phone are

displayed on and operable from the screen of

the multimedia device (e.g. navigation, making a

call, listening to music etc.)

When connected, an Android Auto/Apple CarPlay

icon appears on the screen. Available functions

and operations may differ depending on the

company model.

For more information, visit the Google or Apple

website.

- Google: http://support.google.com/

androidauto/

- Apple: http://www.apple.com/ios/carplay/

Cautions

•Android Auto is a registered trademark of Google Inc.

•Apple CarPlay is a registered trademark of

Apple Inc.

•Android Auto and Apple CarPlay are unavailable

if the phone OS is not the latest version or

if the phone cannot be recognized due to a

shutdown caused by a failure or defect in the

device itself.

•Your phone may not be recognised if its battery

is low. Charge your phone then try again.

•If your phone is shut down due to a defect

in the device itself, reset your phone and try

again.

•If the USB cable of the Android Auto/Apple

CarPlay device is repeatedly disconnected

and reconnected in a short period of time, the

phone may malfunction. This can also cause a

device failure.

•The device recognition time may differ

depending on the device type and firmware/OS

version.

•Using the USB cable that came with the phone

is recommended. (Using a non-genuine product

may cause noise or malfunction.)

•Normal operations cannot be guaranteed if the

phone is arbitrarily manipulated while Android

Auto/Apple CarPlay is active.

•Apple CarPlay cannot be run while making a

call via Bluetooth.

•Android Auto or Apple CarPlay may not operate

normally due to mobile phone issues.

•Carrier charges may apply when using Android

Auto or Apple CarPlay.

※ Some features may not operate normally

according to the version of iOS and Android.

•The following problems may occur due to

phone-related issues:

[Android Auto]

- Intermittent black screens appear when

entering Android Auto.

- Differentiation of phones that support

Android Auto and those which do not, may

not be possible.

- Black screens appear in some areas of the

screen due to app errors.

[Apple CarPlay]

- Intermittent black screens appear when

entering Apple CarPlay.

- Black screens appear in some areas of the

screen due to app errors when navigating

between screens in Apple CarPlay.

- The audio volume control may not operate

depending on the status of connected phone.

Apple CarPlay can control the volume on the

head unit regardless of phone volume. Even if

the phone volume is set to 0, the sound can be

outputted by controlling the volume of head unit.

- The sound output of a call may be cut upon

disconnecting Apple CarPlay during a call via

Apple CarPlay.

※ If services do not work properly due to

problems similar to the specified above,

check your phone, and if necessary,

reconnect your phone after restarting.

Android Auto/Apple CarPlay - option

ENG

Android Auto/Apple CarPlay - option

Using Android Auto or Apple

CarPlay

1. Make sure only genuine USB cables are used

that were provided by the mobile phone´s

manufacturer.

2. Enter Android Auto /Apple CarPlay from

the home screen or from the submenu [All

menus].

3. Now the features such as navigation, music

and phone are ready to be used.

NOTICE

•Before connecting your mobile phone, check

whether Android Auto or Apple CarPlay is

activated in the [Phone projection] menu.

•After connecting the mobile phone, the phone

has to be unlocked and the disclaimers on the

phone have to be accepted in order to launch

Android Auto or Apple CarPlay.

•The screens and features displayed on the

multimedia system correspond to the screens

and features provided by Google or Apple. They

are subject to changes according to the policy

of the respective company.

NOTICE-Android Auto

•Bluetooth media features will be disabled when

Android Auto is activated. After removing the

USB cable, these features will be available

again.

•If Android Auto is not activated even after a

successful connection, follow these steps:

- Check whether an error occurred on the

phone.

- Check whether Android Auto has been closed

on the phone.

- Check whether Android Auto is activated in

the [Phone projection] menu.

•If Android Auto does not work normally even

after a reconnection has been made, visit the

Google website http://support.google.com/

androidauto/

NOTICE-Apple CarPlay

•Bluetooth phone/media features will be

disabled when Apple CarPlay is activated. After

removing the USB cable, these features will be

available again.

•If Apple CarPlay is not activated even after a

successful connection, follow these steps:

- Check whether Apple CarPlay is disabled in

the iPhone´s application settings.

- Check whether Apple CarPlay is activated in

the [Phone projection] menu.

•If Apple CarPlay does not work normally even

after a reconnection has been made, visit

the Apple website http://www.apple.com/ios/

carplay/

ENG Bluetooth® Wireless Technology

Before using the Bluetooth

hands-free

What is Bluetooth Wireless

Technology?

•Bluetooth Wireless Technology refers to a short-

distance wireless networking technology which

uses a 2402 MHz ~ 2480 MHz frequency to

connect various devices within a certain distance.

•Supported within PCs, external devices, Bluetooth

phones, PDAs, various electronic devices, and

automotive environments, Bluetooth Wireless

Technology is transmitted at high speeds without

having to use a connector cable.

•Bluetooth hands-free refers to a device which

allows the user to conveniently make phone calls

with Bluetooth mobile phones through the system.

•The Bluetooth hands-free feature may not be

supported in some mobile phones.

Precautions for safe driving

•Bluetooth hands-free is a feature that enables

drivers to practice safe driving. Connecting the

head unit with a Bluetooth phone allows the

user to conveniently make calls, receive calls,

and manage the phone book. Before using

Bluetooth Wireless Technology, carefully read

the contents of this owner’s manual.

•Excessive use or operations while driving may

lead to negligent driving practices and be the

cause of accidents. Do not operate the device

excessively while driving.

•Viewing the screen for prolonged periods of

time is dangerous and may lead to accidents.

When driving, view the screen only for short

periods of time.

Cautions upon connecting Bluetooth

phone

•Before connecting the head unit with the

mobile phone, check to see that the mobile

phone supports Bluetooth features.

•If you do not want automatic connection with

your Bluetooth device, turn the Bluetooth

feature off on the Bluetooth device.

•Park the vehicle when pairing the head unit

with the mobile phone.

•Some Bluetooth features may occasionally not

operate properly depending on the firmware

version of your mobile phone. If such features

can be operated after receiving a S/W upgrade

from your mobile phone manufacturer, unpair

all devices and pair again before use.

Pairing and connecting the

unit and a Bluetooth phone

To use the Bluetooth feature, make sure the

Bluetooth on your phone is turned on. Refer to

your phone’s user guide.

When no phones have been paired

Press [ ] > [All menus] > [Phone]. Or press

[ ] on the steering wheel remote control.

•[Cancel]: Cancels Bluetooth connection.

2. In your phone, initiate a search for Bluetooth

devices. (The default vehicle name is

HYUNDAI MOTORS.)

3. 1) If the SSP (Secure Simple Pairing) is not

supported, enter the passkey on your

Bluetooth device. (The default passkey

is 0000.)

2) If the SSP (Secure Simple Pairing) is

supported, press [Yes] on the pop-up

screen of your Bluetooth device.

(

The pop-up screen may differ from the

actual information of the Bluetooth device.)

Bluetooth® Wireless Technology

ENG

Bluetooth® Wireless Technology

4. Bluetooth device is connected.

The mobile phone contacts and the calling

list are downloaded.

When the connection fails, a failure message

is displayed on the screen.

When a phone is already paired

Press [ ] > [All menus] > [Phone]. Or press

[ ] on the steering wheel remote control.

2. Press the device from the Bluetooth device

list pop-up screen.

If you want to pair additional device, press

[Add new]. Follow the steps 3-4 of “When

no phones have been paired”.

When pairing additional device

1. 1) When using [SETUP] button, press

[SETUP] > [Bluetooth] > [Bluetooth

connections].

2) When using [ ] button, press [ ].

2. 1) Select the device you want to connect.

2) If there is no device you want to

connect, press [Add new].

3. In your phone, initiate a search for Bluetooth

devices. (The default vehicle name is

HYUNDAI MOTORS.)

4. 1) If the SSP (Secure Simple Pairing) is not

supported, enter the passkey on your

Bluetooth device. (The default passkey

is 0000.)

2) If the SSP (Secure Simple Pairing) is

supported, press [Yes] on the pop-up

screen of your Bluetooth device.

(The pop-up screen may differ from

the actual information of the Bluetooth

device.)

5. Bluetooth device is connected.

The mobile phone contacts and the calling

list are downloaded.

When the connection fails, failure message is

displayed on the screen.

Notes

•For safety reasons, pairing a Bluetooth phone

is not possible when the vehicle is in motion.

Park the vehicle in a safe location to pair a

Bluetooth phone. It is possible to pair up to 5

mobile phones. In order to pair new phone, you

must first delete one of the previously paired

phones.

•Some functions may not be supported due to

limited Bluetooth compatibility.

•When a Bluetooth device is connected, a new

device cannot be paired.

ENG Bluetooth® Wireless Technology

Disconnecting the connected phone

1. Press [SETUP] > [Bluetooth] > [Bluetooth

connections].

2. Select the connected phone.

3. Press [Yes].

Note

If you want to connect the disconnected phone

again, select the disconnected phone.

Deleting Bluetooth devices

If you do not need to use a phone any longer,

you can delete it. Note that deleting a Bluetooth

device will delete all calling list and contact

entries.

1. Press [SETUP] > [Bluetooth] > [Bluetooth

connections] > [Delete devices].

2. Select the desired devices, then press

[Delete] > [Yes].

•[Mark all]: Marks all items.

•[Unmark all]: Unmarks all items.

Making a call by entering

phone number

Connect your unit and Bluetooth phone before

making a call.

1. Enter the phone number using the keypad on

the phone screen.

2. Press [ ] on the phone screen or [ ] on

the steering wheel remote control.

Note

If you press the wrong number, press [ ] to

delete one digit of the entered number.

Making a call by redialling

Press and hold [ ] on the phone screen or [ ]

on the steering wheel remote control.

Note

Redialling is not possible when there is no

number in the dialled calls list.

ENG

Bluetooth® Wireless Technology

Answering/Rejecting a call

1. If there is an incoming call, a pop-up

message will appear.

2. Press [Accept] in the pop-up message or

[ ] on the steering wheel remote control.

To reject a call, select [Reject] in the

pop-up message or [ ] on the steering

wheel remote control.

Notes

•If the Call-ID service is available, the caller’s

phone number is displayed.

•If caller’s phone number is saved in the phone

book, the caller’s name is displayed on the unit.

•Upon receiving a call, the [Reject] function

may not be supported in some mobile phones.

Switching call to the mobile

phone

1. If you want to switch the call to the mobile

phone while talking on the car hands-free,

press [Use private] on the screen or press

and hold [ ] on the steering wheel remote

control.

As shown below, the call is switched to the

mobile phone.

2. If you want to switch the call to the car

hands-free while talking on the mobile

phone, press [Use hands-free] on the screen

or press and hold [] on the steering wheel

remote control.

The call is switched to the car hands-free.

Ending a call

1. To end a call, press [ ] on the phone

screen or [ ] on the steering wheel

remote control.

2. The call is ended.

Using the menu during a

phone call

When making a call, you can use the following

menu items.

Position Description

Switches a voice call from the

car hands-free to the mobile

phone.

Ends a call.

Moves to a screen for

entering ARS numbers.

Displays the Mic volume

settings. You can adjust the

in-call volume that the other

party hears.

Displays the contacts list.

ENG Bluetooth® Wireless Technology

Calling list

Making a call from calling list

1. Press [ ] on the phone screen.

2. Press [All], [Dialled], [Received], or

[Missed].

•[All]: Displays all calling list.

•[Dialled]: Displays the outgoing calling list.

•[Received]: Displays the incoming calling

list.

•[Missed]: Displays the missed calling list.

3. Press the entry you want to call.

Note

The calling list may not be saved in some mobile

phones.

Downloading call history

You can download the call history information

from your mobile phone.

1. Press [ ] on the phone screen.

2. Press [Menu] > [Download] > [Yes].

Notes

•Up to 50 received, dialled, and missed call

history lists can be downloaded.

•The download feature may not be supported

in some mobile phones. Check to see that

the Bluetooth device supports the download

feature.

Contacts

Making a call from contacts

1. Press [ ] on the phone screen.

The contacts are displayed on the screen.

2. Select the contact you want to call from the

list of contacts.

ENG

Bluetooth® Wireless Technology

Downloading mobile phone contacts

You can download contacts from your mobile

phone.

1. Press [ ] on the phone screen.

2. Press [Menu] > [Download] > [Yes].

Notes

•Upon downloading mobile phone contacts, the

previous data is deleted.

•This feature may not be supported in some

mobile phones.

Searching by name or number

You can search contacts for the name or number

that you enter.

1. Press [ ] > [Menu] > [Search] on the

phone screen.

2. Enter the name or number, then press [OK].

3. Select the contact you want to call.

Favourites

Calling favourites

If the phone number has already been stored in

the favourites, it can be easily called by tapping

on it.

First of all, add the phone number in the

favourites. Refer to the “Adding as a favourite”

on page 54.

1. Press [ ] on the phone screen.

2. Select the desired favourite.

ENG

Adding as a favourite

Up to 10 contacts can be added to favourites

menu.

1. Press [ ] > [Add new] on the phone

screen.

2. Select one of the contacts.

3. Press [ ] > [Close] > [ ].

Note

If the phone numbers have already been stored

in the favourites, you can add or delete them by

pressing [Menu] > [Edit].

Deleting favourites

1. Press [ ] on the phone screen.

2. Press [Menu] > [Delete items].

3. Select the desired item, then press [Delete] >

[Yes].

•[Mark all]: Marks all items.

•[Unmark all]: Unmarks all items.

Phone settings

This menu describes phone settings.

1. Press [ ] on the phone screen.

2. For details, refer to the “Bluetooth” on page

57.

Bluetooth® Wireless Technology

ENG

Settings

[Settings] menu overview

[Settings] menu

Sound

Display

Bluetooth

Phone projection

Custom button

Date/Time

Language

Screensaver

Advanced

System info

Sound

This menu is used to adjust the sound effects for

the whole system. (It may vary depending on the

type of vehicle.)

1. Press [SETUP] > [Sound].

2. Select the desired items.

•[Position]: This menu allows you to set

the sound position. For example, you can

set the sound close to the driver-seat so

that the volume is relatively lower in the

passenger or rear seats.

- Press [ ]/[ ]/[ ]/[ ] to control

the sound positioning.

- Drag and drop the dot to a desired place

to adjust the sound position.

- Press [ ] to concentrate the sound in

the centre of the vehicle.

• [Equaliser]: This menu allows you to set

the Bass [BASS]/Middle [MID]/Treble

[TREBLE].

- Press [-]/[+] to control bass/middle/

treble settings.

- Drag the slide bar to control bass/

middle/treble settings.

- Press [Centre] to initialize the settings.

•[Volume ratio]:

- [Navigation prioritised]: Lowering of all

other audio volumes during playback of

navigation prompts.

- [Reverse warning priority]: Lowering of

audio volumes when the shift lever is set

to reverse.

- [Volume limitation on startup]: If the

audio volume is exceeding the defined

maximum upon vehicle start, it is lowered

accordingly.

•[Advanced]: This menu allows you to

control automatically the audio volume

according to eh speed of the vehicle.

Press [SDVC].

•[Default]: Resets the sound settings to

factory default.

•[Beep]: This menu allows you to play a

beep sound whenever you operate the

touch screen. Press [Beep].

Settings

ENG Settings

Display

This menu is used to change the display

environment settings.

1. Press [SETUP] > [Display].

2. Select the desired items.

•[Dimming]: Sets the display brightness

according to mode changes.

- [Auto-illumination]: Adjusts the

brightness automatically according to

surrounding brightness.

- [Daylight]: Always keeps the brightness

high regardless of surrounding brightness.

- [Night]: Always keeps the brightness low

regardless of surrounding brightness.

• [Brightness]:

- Press [-]/[+] to set display brightness

for daylight or night mode.

- Drag the slide bar to control the display

brightness settings.

- Press [Centre] to initialize the settings.

•[Adjust]: This menu can be set in video

mode.

- Press [-]/[+] to control [Brightness]/

[Contrast]/[Saturation] settings.

- Drag the slide bar to control [Brightness]

/[Contrast]/[Saturation] settings.

- Press [Centre] to initialize the settings.

•[Ratio]: Sets the display ratio according to

mode changes.

- [Normal]: Adjusts the screen to 4:3.

- [Full]: Adjusts the screen to full screen

display.

- [Wide]: Adjusts the screen to 16:9.

•[

Default

]: Resets the display settings to

factory default.

•[

Display Off

]: Press [

Display Off

] to turn

the screen off. Press the screen itself

again to turn the screen on.

ENG

Settings

Bluetooth

This menu describes Bluetooth phone settings.

Bluetooth connections

This menu is used to pair and connect the head

unit and a Bluetooth phone.

Press [SETUP] > [Bluetooth] > [Bluetooth

connections].

Paired device list: Displays the paired

Bluetooth device list. When selecting from

the list, the device is either connected or

disconnected.

Bluetooth audio connection status: An icon

appears when you make a Bluetooth audio

connection.

Bluetooth hands-free connection status: An

icon appears when you make a Bluetooth

hands-free connection.

[Add new]: Registers a new Bluetooth

device.

[Delete devices]: Moves to "Delete devices".

[Help]: Switches to the Bluetooth connection

help screen.

Auto connection priority

If auto connection priority is turned on,

a Bluetooth device will automatically be

connected according to the option setting when

the car ignition is turned on.

1. Press [SETUP] > [Bluetooth] > [Auto

connection priority].

2. Select the desired items.

Note

If there is no phone selected, the previously

connected phone will be automatically connected.

If there are no previously connected phones, the

system will try to connect to devices in the list in

order.

ENG Settings

System Bluetooth info

Vehicle name

You can change the Bluetooth device name of

the vehicle.

1. Press [SETUP] > [Bluetooth] > [System

Bluetooth info] > [Vehicle name].

2. Enter the desired name using the keypad,

then press [OK].

Note

The default vehicle name is set to HYUNDAI

MOTORS.

Passkey

You can change the passkey used for Bluetooth

device authentication.

1. Press [SETUP] > [Bluetooth] > [System

Bluetooth info] > [Passkey].

2. Enter the passkey using the keypad.

Note

The passkey is a 4-digit authentication code used

for a Bluetooth connection between the mobile

phone and car system. The default passkey is set

to 0000.

Default

This menu is used to reset the Bluetooth settings

to factory default.

Press [SETUP] > [Bluetooth] > [Default] > [Yes].

Phone projection

This menu describes phone projection settings.

1. Press [SETUP] > [Phone projection].

2. Press the desired items.

•[Android Auto]: If Android Auto is checked,

you can use the functions of your Android

device with a USB cable connected.

•[Apple CarPlay]: If Apple CarPlay is

checked, you can use the functions of your

iPhone with a USB cable connected.

ENG

Settings

Custom button

You can assign a function to custom button.

1. Press [SETUP] > [Custom button].

2. Select the desired function.

Date/Time

This menu describes date and clock settings.

1. Press [SETUP] > [Date/Time].

2. Select the desired items.

•[GPS time]: Displays time according to the

received GNSS (Global Navigation Satellite

System) time.

•[24-hour]: Switches to 12 hour or 24 hour.

•[Daylight savings time]: Turns the daylight

savings time on or off. When daylight

savings time is turned on, the clock is

moved forward one hour.

Language

This menu is used to set the language of the

system.

1. Press [SETUP] > [Language].

2. Select the desired language.

ENG Settings

Screensaver

This menu is used to select the screen displayed

when the screen or power is turned off.

1. Press [SETUP] > [Screensaver].

2. Select the desired item.

•[Digital]: The digital clock and date is

displayed.

•[Analogue]: The analogue clock and date is

displayed.

•[None]: Nothing is displayed.

Advanced

This menu describes advanced settings.

1. Press [SETUP] > [Advanced].

2. Select the desired items.

•[Media change notifications]: If the box is

checked, the notification pop-up for media

information will be shown on the top of the

screen, whenever a content changes.

•[Steering whl mode button]: Selects the

desired feature when you press [

(MODE)

] on the steering wheel to toggle

media modes.

System info

Version info

You can view software version and firmware

version.

Press [SETUP] > [System info] > [Version info].

ENG

Settings

Update

For system’s software security, new function

addition, and map update, you need an update.

1. Press [SETUP] > [System info] > [Version

info].

2. Insert the SD card with latest file downloaded

into the SD card slot.

3. Press [Update] > [OK].

Once updating is completed, the system will

automatically restart.

Notes

•This product requires regular updates for

software corrections, new functions and map

updates. Updating may require up to 1 hour

depending on the data size.

•Turning off the power or ejecting the SD card

during the update process may result in data

loss.

•Please use only the SD card that was included

with the vehicle purchase.

•The use of a separately purchased SD card

may result in damage due to heat related

deformation.

•Product malfunctions caused by the use of

separately purchased SD cards shall not be

covered within the product warranty.

•Repeatedly connecting/disconnecting the

SD card in a short period of time may cause

damage to the device.

Default

This menu is used to reset all settings specified

by the user.

1. Press [SETUP] > [System info] > [Default].

2. Press [Default] > [Yes].

Note

This [Default] menu cannot be operated if any

USB device, iPod or Android Auto/Apple CarPlay

device has been connected to the system.

ENG

About rear camera

Rear camera is parking guide system, when the

ignition switch is on and a car start-up with

being in R position of a transmission lever.

Notes

•Rear camera has an optical lens to secure

wide view, so there is a little difference in the

distance shown on the screen. For safety, make

sure to check the rear, left, and right view by

yourself.

•The colour of the parking guide line on the

screen may differ from reality.

Line Instruction

Red line About 0.5 m from the

vehicle rear bumper

Yellow line 1 About 1 m from the vehicle

rear bumper

Yellow line 2 About 3 m from the vehicle

rear bumper

Yellow line 3

Vehicle path of the left

side wheel in the vehicle’s

front passenger seat side

Yellow line 4

Vehicle path of the right

side wheel in the vehicle’s

front passenger seat side

Blue line Steering neutral path

Note

When driving backwards, it displays drive and

neutral steering path.

Using rear camera

ENG

Before thinking there is a product defect

The current car position as shown on

the navigation may differ from the

actual position under the following

conditions.

•When driving on Y-shaped roads with narrow

angles the current position may be displayed in

the opposite direction.

•Within city streets, the current position may be

displayed on the opposite side or on an off-

road position.

•When changing the zoom level from maximum

to a different level, the current position may be

displayed on a different road.

•If the vehicle is loaded onto a ferry or a car

transport vehicle, the current position may be

stalled on the last position prior to loading.

•When entering a road after passing an

underground parking structure, building parking

structure, or roads with many rotations.

•When driving in heavy traffic with frequent

starts and stops.

•When driving under slippery conditions, such as

heavy sand, snow, etc..

•When the tires have recently been replaced

(Especially upon use of spare or studless tires).

•When using tires of improper size.

•When the tire pressure for the 4 tires are

different.

•When the replacement tire is worn or used

(Especially studless tires having passed a

second season).

•When driving near high-rise buildings.

•When a roof carrier has been installed.

•When a long distance route is calculated

while driving on an expressway, in such cases,

continued driving will automatically enable

the system to conduct map matching or use

updated GNSS information to provide the

current position (In such cases, up to several

minutes may be required).

Correct route guidance may not occur

due to search conditions or driving

position. The following occurrences are

not malfunctions:

•Guidance to go straight may be given while

driving on a straight road.

•Guidance may not be given even when turning

onto an intersection.

•There are certain intersections in which

guidance may not occur.

•A route guidance signaling for a U-turn may

occur in some no U-turn intersections.

•Route guidance signaling entrance into a no-

entry zone may occur (no-entry zone, road

under construction, etc.).

•Guidance may be given to a position that is

not the actual destination if roads to reach

the actual destination do not exist or are too

narrow.

•Faulty voice guidance may be given if the

vehicle breaks away from the designated

route. (e.g. if a turn is made at an intersection

while the navigation provided guidance to go

straight.)

These situations may occur after

conducting route calculation. The

following occurrences are not

malfunctions:

•Guidance may be given to a position differing

from the current position when turning at an

intersection.

•When driving in high speeds, route recalculation

may take a longer period of time.

Before thinking there is a product defect

ENG Before thinking there is a product defect

1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions listed below.

3. If the problems persist, contact your authorised Hyundai dealer.

Problem Possible Cause

There are small red, blue, or green dots

on the screen

Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency

may occur within 0.01% of total pixels.

The sound or image is not working

•Has the switch for the vehicle been turned to [ACC] or [ON]?

•Has the system been turned off?

The screen is being displayed but sound

is not working

•Has the volume been set to a low level?

•Has the volume been muted?

When the power is turned on, the corners

of the screen are dark

•The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a

malfunction.

•If the screen is very dark, contact your nearest authorised Hyundai dealer for assistance.

Sound is working from only one speaker Are the positions of fader or balance sound controls adjusted to only one side?

Sound does not work in AUX mode Are the audio connector jacks fully inserted into the AUX terminal?

The external device is not working Is the external device connected with a standard connector cable?

When turning power on, the most recent

mode screen is not displayed

Within modes that play files by reading external sources, such as USB, iPod, or Bluetooth® streaming mode, the

most recently played mode screen prior to turning off power may not properly load.

•If the corresponding device is not connected, the mode operated prior to the most recent mode will operate.

•If the previous mode still cannot be properly played, the mode operated prior to that will operate.

ENG

Troubleshooting

Problem Possible Cause Countermeasure

The power does not

turn on.

The fuse is disconnected.

•Replace with a suitable fuse.

•If the fuse is disconnected again, please contact your authorised Hyundai dealer.

Device is not properly connected. Check to see that the device has been properly connected.

The system does not

play.

The vehicle battery is low. Charge the battery if the problem persists, contact your authorised Hyundai dealer.

The image colour/

tone quality is low.

The brightness, saturation, and contrast

levels are not set properly.

Properly adjust the brightness, saturation, and contrast levels through display setup.

Sound does not

work.

The volume level is set to the lowest level. Adjust the volume level.

The connection is not proper. Check to see that the device has been properly connected.

The device is currently fast-forwarding,

rewinding, scanning, or playing in slow

mode.

The sound will not work when the device is fast-forwarding, rewinding, scanning, or

playing in slow mode.

Troubleshooting

ENG Troubleshooting

Problem Possible Cause Countermeasure

The sound or image

quality is low.

Vibration is occurring from where the conversion

switch has been installed.

The sound may be short circuited and the image distorted if the device vibrates.

Image colour/tone quality is low. The device will return to normal once vibrations stop.

The USB does not

work.

USB memory is damaged. Please use after formatting the USB into FAT 16/32, exFAT or NTFS format.

USB memory has been contaminated. Remove any foreign substances on the contact surface of the USB memory and

multimedia terminal.

A separately purchased USB hub is being used. Directly connect the USB memory with the multimedia terminal on the vehicle.

A USB extension cable is being used. Directly connect the USB memory with the multimedia terminal on the vehicle.

A USB which is not a metal cover type USB

memory is being used.

Use standard USB memory.

An HDD type, CF, SD memory is being used. Use standard USB memory.

There are no music files which can be played. Only MP3, WMA, OGG, FLAC and WAV file formats are supported. Please use

only the supported music file formats.

The iPod is not

recognised even

though it has been

connected.

There are no titles which can be played. Use iTunes to download and save MP3 files into the iPod.

The iPod firmware version has not been properly

updated.

Use iTunes to update the firmware version and reconnect the iPod with the

device.

The iPod device does not recognise downloads. Reset the iPod and reconnect with the device.

ENG

Trademarks and licenses

Bluetooth® Wireless Technology

The Bluetooth Wireless Technology word mark

and logos are registered trademarks owned by

Bluetooth Wireless Technology SIG, Inc.

iPod®

iPod® is a registered trademark of Apple Inc.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL,

MPL and other open source licenses, that is

contained in this product, please visit http://

opensource.lge.com.

In addition to the source code, all referred

license terms, warranty disclaimers and copyright

notices are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the

cost of performing such distribution (such as the

cost of media, shipping and handling) upon email

request to opensource@lge.com. This offer is

valid for three (3) years from the date on which

you purchased the product.

DivX®

This DivX Certified® device can play DivX® HD

video files (including .avi, .divx).

Download free software at www.divx.com to

create, play and stream digital videos.

DivX®, DivX Certified® and associated logos

are trademarks of DivX, LLC and are used under

license.

Covered by one or more of the following U.S.

patents: 8,731,369; RE45,052.

Trademarks and licenses

ENG Specification

Common

Power supply DC 12 V

Operating power DC 9 V ~ DC 16 V

Current consumption Maximum 5 A

Dark current Maximum 0.5 mA

Operating temperature -20 °C ~ +65 °C

Storage temperature -30 °C ~ +75 °C

Dimensions

(Head unit)

317.55 mm (W) Χ 177.13 mm

(H) Χ 208.08 mm (D)

Weight (Head unit) 2.04 kg

Bluetooth

Supported profile HFP 1.6, A2DP 1.2,

AVRCP 1.5, PBAP 1.1

Supported Bluetooth

specification 3.0

Frequency range 2402 MHz ~ 2480 MHz

Output Power (Class2) Maximum 4.0 dBm

Number of channels 79

Radio

Tuning range 522 kHz ~ 1620 kHz

Usable sensitivity 35 dBuV

Signal-to-noise ratio Minimum 45 dB

Tuning range 87.50 MHz ~ 108.00 MHz

Usable sensitivity 10 dBuV

Signal-to-noise ratio Minimum 50 dB

TFT-LCD

Screen size

203.2 mm (8 inches)

176.4 (W) x 99.36 (H) mm

(Active area)

Resolution 384,000 pixel

Operating method TFT (Thin Film Transistor)

Viewing angle R/L/U/D 89 (Typ)

Internal lighting LED

•Designs and specifications are subject to change without prior notice.

Specification

ENG

LIMITED WARRANTY

ORIGINAL NAVIGATION HEAD UNIT SUPPLIED BY VEHICLE DEALER

Product :

Product No. :

WHAT THIS WARRANTY COVERS

1. Vehicle Dealer Shop (“Dealer”) warrants to you that the Hardware will be free from defects in workmanship and materials under Normal use (“Defects”)

from the original date of the registration of the motor vehicle (“Warranty Period”). During the Warranty Period the Hardware will be repaired or replaced

at DEALER’s choice (“Limited Warranty”) without charge to you for either parts or labor. This Limited Warranty covers the replacement of the head unit

including of the Hardware only.

WHAT THIS WARRANTY DOES NOT COVER

2. The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone not authorized by

DEALER and does not cover repair or replacement of any Hardware or part thereof damaged by: misuse, moisture liquids, proximity or exposure to heat

and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty does not cover

physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may accompany or be installed on the Hardware.

The Limited Warranty does not cover the installation, removal or maintenance of the Hardware or any costs related herewith.

HOW TO MAKE A WARRANTY CLAIM

3. In order to make a claim of a Defect, you must contact DEALER. If a defect arises and a valid claim under this Limited Warranty is received by DEALER

after the first 3yr/100,000km of the Warranty Period, DEALER is entitled to charge you for any reasonable shipping and handling costs made in connection

with the repair or replacement of the Hardware. You must comply with any other return procedures stipulated by DEALER, if any.

ENG

DEALER LIMITED WARRANTY

YOUR LEGAL RIGHTS

4. Some countries may not allow the exclusion or limitation of damages. If any part of this Limited Warranty is held to be invalid or unenforceable, the

remainder of the Limited Warranty shall nonetheless remain in full force and effect.

5. This Limited Warranty is the only express warranty made to you and is provided in place of any other express warranties or similar obligations (if any)

created by any advertising, documentation, packaging, or other communications.

6. Except for the Limited Warranty and to the maximum extent permitted by applicable law, DEALER and its suppliers provide the Hardware “AS IS AND WITH

ALL FAULTS”, and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any)

implied warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness

of responses, of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of

or failure to provide support or other services, information, software, and related content through the Hardware or otherwise arising out of the use of the

Hardware. Also, there is no warranty or condition of quiet enjoyment, quiet possession, or non-infringement with regard to the Hardware.

7. This Limited Warranty does not affect any legal rights under applicable national legislation governing the sale of consumer goods.

8. This Limited Warranty cannot be transferred to any other person.

LIMITATION OF LIABILITY

9. Neither DEALER nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise

(including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits,

business interruption or the like) arising out of the use of or inability to use the Hardware even if DEALER has been advised of the possibility of such

damages.

10. Notwithstanding any damages that you might incur for any reason whatsoever, the entire liability of DEALER and any of its suppliers shall be limited to the

amount actually paid by you for the Hardware.

11. DEALER shall not be liable for

(I) any fraud on the part of its employees and/or agents; or

(I) any fraudulent misrepresentation on the part of its employees and/or agents.

12. Notwithstanding the above, neither party’s liability for death or personal injury resulting from its own negligence shall be limited.

FCC Warning

FCC approval

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

This device should be installed and operated with minimum 20 cm between the radiator and your body.

P/N:MFLXXXXXXXX (O/M)

MME Auto Spare Parts Trading LCC

Dubai Business bay, aspect tower D, office 2804

E-MAIL:service@motrex.co.kr
