Users Manual

LG Telematics
Test Manual
[Gen90L]
Version 1.0
2009.07.03
LG Telematics
Revision History
Author Description Date
Sangjin Han Merged document. Document start July 3,2009
LG Telematics
Contents
1. How to Place a Call
2. ATT Tool for TCU Setting
3. VCP Commander
FCC information
LG Telematics

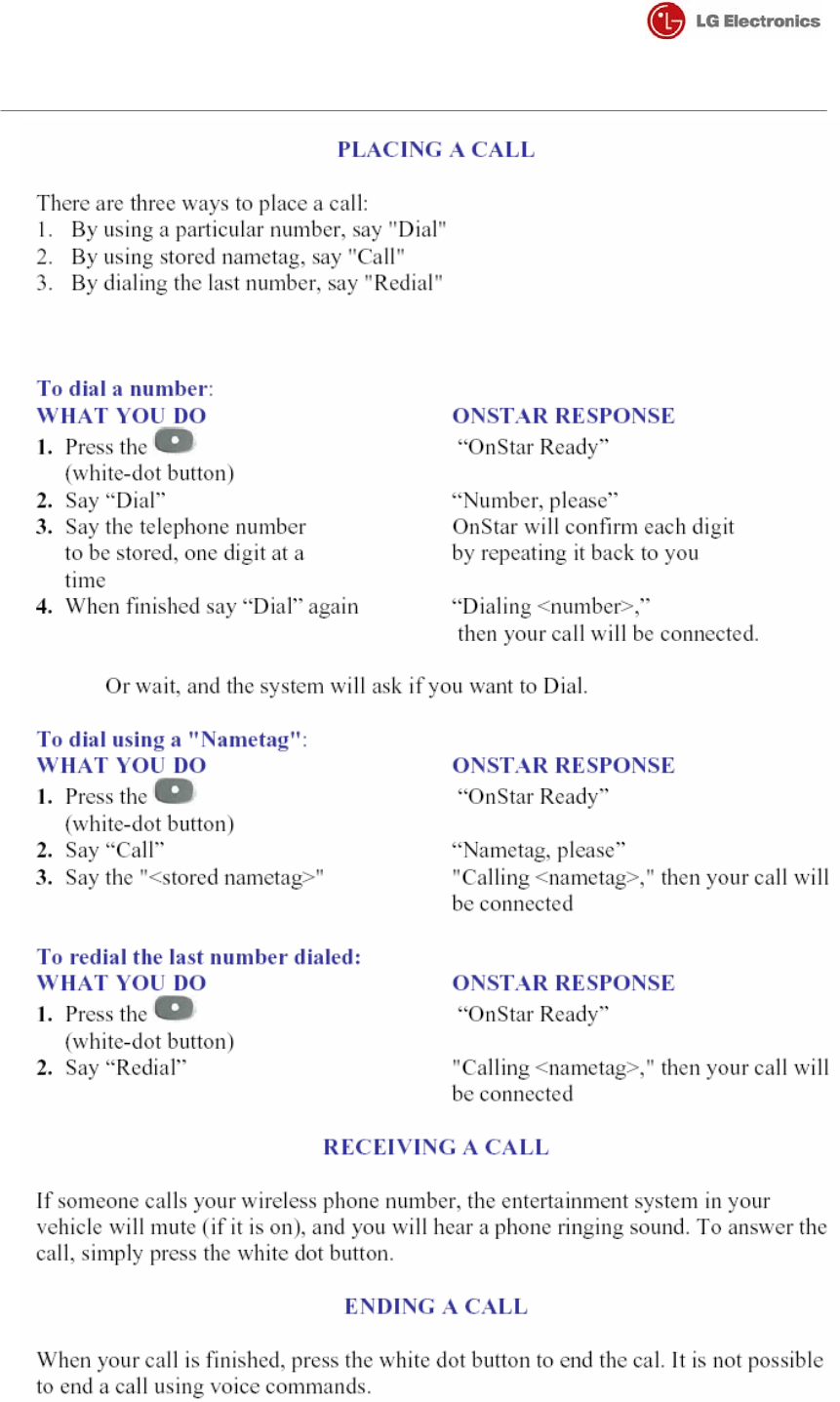

1. How to Place a Call
Fig.9
LG Telematics
LG Telematics
2. ATT Tool for TCU Setting

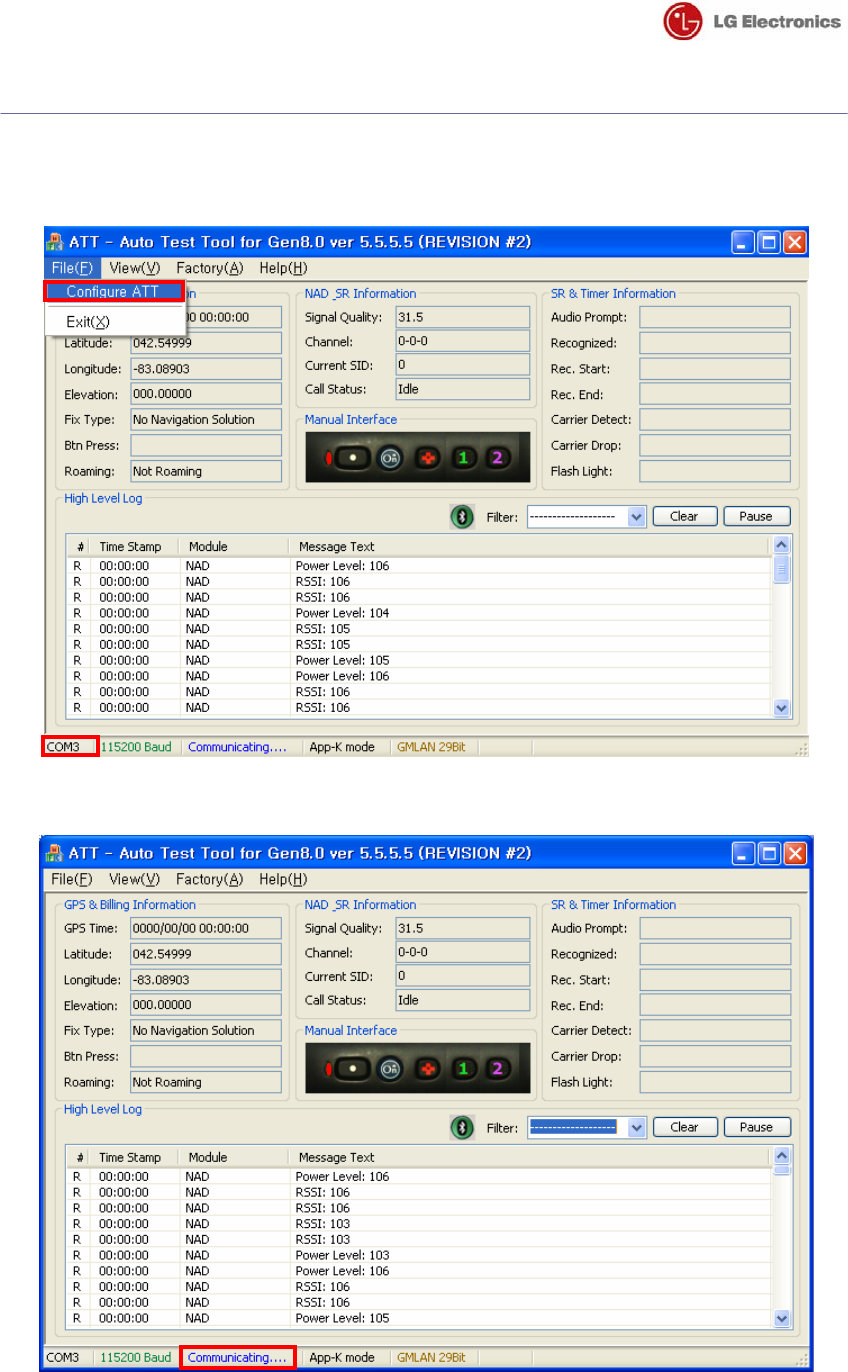

1) Set COM Port
Fig 18
2) Check Connection Status
Fig.19
LG Telematics

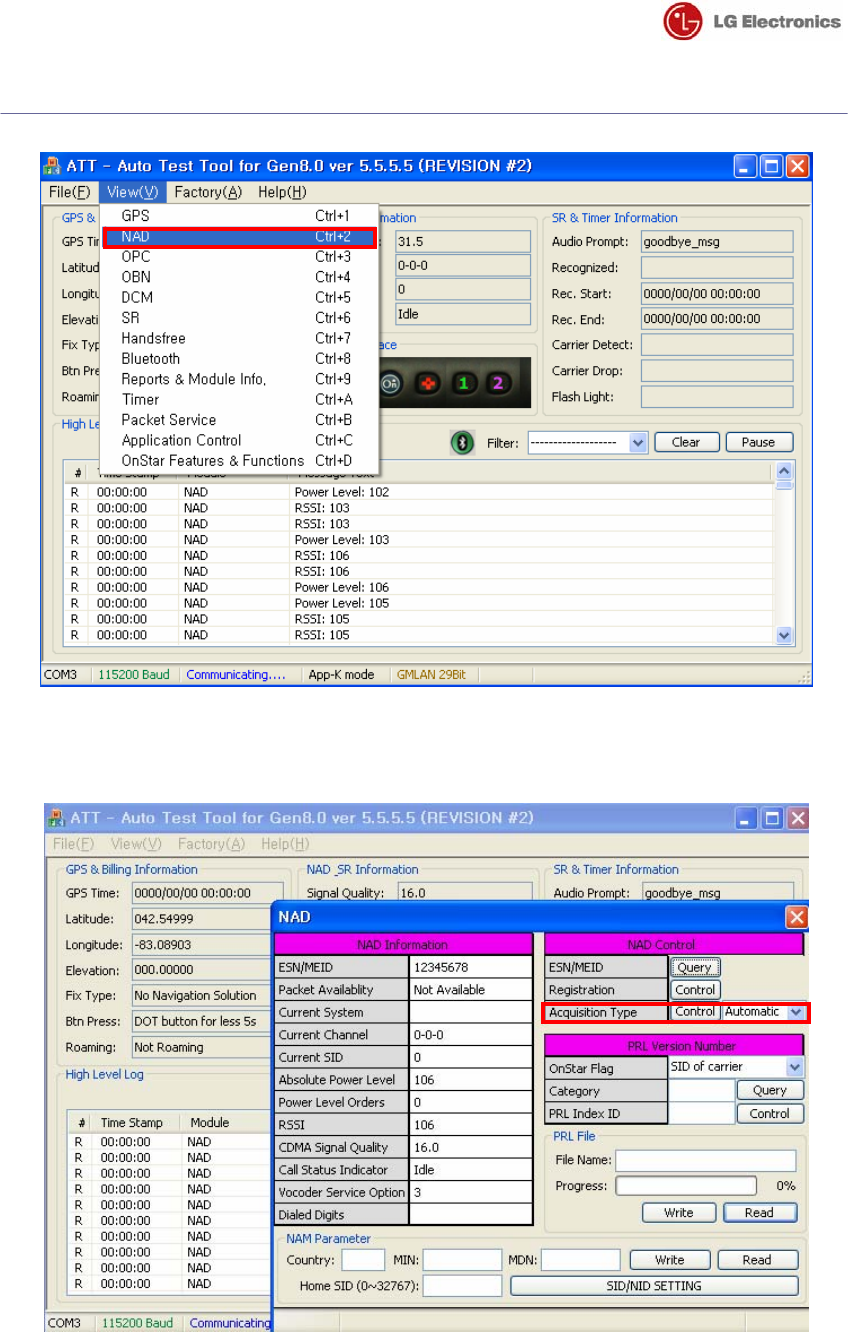

3) NAD Screen
Fig.20

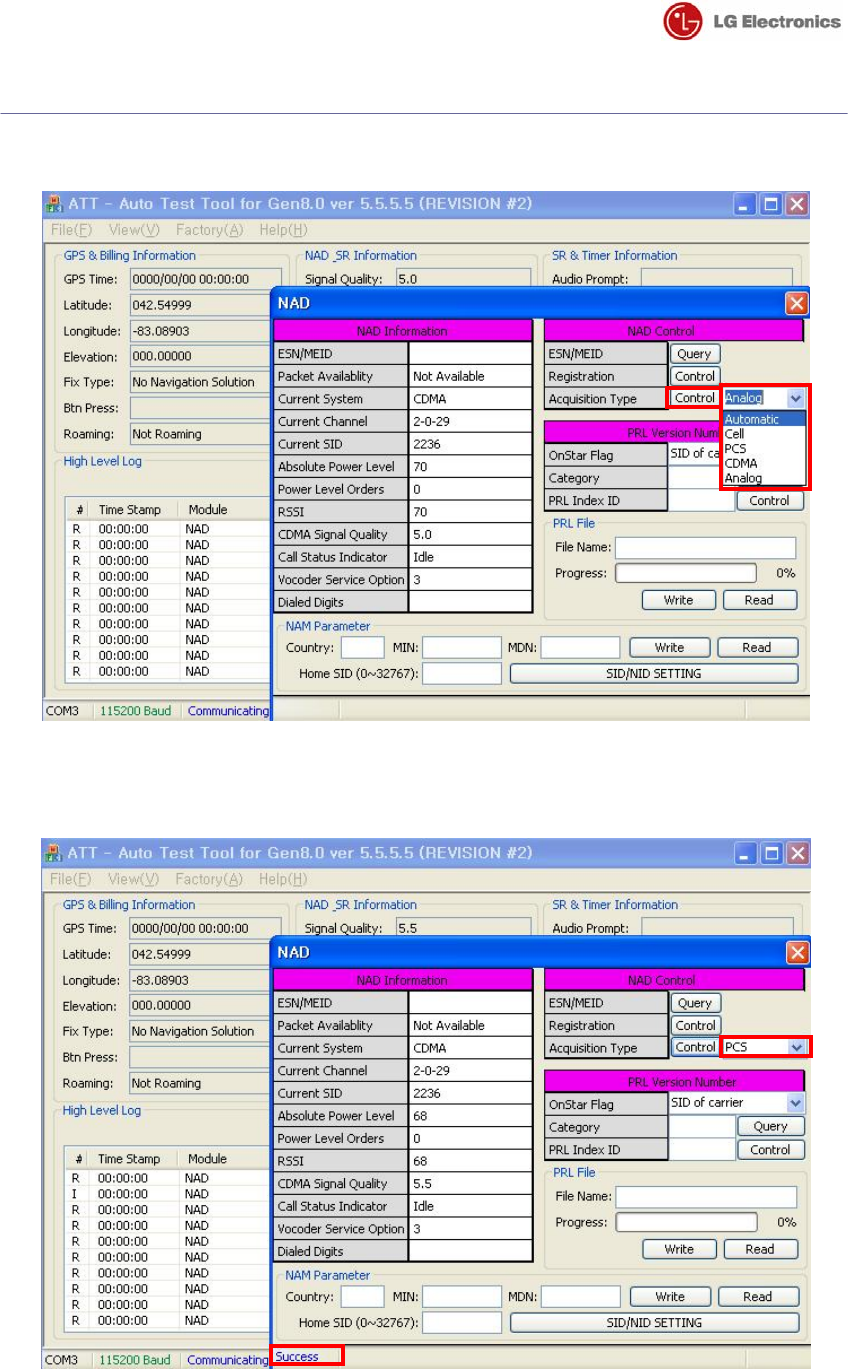

4) Select Forced band mode and apply it
Fig.21
LG Telematics
- Click to see the selectable menu for changing
- After select the Service mode, click “Control” to apply it.
Fig.22
5) Check result of change.
Fig.23
LG Telematics

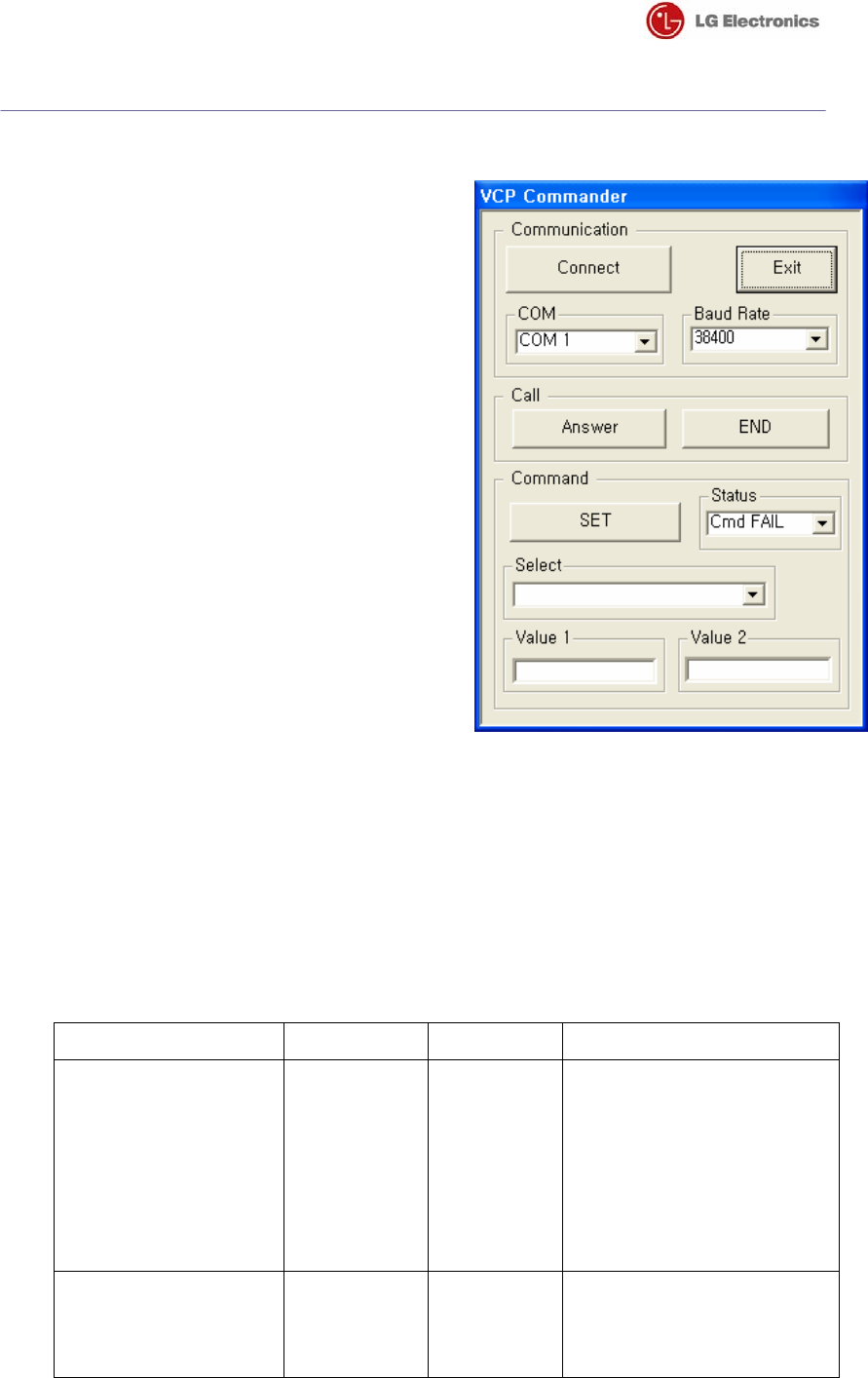

3. VCP Commander
1) Run “VCP-Commander.exe”.
This tool is single executable file.
2) Connect the named “CAIT”-port to your PC’s
serial port.
3) Check the serial baud rate of VCP.
(Power-up default is 38400 bps)
4) Select your PC’s COM-port, Press “Connect”
button.
5) Test the right connection. Press “END”,
verify that “Status” is flipped (“Cmd FAIL” to
“Cmd OK”).
Fig.25
6) Select command from drop-down-list and enter “Value 1” or “Value 2” according to
each command.
7) Press “SET” button, then status is flipped.
8) Below table are command lists, value 1 and value 2.
“Command” “Value 1” “Value 2”Description
PREF_AUTOMATIC
PREF_CELL_ONLY
PREF_PCS_ONLY
PREF_CDMA_ONLY
PREF_ANALOG_ONLY
PREF_HOME_ONLY
Don’t care Don’t care Set system selection mode
PREF_P_REV_3
PREF_P_REV_4
PREF_P_REV_6
Don’t care Don’t care Set MOB_P_REV
temporally
LG Telematics
A_KEY See
example 1
See
example 1
Set A-key value
PREF_FOR_RC 1 ~ 5 Don’t care Set NV_PREF_FOR_RC_I
IMSI_MCC 3-digit
decimal ie.
“120”
Don’t care Set NV_IMSI_MCC_I
IMSI_11_12 2-digit
decimal ie,
“12”
Don’t care Set NV_IMSI_11_12_I
(MNC)
SCM One-byte
decimal
Don’t care Set NV_SCM_I
SLOT_SYCLE_INDEX 0 ~ 7 Don’t care Set
NV_SLOT_CYCLE_INDEX_I
MOB_TERM_HOME 0 or 1 Don’t care Enable(1) or Disable(0)
MOB_TERM_FOR_SID 0 or 1 Don’t care Enable(1) or Disable(0)
MOB_TERM_FOR_NID 0 or 1 Don’t care Enable(1) or Disable(0)
Dial_SO2_LB,
Dial_SO3_EVRC,
Dial_SO9_LB13,
Dial_SO54,
Dial_SO55_LB,
Dial_SO32768,
Dial_SO32798,
Dial_SO32799,
Don’t care Don’t care Originate call with
specified SO. Dial number
is fixed to “111” internally.
CALL_ANSWER Don’t care Don’t care Answer incoming call.
CALL_END Don’t care Don’t care End call.
Power_Down Don’t care Don’t care Force power-down
“Communication Module”
only.
After this command, must
do unplug then plug main
VCP power to power-up
Module.
Power_Recycle Don’t care Don’t care Force power-recycle
“Communication Module”
only.
LG Telematics
FCC Information
FCC part 15.19
This device complies with Part 15 of the FCC Rules, Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Part 15.21 statement
Change or Modifications that are not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
RF Exposure
In order to comply with RF Exposure requirements the antenna or radiating element of
this device must be installed to ensure that it is at least 20cm from end users. The
antenna supplied with this device must not exceed a maximum gain of 9.74dBi in the
cellular band and 8.25dBi in the PCS band.
Installation
This unit should only be installed by qualified personnel by GMOnstar.
Address
P.O. Box 430627
Pontiac, MI 48343
