USERS MANUAL 2
EUT Type: 17” LCD TV/Monitor
FCC ID: BEJM173WAB
Test Report No.: GETEC-E3-05-001
FCC Class B Certification
APPENDIX I
: USER’S MANUAL (Ⅱ)
Connecting to External Devices
AUDIO
OUT
VIDEO
OUT
S-Video

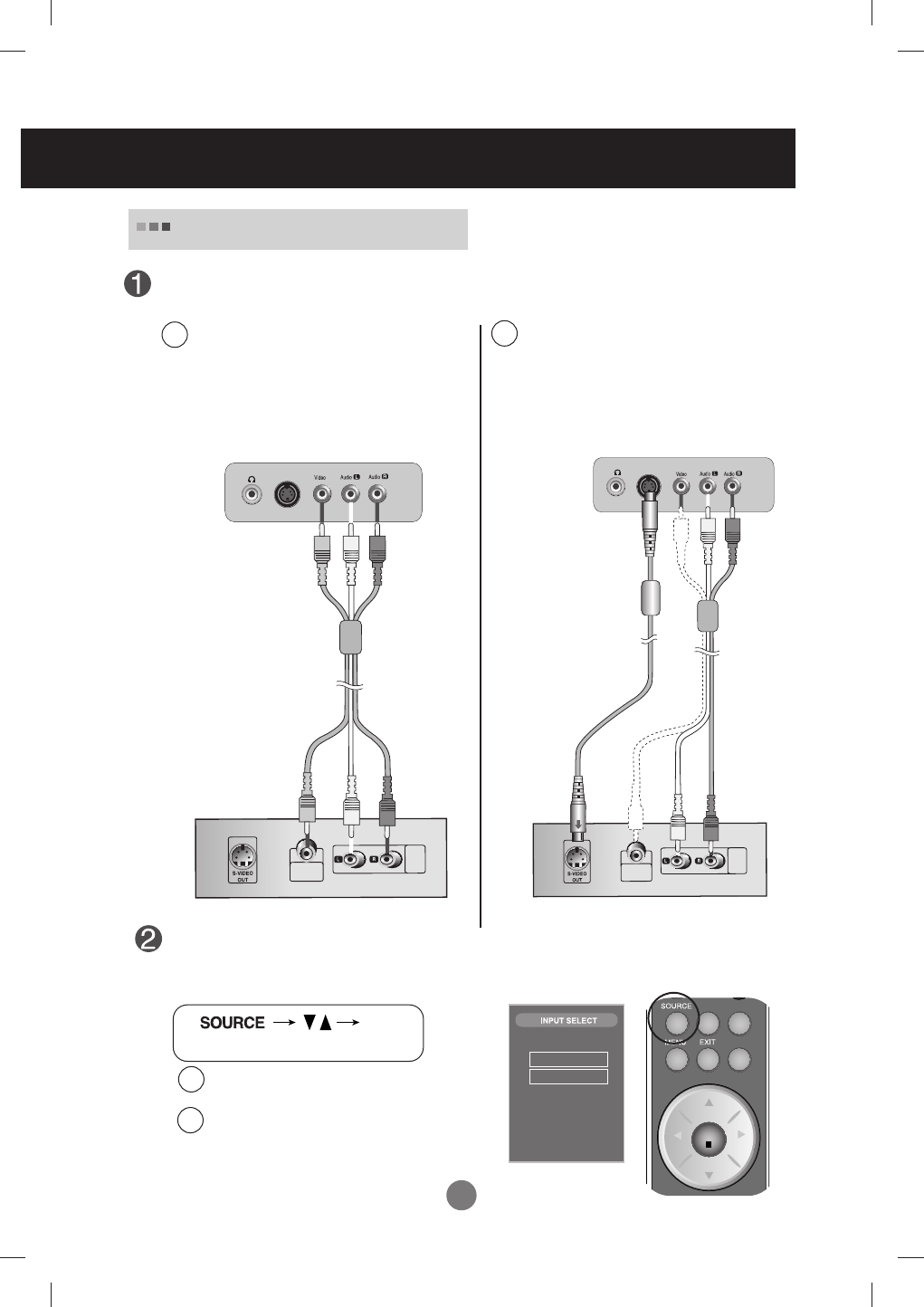

Connect the video cable as shown in the below figure and then connect the power cord.
When watching Video / DVD
When connecting with an RCA cable.
•
Connect the input terminal with a
proper colour match. (Video – Yellow,
Sound (left) – White, Sound (right) –
Red)
B
Red
White
Yellow
RCA Cable
R
W
Y
A
Rear side of the Product
Video / DVD
When connecting with an S-Video
cable.
•
Connect to the S-Video input terminal to
watch high image quality movies.
AUDIO
OUT
VIDEO
OUT
S-Video
RCA Cable
S-Video Cable
Video / DVD
Rear side of the Product
Red
White
R
W
I/II
TV/AV
*
/SSM
CH
VOLVOL
CH
SET
SET
Select an input signal.
Press the SOURCE button on the remote controller to select the input signal. Or, press
the SOURCE button at the front side of the product.
When connecting with a RCA cable.
•
Select AV2 (Video)
When connecting with a S-Video cable.
•
S-Video
B
A
TV
Video
S-Video
Component
RGB
DVI
Card Reader
* Card Reader : Optional
(SELECT)
*
ENGLISH

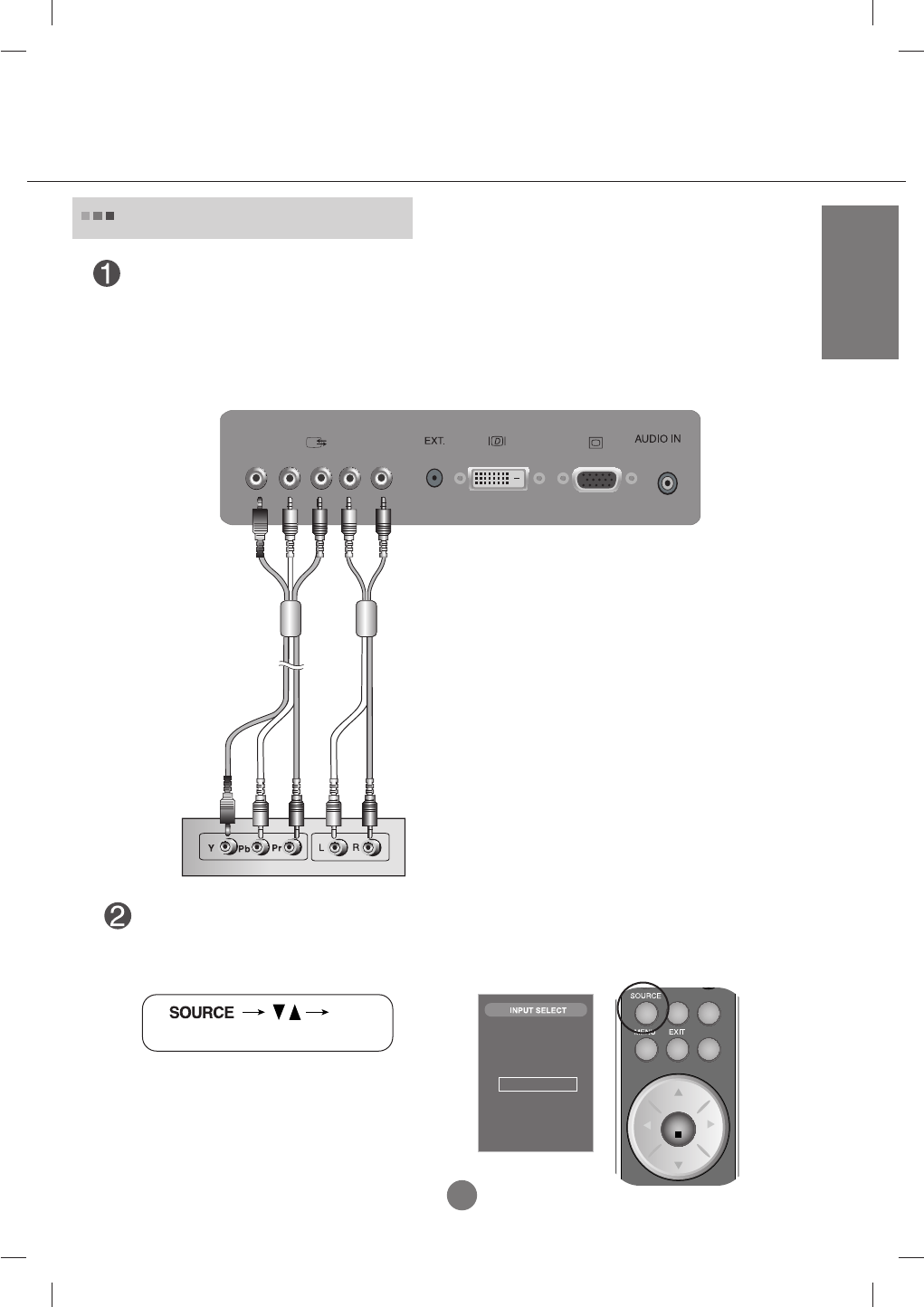

Connect the video cable as shown in the below figure and then connect the power cord.
(See page A18)
When connecting with an RCA cable.
•
Connect the input terminal with a proper colour match. (Video – Yellow, Sound (left) –
White, Sound (right) – Red)
Red
White
Green
HDTV Cable
R
B
G
Rear side of the Product
HDTV Receiver
I/II
TV/AV
*
/SSM
CH
VOLVOL
CH
SET
SET
Select an input signal.
Press the SOURCE button on the remote controller to select the input signal. Or, press
the SOURCE button at the front side of the product.
When connecting with a RCA cable.
•
Select Component
TV
Video
S-Video
Component
RGB
DVI
Card Reader
* Card Reader : Optional
(SELECT)
*
Blue
Red
R
W
Audio Cable
When watching HDTV
Connecting to External Devices
S-VideoS-Video
Rear side of the Product
Antenna Cable
(Not Included)
•
Select TV
Select an input signal.
Press the SOURCE button on the remote controller to select the input
signal. Or, press the SOURCE button at the front side of the product.
I/II
TV/AV
*
/SSM
CH
VOLVOL
CH
SET

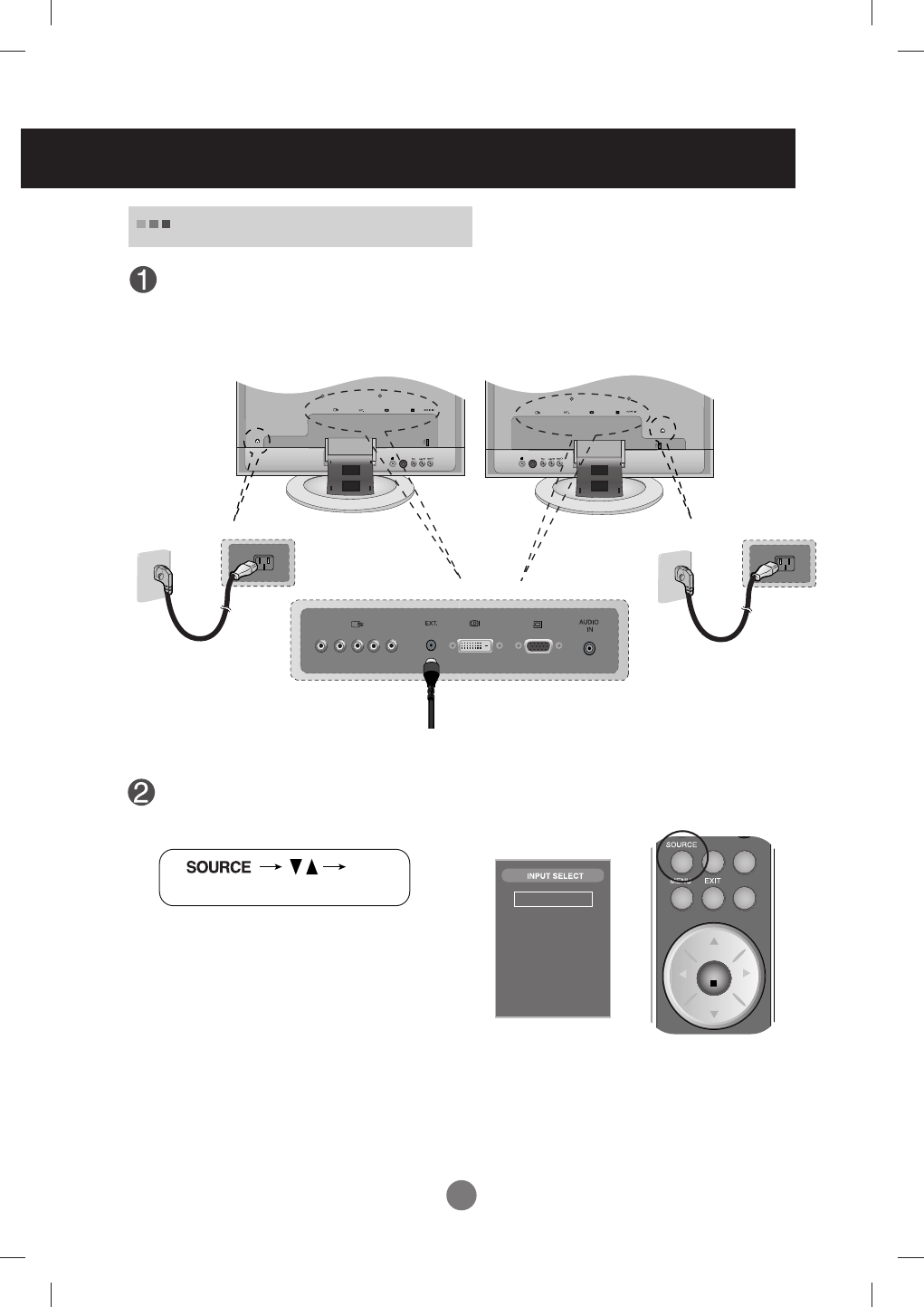

See if the antenna cable is connected at the rear side of the product and
then, connect the power cord.
When watching TV
20.1 inch
17 inch
SET
TV
Video
S-Video
Component
RGB
DVI
Card Reader
* Card Reader : Optional
(SELECT)
*

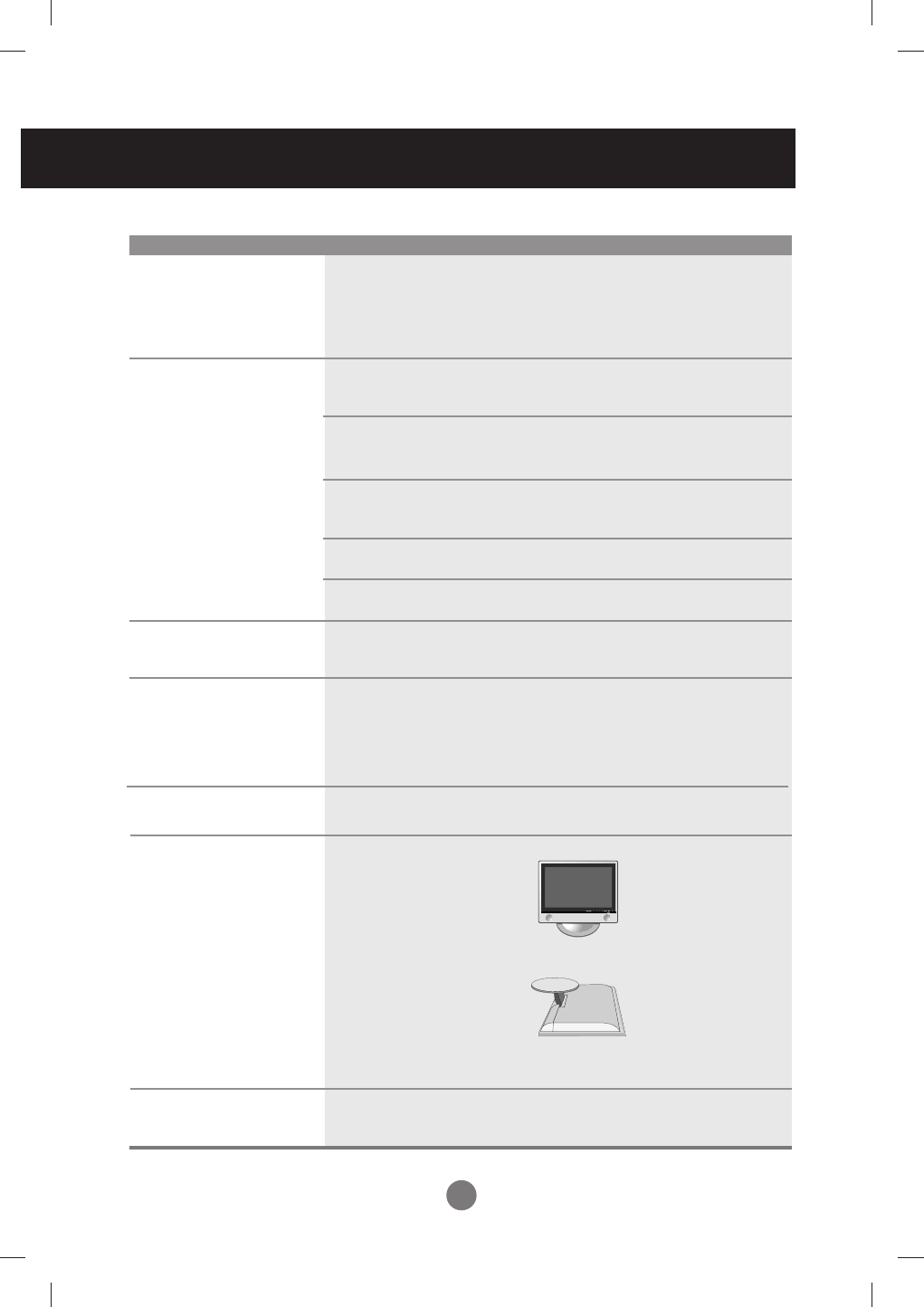

Specifications
Screen Type 17 inches (432.7mm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 432.7mm
Pixel Pitch 0.264mm
Max. Resolution D-Sub :1280X1024 @60Hz
DVI-D : 1280X1024 @60Hz
Recommended Resolution
D-SUB : WXGA 1280X768 @60Hz
DVI-D : WXGA 1280X768 @60Hz
Horizontal Frequency D-SUB : 30 - 66 kHz
DVI-D : 30 - 66 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate/Composite/SOG (Sync On Green)/Digital
15-pin D-Sub type, DVI-D (digital), S-Video,
composite video, Component, TV
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 70W
Sleep Mode : ≤4W
Off Mode : ≤2W
Tilt Range -5˚~20˚
Tilt Stand Attached
Size (WxLxH)
438.2mm x 241.4 mm x 378.9mm
438.2mm x 139.2 mm x 403.5mm
Weight (excl. package) 7.1 kg (15.6 lbs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 10% ~ 80%
Storage Condition Temperature: -20˚C ~ 60˚C , Humidity: 5% ~ 95%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
[17inches]
Specifications
PC Mode – Preset Mode
Power LED
Mode Product
On Mode
Sleep Mode
Off Mode
Blue
Amber
-
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
1
2
3
4
5
6
7
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
31.468
31.469
37.500
37.897
46.875
48.363
60.123
70
59
75
60
75
60
75
VGA
VGA
VGA
VESA
VESA
VESA
VESA
8
9
10
11
1152 x 864
1280 x 1024
1280 x 1024
1680 x 1050
67.500
63.981
79.976
65.290
VESA
MAC
VESA
VESA
75
60
75
59
[20.1inches]
[17inches]
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
1
2
3
4
5
6
7
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
31.469
31.468
31.469
37.500
37.879
46.875
49.725
70
70
60
75
60
75
75
VGA
VGA
VGA
VESA
VESA
VESA
MAC
8
9
10
11
1024 x 768
1024 x 768
1280 x 1024
1280 x 768
48.363
60.123
63.981
47.7
VESA
VESA
VESA
VESA
60
75
60
60
