LG Electronics USA MU50PZ40 50" Plasma Monitor User Manual 352A LG
LG Electronics USA 50" Plasma Monitor 352A LG
Users Manual
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.
Model number :
Serial number :
MODEL : MU-50PZ40/41
MU-50PZ40A/41A
MU-50PZ40B/41B
MU-50PZ40K/41K
MU-50PZ40R/41R
MU-50PZ40S/41S
P/NO : 3828VA0352A (RF02CA)
2
WARNING
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOIS-
TURE.
FCC NOTICE
• MU-50PZ41/A/B/K/R/S : A Class A digital device
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction man-
ual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
• MU-50PZ40/A/B/K/R/S : A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
3
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical
shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the
following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are
built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool.
7. Accessories Carts and Stands
Do not place this product on a slippery or tilted surface, or on an
unstable cart, stand, tripod, bracket, or table. The product may
slide or fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, brack-
et, or table recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow the manu-
facturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product man-
ufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This prod-
uct should not be placed in a built-in installation such as a book-
case or rack unless proper ventilation is provided or the manu-
facturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your product dealer
or local power company. For products intended to operate from
battery power, or other sources, refer to the operating instruc-
tions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type plug,
a plug having a third (grounding) pin. This plug will only fit into
the grounding-type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet, contact your electri-
cian to replace your obsolete outlet. Do not defeat the safety pur-
pose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the prod-
uct, be sure the antenna or cable system is grounded so as to
provide some protection against voltage surges and built-up sta-
tic charges. Article 810 of the National Electrical Code (U.S.A.),
ANSI/ NFPA 70 provides information with regard to proper
grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding con-
ductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding elec-
trode.

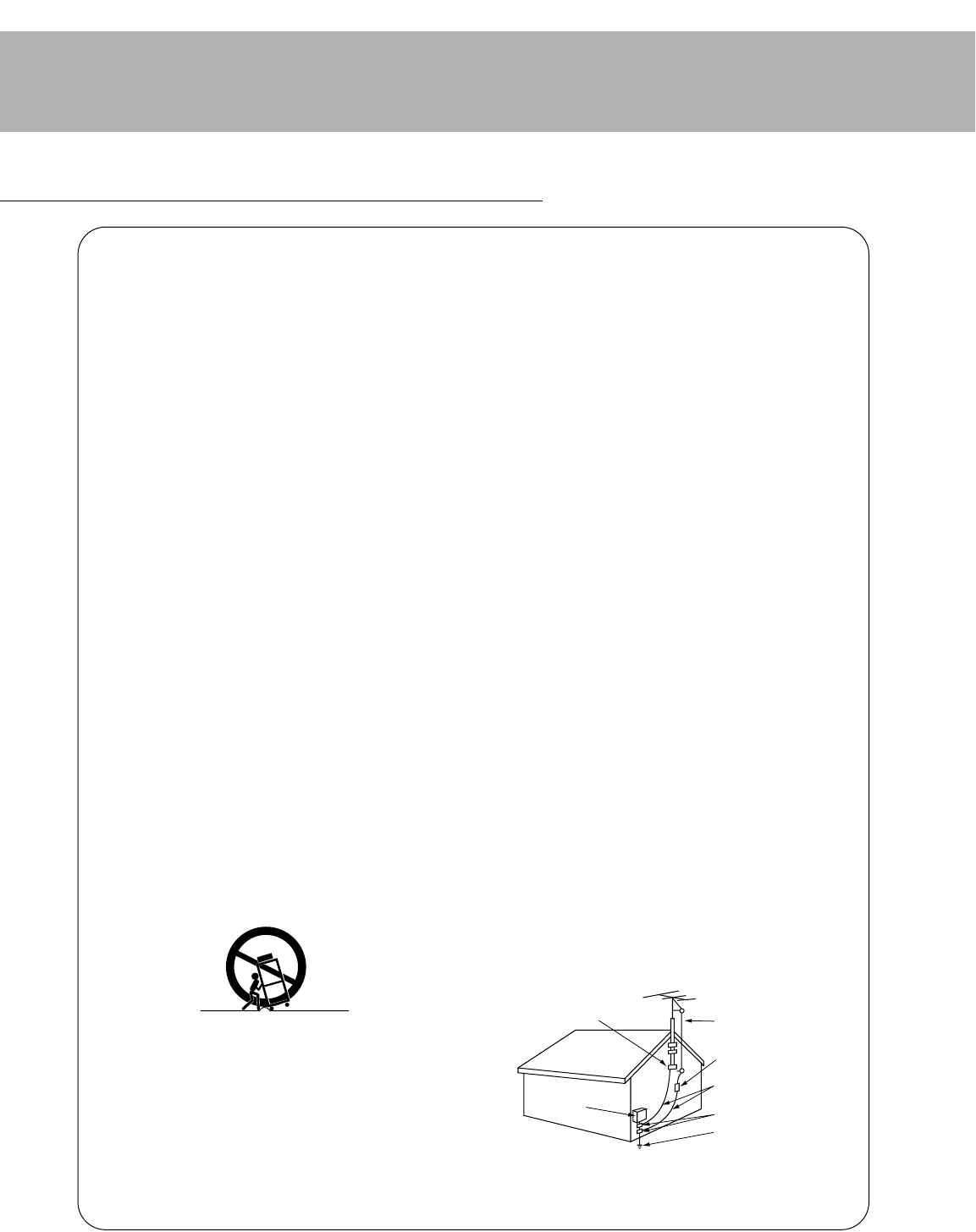

PORTABLE CART WARNING
(Continued on next page)
SAFETY INSTRUCTIONS
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
4
SAFETY INSTRUCTIONS
15. Lightning
For added protection for this product (receiver) during a lightning
storm, or when it is left unattended and unused for long periods
of time, unplug it from the wall outlet and disconnect the anten-
na or cable system. This will prevent damage to the product due
to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as con-
tact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through open-
ings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the prod-
uct.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service tech-
nician has used replacement parts specified by the manufactur-
er or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or
other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine that
the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as rec-
ommended by the manufacturer. The product may slide or fall,
causing serious injury to a child or adult, and serious damage to
the product.
24. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
(Continued from previous page)
The PDP Manufacturing Process: Why colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several colored dots visible on the screen should be accept-
able. This also occurs in other PDP manufacturers' products and the dots appearing does not mean that this PDP is defec-
tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is
designed to minimize cell defects.
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped
with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans
are operating and cooling the PDP.
This noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during
the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is
not sufficient cause for the PDP to be exchanged or returned.
5
After reading this manual, keep it handy for future reference.
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Step 1. Monitor Installation & Setup
Controls and Connection Options . . . . . . . . . . . .6
External Equipment Viewing Setups . . . . . . .7~10

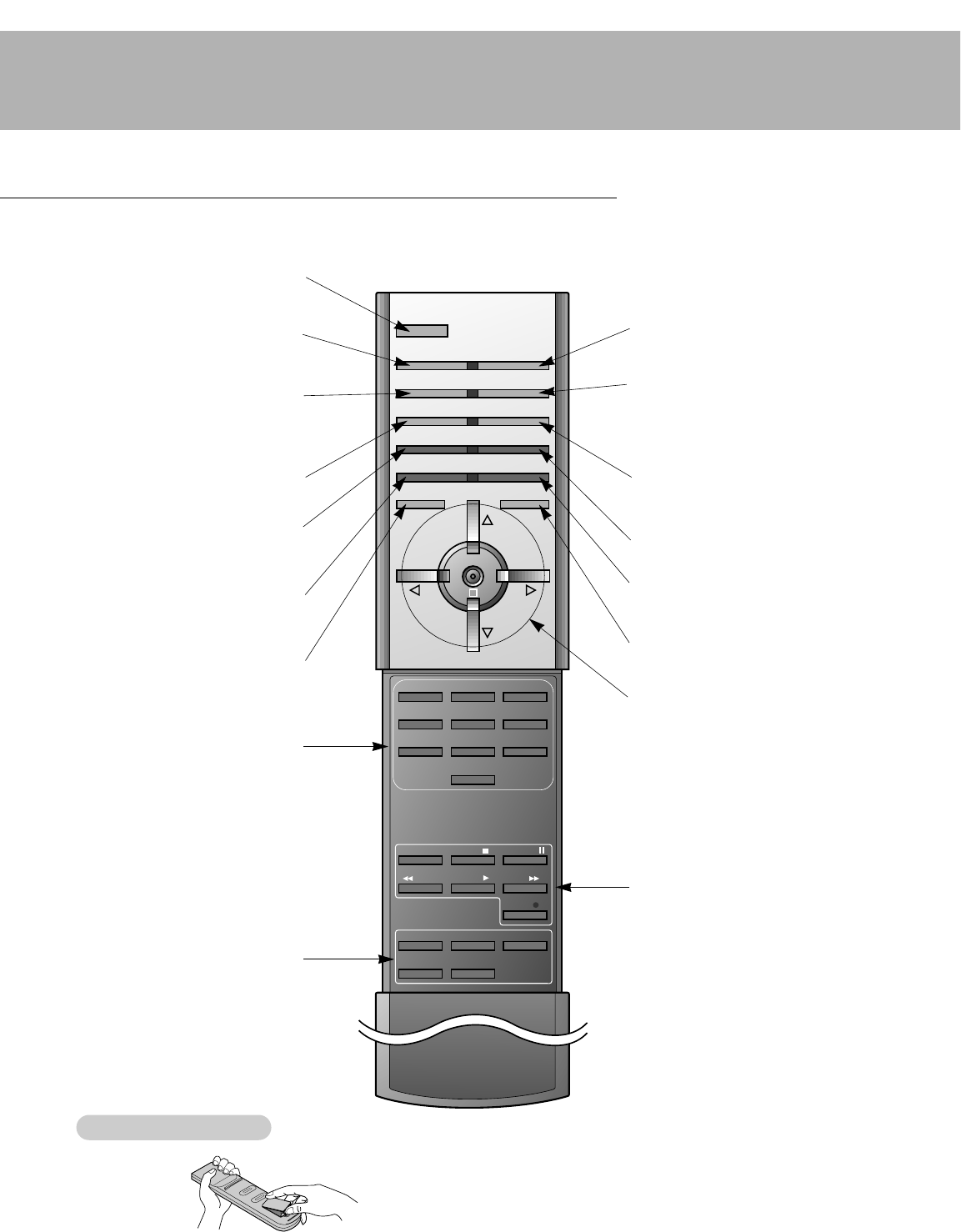

Remote Control Key Functions . . . . . . . . . . . . .11
Monitor Accessories . . . . . . . . . . . . . . . . . . . . .12
Monitor Installation/Mounting Options . . . . . . . .12
Stand Installation . . . . . . . . . . . . . . . . . . . . . . .12
Step 2. Customize your Monitor’s Features
Basic Features Setup and Operation
Turning on the Monitor . . . . . . . . . . . . . . . . . . .13
Menu Language Selection . . . . . . . . . . . . . . . .13
Video Menu Options
APC (Auto Picture Control) . . . . . . . . . . . . . . . .14
Adjusting Auto Color Control . . . . . . . . . . . . . . .14
Manual Color Temperature Control . . . . . . . . . .14
Manual Picture Control . . . . . . . . . . . . . . . . . . .14
Audio Menu Options
DASP (Digital Auto Sound Processing) . . . . . . .15
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .15
Adjusting Sound (Manual Settings) . . . . . . . . . .15
Time Menu Options
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . .16
Setting the On/Off Timer . . . . . . . . . . . . . . . . .16
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .16

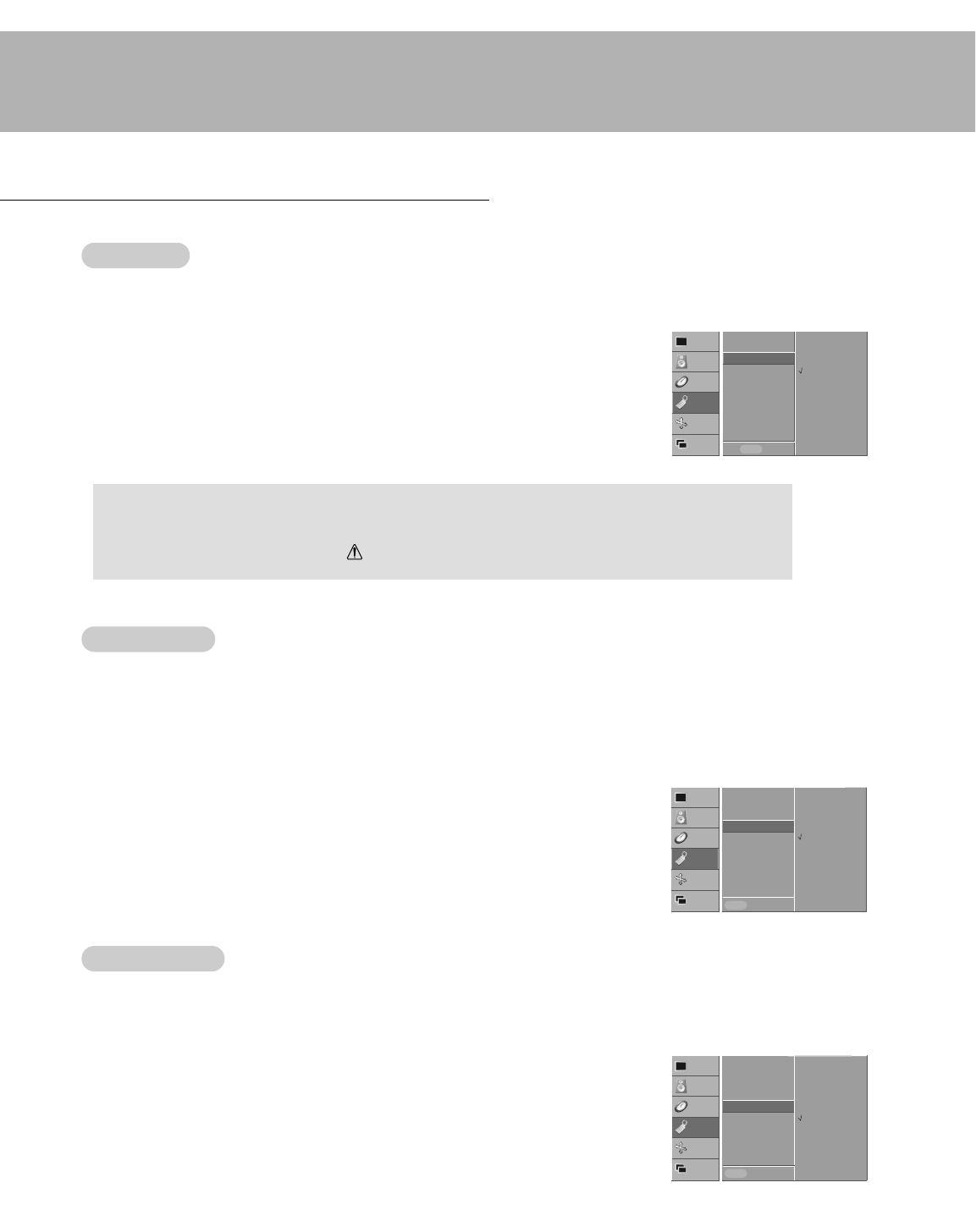

Special Menu Options
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Orbiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
White Wash . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .18
Setting Picture Format . . . . . . . . . . . . . . . . . . .18
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Screen Position . . . . . . . . . . . . . . . . . . . . . . . .19
Manual Configure . . . . . . . . . . . . . . . . . . . . . . .19
Screen Adjustments . . . . . . . . . . . . . . . . . . . . .19
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

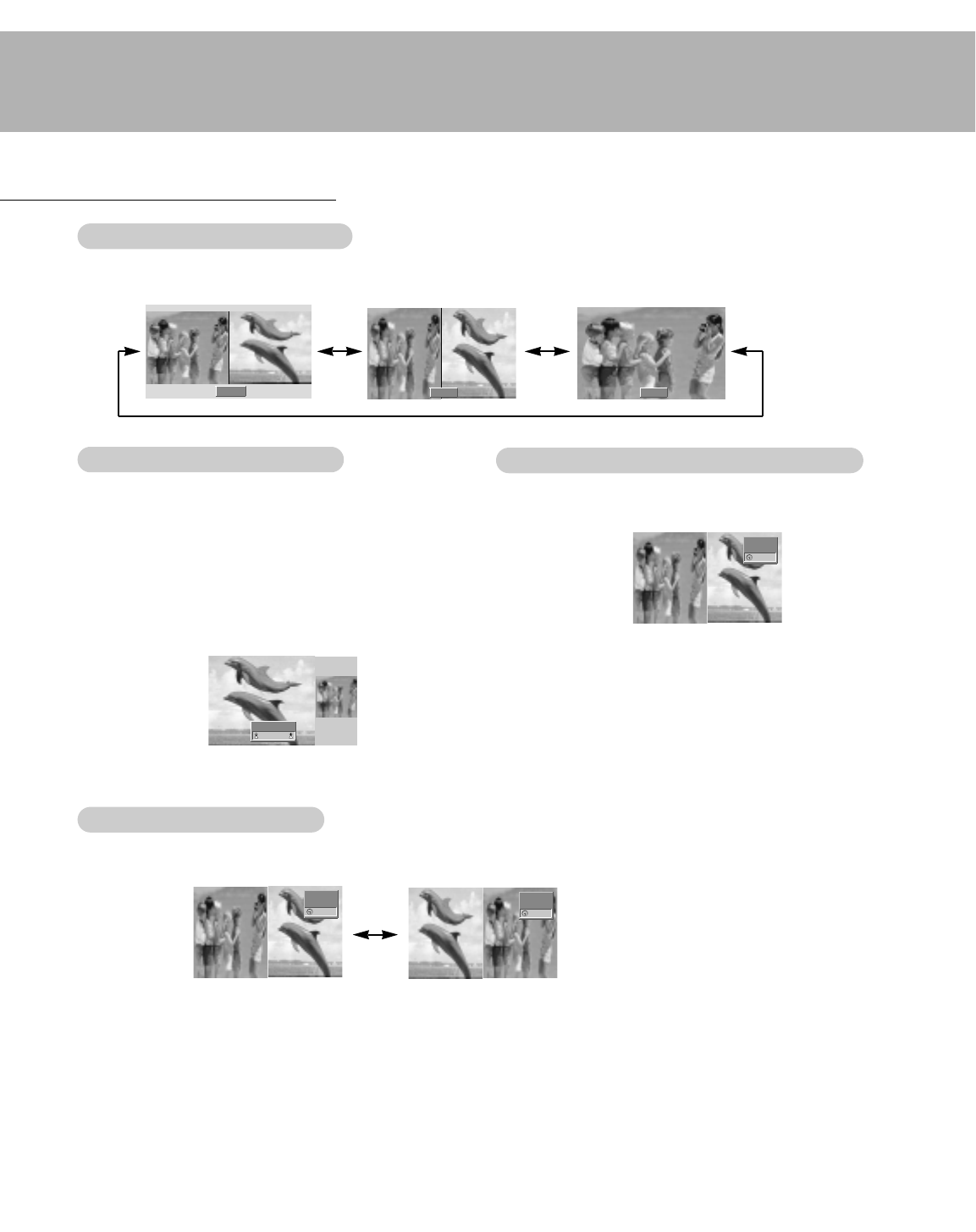

PIP (Picture In Picture) Feature
Watching PIP/PIP Size/PIP Aspect Ratio . . . . . .20
Swapping PIP/ Moving PIP . . . . . . . . . . . . . . . .20
Selecting a Input Signal Source for PIP . . . . . . .20
Main Picture Size Adjustment . . . . . . . . . . . . . .20
Main Picture Position Adjustment . . . . . . . . . . .20
Twin Picture Setup Options
Main Picture Size Adjustment . . . . . . . . . . . . . .21
Sub Picture Size Adjustment . . . . . . . . . . . . . . .21
Selecting a Source for the Twin Picture . . . . . . .21
Swapping the Twin Picture . . . . . . . . . . . . . . . .21
Step.3 Miscellaneous

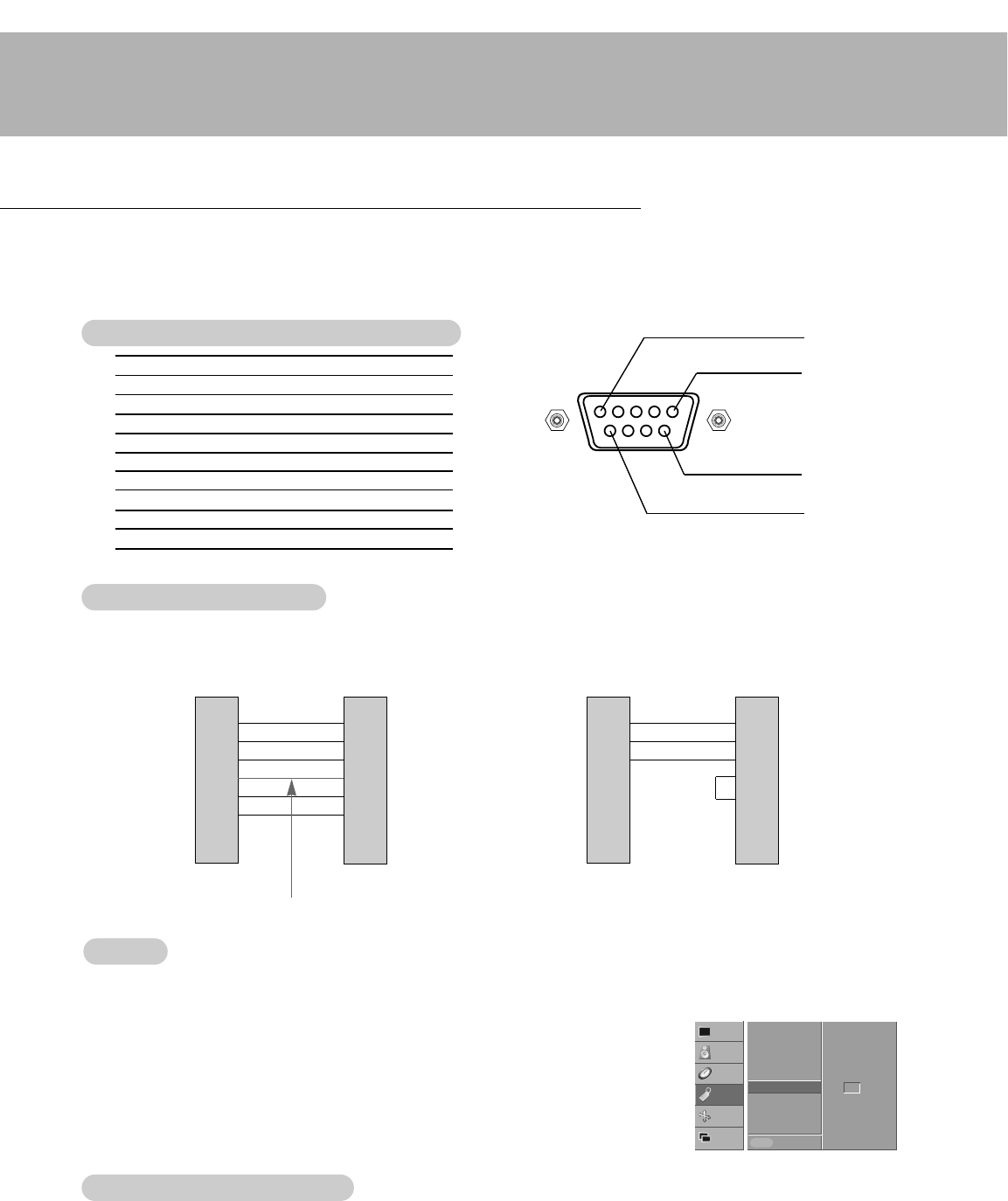

External Control Device Setup . . . . . . . . . . . . .22
IR Code (NEC format) . . . . . . . . . . . . . . . . . . .27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Troubleshooting Checklist . . . . . . . . . . . . . . . . .30
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .31
Contents
6

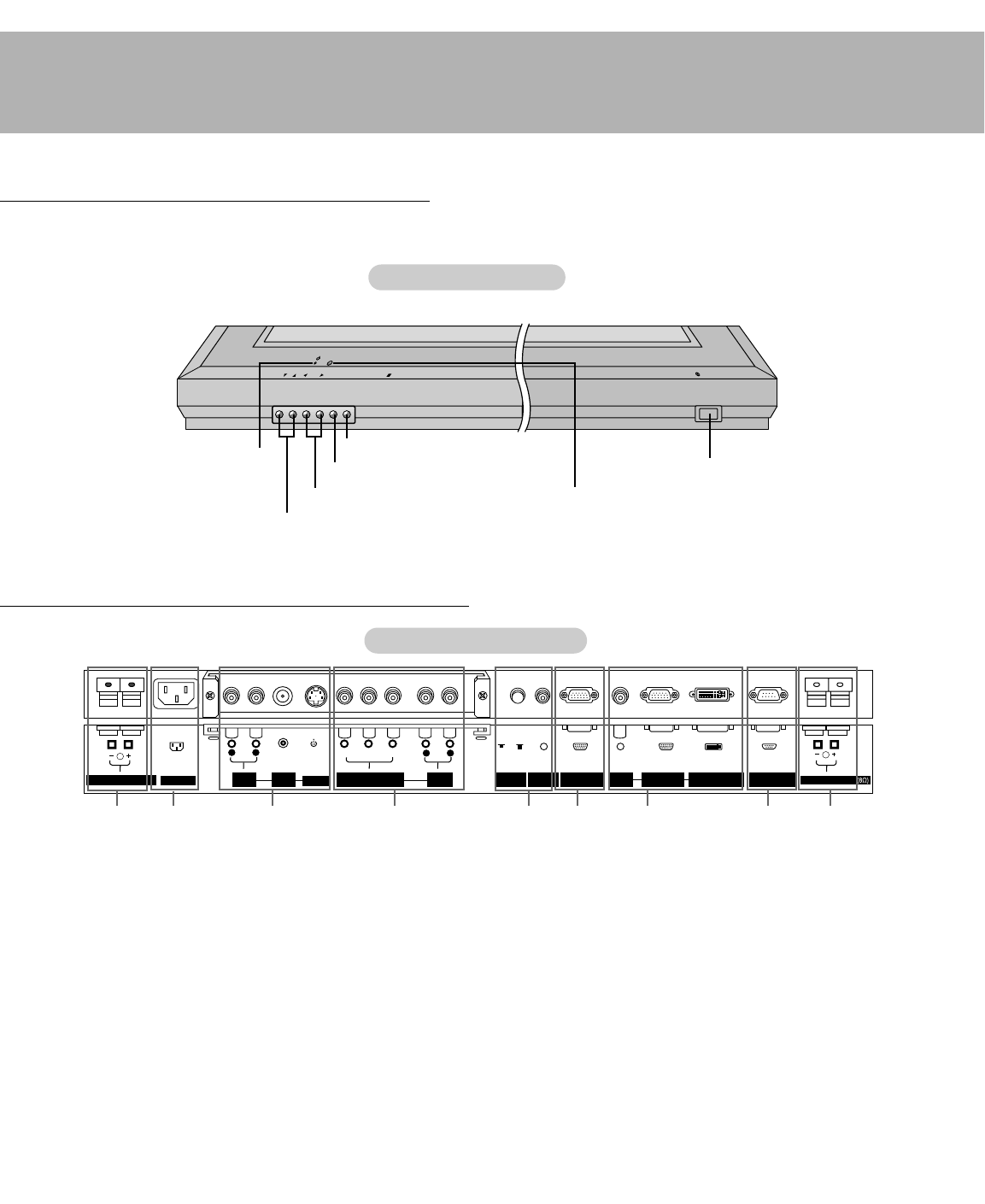

Monitor Controls
Connection Options
VOL. MENU INPUT SELECT
ON/OFF
Main Power Button
INPUT SELECT Button
VOLUME (F,G) Buttons
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the
Monitor is turned on Remote Control Sensor
MENU Button
D,EButtons
YP
B
P
R
( )
( )
R
(MONO)
R
AUDIO ON/ OFF
L
R
AUDIO
L
( )
( )
L
AC INPUT
(8Ω)
EXTERNAL SPEAKER
COMPONENT
(DVD/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
LOCK
REMOTE
CONTROL
CONTROL
RGB1 INPUT
(PC/DTV INPUT)
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO INPUT
VIDEO
RGB2 INPUT
(DIGITAL RGB INPUT) RS-232C INPUT
(CONTROL/SERVICE)
S-VIDEO
EXTERNAL SPEAKER
1 2 3 4785 6 1
1. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
*For further information, refer to ‘Speaker & Speaker Stand’
manual.
2. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to operate
the Monitor on DC power.
3. AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to these
jacks.
S-VIDEO INPUTS (S-VIDEO)
Connect video out from an S-VIDEO VCR to the S-VIDEO
input.
4. COMPONENT(DVD/DTV INPUT)/AUDIO INPUT JACKS
5. CONTROL LOCK Switch
REMOTE CONTROL
When “CONTROL LOCK” is set “ON”, Monitor is operated by
the external control device.
6. RGB1 OUTPUT(PC/DTV OUTPUT) JACKS
You can watch the RGB1 signal on another monitor, connect
RGB1 OUTPUT (PC/DTV OUTPUT) to another monitor’s
PC input port.
7. AUDIO INPUT/RGB1 INPUT(PC/DTV INPUT)/
RGB2 INPUT(DIGITAL RGB INPUT) JACKS
Connect the monitor output socket of the PC to this socket.
8. RS-232C INPUT(CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
Front Panel Controls
Back Connection Panel
7

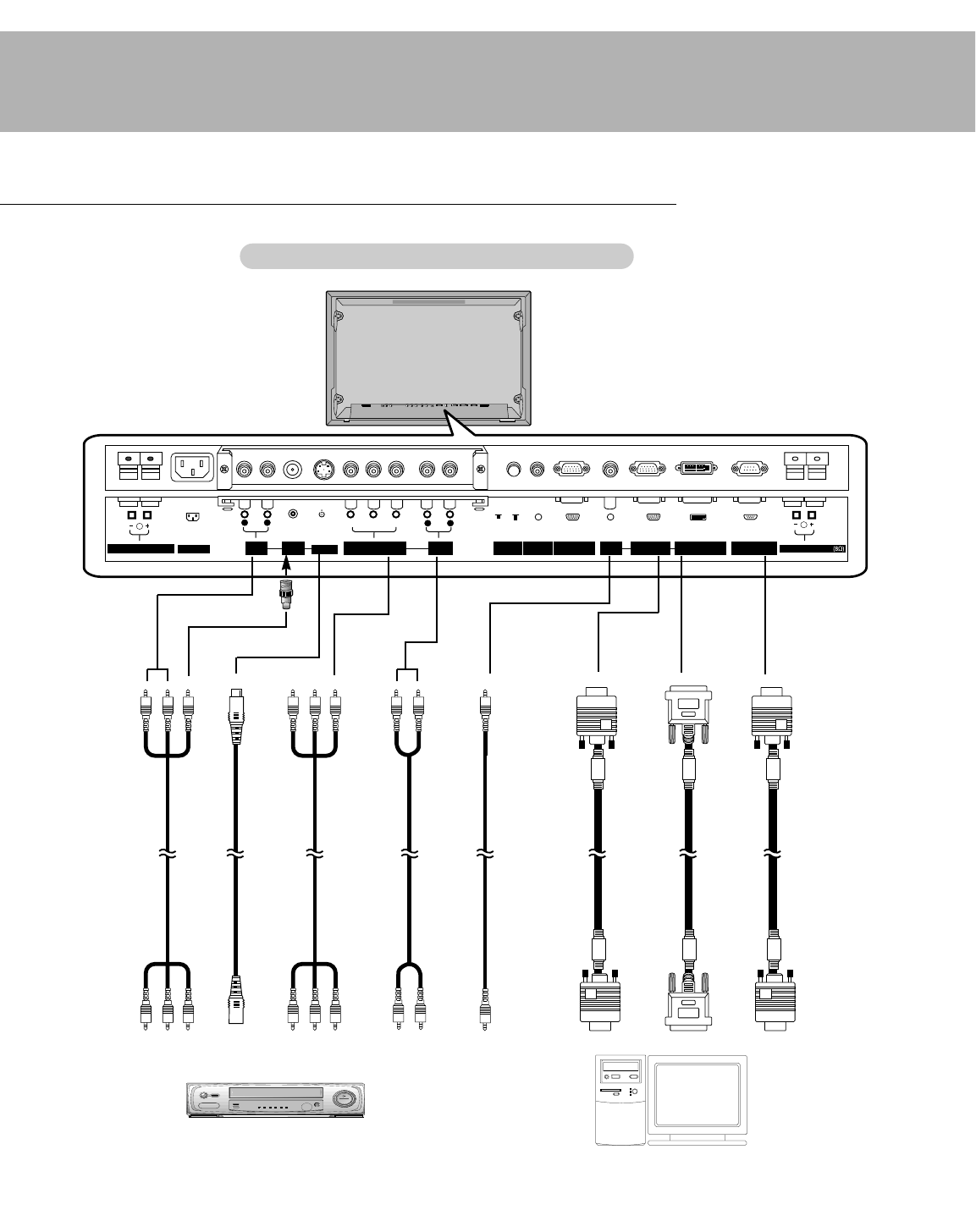

External Equipment Connections
Connection to PC
Note: All cables shown are not provided with the Monitor, except:
A D-sub 15 pin cable and DVI cable is supplied to connect the Monitor to a PC.
Connection to AV equipment
YP
B
P
R
( )
( )
R
(MONO)
R
AUDIO ON/ OFF
L
R
AUDIO
L
( )
( )
L
AC INPUT
(8Ω)
EXTERNAL SPEAKER
COMPONENT
(DVD/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
LOCK
REMOTE
CONTROL
CONTROL
RGB1 INPUT
(PC/DTV INPUT)
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO INPUT
VIDEO
RGB2 INPUT
(DIGITAL RGB INPUT) RS-232C INPUT
(CONTROL/SERVICE)
S-VIDEO
EXTERNAL SPEAKER
AUDIO INPUT
VIDEO INPUT COMPONENT
(DVD/DTV
INPUT)
S-VIDEO
INPUT COMPONENT
AUDIO
INPUT RGB
AUDIO INPUT
RGB1 INPUT
(PC/DTV
INPUT)
RGB2 INPUT
(DIGITAL
RGB INPUT)
RS-232C INPUT
Monitor External Equipment Connection Panel
8
- When connecting the Monitor to external equipment, match the colors of connecting ports (Video - yellow, Audio (L) - white,
Audio (R) -red).
- Connect the VIDEO INPUT socket (yellow) with the BNC-RCA adapter to the VIDEO INPUT on the Monitor.
- If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/MONO) input on the Monitor.
- If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular
VCR to the Video input.
- Use the orbiter function to Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still
picture from a VCR.
If a 4:3 picture format is used; the fixed image may remain visible on the screen.
- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
1. Use the INPUT SELECT button on the remote control to select VIDEO.
(If connected to S-VIDEO, select the S-VIDEO external input source.)
2. Insert a video tape into the VCR and press the PLAY button on the VCR. (See VCR owner’s manual)
- When connecting the monitor to an external source, match the colors of AUDIO/VIDEO input jacks on the monitor with
the output jacks on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red.
1. Use the INPUT SELECT button on the remote control to select VIDEO.
2. Operate the corresponding external equipment. See external equipment operating guide.
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV program-
ming. This monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the
Monitor.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
1. Use the INPUT SELECT button on the remote control and select VIDEO.
2. Tune to cable service provided channels using the cable box.
•Component Input ports
You can get better picture quality if you con-
nect DVD player with component input ports
as below.
Component ports of the
Monitor YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
Connect DVD video inputs to Y, PB, PRof COMPONENT (DVD/DTV
INPUT) and audio inputs to Audio sockets of AUDIO INPUT.
How to use
1. Turn on the DVD player, and insert a DVD.
2. Use INPUT SELECT button on the remote control to select COMPO-
NENT. Refer to the DVD player's manual for operating instructions.
W
Watching VCR Setup
atching VCR Setup
W
Watching External
atching External A/V Source Setup
A/V Source Setup
W
Watching Cable
atching Cable TV Setup
TV Setup
W
Watching DVD Setup
atching DVD Setup
External Equipment Viewing Setups
9
- To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX.
How to connect a user-supplied Digital Set-Top Box
• Connect DTV set-top box video output to monitor COMPONENT (DVD/DTV INPUT) or to the monitor RGB1 (PC/DTV
INPUT) connector depending on your Set Top Box connectors.
• Connect DTV set-top box audio outputs to monitor AUDIO INPUT jacks.
How to use
1. Turn on the digital SET-TOP BOX. (Refer to the owner’s ,manual for the digital SET-TOP BOX.)
2. Use INPUT SELECT on the remote control to select COMPONENT or RGB 1.
W
Watching DTV Setup
atching DTV Setup
- To enjoy vivid picture and sound, connect a PC to the Monitor.
- Avoid keeping a fixed image on the monitor’s screen for a long period of time. The fixed image may become permanent-
ly imprinted on the screen; use a screen saver when possible.
- Connect PC to the RGB1 INPUT(PC/DTV INPUT) or RGB2 INPUT(DIGITAL RGB INPUT) port of the Monitor; change the
resolution output of PC accordingly.
- Synchronization input form; Separate
Setup Instructions to Connect a PC to your Monitor
- If the resolution of PC is over UXGA, there will be no picture on the Monitor.
- Connect the signal cable from the monitor output port of the PC to the RGB1 INPUT(PC/DTV INPUT) port of the Monitor
or the signal cable from the DVI output port of the PC to the RGB2 INPUT(DIGITAL RGB INPUT) port on the Monitor.
- Connect the audio cable from the PC to the Audio input on the Monitor. (Audio cables are not included with the Monitor).
- If using a sound card, adjust PC sound as required.
- This monitor apply a VESA Plug and Play Solution. The monitor provides EDID data to the PC system with a DDC proto-
col. The PC adjusts automatically to use this monitor.
- DDC protocol is preset for RGB1 (Analog RGB), RGB2 (DVI, Digital RGB) mode.
- If required, adjust the monitor settings for Plug and Play functionally.
- If graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of both RGB1 INPUT
(PC/DTV INPUT) or RGB2 INPUT (DIGITAL RGB INPUT) to display the PC on the monitor.
If graphic card on the PC does output analog and digital RGB simultaneously, set the monitor to either RGB1 or RGB2;
(the other mode is set to Plug and Play automatically by the monitor.)
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scan-
ning rate for the graphic card.
PC Setup
1. Turn on the PC and apply power to the Monitor.
2. Turn on the display by pressing the POWER button on the Monitor’s remote control.
3. Use the INPUT SELECT button on the remote control to select the RGB1 or RGB2 input source.
4. Set the resolution output of the PC to SXGA or under (1280 x 1024, 75Hz).
PC Setup
PC Setup
10
RGB1 Mode
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
45.913
53.011
64.062
35.156
37.879
46.875
53.674
56.000
64.016
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
90.03
100.04
120.00
56.25
60.31
75.00
85.06
90.00
100.00
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
49.725
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
75.000
63.981
79.976
74.55
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
75.00
60.02
75.02
Vertical
Frequency(Hz) DDC DDC
Resolution
832x624
1024x768
1152x864
1152x870
1280x960
1280x1024
Horizontal
Frequency(KHz) Vertical
Frequency(Hz)
Resolution
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
56.25
60.31
72.18
75.00
85.06
o
o
o
o
o
o
o
o
o
o
o
o
o
49.725
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
60.000
75.000
63.981
74.55
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
60.00
75.00
60.02
Vertical
Frequency(Hz) DDC DDCResolution Vertical
Frequency(Hz)
RGB2 Mode
Monitor Display Specifications
Monitor Display Specifications
o
o
o
o
o
o
o
o
o
o
o
832x624
1024x768
1152x870
1280x960
1280x1024
1152x864
Horizontal
Frequency(KHz)
640x350
720x400
•Dos mode may not work depending on video card if using a DVI-I cable.
11
Remote Control Key Functions
- When using the remote control aim it at the remote control sensor of the Monitor.
- There's maybe a defect in consecutive operation of remote control in specified brightness according to this monitor
feature.
123
456
78
0
9
POWER
SLEEP INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM +
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
POWER
Switches the Monitor on from
standby or off to standby.
SLEEP
Sets the sleep timer.
(Refer to p.16)
APC
Adjusts the factory preset picture
according to the room.
(Refer to p.14)
ARC
Changes the picture format.
(Refer to p.18)
PIP
Switches the sub picture on or off.
(Refer to p.20)
SWAP
Exchanges main and sub picture
images. (Refer to p.20, 21)
MENU
Displays on screen menus one by one.
Exits the current menu.
Memorizes menu changes.
NUMBER buttons
WIN. SIZE
Adjusts the sub picture size.
WIN.POSITION
Moves the sub picture.
SPLIT ZOOM
Enlarge the screen with regular
ration.
ZOOM-/ZOOM+
Enlarges or reduces
the main picture size.
VCR BUTTONS
Controls a LG video cassette
recorder.
OK
D / E
Selects a menu option.
F / G (Volume button)
Increases/decreases sound level.
Adjusts menu settings.
INPUT SELECT
Selects: VIDEO,S-VIDEO,RGB1/2
or COMPONENT mode.
DASP
To select the sound appropriate to
your viewing program character:
FLAT,SPORTS,CINEMA,MUSIC,
or USER (Refer to p.15)
PIP ARC
Changes the PIP picture format.
(Refer to p.20)
SUB INPUT
Selects the input mode for the sub
picture.
MUTE
Switches the sound on or off.
TWIN PICTURE
(Refer to p.21)
•Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
•Install two 1.5V alkaline batteries of AAA type. Don’t mix used
batteries with new batteries.
Installing Batteries
Installing Batteries
12
1. Make sure to secure the stand to the display platform
using M8 bolts (commercially available) 1 inch (25mm)
longer than the thickness of the platform.
2. Align the holes on the monitor and stand.
3. Use the two (2) bolts provided to attach the stand to
the monitor. Tighten each bolt securely in a clockwise
direction.
The monitor weigh 99.2 pounds (45kg) and
its thinness makes it unstable. Therefore,
unpacking and installation should be per-
formed by two or more persons.
Front
Rear
26.2 inches
(665 mm)
Monitor Installation Options
Stand Installation
•The Monitor can be installed in various ways such such as on a wall, or on a desktop etc.
•Install this monitor only in a location where adequate ventilation is available.
•It is recommended that this product only be used at an altitude of less than 6561 feet (2000m) to get the
best quality picture and sound.
2 inches
4 inches
2.36 inches
4 inches
4 inches
4 inches
4 inches4 inches
4 inches
2 inches
To Mount on a Wall
Wall mount minimum allowable clearances for
adequate ventilation.
To Install on a Desktop
Pedestal mount minimum allowable clearances for
adequate ventilation.
Monitor overview
D-sub 15 pin cable
Owner’s Manual
Simple Monitor Stand
1.5V
1.5V
Alkaline batteries BNC-RCA adapter
Power Cord
123
456
78
0
9
POWER
SLEEP INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM +
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
Remote Control
DVI Cable
Accessories
13
Turning on the Monitor
- When using the remote control, aim it at its sensor on the Monitor.
Turning on the Monitor just after installation
Turning on the Monitor (power cord is still connected)
1. Connect power cord correctly.
2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to
standby mode. Press the INPUT SELECT button on the Monitor or press the POWER,
INPUT SELECT button on the remote control and then the Monitor will switch on.
•Press the ON/OFF button on the Monitor to turn the Monitor on.
1. If the Monitor was turned off with the ON/OFF button on the Monitor
2. If the Monitor was turned off with the remote control or the ON/OFF button on the Monitor
•Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the
Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.
Menu Language Selection
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D/ Ebutton to select LANGUAGE.
3. Press the Gbutton and then use D/ Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the MENU button.
한국어
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
LANGUAGE G
KEY LOCK
ORBITER
WHITE WASH
SET ID
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
MENU PREV.
14

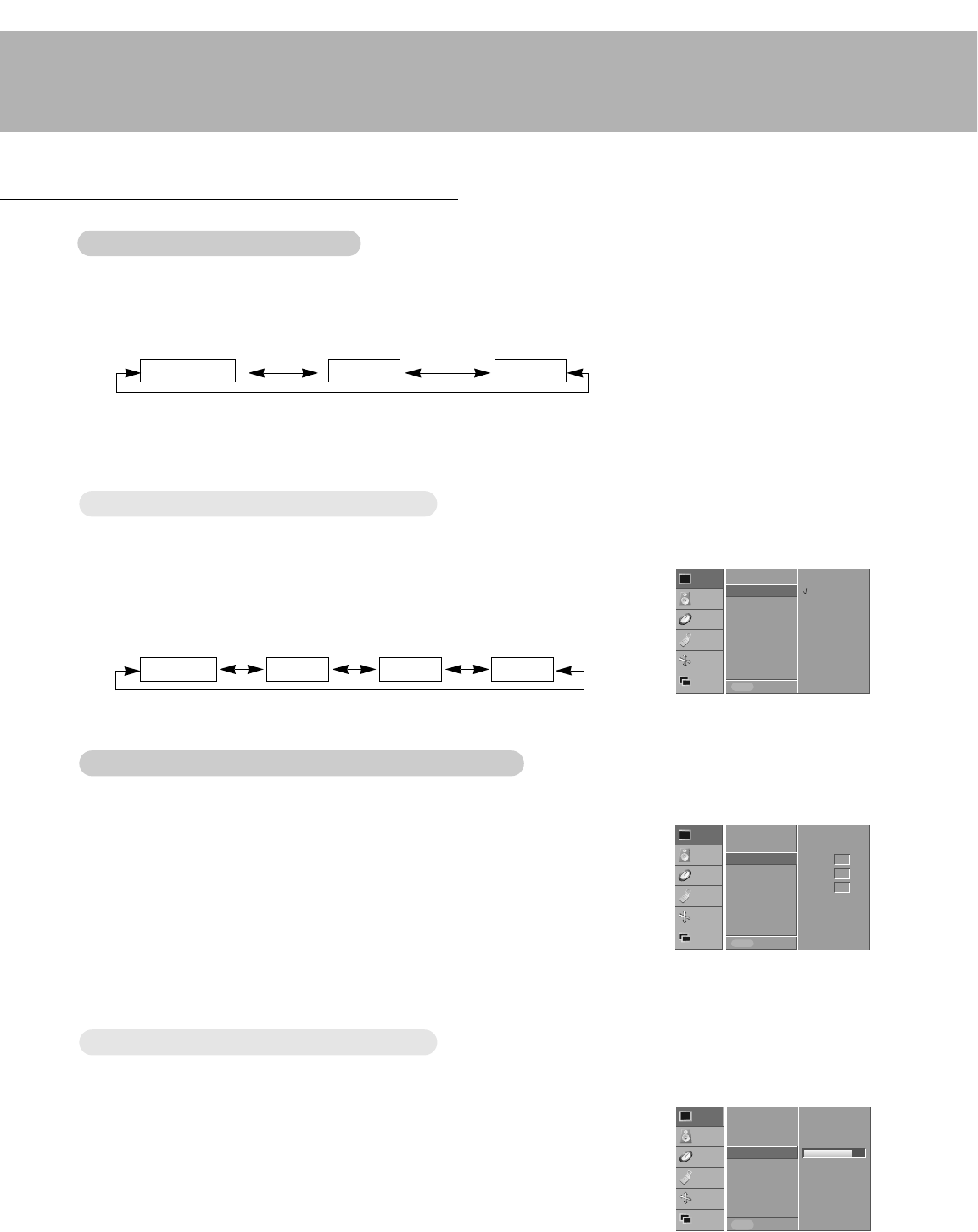

Video Menu Options
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
- PIP settings are not adjustable.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select the desired picture option.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
1. Press the APC button to select the picture appearance setup option.
APC (Auto Picture Control)
APC (Auto Picture Control)
Manual Picture Control (User option)
Manual Picture Control (User option)
- To initialize values (reset to default settings), select the NORMAL option.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select ACC .
3. Press the D / Ebutton to select the desired color temperature.
Adjusting
Adjusting Auto Color Control
Auto Color Control
•Each press of the APC button changes the screen display as shown below.
•You can also select CLEAR, SOFT or USER in the VIDEO menu.
•Picture options CLEAR and SOFT are preset and programmed for good picture quality at the factory
and cannot be changed.
•Each press of D / Ebutton changes the screen display as shown.
CLEAR SOFT USER
- This function adjusts the Monitor to the best picture appearance
NORMAL COOL WARM USER
- You can adjust red, green, or blue to any color temperature you prefer.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select the COLOR TEMP. option.
3. Press the Gbutton and then use D / Ebutton to select a color.
4. Use the F / Gbutton to make appropriate adjustments.
5. Press the MENU button.
•The adjustment range of RED, GREEN and BLUE is -10~+10.
Manual Color
Manual Color T
Temperature Control (User option)
emperature Control (User option)
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC
COLOR TEMP.
CONTRAST 85 G
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC G
COLOR TEMP.
CONTRAST 85
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
NORMAL
COOL
WARM
USER
MENU PREV.
0
0
0
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC
COLOR TEMP. G
CONTRAST 85
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
RED
GREEN
BLUE
MENU PREV.
15
Audio Menu Options
1.Press the DASP button to select the picture appearance setup.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
1. Press the MENU button and then use D / Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D / Ebutton to select the desired sound item.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
Adjusting Sound (Manual Setting)
Adjusting Sound (Manual Setting)
•You can also select FLAT, SPORTS, CINEMA, MUSIC, or USER in the AUDIO menu.
FLAT SPORTS CINEMA MUSIC USER
- This function lets you enjoy the best sound without any special adjustment because the Monitor automatically
selects the appropriate sound option based on the program content.
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use D / Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D / Ebutton to select AV L .
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
DASP
AVL
TREBLE 50 G
BASS 50
BALANCE 0
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
DASP
AVL G
TREBLE 50
BASS 50
BALANCE 0
ON
OFF
MENU PREV.
16

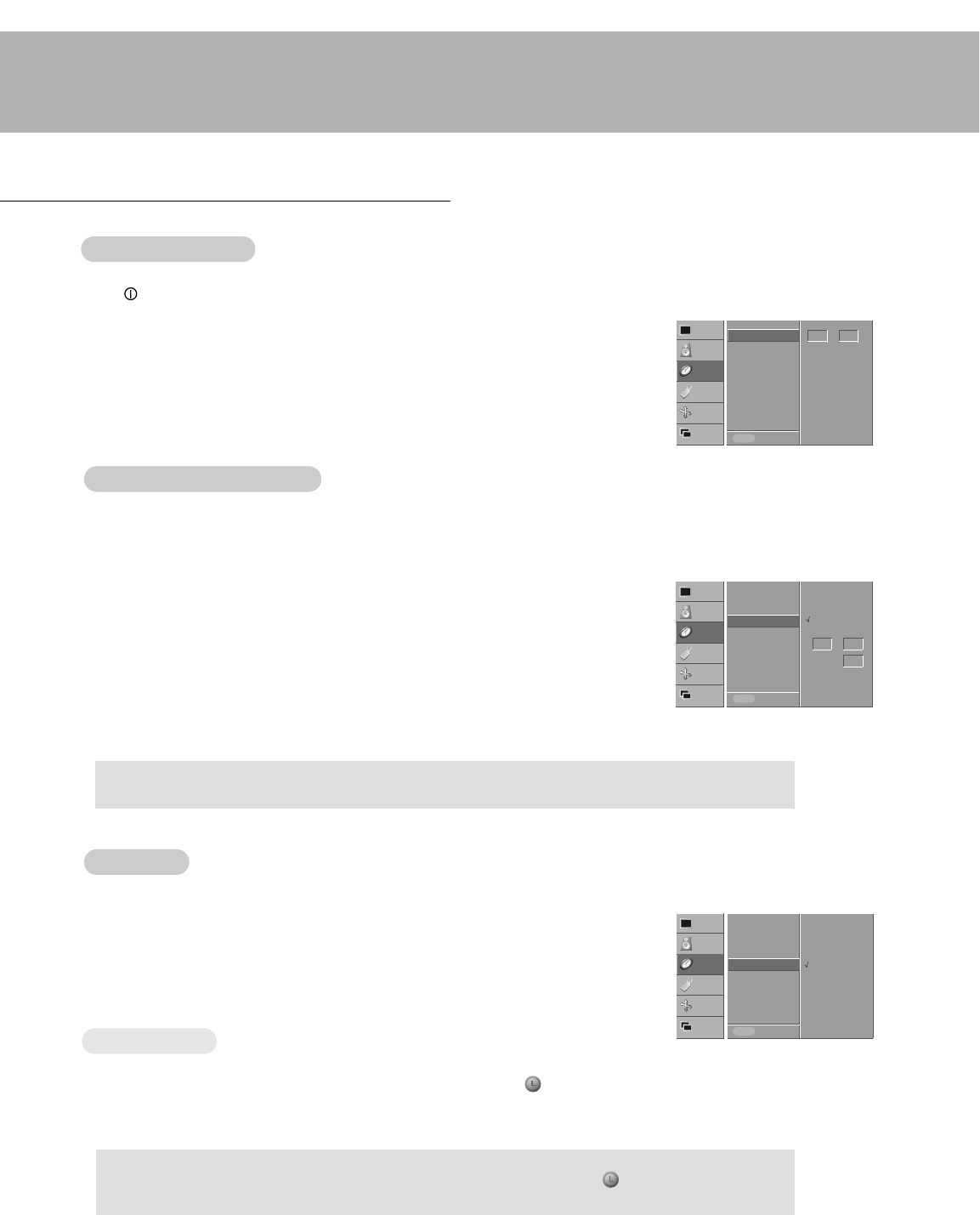

Time Menu Options
- Timer function operates only if current time has been already set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
- The monitor must be in standby mode for the On Timer to work.
- To cancel ON/OFF TIMER function
Press the D / Ebutton to select OFF in step 3.
a. To check the remaining sleep time, press the SLEEP or OK button once.
b. To cancel the sleep time, repeatedly press the SLEEP button until the display --- MIN appears.
c. If you turn the monitor off after setting the sleep timer, the setting will be erased.
Setting the On/Of
Setting the On/Off
f T
Timer
imer
Sleep
Sleep T
Timer
imer
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select OFF TIMER/ON TIMER.
3. Press the Gbutton and then use D / Ebutton to select ON.
4. Press the Gbutton and then use D / Ebutton to set the hour.
5. Press the Gbutton and then use D / Ebutton to set the minutes.
6. For only ON TIMER function; Press the Gbutton and then use D / Ebutton to set
volume level.
7. Press the MENU button.
- Sleep timer turns the Monitor off at the preset time.
- Press the SLEEP button to select the number of minutes. The display --- MIN will appear on the screen, fol-
lowed by 10,20,30,60,90,120,180 and 240. The timer begins to count down from the number of minutes selected.
- When the sleep time you want is displayed on the screen, press the OK button.
Auto Of
Auto Off
f
- If there is no input signal, the Monitor turns off automatically after 10 minutes.
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select AUTO OFF.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
12 00
30
:
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
CLOCK
OFF TIMER
ON TIMER G
AUTO OFF
OFF
ON
VOL
MENU PREV.
zz
zz
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
CLOCK
OFF TIMER
ON TIMER
AUTO OFF GOFF
ON
MENU PREV.
Setting the Clock
Setting the Clock
- If current time setting is erased by a power failure, if TV is unplugged or if the monitor is turned off with
the ON/OFF button on the monitor, reset the clock.
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select CLOCK.
3. Press the Gbutton and then use D / Ebutton to set the hour.
4. Press the Gbutton and then use D / Ebutton to set the minutes.
5. Press the MENU button.
-- --:
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
CLOCK G
OFF TIMER
ON TIMER
AUTO OFF
MENU PREV.
17
Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select KEY LOCK.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
With the lock on, the display KEY LOCK appears on the screen if any button on the front
panel is pressed while viewing the monitor.
Orbiter
Orbiter
- Avoid allowing a fixed image to remain on the Monitor's screen for a long period of time. A frozen still picture from
a PC/video game displayed on the screen for prolonged periods will result in an ghost image remaining even when
you change the image.
- To avoid a permanent image on the screen, the screen will move every 2 minutes:
Right →Right → Downside →Downside →Left →Left →Upside →Upside
- The Orbiter feature may help prevent ghost images. However, it is best not to allow any fixed image to remain on
the screen.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select ORBITER.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
White W
White Wash
ash
- White Wash removes permanent images from the screen.
- Set White Wash ‘ON’until fixed image disappears.
- A excessive permanent image is impossible to clear with using this function perfectly.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select WHITE WASH.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
• When you select ON, the screen changes to white.
4. Press the MENU button.
Special Menu Options
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
LANGUAGE
KEY LOCK G
ORBITER
WHITE WASH
SET ID
ON
OFF
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
LANGUAGE
KEY LOCK
ORBITER G
WHITE WASH
SET ID
ON
OFF
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH G
SET ID
ON
OFF
MENU PREV.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
- In KEY LOCK ‘ON’, if the monitor is turned off with the remote control, press the INPUT SELECT button on
the monitor or POWER, INPUT SELECT on the remote control.
- With the KEY LOCK ON, the display ‘ KEY LOCK’appears on the screen if any button on the front panel
is pressed.
W
18
Auto
Auto Adjustment
Adjustment
- RGB1 (PC) mode only; This function doesn’t work in RGB1-Digital broadcast.
- Automatically adjusts picture position and minimizes image shaking.
-Although the image is still not correct, your Monitor is functioning properly but needs further adjustment.
-The AUTO CONFIG.and the MANUAL CONFIG can be adjust automatically for RGB 2 mode.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select AUTO CONFIG..
3. Press the Gbutton to run Auto configure.
• When AUTO CONFIG.has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
4. If picture needs to be adjusted more after Auto adjustment in RGB1(PC), you can
adjust the MANUAL CONFIG.

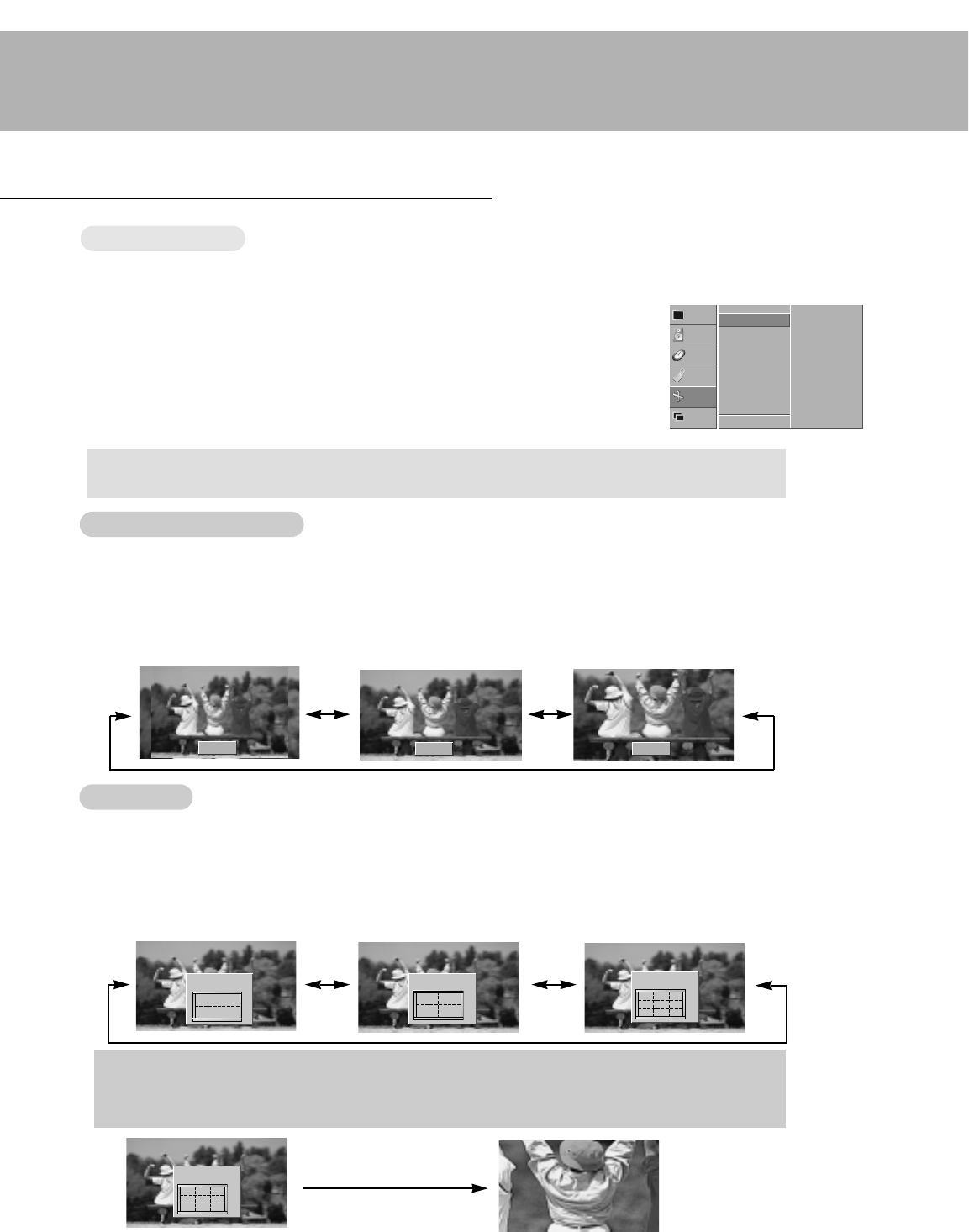

Setting Picture Format
Setting Picture Format
- You are available to 4:3 and 16:9 in RGB1,RGB2 and COMPONENT(DTV).
- You are available to 16:9, 4:3 and ZOOM in VIDEO and S-VIDEO.
- If 4:3 is on the screen for a long time, that fixed image may remain visible.
1. Press the ARC button to select a desired picture format.
•Each press of ARC button changes the screen display as shown below.
•You can also select 4:3, 16:9 or ZOOM in the SCREEN menu.
Screen Menu Options
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
AUTO CONFIG. G
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ.
RESET
TO SET
MENU PREV.
Split Zoom
Split Zoom
- This is the function to enlarge the screen with regular ration.
-It’s available to use this function in every input source.
- with 2-SPLIT ZOOM, you can only move the screen into upside or downside.
- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.
1. Press the SPLIT ZOOM button.
•Each press of SPLIT ZOOM button changes the screen display as shown below.
1
4
▲
▼
◀▶
2-SPLIT ZOOM
▲
▼
◀▶
12
54
4-SPLIT ZOOM
▲
▼
◀▶
12 3
456
789
9-SPLIT ZOOM
16 : 9
4 : 3 ZOOM
In case of 9-SPLIT ZOOM:
Press the number button to select the section you enlarge.
If you choose No.5, the 5 section is enlarged and also can move the enlarged screen with using the D / E / F / G
button.
In case of choosing the No.5 The 5 section is changed to
a full screen.
▲
▼
◀▶
12 3
456
789
9-SPLIT ZOOM
19

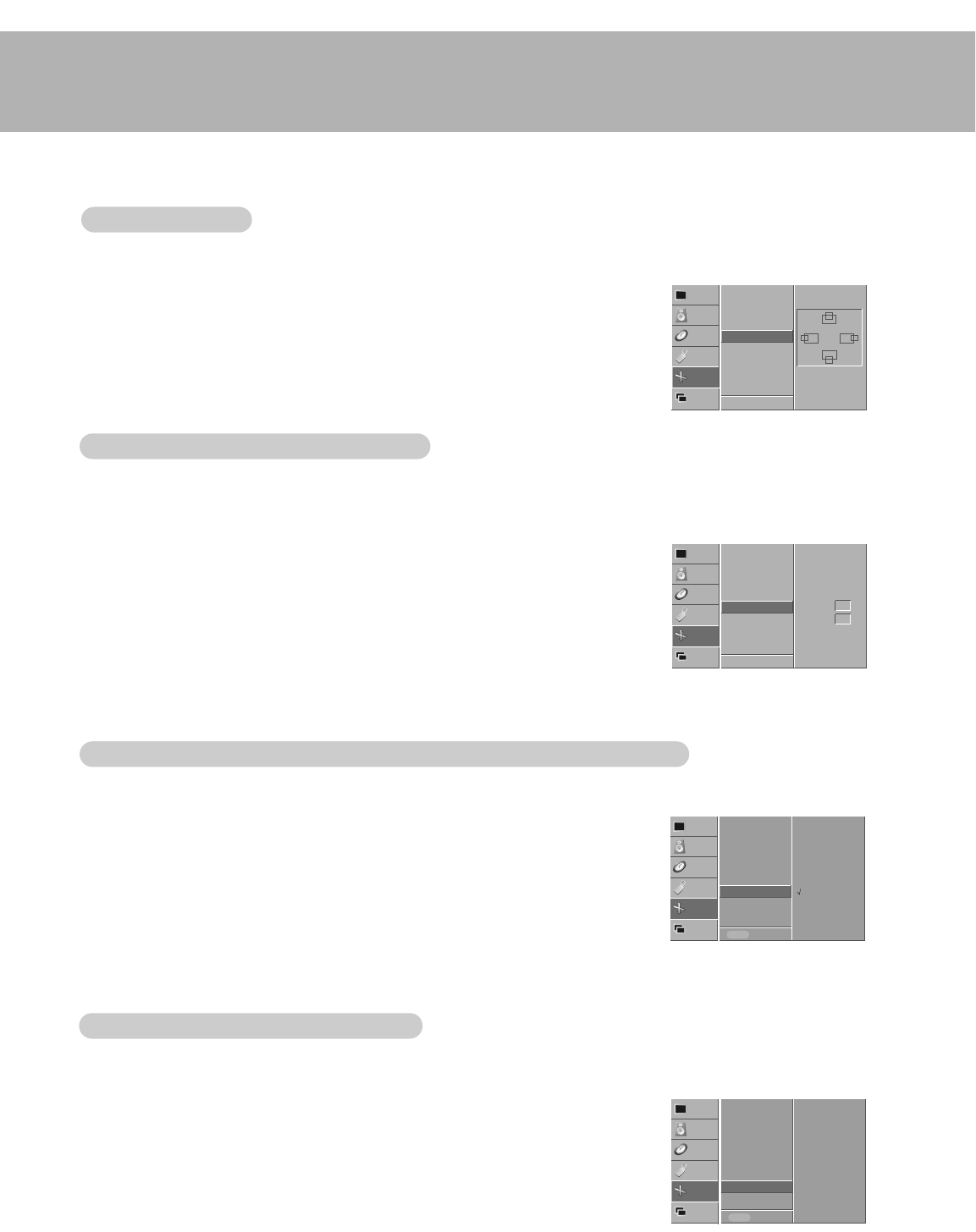

Manual Configure (RGB1 [PC] mode only)
Manual Configure (RGB1 [PC] mode only)
- If the picture isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture phase
manually.
- To correct the screen size, adjust CLOCK.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select MANUAL CONFIG..
3. Press the Gbutton and then use D / Ebutton to to select PHASE or CLOCK.
4. Use the F / Gbutton to make appropriate adjustments.
• The adjustment range of PHASE is 0 ~ 31.
• The adjustment range of CLOCK is -50 ~ +50.
5. Press the MENU button.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select RESET.
3. Press the Gbutton.
•You can initialize ZOOM IN/OUT, POSITION, SPLIT ZOOM, PIP size, PIP position and
sub picture size for twin picture.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
Screen
Screen Adjustments (VIDEO, S-VIDEO and COMPONENT
Adjustments (VIDEO, S-VIDEO and COMPONENT 480i mode only)
480i mode only)
- Use this function to correct jittering or picture instability while viewing a video tape.
- This function operates in every mode.
- To initialize the adjusted value
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D /Ebutton to to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment.(Except VCR)
4. Press the MENU button.
0
0
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.G
SCREEN ADJ.
RESET
PHASE
CLOCK
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ.
RESET GTO SET
MENU PREV.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ. G
RESET
TV
VCR
MENU PREV.
- This function works in the following mode:
RGB1-PC, RGB1-DTV 480p,720p,1080i, COMPONENT 480p,720p,1080i.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select POSITION.
3. Press the Gbutton and then use D / E/ F / Gbutton to adjust the position.
4. Press the MENU button.
◀▶
▲
▼
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION G
MANUAL CONFIG.
SCREEN ADJ.
RESET
MENU PREV.
Screen Position
Screen Position
20
W

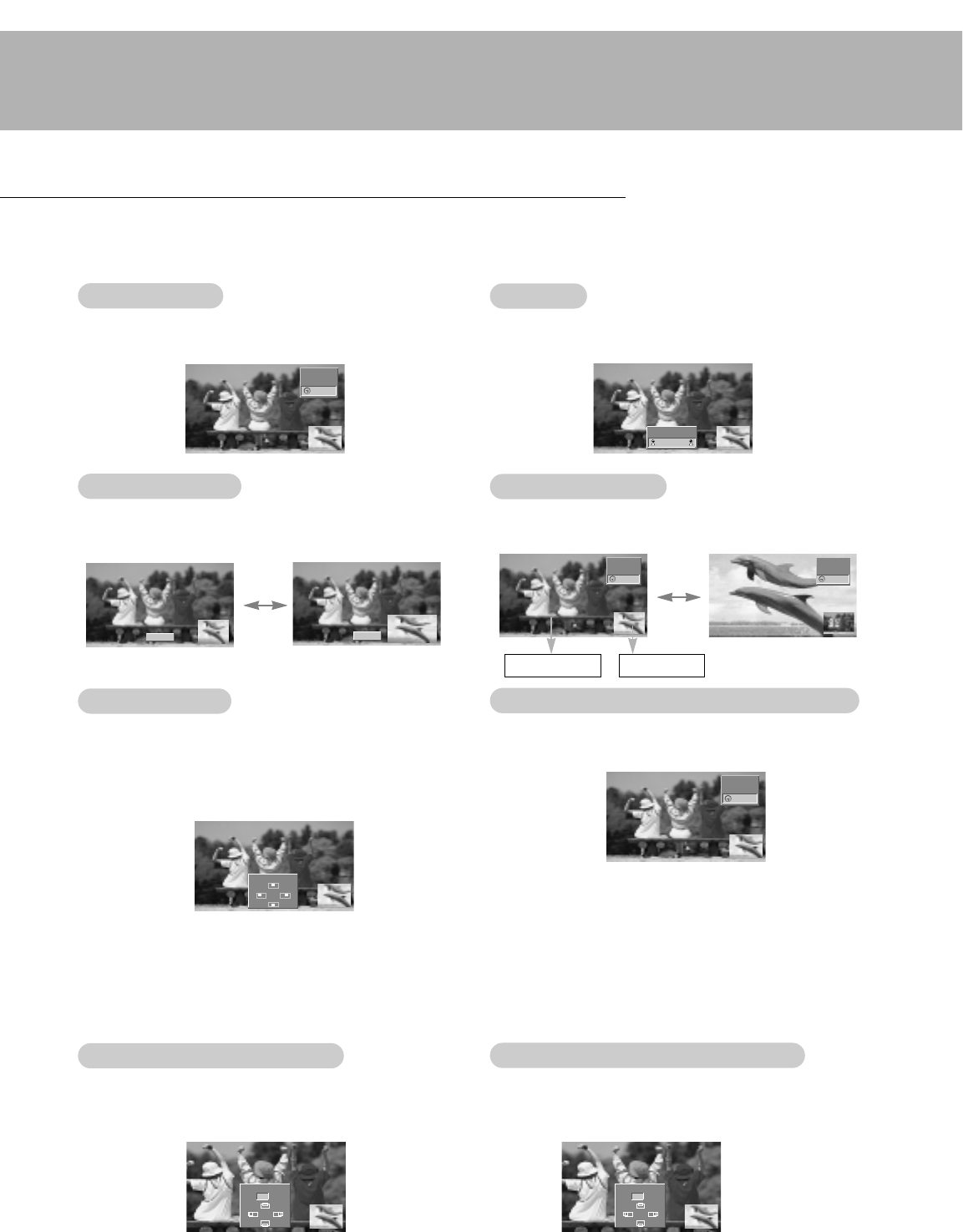

Watching PIP
atching PIP
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
- When you select PC or DTV for main picture in PIP, you can watch VIDEO, S-VIDEO or COMPONENT 480i for sub picture.
PIP (Picture-in-Picture) Feature
Press the PIP button to show the sub picture.
•Press the PIP button again to turn PIP off.
PIP
PIP Size
Size
Press the WIN.SIZE button and then use F / Gbutton to
change the sub picture size.
PIP
PIP Aspect Ratio
Aspect Ratio
Press the PIP ARC button.
•The sub picture appears as below.
Moving the PIP
Moving the PIP
Press the WIN.POSITION button.
Press the D / E/ F / Gbutton repeatedly until desired
position is achieved. The sub picture moves
up/down/left/right.
Swapping the PIP
Swapping the PIP
Press the SWAP button to exchange the main and sub
pictures.
Selecting a Input Signal Source for the PIP
Selecting a Input Signal Source for the PIP
Press the SUB INPUT button to select the input source
for the sub picture.
•In RGB1 and RGB2 for main picture, you can select
COMPONENT 480i, VIDEO and S-VIDEO for sub pic-
ture.
•In VIDEO and S-VIDEO for main picture, you can
select COMPONENT 480p/720p/1080i, RGB1 and
RGB2 for sub picture.
•In COMPONENT 480p/720p/1080i for main picture,
you can select VIDEO and S-VIDEO for sub picture.
•In COMPONENT 480i for main picture, you can select
RGB1 and RGB2 for sub picture.
Main Picture Size
Main Picture Size Adjustment
Adjustment
Press the ZOOM+/ZOOM- button to enlarge or reduce
the main picture size when viewing the PIP.
Main Picture Position
Main Picture Position Adjustment
Adjustment
Adjust the main picture position with the D / E/ F / G
buttons in enlarged main picture mode.
Main Picture Sub Picture
10 : 30
◀▶
◀▶
▲
▼
10 : 30 10 : 30
10 : 30
◀▶
▲
▼
100 %
4 : 3 16 : 9
WIN.SIZE
WIN.POSITION
ZOOM
◀▶
▲
▼
100 %
ZOOM
COMPONENT
VIDEO
COMPONENT
VIDEO
COMPONENT
VIDEO
VIDEO
COMPONENT
21
Selecting a Source for the
Selecting a Source for the T
Twin Picture
win Picture
Twin Picture
Use the SUB INPUT button to select the input source for
the sub picture.
Main Picture Size
Main Picture Size Adjustment
Adjustment
Use the TWIN PICTURE button.
•Each press of the TWIN PICTURE button cycles through the screen displays shown below.
Sub Picture Size
Sub Picture Size Adjustment
Adjustment
Use the WIN.SIZE button.
•Use the F / Gbutton to adjust the sub picture size.
•Using WIN.SIZE function in Twin Picture mode, main
and sub picture are adjusted simultaneously.
Using WIN.SIZE function in PIP mode, sub picture is adjust-
ed.
•WIN.POSITION is not functional in twin picture mode.
Swapping the
Swapping the T
Twin Picture
win Picture
Use the SWAP button to switch the main and sub pictures
in twin picture mode.
DW 1
DW 2
10 : 30
10 : 30
10 : 30
◀▶
WIN.SIZE
•Using sources RGB1 or RGB2 for main picture, you
can select COMPONENT 480i, VIDEO, or S-VIDEO for
sub picture.
•Using sources VIDEO or S-VIDEO for main picture,
you can select COMPONENT 480p/720p/1080i,
RGB1, or RGB2 for sub picture.
•Using sources COMPONENT 480p/720p/1080i for
main picture, you can select VIDEO, or S-VIDEO for
sub picture.
•Using sources COMPONENT 480i for main picture,
you can select RGB1, or RGB2 for sub picture.
Off
COMPONENT
VIDEO
COMPONENT
VIDEO VIDEO
COMPONENT
22
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 24.
1. Press the MENU button and then use the D /Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D /Ebutton to select SET ID.
3. Press the Gbutton and then use F / Gbutton to adjust SET ID to choose the desired
monitor ID number.
• The adjustment range of SET ID is 1 ~ 99.
1
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
SET ID G
MENU PREV.
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-wire configuration
(Standard RS-232C cable)
D-Sub 9
Control line
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-wire configuration
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
External Control Device Setup
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of connector; D-Sub 9-pin male
ype of connector; D-Sub 9-pin male
RS-232C configurations
RS-232C configurations
• Baud rate : 115200 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
23
Transmission
* [Command 1] : k
* [Command 2] : To control PDP set.
* [Set ID] : You can adjust the set ID to choose
desired monitor ID number in special
menu. See previous page.
Adjustment range is 1 ~ 99.
When selecting Set ID ‘0’, every
connected PDP set is controlled.
* [DATA] : To transmit command data.
Transmit ‘FF’data to read status of
command.
* [Cr] : Carriage Return
ASCII code ‘0x0D’
* [ ] : ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 4
03. Aspect Ratio k c 0 ~ 2
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD select k l 0 ~ 1
13.
Remote control lock mode
k m 0 ~ 1
14. PIP/Twin k n 0 ~ 3
15. PIP size k o 0 ~ 1
16. PIP position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color temperature k u 0 ~ 3
21. Red adjustment k v 0 ~ 64
22. Green adjustment k w 0 ~ 64
23. Blue adjustment k $ 0 ~ 64
24. PIP input source k y 0 ~ 4
25. Orbiter j p 0 ~ 1
26. White Wash j q 0 ~ 1
27. Orbiter Time Setting j r 1 ~ FE
28. Orbiter Pixel Setting j s 0 ~9
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
* When setting the 25 ~ 28, a menu doesn’t display on
screen.
[Command2][ ][Set ID][ ][NG][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
Command Reference List
Command Reference List
02. Input Select (Command:b) (Main Picture Input)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
Transmission
Data 0 : RGB 1
1 : COMPONENT
2 : VIDEO
3 : S-VIDEO
4 : RGB 2
Data 0 : RGB 1
1 : COMPONENT
2 : VIDEO
3 : S-VIDEO
4 : RGB 2
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off 1 : Power On
Data 0 : Power Off 1 : Power On
* In like manner, if other functions transmit ‘FF’data based
on this format, Acknowledgement data feed back presents
status about each function.
[a][ ][Set ID][ ][OK][Data][x]
24
09. Color (Command:i)
GTo adjust the screen color.
You can also adjust color in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’as shown below.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command:j)
GTo adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission
Data Red : 0 ~ Green : 64
* Refer to ‘Real data mapping1’as shown below.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Red : 0 ~ Green : 64
[j][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
* Real data mapping 2
0 : -10
5: -9
A: -8
2D: -1
32: 0
37: +1
5F: +9
64: +10
08. Brightness (Command:h)
GTo adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’as shown below.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[h][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.
Transmission
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
* Using the PC input, you select either 16:9 or 4:3 screen
aspect ratio.
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’as shown right.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command:g)
GTo adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[g][ ][Set ID][ ][OK][Data][x]
25
17. Treble (Command:r)
GTo adjust treble.
You can also adjust treble in the Audio menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 24.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[r][ ][Set ID][ ][OK][Data][x]
16. PIP Position (Command:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using
WIN.POSITION on the remote control or in the Special menu.
Transmission
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
[q][ ][Set ID][ ][OK][Data][x]
18. Bass (Command:s)
GTo adjust bass.
You can also adjust bass in the Audio menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 24.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[s][ ][Set ID][ ][OK][Data][x]
19. Balance (Command:t)
GTo adjust balance.
You can also adjust balance in the Audio menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 24.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[t][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command:m)
GTo lock the front panel controls on the monitor and remote
control.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Lock off 1 : Lock on
Data 0 : Lock off 1 : Lock on
* If you’re not using the remote control, use this mode.
When main power is on/off, remote control lock is released.
[m][ ][Set ID][ ][OK][Data][x]
14. PIP / Twin (Command:n)
GTo control the PIP (Picture In picture).
You can also control the PIP/TWIN using the PIP or Twin
picture button on the remote control or in the Special menu.
Transmission
Data 0 : PIP/DW off
1 : PIP 2 : DW1
3 : DW2
Data 0 : PIP/DW off
1 : PIP 2 : DW1
3 : DW2
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission
11. Sharpness (Command:k)
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 24.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : OSD off 1 : OSD on
Data 0 : OSD off 1 : OSD on
[l][ ][Set ID][ ][OK][Data][x]
15. PIP Size (Command:o)
GTo select the PIP picture format.
You can also select the PIP picture format using WIN.SIZE
on the remote control.
Transmission
[k][o][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : 4:3 1 : 16:9
Data 0 : 4:3 1 : 16:9
[o][ ][Set ID][ ][OK][Data][x]
26
25. Orbiter (Command:p)
GTo control the orbiter function on/off.
Transmission
Data 0 : Orbiter off
1 : Orbiter on
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Orbiter off
1 : Orbiter on
[p][ ][Set ID][ ][OK][Data][x]
26. White Wash (Command:q)
GTo control the white wash function on/off.
Transmission
Data 0 : White Wash off
1 : White Wash on
Data 0 : White Wash off
1 : White Wash on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
27. Orbiter Time Setting (Command:r)
GTo adjust orbiter operation time term.
Transmission
Data Min : 1 ~ Max : FE
* Refer to ‘Real data mapping1’. See page 24.
Data Min : 1 ~ Max : FE
[j][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
28. Orbiter Pixel Setting (Command:s)
GTo adjust pixel number in orbiter function.
Transmission
Data Min : 0 ~ Max : 9
* Refer to ‘Real data mapping1’. See page 24.
Data Min : 0 ~ Max : 9
[j][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
21. Red Adjustment (Command:v)
GTo adjust red in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 24.
Data Min : 0 ~ Max : 64
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
22. Green Adjustment (Command:w)
GTo adjust green in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 24.
Data Min : 0 ~ Max : 64
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
23. Blue Adjustment (Command:$)
GTo adjust blue in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 24.
Data Min : 0 ~ Max : 64
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
24. PIP Input Select (Command:y)
G To select input source for sub picture in PIP mode.
Transmission
Data 0 : RGB1 1 : COMPONENT
2 : VIDEO 3 : S-VIDEO 4 : RGB2
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : RGB1 1 : COMPONENT
2 : VIDEO 3 : S-VIDEO 4 : RGB2
[y][ ][Set ID][ ][OK][Data][x]
20. Color Temperature (Command:u)
GTo adjust color temperature.
You can also adjust ACC in the Video menu.
Transmission
Data 0: Normal 1: Cool 2: Warm 3: User
Data 0: Normal 1: Cool 2: Warm 3: User
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
27

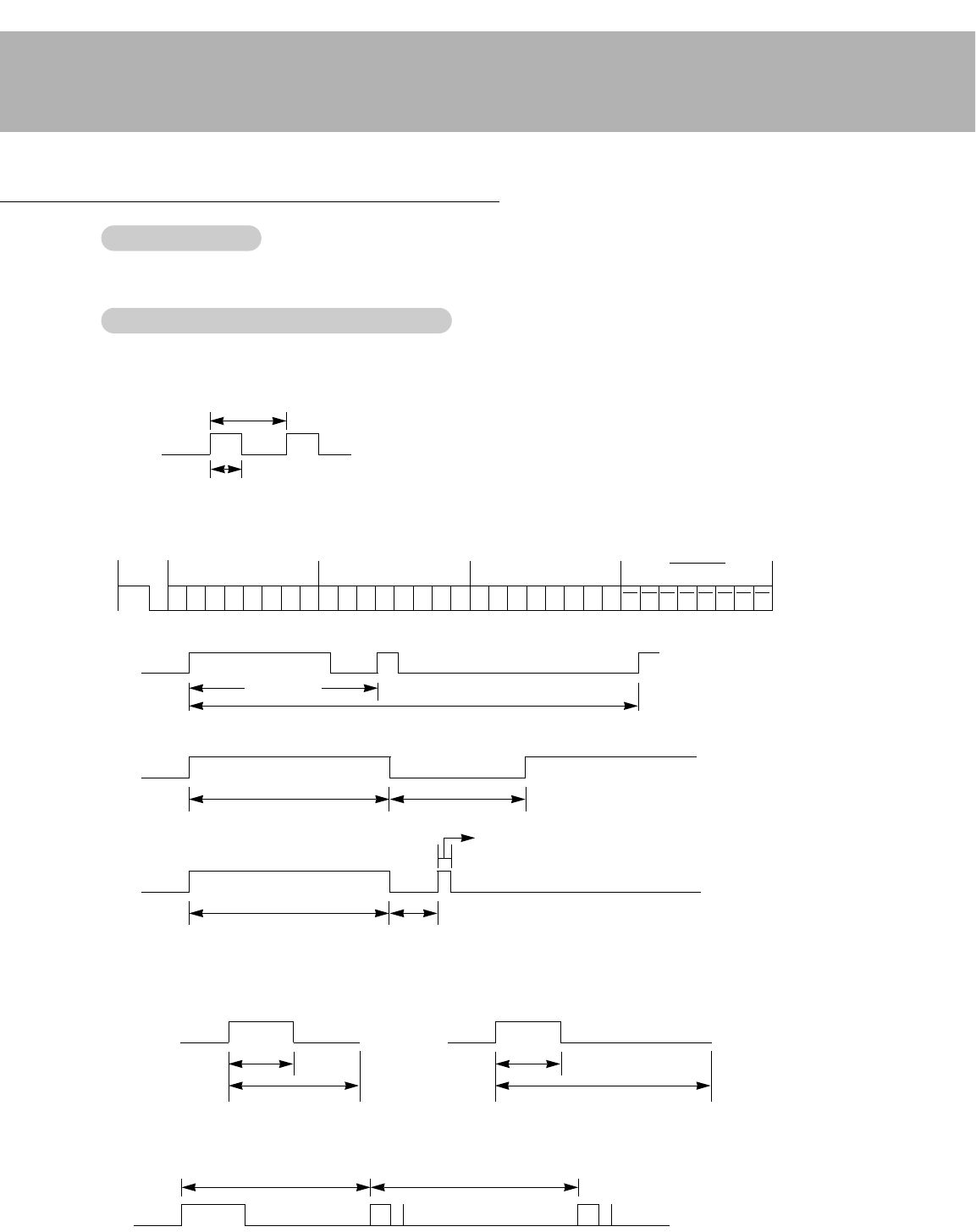

G Connect your wired remote control to the Remote port on the Monitor.
Set the CONTROL LOCK to ‘ON’on the Monitor back panel to operate Monitor with wired remote control.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
IR Code (NEC Format)
How to connect
How to connect
Remote Control IR Code (NEC Format)
Remote Control IR Code (NEC Format)
28
UP (D)
DOWN (E)
VOL+ (G)
VOL- (F)
POWER On/Off
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
AII INPUT SELECT
RGB 1
RGB 2 (DVI input)
VIDEO
S-VIDEO
COMPONENT
SLEEP
OK (Á)
MENU
DASP
APC
PIP
PIP INPUT
SWAP
PIP ARC
TWIN PICTURE
ZOOM +
ZOOM -
Window Size
Window Position
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
98H
C6H
5AH
51H
BFH
0EH
44H
43H
52H
4DH
60H
61H
63H
64H
6BH
40H
41H
69H
6AH
7BH
79H
76H
77H
AFH
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(RGB1/RGB2/Comp/VIDEO/S-VIDEO)
Discrete IR Code (Input RGB1 Selection)
Discrete (Input RGB2 Selection)
Discrete (Input VIDEO Selection)
Discrete (Input S-VIDEO Selection)
Discrete (Input COMPONENT Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (PIP/TWIN Exchange)
R/C Button (4:3/16:9)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete (Only 4:3 mode)
Discrete (Only 16:9 mode)
Discrete (Only ZOOM mode)
Code (Hexa) Function Note
29
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Maintenance
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
30
Troubleshooting Checklist
No output from one of the
speakers •Adjust BALANCE in the AUDIO menu. (Refer to p.15)
Strange sound from the
Monitor •Typical sound due to normal Monitor operation, Monitor is not faulty.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Plug another product’s power cord into the wall outlet where the Monitor’s
power cord was plugged in.
No or Poor color
or Poor picture
•Select COLOR in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.14)
•Keep a certain distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Check to see if the batteries are installed with the correct polarities.
(Refer to p.11)
•Install new batteries. (Refer to p.11)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.
31
Product Specifications
MODEL
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
Operating Temperature Range
Operating Humidity Range
MU-50PZ40/A/B/K/R/S, MU-50PZ41/A/B/K/R/S
48.2 / 1223
28.9 / 734
4.1 / 105
99.2 / 45
AC120V, 60Hz
1366 x 768 (Dot)
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
•The specifications shown above may be changed without notice for quality improvement.
