LG Electronics USA MU50PZ90MQ Plasma Monitor User Manual 410Hen 50PZ90MQ
LG Electronics USA Plasma Monitor 410Hen 50PZ90MQ
User Manual
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual thoroughly before operating
the Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and relate
this information to your dealer if you ever require service.
Model Number :
Serial Number :
MODEL : MU-50PZ90MQ
P/NO : 3828VA0410H (RF03GB)
2 Plasma Monitor
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
W
Warning
arning
Owner’s Manual 3
Safety Instructions
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential elec-
trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and
observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation
that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base-
ment, or near a swimming pool.
7. Accessories, Carts, and Stands
Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the product. Any mounting of the prod-
uct should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufac-
turer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac-
ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer’s instructions have been adhered
to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea-
ture. If you are unable to insert the plug into the outlet, con-
tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
PORTABLE CART WARNING
Safety Instructions
Safety Instructions
4 Plasma Monitor
Safety Instructions
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment

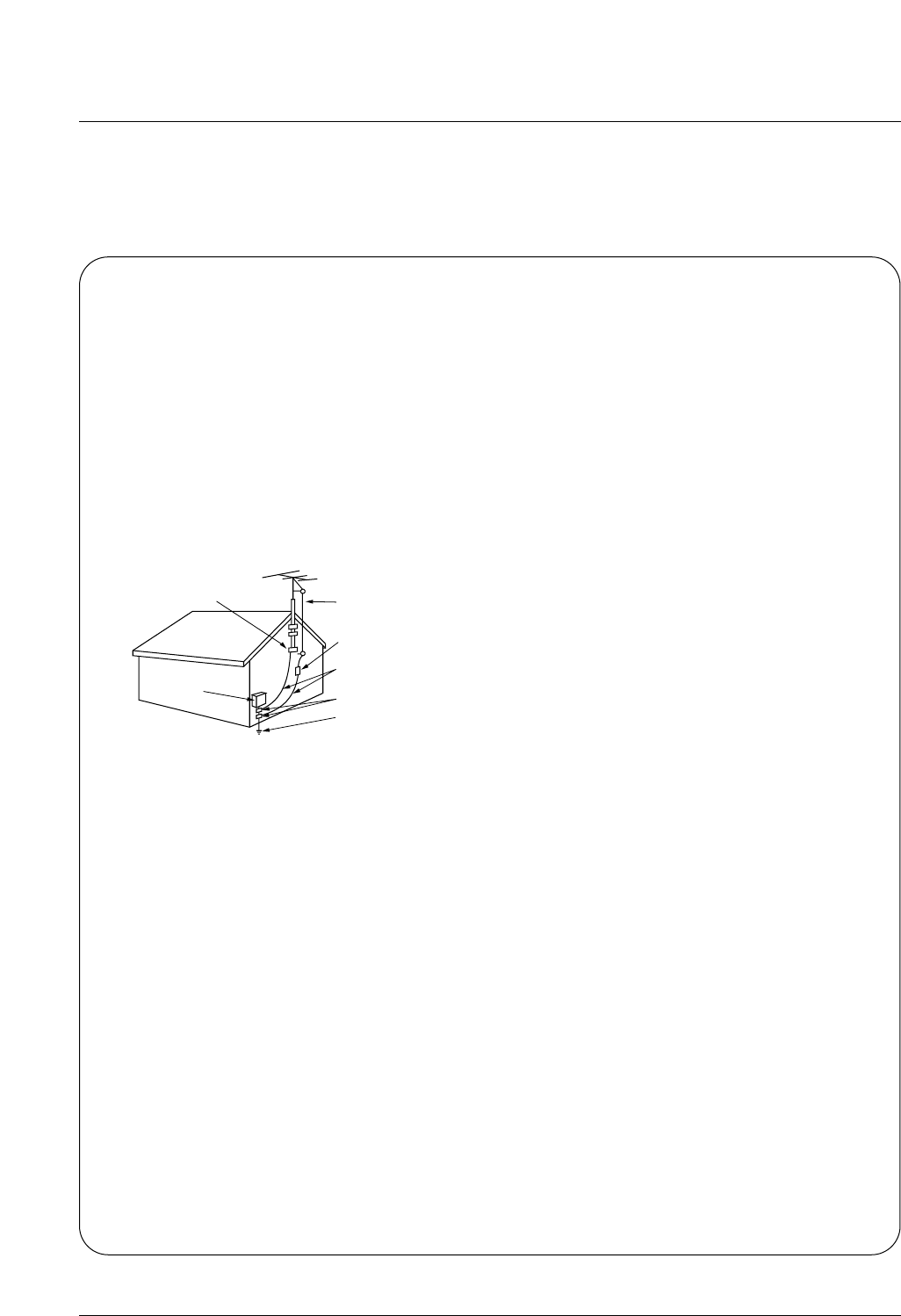

Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
15. Lightning
For added protection for this product (receiver) during a light-
ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per-
sonnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the man-
ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter-
mine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.
24. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
Safety Instructions continued
Safety Instructions continued
Owner’s Manual 5
Contents
After reading this manual, keep it handy for future reference.
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls and Connection Options . . . . . . . . . . . .7
Remote Control Key Functions . . . . . . . . . . . . . .8
Installation
Installation Instruction . . . . . . . . . . . . . . . . . . . .9~10
External Equipment Connections . . . . . . . . . .11~14
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . .11
External A/V Source Setup . . . . . . . . . . . . . . . .12
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .13~14
Operation
Turning on the Monitor . . . . . . . . . . . . . . . . . . . . .15
Menu Language Selection . . . . . . . . . . . . . . . . . .15
Video Menu Options
APC (Auto Picture Control) . . . . . . . . . . . . . . . .16
Manual Picture Control . . . . . . . . . . . . . . . . . . .16
Auto Color Temperature Control . . . . . . . . . . . .16
Manual Color Temperature Control . . . . . . . . . .16
Audio Menu Options
DASP (Digital Auto Sound Processing) . . . . . . .17
Manual Sound Control . . . . . . . . . . . . . . . . . . .17
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .17
Time Menu Options
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .18
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .18
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Security PIP Time Setup . . . . . . . . . . . . . . . . . .19
Security Active . . . . . . . . . . . . . . . . . . . . . . . . .19
Special Menu Options
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Security PIP Operation . . . . . . . . . . . . . . . . . . .21
Menu Rotation For Vertical Viewing . . . . . . . . . .21
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .22
Setting Picture Format . . . . . . . . . . . . . . . . . . .22
Picture Size Zoom . . . . . . . . . . . . . . . . . . . . . .22

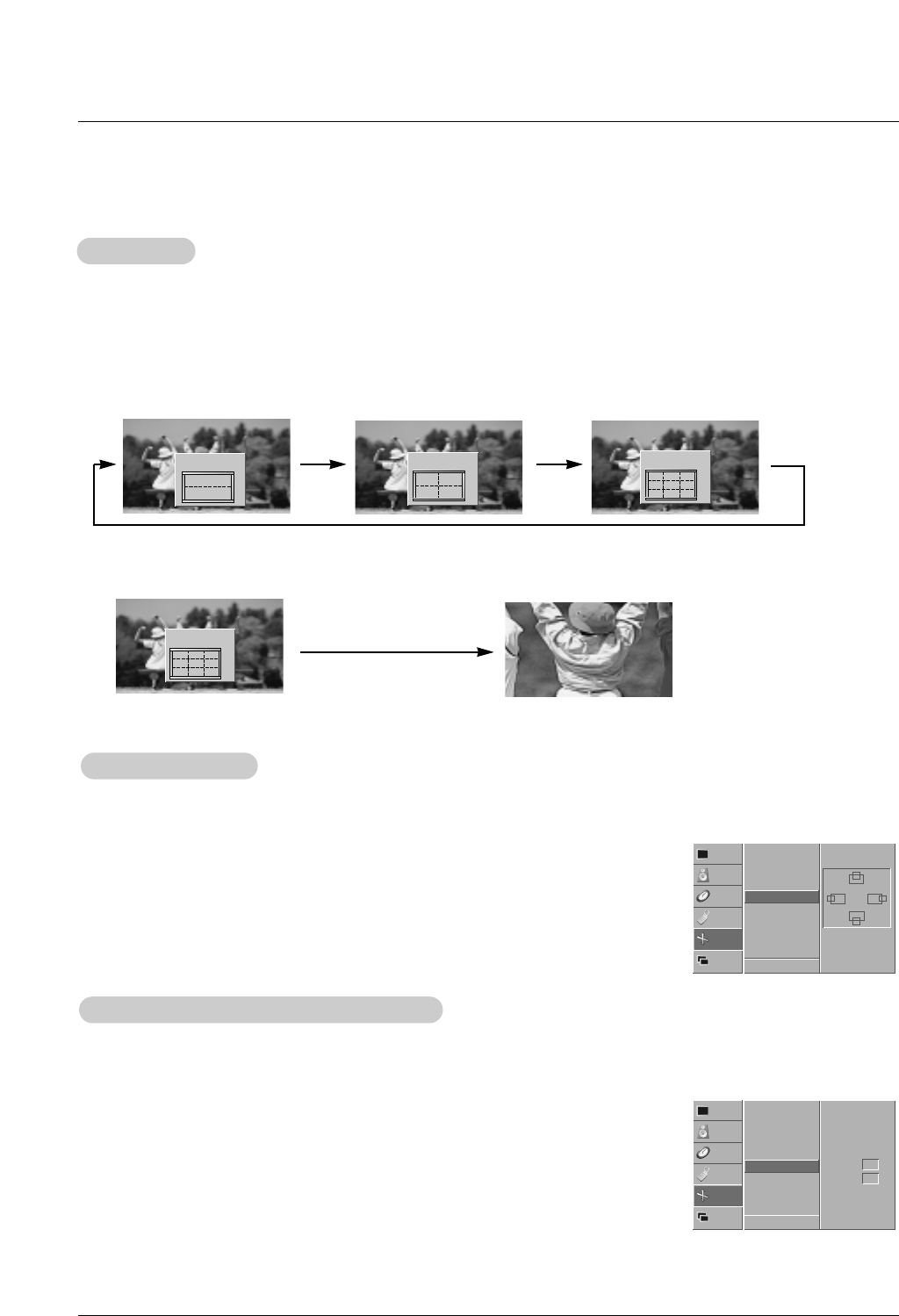

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Screen Position . . . . . . . . . . . . . . . . . . . . . . . .23
Manual Configure . . . . . . . . . . . . . . . . . . . . . . .23
Screen Adjustments . . . . . . . . . . . . . . . . . . . . .24
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Selecting Wide VGA/XGA mode . . . . . . . . . . . .24
Luminance Noise Reduction . . . . . . . . . . . . . . .24

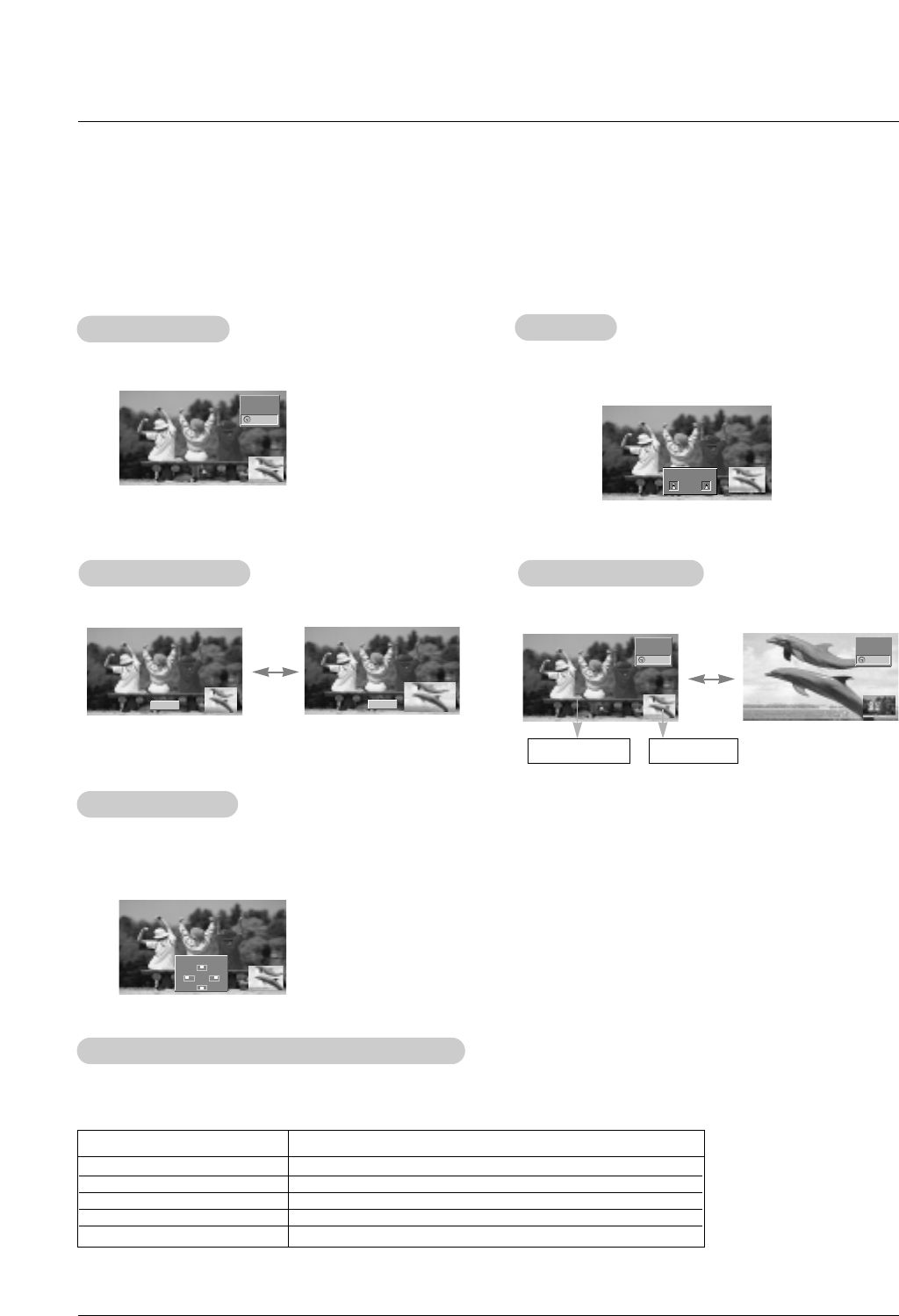

PIP (Picture-in-Picture) Feature
Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .25
PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PIP Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . .25
Swapping PIP . . . . . . . . . . . . . . . . . . . . . . . . . .25
Moving PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Selecting an Input Signal Source for PIP . . . . . .25
Twin Picture Setup Options
Watching Twin Picture . . . . . . . . . . . . . . . . . . . .26
Sub Picture Size Adjustment . . . . . . . . . . . . . . .26
Swapping the Twin Picture . . . . . . . . . . . . . . . .26
Selecting a Source for the Twin Picture . . . . . . .26

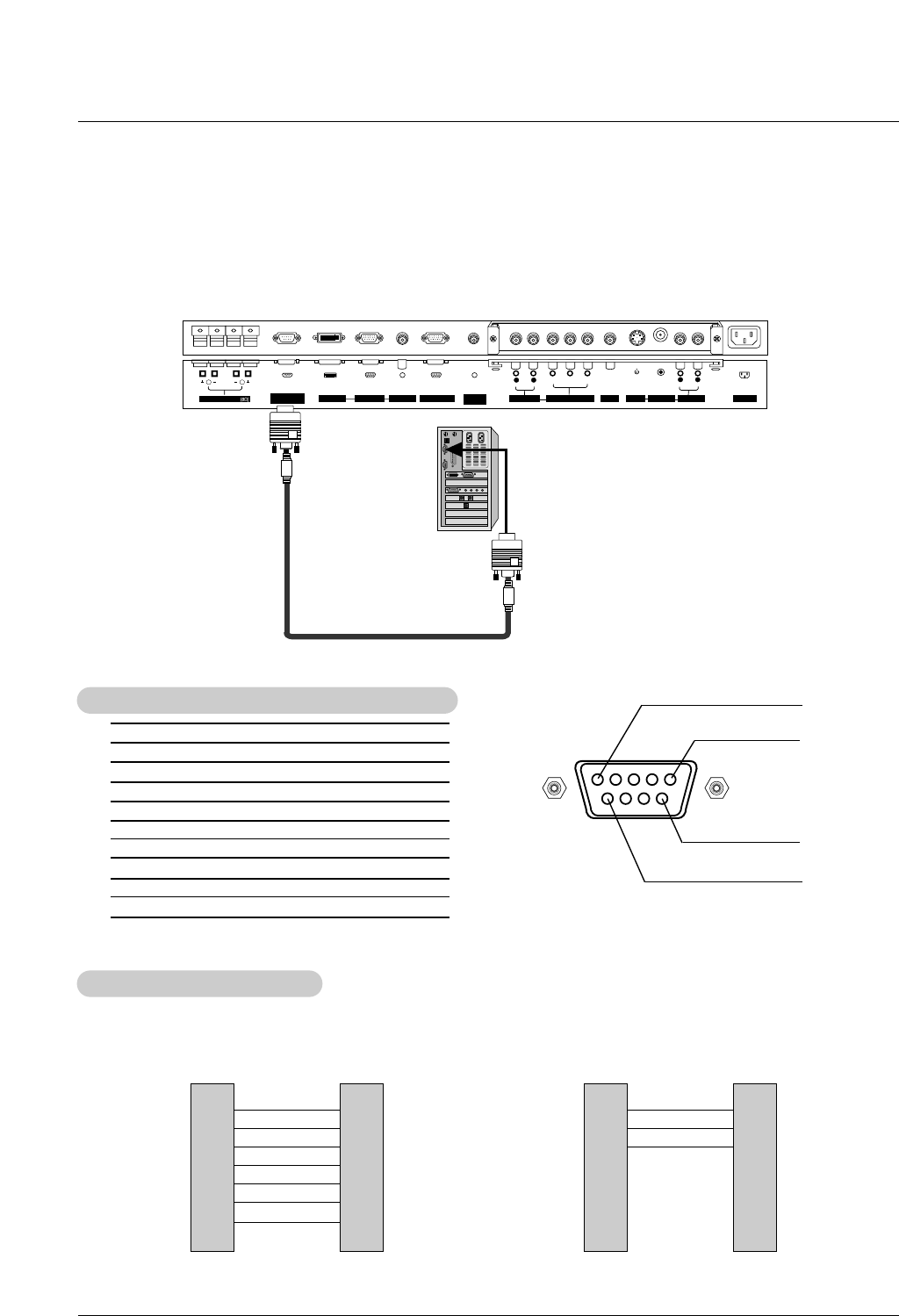

External Control Device Setup . . . . . . . . . . . . . . . .27~32

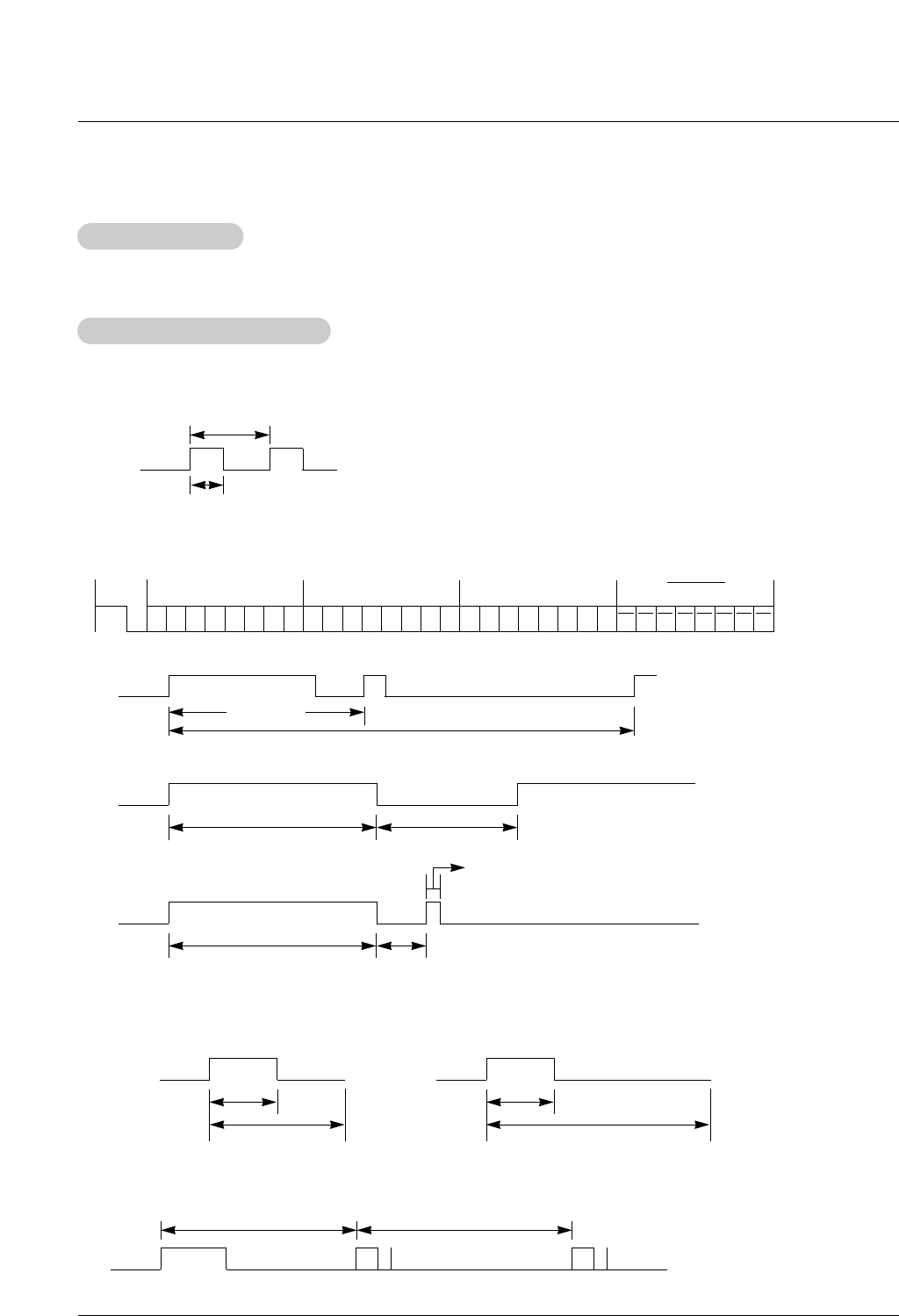

IR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33~34
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .35
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Contents
Contents
Setup and Operation Checklist
Setup and Operation Checklist
Setup and Operation Checklist
(See pages 11~13 for available connection and operational setup options.)
1. Unpack Monitor and all accessories.
2. Connect all external video and audio equipment.
see pages 11 ~ 14.
3 Install batteries in remote control.
See page 8.
4. Turn Monitor on.
See page 15.
5. Turn video source equipment on.
6. Select viewing source for Monitor.
See page 8.
7. Fine-tune source image and sound to personal preference
or as required by source.
See pages 16 ~ 17.
8. Additional features Setup
See Contents above.
6 Plasma Monitor
Introduction
Introduction
Introduction
What is a Plasma Display Panel (PDP)?
If voltage is applied to gas within glass panels, ultraviolet rays are produced and fused with a fluorescent substance. At that
instant, light is emitted. A Plasma Display is a next generation flat Display using this phenomenon.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room.
Wide Screen
The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs would
not fit.
The PDP Manufacturing Process: Why minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several minute colored dots visible on the screen should be accept-
able. This also occurs in other PDP manufacturers' products and the tiny dots appearing does not mean that this PDP is defective.
Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is designed
to minimize cell defects during the manufacture and operation of this product.
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat-
ing and cooling the PDP.
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi-
cient cause for the PDP to be exchanged or returned.
Owner’s Manual 7
Introduction
Controls
Controls
Connection Options
Connection Options
R
( )
( )
( )
( )
L
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
AC INPUT
AUDIO INPUT
REMOTE
CONTROL
DVI INPUT RGB INPUT RGB OUTPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
1
1. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
* For further information, refer to ‘Speaker & Speaker
Stand’manual.
2. RS-232C INPUT (CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
3. DVI (Digital Visual Interface) INPUT/
RGB INPUT/AUDIO INPUT JACKS
Connect the monitor output connector from a PC to the
appropriate input port.
4. RGB OUTPUT PORT
You can watch the RGB signal on another monitor, connect
RGB OUTPUT to another monitor’s PC input port.
5. REMOTE CONTROL
Connect your wired remote control to the remote control
port on the Monitor.
6. COMPONENT INPUT/AUDIO INPUT JACKS
Connect a component video/audio device to these jacks.
7. ALARM JACK
Connect your alarm sensor to this jack. Detailed installation
instruction is included in the alarm sensor owner’s manual.
8. S-VIDEO INPUTS
Connect S-Video out from an S-VIDEO VCR to the S-VIDEO
input.
AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to these
jacks.
9. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to operate
the Monitor on DC power.

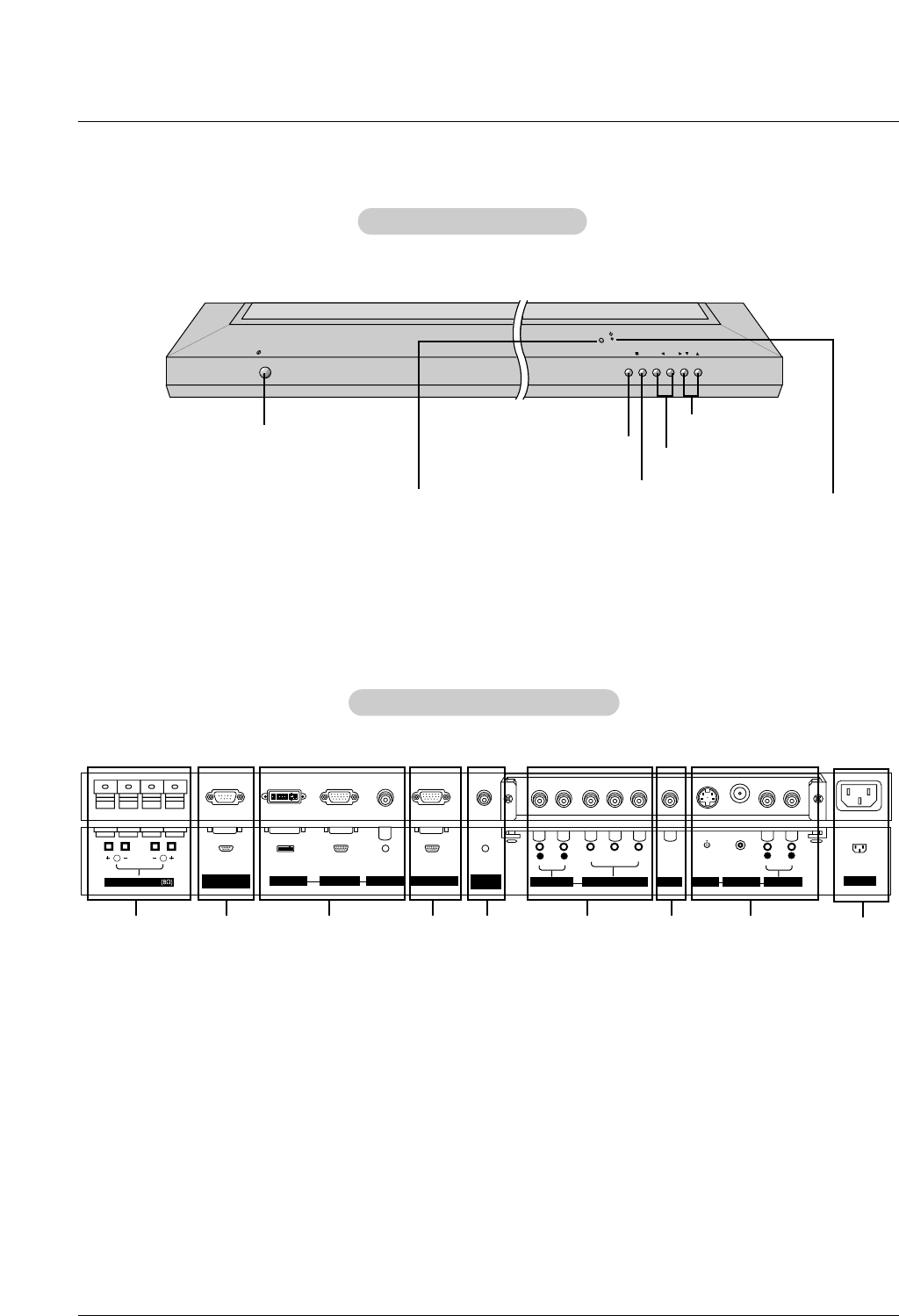

Back Connection Panel
Back Connection Panel
VOL.
MENU
INPUT SELECT
ON/OFF
Main Power Button INPUT SELECT Button VOLUME (F,G) Buttons
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the
Monitor is turned on.
Remote Control Sensor MENU Button
E, D Buttons
Front Panel Controls
Front Panel Controls
2 4 5 73 8 9
6
- This is a simplified representation of front panel.
Here shown may be somewhat different from your monitor.
- Connection panels shown may be somewhat different from your monitor.
8 Plasma Monitor
Introduction
- When using the remote control, aim it at the remote control sensor on the monitor.
- Under certain conditions such as if the remote IR signal is interrupted, the remote control may not function. Press
the key again as necessary.
123
456
78
0
9
POWER
SECURITY INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM + SLEEP
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
POWER
Switches the Monitor between
ON and STANDBY.
SECURITY
Turn on the security PIP.
APC
Adjusts the factory preset picture
according to the room.
(Refer to p.16)
ARC
Changes the picture format.
(Refer to p.22)
PIP
Switches the sub picture on or off.
(Refer to p.25)
SWAP
Exchanges main and sub picture
images. (Refer to p.25, 26)
MENU
Displays on screen menus one by one.
Exits the current menu.
NUMBER buttons
WIN. SIZE
Adjusts the sub picture size.
WIN.POSITION
Moves the sub picture.
SPLIT ZOOM
Enlarges the picture.
ZOOM-/ZOOM+
Enlarges or reduces
the main picture size.
VCR BUTTONS
Control some video cassette
recorders.
OK
D / E
Selects menu option.
Memorizes menu changes.
F / G (Volume button)
Increases/decreases sound level.
Adjusts menu settings.
INPUT SELECT
Selects source: Video,S-Video,
RGB,DVI, or Component mode.
DASP
To select the sound appropriate to
your viewing program character:
Flat,Music, Cinema,Sports,or
User (Refer to p.17)
PIP ARC
Changes the PIP picture format.
(Refer to p.25)
SUB INPUT
Selects the input source for the sub
picture.
MUTE
Switches the sound on or off.
TWIN PICTURE
(Refer to p.26)
SLEEP
Sets the Sleep Timer.
(Refer to p.18)
•Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
•Install two 1.5V batteries of AAA type. Don’t mix used batteries
with new batteries.
Installing Batteries
Installing Batteries

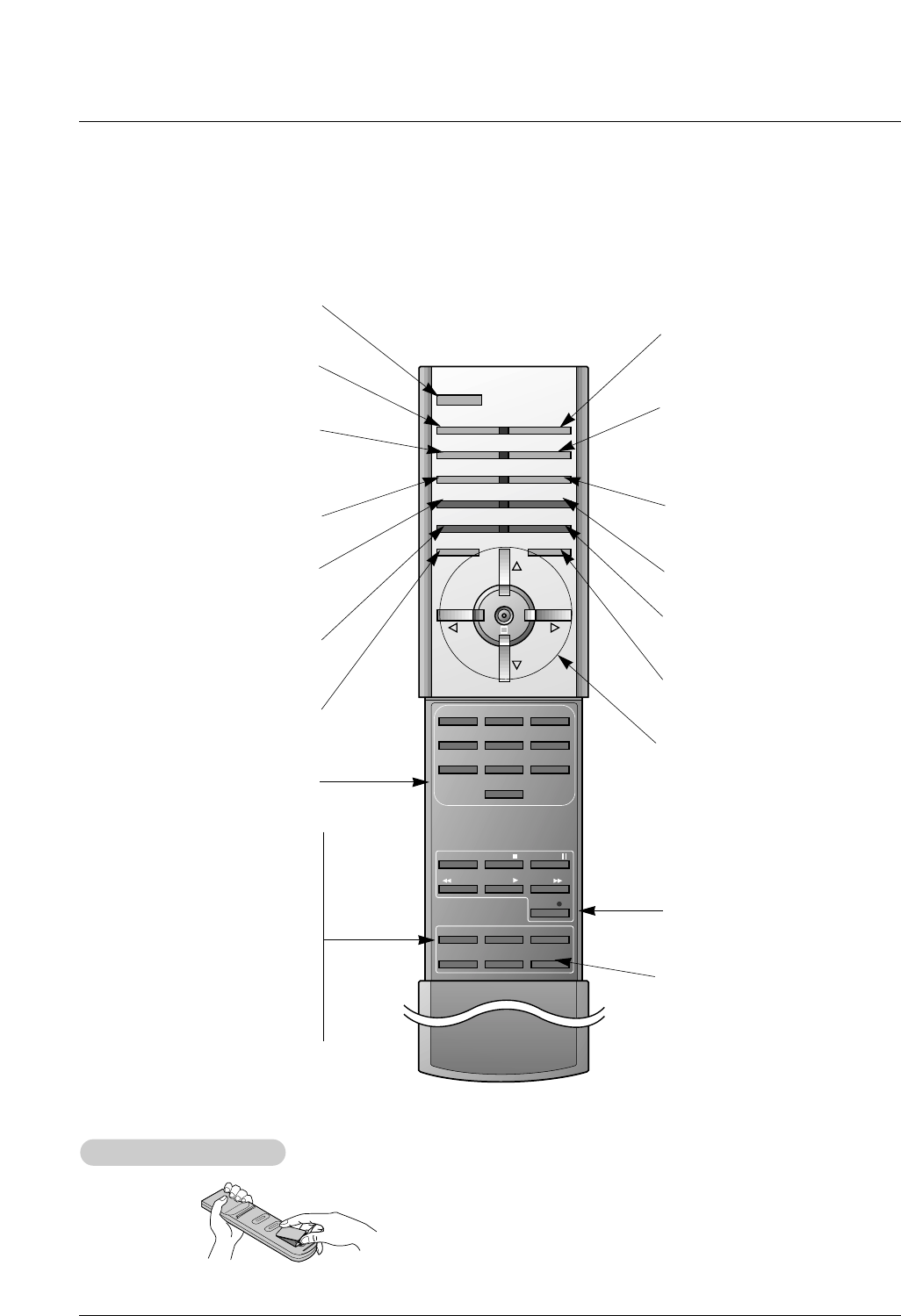

Remote Control Key Functions
Remote Control Key Functions
Owner’s Manual 9

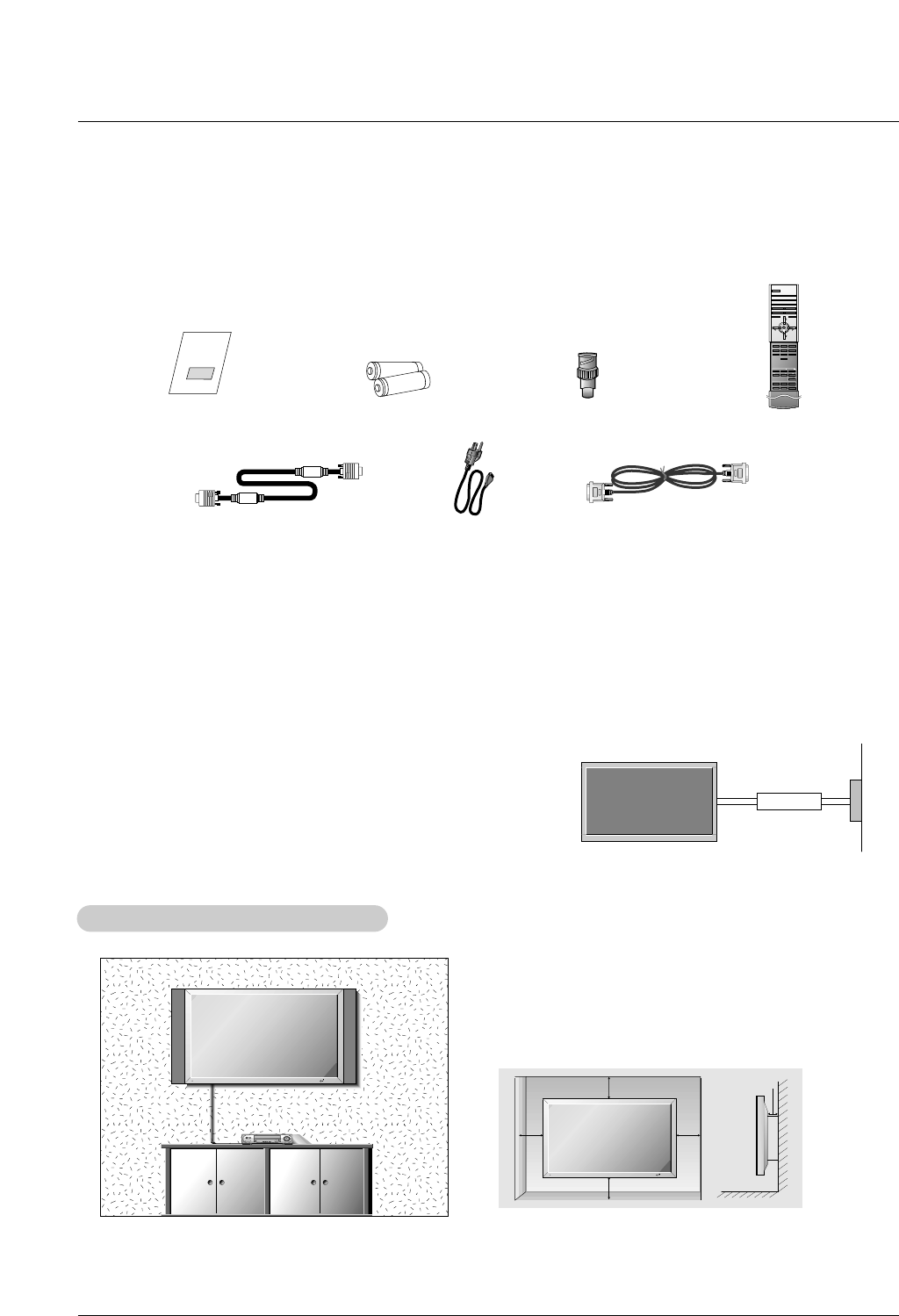

Installation
Installation
Installation
D-sub 15 pin Cable
Owner’s Manual
1.5V
1.5V
Batteries BNC-RCA Adapter
Power Cord
123
456
78
0
9
POWER
SECURITY INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM + SLEEP
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
Remote Control
DVI-D Cable
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
Installation Instructions
Installation Instructions
•The Monitor can be installed in various ways such as on a wall, or on a desktop etc.
•The plasma display is designed to be mounted horizontally or vertically. The speakers shown are optional.
GROUNDING
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
4 inches
4 inches
4 inches4 inches
2 inches
W
Wall Mount: Horizontal installation
all Mount: Horizontal installation
For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional
Wall Mounting Bracket Installation and Setup Guide.
10 Plasma Monitor
Installation
W
Wall Mount: V
all Mount: Vertical installation
ertical installation
Detailed installation instructions are included in the
optional Vertical Wall Mounting Bracket Installation and
Setup Guide available from your dealer.
NOTE: When installing the monitor vertically, the front
panel controls must be in the left side position.
When installing the monitor vertically, you
have to change the OSD display mode so
that the menus will appear correctly and also
to protect the monitor from overheating
(Refer to P. 21).
4 inches
4 inches
2.36 inches
4 inches
2 inches

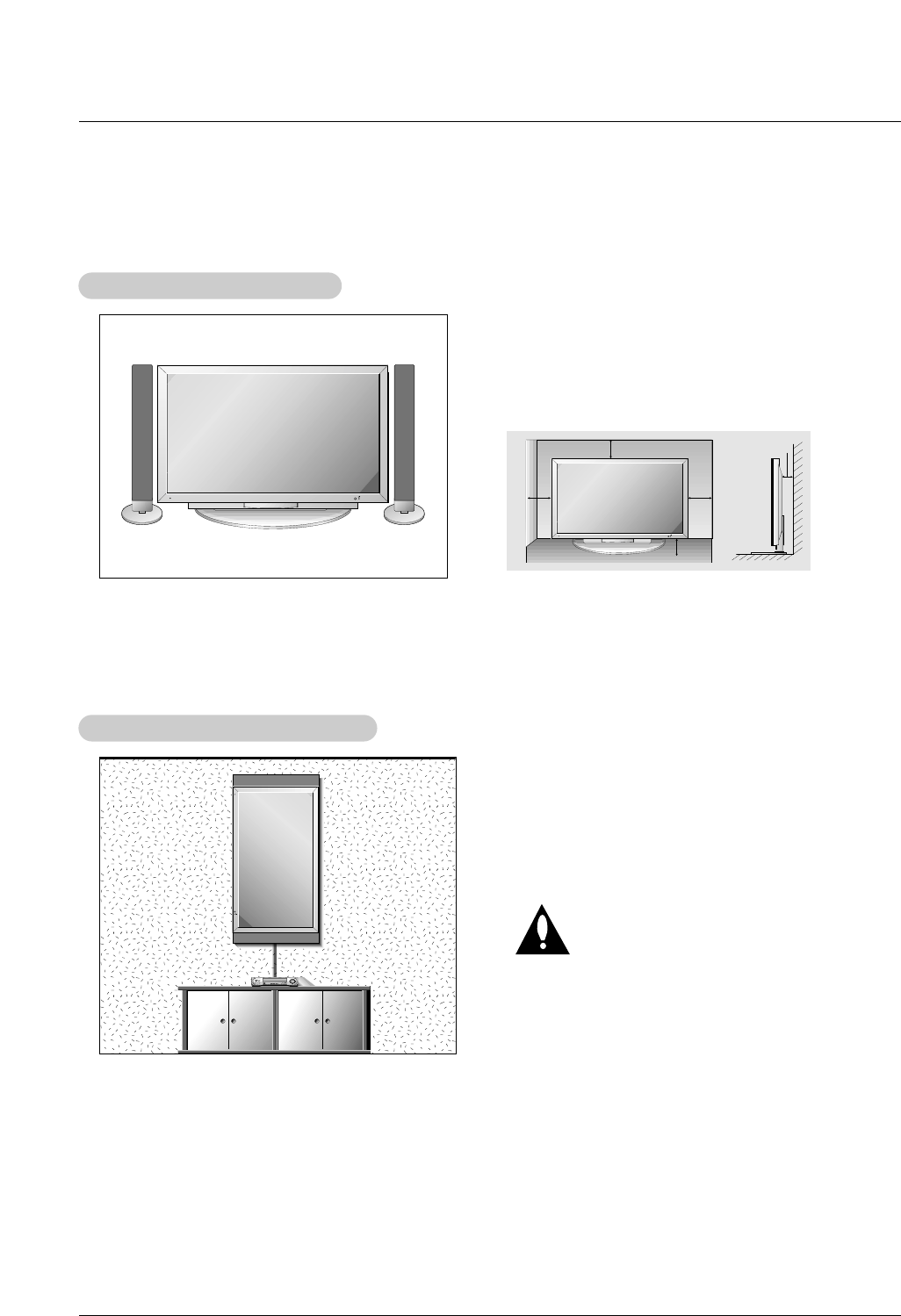

Desktop Pedestal Installation
Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included in the
optional Desktop Stand Installation and Setup Guide
available from your dealer.
Installation Instructions continued
Installation Instructions continued
Owner’s Manual 11
Installation
External Equipment Connections
External Equipment Connections
NOTE: Not all cables shown are included with the plasma display.
- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
- Use the ISM Method feature to avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still
picture from a VCR. If the 4:3 picture format is used; the fixed image may remain visible on the screen.
How to connect
1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.
2. Connect the audio and video cables from the VCR's output jacks to
the monitor input jacks, as shown in the figure.
When connecting the monitor to VCR, match the jack colors (Video
= yellow, Audio Left = white, and Audio Right = red).
Mono VCR: Connect the video output cable from the VCR to the
VIDEO input on the monitor.
S-VIDEO VCR: Connect the S-Video output cable from the VCR to
the S-VIDEO input on the monitor. (Note that S-Video offers higher
quality).
How to use
1. Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
2. Use the INPUT SELECT button on the remote control to select
Video.
(If connected to S-VIDEO, select the S-Video input source.)

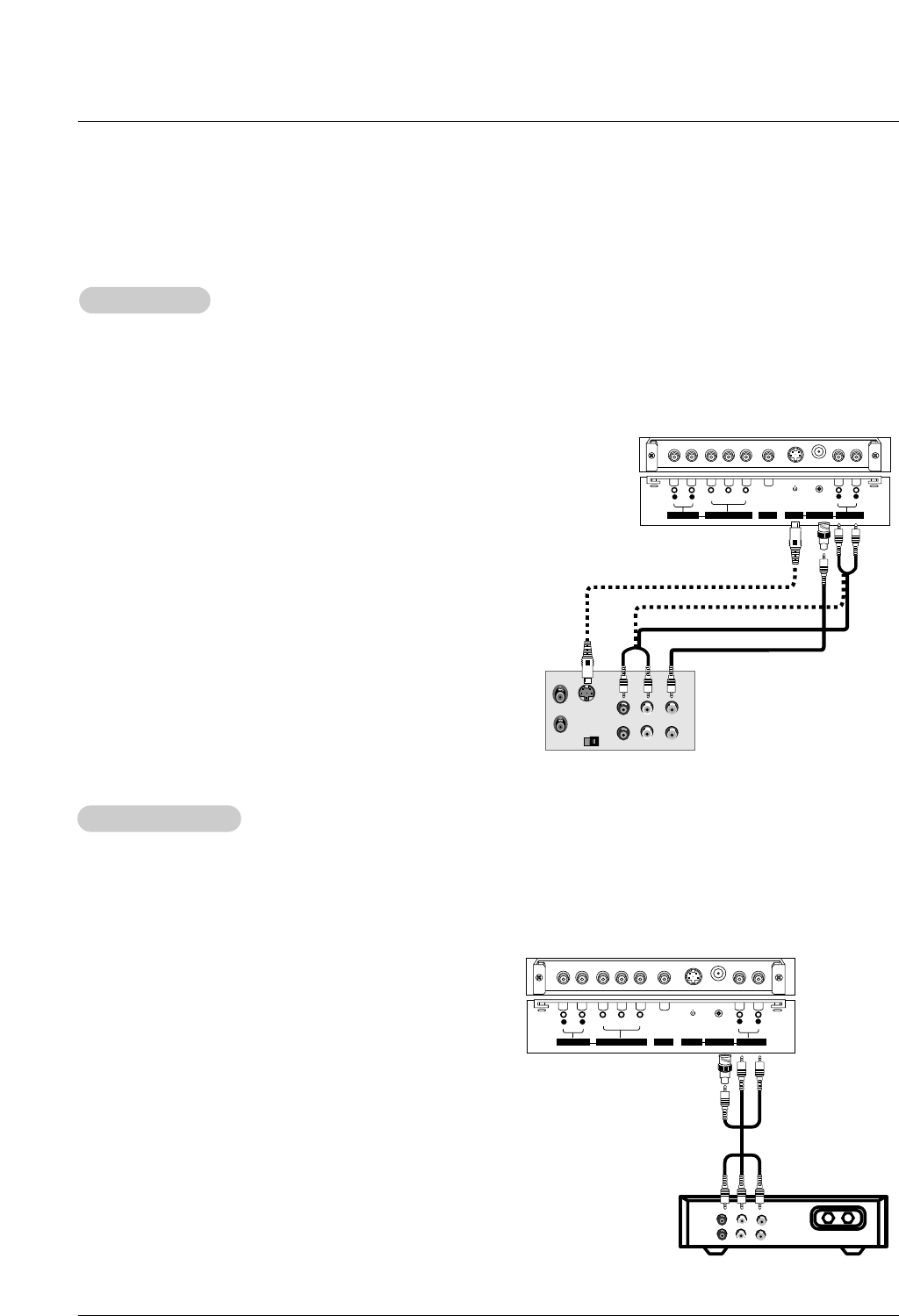

VCR Setup
VCR Setup
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.
The monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the Monitor.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
How to connect
1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.
2. Connect the audio and video cables from the Cable Box's output
jacks to the monitor input jacks, as shown in the figure.
When connecting the monitor to a Cable Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
How to use
1. Use the INPUT SELECT button on the remote control to select
Video.
2. Select your desired channel with the remote control for cable box.
Cable
Cable TV Setup
TV Setup
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
VCR
Cable Box
12 Plasma Monitor
Installation

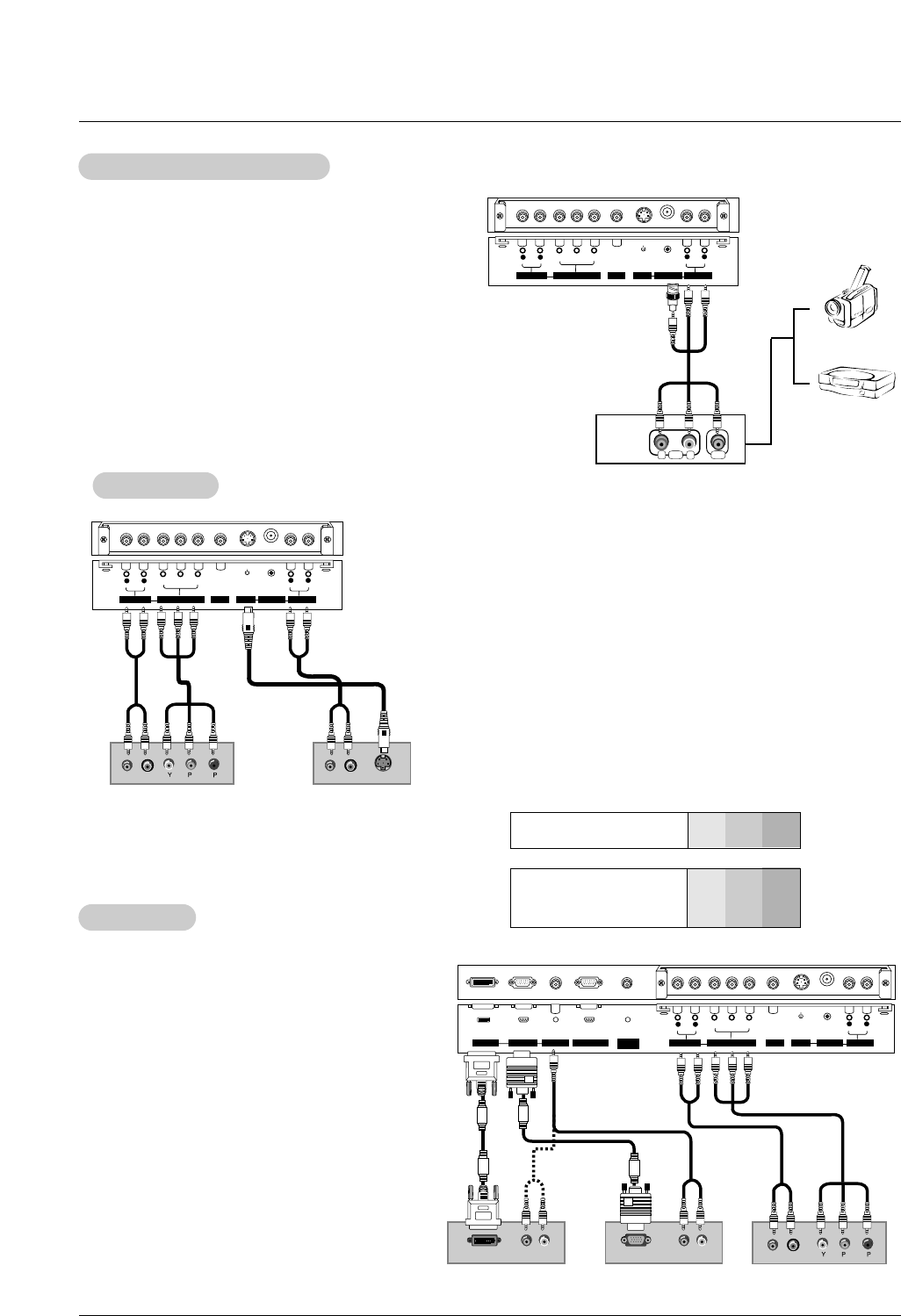

•Component Input ports
To get better picture quality, connect a DVD player to the compo-
nent input ports as shown below.
- To watch digitally broadcast programs, purchase and
connect a digital set-top box.
- This monitor supports HDCP (High-bandwidth Digital
Contents Protection) protocol for DVI DTV
(480p,720p,1080i) mode.
How to connect
Use the monitor’s COMPONENT (Y, PB, PR) INPUT,
RGB or DVI jack for video connections, depending on
your set-top box connector. Then, make the corre-
sponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
2. Use INPUT SELECT on the remote control to select
Component, RGB, or DVI.
DTV Setup
DTV Setup
How to connect
1. Connect the provided BNC-RCA adapter to the monitor’s
VIDEO INPUT.
2. Connect the audio and video cables from the external
equipment's output jacks to the monitor input jacks, as
shown in the figure.
When connecting the monitor to external equipment, match
the jack colors (Video = yellow, Audio Left = white, and
Audio Right = red).
How to use
1. Use the INPUT SELECT button on the remote control to
select Video.
2. Operate the corresponding external equipment. Refer to
external equipment operating guide.
Component ports of the
Monitor YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
1. Connect the DVD video outputs to the COMPONENT (Y, PB, PR)
INPUT jacks and connect the DVD audio outputs to the AUDIO
INPUT jacks on the monitor, as shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to the
S-VIDEO input on the monitor and connect the DVD audio outputs
to the AUDIO INPUT jacks on the monitor, as shown in the figure.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT SELECT button on the remote control to select
Component. (If connected to S-VIDEO, select the S-Video exter-
nal input source.)
3. Refer to the DVD player's manual for operating instructions.
External
External A/V Source Setup
A/V Source Setup
DVD Setup
DVD Setup
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
RL
AUDIO VIDEO
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
AUDIO INPUT
REMOTE
CONTROL
COMPONENT INPUT
DVI INPUT RGB INPUT RGB OUTPUT
BR
(R) AUDIO (L)
RGB-DTV OUTPUT
(R) AUDIO (L)(R) AUDIO (L)
DVI-DTV OUTPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
BR
(R) AUDIO (L) (R) AUDIO (L)
S-VIDEO
DVD
Digital Set-top Box
or
or
or
Camcorder
Video Game Set
Owner’s Manual 13
Installation
How to connect
1. To get the best picture quality, adjust the PC
graphics card to a 1024x768, 60Hz. Resolutions
over UXGA cannot be displayed.
2. Use the monitor’s RGB INPUT or DVI (Digital
Visual Interface) INPUT port for video connections,
depending on your PC connector.
If the graphic card on the PC does not output ana-
log and digital RGB simultaneously, connect only
one of either RGB INPUT or DVI INPUT to display
the PC on the monitor.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the monitor.)
3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.
How to use
1. Turn on the PC and the monitor.
2. Turn on the display by pressing the POWER button on the monitor's remote control.
3. Use the INPUT SELECT button on the remote control to select RGB or DVI.
4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES: • Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.
• Avoid keeping a fixed image on the monitor's screen for a long period of time. The fixed image may become
permanently imprinted on the screen. Use the Orbiter screen saver when possible.
• The synchronization input form for Horizontal and Vertical frequencies is separate.

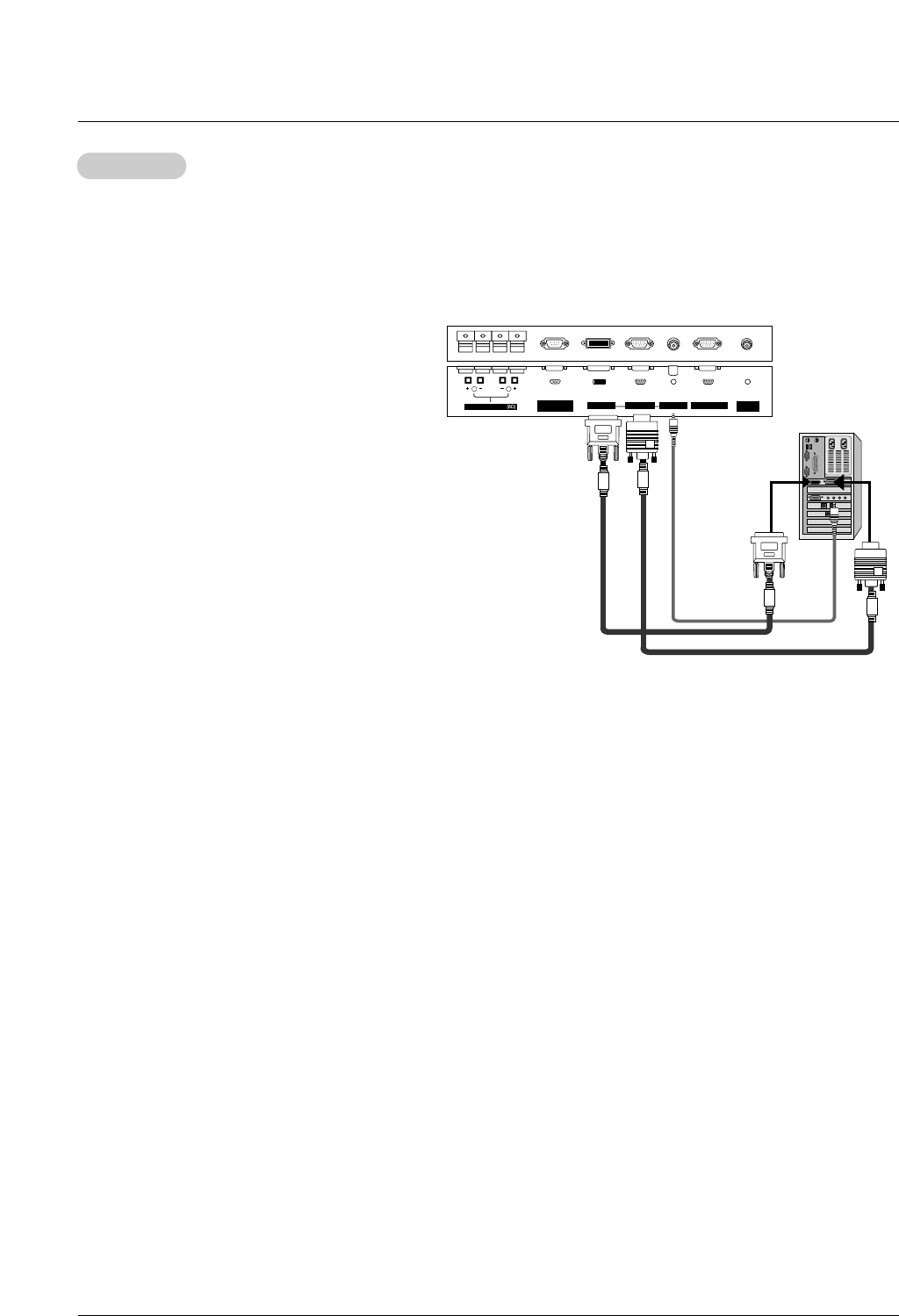

PC Setup
PC Setup
R
( )
( )
( )
( )
L
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
AUDIO INPUT
REMOTE
CONTROL
DVI INPUT RGB INPUT RGB OUTPUT
- This monitor provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The monitor sends
configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel
(DDC) protocol.
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scanning
rate for the graphic card.
14 Plasma Monitor
Installation
Resolution
640x350
720x400
640x480
800x600
848x480
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
35.156
37.879
46.875
53.674
49.725
31.500
35.000
37.500
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
56.25
60.31
75.00
85.06
74.55
60.00
70.00
75.00
31.500
35.000
37.500
48.363
56.476
60.023
54.348
63.995
67.500
60.000
63.981
47.700
59.625
47.700
59.625
60.00
70.00
75.00
60.00
70.06
75.02
60.05
70.01
75.00
60.00
60.02
60.00
75.02
60.00
75.02
Vertical
Frequency(Hz) Resolution
832x624
1024x768
852x480
1152x864
1280x960
1280x1024
1360x768
1366x768
Horizontal
Frequency(KHz) Vertical
Frequency(Hz)
Monitor Display Specifications (RGB-PC / DVI-PC Mode)
Owner’s Manual 15
Operation
Operation
Operation
Menu Language Selection
Menu Language Selection
T

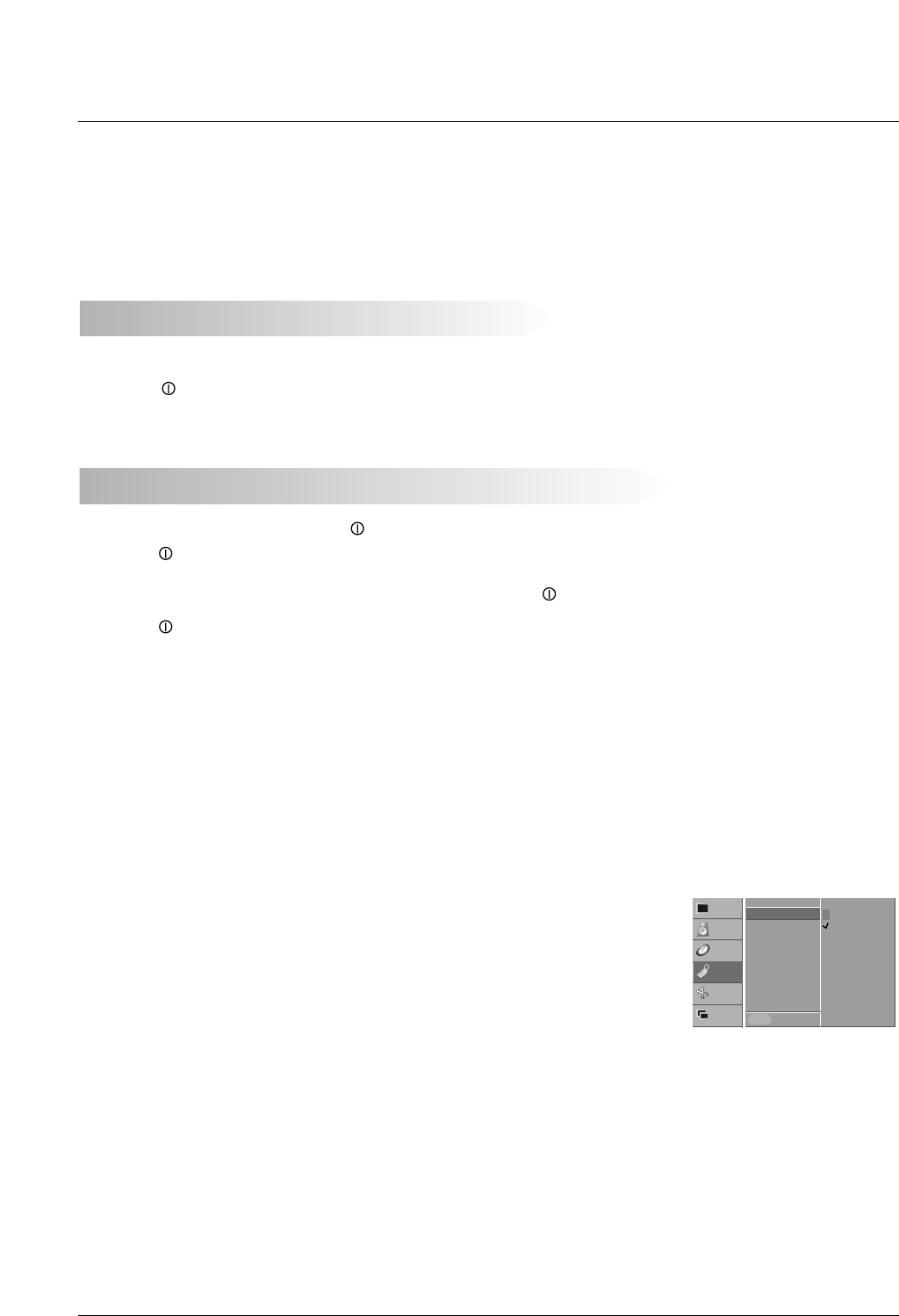

Turning on the Monitor
urning on the Monitor
Turning on the Monitor just after installation
Turning on the Monitor (power cord is still connected)
1. Connect power cord correctly.
2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby
mode. Press the INPUT SELECT button on the Monitor or press the POWER, INPUT SELECT
button on the remote control and then the Monitor will switch on.
•Press the ON/OFF button on the Monitor to turn the Monitor on.
1. If the Monitor was turned off with the ON/OFF button on the Monitor
2. If the Monitor was turned off with the remote control and then the ON/OFF button on the Monitor
•Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the
Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D/ Ebutton to select Language.
3. Press the Gbutton and then use D/ Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the OK button to save.
한국어
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language G
Key lock
ISM Method
Low power
Set ID
Security
OSD Rotate
English
Español
Português
Français
MENU Prev.
16 Plasma Monitor
Operation

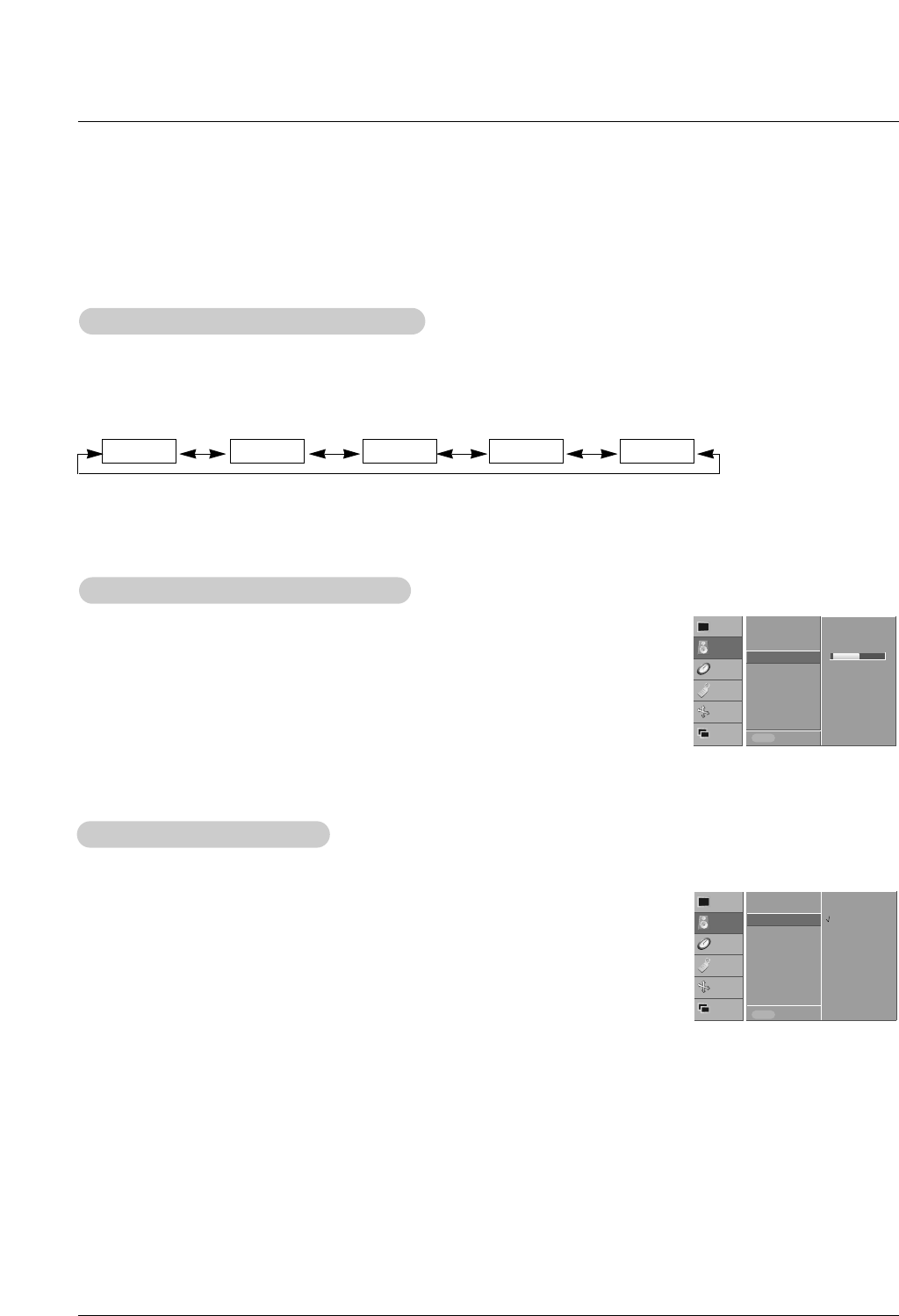

- You can adjust picture contrast, brightness, color, sharpness, and tint to the levels you prefer.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select the desired picture option
(Contrast,Brightness,Color,Sharpness, or Tint).
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the OK button to save.

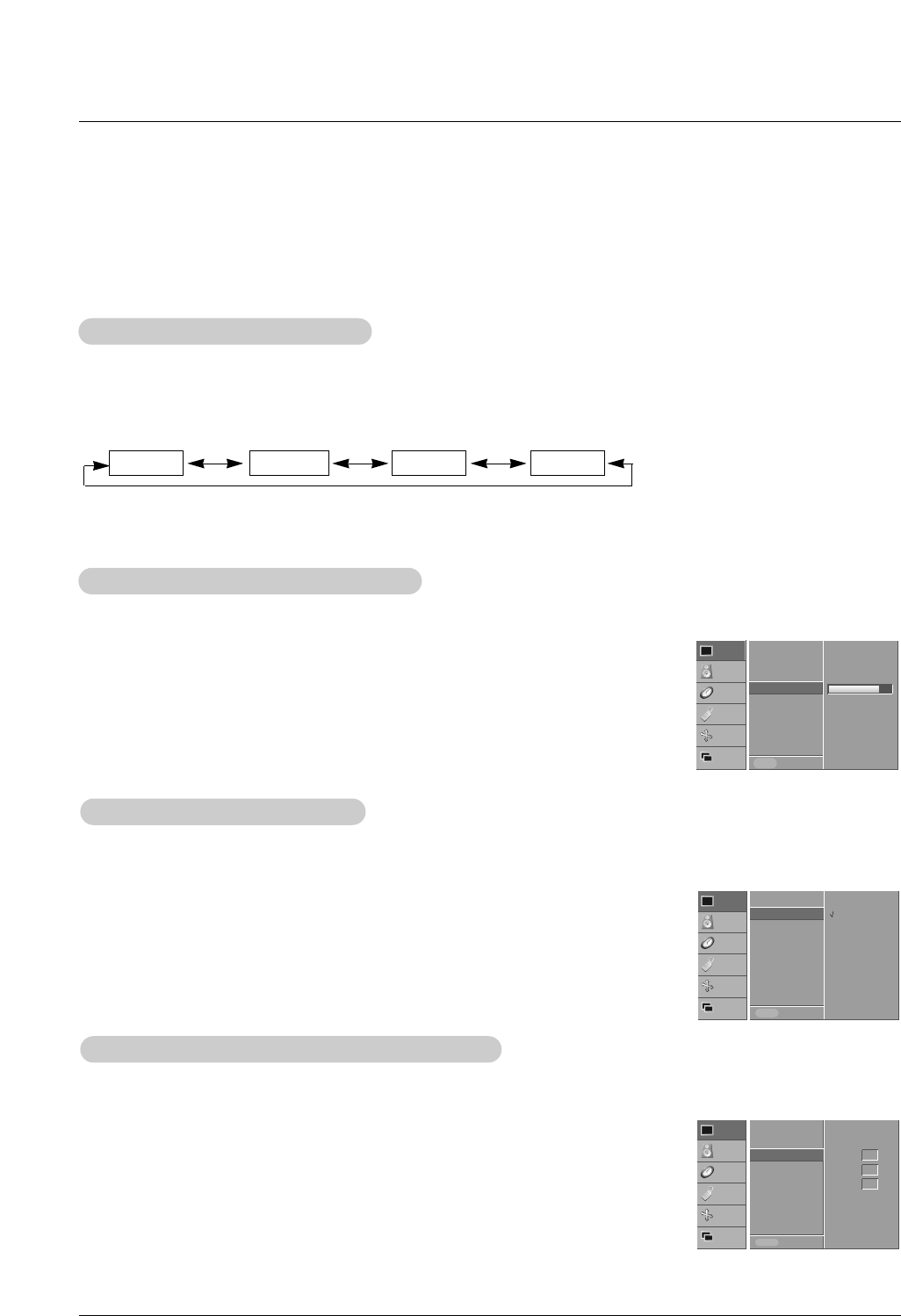

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.
APC (Auto Picture Control)
APC (Auto Picture Control)
Manual Picture Control (
Manual Picture Control (User option)
option)
- To initialize values (reset to default settings), select the Normal option.
- When adjusting color temperature options (red, green, and blue) manually, ACC automatically changes to User.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select ACC .
3. Press the Gbutton and then use D / Ebutton to select either Normal (Default), Cool
(Preset), Warm (Preset), or User (Manual Adjustment).
4. Press the OK button to save.
Auto Color
Auto Color T
Temperature Control
emperature Control
- APC adjusts the Monitor for the best picture appearance.
- When adjusting Video menu options (contrast, brightness, color, sharpness, and tint) manually, APC automatically
changes to User.
- You can adjust red, green, and blue to any color temperature you prefer.
1. Press the MENU button and then use D / Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D / Ebutton to select the Color temp .
3. Press the Gbutton and then use D / Ebutton to select Red, Green, or Blue.
4. Use the F / Gbutton to make appropriate adjustments.
• The adjustment range for Red, Green,and Blue is -20 ~ +20.
5. Press the OK button to save.
Manual Color
Manual Color T
Temperature Control (
emperature Control (User option)
option)
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC
Color temp.
Contrast 85 G
Brightness 60
Color 50
Sharpness 50
Tint 0
MENU Prev.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC G
Color temp.
Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0
Normal
Cool
Warm
User
MENU Prev.
0
0
0
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
APC
ACC
Color temp. G
Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0
Red
Green
Blue
MENU Prev.
- Video menu adjustment are unique to each input source. Readjust Video menu settings for each following
input source as preferred.
• RGB (PC) / DVI (PC),
• RGB (DTV) / DVI (DTV) / Component (480p, 720p, 1080i)
• Video / S-Video / Component (480i)
V
Video Menu Options
ideo Menu Options
•You can also adjust APC in the VIDEO menu.
•Clear, Optimum, and Soft settings are preset for optimum picture quality at the factory and cannot be changed.
Clear Optimum Soft User
Owner’s Manual 17
Operation
Audio Menu Options
Audio Menu Options
1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
1. Press the MENU button and then use D / Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D / Ebutton to select the desired sound option
(Balance,Treble, or Bass).
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the OK button to save.
Manual Sound Control (
Manual Sound Control (User option)
option)
- DASP lets you enjoy the best sound without any special adjustment because the Monitor has the appropriate
sound options based on the program content.
- When adjusting sound options (treble, bass, and balance) manually, DASP automatically changes to User.
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use D / Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D / Ebutton to select AV L .
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the OK button to save.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
DASP
AVL
Balance 0
Treble 50 G
Bass 50
MENU Prev.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
DASP
AVL G
Balance 0
Treble 50
Bass 50
On
Off
MENU Prev.
•You can also adjust DASP in the AUDIO menu.
•Flat, Music, Cinema and Sports are preset for good sound quality at the factory and cannot be
changed.
Flat Music Cinema Sports User
18 Plasma Monitor
Operation

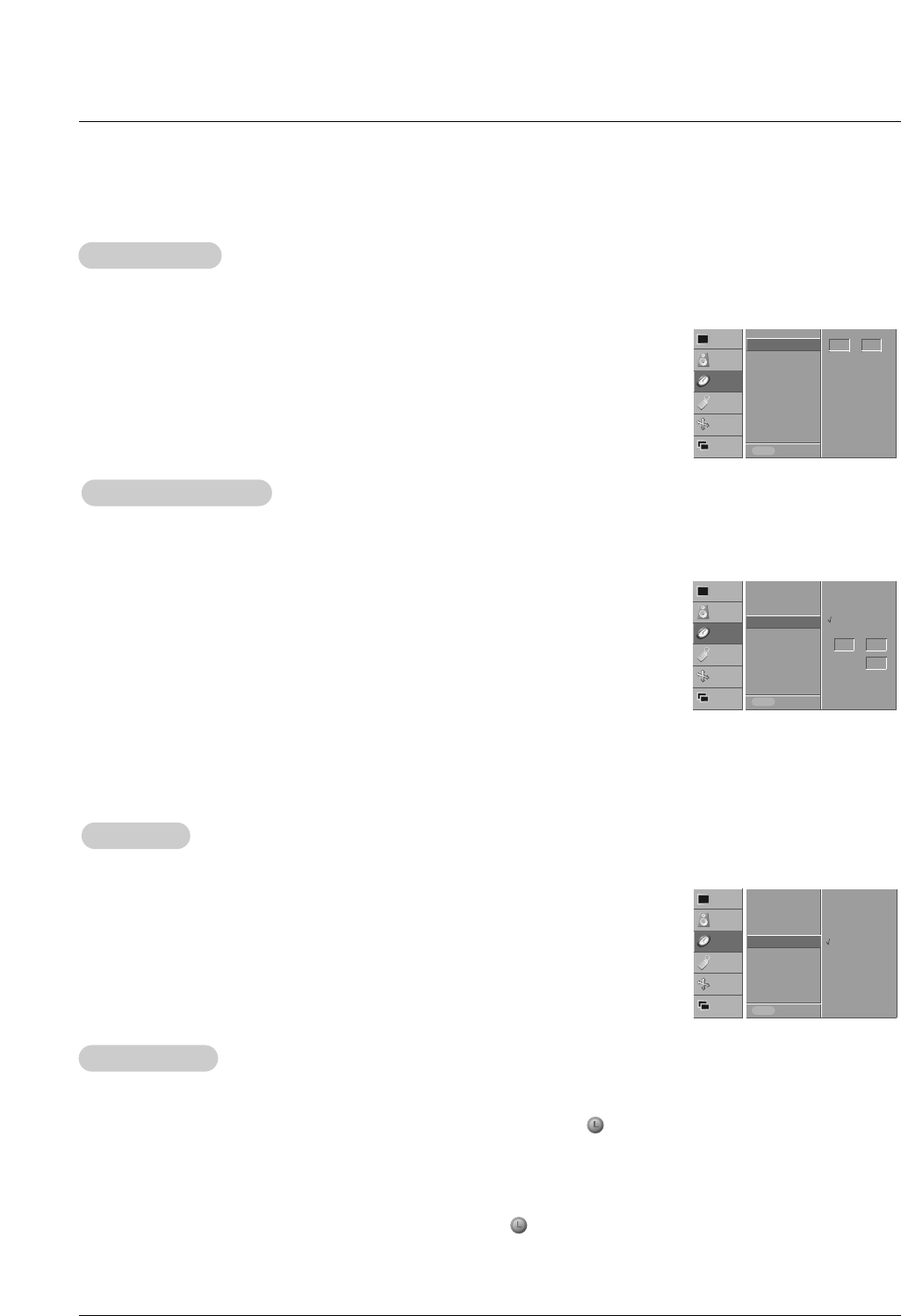

- Timer function operates only if current time has been already set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
On/Of
On/Off
f T
Timer Setup
imer Setup
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select Off timer or On timer.
3. Press the Gbutton and then use D / Ebutton to select On.
• To cancel On/Off timer function, select Off.
4. Press the Gbutton and then use D / Ebutton to set the hour.
5. Press the Gbutton and then use D / Ebutton to set the minutes.
6. For only On timer function; Press the Gbutton and then use D / Ebutton to set
volume level.
7. Press the OK button to save.
Auto Of
Auto Off
f
- If there is no input signal, the Monitor turns off automatically after 10 minutes.
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select Auto off.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the OK button to save.
12 00
30
:
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Clock
Off timer
On timer G
Auto off
Security set
Security active
On
Off
Vol.
MENU Prev.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Clock
Off timer
On timer
Auto off G
Security set
Security active
On
Off
MENU Prev.

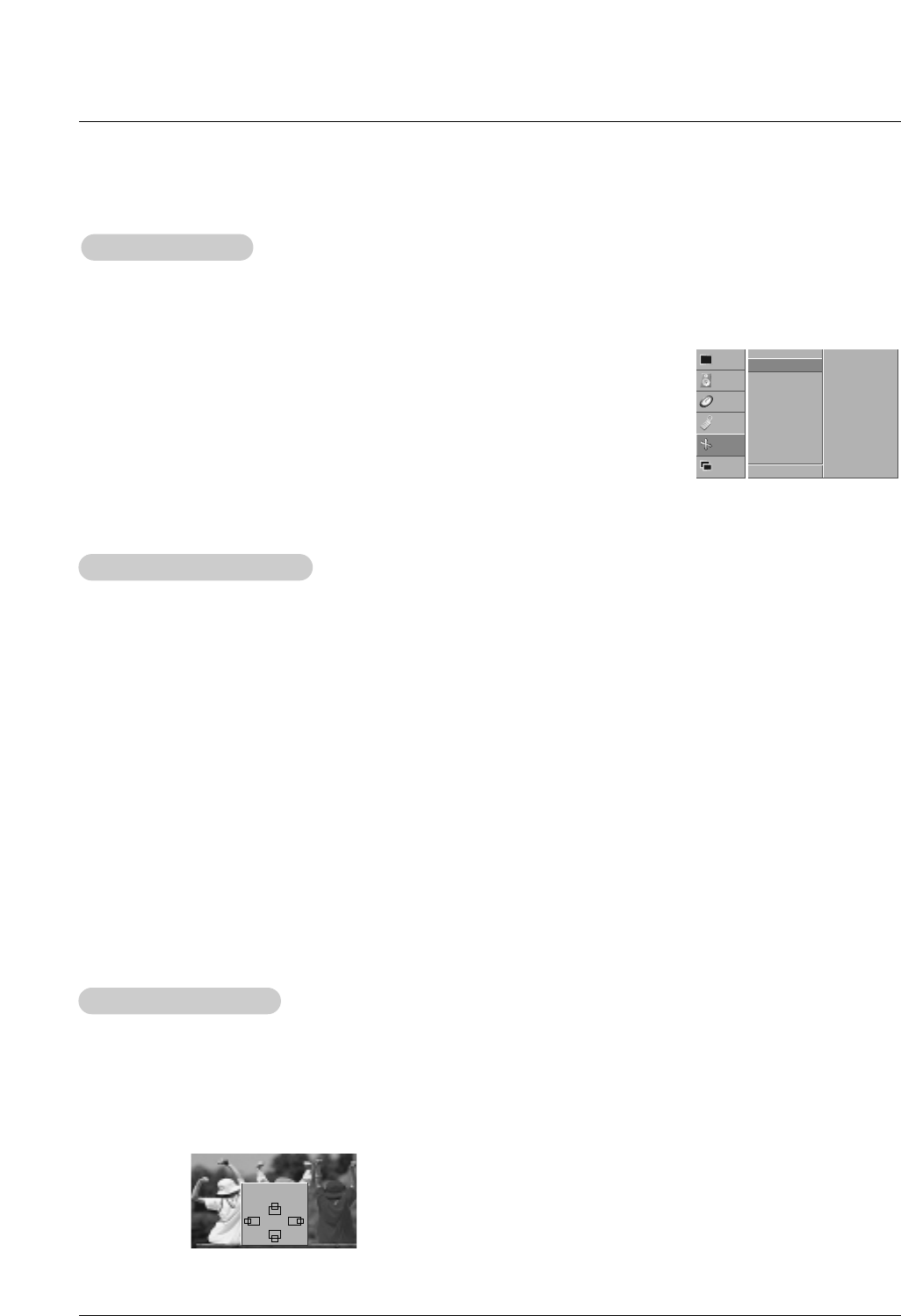

Clock Setup
Clock Setup
- If current time setting is wrong, reset the clock.
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select Clock.
3. Press the Gbutton and then use D / Ebutton to set the hour.
4. Press the Gbutton and then use D / Ebutton to set the minutes.
5. Press the OK button to save.
-- --:
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Clock G
Off timer
On timer
Auto off
Security set
Security active
MENU Prev.
T
Time Menu Options
ime Menu Options
Sleep
Sleep T
Timer
imer
- The sleep timer turns the Monitor off at a preset time. Note that this setting is cleared when the monitor is turned off.
1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the
screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the OK button. The timer begins to count
down from the number of minutes selected.
3. To check the remaining minutes before the monitor turns off, press the SLEEP or OK button once.
4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.
zz
zz
Owner’s Manual 19
Operation

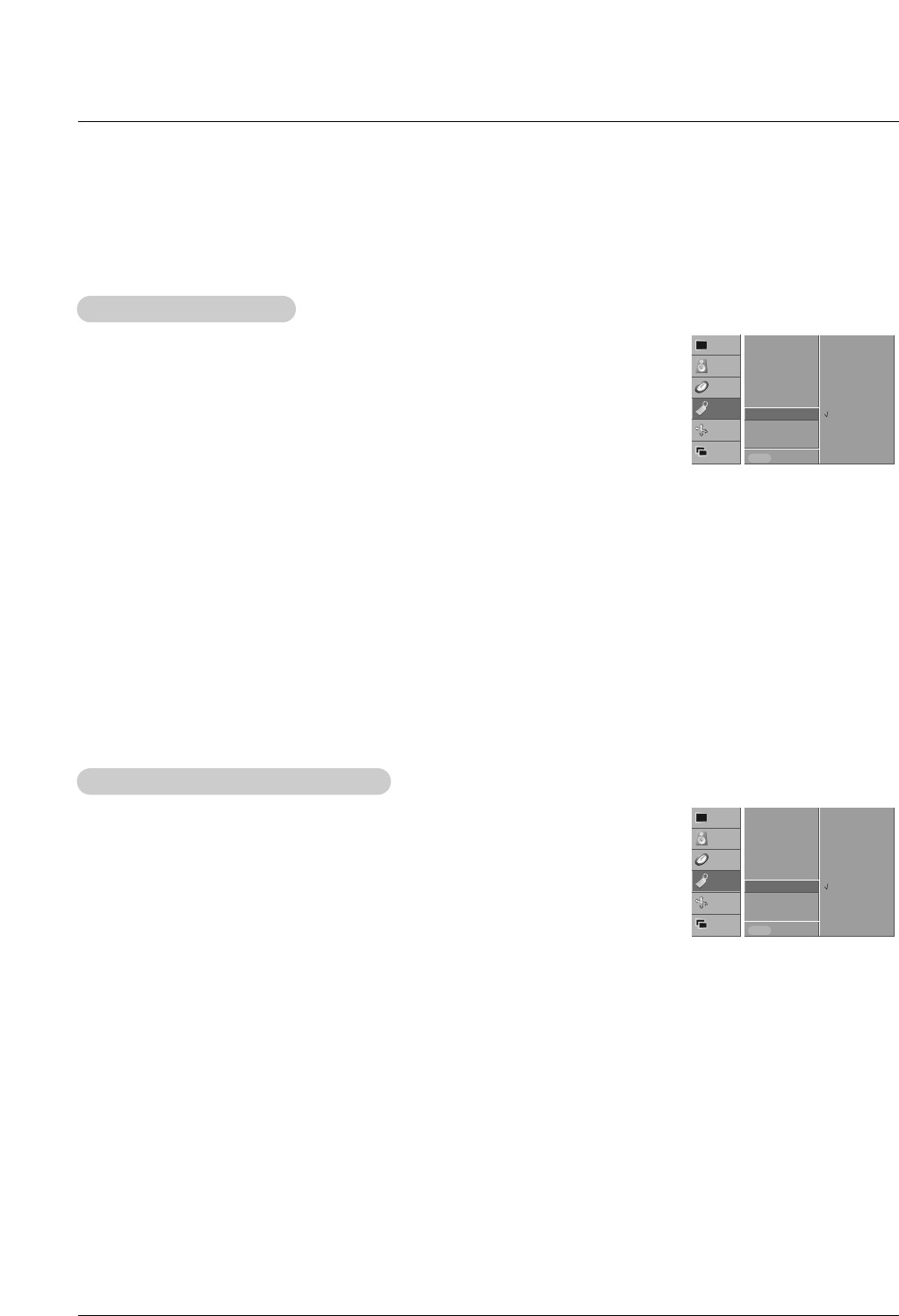

- This is the function to set the time for security PIP operation.
Security PIP
Security PIP T
Time Setup
ime Setup
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select Security set.
3. Press the Gbutton and then use D / Ebutton to select Always or Time set.
• Select Always, if you want to operate the security PIP at all times.
• Select Time set, if you want to set the desired time for security PIP operation.
4. When selecting Time set
a. Press the Gbutton and then use D / Ebutton to set the desired beginning hour.
b. Press the Gbutton and then use D / Ebutton to set the desired beginning minutes.
c. Press the Gbutton and then use D / Ebutton to set the desired end hour.
d. Press the Gbutton and then use D / Ebutton to set the desired end minutes.
5. Press the OK button to save.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Clock
Off timer
On timer
Auto off
Security set G
Security active
Always
Time set
From
23 : 00
To
07 : 30
MENU Prev.
- Set the time to keep on operating when turning the security PIP on.
Security
Security Active
Active
1. Press the MENU button and then use D / Ebutton to select the TIME menu.
2. Press the Gbutton and then use D / Ebutton to select Security active.
3. Press the Gbutton and then use D / Ebutton to set the desired setting time.
• The setting time range is 5 ~ 60 seconds.
4. Press the OK button to save.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Clock
Off timer
On timer
Auto off
Security set
Security active G10 Sec.
MENU Prev.
20 Plasma Monitor
Operation
Special Menu Options
Special Menu Options
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock
ISM Method G
Low power
Set ID
Security
OSD Rotate
Normal
White wash
Orbiter
Inversion
MENU Prev.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock
ISM Method
Low power G
Set ID
Security
OSD Rotate
On
Off
MENU Prev.

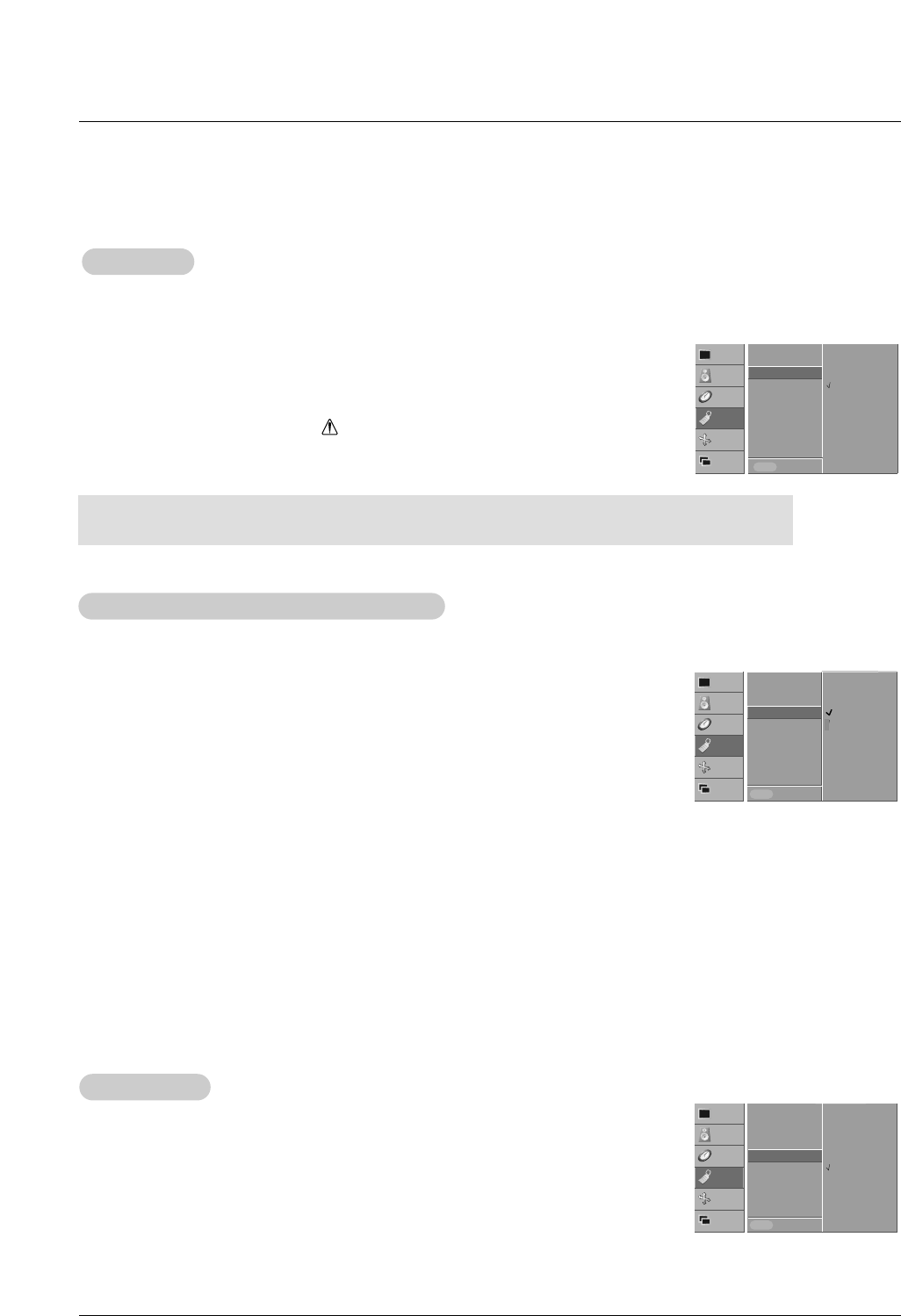

Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing by disabling the front panel controls.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select Key lock.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
• When you select On, the display ‘ Key lock’appears on the screen if any button
on the front panel is pressed.
4. Press the OK button to save.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock G
ISM Method
Low power
Set ID
Security
OSD Rotate
On
Off
MENU Prev.
-In setting Key lock ‘On’, if the monitor is turned off with the remote control, press the INPUT SELECT button
on the monitor or POWER, INPUT SELECT on the remote control to turn the monitor on.
- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining; even when you change the image. Avoid allowing a fixed image to remain on the Monitor's
screen for a long period of time.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select ISM Method.
3. Press the Gbutton and then use D / Ebutton to select either Normal, White wash,
Orbiter, or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
• White wash
White Wash removes permanent images from the screen. Note: An excessive permanent image may be impossible to clear
entirely with White Wash. To return to normal viewing, press the any button.
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid
a permanent image on the screen, the image will move every 1 minutes: Right →Right → Downside →Downside →Left
→Left →Upside →Upside.
• Inversion
Inversion will automatically invert the plasma display panel color every 30 minutes.
4. Press the OK button to save.
Low Power
Low Power
- Low power reduces the plasma display's power consumption.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select Low power.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
• When you select On, the screen darkens.
4. Press the OK button to save.
ISM (Image Sticking Minimization) Method
ISM (Image Sticking Minimization) Method
Owner’s Manual 21
Operation
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock
ISM Method
Low power
Set ID
Security
OSD Rotate G
MENU Prev.
Menu Rotation for V
Menu Rotation for Vertical V
ertical Viewing
iewing
1. Press the MENU button and then use the D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use the D / Ebutton to select OSD Rotate.
3. Press the Gbutton and then use the D / Ebutton to select Normal or Rotate.
• Select Normal, if the monitor was installed horizontally.
• Select Rotate, if the monitor was installed vertically.
4. Press the OK button to save.
Normal
Rotate
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock
ISM Method
Low power
Set ID
Security G
OSD Rotate
MENU Prev.
Security PIP
Security PIP Operation
Operation
1. Press the MENU button and then use the D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use the D / Ebutton to select Security.
3. Press the Gbutton and then use the D / Ebutton to select On, Standby or Off.
• On: The security PIP operates when turning the monitor on.
• Standby: The monitor switches on from standby mode, then the security PIP operates.
• Off: The security PIP doesn’t work.
4. Press the OK button to save.
On
Standby
Off
22 Plasma Monitor
Operation

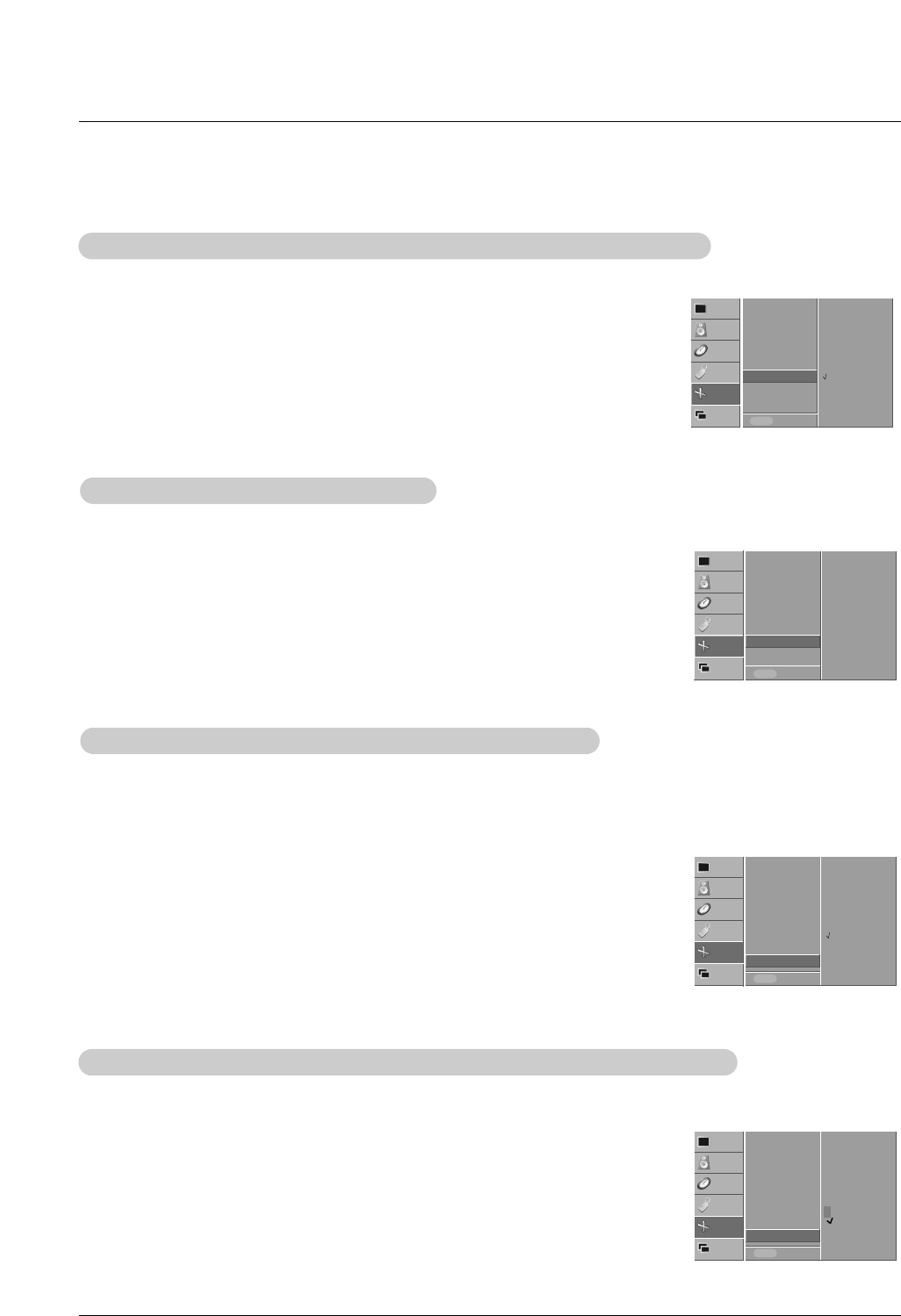

Auto
Auto Adjustment
Adjustment
- RGB (PC) mode only; This function doesn’t work for RGB-DTV.
- Automatically adjusts picture position and minimizes image shaking.
- After adjustment, if the image is still not correct, your Monitor is functioning properly but needs further adjustment.
- The Auto config. and Manual config. are not active in DVI mode.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select Auto config..
3. Press the Gbutton to run Auto configure.
• When Auto config. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto config.,
you can make further adjustments with the Manual config. option.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config. G
ARC
Zoom in/out
Position
Manual config.
Screen adj.
Reset
XGA Mode
To set
MENU Prev.
Screen Menu Options
Screen Menu Options
Setting Picture Format
Setting Picture Format
- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.
- Set every aspect ratio for RGB 480p, DVI 480p, Component 480i/480p, Video, and S-Video sources.
- Use 4:3, or 16:9 for other input sources.
1. Press the ARC button repeatedly to select the desired picture format. You can also adjust ARC in the SCREEN
menu.
• 4:3
- Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both
the left and right sides.
• 16:9
- Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
- Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.
• Zoom
- Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
1. Use ZOOM+/ZOOM- button to enlarge or reduce the picture size.
• Zoom adjustment range is 100~300.
2. Adjust the main picture position using the D / E/ F / G buttons while in enlarged picture mode.
Picture Size Zoom
Picture Size Zoom
- When enlarging or reducing the picture, the image may become distorted.
Zoom out
100%
D
FG
E
Owner’s Manual 23
Operation
1
4
▲
▼
◀▶
2-Split zoom
▲
▼
◀▶
12
54
4-Split zoom
▲
▼
◀▶
12 3
456
789
9-Split zoom
Manual Configure (RGB-PC mode only)
Manual Configure (RGB-PC mode only)
- If the image still isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture
Phase manually.
- To correct the screen size, adjust Clock.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select Manual config..
3. Press the Gbutton and then use D / Ebutton to to select Phase or Clock.
4. Use the F / Gbutton to make appropriate adjustments.
• The Phase adjustment range is 0 ~ 31.
• The Clock adjustment range is -50 ~ +50.
5. Press the OK button to save.
0
0
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position
Manual config. G
Screen adj.
Reset
XGA Mode
Phase
Clock
MENU Prev.
- This function works in the following mode:
RGB-PC, RGB-DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i).
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select Position.
3. Press the Gbutton and then use D / E/ F / Gbutton to adjust the position.
4. Press the OK button to save.
◀▶
▲
▼
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position G
Manual config.
Screen adj.
Reset
XGA Mode
MENU Prev.
Screen Position
Screen Position
- Enlarges the picture in correct proportions.
- Split Zoom can be used for all input sources.
- In 2-Split Zoom mode, you can only move the image up or down.
- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.
-It’s not available to use this function if OSD Rotate is set to the Rotate option.
1. Press the SPLIT ZOOM button repeatedly to select either 2, 4 , or 9 Split Zoom.
2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged
image with the D / E / F / Gbutton. To return to normal viewing, press the SPLIT ZOOM button again.
Example of choosing 5. Section 5 is enlarged to fill
the screen.
▲
▼
◀▶
12 3
456
789
9-Split zoom
Split Zoom
Split Zoom
24 Plasma Monitor
Operation
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select Reset.
3. Press the Gbutton.
•You can initialize Zoom In/Out, Manual config., Position, Split zoom, PIP size, PIP posi-
tion and sub picture size for twin picture.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- This function operates in every mode.
- To initialize the adjusted value
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position
Manual config.
Screen adj.
Reset G
XGA Mode
To set
MENU Prev.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select VGA mode/XGA mode.
3. Press the Gbutton and then use D /Ebutton to select the desired VGA/XGA resolution.
4. Press the OK button to save.
Selecting W
Selecting Wide VGA/XGA
ide VGA/XGA mode (RGB-PC, DVI-PC mode only)
mode (RGB-PC, DVI-PC mode only)
- To see a normal picture, match the resolution of RGB XGA mode (1024x768, 1360x768, 1366x768) with the selection for XGA
mode and the resolution of RGB VGA mode (640x480, 848x480, 852x480) with the selection for VGA mode in the SCREEN
menu.
- If the input source is RGB VGA mode, the screen menu option is changed from XGA mode to VGA mode automatically.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position
Manual config.
Screen adj.
Reset
XGA Mode G
1024x768
1360x768
1366x768
MENU Prev.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position
Manual config.
Screen adj.
Reset
YNR G
On
Off
MENU Prev.
Screen
Screen Adjustments (V
Adjustments (Video, S-V
ideo, S-Video and Component 480i mode only)
ideo and Component 480i mode only)
- Use this function to correct jittering or picture instability while viewing a video tape.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select Screen adj..
3. Press the Gbutton and then use D /Ebutton to to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment.(Except VCR)
4. Press the OK button to save.
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Auto config.
ARC
Zoom in/out
Position
Manual config.
Screen adj. G
Reset
YNR
TV
VCR
MENU Prev.
Screen Menu Options continued
Screen Menu Options continued
- Use YNR to reduce the picture noise which may appear on the screen.
Luminance Noise Reduction (V
Luminance Noise Reduction (Video, S-V
ideo, S-Video and Component 480i modes only)
ideo and Component 480i modes only)
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select YNR.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the OK button to save.
Owner’s Manual 25
Operation
W
Watching PIP
atching PIP
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
Press the PIP button repeatedly to turn PIP on or off.
PIP
PIP Size
Size
Press the WIN.SIZE button and then use F / Gbutton to
change the sub picture size.
PIP
PIP Aspect Ratio
Aspect Ratio
Press the PIP ARC button. The sub picture appears as shown.
Moving the PIP
Moving the PIP
Press the WIN.POSITION button.
Press the D / E/ F / Gbutton repeatedly until desired position
is achieved. The sub picture moves up/down/left/right.
Swapping the PIP
Swapping the PIP
Press the SWAP button to switch the main and sub pictures.
Selecting an Input Signal Source for the PIP
Selecting an Input Signal Source for the PIP
Use the SUB INPUT button to select the input source for
the sub picture.
Main Picture Sub Picture
◀▶
▲
▼
10 : 30 10 : 30
4 : 3 16 : 9
Win.position
Component
Video Video
Component
PIP
PIP (Picture-In-Picture) Feature
(Picture-In-Picture) Feature
10 : 30
Component
Video
Win.size
F G
Main Picture Source Available Sub Picture Sources
Video
S-Video
Component 480i
Component 480p/720p/1080i
RGB and DVI
S-Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video,S-Video, RGB, and DVI
Video and S-Video
Component 480i, Video, and S-Video
26 Plasma Monitor
Operation

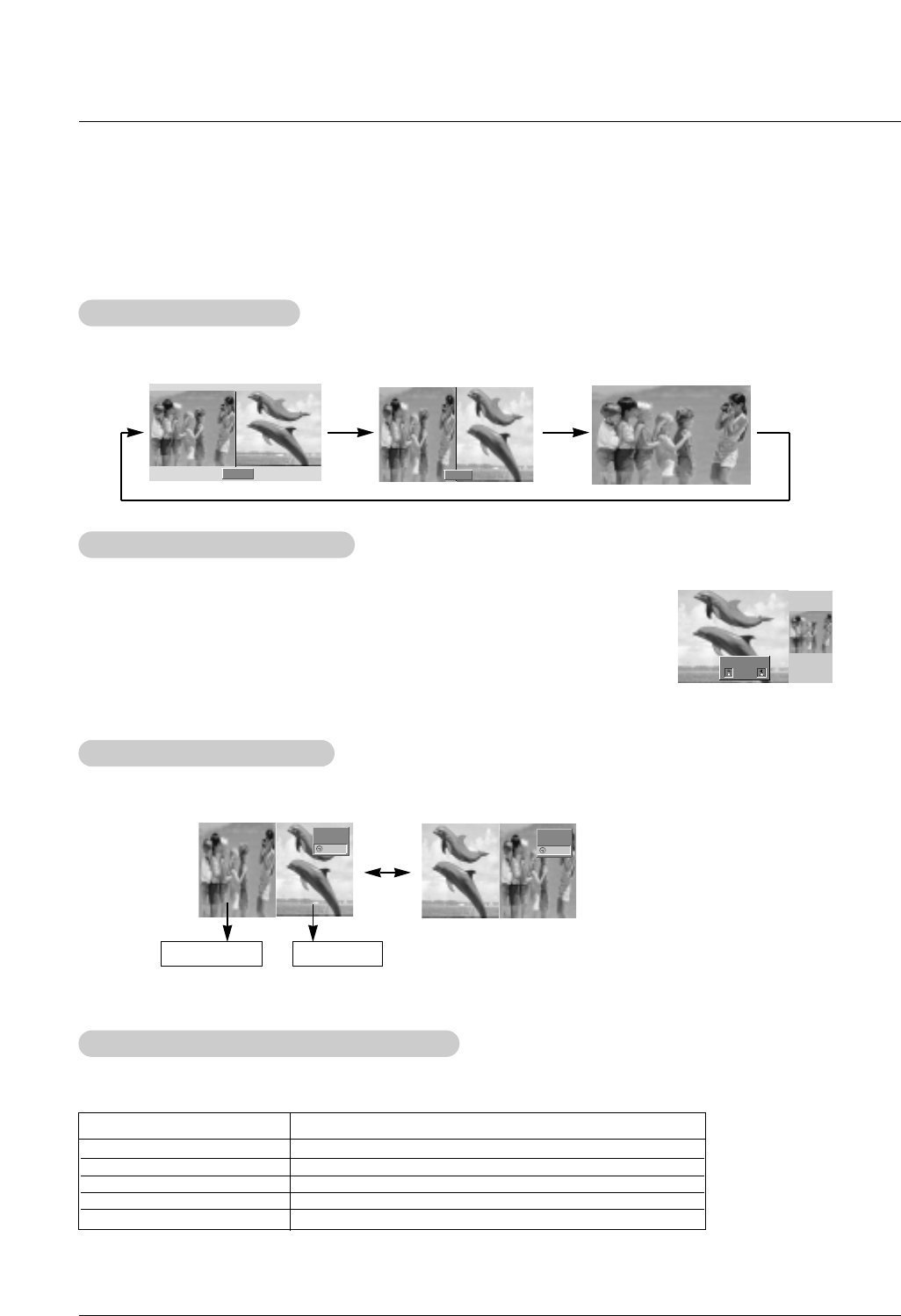

Selecting a Source for the
Selecting a Source for the T
Twin Picture
win Picture
W
Watching
atching T
Twin Picture
win Picture
Press the TWIN PICTURE button repeatedly to select one of the Twin Picture options.
Sub Picture Size
Sub Picture Size Adjustment
Adjustment
Press the WIN.SIZE button and then use F / Gbutton to change the sub picture size.
•Using the WIN.SIZE function in Twin Picture mode, main and sub picture sizes are
changed simultaneously.
Using the WIN.SIZE function in PIP mode, sub picture size is changed.
•WIN.POSITION is not functional in Twin Picture mode.
Swapping the
Swapping the T
Twin Picture
win Picture
Use the SWAP button to switch the main and sub pictures in twin picture mode.
DW 1
DW 2
10 : 30
10 : 30
◀▶
Component
Video Video
Component
- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at the
same time. Each source is given half the screen.
T
Twin Picture Setup Option
win Picture Setup Option
Win.size
F G
Main Picture Sub Picture
Main Picture Source Available Sub Picture Sources
Video
S-Video
Component 480i
Component 480p/720p/1080i
RGB and DVI
S-Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video,S-Video, RGB, and DVI
Video and S-Video
Component 480i, Video, and S-Video
Use the SUB INPUT button to select the input source for the sub picture.
Owner’s Manual 27
External Control Device Setup
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configuration
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3- Wire Configuration
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of Connector: D-Sub 9-pin Male
ype of Connector: D-Sub 9-pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
R
( )
( )
( )
( )
L
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
AC INPUT
AUDIO INPUT
REMOTE
CONTROL
DVI INPUT RGB INPUT RGB OUTPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AUDIO INPUTVIDEO INPUT
AUDIO INPUT ALARM
COMPONENT INPUT
28 Plasma Monitor
External Control Device Setup
Transmission
* [Command 1]: k, j
* [Command 2]: To control PDP set.
* [Set ID]: You can adjust the set ID to choose desired moni-
tor ID number in Special menu. Adjustment range
is 1 ~ 99. When selecting Set ID ‘0’, every con-
nected PDP set is controlled. Set ID is indicated
as decimal (1~99) on menu and as Hexa decimal
(0x0~0x63) on transmission/receiving protocol.
* [DATA]: To transmit command data.
Transmit ‘FF’data to read status of command.
* [Cr]: Carriage Return
ASCII code ‘0x0D’
* [ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
[Command2][ ][Set ID][ ][NG][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 4
03. Aspect Ratio k c 0 ~ 3
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Remote Control Lock Mode
k m 0 ~ 1
14. PIP/Twin k n 0 ~ 3
15. PIP Aspect Ratio k o 0 ~ 1
16. Split Zoom k p 21 ~99
17. PIP Position k q 0 ~ 3
18. Treble k r 0 ~ 64
19. Bass k s 0 ~ 64
20. Balance k t 0 ~ 64
21. Color Temperature k u 0 ~ 3
22. Red Adjustment k v 0 ~ C8
23. Green Adjustment k w 0 ~ C8
24. Blue Adjustment k $ 0 ~ C8
25. PIP Input Source k y 0 ~ 4
26. Abnormal State k z 0 ~ a
27. ISM Method j p 0 ~ 3
28. Low Power j q 0 ~ 1
29. Orbiter Time Setting j r 1 ~ FE
30. Orbiter Pixel Setting j s 0 ~9
31. Picture Size Setting j t 0 ~64
for Twin Picture mode
32. Auto Configure j u 1
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
•Menu doesn’t display on screen when setting the 4,
12, 13, and 26 ~ 32.
Command Reference List
Command Reference List
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 29.
1. Press the MENU button and then use the D /Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D /Ebutton to select Set ID.
3. Press the Gbutton and then use F / Gbutton to adjust Set ID to choose the desired
monitor ID number.
• The adjustment range of Set ID is 1 ~ 99.
1
VIDEO
AUDIO
TIME
SCREEN
TWIN
SPECIAL
Language
Key lock
ISM Method
Low power
Set ID G
Security
OSD Rotate
MENU Prev.
• Baud rate : 115200 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
Data 1: Illegal Code
2: Not supported function
3: Wait more time
Owner’s Manual 29
External Control Device Setup
02. Input Select (Command2:b) (Main Picture Input)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
Transmission
Data 0 : RGB
1 : Component
2 : Video
3 : S-video
4 : DVI
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off 1 : Power On
* In a like manner, if other functions transmit ‘FF’data
based on this format, Acknowledgement data feedback
presents status about each function.
[a][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.
Transmission
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
3 : Horizon
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
* You select either 16:9 or 4:3 screen aspect ratio using the
PC, DTV 720p/1080i.
[c][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
30 Plasma Monitor
External Control Device Setup
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and front panel controls on the
monitor
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Lock off 1: Lock on
•If you’re not using the remote control and front panel con-
trols on the monitor, use this mode. When main power is
on/off, remote control lock is released.
[m][ ][Set ID][ ][OK][Data][x]
14. PIP / Twin (Command2:n)
GTo control the PIP (Picture-in-Picture) or Twin Picture.
You can also control the PIP/Twin picture mode using the PIP
or TWIN PICTURE button on the remote control or in the
Twin menu.
Transmission
Data 0: PIP/DW off
1: PIP 2: DW1
3: DW2
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
15. PIP Aspect Ratio (Command2:o)
GTo select the PIP picture format.
You can also select the PIP picture format using PIP ARC
on the remote control.
Transmission
[k][o][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: 4:3 1: 16:9
[o][ ][Set ID][ ][OK][Data][x]
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
16. Split Zoom (Command2:p)
GTo operate split zoom function and select the split
zoom section number.
Transmission
Data Min: 21 ~ Max: 99
•Refer to ‘Real data mapping 2’.
[k][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
* Real data mapping 2
21: Selection 1 of 2 split zoom
24: Selection 4 of 2 split zoom
41: Selection 1 of 4 split zoom
42: Selection 2 of 4 split zoom
44: Selection 4 of 4 split zoom
45: Selection 5 of 4 split zoom
91: Selection 1 of 9 split zoom
99: Selection 9 of 9 split zoom
Owner’s Manual 31
External Control Device Setup
21. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust ACC in the Video menu.
Transmission
Data 0: Normal 1: Cool 2: Warm 3: User
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
18. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
17. PIP Position (Command2:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using
Win.position on the remote control or in the Twin menu.
Transmission
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
19. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
20. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 29.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
* Real data mapping 3
0 : -20
5 : -19
A : -18
5F: -1
64: 0
69: +1
C3: +19
C8: +20
22. Red Adjustment (Command2:v)
GTo adjust red in color temperature.
Transmission
Data Min: 0 ~ Max: C8
•Refer to ‘Real data mapping 3’as shown below.
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
23. Green Adjustment (Command2:w)
GTo adjust green in color temperature.
Transmission
Data Min: 0 ~ Max: C8
•Refer to ‘Real data mapping 3’as shown below.
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
24. Blue Adjustment (Command2:$)
GTo adjust blue in color temperature.
Transmission
Data Min: 0 ~ Max: C8
•Refer to ‘Real data mapping 3’as shown below.
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
32 Plasma Monitor
External Control Device Setup
27. ISM Method (Command2:p)
GTo avoid having a fixed image remain on screen.
Transmission
Data 0: Normal
1: White wash 2: Orbiter
3: Inversion
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
28. Low Power (Command2:q)
GTo control the low power function on/off.
Transmission
Data 0: Low power off
1: Low power on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
29. Orbiter Time Setting (Command2:r)
GTo adjust orbiter operation time term.
Transmission
Data Min: 1 ~ Max: FE
[j][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
30. Orbiter Pixel Setting (Command2:s)
GTo adjust pixel number in orbiter function.
Transmission
Data Min: 0 ~ Max: 9
[j][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
32. Auto Configure (Command2:u)
GTo adjust picture position and minimize image shaking
automatically. Auto Configure only works in RGB-PC
mode.
Transmission
Data 1: To set
[j][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
31. Picture Size Setting for Twin Picture mode
(Command2:t)
GTo adjust main picture size in twin picture mode.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping1’. See page 29.
[j][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
25. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP mode.
Transmission
Data 0: RGB 1: Component
2: Video 3: S-video 4: DVI
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
26. Abnormal State (Command2:z)
GTo recognize an abnormal state.
Transmission
Data 0: Normal (Power on and signal exist)
1: No signal (Power on)
2: Turn the monitor off by remote control
3: Turn the monitor off by sleep time function
4: Turn the monitor off by RS-232C function
5: 5V down
6: AC down
7: Turn the monitor off by Fan Alarm function
8: Turn the monitor off by off time function
9: Turn the monitor off by auto off function
a: Turn the monitor off by AV board detect
[k][z][ ][Set ID][ ][FF][Cr]
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
Data FF:Read
Owner’s Manual 33
IR Code
G Connect your wired remote control to the Remote Control port on the Monitor.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
How to Connect
How to Connect
Remote Control IR Code
Remote Control IR Code
IR Code
IR Code
34 Plasma Monitor
IR Code
UP (D)
DOWN (E)
VOL+ (G)
VOL- (F)
POWER On/Off
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
AII INPUT SELECT
RGB
DVI
VIDEO
S-VIDEO
COMPONENT
SLEEP
OK (Á)
MENU
DASP
APC
PIP
SUB INPUT
SWAP
PIP ARC
TWIN PICTURE
ZOOM +
ZOOM -
Window Size
Window Position
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
Auto configure
00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
D5H
C6H
5AH
D8H
BFH
0EH
44H
43H
52H
4DH
60H
61H
63H
64H
6BH
40H
41H
69H
6AH
7BH
79H
76H
77H
AFH
99H
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (RGB/DVI/Video/S-video/Component)
Discrete IR Code (Input RGB Selection)
Discrete IR Code (Input DVI Selection)
Discrete IR Code (Input Video Selection)
Discrete IR Code (Input S-video Selection)
Discrete IR Code (Input Component Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (PIP/TWIN Exchange)
R/C Button (4:3/16:9)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete IR Code (Only 4:3 mode)
Discrete IR Code (Only 16:9 mode)
Discrete IR Code (Only ZOOM mode)
Discrete IR Code (Only RGB-PC mode)
Code (Hexa) Function Note
Owner’s Manual 35
Troubleshooting Checklist
No output from one of
the speakers •Adjust Balance in the AUDIO menu. (Refer to p.17)
Unusual sound from
inside the monitor
•A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the monitor.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Test the wall power outlet, plug other product’s power cord into the wall outlet
where the Monitor’s power cord was plugged in.
No or Poor color
or Poor picture
•Select Color in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.16)
•Keep a sufficient distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.8)
•Install new batteries. (Refer to p.8)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.
Picture appears slowly
after switching on
•This is normal, the image is muted during the plasma display startup process.
Please contact your service center, if the picture has not appeared after five
minutes.
Horizontal/vertical bars
or picture shaking •Check for local interference such as an electrical appliance or power tool.
T
Troubleshooting Checklist
roubleshooting Checklist
36 Plasma Monitor
Maintenance
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
Owner’s Manual 37
Specification
Product Specifications
Product Specifications
•The specifications shown above may be changed without notice for quality improvement.
MODELS
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
MU-50PZ90MQ
48.2 / 1223
28.9 / 734
4.1 / 105
95.2 / 43.2
AC120V, 60Hz
1366 x 768 (Dot)
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
6561 feet (2000m)
38 Plasma Monitor
Notes
Notes
Notes
Owner’s Manual 39
Notes
Notes
Notes
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual thoroughly before operating
the Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and relate
this information to your dealer if you ever require service.
Model Number :
Serial Number :
MODEL : MU-50PZ90MQ
P/NO : 3828VA0410H (RF03GB)
