User Manual Part 2

48 Plasma TV

TV Guide On Screen System

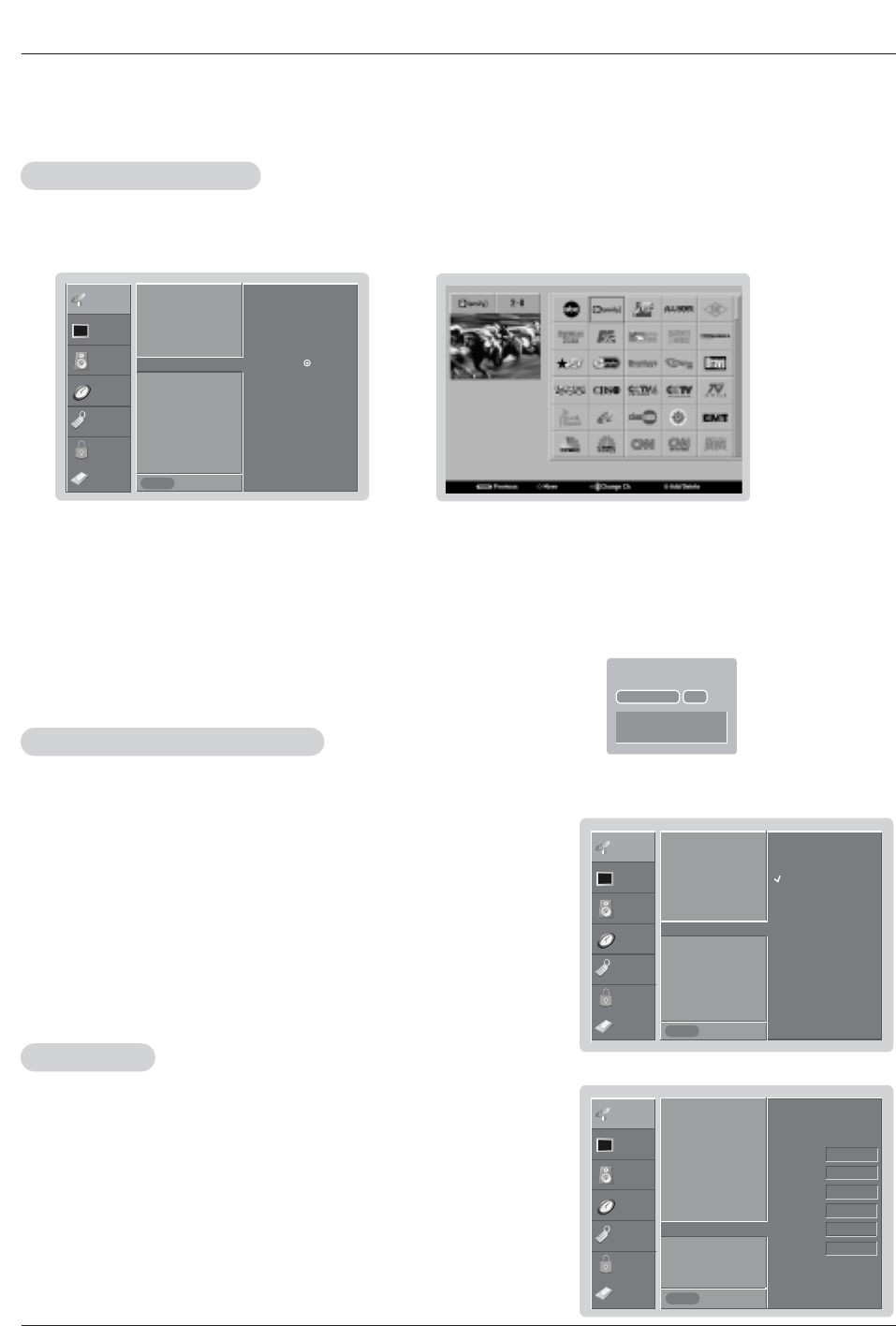

General Default Options lets you set defaults for the following:

•The initial Info Box size when the TV guide on screen system is

entered.

Choices are No, Small, Large, and Last Used

(Default = Last Used).

•The Info Box size rotation when the Info key is pressed while in

the TV guide on screen system.

Choices are No only, Small only, Large only, No & Small, No &

Large, Small & Large, All (Default = All)

•Automatic entry into the TV guide on screen system (Auto-Guide)

when the TV is powered On.

Choices are On and Off (Default = On).

Highlight General Default Options, and press the Menu key to dis-

play the General Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information, and

return to the highlighted option.

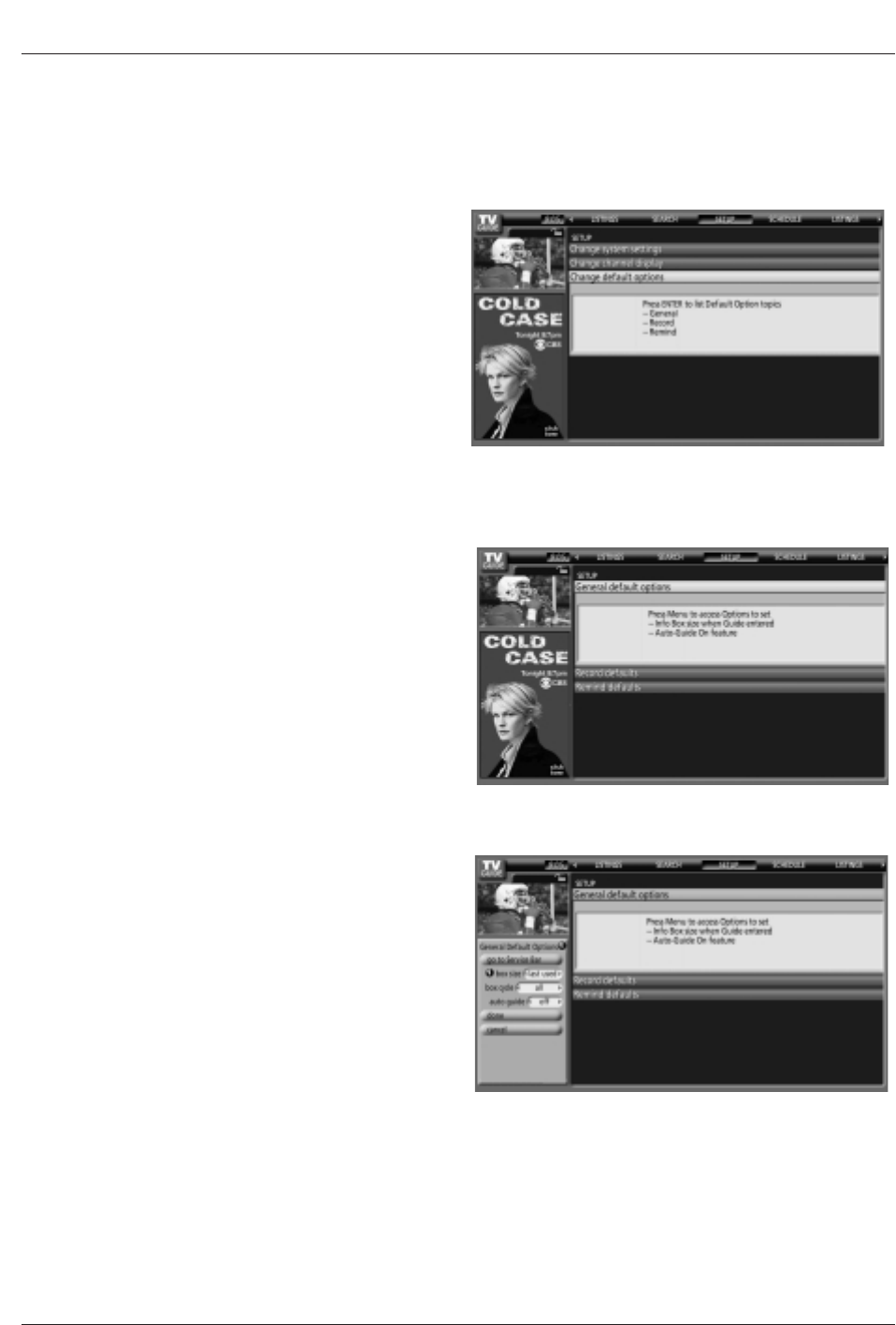

• Change Default Options

Change Default Options lets you change default settings in the

following categories:

•General Default Options

•Record Defaults

•Remind Defaults

Highlight Change Default Options, and press ENTER.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

Owner’s Manual 49

TV Guide On Screen System

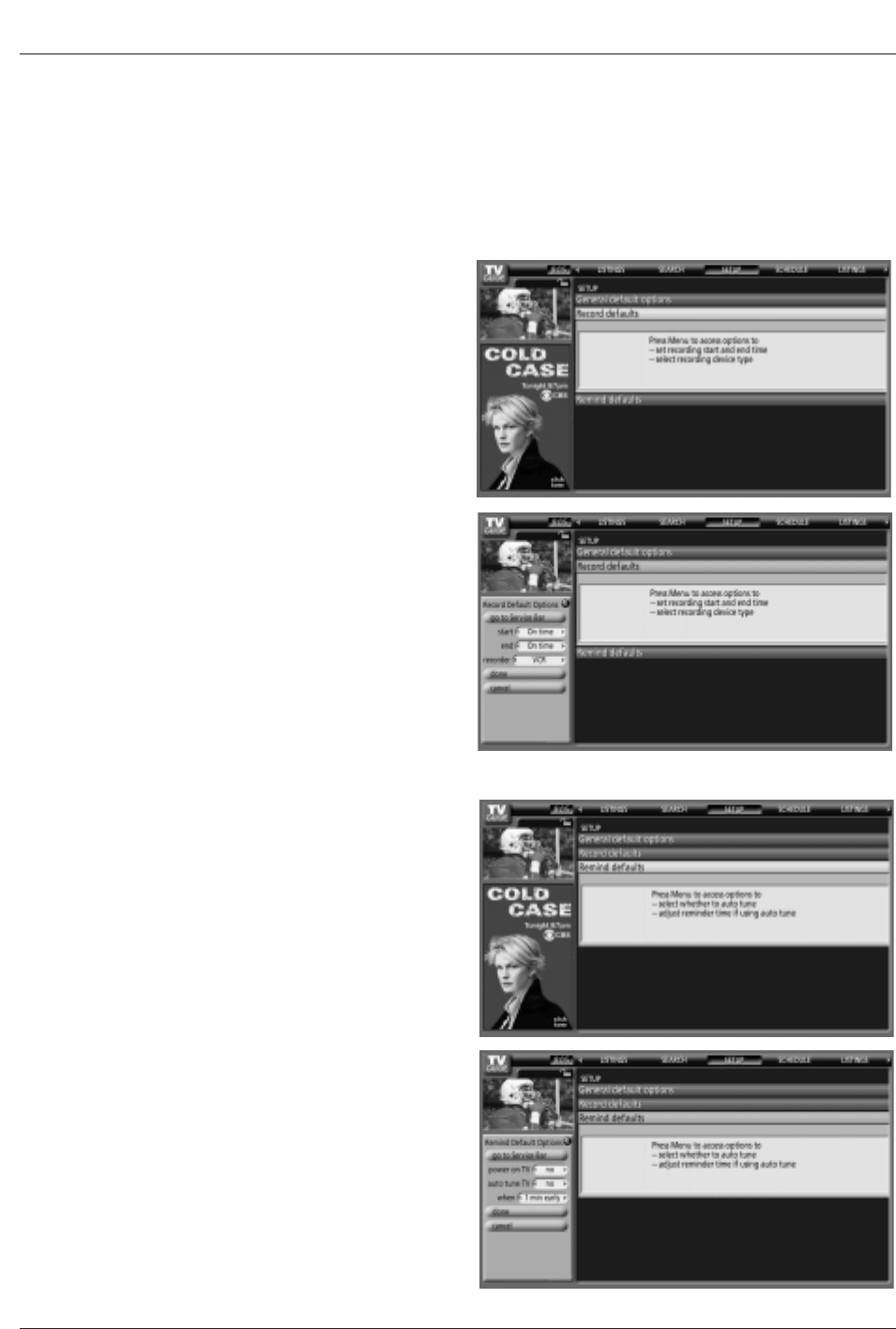

< Record Defaults>

Record Default Options lets you set defaults for the following:

• When to start the record event. Choices are 120 minutes early to

120 minutes late, to On time. (Default = On time)

• When to end the record event. Choices are 120 minutes early to

120 minutes late, to On time. (Default = On time)

• Recorder choice: Please choose the VCR only. This TV does not

provide other devices with a recording feature.

Highlight Record Defaults, and press the Menu key to display the

Record Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

< Remind Defaults>

Remind Default Options lets you set defaults for the following:

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No.

(Default = No)

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No.

(Default = No)

•When to display the reminder screen. Choices are 30 seconds to

15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

Highlight Remind Defaults, and press the Menu key to display the

Remind Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information, and

return to the highlighted option.

50 Plasma TV

TV Guide On Screen System

WOnce —records the show one time

WRegularly —records the show every time the

show airs on the same channel and starts at the same

time

WWeekly —records the show each time the show

airs on the same day of the week, on the same channel

and starts at the same time

WOff (not cancel) —keeps the show in the list but

will not record this show until the frequency is changed

WCancel (no icon displayed)—does not record

TV Guide On Screen

TV Guide On Screen®System continued

System continued

Record

Record And Remind Features

And Remind Features

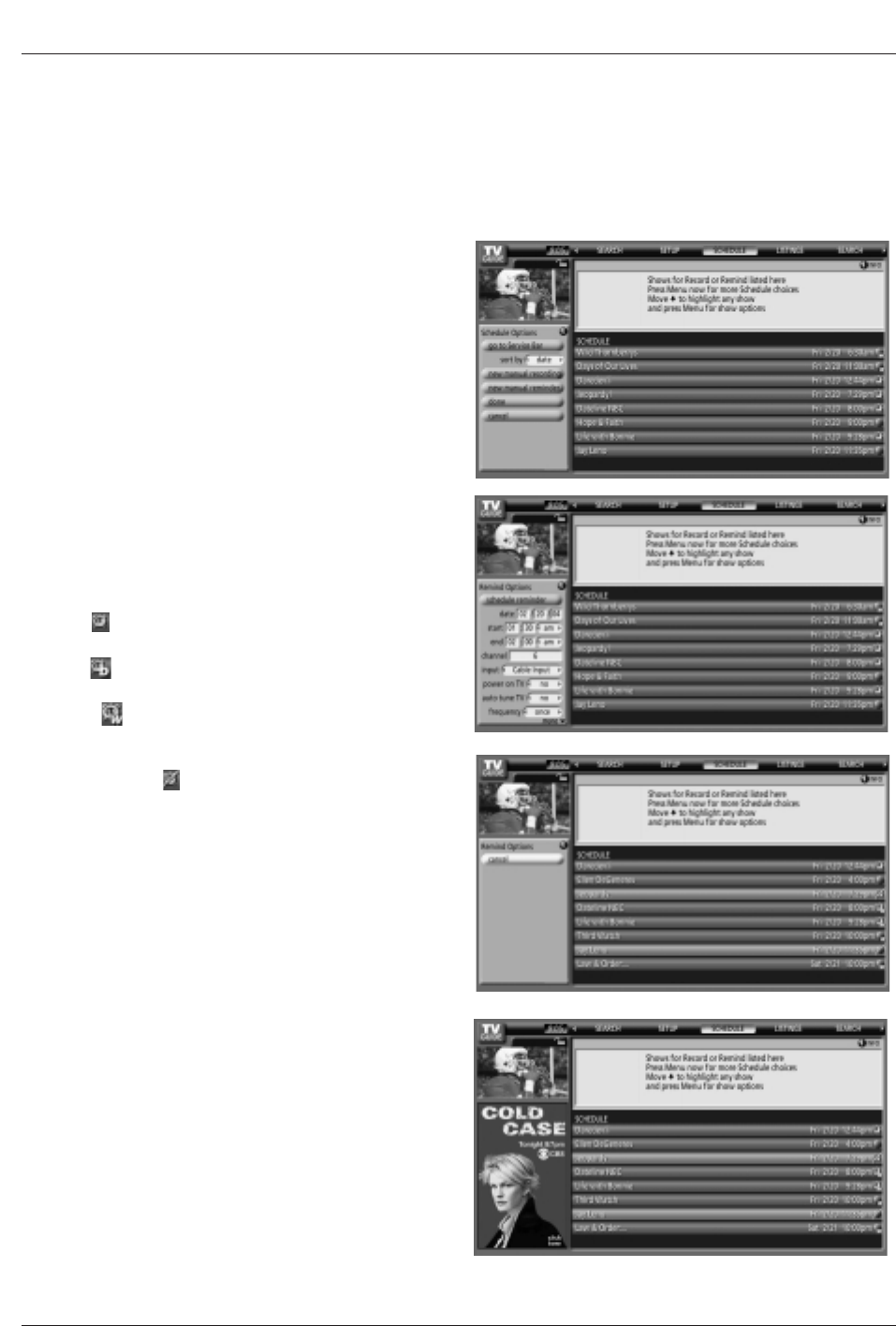

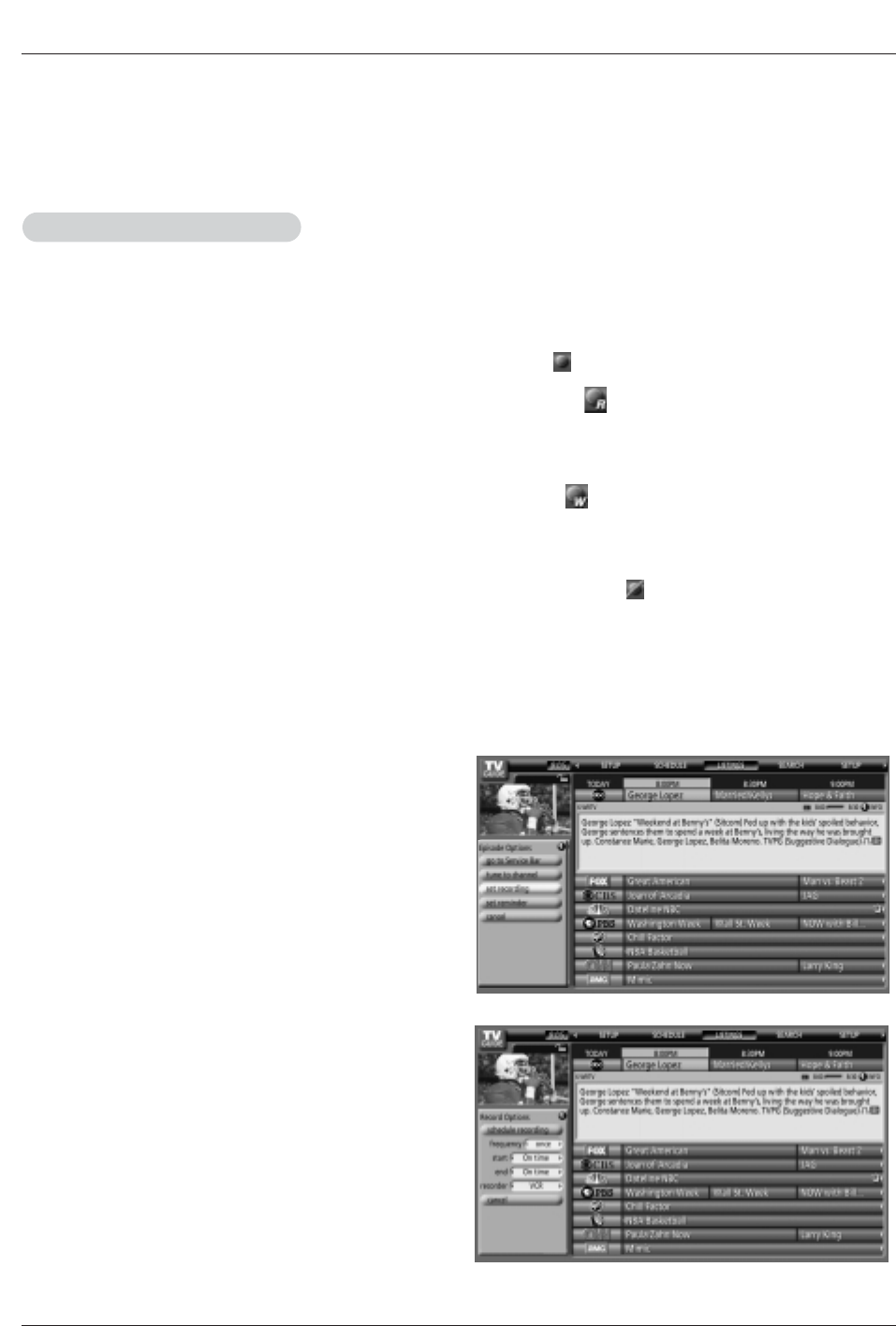

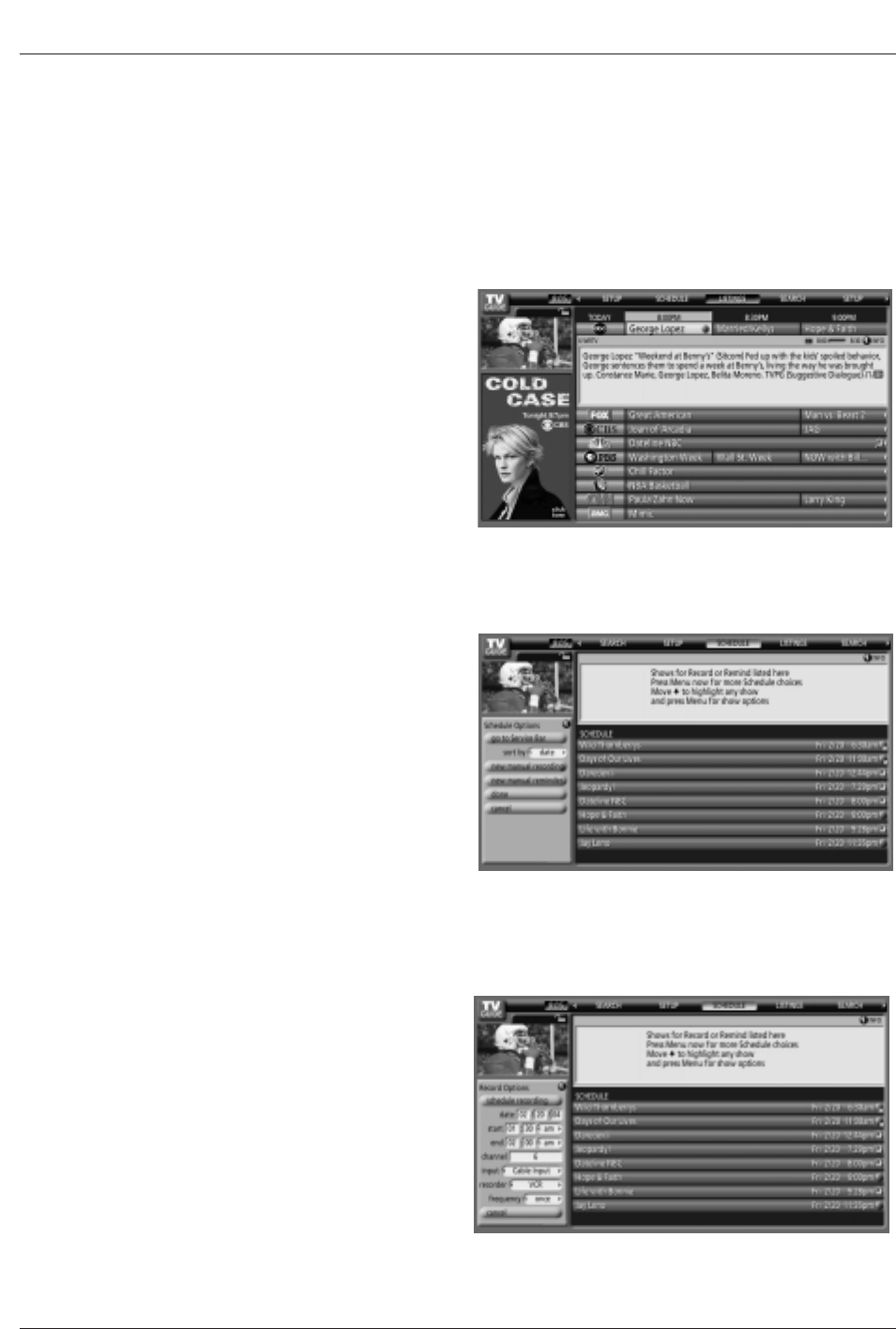

V< Record >

You can set a show to Record in Listings, Search, and

Schedule or change Record settings for a show in Schedule.

There are 3 ways to set a show to Record:

1) Using the Record Button on the Remote

• Press the Record button on the remote to record the show

Once with current default settings (Start and End recording

On Time). Each time you press the Record button, you

change the record frequency (but not the default settings)

among Once (default), Regularly, Daily, Weekly and then

Cancel.

Note: The proper Record icon appears on the show tile, as the

Record button is pressed.

2) From a Panel Menu

•Highlight a show, and press Menu to display the Episode

Options menu.

•Highlight Set Recording, and press ENTER to display the

Record Options menu.

•Highlight the Frequency option, and use the left and right

arrows to choose among Once, Regularly, Weekly, and Off,

as previously described.

• Recorder choice: Please choose the VCR only. This TV does

not provide other devices with a recording feature.

•Note: Video Window Lock is operated to on or off using PIP

button in Listings mode.

Owner’s Manual 51

TV Guide On Screen System

When finished, press ENTER to highlight Schedule Recording.

Press ENTER again to close the menu. You see a Record icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

3) Manual Recording

•Highlight the Schedule Service label, and press Menu to display

the Schedule Options menu.

•Use the D/E/F/Gbuttons to move through the options. Use

the number or Use the D/E/F/Gbuttons to change the infor-

mation, as necessary.

•Highlight New Manual Recording and press ENTER to display the

Record Options menu.

•Current information (i.e., date, start and end times, channel,

input) is displayed.

• Recorder choice: Please choose the VCR only. This TV does

not provide other devices with a recording feature.

52 Plasma TV

TV Guide On Screen System

•Use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

WOnce —records the time, channel, input, recorder combi-

nation one time.

WDaily —records the time, channel, input, recorder combi-

nation Monday through Friday.

WWeekly —records the time, channel, input, recorder com-

bination once a week on this selected day of the week

WOff (not cancel) —keeps the time, channel, input, recorder

combination in the list without recording until the frequency is

changed.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

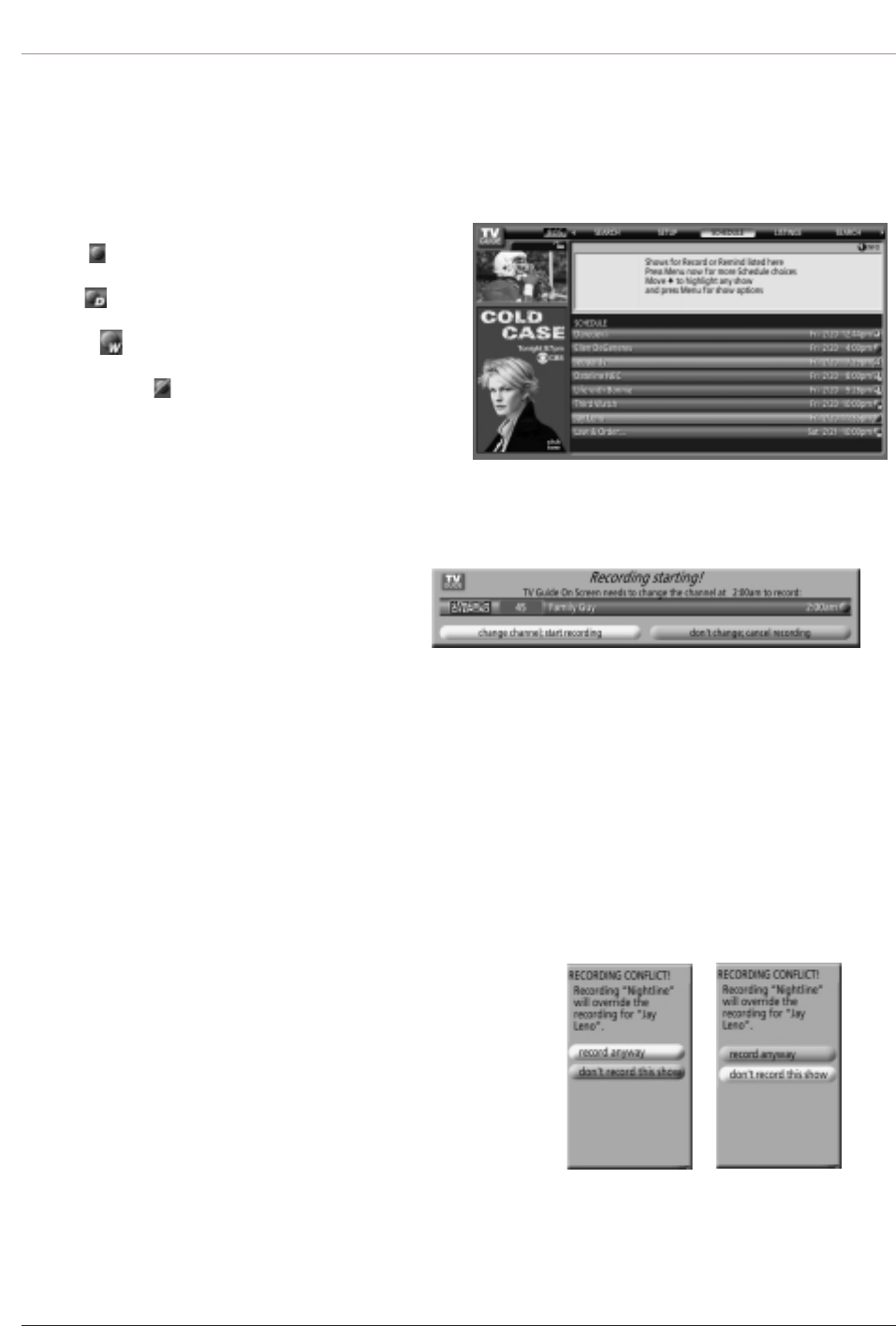

Record Conflict

A conflict message appears for the following reasons:

• a show set to Record overlaps with any part of another show pre-

viously set to Record,

• a show set to Record overlaps with a show previously set to auto-

tune

Select one of these options:

Wrecord anyway - this show will override an existing show

set to Record or auto-tune

Wdon't record this show - cancel the Recording

Before a recording begins, a notification screen appears

if you are using a Cable box and your TV is On. At that

time, you can choose to start or cancel recording. If the

TV is not On, the recording occurs as scheduled. If there

is no activity for 3 minutes, the notification screen auto-

matically closes and completes the highlighted item.

When finished, press ENTER to highlight Schedule

Recording.

Press ENTER again to close the menu. You see a

Record icon for the selected frequency next to the show

title.

Note: Manual recording is listed by channel number.

Highlight Cancel to close the menu, change no informa-

tion, and return to the highlighted show.

Owner’s Manual 53

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

V< Remind >

You can set a show Reminder in Listings, Search, and Schedule

or change Reminder settings for a show in Schedule.

There are 2 ways to set a show Reminder:

1) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Reminder, and press ENTER to display the Remind

Options menu.

•Highlight the Frequency option, and use the left and right arrows

to choose between:

WOnce —sets a show reminder one time

WRegularly —sets a show reminder every time the show

airs on the same channel and starts at the same time

WWeekly —sets a show reminder each time the show airs

on the same day of the week, on the same channel and starts

at the same time

WOff —keeps the show in the list but will not remind until

the frequency is changed

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No. (Default = No)

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No. (Default =

No)

•When to display the reminder screen. Choices are 30 seconds to

15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

54 Plasma TV

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

2) Manual Reminder

•Highlight the Schedule Service label, and press the Menu key to

display the Schedule Options menu.

•Use the D/E/F/Gbuttons to move through the options. Use the

number or D/E/F/Gbuttons to change the information, as nec-

essary.

•Highlight New Manual Reminder and press the ENTER key to dis-

play the Remind Options menu.

•Current information (i.e., date, start and end times, channel, input,

frequency, etc.) is displayed.

•Highlight the Frequency option, and use the F/Gbuttons to

choose among Once, Daily, Weekly, and Off, as follows.

WOnce —sets a show reminder for the time, channel, input,

recorder combination one time

WDaily —reminds for the time, channel, input, recorder com-

bination Monday through Friday

WWeekly —sets a show reminder for the time, channel, input,

recorder combination once a week on this selected day of the

week

WOff (not cancel) —keeps the time, channel, input, destina-

tion combination in the list without reminding until the frequency

is changed

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No (Default =No).

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No (Default = No).

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Note: Manual reminder is listed by channel number.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Owner’s Manual 55

TV Guide On Screen System

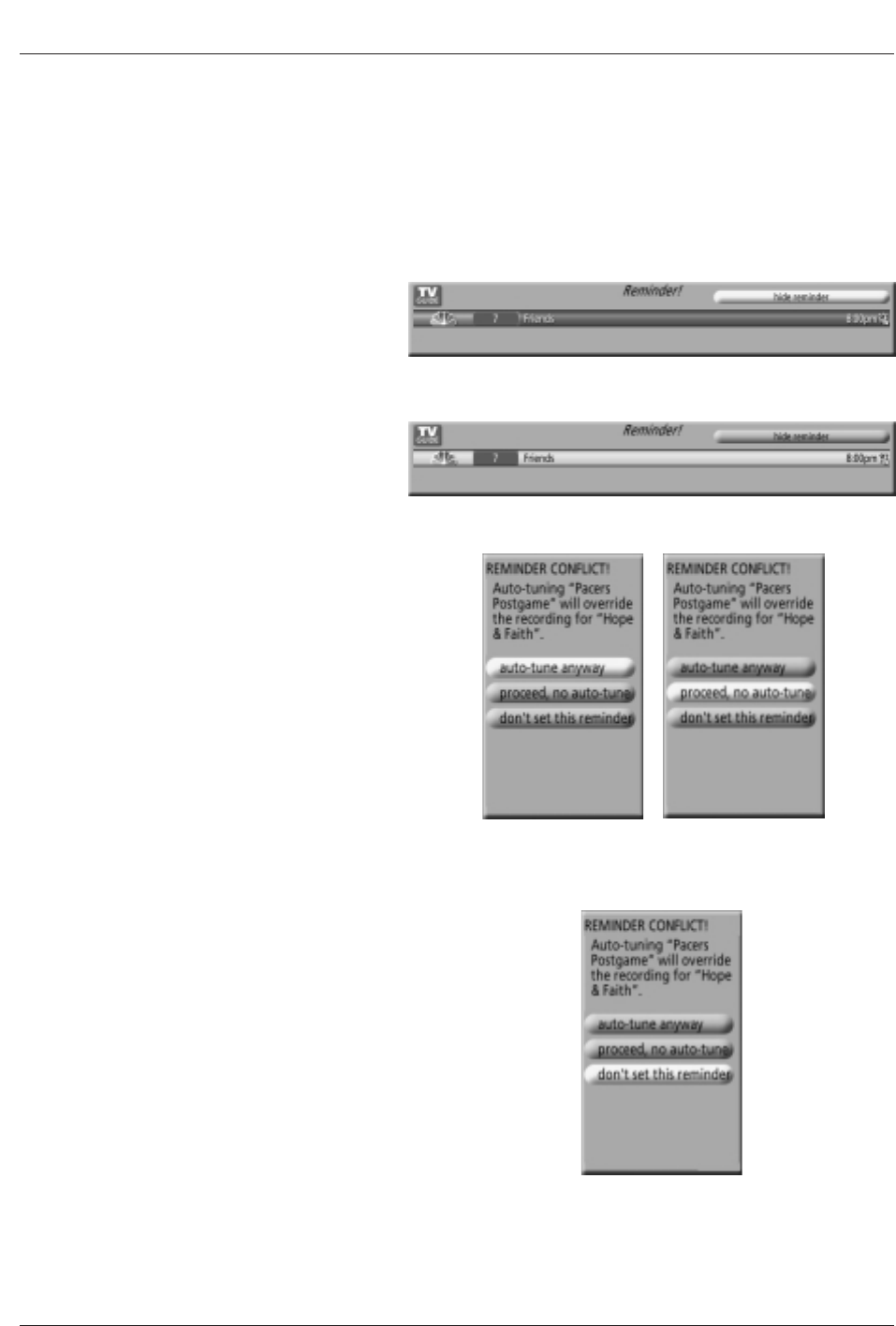

Based on your option settings, a notification screen will

appear, if your TV is On at the reminder time. You can

then choose to hide the reminder, or highlight the show,

and press ENTER to tune to the show. If there is no activ-

ity for 3 minutes, the notification screen automatically

closes and completes the highlighted item (hide

reminders).

If you choose Hide Reminders, the window closes for the

show or shows, but does not affect other Reminders you

set.

Note: If more than 2 reminders are set for the same time,

arrows appear on the Reminder screen. Use the

buttons to view the shows.

Remind Conflict

A conflict message appears for the following reasons:

• a show set with an Auto-Tune Reminder has the same

start time as an existing Auto-Tune Reminder.

• If you are using a cable box, a show set with an Auto-

Tune Reminder overlaps with a Recording already

scheduled.

Select one of these options:

Wauto-tune anyway - this show will override an exist-

ing show set to auto-tune

Wproceed, no auto-tune - set the show as a Reminder

but do not auto-tune

Wdon't set this reminder - cancel the Reminder

TV Guide On Screen

TV Guide On Screen®System continued

System continued

56 Plasma TV

Operation

- Be sure to select the RGB-PC/RGB-TV SET source before operation.

(For RGB-DTV input source, Position and Reset are available.)

- In RGB-PC/DVI-PC input source, setting are available.

- You can manually adjust picture position and minimize image shaking for the PC input source.

1. Press the ADJUST button and then use D/Ebutton to select POSITION,SIZE,

or PHASE.

2. Press ENTER button and then use D/E/F/Gbuttons to make appropriate

adjustments.

• The PHASE adjustment range is -16 ~ +16.

• The SIZE adjustment range is -30 ~ +30.

3. Press ENTER button.

•Note: In HDMI/DVI-PC mode, screen PHASE is not available.

Adjustment for screen Position, Size, and Phase

Screen Setup for PC mode

1. Press the ADJUST button and then use D/Ebutton to select the RESET option.

2. Press ENTER button and then use F/Gbutton to select Yes.

3. Press ENTER button

Initializing (Reset to original factory values)

- To initialize the adjusted values

POSITION G

SIZE

PHASE

RESET

Adjust

POSITION

SIZE

PHASE

RESET G

Adjust

Initialize Settings

Owner’s Manual 57

Operation

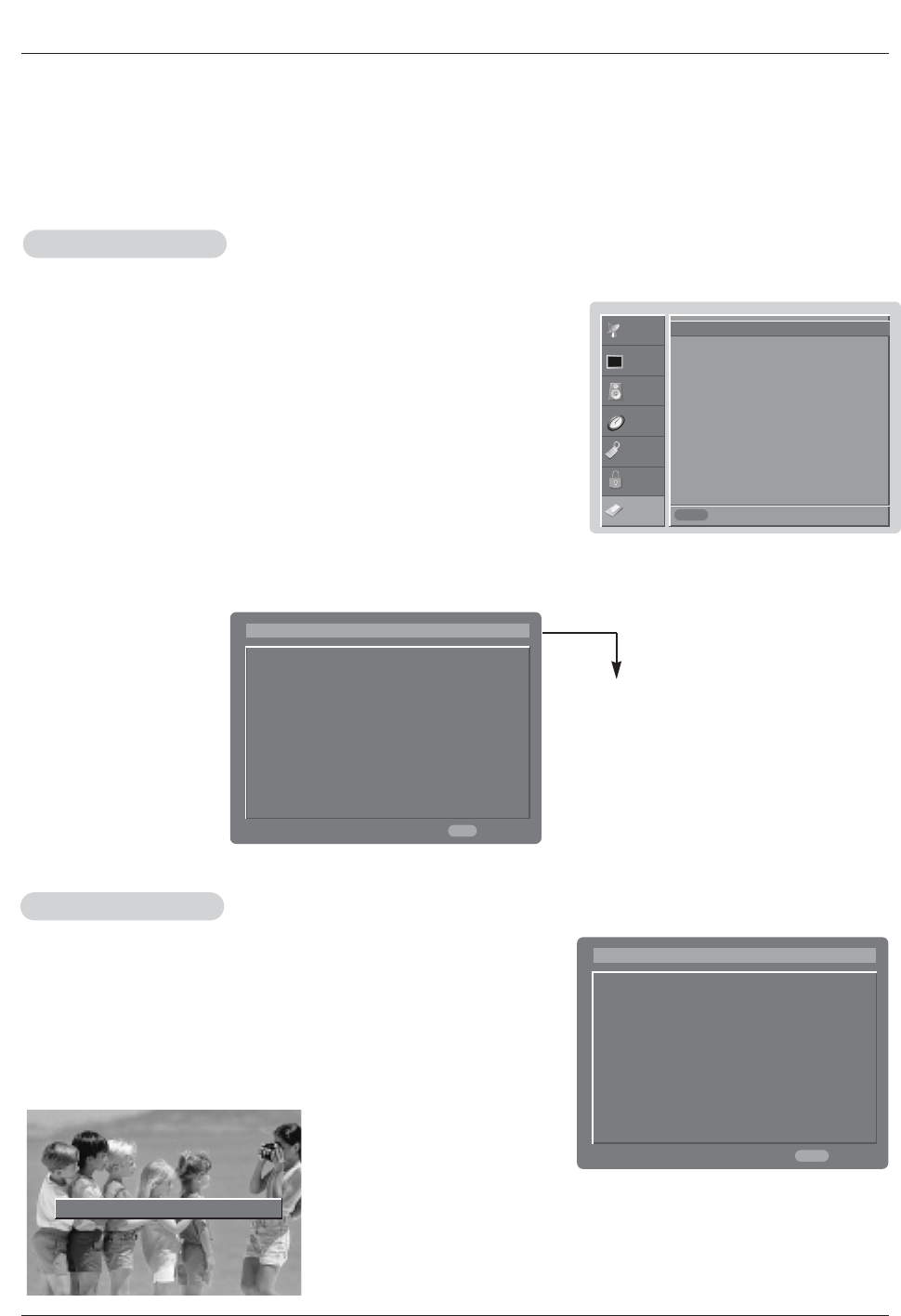

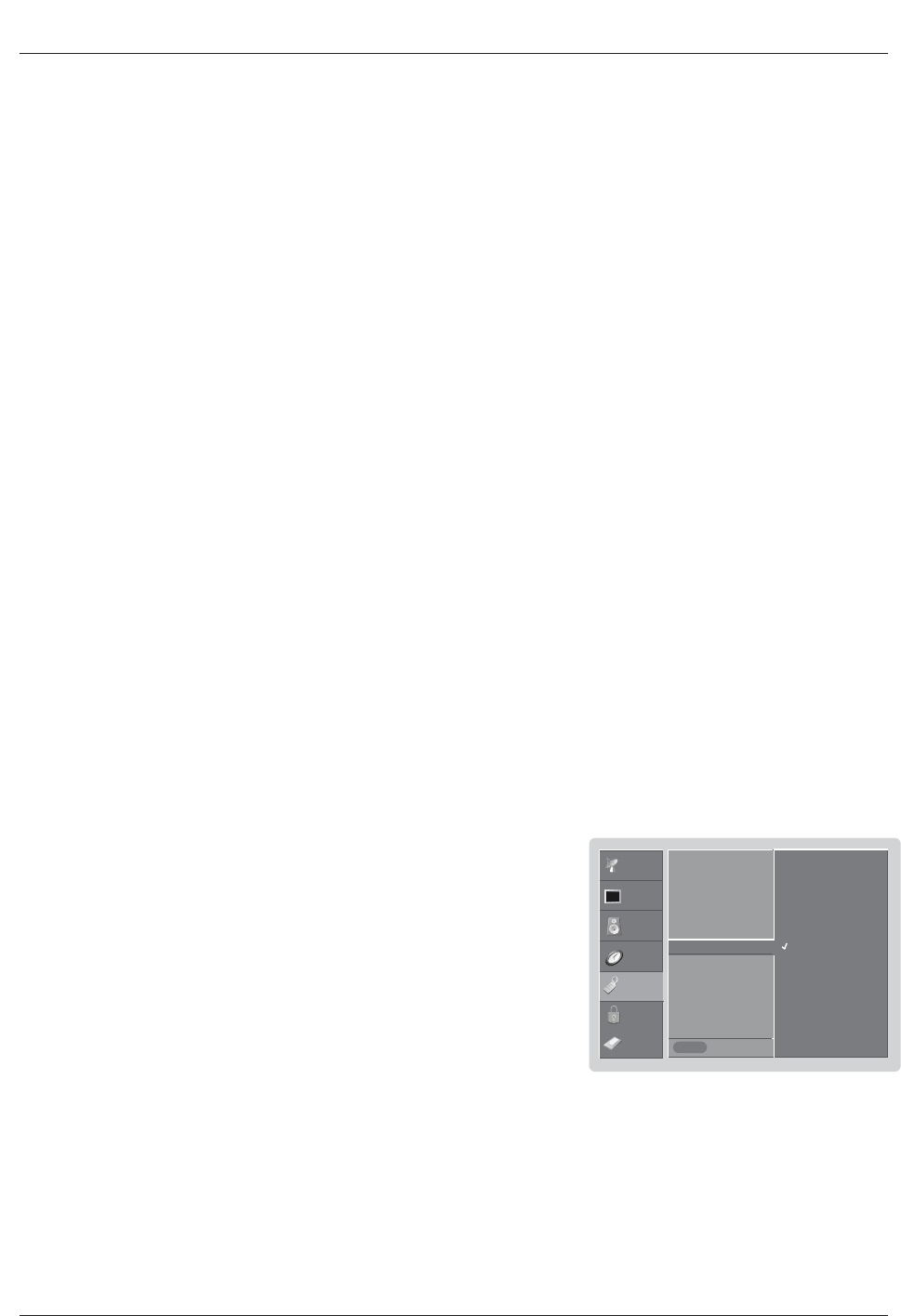

On-screen Menus Language Selection

Turning the TV On

urning the TV On

1. First, connect power cord correctly. At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the power, TV/VIDEO,CH (D/E)button on the TV or press

the POWER,TV/VIDEO,COMP/RGB/HDMI,CH (+,-),Number (0 ~ 9) button on the TV .

-The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Language.

3. Press the Gbutton and then use D/Ebutton to select your desired language.

From this point on, the on-screen menus will be shown in the selected language.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Notes:

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

• After turning on the TV, it takes time to be initialized for the TV Guide On Screen System.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption/Text

Caption Option

Language G

Demo

ISM Method

Low Power

English

Español

Français

CABLE

2. Select the viewing source by using TV/VIDEO,COMP/RGB/DVI button on the remote control.

This TV is programmed to remember which mode it was last set to, even if you turn the TV off.

3. When finished using the TV, press the POWER button on the remote control. The TV reverts to

standby mode.

58 Plasma TV

Operation

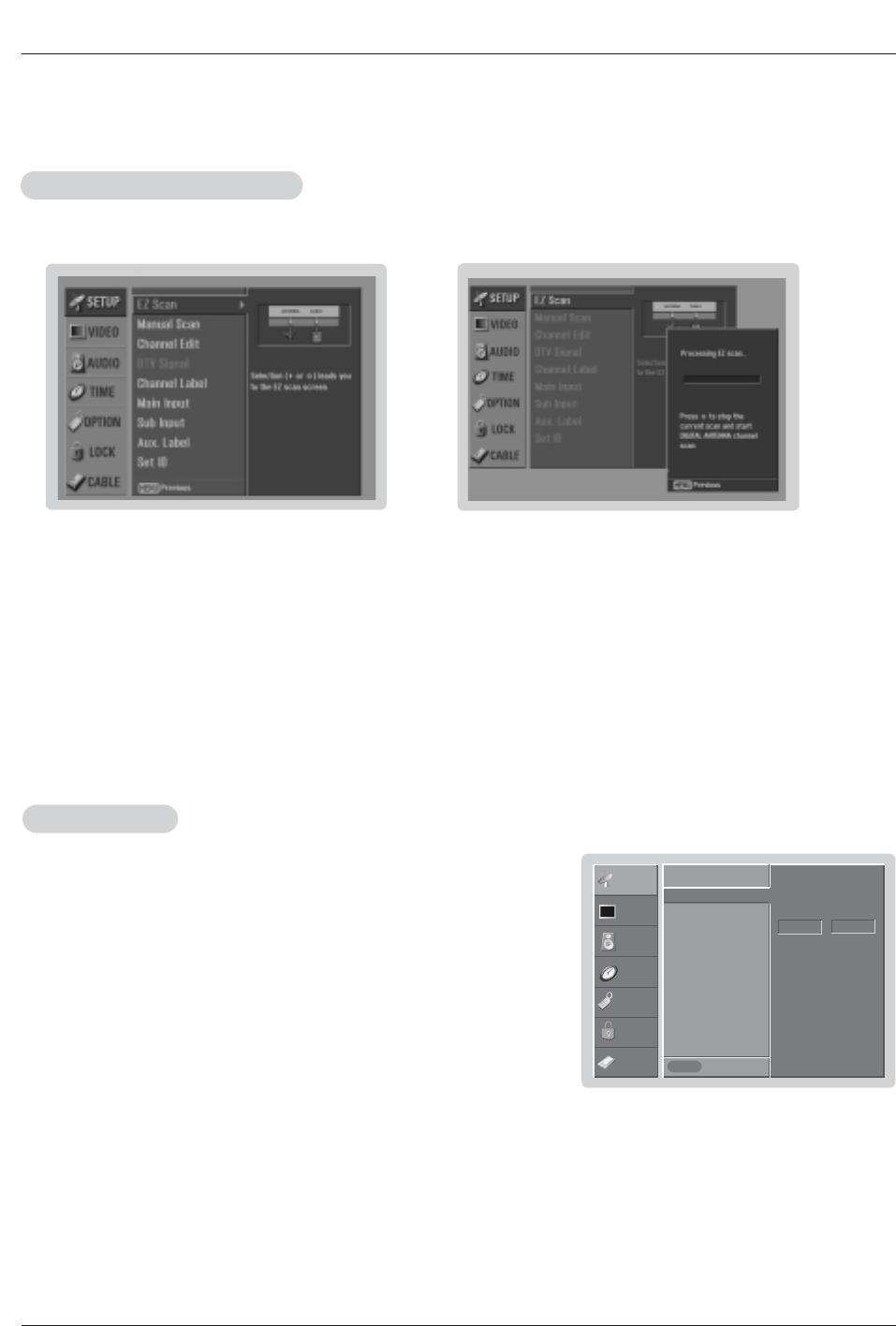

- Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

- Run EZ Scan again after any Antenna/Cable connection changes.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select EZ Scan.

3. Press the ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for TV, DTV, CATV, and CADTV.

EZ Scan (Channel Search)

Setup Menu Options

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Manual Scan.

3. Press the Gbutton and then use D/Ebutton to select TV, DTV, CATV, and

CADTV.

4. Press the Gbutton and then use D/Ebutton to select channel number you want

to add or delete.

5. Press the ENTER button to add or delete for the channel number.

6. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Manual Scan

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE Previous

EZ Scan

Manual Scan G

Channel Edit

DTV Signal

Channel Label

Main Input

Sub Input

Aux. Label

Set ID

Select channel type and

RF-channel number.

TV 20

Notes:

•This channel number is different from normal channel showed Channel Edit.

•When Cable Box connect to RF2,3,4 in TV Guide Setup, CATV, CADTV is not working in EZ Scan.

Note:

•When Cable Box connect to RF2,3,4 in TV Guide Setup, CATV, CADTV is not working in EZ Scan.

Owner’s Manual 59

Operation

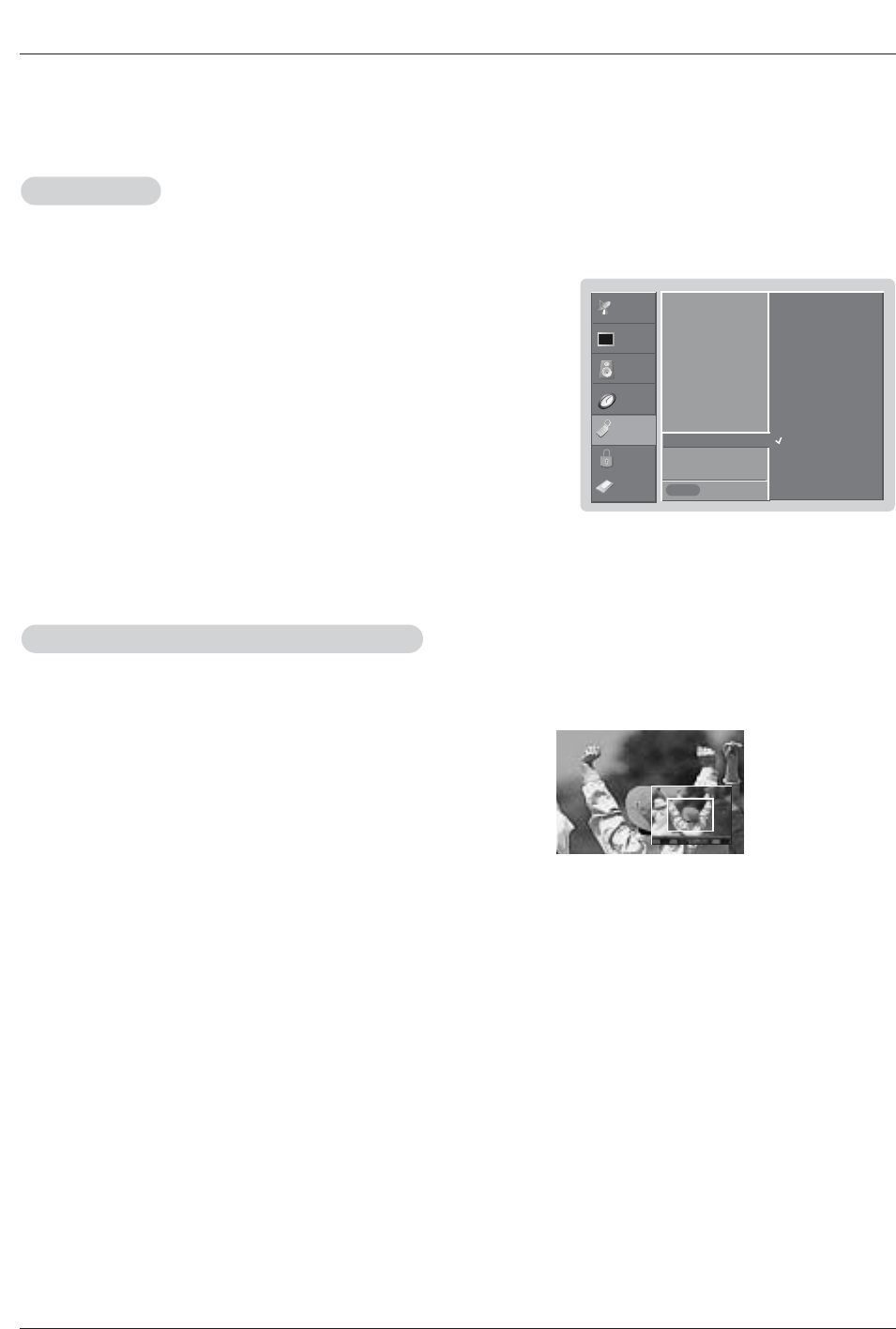

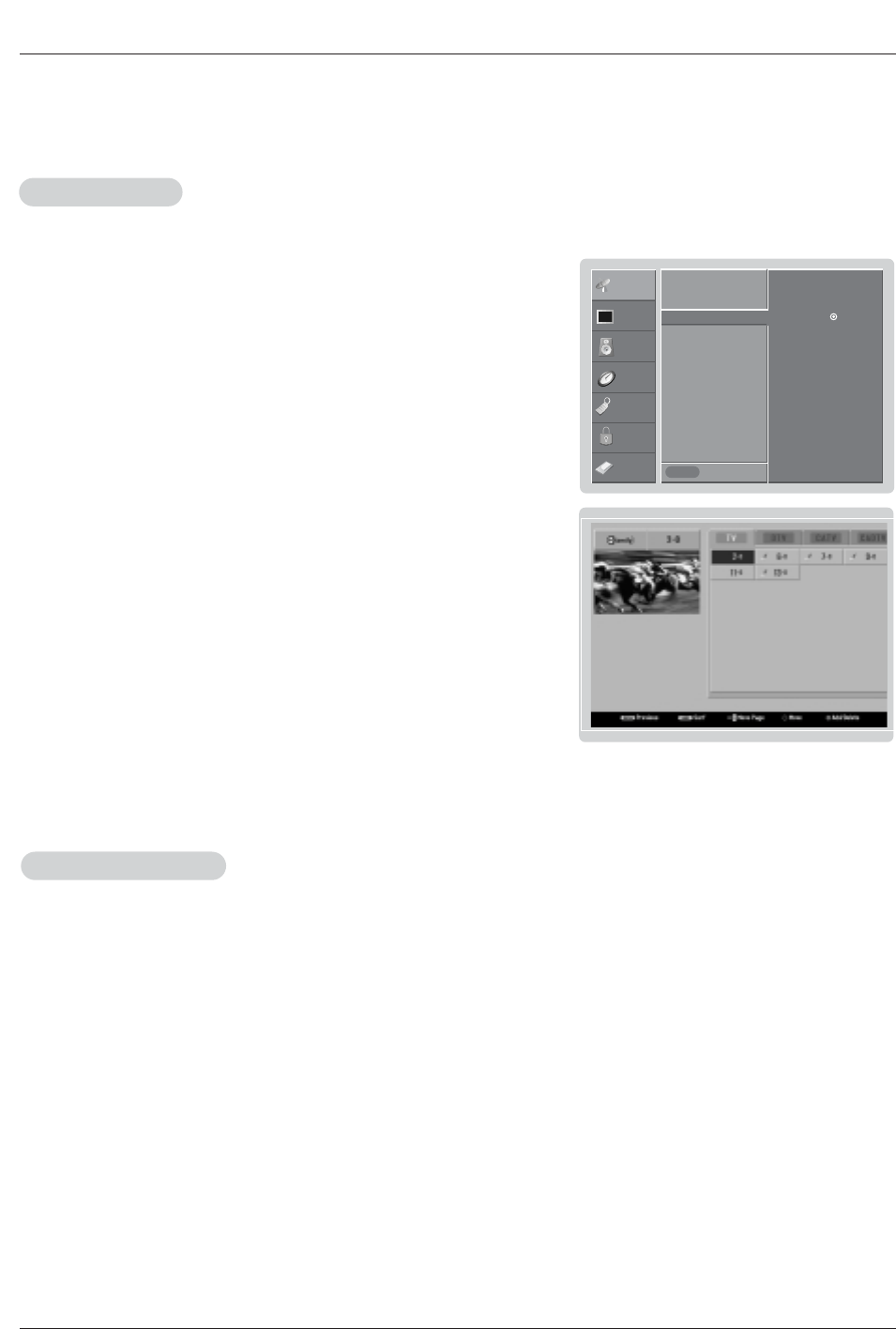

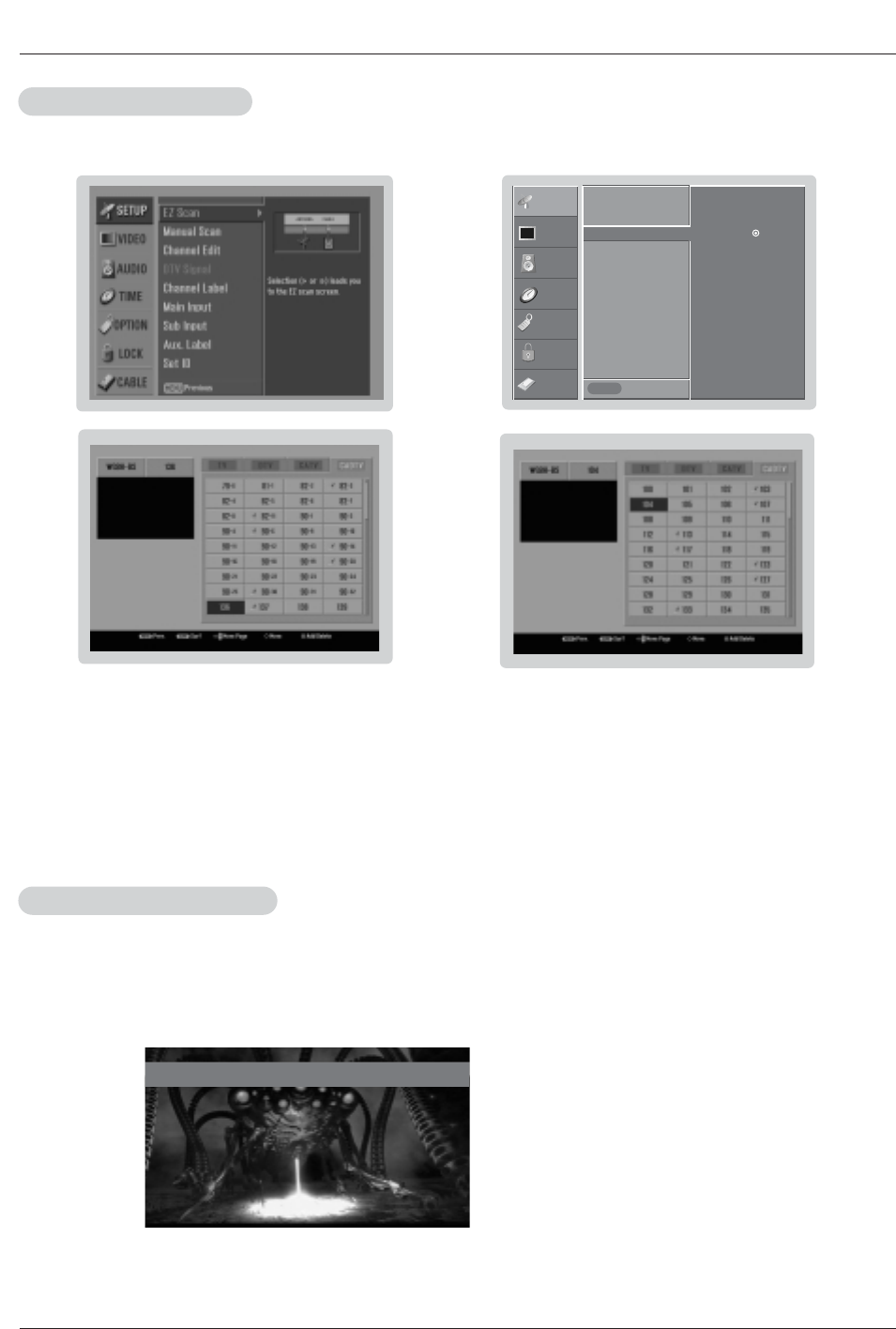

- Create two different types of channel lists in memory: “Custom list” and “Surf"

(Favorite) channel list” from the default channel list created from the EZ Scan

channel search.

- A custom list can be created by toggling each channel on or off with ENTER

button. Once a channel is highlighted, you will be able to see whether the chan-

nel is currently added or deleted by referring to the small window at the top-left

corner of the screen. You can create your own Surf channel with all channels.

Use the SURF button on the remote control when a channel is highlighted and

then you can create your Surf channel.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Channel Edit.

3. Press the Gbutton. You will now see a screen filled with channel numbers and

a preview picture.

4. Use D/E/F/Gutton to select a channel and then use the ENTER button to

add or delete it. Press SURF to add the channel to the Surf List.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Channel Edit

- Shows how strong your DTV signal is and whether you need to adjust your antenna or digital cable input.

The higher the signal strength, the less likely you are to experience picture degradation.

- DTV Signals: When input signals are DTV, CADTV, this function is available.

1. Press the SIGNAL button.

2. View the on-screen signal strength monitor to see the quality of the signal being received.

• You can also check the DTV Signal strength with the SETUP menu.

DTV Signal Strength

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE Previous

EZ Scan

Manual Scan

Channel Edit G

DTV Signal

Channel Label

Main Input

Sub Input

Aux. Label

Set ID

Selection (

or ) leads you

to the channel edit screen.

60 Plasma TV

Operation

Setup Menu Options continued

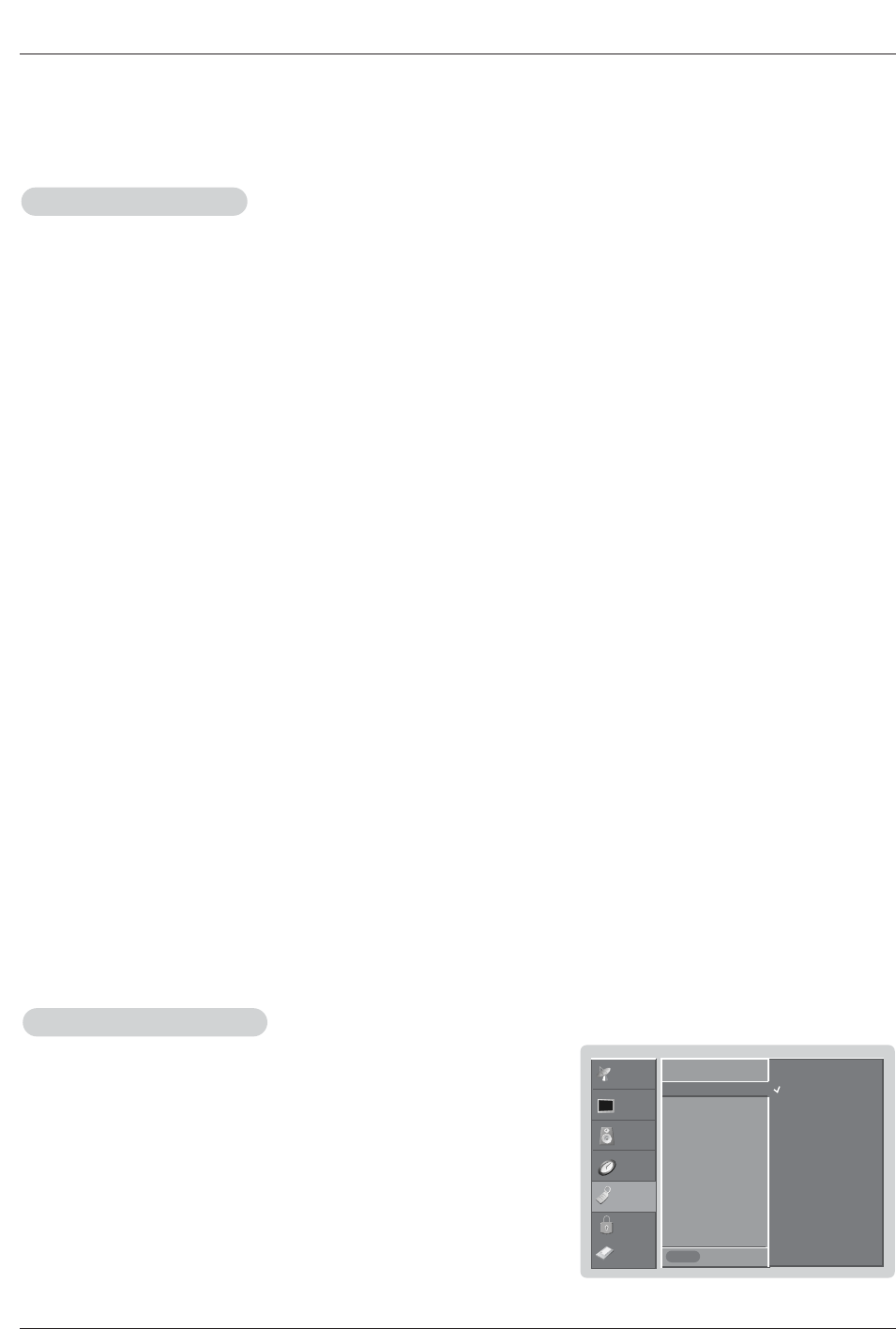

- Changes the picture source so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are connected to

your TV.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Main Input.

3. Press the Gbutton and then use D/Ebutton to select the source: Antenna,

Cable, Video, Front Video, Component1, Component2, RGB-DTV (or RGB-PC),

HDMI/DVI.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Main Picture Source Selection

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label

Main Input G

Sub Input

Aux. Label

Set ID

Antenna

Cable

Video

Front Video

Component1

Component2

RGB-DTV

HDMI/DVI

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Aux. Label.

3. Press the Gbutton and then use D/Ebutton to select the source: Video, Front

Video, Component1, Component2, RGB, HDMI/DVI.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Aux. Label

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label

Main Input

Sub Input

Aux. Label G

Set ID

Video Cable Box

Front Video VCR

Component1 DVD

Component2 Set Top Box

RGB PC

HDMI/DVI Game

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label G

Main Input

Sub Input

Aux. Label

Set ID

Selection (

or ) leads you

to the channel logo screen.

- Choose preset labels for your channels.

- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel -

even if you didn't preset a label for the channel.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Channel Label.

3. Press the Gbutton. You will now see a screen filled with Labels and a preview screen.

4. Use the CH +/- button to select a channel to Label.

5. Use D/E/F/Gbutton to select the appropriate label for the channel, then press ENTER button to set the Label to

the selected channel.

- If you press ENTER button, you will see the channel banner. • For example:

Channel Label Setup

CABLE

CADTV 27-1

CNN

DOLBY DIGITAL HD

Owner’s Manual 61

Operation

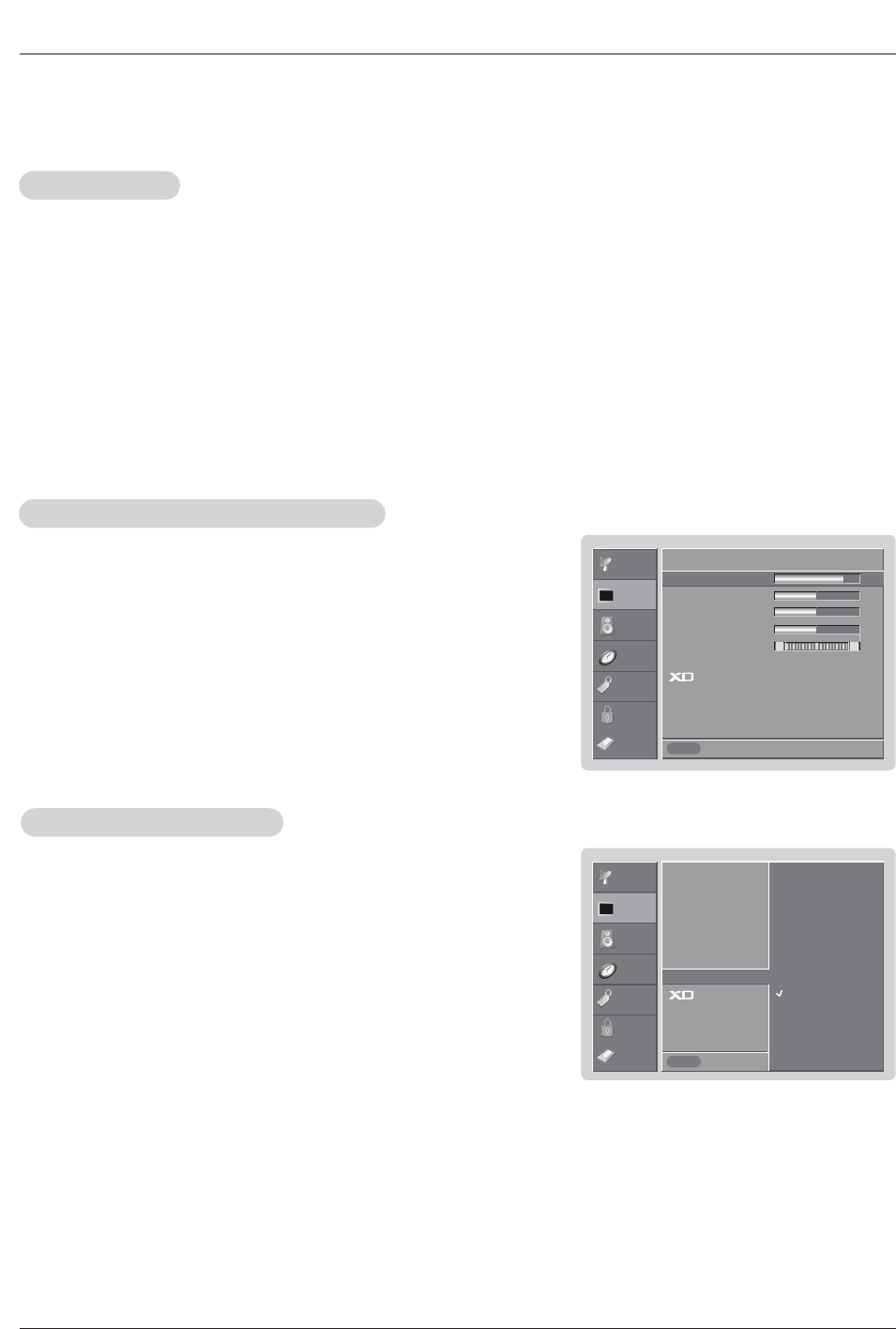

- Adjust the picture appearance to suit your preference and viewing situations.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select the desired picture option

(Contrast,Brightness,Color,Sharpness, or Tint ).

3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

1. Press the VIDEO button repeatedly to select the picture appearance setup option as shown below:

Off (your own settings), Daylight,Normal,Night Time,Movie,Video Game, and Sports.

• You can also use the VIDEO menu to adjust EZ Picture.

2. Press the EXIT button to save and return to TV viewing.

EZ Picture

Manual Picture Control (

Manual Picture Control (Off option)

option)

- Choose one of three automatic color adjustments. Set to warm to enhance hotter

colors such as red, or set to cool to see less intense colors with more blue.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select Color Temperature .

3. Press the Gbutton and then use D/Ebutton to select either Cool,Medium or

Warm.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Color

Color T

Temperature Control

emperature Control

- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the

program category.

- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ

Picture automatically changes to Off.

-Daylight,Normal,Night Time,Movie,Video Game, and Sports settings are preset for optimum picture quality at

the factory and are not adjustable.

Video Menu Options

ideo Menu Options

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Picture

Contrast

Brightness

Color

Sharpness

Tint

Color Temperature G

Video Preset

Cool

Medium

Warm

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Picture

Contrast 85 G

Brightness 50

Color 50

Sharpness 50

Tint 0

Color Temperature

Video Preset

R G

CABLE

62 Plasma TV

Operation

- Use to quickly reset all the Video menu options to their original factory preset

values.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select Video Preset .

3. Press the Gbutton to reset the Video menu options to original values.

Video Preset

ideo Preset

SETUP

VIDEO

AUDIO

TIME

OPTION

EZ Picture

Contrast

Brightness

Color

Sharpness

Tint

Color Temperature

Video Preset G

Selection (

or ) presets

the video configuration.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

EZ Picture

Contrast

Brightness

Color

Sharpness

Tint

Color Temperature

Video Preset

Off

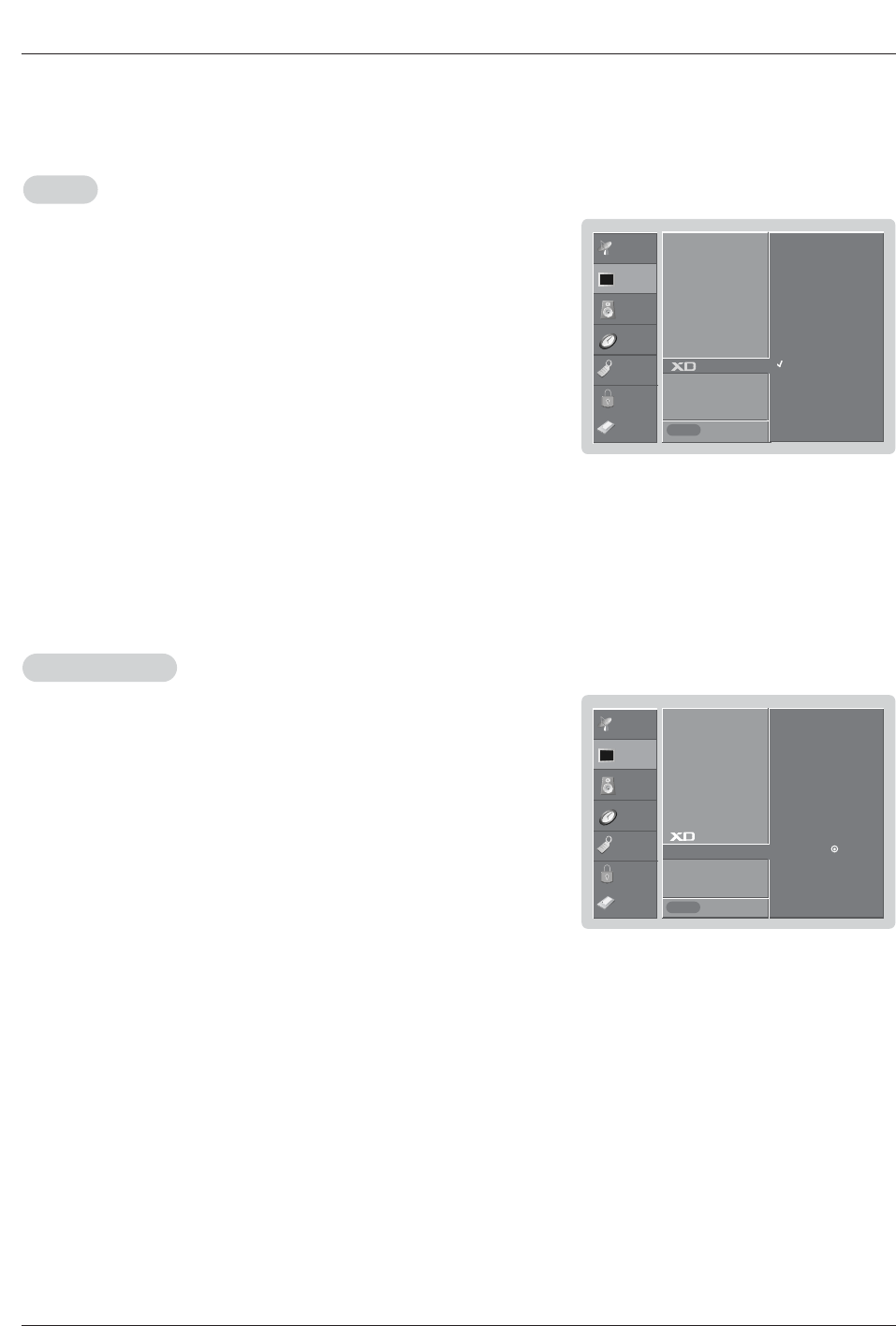

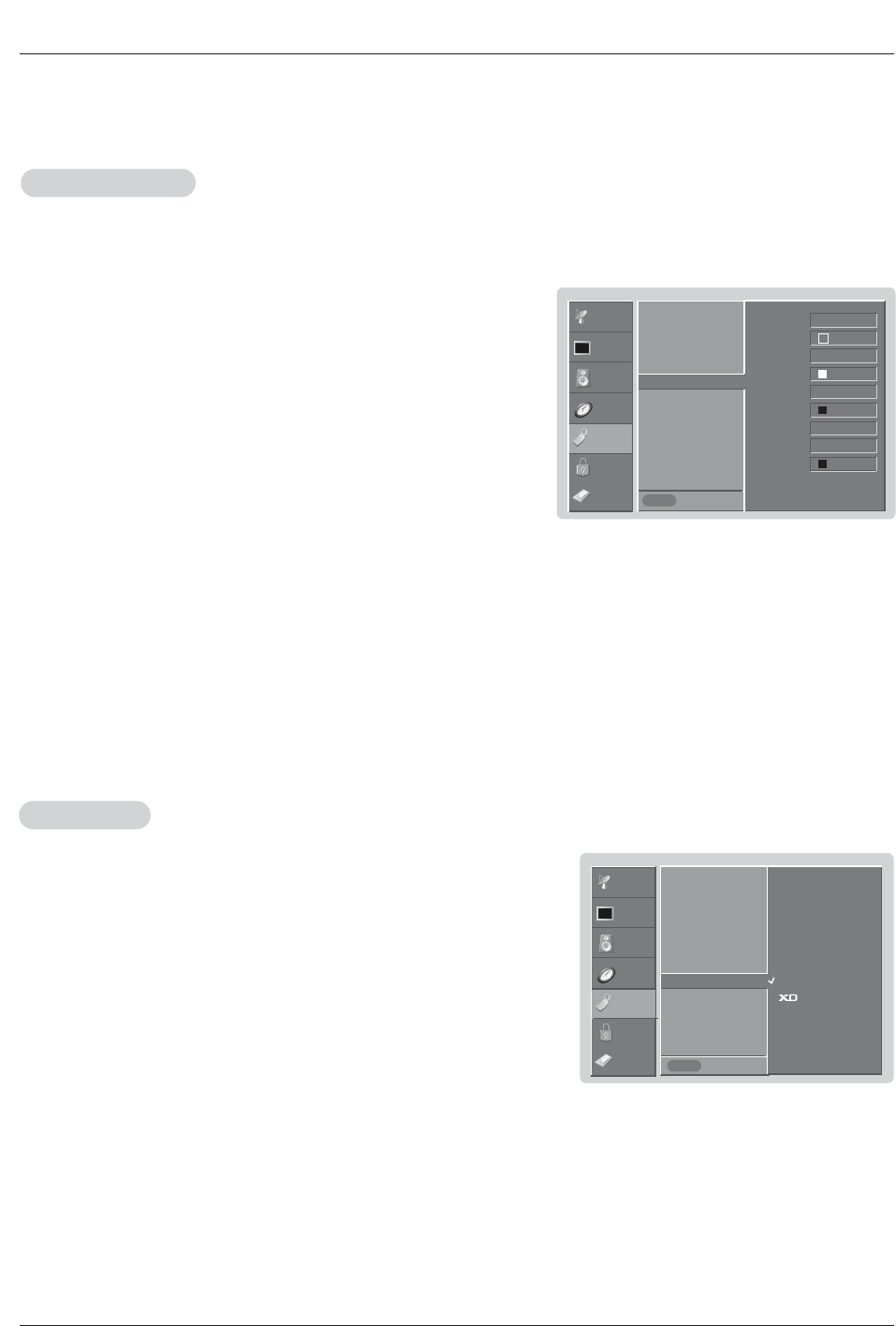

- XD is LG Electronic’s unique picture improving technology to display a real HD

source through an advanced digital signal processing algorithm.

- When selecting EZ Picture options (Daylight, Normal, Night Time, Movie, Video

Game, and Sports), XD is automatically change to On.

1. Press the MENU button and then use D/Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D/Ebutton to select XD.

3. Press the Gbutton and then use D/Ebutton to set On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

LOCK

CABLE

Owner’s Manual 63

Operation

- Other languages may be available if a digital signal is provided by the broad-

casting station.

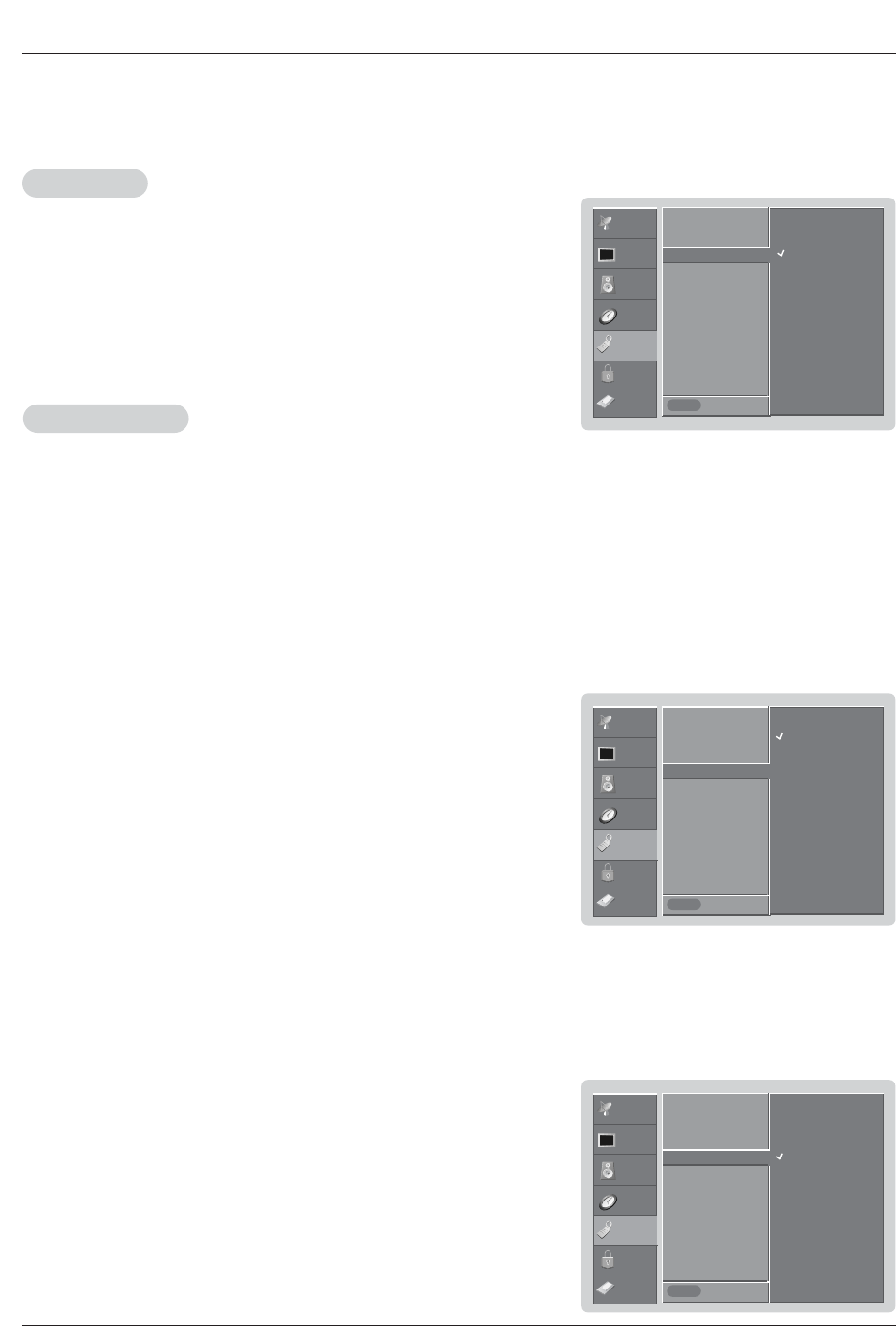

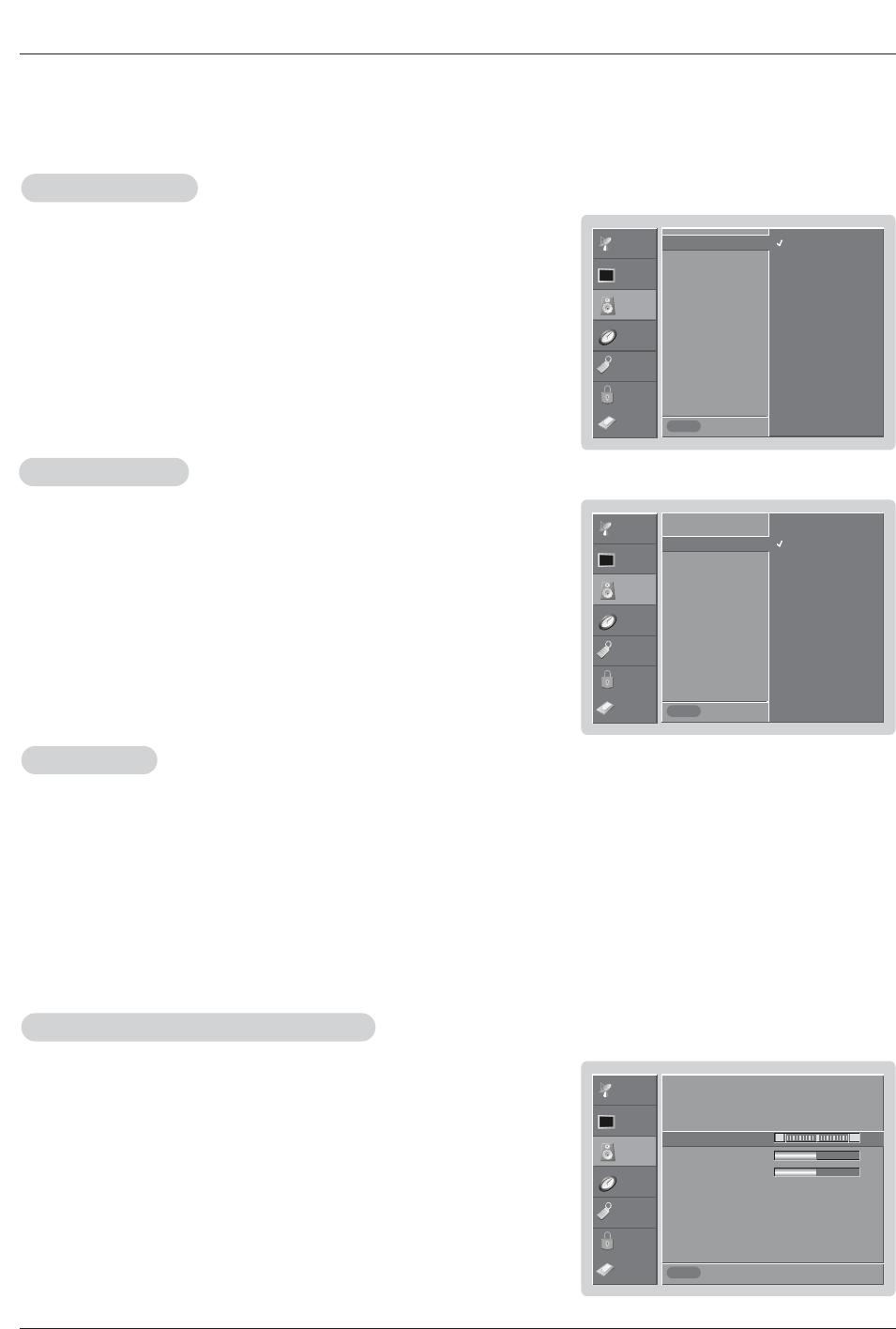

Audio Menu Options

1. Press the SOUND button repeatedly to select the appropriate sound setup as shown below:

Off (your own settings), Normal,Stadium,Theater, and Music.

• You can also adjust EZ Sound in the AUDIO menu.

2. Press EXIT button to save and return to TV viewing.

EZ Sound

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select the desired sound option

(Balance,Treble, or Bass).

3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Manual Sound Control (

Manual Sound Control (Off option)

option)

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select Audio Language.

3. Press the Gbutton and then use D/Ebutton to select: English, Spanish, or

French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Audio Language

- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound

options based on the program content.

- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches Off.

-Normal,Stadium,Theater, and Music are preset for good sound quality at the factory and are not adjustable.

- Scans for changes in sound level during commercials, then adjusts the sound

to match the specified audio level. SoundRite makes sure that the volume level

remains consistent whether you are watching a commercial or a regular TV

program.

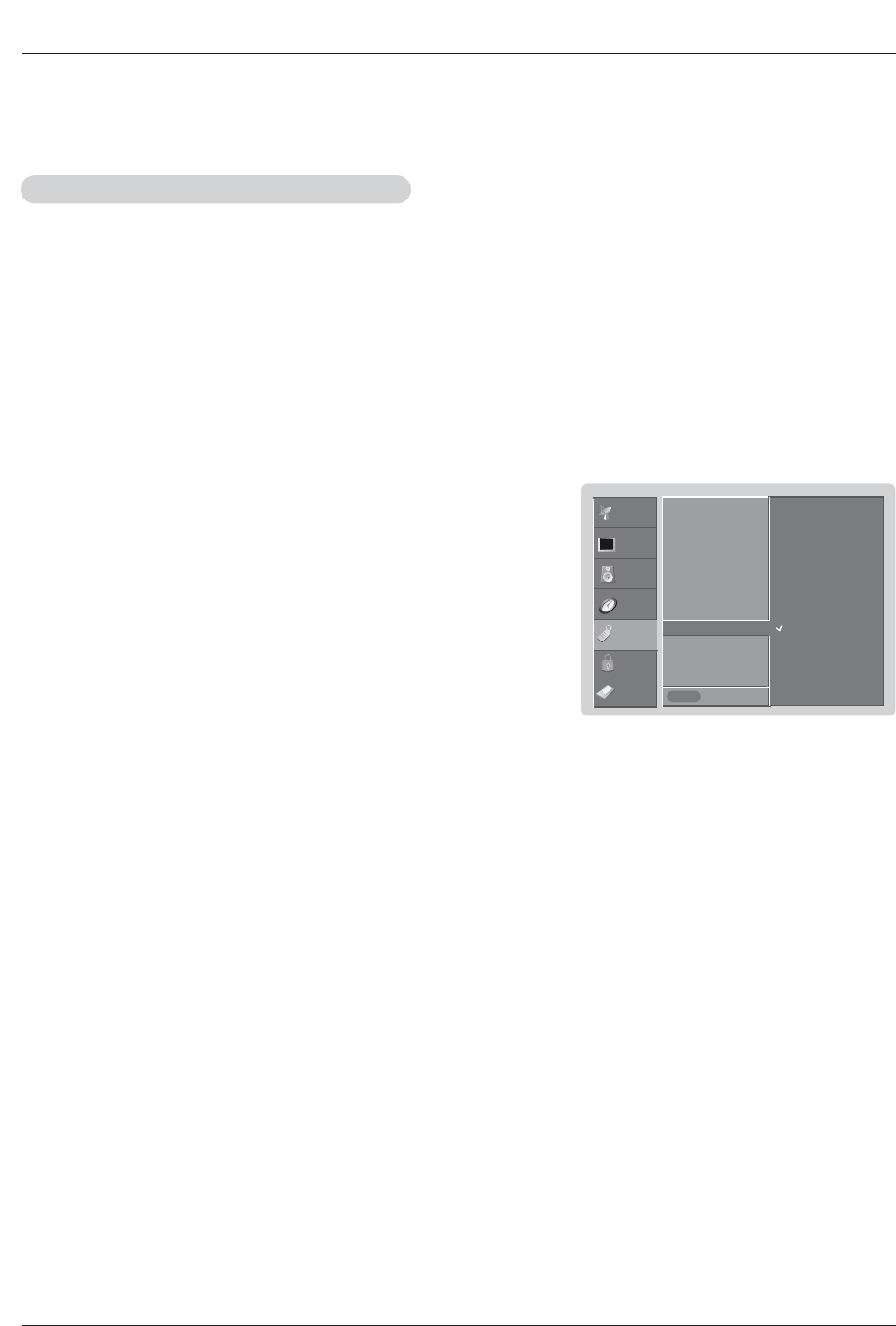

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select EZ SoundRite.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

EZ SoundRite

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Audio Language G

EZ SoundRite

EZ Sound

Balance

Treble

Bass

Front Surround

TV Speaker

English

Spanish

French

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Audio Language

EZ SoundRite G

EZ Sound

Balance

Treble

Bass

Front Surround

TV Speaker

Off

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Audio Language

EZ SoundRite

EZ Sound

Balance 0 G

Treble 50

Bass 50

Front Surround

TV Speaker

L R

- Adjust the sound to suit your taste and room situations.

CABLE

64 Plasma TV

Operation

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Audio Language

EZ SoundRite

EZ Sound

Balance

Treble

Bass

Front Surround G

TV Speaker

Off

3D EchoSound System

SRS TruSurround XT

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Audio Language

EZ SoundRite

EZ Sound

Balance

Treble

Bass

Front Surround

TV Speaker GOff

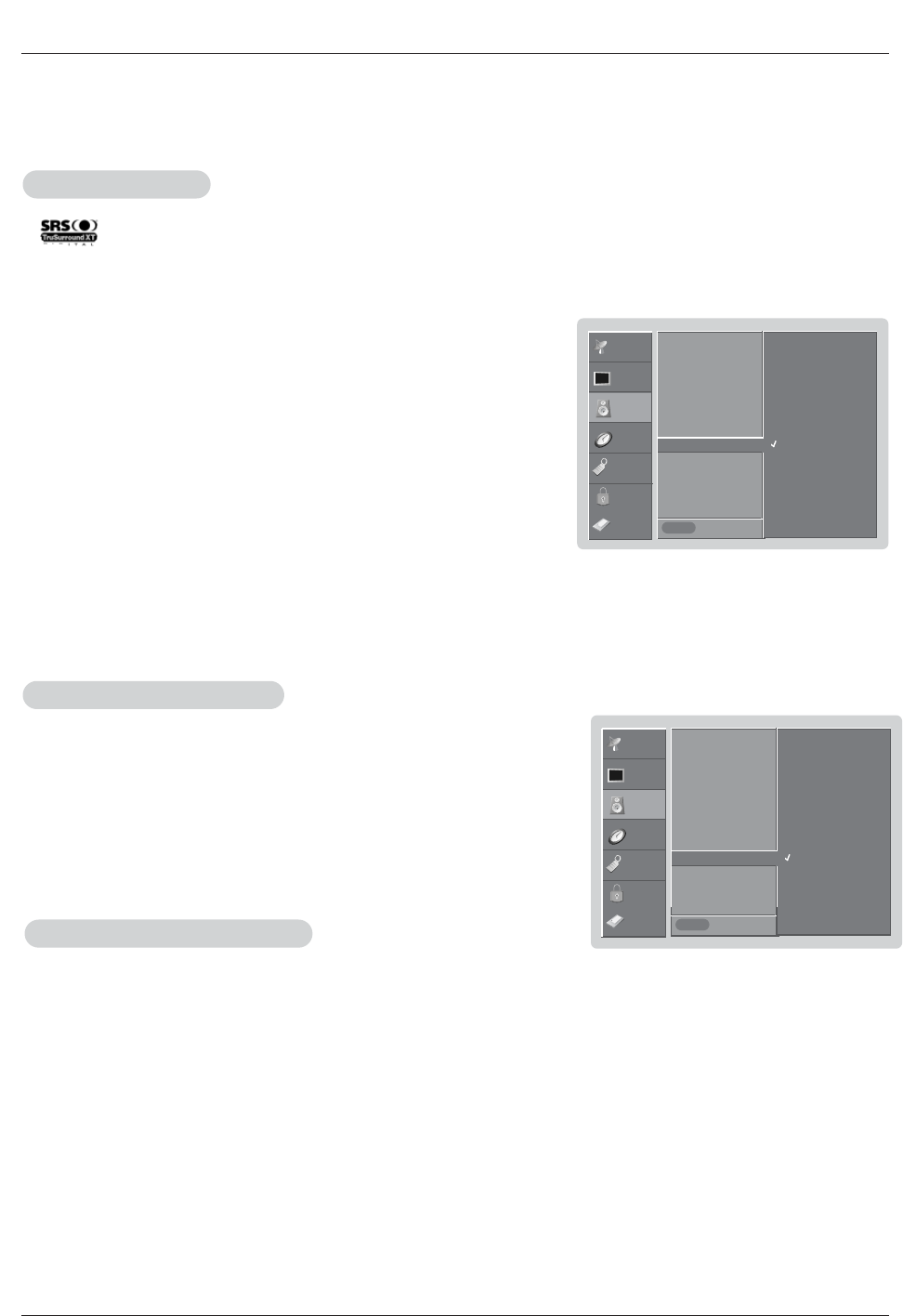

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select Front Surround.

3. Press the Gbutton and then use D/Ebutton to select Off,3D EchoSound

System or SRS (Sound Retrieval System) TruSurround XT..

•3D EchoSound System

Creates a stunning simulated stereo effects from any mono sound and a real-

istic three-dimensional sound with a very wide and deep sound stage into

stereo sound.

•SRS TruSurround XT

Takes advantage of any multi-channel format without needing to add extra

speakers or equipment. Dialog clarity, bass enrichment, and the addition of

stereo audio enhancement that produces an immersive sound experience from

standard stereo material.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Front Surround

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select TV Speaker.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

TV Speakers On/Of

TV Speakers On/Off Setup

f Setup

- Turn TV speakers off if using external audio equipment. Feature turns the TV

Speakers option On or Off.

1. Use the SAP button to select your desired MTS mode in analog signal. Each time you press the SAP button, Mono,

Stereo, or SAP appear in turn.

• If other languages available on the digital signal, select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

Stereo/SAP

Stereo/SAP Broadcasts Setup

Broadcasts Setup

- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if

the station transmits an additional sound signal as well as the original one.

- When having selected Stereo or SAP button on the remote control, this TV can only receive the signal in case that the TV sta-

tion transmits the proper signals.

- Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

- Select Mono if you want to listen to the mono sound in remote fringe areas during stereo/SAP broadcasting.

- Stereo or SAP can be received in Analog channel.

- is a trademark of SRS Labs, Inc.

- TruSurround XT technology is incorporated under license from SRS Labs, Inc.

- Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

CABLE

Owner’s Manual 65

Operation

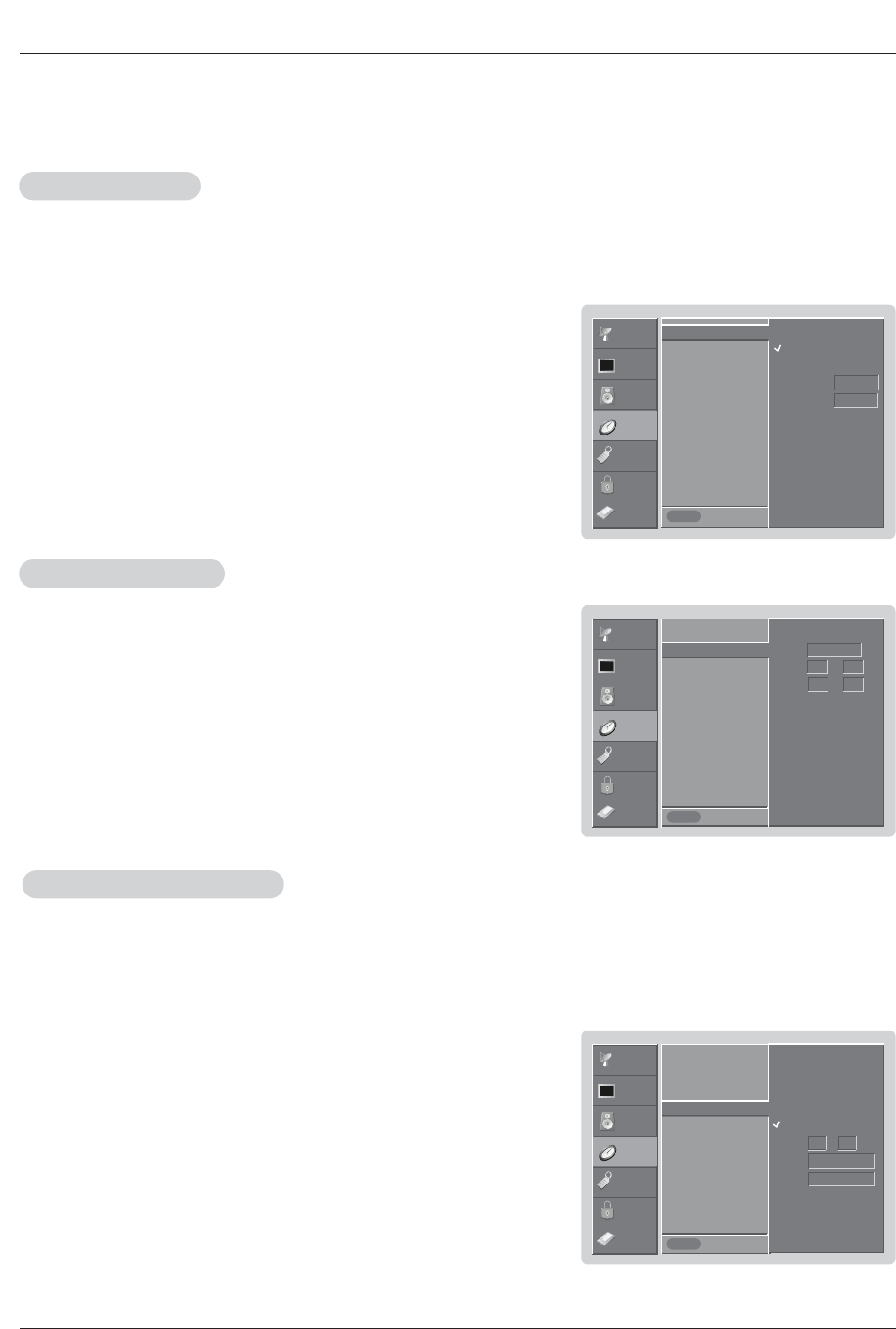

Time Menu Options

ime Menu Options

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Auto Clock G

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off

Time Zone Eastern

Daylight Auto

Saving

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Auto Clock

Manual Clock

Off Timer

On Timer G

Sleep Timer

Auto Off

Off

Time 6 : 30 AM

Ch. TV 2-0

Vol 17

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Auto Clock

Manual Clock G

Off Timer

On Timer

Sleep Timer

Auto Off

Year - - - -

Date - - / - -

Time - - : - - - -

- Timer function operates only if current time has been set.

- Off-Timer function overrides On-Timer function if they are set both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to

standby mode.

On/Of

On/Off

Timer Setup

imer Setup

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Off Timer or On Timer.

3. Press the Gbutton and then use D/Ebutton to select On.

• To cancel On/Off timer function, select Off.

4. Press the Gbutton and then use D/Ebutton to set the hour.

5. Press the Gbutton and then use D/Ebutton to set the minutes.

6. For only On timer function

Press the Gbutton and then use D/Ebutton to select the channel at turn-on.

Press the Gbutton and then use D/Ebutton to set the sound level at turn-on.

7. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Auto Clock Setup

- The time is set automatically from a digital channel signal.

- The digital channel signal includes information for the current time provided by the broadcasting station.

- Set the clock manually, if the current time is set incorrectly by the auto clock function.

- When you set up TV guide on screen system, Auto Clock menu is not selected.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Auto Clock.

3. Press the Gbutton and then use D/Ebutton to select On.

4. Press the Gbutton and then use D/Ebutton to select your viewing area time

zone: Eastern,Central,Mountain,Pacific,Alaska, or Hawaii.

5. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Manual Clock Setup

- If current time setting is wrong, reset the clock manually.

- When you set up TV guide on screen system, Manual Clock menu is not

worked.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Manual Clock.

3. Press the Gbutton and then use F/Gbutton to select either the year, date, or

time option. Once selected, use the D/Ebutton to set the year, date, and time

options.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

CABLE

66 Plasma TV

Operation

Auto Of

Auto Off

- If set to on and there is no input signal, the TV turns off automatically after 10

minutes.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Auto Off.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Sleep

Sleep T

Timer

imer

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

- You can also set up the Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen,

followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to

count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off GOff

CABLE

Owner’s Manual 67

Operation

Owner’s Manual 67

Option Menu Features

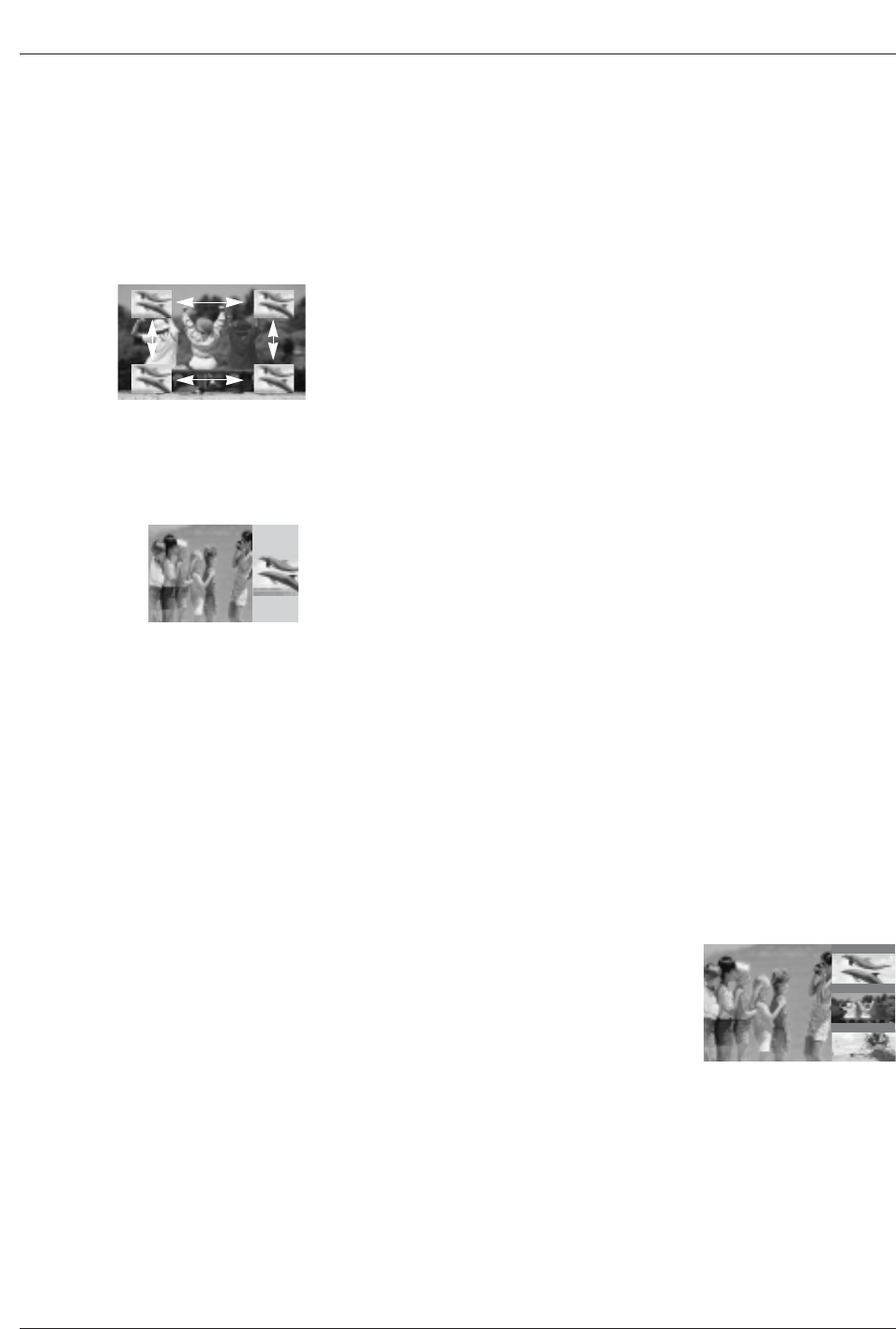

Aspect Ratio Control

- Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.

When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis-

played.

- If you are viewing a picture with a 16:9 aspect ratio, you can’t use the Horizon aspect ratio option.

- Horizon aspect ratio is not available for Component 1-2 (720p/1080i)/RGB-DTV (720p/1080i)/HDMI/DVI-DTV

(720p/1080i)/DTV(720p/1080i) input source.

- RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

-Note: If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and

remain visible.

•Set By Program

Selects the proper picture proportion to match the source’s image. (4:3 →4:3, 16:9 → 16:9)

•4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both

the left and right sides.

•16:9

Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

•Horizon

Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both

sides, to create a spectacular view.

•Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions

of the picture will be cropped.

•Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture tak-

ing a halfway trade off between alteration and screen coverage.

•Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or

reducing the picture, the image may become distorted.

You can adjust the enlarge proportion of Cinema Zoom using D/Ebutton. The adjustment range is 1~16.

1. Press the RATIO button repeatedly to select the desired picture format.

You can also adjust Aspect Ratio in the OPTION menu.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema G

Caption

Caption / Text

Caption Option

Language

Demo

ISM Method

Low Power

CABLE

Cinema Mode Setup

- Set up the TV for the best picture appearance for viewing movies.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Cinema.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Off

68 Plasma TV

Operation

Caption/T

Caption/Text

ext

Analog Broadcasting System Captions

- Select a caption mode for displaying captioning information if provided on a program.

- Analog caption displays information at any position on the screen usually the program's dialog.

- Text displays information, usually at the bottom position and is used for a data service, generally not program related.

- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

- This TV is programmed to remember the caption/text mode it was last set to, when you turn the power off.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption / Text G

Caption Option

Language

Demo

ISM Method

Low Power

CC 1

CC 2

CC 3

CC 4

Text 1

Text 2

Text 3

Text 4

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption / Text G

Caption Option

Language

Demo

ISM Method

Low Power

English

Spanish

French

Digital Broadcasting System Captions

- Choose the language you want the DTV/CADTV Captions to appear in.

- Languages can be chosen for digital sources only if they are included on the program.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption/Text.

3. Press the Gbutton and then use D/Ebutton to select caption: CC1,CC2,CC3,

CC4,Text1,Text2,Text3, or Text4.

•CAPTION

The term for the words that scroll across the bottom of the TV screen; usually

the audio portion of the program provided for the hearing impaired.

•TEXT

The term for the words that appear in a large black frame and almost cover

the entire screen; usually messages provided by the broadcaster.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption/Text.

3. Press the Gbutton and then use D/Ebutton to select available caption lan-

guages: English,Spanish, or French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

CABLE

Caption

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption G

Caption / Text

Caption Option

Language

Demo

ISM Method

Low Power

Off

CABLE

1. Use the CC button repeatedly to select Caption CC1,CC2,CC3,CC4,Text1,Text2,Text3, or Text4.

•EZ Mute shows the selected captions option (if available on program) when the TV sound is muted

.2. Press EXIT button to save and return to TV viewing.

• You can also use the OPTION menu to select Caption/Text.

Owner’s Manual 69

Operation

Option Menu Features continued

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption/Text

Caption Option G

Language

Demo

ISM Method

Low Power

Style Custom

Size A Standard

Font Font 0

Text Color White

Text Opacity Solid

Bg Color Black

Bg Opacity Solid

Edge Type None

Edge Color Black

Caption Option

- Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use D/Ebutton to select the OPTION

menu.

2. Press the Gbutton and then use D/Ebutton to select Caption Option.

3. Press the Gbutton and then use F/Gbutton to select Custom.

4. Use D/Ebutton to customize the Style, Font, etc., to your preference. A pre-

view icon is provided at the bottom of the screen, use it to see the caption lan-

guage.

•Size: Set the size the words will appear in.

•Font: Select a typeface for the words.

•Text Color: Choose a color for the text.

•Text Opacity: Specify the opacity for the text color.

•Bg (Background) Color: Select a background color.

•Bg (Background) Opacity: Select the opacity for the background color.

•Edge Type: Select an edge type.

•Edge Color: Select a color for the edges.

5. Press EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption/Text

Caption Option

Language

Demo G

ISM Method

Low Power

Demo

-EZ Demo Use to scan the features and menu options available on your TV.

-XD Demo Use to see the difference between XD Demo On and XD Demo Off.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Demo.

3. Press the Gbutton and then use D/Ebutton to select EZ Demo or XD Demo.

4. Press the Gbutton to start EZ Demo or XD Demo. Press EXIT button to stop EZ

Demo or XD Demo.

EZ Demo

Demo

CABLE

70 Plasma TV

Operation

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost

image remaining; even when you change the image. Avoid allowing any fixed image to remain on the TV's screen

for a long period of time.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select ISM Method.

3. Press the Gbutton and then use D/Ebutton to select either Normal,White

wash,Orbiter or Inversion.

•Normal

If image sticking is never a problem, ISM is not necessary - set to Normal.

•White wash

White Wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with

White Wash. To return to normal viewing, press the any button.

•Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any

fixed image to remain on the screen. To avoid a permanent image on the

screen, the image will move once per minute: Right →Right → Downside →

Downside →Left →Left →Upside →Upside.

•Inversion

Inversion will automatically invert the plasma display panel color every 30 min-

utes.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

ISM (Image Sticking Minimization) Method

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption/Text

Caption Option

Language

Demo

ISM Method G

Low Power

Normal

White Wash

Orbiter

Inversion

Option Menu Features continued

CABLE

Owner’s Manual 71

Operation

1. Press the ZOOM button in DTV 720p, or 1080i modes.

2. Use the D/E/F/Gbuttons to select the screen split zoom section.

3. To return to normal viewing, press the ZOOM button again.

Split Zoom (DTV 720p, or 1080i mode only)

- Enlarges the picture with correct proportions.

- When enlarging the picture, the image may become distorted.

Low Power

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Low power.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

• When you select On, the screen darkens.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Owner’s Manual 71

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema

Caption

Caption / Text

Caption Option

Language

Demo

ISM Method

Low Power G

CABLE

Off

72 Plasma TV

Operation

Lock Menu Options

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.

The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories

chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be

done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enablethe lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV

Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating

System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

• TV-G (General audience)

• TV-PG (Parental guidance suggested)

• TV-14 (Parents strongly cautioned)

• TV-MA (Mature audience only)

• TV-Y (All children)

• TV-Y7 (Children 7 years older)

TV Rating Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating General:

• Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue - sexual dialogue (applies to TV-PG, TV-14)

• Language - adult language (applies to TV-PG, TV-14, TV-MA)

• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Aux. Block

• Video, Front Video (On, Off)

• Component 1, 2 (On, Off)

• RGB, HDMI/DVI (On, Off)

Owner’s Manual 73

Operation

Parental Lock Setup

1. Press the MENU button and then use D/Ebutton to select the LOCK menu.

Then, press the Gbutton

• If Lock is already set, enter the password as requested.

• The TV is set up with the initial password “0-0-0-0”.

2. Use the D/Ebutton to choose from the following Lock Menu options. Once the

option is selected, change the settings to your preference.

•Lock System: Activates or disables the blocking scheme you set up previ-

ously.

•Set Password: Change the password by inputting a new password twice.

•Movie Rating (MPAA): Blocks movies according to the movie ratings lim-

its specified, so children cannot view certain movies. You can set the rat-

ings limit by blocking out all the movies with the ratings above a specified

level. Keep in mind that the movie ratings limit only applies to movies

shown on TV, not TV programs, such as soap operas.

•TV Rating-Children: Prevents children from watching certain children's TV

programs, according to the ratings limit set. The children rating does not

apply to other TV programs. Unless you block certain TV programs intend-

ed for mature audiences in the TV Rating - sub menu, your children can

view those programs.

•TV Rating-General: Based on the ratings, blocks certain TV programs that

you and your family do not want to view.

•Aux. Block: Enables you to select a source to block from the external

source devices you have hooked up.

3. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Note:

• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

- Set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu if the Lock System is turned on.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Lock System G

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Aux. Block

Off

CABLE

74 Plasma TV

Operation

CableCARD

CableCARD™Function

Function

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTM to the TV.

- The CableCARDTM type is Motorola, Scientific Atlanta (SA), or SCM etc. The

OSD (On screen display) is different from your TV according to your

CableCARDTM type.

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to exchange

the data between the TV and the CableCARDTM. Then, TV screen displays as

shown right.

- Let your cable TV service provider know CableCARDTM ID and Host ID.

- If your cable TV service provider is registered CableCARDTM ID and Host ID,

you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the pre-

mium or high value channel without a message.

- If the certificate don’t match between the TV and the CableCARDTM,

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

1. Press the MENU button and then use D/Ebutton to select the CABLE menu.

2. Press the Gbutton and then use D/Ebutton to select your desired item.

3. Press the Gbutton.

5. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

Exit

In order to start service for

this device, please contact

customer service at

Ph#: 1-866-303-0422

CableCARD™(tm): 0-010-405-698-001

HOST ID: 0-080-000-000-226

EXIT

CableCARD™ Message

Exit

In order to start cable service for this device,

please contact SuperVision Cable at

1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

As shown, the pairing num-

ber means your TV and

CableCARDTM ID. For fur-

ther information regarding

cable TV service, contact

your local cable TV service

provider(s).

Owner’s Manual 75

Operation

- If an emergency situation occur during watching the TV, you can receive a message from cable TV service

provider(s).

- When receiving an emergency message, the message is displayed on the screen as shown below or the channel

is changed automatically to a channel that maintains the emergency message. The message automatically disap-

peared.

Emergency Action Notification

Hurricane will be coming!!!

Cable Channel List

Emergency

Emergency Alert Message

Alert Message

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE Prev.

EZ Scan

Manual Scan

Channel Edit G

DTV Signal

Channel Label

Main Input

Sub Input

Aux. Label

Selection (

or ) leads you

to the channel edit screen.

1. If you enter the Channel Edit after running the EZ Scan, you can see the cable channel list.

2. Inserting the CableCARDTM. Then, the TV receive a new cable channel list. At this time, it takes about 2~3 minutes.

(Occasionally more than that time).

Note:

• As data gathering of CableCARDTM, it may make a noise by fan in standby mode.

1. 2.

3. 4.

76 Plasma TV

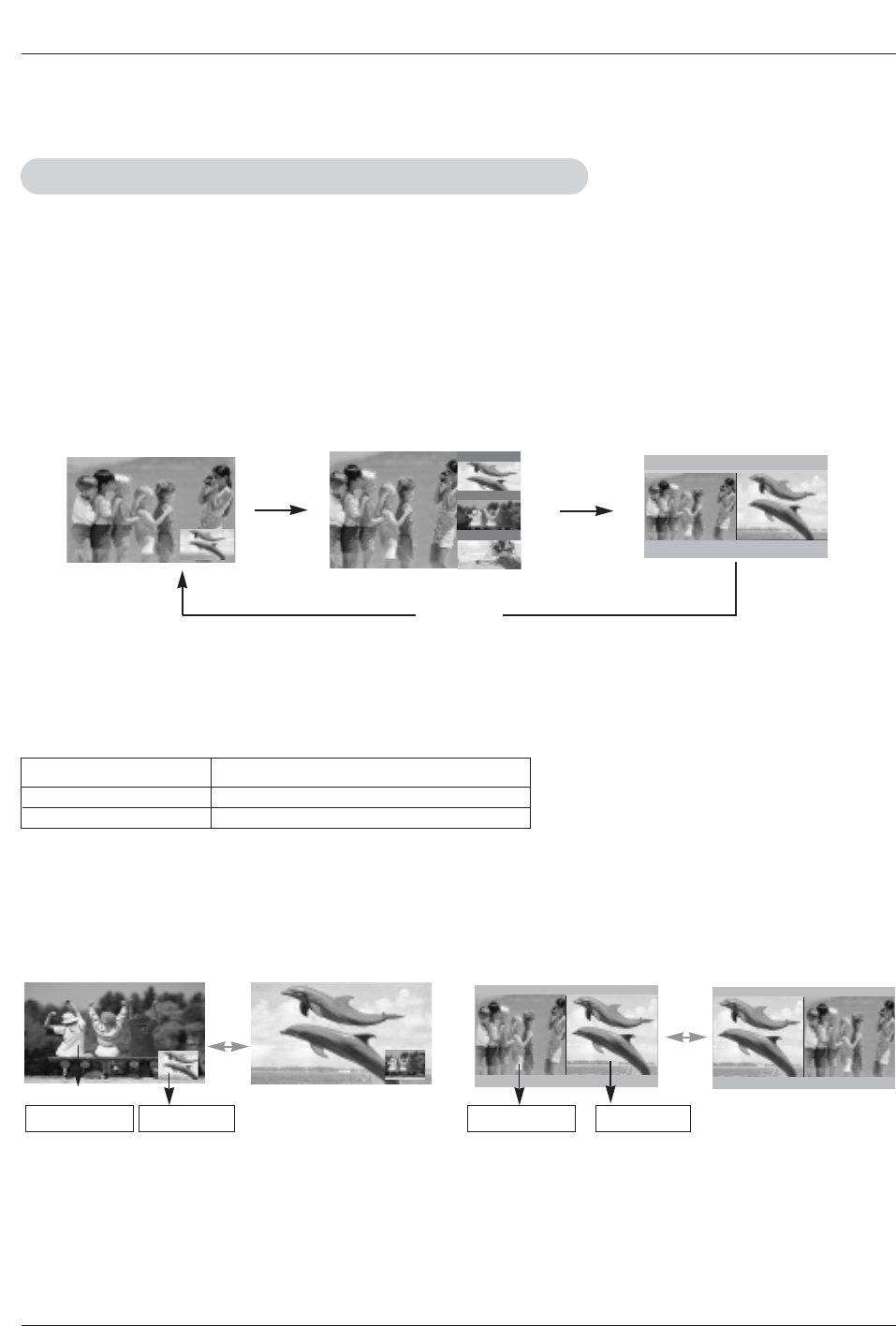

Operation

Watching PIP/POP/T

atching PIP/POP/Twin Picture

win Picture

- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other

source will show a smaller inset image.

- Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each

source is given half the screen.

- If you set the block/rating for Lock menu options in PIP/Twin Picture mode, “Rating Blocked” doesn’t display on screen.

Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.

PIP Off

PIP Mode POP Mode Twin Picture Mode

WTV Program selection for PIP

TV Program selection for PIP

1. Press the PIP button.

2. Select the Antenna or Cable option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+ /

PIPCH- button to select a channel for the sub picture.

(You can’t select DTV for main and sub picture simultaneously).

WSwapping the PIP

Swapping the PIP/T

/Twin Picture

win Picture

Repeatedly, use the SWAP button to switch the main and sub pictures.

• Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI/DVI input sources for the main picture can’t be used to

swap the main and sub pictures.

WSelecting an Input Signal Source for PIP/T

Selecting an Input Signal Source for PIP/Twin Picture

win Picture

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes

the PIP source. You can also select sources for the Sub Input in the SETUP menu.

Main Picture Source Available Sub Picture Sources

DTV

Analog

Analog, Video, and Front Video

DTV, Analog, Video, and Front Video

Main Picture Sub Picture Main Picture Sub Picture

FTV 2-0

TV 4-0

TV 6-0

Remote Control

PIP

PIP (Picture-In-Picture) / POP

(Picture-In-Picture) / POP / T

/ Twin Picture

win Picture

Owner’s Manual 77

Operation

WMoving the PIP

Moving the PIP sub picture

sub picture

In PIP mode, press the D/E/F/Gbutton to move the sub picture to a different location on the

screen.

WAdjusting Main and Sub Picture Sizes for

Adjusting Main and Sub Picture Sizes for T

Twin Picture

win Picture

Use the D/E/F/Gbutton to change main and sub picture sizes in Twin Picture mode.

If screen is adjusted to the

maximal size, the large

screen is filled with entire

screen vertically as shown.

i.e)

1. Press the PIP button to activate the POP mode while in PIP mode.

•Channel selection: Use Fbutton to enlarge the selected channel being searched on the PIP

screen to shift it for viewing on the Main screen.

•PIP selection: Use D/Ebutton to select one of 3 PIP screen pictures in POP mode.

• When watching TV on Main picture, TV or DTV on Sub pictures are in channel scanning. However,

when watching DTV on Main picture, only TV on Sub picture is in channel scanning.

2. Press the EXIT button to cancel POP mode.

WPOP

POP (Picture-out-of-Picture: Channel Scan)

(Picture-out-of-Picture: Channel Scan)

- Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display,

(while the main picture source remains the current channel). The pictures of all the programmed channels

are searched with the 3 POP screen.

-Notes:

•Run EZ Scan channel search before using POP mode.

•When Sub pictures are changed from the TV/DTV to CATV/CADTV in POP mode, it may make a noise

from the Tuner switch.

FTV 2-0

TV 4-0

TV 6-0

78 Plasma TV

Operation

3:11AM

Sophie’s Choice

Tue, Oct 7, 2004 7:00PM 9:00PM

Caption

CC 4 : 3 480i TV-PG D L S V

TV 6-0

CNBC

MONO STEREO

BCDFA

4 : 3

16 : 9

Screen Ratio of Input Signal 4:3

Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i

Resolution of Input Signal 720x480p

Resolution of Input Signal 1280x720p

Resolution of Input Signal 1920x1080i

Multilingual : Input Signal have over two Audio infor-

mation. Press the SAP button to select wanted Audio.

Caption: Input Signal have over one Close service.

Press the CC button to select wanted Closed caption.

Input Signal have rating information . Refer to the

<Lock Menu>.

D (Dialogue), L (Language), S (Sex), V (Violence), FV

(Fantasy Violence)

480i

480p

720p

1080i

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• Watching IEEE 1394

• In Component1, Component2, RGB,

HDMI/DVI modes, INFO button is not

working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information, Refer to the

<Channel Banner>.

B: Program title

C: Day, Month, Year

D: Program start time

E: Program finish time

F: Show the prosessing rate

G: Present time

H: Added information. Refer to the icon

explanation.

Information

Owner’s Manual 79

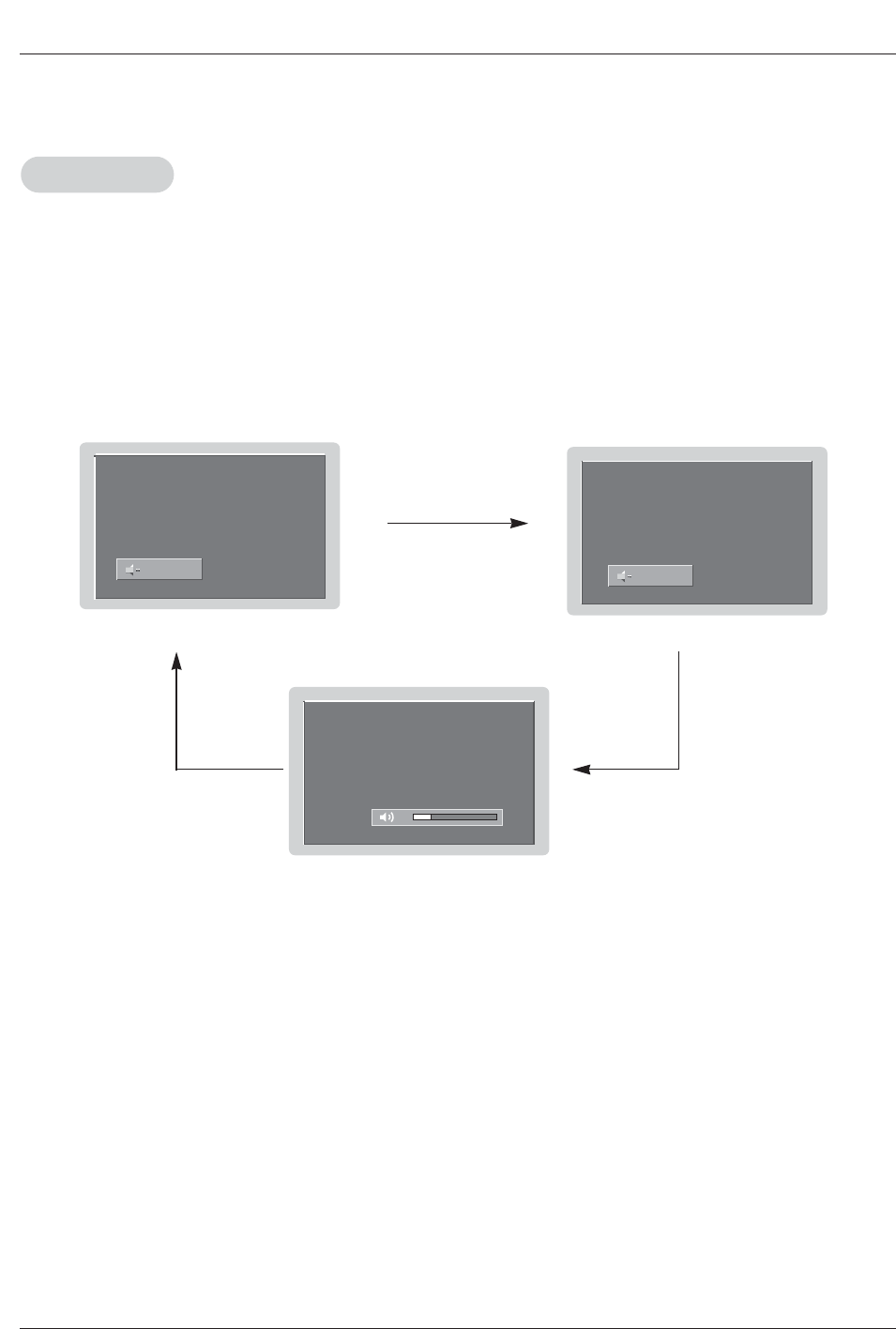

Operation

- Nothing to do with Caption on/Off using Mute button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the Mute button, the screen is displayed in turn. (Refer to the lower picture)

Note:

• EZ Mute only operates in DTV/Analog/Video/Front Video/IEEE1394.

Mute EZ Mute

EZ Mute

80 Plasma TV

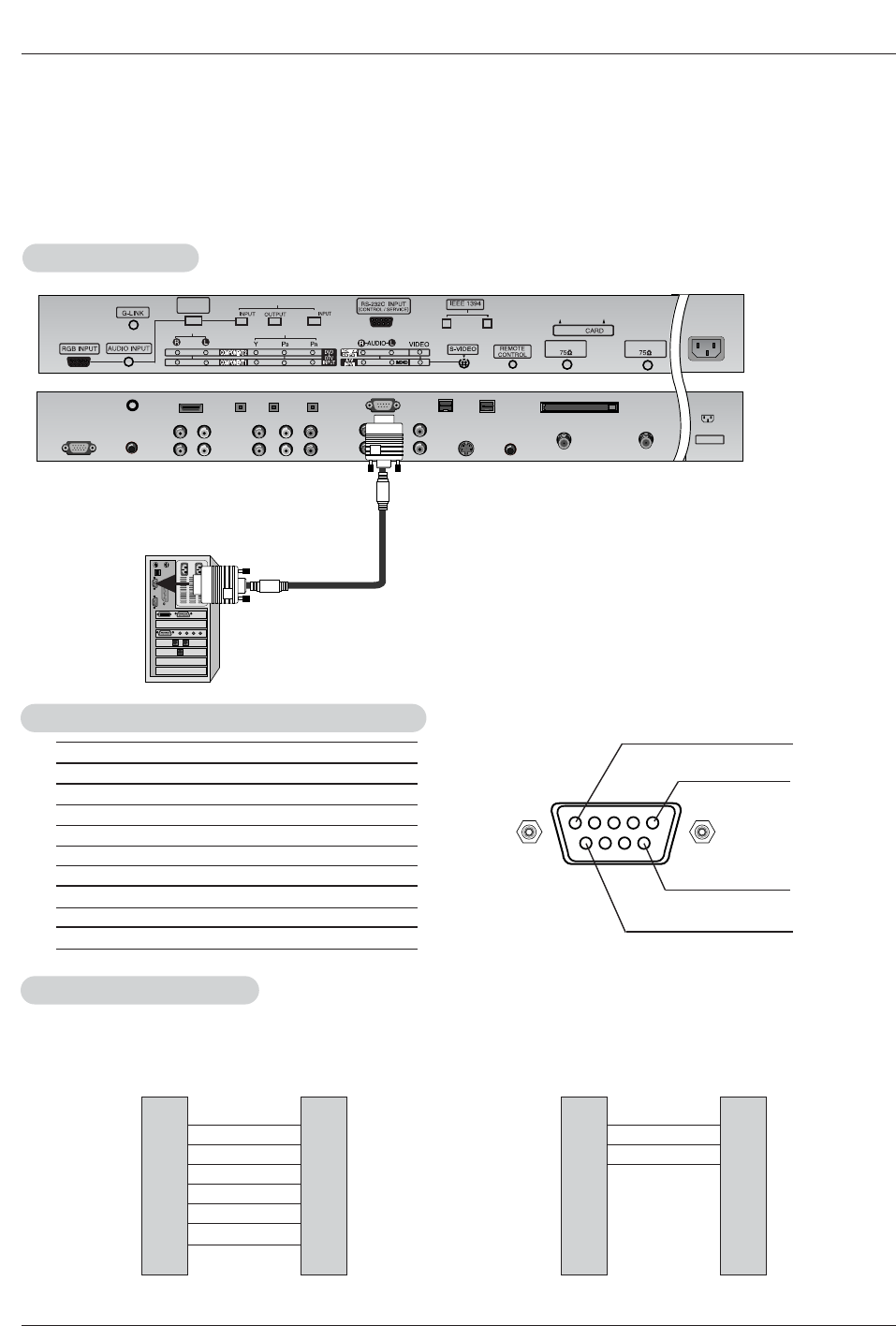

External Control Device Setup

No. Pin Name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

PDP

D-Sub 9

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DTR

DSR

RTS

CTS

3-Wire Configurations

(Not standard)

D-Sub 9

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

Type of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

External Control Device Setup

RS-232C Setup

DVI

COMPONENT2

DIGITAL AUDIO(OPTICAL)

VIDEO INPUT

AUDIO INPUT

CABLE

HDMI /

DVI(VIDEO)

Cable

ANTENNA

AC INPUT

Owner’s Manual 81

External Control Device Setup

Set ID

Use this function to specify a monitor ID number.

Refer to ‘Real Data Mapping’. See page 82.

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select SET ID.

3. Press the Gbutton and then use D/Ebutton to adjust SET ID to choose the

desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Transmission

*[Command 1]: First command to control the set. (j or k)

*[Command 2]: Second command to control the set.

*[Set ID]: You can adjust the set ID to choose desired monitor

ID number in Setup menu. Adjustment range is 1

~ 99. When selecting Set ID ‘0’, every connected

the TV is controlled. Set ID is indicated as decimal

(1~99) on menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

*[DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

*[Cr]: Carriage Return

ASCII code ‘0x0D’

*[ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If

the data is data write mode, it returns the data of the PC

computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable

functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function

3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 8

03. Aspect Ratio k c 0 ~ 15

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/Twin k n 0 ~ 3

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

21. ISM Method j p 0 ~ 2

22. White Wash j q 0 ~ 1

23. Orbiter Time Setting j r 1 ~ FE

24. Orbiter Pixel Setting j s 1 ~A

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

25. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ FF

26. Channel Add/Del m b 00 ~ 01

27. Key m c

COM-

MAND 2

COM-

MAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

Command Reference List

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK Previous

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label

Main Input

Sub Input

Aux. Label

SET ID G

82 Plasma TV

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

GTo select input source for the Monitor.

Transmission

Data 0: Antenna

1: Cable

2: Video

3: Front Video

4: Component 1

5: Component 2

6: RGB-DTV

7: RGB-PC

8: HDMI/DVI

Data 0: Set by program

1: 4:3

2: 16:9

3: Horizon

4: Zoom 1

5: Zoom 2

6: Cinema Zoom (1)

15: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command2:a)

GTo control Power On/Off of the Monitor.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback

presents status about each function.

*Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

05. Volume Mute (Command2:e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

GTo adjust the screen format.

You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

GTo select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

GTo adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

GTo adjust screen contrast.

You can also adjust contrast in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

GTo adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 83

External Control Device Setup

09. Color (Command2:i)

GTo adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’. See page 82.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

GTo adjust the screen tint.

You can also adjust tint in the Video menu.

Transmission

Data Red : 0 ~ Green : 64

•Refer to ‘Real data mapping’. See page 82.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

GTo lock the remote control and the front panel controls on

the set.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

14. PIP / POP / Twin Picture (Command2:n)

GTo control the PIP (Picture-in-Picture)/POP/Twin picture.

You can also control the PIP/POP/Twin picture using the

PIP button on the remote control.

Transmission

Data 0: PIP off

1: PIP

2: POP

3: Twin Picture

[k][n][ ][Set ID][ ][Data][Cr]

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

GTo select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command2:q)

GTo select sub picture position for PIP.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Right down on screen

1: Left down on screen

2: Left up on screen

3: Right up on screen

[q][ ][Set ID][ ][OK][Data][x]

16. Treble (Command2:r)

GTo adjust treble.

You can also adjust treble in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

18. Balance (Command2:t)

GTo adjust balance.

You can also adjust balance in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

17. Bass (Command2:s)

GTo adjust bass.

You can also adjust bass in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

84 Plasma TV

External Control Device Setup

19. Color Temperature (Command2:u)

GTo adjust color temperature.

You can also adjust color temperature in the Video

menu.

Transmission

Data 0: Cool 1: Medium 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

23. Orbiter Time Setting (Command2:r)

GTo adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

24. Orbiter Pixel Setting (Command2:s)

GTo adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: A

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

25. Tune Command (Command: m a)

GTo tune channel to following physical/major/minor number

Transmission

Data 0:

Physical channel number Min: 1~ Max: 0x87

Data 1, Data 2:

Major Channel Number (two part)/ Channel

Number (One part) (Data 1: High, Data 2: Low)

Data 3, Data 4:

Minor Channel Number (Data3: High, Data4: Low)

Data 5:

*All data are transmitted by Hexadecimal code

Example) If you want PIP channel tuned to ATSC air (standard)

30-5, the command sequence is ma 00 1e 00 1e 00 05 82.

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][x]

[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

26. Channel Add/Del (Command: m b)

GTo add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x]

[b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

27. Key (Command: m c)

GTo send IR remote key code

Transmission

Data Key code: Refer to page 86.

* It’s impossible to command the IR Code 0x08 and 0xC4

with RS-232C.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

20. PIP Input Select (Command2:y)

GTo select input source for sub picture in PIP/Twin pic-

ture mode.

Transmission

Data 0: Antenna

1: Cable

2: Video

3: Front Video

[k][y][ ][Set ID][ ][Data][Cr]

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

21. ISM Method (Command2:p)

GTo avoid having a fixed image remain on screen.

Transmission

Data 0: Normal

1: Orbiter

2: Inversion

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

22. White Wash (Command2:q)

GTo control the white wash function on/off.

You can also adjust white wash in Option menu.

Transmission

Data 0: White Wash off

1: White Wash on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

7Main/Sub


6Two/One

Part

Channel

Reserved

Reserved 3210Step

Main

Sub

Two

One

xx0110

NTSC Air

ATSC cable

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

Owner’s Manual 85

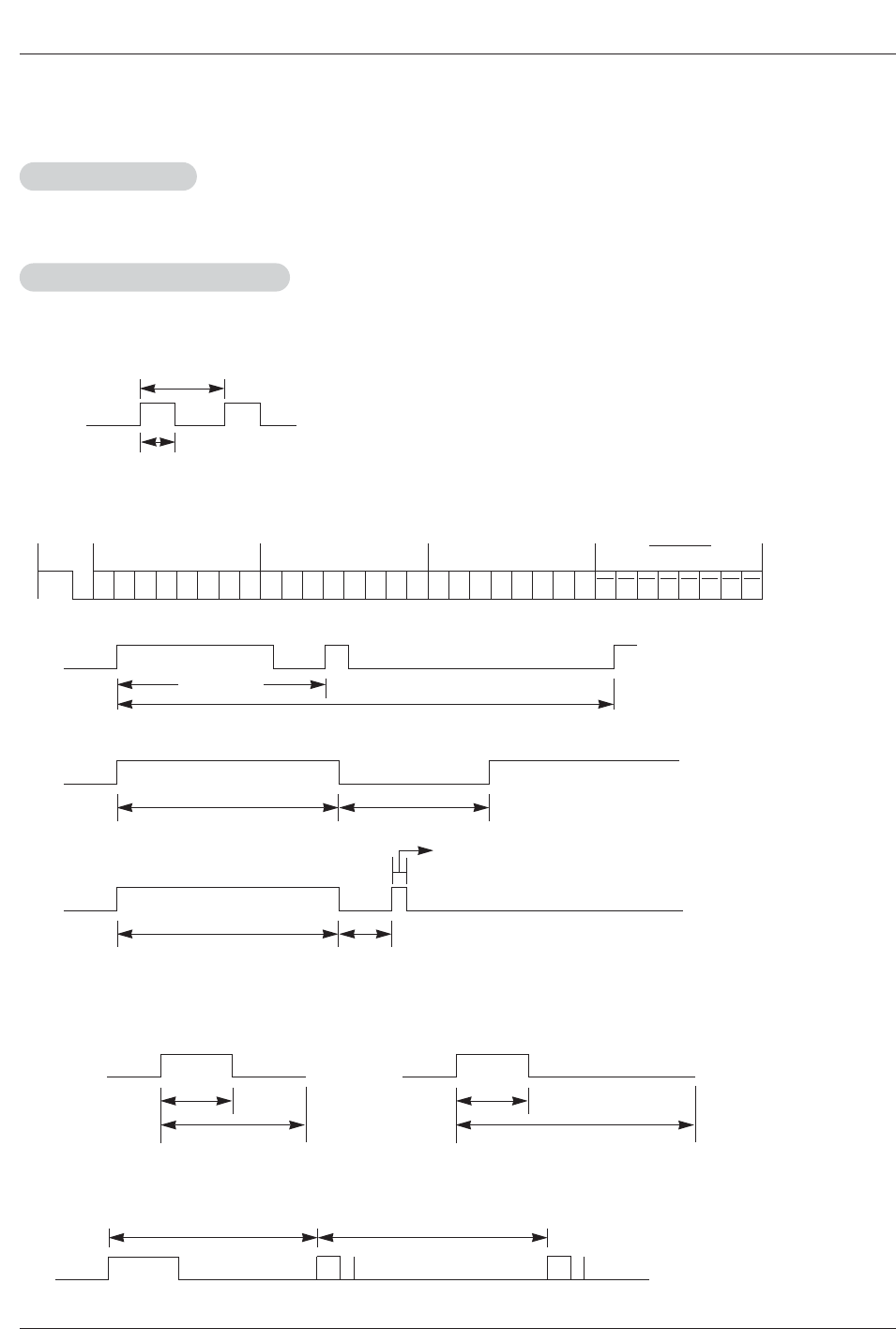

IR Codes

GConnect your wired remote control to the Remote Control port on the TV.

GOutput waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

GConfiguration of frame

GRepeat code

GLead code

•1st frame

Low

custom code

Lead

code

High

custom code Data code Data code

Carrier frequency

FCAR = 1/TC= fOSC/12

Duty ratio = T1/TC= 1/3

•Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

GBit description

GFrame interval : Tf

The waveform is transmitted as long as a key is depressed.

•Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

•Bit “1”

2.24 ms

How to Connect

Remote Control IR Codes

IR Codes

86 Plasma TV

IR Codes

10 ~ 19

R/C Button

R/C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

Discrete IR Code (TV Input Selection)

Discrete IR Code (Video Input Selection)

Discrete IR Code (Front Video Input Selection)

Discrete IR Code (Component1 Input Selection)

Discrete IR Code (Component2 Input Selection)

Discrete IR Code (RGB-PC Input Selection)

Discrete IR Code (RGB-DTV Input Selection)

Discrete IR Code (HDMI/DVI Input Selection)

Discrete IR Code (Only 4:3 Mode)

Discrete IR Code (Only 16:9 Mode)

Discrete IR Code (Only Zoom1 Mode)

Discrete IR Code (Channel Search)

R/C Button

Code (Hexa) Function Note

TV/VIDEO

MODE

POWER

POWER ON

POWER OFF

COMP/RGB

RATIO

TIMER

Number Key 0~ 9

- (Dash)

FLASHBK

MUTE

VOL +

VOL -

CH +

CH -

SURF

INFO

ENTER

SOUND

VIDEO

EXIT

PIP

PIPCH -

PIPCH +

PIP INPUT

SWAP

FREEZE

ZOOM

SAP

ADJUST

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI/DVI

Ratio 4:3

Ratio 16:9

Ratio Zoom

POP

SIGNAL

1394

PLAY

PAUSE

STOP

REC

REW

GOTOPREV

GOTONEXT

TV GUIDE

Owner’s Manual 87

Programming the Remote

GThe remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers.

Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. Test your remote control.

To find out whether your remote control can operate the component without programming, turn on the component such as a VCR

and press the corresponding MODE button (VCR) on the remote control, while pointing at the component. Test the POWER and

CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.

2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.

3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. There are two ways to find the right code for the component.

A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code

change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component

can be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

88 Plasma TV

Programming Codes

VCRs

CATV

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125

SANSUI 022 043 048 135

SANYO 003 007 010 014

102 134

SCOTT 017 037 112 129

131

SEARS 003 00 009

010 013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053

AJIN 112

ANTRONIK 014

ARCHER 005 007 014 024

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020 030 040

EASTERN 057 062 066

ELECTRICORD 032

GE 072

GEMINI 008 022 025 054

GI 052 074

GOLDEN CHANNEL

030

HAMLIN 049 050 055

HITACHI 052 055

HOSPITALITY 070 077

JERROLD 002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM 033

MAGNAVOX 010 012 064 079

MEMOREX 100

MOVIE TIME 028 032

NSC 015 028 038 071

073

OAK 016 031 037 053

PANASONIC 044 047

PARAGON 100

PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016

PRUCER 059

PTS 011 048 071 072

073 074

PULSAR 100

RCA 047

REGAL 049 050

REGENCY 057

REMBRANT 025

RK 091

SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046

SHERITECH 022

SIGNAL 030

SIGNATURE 052

SL MARX 030

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

SYLVANIA 067

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029 067

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

Owner’s Manual 89

Programming Codes

Audio

APEX DIGITAL 022

DENON 020 014

GE 005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

MAGNAVOX 013

MARANTZ 024

MITSUBISHI 002

NAD 023

ONKYO 008 017

PANASONIC 003 009

PHILIPS 013

PIONEER 004 026

PROCEED 021

PROSCAN 005 006

RCA 005 006

SAMSUNG 011 015

SONY 007

THOMPSON 005 006

TOSHIBA 019 008

YAMAHA 009 018

ZENITH 010 016 025

DVD

ALPHASTAR DSR

123

AMPLICA 050

BIRDVIEW 051 126 129

BSR 053

CAPETRONICS 053

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

HYTEK 053

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101

UNIDEN 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230

AKAI 163

ANAM 003 014 017 023

059 106 189 216

217 235 236

BURMECTER 252

CARVER 086

CLARION 199

DAEWOO 027 053 060 084

102 148 198 221

DENON 015 075 130 143

FANTASIA 071

FINEARTS 022

FISHER 089 099

LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

PHILIPS 026 112 143 253

PIONEER 039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

254

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

90 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers • Adjust Balance in the AUDIO menu. (Refer to p.63)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet

where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the VOLUME (G) button.

(Refer to p.61)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control

causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.10)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.10)

Picture OK &

No sound

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking • Check for local interference such as an electrical appliance or power tool.

Troubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 91

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Extended Absence

Absence

Maintenance

92 Plasma TV

Specification

• The specifications shown above may be changed without prior notice for quality improvement.

Product Specifications

MODELS

AC100-240V ~ 60Hz

NTSC-M, ATSC

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135. DTV 2 ~ 69

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

55.2 / 1402

31.4 / 798.5

11.9 / 302.5

122 / 55.3

1024 x 768 (Dot)

67.24 / 1708

36.6 / 931

12.6 / 320.7

189.2 / 85.8

1366 x 768 (Dot)

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

DU-50PY10 DU-60PY10

Owner’s Manual 93

Notes

94 Plasma TV

Notes

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it

proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)

listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-

ing Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pixels that do not function normally. Your display has been inspected and is in

compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use

of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute

model or factory reconditioned unit, at LGE’s option. If

repaired, parts used in the repair may be new or remanufac-

tured.

Replacement Units and Repair Parts are warranted for the

remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of your bill of sale or proof

of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser-

vice person at the time warranty service is pro-

vided.

Please call 1-201-816-2000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-

lem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the LG®Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory

warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before

returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-201-816-2000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

●damage caused in shipping or transit

●service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner’s manual for power supply

requirements)

●installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

LG Electronics USA RU50PY10 Plasma Display Panel User Manual 479Hen

LG Electronics USA Plasma Display Panel 479Hen

Contents

User Manual Part 2

Navigation menu

Namespaces

Views

Navigation
