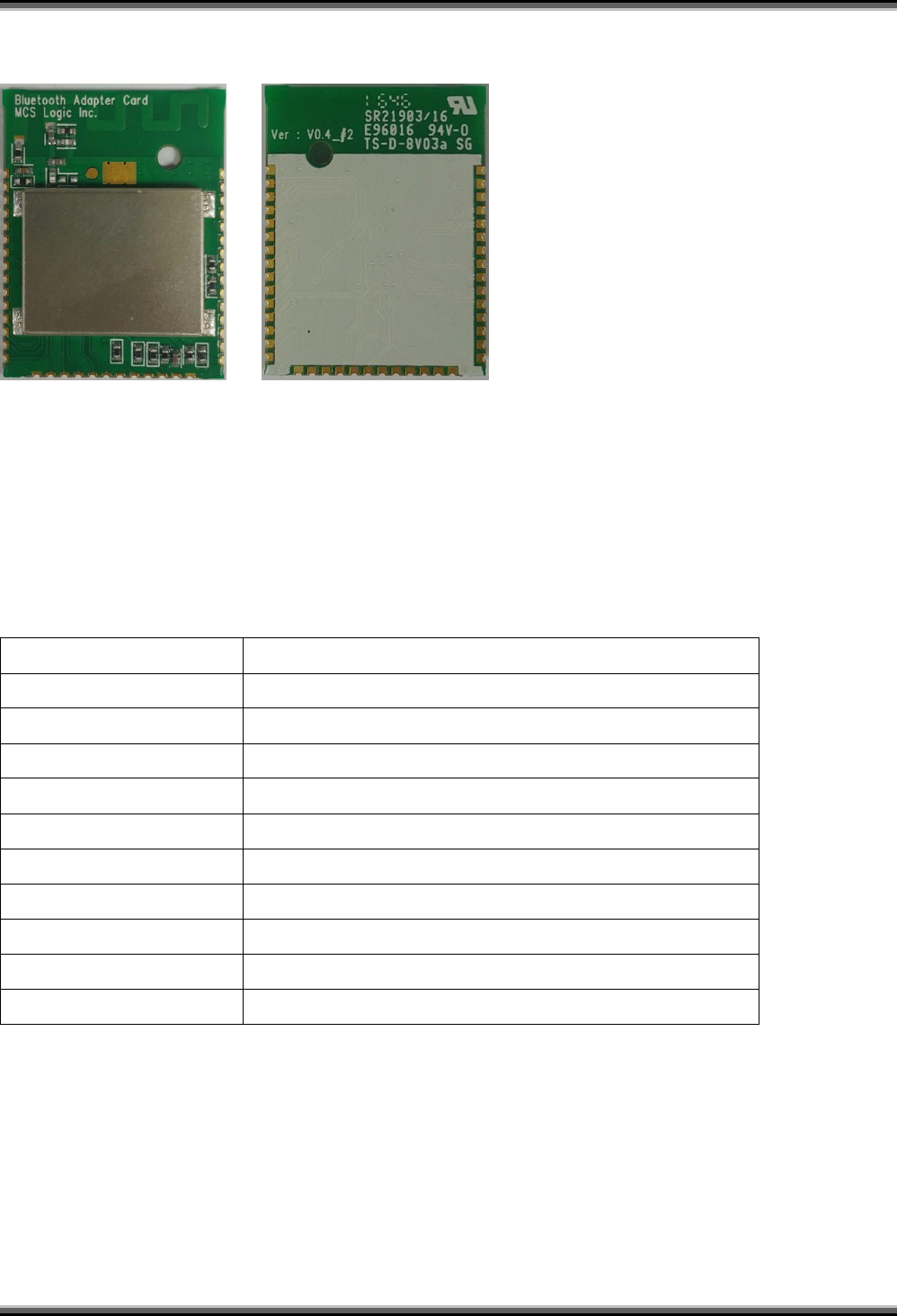

1. Module : WB1NP7
[Top] [Bottom]
This WB1NP7 Module can be easily designed into any embedded system for Bluetooth Spec
4.2 feature. It is based on Airoha’s AB1520 with specific interface design to meet LG
Electronics’s needs.
2. Module Specification
Chips
AB1520
Bluetooth Spec
Bluetooth 4.2
Frequency Band
2402 ~ 2480 MHz
Tx Power
0.25 ~ 2.5mW (Bluetooth Power Class I)
Rx Sensitivity
< -70dBm (BER 0.1%)
Distance
< 100m (Open Space)
Power Voltage
3.7V
Dimension
20mmⅹ26mm ⅹ3.1 mm
Environmental Range
Operation temperature -10 ~ 50℃
Modulation
GFSK, 8DPSK, π/4-DQPSK
Communication Method
FHSS

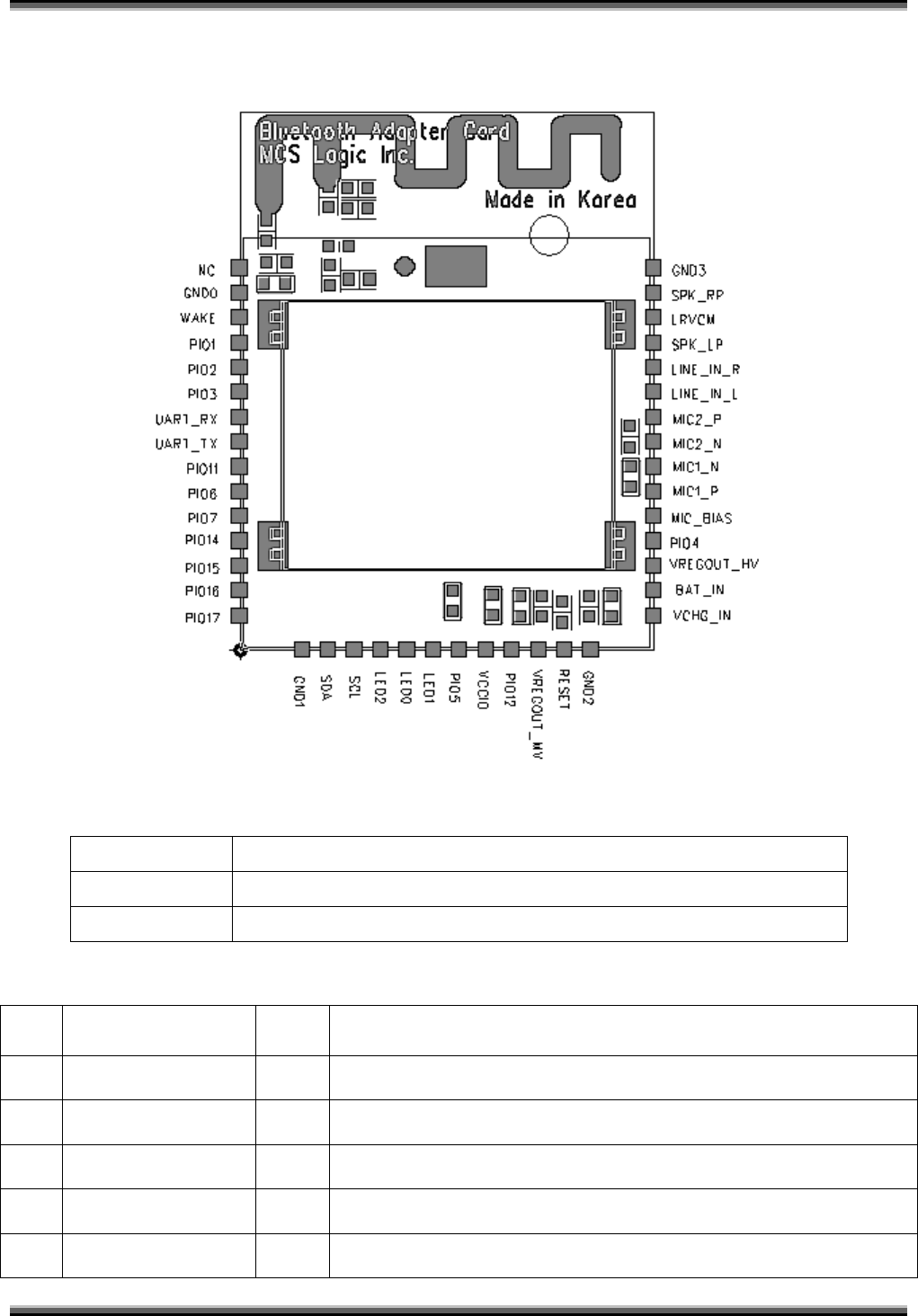

4. Pin Define
Symbol
Description
I
CMOS input
O
Output
No
Pin Name
I/O
1
NC
2
GND
I
3
WAKE
I
4
PIO1
I
5
PIO2
I
6
PIO3
I/O
7
UART_RX
I
8
UART_TX
O
9
PIO11
I/O
10
PIO6
I/O
11
PIO7
I/O
12
PIO14
I/O
13
PIO15
I/O
14
PIO16
I/O
15
PIO17
I/O
16
GND
I
17
SDA
I/O
18
SCL
I/O
19
LED2
O
20
LED0
O
21
LED1
O
22
PIO5
I
23
VCCIO
I
24
PIO12
I/O
25
VREGOUT_MV
O
26
RESET
I
27
GND
I
28
VCHG_IN
I
29
BAT_IN
I
30
VREGOUT_HV
O
31
PIO4
O
32
MIC_BIAS
A
33
MIC1_P
A
34
MIC1_N
A
35
NC
-
36
NC
-
37
LINE_IN_L
A
38
LINE_IN_R
A
39
SPK_LP
A
40
LRVCM
A
41
SPK_RP
A
42
GND
I

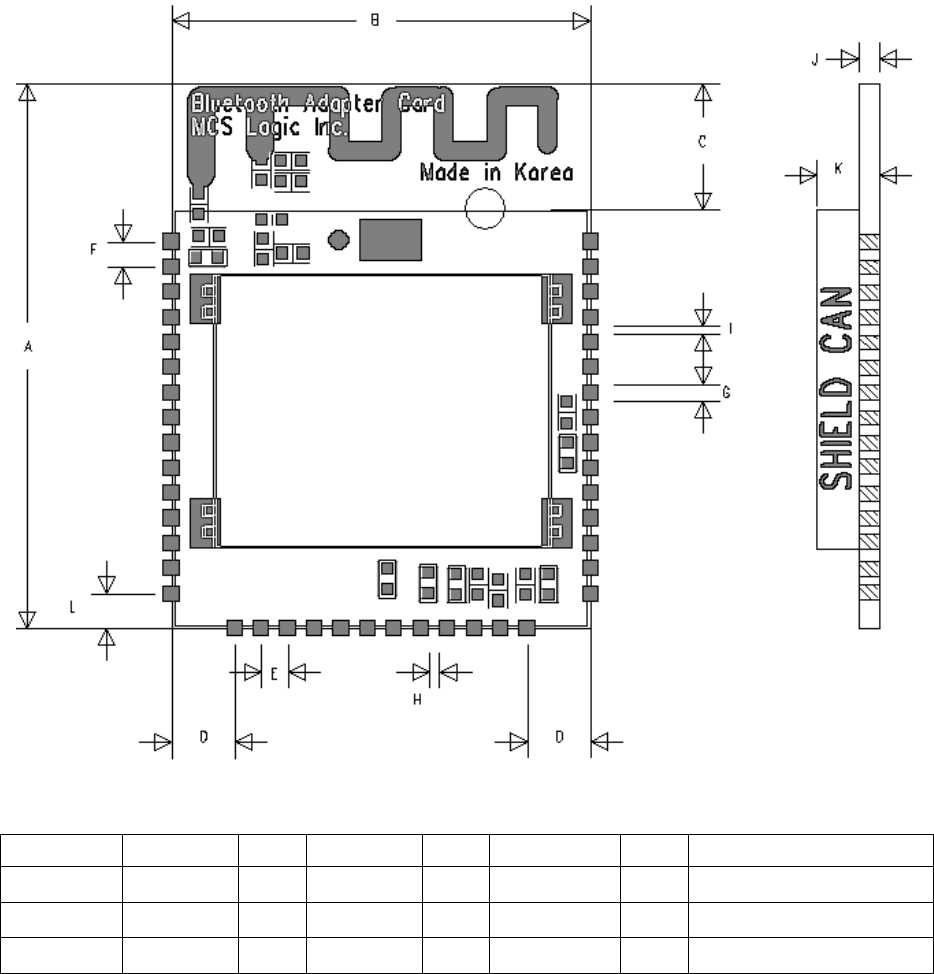

5. Mechanical Dimension
TOP View
Mark
Dimension
Mark
Dimension
Mark
Dimension
Mark
Dimension
A
26.0±0.3
D
3.01±0.05
G
0.8±0.2
J
1±0.1
B
20.0±0.5
E
1.27±0.2
H
0.5±0.2
K
3±0.3
C
6.0±0.3
F
1.20±0.3
I
0.4±0.1
L
1.65±0.2
(Unit : mm)
6. Electrical Characteristics
Conditions : BAT_P = 4.2V, Ta = 25 ℃, unless otherwise noted.
Absolute Maximum Ratings
Parameter
Min
Max
Unit
Power
Supply
Voltage
:
BAT_P
-0.3V
4.4V
DCV
I/O Supply
Voltage : VCCIO
-0.3V
3.6V
DCV
Storage Temperature
-40
85
℃
Recommended Operating Conditions
Parameter
Min
Max
Unit
Power
Supply
Voltage
3.34V
4.2V
DCV
Operation Temperature
0
60
℃
Current consumption
Parameter
Condition
Avg
Peak
Unit
Inquiry and Page scan, Time interval
-
7
mA
ACL data transfer
Master
20
mA
Input/Output Characteristics
Parameter
Min
Max
Unit
VIL Input Voltage Low
0
0.3*VCCIO
V
VIH Input Voltage High
0.7*VCCIO
VCCIO+0.4
V
VOL Output Voltage Low
-
0.4
V
VOH Output Voltage High
VCCIO-0.4
-
V
General
Performance
Parameter
Condition
Min
Type
Max
Unit
Frequency
Range
2402
2480
MHz
Transmitter
Performance
Parameter
Condition
Min
Type
Max
Unit
Transmit
Power
-6
0
7
dBm
Power
density
-
-
20
dBm
20dB
bandwidth
1000
KHz
Adjacent
channel
power
±2%
-
-
-20
dBm
±3%
-
-
-40
dBm
±4%
-
-
-40
dBm
Out-band Spurious Emission
30MHz ~ 1GHz
-
-
-36
dBm
1GHz ~ 12.75GHz
-
-
-30
dBm
1.8GHz ~ 1.9GHz
-
-
-47
dBm
5.1GHz ~ 5.3GHz
-
-
-47
dBm
Modulation
Characteristic
∆F1avg
140
-
175
KHz
∆F2max
115
-
-
KHz
∆F2avg / ∆F1avg
80
-
-
%
Initial
Carrier
Frequency
Tolerance
DH1 packet
-40
-
40
KHz
Carrier
Frequency
Drift
DH5 packet
-25
25
KHz
Receiver
Performance
Parameter
Condition
Min
Type
Max
Unit
Sensitivity 0.1% BER
Single slot (DH1 packet)
-70
-
-
dBm
Sensitivity 0.1% BER
Multi slot (DH5 packet)
-70
-
-
dBm
Maximum received signal at
0.1% BER
-20
-
-
dBm
Maximum level of
intermodulation interferers
f1-f2 = 5 MHz, Pwanted=
-64 dBm
-39
-
-
dBm
FCC WARNING STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation
Any changes or modifications (including the antennas) to this device that are not
expressly approved by the manufacturer may void the user's authority to operate the
equipment.
Note : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications, However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void your authority to
operate the equipment under FCC rules.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF Radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
Information for OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user manual of the end product.
The user manual which is provided by OEM integrators for end users must include the
following information in a prominent location.
“To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.” Label for end product must include “Contains FCC ID: BEJ-WB1NP7, IC:
2703H-WB1NP7" or "A RF transmitter inside, FCC ID: BEJ-WB1NP7, IC: 2703H-
WB1NP7".
