PRODUCT NAME : Bluetooth 4.0 Module
MODEL NAME : WB2NB8(TWBM-C302D)
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
1 / 9
Table of Contents
No Description Page
1 Features 2
2 Picture of Product 2
3 Installation Manual 3
4 Block Diagram 4
5 Absolute Maximum Ratings 4
6 Operating Test Conditions 5
7 Standard Test Conditions 5
8 Pin Description 6
9 Outline Drawing 7
10 Packing Information 8
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
2 / 9

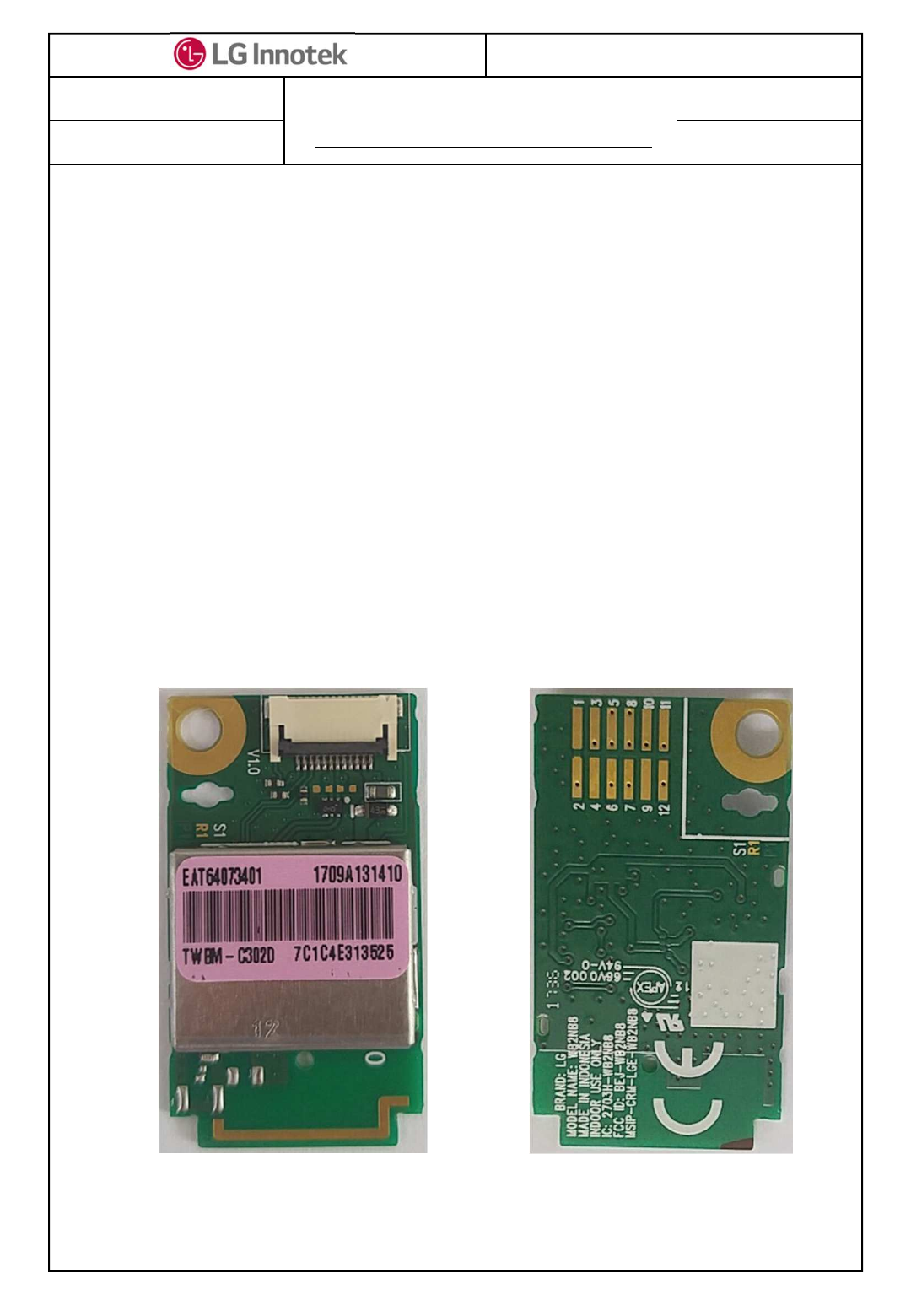

2. Picture of Product
1. Features
TWBM-C302D is the small size and low power module for Bluetooth 4.0.
TWBM-C302D is based on Qualcomm CSR8510A10.
Bluetooth 4.0 specification with EDR function / Class 1
Size : 34mm x 19mm x 3.1 mm
Internal PCB Printed Antenna
USB 2.0 interface
Application : DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
< Top > < Bottom >
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
3 / 9
3. Installation Manual

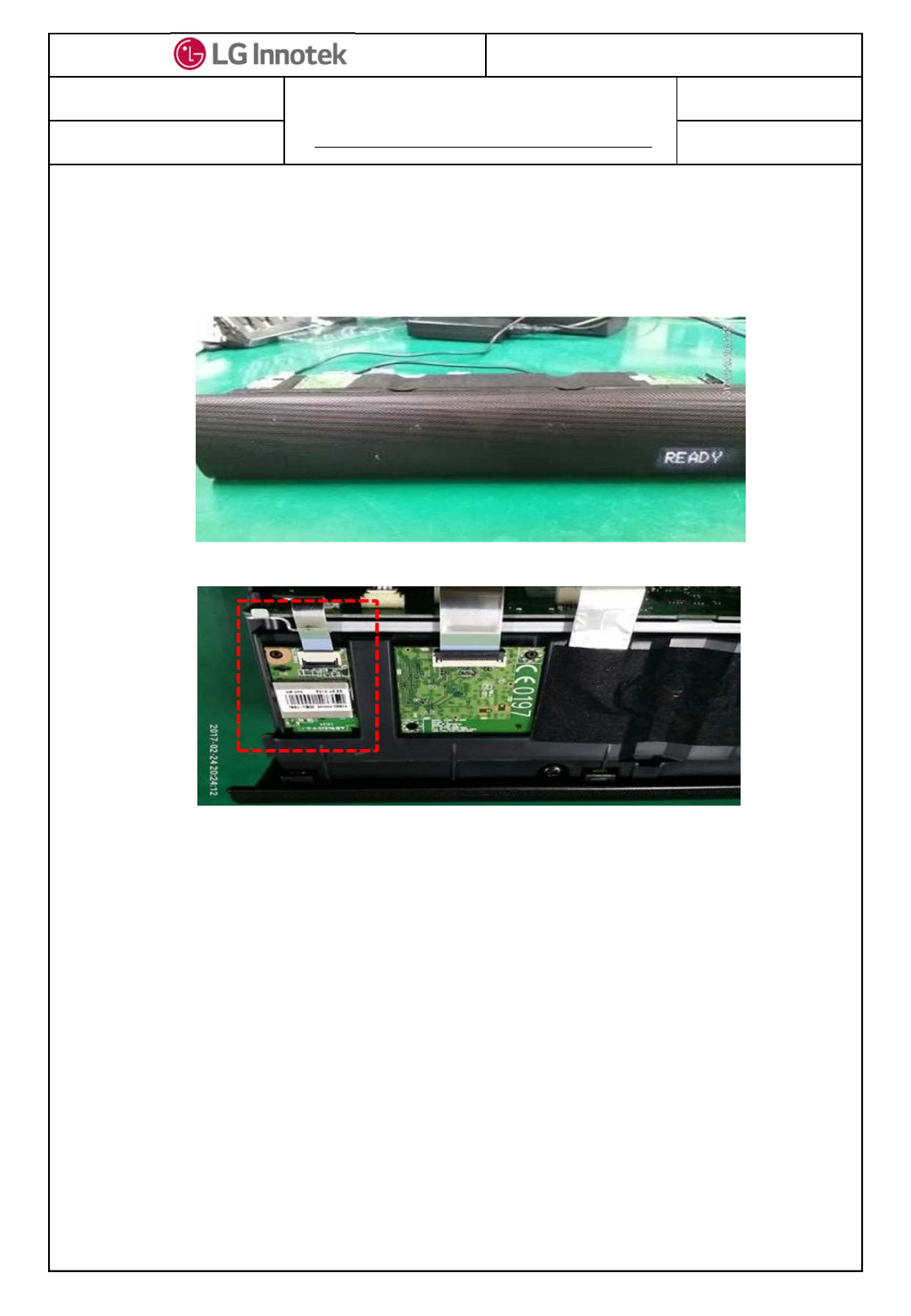

Install the module like below on the Sound bar
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
4 / 9
5. Absolute Maximum Ratings

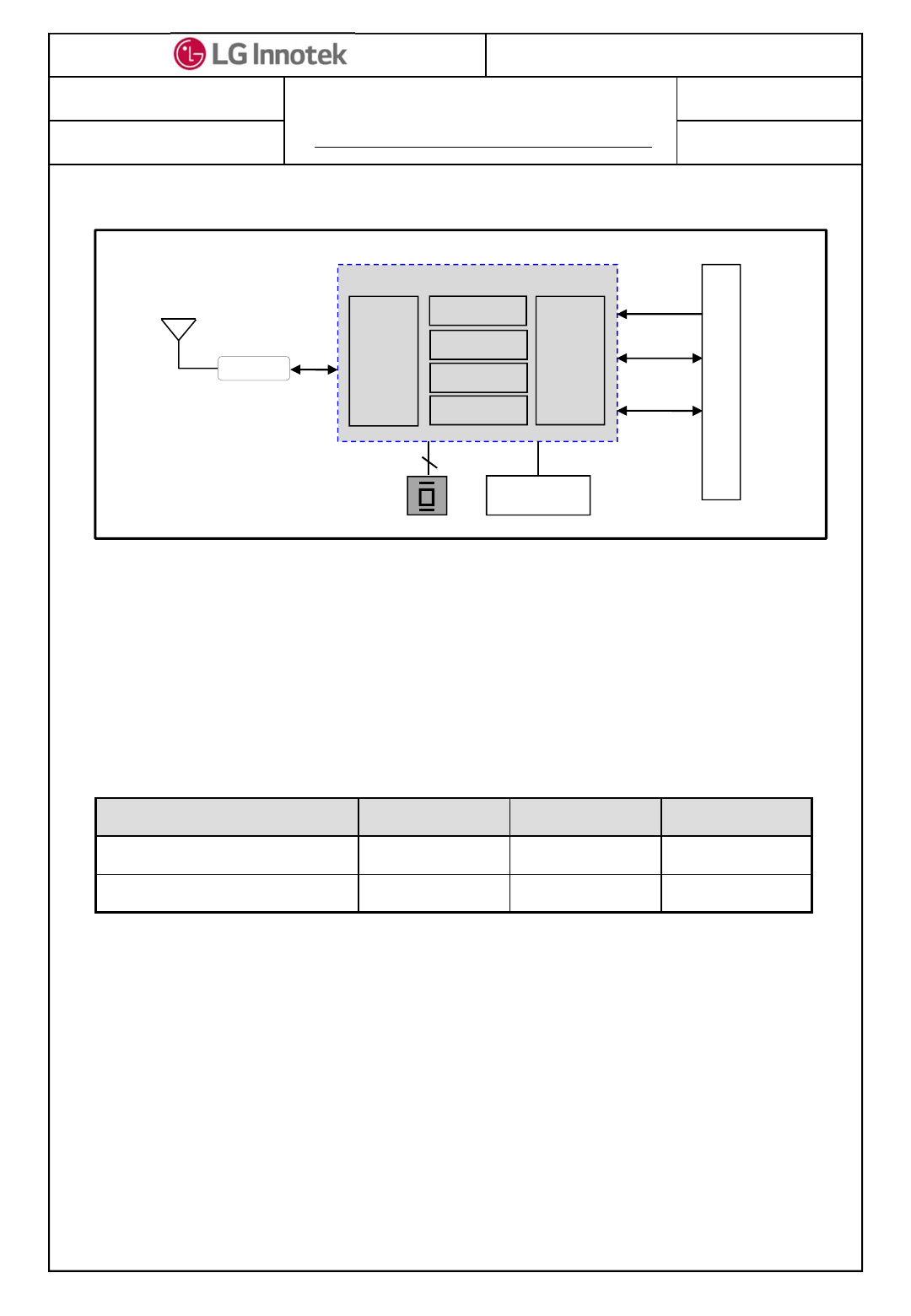

4. Block Diagram
Parameter Min Max Unit
Storage Temperature -10 +80 ℃
Storage Humidity (40℃)- 90 %
Caution : The specifications below the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
• Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature and relative humidity
do not exceed 5 to 40℃and 20 to 60%.
Interface Connector
CSR8510 A10
Ant.
(2402~2480 MHz)
2.4GHz
Radio
ROM
PIO
USB
26MHz
MMU
MCU
I/O
3.3V
RAM
EEPROM
RF LPF
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
5 / 9
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Operating Humidity (40℃)- - 85 %
Supply Voltage 3.135 3.3 3.465 Vdc
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
6. Operating Test Conditions
Temperature 25 ±5℃
Humidity 65 ±5%
Input power(VDD) Supply Voltage
+3.3V +3.3V ±0.165V(5%)
7. Standard Test Conditions
7-1. Ambient condition
7-2. Power supply voltages
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
6 / 9

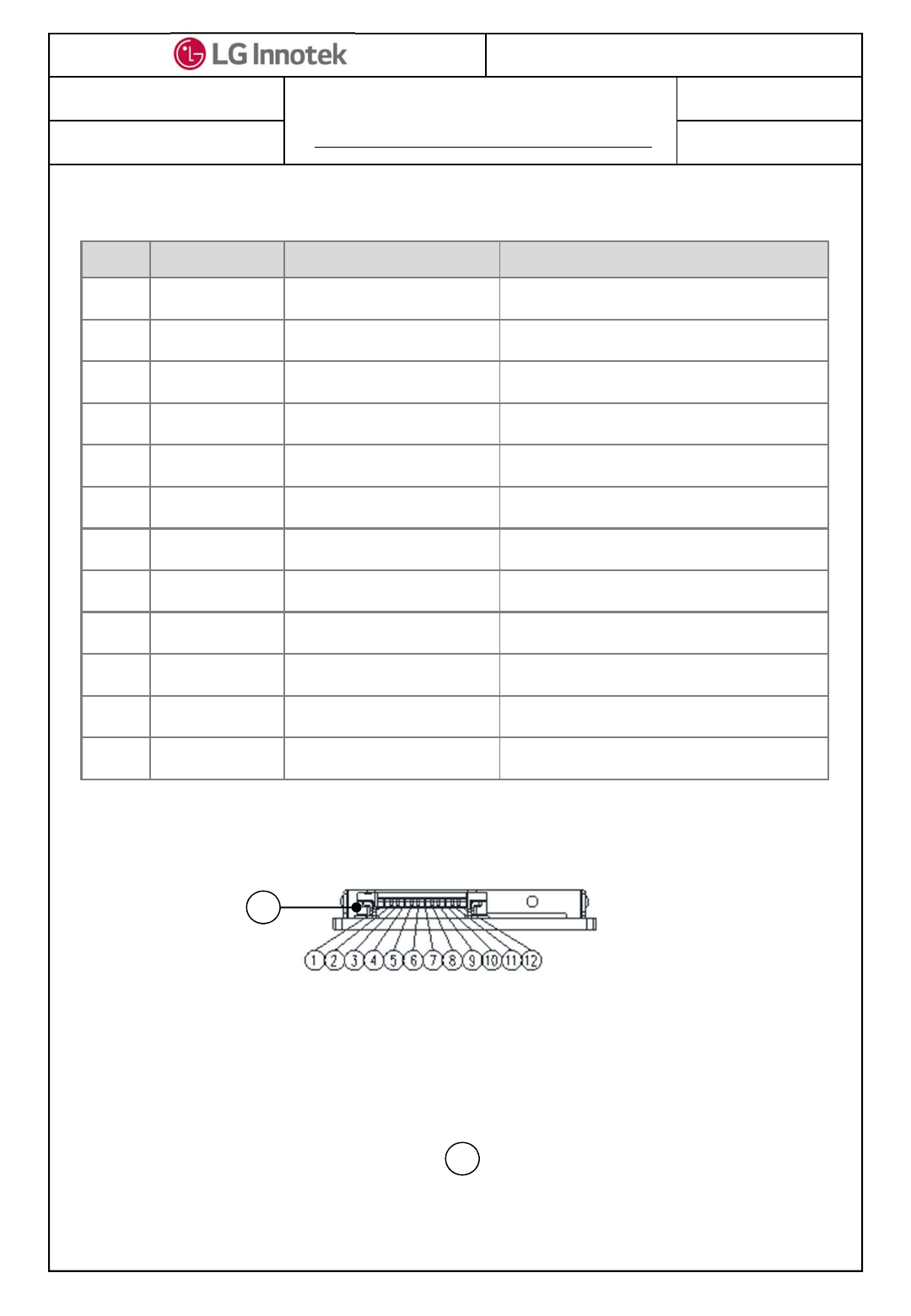

8. Pin Description
Note.
1) Recommend a Module install sequence for prevent operation failure
- Supply 3.3V power
- Connect to pins
2) Connector : 12 Pin SMD Connector A
A
PIN No. Pin Name Type Pin Description
1 3.3VA Input 3.3V Power Supply
2 3.3VA Input 3.3V Power Supply
3 NC - -
4 GND - Ground
5 GND - Ground
6 USB+ Input / Output USB Communication signal USB D+
7 USB- Input / Output USB Communication signal USB D+
8 GND - Ground
9 GND - Ground
10 RESET Input Bluetooth Reset
11 BT_WAKEUP Output Bluetooth Host Wake
12 MCU_STBY Input / Output MCU Standby
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
7 / 9

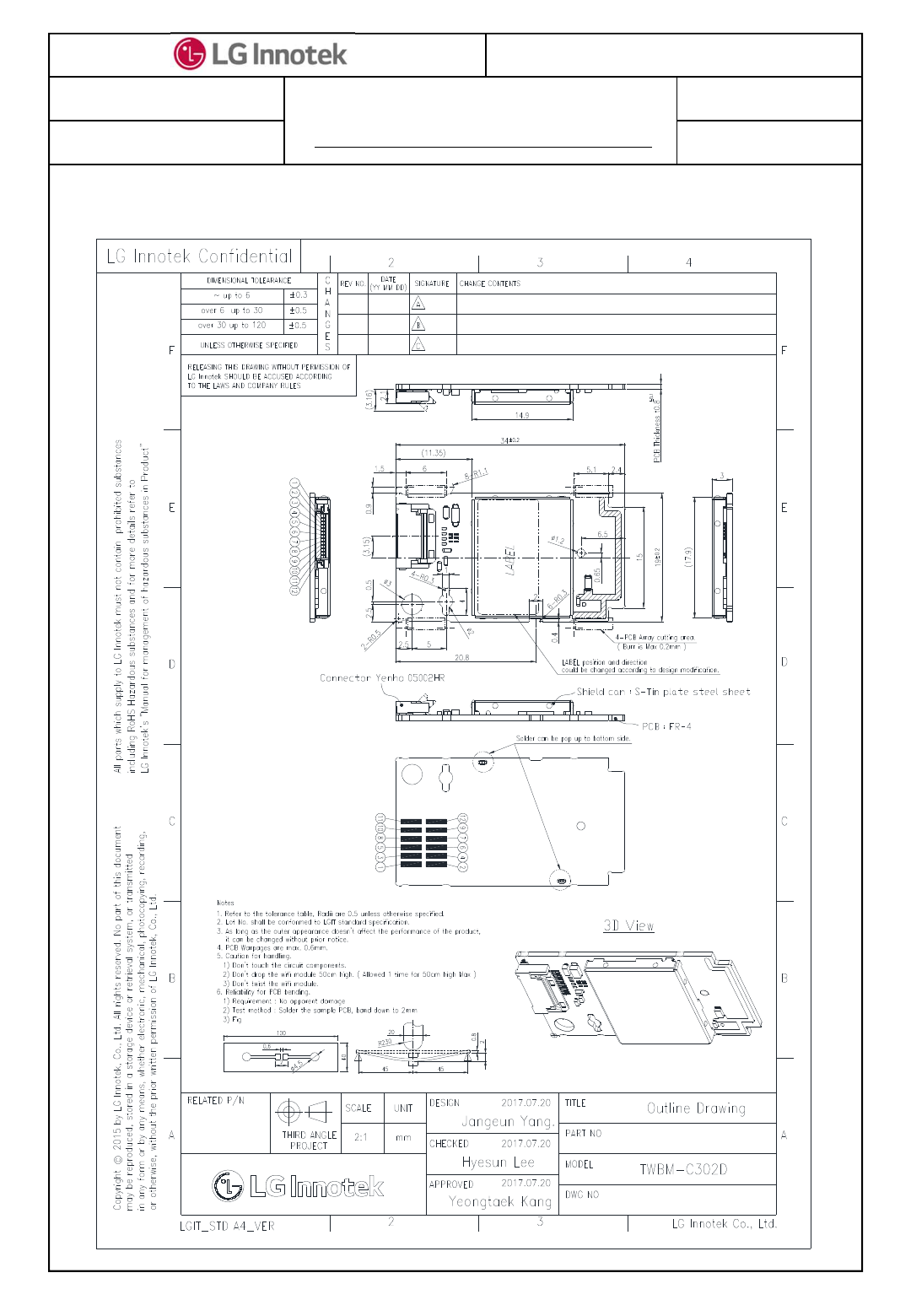

9. Outline Drawing
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
8 / 9

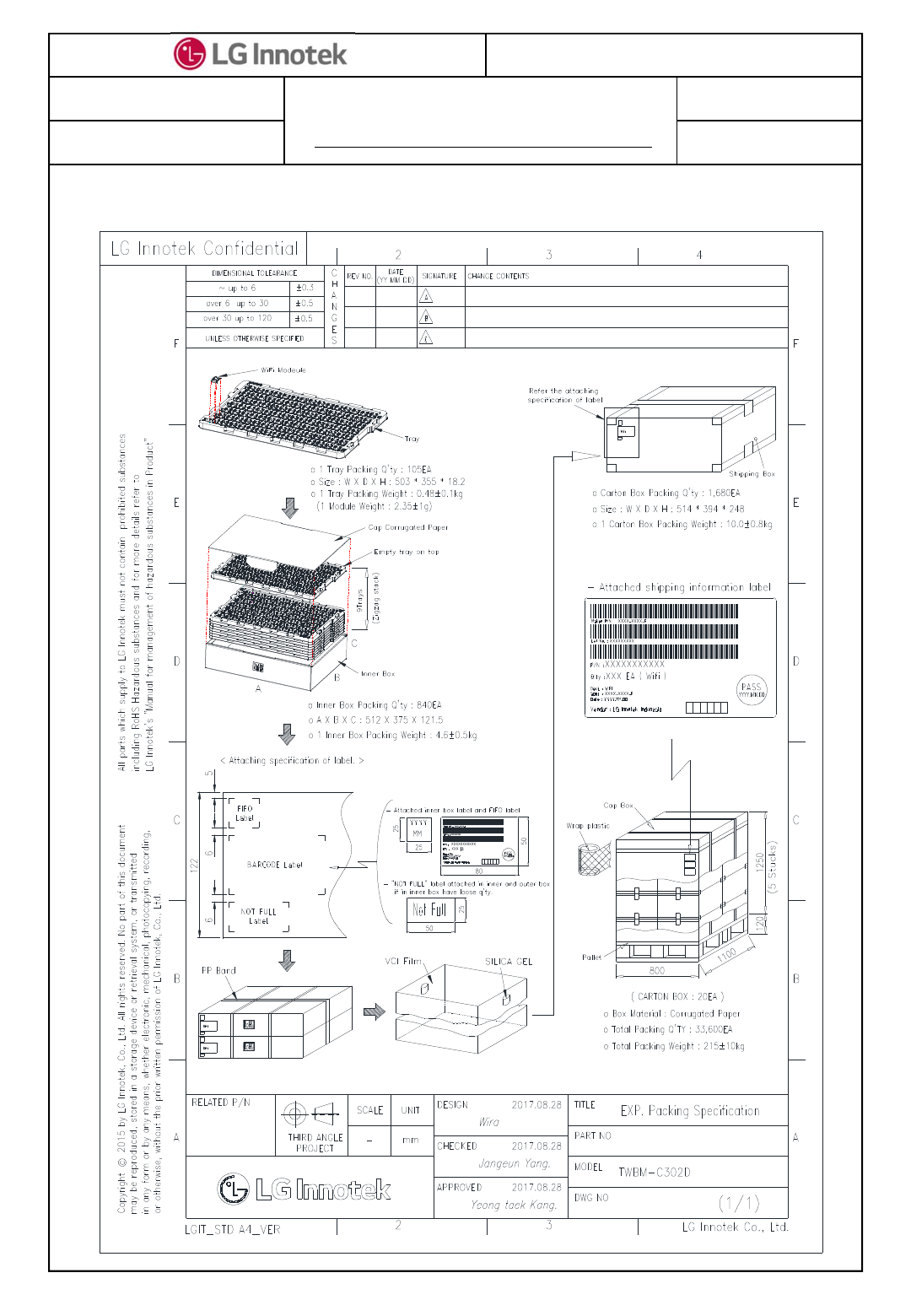

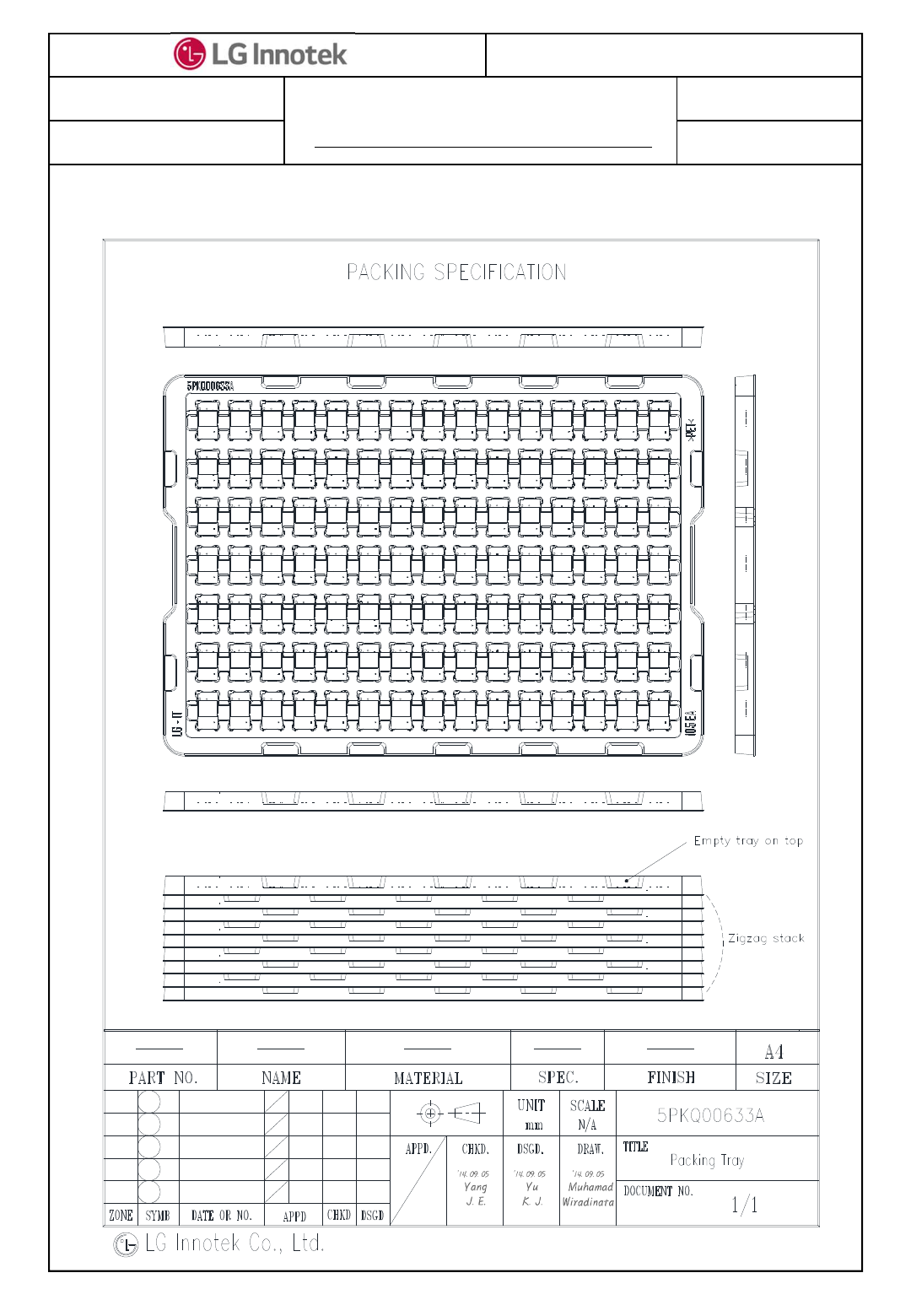

10. Packing Information
SPECIFICATION
PAGE :
DOCUMENT No. : -
REG. DATE : 2017. 10. 18
MODEL NAME : WB2NB8(TWBM-C302D)
REV. NO : 1.0
REV. DATE : 2017. 10. 18
Copyrightⓒ. 2017. All Rights Reserved.
9 / 9
