LG Electronics USA WC1NP8 RF Module User Manual
LG Electronics USA RF Module Users Manual
Users Manual
SPECIFICATIONS
PRODUCT NAME : 802.11a/b/g/n/ac + Bluetooth Combo Module
MODEL NAME : WC1NP8
Designed Checked Approved
LG Innotek Co., Ltd.
H.J. ROH D.S. OH S.D. CHOI
DOCUMENT No. 17(개A)ER-005
2017.10.22 2017.10.27 2017.11.01 PAGE 25
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
1 / 22
Index
No Description Page
1 Features 2
2 Ordering Information 2
3 Label Marking 2
4 Block Diagram 3
5 Absolute Maximum Ratings 3
6 Operating Conditions 4
7 Standard Test Conditions 4
8 Electrical Specifications for Wi-Fi 5
9 Electrical Specifications for Bluetooth 11
10 Environment Tests 14
11 Pin Description 15

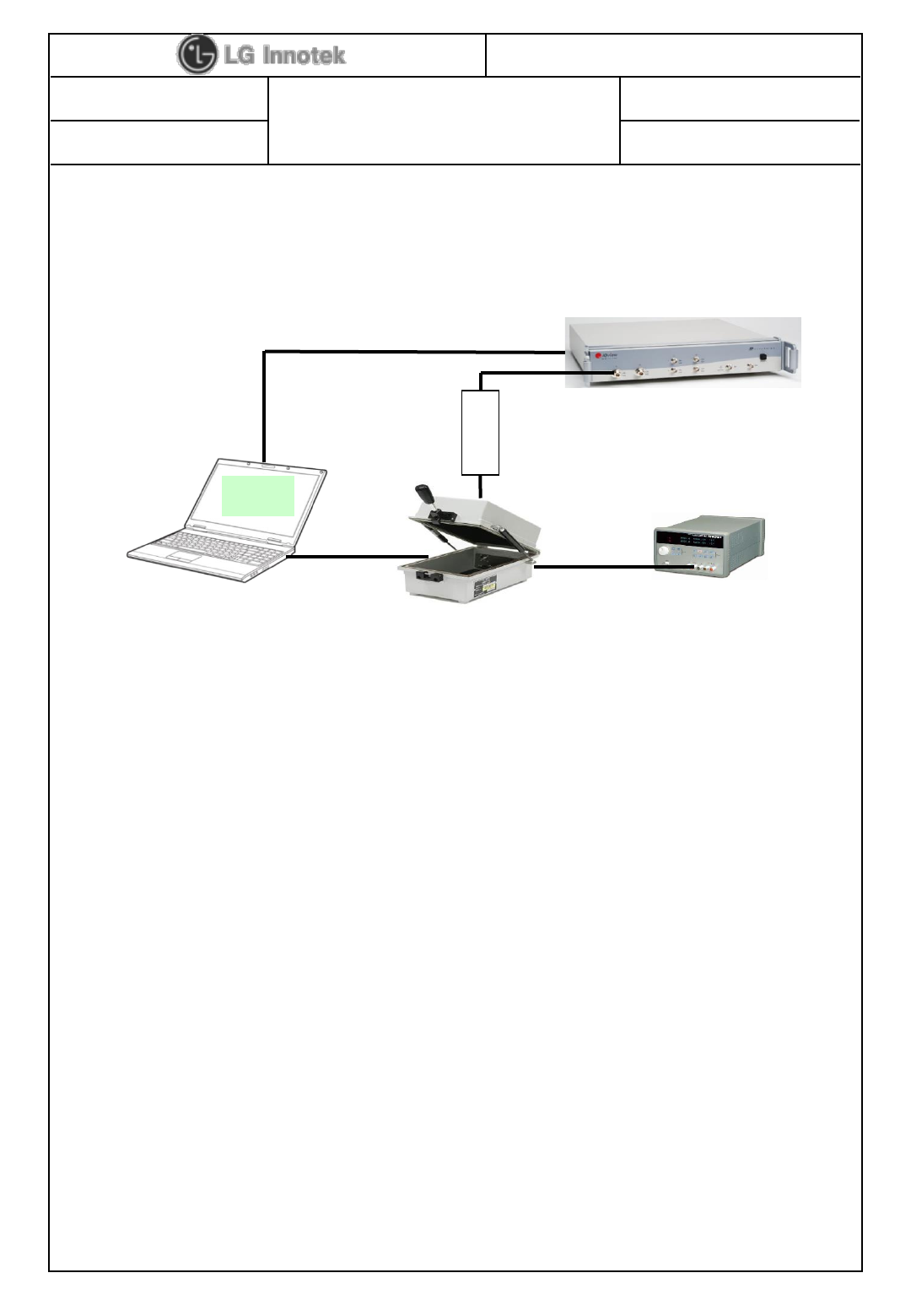

12 Test Method 16
13 Mechanical Characteristics 17

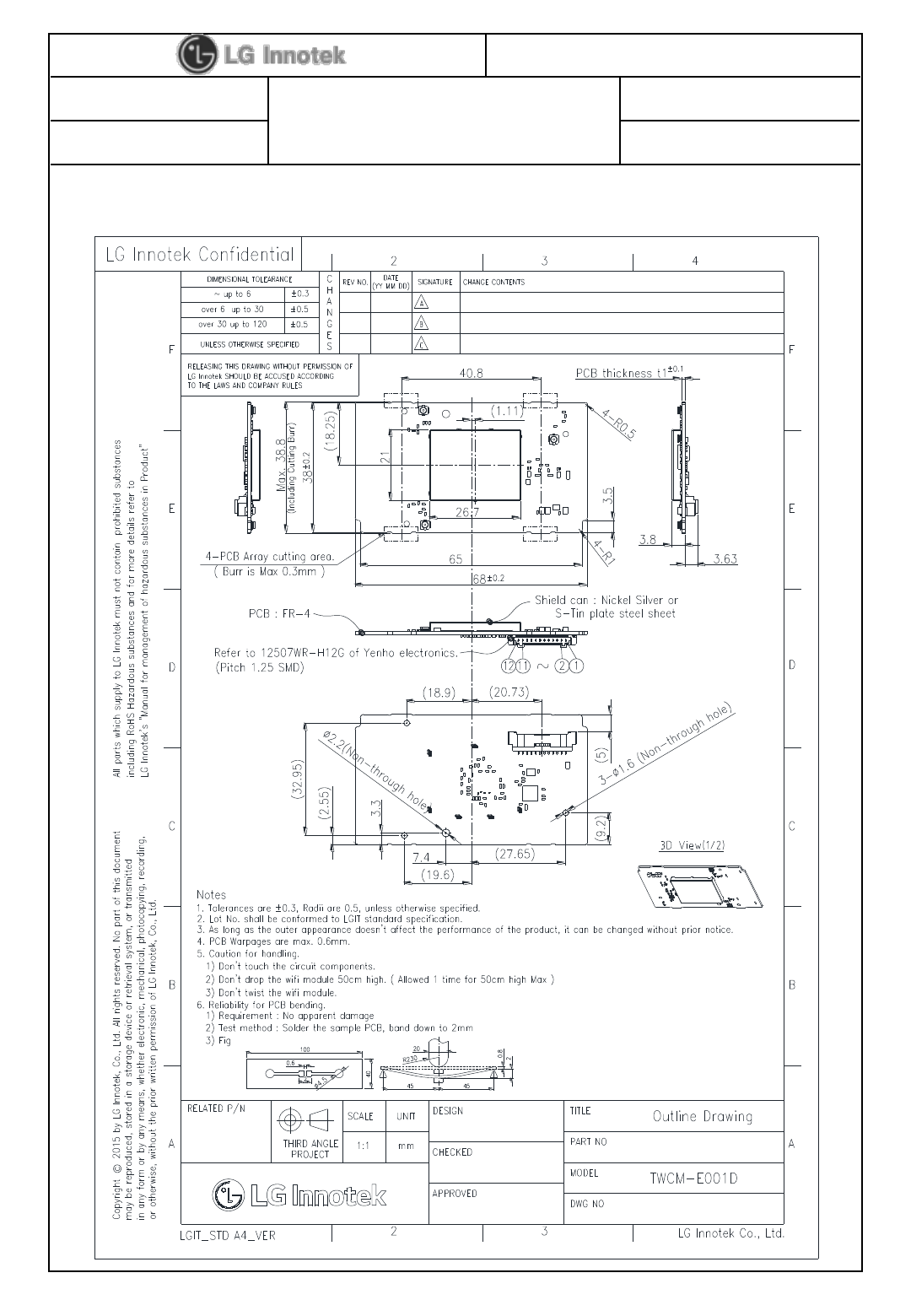

14 Outline Drawing 18
15 Insulation Parts List 19

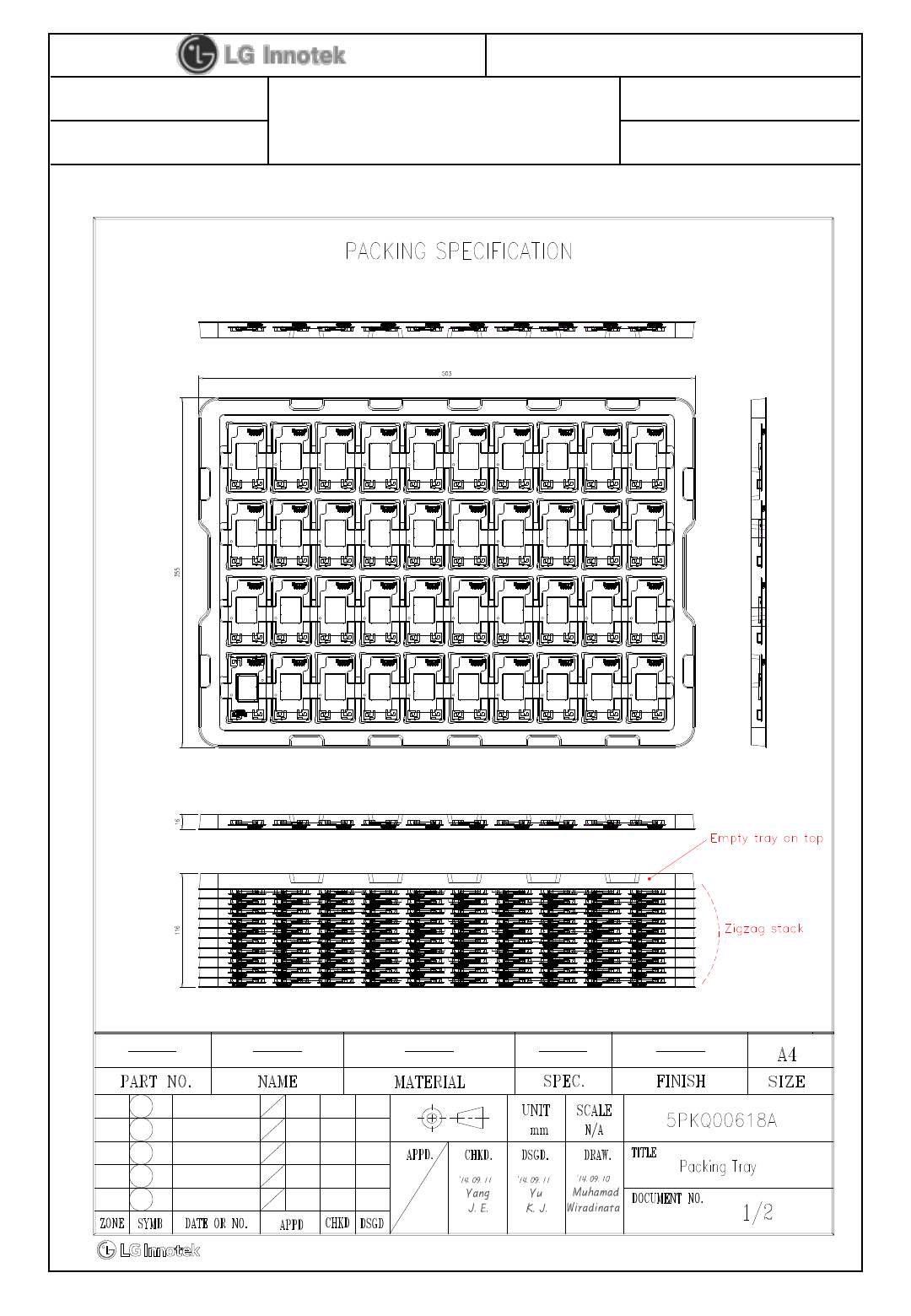

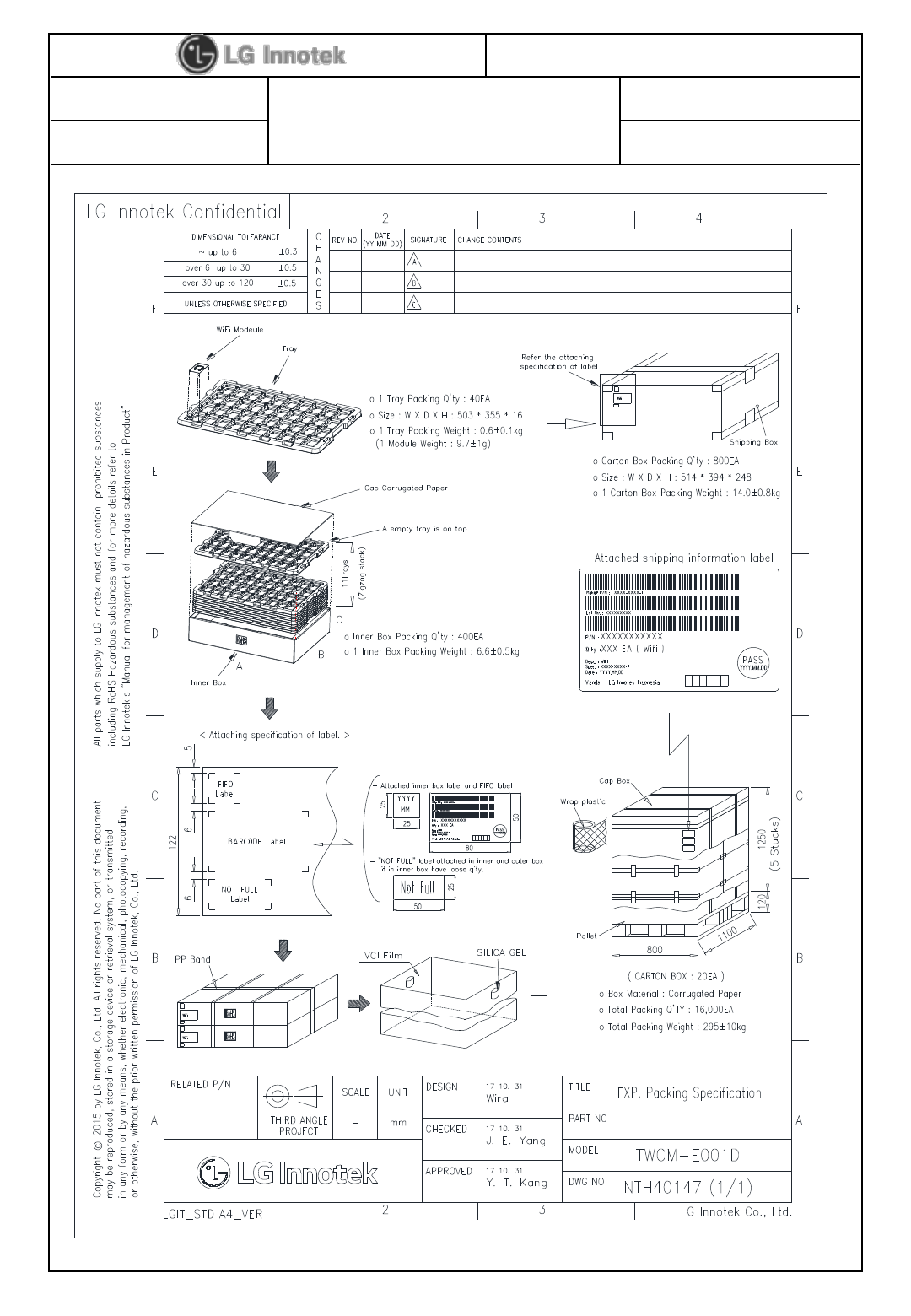

16 Packing Information 20

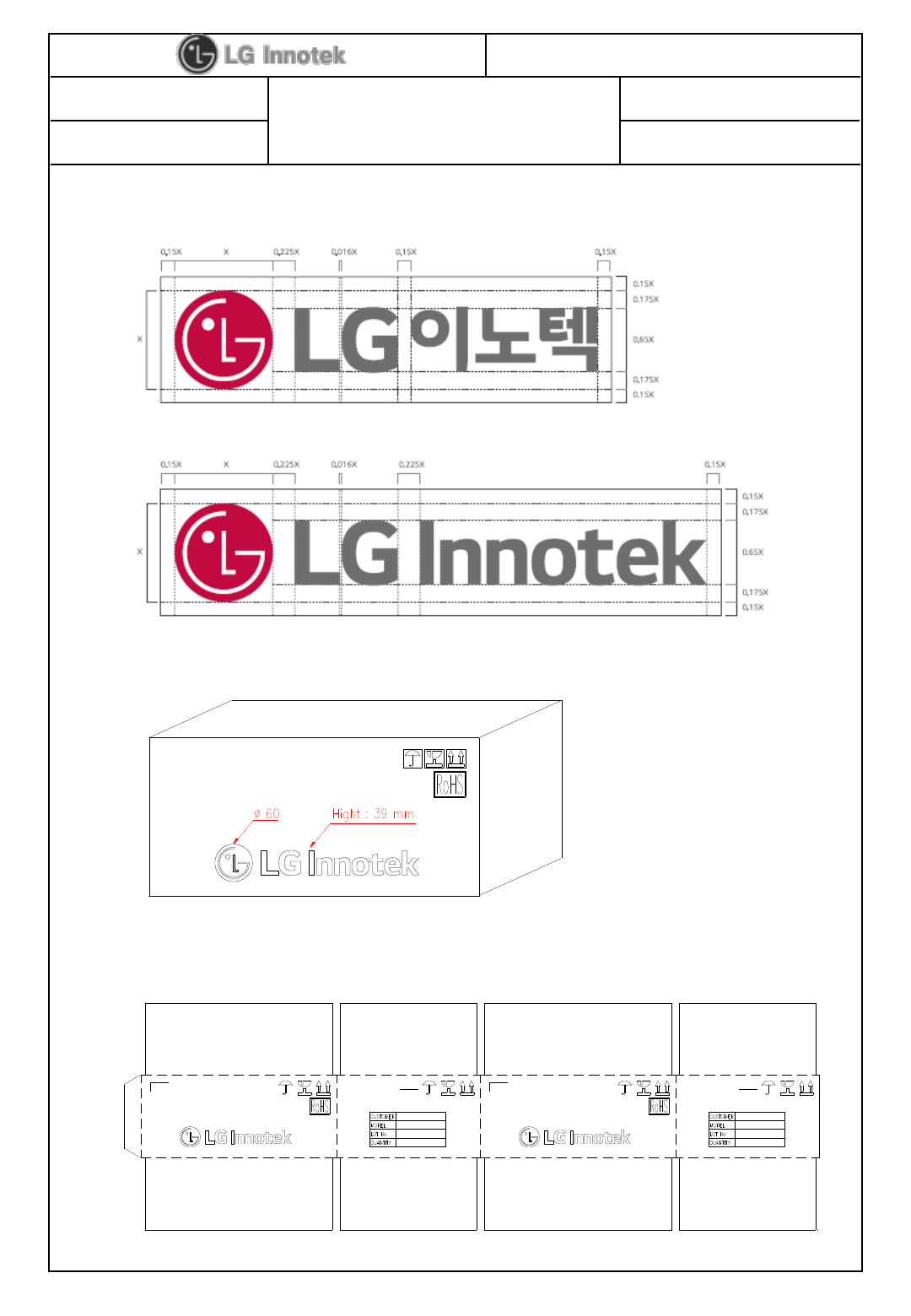

17 LG CI Specification 22
18 Change History of Revision 25
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
2 / 22

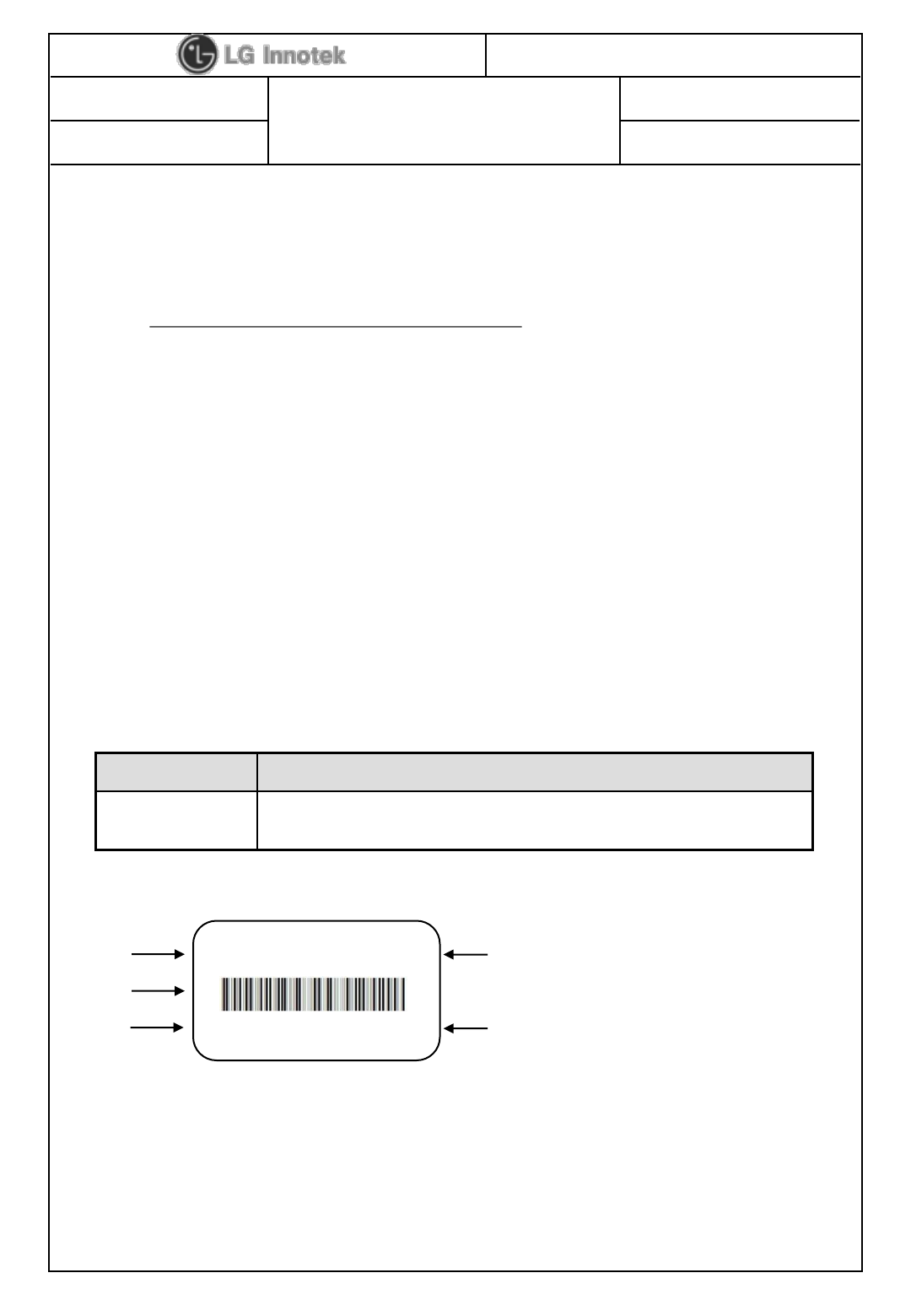

2. Ordering Information
Model Description
TWCM-E001D
WC1NP8 802.11 a/b/g/n/ac + BT combo Module, Dual Band 2T2R MIMO
1. Features
WC1NP8 is the small size and low power module for IEEE 802.11ac wireless LAN &
BT4.2 + HS. TWCM-E001D is based on QCA9379-7 solution.
* Caution: This model don’t support AC Mode
IEEE 802.11 a/b/g/n/ac Dual Band WLAN infrastructure
Bluetooth 4.2+ HS , BLE
Size : 68.0mm x 38.0 x 6.8 mm
Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac)
WLAN Metal Press antenna(Ready), BT Printed antenna on
Use on-chip OTP (One-Time Programmable)
Host Interface :
-WLAN : USB2.0
-BT : USB1.1
Security : WAPI, WEP, WPA, WPA2, WMM, AES, WEP, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
3. Label marking
①Customer P/N ④Product Lot No. : 1710A210101
②MAC Address BAR Code -17 : Year - 21 : Date
③Model No - 10: Month - 01 : Manufactured Process
- A : Revision No - 01 : Change History of Revision
⑤MAC Address No.
①
②
③
EAT64113401
001EB2B00339
④
⑤
TWCM-E001D
1710A210101
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
3 / 22
5. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (40℃) - 90 %
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.

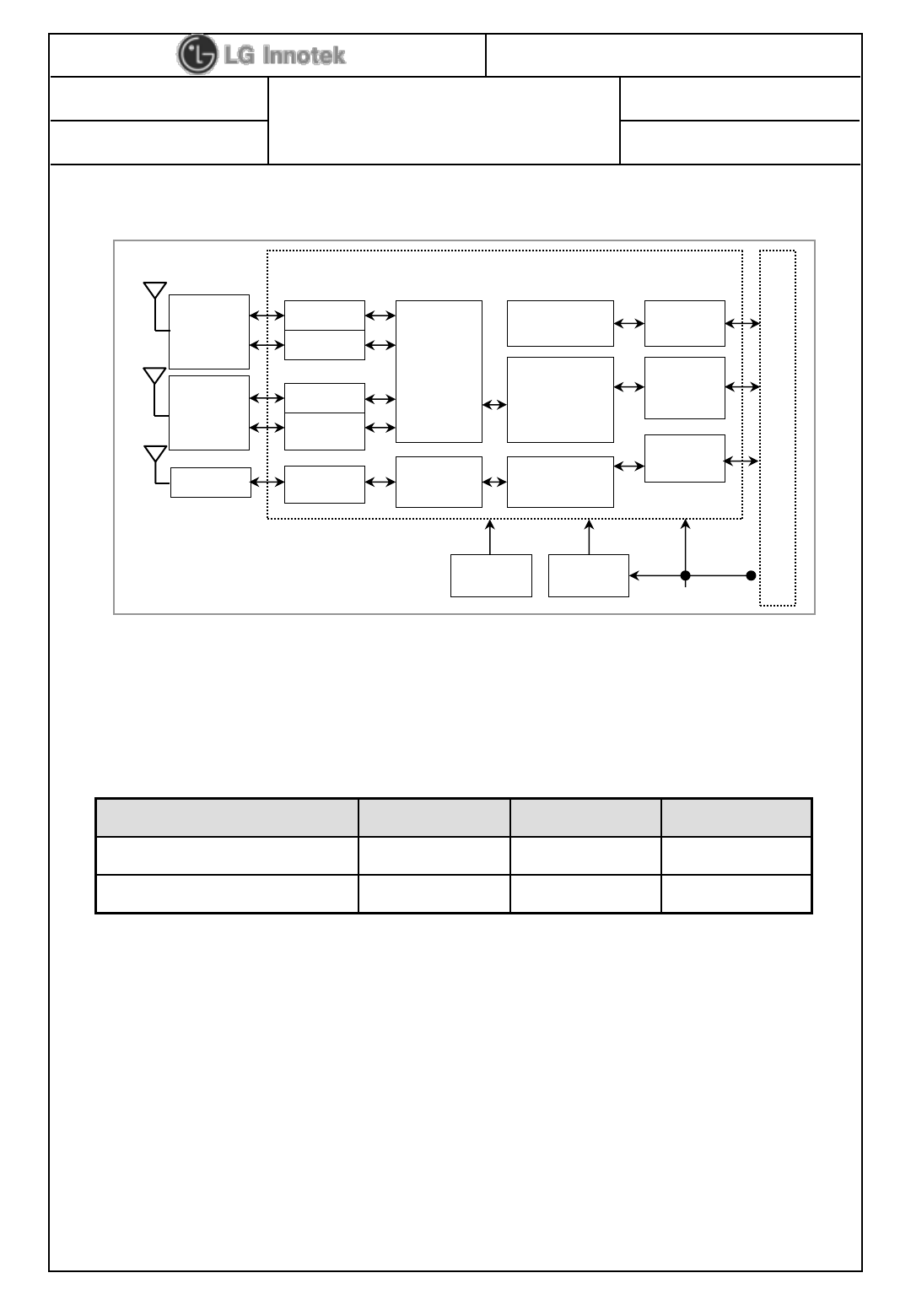

4. Block Diagram
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃ and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
< Table 1 >
QCA9379
2.4GHz
5GHz
2.4GHz
5GHz
11ac 2T2R
Baseband
32bit RISC CPU
MAC /
Packet buffer/
Security engine
System
Control
DC Buck
USB2.0
Interface
USB I/F 12PIN CONNECTOR
3.45V
Main
Clock
40MHz
Diplexer
& Balun
Matching
ANT0
ANT1
2.4GHz BT
Baseband
Bluetooth
MAC
LPF
BT
ANT USB1.1
Interface
Diplexer
& Balun
Matching
1.1V
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
4 / 22
6. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃) - - 85 %
Supply Voltage 3.35 3.45 3.6 Vdc
7. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
Temperature 25 ± 5℃
Humidity 65 ± 5%
Input power Supply Voltage
VDD_3.3V 3.35 ~ 3.6V
7-1. Ambient condition
7-2. Power supply voltages
7-3. Current consumption (2X2 Continuous Power)
Human Body Model (HBM) Min. Max. Unit
Contact - ±2 kV
Air - ±10
7-4. ESD Information
Note 1 : IEC 61000-4-2 (150pF, 330R)
※ Test condition : After 8-pin USB Cable connect to module, progress ESD test.
Current Consumption Min. Typ. Max. Unit
TX Mode ( CCK 1M @ 17dBm) - 1A mA
Note 1 : This figure is the RMS(root mean square) Value.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
5 / 22
8. Electrical Specifications for Wi-Fi ( Radiation Test )
8-1. RF Characteristics for IEEE802.11b ( 11Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11b
Mode DSSS/CCK
Channel frequency 2400 ~ 2483.5 MHz
Data rate 1, 2, 5.5, 11Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 2) 14 17 20 dBm
Spectrum Mask
1st side lobes ( to fc ±11MHz) - -43 -30 dBr
2nd side lobes ( to fc ±22MHz) - -58 -50 dBr
Modulation Accuracy (EVM) - 30 35 %
Power On/Off ramp - 0.5 2.1 Usec
Freq. Tolerance -20 - 20 ppm
Chip Clock Freq. Tolerance -20 - 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (FER ≤ 8%) -88 -82 dBm
Maximum Input Level (FER ≤ 8%) -10 - - dBm
* Normal Condition : 25℃, VDD=3.3V.
Note 1. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 2. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
6 / 22
8-2. RF Characteristics for IEEE802.11g ( 54Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11g
Mode OFDM
Channel frequency 2400 ~ 2472 MHz
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 12 15 18 dBm
Spectrum Mask
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -43 -28 dBr
at fc ≥ ± 30MHz - -48 -40 dBr
Constellation Error (EVM) - -32 -25 dB
Freq. Tolerance -20 - 20 ppm
Chip Clock Freq. Tolerance -20 - 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (PER ≤ 10%) - -74 -67 dBm
Maximum Input Level (PER ≤ 10%) -20 - - dBm
* Normal Condition : 25℃, VDD=3.3V.
Note 1. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 2. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
7 / 22
8-3. RF Characteristics for IEEE802.11a ( 54Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11a
Mode OFDM
Channel frequency 5150~5850 MHz
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 2) 10 13 16 dBm
Spectrum Mask
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -43 -28 dBr
at fc ≥ ± 30MHz - -48 -40 dBr
Constellation Error (EVM) - -32 -25 dB
Freq. Tolerance -20 - 20 ppm
Chip Clock Freq. Tolerance -20 - 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (PER ≤ 10%) - -73 -67 dBm
Maximum Input Level (PER ≤ 10%) -30 - - dBm
* Normal Condition : 25℃, VDD=3.3V.
Note 1. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 2. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
8 / 22
8-4. RF Characteristics for IEEE802.11gn ( MCS7 mode unless otherwise specified)
Items Contents
Specification IEEE802.11n – 2.4GHz
Mode OFDM
Channel frequency 2400 ~ 2483.5 MHz
Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level (HT20:MCS7) 12 15 18 dBm
Spectrum Mask (HT20)
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -35 -28 dBr
at fc ±30MHz - -45 -40 dBr
Constellation Error (EVM) - -32 -28 dB
Freq. Tolerance -20 - 20 ppm
Chip Clock Freq. Tolerance -20 - 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens.
(HT20,PER ≤ 10%) - -73 -66 dBm
Maximum Input Level (PER ≤ 10%) -20 - - dBm
* Normal Condition : 25℃, VDD=3.3V.
Note 1. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 2. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
9 / 22
8-5. RF Characteristics for IEEE802.11an ( MCS7 mode unless otherwise specified)
Items Contents
Specification IEEE802.11n – 5GHz
Mode OFDM
Channel frequency 5150~5850 MHz
Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level (HT20/HT40:MCS7) 10 13 16 dBm
Spectrum Mask (HT20)
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -35 -28 dBr
at fc ±30MHz - -45 -40 dBr
Constellation Error (EVM) - -32 -28 dB
Freq. Tolerance -20 - 20 ppm
Chip Clock Freq. Tolerance -20 - 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens.
(HT20,PER ≤ 10%) - -70 -64 dBm
Minimum Input Level Sens.
(HT40,PER ≤ 10%) - -67 -62 dBm
Maximum Input Level (PER ≤ 10%) -30 - - dBm
* Normal Condition : 25℃, VDD=3.3V.
Note 1. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 2. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
10 / 22
Items Contents
8-4. RF Characteristics for IEEE802.11ac ( MCS8/9 mode unless otherwise specified)
Note 1: This varies by regulatory domain
Refer to the product documentation for specific details for each regulatory domain
Note 2: The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.
Don’t support This Model
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
11 / 22
9. Electrical Specifications for Bluetooth ( Conducted Test )
Parameter (Condition) Min. Typ. Max. Unit
Transmit Power (PGPSK) 6 11 15 dBm
Power Density - - 20 dBm
Frequency Range 2400 - 2483.5 MHz
20dB Bandwidth - - 1000 kHz
In-band Spurious Emissions
± 500kHz - - -20 dBc
|M-N| = 2MHz - - -20 dBm
|M-N| ≥ 3MHz - - -40 dBm
Modulation Characteristics, frequency Deviation
ΔF1avg (00001111 sequence in payload) 140 155 175 kHz
ΔF2max (10101010 sequence in payload) 115 - - kHz
ΔF1avg / ΔF2max 80 90 - %
Initial Carrier Frequency Tolerance -75 - 75 kHz
Carrier Frequency Drift
DH1 Packet -25 - 25 kHz
DH3 Packet -25 - 25 kHz
DH5 Packet -40 - 40 kHz
Drift rate -20 - 20 kHz / μs
* Normal Condition : 25℃, VDD=3.5V.
9-1. Transmitter Performance
* Supported bluetooth tx power class 1.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
12 / 22
Parameter (Condition) Min. Typ. Max. Unit
EDR Relative Transmit Power -4 - 1 dB
EDR Carrier Frequency Stability
ωi (2-DH5 and 3-DH5) -75 - 75 kHz
ω0 (2-DH5 and 3-DH5) -10 - 10 kHz
ωi + ω0 (2-DH5 and 3-DH5) -75 - 75 kHz
EDR Modulation Accuracy
RMS DEVM 2-DH5 - 6 20 %
3-DH5 - 6 13 %
99% DEVM
DEVM < 0.30, π/4-DQPSK
DEVM < 0.20, 8DPSK symbols
2-DH5 99 - - %
3-DH5 99 - - %
Peak DEVM 2-DH5 - 13 35 %
3-DH5 - 13 25 %
EDR Differential Phase Encoding
(packet with 0 error > 99%) 99 - - %
EDR In-band Spurious Emissions
|M-N| = 1MHz - - Ptx_ref-
26 dBm
|M-N| = 2MHz - - -20 dBm
|M-N| = 3MHz - - -40 dBm
Enhanced Power Control - - 4 dBm
9-2. Transmitter Performance
9-3. BLE RF Performance
Parameter (Condition) Min. Typ. Max. Unit
Tx Power 0 4 8 dBm
Rx sensitivity (GFSK, BER, 1 Mbps) - -90 -80 dBm
Mod Char : delta F1 average 225 255 275 kHz
Mod Char : delta F2 max 99.9 - - %
Mod Char : ratio 80 95 - %
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
13 / 22
9-4. Receiver Performance
* Normal Condition : 25℃, VDD=3.3V.
Parameter (Condition) Min. Typ. Max. Unit
Rx sensitivity
GPSK, 0.1% BER, 1Mbps - -85 -70 dBm
π/4-DQPSK, 0.01% BER, 2Mbps - -80 -70 dBm
8-DPSK, 0.01% BER, 3Mbps - -80 -70 dBm
C/I performance
C/I co-channel (GFSK, 0.1%BER) - - 11 dB
C/I 1MHz (GFSK, 0.1%BER) - - 0 dB
C/I 2MHz (GFSK, 0.1%BER) - - -30 dB
C/I ≥3MHz (GFSK, 0.1%BER) - - -40 dB
C/I image (GFSK, 0.1%BER) - - -9 dB
C/I image± 1MHz (GFSK, 0.1%BER) - - -20 dB
C/I co-channel (π/4-DQPSK, 0.1%BER) - - 13 dB
C/I 1MHz (π/4-DQPSK, 0.1%BER) - - 0 dB
C/I 2MHz (π/4-DQPSK, 0.1%BER) - - -30 dB
C/I ≥3MHz (π/4-DQPSK, 0.1%BER) - - -40 dB
C/I image (π/4-DQPSK, 0.1%BER) - - -7 dB
C/I image±1MHz (π/4-DQPSK,0.1%BER) - - -20 dB
C/I co-channel (8-DPSK, 0.1%BER) - - 21 dB
C/I 1MHz (8-DPSK, 0.1%BER) - - 5 dB
C/I 2MHz (8-DPSK, 0.1%BER) - - -25 dB
C/I ≥3MHz (8-DPSK, 0.1%BER) - - -33 dB
C/I image (8-DPSK, 0.1%BER) - - 0 dB
C/I image±1MHz (8-DPSK, 0.1%BER) - - -13 dB
Intermodulation(BER≤0.1%)
Input = -64dBm, n=5 -39 - - dBm
Out-of-band blocking (CW, BER≤0.1%)
30MHz ~ 2000MHz -10 - - dBm
2000MHz ~ 2399MHz -27 - - dBm
2498MHz ~ 3000MHz -27 - - dBm
3000MHz ~ 12.75GHz -10 - - dBm
Maximum input (GFSK, 0.1% BER) -20 - - dBm
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
14 / 22
10. Environment Tests
Item Test Conditions Specifications
Heat
Load Test
Initial values are measured at standard test condition.
Leave samples in 60℃±3℃ for 96±5 hours, and in
standard test condition for 30 minutes, then take
measurements within 1 hour.
- Supply voltage : standard ± 5%
•TX Power
: ±4dB Max
• Min Input Level
: ±4dB Max
Humidity
Load Test
Initial values are measured at standard test condition.
Leave samples in 40℃±3℃, 90 ~ 95% RH for 96 ±5
hours, and in standard test condition for 30 minutes,
then take measurements within 1 hour.
- Supply voltage : standard + 5%
Heat Test
Initial values are measured at standard test condition.
Leave samples in 70℃±2℃ for 96 ±5 hours, and
in standard ambient for 1 hour with standard power
Supply then take measurements within 1 hour.
Cold Test
Initial values are measured at standard test condition.
Leave samples in －20℃±2℃ for 96 ±5 hours, and
in standard ambient for 1 hour with standard power
Supply then take measurements within 1 hour.
Temperature
Shock
Take measurements in standard test condition.
Temp. : -40℃ ~ +85℃
Duration : 30 min
Ramp-up & Ramp-down for 5 min
Cycle : 200cycle.
Vibration
Test
Initial value measure at standard test condition.
Sweep rate : 1 single sweep/ minute
Amplitude : 1.5 mm
Frequency : 10-55Hz
Duration : 1 Hours per direction (X,Y,Z)
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
15 / 22
11. Pin Description
Pin No. Pin Name I/O Pin Description
1 VCC I Power Supply 3.3V
2 USB_DN_WiFi I/O WiFi USB Communication signal USB D-
3 USB_DP_WiFi I/O WiFi USB Communication signal USB D+
4 GND I Ground
5 WOWL I Wake On WLAN
6 VCC I Power Supply 3.3V
7 WLAN_EN I WiFI_RESET
8 GND I Ground
9 USB_DN_BT I/O BT USB Communication signal USB D-
10 USB_DP_BT I/O BT USB Communication signal USB D+
11 GND I Ground
12 BT_EN I BT_RESET
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
16 / 22
12. Test method
This is a conducted test method of WiFi RF performance.
1) Test Condition.
Power Supply
TESCOM
Shield Box
( TC-5910DP)
Attanuator
Auto test
Program
LitePoint IQxel
Cable Power 5V
RF Cable
LAN Cable
2) Test Set-up List.
- Instrument : LitePoint IQxel
- Shield Box : Tescom TC-5910DP
- RF Cable : TESCOM 4011-0011
- Attenuator : Mini-Circuit 15542 10dB attenuator
- USB Cable, LAN Cable, Murata RF Cable : MXHT83QE3000 or MXHS83QE3000
- Power Supply
3) Test Flow
- Install the test set-up.
- Power OFF.
- Open the Shield box and install the DUT for test.
- Close the shield box.
- Power ON.
- Check the driver icon.
- Start testing.
#. Notes.
- Be careful that you can consider a RF cable LOSS.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
17 / 22
13. Mechanical Characteristics
1) Outline view
Item Test Conditions
Assembly No defects of wiring, soldering and assembling
Appearance No dirt, rust, corrosion or foreign material
2) Appearance structure
Item Test Conditions
Dimension As assembly drawing
Mounting As assembly drawing
Weight 8 g
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
18 / 22
14. Outline Drawing
Jangeun Yang
Hojin Roh
Yeongtaek Kang
'17. 09 13
'17. 09 13
'17. 09 13
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
19 / 22
15. Packing Information
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
20 / 22
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
21 / 22
16.LG CI Specification.
Logo Ratio – 1 : 0.65
Logo Type Color -- Black
■LG CI regulation
■LG CI print in Carton box
■Planar figure of Carton box
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
21 / 22
FCC and ISED Statements
■
FCC Part 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Part 15.21
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
FCC Part 15.105
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
OEM Responsibilities to comply with FCC and Industry Canada Regulations
The module has been certified for integration into products only by OEM integrators under the
following condition:
- The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times.
- The transmitter module must not be co-located or operating in conjunction with any other
antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
As long as the two condition above is met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, digital device
emissions, PC peripheral requirements, etc.).
End Product Labeling
The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and ISED
Certification Number are not visible when the module is installed inside another device, then the
outside of the device into which the module is installed must also display a label referring to the
enclosed module. In that case, the final end product must be labeled in a visible area with the
following:
“Contains FCC ID: BEJ-WC1NP8
“Contains ISED ID: 2703H- WC1NP8”
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
21 / 22
RSS-GEN, Sec. 7.1.3 – (licence-exempt radio apparatus)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux C NR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne
doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance minimum
of at least 20 cm between the radiation source (antenna) and any individual. This device
may not be installed or used in conjunction with any other antenna or transmitter.
l'exposition aux RF L’antenne (ou les antennes) doit être installée de façon à maintenir à tout
instant une distance minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute
personne physique.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate thisequipment.Attention:
Les changements ou modifications de cet appareil non expressément approuvé par le fabricant
peuvent annuler votre droit à utiliser cet équipement.
Étiquetage du produit final (IC)
Le module BT111 est étiqueté avec sa propre identification FCC et son propre numéro de
certification IC. Si l’identification FCC et le numéro de certification IC ne sont pas visibles lorsque
le module est installé à l’intérieur d’un autre dispositif, la partie externe du dispositif dans lequel
le module est installé devra également présenter une étiquette faisant référence au module
inclus.
Dans ce cas, le produit final devra être étiqueté sur une zone visible avec les informations
suivantes :
« Contient module émetteur identification FCC ID : BEJ-WC1NP8
« Contient module émetteur ISED ID : 2703H-- WC1NP8”
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
21 / 22
CE Statements
■
Hereby, LG Electronics Inc. declares that the radio equipment type RF Module is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
The antenna(s) must be installed such that a minimum separation distance of at least 20
cm is maintained between the radiator (antenna) and all persons at all times. This device
must not be collocated or operating in conjunction with any other antenna or transmitter.
The host manufacturer integrating this module should be assessed total compliance with
all essential requirements regarding this radio module.
The host manufacturer has the responsibility that the host device should be compliance
with all essential requirement of RED.
Contact Address
LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM
Amstelveen, The Netherlands
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2017.11.01
MODEL NAME : TWCM-E001D (LGIT)
WC1NP8
REV. DATE : 2017.11.16
REV.NO : 2.0
WC40134
Copyrightⓒ. 2016. All Rights Reserved.
22 / 22
Change History of Revision
Revision Date Contents of Revision Change Remark
1.0 '17.11.01 First release H.J.Roh
2.0 '17.11.16 Remove 802.11AC specification(Customer request) H.J.Roh
