LG Electronics USA Wireless IP Telephone Installation Manual

Contents

Installation Manual

.
WIT-300H
Installation Manual
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION
AND MAY NOT BE REPRODUCED OR COPIED WITHOUT
EXPRESS WRITTEN PERMISSION OF A DULY AUTHORIZED
REPRESENTATIVE OF LG ELECTRONICS COMPANY
Jan. 30-2005
LG Electronics
,
Inc.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
2
REVISION HISTORY
ISSUE DATE BY REMARK
0.1A Dec. 02/04 SJ HWANG Preliminary Release
0.1B Dec. 03/04 ALL Second Review & Modification
0.1C Jan. 30/05 SJ HWANG MFIM Registration & USB/TFTP Downloaing
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
3
TABLE OF CONTENTS
SAFETY INSTRUCTIONS.................................................................................... 5
SAFETY INFORMATION .................................................................................... 5
BODY-WORN OPERATION...............ERROR! BOOKMARK NOT DEFINED.
FCC PART 15 CLASS B COMPLIANCEERROR! BOOKMARK NOT DEFINED.
CAUTIONS FOR BATTERY................................................................................ 6
BATTERY DISPOSAL........................................................................................... 6
ADAPTER (CHARGER) CAUTIONS................................................................. 6
1.
GETTING STARTED................................................................................... 8
1.1
O
PTIONS
& B
ASIC
E
NCLOSURE
...................................................................................................10
1.2
W
IRELESS
N
ETWORK
C
ELL
..........................................................................................................11
1.3
A
CCESS
P
OINT
..............................................................................................................................12
1.3.1
W
HICH ONE IS BETTER
.........................................................................................................12
1.3.2
H
OW TO SET UP MULTIPLE
AP
S
...........................................................................................12
1.4
I
PECS LIK-300 ............................................................................................................................12
2.
WIRELESS ENVIRONMENT SETUP..................................................... 12
2.1
B
ASIC
IEEE 802.11
B NETWORK DIAGRAM
.................................................................................12
2.1
W
HERE
LIK-300
IS POSITIONED IN THE
802.11
B NETWORK
.....................................................13
2.2
AP C
ONFIGURATION
.....................................................................................................................13
2.2.1

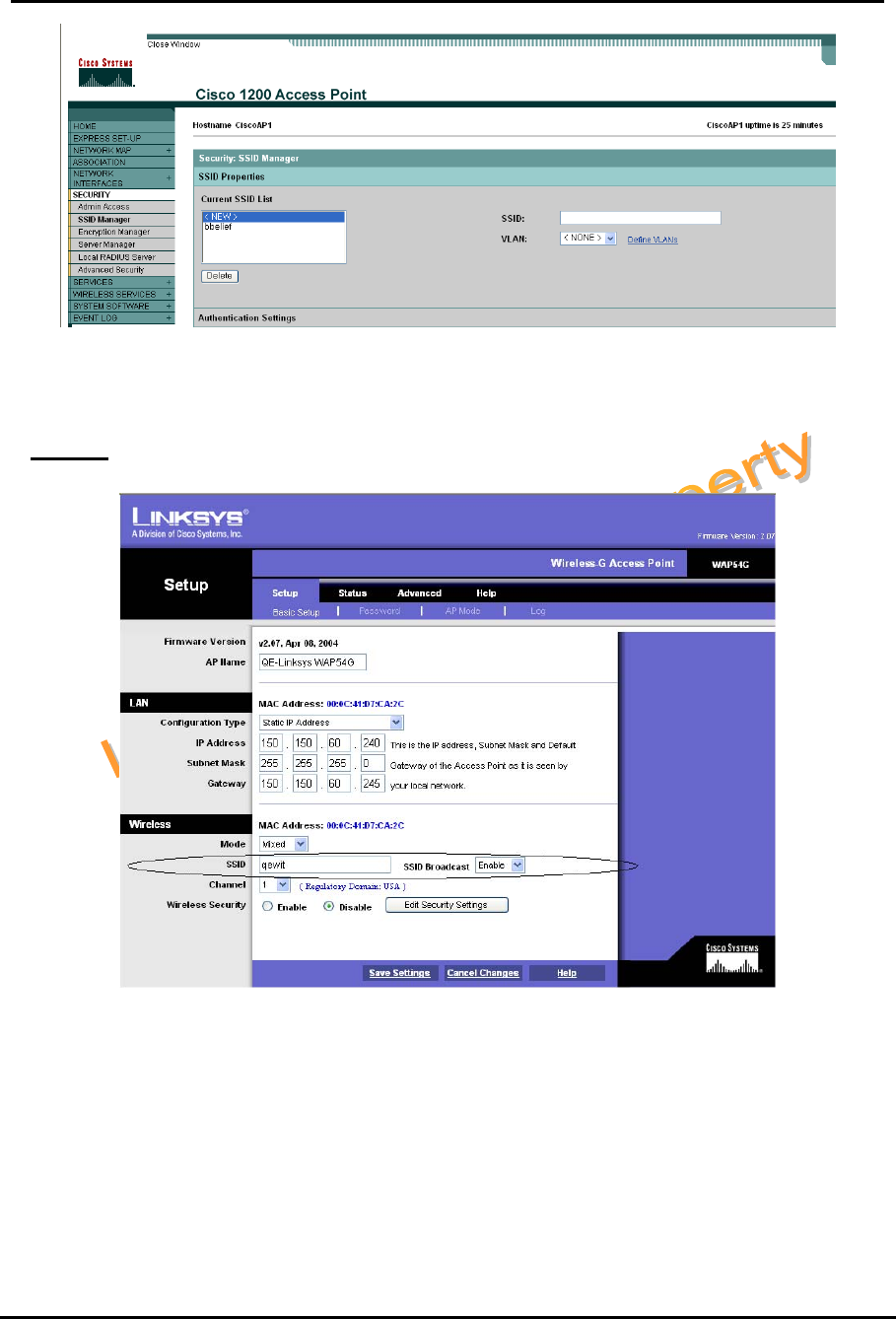

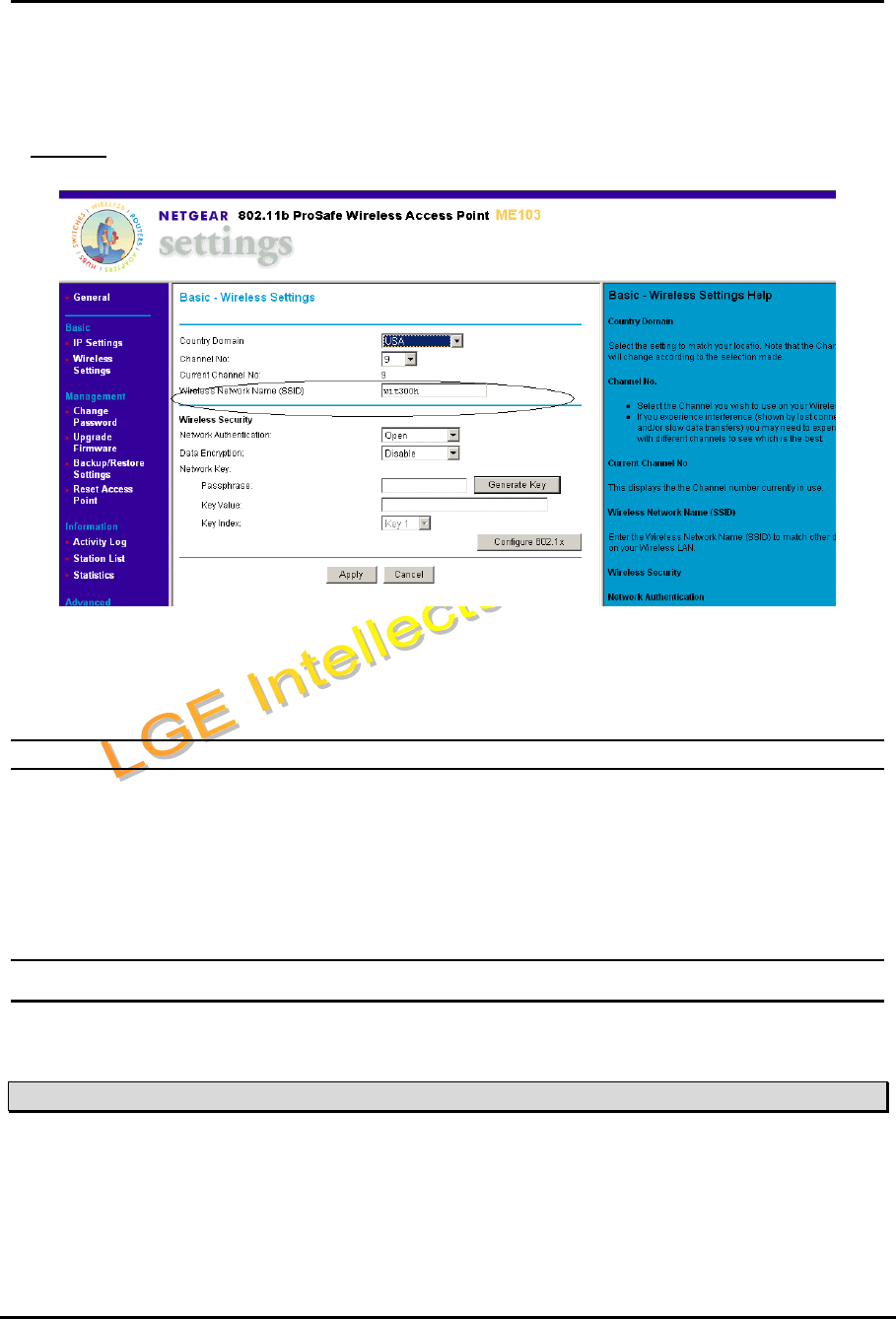

SSID.....................................................................................................................................14
2.2.2

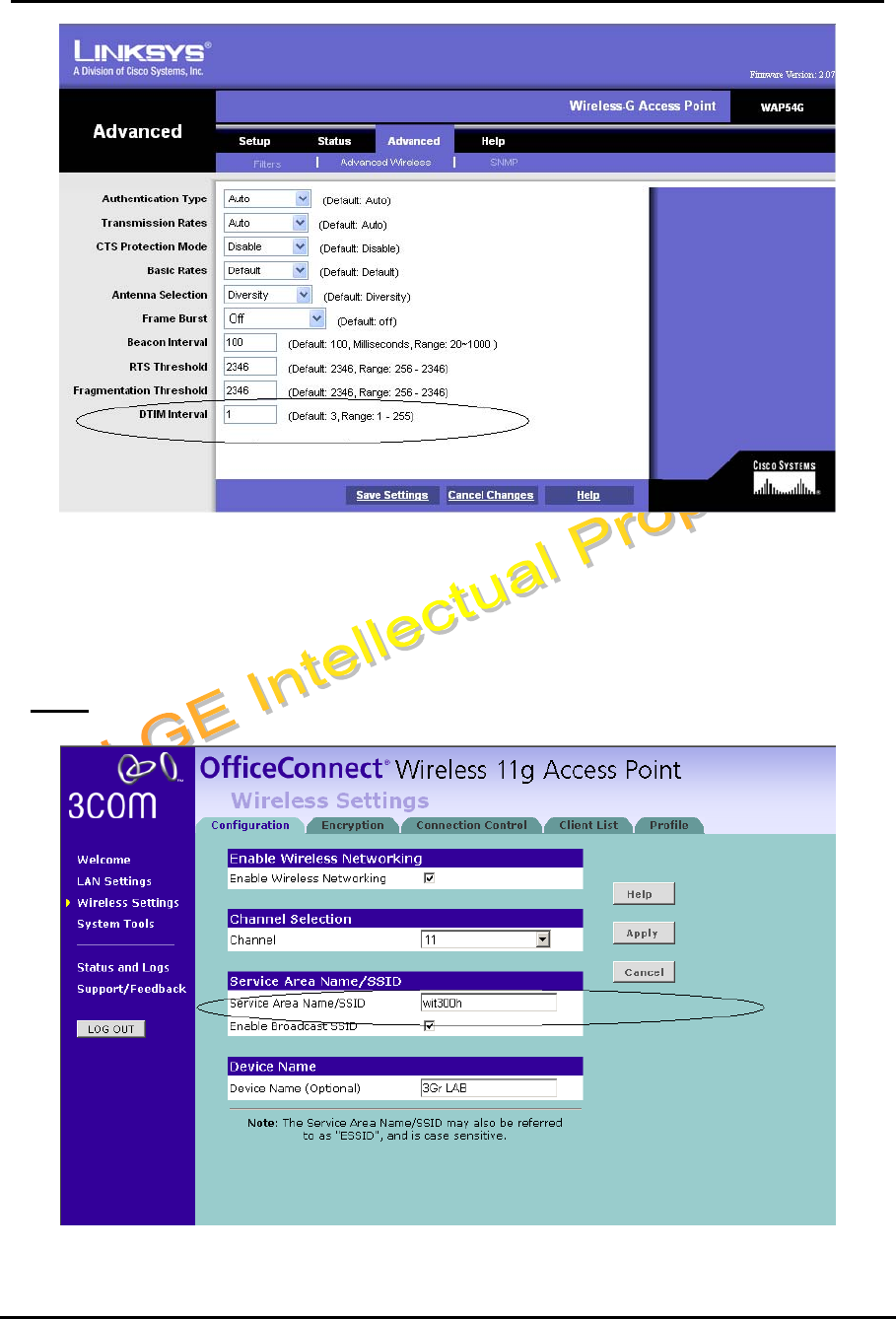

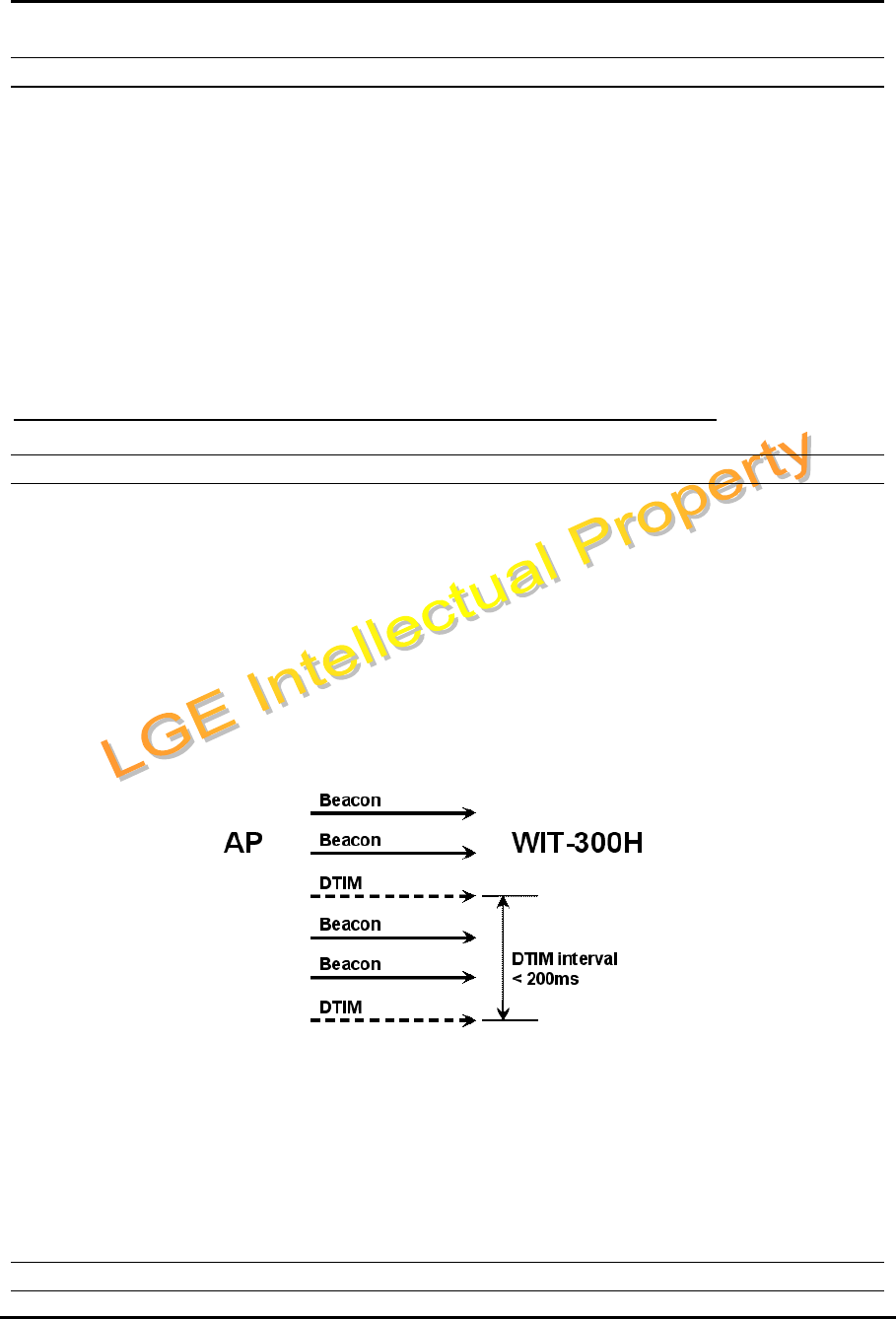

DTIM (D
ATA
T
RAFFIC
I
NDICATION
M
AP
) & B
EACON
.......................................................14
2.2.3
C
ONFIGURATION
..................................................................................................................14
2.2.4
N
ETWORK
P
ARAMETERS
......................................................................................................18
3.
IPECS LIK-300 SETUP.............................................................................. 18
3.1
MFIM S/W V
ERSION
....................................................................................................................18
3.2
WIT-300H R
EGISTRATION
........................................................................................................19
3.2.1
R
EMOTE MODE
.....................................................................................................................19
3.2.2
L
OCAL MODE
.......................................................................................................................20
4.
S/W UPGRADE ........................................................................................... 21
4.1
USB S/W D
OWNLOADING
...........................................................................................................21
4.2
TFTP S/W D
OWNLOADING
..........................................................................................................23
5.
CONSOLE CONNECTION ....................................................................... 24
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
4
P
REFACE
The main objective of this document is to provide an instruction for proper installation of WIT-300H.
Mechanical feature is simply described and operation condition is precisely addressed to prevent the
WIT-300H from malfunctioning by environmental reason. In advance of the environmental consideration,
please refer to this document it will help an installer in setting up basic circumstance for normal operation
of the WIT-300H.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
5
Safety Instructions
WARNING! To reduce the possibility of electric shock, do not expose your phone to high humidity areas,
such as the bathroom, swimming pool, etc.
Always store your phone away from heat. Never store your phone in settings that may expose it to
temperatures less than 32°F or greater than 104°F, such as outside during a snow storm or in your car on
a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic
failure.
Be careful when using your phone near other electronic devices. RF emissions from your mobile
phone may affect inadequately shielded electronic equipment nearby. You should consult with
manufacturers of any personal medical devices, such as pacemakers and hearing aides, to determine if
they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at
a gas station. Never place your phone in a microwave oven as this will cause the battery to explode.
IMPORTANT! Please read the TIA SAFETY INFORMATION before using your phone.
Safety Information
Please read and observe the following information for the safe and proper use of your phone and to
prevent any unanticipated damage by accident. Also, keep the user’s manual in an accessible place at all
times after reading it.
Unplug the power cord and charger during a lightning storm to avoid electric shock or fire.
Do not use your phone in high explosive areas, as the phone may influence high frequency devices.
Do not put your phone in a place subject to excessive dust, and be careful to keep the minimum
required distance between the power cord and heat sources.
Unplug the power cord prior to cleaning your phone, and clean the power plug pin when it is dirty.
Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is
loose, as it may cause fire or electric shock.
Hold the power cord plug firmly to plug and unplug the power cord. Ensure the plug is firmly
connected. If it is not firmly connected, it may cause excessive heat or fire.
Do not place any heavy item on the power cord. Do not allow the power cord to be crimped, as it may
cause fire or electric shock.
Be careful not to let the battery contacts touch metal conductors such as a necklace or coins. When
shorted, it may cause an explosion.
Do not disassemble or allow heavy impact to the battery as it may cause electric shock, short-circuit,
and fire. Store the battery in a place out of reach of children.
Using a damaged battery or placing a battery in your mouth, may cause serious injury.
Do not place items with a magnetic strip, such as a credit card, phone card, bank book and a subway
ticket, near your phone. The magnetism of the phone may damage the data stored in the magnetic
strip.
Do not hold or let the antenna come in contact with your body during a call.
Talking on your phone for a long period of time may reduce the call quality due to heat generated
during use.
Do not allow excessive vibration or impact to the phone.
When you do not use the phone for a long period time, store it in a safe area with the power cord
unplugged.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
6
RF Exposure Information
The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to
the requirements as set forth in CFR 47 Sections 2.1091,2.1093, and 15.247(b)(4) addressing RF
Exposure from radio frequency devices. This model meets the applicable governments requirements for
exposure to radio frequency waves. This wireless Terminal contains a radio transceiver. The radio
transceiver and antenna have been designed to meet the RF emission requirements for human exposure
as specified by the FCC as well as by other agencies from other countries. These guidelines were
developed by the industry based on guidance from the World Health Organization(WHO). These industry
standards have been developed to include additional safety margins to ensure that the user is exposed to
the least amount of RF radiation.
The radio transceiver uses a non ionization type of radiation as opposed to a ionized radiation such as an
X-Ray wave.
The exposure standard for these devices references a unit of measure known as SAR.
The limit as set by the FCC is 1.6W/kg. The test for this emission level is done in an independent
laboratory who employs test methods and operating positions reviewed by the FCC and other agencies.
Before the Terminal was placed on the market, the product was tested and certified in accordance with
the FCC regulations to verify that the product did not exceed the FCC SAR requirements.
The highest SAR level measured for this terminal was 0.128 mW/g for body and 0.063 mW/g for Head.
The design of this Terminal complies with the FCC guidelines ,these international standards and
This terminal can be held in temporary confidentiality status.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair
call quality, damage the phone, void your warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin, a
minor burn may result. Contact your local dealer for a replacement antenna.
Cautions for Battery Safety Notices
Do not disassemble, crush, Puncture, or incinerate the battery pack.
The battery pack is intended for use only with this device.
To avoid risk of fire, burns, or damage to your battery pack, do not allow a metal object to touch the
battery contacts.
Do not short-circuit.
Do not expose to high temperature: 60°C (140°F).
To obtain a replacement battery, contact your local wireless dealer or carrier. Use only the batteries
that have one of the following LG Part No. : Battery Pack(Standard) 3.7V Li-ion WIT-300H 050128P.
Battery Disposal
Please dispose of your battery properly or bring to your local wireless carrier for recycling.
Do not dispose in fire or with hazardous or flammable materials.
Adapter (Charger) Cautions
Using the wrong battery charger could damage your phone and void your warranty.
The adapter or battery charger is intended for indoor use only.
Do not expose the adapter or battery charger to direct sunlight or use it in places with high humidity, such
as the bathroom.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
7
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
8
FCC Safety Compliance Statement
The Federal Communications Commission(FCC), with its action in ET Docket 93-62,has adopted a safety
standard for human exposure to Radio Frequency(RF) electromagnetic energy emitted by FCC-certified
equipment.
The Wireless IP Terminal WIT-300H meets the uncontrolled environmental limits as stated in OET-
65C(01-01)when operated in accordance with the operation guidelines described in this manual. Proper
operation of this radio device according to the instructions in this publication will result in user exposure
substantially below the FCC recommended limits.
Manufacturer’s FCC Declaration of Conformity Statement
Model : Wireless IP Terminal WIT-300H
FCC Certification Number : BEJWIT-300H
This device complies with Part 15 rules. Operation is subject to the following two conditions;
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential environment. This equipment generates,
uses, and radiates radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference. However, there is no guarantee that interference will not
occur. If this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to correct the interference by on of the
following measure;
Reorient or relocate the receiving antenna.
Increase separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from which the receiver is connected.
Consult the dealer or an experienced radio/TV technician.
CAUTION
This Part 15 radio device operates on a non-interference basis with other devices operating at this
frequency. Any changes or modification to said product not expressly approved by LG including the use
Of Non-LG antennas, could void the user’s authority to operate this device.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
9
Compliance Statement for Canada
This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la Classe B respecte les exigencies du Reglement sur le material broilleur du
Canada.
This device complies with Class B Limits of Industry Canada. Operations is subject to the following two
conditions ;
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
The device is certified to the requirements of RSS-210 for 2.4GHz spread spectrum devices. The use of
this device in a system operating either partially or completely outdoors may require the user to obtain a
license for the system according to the Canadian regulations. For further information contact your Local
Industry Canada office.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
10
1. Getting Started
1.1 Options & Basic Enclosure
Cautions
Using the phone near receiving equipment (i.e., TV or radio) may cause interference.
Keep your phone in a safe place when not in use.
Only use the batteries, antennas, and chargers provided by LG. Using unauthorized accessories
could void your warranty.
Only authorized personnel should service the phone and its accessories. Faulty installation or service
may result in accidents and consequently void the warranty.
Do not hold the antenna while the phone is in use.
Do not use the phone in designated no cellular phone use areas.
Do not expose the phone to high temperature or humidity.
Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the
battery. If the phone is non-functional, return it to the dealer for service.
Avoid shock or impact to the phone.
Options:
User need to purchase desktop holder with additional payment.
1) Desktop Holder
Desktop holder will be provided as option.
Basic Enclosures:
Unpacking the box, customer will see the following items.
1) WIT-300H Phone
WIT-300H WiFi Phone. You
should be able to find MAC
address tag at the back side
of the phone.
2) Rechargeable battery
Rechargeable battery. LG logo should be
displayed.
3) Travel adaptor/
Power cable
The one end is plugged into power
tab, the other one is slotted into WIT-
300H Jack.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
11

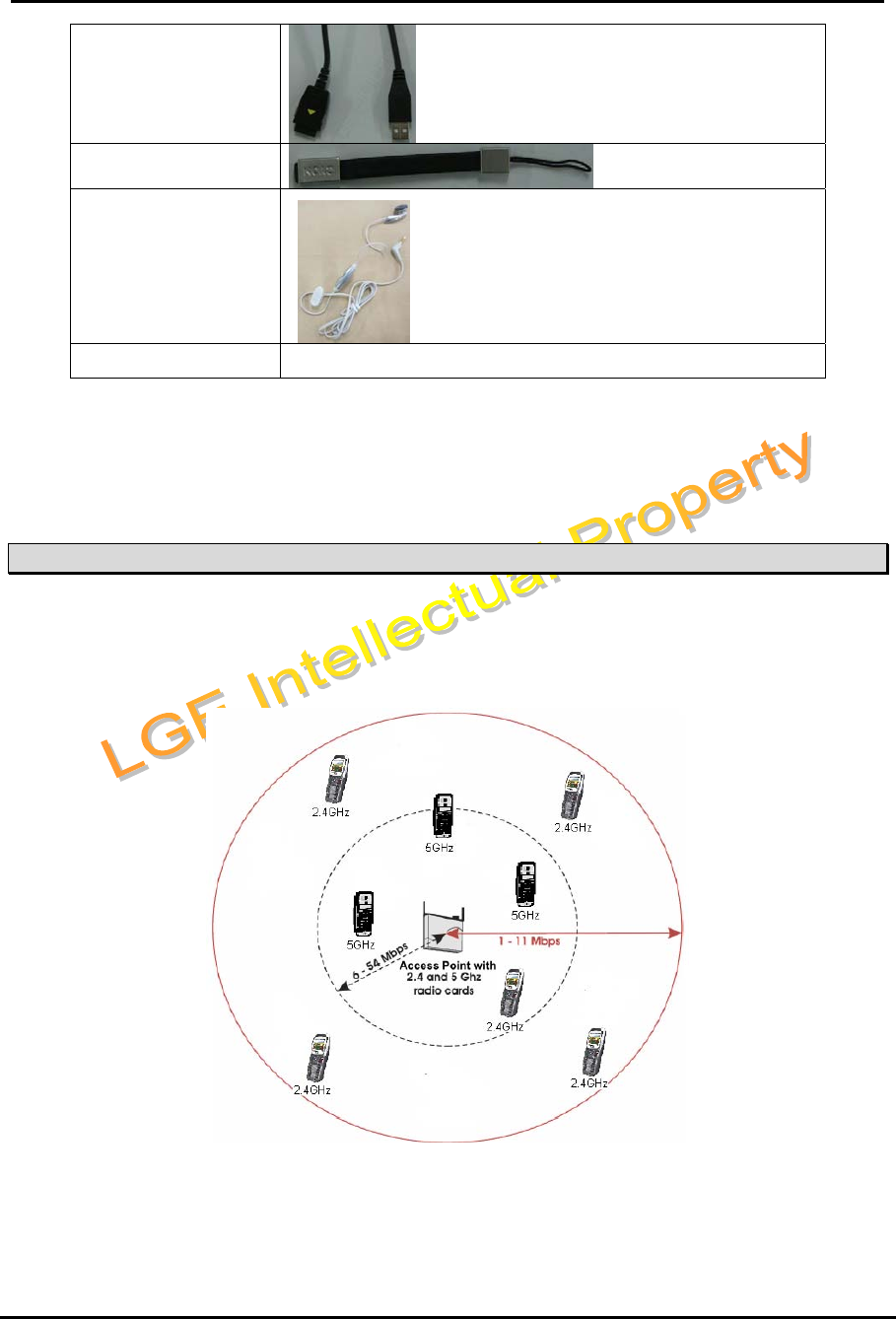

4) USB cable
5) Handstrap
6) Ear Microphone
In the cable of ear-microphone, there is a
remote control button. It is useful for hands-free
way operation.
7) User manual
If you find the trademark of LG Electronics on the rechargeable battery, the delivery is strictly confirmed
by LG Electronics. Inc.
1.2 Wireless Network Cell
Fundamental topology of the IEEE 802.11b based wireless networking is the overlapped concatenation of

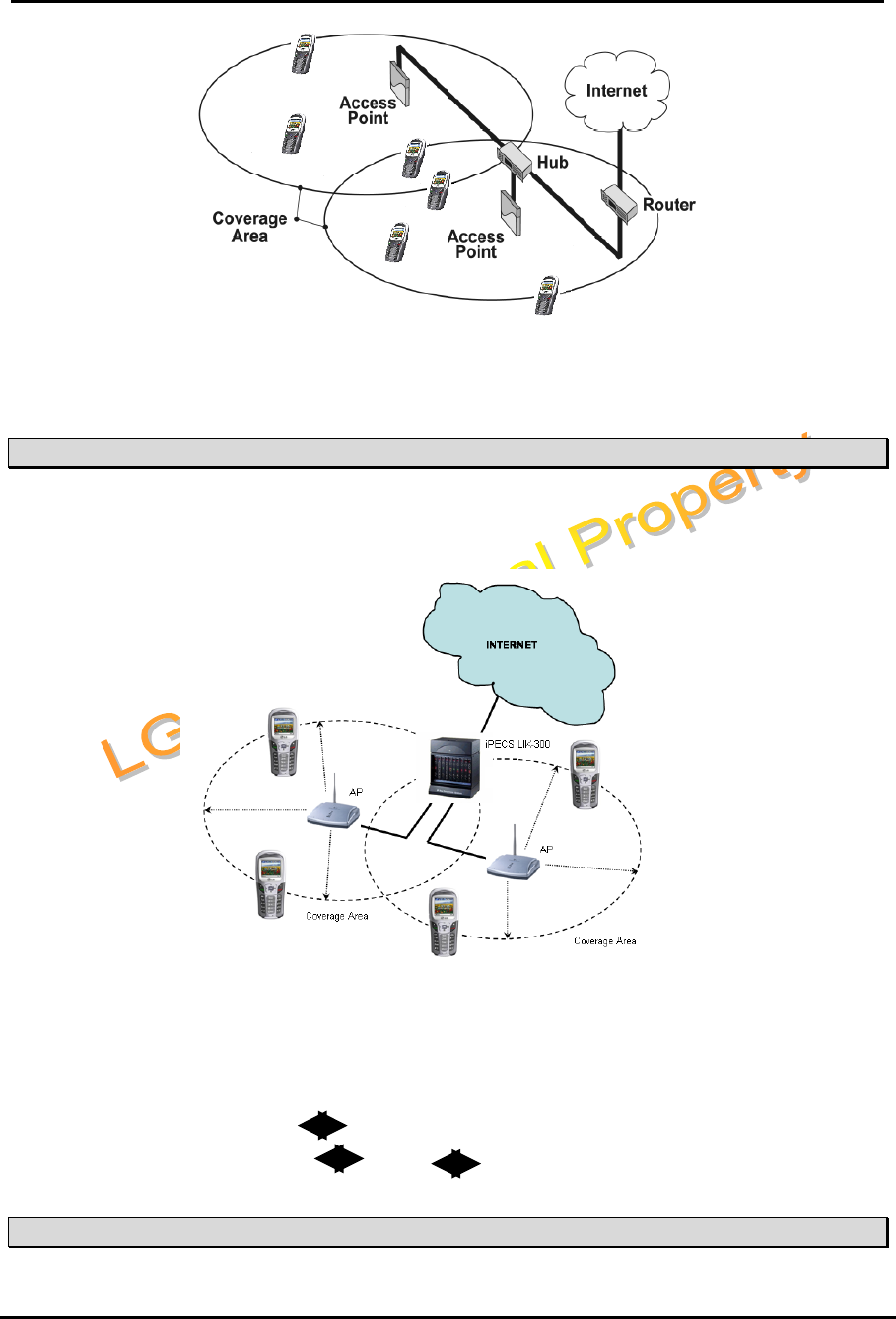

more than two cell ranges. The following figure shows the example of a cell area.
The WIT-300H is only 802.11b compliant, its maximum frequency is 2.4GHz and 11 Mbps maximum
bandwidth. In terms of the transfer speed, it is inferior to 802.11g compliant phone supporting 54Mbps,
while, the cell coverage of 802.11b based WIT-300H can be wider than any other devices matched with
802.11g. For more detail information of cell planning, please refer to the manual of AP.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
12
1.3 Access Point
The following is a list of APs that have been made an imperative experimentation with the WIT-300H and
the result.
1) Cisco – AP1230B
2) Netgear – ME103
3) LinkSys – WRT54GS
4) Orinoco – AP600
5) 3COM – 3CRWE454G72
1.3.1 Which one is better
Depending on the internal implementation of IEEE802.11b protocol inside of the APs, roaming across two
contiguous regions may be affected. Cisco & Orinoco is currently showing most optimized seamless
roaming. CISCO and Orinoco APs are strongly recommended to customers.
1.3.2 How to set up multiple APs
Our recommendation is that one AP(Access Point) is used for one cell area. If you would install
more than two APs for a cell, we recommend you to use the same SSID for each AP.
1.4 iPECS LIK-300
The iPECS LIK-300 is a call controller of the WIT-300H. Any activity of WIT-300H is notified to the iPECS
LIK-300, therefore, it should be placed within a same LAN subnet. However, in remote mode, the WIT-
300H can interact with iPECS LIK-300 out of the subnet.
2. Wireless Environment Setup
This section describes AP(Access Point) configuration for normal operation of WIT-300H. The AP should
be plugged into a switch/hub for connectivity with the subnet of office.
2.1 Basic IEEE 802.11b network diagram
The following figure exhibits network infrastructure of 802.11b compliant network diagram.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
13
APs are connected to a HUB in subnet, since WIT-300H is able to access the Internet. The iPECS LIK-
300 and WIT-300H system work on top of this context.
2.1 Where LIK-300 is positioned in the 802.11b network.
The following is a basic configuration of IEEE802.11b environment to enable WIT-300H and the iPECS
LIK-300.
(1) WIT-300H / AP:
- IEEE 802.11b network
- SSID / DTIM interval configuration within AP
(2) AP / iPECS LIK-300:
- Direct connection : AP POE of iPECS LIK-300
- Indirect connection : AP HUB POE of iPECS in LIK-300
2.2 AP Configuration
Depending on vendors of AP, the following two parameters should be carefully set up.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
14
2.2.1 SSID
SSID is for authentication use. An AP can have an arbitrary SSID value for example “wireless”. In this
case, WIT-300H with “wireless” SSID can communicate with that AP. It is important to use accurate SSID
on both WIT-300H and AP.
Recommendation)
(1) If you are free of security, please just use one SSID for all APs and WIT-300H.
(2) If you are using WIT-300H in a wireless environment with predetermined SSID, please
change the SSID of your WIT-300H.
After changing the SSID of WIT-300H, you need to reboot it to apply the change.
2.2.2 DTIM (Data Traffic Indication Map) & Beacon
DTIM is related to an interval of packet transmission. By an inherent nature of the iPECS LIK-300, WIT-
300H frequently uses multicast message for the communication with the iPECS LIK-300. The delivery of
multicast message is affected by the DTIM parameter.
Beacon is an indication of packets buffered in AP which are to be delivered to each wireless station, WIT-
300H. The information of DTIM is contained in a beacon message. Therefore, DTIM configuration can be
affected by the beacon interval. The following is illustrating the relationship of beacon and DTIM:
Recommendation)
(1) DTIM should be less than 200 msec.
(2) If AP doesn’t support DTIM configuration, more special care needs to be taken for Beacon
interval setup. Otherwise, Use the smallest DTIM interval that AP can support.
2.2.3 Configuration
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
15
This section enumerates how you set up both SSID and DTIM in AP.

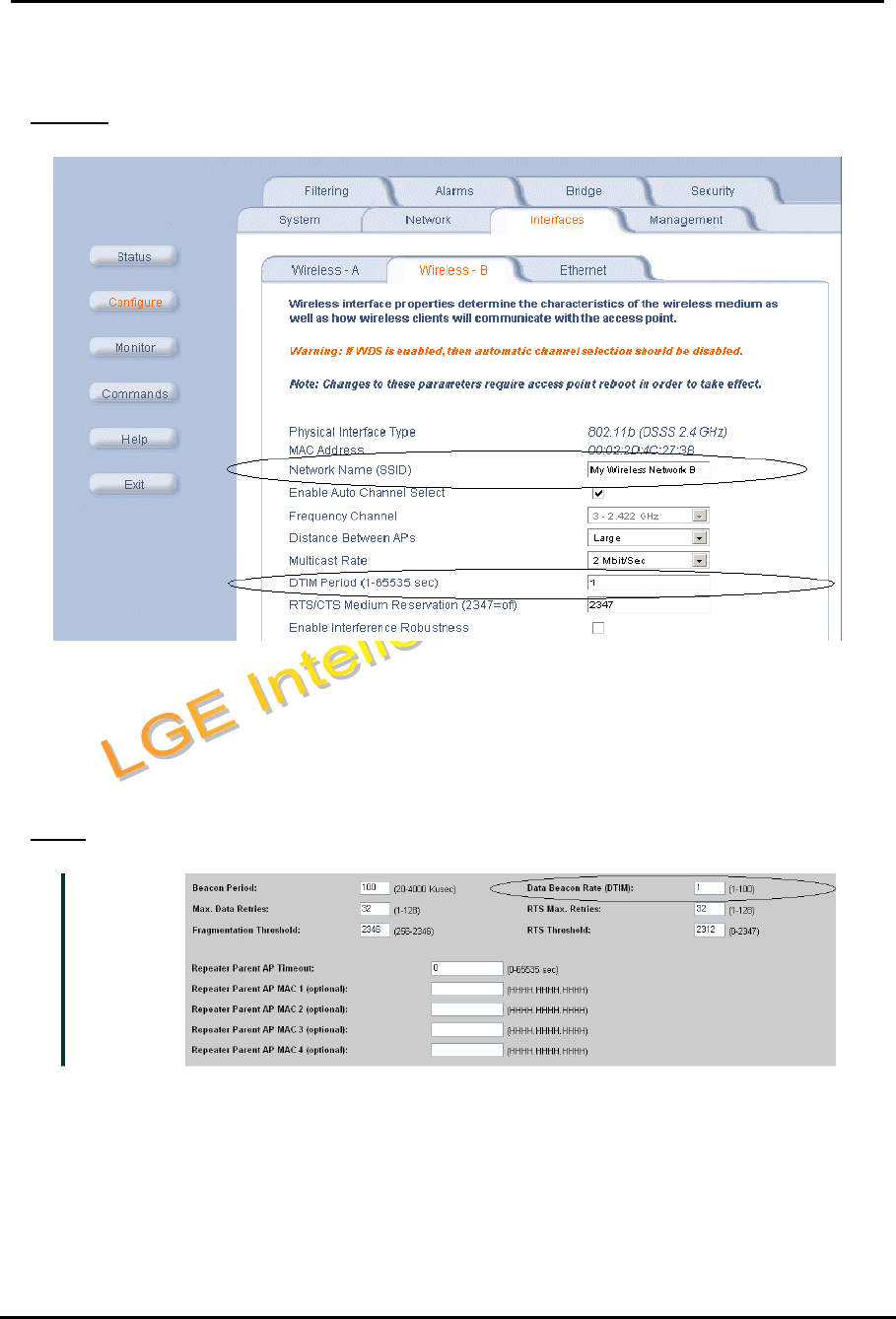

Orinoco
(1) Open a page “Interface>Wireless” . You can see a edit box “Network Name” and “DTIM
Period”.
(2) At “Network Name” enter SSID.
(3) At “DTIM Period”, enter 1.
Cisco
(1) Open a page “Network Interfaces > Settings” . You can see a edit box “DTIM”.
(2) Enter 1.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
16
(3) Open a page “Security > SSID Manager” . You can see a edit box “SSID”.
(4) Enter your SSID.
LinkSys
(1) Open a page “Setup > Basic Info” . You can see a edit box “SSID”.
(2) Enter SSID.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
17
(3) Open a page
“Advanced > Advanced Wireless” . You can see a edit box “DTIM”.
(4) Enter 1 as DTIM value.
3COM
(1) Open a page “Wireless Settings > Configuration” . You can see a edit box “SSID”.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
18
(2) Enter SSID.
(3) DTIM configuration is not supported.
Netgear
(1) Open a page
“Wireless Settings > Basic” . You can see a edit box “SSID”.
(2) Enter SSID.
(3) DTIM configuration is not supported.
2.2.4 Network Parameters
Network parameters such as IP address, netmask, gateway are also to be configured since AP is bridging
between the WIT-300H and the iPECS LIK-300. They are all to be set up with the same values to
those in iPECS LIK-300.
3. iPECS LIK-300 Setup
3.1 MFIM S/W Version
WIT-300H is recognized as special phone type in MFIM in iPECS LIK-300, version 30.Ah. After
downloading this version image into a MFIM of iPECS, you can see the following figure in WEB
administrator,
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
19

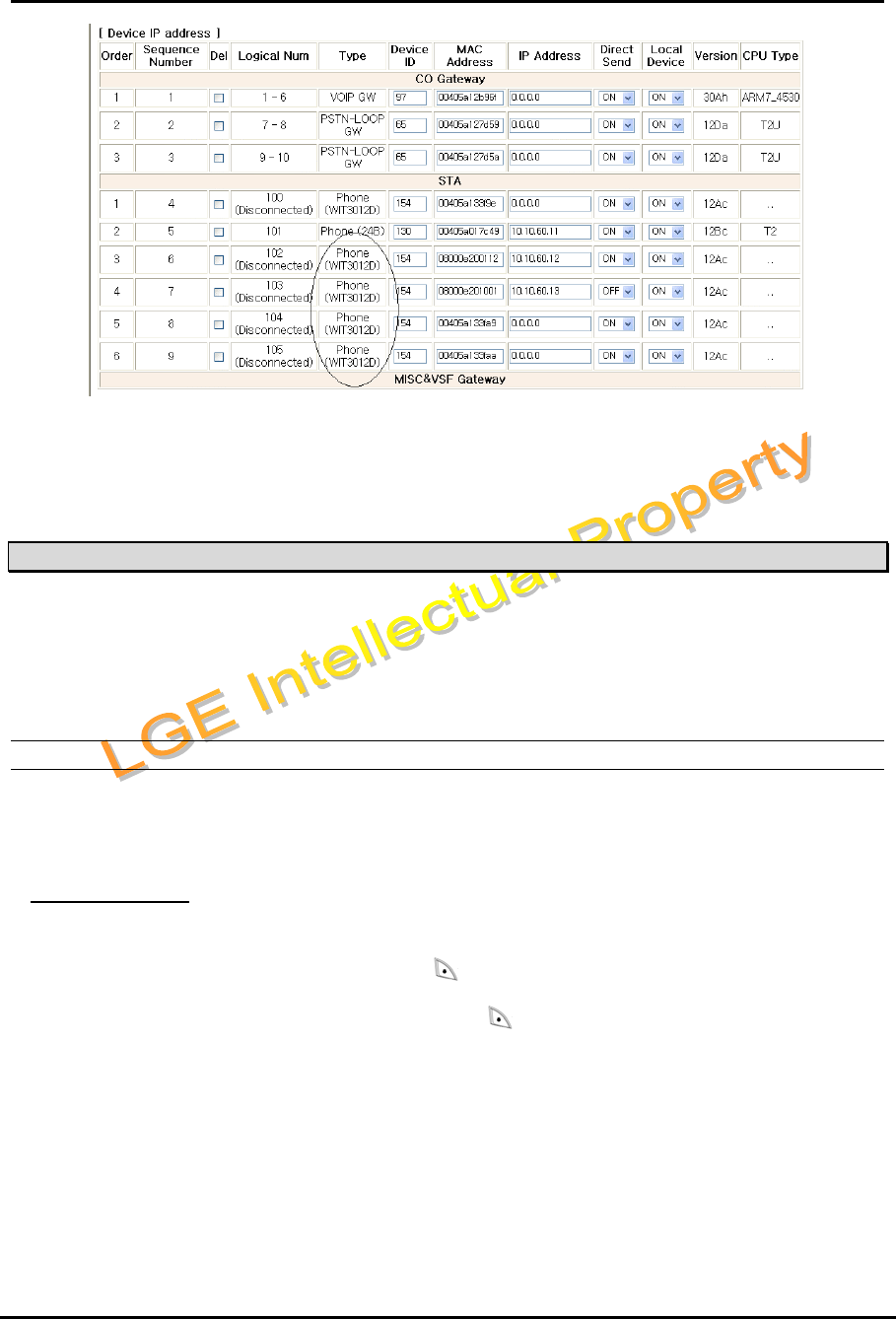

In “ System ID & Number Plans >> System & Device IP Address Plan “ , you can see a WIT3012D
type. It indicates that WIT-300H phone is registered into the iPECS LIK-300.
3.2 WIT-300H Registration
WIT-300H is recognized as one of the wired phone by iPECS MFIM. The registration can be completed
by two modes like the LIP phone; Remote mode and Local mode. If you could use the MFIM located in
your local LAN area, you can register your phone in local mode, otherwise, you should use remote mode.
3.2.1 Remote mode

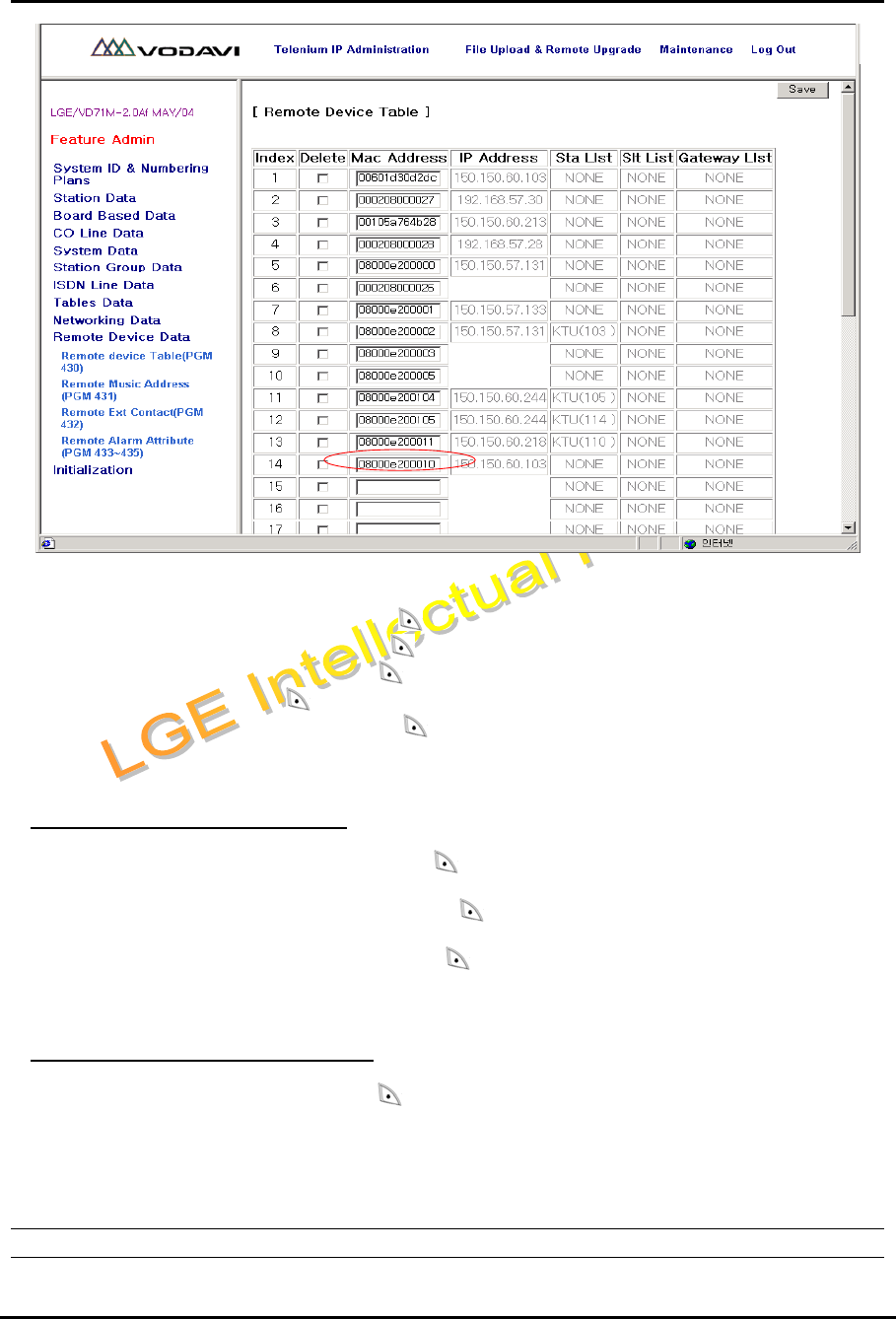

To register WIT-300H in remote mode, you should know WIT-300H MAC address and IP.
A. Basic settings
(1) Enter the MAC address of WIT-300H in MFIM web administration page.
MAC address is found at menu “ (MENU) > Phone Info > Network Info > MAC
Address ”.
(2) Enter SSID for wireless networking at “ (MENU) > Settings > Network > 802.1b
Config> SSID”. User can probe all the APs around the WIT-300H, and choose one of
them at “Auto” menu shown here.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
20
(3) Set “Remote mode” to “Yes” at “ (MENU) > Settings > KTUset > Remote Mode” .
(4) Set “Same Router” to “Yes” at “ (MENU) > Settings > KTUset > Same Router
(5) Set “Direct Send” to “Yes” at “ (MENU) > Settings > KTUset > Direct Send
(6) Enter MFIM IP at “ (MENU) > Settings > KTUset > MFIM IP
(7) Enter network mask of MFIM at “ (MENU) > Settings > KTUset > MFIM Netmask
B. When you use static IP address,
(1) Enter IP address of WIT-300H at “ (MENU) > Settings > Network > Static IP > IP
Address ”
(2) Enter network mask of WIT-300H at “ (MENU) > Settings > Network > Static IP >
subnet ”
(3) Enter gateway IP of WIT-300H at “ (MENU) > Settings > Network > Static IP >
Primary GW ”
C. When you use dynamic IP address,
(1) Set “DHCP mode” to “Yes” at “ (MENU) > Settings > Network > DHCP ”
After setting these all up, please turn off WIT-300H and then turn it on.
3.2.2 Local mode
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
21

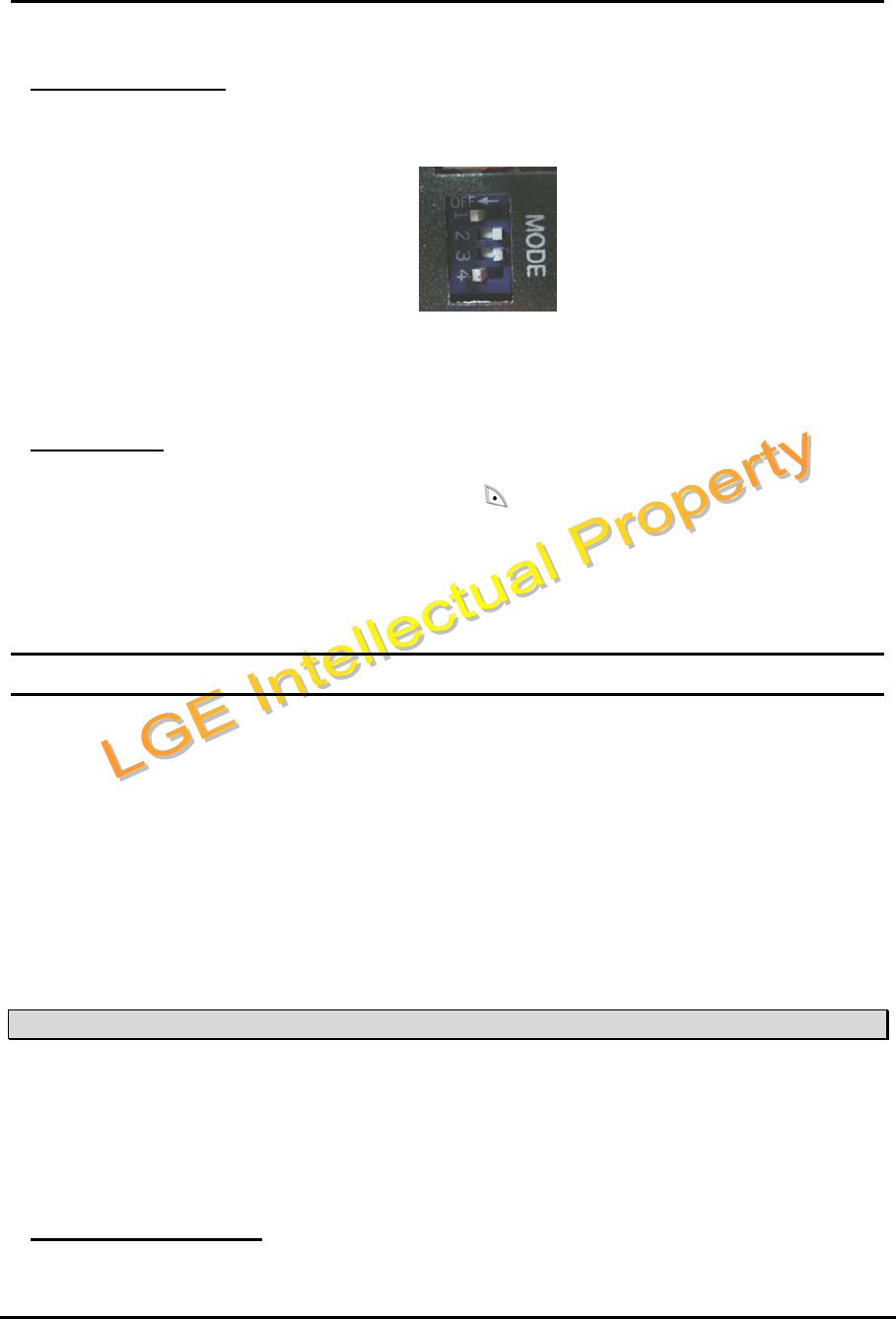

A. MFIM configuration
(1) Set the deep switch ‘3’ to ‘1’ as follows.
It means that the MAC address of WIT-300H doesn’t need to be registered in the MFIM. If
the MAC address of the WIT-300H has been registered, MFIM configuration is not
something to be concerned.
B. SSID setting
(1) Enter SSID for wireless networking at “ (MENU) > Settings > Network > 802.1b
Config> SSID”. User can probe all the APs around the WIT-300H, and choose one of them
at “Auto” menu shown here.
After setting these all up, please turn off WIT-300H and then turn it on.
4. S/W Upgrade
. The S/W image of WIT-300H composed of three binary files; wit300hDbg.bin, Drv_C.bin, Drv_M.bin.
(1) wit300hDbg.bin : It includes H/W support kits; WLAN driver, Operating system core,
DSP/LCD drivers, etc.
(2) Drv_C.bin : It is the collection of business S/W; phonebook, Messaging, Screen manipulator,
etc.
(3) Drv_M.bin : It is the compressed collection of graphic widgets; icon, bitmap, images, etc.
4.1 USB S/W Downloading
USB is the easiest interface for customer to download S/W image into WIT-300H. Just plugging in a USB
cable into PC keeping the image is a manual job for the downloading. The following “Flash-up” S/W
needs to be installed in the PC.
A. Connecting USB cable
(1) Plug in the USB cable in the PC which Microsoft Windows is installed.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
22

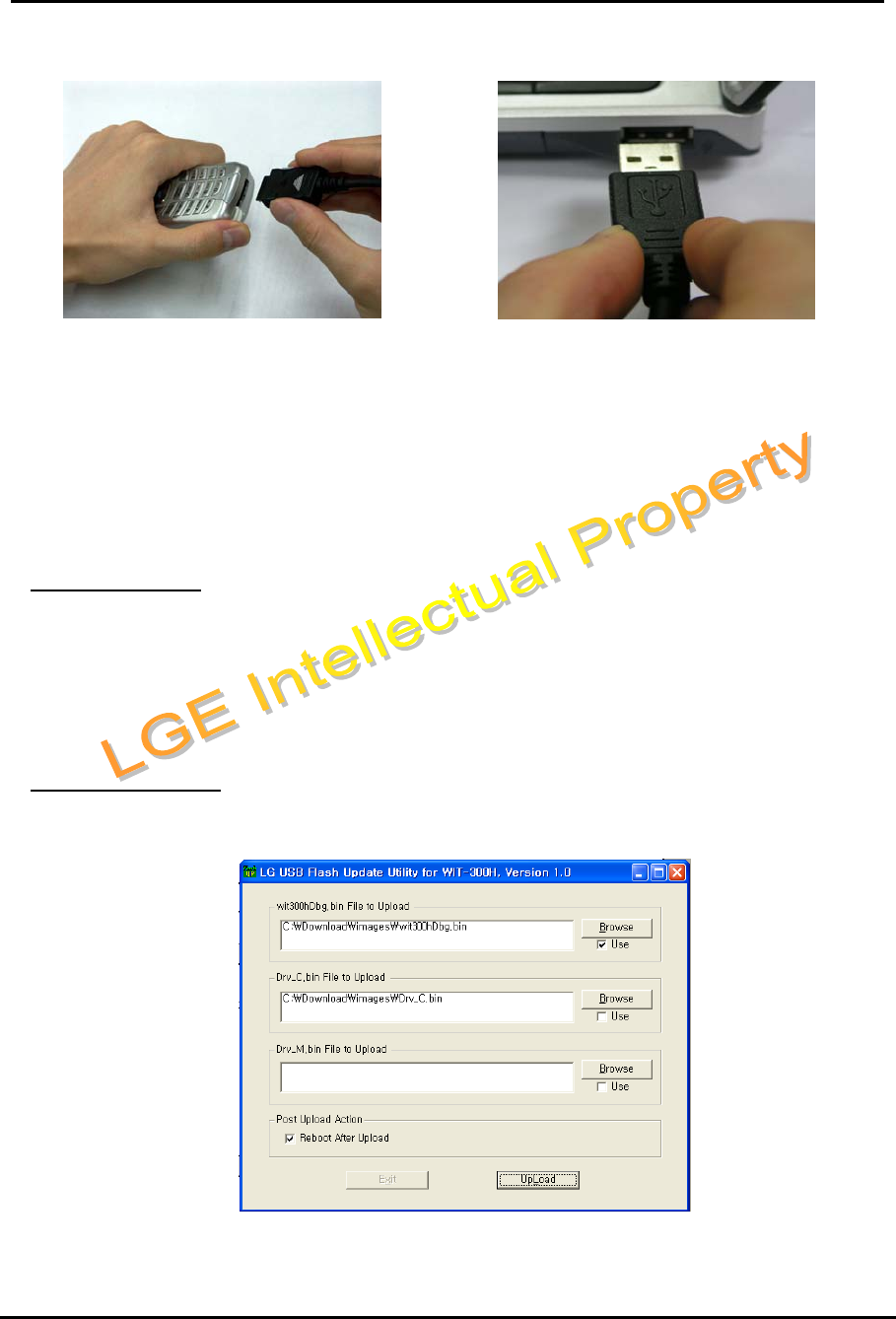

(2) Turn on WIT-300H.
The Windows detects new device through USB connection, and requires Driver S/W to be installed by
popping up a window indicating the installation of new driver S/W for the WIT-300H.
A. Installing driver
(1) Unzip S/W zip file.
(2) Assigning “usbio.sys” in the ZIP file to the window for new driver.
Now, you are ready for downloading the S/W.
B. Downloading S/W
(1) Click and run “FlashUp.exe” in the ZIP file.
(2) Browsing and selecting an image file through “Browse” button on the FlashUp.exe.
(3) Click button “UpLoad”.
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
23
(4) You can see a progress window.
4.2 TFTP S/W Downloading
S/W downloading is also possible through TFTP. A TFTP server should be properly setup in a PC
containing WIT-300H image files
You can download one of the S/W images as follows:
A. Entering Engineering mode
(1) In idle screen, press enter “menu” mode by pressing button .
(2) Enter “9”-“8”-“0” for “Engineering Mode”
(3) Press buttons “2”-“1”-“3”-“3”-“9”-“2”-[OK] as password.
(4) Now, you are in the Engineering mode.
B. Set-up TFTP prameters
(1) Select “TFTP Setting”.
(2) Enter the following values.
TFTP Server IP
IP address of WIT-300H
Subnet mask
Gateway IP
SSID
File name to be downloaded
(6) Enter [OK] button
On downloading S/W image, user can see the following LCD screen, for example system image
(wit300hDbg.bin)
TFTP transaction is under progress and blocks of images are delivered from TFTP server
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
24

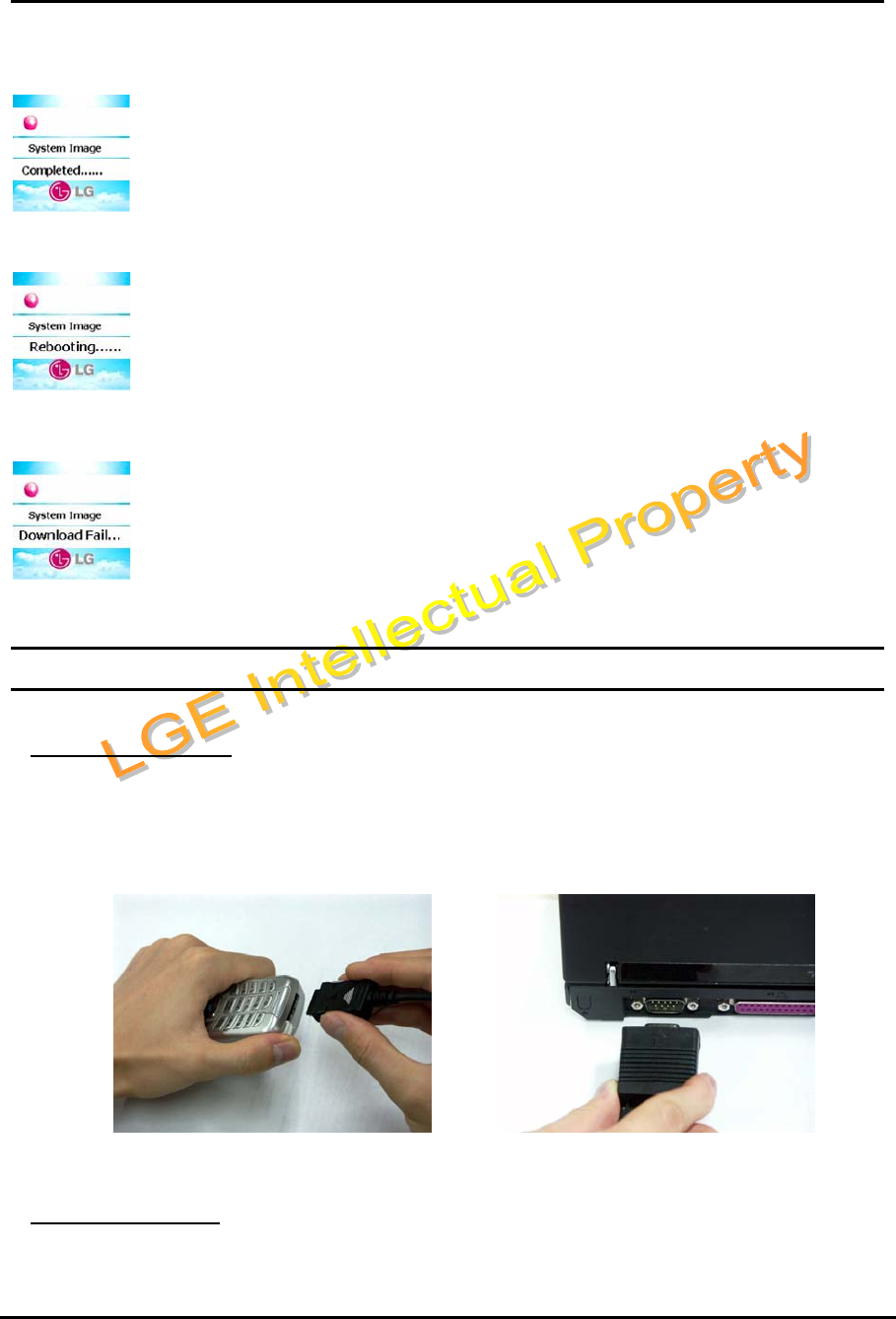

and copied to the flash memory.
TFTP transaction is completed.
After finishing the TFTP, WIT-300H phone is on rebooting with the new image.
Any error happens, this screen is shown. When any error occurs, the WIT-300H will work
abnormally. Hence, please try to download the image again, until you succeed.
5. Console Connection
A. Console connection
(1) Plug in a console cable to WIT-300H and prepare for console monitoring by the PC through
terminal emulator. Setting parameter is 115200 baudrate, no flow control, 1 stop bit, no parity.
B. Console command
(1) ping - To make sure that you can access TFTP server from WIT-300H. It is can be done by
WIT-300H Installation Manual
Issue: 0.1C Date:: 30/Jan/05
This Document Contains proprietary information and may not be reproduced or copied without express
Written permission of a duly authorized representative of LG Electronics company
25

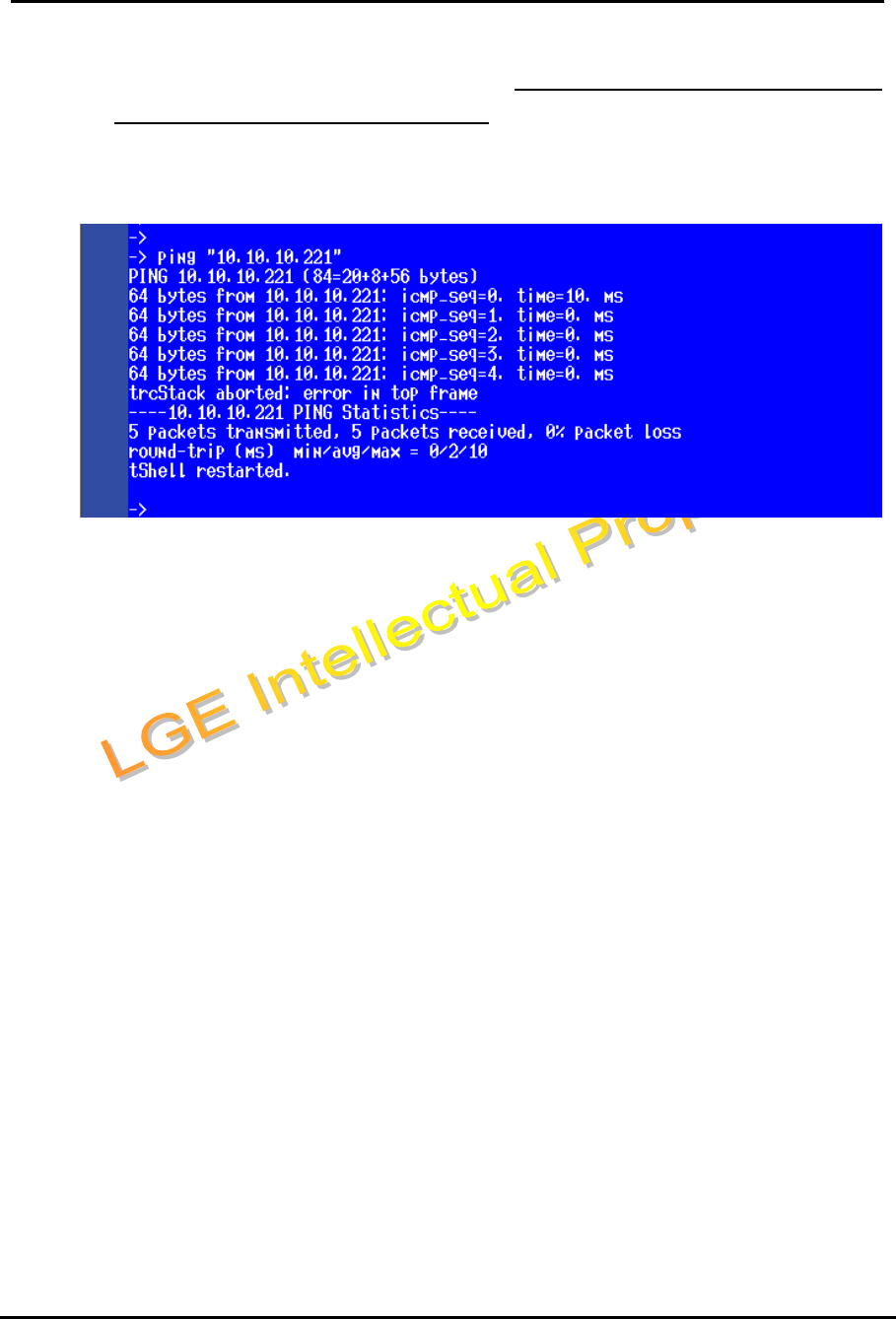

trying ping test at the WIT-300H. For the ping test, if the IP address of TFTP server is
10.10.10.221, enter “ ping “10.10.10.221” “. DO NOT FORGET DOUBLE QUOTATION
AROUND THE IP ADDRESS PARAMETER. The reply should be printed on the console
successfully.
(2) showPhoneParam – Listing up the configuration of WIT-300H
(3) changePhoneParam – Changing the configuration of WIT-300H

Navigation menu
