LG Innotek TWCMK005D Wi-Fi/BT Combo module User Manual
LG Innotek Co., Ltd. Wi-Fi/BT Combo module
User Manual
User Manual
PRODUCT NAME : 802.11a/b/g/n + Bluetooth Combo Module
MODEL NAME : TWCM-K005D
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
1/ 9
Table of Contents
No. Description Page
1 Features 2
2 Module Photo 2
3 Block Diagram 3
4 Storage Conditions 4
5 Operating Conditions 4
6 Pin Description 5
7 Outline Drawing 6
8 Packing Information 7
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
2/ 9
2. Module Photo
1. Features
TWCM-K005D is the module for IEEE 802.11a/b/g/n wireless LAN & Bluetooth4.1.
TWCM-K005D is based on MeidaTek MT7632 solution.
IEEE 802.11 a/b/g/n Dual Band WLAN infrastructure
Bluetooth 4.1 + HS
Size : 40mm x46.5mm x 8.25mm
2.4GHz and 5GHz, internal PA and LNA
Dual-band 2T2R mode with date rate up to 300Mbps
Wake on WLAN and Bluetooth
Two Metal Press antenna for WLAN and One External antenna for Bluetooth
Host interface : USB 2.0 (WLAN & Bluetooth)
Security : WAPI, WEP, WPRA, WPA2, WMM, AES, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
3/ 9

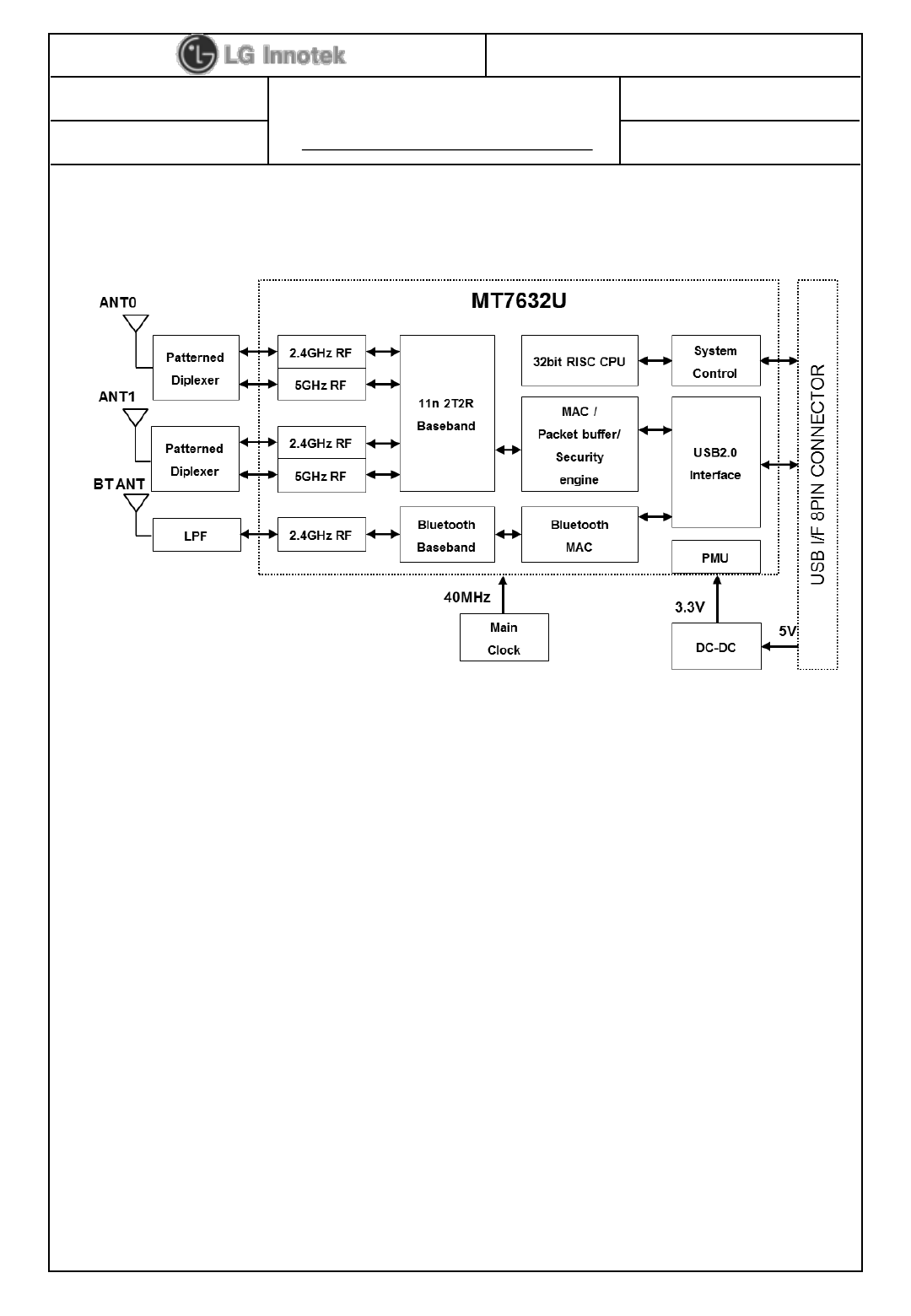

3. Block Diagram
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
4/ 9
4. Storage Conditions
5. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃) - - 85 %
Supply Voltage 4.75 5 5.25 Vdc
Parameter Min Max Unit
Storage Temperature -10 +70 ℃
Storage Humidity (40℃) - 90 %
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
< Table 1 >
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
5/ 9

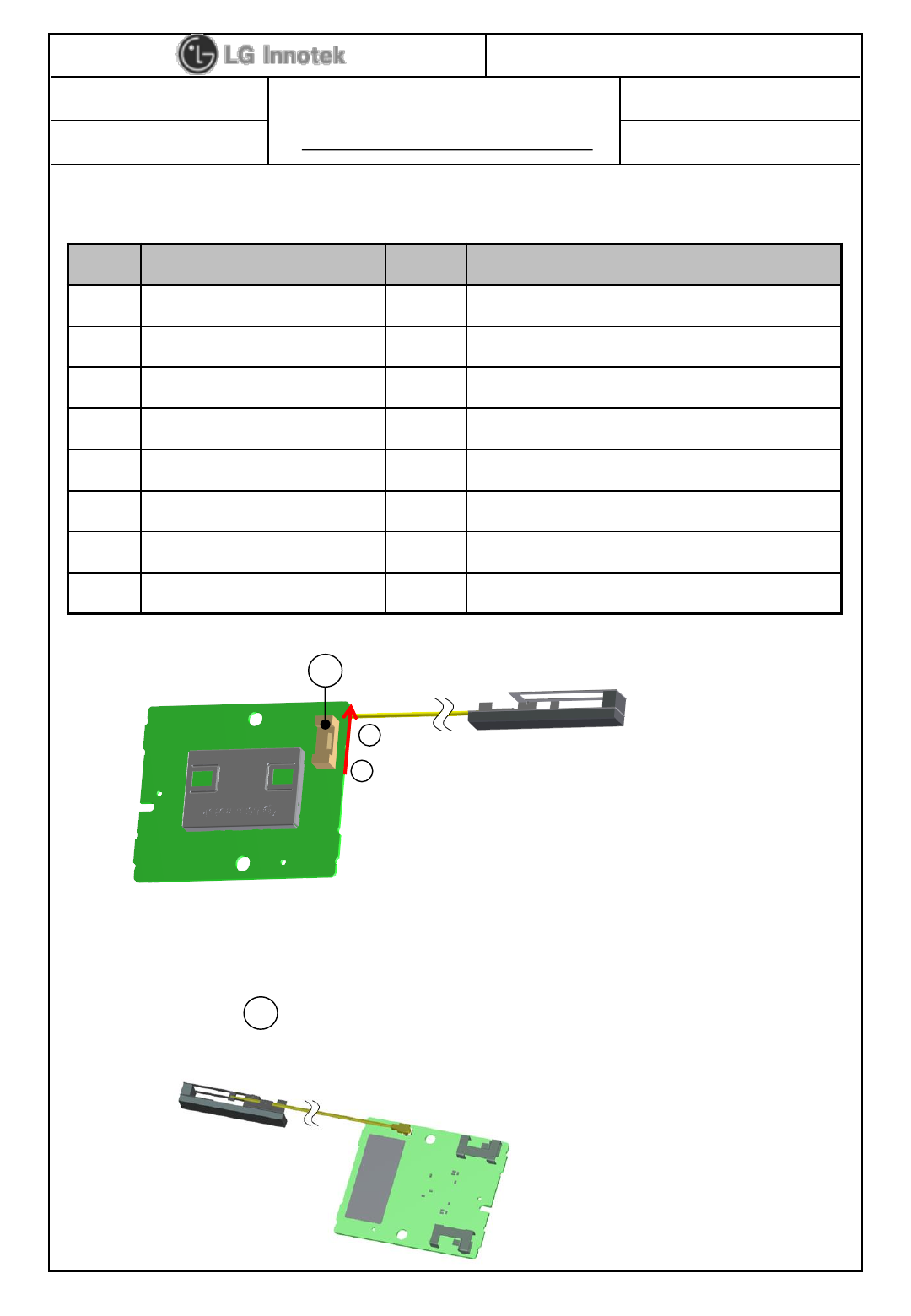

6. Pin Description
No. Name I/O Description
1VDD I VDD 5.0V
2 USB_DN I/O USB Communication signal USB_DN
3 USB_DP I/O USB Communication signal USB_DP
4 GND - GND
5 WoWLAN O Wake on Wireless LAN
6 GND - GND
7 BT_WAKE_HOST O Bluetooth wake-up signal
8 Reset I Reset controlled by main SOC
< Top View >
< Bottom View >
Note.
1) Recommend a Module install sequence for prevent USB device failure
- Supply 5.0V power
- Connect to data signal (USB_DP, USB_DN)
2) Connector : Connector A1257WR0-8PS
A
A
1
8
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
6/ 9

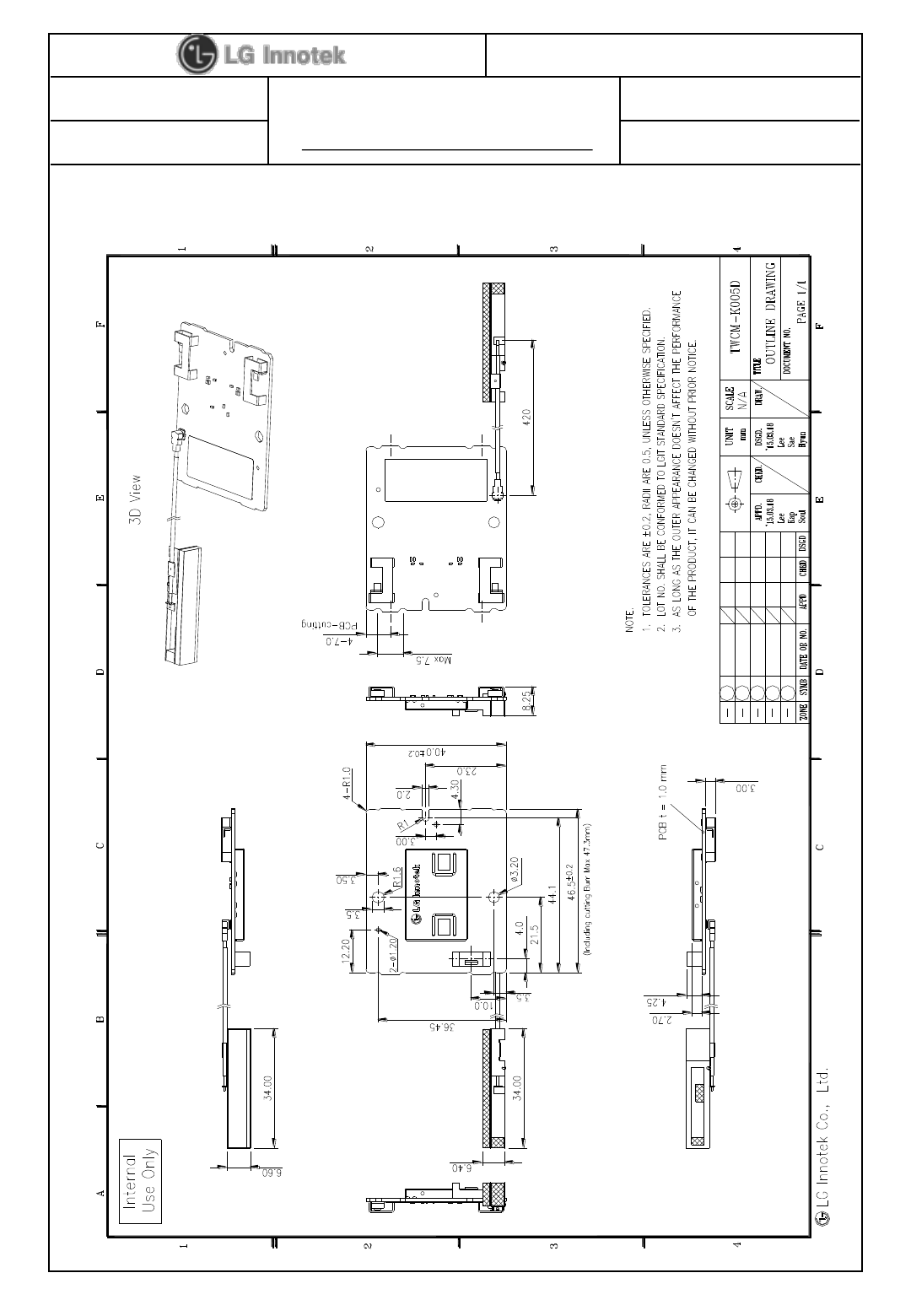

7. Outline Drawing
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
7/ 9
8. Packing Information

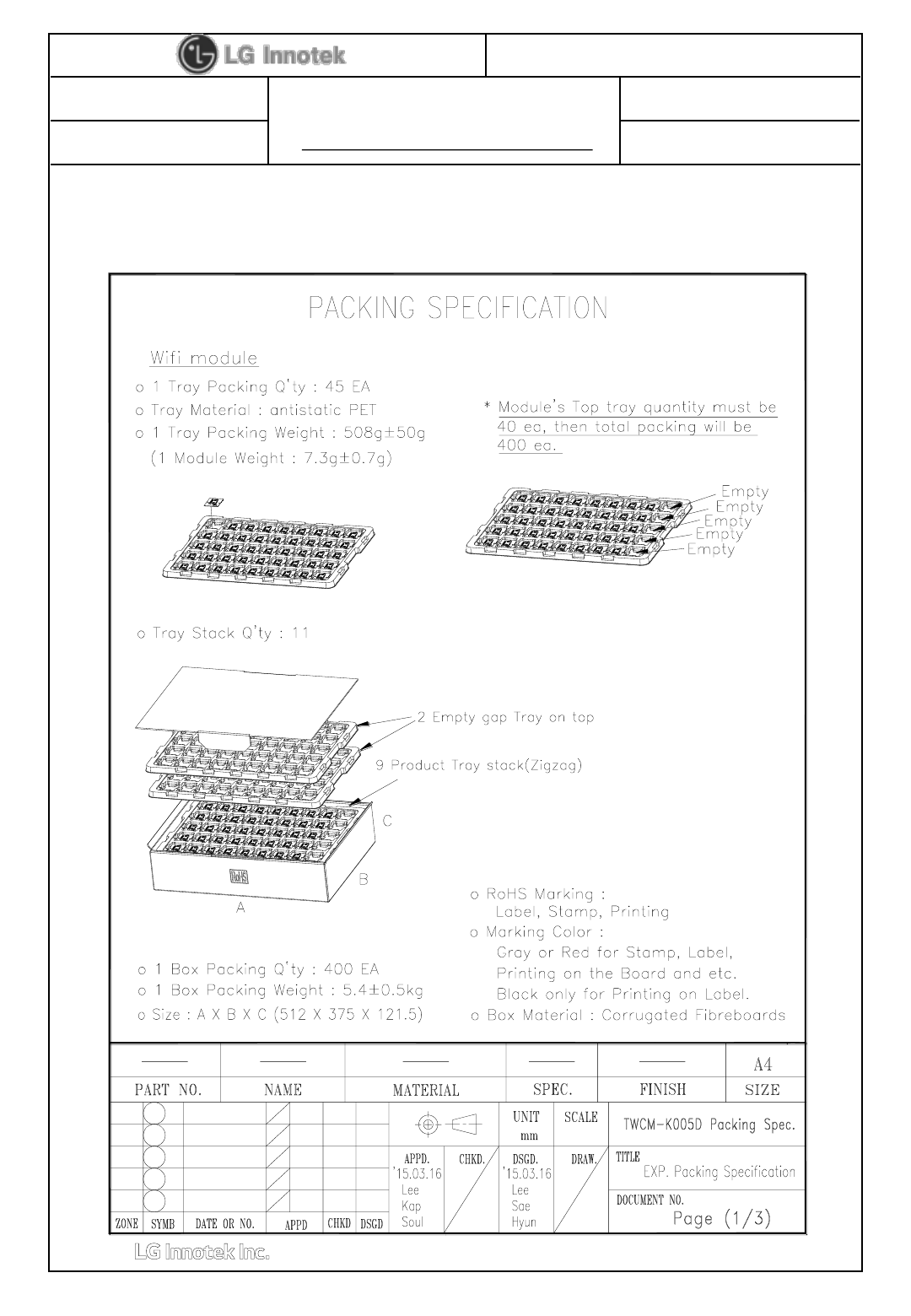

8-1. Tray packing
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
8/ 9

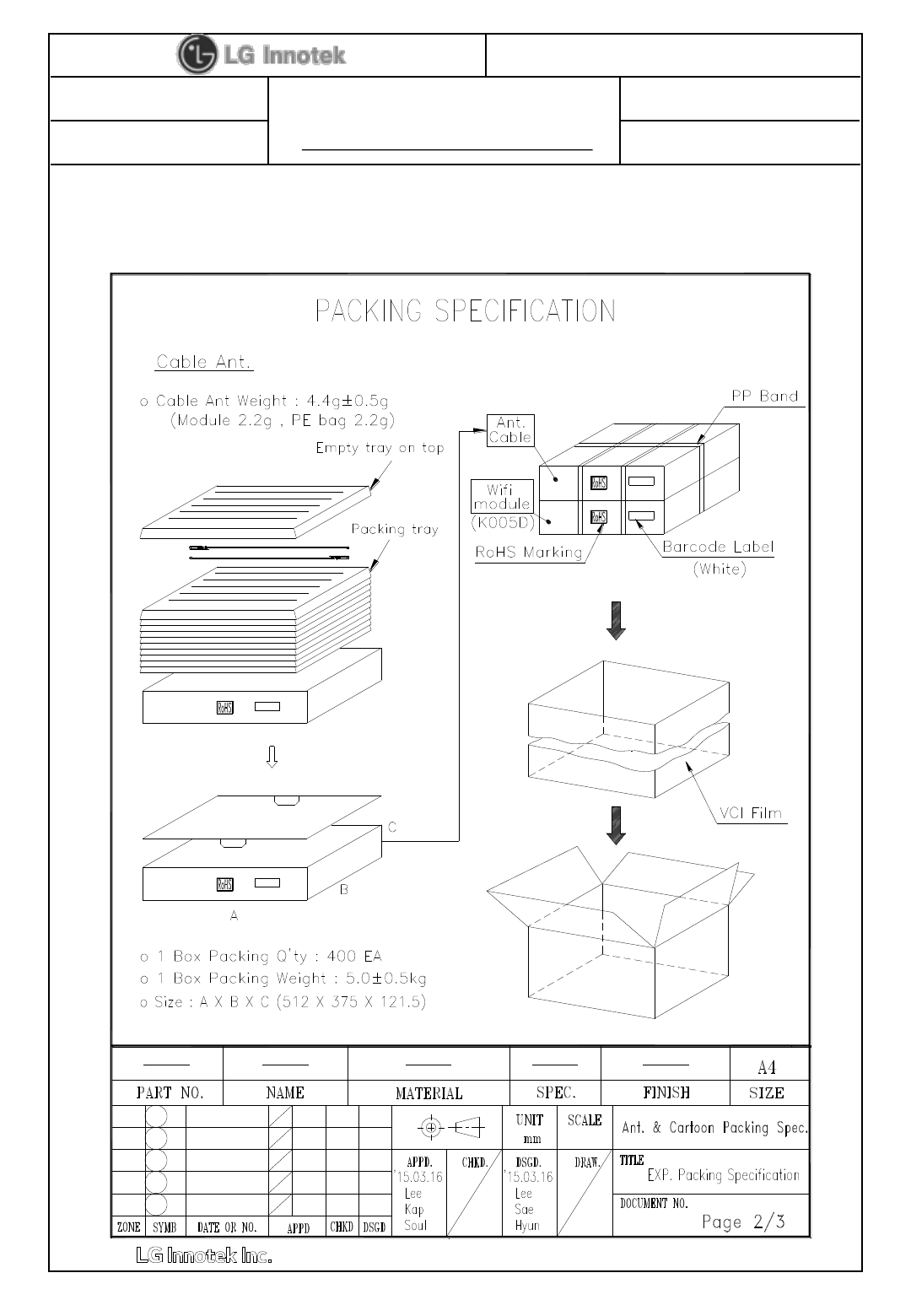

8-2. Box packing
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
9/ 9

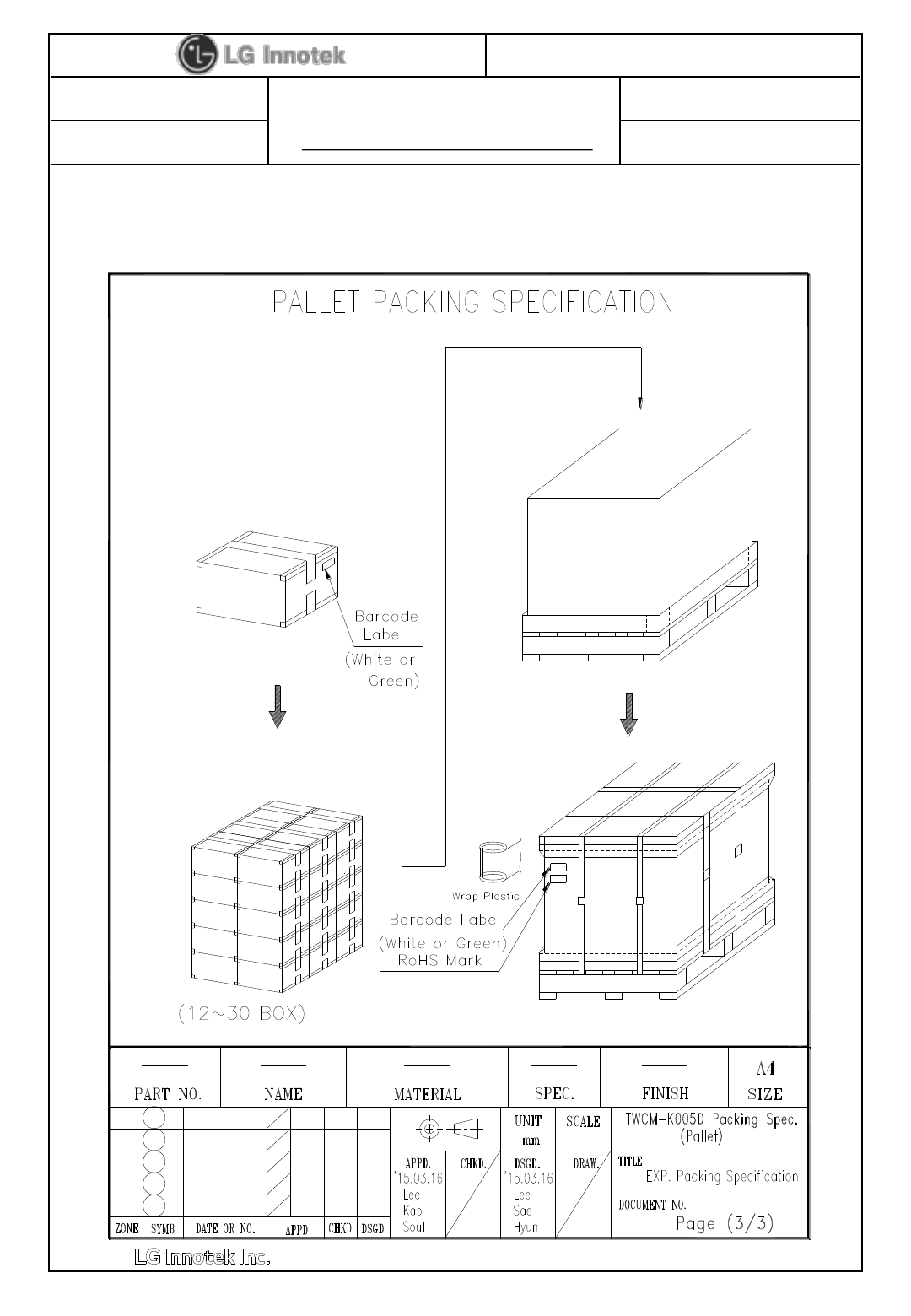

8-2. Box packing
User Manual
PAGE :
REG. DATE : 2015.09.14
MODEL NAME : TWCM-K005D
REV. DATE : 2015.09.14
REV.NO : 1.0
©2015 LGIT. All rights reserved.
10 / 9
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Information for OEM Integrator
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
End product labelling
The label for end product must include “Contains FCC ID: YZP-TWCMK005D”.
“CAUTION : Exposure to Radio Frequency Radiation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment must be installed and operated with minimum distance of 20cm between the radiator and your
body. This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users.”
