User Manual
![](/img.php?id=1633253&img=bg1.png)
User Guide
Linksys EA-Series
![](/img.php?id=1633253&img=bg2.png)
i
Table of Contents
Linksys EA-Series
i
Product overview
EA2700/EA3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Back view 1
Bottom view 1
EA4500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Top view 2
Back view 2
Setting Up Your EA-Series Router
Where to find more help . . . . . . . . . . . . . . . . . . . . . . . . . .3
How to set up your router . . . . . . . . . . . . . . . . . . . . . . . . .3
How to start Cisco Connect 3
Use Cisco Connect to manage your router 3
How to manually set up your router. . . . . . . . . . . . . . . . . . .3
Advanced Configuration
How to open the browser-based utility . . . . . . . . . . . . . . . .4
Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Language 5
Internet Setup 5
Wireless > Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . .6
Wireless Settings 6
Wireless Security
Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . .7
Personal options 7
Office options 7
Option settings 7
Troubleshooting
How to run Cisco Connect after setup . . . . . . . . . . . . . . . . 10
Your router was not successfully set up . . . . . . . . . . . . . . . 11
Get Windows XP Service Pack 3 message . . . . . . . . . . . . . . . 11
Your Internet cable is not plugged in message . . . . . . . . . . . . 12
Cannot access your router message . . . . . . . . . . . . . . . . . . 13
Device not found message . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications
Linksys EA2700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Linksys EA3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Linksys EA4500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table of Contents
![](/img.php?id=1633253&img=bg3.png)
1
Product overview
Linksys EA-Series
1
Product overview
EA2700/EA3500

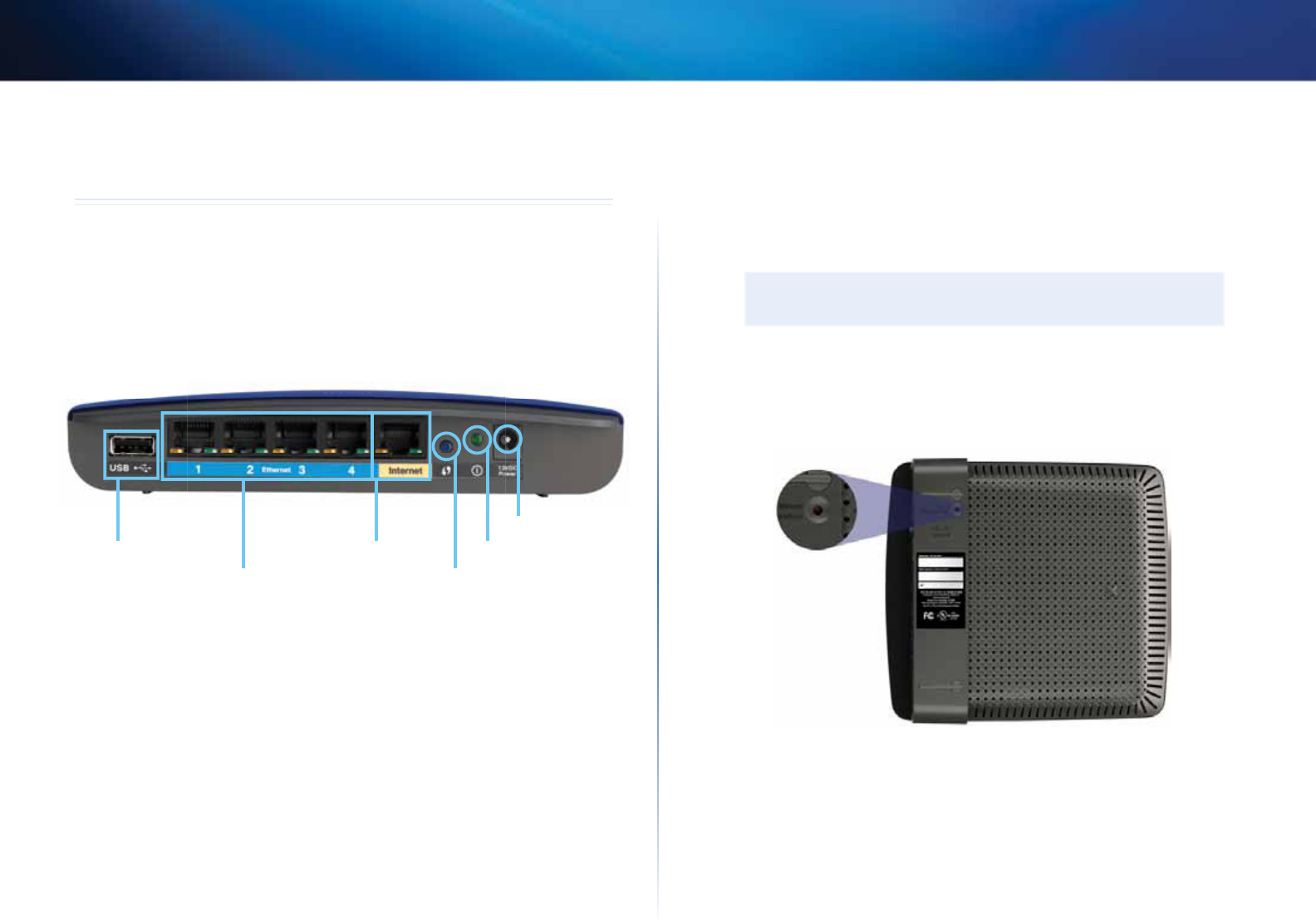

Back view
Ethernet ports Wi-Fi Protected Setup button
Internet port
Power port
Power indicatorUSB port (EA3500 only)
Your router’s appearance may vary
•USB port (EA3500 only)—To easily share disk storage with other users
on your network or on the Internet, connect a USB drive to this port.
•Ethernet ports—Connect Ethernet cables (also called network cables)
to these Gigabit (10/100/1000) ports, color coded blue, and to other
wired Ethernet network devices on your network.
•Internet port—Connect an Ethernet cable (also called a network or
Internet cable) to this port, color coded yellow, and to your modem.
Wi-Fi Protected Setup™ button—Press this button to easily configure
wireless security on Wi-Fi Protected Setup-enabled network devices. For
more information, see “Wireless Security” on page 8.
•Power indicator—Stays on steadily while power is connected and
following a successful Wi-Fi Protected Setup connection. Flashes slowly
during bootup, during firmware upgrades, and during a Wi-Fi Protected
Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup
error.
•Power—Connect the included AC power adapter to this port.
CAUTION
Use only the adapter that came with your router.
•Power button—Press | (on) to turn on the router.
Bottom view
Your router’s appearance may vary
•Reset button—Press and hold this button for 5-15 seconds (until the
port lights flash at the same time) to reset the router to its factory defaults.
You can also restore the defaults using the browser-based utility.
![](/img.php?id=1633253&img=bg4.png)
2
Product overview
Linksys EA-Series
EA4500

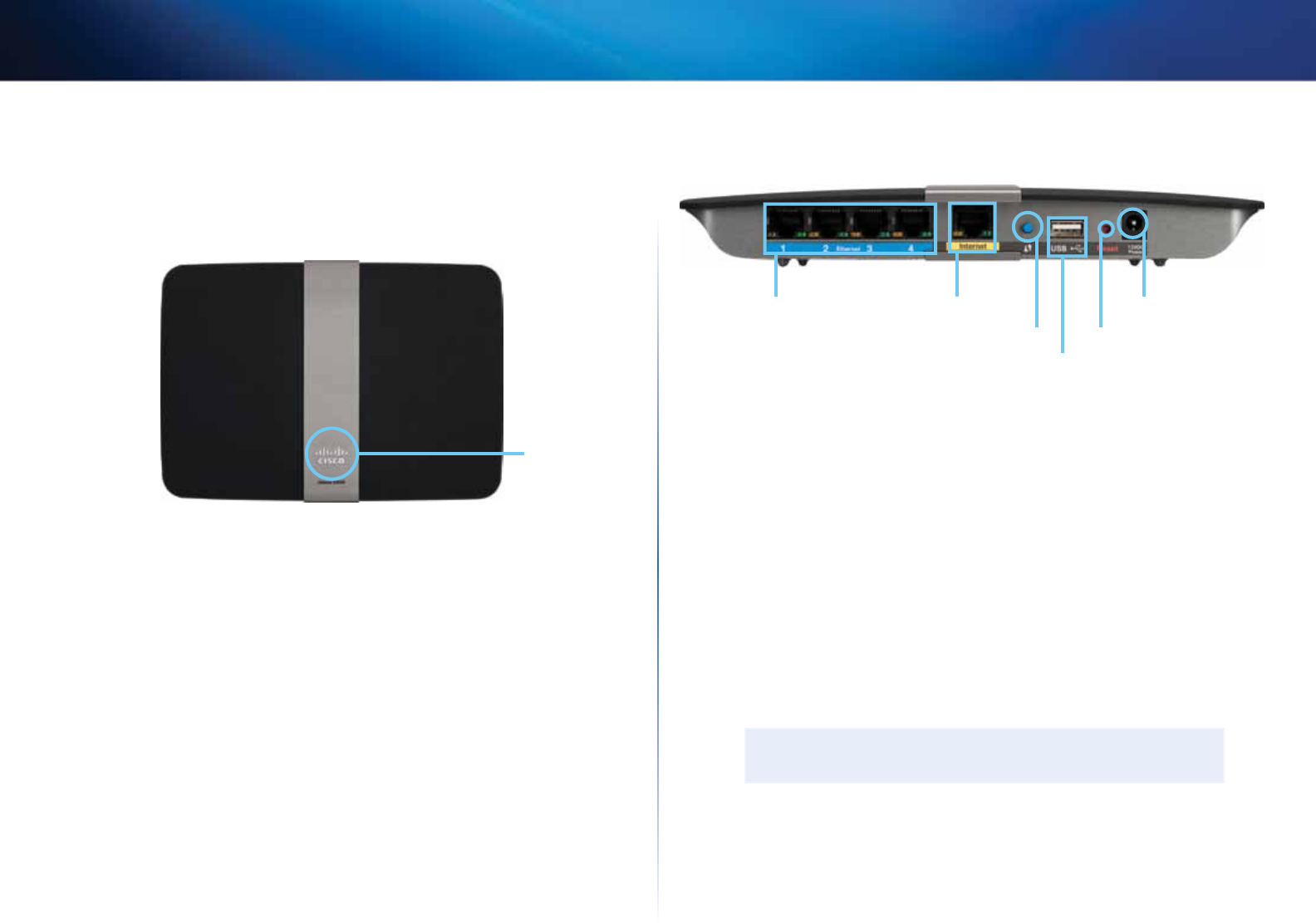

Top view
Indicator light
•Indicator light—Stays on steadily while power is connected and
following a successful Wi-Fi Protected Setup connection. Pulses slowly
during bootup, during firmware upgrades, and during a Wi-Fi Protected
Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup
error.
Back view
Ethernet ports
Wi-Fi Protected Setup button
Internet port Power port
Reset button
USB port
•Ethernet ports—Connect Ethernet cables (also called network cables)
to these Gigabit (10/100/1000) ports, color coded blue, and to other
wired Ethernet network devices on your network.
•Internet port—Connect an Ethernet cable (also called a network or
Internet cable) to this port, color coded yellow, and to your modem.
•Wi-Fi Protected Setup™ button—Press this button to easily configure
wireless security on Wi-Fi Protected Setup-enabled network devices. For
more information, see “Wireless Security” on page 8.
•USB port—To easily share disk storage with other users on your network
or on the Internet, connect a USB drive to this port.
•Reset button—Press and hold this button for 5-15 seconds (until the
port lights flash at the same time) to reset the router to its factory defaults.
You can also restore the defaults using the browser-based utility.
•Power—Connect the included AC power adapter to this port.
CAUTION
Use only the adapter that came with your router.
•Power button—Press | (on) to turn on the router.
![](/img.php?id=1633253&img=bg5.png)
3
Setting Up Your EA-Series Router
Linksys EA-Series
3
Where to find more help
In addition to this User Guide, you can find help at these locations:
•Linksys.com/support (documentation, downloads, FAQs, technical
support, live chat, forums)
•Cisco Connect help (run Cisco Connect, then click Learn More where
available)
•Browser-based utility context-sensitive help (open the utility, then click
Help in the right-side column.)
How to set up your router
The easiest and fastest way to set up your router is to run the Cisco Connect
setup software.

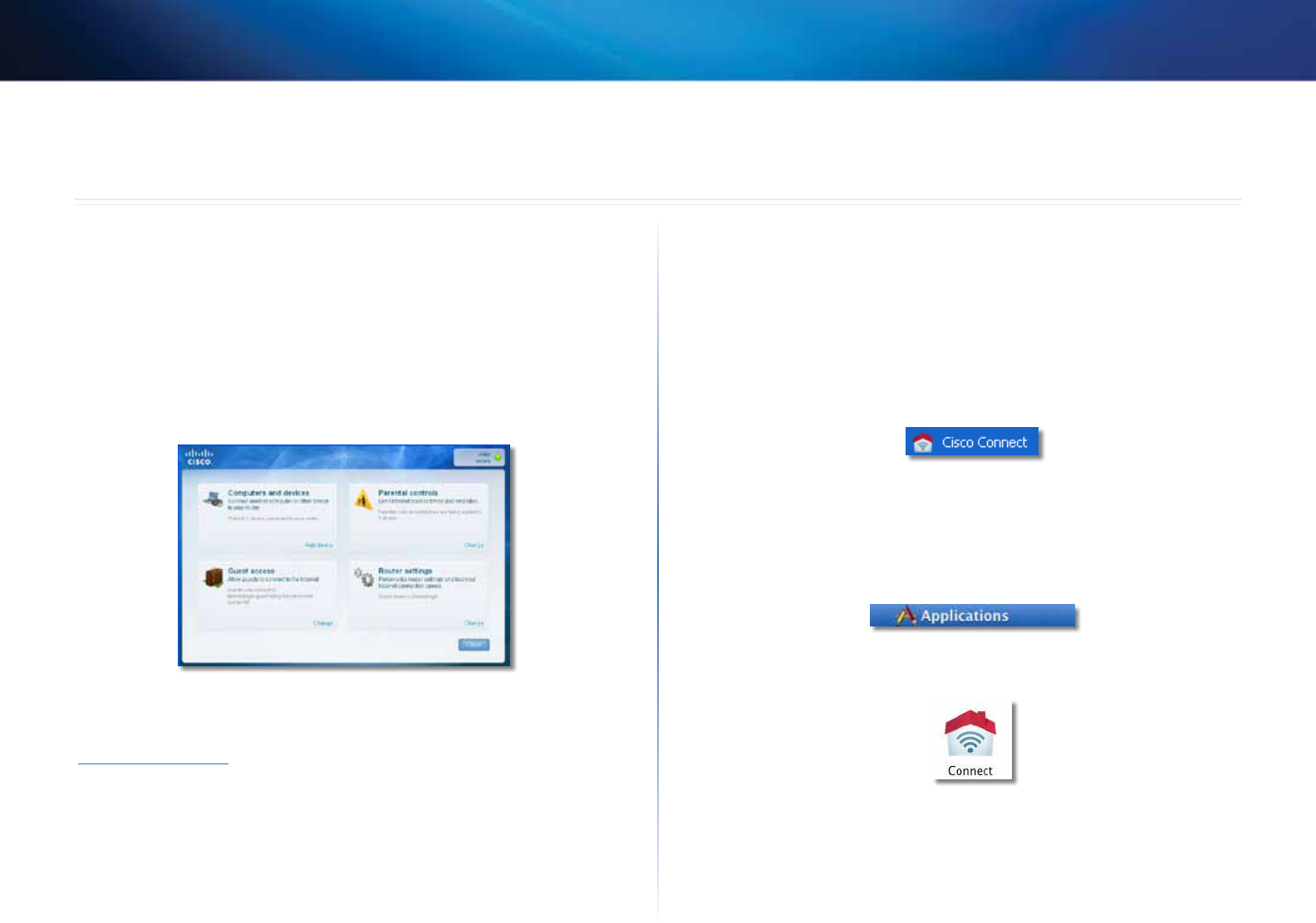

How to start Cisco Connect
When you run the setup CD, Cisco Connect (your router’s setup software) is
automatically installed onto your computer. You can then use Cisco Connect to
easily manage your router.
NOTE:
If you lose your setup CD, you can download the software from
Linksys.com/support.
To start Cisco Connect for the first time:
1.
Insert the CD into your CD or DVD drive.
2.
Click Set up your Linksys Router.
If you do not see this:
•For Windows, click Start, Computer, then double-click the CD drive
and the Setup icon.
•For Mac, double-click the CD icon on your desktop, then double-click
the Setup icon.
3.
Follow the on-screen instructions to complete your router setup.
Use Cisco Connect to manage your router
After your router has been set up and Cisco Connect has been installed, you
can use Cisco Connect to easily manage many of your router’s settings such as:
•Connect devices to your network
•Test your Internet connection speed
•Configure parental controls
•Set up guest access
•Change your router’s name and password
How to manually set up your router
After setting up the router with the setup software (located on the CD), the
router will be ready for use. If you would like to change its advanced settings,
or if the software does not run, use the router’s browser-based utility.You can
access the utility with a web browser on a computer connected to the router.
For more information on using the utility, see “How to open the browser-based
utility” on page 3.
Setting Up Your EA-Series Router
![](/img.php?id=1633253&img=bg6.png)
4
Advanced Configuration
Linksys EA-Series
4
How to open the browser-based utility
To access some advanced settings, you need to open the browser-based utility.
To open the browser-based utility:
1.
Run Cisco Connect, click Change under Router settings, click Advanced
settings, then click OK.
– or –

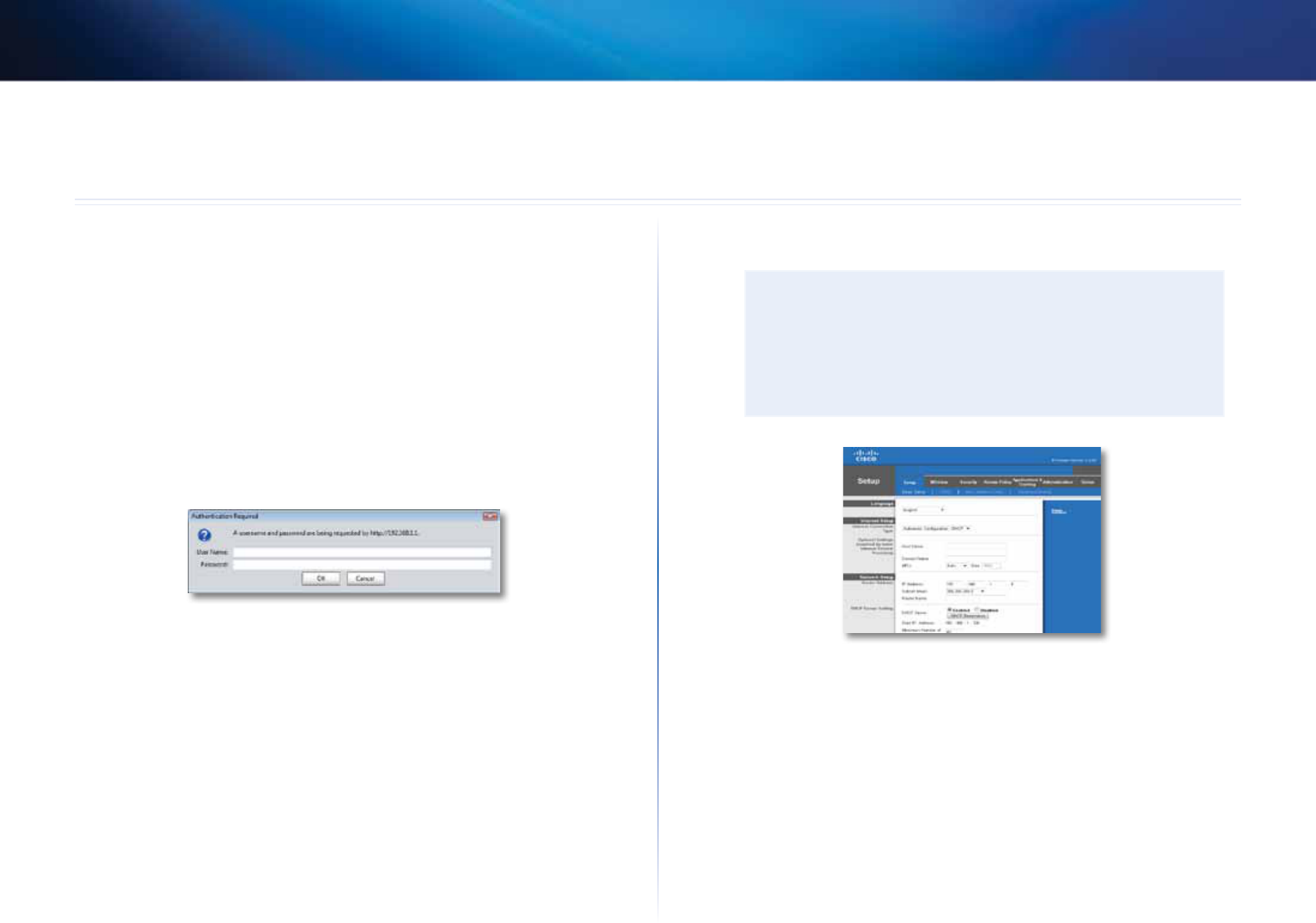

Open a web browser on a computer connected to your network, then go
to 192.168.1.1.
The router prompts you for a user name and password.
2.
Enter the user name and password, then click OK. The utility’s main menu
opens.
TIPS
If you set up your router without using Cisco Connect, your router’s
default username and password is admin.
If you used Cisco Connect to set up your router, you can see your
router’s user name and password by running Cisco Connect, then
clicking Router settings.
Advanced Configuration
![](/img.php?id=1633253&img=bg7.png)
5
Advanced Configuration
Linksys EA-Series
Setup > Basic Setup

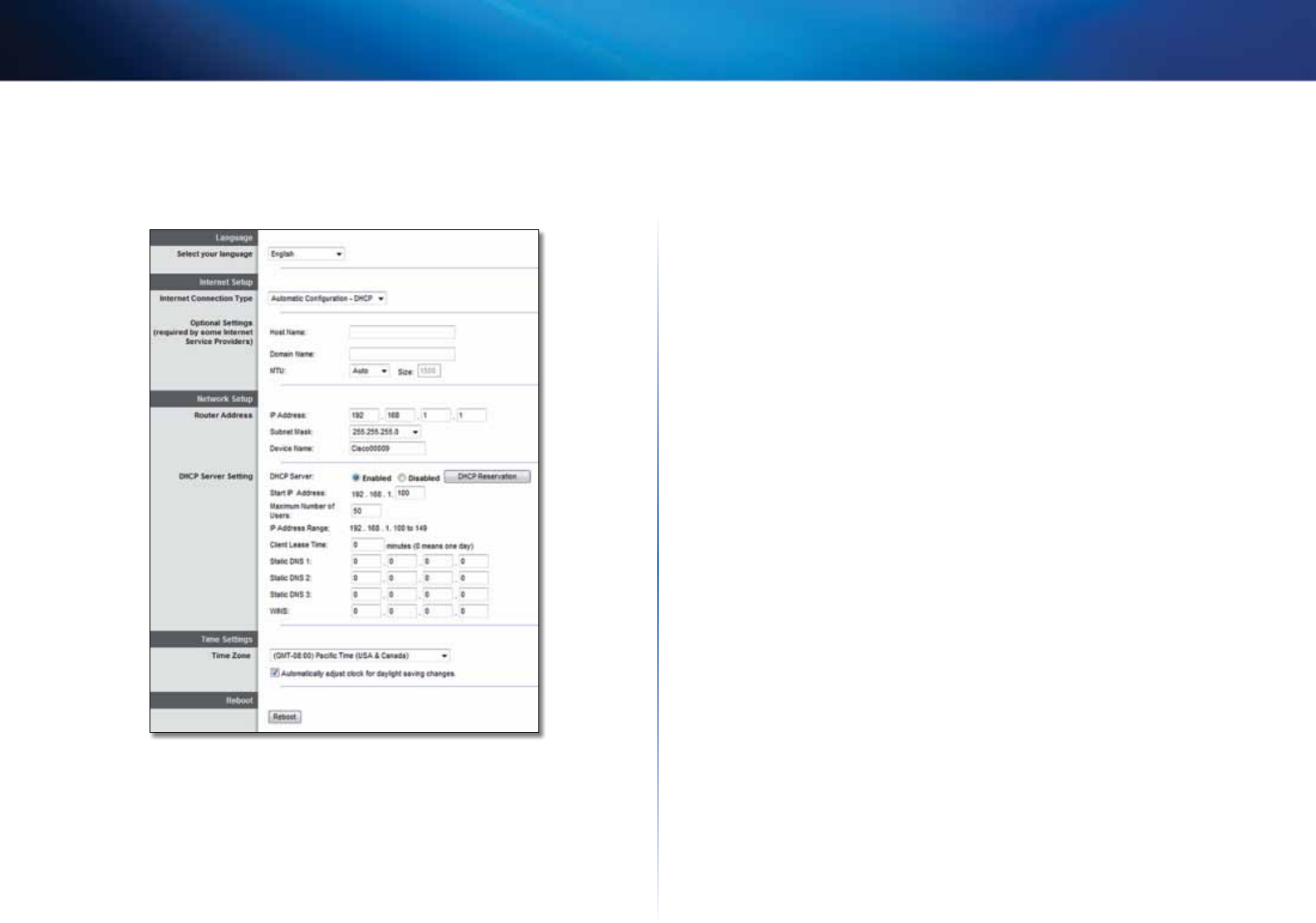

The first screen that appears is the Basic Setup screen. This allows you to change
the router’s general settings.
Language
Select your language
To use a different language, select one from the drop-
down menu. The language of the browser-based utility will change five seconds
after you select another language.
Internet Setup
The Internet Setup section configures the router to your Internet connection.
Most of this information can be obtained through your Internet Service
Provider (ISP).
Internet Connection Type
Select the type of Internet connection your ISP provides from the drop-down
menu. The available types are:
•Automatic Configuration - DHCP
•Static IP
•PPPoE
•PPTP
•L2TP
•Bridge Mode
Automatic Configuration - DHCP
The default Internet Connection Type is Automatic Configuration - DHCP
(Dynamic Host Configuration Protocol). Keep the default only if your ISP
supports DHCP or if you connect using a dynamic IP address. (This option
usually applies to cable connections.)
Static IP
If you are required to use a fixed IP address to connect to the Internet, select
Static IP.
PPPoE
If you have a DSL connection, check whether your ISP uses Point-to-Point
Protocol over Ethernet (PPPoE). If so, select PPPoE.
PPTP
Point-to-Point Tunneling Protocol (PPTP) is a service that generally applies to
connections in Europe. If your PPTP connection supports DHCP or a dynamic IP
address, then select Obtain an IP Address Automatically. If you are required
to use a fixed IP address to connect to the Internet, then select Specify an IP
Address and configure the options below.
![](/img.php?id=1633253&img=bg8.png)
6
Advanced Configuration
Linksys EA-Series
L2TP
Layer 2 Tunneling Protocol (L2TP) is a service that generally applies to
connections in Israel.
Connect on Demand or Keep Alive
The Connect on Demand and Keep Alive options let you choose whether
the router connects to the Internet only as needed (useful if your ISP charges
for connect time), or if the router should always be connected. Select the
appropriate option.
Wireless > Wireless Settings
The settings for wireless networking are set on this screen.
NOTE
After you set up the wireless network(s), set up the wireless security
settings.

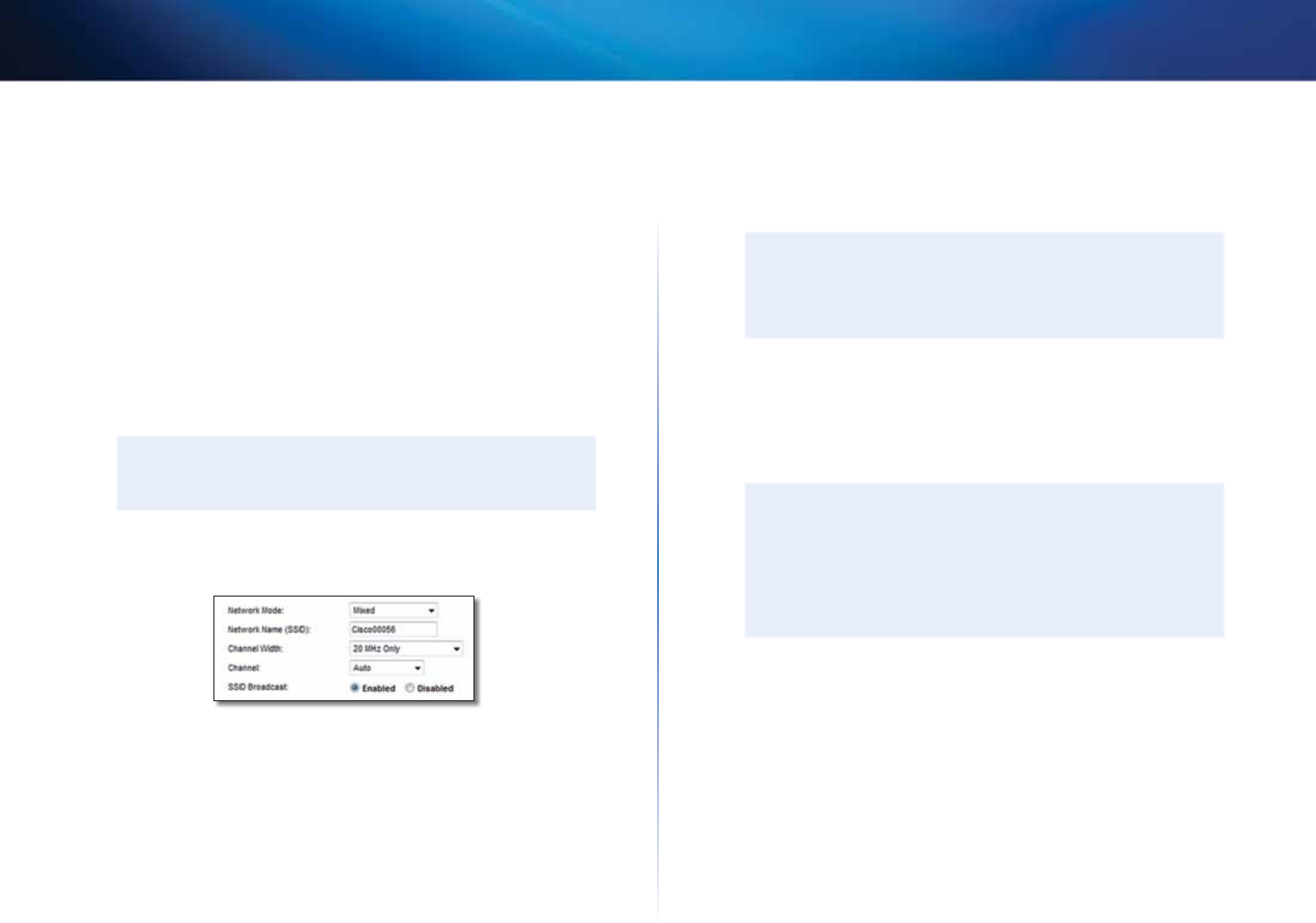

Wireless Settings
Network Mode Select the wireless standards your network will support.
•Mixed If you have Wireless-N (2.4 GHz), Wireless-G, and Wireless-B devices
in your network, keep the default, Mixed.
•Wireless-B/G Only If you have both Wireless-B and Wireless-G (2.4 GHz)
devices in your network, select Wireless-B/G Only.
•Wireless-B Only If you have only Wireless-B devices, select Wireless-B
Only.
•Wireless-G Only If you have only Wireless-G devices, select Wireless-G
Only.
•Wireless-N Only If you have only Wireless-N (2.4 GHz) devices, select
Wireless-N Only.
•Disabled If you have no Wireless-B, Wireless-G, and Wireless-N (2.4 GHz)
devices in your network, select Disabled.
NOTE
If you have a dual-band router, you can select Mixed, Wireless-A
Only, Wireless-N Only, or Disabled for the 5 GHz band.
If you are not sure which mode to use, keep the default, Mixed.
Network Name (SSID) The Service Set Identifier (SSID) is the network name
shared by all devices in a wireless network. It is case-sensitive and must not
exceed 32 keyboard characters. The default is Cisco followed by the last 5 digits
of the router’s serial number, which is found on the bottom of the router. If
you used the setup software for installation, then the default Network Name is
changed to an easy-to-remember name.
NOTE
If you restore the router’s factory default settings (by pressing
the Reset button or using the Administration > Factory Defaults
screen), the Network Name will return to its default value. Change
the Network Name back to its original name, or you will have to
reconnect all devices on your wireless network to the new network
name.
Channel Width For best performance in a network using Wireless-B,
Wireless-G and Wireless-N (2.4 GHz) devices, select Auto (20 MHz or 40 MHz).
For a channel width of 20 MHz, select 20 MHz only.
Channel Select the channel from the drop-down list for Wireless-B, Wireless-G,
and Wireless-N (2.4 GHz) networking. If you are not sure which channel to
select, then keep the default, Auto.
SSID Broadcast When wireless clients survey the local area for wireless
networks to associate with, they will detect the SSID broadcast by the router.
To broadcast the router’s SSID, keep the default, Enabled. If you do not want to
broadcast the router’s SSID, then select Disabled.
![](/img.php?id=1633253&img=bg9.png)
7
Wireless Security
Linksys EA-Series
7
Wireless > Wireless Security
The wireless security settings configure the security of your wireless network(s).
The router supports the following wireless security options: WPA2/WPA Mixed
Mode, WPA2 Personal, WPA Personal, WPA2/WPA Enterprise Mixed Mode, WPA2
Enterprise, WPA Enterprise, WEP, and RADIUS. (WPA stands for Wi-Fi Protected
Access. WEP stands for Wireless Equivalent Privacy. RADIUS stands for Remote
Authentication Dial-In User Service.)

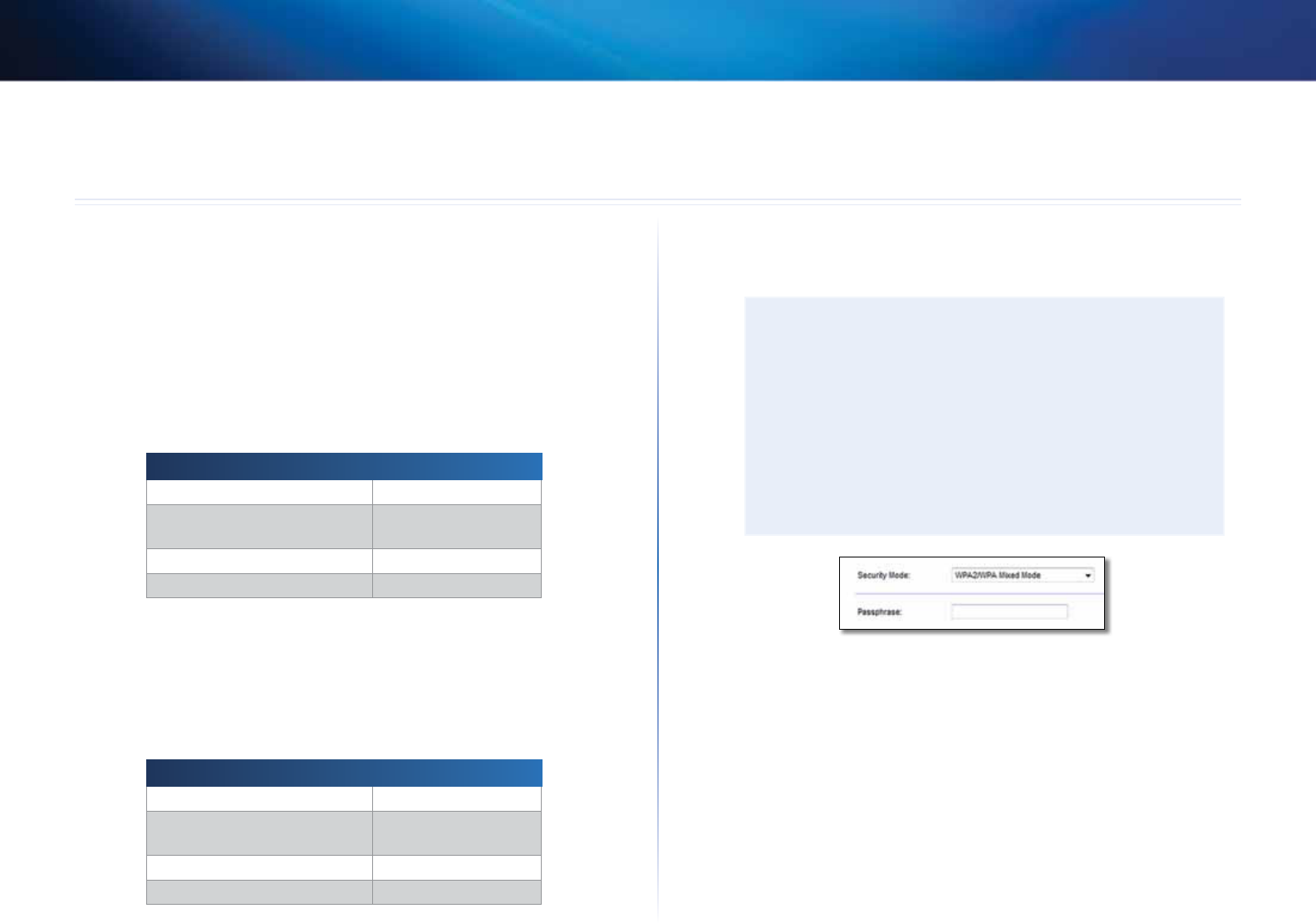

Personal options
Security Option Strength
WPA2 Personal Strongest
WPA2/WPA Mixed Mode WPA2: Strongest
WPA: Strong
WPA Personal Strong
WEP Basic
Office options
The office options are available for networks that use a RADIUS server
for authentication. The office options are stronger than the personal
options because WPA2 or WPA provides encryption while RADIUS provides
authentication.
Security Option Strength
WPA2 Enterprise Strongest
WPA2/WPA Enterprise Mixed
Mode
WPA2: Strongest
WPA: Strong
WPA Enterprise Strong
RADIUS Basic
Option settings
WPA2/WPA Mixed Mode, WPA2 Personal, WPA Personal
NOTES
If you select WPA2/WPA Mixed Mode as your Security Mode, each
device in your wireless network MUST use WPA2/WPA and the
same passphrase.
If you select WPA2 Personal as your Security Mode, each device
in your wireless network MUST use WPA2 Personal and the same
passphrase.
If you select WPA Personal as your Security Mode, each device
in your wireless network MUST use WPA Personal and the same
passphrase.
Passphrase Enter a passphrase of 8-63 characters. The default is password. If
you used the setup software for installation, then the default is changed to a
unique passphrase, which you can find by running Cisco Connect, then clicking
Router settings.
Wireless Security
![](/img.php?id=1633253&img=bga.png)
8
Wireless Security
Linksys EA-Series

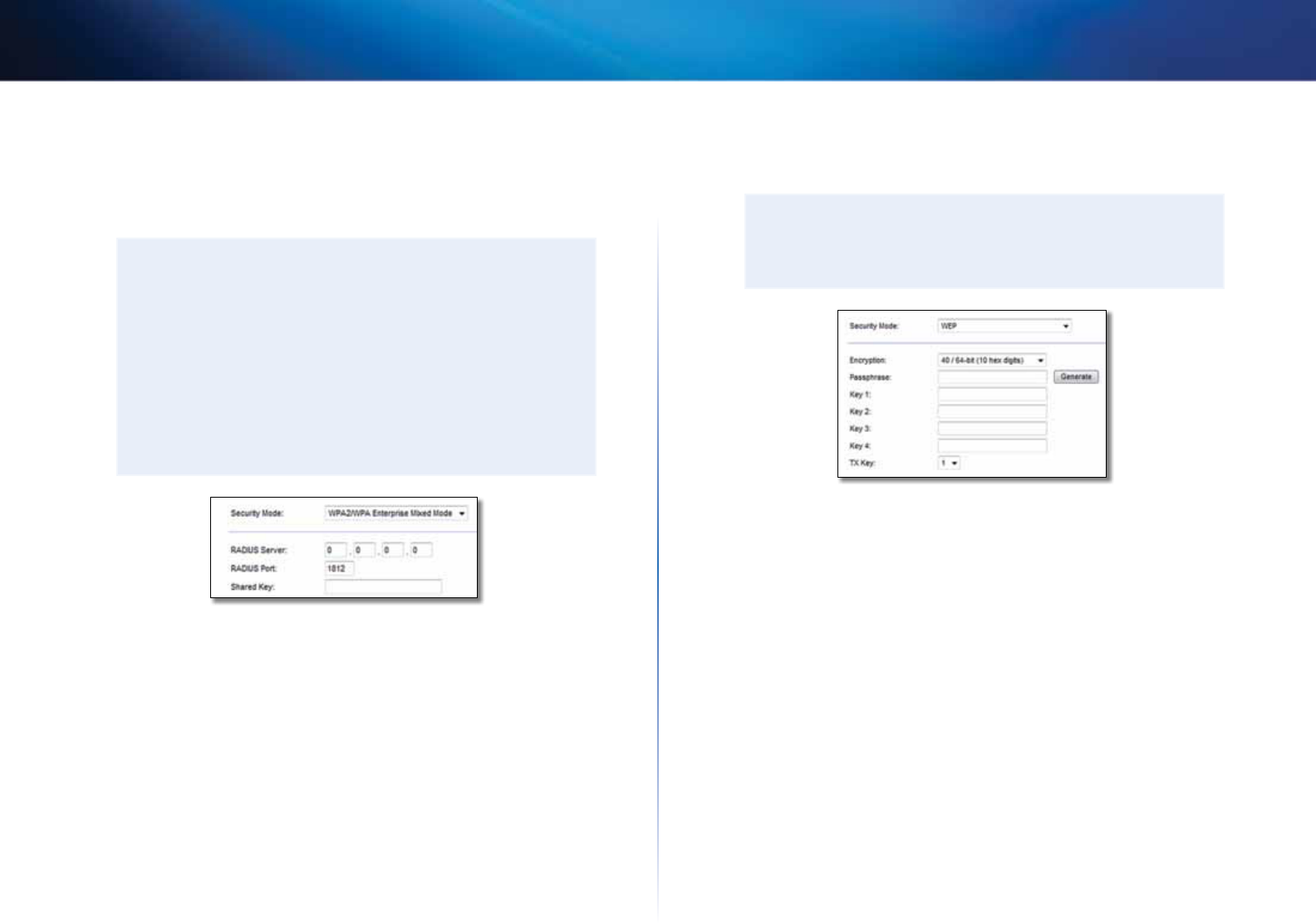

WPA2/WPA Enterprise Mixed Mode, WPA2 Enterprise, WPA
Enterprise
These option is used in coordination with a RADIUS server. (These should only
be used when a RADIUS server is connected to the router.)
NOTES
If you select WPA2/WPA Enterprise Mixed Mode as your Security
Mode, each device in your wireless network MUST use WPA2/WPA
Enterprise and the same shared key.
If you select WPA2 Enterprise as your Security Mode, each device
in your wireless network MUST use WPA2 Enterprise and the same
shared key.
If you select WPA Enterprise as your Security Mode, each device
in your wireless network MUST use WPA Enterprise and the same
shared key.
RADIUS Server Enter the IP address of the RADIUS server.
RADIUS Port Enter the port number of the RADIUS server. The default is 1812.
Shared Key Enter the key shared between the router and the server.
WEP
WEP is a basic encryption method, which is not as secure as WPA.
NOTE:
If you select WEP as your Security Mode, each device in your
wireless network MUST use WEP and the same encryption and
shared key.
Encryption Select a level of WEP encryption, (40/64-bit 10 hex digits) or
104/128-bit (26 hex digits). The default is 40/64-bit (10 hex digits).
Passphrase Enter a passphrase to automatically generate WEP keys. Then
click Generate.
Key 1-4 If you did not enter a passphrase, enter the WEP key(s) manually.
TX Key Select a default TX (Transmit) Key to use. The default is 1.
![](/img.php?id=1633253&img=bgb.png)
9
Wireless Security
Linksys EA-Series

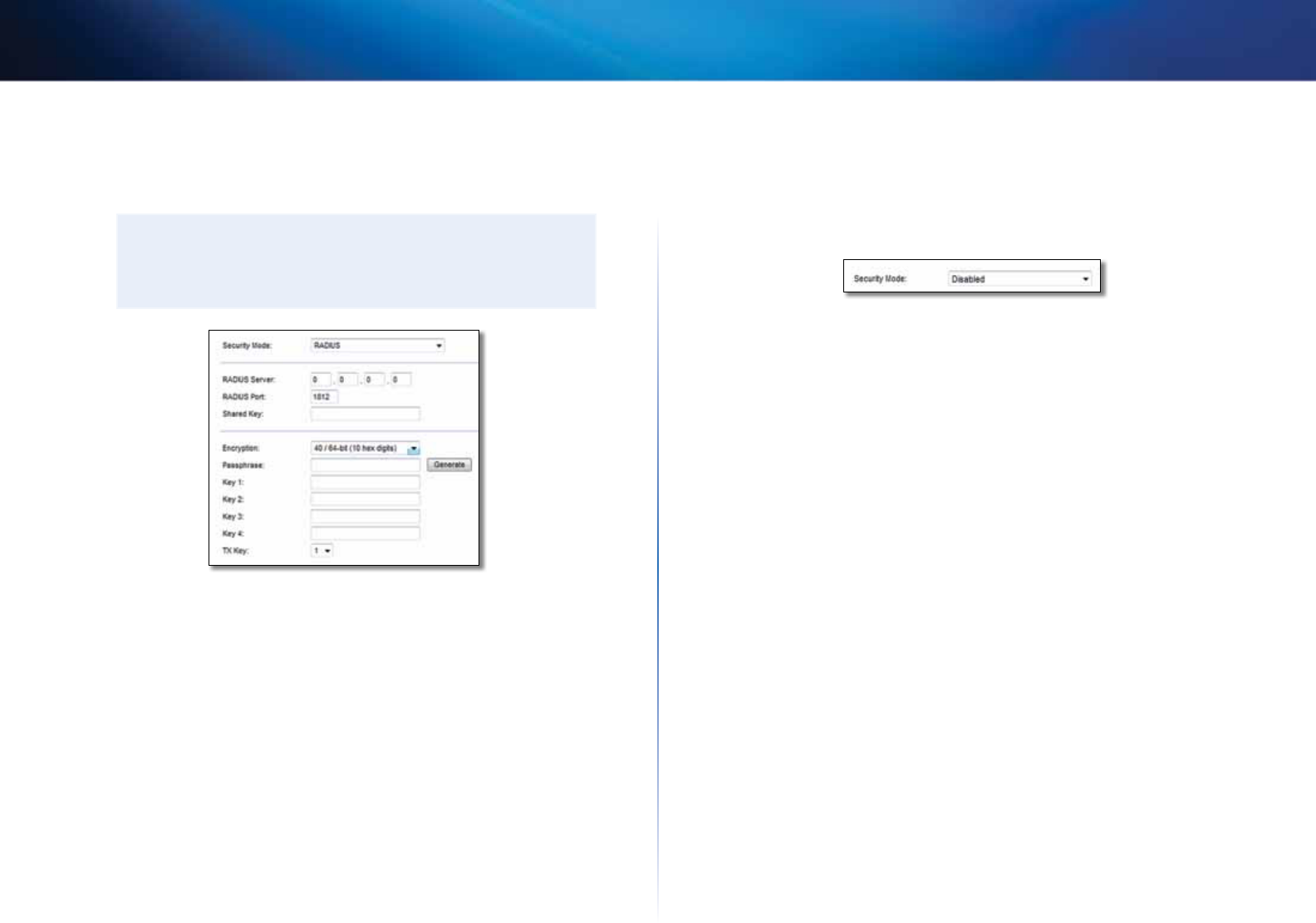

RADIUS
This option features WEP used in coordination with a RADIUS server. (This
should only be used when a RADIUS server is connected to the router.)
NOTE:
If you select RADIUS as your Security Mode, each device in your
wireless network MUST use RADIUS and the same encryption and
shared key.
RADIUS Server Enter the IP address of the RADIUS server.
RADIUS Port Enter the port number of the RADIUS server. The default is 1812.
Shared Secret Enter the key shared between the router and the server.
Encryption Select a level of WEP encryption, (40/64-bit 10 hex digits) or
104/128-bit (26 hex digits). The default is 40/64-bit (10 hex digits).
Passphrase Enter a passphrase to automatically generate WEP keys. Then
click Generate.
Key 1-4 If you did not enter a passphrase, enter the WEP key(s) manually.
TX Key Select a default TX (Transmit) Key to use. The default is 1.
Disabled
If you choose to disable wireless security, you will be informed that wireless
security is disabled when you first attempt to access the Internet. You will given
the option to enable wireless security, or confirm that you understand the risks
but still wish to proceed without wireless security.
![](/img.php?id=1633253&img=bgc.png)
10
Troubleshooting
Linksys EA-Series
10
This chapter can help you solve common setup issues and connect to the
Internet. Your router’s CD includes Cisco Connect, the router setup software
that makes it easy to connect network devices, change router settings, control
guest access, enable parental controls, and connect to the Internet. Cisco
Connect is also installed onto your computer during setup. If Cisco Connect
is prevented from completing the setup, this chapter will guide you through
finding solutions.
You can find more help from our award-winning customer support at
linksys.com/support.
How to run Cisco Connect after setup
When you run the setup CD, Cisco Connect is automatically installed onto your
computer. You can then use Cisco Connect to easily manage your network.
To start Cisco Connect on a Windows computer:
1.
Click Start, All Programs, then click Cisco Connect.
The Cisco Connect main menu opens.
To start Cisco Connect on a Mac OS X computer:
1.
Open Finder and click Applications in the left panel.
2.
Double-click the Cisco Connect icon.
The Cisco Connect main menu opens.
Troubleshooting
![](/img.php?id=1633253&img=bgd.png)
11

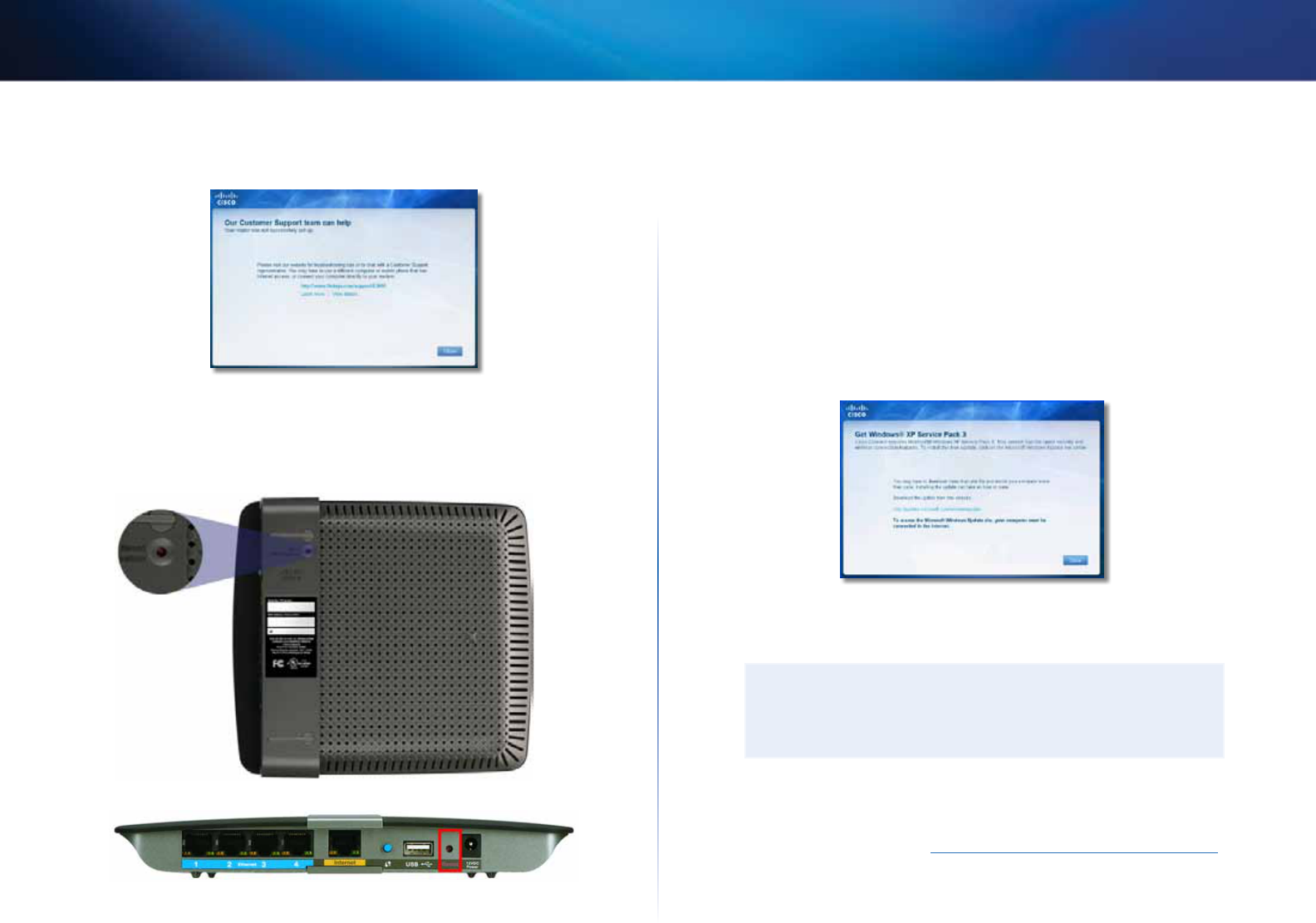

Troubleshooting
Linksys EA-Series
Your router was not successfully set up
If Cisco Connect did not complete the setup, you can try the following:
• Press and hold the Reset button on your router with a paperclip or pin
for 5-15 seconds, then run the Setup program again on the router’s CD.
Your router’s appearance may vary
• Temporarily disable your computer’s firewall (see the security software’s
instructions for help), then run the Setup program again on the router’s
CD.
• If you have another computer, use that computer to run the Setup
program again on the router’s CD.
Get Windows XP Service Pack 3 message
On Windows XP computers, Cisco Connect requires Service Pack 3 in order to
work. If you receive a “Get Windows Service Pack 3” message when setting up
your router for the first time, follow these troubleshooting steps.
If the currently installed Service Pack is older than version 3, you need to
download and install Service Pack 3.
TIP
To temporarily connect to the Internet and download the required
Service Pack, you can use the included Ethernet cable to connect
your computer directly to your modem.
To install Service Pack 3:
1.
Click the link in the Cisco Connect error message or connect to the
Microsoft Update website (update.microsoft.com/windowsupdate).
2.
Follow the instructions on the website or contact Microsoft if you need
further help.
3.
After downloading and installing Service Pack 3, run the Setup program
on your router’s CD.
![](/img.php?id=1633253&img=bge.png)
12
Troubleshooting
Linksys EA-Series

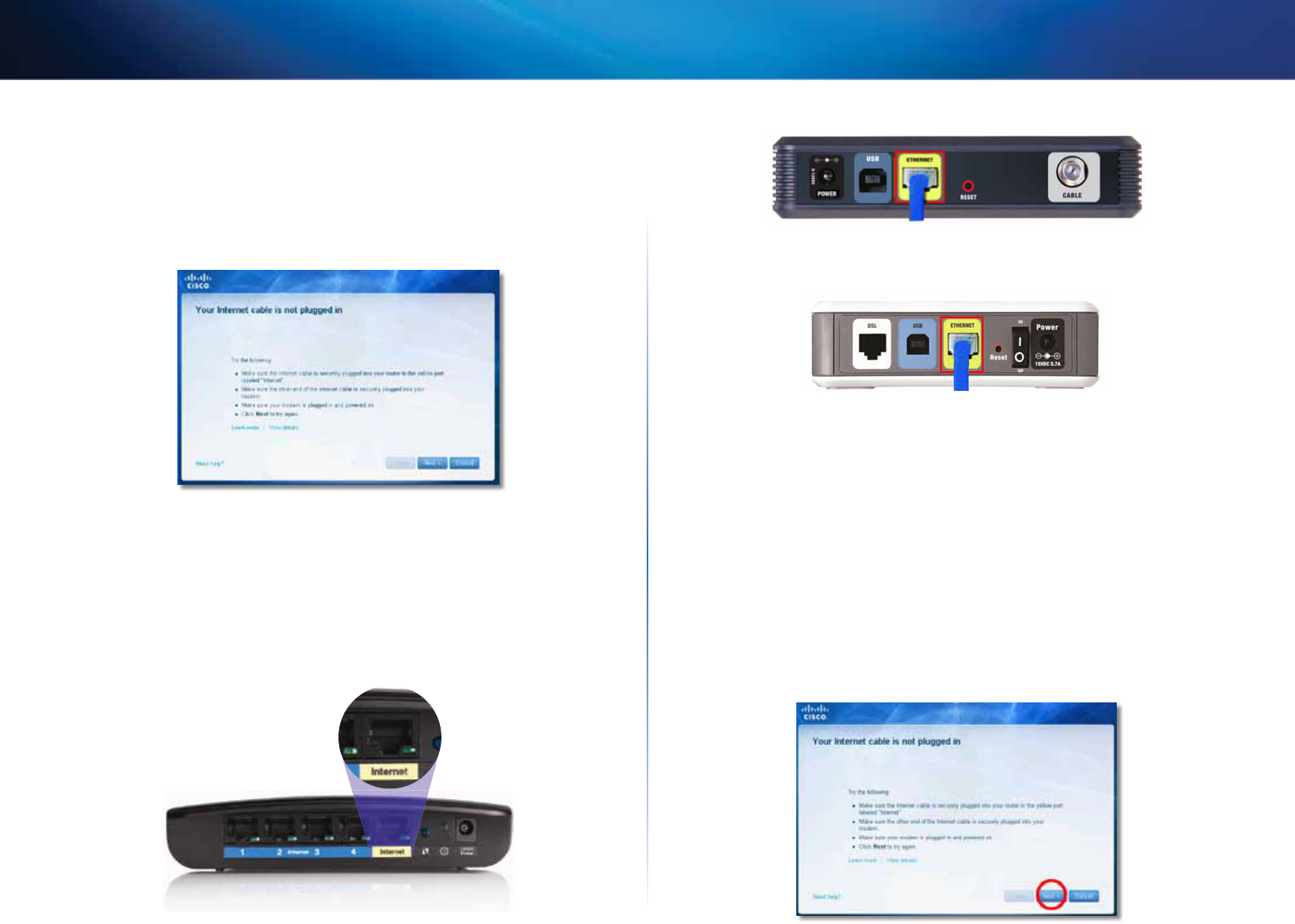

Your Internet cable is not plugged in
message
If you get a “Your Internet cable is not plugged in” message when trying to set
up your router, follow these troubleshooting steps.
To fix the problem:
1.
Make sure that an Ethernet or Internet cable (or a cable like the one
supplied with your router) is securely connected to the yellow Internet
port on the back of the router and to the appropriate port on your
modem. This port on the modem is usually labeled Ethernet, but may
be named Internet or WAN.
Back view of router
Back view of cable modem
Back view of DSL modem
2.
Make sure that your modem is connected to power and is turned on. If it
has a power switch, make sure that it is set to the ON or l position.
3.
If your Internet service is cable, verify that the cable modem’s CABLE port
is connected to the coaxial cable provided by your ISP.
Or, if your Internet service is DSL, make sure that the DSL phone line is
connected to the modem’s DSL port.
4.
If your computer was previously connected to your modem with a USB
cable, disconnect the USB cable.
5.
Return to the Cisco Connect window and click Next to try again. If the
window has already been closed, run the Setup program again on the
router’s CD.
![](/img.php?id=1633253&img=bgf.png)
13
Troubleshooting
Linksys EA-Series
Cannot access your router message
If you cannot access your router because your computer is not connected to
your network, follow these troubleshooting steps.
To access your router, you must be connected to your own network. If you
currently have wireless Internet access, the problem may be that you have
accidentally connected to a different wireless network.

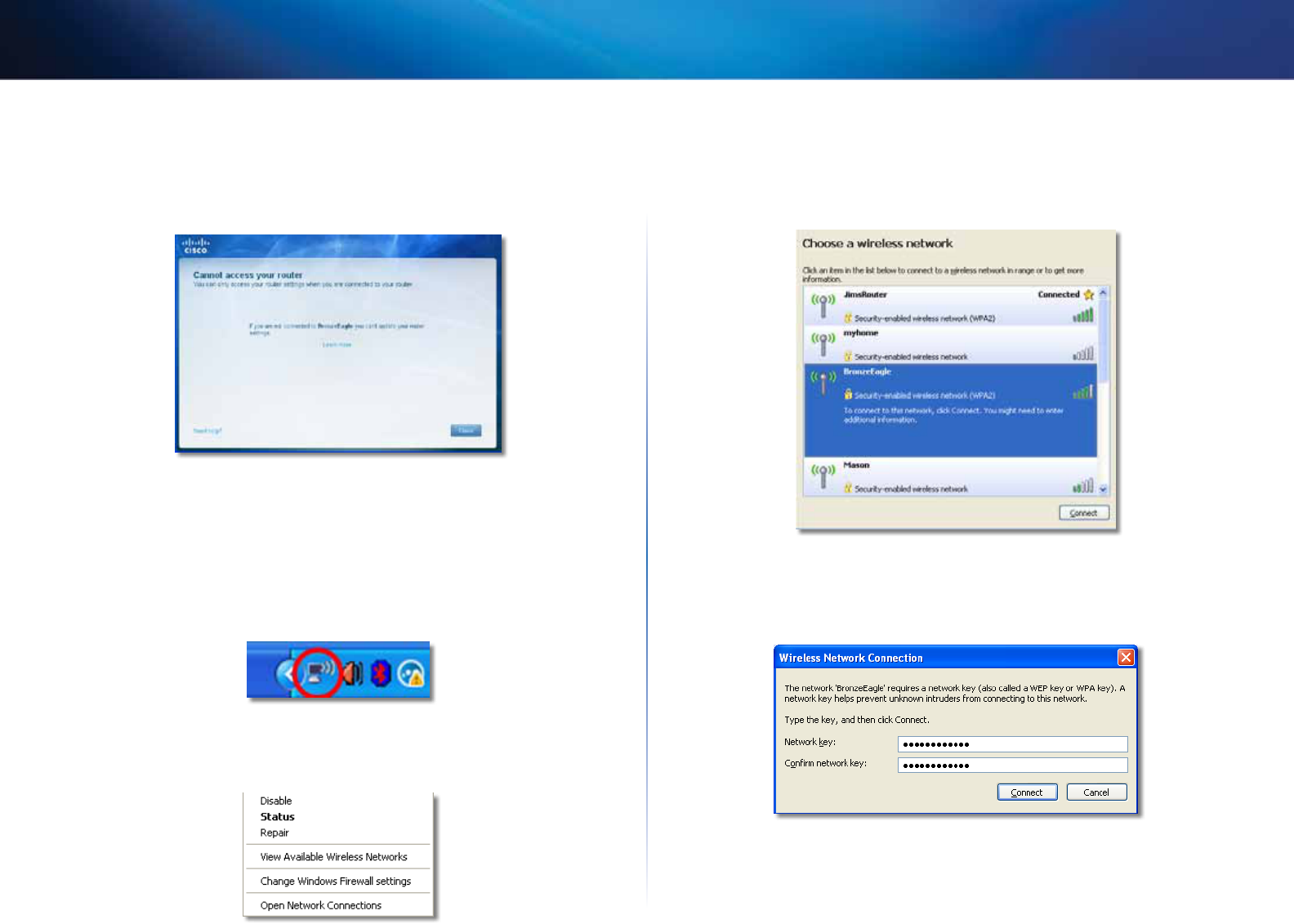

To fix the problem on Windows computers:
1.
On your Windows desktop, right-click the wireless icon in the system tray.
2.
Click View Available Wireless Networks. A list of available networks
appears.
3.
Click your own network name, then click Connect. In the example
below, the computer was connected to another wireless network named
JimsRouter. The name of the Linksys E-Series network, BronzeEagle in this
example, is shown selected.
4.
If you are prompted to enter a network key, type your password (Security
Key) into the Network key and Confirm network key fields, then click
Connect.
Your computer connects to the network, and you should now be able to
access the router.
![](/img.php?id=1633253&img=bg10.png)
14
Troubleshooting
Linksys EA-Series

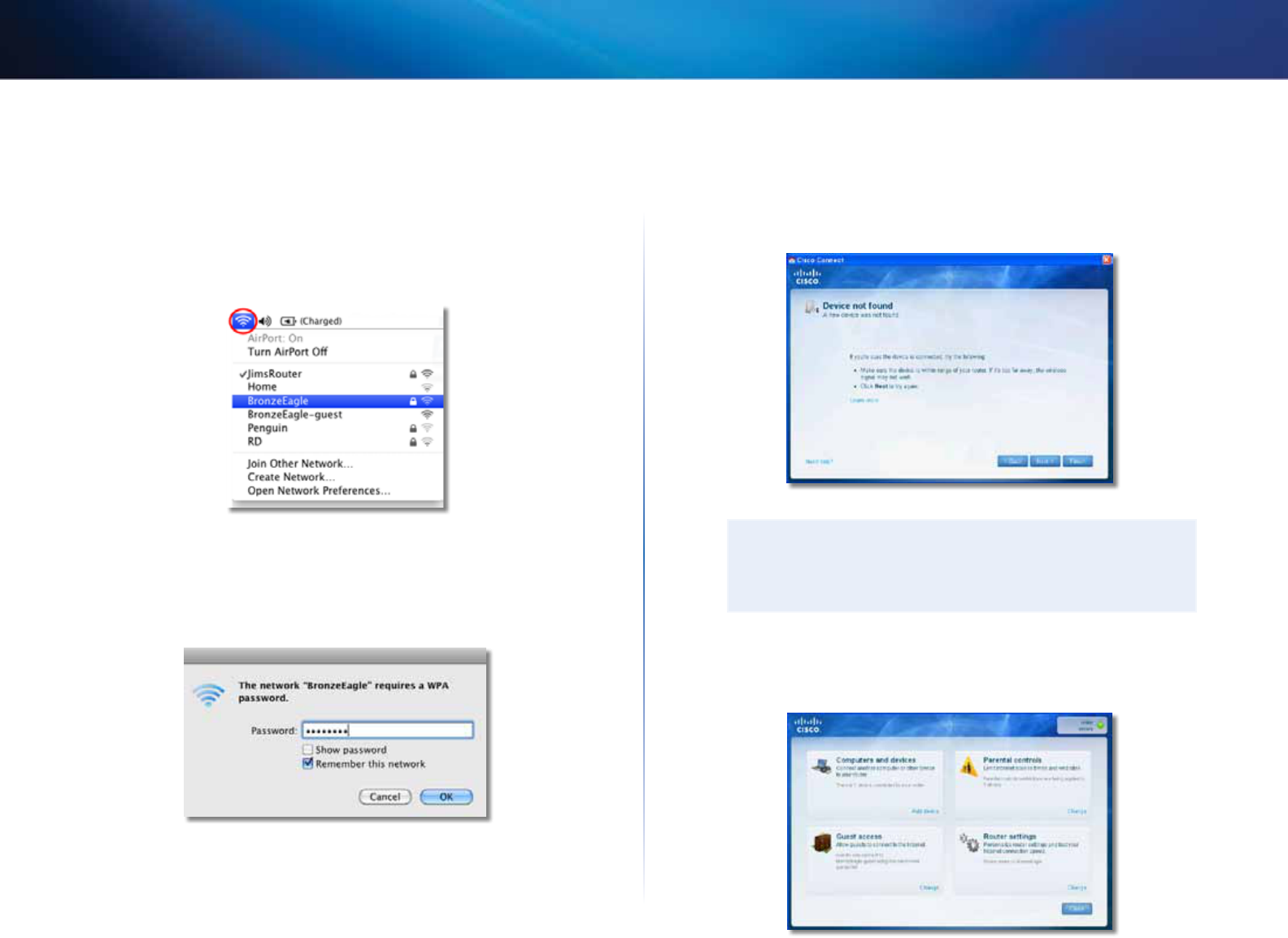

To fix the problem on Mac computers:
1.
In the menu bar across the top of the screen, click the AirPort icon. A list
of wireless networks appears. Cisco Connect has automatically assigned
your network a name.
In the example below, the computer was connected to another wireless
network named JimsRouter. The name of the Linksys E-Series network,
BronzeEagle in this example, is shown selected.
2.
Click the wireless network name of your Linksys E-Series router
(BronzeEagle in the example).
3.
Type your wireless network password (Security Key) into the Password
field, then click OK.
Device not found message
If you get a “Device not found” message when trying to connect a network
device (such as an iPhone, iPod, or smartphone), follow these troubleshooting
steps.
TIP
For a stronger signal during initial setup, move your wireless
devices near your router. Long distances make it harder for the
router to detect the devices.
To fix the problem:
1.
Run Cisco Connect.
![](/img.php?id=1633253&img=bg11.png)
15
Troubleshooting
Linksys EA-Series
2.

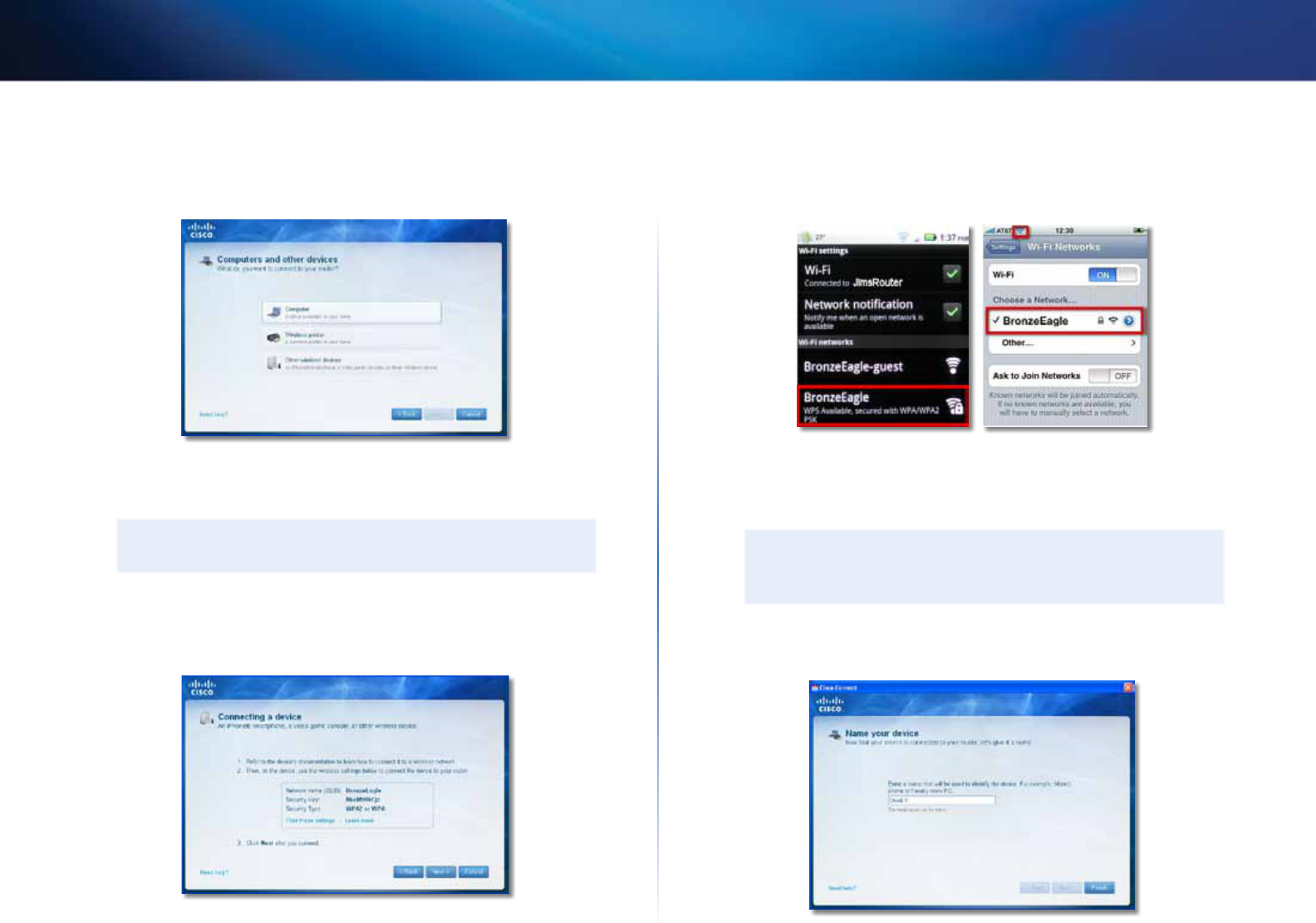

Click Computers and devices. The Computers and other devices window
appears.
3.
Click Other Wireless devices.
4.
Enable your wireless network device’s Wi-Fi connection, then search for
your wireless network name. See your device documentation for help.
NOTE
Your wireless device must support WPA/WPA2.
5.
On the wireless network device, select the network name of your router
and enter the password (Security Key).
6.
In Cisco Connect, click Next.
Example: On your Smartphone or other wireless device, locate the Wi-
Fi menu and search for available wireless networks. In this example,
using the network information provided by Cisco Connect shown in the
previous screen, click BronzeEagle.
Android iPhone
7.
Enter the password (Security Key) provided by Cisco Connect. In this
example, the security key is B6eM9UkCjz.
NOTE
The password is case sensitive. Make sure that you enter letters in
the correct case.
8.
When your wireless device is successfully connected to your wireless
network, enter a name for the device in Cisco Connect, then click Finish.
![](/img.php?id=1633253&img=bg12.png)
16
Specifications
Linksys EA-Series
16
16
Linksys EA2700
Model Name Linksys EA2700
Description Dual-Band N600 Router with Gigabit
Model Number EA2700
Standards 802.11n, 802.11a, 802.11g, 802.11b, 802.3,
802.3u, 802.3ab
# of Antennas 4 total, 2 internal antennas per each
2.4 GHz & 5 GHz radio band
Detachable (y/n) No
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Modulation 802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Receive Sensitivity 2.4 GHz
(Typical) 802.11b: -90 dBm @ 11 Mbps
802.11g: -75 dBm @ 54 Mbps
802.11n 20 MHz: -73 dBm @ MCS15
802.11n 40 MHz: -70 dBm @ MCS15
5 GHz
802.11a: -72 dBm @ 54 Mbps
802.11n 20 MHz: -70 dBm @ MCS15
802.11n 40 MHz: -67 dBm @ MCS15
Antenna Gain 2.4 GHz
Antenna 1 ≤ 3.45 dBi
Antenna 2 ≤ 2.46 dBi
5 GHz
Antenna 1 ≤ 4.41 dBi
Antenna 2 ≤ 5.15 dBi
UPnP Supported
Security features WEP, WPA, WPA2
Security key bits Up to 128-bit encryption
Environmental
Dimensions 174 x 190 x 28 mm
(6.85" x 7.48" x 1.10")
Unit Weight 297.7 g (10.5 oz)
Power 12V, 1A
Certifications FCC, IC, CE, Wi-Fi A/B/G/N
Operating Temp. 0 to 40°C (32 to 104°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity 10 to 80%, relative humidity,
non-condensing
Storage Humidity 5 to 90% non-condensing
NOTES
For regulatory, warranty, and safety information, see the CD that
came with your router or go to Linksys.com/support.
Specifications are subject to change without notice.
Maximum performance derived from IEEE Standard 802.11
specifications. Actual performance can vary, including lower
wireless network capacity, data throughput rate, range and
coverage. Performance depends on many factors, conditions and
variables, including distance from the access point, volume of
network traffic, building materials and construction, operating
system used, mix of wireless products used, interference and other
adverse conditions.
Specifications
5.15
3.60
![](/img.php?id=1633253&img=bg13.png)
17
Specifications
Linksys EA-Series
17
Linksys EA3500
Model Name Linksys EA3500
Description Dual-Band N750 Router with Gigabit and USB
Model Number EA3500
# of Antennas 6 total, 3 internal antennas per
each 2.4 GHz & 5 GHz radio band
Detachable (y/n) No
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Ports Internet, Ethernet (1-4), USB, Power
Buttons Reset, Wi-Fi Protected Setup
LEDs Power, Internet, Ethernet (1-4)
Modulation 802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Receive Sensitivity 2.4 GHz
802.11b: -87 dBm @ 11 Mbps (Typical)
802.11g: -77 dBm @ 54 Mbps (Typical)
802.11n (20 MHz): -72 dBm @ MCS15 (Typical)
802.11n (40 MHz): -69 dBm @ MCS15 (Typical)
5 GHz
802.11a: -74 dBm @ 54 Mbps (Typical)
802.11n 20 MHz: -67 dBm @ MCS23 (Typical)
802.11n 40 MHz: -64 dBm @ MCS23 (Typical)
Antenna Gain 2.4 GHz (Dipole Antennas)
Antenna 1 ≤ 2.70 dBi
Antenna 2 ≤ 3.70 dBi
Antenna 3 ≤ 4.95 dBi
5 GHz (Dipole Antennas)
Antenna 1 ≤ 4.46 dBi
Antenna 2 ≤ 3.23 dBi
Antenna 3 ≤ 3.88 dBi
UPnP Supported
Security features WEP, WPA, WPA2
Security key bits Up to 128-bit encryption
Storage File System Support FAT, and NTFS, and HFS+
Environmental
Dimensions 6.69" x 0.98" x 7.48"
(170 x 25 x 190 mm)
Unit Weight 11.5 oz (326 g)
Power 12V, 2A
Certifications FCC, IC, CE, Wi-Fi A/B/G/N, Windows 7
Operating Temp. 32 to 95°F (0 to 35°C)
Storage Temp. -4 to 140°F (-20 to 60°C)
Operating Humidity 10 to 80% relative humidity,
non-condensing
Storage Humidity 5 to 90% non-condensing
NOTES
For regulatory, warranty, and safety information, see the CD that
came with your router or go to Linksys.com/support.
Specifications are subject to change without notice.
Maximum performance derived from IEEE Standard 802.11
specifications. Actual performance can vary, including lower
wireless network capacity, data throughput rate, range and
coverage. Performance depends on many factors, conditions and
variables, including distance from the access point, volume of
network traffic, building materials and construction, operating
system used, mix of wireless products used, interference and other
adverse conditions.
![](/img.php?id=1633253&img=bg14.png)
18
Specifications
Linksys EA-Series
18
Linksys EA4500
Model Name Linksys EA4500
Description Dual-Band N900 Router with Gigabit and USB
Model Number EA4500
Standards 802.11n, 802.11a, 802.11g, 802.11b, 802.3,
802.3u, 802.3ab
Radio Frequency 2.4 and 5 GHz
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Ports Power, USB, Internet, Ethernet (1-4)
Buttons Reset, Wi-Fi Protected Setup
LEDs Top panel: Power
Back panel: Internet, Ethernet (1-4)
Number of Antennas 6 total, 3 internal antennas per
each 2.4 GHz and 5 GHz radio band
Detachable (y/n) No
Modulations 802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Receive Sensitivity 2.4 GHz
802.11b: -87 dBm @ 11 Mbps (Typical)
802.11g: -77 dBm @ 54 Mbps (Typical)
802.11n: 20 MHz: -70 dBm @ MCS23 (Typical)
802.11n: 40 MHz: -66 dBm @ MCS23 (Typical)
5 GHz
802.11a: -74 dBm @ 54 Mbps (Typical)
802.11n: 20 MHz: -67 dBm @ MCS23 (Typical)
802.11n: 40 MHz: -64 dBm @ MCS23 (Typical)
Antenna Gain in dBi 2.4 GHz (3 internal PIFA antennas)
PIFA 1 ≤ 3.31 dBi (Right)
PIFA 2 ≤ 3.45 dBi (Front)
PIFA 3 ≤ 1.96 dBi (Left)
5 GHz (3 internal PIFA antennas)
PIFA 1 ≤ 3.71 dBi (Right)
PIFA 2 ≤ 3.60 dBi (Front)
PIFA 3 ≤ 4.27 dBi (Left)
Supported File Systems
for Storage Device FAT32, NTFS, and HFS+
UPnP Supported
Security Features WEP, WPA, WPA2
Security Key Bits Up to 128-bit encryption
Environmental
Dimensions 8.86" x 0.98" x 6.30"
(225 x 25 x 160 mm)
Unit Weight 12.7 oz (360 g)
Power 12V, 2A
Certifications FCC, IC, CE, Wi-Fi a/b/g/n,
Windows 7, DLNA
Operating Temp. 32 to 104°F (0 to 40°C)
Storage Temp. -4 to 140°F (-20 to 60°C)
Operating Humidity 10 to 80% relative humidity,
non-condensing
Storage Humidity 5 to 90% non-condensing
NOTES
For regulatory, warranty, and safety information, see the CD that
came with your router or go to Linksys.com/support.
Specifications are subject to change without notice.
Maximum performance derived from IEEE Standard 802.11
specifications. Actual performance can vary, including lower
wireless network capacity, data throughput rate, range and
coverage. Performance depends on many factors, conditions and
variables, including distance from the access point, volume of
network traffic, building materials and construction, operating
system used, mix of wireless products used, interference and other
adverse conditions.
![](/img.php?id=1633253&img=bg15.png)
3425-01602
Cisco, the Cisco logo, and Linksys are trademarks or registered trademarks of Cisco and/or its affiliates in the United States and other countries.
A listing of Cisco’s trademarks can be found at www.cisco.com/go/trademarks. All other trademarks mentioned in this document are the property of their respective owners.
© 2012 Cisco and/or its affiliates. All rights reserved.
Visit linksys.com/support for award-winning technical support
![](/img.php?id=1633253&img=bg16.png)
Linksys Dual-Band N Routers and Bridges
Regulatory Information
![](/img.php?id=1633253&img=bg17.png)
i
Linksys Dual-Band N Routers and Bridges
Table of Contents
Wireless Regulatory Information 1
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Avis de non-responsabilité concernant les appareils sans fil . . . . . . . . . . . . . . . . . . 2
Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive). . . 2
Wireless Equipment (Wireless-N/G/A/B Products) . . . . . . . . . . . . . . . . . . . . . . . . . 3
National Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Usage Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Documents on
http://home.cisco.com/wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WEEE Information 5
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste
Electric and Electronic Equipment (WEEE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
![](/img.php?id=1633253&img=bg18.png)
1
Linksys Dual-Band N Routers and Bridges
Wireless Regulatory Information
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This product has been tested and complies with the
specifications for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used according to the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which is found by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment or
devices
•Connect the equipment to an outlet other than the
receiver’s
•Consult a dealer or an experienced radio/TV technician
for assistance
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the
USA is firmware-limited to channels 1 through 11.
The device for the band 5150-5250 MHz is only for indoor
usage to reduce the potential for harmful interference to
co-channel mobile satellite systems.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20 cm between the radiator and your
body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Safety Notices
WARNING: Do not use this product near water,
for example, in a wet basement or near a
swimming pool.
WARNING: Avoid using this product during an
electrical storm. There may be a remote risk of
electric shock from lightning.
WARNING: This product contains lead, known
to the State of California to cause cancer, and
birth defects or other reproductive harm. Wash
hands after handling.
Industry Canada Statement
This Class B digital apparatus complies with Canadian
ICES-003 and RSS210.
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Industry Canada Radiation Exposure
Statement
This equipment complies with IC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance
20 cm between the radiator & your body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Restrictions in the 5 GHz Band
The device for the band 5150-5250 MHz is only for indoor
usage to reduce potential for harmful interference to co-
channel mobile satellite systems.
Because high power radars are allocated as primary users
(meaning they have priority) in 5250-5350 MHz and
5650-5850 MHz, these radars could cause interference
and/or damage to licensed exempt LAN devices.
Additional requirements for the band 5600-5650 MHz:
Until further notice, devices subject to this Section
shall not be capable of transmitting in the band 5600-
5650 MHz, so that Environment Canada weather radars
operating in this band are protected.
![](/img.php?id=1633253&img=bg19.png)
2
Linksys Dual-Band N Routers and Bridges
Avis d’Industrie Canada
Cet appareil numérique de la classe B est conforme aux
normes NMB-003 et RSS210 du Canada.
L’utilisation de ce dispositif est autorisée seulement aux
conditions suivantes :
1. il ne doit pas produire de brouillage et
2. il doit accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre
le fonctionnement du dispositif.
Avis d’Industrie Canada concernant
l’exposition aux radiofréquences
Ce matériel est conforme aux limites établies par IC
en matière d’exposition aux radiofréquences dans un
environnement non contrôlé. Ce matériel doit être installé
et utilisé à une distance d’au moins 20 cm entre l’antenne
et le corps de l’utilisateur.
L’émetteur ne doit pas être placé près d’une autre antenne
ou d’un autre émetteur, ou fonctionner avec une autre
antenne ou un autre émetteur.
Restrictions dans la bande 5 GHz
L’appareil pour la bande de 5150 à 5250 MHz est conçu
pour usage à l’intérieur seulement afin de réduire le
potentiel d’interférences pour les systèmes mobiles par
satellite qui utilisent le même canal.
Du fait que les radars haute puissance ont la priorité
dans les bandes 5250-5350 MHz et 5650-5850 MHz, ils
pourraient causer des interférences ou endommager les
périphériques réseau sans fil.
Autres restrictions pour la bande 5 600-5 650 MHz : sauf
avis contraire, les périphériques concernés par cette
section ne doivent pas être capables de transmettre dans
la bande 5 600-5 650 MHz afin de protéger les radars
d’Environnement Canada qui l’utilisent.
Wireless Disclaimer
The maximum performance for wireless is derived from
IEEE Standard 802.11 specifications. Actual performance
can vary, including lower wireless network capacity,
data throughput rate, range and coverage. Performance
depends on many factors, conditions and variables,
including distance from the access point, volume of
network traffic, building materials and construction,
operating system used, mix of wireless products used,
interference and other adverse conditions.
Avis de non-responsabilité concernant
les appareils sans fil
Les performances maximales pour les réseaux sans fil
sont tirées des spécifications de la norme IEEE 802.11.
Les performances réelles peuvent varier, notamment
en fonction de la capacité du réseau sans fil, du débit
de la transmission de données, de la portée et de la
couverture. Les performances dépendent de facteurs,
conditions et variables multiples, en particulier de la
distance par rapport au point d’accès, du volume du trafic
réseau, des matériaux utilisés dans le bâtiment et du
type de construction, du système d’exploitation et de la
combinaison de produits sans fil utilisés, des interférences
et de toute autre condition défavorable.
Declaration of Conformity with Regard
to EU Directive 1999/5/EC (R&TTE
Directive)
Compliance Information for Cisco Consumer Products (2,4
and 5 GHz) Relevant to the European Union and Other
Countries Following the EU Directive 1999/5/EC (R&TTE
Directive)
Бъ л г а р ск и
[Bulgarian]
Това оборудване отговаря на съществените
изисквания и приложими клаузи на
Директива 1999/5/ЕС.
Česky
[Czech]:
Toto zařízení je v souladu se základními
požadavky a ostatními odpovídajícími
ustanoveními Směrnice 1999/5/EC.
Dansk
[Danish]:
Dette udstyr er i overensstemmelse med
de væsentlige krav og andre relevante
bestemmelser i Direktiv 1999/5/EF.
Deutsch
[German]:
Dieses Gerät entspricht den grundlegenden
Anforderungen und den weiteren
entsprechenden Vorgaben der Richtlinie
1999/5/EU.
Eesti
[Estonian]:
See seade vastab direktiivi 1999/5/EÜ
olulistele nõuetele ja teistele asjakohastele
sätetele.
English:
This equipment is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español
[Spanish]:
Este equipo cumple con los requisitos
esenciales asi como con otras disposiciones
de la Directiva 1999/5/CE.
Ελληνική
[Greek]:
Αυτό ο εξοπλισµό είναι σε συµµόρφωση µε
τι ουσιώδει απαιτήσει και άλλε σχετικέ
διατάξει τη Οδηγία 1999/5/EC.
Français
[French]:
Cet appareil est conforme aux exigences
essentielles et aux autres dispositions
pertinentes de la Directive 1999/5/EC.
![](/img.php?id=1633253&img=bg1a.png)
3
Linksys Dual-Band N Routers and Bridges
Íslenska
[Icelandic]:
Þetta tæki er samkvæmt grunnkröfum og
öðrum viðeigandi ákvæðum Tilskipunar
1999/5/EC.
Italiano
[Italian]:
Questo apparato è conforme ai requisiti
essenziali e agli altri principi sanciti dalla
Direttiva 1999/5/CE.
Latviski
[Latvian]:
Šī iekārta atbilst Direktīvas 1999/5/
EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian]:
Šis įrenginys tenkina 1999/5/EB Direktyvos
esminius reikalavimus ir kitas šios direktyvos
nuostatas.
Nederlands
[Dutch]:
Dit apparaat voldoet aan de essentiele eisen
en andere van toepassing zijnde bepalingen
van de Richtlijn 1999/5/EC.
Malti
[Maltese]:
Dan l-apparat huwa konformi mal-ħtiġiet
essenzjali u l-provedimenti l-oħra rilevanti
tad-Direttiva 1999/5/EC.
Magyar
[Hungarian]:
Ez a készülék teljesíti az alapvető
követelményeket és más 1999/5/EK
irányelvben meghatározott vonatkozó
rendelkezéseket.
Norsk
[Norwegian]:
Dette utstyret er i samsvar med de
grunnleggende krav og andre relevante
bestemmelser i EU-direktiv 1999/5/EF.
Polski
[Polish]:
Urządzenie jest zgodne z ogólnymi
wymaganiami oraz szczególnymi warunkami
określonymi Dyrektywą UE: 1999/5/EC.
Português
[Portuguese]:
Este equipamento está em conformidade com
os requisitos essenciais e outras provisões
relevantes da Directiva 1999/5/EC.
Română
[Romanian]
Acest echipament este in conformitate
cu cerintele esentiale si cu alte prevederi
relevante ale Directivei 1999/5/EC.
Slovensko
[Slovenian]:
Ta naprava je skladna z bistvenimi zahtevami
in ostalimi relevantnimi pogoji Direktive
1999/5/EC.
Slovensky
[Slovak]:
Toto zariadenie je v zhode so základnými
požiadavkami a inými príslušnými
nariadeniami direktív: 1999/5/EC.
Suomi
[Finnish]:
Tämä laite täyttää direktiivin 1999/5/EY
olennaiset vaatimukset ja on siinä asetettujen
muiden laitetta koskevien määräysten
mukainen.
Svenska
[Swedish]:
Denna utrustning är i överensstämmelse med
de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
For all products, the Declaration of Conformity (DofC) is
available through one or more of these options:
• A pdf file is included on the product’s CD.
• A print copy is included with the product.
• A pdf file is available on the product’s webpage.
Visit http://home.cisco.com/wireless and select your
country or region. Then select your product.
If you need any other technical documentation, see the
“Technical Documents on http://home.cisco.com/wireless”
section, as shown later in this document.
Wireless Equipment
(Wireless-N/G/A/B Products)
The following standards were applied during the
assessment of the product against the requirements of
the Directive 1999/5/EC:
• Radio: EN 300 328 and/or EN 301 893 as applicable
• EMC: EN 301 489-1, EN 301 489-17
• Safety: EN 60950-1 and either EN 50385 or EN 50371
For the Cisco Wireless-N, -G, -B, and/or -A products, the
following CE mark and class 2 identifier are added to the
equipment.
National Restrictions
This product may be used in all EU countries (and other countries
following the EU directive 1999/5/EC) without any limitation
except for the countries mentioned below:
Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous
les pays ayant transposés la directive 1999/5/CE) sans aucune
limitation, excepté pour les pays mentionnés ci‑dessous:
Questo prodotto è utilizzabile in tutti i paesi EU (e in tutti gli altri
paesi che seguono le direttive EU 1999/5/EC) senza nessuna
limitazione, eccetto per i paesi menzionati di seguito:
Das Produkt kann in allen EU Staaten ohne Einschränkungen
eingesetzt werden (sowie in anderen Staaten die der EU Direktive
1999/5/CE folgen) mit Außnahme der folgenden aufgeführten
Staaten:
In the EU and other European countries, the 2,4- and 5-GHz
bands have been made available for the use of wireless local
area networks (LANs). The Overview of Regulatory Requirements
for Wireless LANs table provides an overview of the regulatory
requirements applicable for the 2,4- and 5-GHz bands.
Later in this document you will find an overview of countries
in which additional restrictions or requirements or both are
applicable.
The requirements for any country may evolve. Cisco Consumer
Products recommends that you check with the local authorities
for the latest status of their national regulations for both the 2,4-
and 5-GHz wireless LANs.
![](/img.php?id=1633253&img=bg1b.png)
4
Linksys Dual-Band N Routers and Bridges
Overview of Regulatory Requirements for Wireless LANs
Frequency
Band (MHz)†
Max Power
Level (EIRP)
(mW)
Indoor
ONLY
Indoor &
Outdoor
2400-2483,5 100 X
5150-5350†200 X
5470-5725 1000 X
†Dual band versions which can also operate in the 5 GHz band
are limited to only operate within the band 5150-5250 MHz and
as such are restricted to indoor use only (except Denmark).
The following countries have restrictions and/or requirements
in addition to those given in the Overview of Regulatory
Requirements for Wireless LANs table:
Denmark
In Denmark, the band 5150 - 5350 MHz is also allowed for
outdoor usage.
I Danmark må frekvensbåndet 5150 ‑ 5350 også anvendes
udendørs.
France
For 2,4 GHz, the product should not be used outdoors in the
band 2454 - 2483,5 MHz. There are no restrictions when used in
other parts of the 2,4 GHz band OR when used indoors. Check
http://www.arcep.fr/ for more details.
Pour la bande 2,4 GHz, l’ équipement ne doit pas être utilisé
en extérieur dans la bande 2454 ‑ 2483,5 MHz. Il n’y a aucune
restriction pour son utilisation dans d’autres parties de la bande
des 2,4 GHz ainsi que pour une utilisation en intérieur. Consultez
http://www.arcep.fr/ pour de plus amples détails.
Italy
This product meets the National Radio Interface and the
requirements specified in the National Frequency Allocation
Table for Italy. Unless this 2,4-GHz wireless LAN product is
operating within the boundaries of the owner’s property,
its use requires a “general authorization”. Please check
http://www.comunicazioni.it/ for more details.
Questo prodotto è conforme alle specifiche di Interfaccia
Radio Nazionali e rispetta il Piano Nazionale di ripartizione
delle frequenze in Italia. Se non viene installato all’interno
del proprio fondo, l’utilizzo di prodotti Wireless LAN a 2,4
GHz richiede una “Autorizzazione Generale”. Consultare
http://www.comunicazioni.it/ per maggiori dettagli.
Latvia
The outdoor usage of the 2,4 GHz band requires an authorization
from the Electronic Communications Office. Please check
http://www.esd.lv for more details.
2,4 GHz frekveču joslas izmantošanai ārpus telpām nepieciešama
atļauja no Elektronisko sakaru direkcijas. Vairāk informācijas:
http://www.esd.lv.
Notes:
1. Although Norway, Switzerland and Liechtenstein are
not EU member states, the EU Directive 1999/5/EC has
also been implemented in those countries.
2. The regulatory limits for maximum output power are
specified in EIRP. The EIRP level of a device can be
calculated by adding the gain of the antenna used
(specified in dBi) to the output power available at the
connector (specified in dBm).
Product Usage Restrictions
This product is designed for indoor usage only. Outdoor
usage is not recommended, unless otherwise noted.
2,4 GHz Restrictions
This product is designed for use with the standard, integral
or dedicated (external) antenna(s) that is/are shipped
together with the equipment.
Third-Party Software or Firmware
The use of software or firmware not supported/provided
by Cisco Consumer Products may result that the
equipment is no longer compliant with the regulatory
requirements.
Technical Documents on
www.myciscohome.com
Follow these steps to access technical documents:
1. Enter www.myciscohome.com in your web browser.
2. Click Change your location, and select the country or
region in which you live.
3. Click the Products tab.
4. Select the appropriate product category.
5. Select the product sub-category, if necessary.
6. Select the product.
7. Select the type of documentation you want from the
More Information section. The document will open in
PDF format if you have Adobe Reader installed on your
computer.
NOTE: If you have questions regarding
compliance of this product or you cannot
find the information you need, visit
http://home.cisco.com/wireless
![](/img.php?id=1633253&img=bg1c.png)
5
Linksys Dual-Band N Routers and Bridges
WEEE Information
User Information for Consumer Products
Covered by EU Directive 2002/96/EC on
Waste Electric and Electronic Equipment
(WEEE)
This document contains important information for users
with regards to the proper disposal and recycling of Cisco
home networking products. Consumers are required to
comply with this notice for all electronic products bearing
the following symbol:
English - Environmental Information for Customers in
the European Union
European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging must
not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately
from regular household waste streams. It is your responsibility to
dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government or
local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and
human health. For more detailed information about the disposal
of your old equipment, please contact your local authorities,
waste disposal service, or the shop where you purchased the
product.
Български (Bulgarian) - Информация относно
опазването на околната среда за потребители в
Европейския съюз
Европейска директива 2002/96/EC изисква уредите, носещи
този символ върху изделието и/или опаковката му, да не
се изхвърля т с несортирани битови отпадъци. Символът
обозначава, че изделието трябва да се изхвърля отделно от
сметосъбирането на обикновените битови отпадъци. Ваша
е отговорността този и другите електрически и електронни
уреди да се изхвърлят в предварително определени от
държавните или общински органи специализирани пунктове
за събиране. Правилното изхвърляне и рециклиране
ще спомогнат да се предотвратят евентуални вредни за
околната среда и здравето на населението последствия. За
по-подробна информация относно изхвърлянето на вашите
стари уреди се обърнете към местните власти, службите за
сметосъбиране или магазина, от който сте закупили уреда.
Čeština (Czech) - Informace o ochraně životního
prostředí pro zákazníky v zemích Evropské unie
Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené
tímto symbolem na produktu anebo na obalu bylo likvidováno
s netříděným komunálním odpadem. Tento symbol udává,
že daný produkt musí být likvidován odděleně od běžného
komunálního odpadu. Odpovídáte za likvidaci tohoto produktu
a dalších elektrických a elektronických zařízení prostřednictvím
určených sběrných míst stanovených vládou nebo místními
úřady. Správná likvidace a recyklace pomáhá předcházet
potenciálním negativním dopadům na životní prostředí a lidské
zdraví. Podrobnější informace o likvidaci starého vybavení si
laskavě vyžádejte od místních úřadů, podniku zabývajícího se
likvidací komunálních odpadů nebo obchodu, kde jste produkt
zakoupili.
Dansk (Danish) - Miljøinformation for kunder i EU
EU-direktiv 2002/96/EF kræver, at udstyr der bærer dette symbol
på produktet og/eller emballagen ikke må bortskaffes som
usorteret kommunalt affald. Symbolet betyder, at dette produkt
skal bortskaffes adskilt fra det almindelige husholdningsaffald.
Det er dit ansvar at bortskaffe dette og andet elektrisk og
elektronisk udstyr via bestemte indsamlingssteder udpeget
af staten eller de lokale myndigheder. Korrekt bortskaffelse
og genvinding vil hjælpe med til at undgå mulige skader for
miljøet og menneskers sundhed. Kontakt venligst de lokale
myndigheder, renovationstjenesten eller den butik, hvor du
har købt produktet, angående mere detaljeret information om
bortskaffelse af dit gamle udstyr.
Deutsch (German) - Umweltinformation für Kunden
innerhalb der Europäischen Union
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit
diesem Symbol versehen ist , nicht zusammen mit unsortiertem
Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf
hin, dass das Produkt von regulärem Haushaltmüll getrennt
entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses
Gerät und andere elektrische und elektronische Geräte über
die dafür zuständigen und von der Regierung oder örtlichen
Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche
Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur
Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an
die örtlichen Behörden oder städtischen Entsorgungsdienste
oder an den Händler, bei dem Sie das Produkt erworben haben.
![](/img.php?id=1633253&img=bg1d.png)
6
Linksys Dual-Band N Routers and Bridges
Eesti (Estonian) - Keskkonnaalane informatsioon
Euroopa Liidus asuvatele klientidele
Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on
seadmeid, millel on tootel või pakendil käesolev sümbol ,
keelatud kõrvaldada koos sorteerimata olmejäätmetega. See
sümbol näitab, et toode tuleks kõrvaldada eraldi tavalistest
olmejäätmevoogudest. Olete kohustatud kõrvaldama käesoleva
ja ka muud elektri- ja elektroonikaseadmed riigi või kohalike
ametiasutuste poolt ette nähtud kogumispunktide kaudu.
Seadmete korrektne kõrvaldamine ja ringlussevõtt aitab vältida
võimalikke negatiivseid tagajärgi keskkonnale ning inimeste
tervisele. Vanade seadmete kõrvaldamise kohta täpsema
informatsiooni saamiseks võtke palun ühendust kohalike
ametiasutustega, jäätmekäitlusfirmaga või kauplusega, kust te
toote ostsite.
Español (Spanish) - Información medioambiental para
clientes de la Unión Europea
La Directiva 2002/96/CE de la UE exige que los equipos que
lleven este símbolo en el propio aparato y/o en su embalaje
no deben eliminarse junto con otros residuos urbanos no
seleccionados. El símbolo indica que el producto en cuestión
debe separarse de los residuos domésticos convencionales con
vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de
los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos
aparatos estará contribuyendo a evitar posibles consecuencias
negativas para el medio ambiente y la salud de las personas. Si
desea obtener información más detallada sobre la eliminación
segura de su aparato usado, consulte a las autoridades locales,
al servicio de recogida y eliminación de residuos de su zona o
pregunte en la tienda donde adquirió el producto.
Ελληνικά (Greek) - Στοιχεία περιβαλλοντικής
προστασίας για πελάτες εντός της Ευρωπαϊκής
Ένωσης
Σύφωνα ε την Κοινοτική Οδηγία 2002/96/EC, ο εξοπλισό που
φέρει αυτό το σύβολο στο προϊόν ή/και τη συσκευασία του
δεν πρέπει να απορρίπτεται αζί ε τα η διαχωρισένα αστικά
απορρίατα. Το σύβολο υποδεικνύει ότι αυτό το προϊόν θα
πρέπει να απορρίπτεται ξεχωριστά από τα συνήθη οικιακά
απορρίατα. Είστε υπεύθυνο για την απόρριψη του παρόντο
και άλλου ηλεκτρικού και ηλεκτρονικού εξοπλισού έσω των
καθορισένων εγκαταστάσεων συγκέντρωση απορριάτων,
οι οποίε ορίζονται από το κράτο ή τι αρόδιε τοπικέ αρχέ.
Η σωστή απόρριψη και ανακύκλωση συβάλλει στην πρόληψη
ενδεχόενων αρνητικών επιπτώσεων στο περιβάλλον και την
υγεία. Για περισσότερε πληροφορίε σχετικά ε την απόρριψη
του παλαιού σα εξοπλισού, επικοινωνήστε ε τι τοπικέ
αρχέ, τι υπηρεσίε αποκοιδή απορριάτων ή το κατάστηα
από το οποίο αγοράσατε το προϊόν.
Français (French) - Informations environnementales
pour les clients de l’Union européenne
La directive européenne 2002/96/CE exige que l’équipement
sur lequel est apposé ce symbole sur le produit et/ou son
emballage ne soit pas jeté avec les autres ordures ménagères. Ce
symbole indique que le produit doit être éliminé dans un circuit
distinct de celui pour les déchets des ménages. Il est de votre
responsabilité de jeter ce matériel ainsi que tout autre matériel
électrique ou électronique par les moyens de collecte indiqués
par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme
ont pour but de lutter contre l’impact néfaste potentiel de ce
type de produits sur l’environnement et la santé publique. Pour
plus d’informations sur le mode d’élimination de votre ancien
équipement, veuillez prendre contact avec les pouvoirs publics
locaux, le service de traitement des déchets, ou l’endroit où vous
avez acheté le produit.
Italiano (Italian) - Informazioni relative all’ambiente
per i clienti residenti nell’Unione Europea
La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o
sull’imballaggio non siano smaltite insieme ai rifiuti urbani
non differenziati. Il simbolo indica che questo prodotto non
deve essere smaltito insieme ai normali rifiuti domestici. È
responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante
le specifiche strutture di raccolta indicate dal governo o dagli
enti pubblici locali. Il corretto smaltimento ed il riciclaggio
aiuteranno a prevenire conseguenze potenzialmente negative
per l’ambiente e per la salute dell’essere umano. Per ricevere
informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli
enti pubblici di competenza, il servizio di smaltimento rifiuti o il
negozio nel quale avete acquistato il prodotto.
Latviešu valoda (Latvian) - Ekoloģiska informācija
klientiem Eiropas Savienības jurisdikcijā
Direktīvā 2002/96/EK ir prasība, ka aprīkojumu, kam pievienota
zīme uz paša izstrādājuma vai uz tā iesaiņojuma, nedrīkst
izmest nešķirotā veidā kopā ar komunālajiem atkritumiem
(tiem, ko rada vietēji iedzīvotāji un uzņēmumi). Šī zīme nozīmē
to, ka šī ierīce ir jāizmet atkritumos tā, lai tā nenonāktu kopā ar
parastiem mājsaimniecības atkritumiem. Jūsu pienākums ir šo
un citas elektriskas un elektroniskas ierīces izmest atkritumos,
izmantojot īpašus atkritumu savākšanas veidus un līdzekļus, ko
nodrošina valsts un pašvaldību iestādes. Ja izmešana atkritumos
un pārstrāde tiek veikta pareizi, tad mazinās iespējamais
kaitējums dabai un cilvēku veselībai. Sīkākas ziņas par
novecojuša aprīkojuma izmešanu atkritumos jūs varat saņemt
vietējā pašvaldībā, atkritumu savākšanas dienestā, kā arī veikalā,
kur iegādājāties šo izstrādājumu.
![](/img.php?id=1633253&img=bg1e.png)
7
Linksys Dual-Band N Routers and Bridges
Lietuvškai (Lithuanian) - Aplinkosaugos informacija,
skirta Europos Sąjungos vartotojams
Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir
kurios pakuotė yra pažymėta šiuo simboliu (įveskite simbolį),
negalima šalinti kartu su nerūšiuotomis komunalinėmis
atliekomis. Šis simbolis rodo, kad gaminį reikia šalinti atskirai
nuo bendro buitinių atliekų srauto. Jūs privalote užtikrinti, kad
ši ir kita elektros ar elektroninė įranga būtų šalinama per tam
tikras nacionalinės ar vietinės valdžios nustatytas atliekų rinkimo
sistemas. Tinkamai šalinant ir perdirbant atliekas, bus išvengta
galimos žalos aplinkai ir žmonių sveikatai. Daugiau informacijos
apie jūsų senos įrangos šalinimą gali pateikti vietinės valdžios
institucijos, atliekų šalinimo tarnybos arba parduotuvės, kuriose
įsigijote tą gaminį.
Malti (Maltese) - Informazzjoni Ambjentali għal
Klijenti fl-Unjoni Ewropea
Id-Direttiva Ewropea 2002/96/KE titlob li t-tagħmir li jkun fih
is-simbolu fuq il-prodott u/jew fuq l-ippakkjar ma jistax
jintrema ma’ skart muniċipali li ma ġiex isseparat. Is-simbolu
jindika li dan il-prodott għandu jintrema separatament minn ma’
l-iskart domestiku regolari. Hija responsabbiltà tiegħek li tarmi
dan it-tagħmir u kull tagħmir ieħor ta’ l-elettriku u elettroniku
permezz ta’ faċilitajiet ta’ ġbir appuntati apposta mill-gvern jew
mill-awtoritajiet lokali. Ir-rimi b’mod korrett u r-riċiklaġġ jgħin
jipprevjeni konsegwenzi negattivi potenzjali għall-ambjent u
għas-saħħa tal-bniedem. Għal aktar informazzjoni dettaljata
dwar ir-rimi tat-tagħmir antik tiegħek, jekk jogħġbok ikkuntattja
lill-awtoritajiet lokali tiegħek, is-servizzi għar-rimi ta’ l-iskart, jew
il-ħanut minn fejn xtrajt il-prodott.
Magyar (Hungarian) - Környezetvédelmi információ az
európai uniós vásárlók számára
A 2002/96/EC számú európai uniós irányelv megkívánja,
hogy azokat a termékeket, amelyeken, és/vagy amelyek
csomagolásán az alábbi címke megjelenik, tilos a többi
szelektálatlan lakossági hulladékkal együtt kidobni. A címke
azt jelöli, hogy az adott termék kidobásakor a szokványos
háztartási hulladékelszállítási rendszerektõl elkülönített eljárást
kell alkalmazni. Az Ön felelõssége, hogy ezt, és más elektromos
és elektronikus berendezéseit a kormányzati vagy a helyi
hatóságok által kijelölt gyűjtõredszereken keresztül számolja
fel. A megfelelõ hulladékfeldolgozás segít a környezetre és az
emberi egészségre potenciálisan ártalmas negatív hatások
megelõzésében. Ha elavult berendezéseinek felszámolásához
további részletes információra van szüksége, kérjük, lépjen
kapcsolatba a helyi hatóságokkal, a hulladékfeldolgozási
szolgálattal, vagy azzal üzlettel, ahol a terméket vásárolta.
Nederlands (Dutch) - Milieu-informatie voor klanten
in de Europese Unie
De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die
is voorzien van dit symbool op het product of de verpakking,
niet mag worden ingezameld met niet-gescheiden huishoudelijk
afval. Dit symbool geeft aan dat het product apart moet worden
ingezameld. U bent zelf verantwoordelijk voor de vernietiging
van deze en andere elektrische en elektronische apparatuur via de
daarvoor door de landelijke of plaatselijke overheid aangewezen
inzamelingskanalen. De juiste vernietiging en recycling van
deze apparatuur voorkomt mogelijke negatieve gevolgen voor
het milieu en de gezondheid. Voor meer informatie over het
vernietigen van uw oude apparatuur neemt u contact op met
de plaatselijke autoriteiten of afvalverwerkingsdienst, of met de
winkel waar u het product hebt aangeschaft.
Norsk (Norwegian) - Miljøinformasjon for kunder i EU
EU-direktiv 2002/96/EF krever at utstyr med følgende symbol
avbildet på produktet og/eller pakningen, ikke må kastes
sammen med usortert avfall. Symbolet indikerer at dette
produktet skal håndteres atskilt fra ordinær avfallsinnsamling
for husholdningsavfall. Det er ditt ansvar å kvitte deg med
dette produktet og annet elektrisk og elektronisk avfall via egne
innsamlingsordninger slik myndighetene eller kommunene
bestemmer. Korrekt avfallshåndtering og gjenvinning vil
være med på å forhindre mulige negative konsekvenser for
miljø og helse. For nærmere informasjon om håndtering av
det kasserte utstyret ditt, kan du ta kontakt med kommunen,
en innsamlingsstasjon for avfall eller butikken der du kjøpte
produktet.
Polski (Polish) - Informacja dla klientów w Unii
Europejskiej o przepisach dotyczących ochrony
środowiska
Dyrektywa Europejska 2002/96/EC wymaga, aby sprzęt
oznaczony symbolem znajdującym się na produkcie i/
lub jego opakowaniu nie był wyrzucany razem z innymi
niesortowanymi odpadami komunalnymi. Symbol ten wskazuje,
że produkt nie powinien być usuwany razem ze zwykłymi
odpadami z gospodarstw domowych. Na Państwu spoczywa
obowiązek wyrzucania tego i innych urządzeń elektrycznych
oraz elektronicznych w punktach odbioru wyznaczonych
przez władze krajowe lub lokalne. Pozbywanie się sprzętu
we właściwy sposób i jego recykling pomogą zapobiec
potencjalnie negatywnym konsekwencjom dla środowiska i
zdrowia ludzkiego. W celu uzyskania szczegółowych informacji
o usuwaniu starego sprzętu, prosimy zwrócić się do lokalnych
władz, służb oczyszczania miasta lub sklepu, w którym produkt
został nabyty.
![](/img.php?id=1633253&img=bg1f.png)
8
Linksys Dual-Band N Routers and Bridges
Português (Portuguese) - Informação ambiental para
clientes da União Europeia
A Directiva Europeia 2002/96/CE exige que o equipamento
que exibe este símbolo no produto e/ou na sua embalagem
não seja eliminado junto com os resíduos municipais não
separados. O símbolo indica que este produto deve ser
eliminado separadamente dos resíduos domésticos regulares.
É da sua responsabilidade eliminar este e qualquer outro
equipamento eléctrico e electrónico através das instalações
de recolha designadas pelas autoridades governamentais ou
locais. A eliminação e reciclagem correctas ajudarão a prevenir
as consequências negativas para o ambiente e para a saúde
humana. Para obter informações mais detalhadas sobre a
forma de eliminar o seu equipamento antigo, contacte as
autoridades locais, os serviços de eliminação de resíduos ou o
estabelecimento comercial onde adquiriu o produto.
Română (Romanian) - Informaţii de mediu pentru
clienţii din Uniunea Europeană
Directiva europeană 2002/96/CE impune ca echipamentele care
prezintă acest simbol pe produs şi/sau pe ambalajul acestuia să
nu fie casate împreună cu gunoiul menajer municipal. Simbolul
indică faptul că acest produs trebuie să fie casat separat de
gunoiul menajer obişnuit. Este responsabilitatea dvs. să casaţi
acest produs şi alte echipamente electrice şi electronice prin
intermediul unităţilor de colectare special desemnate de guvern
sau de autorităţile locale. Casarea şi reciclarea corecte vor ajuta
la prevenirea potenţialelor consecinţe negative asupra sănătăţii
mediului şi a oamenilor. Pentru mai multe informaţii detaliate
cu privire la casarea acestui echipament vechi, contactaţi
autorităţile locale, serviciul de salubrizare sau magazinul de la
care aţi achiziţionat produsul.
Slovenčina (Slovak) - Informácie o ochrane životného
prostredia pre zákazníkov v Európskej únii
Podľa európskej smernice 2002/96/ES zariadenie s týmto
symbolom na produkte a/alebo jeho balení nesmie byť
likvidované spolu s netriedeným komunálnym odpadom.
Symbol znamená, že produkt by sa mal likvidovať oddelene
od bežného odpadu z domácností. Je vašou povinnosťou
likvidovať toto i ostatné elektrické a elektronické zariadenia
prostredníctvom špecializovaných zberných zariadení určených
vládou alebo miestnymi orgánmi. Správna likvidácia a recyklácia
pomôže zabrániť prípadným negatívnym dopadom na životné
prostredie a zdravie ľudí. Ak máte záujem o podrobnejšie
informácie o likvidácii starého zariadenia, obráťte sa, prosím, na
miestne orgány, organizácie zaoberajúce sa likvidáciou odpadov
alebo obchod, v ktorom ste si produkt zakúpili.
Slovenščina (Slovene) - Okoljske informacije za
stranke v Evropski uniji
Evropska direktiva 2002/96/ES prepoveduje odlaganje opreme s
tem simbolom – na izdelku in/ali na embalaži z nesortiranimi
komunalnimi odpadki. Ta simbol opozarja, da je treba izdelek
zavreči ločeno od preostalih gospodinjskih odpadkov. Vaša
odgovornost je, da to in preostalo električno in elektronsko
opremo oddate na posebna zbirališča, ki jih določijo državne
ustanove ali lokalne oblasti. S pravilnim odlaganjem in
recikliranjem boste preprečili morebitne škodljive vplive na
okolje in zdravje ljudi. Če želite izvedeti več o odlaganju stare
opreme, se obrnite na lokalne oblasti, odlagališče odpadkov ali
trgovino, kjer ste izdelek kupili.
Suomi (Finnish) - Ympäristöä koskevia tietoja EU-
alueen asiakkaille
EU-direktiivi 2002/96/EY edellyttää, että jos laitteistossa on tämä
symboli itse tuotteessa ja/tai sen pakkauksessa, laitteistoa
ei saa hävittää lajittelemattoman yhdyskuntajätteen mukana.
Symboli merkitsee sitä, että tämä tuote on hävitettävä erillään
tavallisesta kotitalousjätteestä. Sinun vastuullasi on hävittää
tämä elektroniikkatuote ja muut vastaavat elektroniikkatuotteet
viemällä tuote tai tuotteet viranomaisten määräämään
keräyspisteeseen. Laitteiston oikea hävittäminen estää
mahdolliset kielteiset vaikutukset ympäristöön ja ihmisten
terveyteen. Lisätietoja vanhan laitteiston oikeasta hävitystavasta
saa paikallisilta viranomaisilta, jätteenhävityspalvelusta tai siitä
myymälästä, josta ostit tuotteen.
Svenska (Swedish) - Miljöinformation för kunder i
Europeiska unionen
Det europeiska direktivet 2002/96/EC kräver att utrustning med
denna symbol på produkten och/eller förpackningen inte får
kastas med osorterat kommunalt avfall. Symbolen visar att denna
produkt bör kastas efter att den avskiljts från vanligt hushållsavfall.
Det faller på ditt ansvar att kasta denna och annan elektrisk och
elektronisk utrustning på fastställda insamlingsplatser utsedda
av regeringen eller lokala myndigheter. Korrekt kassering och
återvinning skyddar mot eventuella negativa konsekvenser
för miljön och personhälsa. För mer detaljerad information om
kassering av din gamla utrustning kontaktar du dina lokala
myndigheter, avfallshanteringen eller butiken där du köpte
produkten.
WEB: For additional information, please visit
http://home.cisco.com/wireless
110420NC-MS3425-01439
![](/img.php?id=1633253&img=bg20.png)
www.linksys.com/support
Cisco, the Cisco Logo, and Linksys are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. A listing of Cisco’s
trademarks can be found at www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the
word partner does not imply a partnership relationship between Cisco and any other company.
© 2011 Cisco and/or its affiliates. All rights reserved.
