LINKSYS WRT54AG Wireless A/G Broadband Router User Manual WRT54AG ug Rev NC
LINKSYS LLC Wireless A/G Broadband Router WRT54AG ug Rev NC
LINKSYS >
Contents
- 1. Users Manual 1
- 2. Users Manual 2
- 3. Users Manual 3
- 4. Users Manual 4
Users Manual 1
![](/img.php?id=402255&img=bg1.png)
Dual-Band Wireless A/G
Broadband Router
Use this guide to install: WRT54AG
User Guide
![](/img.php?id=402255&img=bg2.png)
FCC Caution: Any change or modification to the product not expressly approved by
Linksys could void the user's authority to operate the device.
FCC RF Radiation Exposure Statement
To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this
device must comply with the following:
• Access points with 2.4 GHz integrated antenna must operate with a separation dis-
tance of at least 20 cm from all persons using the cable provided and must not be
co-located or operating in conjunction with any other antenna or transmitter.
End-users must be provided with specific operations for satisfying RF exposure compli-
ance.
Note: Dual antennas used for diversity operation are not considered co-located.
Canadian Department of Communications Industry Canada (IC) Notice
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210
du Canada.
"To prevent radio interference to the licensed service, this device is intended to be oper-
ated indoors and away from windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to licensing."
" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une
licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir
un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à
l'extérieur, il doit faire l'objet d'une licence. "
EC DECLARATION OF CONFORMITY (EUROPE)
Linksys Group declares that the product included conforms to the specifications listed
below, following the provisions of the European R&TTE directive 1999/5/EC, EMC direc-
tive 89/336/EEC, and Low Voltage directive 73/23/EEC:
For 11Mbps, 2.4 GHz access points with 100 mW radios, the following standards were
applied:
• EMC: EN 301 489-1, EN 301.89-17
• Safety: EN 60950
• Radio: ETS 300-328-2 Technical requirements for Radio equipment.
Caution: This equipment is intended to be used in all EU and EFTA countries. Outdoor
use may be restricted to certain frequencies and/or may require a license for operation.
Contact local Authority for procedure to follow.
Note: Combinations of power levels and antennas resulting in a radiated power level of
above 100 mW equivalent isotropic radiated power (EIRP) are considered as not com-
pliant with the above mentioned directive and are not allowed for use within the European
community and countries that have adopted the European R&TTE directive 1999/5/EC
and/or the CEPT recommendation Rec 70.03.
For more details on legal combinations of power levels and antennas, contact Linksys
Corporate Compliance.
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. Copyright © 2004 Linksys, All Rights
Reserved. Linksys and the Linksys logo are registered trademarks of Linksys Group, Inc.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft
Corporation. All other trademarks and brand names are the property of their respective
proprietors.
LIMITED WARRANTY
Linksys guarantees that every Dual-Band Wireless A/G Broadband Router will be free
from physical defects in material and workmanship for three years from the date of pur-
chase, when used within the limits set forth in the Specifications section of this User
Guide.
If the product proves defective during this warranty period, go to the Linksys website at
www.linksys.com
for complete RMA (Return Merchandise Authorization) assistance. You
can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TO
HAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-
AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED
WITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Number
clearly on the outside of the package and include a copy of your original proof of pur-
chase. All customers located outside of the United States of America and Canada shall
be held responsible for shipping and handling charges.
IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-
UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-
AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-
WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-
UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,
with respect to its products or the contents or use of this documentation and all accom-
panying software, and specifically disclaims its quality, performance, merchantability, or
fitness for any particular purpose. Linksys reserves the right to revise or update its prod-
ucts, software, or documentation without obligation to notify any individual or entity.
Please direct all inquiries to:
Linksys P.O. Box 18558, Irvine, CA 92623.
SAFETY AND REGULATORY NOTICES
FCC STATEMENT
The Dual-Band Wireless A/G Broadband Router has been tested and found to comply
with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which is found by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
![](/img.php?id=402255&img=bg3.png)
Dual-Band Wireless A/G Broadband Router
Table of Contents
Chapter 1: Introduction 1
The Dual-Band Wireless A/G Broadband Router 1
Features 2
The Router’s Functions 2
IP Addresses 3
Router Setup Overview 4
Chapter 2: Getting to Know the Dual-Band
Wireless A/G Broadband Router 6

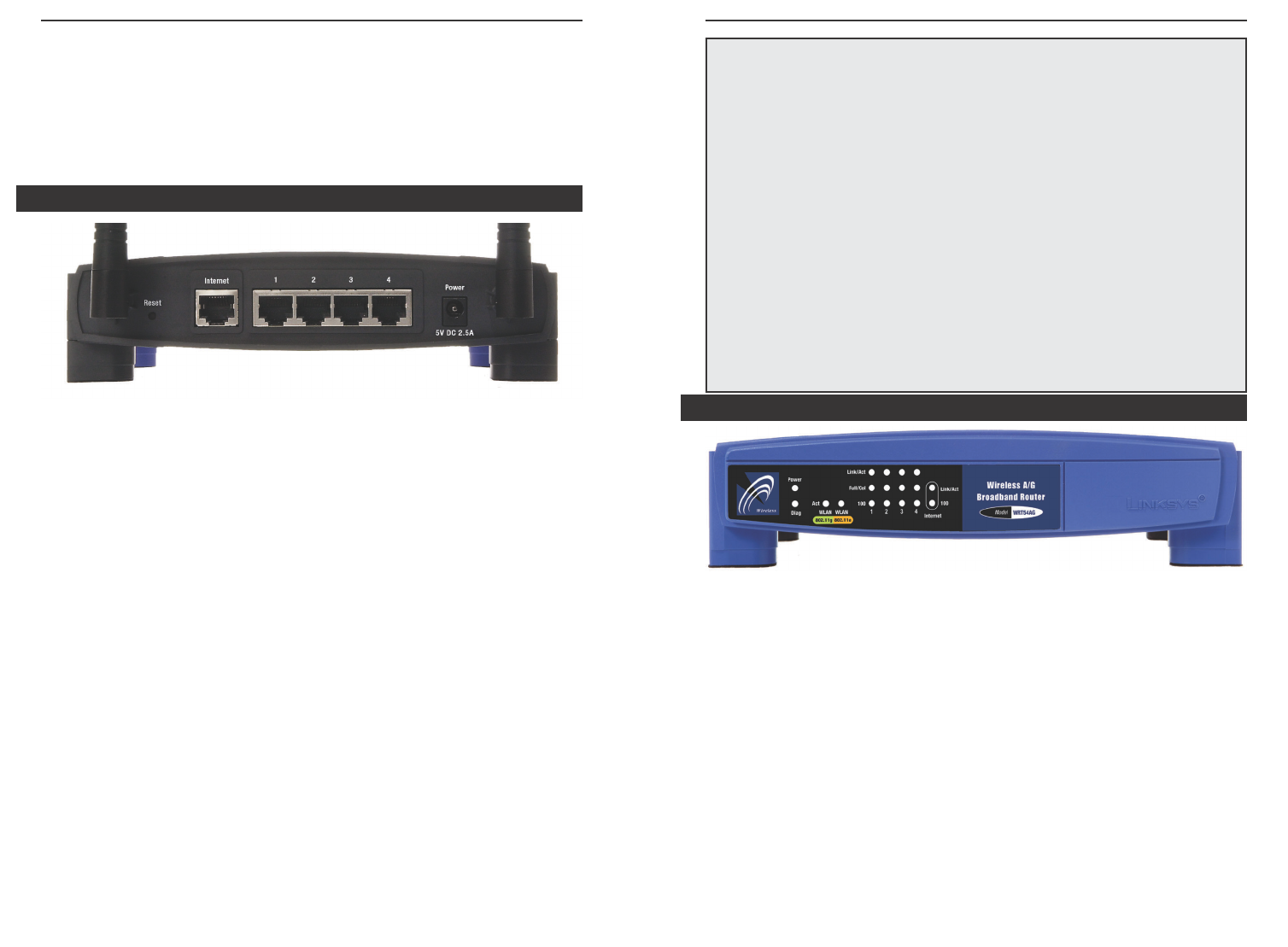

The Router’s Back Panel 6
The Router’s Front Panel LEDs 7
Chapter 3: Connect the Router 10
Overview 10

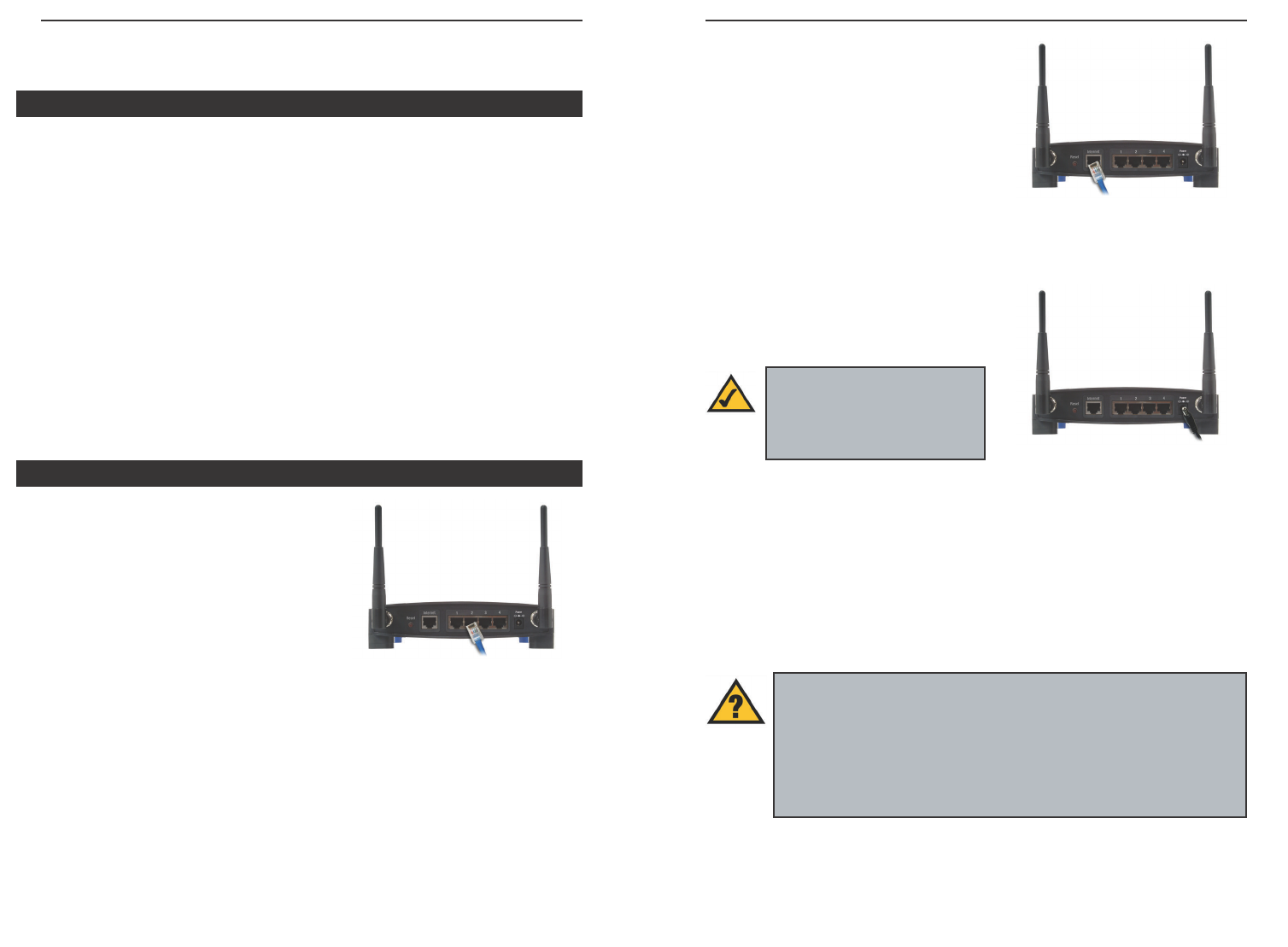

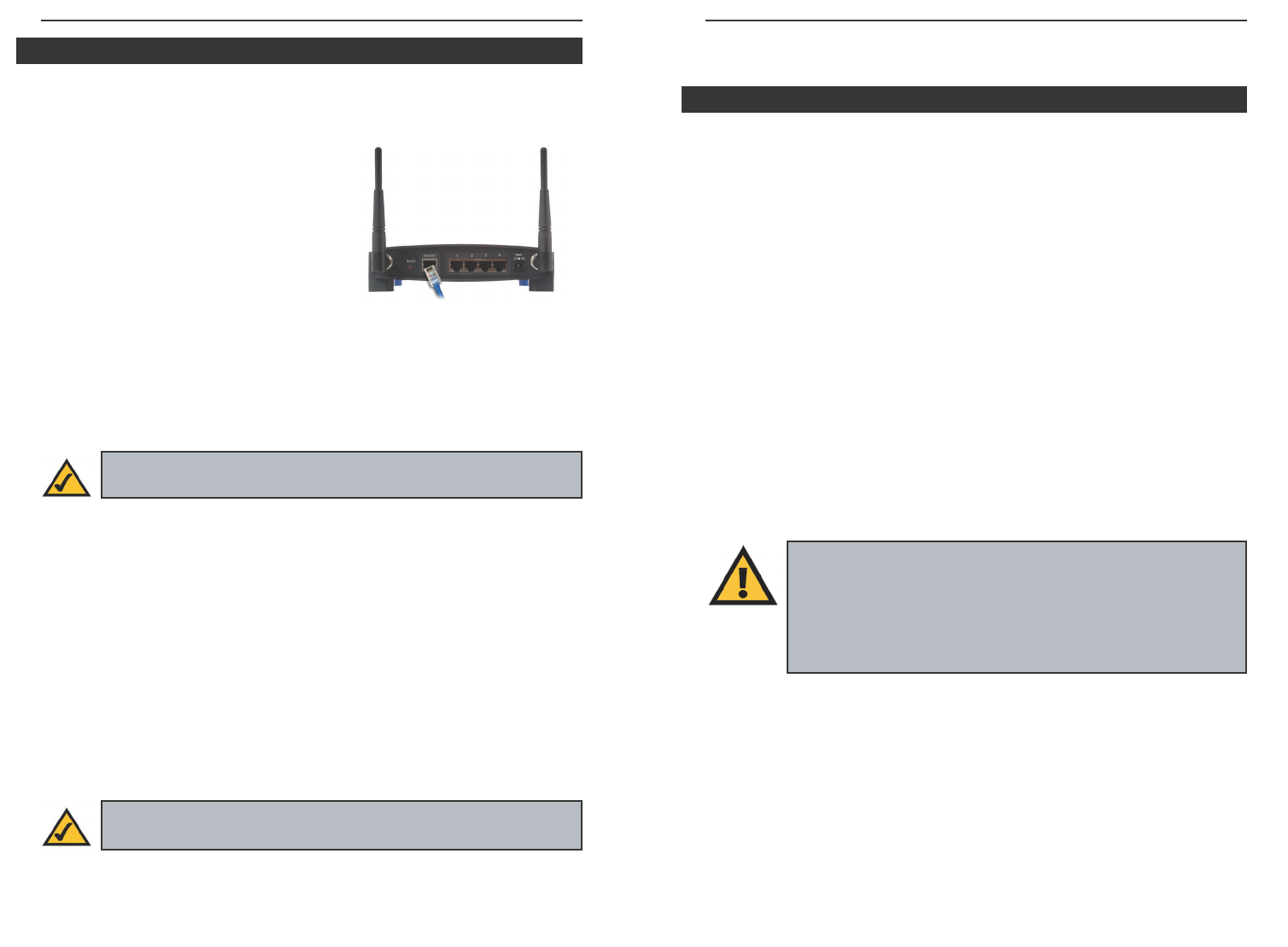

Wired Connection to a PC 10
Wireless Connection to a PC 12

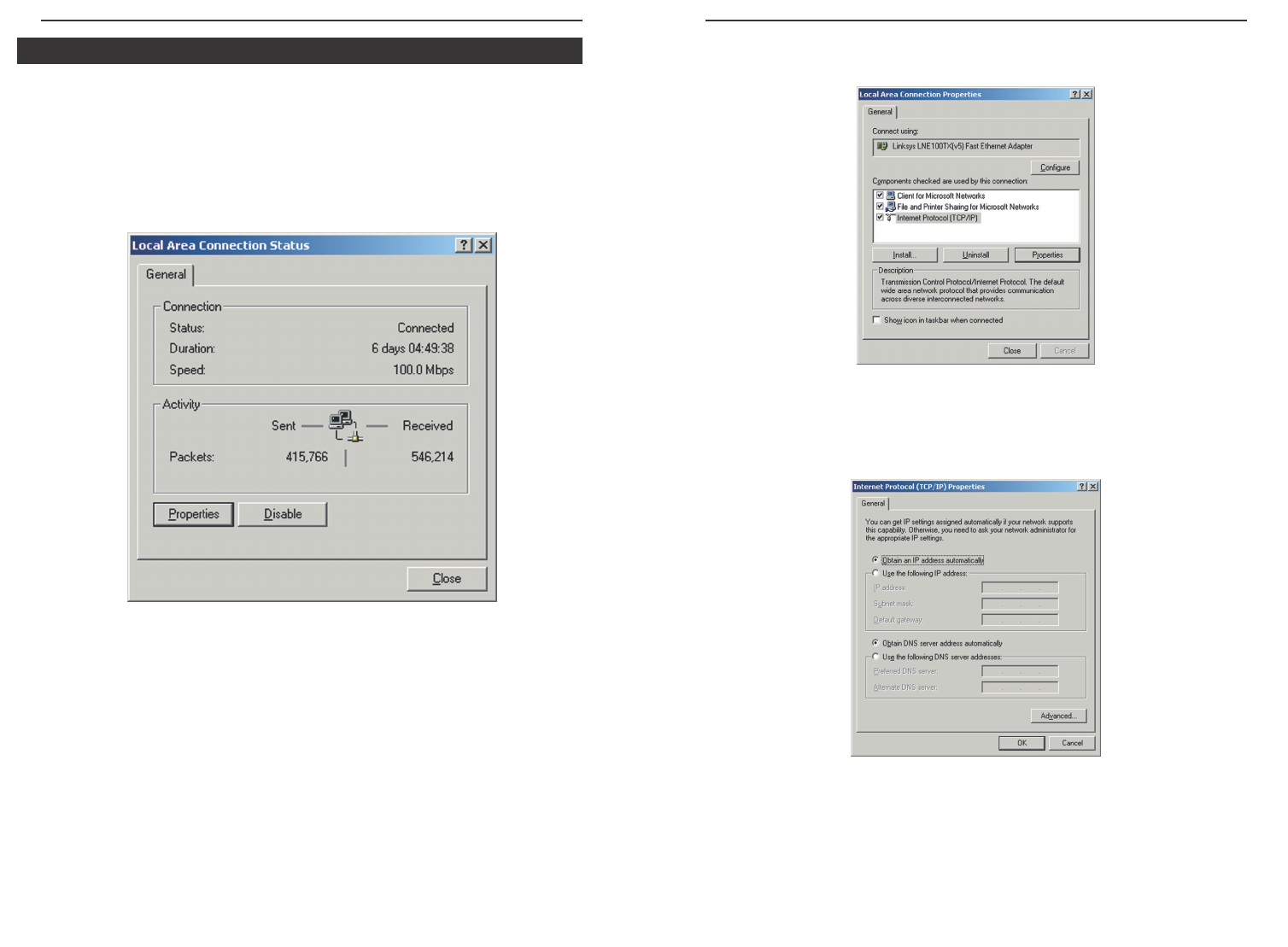

Chapter 4: Configure the PCs 13
Overview 13

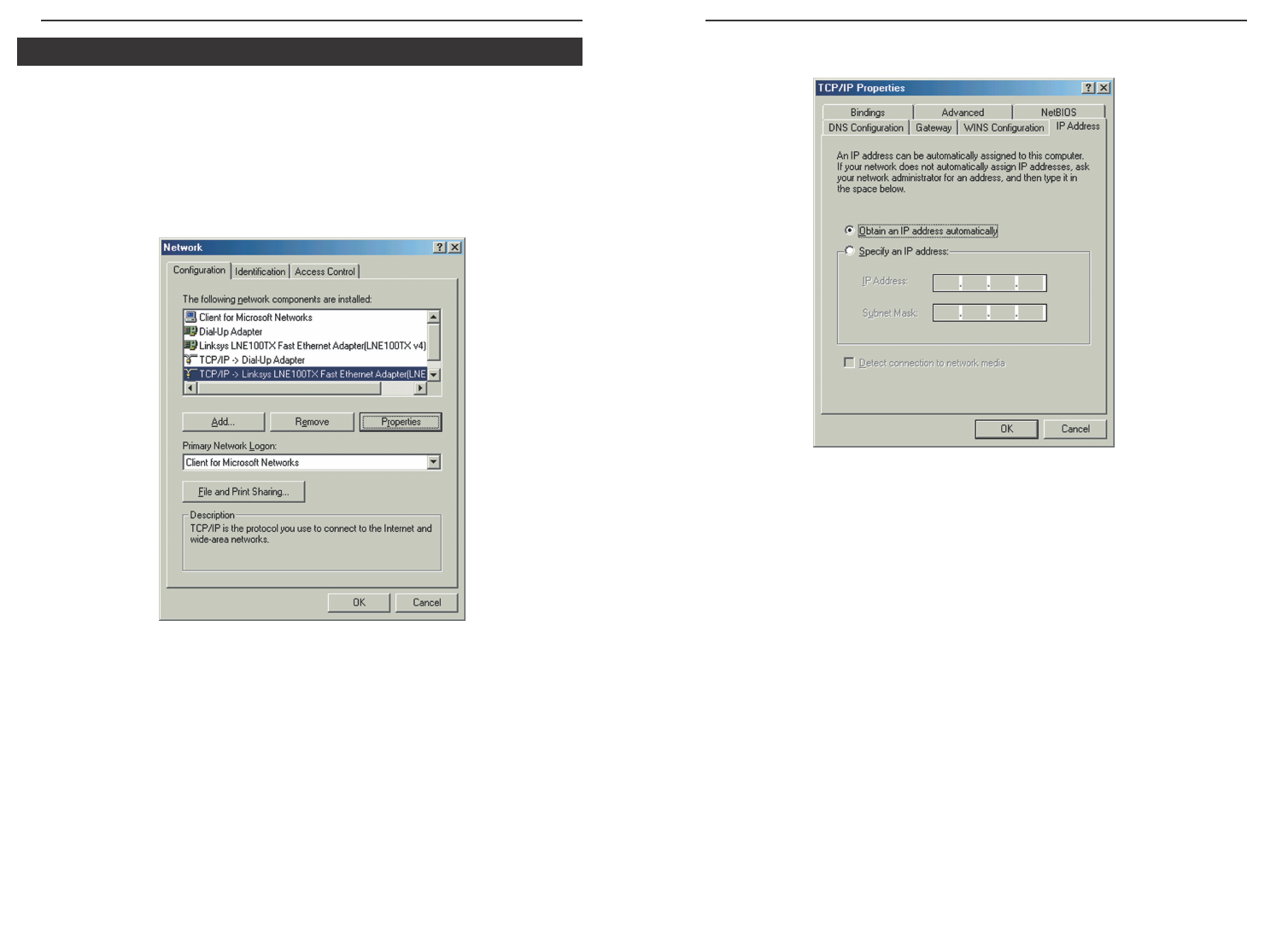

Configuring Windows 98 and Millennium PCs 14
Configuring Windows 2000 PCs 16

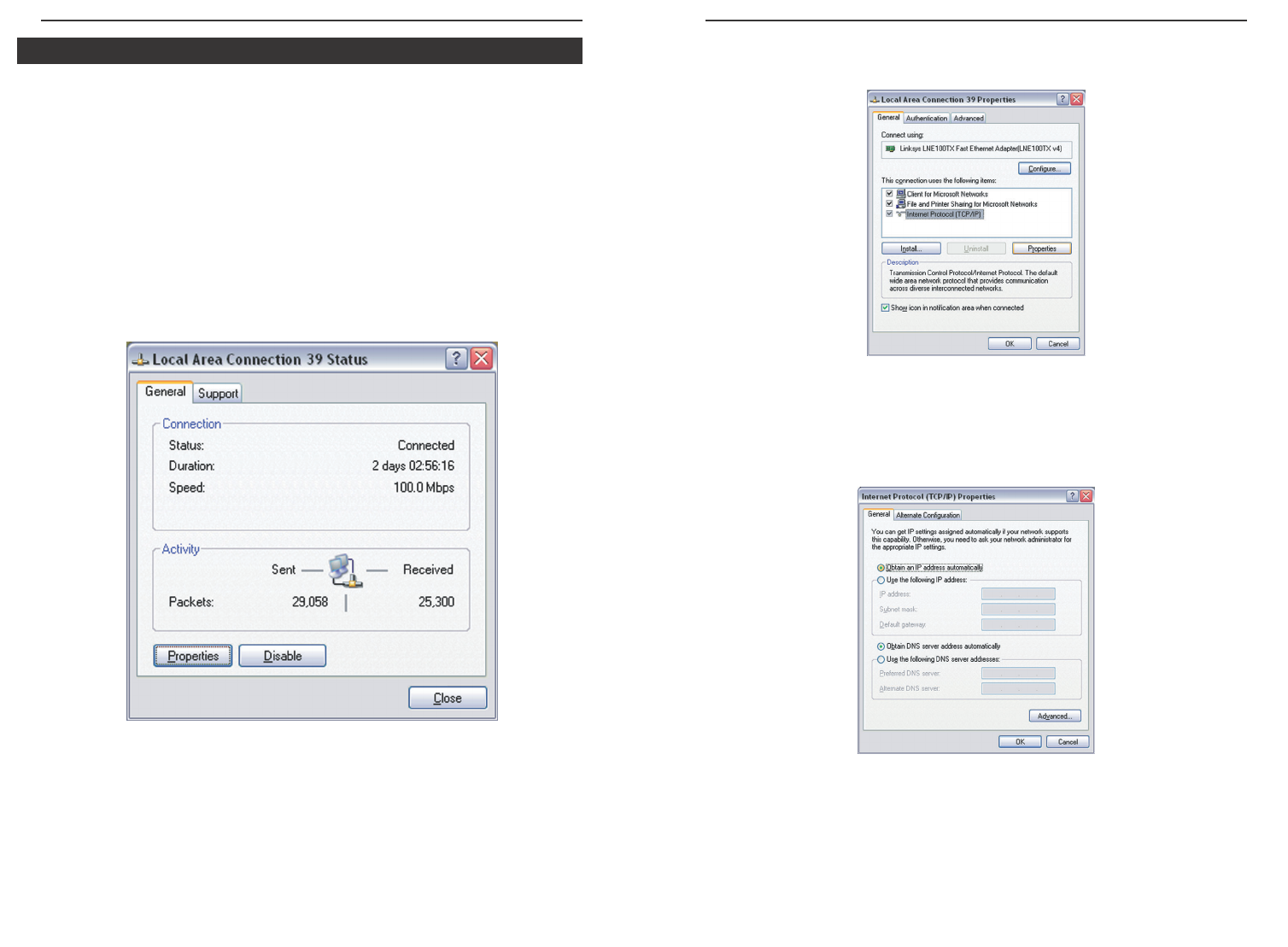

Configuring Windows XP PCs 18
Chapter 5: Configure the Router’s Basic Settings 20
Chapter 6: The Router’s Web-based Utility 25
Overview 25

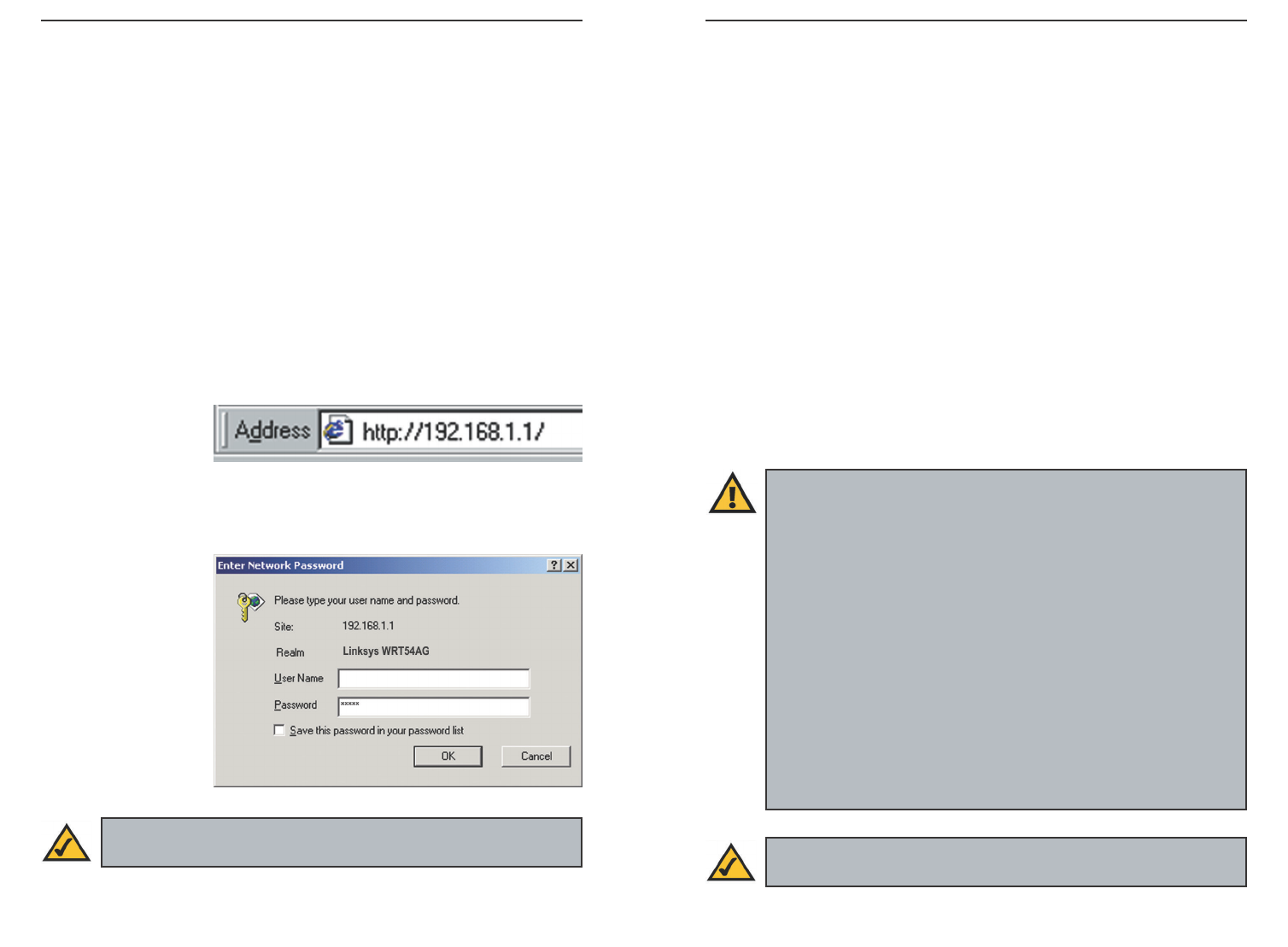

How to Access the Web-based Utility 25
Setup 26
Security 37
System 39
DHCP 44
SNMP 46
Status 47
Help 50
Advanced Tabs 51
Advanced Wireless 52
Filters 54
Port Forwarding 57
Routing 60
• Linksys Group vakuuttaa täten Dual-Band Wireless A/G Broadband Router tyyp-
pinen laite on direktiivin 1999/5/EY, direktiivin 89/336/EEC ja direktiivin 73/23/EEC
oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehtojen
mukainen.
• Linksys Group déclare que la Dual-Band Wireless A/G Broadband Router est con-
forme aux conditions essentielles et aux dispositions relatives à la directive
1999/5/EC, la directive 89/336/EEC, et à la directive 73/23/EEC.
• Belgique B L'utilisation en extérieur est autorisé sur le canal 11 (2462 MHz), 12 (2467
MHz), et 13 (2472 MHz). Dans le cas d'une utilisation privée, à l'extérieur d'un bâti-
ment, au-dessus d'un espace public, aucun enregistrement n'est nécessaire pour
une distance de moins de 300m. Pour une distance supérieure à 300m un enreg-
istrement auprès de l'IBPT est requise. Pour une utilisation publique à l'extérieur de
bâtiments, une licence de l'IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l'IBPT.
• France F:
2.4 GHz Bande : les canaux 10, 11, 12, 13 (2457, 2462, 2467, et 2472 MHz respec-
tivement) sont complétement libres d'utilisation en France (en utilisation intérieur).
Pour ce qui est des autres canaux, ils peuvent être soumis à autorisation selon le
départment. L'utilisation en extérieur est soumis à autorisation préalable et très
restreint.
Vous pouvez contacter l'Autorité de Régulation des Télécommunications
(http://www.art-telecom.fr) pour de plus amples renseignements.
2.4 GHz Band: only channels 10, 11, 12, 13 (2457, 2462, 2467, and 2472 MHz
respectively) may be used freely in France for indoor use. License required for out-
door installations.
Please contact ART (http://www.art-telecom.fr) for procedure to follow.
• Deutschland D: Anmeldung im Outdoor-Bereich notwending, aber nicht genehmi-
gungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.
• Germany D: License required for outdoor installations. Check with reseller for proce-
dure to follow.
• Italia I: E' necessaria la concessione ministeriale anche per l'uso interno. Verificare
con i rivenditori la procedura da seguire. L'uso per installazione in esterni non e' per-
messa.
• Italy I: License required for indoor use. Use with outdoor installations not allowed.
• The Netherlands NL License required for outdoor installations. Check with reseller for
procedure to follow.
• Nederlands NL Licentie verplicht voor gebruik met buitenantennes. Neem contact op
met verkoper voor juiste procedure.
WRT54AG-UG-40227NC KL
![](/img.php?id=402255&img=bg4.png)
Dual-Band Wireless A/G Broadband Router
Chapter 1: Introduction
The Dual-Band Wireless A/G Broadband Router is like four devices in one
box! The Router function lets you securely share one high-speed Internet con-
nection among your entire network, while the 4-port full duplex 10/100 Switch
jump-starts your wired-Ethernet network. Connect four PCs directly, or daisy-
chain out to more hubs and switches to create as big a network as you need.
The Dual-Band Wireless A/G Broadband Router also contains two Wireless
Access Points, supporting all three wireless networking specifications. The
first Access Point uses the 2.4GHz radio band, supporting both the popular and
inexpensive Wireless-B (802.11b) standard at 11Mbps, and the new, almost
five times faster, Wireless-G (802.11g) at 54Mbps. The second Access Point
radio operates in the 5GHz band, and supports Wireless-A (802.11a) network-
ing, also at 54Mbps. Since the two radios operate in different bands, they can
work simultaneously, blanketing your wireless zone with bandwidth.
To protect your data and privacy, the Dual-Band Wireless A/G Broadband
Router can encrypt all wireless transmissions. The MAC Address filter lets
you decide exactly who has access to your wireless network. The Router also
serves as a DHCP Server, has NAT technology to protect against Internet
intruders, DMZ capability, supports VPN pass-through, and can be configured
to filter internal users' access to the Internet. Configuration is a snap with the
web browser-based configuration utility.
With the Linksys Dual-Band Wireless A/G Broadband Router at the center of
your home or office network, you can share a high-speed Internet connection,
files, printers, and multi-player games with the flexibility, speed, and security
you need!
Appendix A: Troubleshooting 63
Common Problems and Solutions 63
Frequently Asked Questions 64
Appendix B: How to Ping Your ISP’s E-mail &
Web Addresses 82
Appendix C: Configuring Wireless Security 85
Appendix D: Finding the MAC Address and IP
Address for Your Ethernet Adapter 88
Appendix E: Glossary 91
Appendix F: Specifications 108
Environmental 109
Appendix G: Warranty Information 110
Appendix H: Contact Information 111
1
The Dual-Band Wireless A/G Broadband Router
![](/img.php?id=402255&img=bg5.png)
Dual-Band Wireless A/G Broadband Router
What’s an IP Address?
IP stands for Internet Protocol. Every device on an IP-based network, includ-
ing PCs, print servers, and routers, requires an IP address to identify its “loca-
tion,” or address, on the network. This applies to both the Internet and LAN
connections. There are two ways of assigning an IP address to your network
devices. You can assign static IP addresses or use the Router to assign IP
addresses dynamically.
Static IP Addresses
A static IP address is a fixed IP address that you assign manually to a PC or
other device on the network. Since a static IP address remains valid until you
disable it, static IP addressing ensures that the device assigned it will always
have that same IP address until you change it. Static IP addresses must be
unique and are commonly used with network devices such as server PCs or
print servers.
If you use the Router to share your cable or DSL Internet connection, contact
your ISP to find out if they have assigned a static IP address to your account.
If so, you will need that static IP address when configuring the Router. You can
get that information from your ISP.
IP Addresses
Note: Since the Router is a device that connects two networks, it
needs two IP addresses—one for the LAN, and one for the Internet. In
this User Guide, you’ll see references to the “Internet IP address” and
the “LAN IP address.”
Since the Router uses NAT technology, the only IP address that can be
seen from the Internet for your network is the Router’s Internet IP
address.
However, even this Internet IP address can be blocked, so that the
Router and network seem invisible to the Internet—see the Block
WAN Requests description under Filters in “Chapter 6: The Router’s
Web-based Utility.”
32
•Compatibility with 802.11g (2.4GHz) and 802.11b (2.4GHz) Standards
•Setup Wizard for Easy Installation
•Wireless Security with up to 152-bit WEP Encryption
•Enhanced Security Management Functions: Internet Access Policies with
Time Schedules, Website Blocking, IP and MAC Address Filtering; Port
Filtering; Wireless MAC Address Filtering; and NAT Technology
•Access Your Corporate Network Remotely through Virtual Private
Networking (VPN)—Supports IPSec and PPTP Pass-Through
•Supports Dynamic Domain Name System (DDNS) Service, Static and
Dynamic Routing (RIP1 and 2), DMZ Hosting
•Web-based Utility for Easy Configuration from Any Web Browser
•DHCP Server Capability to Assign IP Addresses Automatically
•All Ethernet Ports Support Auto-Crossover (MDI/MDI-X)—No Need for
Crossover Cables
•Free Technical Support—24 Hours a Day, 7 Days a Week, Toll-Free US Calls
•1-Year Limited Warranty
Simply put, a router is a network device that connects two networks together.
In this instance, the Router connects your Local Area Network (LAN), or the
group of PCs in your home or office, to the Internet. The Router processes and
regulates the data that travels between these two networks.
The Router’s NAT feature protects your network of PCs so users on the public,
Internet side cannot “see” your PCs. This is how your network remains private.
The Router protects your network by inspecting every packet coming in
through the Internet port before delivery to the appropriate PC on your net-
work. The Router inspects Internet port services like the web server, ftp server,
or other Internet applications, and, if allowed, it will forward the packet to the
appropriate PC on the LAN side.
Remember that the Router’s ports connect to two sides. The LAN ports connect
to the LAN, and the Internet port connects to the Internet. The LAN and
Internet ports transmit data at 10/100Mbps.
The Router’s Functions
Features
![](/img.php?id=402255&img=bg6.png)
Dual-Band Wireless A/G Broadband Router
•Chapter 4: Configure the PCs
This chapter instructs you on how to configure your PCs to be DHCP clients,
if you have previously set static IP addresses on your PCs.
•Chapter 5: Configure the Router’s Basic Settings
This chapter explains how to configure the Router using your web browser
and the Router’s web-based utility. You will configure the Router for Internet
access using the settings provided by your ISP.
When you’re finished with these basic steps, you will be ready to connect to the
Internet. You can also modify the Router’s settings further; for example, you
can adjust security features and other settings to enable online gaming (see
“Chapter 6: The Router’s Web-based Utility”).
54

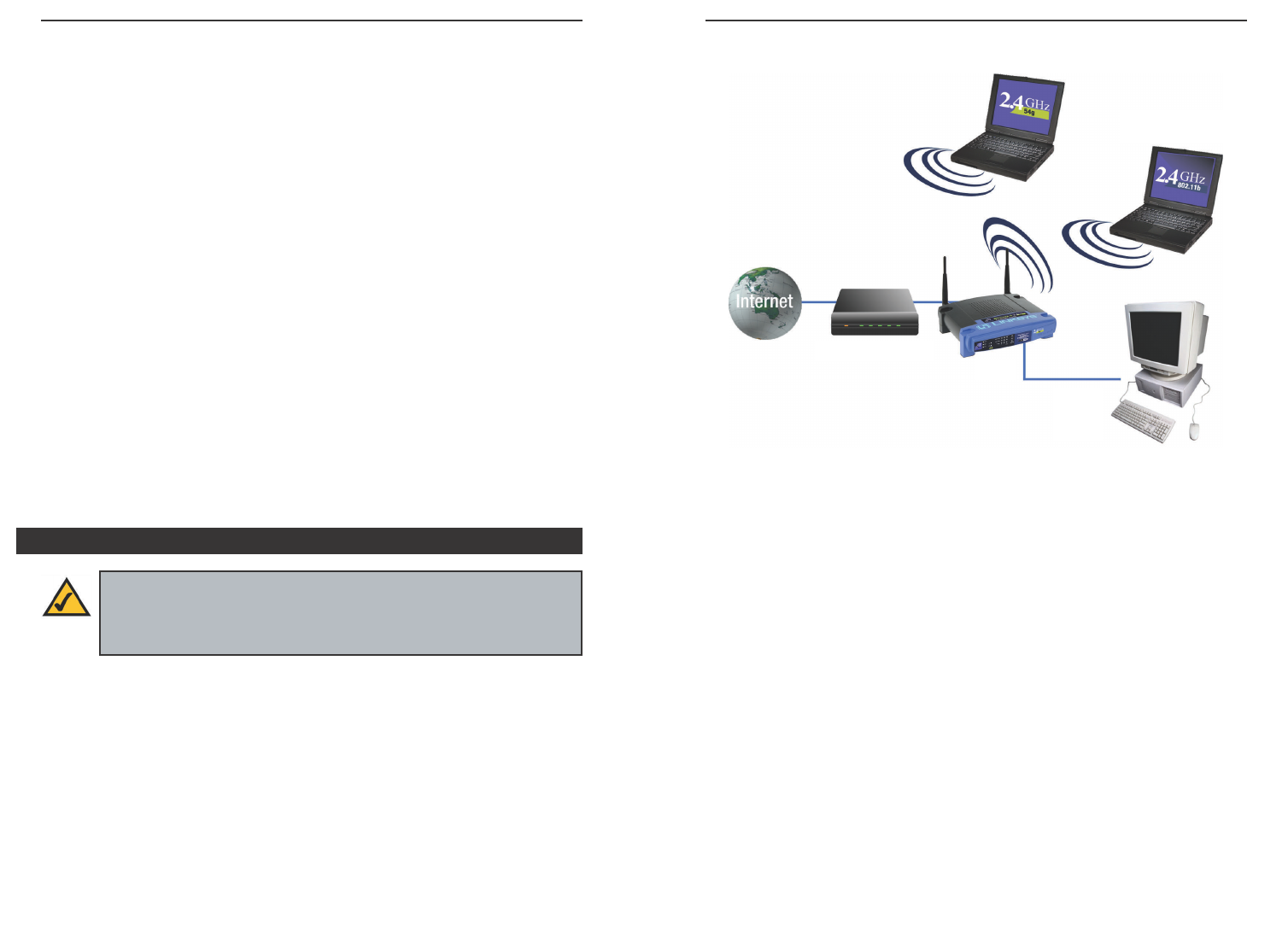

Figure 1-1
Cable or DSL Modem
Router
PC with
Ethernet
Adapter
Notebook with
Wireless-G Adapter
Notebook with
Wireless 802.11b Adapter
Dynamic IP Addresses
A dynamic IP address is automatically assigned to a device on the network,
such as PCs and print servers. These IP addresses are called “dynamic”
because they are only temporarily assigned to the PC or device. After a certain
time period, they expire and may change. If a PC logs onto the network (or the
Internet) and its dynamic IP address has expired, the DHCP server will auto-
matically assign it a new dynamic IP address.
DHCP (Dynamic Host Configuration Protocol) Servers
PCs and other network devices using dynamic IP addressing are assigned a new
IP address by a DHCP server. The PC or network device obtaining an IP
address is called the DHCP client. DHCP frees you from having to assign IP
addresses manually every time a new user is added to your network.
A DHCP server can either be a designated PC on the network or another net-
work device, such as the Router. By default, the Router’s DHCP Server func-
tion is enabled.
If you already have a DHCP server running on your network, you must disable
one of the two DHCP servers. If you run more than one DHCP server on your
network, you will experience network errors, such as conflicting IP addresses.
To disable DHCP on the Router, see the DHCP section in “Chapter 6: The
Router’s Web-based Utility.”
This User Guide covers the steps for setting up a network with the Router (see
Figure 1-1). After going through “Chapter 2: Getting to Know the Dual-Band
Wireless A/G Broadband Router,” most users will only need to use the follow-
ing chapters:
•Chapter 3: Connect the Router
This chapter instructs you on how to connect a cable or DSL modem to the
Router and connect your PC(s) to the Router.
Router Setup Overview
Note: You should always run the Setup CD-ROM to configure the
Router for Internet access. If you wish to manually configure the
Router, you may follow the instructions in the Quick Installation guide
or this User Guide.
![](/img.php?id=402255&img=bg7.png)
Dual-Band Wireless A/G Broadband Router
76
The Router’s LEDs, shown in Figure 2-2 display information about the Router’s
status.
Power Green. This LED lights up when the Router is powered on.
Diag Red. The Diag LED lights up when the Router goes through its self-
diagnosis mode during every boot-up. It will turn off upon successful
completion of the diagnosis.
If this LED stays on for one minute or longer, see “Appendix A:
Troubleshooting.”
The Router’s Front Panel LEDs
Figure 2-2
The Reset Button
The Reset button can be used in one of two ways:
1. Reboot the Router while keeping all of its settings.
If the Router is having problems connecting to the Internet, press the Reset
button for just a moment with a paper clip or a pencil tip. This clears up any
jammed connections, and is similar to pressing the Reset button on your PC
to reboot it.
2. Restore the Router’s factory defaults and clear all of its settings, including a
new password or wireless settings.
If you are experiencing extreme problems with the Router and have tried all
other troubleshooting measures, press the Reset Button and hold it down for
10 seconds.
Chapter 2: Getting to Know
the Dual-Band Wireless A/G
Broadband Router
The Router’s ports are located on the Router’s back panel, as shown in Figure
2-1.
Internet The Internet port is where you connect your cable or DSL modem
through an Ethernet network cable. Your modem connection will
not work from any other port.
Ports 1-4 These four LAN (Local Area Network) ports connect to network
devices, such as PCs, print servers, and network attached storage
(NAS). Each of the ports will auto-detect whether a straight-
through or crossover cable is plugged into it, so there is no need for
an uplink port. Any one of the four ports can serve as an uplink port
to other network devices.
Power The Power port is where you will connect the power adapter.
The Router’s Back Panel
Figure 2-1
![](/img.php?id=402255&img=bg8.png)
Dual-Band Wireless A/G Broadband Router
The Internet Indicators
Link/Act Green. The Link/Act LED lights up when a successful con-
nection is made between the Router and your cable or DSL
modem (the Internet). The Link/Act LED flickers when the
Router is sending or receiving data over the Internet port.
Full/Col Green. The Full/Col LED serves two purposes. If this LED
is lit up solidly, the connection made through the correspon-
ding port is running in full duplex mode. If the LED flickers,
the connection is experiencing collisions (when two PCs
send data at the same time). Infrequent collisions are normal.
100 Orange. The 100 LED lights up when a successful 100Mbps
connection is made through the corresponding port.
If this LED does not light up, then your connection speed is
10Mbps.
Proceed to “Chapter 3: Connect the Router.”
98
The WLAN Indicators
Link Green. When the Link LED is continuously lit, the wireless
network is available.
The LAN Indicators
Link/Act Green. The Link/Act LED serves two purposes. If the LED
is continuously lit, the Router is successfully connected to a
device through the corresponding port. If the LED is flicker-
ing, the Router is actively sending or receiving data over that
port.
Full/Col Green. The Full/Col LED also serves two purposes. If this
LED is lit up solidly, the connection made through the corre-
sponding port is running in full duplex mode. If the LED
flickers, the connection is experiencing collisions (when two
PCs send data at the same time). Infrequent collisions are
normal.
100 Orange. The 100 LED lights up when a successful 100Mbps
connection is made through the corresponding port.
If this LED does not light up, then your connection speed is
10Mbps.
![](/img.php?id=402255&img=bg9.png)
Dual-Band Wireless A/G Broadband Router
1110
3. Connect a different Ethernet network
cable from your cable or DSL modem
to the Internet port on the Router’s rear
panel. This is the only port that will
work for your modem connection.
4. Power on the cable or DSL modem.
5. Connect the power adapter to the
Router’s Power port, and then plug the
power adapter into a power outlet.
•The Power LED on the front panel will light up green as soon as the power
adapter is connected properly.
•The Diag LED will light up red for a few seconds. It will turn off when the
self-test is complete. If this LED stays on for one minute or longer, see
“Appendix A: Troubleshooting.”
6. Power on one of your PCs.
Note: You should always plug
the Router’s power adapter into
a power strip with surge pro-
tection.
Figure 3-2
Figure 3-3
Have you checked that the Link/Act LEDs for all your LAN con-
nections and the Link LED for your Internet connection light up?
If all of your Link LEDs are not lighting up, make sure that all your
cables are securely plugged in, and that all of your hardware is pow-
ered on properly. Verify that the modem is plugged into the Internet
port on the Router.
Chapter 3: Connect the Router
The Router’s setup consists of more than simply plugging hardware together.
You will have to configure your networked PCs to accept the IP addresses that
the Router assigns them (if applicable), and you will also have to configure the
Router with setting(s) provided by your Internet Service Provider (ISP).
The installation technician from your ISP should have left the setup informa-
tion for your modem with you after installing your broadband connection. If
not, you can call your ISP to request that data.
Once you have the setup information you need for your specific type of Internet
connection, you can begin installation and setup of the Router.
If you want to use a PC with an Ethernet adapter to configure the Router, go to
“Wired Connection to a PC.” If you want to use a PC with a wireless adapter
to configure the Router, go to “Wireless Connection to a PC and Boot-Up.”
1. Before you begin, make sure that all of
your network’s hardware is powered
off, including the Router, PCs, and
cable or DSL modem.
2. Connect one end of an Ethernet net-
work cable to one of the LAN ports
(labeled 1-4) on the back of the
Router, and the other end to an
Ethernet port on a PC.
Repeat this step to connect more PCs, a switch, or other network devices to
the Router.
Overview
Wired Connection to a PC
Figure 3-1
![](/img.php?id=402255&img=bga.png)
Dual-Band Wireless A/G Broadband Router
Chapter 4: Configure the PCs
The instructions in this chapter will help you configure each of your comput-
ers to be able to communicate with the Router.
To do this, you need to configure your PC’s network settings to obtain an IP (or
TCP/IP) address automatically, so your PC can function as a DHCP client.
Computers use IP addresses to communicate with the Router and each other
across a network, such as the Internet.
First, find out which Windows operating system your computer is running. You
can find out by clicking the Start button. Read the side panel of the Start menu
to find out which operating system your PC is running.
You may need to do this for each computer you are connecting to the Router.
The next few pages tell you, step by step, how to configure your network set-
tings based on the type of Windows operating system you are using. Make sure
that an Ethernet or wireless adapter (also known as a network adapter) has been
successfully installed in each PC you will configure. Once you’ve configured
your computers, continue to “Chapter 5: Configure the Router’s Basic
Settings.”
1312
Important: By default Windows 98, 2000, Me, and XP has
TCP/IP installed and set to obtain an IP address automatically.
If your PC does not have TCP/IP installed, click Start and then
Help. Search for the keyword TCP/IP. Then follow the instruc-
tions to install TCP/IP.
Overview
If you want to use a wireless connection to access the Router, follow these
instructions:
1. Before you begin, make sure that all of
your network’s hardware is powered
off, including the Router, PCs, and
cable or DSL modem.
2. Connect an Ethernet network cable
from your cable or DSL modem to the
Internet port on the Router’s rear
panel. This is the only port that will
work for your modem connection.
3. Power on the cable or DSL modem.
4. Connect the power adapter to the Power port, and then plug the power
adapter into a power outlet.
•The Power LED on the front panel will light up green as soon as the power
adapter is connected properly.
•The Diag LED will light up red for a few seconds and turn off when the self-
test is complete. If this LED stays on for one minute or longer, see “Appendix
A: Troubleshooting.”
4. Power on one of the PCs on your wireless network(s).
5. For initial access to the Router through a wireless connection, make sure the
PC’s wireless adapter has its SSID set to linksys (the Router’s default set-
ting), and its WEP encryption is disabled. After you have accessed the
Router, you can change the Router and this PC’s adapter settings to match
the your usual network settings.
The Router’s hardware installation is now complete.
Go to “Chapter 4: Configure the PCs.”
Wireless Connection to a PC
Note: You should always plug the Router’s power adapter into a power
strip with surge protection.
Figure 3-4
Note: You should always change the SSID from its default, linksys,
and enable WEP encryption.
![](/img.php?id=402255&img=bgb.png)
Dual-Band Wireless A/G Broadband Router
3. Click the IP Address tab. Select Obtain an IP address automatically.
4. Now click the Gateway tab, and verify that the Installed Gateway field is
blank. Click the OK button.
5. Click the OK button again. Windows may ask you for the original Windows
installation disk or additional files. Check for the files at
c:\windows\options\cabs, or insert your Windows CD-ROM into your CD-
ROM drive and check the correct file location, e.g., D:\win98, D:\win9x,
etc. (if “D” is the letter of your CD-ROM drive).
6. Windows may ask you to restart your PC. Click the Ye s button. If Windows
does not ask you to restart, restart your computer anyway.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
15
1. Click the Start button. Select Settings and click the Control Panel icon.
Double-click the Network icon.
2. On the Configuration tab, select the TCP/IP line for the applicable
Ethernet adapter. Do not choose a TCP/IP entry whose name mentions
DUN, PPPoE, VPN, or AOL. If the word TCP/IP appears by itself, select
that line. Click the Properties button.
14
Figure 4-2
Figure 4-1
Configuring Windows 98 and Millennium PCs
![](/img.php?id=402255&img=bgc.png)
Dual-Band Wireless A/G Broadband Router
3. Make sure the box next to Internet Protocol (TCP/IP) is checked. Highlight
Internet Protocol (TCP/IP), and click the Properties button.
4. Select Obtain an IP address automatically. Once the new window
appears, click the OK button. Click the OK button again to complete the
PC configuration.
5. Restart your computer.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
17
1. Click the Start button. Select Settings and click the Control Panel icon.
Double-click the Network and Dial-up Connections icon.
2. Select the Local Area Connection icon for the applicable Ethernet adapter
(usually it is the first Local Area Connection listed). Double-click the
Local Area Connection. Click the Properties button.
16
Figure 4-4
Figure 4-5
Configuring Windows 2000 PCs
Figure 4-3
![](/img.php?id=402255&img=bgd.png)
Dual-Band Wireless A/G Broadband Router
3. Make sure the box next to Internet Protocol (TCP/IP) is checked. Highlight
Internet Protocol (TCP/IP), and click the Properties button.
4. Select Obtain an IP address automatically. Once the new window
appears, click the OK button. Click the OK button again to complete the
PC configuration.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
19
The following instructions assume you are running Windows XP with the
default interface. If you are using the Classic interface (where the icons and
menus look like previous Windows versions), please follow the instructions for
Windows 2000.
1. Click the Start button and then the Control Panel icon. Click the Network
and Internet Connections icon. Then click the Network Connections
icon.
2. Select the Local Area Connection icon for the applicable Ethernet adapter
(usually it is the first Local Area Connection listed). Double-click the
Local Area Connection. Click the Properties button.
18
Figure 4-7
Figure 4-8
Configuring Windows XP PCs
Figure 4-6
![](/img.php?id=402255&img=bge.png)
Dual-Band Wireless A/G Broadband Router
2120
3. The web-based utility will appear with the Setup tab selected. Select the
time zone for your location. If your location experiences daylight savings,
leave the checkmark in the box next to Automatically adjust clock for day-
light saving changes.
4. Based on the setup instructions from your ISP, you may need to provide the
Host Name and Domain Name (usually cable ISPs require them). These
fields allow you to provide a host name and domain name for the Router
and are usually left blank.
The values for the Router’s LAN IP Address and Subnet Mask are shown
on the Setup screen. The default values are 192.168.1.1 for the IP Address
and 255.255.255.0 for the Subnet Mask.
5. The Router supports four connection types: Automatic Configuration -
DHCP (obtain an IP automatically), Static IP, PPPoE, and PPTP. These
types are listed in the drop-down menu for the Configuration Type setting.
Each Setup screen and available features will differ depending on what kind
of connection type you select. Proceed to the instructions for the connec-
tion type you are using, and then continue to step 6.
IMPORTANT: If you have previously enabled any Internet-sharing
proxy server software on any of your PCs, you must disable it now.
Some examples of Internet-sharing software are Internet LanBridge,
Wingate, ICS, and Sygate. To disable your Internet-sharing software:
• If you are running Netscape Navigator, click Edit, Preferences,
Advanced, and Proxies. Click Direct Connection to the Internet.
• If you are running Internet Explorer 5.x or higher, click Tools,
Settings, Control Panel, Internet Options, Connections, and
LAN Settings. Remove checkmarks from all three boxes. Click the
OK button to continue.
You must also disable any Internet log-on software (such as Ivasion
Winpoet or Enternet 300) and any firewall software (such as
ZoneAlarm and Watchdog) on all of your PCs.
Chapter 5: Configure the Router’s
Basic Settings
This chapter will show you how to configure the Router to function in your
network and gain access to the Internet through your Internet Service Provider
(ISP). Detailed description of the Router’s web-based utility can be found in
“Chapter 6: The Router’s Web-based Utility.”
The instructions from your ISP tell you how to set up your PC for Internet
access. Because you are now using the Router to share Internet access among
several computers, you will use the setup information to configure the Router
instead of your PC. You only need to configure the Router once using the first
computer you set up.
1. Open your web browser. Enter http://192.168.1.1 (the Router’s default IP
address) in the web
browser’s Address
field, as shown in
Figure 5-1. Press
the Enter key.
2. An Enter Network Password window, shown in Figure 5-2, will appear.
(Windows XP users
will see a similar
screen.) Leave the
User Name field
empty, and enter
admin in lowercase
letters in the
Password field
(admin is the
default password).
Then, click the OK
button.
Figure 5-1
Note: For added security, you should change the password through
the Security screen of the web-based utility.
Figure 5-2
Note: The Wireless section of the Setup screen may change depend-
ing upon your wireless settings.
