Chapter 1: Introduction
Connect your USB-equipped desktop or notebook computer to a wireless net-
work with the Linksys Wireless-B USB Network Adapter, without the trouble
of opening up the case of your desktop computer.
To install, simply plug the Adapter into any available USB port. It gets its
power through the USB connection, so no power cord is necessary. The includ-
ed Setup Wizard walks you through configuring the Adapter to your wireless
network settings, step by step. And your wireless communications can be pro-
tected by 128-bit encryption, so your data stays secure.
The Wireless-B USB Network Adapter's high-gain antenna lets you put your
computer almost anywhere in the building, without the cost and hassle of run-
ning cables. Now you don't have to drill holes in your walls and climb through
the attic or cellar to get connected to the network. Once you're connected, you
can keep in touch with your e-mail, access the Internet, use instant messaging
to chat with friends, and share files and other resources such as printers and
hard disk storage space with other computers on the network.
So don't hassle with running cables through your house -- get connected the
easy way with the Wireless-B USB Network Adapter.
• Up to 11Mbps, High-Speed Data Transfer Rate
• Plug-and-Play Operation Provides Easy Setup
• Interoperable with 802.11b (DSSS) 2.4GHz-Compliant Equipment
• Compatible with Windows 98SE, Me, 2000, and XP
• Capable of up to 128-bit WEP Encryption
• Integrated Equalizer Recovers Weak Signals and Enhances Sensitivity
• Movable External Antenna Improves Signal Quality
• USB Port Powers Your Adapter—No Power Supply Needed!
• User-Friendly Setup Software Provides Hassle-Free Configuration
• Works with All Standard Internet Applications
• Free Software Driver Upgrades
• Free Technical Support—24 Hours a Day, 7 Days a Week, Toll-Free US
Calls
• 1-Year Limited Warranty
The Wireless-B USB Network Adapter
Features
1
Appendix A: Troubleshooting 30
Common Problems and Solutions 30
Frequently Asked Questions 30
Appendix B: Glossary 34
Appendix C: Specifications 39
Environmental 39
Appendix D: Warranty Information 41
Appendix E: Contact Information 42

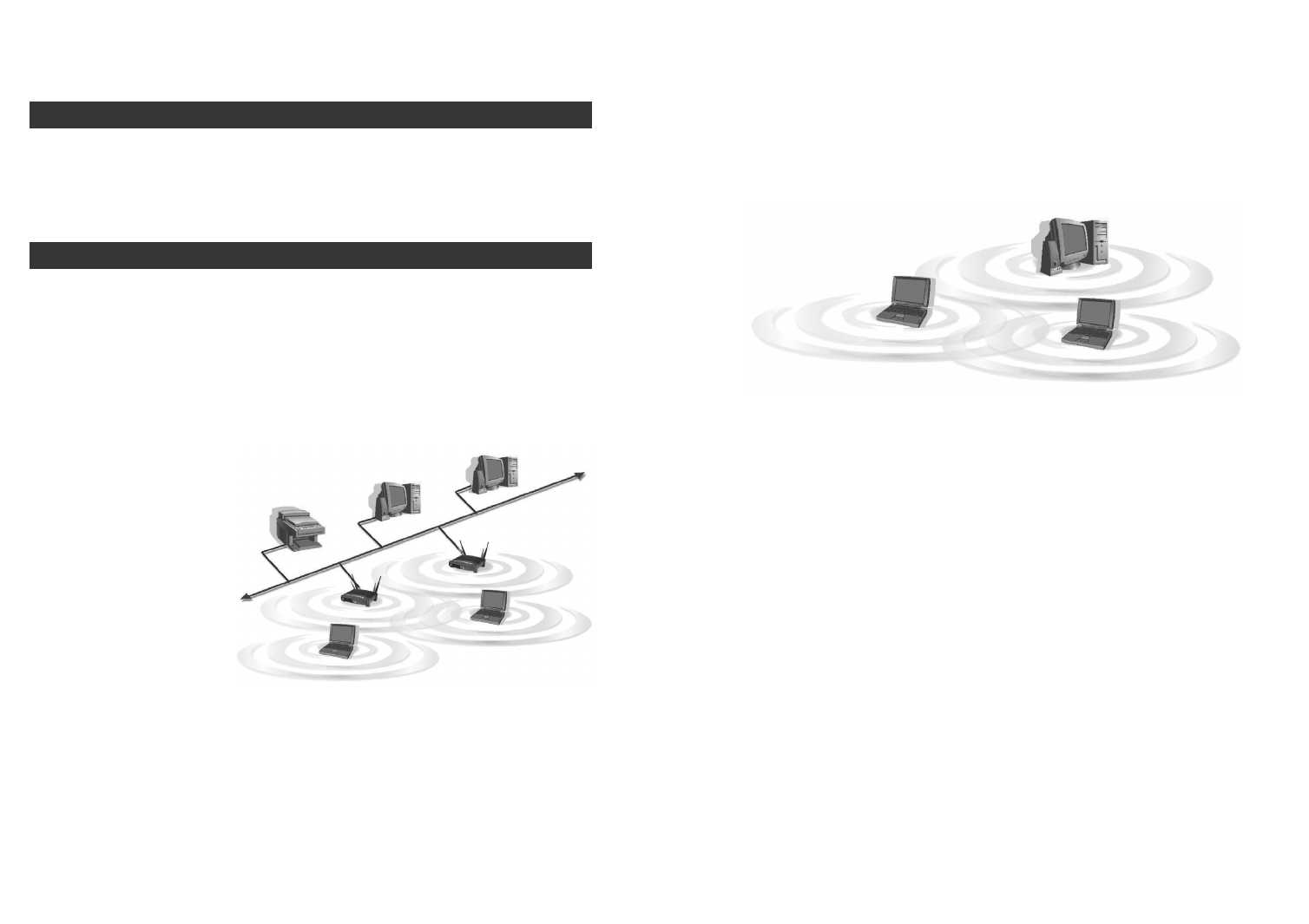

If the wireless network is relatively small and needs to share resources only
with the other computers on the wireless network, then the ad-hoc mode can
be used. (See Figure 2-2.) Ad-hoc mode allows computers equipped with wire-
less transmitters and receivers to communicate directly with each other, elimi-
nating the need for an access point. The drawback of this mode is that, in Ad-
Hoc mode, wireless-equipped computers are not able to communicate with
computers on a wired network. And, of course, communication between the
wireless-equipped computers is limited by the distance and interference direct-
ly between them.
32
Figure 2-2
Chapter 2: Planning Your Wireless
Network
A wireless local area network (WLAN) is exactly like a regular local area net-
work (LAN), except that each computer in the WLAN uses a wireless device to
connect to the network. Computers in a WLAN share the same frequency
channel and SSID, which is an identification name for wireless devices.
Unlike wired networks, wireless networks have two different modes in which
they may be set up: infrastructure and ad-hoc. An infrastructure configura-
tion is a WLAN and wired LAN communicating to each other through an
access point. An ad-hoc configuration is wireless-equipped computers com-
municating directly with each other. Choosing between these two modes
depends on whether or not the wireless network needs to share data or periph-
erals with a wired network or not.
If the computers on the
wireless network need to
be accessed by a wired
network or need to share a
peripheral, such as a print-
er, with the wired network
computers, the wireless
network should be set up
in infrastructure mode.
(See Figure 2-1.) The
basis of infrastructure
mode centers around an
access point, which serves
as the main point of communications in a wireless network. Access points
transmit data to PCs equipped with wireless network cards, which can roam
within a certain radial range of the access point. Multiple access points can be
arranged to work in succession to extend the roaming range, and can be set up
to communicate with your Ethernet (wired) hardware as well.
Network Topology
Ad-Hoc versus Infrastructure Mode
Figure 2-1
54
Chapter 4: Software Installation
and Configuration for Windows
98SE, Me, and 2000
The Wireless Wireless-B USB Network Adapter Setup Wizard will guide you
through the installation procedure for Windows 98SE, Me, and 2000. The Setup
Wizard will install the WLAN Monitor and driver, as well as configure the
Adapter.
Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup
Wizard should run automatically, and the Welcome screen should appear. If it
does not, click the Start button and choose Run. In the field that appears, enter
D:\setup.exe (if “D” is the letter of your CD-ROM drive).
Note for Windows 98SE, Me, and 2000 users: You must run the
Setup Wizard to install the software before installing the hardware.
Figure 4-1
Note for Windows XP users: Do NOT run the Wireless-B USB
Network Adapter Setup Wizard. Proceed directly to “Chapter 5:
Hardware Installation.”
Overview
Chapter 3: Getting to Know the
Wireless USB Network Adapter
Port

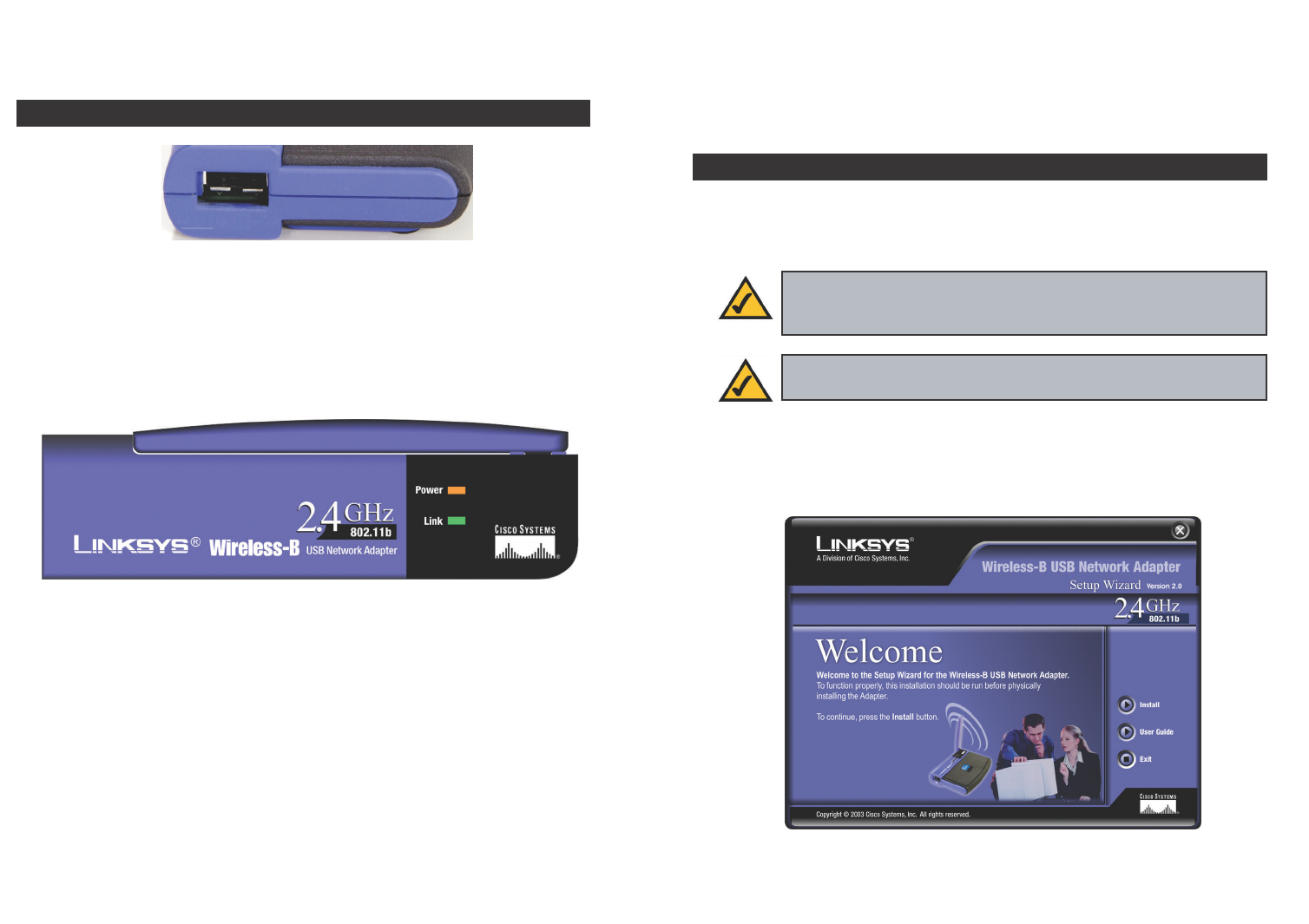

USB The Adapter’s USB port is located on the side of the Adapter.
You will attach the included USB cable to this port. The other
end of the cable will connect to your PC’s USB port.
LED Indicators
Power Green. The Power LED lights up when the Adapter is pow-
ered on.
Link Green. The Link LED lights up when the Adapter has an
active connection.
The Wireless USB Network Adapter’s Port and LEDs
Figure 3-1
Figure 3-2
76

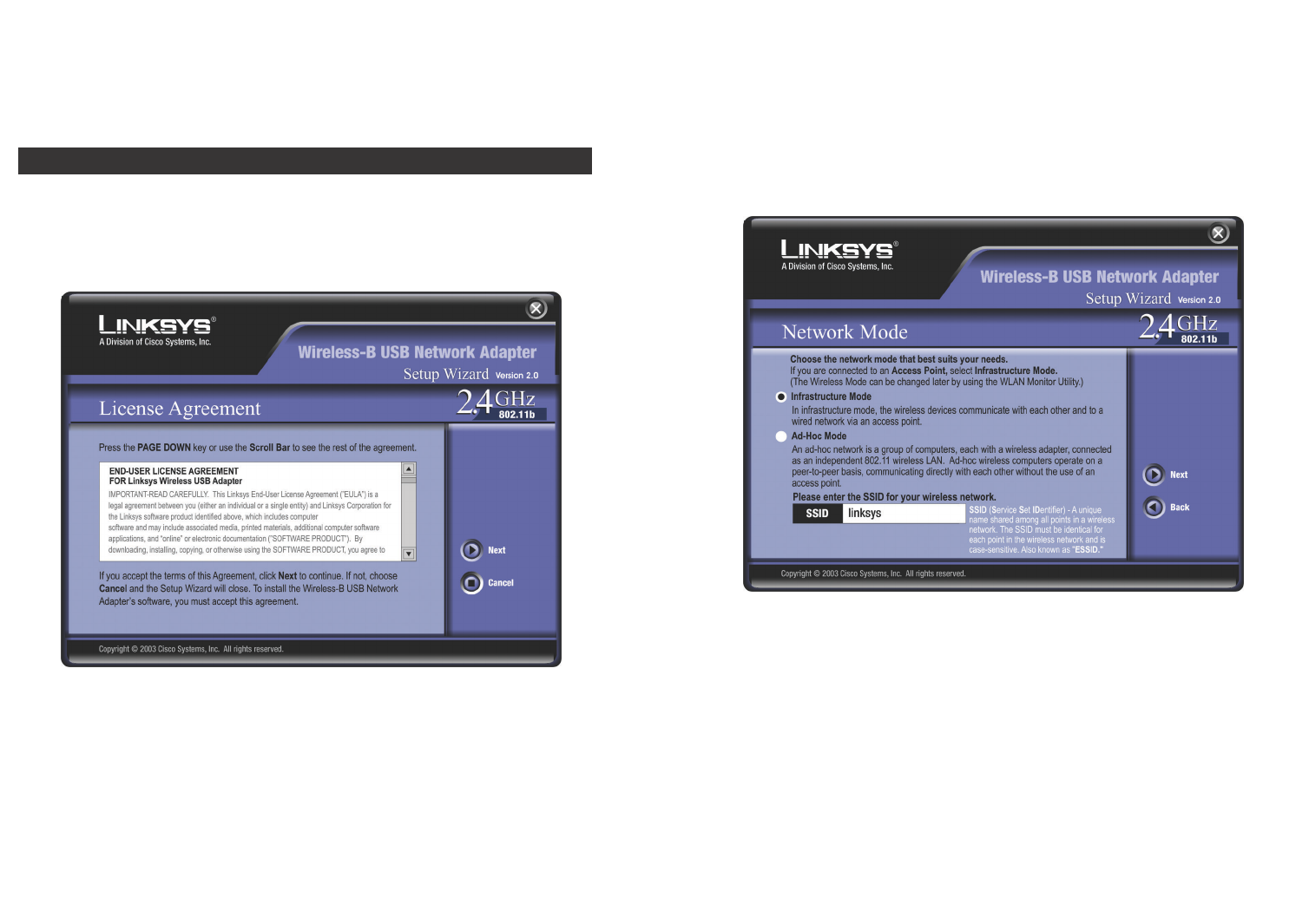

3. The Setup Wizard will ask you to choose a network mode. Click the
Infrastructure Mode radio button if you want your wireless computers to
network with computers on your wired network using a wireless access
point. Click the Ad-Hoc Mode radio button if you want multiple wireless
computers to network directly with each other.
In the SSID field, enter the SSID of your wireless network. The SSID must
be identical for all devices in the network. The default setting is linksys (all
lowercase). Click the Next button.
Figure 4-3
On the Welcome screen, you have the following choices:
•Install - Click the Install button to begin the software installation process.
•User Guide - Click the User Guide button to open the PDF file of this User
Guide.
•Exit - Click the Exit button to exit the Setup Wizard.
1. To install the Adapter, click the Install button on the Welcome screen.
2. After reading the License Agreement, click the Next button if you agree, or
click the Cancel button to end the installation.
Instructions for Windows 98SE, Me, and 2000
Figure 4-2
98

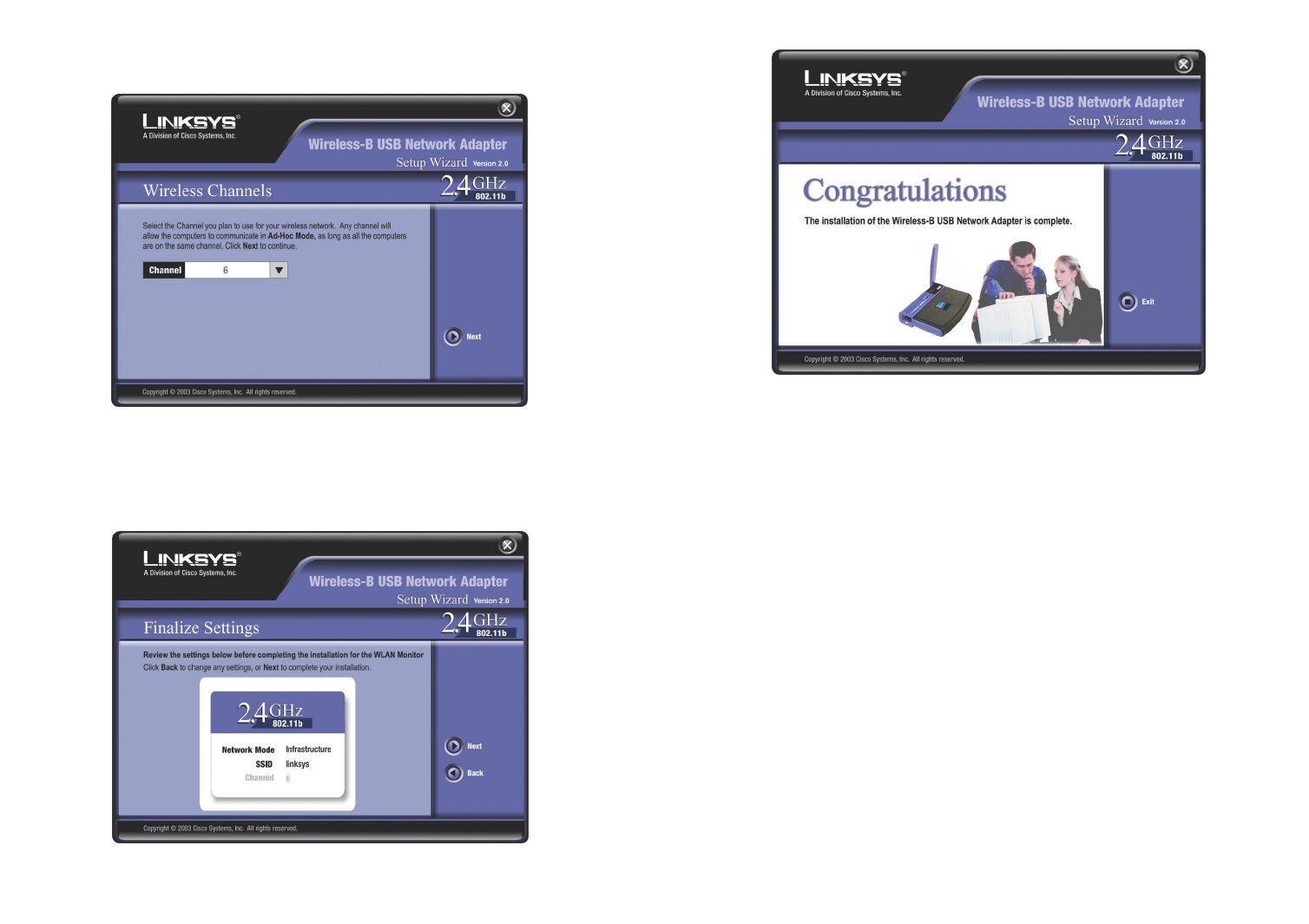

6. After the software has been successfully installed, the screen in Figure 4-6
will appear. Click the Exit button.
Proceed to “Chapter 5: Hardware Installation.”
Figure 4-6
4. If you chose Infrastructure Mode, go to Step 5 now. If you chose Ad-Hoc
Mode, select the correct operating channel for your network. The channel
you choose should match the channel set on the other devices in your wire-
less network. Then click the Next button.
5. The Setup Wizard will ask you to review your settings before it starts to copy
files. Click the Next button to save these settings, or click the Back button
to change any settings.
Figure 4-4
Figure 4-5
1110
2. The Power LED should light up
when the Adapter is plugged in.
(Make sure your PC is powered on.)
3. Raise the antenna. Make sure the antenna is
positioned straight up into the air, at a 90º angle
from the Adapter (see Figure 5-5). This will
ensure optimum wireless operating range and
performance.
If your PC is running Windows XP, proceed to “Chapter 6: Driver
Installation and Configuration for Windows XP.”
If your PC is running Windows 98SE, Me, or 2000, the installation of the
Wireless-B USB Network Adapter is complete. If you want to check the
link information, search for available wireless networks, or make addi-
tional configuration changes, proceed to “Chapter 7: Using the WLAN
Monitor for Windows 98SE, Me, and 2000.”

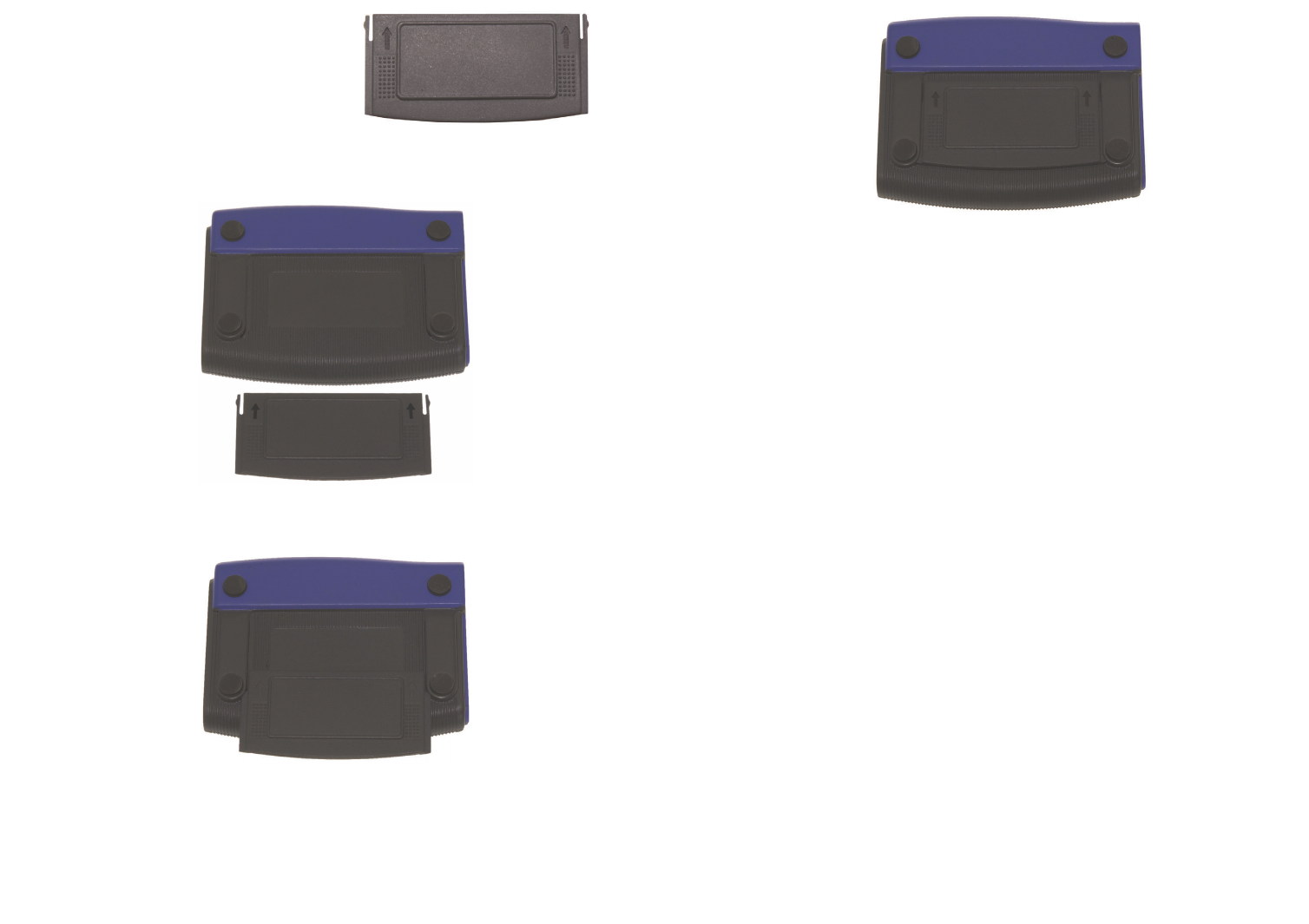

The Adapter’s Wall Mount (see Figure 5-6) allows you to easily attach the
Adapter onto your wall for better reception and more convenient placement.
Figure 5-4
Chapter 5: Hardware Installation
1. The Adapter comes with the USB cable you will use to connect the Adapter
to your PC. (See Figure 5-1.)
Connect one end of the USB cable to the USB port of the
Adapter (see Figure 5-2).
Connect the other end of the USB cable to one of the USB
ports on your computer (see Figure 5-3).
Important for Windows 98SE, Me, and 2000 users: You must run
the Setup Wizard to install the software before installing the hardware.
Important for Windows XP users: You must install the Adapter’s
hardware before installing the software.
Figure 5-1
Figure 5-2
Figure 5-3
Figure 5-5
Using the Adapter’s Wall Mount
Connecting the Adapter
Note: If you want to attach the Adapter onto your wall, go to the next
section, “Using the Adapter’s Wall Mount,” before proceeding to the
appropriate chapter for your PC’s operating system.
Wireless-B USB
Network Adapter
STEP C
3. Using the velcro strip on the Adapter’s Wall Mount, attach the Adapter to the
velcro strip on your wall.
If your PC is running Windows XP, proceed to “Chapter 6: Driver
Installation and Configuration for Windows XP.”
If your PC is running Windows 98SE, Me, or 2000, the installation of the
Wireless-B USB Network Adapter is complete. If you want to check the
link information, search for available wireless networks, or make addi-
tional configuration changes, proceed to “Chapter 7: Using the WLAN
Monitor for Windows 98SE, Me, and 2000.”
13
1. Attach the separate adhesive strip of vel-
cro to the wall where you will be mount-
ing the Adapter.
2. To attach the Wall Mount to the Adapter,
slide the Wall Mount into the grooves on
the back panel of the Adapter, as shown in
Steps A, B, and C.
STEP A
STEP B
12
Figure 5-6
Figure 5-7
Figure 5-8
Figure 5-9

Navigation menu
