LITE ON TECHNOLOGY WP8331 802.11ac Dual Band PoE Access point User Manual 05 Revise

LITE-ON Technology Corp. 802.11ac Dual Band PoE Access point 05 Revise

Manual

WP8331

802.11ac Dual Band PoE Access Point

External Specification

Version: V0.4

This document contains confidential proprietary information and is property of LTC. The contents of this

document should not be disclosed to unauthorized persons without the written consent of LTC.

Page 2 of 8

Specification Revision History

Version Revised Date Person Name Content Revised

0.1 2016/05/13 Flora Yu First edit

0.2 2016/05/20 Flora Yu Change CPU platform

0.3 2016/08/03 Flora Yu Change BLE chip to support interface via USB

Update certification requirement

0.4 2016/1013 Flora Yu Increasing Rx sensibility number

Page 3 of 8

1 Product Descriptions

The WP8331 is a two radios, dual band, 802.11ac access point. It provides powerful WLAN supporting

wireless speed up to 300Mbps on 2.4GHz and 867Mbps on 5GHz, one Ethernet port to connect to the

backbone network, one Ethernet ports can be aggregated to connect to one computer through the

network cables. Besides, the WP8331 supports 802.3at PoE PD to allow the device powered by PoE

switch remotely.

To protect data during wireless transmission, the device supports WEP data encryption and

WPA/WPA2 wireless security to ensure network safely.

The WP8331 is ideal for a variety of medium density enterprise and hotspot environments including

SMBs, hotels, retail outlets and branch offices.

2 Product Specifications and Features

2.1 H/W Features

2.1.1 Specification

Key Components / Connectors / Performance

Processor QCA IPQ4028

Wireless Chipset Integrated with IPQ4028 – 2.4G

Integrated with IPQ4028 – 5G

BT/BLE CSR8510 (optional, layout reserved via USB to SoC)

GE PHY QCA8072

SPI Flash 64Mbytes (pin-to-pin downsize) – default

NAND Flash 128MB – optional/reserved

DDR3 256Mbytes (pin-to-pin downsize or upsize to 1GB)

Console Internal console port

Interfaces

Ethernet

1x 10/100/1000 Base-TX MDI/MDIX RJ-45 port with PoE PD 802.3 at

1x 10/100/1000 Base-TX MDI/MDIX RJ-45 port

Compliant with following standards:

1. IEEE 802.3/802.3u

2. Hardware based 10/100/1000, full/half, flow control auto negotiation

3. Full duplex IEEE 802.3x flow control and half duplex back-pressure

flow control

Page 4 of 8

Wireless

802.11ac 2.4GHz on board

802.11ac 5GHz on board

BT/BLE on board

2 internal antennas – 2.4G antenna

2 internal antennas – 5G

1 internal antenna – BT/BLE

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac compliant

Data Rate:

802.11a: 6, 9, 12, 18, 24, 36, 48, 54

802.11g: 54, 48, 36, 24, 18, 12, 9 & 6 Mbps

802.11b: 11, 5.5, 2 & 1 Mbps

802.11n :

20 MHz BW: 130, 117, 104, 78, 52, 39, 26, 13Mbps

40 MHz BW: 270, 243, 216, 162, 108, 81, 54, 27 Mbps

802.11ac :

20MHz BW : 173, 144, 130, 115, 86, 57, 43, 28,14 Mbps

40MHz BW : 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps

80MHz BW : 867, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Modulation:

802.11g: OFDM, BPSK, QPSK, 16QAM, 64QAM

802.11b:CCK(11&5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS

802.11n: PSK/CCK, DBPSK, DQPSK, OFDM

802.11ac: DSSS, OFDM, MIMO-OFDM, 16QAM, 64QAM, 256QAM

Operating Frequencies:

USA – FCC 2412~2462MHz

Canada – IC 2412~2462MHz

Europe – ETSI 2412~2472MHz

Operating Frequencies:

2400 ~ 2484.5 MHz

5150MHz ~ 5850MHz for US & Canada

5150MHz ~ 5350MHz for Europe

5470MHz ~ 5725MHz for Europe

5030MHz~5091MHz and 5150MHz ~ 5250MHz for Japan

5150MHz ~ 5350MHz for Australia

5470MHz ~ 5725MHz for Australia (except channel 120, 124 and 128)

5725Mhz ~ 5825Mhz for Australia

Output Power:

2.4GHz band (discrete PA/LNA)

802.11b: 24.63 +/- 2 dBm

802.11g: 24.16 +/- 2 dBm

802.11n: 24.34 +/- 2 dBm

5GHz band (discrete PA/LNA)

UNII-1: 25.60 dBm +/- 2 dBm

UNII-2a: 23.08 dBm +/- 2 dBm

UNII-2c: 23.13 dBm +/- 2 dBm

UNII-3: 25.02 dBm +/- 2 dBm

Page 5 of 8

Rx sensitivity:

2.4GHz band,

802.11b@11Mbps: -91 +/- 2dBm

802.11g@54Mbps: -76 +/- 2dBm

802.11n MCS7: -73 +/-2 dBm

5GHz band,

802.11a @6Mbps: -93+/- 2dBm

802.11a @54Mbps: -76+/- 2dBm

802.11n MCS7 : -72 +/- 2dBm

802.11ac MCS9:-64 +/- 2dBm

Peak Gain: 2.6 dBi

2.4G

Ant _1: Peak Gain: 4.7 dBi

Ant _2: Peak Gain: 3.3 dBi

5180~5240 MHz

Ant _1: Peak Gain: 3.8 dBi

Ant _2: Peak Gain: 5.0 dBi

5260~5320 MHz

Ant _1: Peak Gain: 4.3 dBi

Ant _2: Peak Gain: 5.0 dBi

Power Directional Gain: 4.66 dBi

Power Density Directional Gain: 7.67 dBi

5500~5720 MHz

Ant _1: Peak Gain: 5.1dBi

Ant _2: Peak Gain: 4.7 dBi

Power Directional Gain: 4.90 dBi

Power Density Directional Gain: 7.91 dBi

5745~5825 MHz

Ant _1: Peak Gain: 5.1 dBi

Ant _2: Peak Gain: 5.0 dBi

Impedance: 50 Ohm nominal

Antenna efficiency - 2.4G: 50%

Antenna efficiency - 5G: 60%

Antenna efficiency - BLE: 40%

V.S.W.R.: 2.0:1 Max

USB Host 2.0 (optional)

Reset 1 x reset button

2.1.2 LED indicators

- from left to right (total 5 LEDs)

PWR LAN1 LAN2 5G 2.4G

Location LED Indicative Color Status Description

Per device Power Green Solid Light Power on

Light off Power off

Page 6 of 8

WLAN

Green (5G)

Solid Light Connect to WLAN port

Blinking WLAN activity present

Light off No activity or power off

Amber

(2.4G)

Solid Light Connect to WLAN port

Blinking WLAN activity present

Light off No activity or power off

Per port LAN Green

Solid Light Device connected to LAN port at

10/100/1000Mbps

Blinking LAN Activity present

Light off Not Connected

2.2 S/W Features

Software specification

Feature Item Feature Detailed Description

Wireless Wireless mode 11b/g/n

11a/ac

Operation mode Access point mode (Support both normal station

and WDS station)

Bandwidth 20MHz

20/40MHz dynamic

20/40/80MHz dynamic

Aggregation in 11n mode A-MPDU

SSID Support 4 virtual AP

QoS EDCA WMM

QoS-DSCP configurable via web UI

Other parameter configurable

via Web UI Transmit power adjustable (four level: full, 1/2,

1/4, 1/8)

DTIM

Guard interval (short/long)

Security Authentication WPA/WPA2 Personal (PSK), 802.1X

Authentication with RADIUS Client

Enterprise (802.1x): PEAP, TTLS, TLS

Encryption AES, TKIP, WEP 64/128,

Management Network setting IPv4 static IP & DHCP client

Statistics Statistics of wired, wireless associated stations

accessible

SNMP v1/v2 MIBII(survey throughput, data statistics,

location)

Wireless ACL in AP mode Based on MAC address

Firmware upgrade via Web UI

via SNMP

System log Syslog

Discovery tools LiteON Locator

For customization, like GUI / SNMP MIBs/ configuration tool or customer internal utility, will discuss

with customer once project is awarded.

Page 7 of 8

3 Mechanical and Environment Design

3.1 Case (details refer to ME drawing separately)

A. ID/Tool (leverage WP8336-AB)

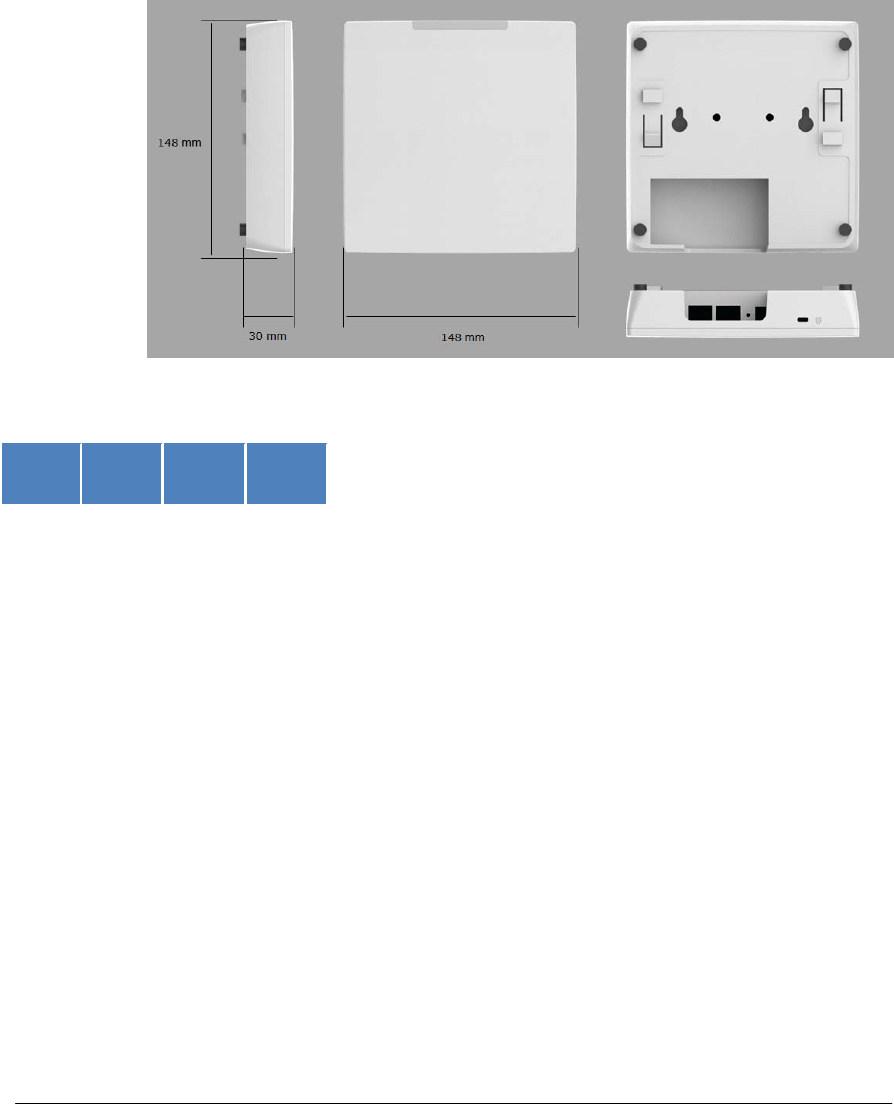

This ID is a small form factor within 146x146mm. The bottom ID/ME shall seamlessly

(without tooling updates) support potential different styles of top cover for customers.

The ID has a Kensington lock hole on the enclosure.

B. I/O port (back view, ordering from right to left)

DCINRESETLAN1LAN2

(PoE)

C. Mounting Kit

1. It needs to accommodate Mojo four mounting kits for T-bar and hard surface mount.

2. There are three T-bar width supported, 15, 24 and 38mm.

3. The hard flat surface mounting including wall and ceiling mount

a. standard, 2 key holes in the central part on bottom case (optional)

b. optional accessory, separate bracket

3.2 Physical & Environment

3.2.1 Power

- PoE DC 48V

- Optional external power adapter, (to be quoted separately)

 Input: 100-240VAC, 50/60Hz

 Output: Switching12V DC/1.5A (for DC jack center pin 2.0mm)

- Reset Button: Reset to factory default by pushing button for 5 sec

Page 8 of 8

3.2.2 Operation Temperature

- Temp: 0° C to +45° C (+32° F to +113° F)

- Humidity: 5% ~ 95%R.H non-condensing

3.2.3 Storage Temperature

- Temp: -4℉ to 149℉ (-20℃ to 65℃)

- Humidity: 5% ~ 95% non-condensing

4 Certification Requirements

STATUATORY

- USA (Non DFS)

- USA (DFS)

- Canada (IC)

- Europe (CE)

- Japan (TELEC)

- India (WPC)

- Korea (KCC)

- Taiwan (NCC)

- China (MII-NAL)

- AUS/NZ

SAFETY

- USA UL

- Canada cUL

- WW CB (IECEE)

- China CCC

Others

- RoHS (self- announcement)

- WEEE (self- announcement)

FCCStatement:

FederalCommunicationCommissionInterferenceStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment

generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin

accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.If

thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan

bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrect

theinterferencebyoneofthefollowingmeasures:

●Reorientorrelocatethereceivingantenna.

●Increasetheseparationbetweentheequipmentandreceiver.

●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver

isconnected.

●Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsible

forcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust

acceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.



ForproductavailableintheUSA/Canadamarket,onlychannel1~11canbeoperated.

Selectionofotherchannelsisnotpossible.



Thisdeviceanditsantenna(s)mustnotbeco‐locatedwithanyothertransmittersexceptin

accordancewithFCCmulti‐transmitterproductprocedures.



Thedeviceforoperationintheband5150–5250MHzisonlyforindooruse



IMPORTANTNOTE:

FCCRadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20

cmbetweentheradiator&yourbody.



ICStatement:

ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationis

subjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)

thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio

exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareil

nedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertout

brouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrele

fonctionnement.



ForproductavailableintheUSA/Canadamarket,onlychannel1~11canbeoperated.

Selectionofotherchannelsisnotpossible.

PourlesproduitsdisponiblesauxÉtats‐Unis/Canadadumarché,seullecanal1à11

peuventêtreexploités.Sélectiond'autrescanauxn'estpaspossible.



Thisdeviceanditsantenna(s)mustnotbeco‐locatedwithanyothertransmittersexceptin

accordancewithICmulti‐transmitterproductprocedures.

Referingtothemulti‐transmitterpolicy,multiple‐transmitter(s)andmodule(s)canbe

operatedsimultaneouslywithoutreassessmentpermissivechange.

Cetappareiletsonantenne(s)nedoitpasêtreco‐localisésoufonctionnementen

associationavecuneautreantenneoutransmetteur.



Thedeviceforoperationintheband5150–5250MHzisonlyforindoorusetoreducethe

potentialforharmfulinterferencetoco‐channelmobilesatellitesystems.

lesdispositifsfonctionnantdanslabande5150‐5250MHzsontréservésuniquementpour

uneutilisationàl’intérieurafinderéduirelesrisquesdebrouillagepréjudiciableaux

systèmesdesatellitesmobilesutilisantlesmêmescanaux.



Themaximumantennagainpermittedfordevicesintheband5725‐5850MHzshallbesuch

thattheequipmentstillcomplieswiththee.i.r.p.limitsspecifiedforpoint‐to‐pointand

non‐point‐to‐pointoperationasappropriate.

legainmaximald’antennepermis(pourlesdispositifsutilisantlabande5725‐5850MHz)

doitseconformeràlalimitedep.i.r.e.spécifiéepourl’exploitationpointàpointetnon

pointàpoint,selonlecas.



DynamicFrequencySelection(DFS)fordevicesoperatinginthebands5250‐5350MHz,

5470‐5600MHzand5650‐5725MHz.

Sélectiondynamiquedefréquences(DFS)pourlesdispositifsfonctionnantdanslesbandes

5250‐5350MHz,5470‐5600MHzet5650‐5725MHz.



Themaximumantennagainpermittedfordevicesinthebands5250‐5350MHzand

5470‐5725MHzshallbesuchthattheequipmentstillcomplieswiththee.i.r.p.limit.

legainmaximald’antennepermispourlesdispositifsutilisantlesbandes5250‐5350MHzet

5470‐5725MHzdoitseconformeràlalimitedep.i.r.e.



Usersshouldalsobeadvisedthathigh‐powerradarsareallocatedasprimaryusers(i.e.

priorityusers)ofthebands5250‐5350MHzand5650‐5850MHzandthattheseradarscould

causeinterferenceand/ordamagetoLE‐LANdevices.

Deplus,lesutilisateursdevraientaussiêtreavisésquelesutilisateursderadarsdehaute

puissancesontdésignésutilisateursprincipaux(c.‐à‐d.,qu’ilsontlapriorité)pourlesbandes

5250‐5350MHzet5650‐5850MHzetquecesradarspourraientcauserdubrouillageet/ou

desdommagesauxdispositifsLAN‐EL.



Pouruneutilisationenintérieuruniquement.



IMPORTANTNOTE:

ICRadiationExposureStatement:

ThisequipmentcomplieswithICRSS‐102radiationexposurelimitssetforthforan

uncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20

cm

betweentheradiator&yourbody.

Cetéquipementestconformeauxlimitesd'expositionauxrayonnementsICétabliespourun

environnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunminimum

de20cmdedistanceentrelasourcederayonnementetvotrecorps.



LITE ON TECHNOLOGY WP8331 802.11ac Dual Band PoE Access point User Manual 05 Revise

LITE-ON Technology Corp. 802.11ac Dual Band PoE Access point 05 Revise

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
