LONGSYS ELECTRONICS WK1230 Wifi Module User Manual WK1230 Kit Demo

LONGSYS ELECTRONICS (HK) CO.,LIMITED Wifi Module WK1230 Kit Demo

User Manual

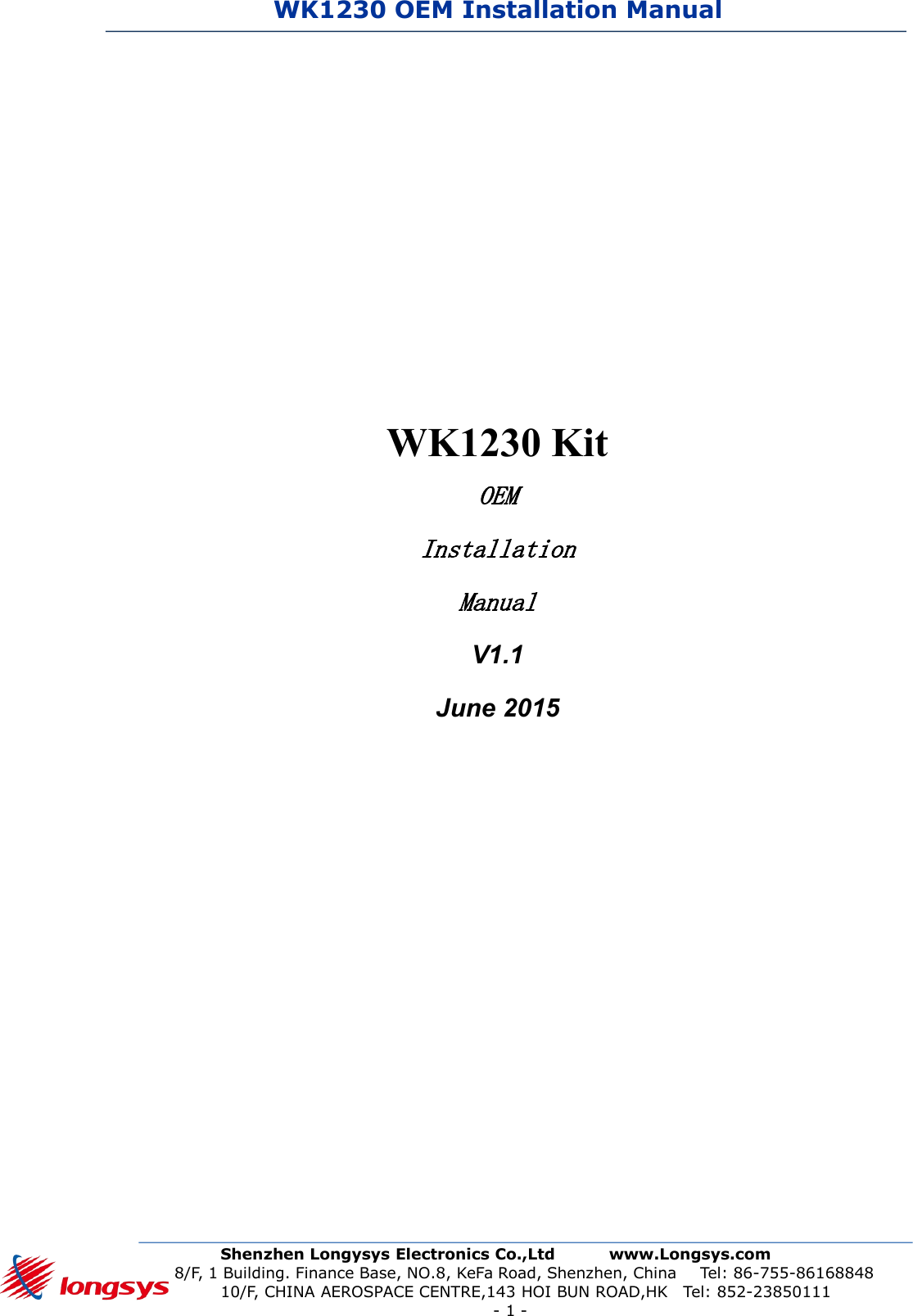

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-1-WK1230 KitOEMInstallationManualV1.1June 2015

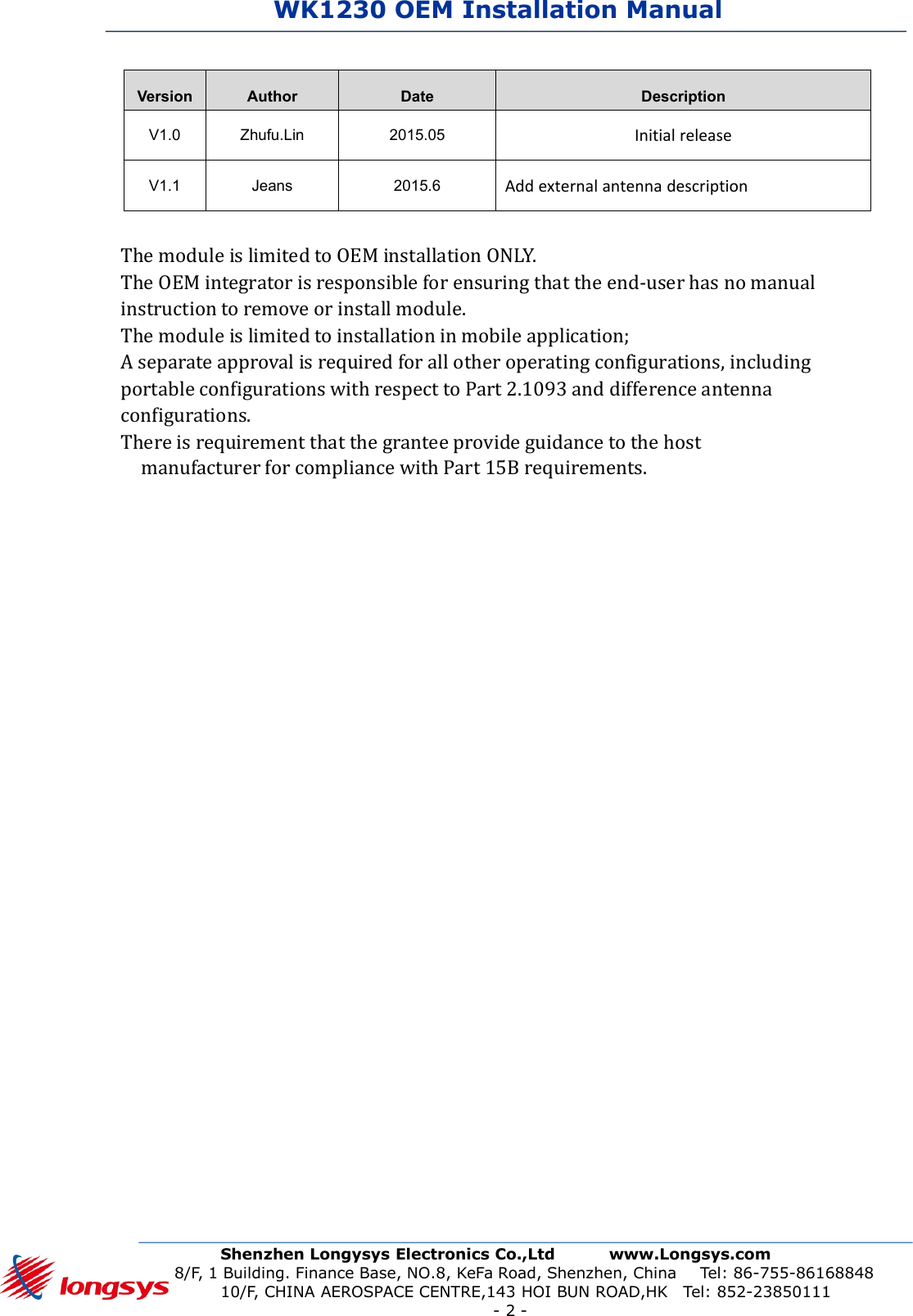

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-2-VersionAuthorDateDescriptionV1.0Zhufu.Lin2015.05Initial releaseV1.1Jeans2015.6Add external antenna descriptionThe module is limited to OEM installation ONLY.The OEM integrator is responsible for ensuring that the end-user has no manualinstruction to remove or install module.The module is limited to installation in mobile application;A separate approval is required for all other operating configurations, includingportable configurations with respect to Part 2.1093 and difference antennaconfigurations.There is requirement that the grantee provide guidance to the hostmanufacturer for compliance with Part 15B requirements.

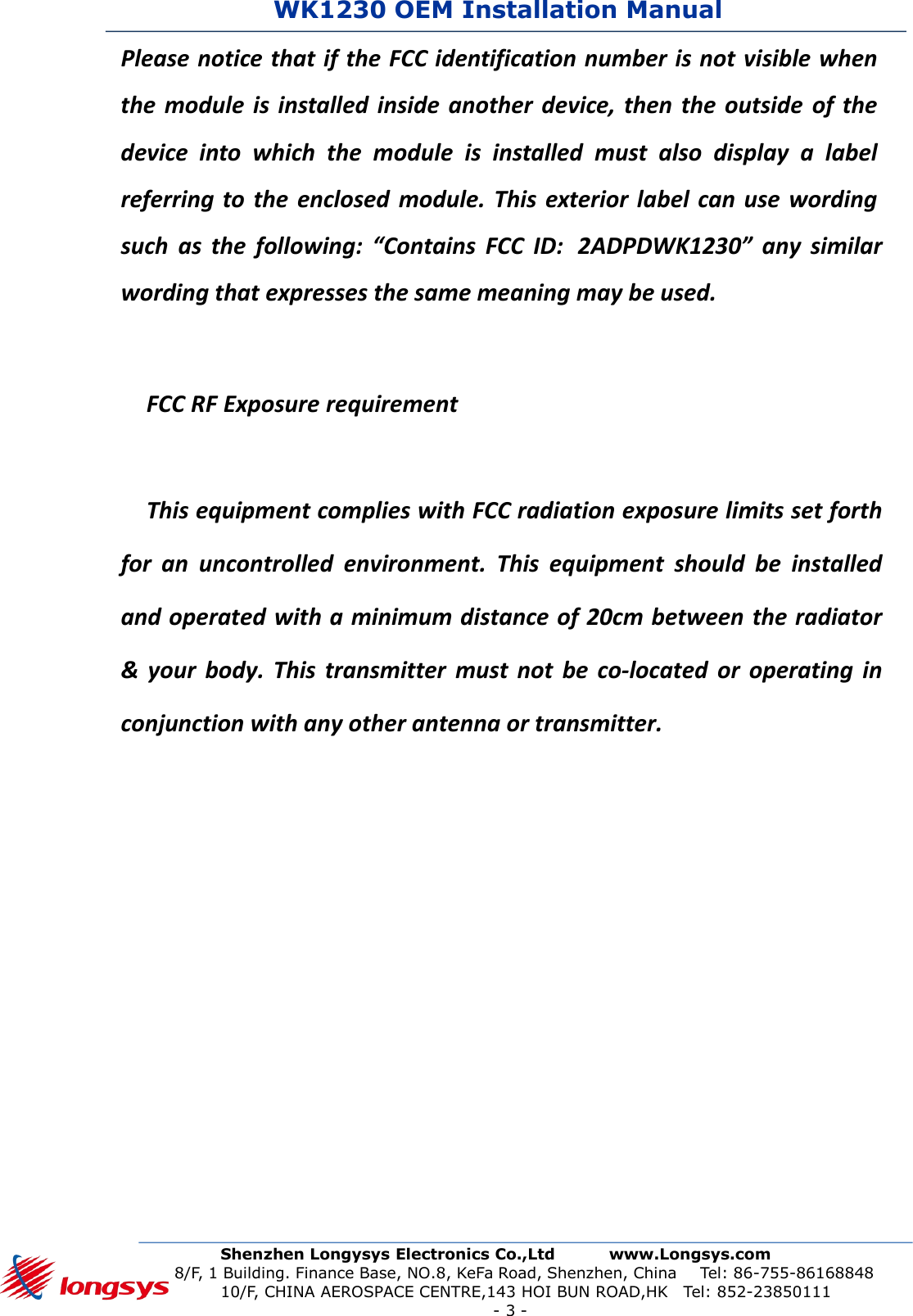

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-3-Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2ADPDWK1230” any similar wording that expresses the same meaning may be used.FCC RF Exposure requirementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

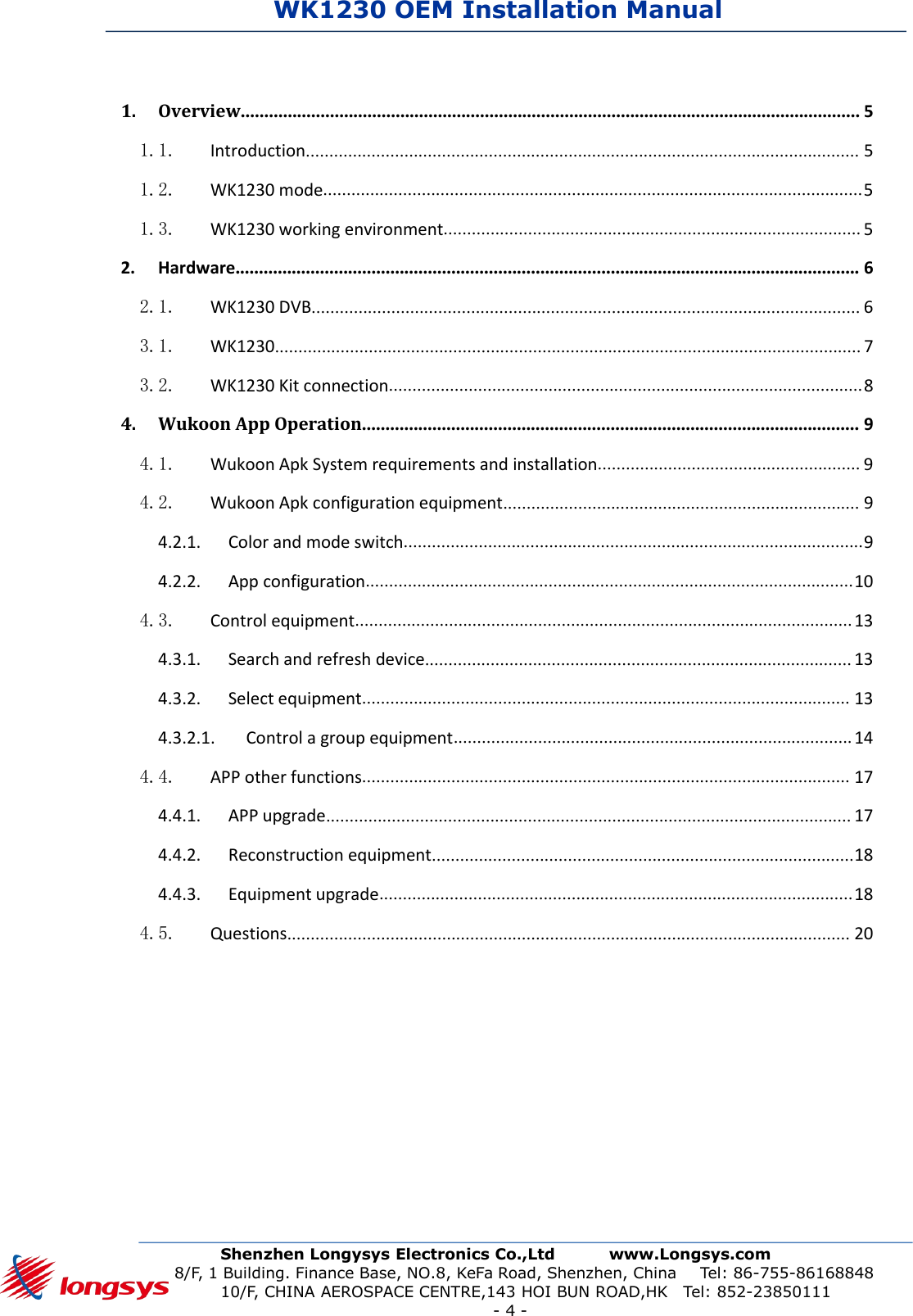

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-4-1. Overview.................................................................................................................................... 51.1. Introduction...................................................................................................................... 51.2. WK1230 mode...................................................................................................................51.3. WK1230 working environment......................................................................................... 52. Hardware..................................................................................................................................... 62.1. WK1230 DVB..................................................................................................................... 63.1. WK1230............................................................................................................................. 73.2. WK1230 Kit connection.....................................................................................................84. Wukoon App Operation.......................................................................................................... 94.1. Wukoon Apk System requirements and installation........................................................ 94.2. Wukoon Apk configuration equipment............................................................................ 94.2.1. Color and mode switch..................................................................................................94.2.2. App configuration........................................................................................................104.3. Control equipment.......................................................................................................... 134.3.1. Search and refresh device........................................................................................... 134.3.2. Select equipment........................................................................................................ 134.3.2.1. Control a group equipment..................................................................................... 144.4. APP other functions........................................................................................................ 174.4.1. APP upgrade................................................................................................................ 174.4.2. Reconstruction equipment..........................................................................................184.4.3. Equipment upgrade.....................................................................................................184.5. Questions........................................................................................................................ 20

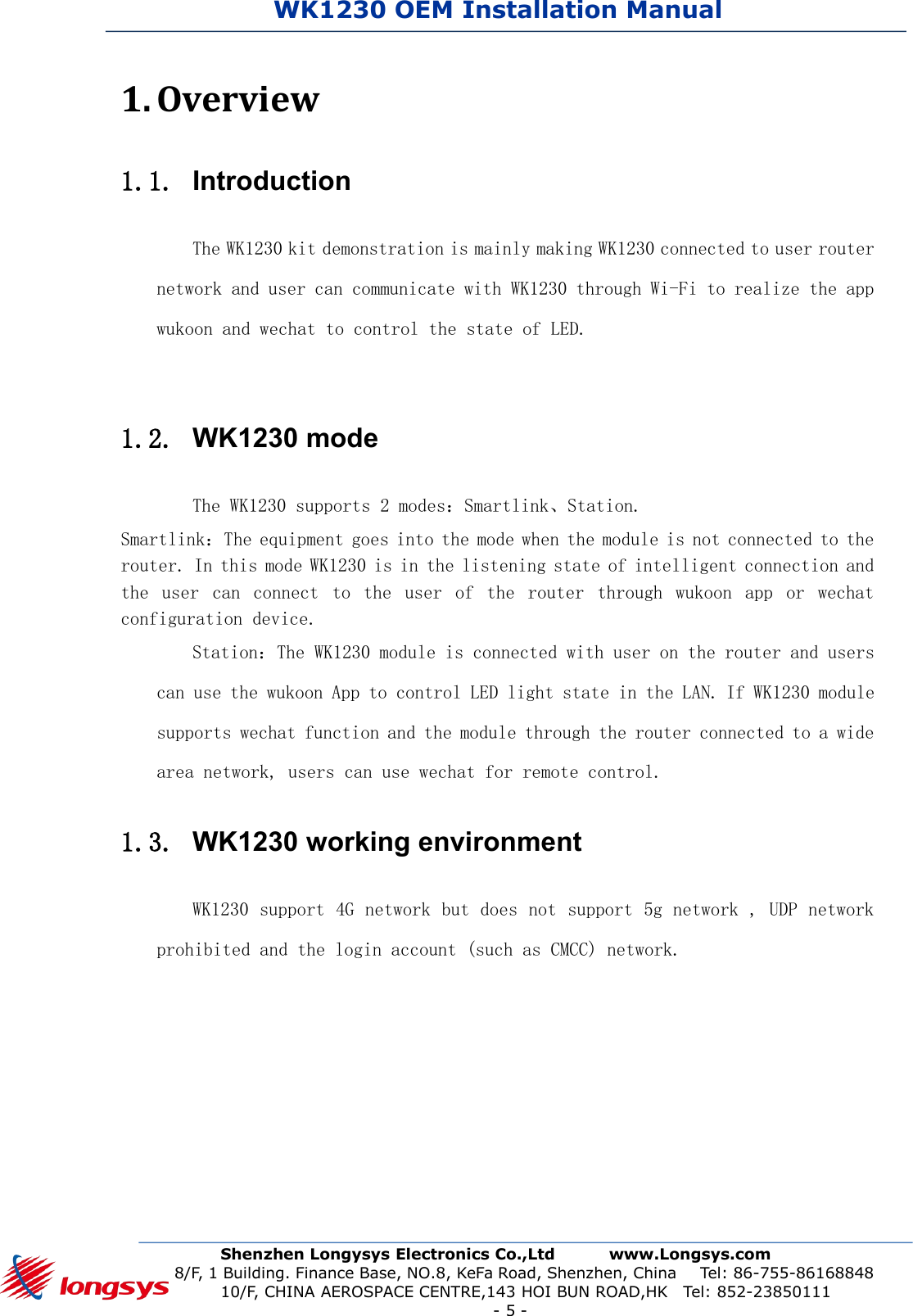

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-5-1. Overview1.1. IntroductionThe WK1230 kit demonstration is mainly making WK1230 connected to user routernetwork and user can communicate with WK1230 through Wi-Fi to realize the appwukoon and wechat to control the state of LED.1.2. WK1230 modeThe WK1230 supports 2 modes：Smartlink、Station.Smartlink：The equipment goes into the mode when the module is not connected to therouter. In this mode WK1230 is in the listening state of intelligent connection andthe user can connect to the user of the router through wukoon app or wechatconfiguration device.Station：The WK1230 module is connected with user on the router and userscan use the wukoon App to control LED light state in the LAN. If WK1230 modulesupports wechat function and the module through the router connected to a widearea network, users can use wechat for remote control.1.3. WK1230 working environmentWK1230 support 4G network but does not support 5g network , UDP networkprohibited and the login account (such as CMCC) network.

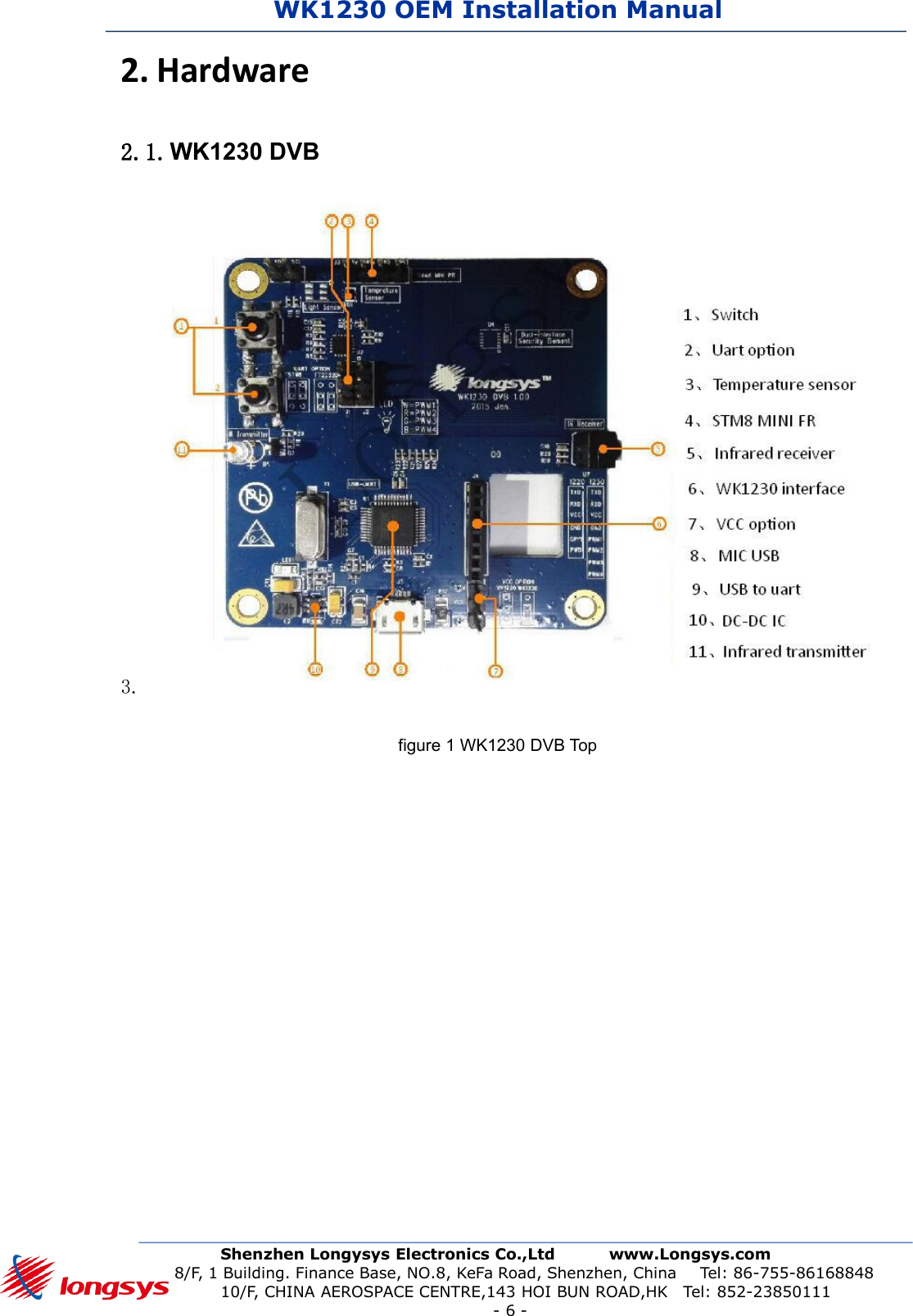

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-6-2. Hardware2.1.WK1230 DVB3.figure 1 WK1230 DVB Top

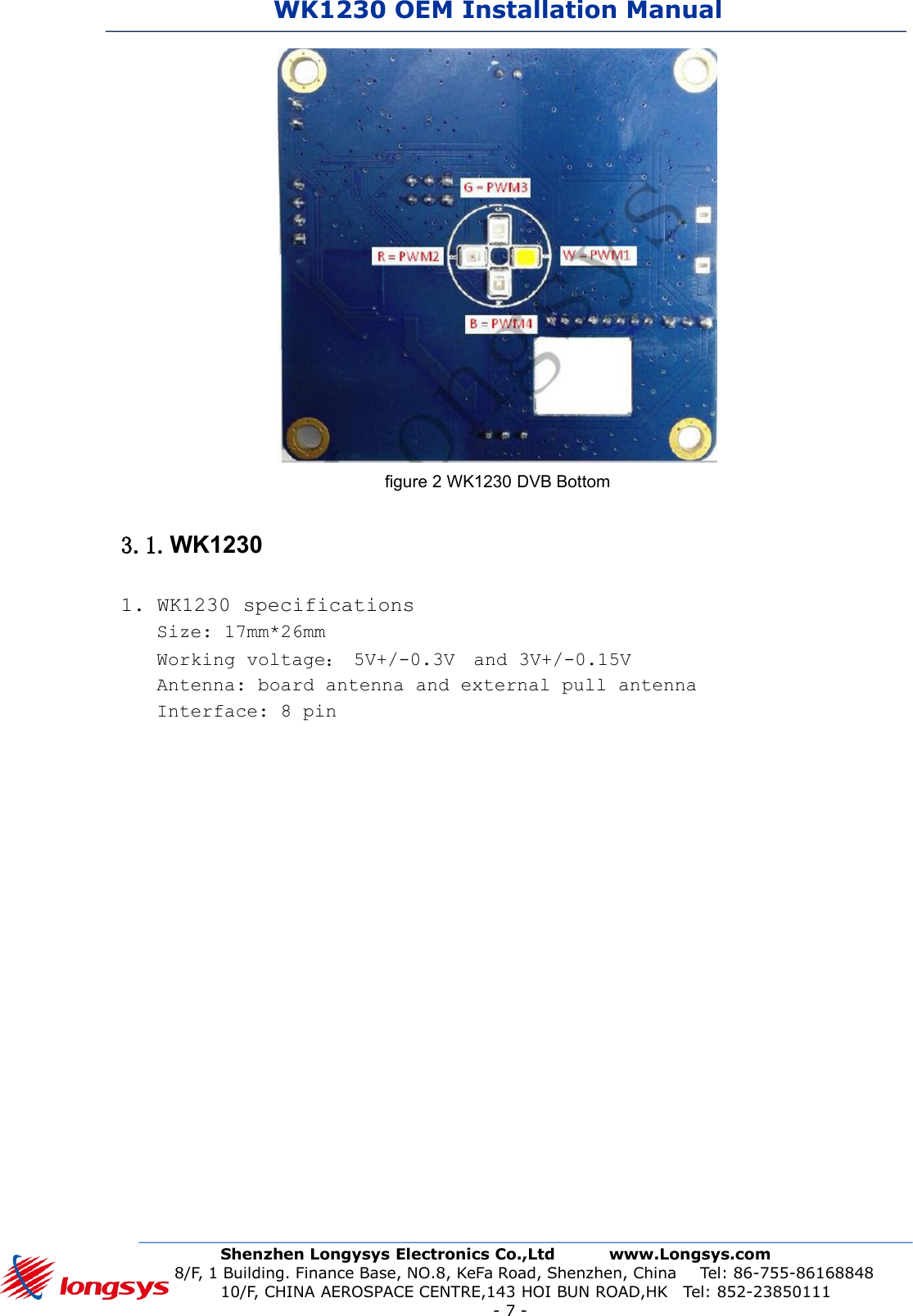

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-7-figure 2 WK1230 DVB Bottom3.1.WK12301. WK1230 specificationsSize: 17mm*26mmWorking voltage：5V+/-0.3V and 3V+/-0.15VAntenna: board antenna and external pull antennaInterface: 8 pin

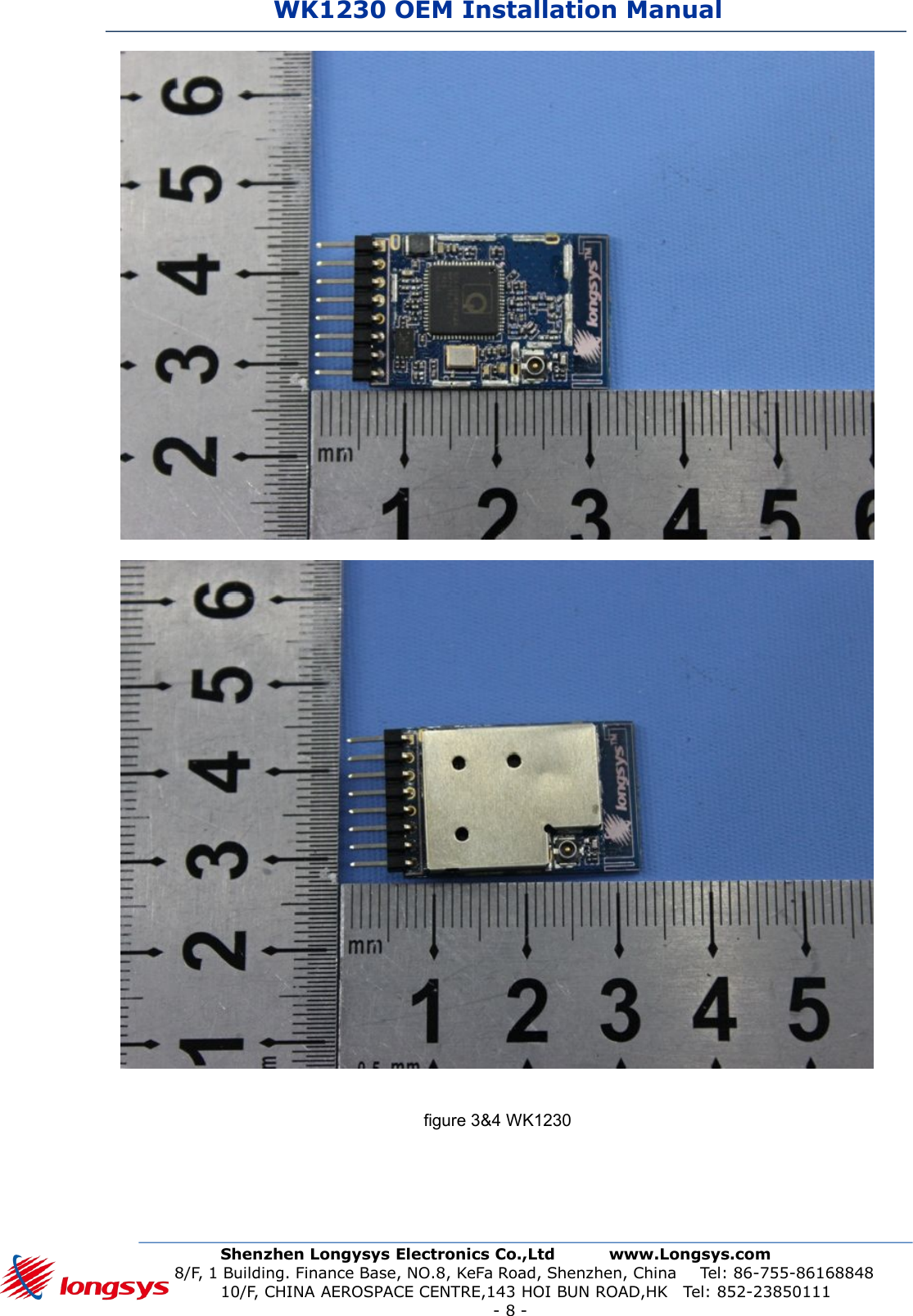

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-8-figure 3&4 WK1230

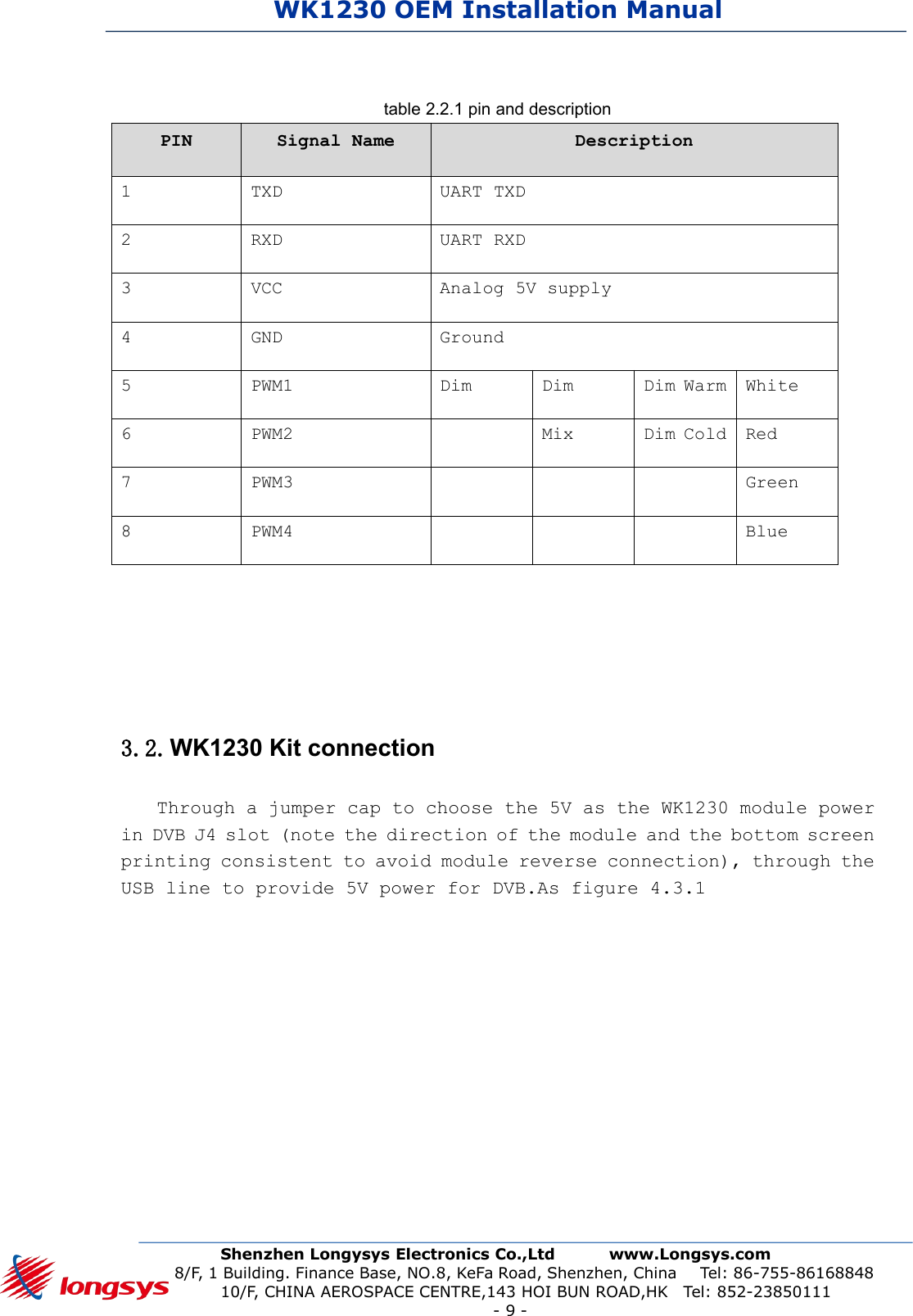

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-9-table 2.2.1 pin and descriptionPINSignal NameDescription1TXDUART TXD2RXDUART RXD3VCCAnalog 5V supply4GNDGround5PWM1DimDimDim WarmWhite6PWM2MixDim ColdRed7PWM3Green8PWM4Blue3.2.WK1230 Kit connectionThrough a jumper cap to choose the 5V as the WK1230 module powerin DVB J4 slot (note the direction of the module and the bottom screenprinting consistent to avoid module reverse connection), through theUSB line to provide 5V power for DVB.As figure 4.3.1
WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-10 -Figure 5 WK1230 Kit4. Wukoon App Operation4.1.Wukoon Apk System requirements and installation1. Mobile phone Android system more than 4.0.2. Download the latest APK and install to the phone.( www.wukoon.com/download)

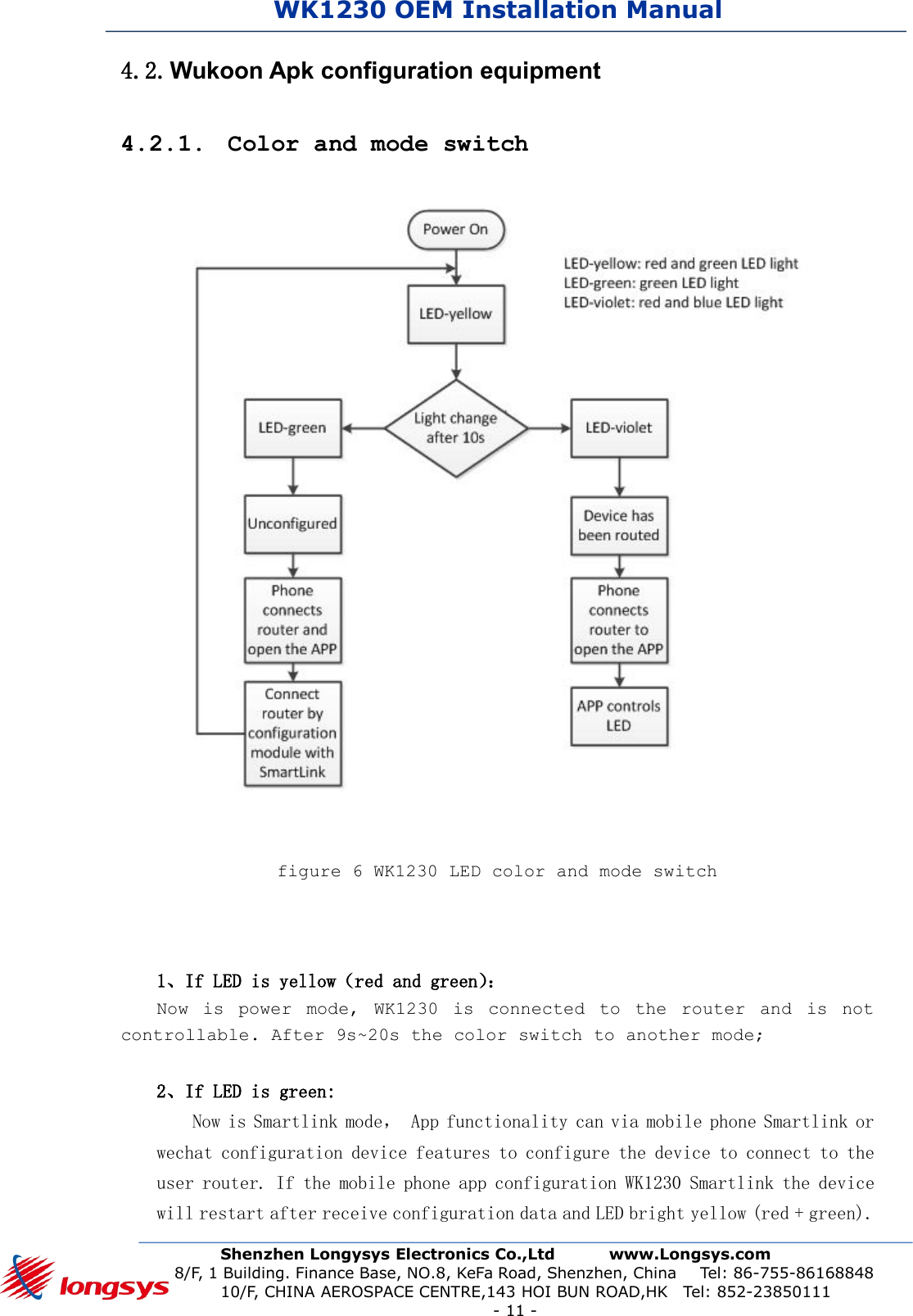

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-11 -4.2.Wukoon Apk configuration equipment4.2.1. Color and mode switchfigure 6 WK1230 LED color and mode switch1、If LED is yellow（red and green）：Now is power mode, WK1230 is connected to the router and is notcontrollable. After 9s~20s the color switch to another mode;2、If LED is green:Now is Smartlink mode， App functionality can via mobile phone Smartlink orwechat configuration device features to configure the device to connect to theuser router. If the mobile phone app configuration WK1230 Smartlink the devicewill restart after receive configuration data and LED bright yellow (red + green).
WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-12 -The router can be connected after 9s about.3、If LED is violet（red and blue）：Now is Station mode and WK1230 has been connected to the router. In the sameLAN, app can be refreshed through mobile phone to find the device and controlthe state of the device LED4.2.2. App configurationOpen app into the main interface, as shown in Figure 3.2.1. The pop-up promptedthe reminder dialog after 10s. such as figure 3.2.2.figure 3.2.1 app main interface figure 3.2.2 reminder dialogAfter clicking on the OK button, enter the configuration of the newdevice interface (1), as shown in Figure 3.2.3. The latter chose tocancel the button, through the menu select Configure new device intothe configuration of the new device interface (1), such as figure 3.2.8.Click next to configure the new device interface (2), as shown in Figure3.2.4.

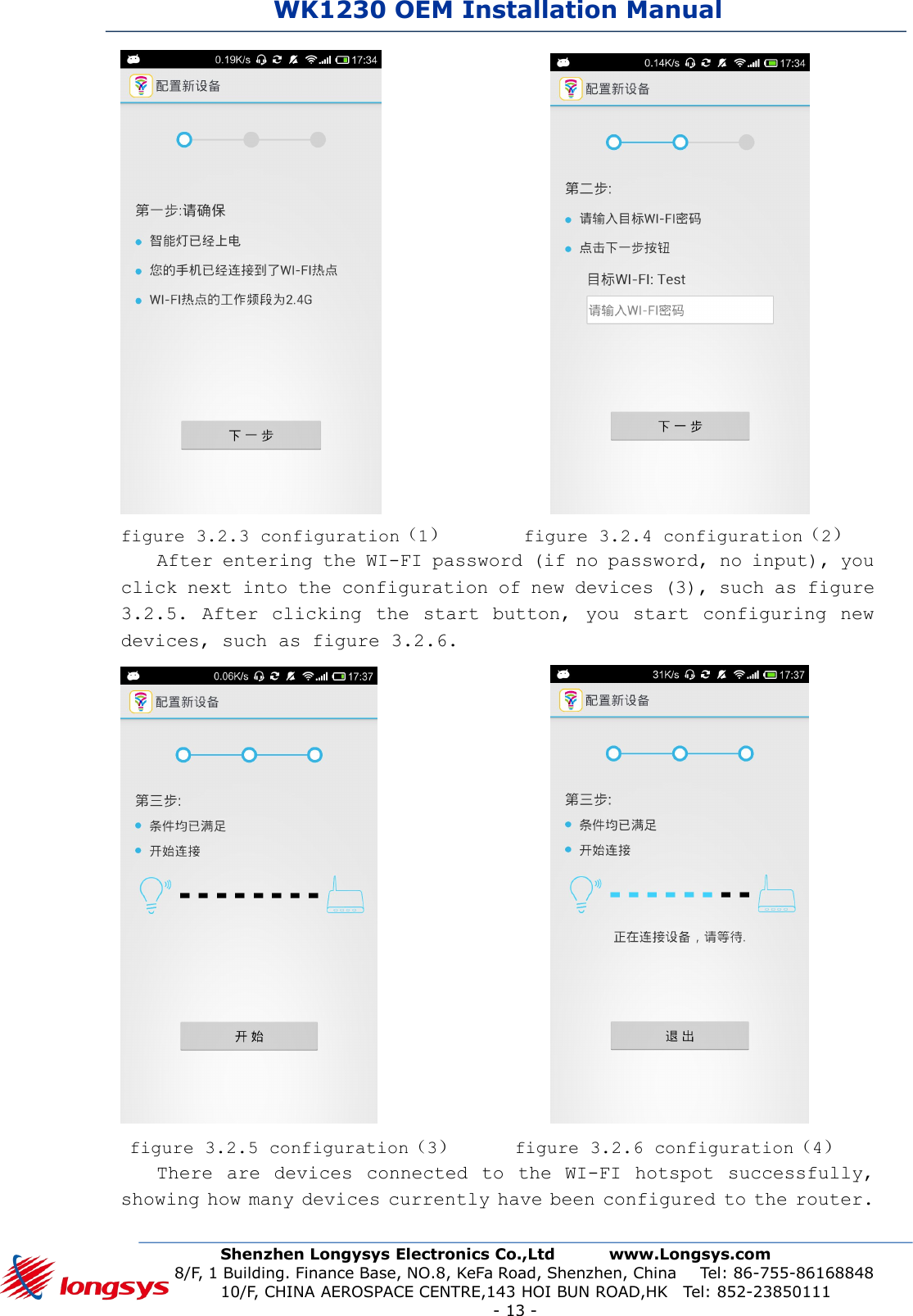

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-13 -figure 3.2.3 configuration（1）figure 3.2.4 configuration（2）After entering the WI-FI password (if no password, no input), youclick next into the configuration of new devices (3), such as figure3.2.5. After clicking the start button, you start configuring newdevices, such as figure 3.2.6.figure 3.2.5 configuration（3）figure 3.2.6 configuration（4）There are devices connected to the WI-FI hotspot successfully,showing how many devices currently have been configured to the router.

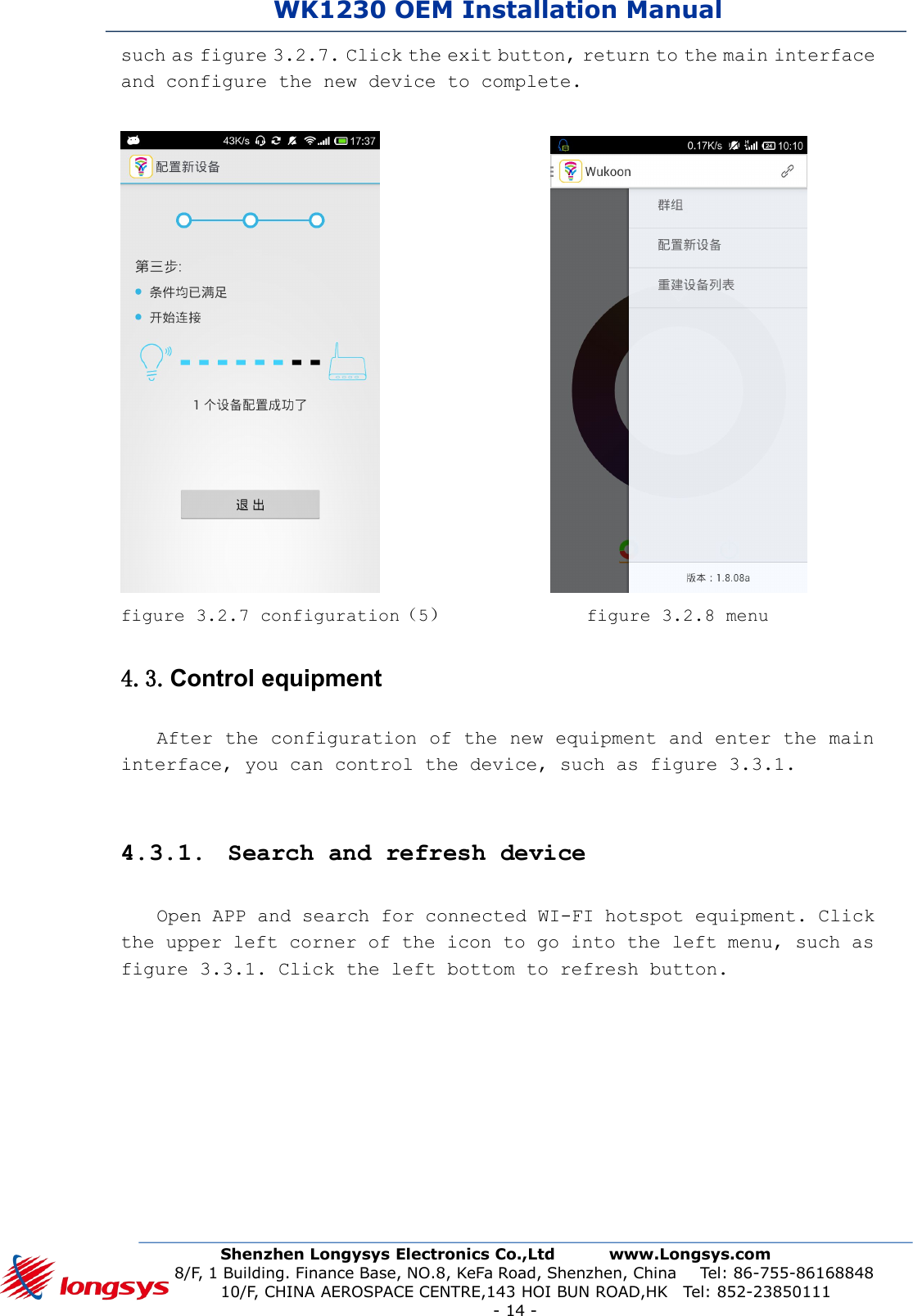

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-14 -such as figure 3.2.7. Click the exit button, return to the main interfaceand configure the new device to complete.figure 3.2.7 configuration（5）figure 3.2.8 menu4.3.Control equipmentAfter the configuration of the new equipment and enter the maininterface, you can control the device, such as figure 3.3.1.4.3.1. Search and refresh deviceOpen APP and search for connected WI-FI hotspot equipment. Clickthe upper left corner of the icon to go into the left menu, such asfigure 3.3.1. Click the left bottom to refresh button.

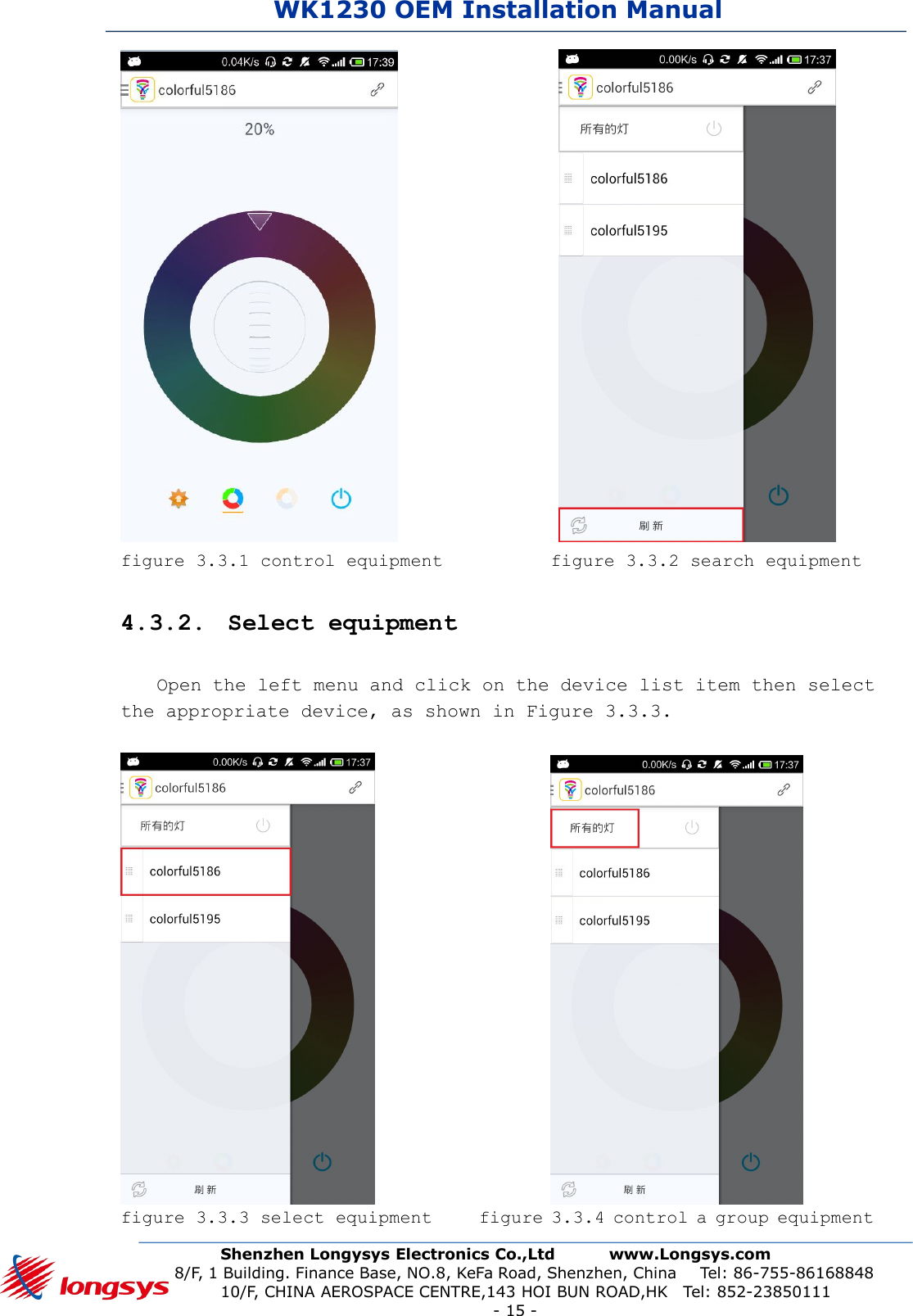

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-15 -figure 3.3.1 control equipment figure 3.3.2 search equipment4.3.2. Select equipmentOpen the left menu and click on the device list item then selectthe appropriate device, as shown in Figure 3.3.3.figure 3.3.3 select equipment figure 3.3.4 control a group equipment

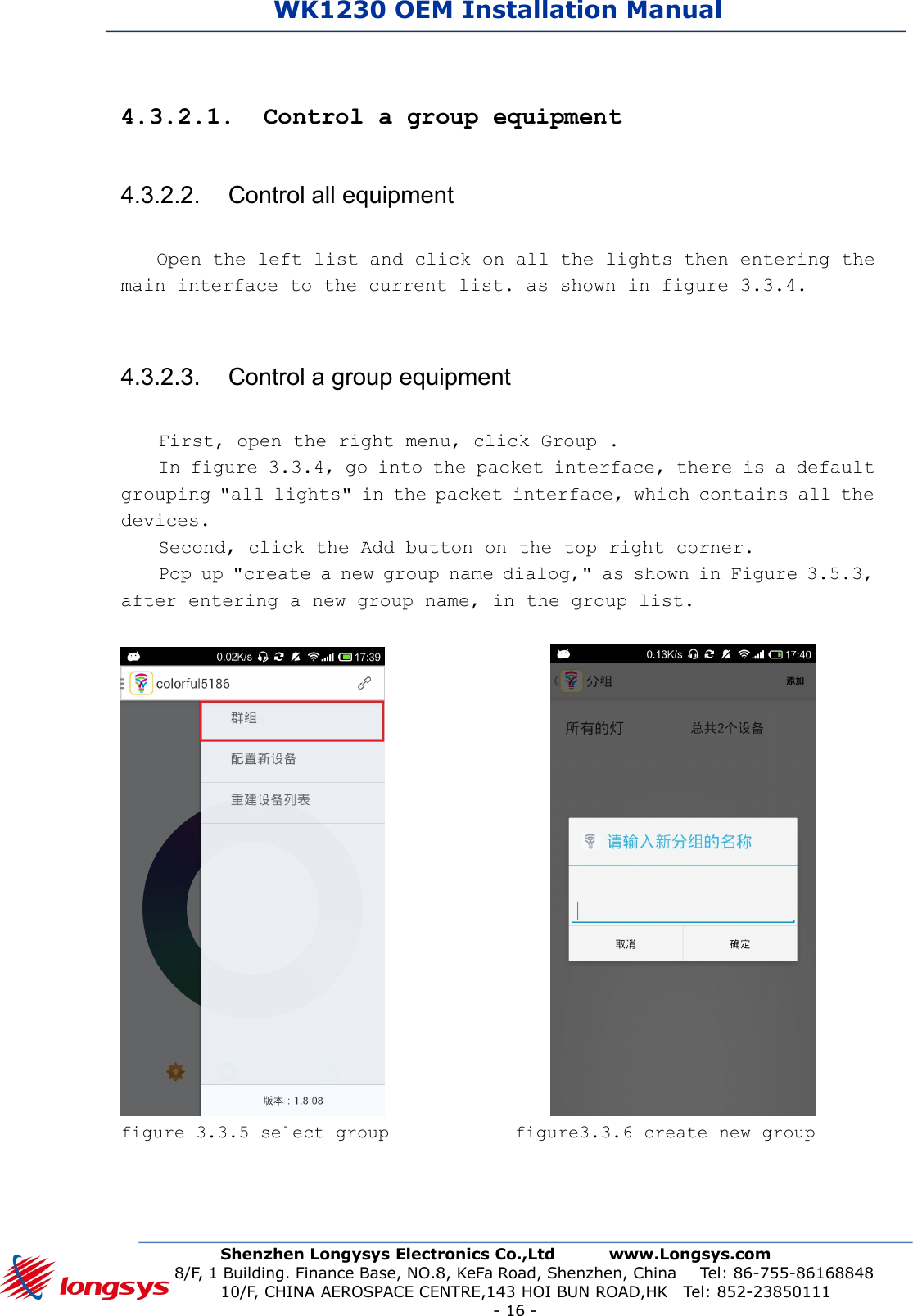

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-16 -4.3.2.1. Control a group equipment4.3.2.2. Control all equipmentOpen the left list and click on all the lights then entering themain interface to the current list. as shown in figure 3.3.4.4.3.2.3. Control a group equipmentFirst, open the right menu, click Group .In figure 3.3.4, go into the packet interface, there is a defaultgrouping "all lights" in the packet interface, which contains all thedevices.Second, click the Add button on the top right corner.Pop up "create a new group name dialog," as shown in Figure 3.5.3,after entering a new group name, in the group list.figure 3.3.5 select group figure3.3.6 create new group

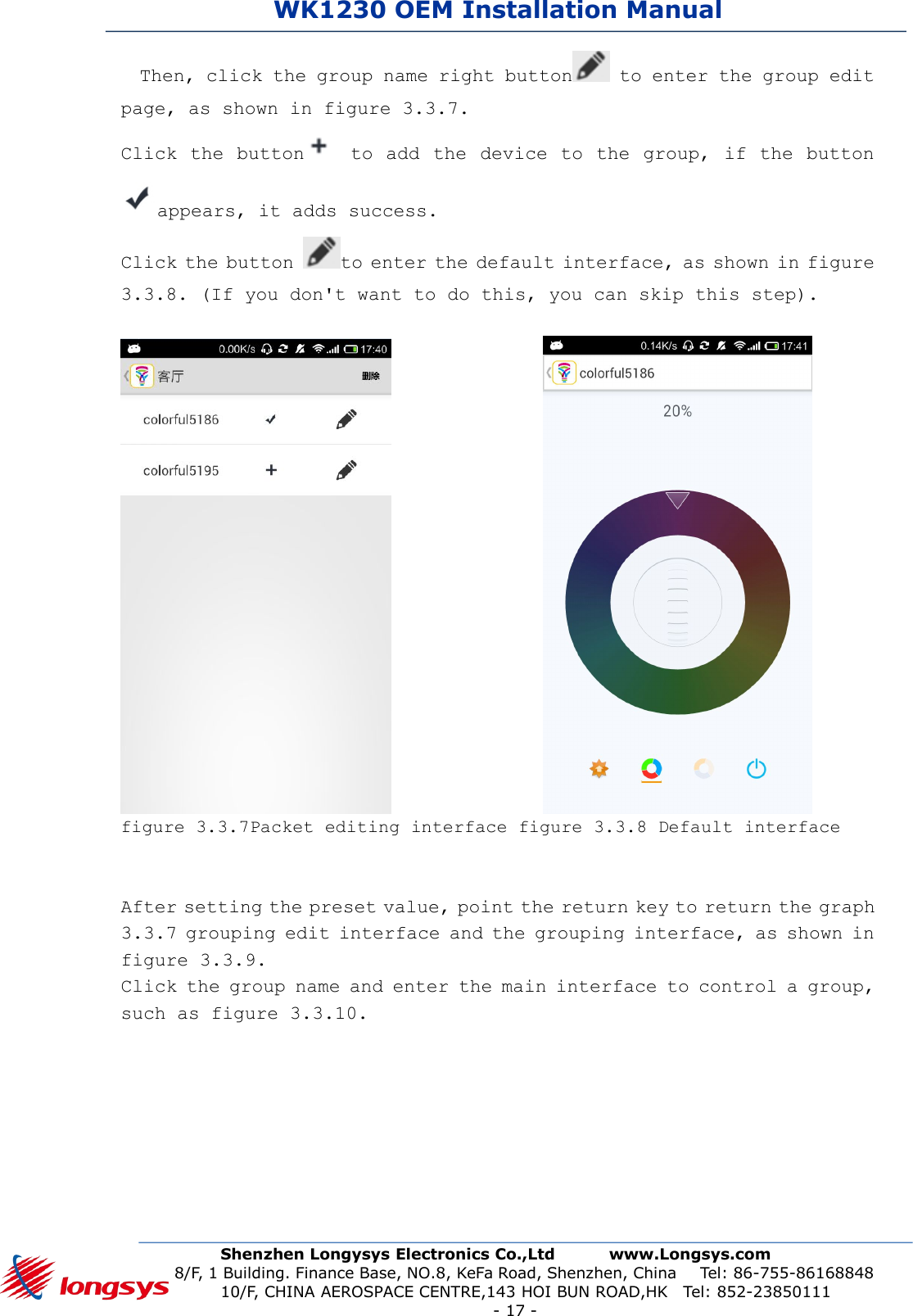

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-17 -Then, click the group name right button to enter the group editpage, as shown in figure 3.3.7.Click the button to add the device to the group, if the buttonappears, it adds success.Click the button to enter the default interface, as shown in figure3.3.8. (If you don't want to do this, you can skip this step).figure 3.3.7Packet editing interface figure 3.3.8 Default interfaceAfter setting the preset value, point the return key to return the graph3.3.7 grouping edit interface and the grouping interface, as shown infigure 3.3.9.Click the group name and enter the main interface to control a group,such as figure 3.3.10.

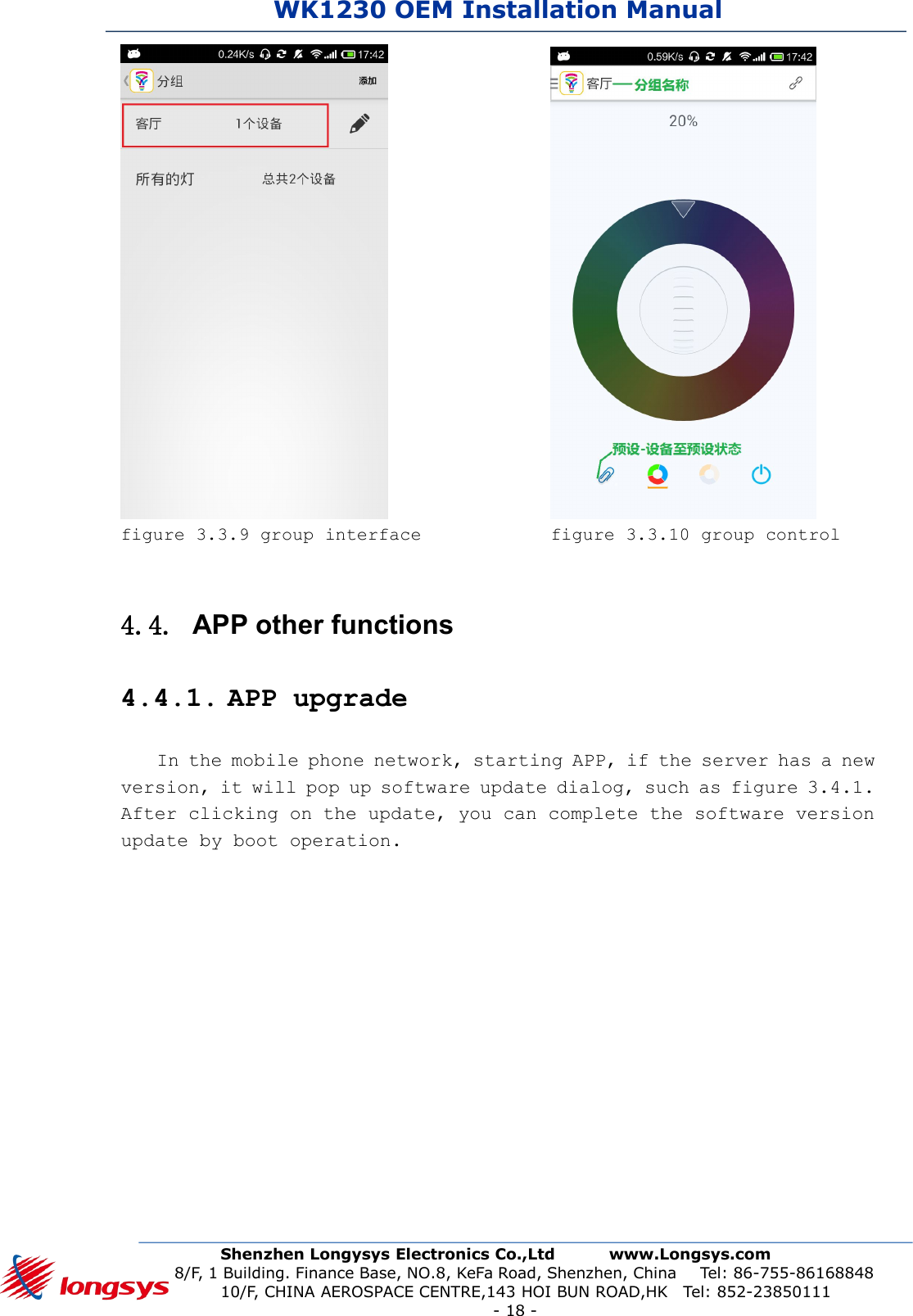

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-18 -figure 3.3.9 group interface figure 3.3.10 group control4.4. APP other functions4.4.1. APP upgradeIn the mobile phone network, starting APP, if the server has a newversion, it will pop up software update dialog, such as figure 3.4.1.After clicking on the update, you can complete the software versionupdate by boot operation.

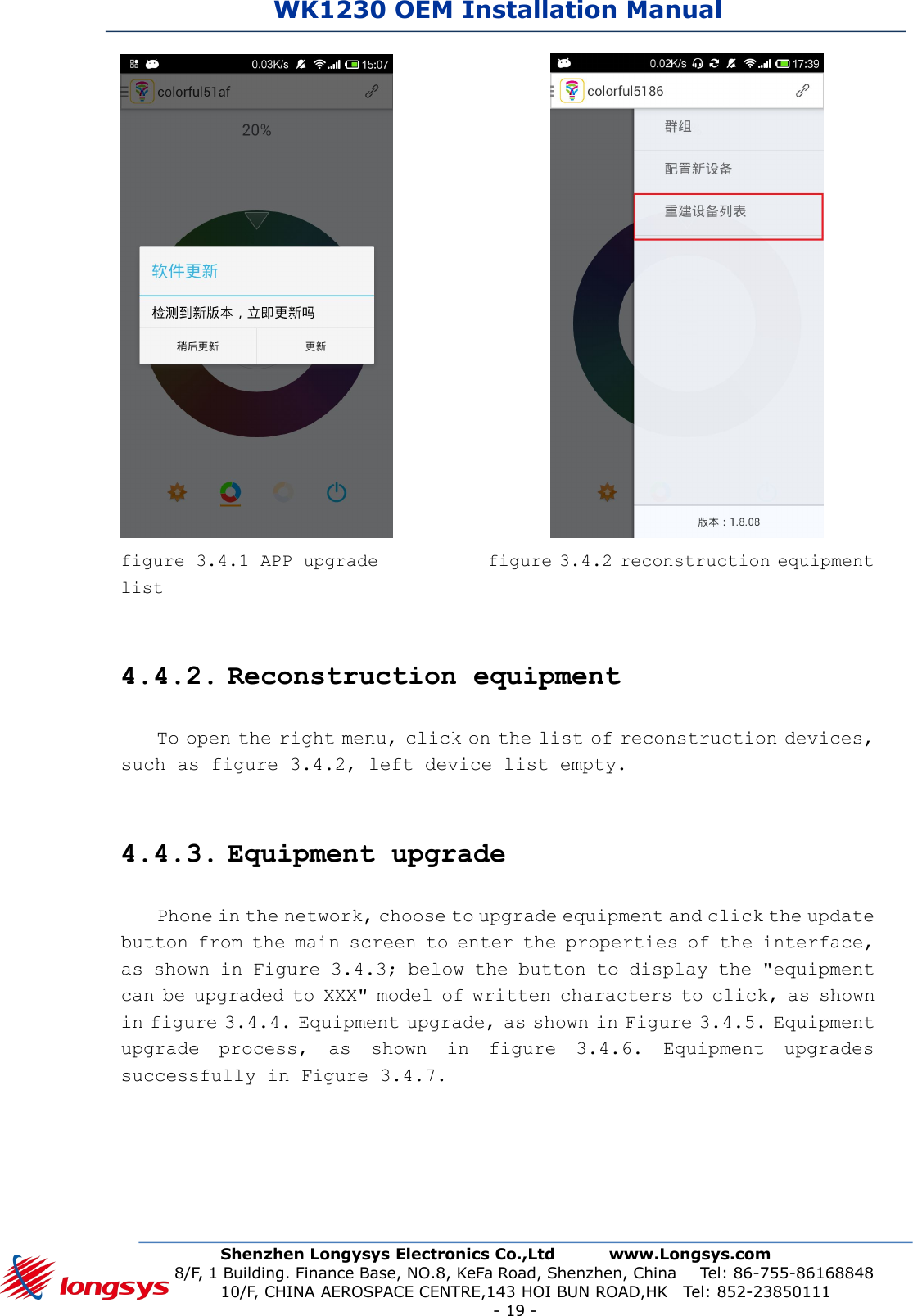

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-19 -figure 3.4.1 APP upgrade figure 3.4.2 reconstruction equipmentlist4.4.2. Reconstruction equipmentTo open the right menu, click on the list of reconstruction devices,such as figure 3.4.2, left device list empty.4.4.3. Equipment upgradePhone in the network, choose to upgrade equipment and click the updatebutton from the main screen to enter the properties of the interface,as shown in Figure 3.4.3; below the button to display the "equipmentcan be upgraded to XXX" model of written characters to click, as shownin figure 3.4.4. Equipment upgrade, as shown in Figure 3.4.5. Equipmentupgrade process, as shown in figure 3.4.6. Equipment upgradessuccessfully in Figure 3.4.7.

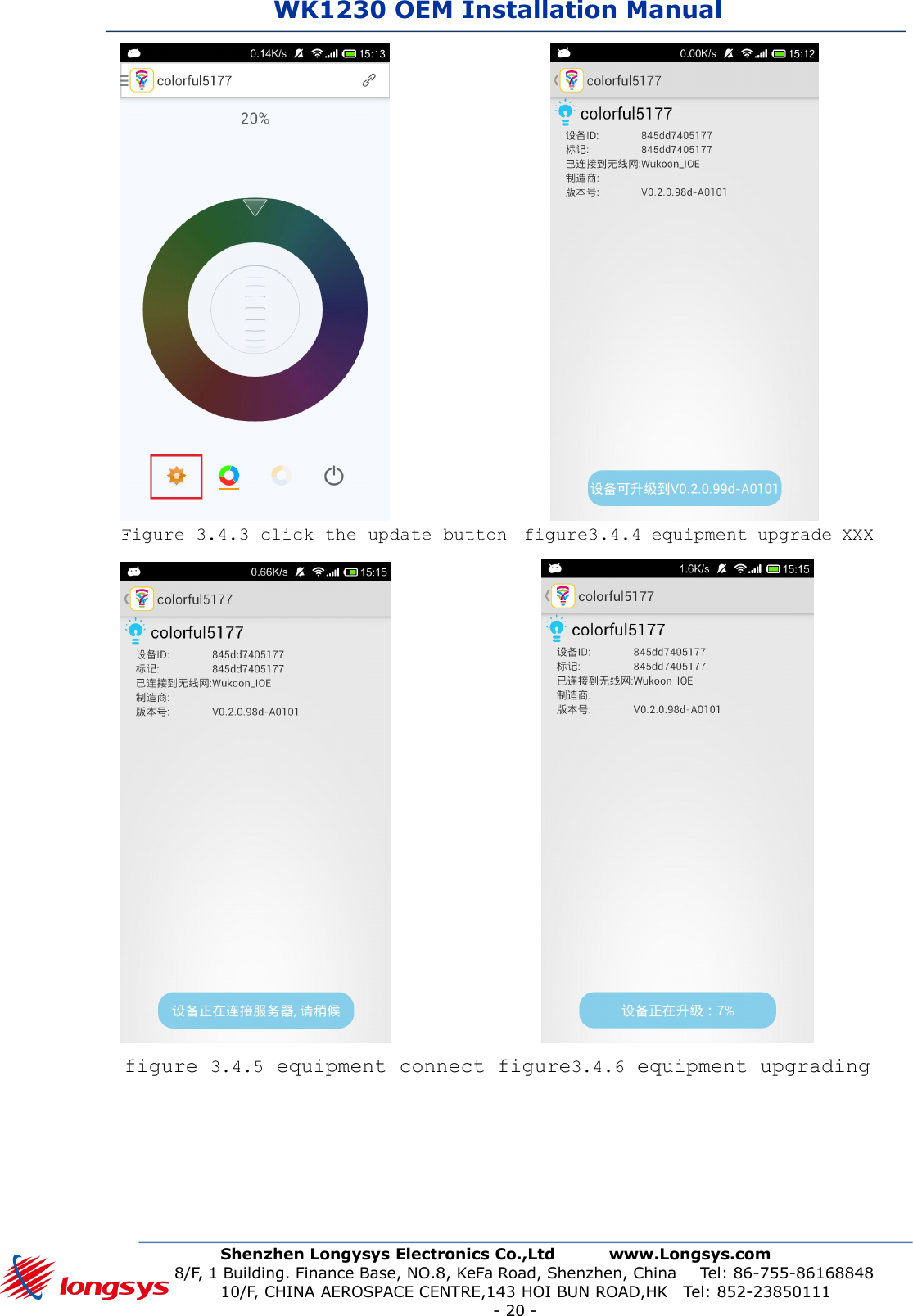

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-20 -Figure 3.4.3 click the update button figure3.4.4 equipment upgrade XXXfigure 3.4.5 equipment connect figure3.4.6 equipment upgrading

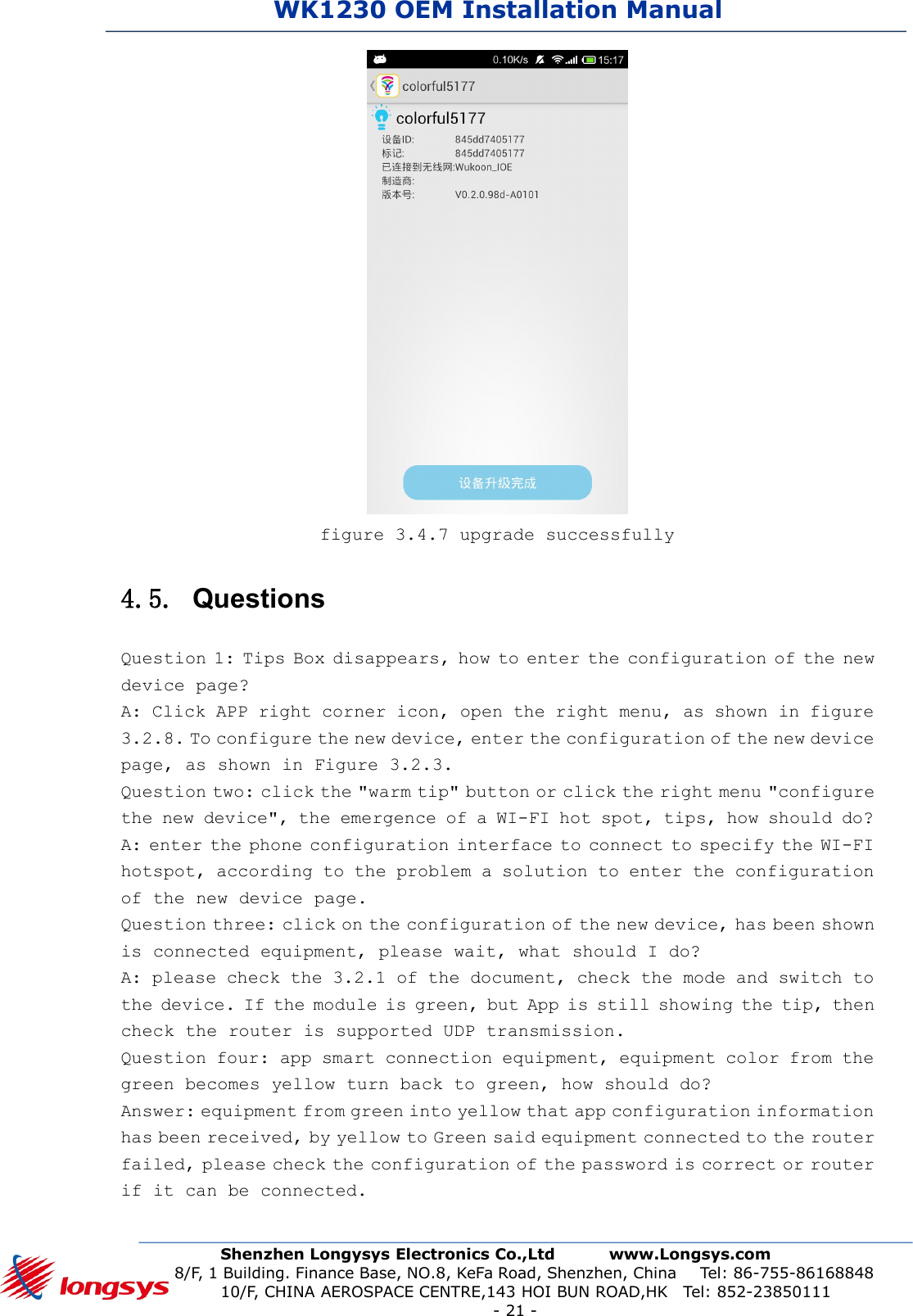

WK1230 OEM Installation ManualShenzhen Longysys Electronics Co.,Ltd www.Longsys.com8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-8616884810/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD,HK Tel: 852-23850111-21 -figure 3.4.7 upgrade successfully4.5. QuestionsQuestion 1: Tips Box disappears, how to enter the configuration of the newdevice page?A: Click APP right corner icon, open the right menu, as shown in figure3.2.8. To configure the new device, enter the configuration of the new devicepage, as shown in Figure 3.2.3.Question two: click the "warm tip" button or click the right menu "configurethe new device", the emergence of a WI-FI hot spot, tips, how should do?A: enter the phone configuration interface to connect to specify the WI-FIhotspot, according to the problem a solution to enter the configurationof the new device page.Question three: click on the configuration of the new device, has been shownis connected equipment, please wait, what should I do?A: please check the 3.2.1 of the document, check the mode and switch tothe device. If the module is green, but App is still showing the tip, thencheck the router is supported UDP transmission.Question four: app smart connection equipment, equipment color from thegreen becomes yellow turn back to green, how should do?Answer: equipment from green into yellow that app configuration informationhas been received, by yellow to Green said equipment connected to the routerfailed, please check the configuration of the password is correct or routerif it can be connected.
