LPS Device NEO-4005LS LCD TV & MONITOR User Manual USERS MANUAL 1

LPS Device Co., Ltd. LCD TV & MONITOR USERS MANUAL 1

Contents

USERS MANUAL 1

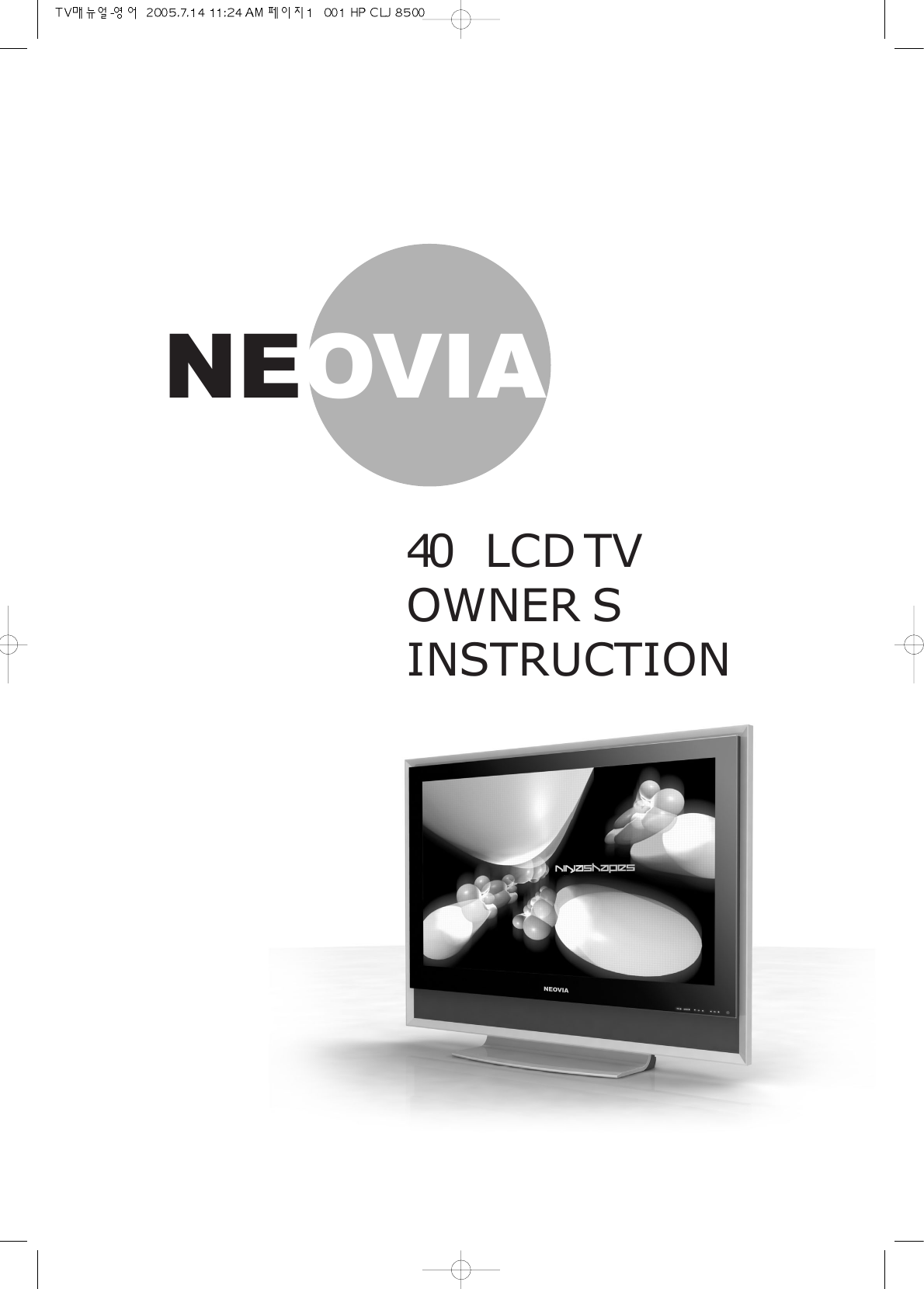

NEOVIA40L C D T VOWNERSINSTRUCTION

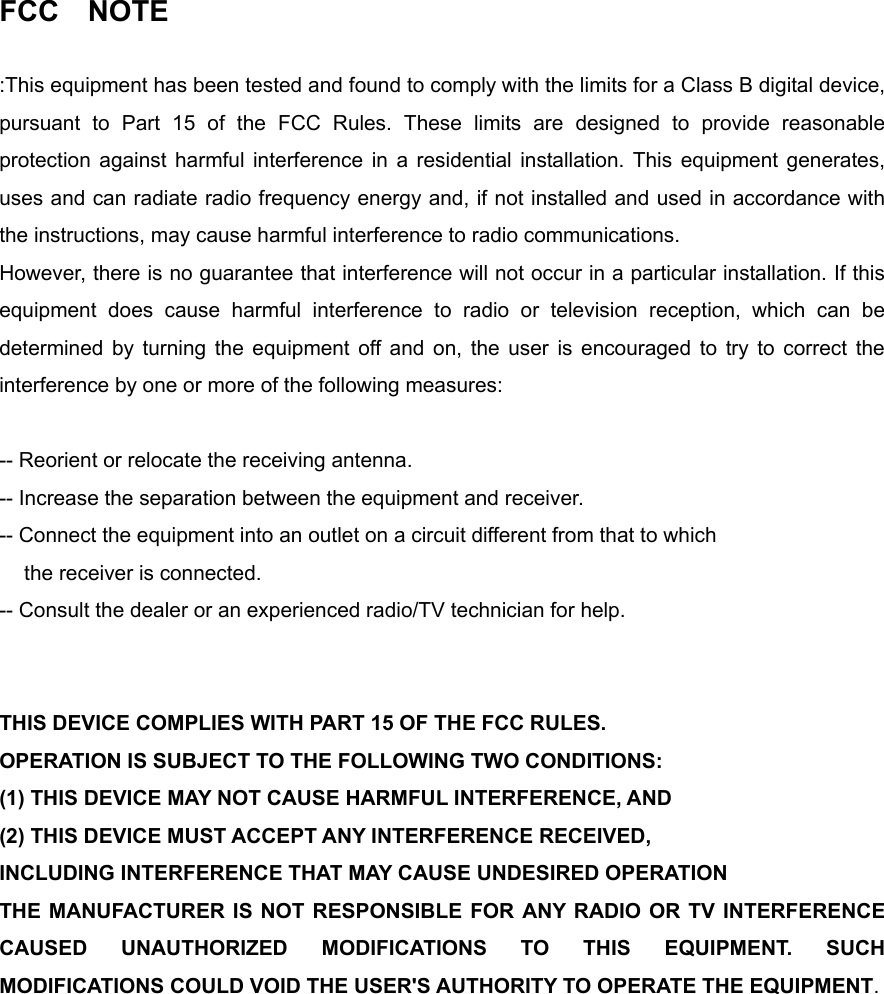

FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

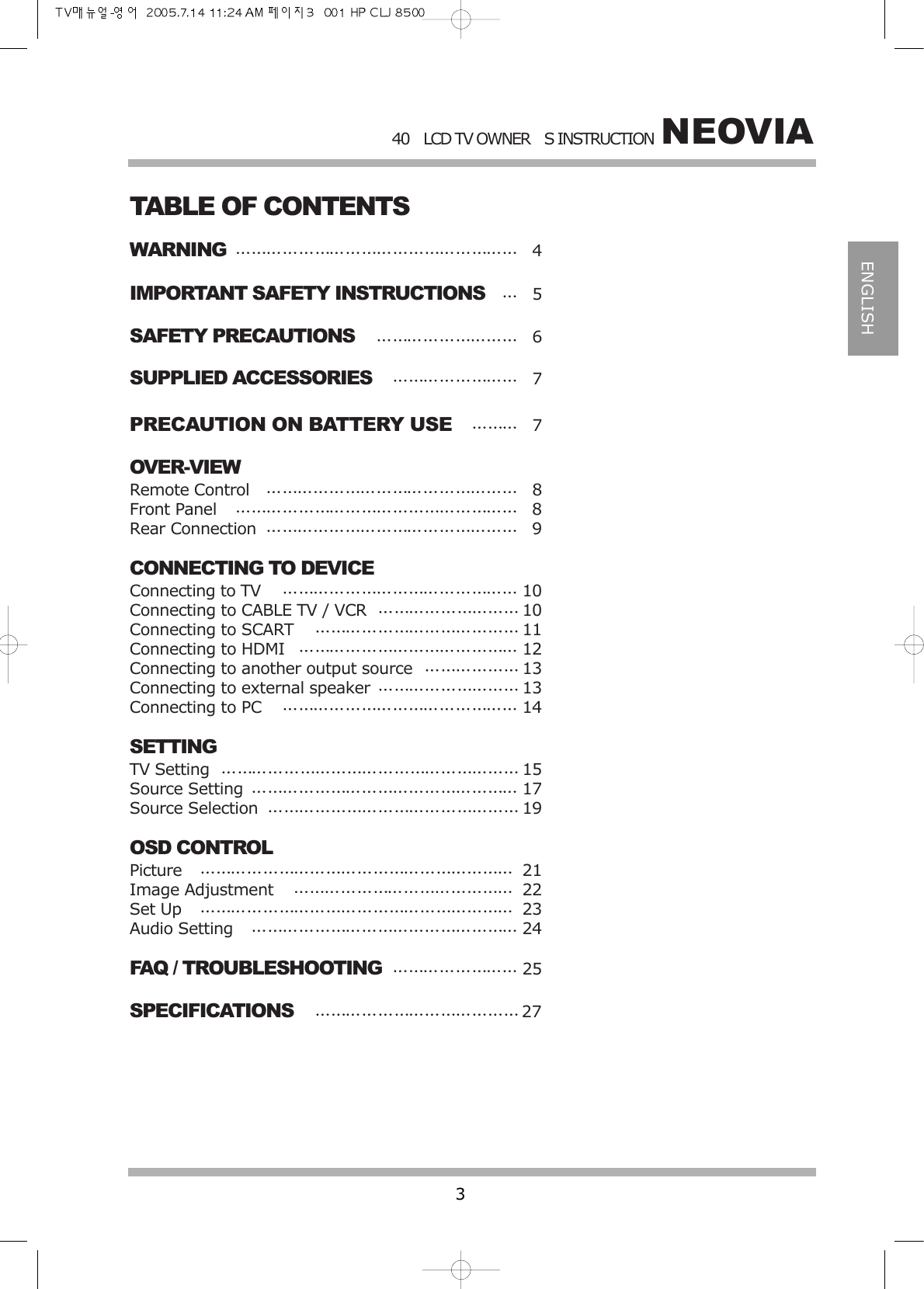

NEOVIA40LCD TV OWNERS INSTRUCTION3ENGLISHTABLE OF CONTENTSWARNING 4IMPORTANT SAFETY INSTRUCTIONS 5SAFETY PRECAUTIONS 6SUPPLIED ACCESSORIES 7PRECAUTION ON BATTERY USE 7OVER-VIEWRemote Control 8Front Panel 8Rear Connection 9CONNECTING TO DEVICEConnecting to TV 10Connecting to CABLE TV / VCR 10Connecting to SCART 11Connecting to HDMI 12Connecting to another output source 13Connecting to external speaker 13Connecting to PC 14SETTINGTV Setting 15Source Setting 17Source Selection 19OSD CONTROLPicture 21Image Adjustment 22Set Up 23Audio Setting 24FAQ / TROUBLESHOOTING 25SPECIFICATIONS 27

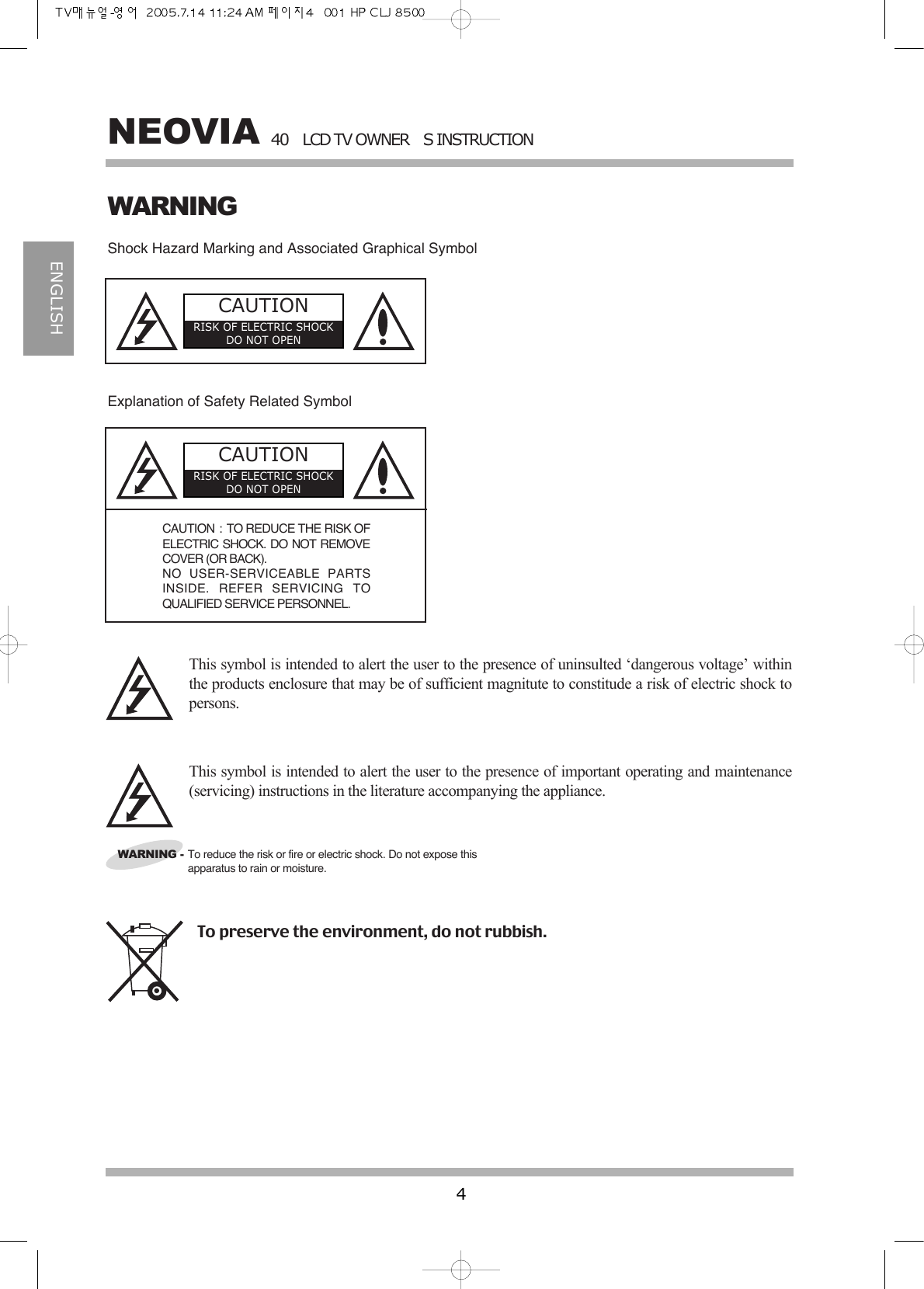

40LCD TV OWNERS INSTRUCTION4NEOVIAENGLISHWARNINGCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENShock Hazard Marking and Associated Graphical SymbolCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENExplanation of Safety Related SymbolCAUTION : TO REDUCE THE RISK OFELECTRIC SHOCK. DO NOT REMOVECOVER (OR BACK).NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TOQUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulted ‘dangerous voltage’ withinthe products enclosure that may be of sufficient magnitute to constitude a risk of electric shock topersons.To preserve the environment, do not rubbish.This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.To reduce the risk or fire or electric shock. Do not expose thisapparatus to rain or moisture.WARNING -

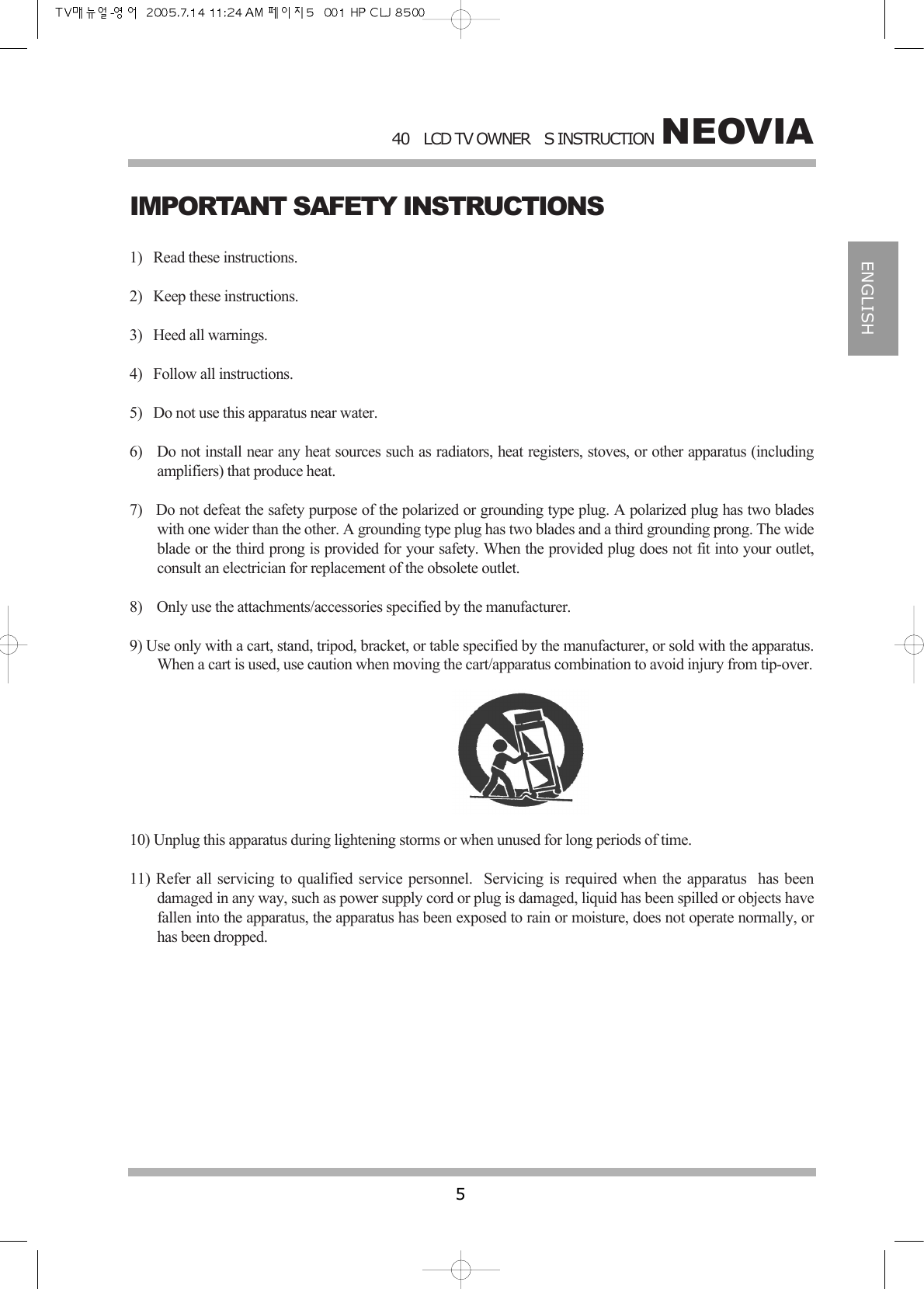

NEOVIA40LCD TV OWNERS INSTRUCTION5ENGLISHIMPORTANT SAFETY INSTRUCTIONS1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includingamplifiers) that produce heat.7) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two bladeswith one wider than the other. A grounding type plug has two blades and a third grounding prong. The wideblade or the third prong is provided for your safety. When the provided plug does not fit into your outlet,consult an electrician for replacement of the obsolete outlet.8) Only use the attachments/accessories specified by the manufacturer.9) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.10) Unplug this apparatus during lightening storms or when unused for long periods of time.11) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has beendamaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects havefallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, orhas been dropped.

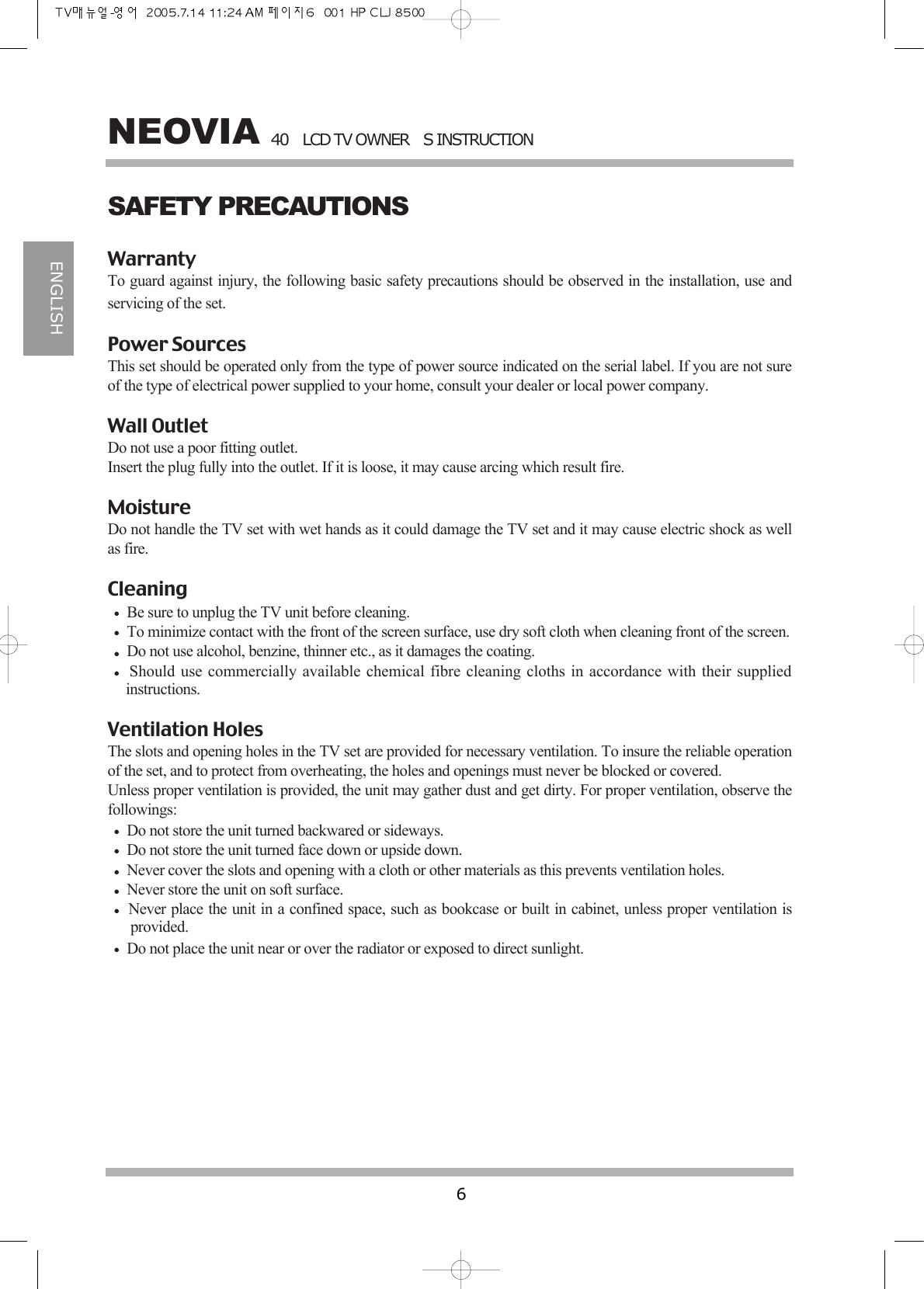

40LCD TV OWNERS INSTRUCTION6NEOVIAENGLISHSAFETY PRECAUTIONSWarrantyTo guard against injury, the following basic safety precautions should be observed in the installation, use andservicing of the set.Power SourcesThis set should be operated only from the type of power source indicated on the serial label. If you are not sureof the type of electrical power supplied to your home, consult your dealer or local power company.Wall OutletDo not use a poor fitting outlet.Insert the plug fully into the outlet. If it is loose, it may cause arcing which result fire.MoistureDo not handle the TV set with wet hands as it could damage the TV set and it may cause electric shock as wellas fire.CleaningBe sure to unplug the TV unit before cleaning.To minimize contact with the front of the screen surface, use dry soft cloth when cleaning front of the screen.Do not use alcohol, benzine, thinner etc., as it damages the coating.Should use commercially available chemical fibre cleaning cloths in accordance with their suppliedinstructions.Ventilation HolesThe slots and opening holes in the TV set are provided for necessary ventilation. To insure the reliable operationof the set, and to protect from overheating, the holes and openings must never be blocked or covered.Unless proper ventilation is provided, the unit may gather dust and get dirty. For proper ventilation, observe thefollowings:Do not store the unit turned backwared or sideways.Do not store the unit turned face down or upside down.Never cover the slots and opening with a cloth or other materials as this prevents ventilation holes.Never store the unit on soft surface.Never place the unit in a confined space, such as bookcase or built in cabinet, unless proper ventilation isprovided.Do not place the unit near or over the radiator or exposed to direct sunlight.

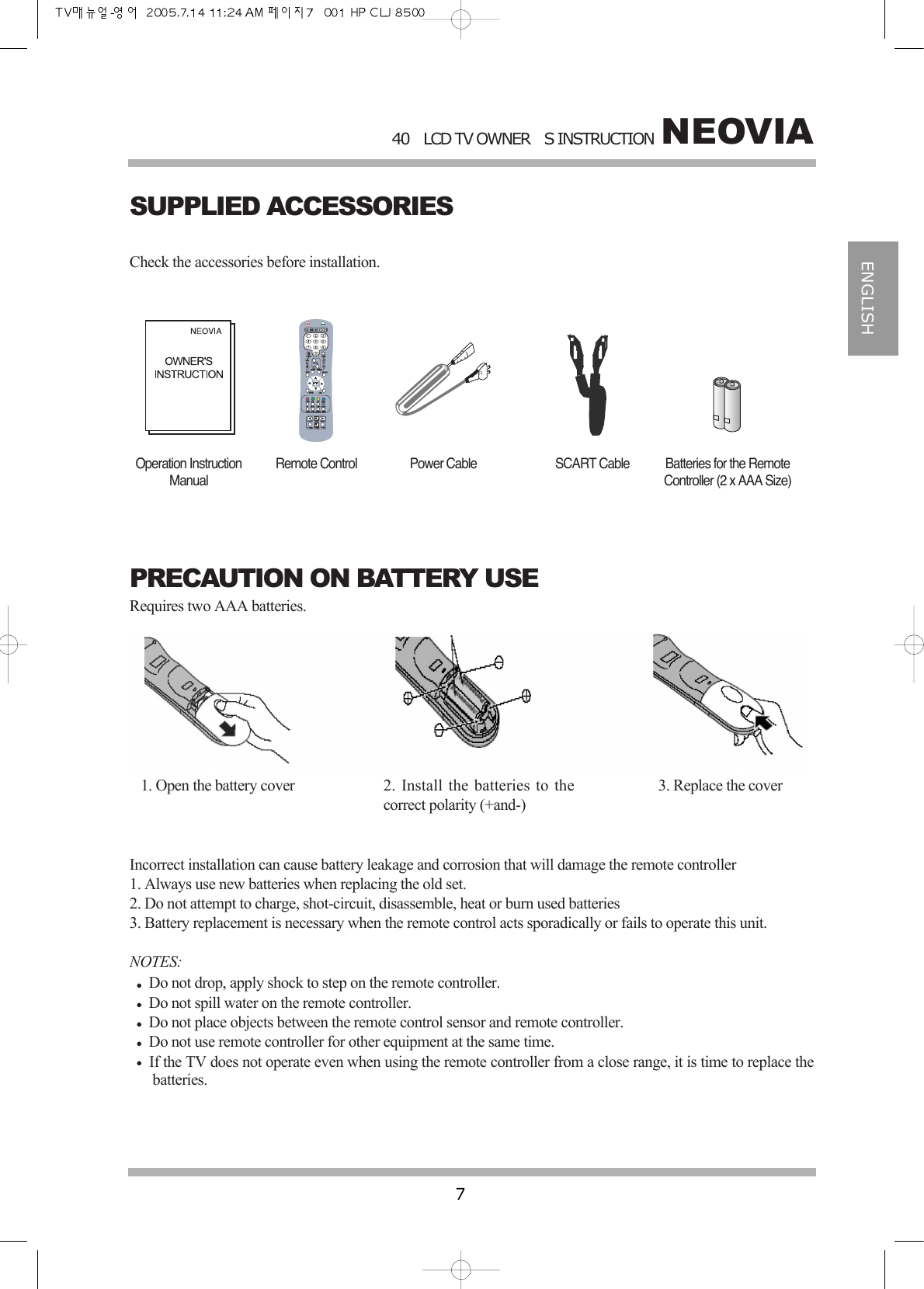

NEOVIA40LCD TV OWNERS INSTRUCTION7ENGLISHSUPPLIED ACCESSORIESPRECAUTION ON BATTERY USERequires two AAA batteries.Check the accessories before installation.Operation InstructionManualRemote Control Power Cable SCART Cable Batteries for the RemoteController (2 x AAA Size)1. Open the battery cover 2. Install the batteries to thecorrect polarity (+and-)3. Replace the coverIncorrect installation can cause battery leakage and corrosion that will damage the remote controller1. Always use new batteries when replacing the old set.2. Do not attempt to charge, shot-circuit, disassemble, heat or burn used batteries3. Battery replacement is necessary when the remote control acts sporadically or fails to operate this unit.NOTES:Do not drop, apply shock to step on the remote controller.Do not spill water on the remote controller.Do not place objects between the remote control sensor and remote controller.Do not use remote controller for other equipment at the same time.If the TV does not operate even when using the remote controller from a close range, it is time to replace thebatteries.

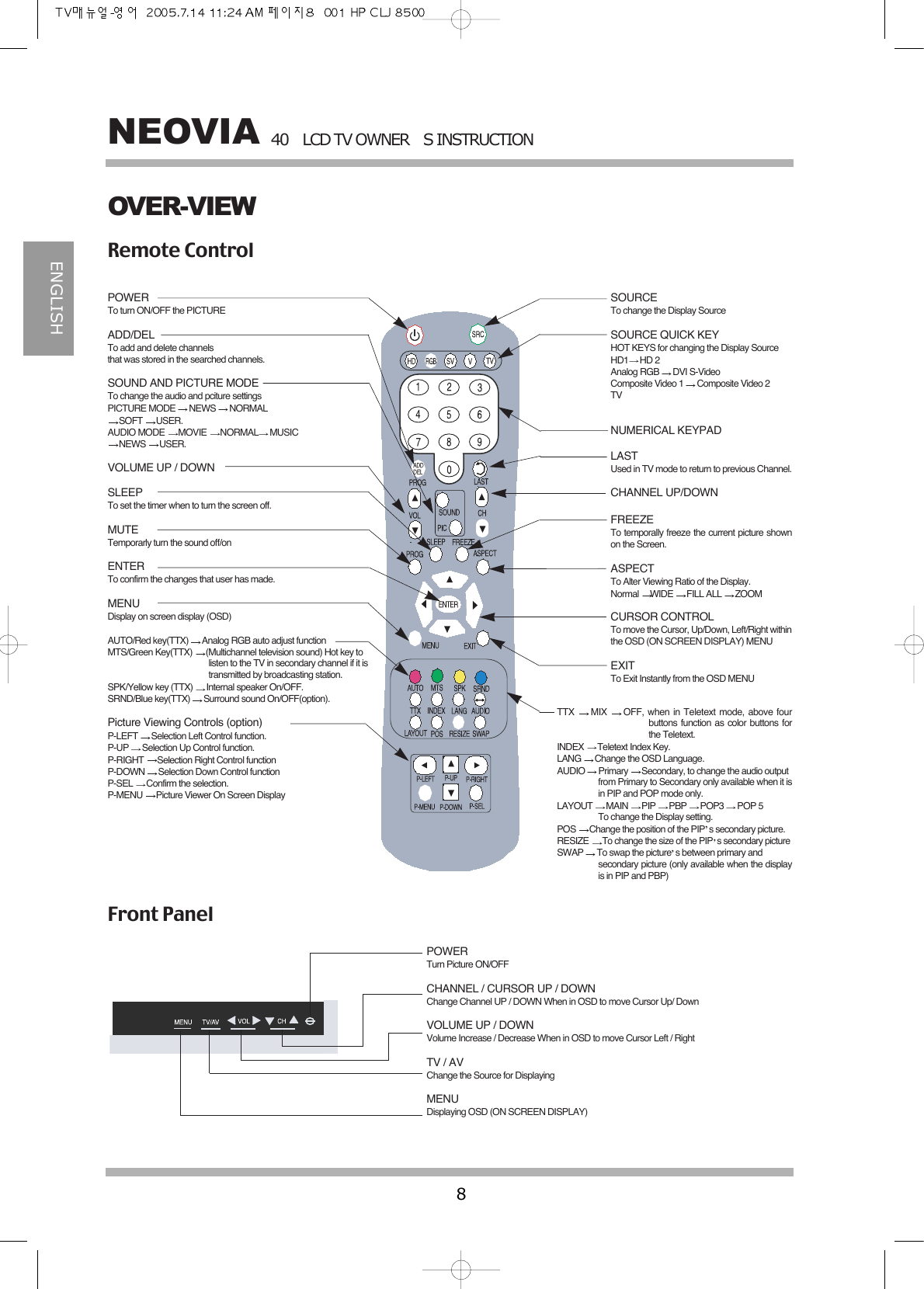

40LCD TV OWNERS INSTRUCTION8NEOVIAENGLISHRemote ControlFront PanelPOWERTo turn ON/OFF the PICTUREADD/DELTo add and delete channelsthat was stored in the searched channels.SOUND AND PICTURE MODETo change the audio and pciture settingsPICTURE MODE NEWS NORMALSOFT USER.AUDIO MODE MOVIE NORMAL MUSIC NEWS USER.VOLUME UP / DOWNSLEEPTo set the timer when to turn the screen off.MUTETemporarly turn the sound off/onENTERTo confirm the changes that user has made.MENUDisplay on screen display (OSD)AUTO/Red key(TTX) Analog RGB auto adjust functionMTS/Green Key(TTX) (Multichannel television sound) Hot key tolisten to the TV in secondary channel if it istransmitted by broadcasting station.SPK/Yellow key (TTX) Internal speaker On/OFF.SRND/Blue key(TTX) Surround sound On/OFF(option).Picture Viewing Controls (option)P-LEFT Selection Left Control function.P-UP Selection Up Control function.P-RIGHT Selection Right Control functionP-DOWN Selection Down Control functionP-SEL Confirm the selection.P-MENU Picture Viewer On Screen DisplaySOURCETo change the Display SourceSOURCE QUICK KEYHOT KEYS for changing the Display SourceHD1 HD 2Analog RGB DVI S-VideoComposite Video 1 Composite Video 2TVNUMERICAL KEYPADLASTUsed in TV mode to return to previous Channel.CHANNEL UP/DOWNFREEZETo temporally freeze the current picture shownon the Screen.ASPECTTo Alter Viewing Ratio of the Display.Normal WIDE FILL ALL ZOOMCURSOR CONTROLTo move the Cursor, Up/Down, Left/Right withinthe OSD (ON SCREEN DISPLAY) MENUEXITTo Exit Instantly from the OSD MENUTTX MIX OFF, when in Teletext mode, above fourbuttons function as color buttons forthe Teletext.INDEX Teletext Index Key.LANG Change the OSD Language.AUDIO Primary Secondary, to change the audio output from Primary to Secondary only available when it isin PIP and POP mode only.LAYOUT MAIN PIP PBP POP3 POP 5To change the Display setting.POS Change the position of the PIP s secondary picture.RESIZE To change the size of the PIP s secondary pictureSWAP To swap the picture s between primary and secondary picture (only available when the displayis in PIP and PBP)POWERTurn Picture ON/OFFCHANNEL / CURSOR UP / DOWNChange Channel UP / DOWN When in OSD to move Cursor Up/ DownVOLUME UP / DOWNVolume Increase / Decrease When in OSD to move Cursor Left / RightTV / AVChange the Source for DisplayingMENUDisplaying OSD (ON SCREEN DISPLAY)OVER-VIEW

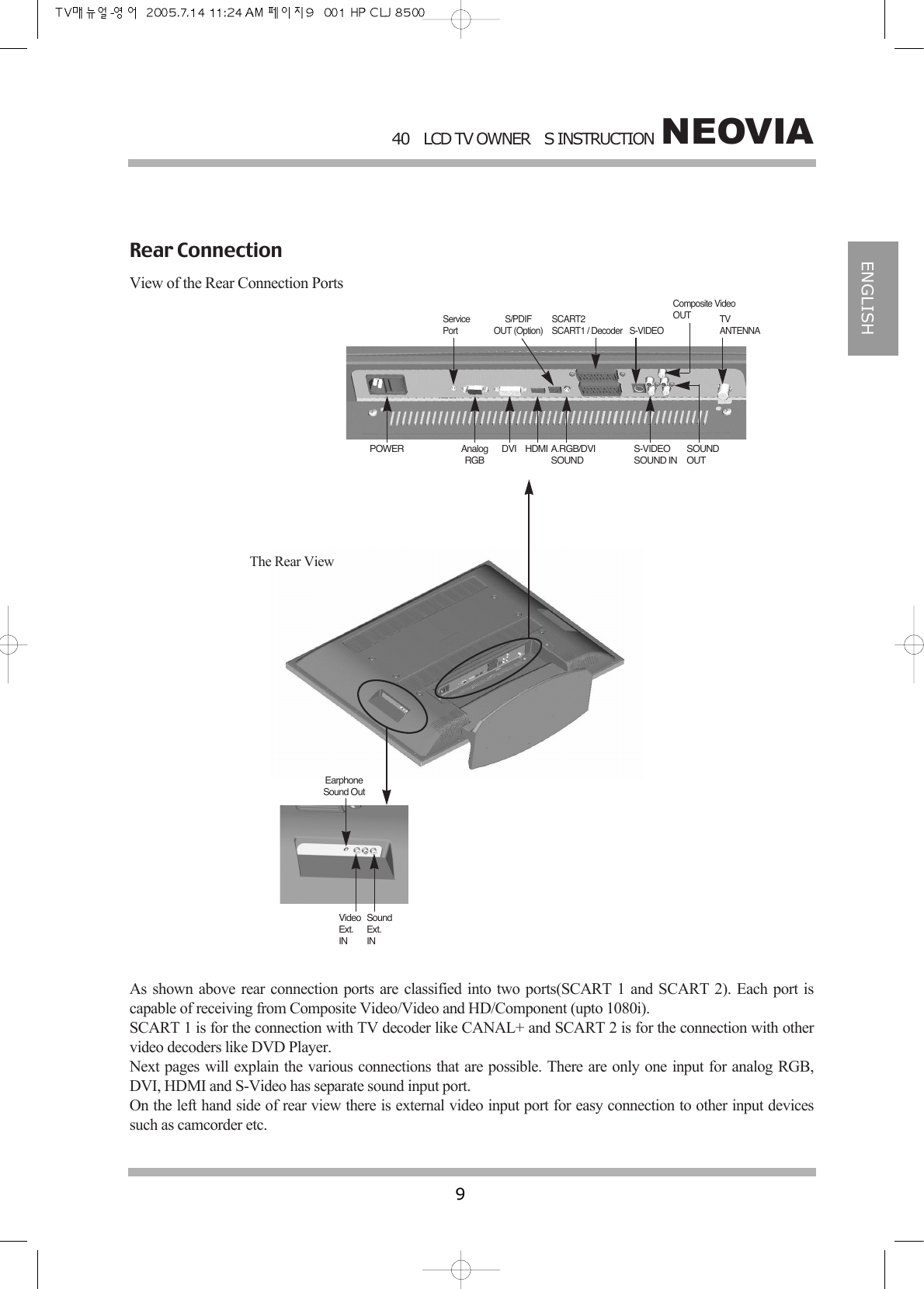

NEOVIA40LCD TV OWNERS INSTRUCTION9ENGLISHRear ConnectionView of the Rear Connection PortsServicePortS/PDIFOUT (Option)SCART2SCART1 / Decoder S-VIDEOComposite VideoOUT TVANTENNASOUNDOUTS-VIDEOSOUND INA.RGB/DVISOUNDEarphoneSound OutVideoExt.INSoundExt.INHDMIDVIAnalogRGBPOWERThe Rear ViewAs shown above rear connection ports are classified into two ports(SCART 1 and SCART 2). Each port iscapable of receiving from Composite Video/Video and HD/Component (upto 1080i). SCART 1 is for the connection with TV decoder like CANAL+ and SCART 2 is for the connection with othervideo decoders like DVD Player.Next pages will explain the various connections that are possible. There are only one input for analog RGB,DVI, HDMI and S-Video has separate sound input port.On the left hand side of rear view there is external video input port for easy connection to other input devicessuch as camcorder etc.

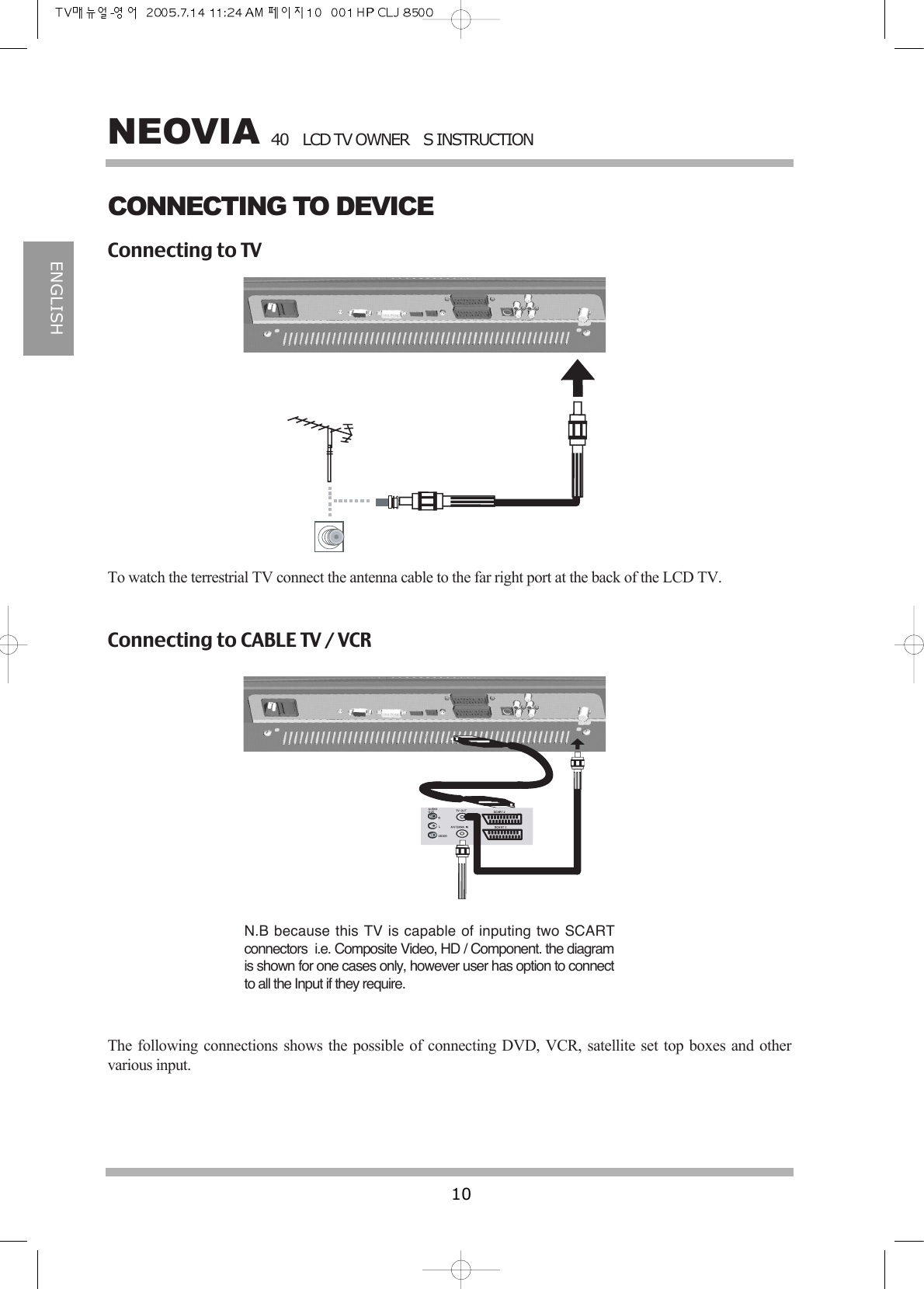

40LCD TV OWNERS INSTRUCTION10NEOVIAENGLISHConnecting to TVConnecting to CABLE TV / VCRTo watch the terrestrial TV connect the antenna cable to the far right port at the back of the LCD TV. N.B because this TV is capable of inputing two SCARTconnectors i.e. Composite Video, HD / Component. the diagramis shown for one cases only, however user has option to connectto all the Input if they require.The following connections shows the possible of connecting DVD, VCR, satellite set top boxes and othervarious input.CONNECTING TO DEVICE

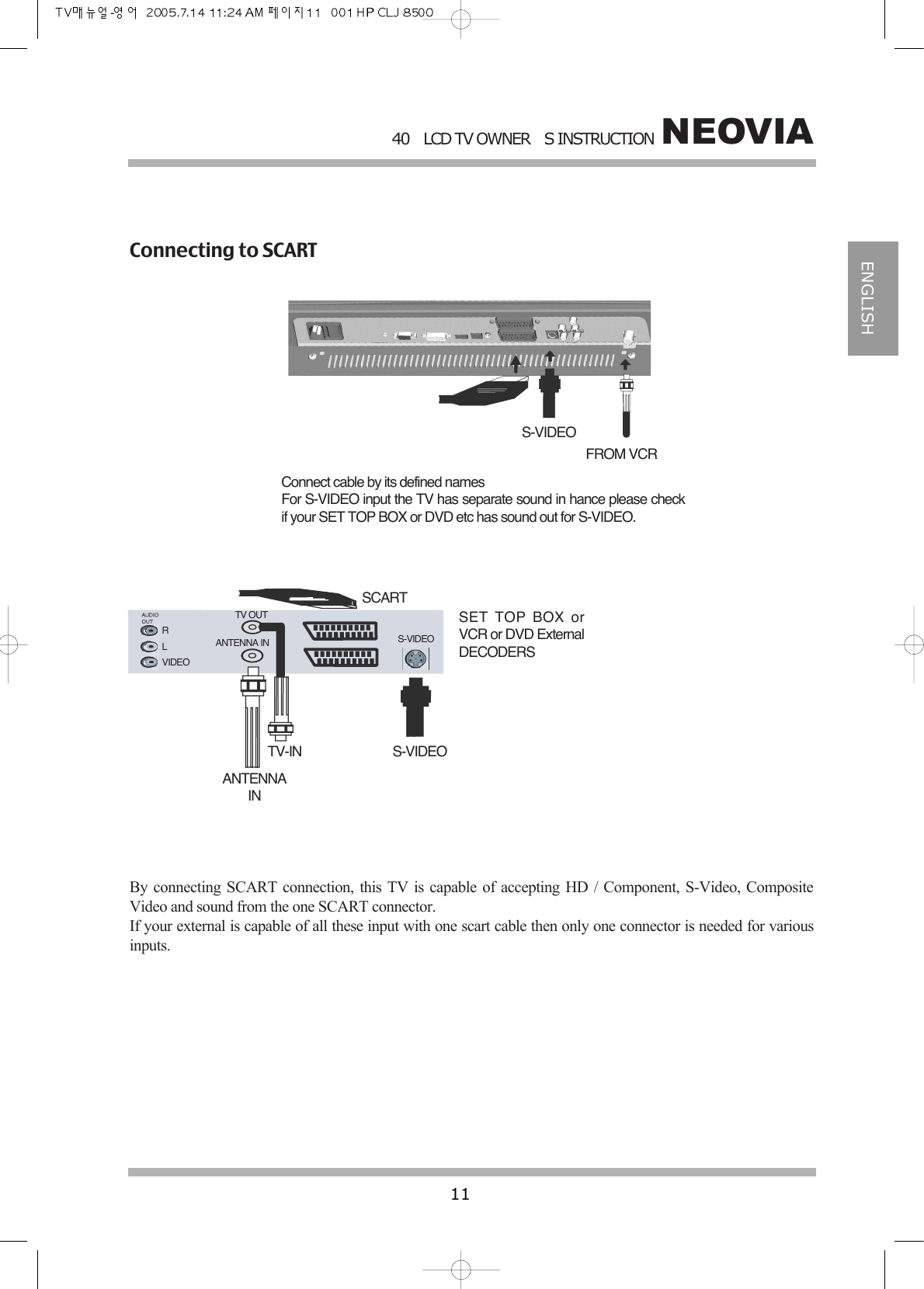

NEOVIA40LCD TV OWNERS INSTRUCTION11ENGLISHConnecting to SCARTFROM VCRS-VIDEOSCARTS-VIDEOTV-INANTENNAINS-VIDEOTV OUTANTENNA INRLVIDEOSET TOP BOX orVCR or DVD ExternalDECODERSConnect cable by its defined namesFor S-VIDEO input the TV has separate sound in hance please checkif your SET TOP BOX or DVD etc has sound out for S-VIDEO.By connecting SCART connection, this TV is capable of accepting HD / Component, S-Video, CompositeVideo and sound from the one SCART connector.If your external is capable of all these input with one scart cable then only one connector is needed for variousinputs.

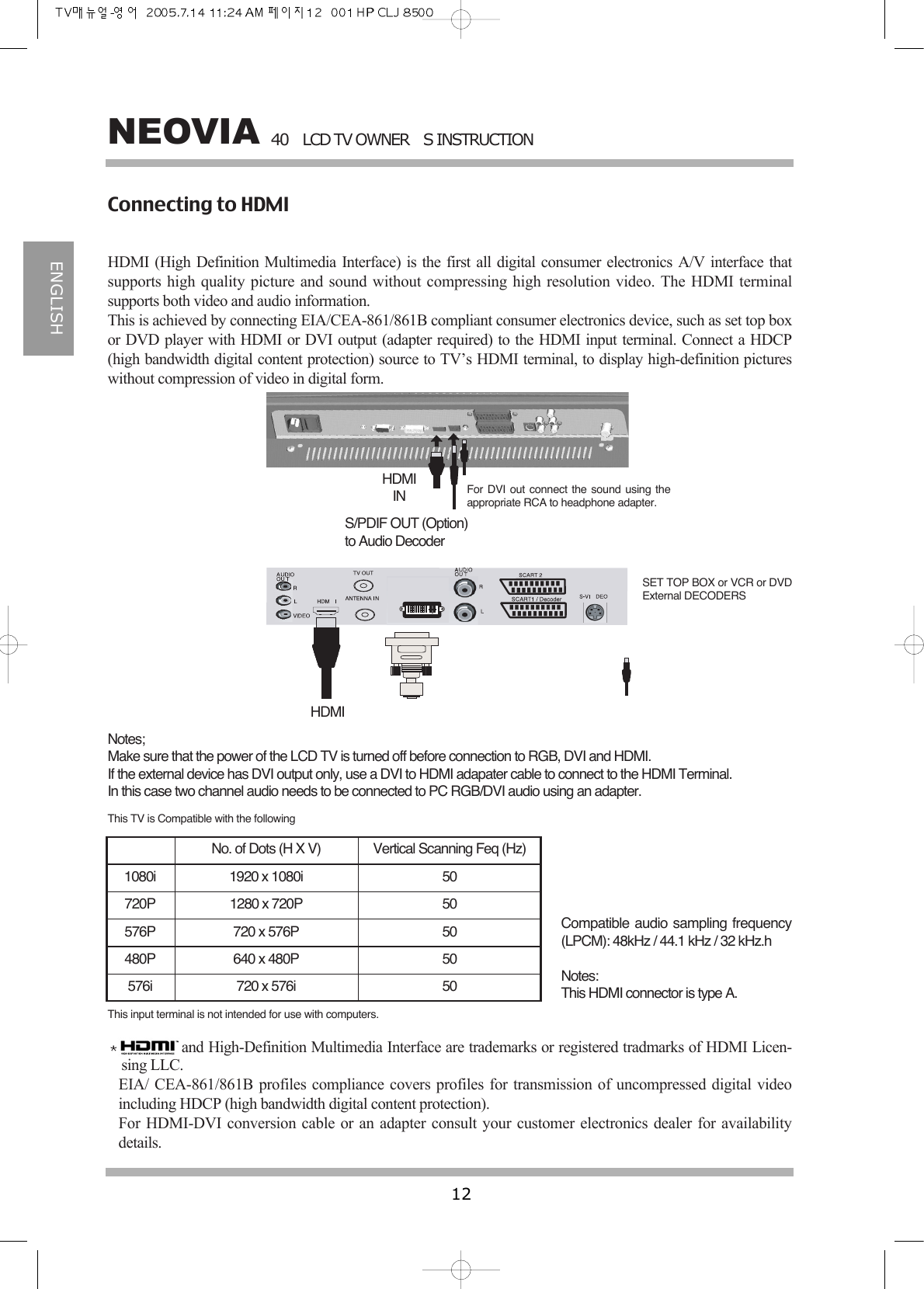

40LCD TV OWNERS INSTRUCTION12NEOVIAENGLISHConnecting to HDMIHDMI (High Definition Multimedia Interface) is the first all digital consumer electronics A/V interface thatsupports high quality picture and sound without compressing high resolution video. The HDMI terminalsupports both video and audio information.This is achieved by connecting EIA/CEA-861/861B compliant consumer electronics device, such as set top boxor DVD player with HDMI or DVI output (adapter required) to the HDMI input terminal. Connect a HDCP(high bandwidth digital content protection) source to TV’s HDMI terminal, to display high-definition pictureswithout compression of video in digital form.HDMIINHDMIFor DVI out connect the sound using theappropriate RCA to headphone adapter.S/PDIF OUT (Option)to Audio DecoderSET TOP BOX or VCR or DVDExternal DECODERSNotes;Make sure that the power of the LCD TV is turned off before connection to RGB, DVI and HDMI.If the external device has DVI output only, use a DVI to HDMI adapater cable to connect to the HDMI Terminal.In this case two channel audio needs to be connected to PC RGB/DVI audio using an adapter.and High-Definition Multimedia Interface are trademarks or registered tradmarks of HDMI Licen-sing LLC.EIA/ CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital videoincluding HDCP (high bandwidth digital content protection).For HDMI-DVI conversion cable or an adapter consult your customer electronics dealer for availabilitydetails.No. of Dots (H X V) Vertical Scanning Feq (Hz)1080i 1920 x 1080i 50720P 1280 x 720P 50576P 720 x 576P 50480P 640 x 480P 50576i 720 x 576i 50This TV is Compatible with the followingThis input terminal is not intended for use with computers.Compatible audio sampling frequency(LPCM): 48kHz / 44.1 kHz / 32 kHz.hNotes:This HDMI connector is type A.

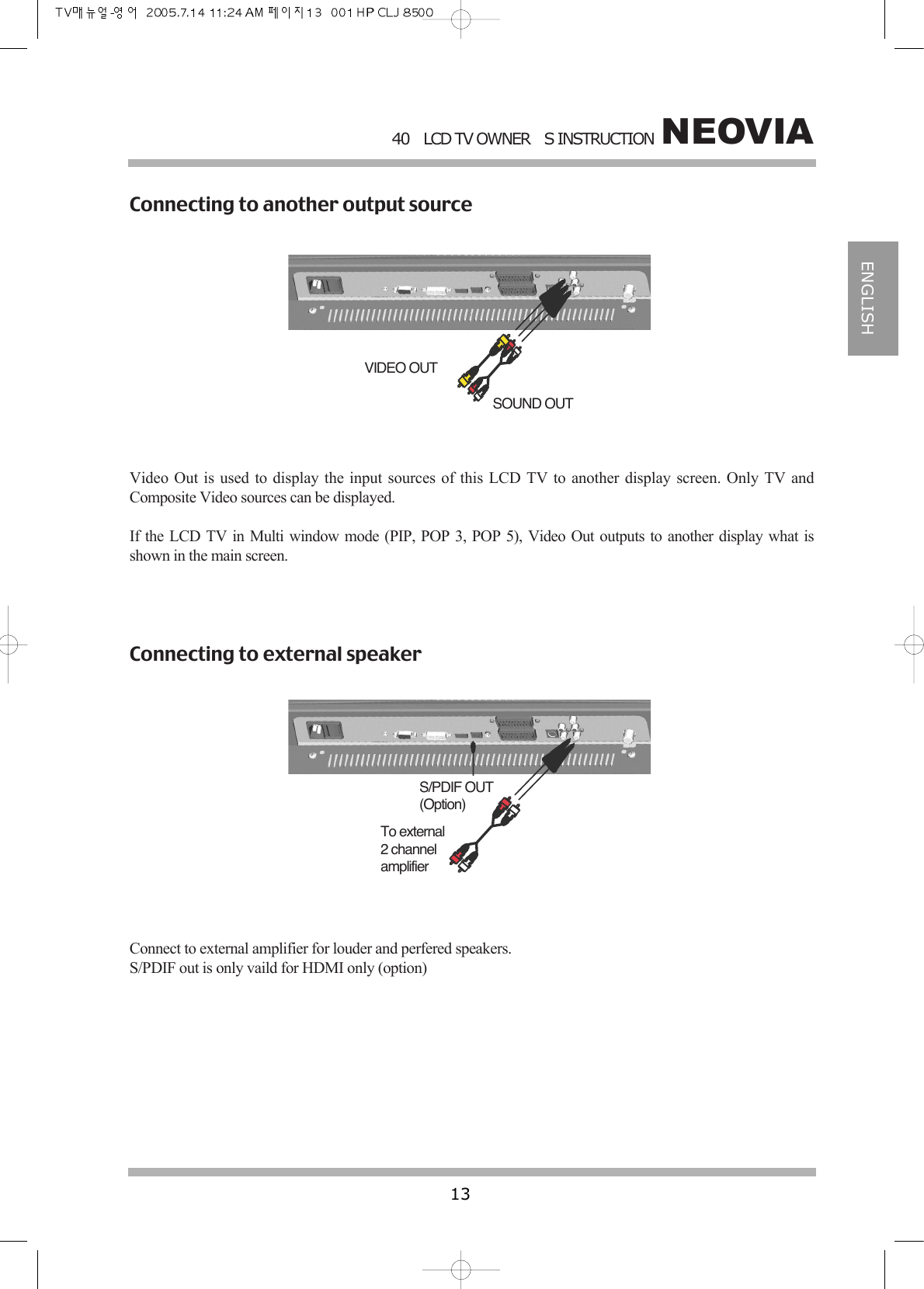

NEOVIA40LCD TV OWNERS INSTRUCTION13ENGLISHConnecting to another output sourceVIDEO OUTS/PDIF OUT(Option)To external2 channel amplifierSOUND OUTVideo Out is used to display the input sources of this LCD TV to another display screen. Only TV andComposite Video sources can be displayed.If the LCD TV in Multi window mode (PIP, POP 3, POP 5), Video Out outputs to another display what isshown in the main screen.Connect to external amplifier for louder and perfered speakers.S/PDIF out is only vaild for HDMI only (option)Connecting to external speaker
