LPS Device NEO-4005LS LCD TV & MONITOR User Manual USERS MANUAL 2

LPS Device Co., Ltd. LCD TV & MONITOR USERS MANUAL 2

Contents

USERS MANUAL 2

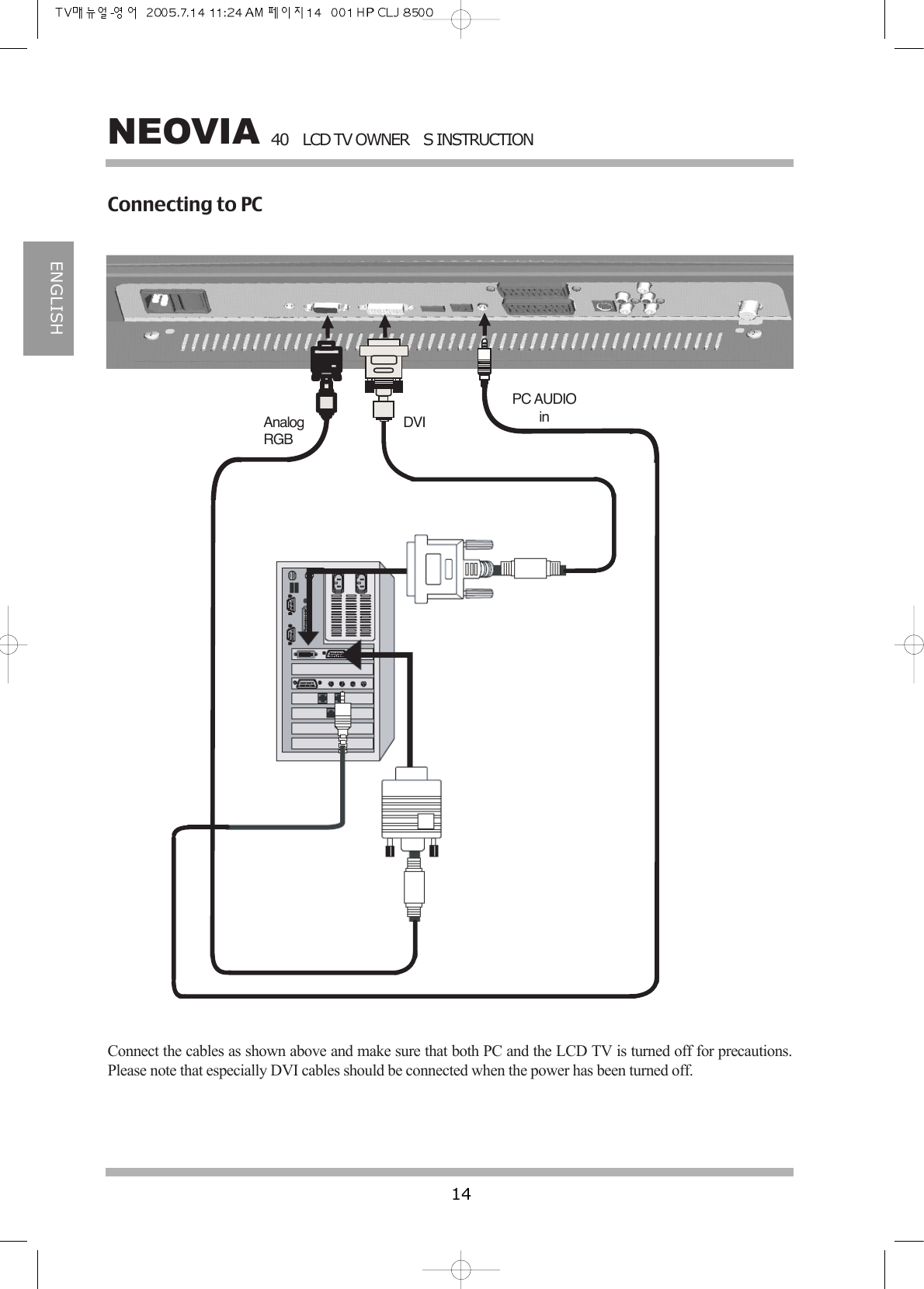

40LCD TV OWNERS INSTRUCTION14NEOVIAENGLISHAnalogRGBDVIPC AUDIOinConnecting to PCConnect the cables as shown above and make sure that both PC and the LCD TV is turned off for precautions.Please note that especially DVI cables should be connected when the power has been turned off.

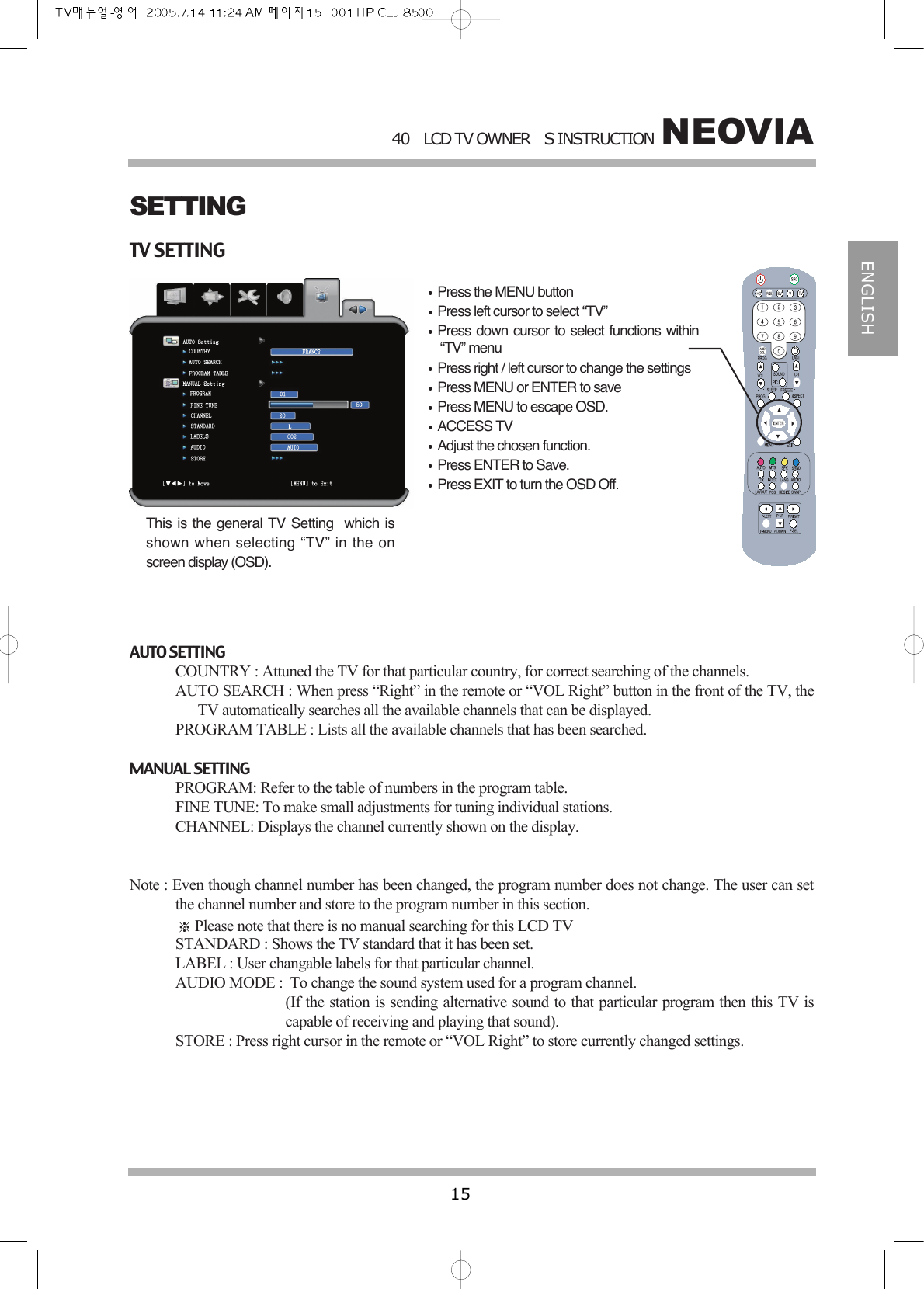

NEOVIA40LCD TV OWNERS INSTRUCTION15ENGLISHTV SETTINGAUTO SETTINGCOUNTRY : Attuned the TV for that particular country, for correct searching of the channels.AUTO SEARCH : When press “Right” in the remote or “VOL Right” button in the front of the TV, theTV automatically searches all the available channels that can be displayed.PROGRAM TABLE : Lists all the available channels that has been searched.MANUAL SETTINGPROGRAM: Refer to the table of numbers in the program table.FINE TUNE: To make small adjustments for tuning individual stations.CHANNEL: Displays the channel currently shown on the display.Note : Even though channel number has been changed, the program number does not change. The user can setthe channel number and store to the program number in this section.Please note that there is no manual searching for this LCD TVSTANDARD : Shows the TV standard that it has been set.LABEL : User changable labels for that particular channel.AUDIO MODE : To change the sound system used for a program channel.(If the station is sending alternative sound to that particular program then this TV iscapable of receiving and playing that sound).STORE : Press right cursor in the remote or “VOL Right” to store currently changed settings.SETTINGPress the MENU buttonPress left cursor to select “TV”Press down cursor to select functions within“TV” menuPress right / left cursor to change the settingsPress MENU or ENTER to savePress MENU to escape OSD.ACCESS TVAdjust the chosen function.Press ENTER to Save.Press EXIT to turn the OSD Off.This is the general TV Setting which isshown when selecting “TV” in the onscreen display (OSD).

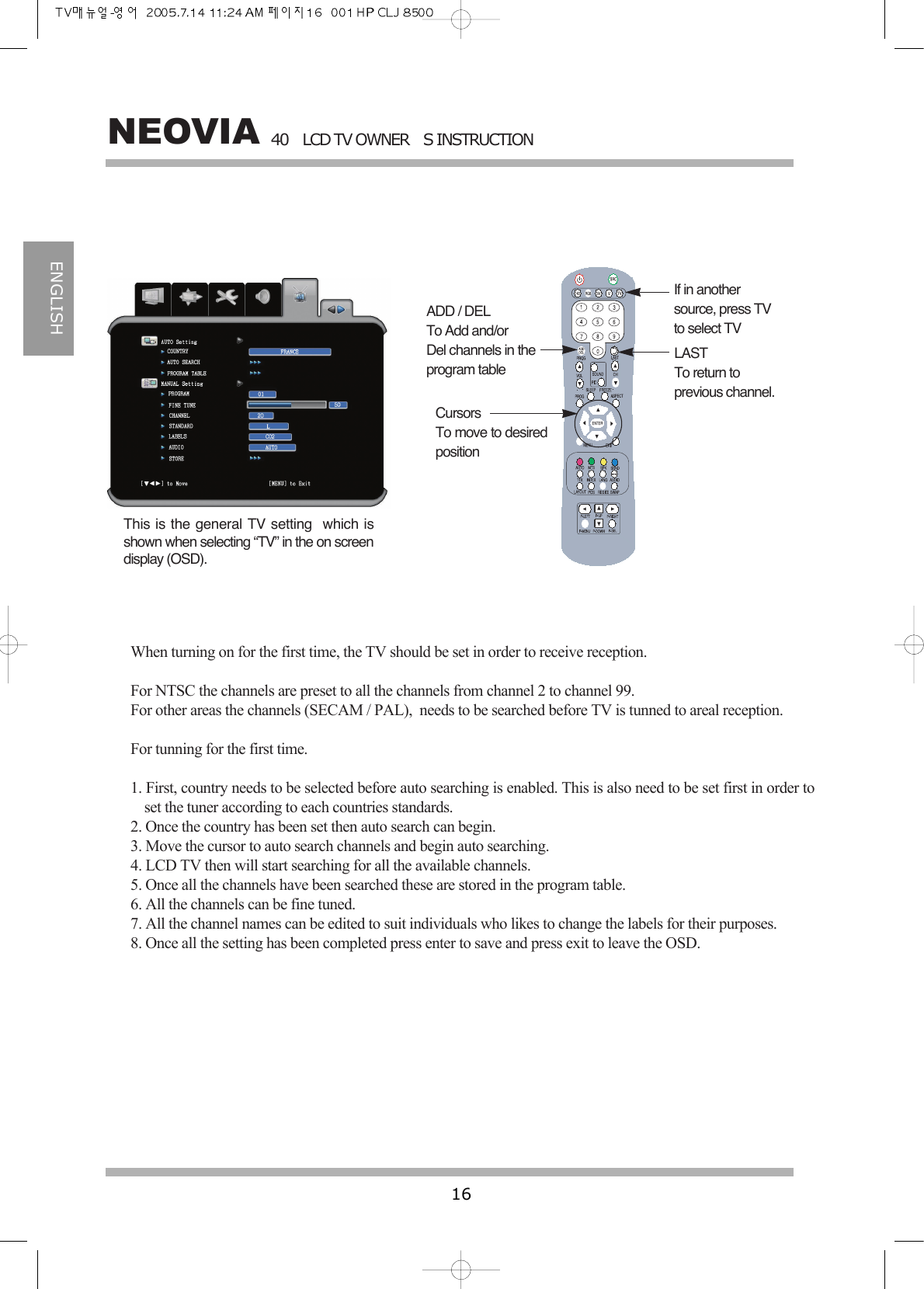

40LCD TV OWNERS INSTRUCTION16NEOVIAENGLISHADD / DELTo Add and/orDel channels in theprogram tableIf in another source, press TV to select TVLASTTo return toprevious channel.CursorsTo move to desiredpositionThis is the general TV setting which isshown when selecting “TV” in the on screendisplay (OSD).When turning on for the first time, the TV should be set in order to receive reception.For NTSC the channels are preset to all the channels from channel 2 to channel 99.For other areas the channels (SECAM / PAL), needs to be searched before TV is tunned to areal reception.For tunning for the first time.1. First, country needs to be selected before auto searching is enabled. This is also need to be set first in order toset the tuner according to each countries standards.2. Once the country has been set then auto search can begin.3. Move the cursor to auto search channels and begin auto searching.4. LCD TV then will start searching for all the available channels.5. Once all the channels have been searched these are stored in the program table.6. All the channels can be fine tuned.7. All the channel names can be edited to suit individuals who likes to change the labels for their purposes.8. Once all the setting has been completed press enter to save and press exit to leave the OSD.

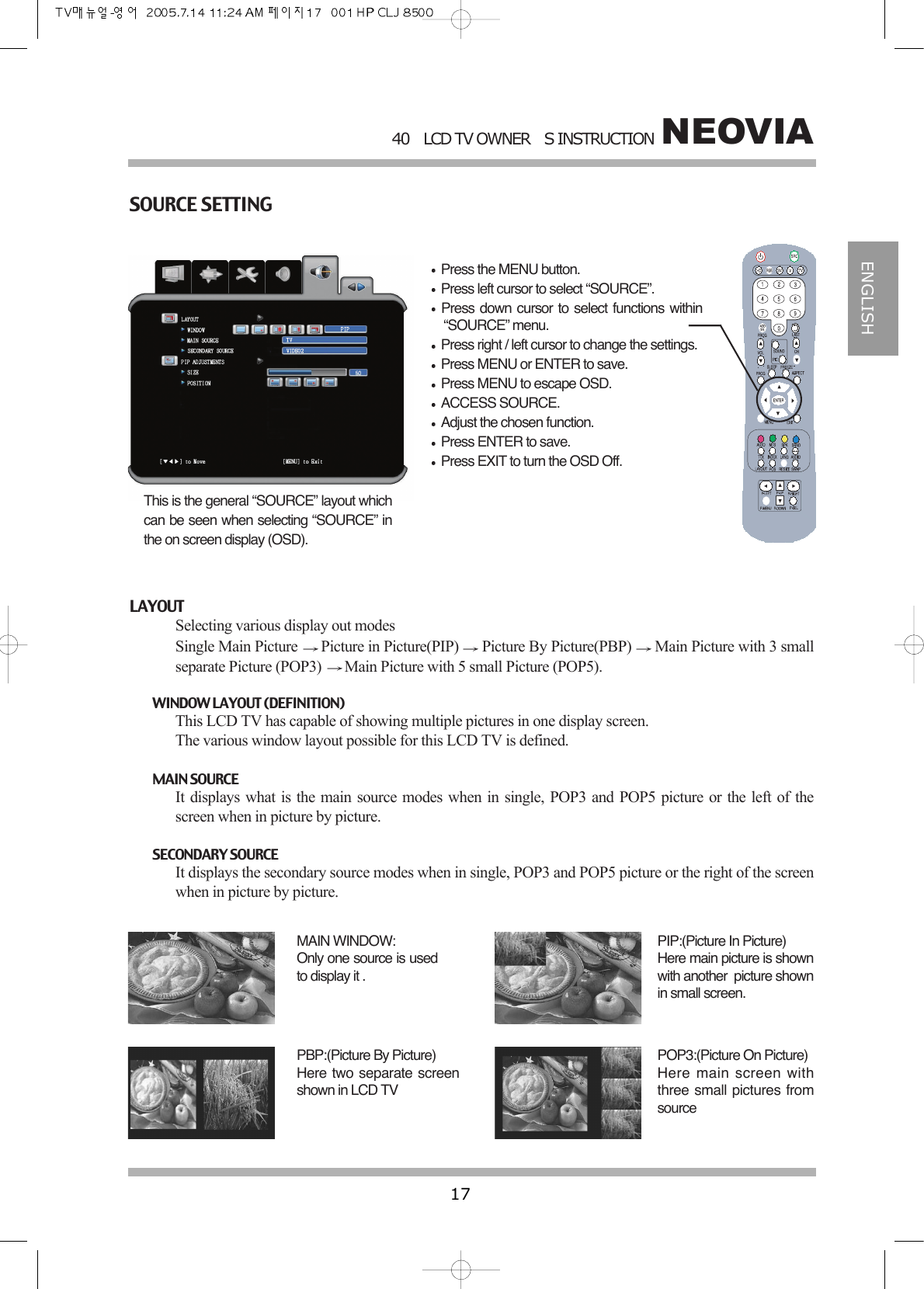

NEOVIA40LCD TV OWNERS INSTRUCTION17ENGLISHSOURCE SETTINGPress the MENU button.Press left cursor to select “SOURCE”.Press down cursor to select functions within“SOURCE” menu.Press right / left cursor to change the settings.Press MENU or ENTER to save.Press MENU to escape OSD.ACCESS SOURCE.Adjust the chosen function.Press ENTER to save.Press EXIT to turn the OSD Off.This is the general “SOURCE” layout whichcan be seen when selecting “SOURCE” inthe on screen display (OSD).LAYOUTSelecting various display out modesSingle Main Picture Picture in Picture(PIP) Picture By Picture(PBP) Main Picture with 3 smallseparate Picture (POP3) Main Picture with 5 small Picture (POP5).WINDOW LAYOUT (DEFINITION)This LCD TV has capable of showing multiple pictures in one display screen. The various window layout possible for this LCD TV is defined.MAIN SOURCEIt displays what is the main source modes when in single, POP3 and POP5 picture or the left of thescreen when in picture by picture. SECONDARY SOURCEIt displays the secondary source modes when in single, POP3 and POP5 picture or the right of the screenwhen in picture by picture.MAIN WINDOW:Only one source is usedto display it .PIP:(Picture In Picture)Here main picture is shownwith another picture shownin small screen.PBP:(Picture By Picture)Here two separate screenshown in LCD TVPOP3:(Picture On Picture)Here main screen withthree small pictures fromsource

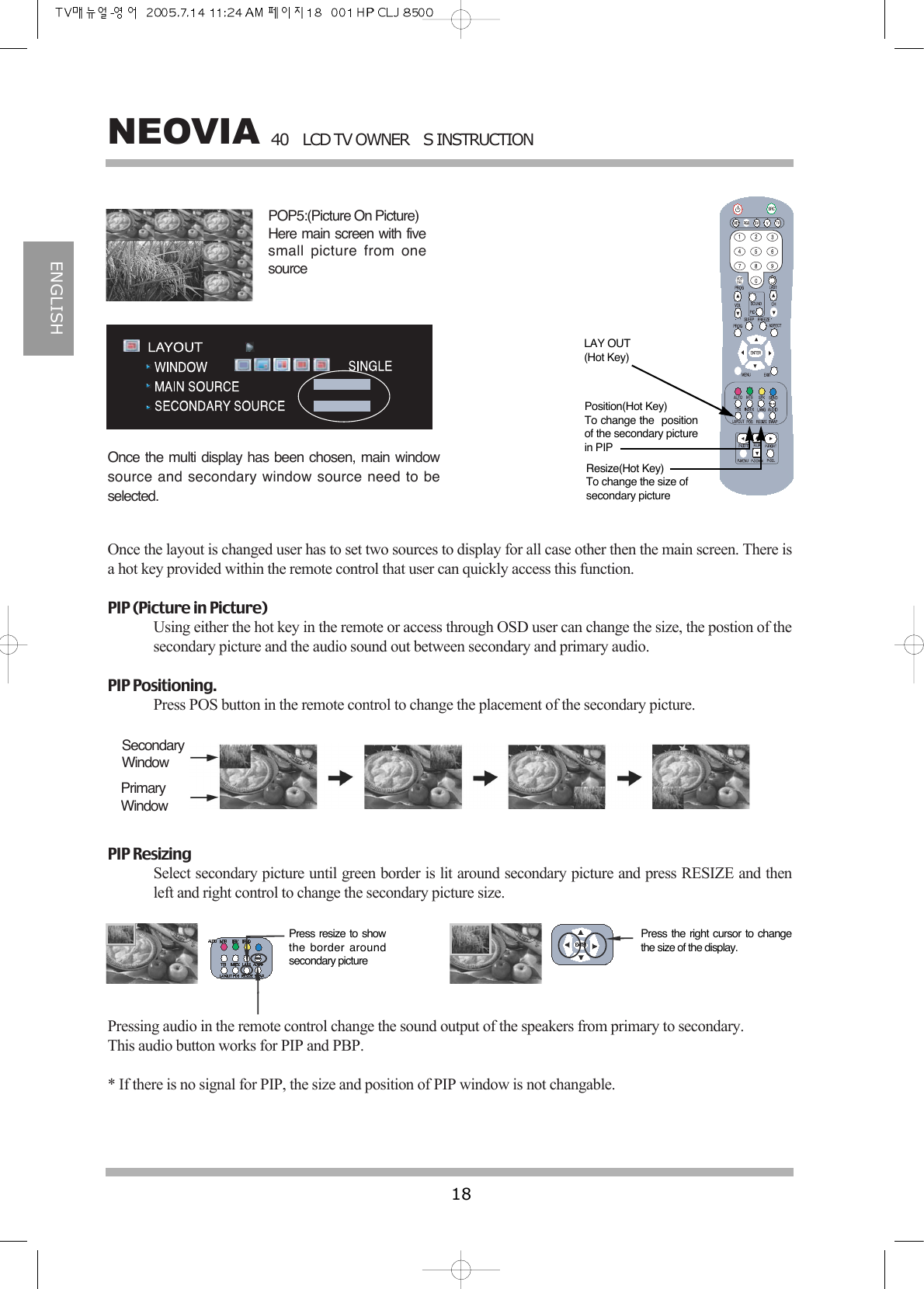

40LCD TV OWNERS INSTRUCTION18NEOVIAENGLISHOnce the multi display has been chosen, main windowsource and secondary window source need to beselected.Once the layout is changed user has to set two sources to display for all case other then the main screen. There isa hot key provided within the remote control that user can quickly access this function. PIP (Picture in Picture)Using either the hot key in the remote or access through OSD user can change the size, the postion of thesecondary picture and the audio sound out between secondary and primary audio.PIP Positioning.Press POS button in the remote control to change the placement of the secondary picture.PIP ResizingSelect secondary picture until green border is lit around secondary picture and press RESIZE and thenleft and right control to change the secondary picture size.Pressing audio in the remote control change the sound output of the speakers from primary to secondary. This audio button works for PIP and PBP. * If there is no signal for PIP, the size and position of PIP window is not changable.POP5:(Picture On Picture)Here main screen with fivesmall picture from onesourceSecondaryWindowPrimaryWindowPress resize to showthe border aroundsecondary picturePress the right cursor to changethe size of the display.LAY OUT(Hot Key)Position(Hot Key)To change the positionof the secondary picturein PIPResize(Hot Key)To change the size ofsecondary picture

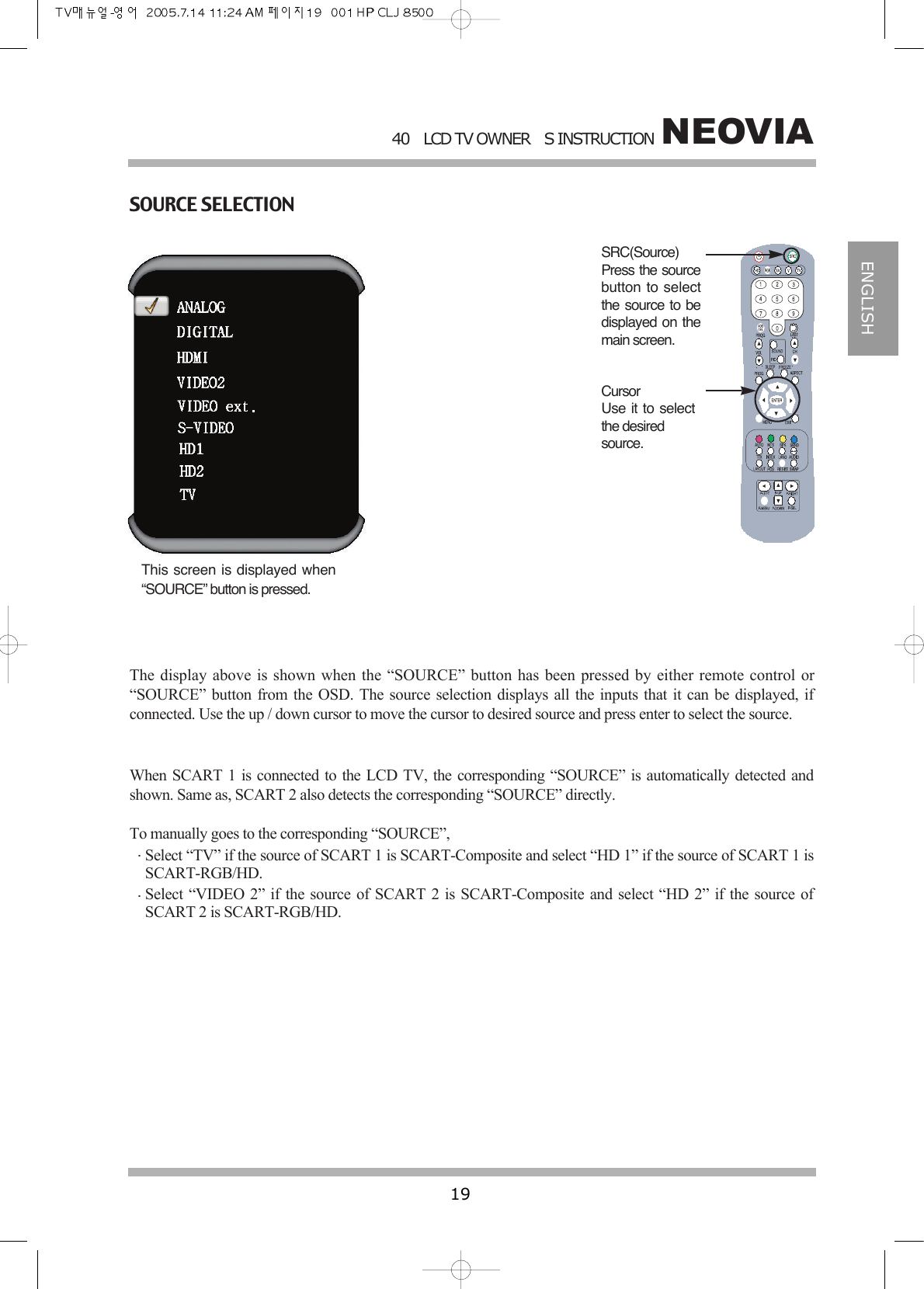

NEOVIA40LCD TV OWNERS INSTRUCTION19ENGLISHSOURCE SELECTIONThis screen is displayed when“SOURCE” button is pressed.The display above is shown when the “SOURCE” button has been pressed by either remote control or“SOURCE” button from the OSD. The source selection displays all the inputs that it can be displayed, ifconnected. Use the up / down cursor to move the cursor to desired source and press enter to select the source.When SCART 1 is connected to the LCD TV, the corresponding “SOURCE” is automatically detected andshown. Same as, SCART 2 also detects the corresponding “SOURCE” directly.To manually goes to the corresponding “SOURCE”,Select “TV” if the source of SCART 1 is SCART-Composite and select “HD 1” if the source of SCART 1 isSCART-RGB/HD.Select “VIDEO 2” if the source of SCART 2 is SCART-Composite and select “HD 2” if the source ofSCART 2 is SCART-RGB/HD.SRC(Source)Press the sourcebutton to selectthe source to bedisplayed on themain screen.CursorUse it to selectthe desired source.

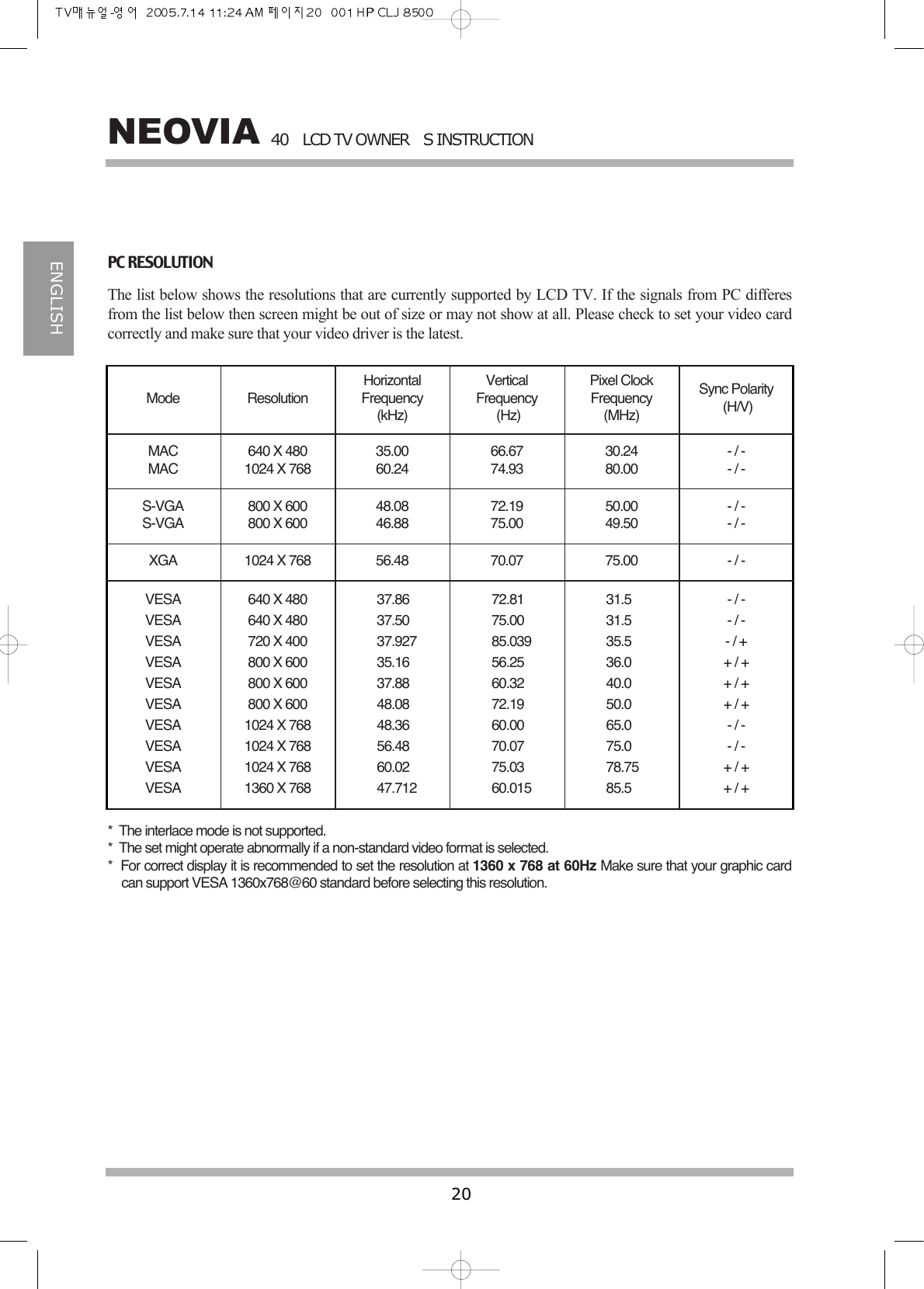

40LCD TV OWNERS INSTRUCTION20NEOVIAENGLISHPC RESOLUTIONThe list below shows the resolutions that are currently supported by LCD TV. If the signals from PC differesfrom the list below then screen might be out of size or may not show at all. Please check to set your video cardcorrectly and make sure that your video driver is the latest.Mode ResolutionHorizontal Frequency (kHz)VerticalFrequency(Hz)Pixel ClockFrequency (MHz)Sync Polarity(H/V)MACMAC640 X 4801024 X 76835.0060.2466.6774.9330.2480.00- / -- / -S-VGAS-VGA800 X 600800 X 600 48.0846.8872.1975.0050.0049.50- / -- / -XGA 1024 X 768 56.48 70.07 75.00 - / -VESAVESAVESAVESAVESAVESAVESAVESAVESAVESA640 X 480640 X 480720 X 400800 X 600800 X 600800 X 6001024 X 7681024 X 7681024 X 7681360 X 76837.8637.5037.92735.1637.8848.0848.3656.4860.0247.71272.8175.0085.03956.2560.3272.1960.0070.0775.0360.01531.531.535.536.040.050.065.075.078.7585.5- / -- / -- / ++ / ++ / ++ / +- / -- / -+ / ++ / +* The interlace mode is not supported.* The set might operate abnormally if a non-standard video format is selected.* For correct display it is recommended to set the resolution at 1360 x 768 at 60Hz Make sure that your graphic cardcan support VESA 1360x768@60 standard before selecting this resolution.

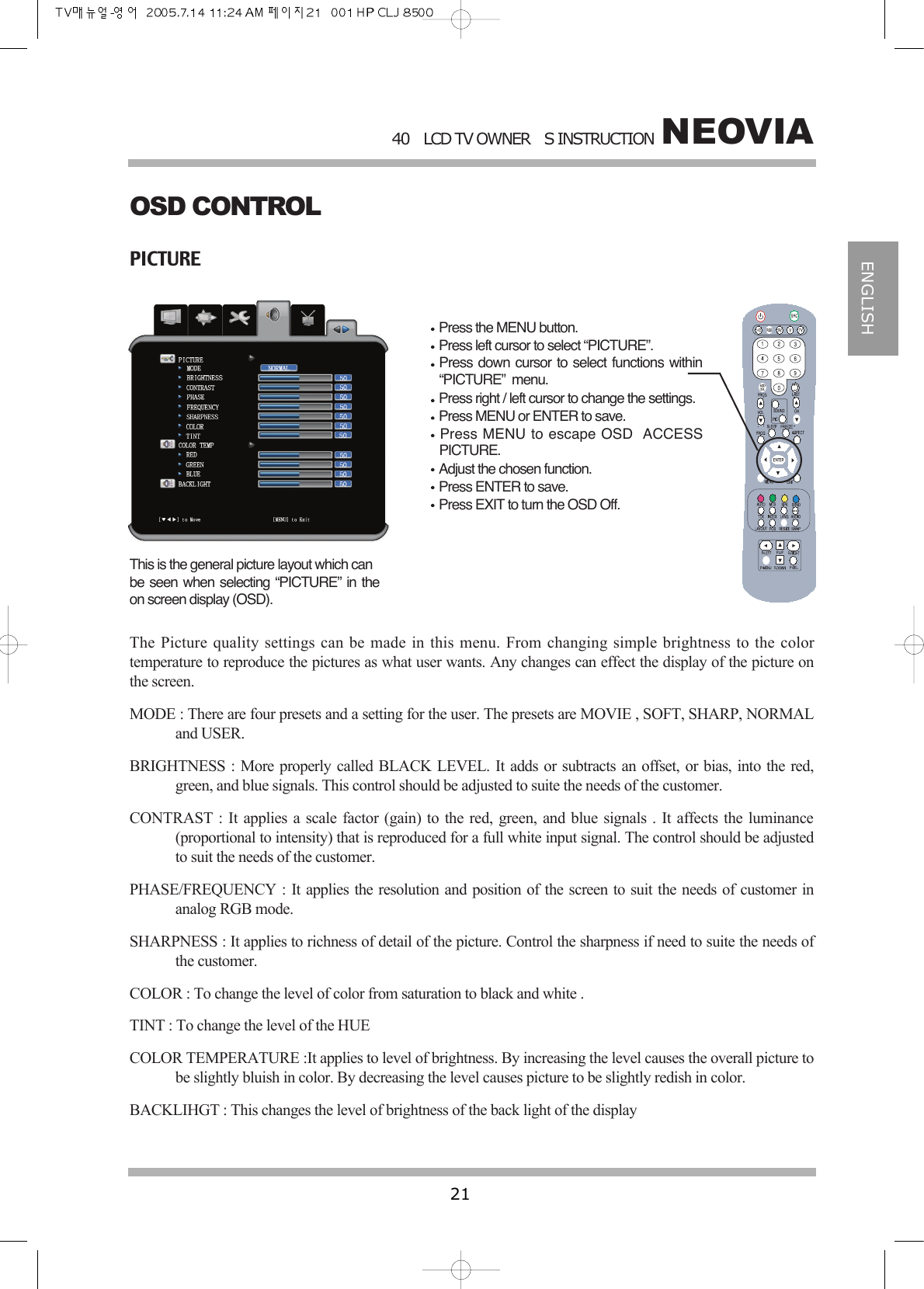

NEOVIA40LCD TV OWNERS INSTRUCTION21ENGLISHOSD CONTROLPICTUREPress the MENU button.Press left cursor to select “PICTURE”.Press down cursor to select functions within“PICTURE” menu.Press right / left cursor to change the settings.Press MENU or ENTER to save.Press MENU to escape OSD ACCESSPICTURE.Adjust the chosen function.Press ENTER to save.Press EXIT to turn the OSD Off.This is the general picture layout which canbe seen when selecting “PICTURE” in theon screen display (OSD). The Picture quality settings can be made in this menu. From changing simple brightness to the colortemperature to reproduce the pictures as what user wants. Any changes can effect the display of the picture onthe screen.MODE : There are four presets and a setting for the user. The presets are MOVIE , SOFT, SHARP, NORMALand USER.BRIGHTNESS : More properly called BLACK LEVEL. It adds or subtracts an offset, or bias, into the red,green, and blue signals. This control should be adjusted to suite the needs of the customer.CONTRAST : It applies a scale factor (gain) to the red, green, and blue signals . It affects the luminance(proportional to intensity) that is reproduced for a full white input signal. The control should be adjustedto suit the needs of the customer.PHASE/FREQUENCY : It applies the resolution and position of the screen to suit the needs of customer inanalog RGB mode.SHARPNESS : It applies to richness of detail of the picture. Control the sharpness if need to suite the needs ofthe customer.COLOR : To change the level of color from saturation to black and white .TINT : To change the level of the HUECOLOR TEMPERATURE :It applies to level of brightness. By increasing the level causes the overall picture tobe slightly bluish in color. By decreasing the level causes picture to be slightly redish in color.BACKLIHGT : This changes the level of brightness of the back light of the display
