StatSignal PUBS-0710-0002 Rev A 1
StatSignal
Multi-Utility Residential
Endpoint Data Sheet
General
The Cellnet+Hunt High-Powered Multi-Utility Residential endpoint is designed to accommodate
American, Actaris/Schlumberger/Sprague and Invensys/Equimeter Gas meters for use in residential
services. The High-Powered Multi-Utility Residential module receives rotational pulse data from the
meter via 3rd party meter pulse kits and sends this information to a StatSignal electrical endpoint
device utilizing RF transmission. The electrical endpoint forwards this information to Cell-
net+Hunt’s Data Collector and Command Center where the data is converted to CCF usage.
FCC Compliance Information
Model: FASY-0710-0003/0004
FCCID: TEB-HUNTSS710
IC: 5931A-HUNTSS710

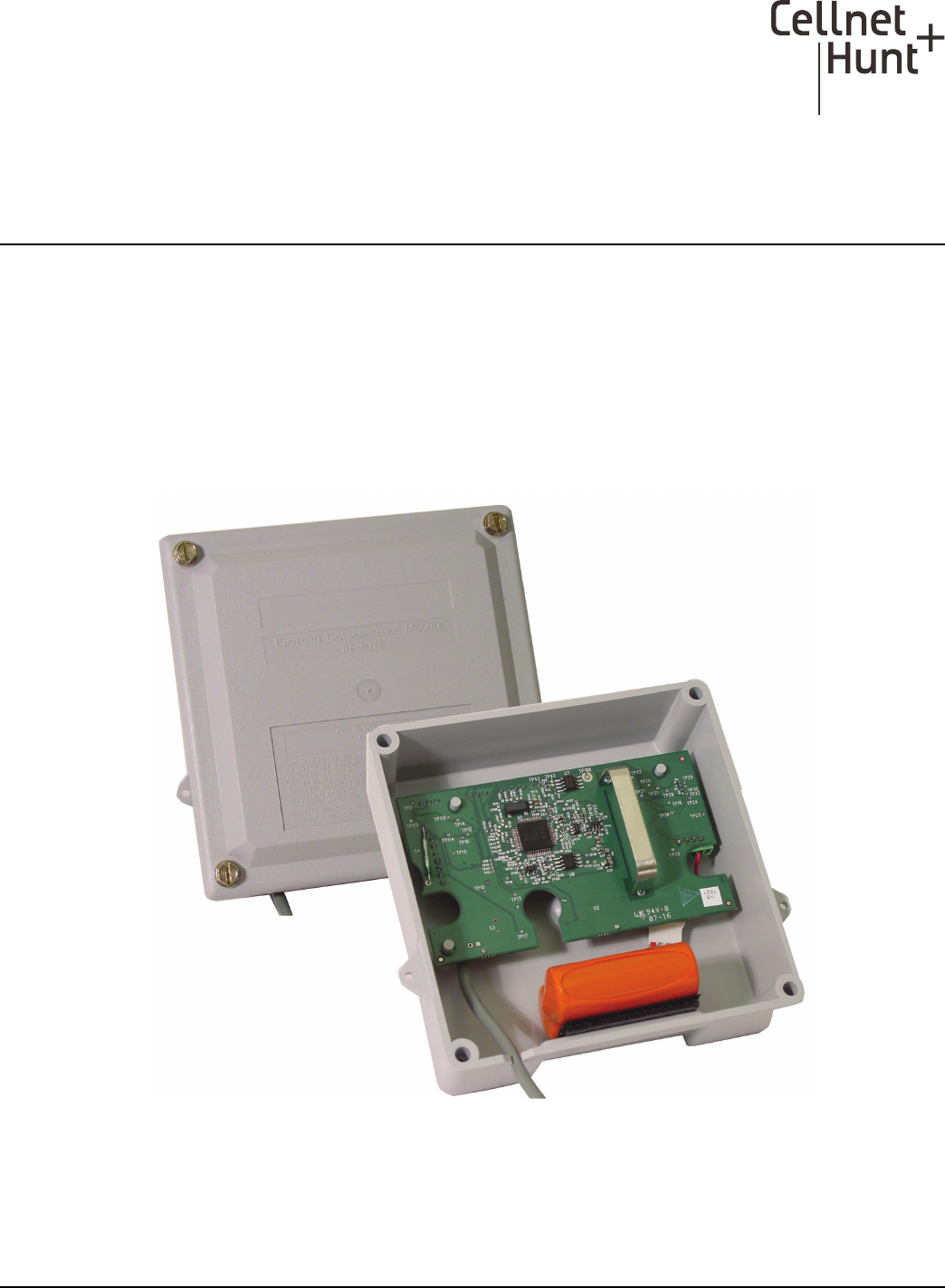

Figure 1 - 1.
The Cellnet+Hunt
High-Powered
Multi-Utility
Residential
Endpoint Module.
StatSignal Multi-Utility Residential Endpoint Data Sheet Cellnet+Hunt
2PUBS-0710-0002 Rev A StatSignal
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two con-
ditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undes-
ired operation.
ETL Classified: Non-incendive Electrical Equipment for use in Class 1, Division 2, Hazardous
(Classified) Locations:
Endpoint Location
To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the
antenna(e) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be collocated or operating in conjunction with any other antenna or
transmitter.
Endpoint Usage
The StatSignal Multi-Utility Residential endpoint will be used:
• For residential metering applications.
•At homes.
The HighPowered Multi-Utility Residential endpoint requires professional installation by qualified
personnel.
RF Interference
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the meter off, the user is encouraged to try and correct the interference by one
or more of the following measures:
• Re-orient or relocate the receiving antenna.
Changes or modifications not expressly approved by Cellnet+Hunt for compliance
could void the user’s authority to operate the equipment.
Warning-Explosion Hazard - Substitution of Components may impair suitability for
Class1, Division 2, Group D.
Avitir Quelqu’un-Exposion Hasard - Changement de Composants il se peut affaiblir
qui est approprie por Categorie 1, Section 2, Regroupe D.
Cellnet+Hunt StatSignal Multi-Utility Residential Endpoint Data Sheet
StatSignal PUBS-0710-0002 Rev A 3
• Increase the separation between the equipment and receiver.
• Consult Cellnet+Hunt or an experienced radio/TC technician for help.
Specifications
Table 1. StatSignal Multi-Utility Residential Endpoint Specifications
Category Specification Value or Range
Compatible
Meters
American Gas Meters Invensys/Equimeter Actaris/Schlumberger/Sprague
Domestic meters, circular
read and direct read indi-
ces.
For sizes 175 and 250CFH
Models.
Domestic meters, circular
read R-275 index.
Domestic meters, direct read
and circular read indices.
For sizes 240, 250 and 400
CFH Models.
Electrical
Voltage 3.6 vdc Battery Powered
Power Transmit Sleep
450mA +/- 15mA <10uA
RF
Output Power +23 dBm +/- 2dB
Adjacent Channel Power +50dBc Nominal
Transmit Frequency 910 to 928 MHz ISM unlicensed (FCC Part 15)
Communication Protocol StatSignal RF MESH Protocol
Receive Sensitivity -108 dBm minimum (-110 dBm typical)
Standards
Compliance
FCC Title 47 CFR Part 15 Radiated and Conducted Emissions (incl. intentional radiators)
ANSI /IPC-A-610 Class 2 Workmanship for electronics assembly
ETL Class 1 Div 2 Group D
Environmental
General Environmental Outdoor, rain-protected, sunlight-exposed
Operating Temperature
Range
-40 to +85
Humidity 0 to 95% relative humidity, non-condensing
Mechanical Size 4 5/8”W x 4 5/8”L x 1 7/8”H inches, typical
Weight 4.2 ounces (119.2g), typical
