Landis+Gyr Technologies, LLC Transmitter for Watt-Hour Meter Ship Sheet

Contents

Ship Sheet

Data Sheet PUBS-0762-0001 Rev A 1
FOCUS Universal RF
Endpoint Data Sheet
General
The Cellnet+Hunt FOCUS Universal RF endpoint is designed to accommodate Landis+Gyr FOCUS
meters for use in residential and light industrial services. The FOCUS Universal RF module directly
reads kWh usage data from the meter register and sends this information to a data collection device
utilizing RF transmission. The collector forwards this information to Cellnet+Hunts’ Command
Center software.

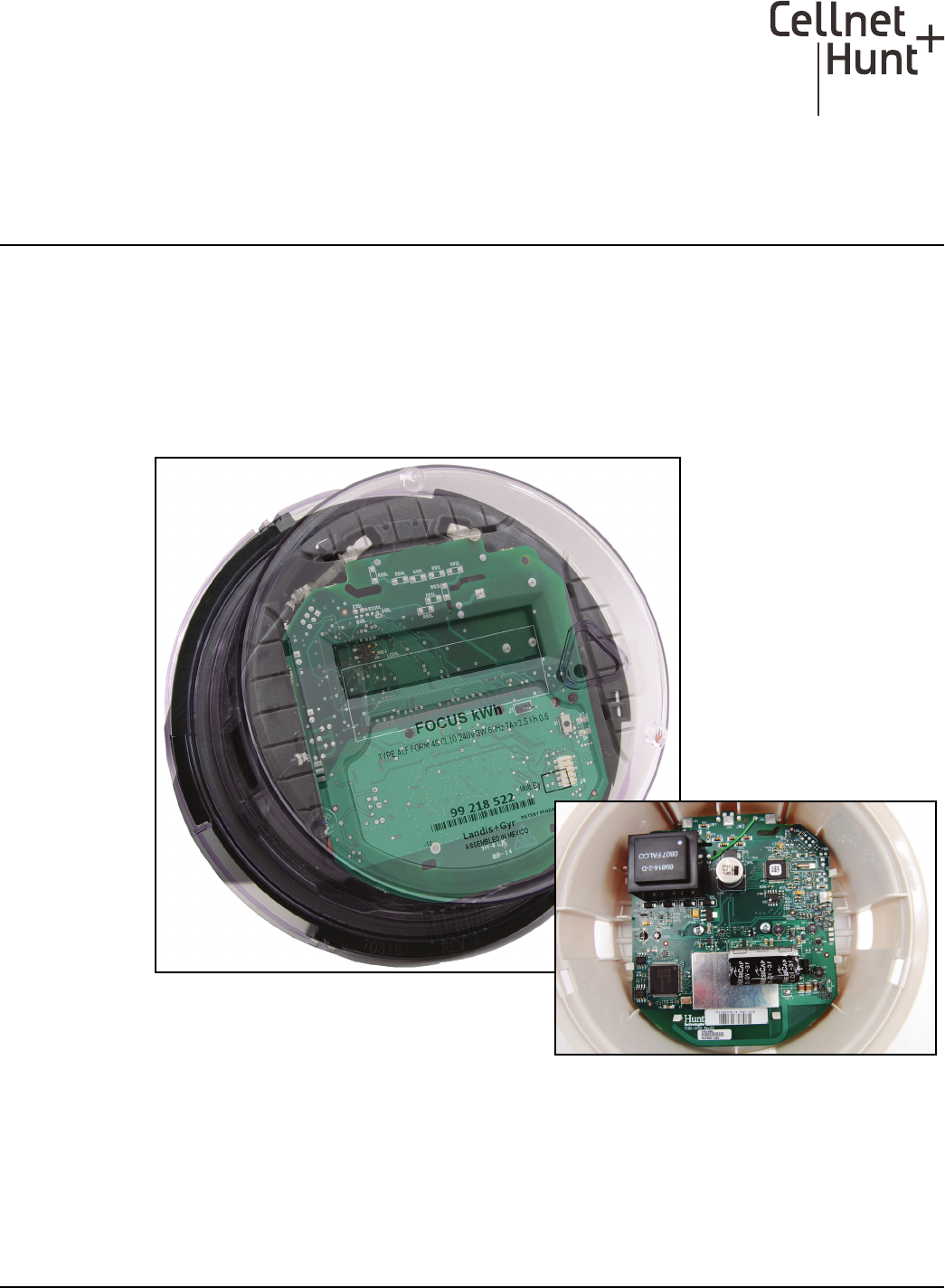

Figure 1. The Cellnet+Hunt FOCUS Universal RF Endpoint Module and
Landis+Gyr FOCUS Meter
FCC Compliance Information
Model: FASY-0762
FCCID: TEB-HUNTSS762
IC: 5931A-HUNTSS762
FOCUS Universal RF Endpoint Data Sheet Cellnet+Hunt
2 PUBS-0762-0001 Rev A Data Sheet
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Endpoint Location
To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the
antenna(e) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be collocated or operating in conjunction with any
other antenna or transmitter.
Endpoint Usage
The FOCUS Universal RF endpoint will be used:
• for residential and commercial metering applications.
• at homes and businesses.
The FOCUS Universal RF endpoint requires professional installation by qualified personnel.
RF Interference
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the meter off, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult Cellnet+Hunt or an experienced radio/TC technician for help.
Changes or modifications not expressly approved by Cellnet+Hunt for compliance could void the
user’s authority to operate the equipment.
Cellnet+Hunt FOCUS Universal RF Endpoint Data Sheet
Data Sheet PUBS-0762-0001 Rev A 3
Specifications
Table 1. FOCUS Universal RF Endpoint Specifications
Category Specification Value or Range
Compatible
Meters
Meter Type Landis+Gyr FOCUS AL
Supported Meter Forms
120V FASY-0762-0001 240V FASY-0762-0002
For
m
Clas
s
L+G Part Number For
m
Clas
s
L+G Part Number
1S 100 EA0000T0-
QQQQ*
2S 200 EA1100T0-
QQQQ*
3S 20 EA0G00T0-
QQQQ*
2SE 320 EA1400T0-
QQQQ*
12S 200 EA01C0T0-
QQQQ*
2K 480 EA1600T0-
QQQQ*
25S 200 EA0A00T0-
QQQQ*
3S 20 EA0H00T0-
QQQQ*
4S 20 EA0J00T0-QQQQ*
NOTE: The last four digits of the Landis+Gyr part number identify a
specific customer feature set including custom name plate,
programming and RKAs.
Electrical
Voltage 120/240V (depending on meter form)
Power Max: 2.2W (1.2W meter, 1W transceiver)
Typical: 1.2W (.7W meter, .5W transceiver)
RF
Output Power +26 dBm +/-2 dBm
Adjacent Channel Power +50 dBc Nominal
Transmit Frequency 902 to 928 MHz ISM unlicensed (FCC Part 15)
Communication Protocol Stat RF MESH Protocol
Receive Sensitivity -108 dBm minimum
Standards
Compliance
FCC Title 47 CFR Part 15 Radiated and Conducted Emissions (incl. intentional radiators)
IEC 61000 4-2,3,4,5,11,12 Electromagnetic Compatibility
ANSI C12.19 Compatible with Utility Industry End Device Tables
ANSI C12.20 National Standard for Electricity Meters - 0.2 and 0.5 Accuracy Classes
ANSI C12.21 Code for Electricity Metering
ANSI C37.90.1 (1989) Standard Surge Withstand Capability (SWC) Tests
FOCUS Universal RF Endpoint Data Sheet Cellnet+Hunt
4 PUBS-0762-0001 Rev A Data Sheet
Environmental
General Environmental Outdoor, rain-protected, sunlight-exposed
Operating Temperature
Range
-40 to +70 C (under meter glass)
Humidity 0 to 95% relative humidity, non-condensing
Mechanical Size 4 H x 4.8125 W x 1.25 D inches, typical
Weight 5 ounces (142 g), typical
Table 1. FOCUS Universal RF Endpoint Specifications
Category Specification Value or Range
