Landis+Gyr Technologies, LLC 3G S4e Gridstream 98 9103

Contents

Exhibit D - Product Ship Sheet

Landis+Gyr Confidential Information 98-9103 Rev AA 1
3G S4e Gridstream
Endpoint with
ZigBee Data Sheet
General
The 3G S4e Gridstream endpoint is designed to accommodate Landis+Gyr S4e poly-phase meters
for use in commercial and light industrial services. The S4e Advanced Function meter is an Active
Energy kWh/kW/TOU Meter. The meter features Digital Multiplication Measurement Technique,
meets ANSI standards for performance and utilizes ANSI C12.19 protocol (between meter and
AMR device). Can be deployed with or without ZigBee.
Display Options
Energy Metrics: +kWh, -kWh, Net kWh, and added kWh (Security).

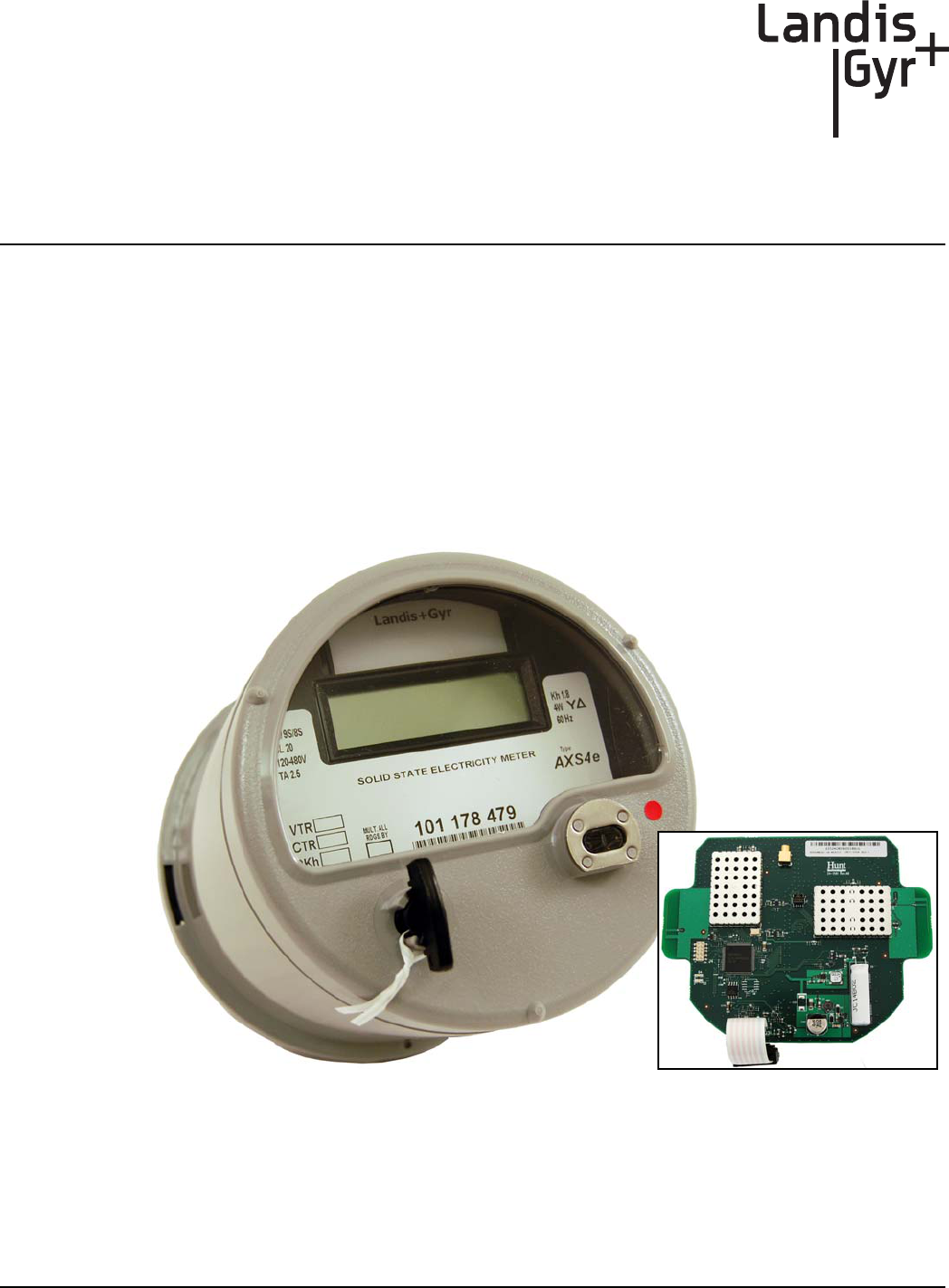

Figure 1. The 3G S4e Gridstream Endpoint Module and the Landis+Gyr S4e Meter
FCC Compliance Information
Model: FASY-0825
FCCID: TEB-HUNTSU825
IC: 5931A-HUNTSU825
3G S4e Gridstream Endpoint with ZigBee Data Sheet Landis+Gyr
2 98-9103 Rev AA Landis+Gyr Confidential Information
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Endpoint Location
To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the
antenna(e) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be collocated or operating in conjunction with any
other antenna or transmitter.
Endpoint Usage
The 3G S4e Gridstream endpoint will be used:
for commercial and light industrial metering applications.
at homes and businesses.
The 3G S4e Gridstream endpoint requires professional installation by qualified personnel.
RF Interference
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the meter off, the user is encouraged to try to correct the interference by one
or more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult Landis+Gyr or an experienced radio/TC technician for help.
Changes or modifications not expressly approved by Landis+Gyr could void the
user’s authority to operate the equipment.
Landis+Gyr 3G S4e Gridstream Endpoint with ZigBee Data Sheet
Landis+Gyr Confidential Information 98-9103 Rev AA 3
Required Software
To work with the endpoint, you need one of the following software tools:
Command Center ver. 4.1 or greater
RadioShop.
Network Configuration Manager.
Landis+Gyr 1132Prog application.
Endpoint Testing Manager.
Endpoint Implementation Manager.
Specifications
Table 1. 3G S4e Gridstream Endpoint Specifications
Category Specification Value or Range
Compatible
Meters
Landis+Gyr S4e Supported
Meter Forms
Form Class Form Class
3S 20 16SE 320
5S/45S 20 16/15K 480
6S/36S 20
9S/8S 20
2S 200
12S 200
16S/15S 200
25S 200
12SE 320
Electrical
Voltage 10.5-13.5V (from the meter’s power supply)
Power Max: 2.5W
Typical: 0.5W
RF 900 MHz
Output Power +26 dBm +/-1 dBm
Adjacent Channel Power 39 dBc Nominal
Transmit Frequency 902 to 928 MHz ISM unlicensed (FCC Part 15)
Communication Protocol Gridstream Protocol for Command Center
Receive Sensitivity -108 dBm minimum
RF ZigBee
Output Power +20 dBm +/-1
Adjacent Channel Power 40 dBc Minimum
Transmit Frequency 2405-2480 MHz
Communication Protocol ZigBee Protocol
Receive Sensitivity -104 dBm minimum
3G S4e Gridstream Endpoint with ZigBee Data Sheet Landis+Gyr
4 98-9103 Rev AA Landis+Gyr Confidential Information
Standards
Compliance
FCC Title 47 CFR Part 15 Radiated and Conducted Emissions (incl.
intentional radiators)
IEC 61000 4-2,3,4,5,11,12 Electromagnetic Compatibility
ANSI C12.19 Compatible with Utility Industry End Device
Tables
ANSI C12.20 National Standard for Electricity Meters - 0.2
and 0.5 Accuracy Classes
ANSI C12.21 Code for Electricity Metering
ANSI C37.90.1 (1989) Standard Surge Withstand Capability (SWC)
Tests
ANSI C12.22 Transport of ANSI C12.19 Over Network
Transmissions
Environmental
General Environmental Outdoor, rain-protected, sunlight-exposed
Operating Temperature Range -40 to +70 C (under meter glass)
Humidity 0 to 95% relative humidity, non-condensing
Mechanical Size
Weight
Contact Information
Technical Support:
1-888-390-5733 Internet:
www.landisgyr.com Fax
1-218-562-5530 E-mail:
solutionsupport.na@landisgyr.com
Table 1. 3G S4e Gridstream Endpoint Specifications
Category Specification Value or Range
