User instructions
TI111RX.01E

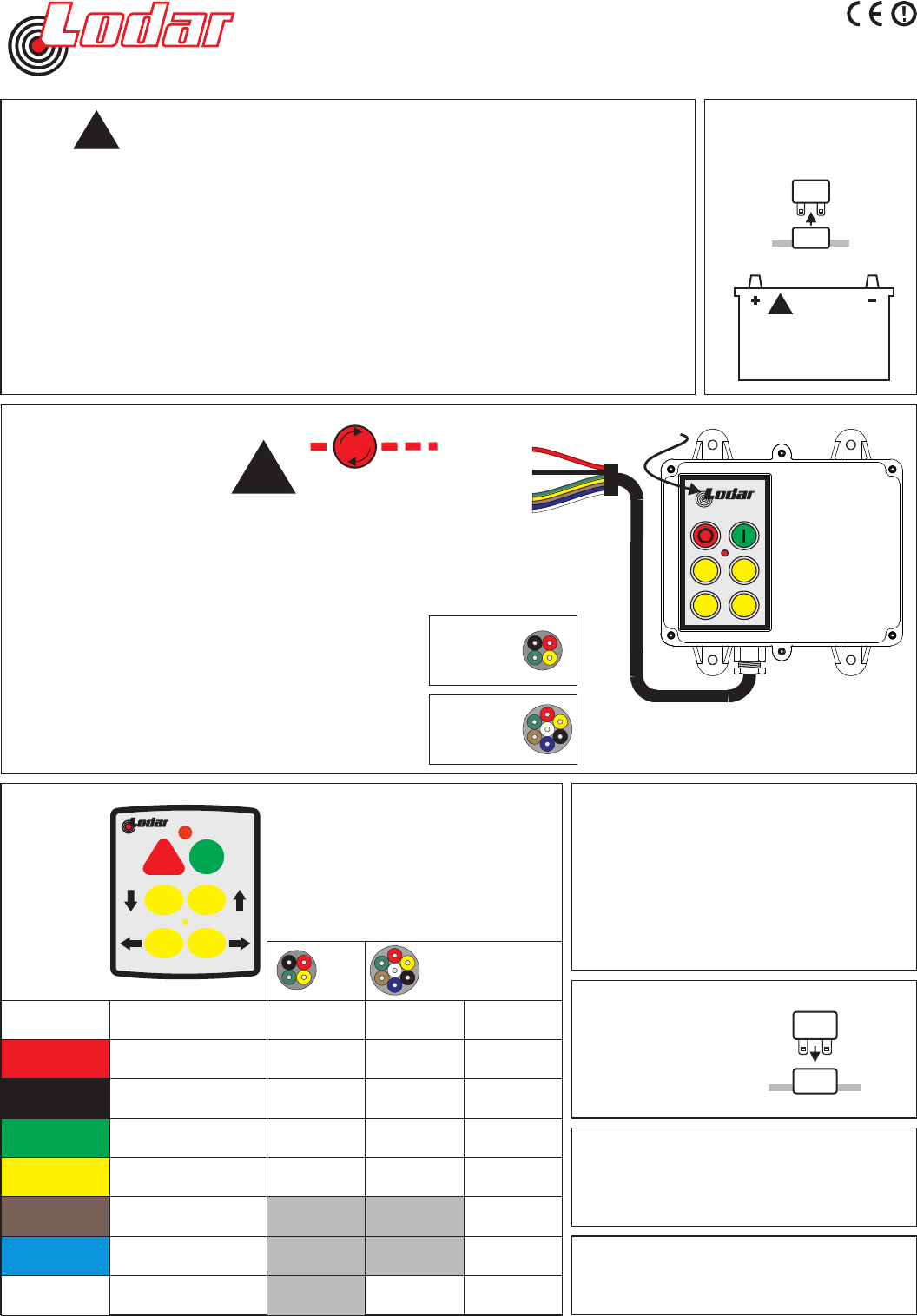

Wiring Instructions for TI-111 Series 2 & 4 Function, FET Receivers.
mini
OUT
DOWN
IN
UP
LEFT RIGHT
www.lodar.com
F1 F2
F3 F4
2
or Disconnect Battery
IDENTIFY POWER
CONNECTION POINT
AND ISOLATE SUPPLY
Fuse
Remove fuse
Vehicle batteries contain gasses
which are flammable and explosive.
Wear eye protection and do not lean
over battery while disconnecting. Do
not wear metal jewellery.
!WARNING
1. The Receiver is designed to carry a maximum of 15 Amps. That is, for example,15 Amps
through one output or 5 Amps each through 3 outputs.
2. Master Output. This can be configured to Continuous or Parallel operation, see overleaf for
details.
3. If Receiver outputs are connected in parallel with an external switching device (wired remote)
the Receiver will instantly switch off when the wired remote is operated
4. Lodar Receivers have an isolation switch for safety, to allow for registering a MUST
replacement Transmitter.
5. Safety Feature. Both the Transmitter and the Receiver will “time out” after 30 minutes of
inactivity. This can be altered, ask your dealer.
1!BEFORE YOU START
CONNECT
WIRES
4Transmitter
Function
Convention
5
or re-connect Battery
ACTIVATE THE
RECEIVER SUPPLY
Fuse
Replace fuse
Press the Transmitter buttonRESET
to activate the system, and carefully
test each function for correct operation.
7TEST
6CONNECT TRANSMITTER BATTERY
Batteries generally have to be
disconnected when shipping.
12/24 Volts DC Nominal
Positive Supply
RED
Negative
BLACK
GREEN
YELLOW
BROWN
BLUE
WHITE
Output Function 1
Output Function 2
Output Function 3
Output Function 4
Output Function Master
Wire used for
Wire Colour
Not Present
Not Present
Not Present
Not Used
Not Used
9200RX
and 9300RX
9202RX
and 9302RX
9204RX
and 9304RX
Make notes about the
connections made
in the boxes below
What is the MASTER Output for ?
It is used to operate the pump of an electro-hydraulic
power pack or maybe a clutch pump. It can also be
used for powering a dump valve, master valve etc.
It can be configured to work continuously, that is ON
when SET is pressed and OFF when STOP is
pressed; or in parallel with any output, that is, it is
active only a function is operated. If it is needed with
certain functions only, this can easily be configured.
3
Secure using 5mm (3/16") bolts (not supplied)
through the 4 mounting feet
TAKE TIME TO LOCATE THE BEST POSITION
If necessary, power the Receiver and move it around
the vehicle until the required performance is achieved.
Operate the Transmitter and observe the Receiver
internal LED’s.
Mount as HIGH as possible
AVOID surfaces with HEAVY VIBRATION
AVOID DIRECT SPRAY from wheels
In a HOT CLIMATE fit in a SHADED position
Cable gland should face DOWN or BACK
Receiver 9204RX and 9304RX shown,
Waterproof to IP67, complete with 3 metres (10 ft) cables
CAUTION
MOUNT RECEIVER
!
Shown with optional Keypad
92 02/4 RX
& 93 02/4 RX
have
7 core cable
92 00 RX
& 93 00 RX
have
4 core cable
STOP POSITIVE
NEGATIVE
www.lodar.com
9000
F1 F2
F3 F4

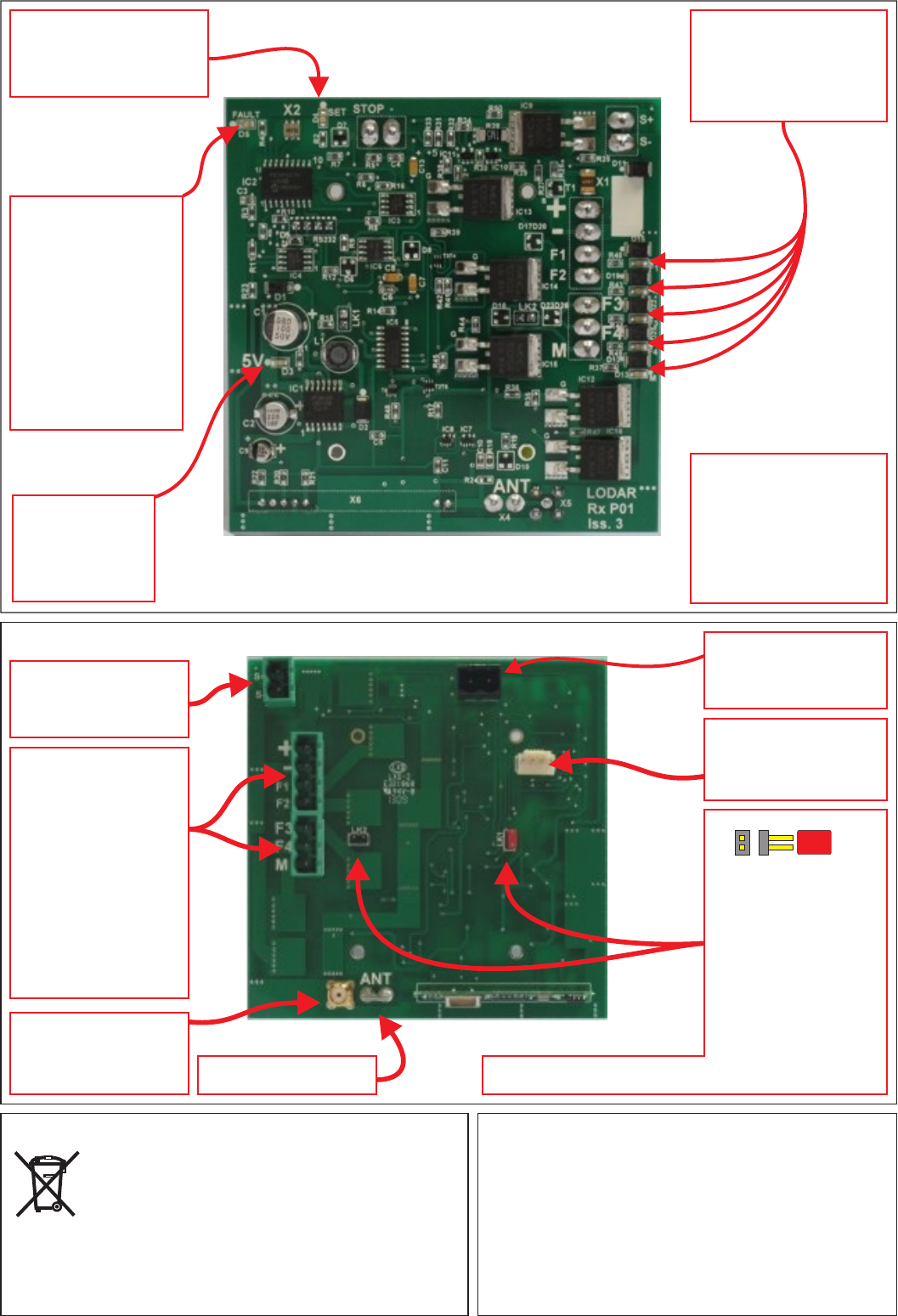

S-, S+ Connections
For Safety Solenoid etc.
Part No. 9820 or 9821
STOP and -, when
connected together
will cause the Receiver
to power down
RS232 connection
for programming and
special features
SMA connector for
External Aerial Antenna
Part No. 9861, 9862,
9863 or 9869
Supply 12/24 V DC
40 Volts ABSOLUTE MAX
Outputs sockets
+, -, F1& F2
F3, F4, and Master.
The Receiver is designed
to handle 15 Amps, current
draw in excess of this will
trigger a system shut down.
Any output can handle
this maximum current.
Standard (Internal) Antenna
connection
Connection Detail
Lk1, when bridged
causes the Master
Output to be
Parallel
LK2, when bridged
causes the Master
Output to be
Continuous
Jumper MUST be
fitted to only ONE link
POWER DOWN RECEIVER BEFORE MAKING CHANGES
LED marked “5V”
Indicates power
supply for control
circuits is OK
LED’s marked
“F1 - F2 - F3 - F4 and M”
When ON indicate an
output to that function
LED marked “FAULT”
Indicates an overload is
present; the System
cannot be RESET until
overload is removed.
This LED blinks for 20
seconds when the
Receiver is initially
powered. A replacement
Transmitter has to be
registered during this 20
second period.
LED marked “SET”
Indicates system
is active
VOLTAGE
Working Range
12 Volts to 36 Volts DC
Limits
8 Volts minimum to
40 Volts absolute max.
Component Detail
Your product is marked with this symbol. It means that used
electrical and electronic products should not be mixed with
general household waste. There is a separate collection
system for these products.
In the EEC - Please contact your National Distributor (see
www.lodar.com for this information) who will inform you about
the take-back of the product. You might be charged for the
costs arising from the take-back and recycling. Small products
might be taken back by your local collection facilities.
Outside the EEC - If you wish to discard this product
please contact your local authorities and ask for the correct
method of disposal
Lodar
60 Sandwell Street,
Walsall, WS1 3EB.
England www.lodar.com
email: sales@lodar.com
Tel: +44 (0)1922 613633
Fax: +44 (0)1922 626991
CONTACT INFORMATION
92004RX.01E
