User Manual Part 2
18 English
Getting started with
Press the power button on the headset to turn it on •
The headset will wirelessly connect with the wireless base station •
You will see the three LEDs on the wireless base station turn on, blink briey, • and then one of the LEDs will turn solid
If you have multiple audio devices connected to the wireless base station, • you can press the INPUT button on the headset to toggle through them
Press the button to change the audio source On the front of the wireless base station, • the next LED will illuminate, representing the active audio source (If there is only
one audio device connected to the back of the wireless base station, that input will
remain active)
Power button
Input selector
Wireless base station LEDs
English 19
Logitech® Wireless Headset F540

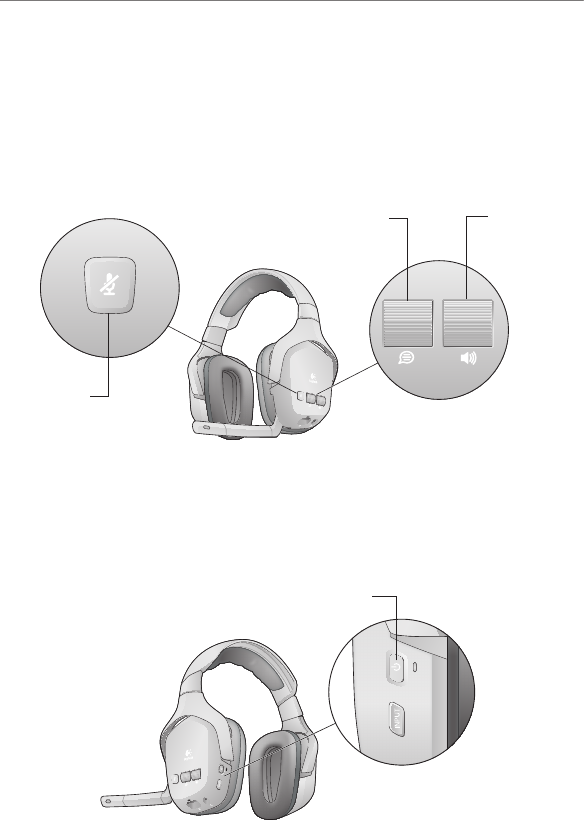

Use the two rollers on the left ear cup to independently control the volume of • the game and voice chat audio
You can mute your microphone by pressing the microphone mute button, • or by rotating the microphone boom all the way closed (up)
When your microphone is muted, an LED located at the tip of the microphone will • illuminate red
Press and hold the power button for approximately one second •
When powering off the headset, the LEDs on the wireless base station will blink briey • and then turn off
Chat volume roller Sound volume
roller
Microphone
mute button
Power button
20 English
Getting started with
Check the LEDs on the front of the wireless base station
Check to make sure the wireless base station is plugged into a power outlet If it is,
then do the following:
Make sure the headset is powered on by pressing the power button for approximately • one second If the headset doesn’t turn on, then the battery may be dead and you
should recharge it
If this doesn’t help, then conrm that your audio cables are correctly plugged into • the back of the wireless base station
If you have multiple devices connected to your wireless base station, check to make sure
you have the correct audio system selected To change the audio system, push the INPUT
button on the headset
If you are using a PS3, refer to Connecting PS3 voice chat to make sure your game system
audio output is set up correctly
Check to make sure your game system is on and a game is active

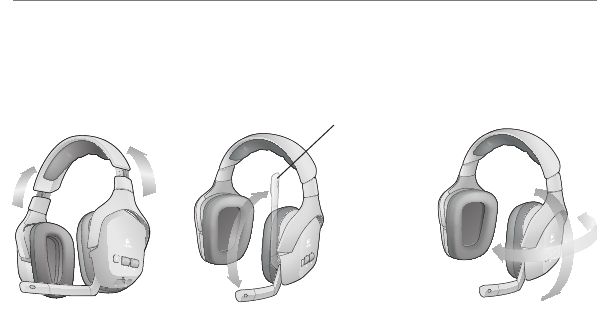

The Headset F540 offers exible adjustment of its ear cups, headband, and microphone
boom so you can experience a comfortable t
Voice chat is
muted when
microphone
boom is in the
up position
English 21
Logitech® Wireless Headset F540
The headset has not made a wireless connection
to the base station Try re-pairing the headset and
the wireless base station by doing the following:
Press and hold the power button on the 1.
headset for 15 seconds to put it into search
mode
Press the connect button on the bottom of 2.
the wireless base station
The microphone will work with any game that 1.
supports voice chat on the PS3 and Xbox 360
Please check your game manuals to make sure
the game supports voice chat
If you’re using a PS32.
Please check the cable connection between
the wireless base station and the PS3 Use the Mini-USB PS3 voice cable to make
this connection Please refer to Connecting PS3 voice chat for more information
If you’re using an Xbox 3603.
Please check the cable connection between the Headset F540 and the Xbox 360
game controller Use the 2 5 mm Xbox 360 voice cable to make this connection
Please refer to Connecting Xbox 360 voice chat for more information
If you have multiple devices connected to the wireless base station, you can change the
active audio system you are hearing To change the active audio system, push the INPUT
button on the headset
You may need to change the voice chat settings in your PS3 or Xbox 360 system settings
For PS3, refer to Connecting PS3 voice chat •
For Xbox 360, refer to Connecting Xbox 360 voice chat •
22 English
Getting started with

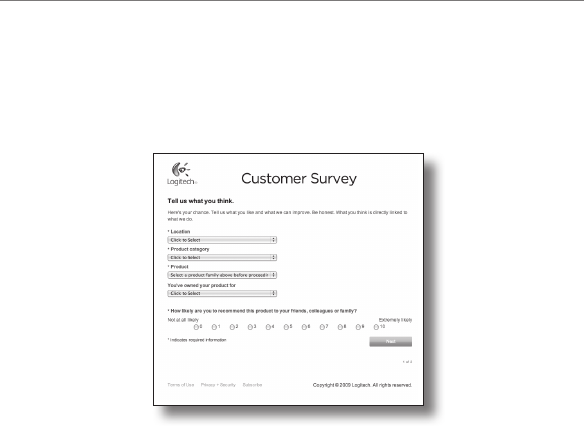

* The sample Customer Survey shown here is in English Logitech supports many languages on its website
English 23
Logitech® Wireless Headset F540
Listening via headphones, earbuds or headsets at a high volume may cause permanent hearing loss to occur The louder
the volume, the less time is required before your hearing could be affected
To establish a safe volume level:
Start your equipment with the volume control at its lowest setting •
Slowly increase the sound until you can hear it comfortably and clearly, and without distortion •
Avoid setting the volume at a level that prevents you from hearing conversations and other similar noises around you •
Once you have established a comfortable sound level, leave it there If you experience a ringing in your ears, discomfort
or mufed speech, reduce the volume or stop listening and have your hearing checked See the product support page
on the Logitech website www logitech com for additional information
Caution: risk of explosion and personal injury if batteries are replaced by incorrect type Do not open, mutilate, or expose
to conducting materials (metal), moisture, liquid, re, or heat (above 54° C or 130° F) Doing so may cause batteries to
leak or explode, resulting in personal injury Dispose of spent, leaking, or damaged batteries according to manufacturer
instructions and local laws Do not use or charge batteries (lithium-ion rechargeables) if leaking, discolored, or deformed
Do not mix battery types Do not charge alkaline batteries Do not leave rechargeable batteries discharged or unused for
extended periods Battery life varies with usage When replacing, remove all spent batteries, and do not mix old batteries
with new When device is not in use for extended periods, remove batteries to avoid leakage and store away from
children in a cool, dry place at room temperature
Caution electric shock hazard! Warning: to reduce risk of electric shock, do not expose AC adapter to rain, moisture,
liquid, or heat sources (e g , radiators, heat registers, stoves, ampliers, etc ) For indoor use only Do not use any other
AC adapter with product Do not use a damaged AC adapter or attempt to repair one Inspect AC adapter regularly for
cable, plug, or casing damage
This hardware device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation Compliance Information Statements: This equipment has been
tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules These
limits are designed to provide reasonable protection against harmful interference in a residential installation This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna 2) Increase the
separation between the equipment and receiver 3) Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected 4) Consult the dealer or an experienced radio/TV technician for help
Industries Canada Statement: This device complies with RSS 210 of Industry Canada (Cet appareil est conforme à la RSS
210 d’Industrie Canada )
24 English
Getting started with
Logitech warrants that your Logitech hardware product shall be free from defects in material and workmanship
for one year, beginning from the date of purchase Except where prohibited by applicable law, this warranty
is nontransferable and is limited to the original purchaser This warranty gives you specic legal rights, and you may
also have other rights that vary under local laws
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option,
(1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to
the point of purchase or such other place as Logitech may direct with a copy of the sales receipt or dated itemized
receipt Shipping and handling charges may apply except where prohibited by applicable law Logitech may, at its
option, use new or refurbished or used parts in good working condition to repair or replace any hardware product
Any replacement hardware product will be warranted for the remainder of the original warranty period or thirty
(30) days, whichever is longer or for any additional period of time that may be applicable in your jurisdiction
This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplication, or any
unauthorized repair, modication or disassembly; (2) improper operation or maintenance, usage not in accordance
with product instructions or connection to improper voltage supply; or (3) use of consumables, such as replacement
batteries, not supplied by Logitech except where such restriction is prohibited by applicable law
Before submitting a warranty claim, we recommend you visit the support section at www logitech com for technical
assistance Valid warranty claims are generally processed through the point of purchase during the rst thirty (30) days
after purchase; however, this period of time may vary depending on where you purchased your product – please check
with Logitech or the retailer where you purchased your product for details Warranty claims that cannot be processed
through the point of purchase and any other product related questions should be addressed directly to Logitech
The addresses and customer service contact information for Logitech can be found in the documentation accompanying
your product and on the web at www logitech com/support
LOGITECH SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL
LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF LOGITECH HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES Some jurisdictions do not allow the exclusion or limitation of special, indirect,
incidental or consequential damages, so the above limitation or exclusion may not apply to you
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF
THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT Some jurisdictions do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you
Consumers have legal rights under applicable national legislation governing the sale of consumer goods Such rights are
not affected by the warranties in this Limited Warranty
No Logitech dealer, agent, or employee is authorized to make any modication, extension, or addition to this warranty
Logitech, Inc , 6505 Kaiser Drive, Fremont, California 94555, U S A
Español 25
Logitech® Wireless Headset F540
26
27
Carga del audífono 27
28
Conexión del audio de los juegos en la consola PS3 28
Si usas un cable óptico digital o HDMI para el audio de PS3 29
Si usas el cable AV analógico de la consola PS3 para el audio 30
Alternativa: si deseas usar la salida de audio del televisor o el receptor AV 31
Conexión de charlas para PS3 32
33
Conexión del audio de los juegos en la consola Xbox 360 33
Si usas un cable óptico digital o HDMI para el audio de la consola Xbox 360 34
Si usas los conectores RCA rojo y blanco del cable AV de Xbox 360 para el audio 35
Configuración alternativa de la estación base inalámbrica para Xbox 360 36
Conexión de charlas para Xbox 360 37
38
39
Funciones 39
Encendido del audífono 40
Uso del botón de selección de entrada 40
Uso de los controles giratorios de volumen y el botón de silencio
del micrófono 41
Apagado del audífono 41
42
Ajuste del audífono 42
44
46
91
Utilización
26 Español
Audífono F5401.
Estación base inalámbrica2.
Cable de paso de RCA a RCA3.
Cable de voz para Xbox 360 4.
de 2,5 mm
Cable de voz para PS3 mini USB5.
Cable de carga del audífono micro USB6.
Cable de alimentación7.
Guía de inicio rápido8.
Getting started with
Première utilisation
Logitech® Wireless Headset F540
Español 27
Logitech® Wireless Headset F540

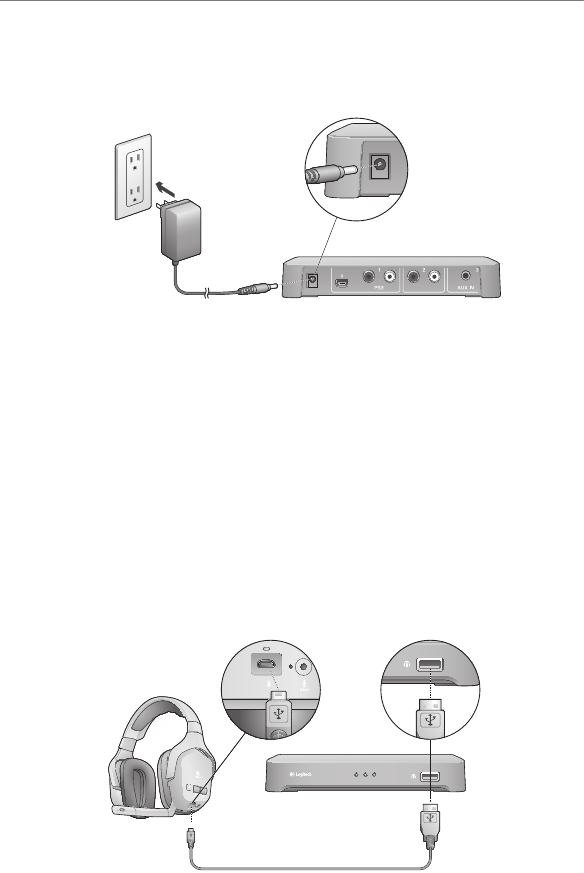

Usa el cable de alimentación incluido para conectar la estación base inalámbrica
a una toma de corriente alterna y encender la unidad
El audífono Logitech Wireless Headset F540 es recargable y está parcialmente cargado
Se recomienda cargar el audífono por completo antes de usarlo
Para cargar el audífono, usa el • cable de carga incluido Conecta el conector de menor
tamaño al audífono y enchufa el otro conector al puerto situado en la parte frontal de
la estación base inalámbrica El diodo situado sobre el puerto de carga del audífono
se muestra de color naranja mientras se carga y de color verde cuando la batería está
completamente cargada
El audífono tarda unas 3 o 4 horas en cargarse por completo si la batería se ha agotado • totalmente Si utilizas el audífono mientras se carga, el proceso de carga durará más
Cuando la batería recargable del audífono sólo tiene 30 minutos de carga, los altavoces • del audífono emiten un sonido de aviso Este aviso se repite intermitentemente
hasta que se conecta el audífono a la estación base o hasta que la batería se agota
Además, cuando el nivel de carga es bajo, el diodo situado sobre el puerto de carga
del audífono se muestra de color rojo
Estación base inalámbrica
Cable de carga del audífono
Xbox 360
Cable de alimentación
Estación base inalámbrica
de Logitech
Utilización
28 Español
Para usar todas las funciones del audífono F540, es necesario establecer dos conexiones:
una para el audio de los juegos y otra para las charlas

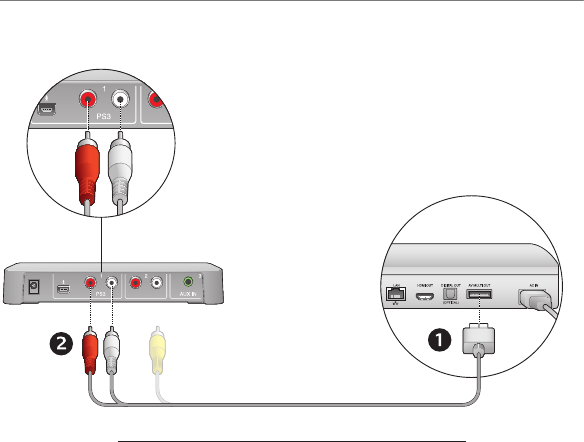

La conexión del audio de los juegos se realiza entre la estación base inalámbrica de
Logitech y la consola PS3 También es posible conectar la estación base inalámbrica
al sistema de audio principal (televisión, sistema multimedia, receptor AV o conmutador
de audio)
La conexión de voz se realiza entre la estación base inalámbrica y la consola PS3 a través
del cable de voz mini USB para PS3 de Logitech
Para establecer las conexiones descritas en esta sección, puede que necesites los elementos
que se muestran a continuación, los cuales vienen incluidos con el audífono F540:
La manera de establecer esta conexión depende de cómo esté conectada la consola
PS3 al sistema de audio principal Aunque cada entorno de juegos doméstico es distinto,
hay dos maneras básicas de conectar la consola PS3:
Una conexión digital a través de un cable óptico digital o HDMI•
Una conexión analógica a través del cable AV de la consola PS3•
Cable de paso de RCA
a RCA
Cable de voz para PS3
mini USB
Estación base inalámbrica
Español 29
Logitech® Wireless Headset F540
Si usas un cable óptico digital o HDMI para conectar la consola PS3 al sistema de audio
principal, usa la conguración con el cable AV de la PS3 (recomendado) que se muestra
a continuación o la alternativa que se muestra en la gura 3
Configuración recomendada para la estación base inalámbrica (figura 1)
Conecta el cable AV de la consola PS3 (normalmente incluido con la PS3) a la parte 1.
posterior de la PS3
Conecta las clavijas RCA roja y blanca del cable AV a los puertos para PS3 situados 2.
en la parte posterior de la estación base inalámbrica
Ajusta la conguración de audio con el menú XMediaBar™ de la consola PS3™ 3.
Deberás activar la multisalida de audio en la conguración del sistema PS3
(rmware 3 00 o posterior) para que la consola PS3 transmita audio estéreo
al audífono F540
En el menú XMediaBar, accede a
Ajustes•
Ajustes de sonido•
Multisalida de audio•
En Multisalida de audio, selecciona “ para activar la función Multisalida de audio
Xbox 360
Xbox 360
PS3
Cable AV de PS3
Estación base inalámbrica de Logitech
Figura 1
Utilización
30 Español
Si usas los conectores estéreo rojo y blanco del cable AV de la consola PS3 para conectar
la PS3 al sistema de audio principal, utiliza la siguiente conguración de la estación base
inalámbrica o la alternativa que encontrarás en la página 31
Configuración recomendada para la estación base inalámbrica (figura 2)
Desconecta los conectores rojo y blanco del cable AV del sistema de audio principal 1.
Conecta estos conectores directamente a los conectores del cable de paso RCA a RCA 2.
de Logitech
Conecta los conectores macho del cable de paso RCA a RCA de Logitech al sistema 3.
de audio principal (donde el cable AV de la consola PS3 estaba conectado)
Conecta los conectores rojo y blanco del otro extremo del cable de paso RCA a RCA 4.
de Logitech a los puertos para PS3 situados en la parte posterior de la estación base
inalámbrica.
Figura 2
Xbox 360
Xbox 360
Estación base inalámbrica de Logitech
Sistema de audio principal
Cable de paso de RCA a RCA
de Logitech
PS3 Cable AV de PS3
