DESCRIPTION
HomeWorks RF Processors comprise the major communication hub
of a HomeWorks RF system. Each RF Processor will support up to 32
RF Keypads and up to 64 RF Dimmers. RF system devices communi-
cate with the RF Processor via Radio Frequency.
Up to 4 RF Signal Repeaters may be used with each processor to
extend the range of the RF Processor.
A maximum of 16 RF processors may be connected together in a
system to support a total of 1024 RF dimmers/switches and 512
RF keypads.
MODEL NUMBERS
RF Processors
H-RFP-1P RF Processor with 1 RS232 Port
H-RFP-2P RF Processor with 2 RS232 Ports
#
OK
*
®
SPECIFICATION SUBMITTAL
MODEL NUMBERS:JOB NAME:
JOB NUMBER:
Page
PROCESSORSHomeWorks InteractiveTM RF Processor
048-020 2a 11.05.02
PRELIMINARY
• Battery backup will maintain program-
ming for up to 10 years under normal
use.
• Built in astronomical time clock.
• Programming is done via RS-232 connec-
tion using existing HomeWorks
Interactive software.
• Built in vacation and security modes.
• Advanced keypad button programming
allowing sequences and use of condition-
al logic for keypad button press events.
• RS-232 port for integrating other equip-
ment such as AV or HVAC.
• Field upgradeable software for the RF
processor allows additional features to
be used in the future.
• Plugs into a standard electrical outlet
using the supplied DC Adapter; no high
voltage wiring necessary.
• Fully compatible with all existing fea-
tures and operation style of HomeWorks
Interactive.
• Tested to withstand electrostatic dis-
charge without damage or memory loss,
SPECIFICATIONS
Regulatory Approvals
• UL Listed (DC Adapter).
• Complies with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.
Power
• DC Adapter:
Input power: 120/127VAC,
50/60Hz
Output power: 24VDC, 500mA
• Use only the DC Adapter provided by
Lutron with the RF Processor.
Key Design Features
• Allows installation of HomeWorks
Interactive systems in any home - new or
existing.
• Can be connected to an existing HWI
system or exist as a stand alone radio-
frequency (RF) system.
• Graphical LCD with user-friendly menus
for setup and diagnostics.
• Durable membrane keypad for user inter-
face.
in accordance with IEC 6100-4-2.
• Tested to withstand surge voltages with-
out damage or loss of operation,in accor-
dance with IEEE C62.41-1991
Recommended Practice on Surge Voltages
in Low-Voltage AC Power Circuits.
System Communications and Capacity
• Each RF Processor supports up to 64
HomeWorks Maestro RF dimmers/switches
or Tabletop RF Lamp dimmers.
• Each RF Processor supports up to 32
HomeWorks RF Keypads or Tabletop RF
Keypads.
• A maximum of 16 RF processors may be
connected together in a system to sup-
port a total of 1024 RF dimmers/switch-
es and 512 RF keypads.
Environment
Ambient operating temperature: 0-40°C,
32-104°F, 0-90% humidity, non-condens-
ing. Indoor use only.
Warranty
• 8 Year Limited Warranty.

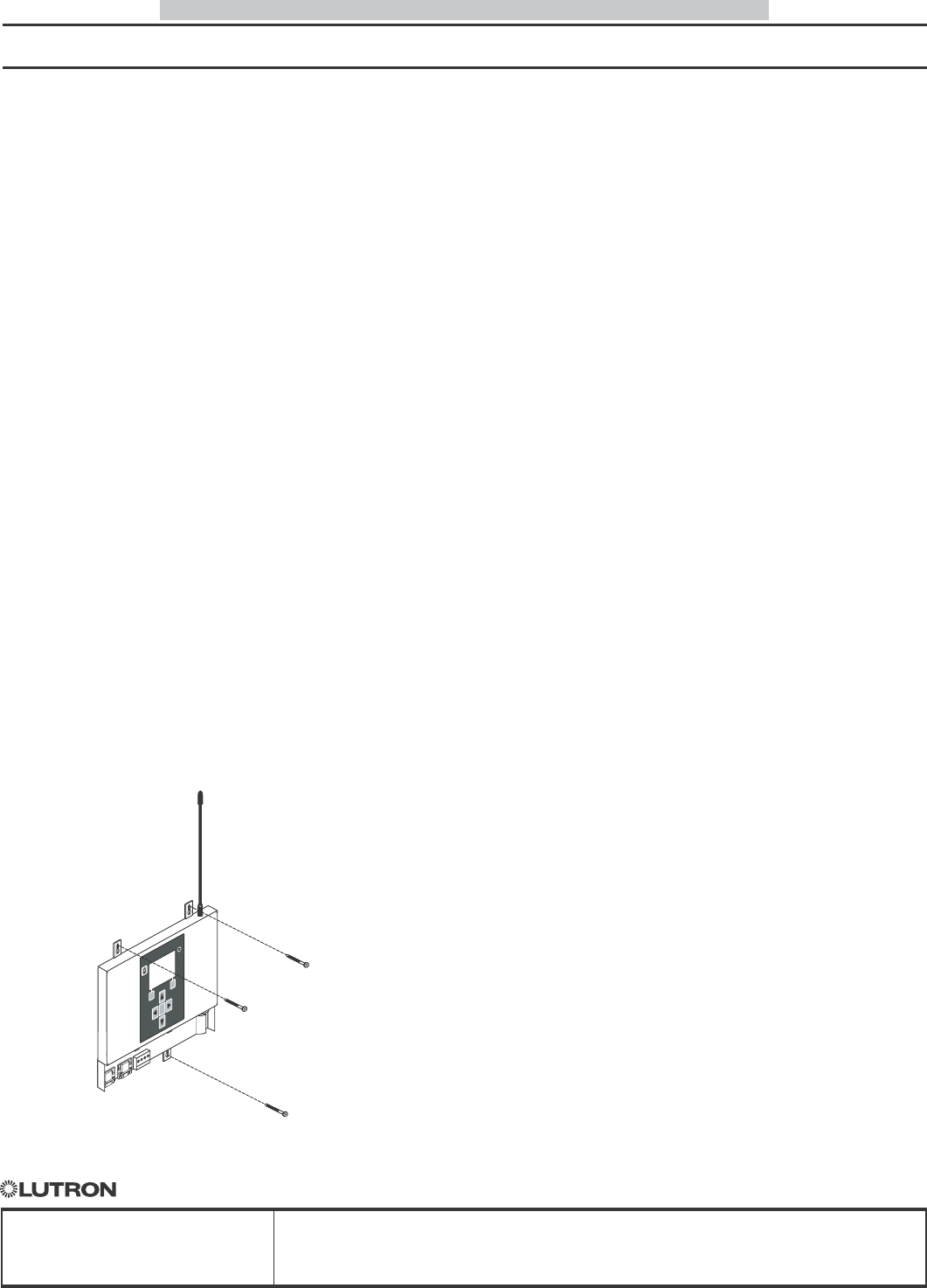

MOUNTING
Mounting Screw
Mounting Screw
Optional Mounting Screw
FCC Information
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
Caution: Changes or modifications not expressly approved by
Lutron Electronics Co. could void the user’s authority to operate
this equipment.
Industry Canada Information
The term “IC:” before the radio certification number only signi-
fies that Industry Canada technical specifications were met.
®
SPECIFICATION SUBMITTAL
MODEL NUMBERS:JOB NAME:
JOB NUMBER:
Page
PROCESSORSHomeWorks InteractiveTM RF Processor
048-020 3a 11.05.02
PRELIMINARY
DIMENSIONS
11.54"
(293mm)
8"
(203mm)
1.25"
(32mm)
6.16"
(157mm)
6.7"
(170mm)
0.70"
(18mm)

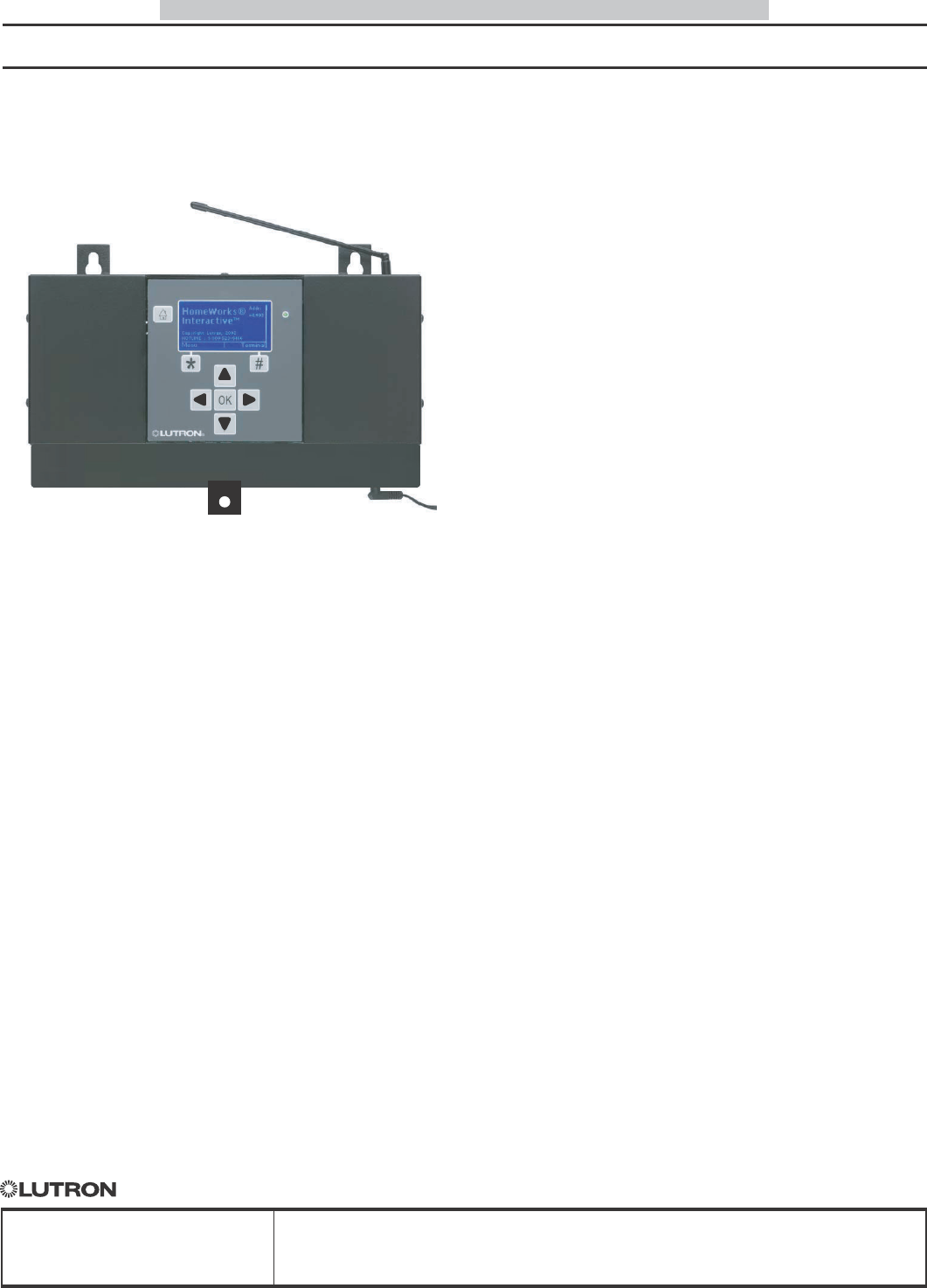

Front View
(port cover removed)
Side View
TOUCHPAD
#
OK
*
Home Key
Returns user to the
Home Screen
Power LED
Menu Navigation Keys
Allows user to navigate
through the various
screens and menus on
the LCD Screen
LCD Screen
5.77"
(147mm)
1.77"
(45mm)
®
SPECIFICATION SUBMITTAL
MODEL NUMBERS:JOB NAME:
JOB NUMBER:
Page
PROCESSORSHomeWorks InteractiveTM RF Processor
048-020 4a 11.05.02
PRELIMINARY
12 34
1234
88
123412341234
1234
Link 7
RS-232 Link
G1 V1 G2 V2 G3 V3 G4 V4 G5 V5 G6 V6
1234 1234 1234
BUS
6
RXTX
BUS
5
RXTX
BUS
4
RXTX
BUS
3
RXTX
BUS
2
RXTX
BUS
1
RXTX
PROCESSOR
LINK
RXTX
PROCESSOR
LINK
#
OK
*#
OK
*
34
12341234
34
34
1234
34
#
OK
*

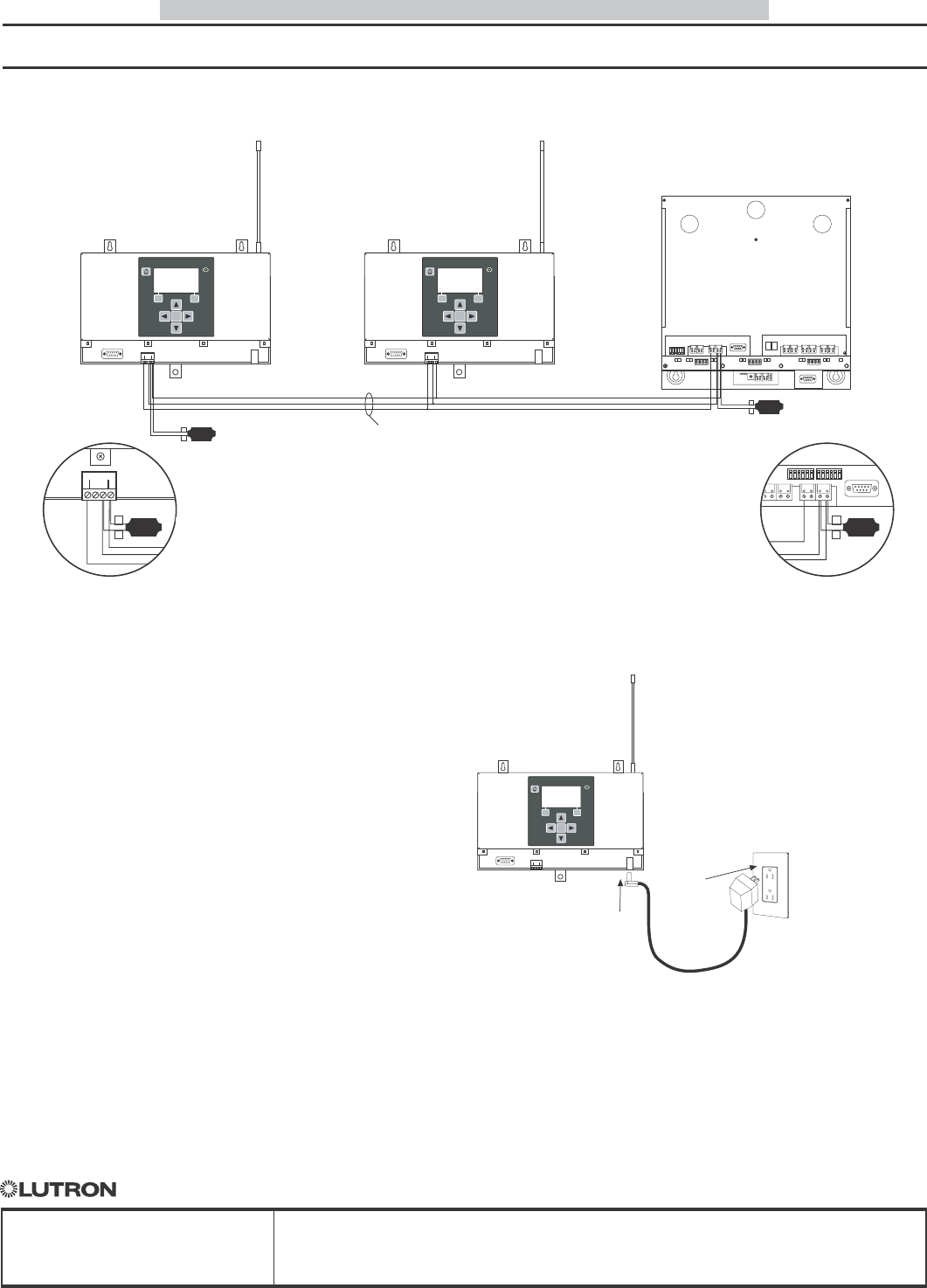

POWER SUPPLY CONNECTION
INTER-PROCESSOR WIRING
WIRING
Processor wiring must be in a daisy-chain
configuration. The total length of wire on
the Inter-Processor Link may be up to
1,000 ft. (305m). For wire runs exceeding
50 ft. (15m) in length, LT-1 Link
Terminators must be used on the proces-
sors at both ends of the wire run. Up to 16
Processors (RF or Wired) may be connected
together.
WIRE TYPE
Two pair [one pair #18 AWG (1.0mm2),
one pair #22-18 AWG (0.5-1.0mm
2
) twisted
shielded] Class 2/PELV. Lutron wire, model
# GRX-CBL-346S-500, may be used.
LT-1 Link
Terminator
LT-1 Link
Terminator
Wiring Detail
LT-1 Link
Terminator
LT-1 Link
Terminator
Wiring Detail
RF Processor RF Processor
Wired
Processor
Pin 1 - 1 No. 18 AWG (1.0mm2)
Pins 3 & 4 - 1 pair No. 22-18 AWG (0.5 - 1.0mm2)
twisted/shielded for data
Pin 2 is not connected
®
SPECIFICATION SUBMITTAL
MODEL NUMBERS:JOB NAME:
JOB NUMBER:
Page
PROCESSORSHomeWorks InteractiveTM RF Processor
048-020 5a 11.05.02
PRELIMINARY
SYSTEM COMMUNICATION NOTES
• RF Dimmers and Keypads must be located
within 30 feet (9.14m) of an RF Signal
Repeater or an RF Processor. Multiple
repeaters may be necessary to provide
adequate coverage.
• RF Dimmers cannot be controlled and RF
Keypads will not function until they are
addressed and programmed. See the
HomeWorks Interactive Programming
Utility online help.
• RF Processors and RF Signal Repeaters
provide RF coverage for an area of
approximately 2500 sq. ft. (m2). One (1)
RF Processor with four (4) RF Signal
Repeaters will cover an area of approxi-
mately 12,500 sq. ft. (m2). Additional RF
Processors with associated RF Signal
Repeaters may be added to provide larger
coverage areas.
#
#
*
Start
Start
P/N 292
-
153
P/N 292153

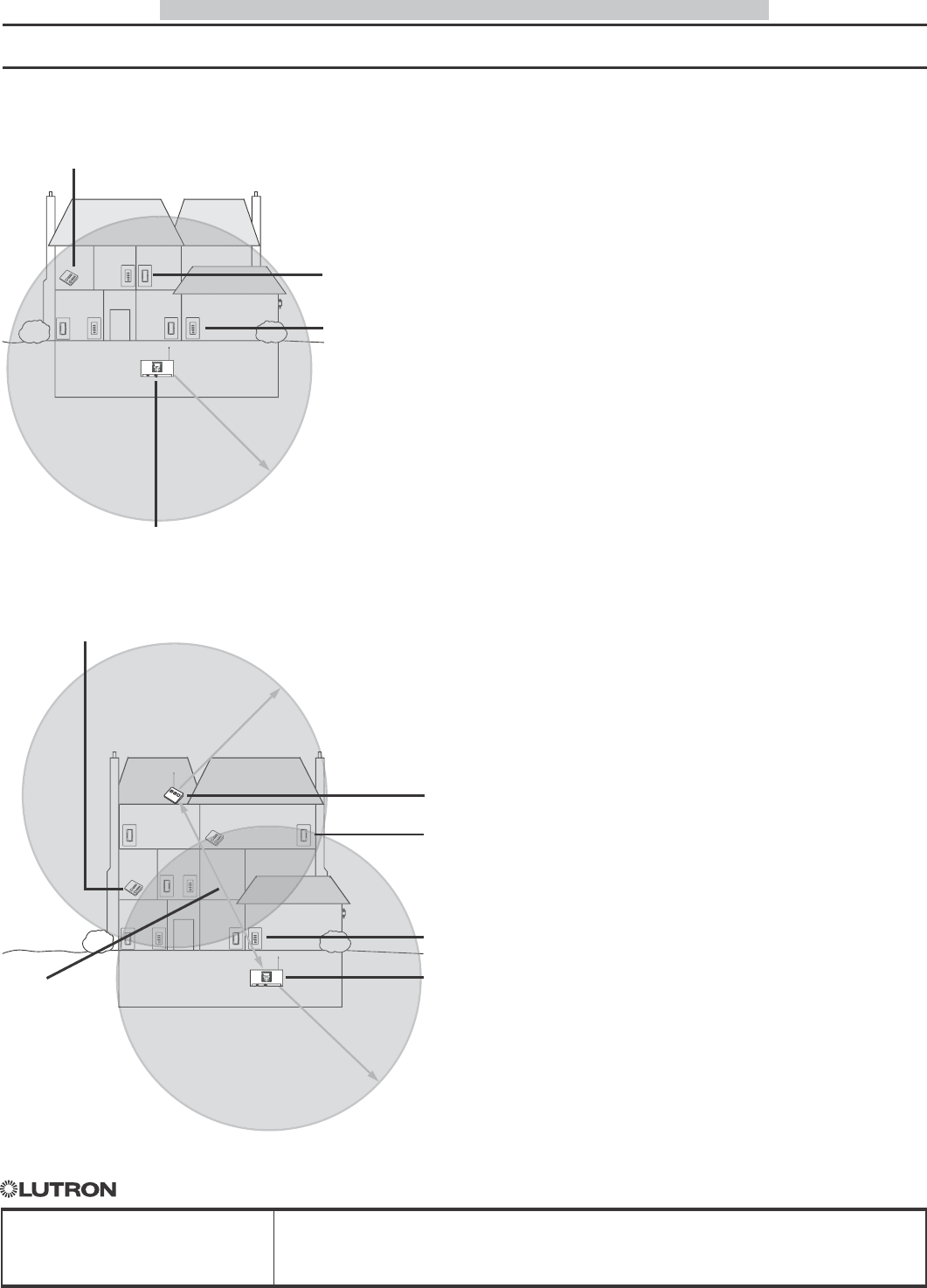

RF Tabletop
Keypad
RF Dimmer
30 Feet (9m) maximum
RF Processor
RF Keypad
Home A: 2500 sq. ft. (232m2) or less - all RF devices within 30' (9m) of RF Processor
#
#
P/N 292
-
153
P/N 292153
RF Tabletop
Keypad
RF Dimmer
30 Feet (9m) maximum
RF Processor
RF Keypad
Home B: 2500 sq. ft. (232m2) or greater - some RF devices more than 30' (9m) from RF Processor
RF Signal Repeater
30 Feet (9m) maximum
60 Feet (18m)
maximum
between RF
Processors and
Repeaters, or
between
Repeaters
