Lutron Electronics 0025 STRD-7B Transceiver (Keypad) User Manual 043 146a
Lutron Electronics Company Inc STRD-7B Transceiver (Keypad) 043 146a
User Manual
LEDs don't light up when buttons are
pressed.
Button presses on keypad cause the key-
pad to quickly flash all its LEDs simultane-
ously.
Button presses on keypad cause the key-
pad to slowly flash all its LEDs simultane-
ously.
Keypad cannot be addressed.
LEDs light when button is pressed, but the
system response is not correct.
Designer-style RF seeTouchTM
Keypads
STRD-1B, -2B, -3B, -3BRL, -4B, -4FS, -4S,
-4SIR, -5B, -5FS, -5BRL, -6B, -6BRL, -7B
120 V ~, 50/60 Hz, 0.2 A
Installation Instructions
Please Read Before Installing
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Made and printed in the U.S.A. 02/03 P/N 043-146 Rev. A
LIMITED WARRANTY
Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within two years after purchase. For warranty serv-
ice, return unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid. Telephone the Lutron
Technical Support Center toll free at 800-523-9466. After the two year period, a pro-rated warranty applies to this product until eight years after
the purchase. For more information regarding this warranty contact your Lutron representative.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIM-
ITED TO TWO YEARS FROM PURCHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION, REMOVAL OR REIN-
STALLATION, OR DAMAGE RESULTING FROM MISUSE, ABUSE, OR IMPROPER OR INCORRECT REPAIR, OR DAMAGE FROM IMPROP-
ER WIRING OR INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR CONSEQUENTIAL DAMAGES. LUTRON’S LIA-
BILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION,
DELIVERY, OR USE OF THE UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limita-
tions on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
These products may be covered under one or more of the following U.S. patents: 4,835,343; 4,889,999; 5,170,068; 5,237,207; 5,736,965;
5,838,226; 5,848,054; 5,905,442; 5,982,103; D436,930; D453,742; D456,783; D461,782; D465,460; D465,770; D466,090; D466,091; D466,484
and corresponding foreign patents. U.S. and foreign patents pending. Lutron, Claro and HomeWorks are registered trademarks and Satin
Colors, seeTouch and the HomeWorks Logo are trademarks of Lutron Electronics Co., Inc.
© 2003 Lutron Electronics Co., Inc.
Technical and Sales Assistance
If you need assistance, call the toll-free Lutron
Technical Support Center. Please provide exact
model number when calling.
(800) 523-9466 (U.S.A., Canada and the Caribbean)
Other countries call:
Tel: (610) 282-3800
Fax: (610) 282-3090
Visit our Web site at www.lutron.com
FCC Information
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could void the user’s authority to
operate this equipment.

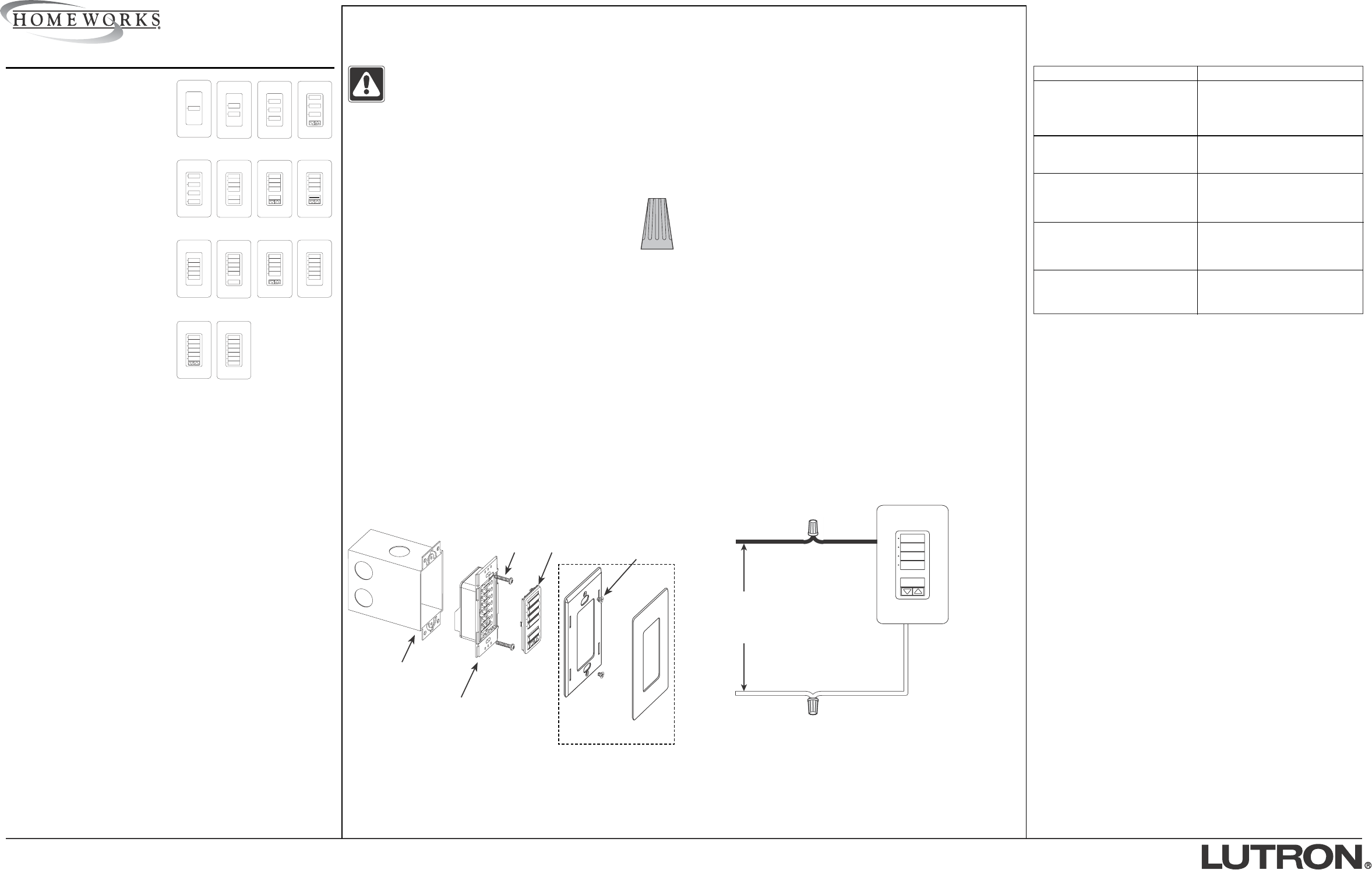

Overview
The STRD-1B, -2B, -3B,
-3BRL, -4B, -4FS, -4S, -4SIR,
-5B, -5FS, -5BRL, -6B, -6BRL,
and -7B keypads are for use
with HomeWorks systems.
The keypad buttons are pro-
grammed with a personal
computer using the
HomeWorksUtility.
Up to 32 keypads, each with a
unique address, can be
assigned to each HomeWorks
RF Processor.
Important Notes
Codes: Install in accordance with all local and national electri-
cal codes.
Environment: Ambient operating temperature:
0-40°C, 32-104°F, 0-90% humidity, non-condensing. Indoor use
only.
Wallplates: Lutron Claro®and Satin ColorsTM wallplates are rec-
ommended for best color match and clean aesthetic appear-
ance. Do not paint controls or wallplates.
Cleaning: To clean, wipe with a clean damp cloth. DO NOT
use any chemical cleaning solutions.
Wallboxes: Lutron recommends using 3-1/2 in. (89 mm) deep
wallboxes for easier installation.
RF Device Placement:RF Keypads must be located within 30
ft. (9 m) of an RF Signal Repeater or an RF Processor.
RF Keypads will not function until they are addressed and pro-
grammed using the HomeWorks Utility.
STRD-4SIR*
STRD-6BRL* STRD-7B*
STRD-1B* STRD-2B* STRD-3B* STRD-3BRL*
STRD-4B* STRD-4FS*
STRD-5B* STRD-5FS* STRD-6B*
STRD-4S*
STRD-5BRL*
*Wallplate/Adapter
purchased separately.
1. Turn power OFF at fusebox or circuit breaker.
Danger - Locate and remove fuse or lock circuit breaker
in the OFF position before proceeding. Wiring with
power ON may result in personal injury.
2. Prepare wires. When making wire connections, follow the
recommended strip lengths and combinations for the sup-
plied wire connectors. Note: Wire connectors provided are
suitable for copper wire only.
Small:
Strip insulation 3/8 in. (10 mm) for
14 AWG (2.5 mm2).
Strip insulation 1/2 in. (13 mm) for
16 AWG (1.5 mm2).
Use to join one 14 AWG supply wire with one 16
or 18 AWG (1.0 mm2) control wire.
3. Wiring: See Wiring Diagram.
Installation
Small
Mounting Diagram
Button
Kit
Keypad
Wallbox
Keypad
Mounting
Screws
Adapter
Mounting
Screws
Wallplate/Adapter purchased
separately.
Wiring Diagram
120/127 VAC
50/60 Hz
Hot/Live Black
Neutral
White
Troubleshooting Guide
RF Keypads will not function until they are addressed and pro-
grammed using the HomeWorks Utility.
Symptom Cause and Action
Power not present at keypad
• Circuit breaker OFF. Turn ON breaker.
• Wiring error. Check wiring to be sure it
agrees with installation instructions.
Keypad has not been addressed.
• Address the keypads using the
HomeWorks Utility.
Keypad has an address, but has not had
programming uploaded.
• Upload to the system using the
HomeWorks Utility.
Keypad is out of RF communications range.
• Move RF Signal Repeater or RF
Processor to within 30 feet (9 m) of key-
pad.
Improper programming
• Check programming in HomeWorks
Utility.
4. Push all wires back into the wallbox and loosely fasten the
control to the wallbox using the keypad mounting screws pro-
vided. Do not pinch the wires.
5. Attach Lutron Claro or Satin Colors wallplate adapter and
wallplate.
a. Loosely install keypad mounting screws.
b. Tighten wallplate adapter mounting screws snug.
c. Tighten keypad mounting screws until wallplate
adapter is flush to wall (do not over-tighten).
d. Snap wallplate onto wallplate adapter, and verify that
buttons are not submerged.
e. If buttons are submerged, loosen keypad mounting
screws appropriately.
6. Restore power.
