User manual 1 of 2
OFF
ON

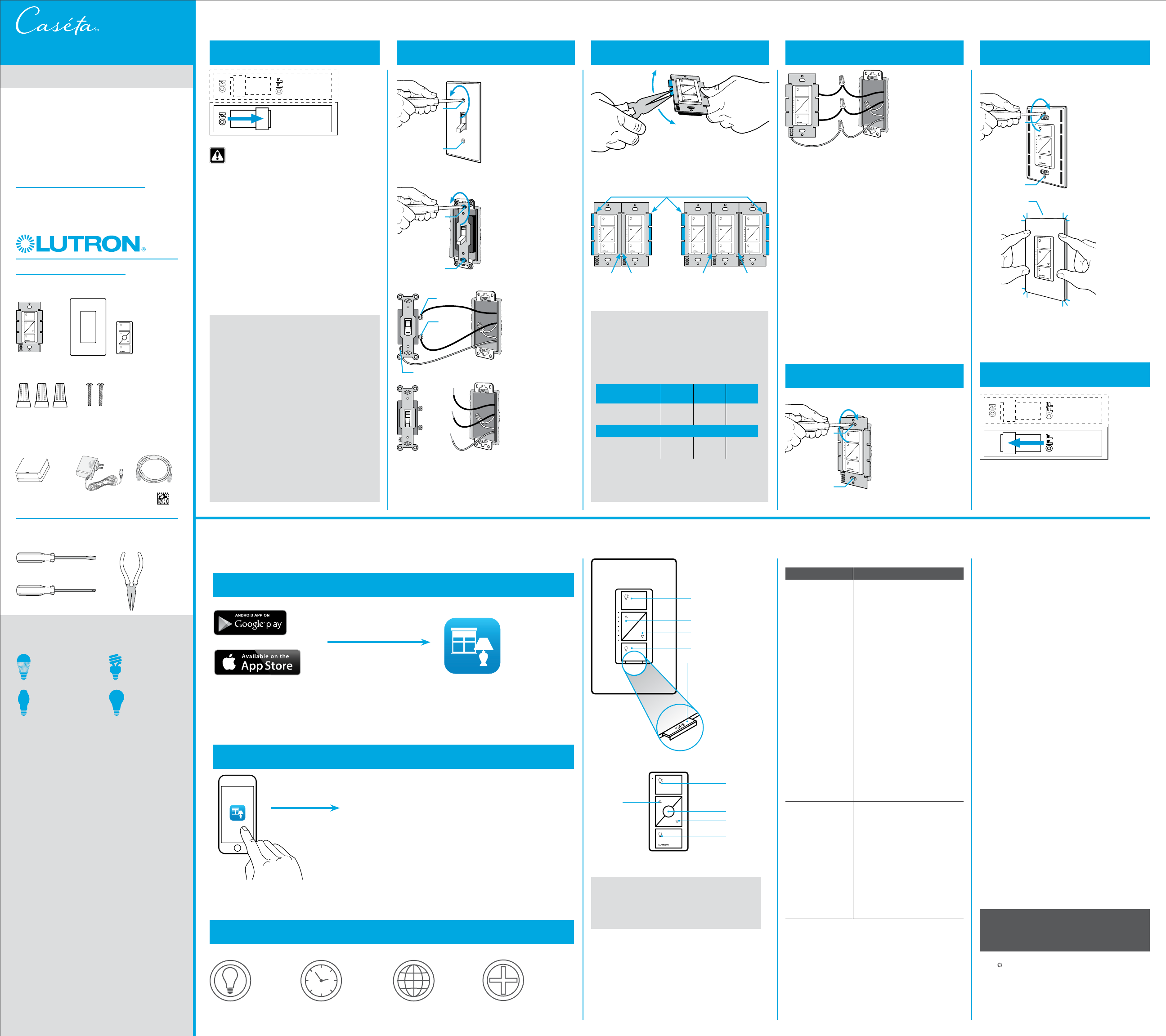

quick-start guide
Lutron® Smart Bridge,
Pico® remote control & In-wall dimmer
Welcome—and thank you for purchasing a CasétaT
Wireless kit. In order to control your lights from an app
or remote, you’ll need to replace an existing switch with
a CasétaT Wireless in-wall dimmer.
Before you install the dimmer, please watch the
installation video at www.casetawireless.com.
We hope you enjoy the convenience of CasétaT Wireless!
NOTE: You can mix and match dimmable LED and
CFLs, as well as halogen and incandescent light
bulbs, with CasétaT Wireless dimmers.
Dimmable LED and CFL light bulbs vary in their
dimming performance. If you’re using these
bulbs and they flicker or turn off, please visit
www.casetawireless.com/support/lowend for
information on adjusting the dimmer for best bulb
performance.
For a complete list of compatible dimmable LEDs
and CFLs, please visit
www.casetawireless.com/support/bulblist.
Compatible light bulbs include:
Cree
BA19-08027OMF-12DE26-1U100
CR6
Ecosmart
ECS 30 WW FL 75WE 120
ECS 38 WW FL 90WE 120
Feit
A19/DM/LED
PAR38/LEDG5
Philips
9290002295
Sylvania
LED12A19/DIM/O/827
LED21PAR38/DIM/P/930/FL30
LED
up to 150 W
CFL
up to 150 W
Halogen
up to 600 W
Incandescent
up to 600 W
Contents supplied
Double your warranty
In-wall dimmer
(PD-6WCL)
Claro® wallplate
(CW-1)
Tools you’ll need
Works with energy efficient
dimmable light bulbs:
Flat-head screwdriver
Pico® remote control
(PJ2-3BRL)
Wire connectors (3)
Phillips-head screwdriver
Pliers
Screws (2)
Installation for lights with one wall switch (single-pole)
Installing your dimmer
Using your CasétaT Wireless kit
Some lights have one wall switch, while others
have two or more wall switches (such as stair lights,
which have a switch at both the top and bottom of
the stairs). We’ve included instructions for lights with
one wall switch (called a single-pole). If your light
has more than one switch (called a 3-way), please
visit www.casetawireless.com/support/3way
for complete installation instructions and how-to
videos.
WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off
power at circuit breaker or fuse before installing.
1 Turn power off at circuit breaker! 4 Connect the dimmer
5 Mount the dimmer
6 Attach the wallplate
7 Turn power on at circuit breaker
2 Remove existing switch from wall
Remove the wallplate from switch.
3 Remove side sections (if necessary)
Remove the switch and pull it away from the wall.
* If your switch has more than 3 wires attached,
see “Installing CasétaT Wireless in a 3-way switch
application” video on
www.casetawireless.com/support/3-way.
Bend back
and forth.
3
5
1
4
6
Ground
Ground
1
2
3
Ground
7
2
Disconnect all three wires* from the switch.
1 Connect the bare copper (or green) “ground” wire
from the wallbox to the green wire on the dimmer
using a wire connector.
2 Connect either of the remaining wires from the
wallbox to either of the remaining wires on the
dimmer using a second wire connector.
3 Connect the remaining wire from the wall to
the remaining wire on the dimmer using a third
wire connector.
Do not remove outside side sections
on dimmers at the end of gang.
Each dimmer
has inside side
sections removed.
Dimmer at middle has all
side sections removed.
Attach the adapter to the dimmer using the
screws provided snap on the wallplate.
‘snap’
(If you installed the dimmer next to other dimmers
or switches, you’ll need to install a wallplate with the
correct size/number of openings to accommodate all
the devices.)
Use the screws provided.
Go to www.casetawireless.com/support for
additional troubleshooting suggestions.
Symptoms Probable cause and action
Light does
not turn on or
in-wall dimmer
LEDs do not
light up.
• Light bulb(s) burned out.
• Breaker is OFF or tripped.
• Light not properly installed.
• Wiring error.
• FASST switch on the dimmer
is in the Off position.
Light does
not respond
to Pico remote
control.
• The dimmer failed to pair
with Pico remote control;
see Pairing the dimmer and
Pico remote control.
• The dimmer is already at the
light level the Pico remote
control is sending.
• The Pico remote control
is outside the 30 ft (9 m)
operating range.
• The Pico remote control
batteries are low.
• The Pico remote control
batteries are installed
incorrectly.
• Bulbs turn off
while being
dimmed.
• Bulbs turn on at
high light level
but do not turn
on at a low
light level.
• Bulbs flicker
or flash when
dimmed to a low
light level.
Verify bulbs are marked
dimmable and visit
www.casetawireless.com/
support/lowend
for information on adjusting
the dimmer for best
bulb performance.
Love CasétaT Wireless dimmers? Have ideas
for making them better? Tell us what you think
and we’ll extend your warranty by 1 year.
www.casetawireless.com/register.
CAUTION
Use only with permanently installed fixtures with
dimmable LED, dimmable CFL, halogen, or
incandescent lamps. To avoid overheating and
possible damage to other equipment, do not use
to control receptacles, motor-driven appliances,
or transformer-supplied appliances.
Codes
Install in accordance with all national and local
electrical codes.
Grounding
When no “grounding means” exist in wallbox, the
National Electrical Code (NEC®) allows a control to
be installed as a replacement if 1) a nonmetallic,
noncombustible faceplate is used with nonmetallic
attachment screws or 2) the circuit is protected by a
ground fault circuit interrupter (GFCI). When installing
a control according to these methods, cap or remove
green wire before screwing control into wallbox.
FCC/IC Information
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) This device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired
operation. Modifications not expressly approved by Lutron Electronics Co.,
Inc. could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warranty
For warranty information, please visit
www.casetawireless.com/warranty.
Lutron, , Claro, and Pico are registered trademarks and FASS
and Caséta are trademarks of Lutron Electronics Co., Inc. NEC is a
registered trademark of the National Fire Protection Association,
Quincy, Massachusetts Google and the Google logo are registered
trademarks of Google Inc., used with permission. Apple is a trademark
of Apple Inc., registered in the U.S. and other countries.
© 2014 Lutron Electronics Co., Inc
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
1
2
1
2
Important note:
Troubleshooting
Important note:
Removing side sections reduces the dimmer’s
maximum wattage rating. See the chart below
for maximum wattage information.
* For maximum wattage information when
mixing light bulb types see
www.casetawireless.com/support/ganging.
Maximum* wattage derating chart
(120 V~ 50/60 Hz)
Side sections
removed None 1 side 2 sides
LED &
CFL 150 W 150 W 150 W
or*
Incandescent &
Halogen 600 W 500 W 400 W
Device Ratings
In-wall dimmer
PD-6WCL
120 V~ 50/60 Hz
LutronR Smart Bridge
L-BDG
5 V- 300 mA
PicoR remote control
PJ2-3BRL
3 V- 10 mA
(1) CR2032 battery
(included)
Power Supply
T-5DC-USB
5 V- 1000 mA
Important notes:
1. For indoor use only
2. Operate between 32 ˚F (0 ˚C) and 104 ˚F (40 ˚C)
P/N 0301715 REV A
Wireless
Lutron®
Smart Bridge
(L-BDG)
Power Supply
(T-5DC-USB) Ethernet Cable
Replacing light
bulbs using FASST
Pull the FASST
switch out on the
in-wall dimmer to
remove power at the
light socket.
On
Off
Darker
Brighter (with raised icon)
FASS™
Front Accessible
Service Switch
In-wall dimmer
Pico® remote control
On
Off
Darker
Favorite
“Brighter”
button with
raised icon
is easy to
find in
the dark
P/N 0301715 REV A
3
Control
your lights
1 Press and hold “off” button on dimmer
2 Press and hold “off” button on remote
The Lutron app will walk you through
setting up your devices.
Download the Lutron® app
www.casetawireless.com/LutronApp
Launch the Lutron® app
Lutron
Search for “Lutron Caseta”
3 Press and hold “off” button on remote
Use the Lutron® app
Add devices
• PicoR remotes
• Dimmers
• Shades
Schedule
your lights
Connect
while away
Lutron
